This document provides an overview of Apache HTTP Server configuration recipes and new features. It discusses solutions for the CVE-2011-3192 vulnerability, using mod_substitute to rewrite content, setting up name-based virtual hosts with SSL and Server Name Indication (SNI), securing mod_dav deployments, and advantages of the new <If> directive in Apache 2.4 for conditional configuration blocks based on request properties. The document encourages users to implement web application firewall rules with mod_security and provides tips for troubleshooting slow PHP scripts.

1. Apache Wizardry
Spells for conjuring your Apache HTTP Server
/ Rich Bowen - rbowen@apache.org

2. Shameless Plug
Buy!
Buy!
Buy!

3. Old Hat ---->
• 1.3 is end of life
• 2.0 will be by the end of
the year
• 2.2 is now
• 2.4 is tomorrow Photo CC by “Lost Albatross” - Flickr

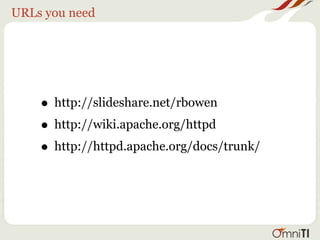

4. URLs you need
• http://slideshare.net/rbowen
• http://wiki.apache.org/httpd
• http://httpd.apache.org/docs/trunk/

5. Recipes
Photo CC by Chemical Heritage Foundation - Flickr

6. CVE-2011-3192 (KillApache)
• Exploits bug in handling of range requests
• Range: requests a byte-range of a
document
• Range: 0-4,10-19,16-22,3-18
• Eg, single pages of a PDF document
• Fixed in 2.2.20 and in trunk

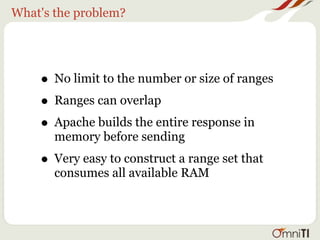

7. What's the problem?
• No limit to the number or size of ranges
• Ranges can overlap
• Apache builds the entire response in
memory before sending
• Very easy to construct a range set that
consumes all available RAM

8. Solutions: Best (2.2)
# Drop the Range header when more than 5 ranges.
# CVE-2011-3192
SetEnvIf Range (,.*?){5,} bad-range=1
RequestHeader unset Range env=bad-range
# optional logging.
CustomLog logs/range-CVE-2011-3192.log
common env=bad-range

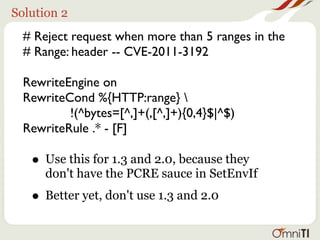

9. Solution 2
# Reject request when more than 5 ranges in the
# Range: header -- CVE-2011-3192
RewriteEngine on
RewriteCond %{HTTP:range}
!(^bytes=[^,]+(,[^,]+){0,4}$|^$)
RewriteRule .* - [F]
• Use this for 1.3 and 2.0, because they
don't have the PCRE sauce in SetEnvIf
• Better yet, don't use 1.3 and 2.0

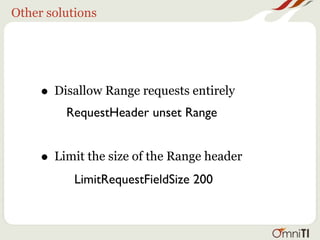

10. Other solutions
• Disallow Range requests entirely
RequestHeader unset Range
• Limit the size of the Range header
LimitRequestFieldSize 200

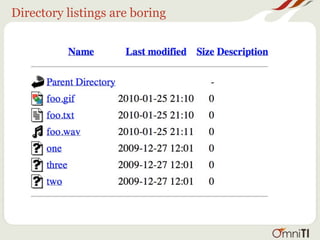

11. Directory listings are boring

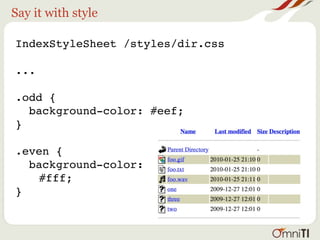

12. Say it with style
IndexStyleSheet /styles/dir.css
...
.odd {
background-color: #eef;
}
.even {
background-color:
#fff;
}

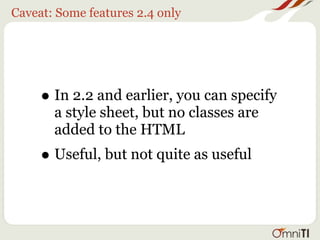

13. Caveat: Some features 2.4 only
• In 2.2 and earlier, you can specify
a style sheet, but no classes are
added to the HTML
• Useful, but not quite as useful

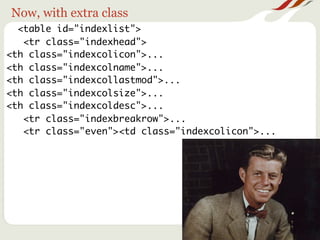

14. Now, with extra class
<table id="indexlist">
<tr class="indexhead">
<th class="indexcolicon">...
<th class="indexcolname">...
<th class="indexcollastmod">...
<th class="indexcolsize">...
<th class="indexcoldesc">...
<tr class="indexbreakrow">...
<tr class="even"><td class="indexcolicon">...

15. An exercise for the reader:
• Nifty mouse-over effects
(JS in HeaderName
file?)
Photo CC by Ugglan - Flickr
• AJAXy file interaction
of some kind?
• Photo gallery, entirely
based on
mod_autoindex and
Javascript?

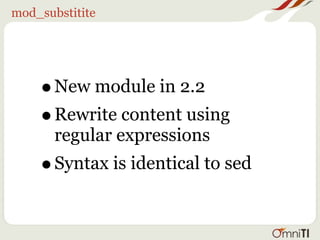

16. mod_substitite
• New module in 2.2
• Rewrite content using
regular expressions
• Syntax is identical to sed

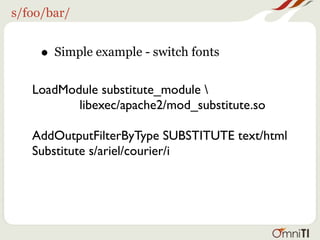

17. s/foo/bar/
• Simple example - switch fonts
LoadModule substitute_module
libexec/apache2/mod_substitute.so
AddOutputFilterByType SUBSTITUTE text/html
Substitute s/ariel/courier/i

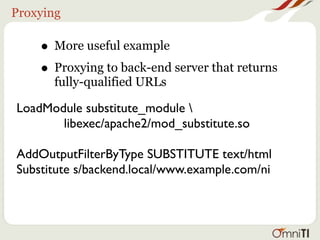

18. Proxying
• More useful example
• Proxying to back-end server that returns
fully-qualified URLs
LoadModule substitute_module
libexec/apache2/mod_substitute.so
AddOutputFilterByType SUBSTITUTE text/html
Substitute s/backend.local/www.example.com/ni

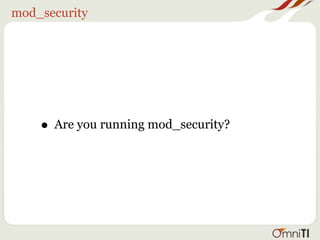

19. mod_security
• Are you running mod_security?

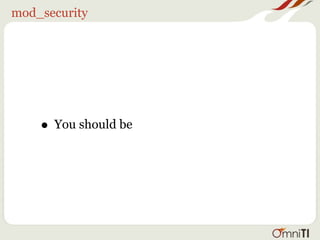

20. mod_security
• You should be

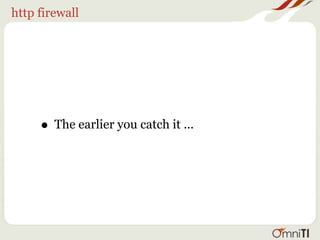

21. http firewall
• The earlier you catch it ...

22. Holes
Photo CC by
Darwin Bell

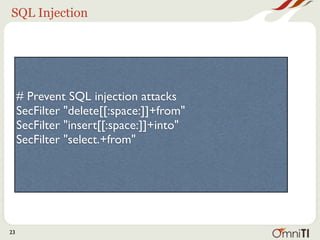

23. SQL Injection
# Prevent SQL injection attacks
SecFilter "delete[[:space:]]+from"
SecFilter "insert[[:space:]]+into"
SecFilter "select.+from"
23

24. Make sure you ...
# Inspect POST payloads
SecFilterScanPOST On
# Default action set
SecFilterDefaultAction "deny,log,status:406"
24

25. While you’re at it
# Inspect POST payloads
SecFilterScanPOST On
SecFilter “vidocin”
25

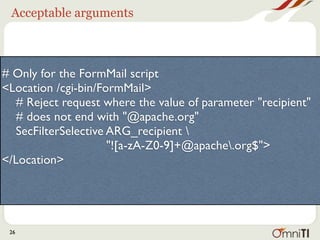

26. Acceptable arguments
# Only for the FormMail script
<Location /cgi-bin/FormMail>
# Reject request where the value of parameter "recipient"
# does not end with "@apache.org"
SecFilterSelective ARG_recipient
"![a-zA-Z0-9]+@apache.org$">
</Location>
26

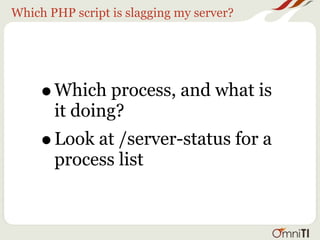

27. Which PHP script is slagging my server?
• Which process, and what is
it doing?
• Look at /server-status for a
process list

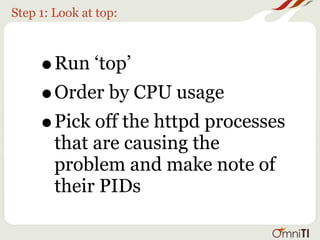

28. Step 1: Look at top:
• Run ‘top’
• Order by CPU usage
• Pick off the httpd processes
that are causing the
problem and make note of
their PIDs

29. Step 2: /server-status
• Look at /server-status
output
• Look for the PIDs you
noted
• Move fast - the process
may be gone already

30. /server-status

31. ExtendedStatus On
• You’ll need “ExtendedStatus On”
to get these details:
<Location /server-status>
SetHandler server-status
</Location>
ExtendedStatus On

32. SNI
• General knowledge: SSL
requires one certificate per IP
address
• That is, only one SSL site can
be on each IP address
• Limitation of SSL itself

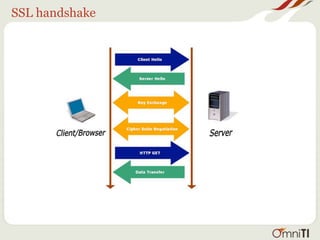

33. SSL handshake

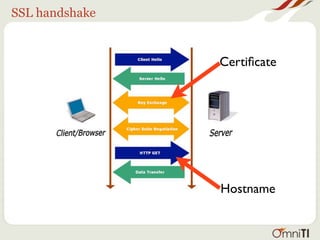

34. SSL handshake
Certificate
Hostname

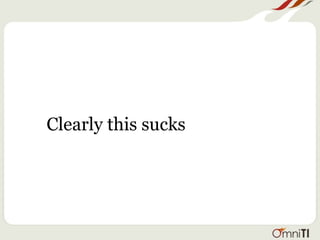

35. Clearly this sucks

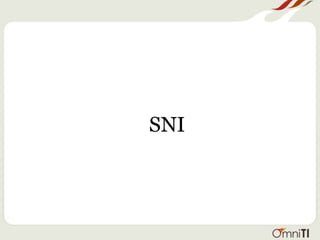

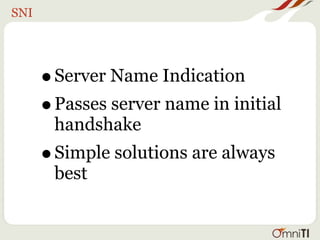

36. SNI

37. SNI
• Server Name Indication
• Passes server name in initial
handshake
• Simple solutions are always
best

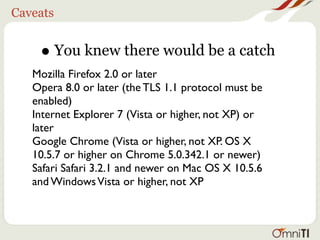

38. Caveats
• You knew there would be a catch
Mozilla Firefox 2.0 or later
Opera 8.0 or later (the TLS 1.1 protocol must be
enabled)
Internet Explorer 7 (Vista or higher, not XP) or
later
Google Chrome (Vista or higher, not XP. OS X
10.5.7 or higher on Chrome 5.0.342.1 or newer)
Safari Safari 3.2.1 and newer on Mac OS X 10.5.6
and Windows Vista or higher, not XP

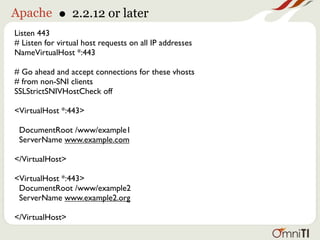

39. Apache • 2.2.12 or later
Listen 443
# Listen for virtual host requests on all IP addresses
NameVirtualHost *:443
# Go ahead and accept connections for these vhosts
# from non-SNI clients
SSLStrictSNIVHostCheck off
<VirtualHost *:443>
DocumentRoot /www/example1
ServerName www.example.com
</VirtualHost>
<VirtualHost *:443>
DocumentRoot /www/example2
ServerName www.example2.org
</VirtualHost>

40. More Info
http://wiki.apache.org/httpd/NameBasedSSLVHostsWithSNI

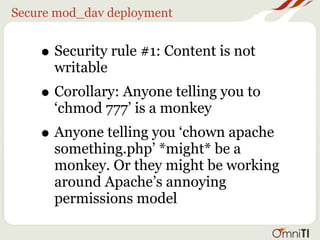

41. Secure mod_dav deployment
• Security rule #1: Content is not
writable
• Corollary: Anyone telling you to
‘chmod 777’ is a monkey
• Anyone telling you ‘chown apache
something.php’ *might* be a
monkey. Or they might be working
around Apache’s annoying
permissions model

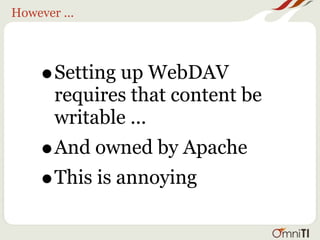

42. However ...
•Setting up WebDAV
requires that content be
writable ...
•And owned by Apache
•This is annoying

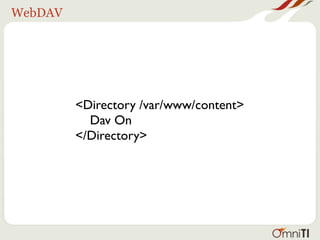

43. WebDAV
<Directory /var/www/content>
Dav On
</Directory>

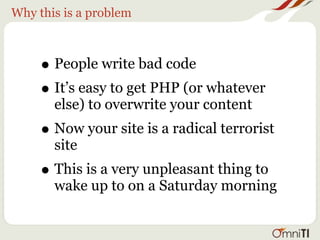

44. Why this is a problem
• People write bad code
• It’s easy to get PHP (or whatever
else) to overwrite your content
• Now your site is a radical terrorist
site
• This is a very unpleasant thing to
wake up to on a Saturday morning

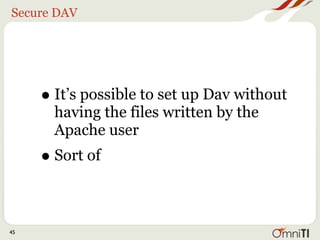

45. Secure DAV
• It’s possible to set up Dav without
having the files written by the
Apache user
• Sort of
45

46. Two Apache Processes
Primary Secondary
server, server,
running as running as
user www user dav
File System,
owned by dav
46

47. Two Apache Processes
Read-only
Running ordinary set of modules
Running web apps, etc
Primary
server,
running as
user www
File System,
owned by dav
47

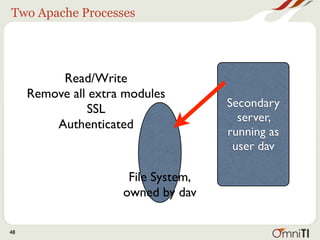

48. Two Apache Processes
Read/Write
Remove all extra modules
SSL Secondary
server,
Authenticated
running as
user dav
File System,
owned by dav
48

49. Multi-server config.
drwxr-xr-x 2 dav dav 68 Oct 3 12:41 /var/www
1
Listen *:80
User www
Group www
DocumentRoot /var/www/
Listen *:8080 2
DavLockDb /var/lock/dav
User dav
Group dav
DocumentRoot /var/www/
49

50. drwxr-xr-x 2 dav dav 68 Oct 3 12:41 /var/www
1
Listen *:80 Can write
User www
Group www
DocumentRoot /var/www/
Listen *:8080 2
DavLockDb /var/lock/dav
User dav
Group dav
DocumentRoot /var/www/
50

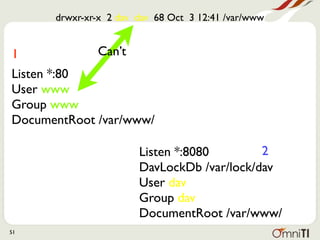

51. drwxr-xr-x 2 dav dav 68 Oct 3 12:41 /var/www
1 Can’t
Listen *:80
User www
Group www
DocumentRoot /var/www/
Listen *:8080 2
DavLockDb /var/lock/dav
User dav
Group dav
DocumentRoot /var/www/
51

52. <If> Picture by BrewBooks (Flickr)
My favorite new feature in 2.4

53. <If>
<If ‘$req{Host} = “www.example.com”’>
RedirectMatch (.*) http://example.com/$1
</If>

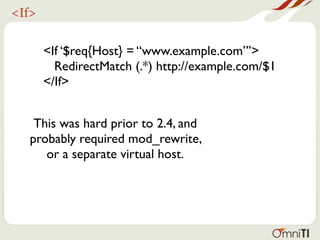

54. <If>
<If ‘$req{Host} = “www.example.com”’>
RedirectMatch (.*) http://example.com/$1
</If>
This was hard prior to 2.4, and
probably required mod_rewrite,
or a separate virtual host.

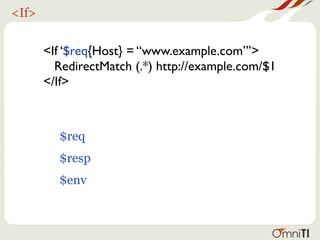

55. <If>
<If ‘$req{Host} = “www.example.com”’>
RedirectMatch (.*) http://example.com/$1
</If>
$req
$resp
$env

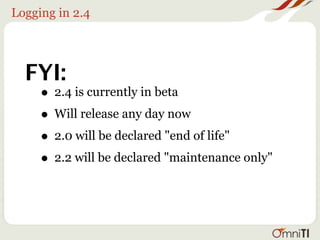

56. Logging in 2.4
FYI:
• 2.4 is currently in beta
• Will release any day now
• 2.0 will be declared "end of life"
• 2.2 will be declared "maintenance only"

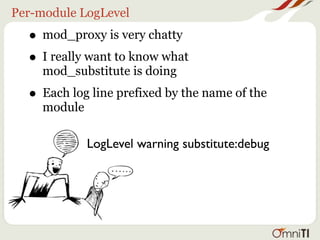

57. Per-module LogLevel
• mod_proxy is very chatty
• I really want to know what
mod_substitute is doing
• Each log line prefixed by the name of the
module
LogLevel warning substitute:debug

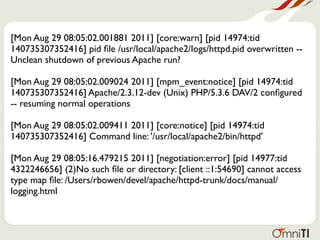

58. [Mon Aug 29 08:05:02.001881 2011] [core:warn] [pid 14974:tid
140735307352416] pid file /usr/local/apache2/logs/httpd.pid overwritten --
Unclean shutdown of previous Apache run?
[Mon Aug 29 08:05:02.009024 2011] [mpm_event:notice] [pid 14974:tid
140735307352416] Apache/2.3.12-dev (Unix) PHP/5.3.6 DAV/2 configured
-- resuming normal operations
[Mon Aug 29 08:05:02.009411 2011] [core:notice] [pid 14974:tid
140735307352416] Command line: '/usr/local/apache2/bin/httpd'
[Mon Aug 29 08:05:16.479215 2011] [negotiation:error] [pid 14977:tid
4322246656] (2)No such file or directory: [client ::1:54690] cannot access
type map file: /Users/rbowen/devel/apache/httpd-trunk/docs/manual/
logging.html

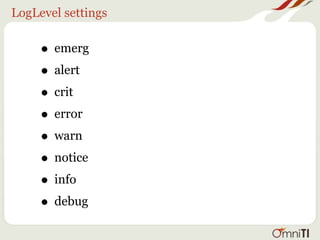

59. LogLevel settings
• emerg
• alert
• crit
• error
• warn
• notice
• info
• debug

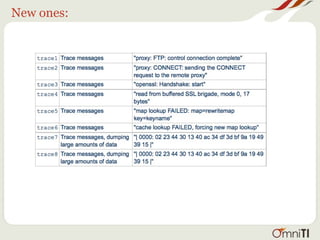

60. New ones:

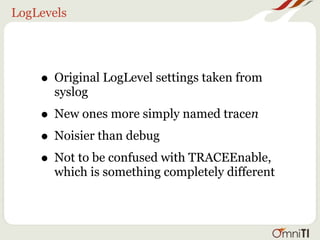

61. LogLevels
• Original LogLevel settings taken from
syslog
• New ones more simply named tracen
• Noisier than debug
• Not to be confused with TRACEEnable,
which is something completely different

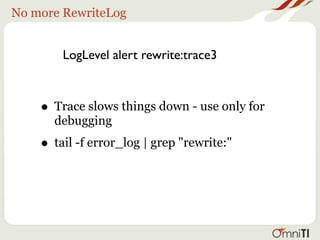

62. No more RewriteLog
LogLevel alert rewrite:trace3
• Trace slows things down - use only for
debugging
• tail -f error_log | grep "rewrite:"

63. Configurable
• Error log format is configurable, like the
access log
ErrorLogFormat
"[%t] [%l] [pid %P] %F: %E: [client %a] %M"

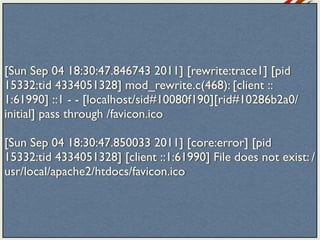

64. [Sun Sep 04 18:30:47.846743 2011] [rewrite:trace1] [pid
15332:tid 4334051328] mod_rewrite.c(468): [client ::
1:61990] ::1 - - [localhost/sid#10080f190][rid#10286b2a0/
initial] pass through /favicon.ico
[Sun Sep 04 18:30:47.850033 2011] [core:error] [pid
15332:tid 4334051328] [client ::1:61990] File does not exist: /
usr/local/apache2/htdocs/favicon.ico

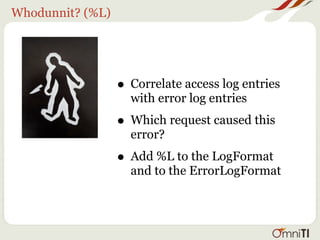

65. Whodunnit? (%L)
• Correlate access log entries
with error log entries
• Which request caused this
error?
• Add %L to the LogFormat
and to the ErrorLogFormat

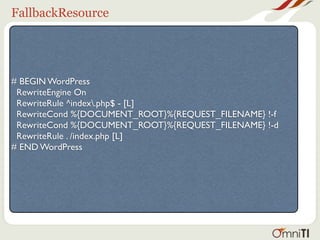

66. FallbackResource
# BEGIN WordPress
RewriteEngine On
RewriteRule ^index.php$ - [L]
RewriteCond %{DOCUMENT_ROOT}%{REQUEST_FILENAME} !-f
RewriteCond %{DOCUMENT_ROOT}%{REQUEST_FILENAME} !-d
RewriteRule . /index.php [L]
# END WordPress

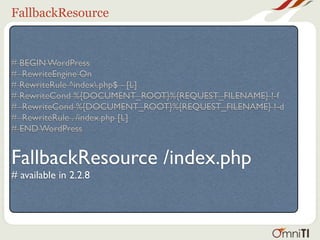

67. FallbackResource
# BEGIN WordPress
# RewriteEngine On
# RewriteRule ^index.php$ - [L]
# RewriteCond %{DOCUMENT_ROOT}%{REQUEST_FILENAME} !-f
# RewriteCond %{DOCUMENT_ROOT}%{REQUEST_FILENAME} !-d
# RewriteRule . /index.php [L]
# END WordPress
FallbackResource /index.php
# available in 2.2.8

68. Logging - Conditional Logging
• Don’t log certain things
• Per-directory logging
68

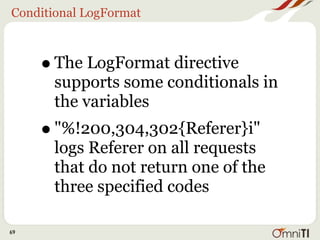

69. Conditional LogFormat
• The LogFormat directive
supports some conditionals in
the variables
• "%!200,304,302{Referer}i"
logs Referer on all requests
that do not return one of the
three specified codes
69

70. Conditional LogFormat
• "%400,501{User-agent}i" logs
User-agent on 400 errors and
501 errors only
• For other status codes, the
literal string "-" will be logged
70

71. Conditional CustomLog
• Stick Env=xyz on the end
• or Env=!xyz
• Yes, that’s =! not !=
71

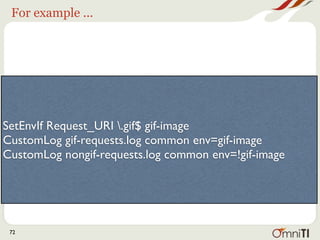

72. For example ...
SetEnvIf Request_URI .gif$ gif-image
CustomLog gif-requests.log common env=gif-image
CustomLog nongif-requests.log common env=!gif-image
72

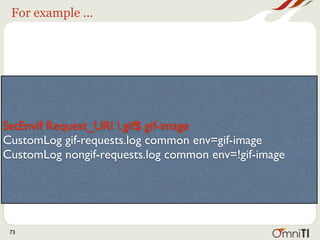

73. For example ...
SetEnvIf Request_URI .gif$ gif-image
CustomLog gif-requests.log common env=gif-image
CustomLog nongif-requests.log common env=!gif-image
73

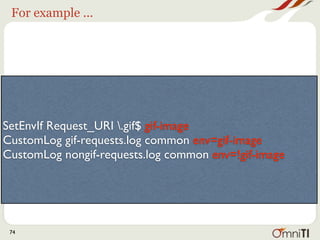

74. For example ...
SetEnvIf Request_URI .gif$ gif-image
CustomLog gif-requests.log common env=gif-image
CustomLog nongif-requests.log common env=!gif-image
74

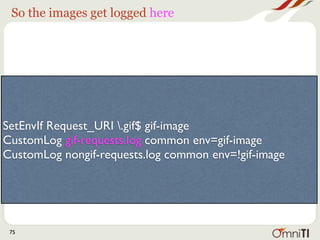

75. So the images get logged here
SetEnvIf Request_URI .gif$ gif-image
CustomLog gif-requests.log common env=gif-image
CustomLog nongif-requests.log common env=!gif-image
75

76. And everything else goes here
SetEnvIf Request_URI .gif$ gif-image
CustomLog gif-requests.log common env=gif-image
CustomLog nongif-requests.log common env=!gif-image
76

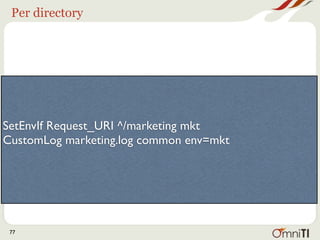

77. Per directory
SetEnvIf Request_URI ^/marketing mkt
CustomLog marketing.log common env=mkt
77

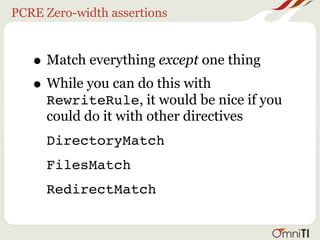

78. PCRE Zero-width assertions
• Match everything except one thing
• While you can do this with
RewriteRule, it would be nice if you
could do it with other directives
DirectoryMatch
FilesMatch
RedirectMatch

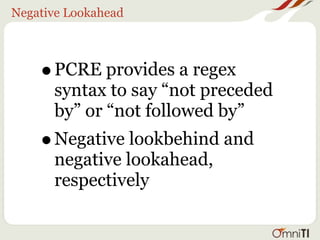

79. Negative Lookahead
• PCRE provides a regex
syntax to say “not preceded
by” or “not followed by”
• Negative lookbehind and
negative lookahead,
respectively

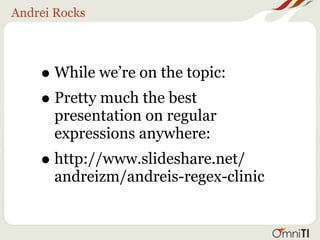

80. Andrei Rocks
• While we’re on the topic:
• Pretty much the best
presentation on regular
expressions anywhere:
• http://www.slideshare.net/
andreizm/andreis-regex-clinic

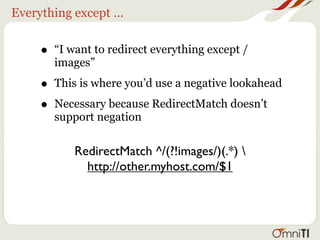

81. Everything except ...
• “I want to redirect everything except /
images”
• This is where you’d use a negative lookahead
• Necessary because RedirectMatch doesn’t
support negation
RedirectMatch ^/(?!images/)(.*)
http://other.myhost.com/$1

82. Everything except ...
• Match anything ...
•
RedirectMatch ^/(?!images/)(.*)
http://other.myhost.com/$1

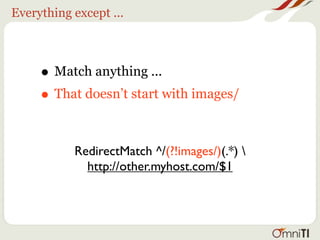

83. Everything except ...
• Match anything ...
• That doesn’t start with images/
RedirectMatch ^/(?!images/)(.*)
http://other.myhost.com/$1

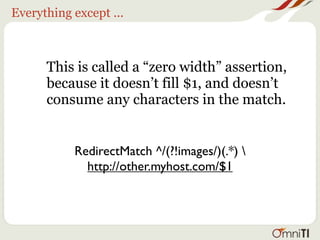

84. Everything except ...
This is called a “zero width” assertion,
because it doesn’t fill $1, and doesn’t
consume any characters in the match.
RedirectMatch ^/(?!images/)(.*)
http://other.myhost.com/$1

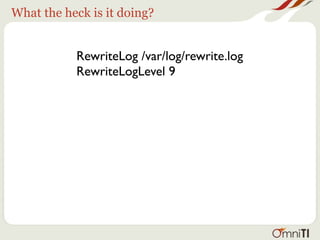

86. What the heck is it doing?
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9

87. What the heck is it doing?
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
• Alas, not in .htaccess
• Logs are always opened at startup

88. What the heck is it doing?
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
• Most entries between 1-4

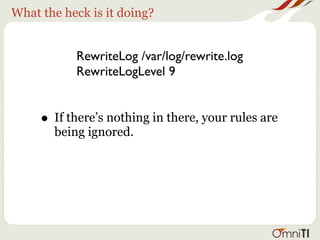

89. What the heck is it doing?
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
• If there’s nothing in there, your rules are
being ignored.

90. Logging - RewriteLog
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
90

91. Logging - RewriteLog
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
91

92. Logging - RewriteLog
RewriteLog /var/log/rewrite.log
RewriteLogLevel 9
92

93. 93

94. Kind of intimidating, isn’t it?
94

95. Learn to ignore the irrelevant bits
95

96. Which bits are those?
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
96

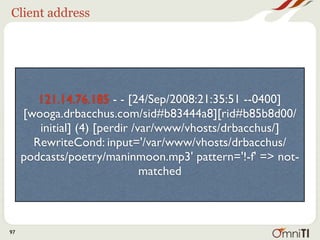

97. Client address
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
97

98. Dunno what those are
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
98

99. Time
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
99

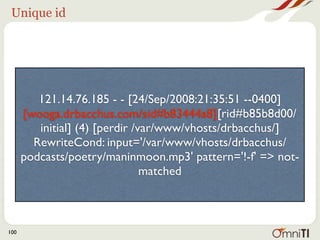

100. Unique id
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
100

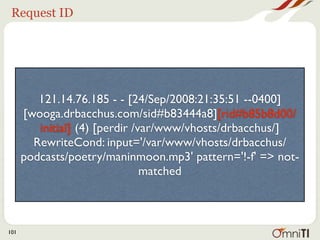

101. Request ID
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
101

102. The useful bit
121.14.76.185 - - [24/Sep/2008:21:35:51 --0400]
[wooga.drbacchus.com/sid#b83444a8][rid#b85b8d00/
initial] (4) [perdir /var/www/vhosts/drbacchus/]
RewriteCond: input='/var/www/vhosts/drbacchus/
podcasts/poetry/maninmoon.mp3' pattern='!-f' => not-
matched
102

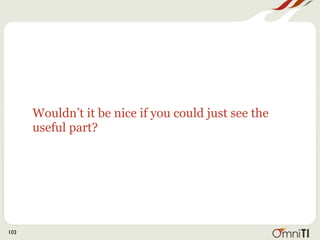

103. Wouldn’t it be nice if you could just see the
useful part?
103

104. You could change the way mod_rewrite logs:

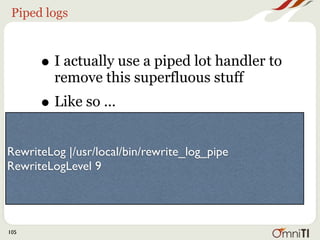

105. Piped logs
• I actually use a piped lot handler to
remove this superfluous stuff
• Like so ...
RewriteLog |/usr/local/bin/rewrite_log_pipe
RewriteLogLevel 9
105

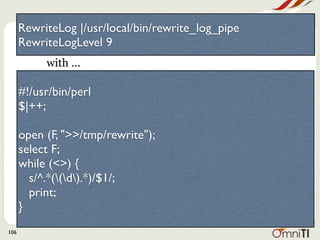

106. RewriteLog |/usr/local/bin/rewrite_log_pipe
RewriteLogLevel 9
with ...
#!/usr/bin/perl
$|++;
open (F, ">>/tmp/rewrite");
select F;
while (<>) {
s/^.*((d).*)/$1/;
print;
}
106

107. RewriteLog |/usr/local/bin/rewrite_log_pipe
RewriteLogLevel 9
This bit says “instead of logging to a text
file, invoke this script and send the log
entries there.”
107

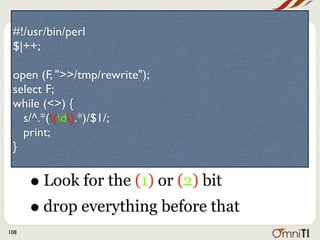

108. #!/usr/bin/perl
$|++;
open (F, ">>/tmp/rewrite");
select F;
while (<>) {
s/^.*((d).*)/$1/;
print;
}
• Look for the (1) or (2) bit
• drop everything before that
108

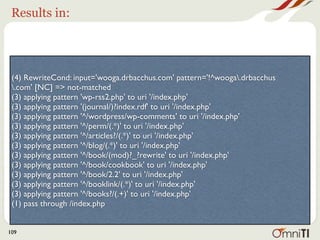

109. Results in:
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
(3) applying pattern 'wp-rss2.php' to uri '/index.php'
(3) applying pattern '(journal/)?index.rdf' to uri '/index.php'
(3) applying pattern '^/wordpress/wp-comments' to uri '/index.php'
(3) applying pattern '^/perm/(.*)' to uri '/index.php'
(3) applying pattern '^/articles?/(.*)' to uri '/index.php'
(3) applying pattern '^/blog/(.*)' to uri '/index.php'
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/index.php'
(3) applying pattern '^/book/cookbook' to uri '/index.php'
(3) applying pattern '^/book/2.2' to uri '/index.php'
(3) applying pattern '^/booklink/(.*)' to uri '/index.php'
(3) applying pattern '^/books?/(.+)' to uri '/index.php'
(1) pass through /index.php
109

110. Results in:
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
(3) applying pattern 'wp-rss2.php' to uri '/index.php'
(3) applying pattern '(journal/)?index.rdf' to uri '/index.php'
(3) applying pattern '^/wordpress/wp-comments' to uri '/index.php'
(3) applying pattern '^/perm/(.*)' to uri '/index.php'
(3) applying pattern '^/articles?/(.*)' to uri '/index.php'
(3) applying pattern '^/blog/(.*)' to uri '/index.php' better?
See? Isn’t that
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/index.php'
(3) applying pattern '^/book/cookbook' to uri '/index.php'
(3) applying pattern '^/book/2.2' to uri '/index.php'
(3) applying pattern '^/booklink/(.*)' to uri '/index.php'
(3) applying pattern '^/books?/(.+)' to uri '/index.php'
(1) pass through /index.php
110

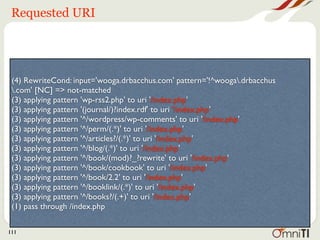

111. Requested URI
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
(3) applying pattern 'wp-rss2.php' to uri '/index.php'
(3) applying pattern '(journal/)?index.rdf' to uri '/index.php'
(3) applying pattern '^/wordpress/wp-comments' to uri '/index.php'
(3) applying pattern '^/perm/(.*)' to uri '/index.php'
(3) applying pattern '^/articles?/(.*)' to uri '/index.php'
(3) applying pattern '^/blog/(.*)' to uri '/index.php'
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/index.php'
(3) applying pattern '^/book/cookbook' to uri '/index.php'
(3) applying pattern '^/book/2.2' to uri '/index.php'
(3) applying pattern '^/booklink/(.*)' to uri '/index.php'
(3) applying pattern '^/books?/(.+)' to uri '/index.php'
(1) pass through /index.php
111

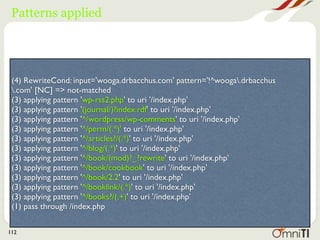

112. Patterns applied
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
(3) applying pattern 'wp-rss2.php' to uri '/index.php'
(3) applying pattern '(journal/)?index.rdf' to uri '/index.php'
(3) applying pattern '^/wordpress/wp-comments' to uri '/index.php'
(3) applying pattern '^/perm/(.*)' to uri '/index.php'
(3) applying pattern '^/articles?/(.*)' to uri '/index.php'
(3) applying pattern '^/blog/(.*)' to uri '/index.php'
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/index.php'
(3) applying pattern '^/book/cookbook' to uri '/index.php'
(3) applying pattern '^/book/2.2' to uri '/index.php'
(3) applying pattern '^/booklink/(.*)' to uri '/index.php'
(3) applying pattern '^/books?/(.+)' to uri '/index.php'
(1) pass through /index.php
112

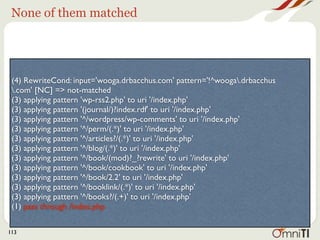

113. None of them matched
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
(3) applying pattern 'wp-rss2.php' to uri '/index.php'
(3) applying pattern '(journal/)?index.rdf' to uri '/index.php'
(3) applying pattern '^/wordpress/wp-comments' to uri '/index.php'
(3) applying pattern '^/perm/(.*)' to uri '/index.php'
(3) applying pattern '^/articles?/(.*)' to uri '/index.php'
(3) applying pattern '^/blog/(.*)' to uri '/index.php'
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/index.php'
(3) applying pattern '^/book/cookbook' to uri '/index.php'
(3) applying pattern '^/book/2.2' to uri '/index.php'
(3) applying pattern '^/booklink/(.*)' to uri '/index.php'
(3) applying pattern '^/books?/(.+)' to uri '/index.php'
(1) pass through /index.php
113

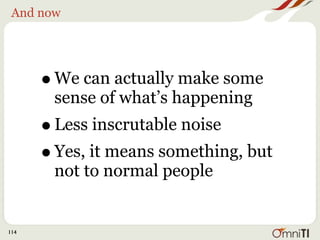

114. And now
• We can actually make some
sense of what’s happening
• Less inscrutable noise
• Yes, it means something, but
not to normal people
114

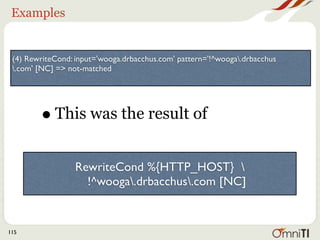

115. Examples
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
• This was the result of
RewriteCond %{HTTP_HOST}
!^wooga.drbacchus.com [NC]
115

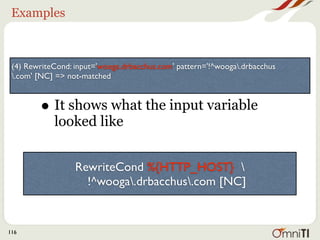

116. Examples
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
• It shows what the input variable
looked like
RewriteCond %{HTTP_HOST}
!^wooga.drbacchus.com [NC]
116

117. Examples
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
• And what pattern was applied
RewriteCond %{HTTP_HOST}
!^wooga.drbacchus.com [NC]
117

118. Examples
(4) RewriteCond: input='wooga.drbacchus.com' pattern='!^wooga.drbacchus
.com' [NC] => not-matched
• As well as what happened
RewriteCond %{HTTP_HOST}
!^wooga.drbacchus.com [NC]
118

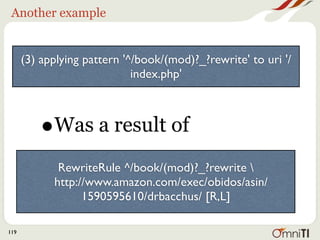

119. Another example
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/
index.php'
• Was a result of
RewriteRule ^/book/(mod)?_?rewrite
http://www.amazon.com/exec/obidos/asin/
1590595610/drbacchus/ [R,L]
119

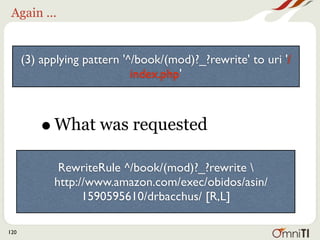

120. Again ...
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/
index.php'
• What was requested
RewriteRule ^/book/(mod)?_?rewrite
http://www.amazon.com/exec/obidos/asin/
1590595610/drbacchus/ [R,L]
120

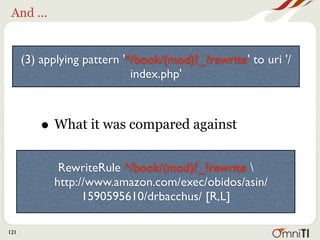

121. And ...
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/
index.php'
• What it was compared against
RewriteRule ^/book/(mod)?_?rewrite
http://www.amazon.com/exec/obidos/asin/
1590595610/drbacchus/ [R,L]
121

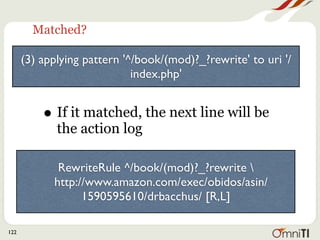

122. Matched?
(3) applying pattern '^/book/(mod)?_?rewrite' to uri '/
index.php'
• If it matched, the next line will be
the action log
RewriteRule ^/book/(mod)?_?rewrite
http://www.amazon.com/exec/obidos/asin/
1590595610/drbacchus/ [R,L]
122

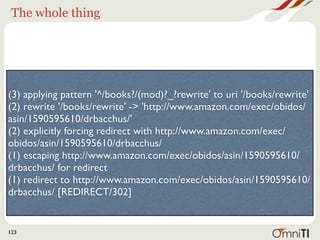

123. The whole thing
(3) applying pattern '^/books?/(mod)?_?rewrite' to uri '/books/rewrite'
(2) rewrite '/books/rewrite' -> 'http://www.amazon.com/exec/obidos/
asin/1590595610/drbacchus/'
(2) explicitly forcing redirect with http://www.amazon.com/exec/
obidos/asin/1590595610/drbacchus/
(1) escaping http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ for redirect
(1) redirect to http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ [REDIRECT/302]
123

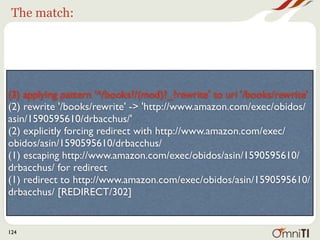

124. The match:
(3) applying pattern '^/books?/(mod)?_?rewrite' to uri '/books/rewrite'
(2) rewrite '/books/rewrite' -> 'http://www.amazon.com/exec/obidos/
asin/1590595610/drbacchus/'
(2) explicitly forcing redirect with http://www.amazon.com/exec/
obidos/asin/1590595610/drbacchus/
(1) escaping http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ for redirect
(1) redirect to http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ [REDIRECT/302]
124

125. Followed by
(3) applying pattern '^/books?/(mod)?_?rewrite' to uri '/books/rewrite'
(2) rewrite '/books/rewrite' -> 'http://www.amazon.com/exec/obidos/
asin/1590595610/drbacchus/'
(2) explicitly forcing redirect with http://www.amazon.com/exec/
obidos/asin/1590595610/drbacchus/
(1) escaping http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ for redirect
(1) redirect to http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ [REDIRECT/302]
125

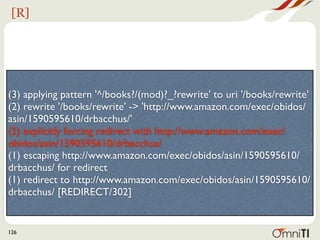

126. [R]
(3) applying pattern '^/books?/(mod)?_?rewrite' to uri '/books/rewrite'
(2) rewrite '/books/rewrite' -> 'http://www.amazon.com/exec/obidos/
asin/1590595610/drbacchus/'
(2) explicitly forcing redirect with http://www.amazon.com/exec/
obidos/asin/1590595610/drbacchus/
(1) escaping http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ for redirect
(1) redirect to http://www.amazon.com/exec/obidos/asin/1590595610/
drbacchus/ [REDIRECT/302]
126

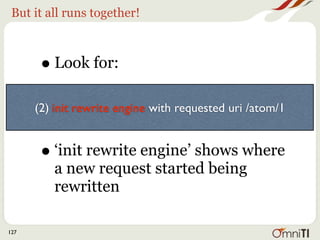

127. But it all runs together!
• Look for:
•
(2) init rewrite engine with requested uri /atom/1
• ‘init rewrite engine’ shows where
a new request started being
rewritten
127

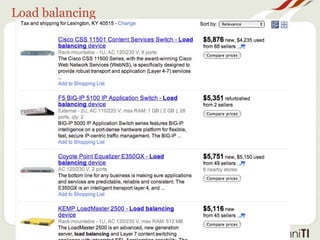

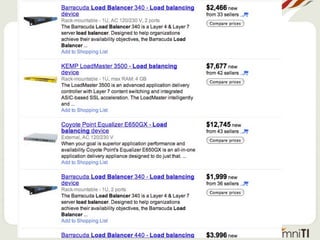

129. Load balancing

131. Fortunately ...
Photo CC by Camo53 (flickr)
• mod_proxy_balancer
• Added in 2.1

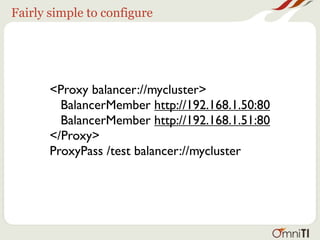

132. Fairly simple to configure
<Proxy balancer://mycluster>
BalancerMember http://192.168.1.50:80
BalancerMember http://192.168.1.51:80
</Proxy>
ProxyPass /test balancer://mycluster

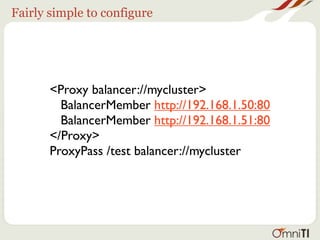

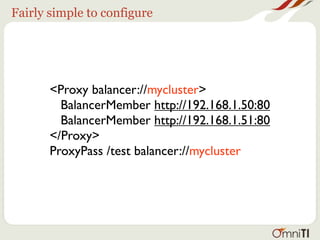

133. Fairly simple to configure
<Proxy balancer://mycluster>
BalancerMember http://192.168.1.50:80
BalancerMember http://192.168.1.51:80
</Proxy>
ProxyPass /test balancer://mycluster

134. Fairly simple to configure
<Proxy balancer://mycluster>
BalancerMember http://192.168.1.50:80
BalancerMember http://192.168.1.51:80
</Proxy>
ProxyPass /test balancer://mycluster

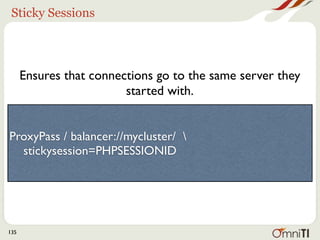

135. Sticky Sessions
Ensures that connections go to the same server they
started with.
ProxyPass / balancer://mycluster/
stickysession=PHPSESSIONID
135

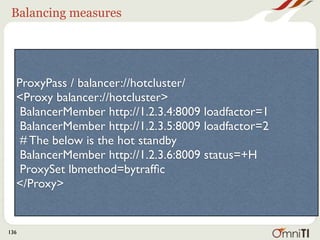

136. Balancing measures
ProxyPass / balancer://hotcluster/
<Proxy balancer://hotcluster>
BalancerMember http://1.2.3.4:8009 loadfactor=1
BalancerMember http://1.2.3.5:8009 loadfactor=2
# The below is the hot standby
BalancerMember http://1.2.3.6:8009 status=+H
ProxySet lbmethod=bytraffic
</Proxy>
136

137. 1.2.3.5 gets twice the traffic
ProxyPass / balancer://hotcluster/
<Proxy balancer://hotcluster>
BalancerMember http://1.2.3.4:8009 loadfactor=1
BalancerMember http://1.2.3.5:8009 loadfactor=2
# The below is the hot standby
BalancerMember http://1.2.3.6:8009 status=+H
ProxySet lbmethod=bytraffic
</Proxy>
137

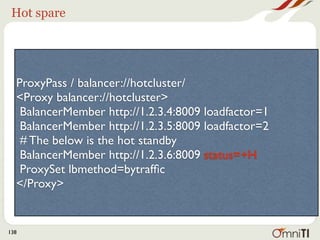

138. Hot spare
ProxyPass / balancer://hotcluster/
<Proxy balancer://hotcluster>
BalancerMember http://1.2.3.4:8009 loadfactor=1
BalancerMember http://1.2.3.5:8009 loadfactor=2
# The below is the hot standby
BalancerMember http://1.2.3.6:8009 status=+H
ProxySet lbmethod=bytraffic
</Proxy>
138

139. bytraffic or byrequests
ProxyPass / balancer://hotcluster/
<Proxy balancer://hotcluster>
BalancerMember http://1.2.3.4:8009 loadfactor=1
BalancerMember http://1.2.3.5:8009 loadfactor=2
# The below is the hot standby
BalancerMember http://1.2.3.6:8009 status=+H
ProxySet lbmethod=bytraffic
</Proxy>
139

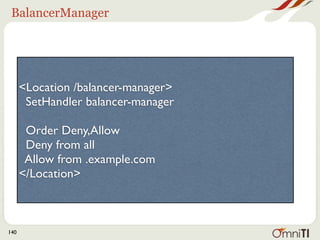

140. BalancerManager
<Location /balancer-manager>
SetHandler balancer-manager
Order Deny,Allow
Deny from all
Allow from .example.com
</Location>
140

141. 141

142. Disable a
particular host
142

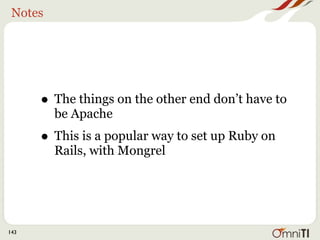

143. Notes
• The things on the other end don’t have to
be Apache
• This is a popular way to set up Ruby on
Rails, with Mongrel
143

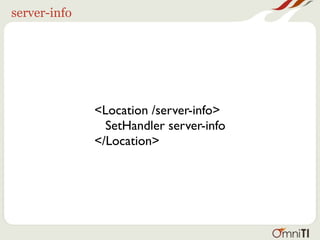

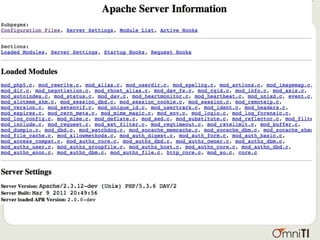

144. server-info
<Location /server-info>
SetHandler server-info
</Location>

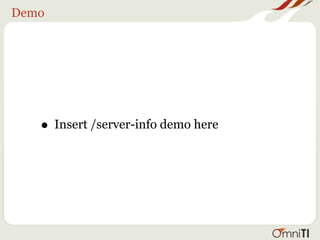

147. Demo
• Insert /server-info demo here

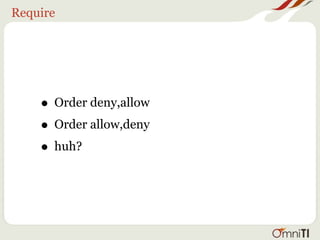

148. Require
• Order deny,allow
• Order allow,deny
• huh?

149. Require

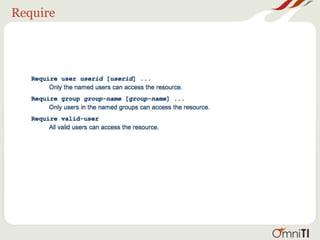

150. Require

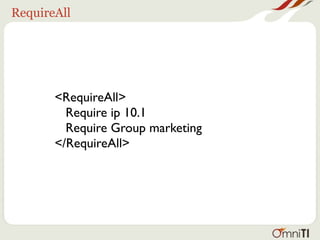

151. RequireAll
<RequireAll>
Require ip 10.1
Require Group marketing
</RequireAll>

152. RequireAny
<RequireAny>
Require ip 10.1
Require Group marketing
</RequireAny>

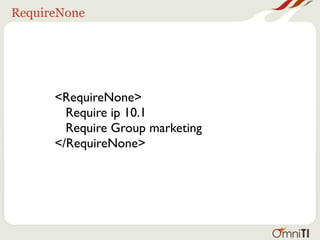

153. RequireNone
<RequireNone>
Require ip 10.1
Require Group marketing
</RequireNone>

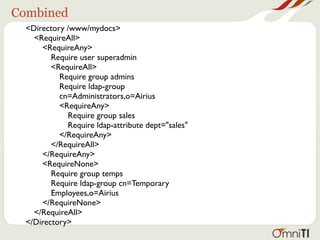

154. Combined
<Directory /www/mydocs>
<RequireAll>
<RequireAny>
Require user superadmin
<RequireAll>
Require group admins
Require ldap-group
cn=Administrators,o=Airius
<RequireAny>
Require group sales
Require ldap-attribute dept="sales"
</RequireAny>
</RequireAll>
</RequireAny>
<RequireNone>
Require group temps
Require ldap-group cn=Temporary
Employees,o=Airius
</RequireNone>
</RequireAll>
</Directory>

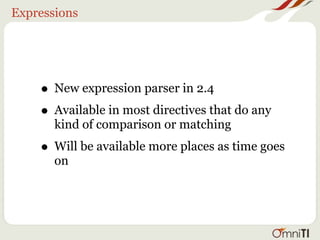

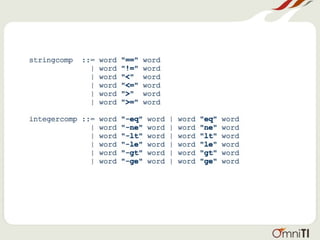

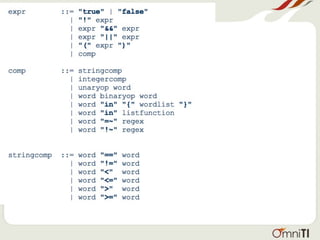

155. Expressions
• New expression parser in 2.4
• Available in most directives that do any
kind of comparison or matching
• Will be available more places as time goes
on

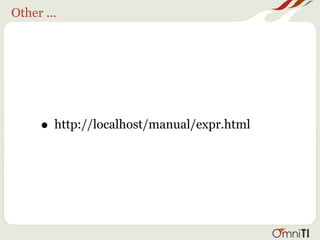

160. Other ...
• http://localhost/manual/expr.html

161. Bandwidth limiting
Picture by Joachim S. Müller (Flickr)
People always want their websites to run
slower. Seems odd to me ...

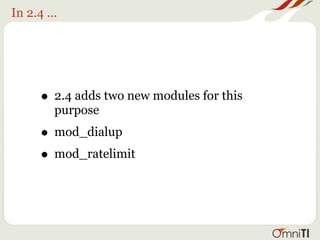

162. In 2.4 ...
• 2.4 adds two new modules for this
purpose
• mod_dialup
• mod_ratelimit

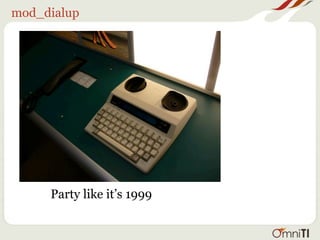

163. mod_dialup
Party like it’s 1999

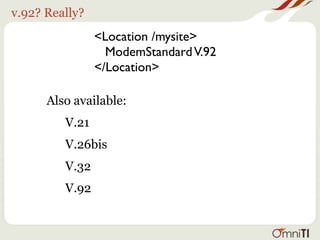

164. v.92? Really?
<Location /mysite>
ModemStandard V.92
</Location>
Also available:
V.21
V.26bis
V.32
V.92

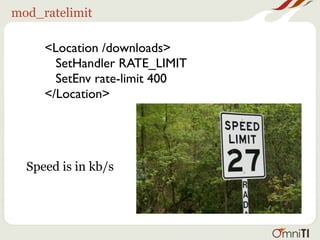

165. mod_ratelimit
<Location /downloads>
SetHandler RATE_LIMIT
SetEnv rate-limit 400
</Location>
Speed is in kb/s

166. Prior to 2.4
A variety of other modules do bandwidth
kind of things:
mod_cband
mod_bwshare
mod_bw
mod_evasive
mod_limitipconn

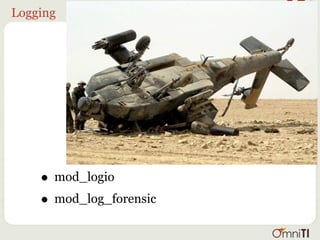

167. Logging
• mod_logio
• mod_log_forensic

168. Obligatory ridiculous log photo
Photo by Zevotron (Flickr)

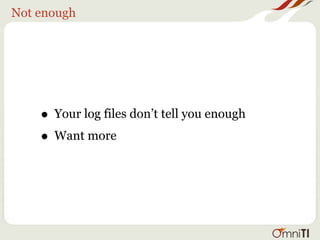

169. Not enough
• Your log files don’t tell you enough
• Want more

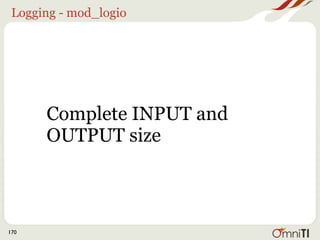

170. Logging - mod_logio
Complete INPUT and
OUTPUT size
170

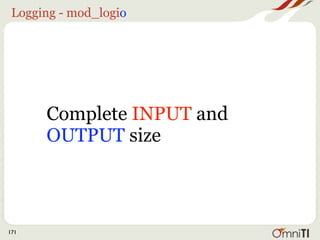

171. Logging - mod_logio
Complete INPUT and
OUTPUT size
171

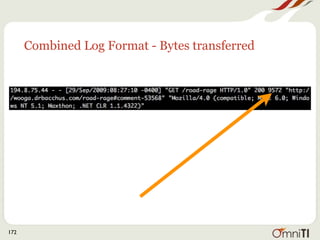

172. Combined Log Format - Bytes transferred
172

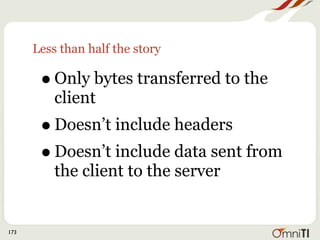

173. Less than half the story
• Only bytes transferred to the
client
• Doesn’t include headers
• Doesn’t include data sent from
the client to the server
173

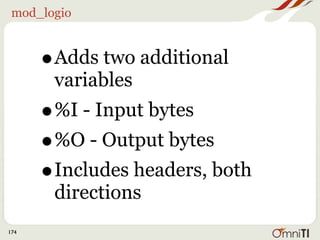

174. mod_logio
•Adds two additional
variables
•%I - Input bytes
•%O - Output bytes
•Includes headers, both
directions
174

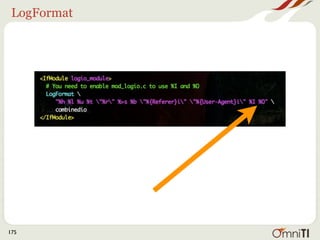

175. LogFormat
175

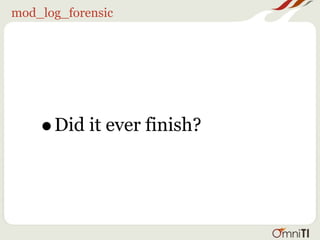

176. mod_log_forensic
• Did it ever finish?

177. ForensicLog
ForensicLog /var/log/httpd/forensic.log
+TlvWvsCoyKYAAAPmBy8AAABG|GET /manual/images/feather.gif HTTP/1.1|Host:localhost|
Connection:keep-alive|Referer:http%3a//localhost/manual/|User-Agent:Mozilla/5.0 (Macintosh; Intel
Mac OS X 10_7_1) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/13.0.782.215 Safari/535.1|
Accept:*/*|Accept-Encoding:gzip,deflate,sdch|Accept-Language:en-US,en;q=0.8,de;q=0.6|Accept-
Charset:ISO-8859-1,utf-8;q=0.7,*;q=0.3
+TlvWvsCoyKYAAAPmBzAAAABB|GET /manual/style/css/manual.css HTTP/1.1|Host:localhost|
Connection:keep-alive|Referer:http%3a//localhost/manual/|User-Agent:Mozilla/5.0 (Macintosh; Intel
Mac OS X 10_7_1) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/13.0.782.215 Safari/535.1|
Accept:text/css,*/*;q=0.1|Accept-Encoding:gzip,deflate,sdch|Accept-Language:en-
US,en;q=0.8,de;q=0.6|Accept-Charset:ISO-8859-1,utf-8;q=0.7,*;q=0.3
+TlvWvsCoyKYAAAPmBzEAAABI|GET /manual/images/left.gif HTTP/1.1|Host:localhost|
Connection:keep-alive|Referer:http%3a//localhost/manual/|User-Agent:Mozilla/5.0 (Macintosh; Intel
Mac OS X 10_7_1) AppleWebKit/535.1 (KHTML, like Gecko) Chrome/13.0.782.215 Safari/535.1|
Accept:*/*|Accept-Encoding:gzip,deflate,sdch|Accept-Language:en-US,en;q=0.8,de;q=0.6|Accept-
Charset:ISO-8859-1,utf-8;q=0.7,*;q=0.3
-TlvWvsCoyKYAAAPmBy8AAABG
-TlvWvsCoyKYAAAPmBzAAAABB
-TlvWvsCoyKYAAAPmBzEAAABI

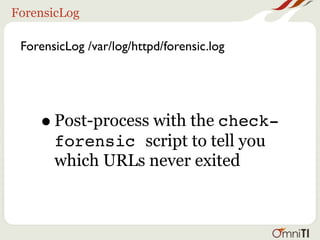

178. ForensicLog
ForensicLog /var/log/httpd/forensic.log
• Post-process with the check-
forensic script to tell you
which URLs never exited

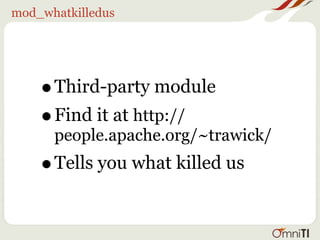

179. mod_whatkilledus
• Third-party module
• people.apache.org/~trawick/
Find it at http://
• Tells you what killed us

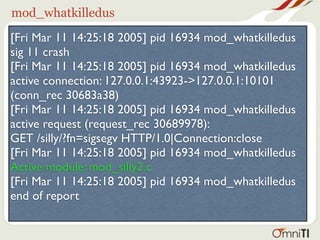

180. mod_whatkilledus
[Fri Mar 11 14:25:18 2005] pid 16934 mod_whatkilledus
sig 11 crash
[Fri Mar 11 14:25:18 2005] pid 16934 mod_whatkilledus
active connection: 127.0.0.1:43923->127.0.0.1:10101
(conn_rec 30683a38)
[Fri Mar 11 14:25:18 2005] pid 16934 mod_whatkilledus
active request (request_rec 30689978):
GET /silly/?fn=sigsegv HTTP/1.0|Connection:close
[Fri Mar 11 14:25:18 2005] pid 16934 mod_whatkilledus
Active module: mod_silly2.c
[Fri Mar 11 14:25:18 2005] pid 16934 mod_whatkilledus
end of report

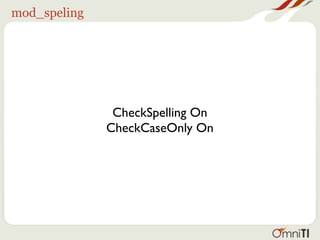

181. mod_speling
CheckSpelling On
CheckCaseOnly On

182. Image Theft
• <img src="http://your.site.com/
cool_picture.jpg">

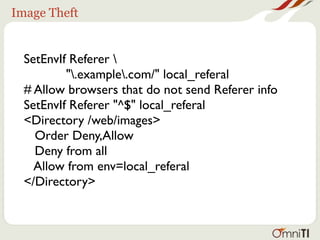

183. Image Theft
SetEnvIf Referer
".example.com/" local_referal
# Allow browsers that do not send Referer info
SetEnvIf Referer "^$" local_referal
<Directory /web/images>
Order Deny,Allow
Deny from all
Allow from env=local_referal
</Directory>

184. Or ...
RewriteEngine on
RewriteCond %{HTTP_REFERER} !=""
RewriteCond %{HTTP_REFERER} !example.com [NC]
RewriteRule .(jpe?g|gif|png)$ - [F,NC]

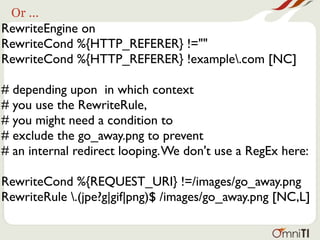

185. Or ...
RewriteEngine on
RewriteCond %{HTTP_REFERER} !=""
RewriteCond %{HTTP_REFERER} !example.com [NC]
# depending upon in which context
# you use the RewriteRule,
# you might need a condition to
# exclude the go_away.png to prevent
# an internal redirect looping. We don't use a RegEx here:
RewriteCond %{REQUEST_URI} !=/images/go_away.png
RewriteRule .(jpe?g|gif|png)$ /images/go_away.png [NC,L]

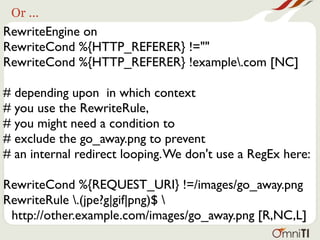

186. Or ...
RewriteEngine on
RewriteCond %{HTTP_REFERER} !=""
RewriteCond %{HTTP_REFERER} !example.com [NC]
# depending upon in which context
# you use the RewriteRule,
# you might need a condition to
# exclude the go_away.png to prevent
# an internal redirect looping. We don't use a RegEx here:
RewriteCond %{REQUEST_URI} !=/images/go_away.png
RewriteRule .(jpe?g|gif|png)$
http://other.example.com/images/go_away.png [R,NC,L]

187. Or ...
In 2.4:
<Location /images>
<If "$req{Referer} !~ /mysite.com/">
Require all denied
</If>
</Location>

188. Query Strings and Path Info

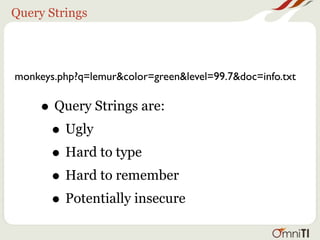

189. Query Strings
monkeys.php?q=lemur&color=green&level=99.7&doc=info.txt
• Query Strings are:
• Ugly
• Hard to type
• Hard to remember
• Potentially insecure

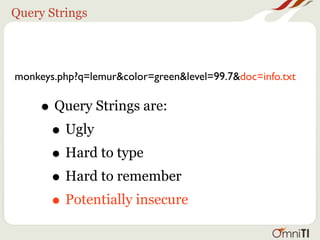

190. Query Strings
monkeys.php?q=lemur&color=green&level=99.7&doc=info.txt
• Query Strings are:
• Ugly
• Hard to type
• Hard to remember
• Potentially insecure

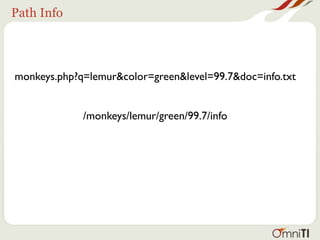

191. Path Info
monkeys.php?q=lemur&color=green&level=99.7&doc=info.txt
/monkeys/lemur/green/99.7/info

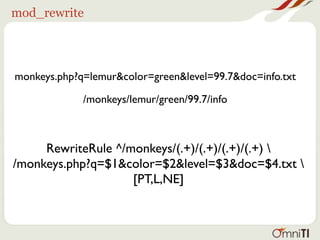

192. mod_rewrite
monkeys.php?q=lemur&color=green&level=99.7&doc=info.txt
/monkeys/lemur/green/99.7/info
RewriteRule ^/monkeys/(.+)/(.+)/(.+)/(.+)
/monkeys.php?q=$1&color=$2&level=$3&doc=$4.txt
[PT,L,NE]

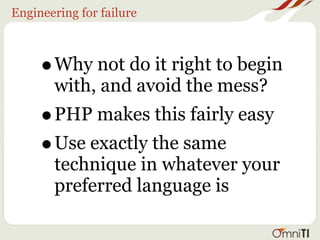

193. Engineering for failure
• Why not do it right to begin
with, and avoid the mess?
• PHP makes this fairly easy
• Use exactly the same
technique in whatever your
preferred language is

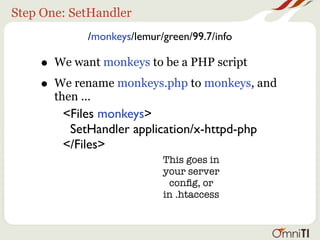

194. Step One: SetHandler
/monkeys/lemur/green/99.7/info
• We want monkeys to be a PHP script
• We rename monkeys.php to monkeys, and
then ...
<Files monkeys>
SetHandler application/x-httpd-php
</Files>
This goes in
your server
config, or
in .htaccess

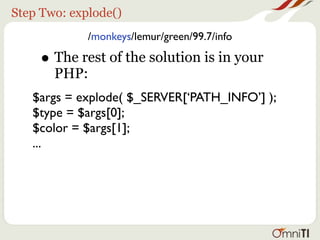

195. Step Two: explode()
/monkeys/lemur/green/99.7/info
• The rest of the solution is in your
PHP:
$args = explode( $_SERVER[‘PATH_INFO’] );
$type = $args[0];
$color = $args[1];
...

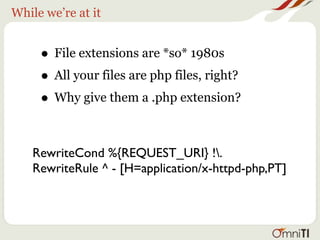

196. While we’re at it
• File extensions are *so* 1980s
• All your files are php files, right?
• Why give them a .php extension?
RewriteCond %{REQUEST_URI} !.
RewriteRule ^ - [H=application/x-httpd-php,PT]

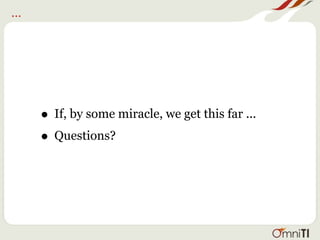

197. ...
• If, by some miracle, we get this far ...
• Questions?

198. Addresses you need
• http://slideshare.net/rbowen
• http://wiki.apache.org/httpd
• http://httpd.apache.org/docs/trunk/
• rbowen@apache.org
• http://omniti.com/is/hiring
