The AOK i Series was designed to be used as high bay, flood, or tunnel lighting. It has a simplistic design and is suitable for indoor and outdoor applications like warehouses, stadiums, and tunnels. The document discusses the LED technology, heat dissipation, and protection of the LED sources. It also provides information on multiple light distribution options and sample installation projects to demonstrate the i Series lights.

1. AOK i Series
LED High Bay / Flood / Tunnel Light
www.aokledlight.com

2. Quality, Honesty, Service and Innovation
i Series 1
√ Simplistic and charming design, less is more
√ Can be used as high bay light, flood light or tunnel light
√ Suitable for indoor and outdoor warehouse, stadium, tunnel, etc
√ Luminous efficacy up to 130lm/w, lifespan up to 62,000+ hours
√ 20% lighter and 10% smaller than the last generation

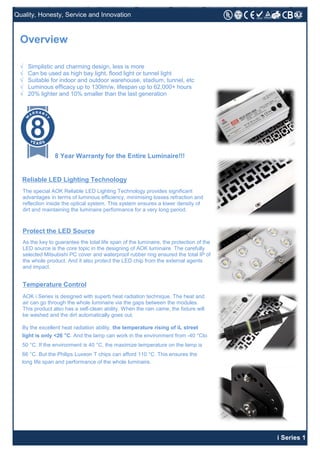

Overview
Reliable LED Lighting Technology
The special AOK Reliable LED Lighting Technology provides significant
advantages in terms of luminous efficiency, minimising losses refraction and
reflection inside the optical system. This system ensures a lower density of
dirt and maintaining the luminaire performance for a very long period.
Protect the LED Source
As the key to guarantee the total life span of the luminaire, the protection of the
LED source is the core topic in the designing of AOK luminaire. The carefully
selected Mitsubishi PC cover and waterproof rubber ring ensured the total IP of
the whole product. And it also protect the LED chip from the external agents
and impact.
Temperature Control
AOK i Series is designed with superb heat radiation technique. The heat and
air can go through the whole luminaire via the gaps between the modules.
This product also has a self-clean ability. When the rain came, the fixture will
be washed and the dirt automatically goes out.
By the excellent heat radiation ability, the temperature rising of iL street
light is only <26 °C. And the lamp can work in the environment from -40 °Cto
50 °C. If the environment is 40 °C, the maximize temperature on the lamp is
66 °C. But the Philips Luxeon T chips can afford 110 °C. This ensures the
long life span and performance of the whole luminaire.
8 Year Warranty for the Entire Luminaire!!!

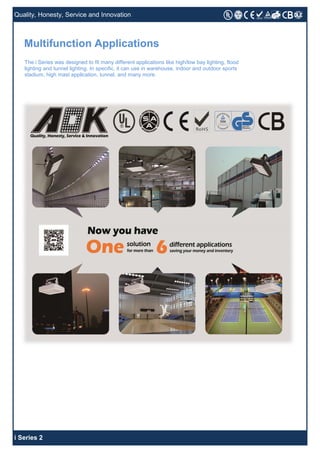

3. i Series 2
Quality, Honesty, Service and Innovation
The i Series was designed to fit many different applications like high/low bay lighting, flood
lighting and tunnel lighting. In specific, it can use in warehouse, indoor and outdoor sports
stadium, high mast application, tunnel, and many more.
Multifunction Applications

4. Quality, Honesty, Service and Innovation
i Series 3
Project Demonstrations of i Series
Tennis court in Los Angeles
Office in United States
Courtyard in Lithuania

5. Quality, Honesty, Service and Innovation
i Series 4
Project Demonstrations of i Series
Indoor Tennis
Court in Poland
Fire Station in United

6. Quality, Honesty, Service and Innovation
i Series 5

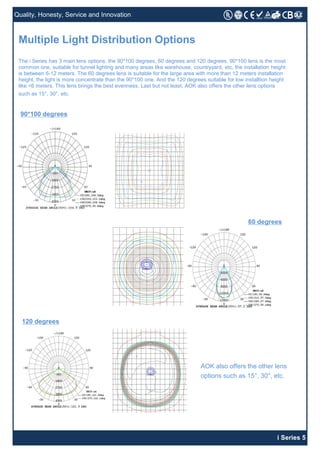

Multiple Light Distribution Options
The i Series has 3 main lens options: the 90*100 degrees, 60 degrees and 120 degrees. 90*100 lens is the most
common one, suitable for tunnel lighting and many areas like warehouse, countryyard, etc, the installation height
is between 6-12 meters. The 60 degrees lens is suitable for the large area with more than 12 meters installation
height, the light is more concentrate than the 90*100 one. And the 120 degrees suitable for low installtion height
like <6 meters. This lens brings the best evenness. Last but not least, AOK also offers the other lens options
such as 15°, 30°, etc.
90*100 degrees
60 degrees
120 degrees
AOK also offers the other lens
options such as 15°, 30°, etc.

7. Quality, Honesty, Service and Innovation
i Series 6

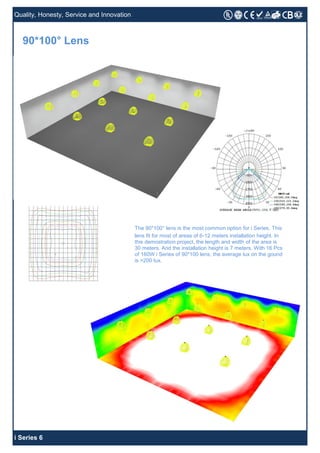

90*100° Lens
The 90*100° lens is the most common option for i Series. This
lens fit for most of areas of 6-12 meters installation height. In
this demostration project, the length and width of the area is
30 meters. And the installation height is 7 meters. With 16 Pcs
of 160W i Series of 90*100 lens, the average lux on the gound
is >200 lux.

8. Quality, Honesty, Service and Innovation
i Series 7

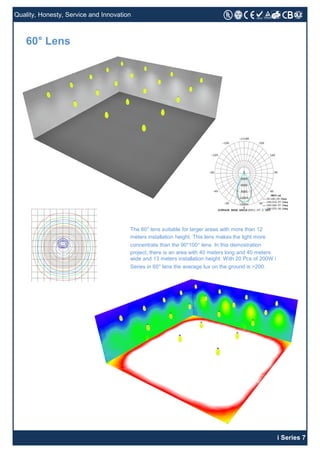

60° Lens
The 60° lens suitable for larger areas with more than 12
meters installation height. This lens makes the light more
concentrate than the 90*100° lens. In this demostration
project, there is an area with 40 meters long and 40 meters
wide and 13 meters installation height. With 20 Pcs of 200W i
Series in 60° lens the average lux on the ground is >200.

9. Quality, Honesty, Service and Innovation
i Series 8

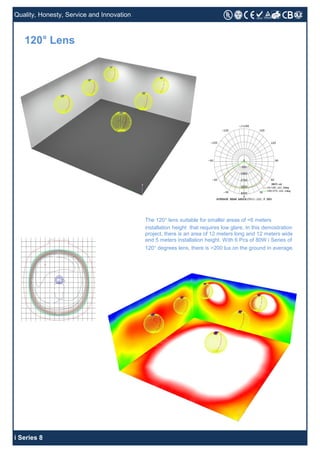

120° Lens
The 120° lens suitable for smaller areas of <6 meters
installation height that requires low glare. In this demostration
project, there is an area of 12 meters long and 12 meters wide
and 5 meters installation height. With 6 Pcs of 80W i Series of
120° degrees lens, there is >200 lux on the ground in average.

10. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Heat Radiator Anodized Aluminum
Lifetime
IP67 & IK10

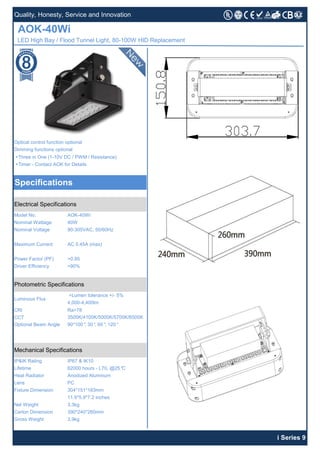

AOK-40Wi
LED High Bay / Flood Tunnel Light, 80-100W HID Replacement
Optical control function optional
Dimming functions optional
Specifications
Quality, Honesty, Service and Innovation
Driver Efficiency >90%
Lens
+Lumen tolerance +/- 5%
4,000-4,400lm
Nominal Voltage
Power Factor (PF)
Photometric Specifications
Mechanical Specifications
IP&IK Rating
62000 hours - L70, @25°C
90*100°, 30°, 60°, 120°
90-305VAC, 50/60Hz
AC 0.45A (max)
>0.95
Maximum Current
Model No.
Nominal Wattage
Electrical Specifications
Optional Beam Angle
AOK-40Wi
40W
PC
304*151*183mm
11.9*5.9*7.2 inches
3.3kg
390*240*260mm
i Series 9
Fixture Dimension
Net Weight
Carton Dimension
Gross Weight 3.9kg
Luminous Flux
3500K/4100K/5000K/5700K/6500K

11. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Power Factor (PF)
80W
Electrical Specifications
Nominal Voltage
AC 0.9A (max)
>0.95
Nominal Wattage
Lens
Mechanical Specifications
IP67 & IK10
62000 hours - L70, @25°C
Anodized Aluminum
PC
304*232*183mm
11.9*9.1*7.2 inches
4.8kg
390*320*260mm
5.7kg
Fixture Dimension
Net Weight
Heat Radiator

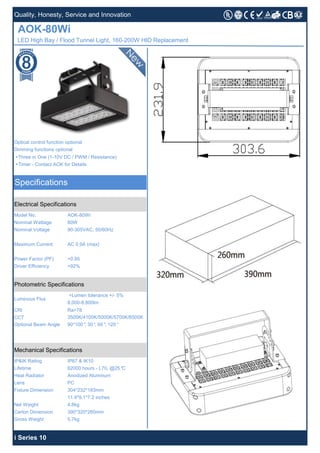

Model No. AOK-80Wi
Quality, Honesty, Service and Innovation
AOK-80Wi
Optical control function optional
Dimming functions optional
Specifications
LED High Bay / Flood Tunnel Light, 160-200W HID Replacement
90-305VAC, 50/60Hz
Carton Dimension
Gross Weight
Driver Efficiency
Maximum Current
Photometric Specifications
+Lumen tolerance +/- 5%
>92%
i Series 10
Optional Beam Angle
8,000-8,800lm
IP&IK Rating
Lifetime
Luminous Flux
3500K/4100K/5000K/5700K/6500K
90*100°, 30°, 60°, 120°

12. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Model No. AOK-120Wi
Quality, Honesty, Service and Innovation

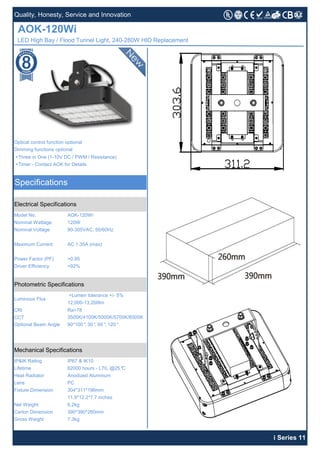

AOK-120Wi
LED High Bay / Flood Tunnel Light, 240-280W HID Replacement
Maximum Current AC 1.35A (max)
Optical control function optional
Dimming functions optional
Specifications
Electrical Specifications
Power Factor (PF) >0.95
Nominal Wattage 120W
Nominal Voltage 90-305VAC, 50/60Hz
Optional Beam Angle
+Lumen tolerance +/- 5%
12,000-13,200lm
Driver Efficiency >92%
Photometric Specifications
Lifetime 62000 hours - L70, @25°C
Heat Radiator Anodized Aluminum
Lens PC
Mechanical Specifications
IP&IK Rating IP67 & IK10
Carton Dimension 390*390*260mm
Gross Weight 7.3kg
Fixture Dimension 304*311*196mm
11.9*12.2*7.7 inches
Net Weight 6.2kg
i Series 11
Luminous Flux
3500K/4100K/5000K/5700K/6500K
90*100°, 30°, 60°, 120°

13. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Optical control function optional
Dimming functions optional
Specifications
Electrical Specifications
Quality, Honesty, Service and Innovation

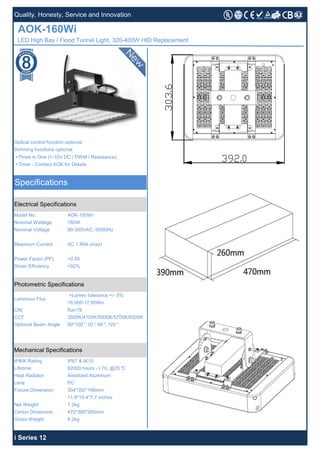

AOK-160Wi
LED High Bay / Flood Tunnel Light, 320-400W HID Replacement
Maximum Current AC 1.80A (max)
Model No. AOK-160Wi
Nominal Wattage 160W
Nominal Voltage 90-305VAC, 50/60Hz
Mechanical Specifications
Optional Beam Angle
Photometric Specifications
+Lumen tolerance +/- 5%
16,000-17,600lm
Power Factor (PF) >0.95
Driver Efficiency >92%
Lens PC
Fixture Dimension 304*392*196mm
11.9*15.4*7.7 inches
IP&IK Rating IP67 & IK10
Lifetime 62000 hours - L70, @25°C
Heat Radiator Anodized Aluminum
i Series 12
Net Weight 7.2kg
Carton Dimension 470*390*260mm
Gross Weight 8.2kg
Luminous Flux
3500K/4100K/5000K/5700K/6500K
90*100°, 30°, 60°, 120°

14. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Quality, Honesty, Service and Innovation

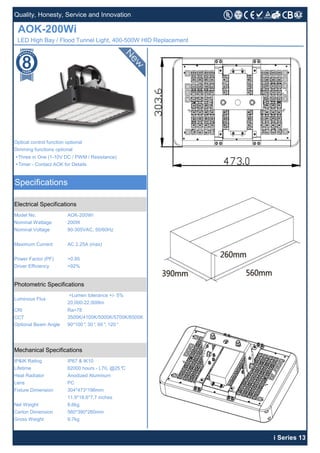

AOK-200Wi
Specifications
Electrical Specifications
Model No. AOK-200Wi
Nominal Wattage 200W
LED High Bay / Flood Tunnel Light, 400-500W HID Replacement
Optical control function optional
Dimming functions optional
Power Factor (PF) >0.95
Driver Efficiency >92%
Nominal Voltage 90-305VAC, 50/60Hz
Maximum Current AC 2.25A (max)
Optional Beam Angle
20,000-22,000lm
Photometric Specifications
+Lumen tolerance +/- 5%
Heat Radiator Anodized Aluminum
Lens PC
Fixture Dimension 304*473*196mm
Mechanical Specifications
IP&IK Rating IP67 & IK10
Lifetime 62000 hours - L70, @25°C
Gross Weight 9.7kg
i Series 13
11.9*18.6*7.7 inches
Net Weight 8.6kg
Carton Dimension 560*390*260mm
Luminous Flux
3500K/4100K/5000K/5700K/6500K
90*100°, 30°, 60°, 120°

15. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Quality, Honesty, Service and Innovation

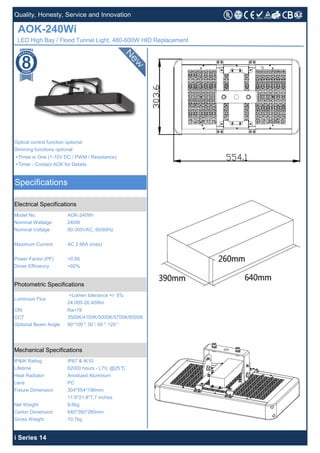

AOK-240Wi
LED High Bay / Flood Tunnel Light, 480-600W HID Replacement
Optical control function optional
Dimming functions optional
Specifications
Electrical Specifications
Model No. AOK-240Wi
Nominal Wattage 240W
Nominal Voltage 90-305VAC, 50/60Hz
Maximum Current AC 2.66A (max)
Power Factor (PF) >0.95
Driver Efficiency >92%
Photometric Specifications
Mechanical Specifications
IP&IK Rating IP67 & IK10
Lifetime 62000 hours - L70, @25°C
+Lumen tolerance +/- 5%
24,000-26,400lm
Optional Beam Angle
i Series 14
Heat Radiator Anodized Aluminum
Lens PC
Fixture Dimension 304*554*196mm
11.9*21.8*7.7 inches
Net Weight 9.6kg
Luminous Flux
3500K/4100K/5000K/5700K/6500K
Carton Dimension 640*390*260mm
Gross Weight 10.7kg
90*100°, 30°, 60°, 120°

16. +Three in One (1-10V DC / PWM / Resistance)
+Timer - Contact AOK for Details
CRI Ra>78
CCT
Photometric Specifications
Mechanical Specifications
IP&IK Rating IP67 & IK10
Lifetime 62000 hours - L70, @25°C
Optional Beam Angle
Carton Dimension 720*390*260mm
Gross Weight 12.3kg
i Series 15
Luminous Flux
Heat Radiator Anodized Aluminum
Lens PC
Fixture Dimension 304*635*196mm
11.9*25*7.7 inches
Net Weight 14.6kg
3500K/4100K/5000K/5700K/6500K
+Lumen tolerance +/- 5%
28,000-30,800lm
Quality, Honesty, Service and Innovation

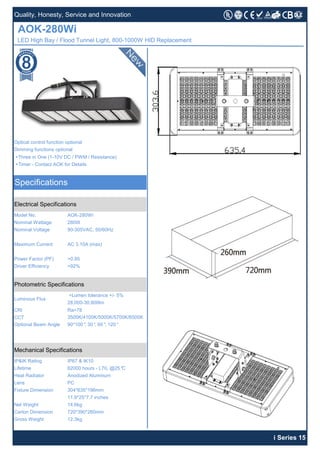

AOK-280Wi
LED High Bay / Flood Tunnel Light, 800-1000W HID Replacement
Optical control function optional
Dimming functions optional
Specifications
Electrical Specifications
90*100°, 30°, 60°, 120°
Model No. AOK-280Wi
Nominal Wattage 280W
Nominal Voltage 90-305VAC, 50/60Hz
Maximum Current AC 3.10A (max)
Power Factor (PF) >0.95
Driver Efficiency >92%
