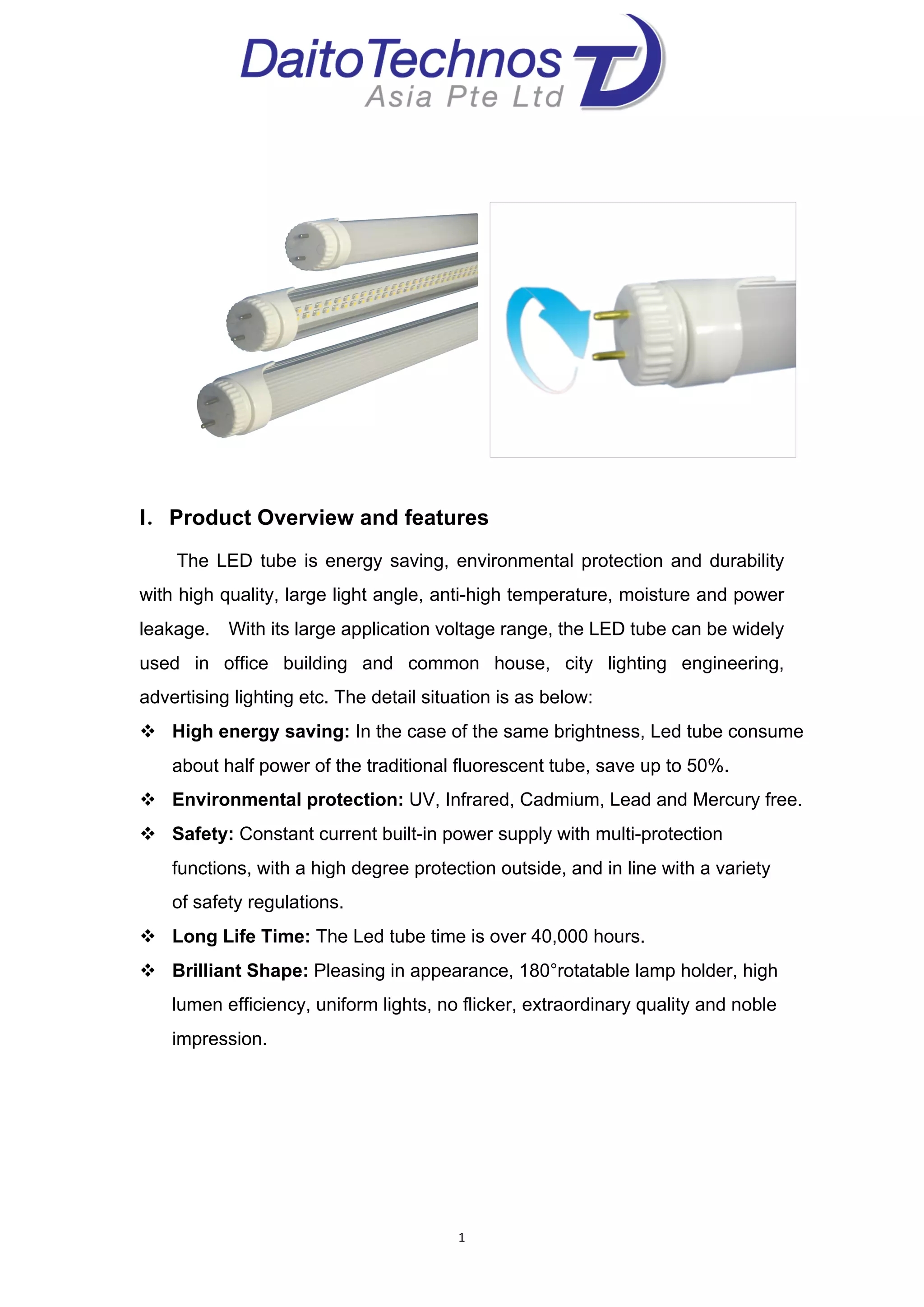

I．Product Overview and features
The LED tube is energy saving, environmental protection and durability
with high quality, large light angle, anti-high temperature, moisture and power
leakage. With its large application voltage range, the LED tube can be widely
used in office building and common house, city lighting engineering,
advertising lighting etc. The detail situation is as below:
! High energy saving: In the case of the same brightness, Led tube consume
about half power of the traditional fluorescent tube, save up to 50%.
! Environmental protection: UV, Infrared, Cadmium, Lead and Mercury free.
! Safety: Constant current built-in power supply with multi-protection
functions, with a high degree protection outside, and in line with a variety
of safety regulations.
! Long Life Time: The Led tube time is over 40,000 hours.
! Brilliant Shape: Pleasing in appearance, 180°rotatable lamp holder, high
lumen efficiency, uniform lights, no flicker, extraordinary quality and noble
impression.

4.
2

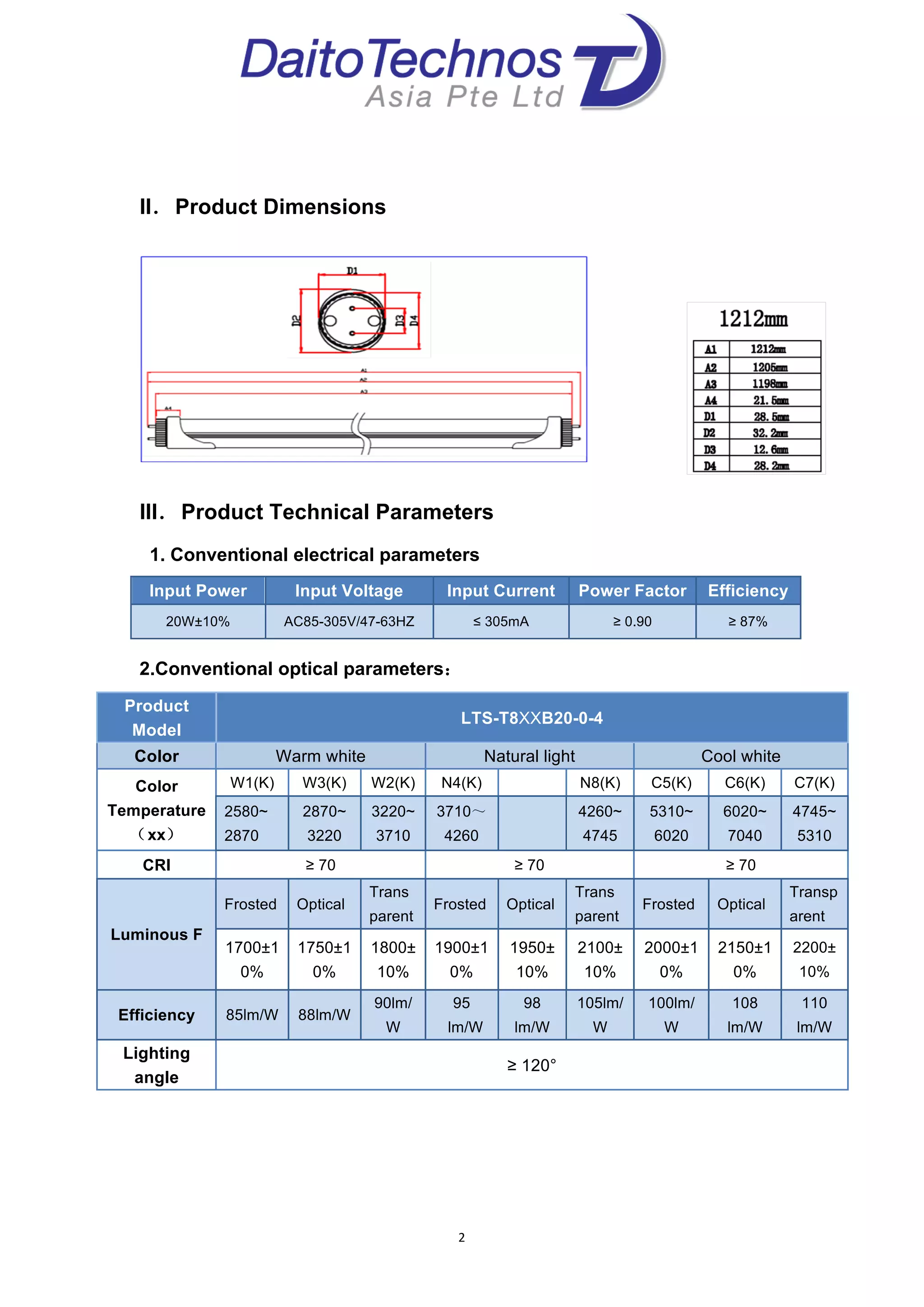

II．Product Dimensions
III．Product Technical Parameters
1. Conventional electrical parameters
Input Power Input Voltage Input Current Power Factor Efficiency
20W±10% AC85-305V/47-63HZ ≤ 305mA ≥ 0.90 ≥ 87%
2.Conventional optical parameters：
Product
Model
LTS-T8XXB20-0-4
Color Warm white Natural light Cool white
Color
Temperature
（xx）
W1(K) W3(K) W2(K) N4(K) N8(K) C5(K) C6(K) C7(K)
2580~
2870
2870~
3220
3220~
3710
3710～
4260
4260~
4745
5310~
6020
6020~
7040
4745~
5310
CRI ≥ 70 ≥ 70 ≥ 70
Luminous F
Frosted Optical
Trans
parent
Frosted Optical
Trans
parent
Frosted Optical
Transp
arent
1700±1
0%
1750±1
0%
1800±
10%
1900±1
0%
1950±
10%
2100±
10%
2000±1
0%
2150±1
0%
2200±
10%
Efficiency 85lm/W 88lm/W
90lm/
W
95
lm/W
98
lm/W
105lm/
W
100lm/
W
108
lm/W
110
lm/W
Lighting
angle
≥ 120°

5.
3

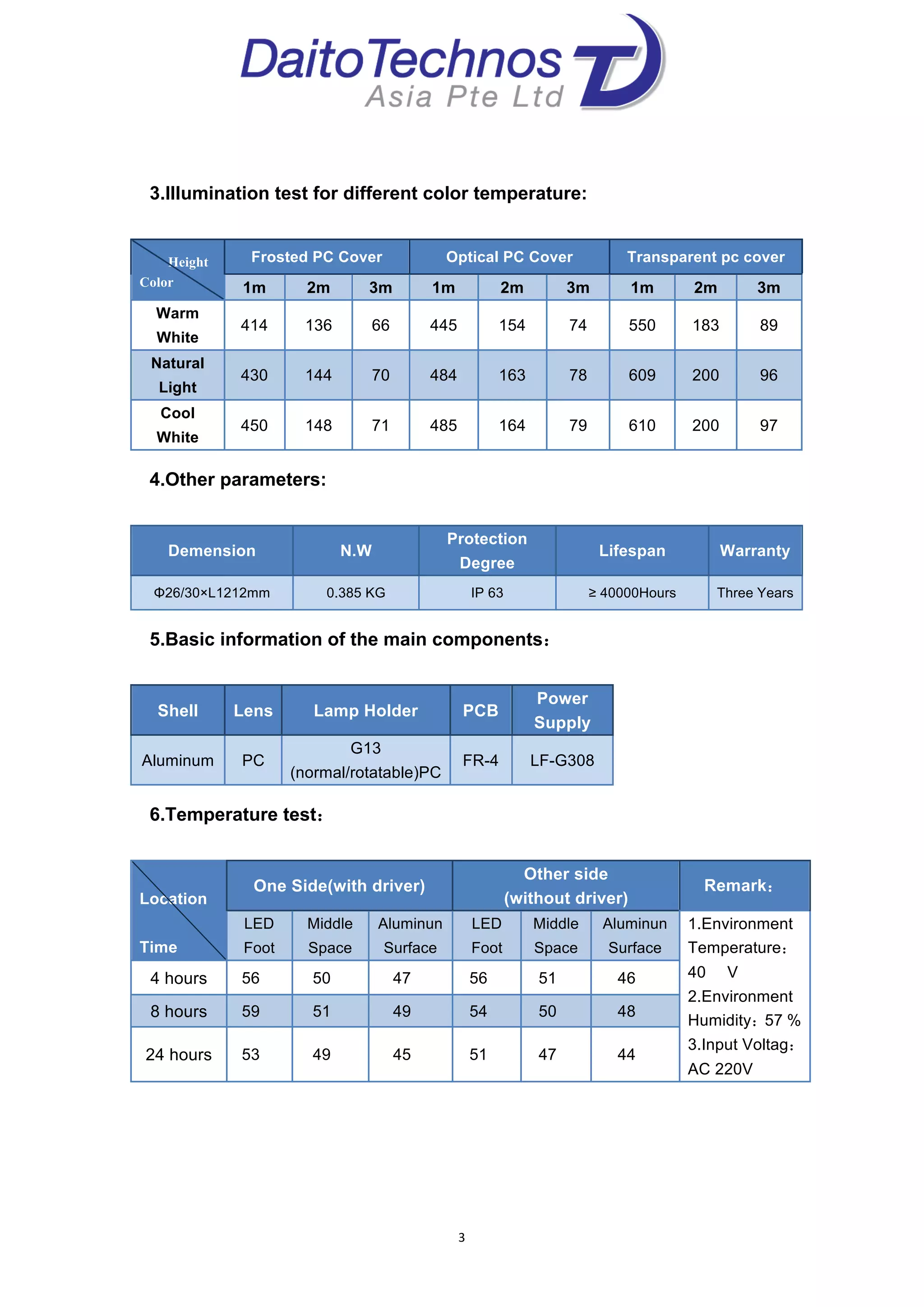

3.Illumination test for different color temperature:
Height
Color
Frosted PC Cover Optical PC Cover Transparent pc cover
1m 2m 3m 1m 2m 3m 1m 2m 3m
Warm
White
414 136 66 445 154 74 550 183 89
Natural
Light
430 144 70 484 163 78 609 200 96
Cool
White
450 148 71 485 164 79 610 200 97
4.Other parameters:
Demension N.W
Protection
Degree
Lifespan Warranty
Φ26/30×L1212mm 0.385 KG IP 63 ≥ 40000Hours Three Years
5.Basic information of the main components：
Shell Lens Lamp Holder PCB
Power
Supply
Aluminum PC
G13
(normal/rotatable)PC
FR-4 LF-G308
6.Temperature test：
Location
Time
One Side(with driver)
Other side
(without driver)
Remark：
LED
Foot
Middle
Space
Aluminun
Surface
LED
Foot
Middle
Space
Aluminun
Surface
1.Environment
Temperature：
40 V
2.Environment
Humidity：57 %
3.Input Voltag：
AC 220V
4 hours 56 50 47 56 51 46
8 hours 59 51 49 54 50 48
24 hours 53 49 45 51 47 44

6.
4

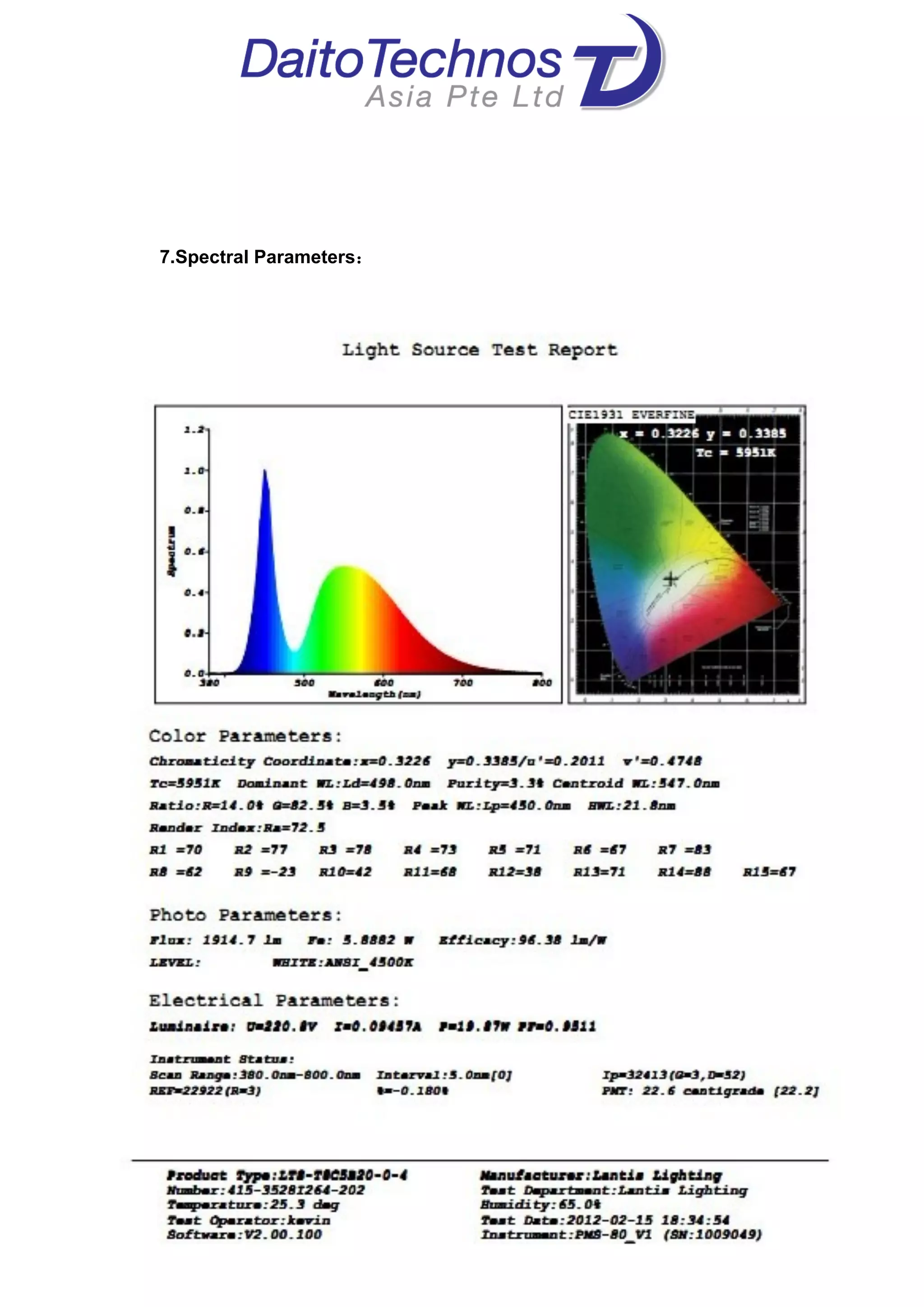

7.Spectral Parameters：

7.
5
IV．Installation

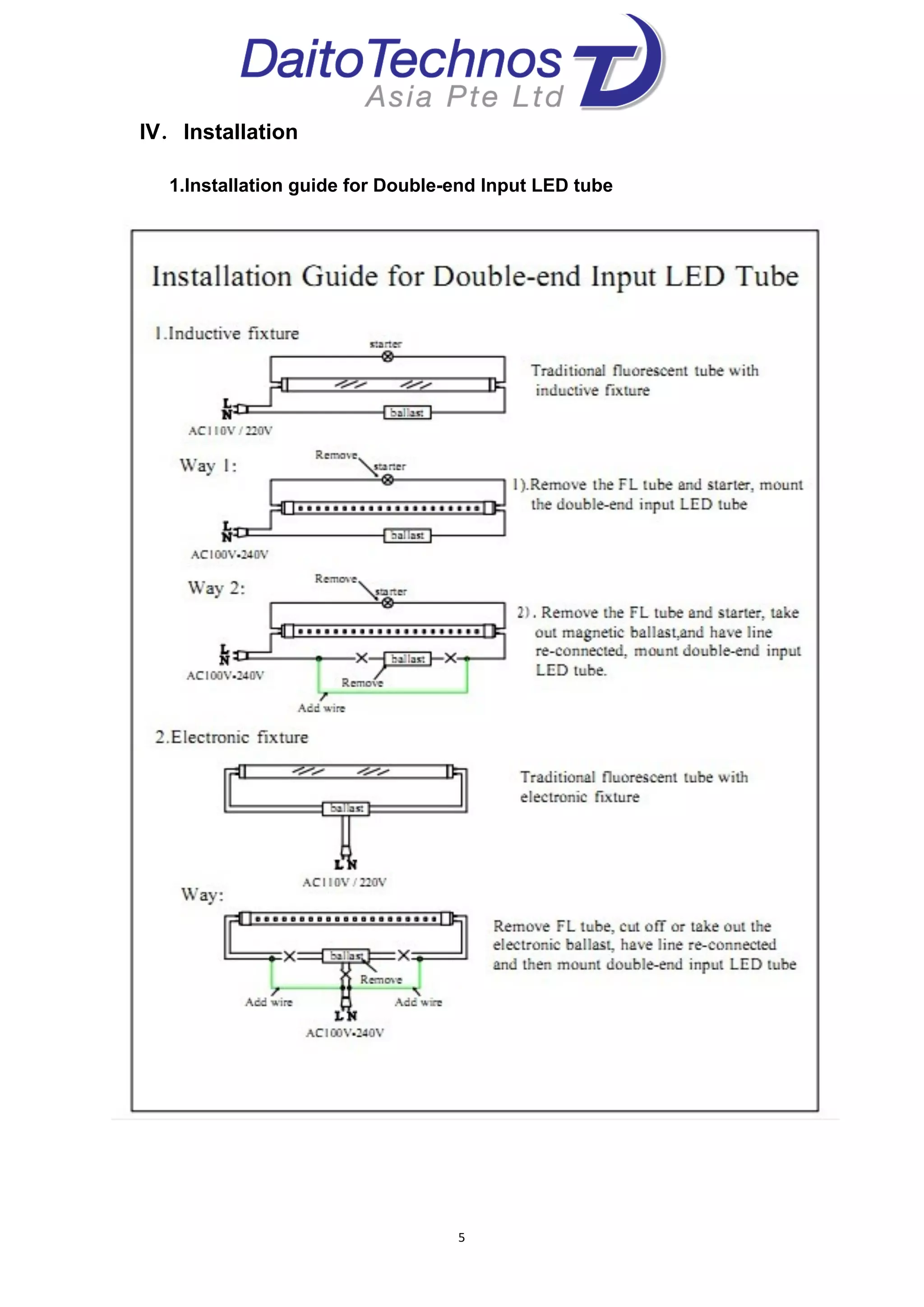

1.Installation guide for Double-end Input LED tube

8.
6

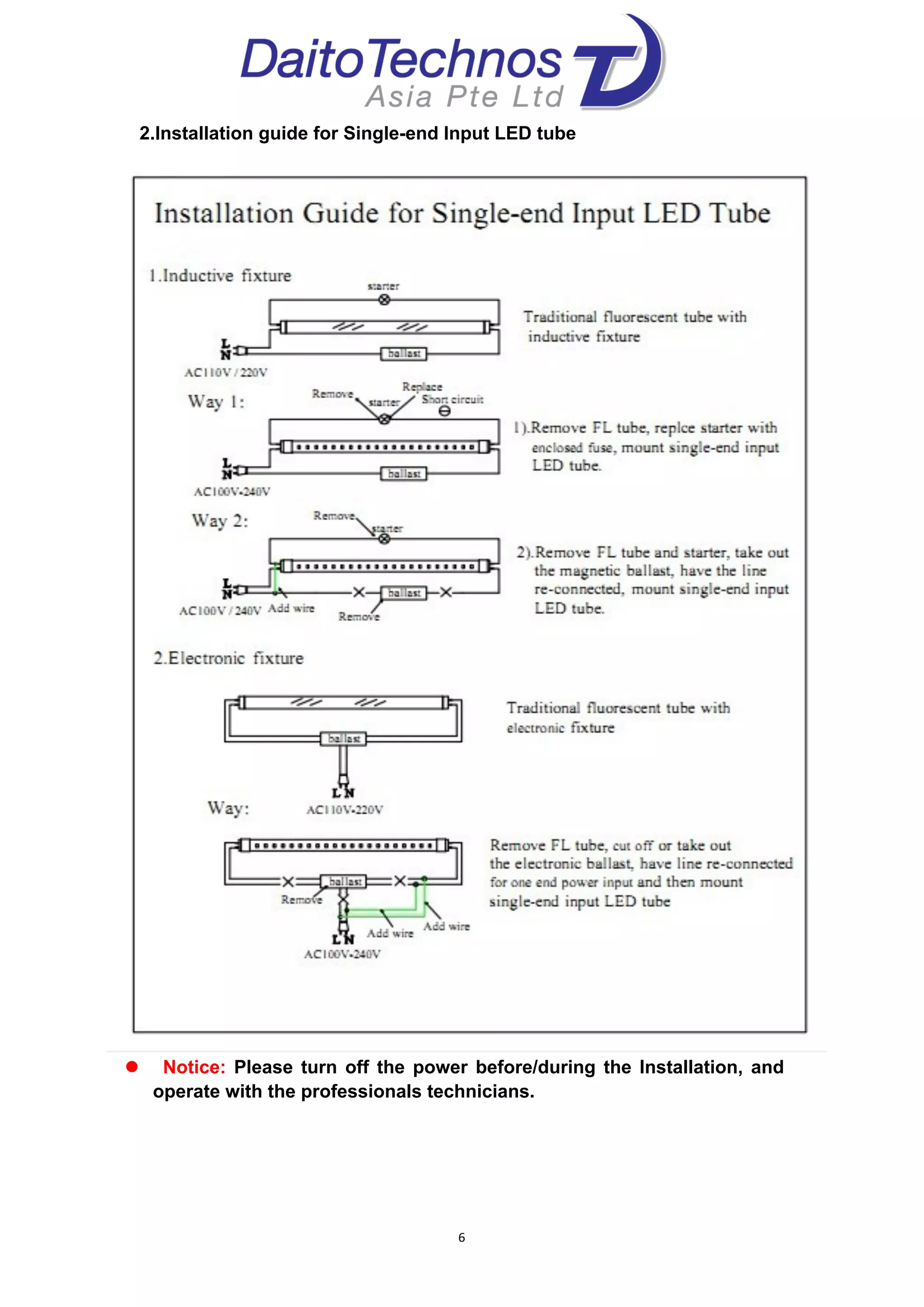

2.Installation guide for Single-end Input LED tube
" Notice: Please turn off the power before/during the Installation, and
operate with the professionals technicians.

9.
7

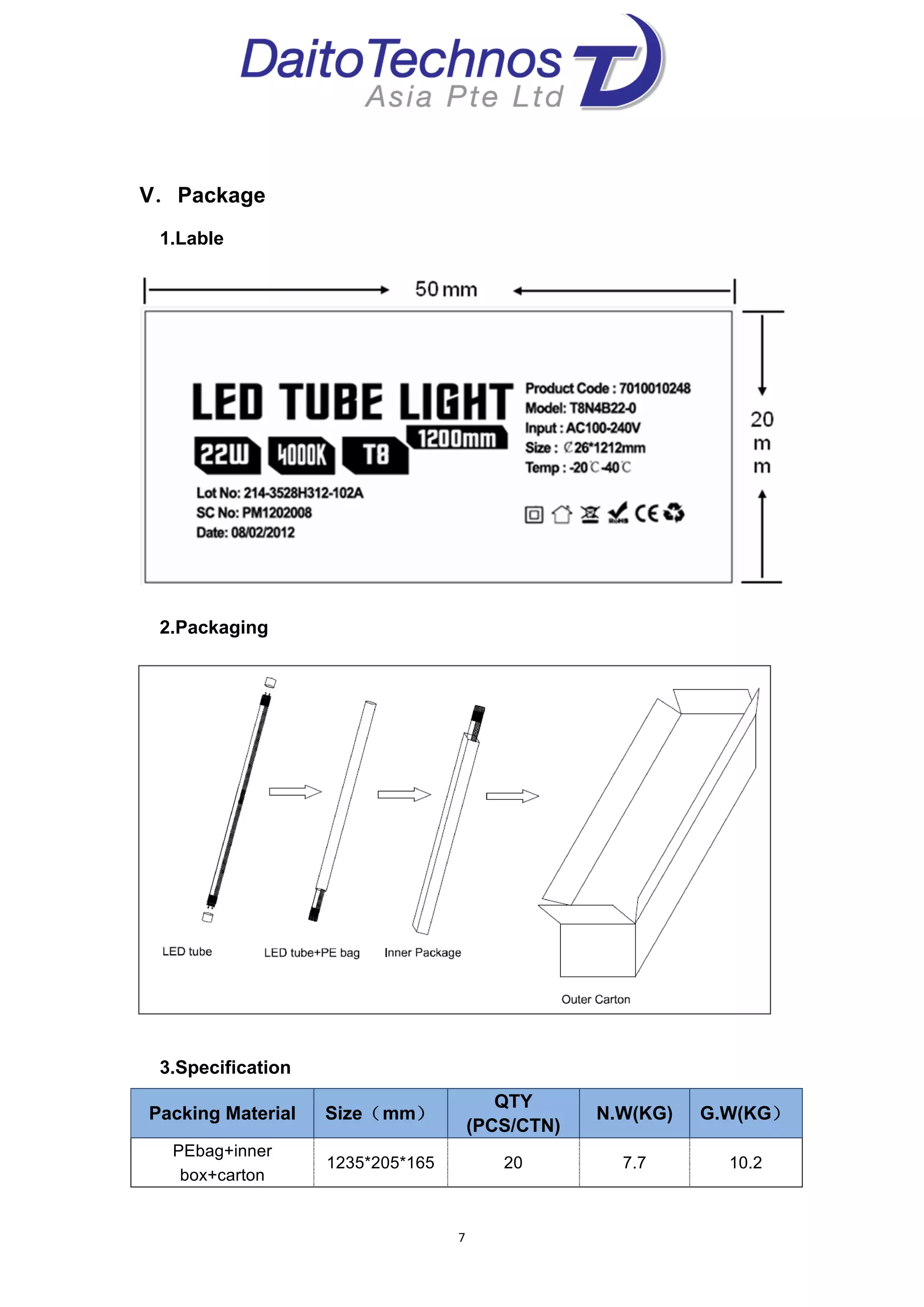

V．Package
1.Lable
2.Packaging
3.Specification
Packing Material Size（mm）
QTY
(PCS/CTN)
N.W(KG) G.W(KG）
PEbag+inner
box+carton
1235*205*165 20 7.7 10.2

10.
8

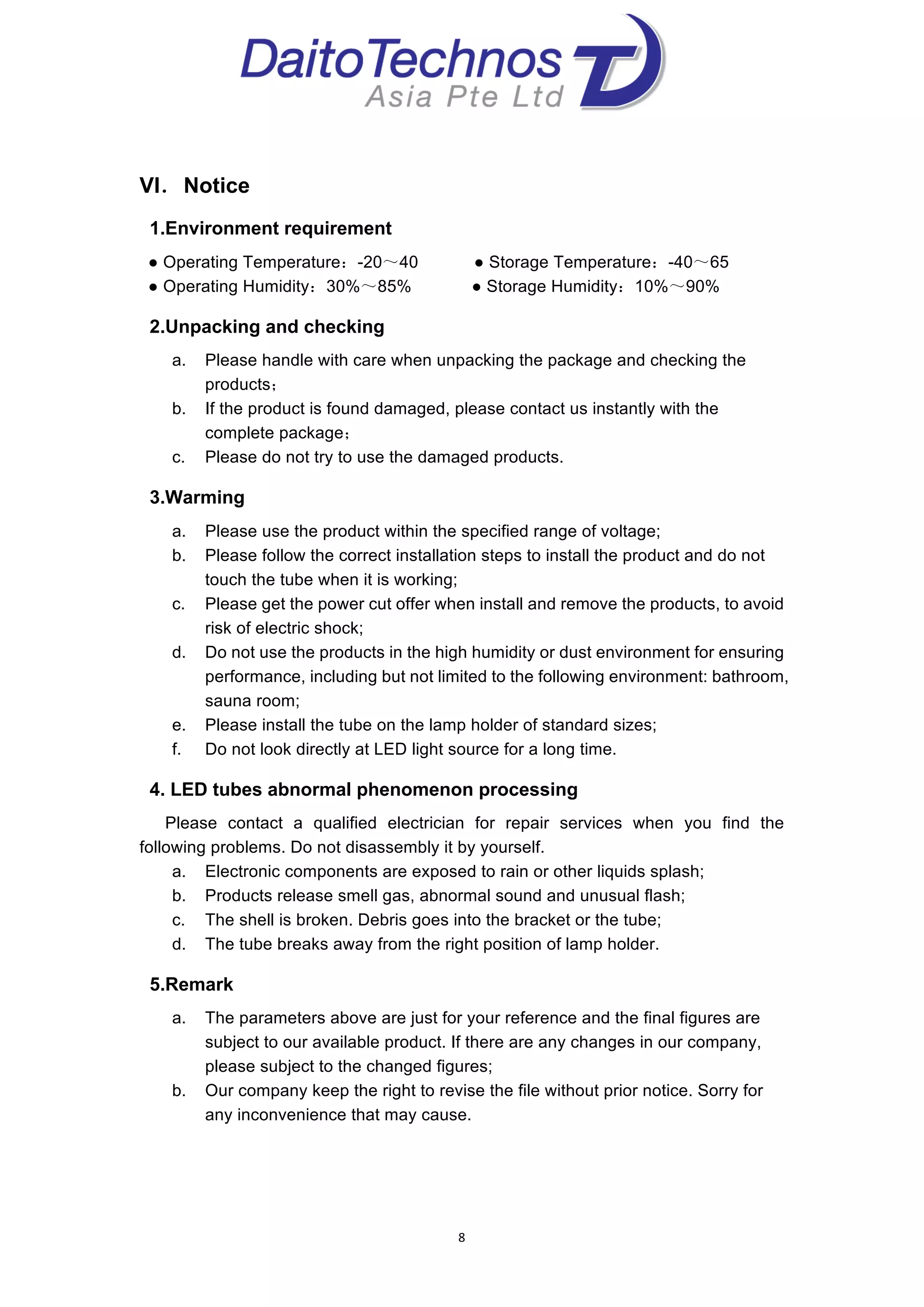

VI．Notice
1.Environment requirement
● Operating Temperature：-20～40 ● Storage Temperature：-40～65
● Operating Humidity：30%～85% ● Storage Humidity：10%～90%
2.Unpacking and checking
a. Please handle with care when unpacking the package and checking the
products；
b. If the product is found damaged, please contact us instantly with the
complete package；
c. Please do not try to use the damaged products.
3.Warming
a. Please use the product within the specified range of voltage;
b. Please follow the correct installation steps to install the product and do not
touch the tube when it is working;
c. Please get the power cut offer when install and remove the products, to avoid
risk of electric shock;
d. Do not use the products in the high humidity or dust environment for ensuring
performance, including but not limited to the following environment: bathroom,
sauna room;
e. Please install the tube on the lamp holder of standard sizes;
f. Do not look directly at LED light source for a long time.
4. LED tubes abnormal phenomenon processing
Please contact a qualified electrician for repair services when you find the
following problems. Do not disassembly it by yourself.
a. Electronic components are exposed to rain or other liquids splash;
b. Products release smell gas, abnormal sound and unusual flash;
c. The shell is broken. Debris goes into the bracket or the tube;
d. The tube breaks away from the right position of lamp holder.
5.Remark
a. The parameters above are just for your reference and the final figures are
subject to our available product. If there are any changes in our company,
please subject to the changed figures;
b. Our company keep the right to revise the file without prior notice. Sorry for
any inconvenience that may cause.
