20 new LED lighting solutions
1. LEDLUMINAIRES
L I G H T I N GFOR INDUSTRIAL & COMMERCIAL AREAS
Industrial & Commercial
LED Lighting Solutions
An A-Belco Group Company
2. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Side-emmited LED light for low glare operation
• Easy installation & replacement
• IP44 Ingress Protection
• Standard / IP67 Driver (option)
• Colour temperature: 2600K to 7000K
• Lumen efficiency (5000K): 80 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30°C to +40°C
• Control compatibility (options): Wired (Dali, 1-10V), Wireless (ZigBee),
Occupancy, Daylight
• Emergency version available.
• 3/5 year warranty (driver option)

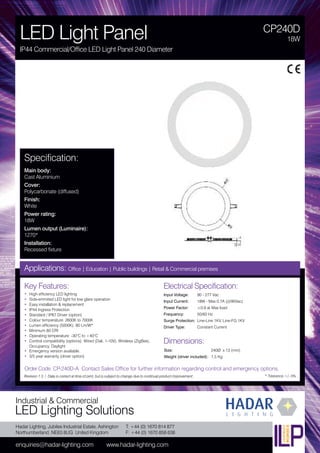

CP240D
LED Light Panel
IP44 Commercial/Office LED Light Panel 240 Diameter
18W
Applications: Office | Education | Public buildings | Retail & Commercial premises
Electrical Specification:
Input Voltage: 90 - 277 Vac
Input Current: 18W - Max 0.7A (@90Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 1KV, Line-FG 1KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Cast Aluminium
Cover:
Polycarbonate (diffused)
Finish:
White
Power rating:
18W
Lumen output (Luminaire):
1270*
Installation:
Recessed fixture
Order Code: CP-240D-A Contact Sales Office for further information regarding control and emergency options.
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Dimensions:
Size: 240Ø x 13 (mm)
Weight (driver included): 1.5 Kg
3.
4. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Side-emitted LED light for low glare operation
• Easy installation & replacement
• IP44 Ingress Protection
• Standard / IP67 Driver (option)
• Colour temperature: 2600K to 7000K
• Lumen efficiency (5,000K): 80 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30°C to +40°C
• Control compatibility (options): Wired (Dali, 1-10V), Wireless (ZigBee),
Occupancy, Daylight
• Emergency version available.
• 3/5 year warranty (driver option)
CP30
LED Light Panel
IP44 Commercial/Office LED Light Panel 300x300
18W
Applications: Office | Education | Public buildings | Retail & Commercial premises
Electrical Specification:
Input Voltage: 90 - 277 Vac
Input Current: 18W - Max 0.7A (@90Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 1KV, Line-FG 1KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Cast Aluminium
Cover:
Polycarbonate (diffused)
Finish:
White
Power rating:
18W
Lumen output (Luminaire):
1270*
Installation:
Recessed fixture
Order Code: CP-30-A Contact Sales Office for further information regarding control and emergency options.
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Dimensions:
Size (LxHxW): 300 x 300 x 9.7 (mm)
Weight (driver included): 1.5 Kg
5.
6. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• IP44 Ingress
• Colour temperature: 3000K (3.5 SDCM)
• Lumen efficiency : 98 lm/W (37W)
• Minimum 93 CRI
• Operating temperature: -20ºC to +45ºC
• Photobiological Safety tested LED
• Emergency version available (230V)
• 50,000 hours lifetime
• Body colour and print options.
• Control options: 1 - 10V, Dali
• 5 year warranty
Specification:
Main body:
Sheet Steel
Cover:
Polycarbonate
Power rating:
13W / 27W / 37W
Lumen output (Luminaire):
1200 / 2550 / 3620
Installation:
Recessed fixture

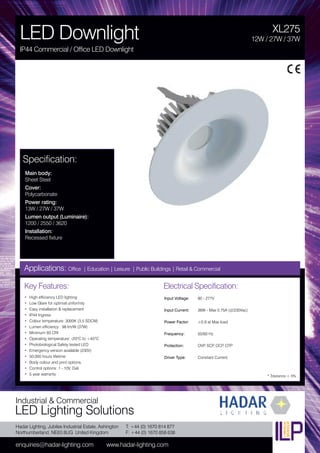

XL275
LED Downlight
IP44 Commercial / Office LED Downlight
12W / 27W / 37W
Applications: Office | Education | Leisure | Public Buildings | Retail & Commercial
Electrical Specification:
Input Voltage: 90 - 277V
Input Current: 36W - Max 0.75A (@230Vac)
Power Factor: ≥0,9 at Max load
Frequency: 50/60 Hz
Protection: OVP, SCP, OCP, OTP
Driver Type: Constant Current
* Tolerance ± 5%

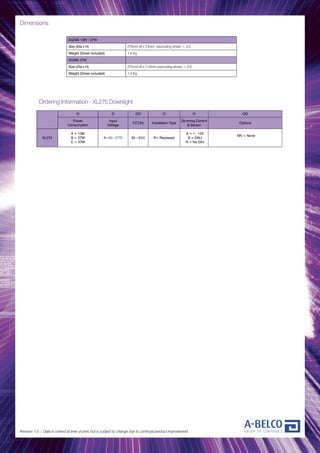

7. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
SQ595 13W / 27W
Size (Dia x H) 275mm Ø x 73mm (excluding driver) ± 2.0
Weight (Driver included) 1.4 Kg
SQ595 37W
Size (Dia x H) 275mm Ø x 113mm (excluding driver) ± 2.0
Weight (Driver included) 1.4 Kg
O O OO O O OO
Power
Consumption
Input
Voltage
CCT(K) Installation Type
Dimming Control
& Sensor
Options
XL275
A = 13W
B = 27W
C = 37W
A=90~277V 30=3000 R= Recessed
A = 1 - 10V
B = DALI
N = No Dim
NN = None
Ordering Information - XL275 Downlight
8. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare operation
• Easy installation & replacement
• First fit base. Fast fit gear tray and diffuser
• Wall or ceiling mounted
• Tough polycarbonate body and diffuser
• IP54 Ingress Protection
• Colour temperature: 4000K
• Lumen efficiency (4000K): 79 Lm/W*
• Minimum 75 CRI
• Operating temperature: -30°C to +40°C
• Control compatibility (options): Occupancy (PIR, microwave), Daylight
• Emergency version available.
• 5 year warranty

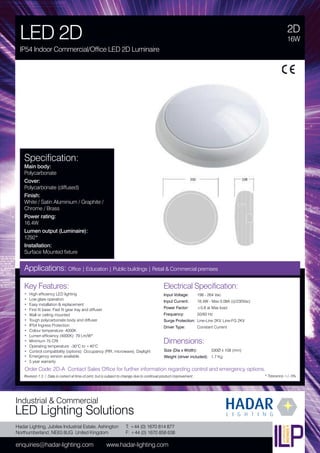

2D
LED 2D
IP54 Indoor Commercial/Office LED 2D Luminaire
16W
Applications: Office | Education | Public buildings | Retail & Commercial premises
Electrical Specification:
Input Voltage: 198 - 264 Vac
Input Current: 16.4W - Max 0.08A (@230Vac)
Power Factor: ≥0.8 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Polycarbonate
Cover:
Polycarbonate (diffused)
Finish:
White / Satin Aluminium / Graphite /
Chrome / Brass
Power rating:
16.4W
Lumen output (Luminaire):
1292*
Installation:
Surface Mounted fixture
Order Code: 2D-A Contact Sales Office for further information regarding control and emergency options.
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Dimensions:
Size (Dia x Width): 330Ø x 108 (mm)
Weight (driver included): 1.7 Kg
9.
10. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare operation
• Easy installation & replacement
• Available with plain, eyelid, louvre or cage facia.
• Wall or ceiling mounted
• Tough screw down polycarbonate diffuser
• IP65 Ingress Protection
• Colour temperature: 4000K
• Lumen efficiency (4000K): 70 Lm/W*
• Minimum 75 CRI
• Operating temperature: -30°C to +40°C
• Control compatibility (options): Occupancy (PIR, Microwave), Daylight
• Emergency version available.
• 5 year warranty

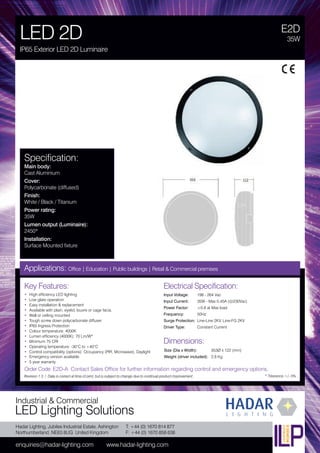

E2D
LED 2D
IP65 Exterior LED 2D Luminaire
35W
Applications: Office | Education | Public buildings | Retail & Commercial premises
Electrical Specification:
Input Voltage: 198 - 264 Vac
Input Current: 35W - Max 0.45A (@230Vac)
Power Factor: ≥0.8 at Max load
Frequency: 50Hz
Surge Protection: Line-Line 2KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Cast Aluminium
Cover:
Polycarbonate (diffused)
Finish:
White / Black / Titanium
Power rating:
35W
Lumen output (Luminaire):
2450*
Installation:
Surface Mounted fixture
Order Code: E2D-A Contact Sales Office for further information regarding control and emergency options.
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Dimensions:
Size (Dia x Width): 353Ø x 122 (mm)
Weight (driver included): 2.8 Kg
11.
12. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Fresnel Lens
• Easy installation & replacement
• IP65 Ingress Protection
• 6% ULOR - 72% DLOR
• Colour temperature: 4000K
• Lumen efficiency (4000K): 70 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30°C to +40°C
• Control compatibility (options): Daylight, Part Night Dim, PIR, Microwave
• Emergency version available.
• 5 year warranty

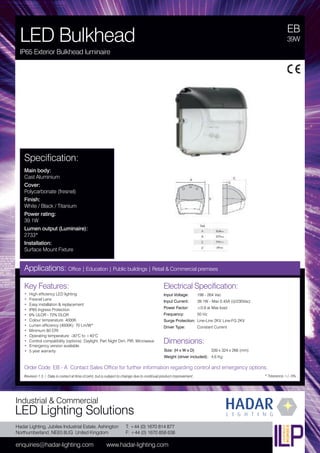

EB
LED Bulkhead
IP65 Exterior Bulkhead luminaire
39W
Applications: Office | Education | Public buildings | Retail & Commercial premises
Electrical Specification:
Input Voltage: 198 - 264 Vac
Input Current: 39.1W - Max 0.45A (@230Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50 Hz
Surge Protection: Line-Line 2KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Cast Aluminium
Cover:
Polycarbonate (fresnel)
Finish:
White / Black / Titanium
Power rating:
39.1W
Lumen output (Luminaire):
2733*
Installation:
Surface Mount Fixture
Order Code: EB - A Contact Sales Office for further information regarding control and emergency options.
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Dimensions:
Size: (H x W x D) 339 x 324 x 266 (mm)
Weight (driver included): 4.6 Kg
13.
14. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity UGR 22,
• Easy installation & replacement
• IP44 Ingress Protection, IK06 Impact Protection
• Colour temperature: 4,000K (3.5 SDCM)
• Lumen efficiency (4,000K): 100 Lm/W*
• Minimum 80 CRI
• Operating temperature: -10ºC to +40ºC
• Photobiological Safety tested LED
• Emergency version available (230V)
• 50,000 hours lifetime
• 5 year warranty
Specification:
Main body:
Polycarbonate / ABS (UL94 V0)
Cover:
Polycarbonate (UL94 V0)
Finish:
White (RAL9003)
Power rating:
36W
Lumen output (Luminaire):
3600 (4000K)*
Installation:
Recessed fixture

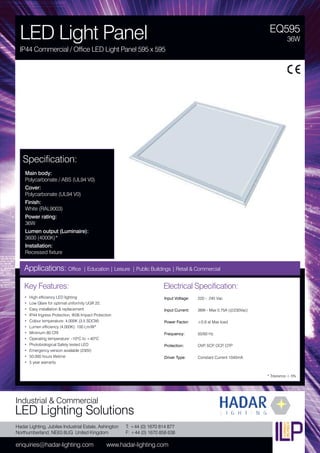

EQ595
LED Light Panel
IP44 Commercial / Office LED Light Panel 595 x 595
36W
Applications: Office | Education | Leisure | Public Buildings | Retail & Commercial
Electrical Specification:
Input Voltage: 220 - 240 Vac
Input Current: 36W - Max 0.75A (@230Vac)
Power Factor: ≥0,9 at Max load
Frequency: 50/60 Hz
Protection: OVP, SCP, OCP, OTP
Driver Type: Constant Current 1040mA
* Tolerance ± 5%
15. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
RA595
Size (L x W x H) 595.0mm x 595.0mm x 38.3mm (including driver) ± 2.0
Weight (Driver included) 3.8 Kg
O OO O OO O O OO
Power
Consumption
Bezel Type
Input
Voltage
CCT(K) Installation Type
Dimming Control &
Sensor
Options
EQ595 A = 36W
NB = Narrow
Bezel
A=220~240V 40=4000
R= Recessed
S=Surface Mount
N = No Dim
WA = 50cm cable c/w Wago Winsta 3P connector
WI = 50cm cable c/w Wieland GST-18i-3P connector
SH = 2m cable c/w schuko connector
Ordering Information - EQ595 Ceiling Panel
595
595
13.5
595
595
38.3

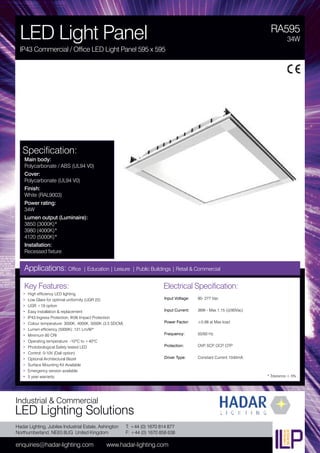

16. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity (UGR 22)
• UGR <19 option
• Easy installation & replacement
• IP43 Ingress Protection, IK06 Impact Protection
• Colour temperature: 3000K, 4000K, 5000K (3.5 SDCM)
• Lumen efficiency (5000K): 121 Lm/W*
• Minimum 80 CRI
• Operating temperature: -10ºC to +40ºC
• Photobiological Safety tested LED
• Control: 0-10V (Dali option)
• Optional Architectural Bezel
• Surface Mounting Kit Available
• Emergency version available
• 5 year warranty
Specification:
Main body:
Polycarbonate / ABS (UL94 V0)
Cover:
Polycarbonate (UL94 V0)
Finish:
White (RAL9003)
Power rating:
34W
Lumen output (Luminaire):
3850 (3000K)*
3980 (4000K)*
4120 (5000K)*
Installation:
Recessed fixture
RA595
LED Light Panel
IP43 Commercial / Office LED Light Panel 595 x 595
34W
Applications: Office | Education | Leisure | Public Buildings | Retail & Commercial
Electrical Specification:
Input Voltage: 90- 277 Vac
Input Current: 36W - Max 1.15 (@90Vac)
Power Factor: ≥0,98 at Max load
Frequency: 50/60 Hz
Protection: OVP, SCP, OCP, OTP
Driver Type: Constant Current 1040mA
* Tolerance ± 5%

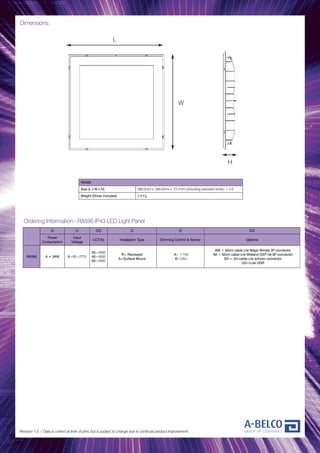

17. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
RA595
Size (L x W x H) 595.0mm x 595.0mm x 73.7mm (including standard driver) ± 2.0
Weight (Driver included) 2.9 Kg
O O OO O O OO
Power
Consumption
Input
Voltage
CCT(K) Installation Type Dimming Control & Sensor Options
RA595 A = 34W A=90~277V
30=3000
40=4000
50=5000
R= Recessed
S=Surface Mount
A= 1-10V
B=DALI
WA = 50cm cable c/w Wago Winsta 3P connector
WI = 50cm cable c/w Wieland GST-18i-3P connector
SH = 2m cable c/w schuko connector
UG=Low UGR
Ordering Information - RA595 IP43 LED Light Panel
L
W
H
18. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Glare-Free for optimal uniformity (UGR 22)
• Easy installation & replacement
• IP43 Ingress Protection, IK06 Impact Protection
• Colour temperature: 3000K, 4000K, 5000K (3.5 SDCM)
• Lumen efficiency (5000K): 121 Lm/W*
• Minimum 80 CRI
• Operating temperature: -10ºC to +40ºC
• Photobiological Safety tested LED
• Control: 0-10V (Dali option)
• Emergency version available (110 / 230V)
• 5 year warranty
Specification:
Main body:
Polycarbonate / ABS (UL94 V0)
Cover:
Polycarbonate (UL94 V0)
Finish:
White (RAL9003)
Power rating:
34W
Lumen output (Luminaire):
3850 (3000K)
3980 (4000K)
4120 (5000K)*
Installation:
Recessed fixture

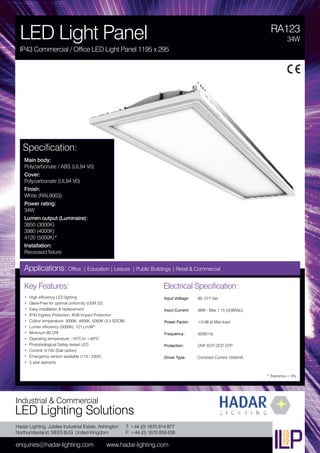

RA123
LED Light Panel
IP43 Commercial / Office LED Light Panel 1195 x 295
34W
Applications: Office | Education | Leisure | Public Buildings | Retail & Commercial
Electrical Specification:
Input Voltage: 90- 277 Vac
Input Current: 36W - Max 1.15 (@90Vac)
Power Factor: ≥0,98 at Max load
Frequency: 50/60 Hz
Protection: OVP, SCP, OCP, OTP
Driver Type: Constant Current 1040mA
* Tolerance ± 5%

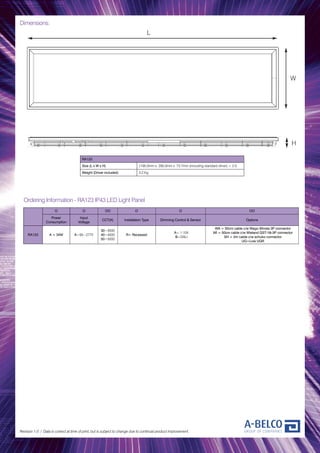

19. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
RA123
Size (L x W x H) 1195.0mm x 295.0mm x 73.7mm (including standard driver) ± 2.0
Weight (Driver included) 3.2 Kg
O O OO O O OO
Power
Consumption
Input
Voltage
CCT(K) Installation Type Dimming Control & Sensor Options
RA123 A = 34W A=90~277V
30=3000
40=4000
50=5000
R= Recessed
A= 1-10V
B=DALI
WA = 50cm cable c/w Wago Winsta 3P connector
WI = 50cm cable c/w Wieland GST-18i-3P connector
SH = 2m cable c/w schuko connector
UG=Low UGR
Ordering Information - RA123 IP43 LED Light Panel
L
W
H
20. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• IP44 Ingress
• Colour temperature: 3000K (3.5 SDCM)
• Lumen efficiency : 98 lm/W (37W)
• Minimum 93 CRI
• Operating temperature: -20ºC to +45ºC
• Photobiological Safety tested LED
• Emergency version available (230V)
• 50,000 hours lifetime
• Body colour and print options.
• Control options: 1 - 10V, Dali
• 5 year warranty
Specification:
Main body:
Sheet Steel
Cover:
Polycarbonate
Power rating:
13W / 27W / 37W
Lumen output (Luminaire):
1200 / 2550 / 3620
Installation:
Recessed fixture
SQ595
LED Downlight Panel
IP44 Commercial / Office LED Downlight Panel 595 x 595
13W / 27W / 37W
Applications: Office | Education | Leisure | Public Buildings | Retail & Commercial
Electrical Specification:
Input Voltage: 90 - 277V
Input Current: 36W - Max 0.75A (@230Vac)
Power Factor: ≥0,9 at Max load
Frequency: 50/60 Hz
Protection: OVP, SCP, OCP, OTP
Driver Type: Constant Current
* Tolerance ± 5%
21. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
SQ595 13W / 27W
Size (L x W x H) 595.0mm x 595.0mm x 68mm (including driver) ± 2.0
Weight (Driver included) 4.5 Kg
SQ595 37W
Size (L x W x H) 595.0mm x 595.0mm x 108mm (including driver) ± 2.0
Weight (Driver included) 4.5 Kg
O O OO O O OO
Power
Consumption
Input
Voltage
CCT(K) Installation Type
Dimming Control
& Sensor
Options
SQ595
A = 13W
B = 27W
C = 37W
A=90~277V 30=3000 R= Recessed
A = 1 - 10V
B = DALI
N = No Dim
NN = None
Ordering Information - SQ595 Downlight Panel
22. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 2 power ratings: 40W, 60W
• IP65 Ingress Protection
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 100 Lm/W*
• Minimum 80 CRI
• Operating temperature: -20°C to +50°C
• Control option: Sensor (Occupancy)
• 5 year warranty

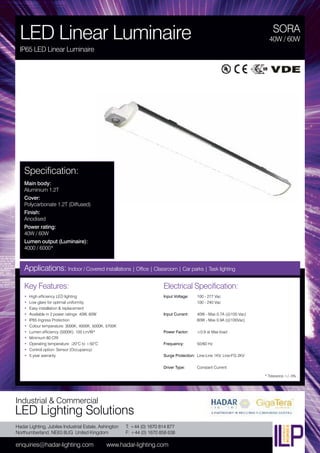

SORA
LED Linear Luminaire
IP65 LED Linear Luminaire
40W / 60W
Applications: Indoor / Covered installations | Office | Classroom | Car parks | Task lighting
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
Input Current: 40W - Max 0.7A (@100 Vac)
60W - Max 0.9A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 1KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Aluminium 1.2T
Cover:
Polycarbonate 1.2T (Diffused)
Finish:
Anodised
Power rating:
40W / 60W
Lumen output (Luminaire):
4000 / 6000*

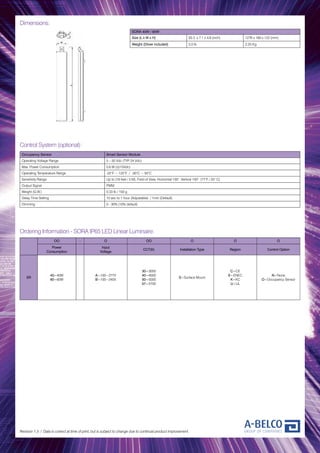

23. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
SORA 40W / 60W
Size (L x W x H) 50.3 x 7.1 x 4.8 (inch) 1276 x 180 x 122 (mm)
Weight (Driver included) 5.0 lb 2.25 Kg
OO - O OO O O O
Power
Consumption
Input
Voltage
CCT(K) Installation Type Region Control Option
SR
40=40W
60=60W
A=100~277V
B=100~240V
30=3000
40=4000
50=5000
57=5700
S=Surface Mount
C=CE
E=ENEC
K=KC
U=UL
N=None
O=Occupancy Sensor
Ordering Information - SORA IP65 LED Linear Luminaire:
Control System (optional):
Occupancy Sensor Smart Sensor Module
Operating Voltage Range 5 – 50 Vdc (TYP. 24 Vdc)
Max. Power Consumption 0.6 W (@15Vdc)
Operating Temperature Range -22°F ~ 122°F / -30°C ~ 50°C
Sensitivity Range Up to (16 feet / 5 M), Field of View, Horizontal 100°, Vertical 100° (77°F / 25° C)
Output Signal PWM
Weight (G.W.) 0.33 lb / 150 g
Delay Time Setting 15 sec to 1 hour (Adjustable) / 1min (Default)
Dimming 0 - 30% (10% default)
24. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• 9% Up-lighting
• Through Wired or loop-in loop out
• Easy installation & replacement
• Available in 2 power ratings: 40W, 60W
• IP65 Ingress Protection
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 100 Lm/W*
• Minimum 80 CRI
• Operating temperature: -20°C to +50°C
• Control option: Sensor (Occupancy)
• 5 year warranty
ZARA
LED Linear Luminaire
IP65 LED Linear Luminaire
40W / 60W
Applications: Indoor / Covered installations | Office | Classroom | Car parks | Task lighting
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
200 - 240 Vac
Input Current: 40W - Max 0.6A (@90Vac)
60W - Max 0.9A (@90Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 1KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Aluminium 1.2T
Cover:
Polycarbonate 1.2T (Diffused)
Finish:
Anodised
Power rating:
40W / 60W
Lumen output (Luminaire):
4000 / 6000*
25. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
ZARA 40W
Size (L x W x H) 47.2 x 6.7 x 5.2 (inch) 1200 x 170 x 132 (mm)
Weight (Driver included) 7.5 lb 3.4 Kg
ZARA 60W
Size (L x W x H) 59.1 x 6.7 x 5.2 (inch) 1500 x 170 x 132 (mm)
Weight (Driver included) 8.3 lb 3.8 Kg
OO - O OO O O O
Power
Consumption
Input
Voltage
CCT(K) Installation Type Region Control Option
ZAR
40=40W
60=60W
A=100~277V
B=100~240V
D=200~240V
30=3000
40=4000
50=5000
57=5700
S=Surface Mount
C=CE
E=ENEC
K=KC
U=UL
N=None
O=Occupancy Sensor
Ordering Information - ZARA IP65 LED Linear Luminaire:
Control System (optional):
Occupancy Sensor Smart Sensor Module
Operating Voltage Range 5 – 50 Vdc (TYP. 24 Vdc)
Max. Power Consumption 0.6 W (@15Vdc)
Operating Temperature Range -4°F ~ 122°F / -20°C ~ 50°C
Sensitivity Range Up to (16 feet / 5 M), Field of View, Horizontal 100°, Vertical 100° (77°F / 25° C)
Output Signal PWM
Weight (G.W.) 0.33 lb / 150g
Delay Time Setting 15 sec to 1 hour (Adjustable) / 15min (Default)
Dimming 0 - 30% (10% default)
26. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 2 power ratings: 65W, 80W
• IP65 Ingress Protection
• Colour temperature: 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 105 Lm/W*
• Minimum 80 CRI
• Operating temperature: -20ºC to +50ºC
• 5 year warranty
Specification:
Main body:
Aluminium
Cover:
Polycarbonate (clear)
Finish:
Anodised
Power rating:
65W / 80W
Lumen output (Luminaire):
6825 / 8400*
Installation:
Surface mounted fixture

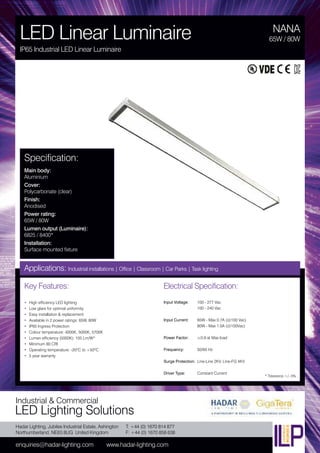

NANA
LED Linear Luminaire
IP65 Industrial LED Linear Luminaire
65W / 80W
Applications: Industrial installations | Office | Classroom | Car Parks | Task lighting
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
Input Current: 65W - Max 0.7A (@100 Vac)
80W - Max 1.0A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current
* Tolerance +/- 5%

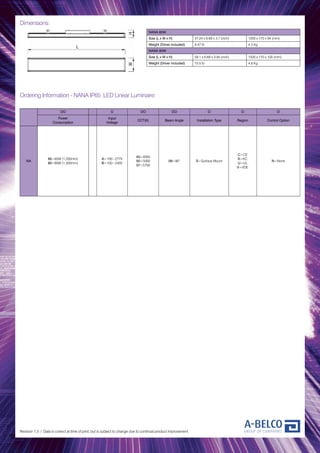

27. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
NANA 65W
Size (L x W x H) 47.24 x 6.69 x 3.7 (inch) 1200 x 170 x 94 (mm)
Weight (Driver included) 9.47 lb 4.3 Kg
NANA 80W
Size (L x W x H) 59.1 x 6.69 x 3.94 (inch) 1500 x 170 x 100 (mm)
Weight (Driver included) 10.5 lb 4.8 Kg
OO - O OO OO O O O
Power
Consumption
Input
Voltage
CCT(K) Beam Angle Installation Type Region Control Option
NA
65=65W (1,200mm)
80=80W (1,500mm)
A=100~277V
B=100~240V
40=4000
50=5000
57=5700
09=90° S=Surface Mount
C=CE
K=KC
U=UL
V=VDE
N=None
Ordering Information - NANA IP65 LED Linear Luminaire:
28. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• Available in 5 power ratings: 40W, 60W, 80W, 100W, 120W
• Tilt and Rotate LED head
• IP66 Ingress Protection
• Colour temperature: 3000K, 4000K, 5000K, 6500K
• Lumen efficiency: 91 Lm/W (5000K, 120W)*
• Light Distribution 30° (straight position)
• Minimum 80 CRI
• Operating temperature: -30°C to +60°C
• Control option: Wired (1 - 10V)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.0T (clear)
Finish:
Powder coat
Power rating:
40W, 60W, 80W, 100W, 120W
Lumen output (Luminaire):
3640, 5460, 7360, 9400, 11400*

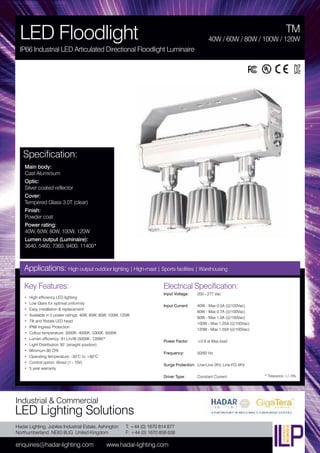

TM
LED Floodlight
IP66 Industrial LED Articulated Directional Floodlight Luminaire
40W / 60W / 80W / 100W / 120W
Applications: High output outdoor lighting | High-mast | Sports facilities | Warehousing
Electrical Specification:
Input Voltage: 200 - 277 Vac
Input Current: 40W - Max 0.5A (@100Vac)
60W - Max 0.7A (@100Vac)
80W - Max 1.0A (@100Vac)
100W - Max 1.25A (@100Vac)
120W - Max 1.55A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current * Tolerance +/- 5%

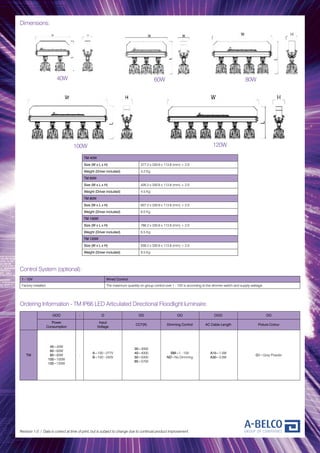

29. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
Control System (optional):
1 - 10V Wired Control
Factory installed The maximum quantity on group control over 1 - 10V is according to the dimmer switch and supply wattage
Ordering Information - TM IP66 LED Articulated Directional Floodlight luminaire:
TM 40W
Size (W x L x H) 377.2 x 330.6 x 113.8 (mm) ± 2.0
Weight (Driver included) 4.2 Kg
TM 60W
Size (W x L x H) 426.2 x 330.6 x 113.8 (mm) ± 2.0
Weight (Driver included) 4.5 Kg
TM 80W
Size (W x L x H) 607.2 x 330.6 x 113.8 (mm) ± 2.0
Weight (Driver included) 6.0 Kg
TM 100W
Size (W x L x H) 786.2 x 330.6 x 113.8 (mm) ± 2.0
Weight (Driver included) 6.5 Kg
TM 120W
Size (W x L x H) 939.2 x 330.6 x 113.8 (mm) ± 2.0
Weight (Driver included) 9.5 Kg
40W 60W 80W
100W 120W
OOO - O OO OO OOO OO
Power
Consumption
Input
Voltage
CCT(K) Dimming Control AC Cable Length Fixture Colour
TM
40=40W
60=60W
80=80W
100=100W
120=120W
-
A=100~277V
B=100~240V
30=3000
40=4000
50=5000
65=5700
BM=1 - 10V
ND=No Dimming
A15=1.5M
A30=3.0M
G1=Grey Powder
30. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 3 power ratings : 30W, 50W, 100W
• IP66 Ingress Protection.
• Colour temperature: 3000K, 4000K, 5000K
• Lumen efficiency (5000K): 95 Lm/W*
• Minimum 70 CRI
• Light distribution - Asymmetric wide
• Maximum fixture set-back
• Minimum light trespass
• Operating temperature: -30ºC to +50ºC
• Swivel Bracket Mount
• 5 Year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver Coated Reflector
Cover:
Polycarbonate 3.0T (clear)
Finish:
Powder coat
Power rating:
30W / 50W / 100W
Lumen output (Luminaire):
2850 / 4750 / 9500*
BIFA
LED Billboard Light
IP66 LED Billboard & Signage Light
30W / 50W / 100W
Applications: High output outdoor billboad & signage lighting| Advertising| Road Signage | Building Facades
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
Input Current: 30W - Max 0.38A (@100Vac)
50W - Max 0.65A (@100Vac)
100W - Max 1.25A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
31. Dimensions:
Mounting Type: Swivel Bracket
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
BIFA 30W
Size (W x L x H) 5.0 x 7.2 x 7.14 (inch) 127 x 183 x 181.5 (mm)
Weight (Driver included) 3.3 lb 1.5 Kg
BIFA 50W
Size (W x L x H) 6.2 x 7.3 x 8.9 (inch) 157 x 185.5 x 226.5 (mm)
Weight (Driver included) 4.9 lb 2.2 Kg
BIFA 100W
Size (W x L x H) 9.7 x 7.8 x 9.7 (inch) 247 x 198.5 x 247 (mm)
Weight (Driver included) 7.7 lb 3.5 Kg
OOO - O OO OOO O O OOO OO OOO
Power
Consumption
Input
Voltage
CCCT (K) Beam Angle Control System Surge Protector Installation Type Fixture Colour Cable Length
BIF
30=40W
50=50W
100=100W
A=100~277V
B=100~240V
30=3000
40=4000
50=5000
ASW=Asymmetric
Wide
N=None S=Yes NSV=Swivel Bracket G1=Grey
A06=AC Cable 0.6M
A15=AC Cable 1.5M
Ordering Information - BIFA IP66 LED Billboard and Signage Light:

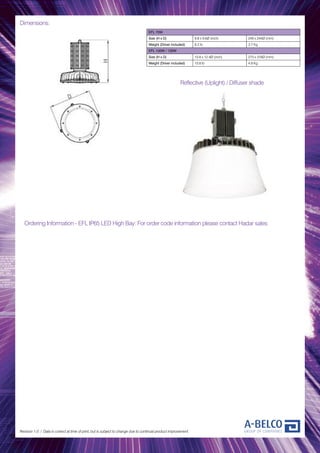

33. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.

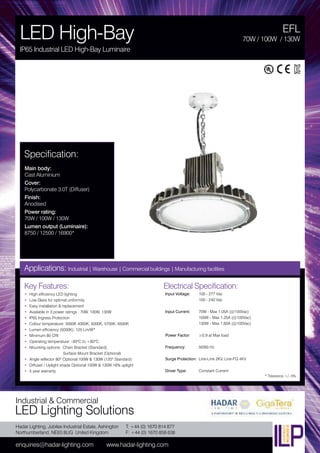

EFL 70W
Size (H x D) 9.8 x 9.6Ø (inch) 249 x 244Ø (mm)
Weight (Driver included) 8.2 lb 3.7 Kg
EFL 100W / 130W
Size (H x D) 10.8 x 12.4Ø (inch) 273 x 316Ø (mm)
Weight (Driver included) 10.8 lb 4.9 Kg
Ordering Information - EFL IP65 LED High Bay: For order code information please contact Hadar sales
Reflective (Uplight) / Diffuser shade
34. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• Available in 4 power ratings : 80W, 100W, 130W, 160W
• IP65 Ingress Protection
• Colour temperature: 4000K, 5000K, 5700K, 6500K
• Lumen efficiency (5000K): 130 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30ºC to +60ºC
• Control options: Wireless (ZigBee), Wired (0-10V)
Sensor (Daylight)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Cover:
Tempered Glass 3.2T (clear/frosted)
Finish:
White powder coat
Power rating:
80W / 100W / 130W / 160W
Lumen output (Luminaire):
10400 / 13000 / 16900 / 20800*

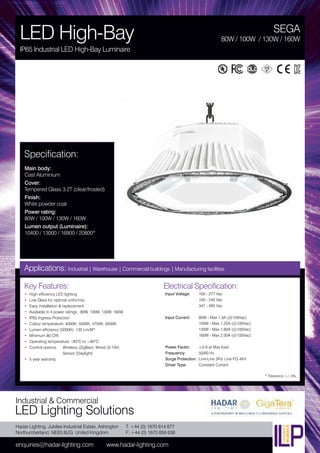

SEGA
LED High-Bay
IP65 Industrial LED High-Bay Luminaire
80W / 100W / 130W / 160W
Applications: Industrial | Warehouse | Commercial buildings | Manufacturing facilities
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 80W - Max 1.0A (@100Vac)
100W - Max 1.25A (@100Vac)
130W - Max 1.60A (@100Vac)
160W - Max 2.00A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current
* Tolerance +/- 5%

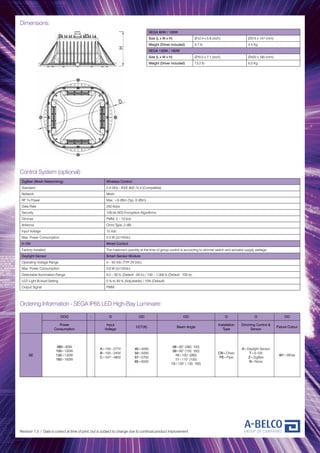

35. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
SEGA 80W / 100W
Size (L x W x H) Ø12.4 x 5.8 (inch) Ø315 x 147 (mm)
Weight (Driver included) 9.7 lb 4.4 Kg
SEGA 130W / 160W
Size (L x W x H) Ø16.5 x 7.1 (inch) Ø420 x 180 (mm)
Weight (Driver included) 13.2 lb 6.0 Kg
OOO - O OO OO O O OO
Power
Consumption
Input
Voltage
CCT(K) Beam Angle
Installation
Type
Dimming Control &
Sensor
Fixture Colour
SE
080=80W
100=100W
130=130W
160=160W
A=100~277V
B=100~240V
C=347~480V
40=4000
50=5000
57=5700
65=6500
08=80° (080, 100)
09=90° (130, 160)
10=100° (080)
11=110° (100)
13=130° ( 130, 160)
CN=Chain
PE=Pipe
A=Daylight Sensor
T=0-10V
Z=ZigBee
N=None
W1=White
Ordering Information - SEGA IP65 LED High-Bay Luminaire:
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
0-10V Wired Control
Factory Installed The maximum quantity at the time of group control is according to dimmer switch and actuator supply wattage
Daylight Sensor Smart Sensor Module
Operating Voltage Range 5 – 50 Vdc (TYP. 24 Vdc)
Max. Power Consumption 0.6 W (@15Vdc)
Detectable Illumination Range 9.2 – 92 fc (Default : 64 fc) / 100 – 1,000 lx (Default : 700 lx)
LED Light Bi-level Setting 0 % to 30 % (Adjustable) / 10% (Default)
Output Signal PWM
36. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• Available in 1 power rating: 500W
• IP65 Ingress Protection
• Colour temperature: 4000K, 5000K
• Lumen efficiency (5000K): 125 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30ºC to +60ºC
• Mounting options: Ceiling Bracket (Standard),
Pipe Mount (Optional)
• Control Options: Wireless (ZigBee)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Cover:
Tempered Glass 4.0T (Clear)
Finish:
Powder Coat
Power rating:
500W
Lumen output (Luminaire):
62500

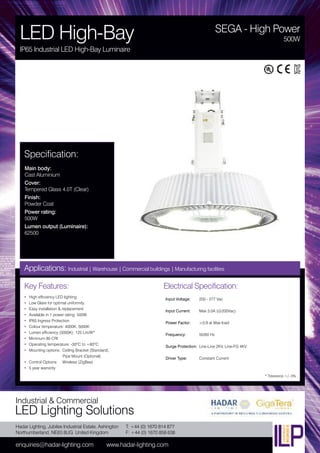

SEGA - High Power
LED High-Bay
IP65 Industrial LED High-Bay Luminaire
500W
Applications: Industrial | Warehouse | Commercial buildings | Manufacturing facilities
Electrical Specification:
Input Voltage: 200 - 277 Vac
Input Current: Max 3.0A (@200Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current
* Tolerance +/- 5%
37. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
SEGA - H 500W
Size (H x D) 33.8 x 24.4Ø (inch) 859 x 620Ø (mm)
Weight (Driver included) 70.6 lb 32 Kg
Ordering Information - SEGA - H IP65 LED High-Bay: For order code information please contact Hadar sales
38. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Narrow Multi Beam Forming Technology™
• Easy installation & replacement
• Available in 4 power ratings : 70W, 98W, 130W, 160W
• IP65 Ingress Protection
• Colour temperature: 3000K, 4000K, 5000K, 6500K
• Lumen efficiency (5000K): 96 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30ºC to +60ºC
• Control options: Wired (0-10V)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Cover:
Tempered Glass 3.0T (clear)
Finish:
Grey, Black or White powder coat
Power rating:
70W / 98W / 130W / 160W
Lumen output (Luminaire):
6720 / 9310 / 12480 / 15360*
LUNA
LED Multibeam High-Bay
IP65 Industrial LED High-Bay Luminaire
70W / 98W / 130W / 160W
Applications: Industrial | Warehouse | Commercial buildings | Manufacturing facilities
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 70W - Max 0.615A (@120Vac)
80W - Max 0.792A (@120Vac)
130W - Max 1.11A (@120Vac)
160W - Max 1.336A (@120Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 1KV, Line-FG 2KV
Driver Type: Constant Current
* Tolerance +/- 5%
39. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
LUNA 70W
Size (Dia x H) Ø15.9 x 11.4 (inch) Ø402.9 x 290.2 (mm)
Weight (Driver included) Max. 12.1 lb Max. 5.5 Kg
LUNA 98W
Size (Dia x H) Ø18.1 x 10.9 (inch) Ø460.6 x 276.6 (mm)
Weight (Driver included) Max. 15.4 lb Max. 7.0 Kg
LUNA 130W
Size (Dia x H) Ø18.5 x 10.9 (inch) Ø469.2 x 276.4 (mm)
Weight (Driver included) Max. 17.6 lb Max. 8.0 Kg
LUNA 160W
Size (Dia x H) Ø20.9 x 10.9 (inch) Ø530.8 x 276.3 (mm)
Weight (Driver included) 23.1 lb 10.5 Kg
Bracket:
OOO - O OO O OO O OO
Power
Consumption
Input
Voltage
CCT(K) Module Type Installation Type Group Dimming Fixture Colour
LN
070= 70W
098= 98W
130=130W
160=160W
A=100~277V
B=100~240V
C=347~480V
30=3000
40=4000
50=5000
65=6500
B=Fixed
CN=Chain
PE=Pipe
Y=Yes
N=No
G1=Grey Powder (Standard)
B1=Black Powder
W2=White Powder
Ordering Information - LUNA IP65 Industrial LED High-Bay Luminaire:
Chain Bracket: HB-C1 Pipe Bracket (Option)
Size: Ø4.25 x 15.75 (inch) / Ø108 x 400 (mm) Size: Ø4.25 x 15.75 (inch) / Ø108 x 400 (mm)
40. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement (Wire Pendant)
• Available in 5 power ratings : 130W, 170W, 200W, 400W, 500W
• IP20 Ingress Protection
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 105 Lm/W*
• Minimum 80 CRI
• Operating temperature: -10ºC to +55ºC
• Control options: Wireless (ZigBee), Wired (1 -10V, DMX512)
Sensor ( Occupancy, Daylight )
• 5 year warranty
Specification:
Main body:
Aluminium (Anodised)
Cover:
Clear Polycarbonate
Finish:
Anodised
Power rating:
130W / 170W / 200W / 400W / 500W
Lumen output (Luminaire):
13650 / 17000 / 21000 / 42000 / 52500*
IBL
LED Indirect Strip Light
IP20 Semi-Industrial LED High-Bay Linear Luminaire 130W / 170W / 200W / 400W / 500W
130
170
200
Applications: Semi-Industrial | Warehouse | Retail | Leisure | Commercial
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 130W - Max 1.55A (@100Vac)
170W - Max 2.0A (@100Vac)
200W - Max 2.5A (@100Vac)
400W - Max 4.8A (@100Vac)
500W - Max 6.0A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current
* Tolerance +/- 5%
400
500
41. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
IBL 130W
Size (L x W x H) 46.5 x 14.7 x 4.5 (inch) 1180 x 372 x 113 (mm)
Weight (Driver included) 15.2 lb 6.9 Kg
IBL 170W
Size (L x W x H) 59.1 x 14.7 x 4.5 (inch) 1500 x 372 x 113 (mm)
Weight (Driver included) 18.1 lb 8.2 Kg
IBL 200W
Size (L x W x H) 46.5 x 22.5 x 4.5 (inch) 1180 x 572 x 113 (mm)
Weight (Driver included) 21.6 lb 9.8 Kg
IBL 400W
Size (L x W x H) 46.5 x 46.1 x 4.5 (inch) 1180 x 1172 x 113 (mm)
Weight (Driver included) 36.6 lb 16.6 Kg
IBL 500W
Size (L x W x H) 59.1 x 46.1 x 4.5 (inch) 1500 x 1172 x 113 (mm)
Weight (Driver included) 44.1 lb 20.0 Kg
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
0-10V Wired Control
Factory Installed The maximum quantity at the time of group control is according to dimmer switch and actuator supply wattage
DMX512 Wired Control
Input Voltage 5 Vdc
Max. Power Consumption 0.2W (@5Vdc)
Communication Method RS485
Data Rate 250 bps, 8-N-2
Dimmer Level PWM, 0 - 10 Vdc
Occupancy Sensor Smart Sensor Module
Operating Voltage Range 5 – 50 Vdc (TYP. 24 Vdc)
Max. Power Consumption 0.6 W (@15Vdc)
Operating Temperature Range -22°F ~ 122°F / -30°C ~ 50°C
Sensitivity Range Up to (40 feet / 12M), Field of View, Horizontal 100°, Vertical 100° (77°F / 25° C)
Detection Motion Speed 0.6 - 1.5 m/s
Output Signal PWM
Delay Time Setting 15 sec to 1 hour (Adjustable) / 1min (Default)
Daylight Sensor Smart Sensor Module
Operating Voltage Range 5 – 50 Vdc (TYP. 24 Vdc)
Max. Power Consumption 0.6 W (@15Vdc)
Operating Temperature Range -22°F ~ 122°F / -30°C ~ 50°C
Detectable Illumination Range 9.2 – 92 fc (Default : 64 fc) / 100 – 1,000 lx (Default : 700 lx)
LED Light Bi-level Setting 0 % to 30 % (Adjustable) / 10% (Default)
Output Signal PWM
OOO - O OO OO OO O O O
Power
Consumption
Input
Voltage
CCT(K) Length
Beam
Angle
Installation
Type
Region Dimming Control & Sensor
IBL
130=130W
170=170W
200=200W
400=400W
500=500W
A=100~277V
B=100~240V
C=347~480V
30=3000
40=4000
50=5000
57=5700
12=1,180mm
15=1,500mm*
(*170W, 500W only)
08=80°
13=130°
P=Wire
Pendant
U=UL
C=CE
A=Daylight
B=Occupancy (High Bay : Under 12M)
C=Occupancy (Low Bay : Under 5M)
E=Occupancy (High Bay : Under 12M) + ZigBee
F=Occupancy (Low Bay : Under 5M) + ZigBee
G=Daylight + ZigBee
H=Occupancy (High Bay : Under 12M) + Daylight + ZigBee
I=Occupancy (Low bay: Under 4M) + Daylight + ZigBee
J=Occupancy (High Bay: Under 12M) + Daylight
K=Occupancy (Low Bay : Under 4M) + Daylight
T=1 -10V
U=DMX 512
Z=ZigBee
N=None
Ordering Information - IBL IP20 Semi-Industrial LED Linear Luminaire:
42. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 3 power ratings: 50W, 75W, 100W
• BUG Rating: B1 - U1 - G2 (Backlight - Uplight - Glare 100W)
• IP66 Ingress Protection. IK07 Impact Protection
• Colour temperature: 3500K, 4000K, 5000K, 6500K
• Lumen efficiency (5000K): 125 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30°C to +60°C
• Control option: Wireless (ZigBee)
Sensor (Daylight)
• Various mounting options available
• 5 year warranty
WAPA
LED Floodlight
IP66 Industrial LED Wide Area Floodlight Luminaire
50W / 75W / 100W
Applications: General outdoor lighting | Shipyards | Exterior warehousing | High-mast
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
Input Current: 50W - Max 0.6A (@100Vac)
75W - Max 1.0A (@100Vac)
100W - Max 1.25A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.2T (clear)
Finish:
Grey powder coat
Power rating:
50W / 75W / 100W
Lumen output (Luminaire):
6250 / 9375 / 12500*
43. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
WAPA 50W
Size (W x L x H) 15.4 x 9.5 x 4.4 (inch) 390 x 242 x 110.5 (mm)
Weight (Driver included) 7.1 lb 3.2 Kg
WAPA 75W
Size (W x L x H) 21.8 x 10.3 x 4.0 (inch) 552 x 261 x 101 (mm)
Weight (Driver included) 9.3 lb 4.2 Kg
WAPA 100W
Size (W x L x H) 21.8 x 10.3 x 4.0 (inch) 552 x 261 x 101 (mm)
Weight (Driver included) 9.3 lb 4.2 Kg
OOO - O OO OO O OO O
Power
Consumption
Input
Voltage
CCT(K) Installation Type
Dimming control &
Sensor
Fixture Colour Surge Protector
WP
050=50W
075=75W
100=100W
A=100~277V
B=100~240V
35=3500
40=4000
50=5000
65=6500
WM=Wall Mount
MB=Mount Bracket
PH=Pole Mount Horizontal
PV=Pole Mount Vertical
A=Daylight Sensor
Z=ZigBee
N=None
G1=Grey Powder
S=Yes
Blank=No
Ordering Information - WAPA IP66 LED Wide Area Floodlight Luminaire:
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 5 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Daylight Sensor Smart Sensor Module
Operating Voltage Range 5 Vdc (Max. 6 Vdc)
Max. Power Consumption 40 mW (@ 5 Vdc)
Detectable Illumination Range 9.2 – 92 fc (Default : 64 fc) / 100 – 1,000 lx (Default : 700 lx)
Output Signal level
44. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 5 power ratings: 150W, 200W, 300W, 400W, 600W
• BUG Ratng: B3 - U2 - G4 (Backlight - Uplight - Glare 400W)
• IP66 Ingress Protection. IK08 Impact Protection
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 130 Lm/W*
• Minimum 80 CRI
• Operating temperature: -30ºC to +55ºC
-30ºC to +60ºC (150W)
• Control option: Wireless (ZigBee) Wired (RS485)
• Various mounting options available
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 4.0T (clear)
Finish:
Grey powder coat
Power rating:
150W / 200W / 300W / 400W / 600W
Lumen output (Luminaire):
19500 / 26000 / 39000 / 52000 /
78000*
MAHA
LED Floodlight
IP66 Industrial LED Wide Area Floodlight Luminaire
150W / 200W / 300W / 400W / 600W
Applications: High output outdoor lighting | High-mast | Shipyards | Warehousing | Car Parks
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 150W - Max 2.0A (@100 Vac)
200W - Max 2.5A (@100 Vac)
300W - Max 4.0A (@100Vac)
400W - Max 5.0A (@100Vac)
600W - Max 6.25A (@110Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
45. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
MAHA 150W
Size (W x L x H) 13.7 x 13.7 x 5.5 (inch) 347.5 x 347 x 132 (mm)
Weight (Driver included) 22.1 lb 10.0 Kg
MAHA 200W
Size (W x L x H) 14.1 x 21.7 x 6.3 (inch) 357.0 x 551.5 x 160.5 (mm)
Weight (Driver included) 22.1 lb 10.0 Kg
MAHA 300W
Size (W x L x H) 18.7 x 21.7 x 6.3 (inch) 475.0 x 551.5 x 160.5 (mm)
Weight (Driver included) 33.1 lb 15.0 Kg
MAHA 400W
Size (W x L x H) 22.7 x 22.7 x 8.5 (inch) 577 x 576.5 x 215.5 (mm)
Weight (Driver included) 44.0 lb 20.0 Kg
MAHA 600w
Size (W x L x H) 30.9 x 24.8 x 7.6 (inch) 787 x 630 x 193 (mm)
Weight (Driver included) 68.3 lb 31.0 Kg
Bracket:
OOO - O OO O OO OOO
Power
Consumption
Input
Voltage
CCT(K) Dimming Control Fixture Colour Bracket
MA
150=150W
200=200W
300=300W
400=400W
600=600W
A=100~277V
B=100~240V
C=347~480V
30=3000
40=4000
50=5000
57=5700
W=Wired
Z=ZigBee
N=None
G1=Grey Powder
B1=Black Powder
Contact sales office for further information
regarding bracket compatibility.
008=BK13G10008 (MA150)
090=BK010090 (MA200)
100=BK010100 (MA200)
210=BK010210 (MA200)
220=BK010220 (MA200)
110=BK010110 (MA200/300)
120=BK010120 (MA200/300)
130=BK010130 (MA200/300)
140=BK010140 (MA200/300)
190=BK101190 (MA300)
240=BK010240 (MA300)
250=BK010250 (MA300)
010=BK010010 (MA400)
020=BK010020 (MA400)
200=BK010200 (MA400)
230=BK010230 (MA400)
606=BK010606 (MA600)
Ordering Information - MAHA IP66 LED Wide Area Floodlight Luminaire:
Contact sales office for further information regarding bracket options.
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
RS-485 Wired Control
Input Voltage 15 Vdc
Max. Power Consumption 0.2 W (@15 Vdc
Communication Method RS-485
Data Rate 38400 bps, 8-N-1
Dimmer Level PWM, 0 - 10 Vdc
46. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Narrow Multi Beam Forming Technology™
• Compatible with HDTV transmission standards
• Available in 3 power ratings : 200W, 400W, 800W
• IP66 Ingress Protection
• Light Distribution - 15°(Sym), 15°(Asy), 30°(Sym)
• Colour temperature: 3000K, 4000K, 5000K
• Lumen efficiency (5000K): 105 Lm/W*
• Minimum 70/80 CRI
• Operating temp: -30°C to + 60°C (SUFA 200W)
-30°C to + 55°C (SUFA 400W)
-30°C to + 50°C (SUFA 800W)
• Control option: Wireless (ZigBee) Wired (RS-485)
• Various mounting options available
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.0T (clear)
Finish:
Grey powder coat
Power rating:
200W / 400W / 800W
Lumen output (Luminaire):
21000 / 42000 / 84000*
SUFA
LED Floodlight
IP66 Industrial LED Directional Floodlight Luminaire
200W / 400W / 800W
Applications: High output outdoor lighting | High-mast | Sports facilities | Warehousing
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 200W - Max 2.5A (@100 Vac)
400W - Max 5.0A (@100Vac)
800W - Max 10.0A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current * Tolerance +/- 5%
400
WATTS
800
WATTS
200
WATTS
47. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
SUFA 200W
Size (L x W x H)
Vertical Type 12.6 x 20.2 x 12.1 (inch) 320 x 514 x 307 (mm)
Horizontal Type 12.6 x 12.6 x 24.0 (inch) 320 x 320 x 610 (mm)
Weight (Driver included) 17.6 lb 8.0 Kg
SUFA 400W
Size (L x W x H) 12.6 x 25.2 x 11.5 (inch) 320 x 640 x 292 (mm)
Weight (Driver included) 31.9 lb 14.5 Kg
SUFA 800W
Size (L x W x H) 25.2 x 25.2 x 11.5 (inch) 640 x 640 x 292 (mm)
Weight (Driver included) 55.1 lb 25.0 Kg
OOO - O OO OOO O OO OOO O
Power
Consumption
Input
Voltage
CCT(K) Beam Angle Dimming Control Fixture Colour Bracket Product Type
SF 200=200W
A=100~277V
B=100~240V
C=347~480V
30=3000K
40=4000K
50=5000K
15S=15°(Sy)
30S=30°(Sy)
15A=15°(As)
W=Wired
Z=ZigBee
N=None
G1=Grey Powder
Contact sales office for further
information regarding bracket
compatibility.
PMB=Pole Mount
H=Horizontal
V=Vertical
Ordering Information - SUFA IP66 LED Directional Floodlight Luminaire:
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
RS-485 Wired Control
Input Voltage 15 Vdc
Max. Power Consumption 0.2 W (@15Vdc)
Communication Method RS-485
Data Rate 38400bps, 8-N-1
Dimmer Level PWM, 0 – 10 Vdc
SF 200W
SF 400W
SF 800W
OOO - O OO OOO O OO OOO
Power
Consumption
Input
Voltage
CCT(K) Beam Angle Dimming Control Fixture Colour Bracket
SF
400=400W
800=800W
A=100~277V
B=100~240V
C=347~480V
30=3000K
40=4000K
50=5000K
15S=15°(Sy)
30S=30°(Sy)
15A=15°(As)
W=Wired
Z=ZigBee
N=None
G1=Grey Powder
Contact sales office for further information
regarding bracket compatibility.
050=BK010050
48. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Narrow Multi Beam Forming Technology™
• Compatible with HDTV transmission standards
• Easy installation & replacement
• Available in 6 power ratings: 400W / 500W / 600W / 800W /
1000W / 1200W
• IP66 Ingress Protection
• Light Distribution - 15°, 20°, 30°, 40°
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K, 70CRI): 110 Lm/W*
• Minimum 70/80 CRI
• Operating temperature: -30°C to +55°C
• Control option: Wireless (ZigBee) Wired (RS-485)
• Various mounting options available
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.2T (clear)
Finish:
Powder coat
Power rating:
400W / 500W / 600W / 800W / 1000W
/ 1200W
Lumen output (Luminaire):
44000 / 55000 / 66000 / 88000 /
110000 / 132000*
SUFA - X
LED Floodlight
IP66 Industrial LED Directional Floodlight Luminaire
400W / 500W / 600W / 800W / 1000W / 1200W
Applications: High output outdoor lighting | High-mast | Sports facilities | Warehousing
Electrical Specification:
Input Voltage: 200 - 277 Vac
347 - 480 Vac
Input Current: 400W - Max 2.5A (@200 Vac)
500W - Max 3.0A (@200Vac)
600W - Max 3.5A (@200Vac)
800W - Max 5.0A (@200Vac)
1000W - Max 6.0A (@200Vac)
1200W - Max 7.0A (@200Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
400 / 500 / 600
WATTS
800 / 1000 / 1200
WATTS
49. Dimensions:
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 5 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
RS-485 Wired Control
Input Voltage 15 Vdc
Max. Power Consumption 0.2 W (@15Vdc)
Communication Method RS-485
Data Rate 38400bps, 8-N-1
Dimmer Level PWM, 0 – 10 Vdc
Ordering Information - SUFA - X IP66 LED Directional Floodlight luminaire:
For order code information please contact Hadar sales
16.6Kg 32Kg
50. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Narrow Multi Beam Forming Technology™
• Compatible with HDTV transmission standards
• Easy installation & replacement
• Tilt and Rotate LED head
• IP66 Ingress Protection
• Remote IP66 driver enclosure
• Light Distribution - 15°, 20°, 30°, 45°
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K, 70CRI): 110 Lm/W*
• Minimum 70/80 CRI
• Operating temperature: -30°C to +55°C
• Control option: Wireless (ZigBee) Wired (RS-485)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.2T (clear)
Finish:
Powder coat
Power rating:
1000W
Lumen output (Luminaire):
105000 (80 CRI)
110000 (70 CRI)
SUFA - A
LED Floodlight
IP66 Industrial LED Articulated Directional Floodlight Luminaire
1000W
Applications: High output outdoor lighting | High-mast | Sports facilities | Warehousing
Electrical Specification:
Input Voltage: 200 - 277 Vac
347 - 480 Vac
Input Current: 1000W - Max 6.0A (@200Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
51. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 5 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
RS-485 Wired Control
Input Voltage 15 Vdc
Max. Power Consumption 0.2 W (@15Vdc)
Communication Method RS-485
Data Rate 38400bps, 8-N-1
Dimmer Level PWM, 0 – 10 Vdc
Ordering Information - SUFA - A 1000W IP66 LED Articulated Directional Floodlight luminaire:
For order code information please contact Hadar sales
SUFA - A 1000W
Weight 39.7 lb 18.0 Kg
Driver Encloure / Power Box
Weight 25.5 lb 25.0 Kg
52. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Narrow Multi Beam Forming Technology™
• Compatible with HDTV transmission standards
• Easy installation & replacement
• Tilt and Rotate LED head
• IP66 Ingress Protection
• Remote IP66 driver enclosure
• Light Distribution - 15°, 20°, 30°, 45°
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K, 70CRI): 105 Lm/W*
• Minimum 70/80 CRI
• Operating temperature: -30°C to +55°C
• Control option: Wireless (ZigBee) Wired (RS-485)
• 5 year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver coated reflector
Cover:
Tempered Glass 3.2T (clear)
Finish:
Powder coat
Power rating:
1200W
Lumen output (Luminaire):
120000 (80 CRI)
126000 (70 CRI)
SUFA - A
LED Floodlight
IP66 Industrial LED Articulated Directional Floodlight Luminaire
1200W
Applications: High output outdoor lighting | High-mast | Sports facilities | Warehousing
Electrical Specification:
Input Voltage: 200 - 277 Vac
347 - 480 Vac
Input Current: 1200W - Max 7.0A (@200Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
53. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 5 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
RS-485 Wired Control
Input Voltage 15 Vdc
Max. Power Consumption 0.2 W (@15Vdc)
Communication Method RS-485
Data Rate 38400bps, 8-N-1
Dimmer Level PWM, 0 – 10 Vdc
Ordering Information - SUFA - A 1200W IP66 LED Articulated Directional Floodlight luminaire:
For order code information please contact Hadar sales
SUFA - A 1200W
Size (W x L x H) 18.7 x 30.7 x 24.0 (inch) 475 x 780 x 610 (mm) ± 2.0
Weight (Driver included) 46.3 lb 21.0 Kg
Driver Box
Size (W x L x H) 6.3 x 6.7 x 20.5 (inch) 160 x 170.5 x 520 (mm) ± 2.0
Weight (Driver included) 28.7 lb 13.0 Kg
54. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 5 power ratings : 40W, 50W, 70W, 100W, 130W
• IP66 Ingress Protection.
• Colour temperature: 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 95 Lm/W*
• Minimum 80 CRI
• Light Distribution - 150º
• BUG rating: B3 - UX - G3 (Backlight - Uplight - Glare 130W)
• Operating temperature: -30ºC to +60ºC
• Post Top Mount
• Control options: Daylight Sensor (NEMA)
• 5 Year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver Coated Reflector
Cover:
Polycarbonate 3.0T (clear)
Finish:
Powder coat
Power rating:
40W / 50W / 70W / 100W / 130W
Lumen output (Luminaire):
3800 / 4750 / 6650 / 9500 / 12350*
NM
LED Street Light
IP66 LED Post Top Street Light
40W / 50W / 70W / 100W / 130W
Applications: High output outdoor street lighting| Retail Parks | Commercial buildings | Car Parks
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
Input Current: 40W - Max 0.5A (@100Vac)
50W - Max 0.6A (@100Vac)
70W - Max 0.85A (@100Vac)
100W - Max 1.25A (@100Vac)
130W - Max 1.55A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 2KV, Line-FG 4KV
Driver Type: Constant Current * Tolerance +/- 5%
55. Dimensions:
Mounting Type: Post Type Ø73.0 mm
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
NM 40W / 50W / 70W / 100W / 130W (Excluding Sensor)
Size (W x L x H) 19.76 x 22.35 x 6.63 (inch) 502.0 x 567.6 x 168.5 (mm)
Weight (Driver included) 16.1 lb 7.3 Kg
NM 40W / 50W / 70W / 100W / 130W (Including Sensor)
Size (W x L x H) 19.76 x 22.35 x 8.68 (inch) 502.0 x 567.6 x 220.6 (mm)
Weight (Driver included) 16.1 lb 7.3 Kg
Control System (optional):
Photo Sensor (NEMA) Daylight Sensor
Type CdS Photocell
Material UV Stabilised Polycarbonate Cover & Clear Window
On - Off Levels 10 - 20 lux (Dusk) : 30 - 60 lux (Dawn)
Ambient Temperature -40ºC ~ 70ºC
Relative Humidity 95%
Power Consumption Max. 1.5Vac
IP Rating IP65
Electrical Life Min 6000 Cycles
OOO - O OO O OO OOO
Power
Consumption
Input
Voltage
CCCT (K) Photo Sensor (NEMA) Fixture Colour AC Cable Length
NM
40=40W
50=50W
70=70W
100=100W
130=100W
A=100~277V
B=100~240V
40=4000
50=5000
57=5700
Y=Yes
N=No
G1=Grey A15=1.5M
Ordering Information - NM IP66 LED Post Top Street Light:
56. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 3 power ratings : 60W, 80W, 100W
• IP66 Ingress Protection. IK08 Impact Protection.
• Colour temperature: 3000K, 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 125 Lm/W* (100W)
• Minimum 70 CRI / Minimum 80 CRI
• Light Distribution - Type II-S
• BUG rating: B3 - U1 - G3 (Backlight - Uplight - Glare 100W)
• Operating temperature: -30ºC to +60ºC
• Optional Junction Box
• Horizontal Tenon Mount
• Control options: Wireless (ZigBee). Sensor (Daylight)
• 5 Year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver Coated Reflector
Cover:
Tempered Glass 4.0T (clear)
Finish:
Grey Powder Coat
Power rating:
60W / 80W / 100W
Lumen output (Luminaire):
7200 / 10000 / 12500*
SETA
LED Street Light
IP66 LED Street Light
60W / 80W / 100W
Applications: High output outdoor street lighting| Roadway| Commercial buildings | Car Parks
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 60W - Max 0.75A (@100Vac)
80W - Max 1.00A (@100Vac)
100W - Max 1.25A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 4KV
Driver Type: Constant Current * Tolerance +/- 5%
57. SETA 60W
Size (L x W x H) 15.7 x 16.3 x 6.2 (inch) 398 x 415 x 157
Weight (Driver included) 9.9 lb 4.5 Kg
SETA 80W
Size (L x W x H) 15.7 x 16.3 x 6.2 (inch) 398 x 415 x 157
Weight (Driver included) 9.9 lb 4.5 Kg
SETA 100W
Size (L x W x H) 15.7 x 16.3 x 6.2 (inch) 398 x 415 x 157
Weight (Driver included) 9.9 lb 4.5 Kg
OOO - O OOO OOO O OOO O
Power
Consumption
Input
Voltage
CCCT (K) / CRI (Ra)
Distribution Type Dimming Control & Sensor Surge Protector Junction Box
SET
060=60W
080=80W
100=100W
A=100~277V
B=100~240V
C=347~480V
508=5000K / 80Ra
507=5000K / 70Ra
578=5700K / 80Ra
577=5700K / 70Ra
2S0=Type II-S
A=Daylight Sensor
G=Daylight + ZigBee
Z=ZigBee
N=None
S=Yes
N=None
J=Junction Box
Ordering Information - SETA IP66 LED Street Light:
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
Daylight Sensor Smart Sensor Module
Operating Voltage Range 5 - 50 Vdc (TYP.. 15 Vdc)
Max. Power Consumption 0.6 W (@(15 Vdc
Detectable Illumination Range 9.2 - 92 fc (Default: 64fc) / 100 - 1000 lx (Default: 500 lx)
LED Light Bi - Level Setting 0% - 30% (Adjustable) / 10% (Default)
Output Signal PWM
Mounting Type: 60.5mm Diameter Pipe
OOO OOO OO OOO OO OO
Installation Type Size Fixture Colour Cable Type / Length Option Region
PMH=Pole Mount Horizontal NNN=Not Applicable G1=Grey Powder A15=AC Cable 1.5m NN=None
KC=KC
PS=PSE
CE=CE
UL=UL
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
58. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low glare for optimal uniformity
• Easy installation & replacement
• Available in 4 power ratings : 100W, 130W, 150W, 180W
• IP66 Ingress Protection. IK08 Impact Protection.
• Colour temperature: 4000K, 5000K, 5700K
• Lumen efficiency (5000K): 130 Lm/W*
• Minimum 80 CRI
• Light Distribution - Type III-S
• BUG rating: B4 - U1 - G4 (Backlight - Uplight - Glare 180W)
• Operating temperature: -30ºC to +60ºC
• Optional Junction Box
• Horizontal Tenon Mount
• Control options: Wireless (ZigBee). Sensor (Daylight)
• 5 Year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver Coated Reflector
Cover:
Tempered Glass 4.0T (clear)
Finish:
Grey powder coat
Power rating:
100W / 130W / 150W / 180W
Lumen output (Luminaire):
13000 / 16900 / 19500 / 23400*
META
LED Street Light
IP66 LED Street Light
100W / 130W / 150W / 180W
Applications: High output outdoor street lighting| Roadway| Commercial buildings | Car Parks
Electrical Specification:
Input Voltage: 100 - 277 Vac
100 - 240 Vac
347 - 480 Vac
Input Current: 100W - Max 1.25A (@100Vac)
130W - Max 1.55A (@100Vac)
150W - Max 1.90A (@100Vac)
180W - Max 2.30A (@100Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 4KV
Driver Type: Constant Current * Tolerance +/- 5%
59. Dimensions:
Mounting Type: 60.5mm Diameter Pipe
Revision 1.3 / Data is correct at time of print, but is subject to change due to continual product improvement.
META 100W
Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) 505.0 x 480.0 x 152.8 (mm)
Weight (Driver included) 17.6 lb 8.0 Kg
META 130W
Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) 505.0 x 480.0 x 152.8 (mm)
Weight (Driver included) 17.6 lb 8.0 Kg
META 150W
Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) 505.0 x 480.0 x 152.8 (mm)
Weight (Driver included) 17.6 lb 8.0 Kg
META 180W
Size (L x W x H) 19.9 x 18.9 x 6.0 (inch) 505.0 x 480.0 x 152.8 (mm)
Weight (Driver included) 17.6 lb 8.0 Kg
OOO - O OO OO O OOO O
Power
Consumption
Input
Voltage
Distribution Type CCCT (K) Dimming Control & Sensor Installation Type Junction Box
MT
100=100W
130=130W
150=150W
180=180W
A=100~277V
B=100~240V
C=347~480V
3S =Type III-S
40=4000
50=5000
57=5700
A=Daylight Sensor
G=Daylight + ZigBee
Z=ZigBee
N=None
PMH=Pole Mount Horizontal
N=None
J=Junction Box
Ordering Information - META IP66 LED Street Light:
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
Daylight Sensor Smart Sensor Module
Operating Voltage Range 5 - 50 Vdc (TYP.. 15 Vdc)
Max. Power Consumption 0.6 W (@15 Vdc)
Detectable Illumination Range 9.2 - 92 fc (Default: 64fc) / 100 - 1000 lx (Default: 500 lx)
LED Light Bi - Level Setting 0% - 30% (Adjustable) / 10% (Default)
Output Signal PWM
60. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
Industrial & Commercial
LED Lighting Solutions
Key Features:
• High efficiency LED lighting
• Low Glare for optimal uniformity
• Easy installation & replacement
• Available in 1 power rating : 240W
• IP66 Ingress Protection. IK08 Impact Protection.
• Colour temperature: 3000K, 4000K, 5000K
• Lumen efficiency (5000K): 120 Lm/W*
• Minimum 80 CRI
• Light Distribution - Type III-S
• BUG rating: B4 - UX - G4 (Backlight - Uplight - Glare)
• Operating temperature: -30ºC to +55ºC
• Control options: Wireless (Zigbee), Daylight Sensor (NEMA)
• 5 Year warranty
Specification:
Main body:
Cast Aluminium
Optic:
Silver Coated Reflector
Cover:
Tempered Glass 4.0T (clear)
Finish:
Powder coat
Power rating:
240W
Lumen output (Luminaire):
28800*
MEGA
LED Street Light
IP66 LED Street Light
240W
Applications: Outdoor street lighting| Roadway| Commercial buildings | Car Parks | Walkway
Electrical Specification:
Input Voltage: 220 - 277 Vac
Input Current: 240W - Max 1.5A (@200Vac)
Power Factor: ≥0.9 at Max load
Frequency: 50/60 Hz
Surge Protection: Line-Line 20KV, Line-FG 20KV
Driver Type: Constant Current
* Tolerance +/- 5%
61. Dimensions:
Revision 1.0 / Data is correct at time of print, but is subject to change due to continual product improvement.
MEGA 240W
Size (W x L x H) 25.1 x 18.9 x 6.2 (inch) 638 x 481 x 158 (mm)
Weight (Driver included) 23.2 lb 10.5 Kg
Ordering Information - MEGA IP66 LED Street Light: For order code information please contact Hadar sales
Control System (optional):
ZigBee (Mesh Networking) Wireless Control
Standard 2.4 GHz - IEEE 802.15.4 (Compatible)
Network Mesh
RF Tx Power Max. +8 dBm (Typ. 6 dBm)
Data Rate 250 kbps
Security 128 bit AES Encryption Algorithms
Dimmer PWM, 0 – 10 Vdc
Antenna Omni Type, 2 dBi
Input Voltage 15 Vdc
Max. Power Consumption 0.3 W (@15Vdc)
Photo Sensor (NEMA) Daylight Sensor
Type CdS Photcell
Material UV Stabilised Polycarbonate Cover & Clear Window
On - Off Levels 10 - 20 lux (Dusk) : 30 - 60 lux (Dawn)
Ambient Temperature -40ºC ~ 70ºC
Relative Humidity 95%
Power Consumption Max. 1.5Vac
IP Rating IP65
Electrical Life Min 6000 Cycles
Mounting Type: 60.5mm Diameter Pipe
62. Hadar Lighting, Jubilee Industrial Estate, Ashington
Northumberland, NE63 8UG United Kingdom
enquiries@hadar-lighting.com
www.hadar-lighting.com
T: +44 (0) 1670 814 877
F: +44 (0) 1670 858 638
A-Belco Electrical Engineering is a specialist manufacturer of bespoke engineered
solutions for industrial and rail applications.
MEP Solutions is an innovative market leader in M&E building services
modularisation, specialising in integrated prefabricated solutions.
HADAR Lighting manufactures a range of innovative Hazardous Area lighting
suitable for explosive atmosphere environments - Zone Classification Areas 1, 2, 21
& 22, Gas and Dust. The range also includes a comprehensive range of Commercial
& Industrial LED lighting products.
Industrial Connectors is a specialist manufacturer of industrial plugs, sockets and
combination units for the control and distribution of electrical power. Includes the
leading Easigo range, first manufactured by Reyrolle in 1910.
A-Belco Hazardous Area is a specialist manufacture of explosion proof equipment
for the oil, gas, pharmaceutical and petrochemical industries worldwide.
OPSOL is a World Class Electronics Design and Manufacturing business
specialising in contract electronic assembly, taking customer concept from
prototype to volume production in the quickest time to market available.
Proud to be part of the A-Belco Group of Companies
