1. High-Per f o rma nce
LED-Techn o lo gi es & Solutions
We bring your ideas to light
with our high performance Nichia LED modules
Choose from our wide range of modules
or let your imagination run free and design your own!
What you can imagine, we can build.

2. 3

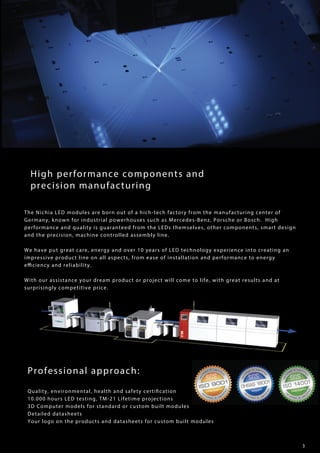

High performance components and
precision manufacturing
The Nichia LED modules are born out of a hich-tech factory from the manufacturing center of
Germany, known for industrial powerhouses such as Mercedes-Benz, Porsche or Bosch. High
performance and quality is guaranteed from the LEDs themselves, other components, smart design
and the precision, machine controlled assembly line.
We have put great care, energy and over 10 years of LED technology experience into creating an
impressive product line on all aspects, from ease of installation and performance to energy
efficiency and reliability.
With our assistance your dream product or project will come to life, with great results and at
surprisingly competitive price.
Professional approach:
Quality, environmental, health and safety certification
10.000 hours LED testing, TM-21 Lifetime projections
3D Computer models for standard or custom built modules
Detailed datasheets
Your logo on the products and datasheets for custom built modules

3. 4
Extraordinary results from a
focused approach
We have engineered the Nichia LED modules to bring high performance lighting to specific
applications. By focusing on the application it is easier to deliver a solution that easily
exceeds the performance criteria and has a competitive price. Another advantage is stream
lining of installation and energy feeding of the LED assembly. Specific applications have
their unique requirements for integrating the lighting system which our modules meet with
ease.
The Smart Array will make designer lamps shine brightly, the Lumiflex and Multibar will
create lines of light similar to daylight or amaze with shapes or sculptures of light, the
MaxLine will empower tube light or linear lamps with unprecedented performance while
BackMatrix and LED Matrix will lift back-lighting of large areas to new heights.
Whatever the application may be, all the modules have in common the high quality and
reliability that arise from the latest developments of LED lighting technology.
If you have a new module design in mind or wish to build a totally unique product we can
custom build for you. You can choose the module design, color temperature, power, bright-
ness and even the type of Nichia LED. Thus, your application will receive the right hi-tech
solution.

4. 5
The Plug & Play Powerlight
FEATURES:
• Ideal replacement for Chip on Board Module
(accessories compatible)
• Available with Dim2Warm and Tunable White
Lighting Technology
• Excellent homogeneity
• Very bright– up to 4300 Lumen s
• Extremely long life, minimum 60.000 hours
• Space-saving, very flat design
• Easy integration into light fixtures
• With constant current or voltage input

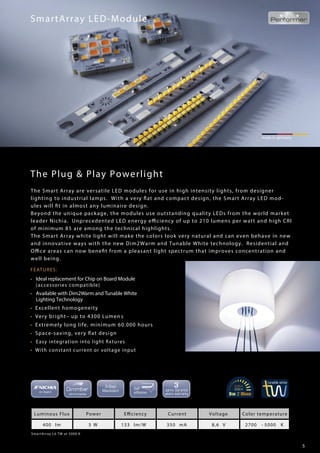

SmartArray LED-Module
made in germany
SmartArray L6 TW at 5000 K
Luminous Flux Power Efficiency Current Voltage Color temperature
400 lm 3 W 133 lm/W 350 mA 8,6 V 2700 - 5000 K
The Smart Array are versatile LED modules for use in high intensity lights, from designer
lighting to industrial lamps. With a very flat and compact design, the Smart Array LED mod-
ules will fit in almost any luminaire design.
Beyond the unique package, the modules use outstanding quality LEDs from the world market
leader Nichia. Unprecedented LED energy efficiency of up to 210 lumens per watt and high CRI
of minimum 85 are among the technical highlights.
The Smart Array white light will make the colors look very natural and can even behave in new
and innovative ways with the new Dim2Warm and Tunable White technology. Residential and
Office areas can now benefit from a pleasant light spectrum that improves concentration and
well being.

5. 6
made in germany
Bright light for large-areas
Maximum values for BackMatrix 49 TW at 6500 K and 85C
made in germany

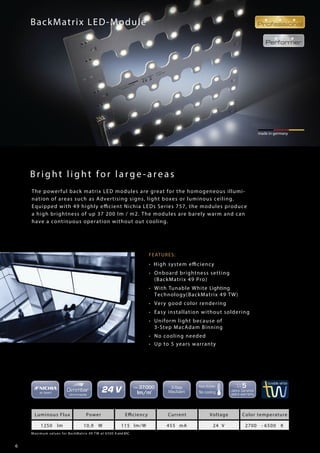

BackMatrix LED-Module
FEATURES:
• High system efficiency
• Onboard brightness setting
(BackMatrix 49 Pro)
• With Tunable White Lighting
Technology(BackMatrix 49 TW)
• Very good color rendering
• Easy installation without soldering
• Uniform light because of
3-Step MacAdam Binning
• No cooling needed
• Up to 5 years warranty
Luminous Flux Power Efficiency Current Voltage Color temperature
1250 lm 10,9 W 115 lm/W 455 mA 24 V 2700 - 6500 K
The powerful back matrix LED modules are great for the homogeneous illumi-
nation of areas such as Advertising signs, light boxes or luminous ceiling.
Equipped with 49 highly efficient Nichia LEDs Series 757, the modules produce
a high brightness of up 37 200 lm / m2. The modules are barely warm and can
have a continuous operation without out cooling.

6. 7

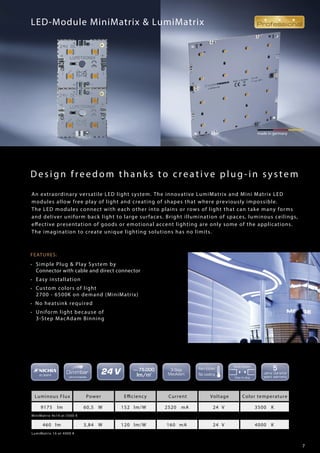

Design freedom thanks to creative plug-in system
LumiMatrix 16 at 4000 K
MiniMatrix 9x14 at 3500 K
made in germany
LED-Module MiniMatrix & LumiMatrix
FEATURES:
• Simple Plug & Play System by
Connector with cable and direct connector
• Easy installation
• Custom colors of light
2700 - 6500K on demand (MiniMatrix)
• No heatsink required
• Uniform light because of
3-Step MacAdam Binning
460 lm 3,84 W 120 lm/W 160 mA 24 V 4000 K
Luminous Flux Power Efficiency Current Voltage Color temperature
9175 lm 60,5 W 152 lm/W 2520 mA 24 V 3500 K
An extraordinary versatile LED light system. The innovative LumiMatrix and Mini Matrix LED
modules allow free play of light and creating of shapes that where previously impossible.
The LED modules connect with each other into plains or rows of light that can take many forms
and deliver uniform back light to large surfaces. Bright illumination of spaces, luminous ceilings,
effective presentation of goods or emotional accent lighting are only some of the applications.
The imagination to create unique lighting solutions has no limits.

7. 8
made in germany
Flexible in application, amazing in results

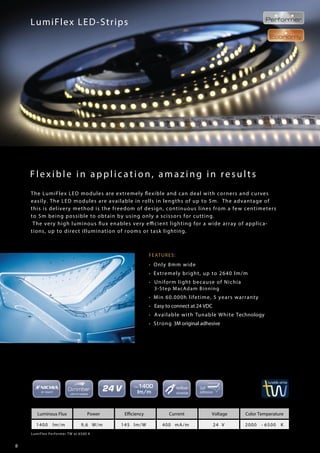

LumiFlex LED-Strips
FEATURES:
• Only 8mm wide
• Extremely bright, up to 2640 lm/m
• Uniform light because of Nichia
3-Step MacAdam Binning
• Min 60.000h lifetime, 5 years warranty
• Easy to connect at 24 VDC
• Available with Tunable White Technology
• Strong 3M original adhesive
LumiFlex Performer TW at 6500 K
Luminous Flux Power Efficiency Current Voltage Color Temperature
1400 lm/m 9,6 W/m 145 lm/W 400 mA/m 24 V 2000 - 6500 K
The LumiFlex LED modules are extremely flexible and can deal with corners and curves
easily. The LED modules are available in rolls in lengths of up to 5m. The advantage of
this is delivery method is the freedom of design, continuous lines from a few centimeters
to 5m being possible to obtain by using only a scissors for cutting.
The very high luminous flux enables very efficient lighting for a wide array of applica-
tions, up to direct illumination of rooms or task lighting.

8. 9

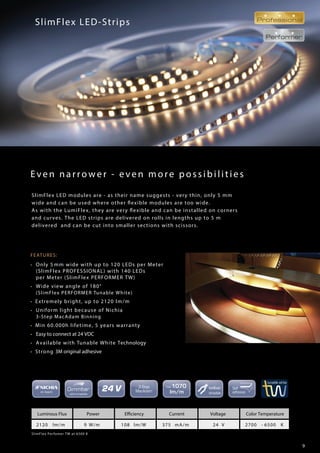

Even nar r ow er - ev en more possibilities
SlimFlex LED-Strips
FEATURES:
• Only 5 mm wide with up to 120 LEDs per Meter
(SlimFlex PROFESSIONAL) with 140 LEDs
per Meter (SlimFlex PERFORMER TW)
• Wide view angle of 180°
(SlimFlex PERFORMER Tunable White)
• Extremely bright, up to 2120 lm/m
• Uniform light because of Nichia
3-Step MacAdam Binning
• Min 60.000h lifetime, 5 years warranty
• Easy to connect at 24 VDC
• Available with Tunable White Technology
• Strong 3M original adhesive
SlimFlex Perfomer TW at 6500 K
Luminous Flux Power Efficiency Current Voltage Color Temperature
2120 lm/m 9 W/m 108 lm/W 375 mA/m 24 V 2700 - 6500 K
SlimFlex LED modules are - as their name suggests - very thin, only 5 mm
wide and can be used where other flexible modules are too wide.
As with the LumiFlex, they are very flexible and can be installed on corners
and curves. The LED strips are delivered on rolls in lengths up to 5 m
delivered and can be cut into smaller sections with scissors.

9. 1 0

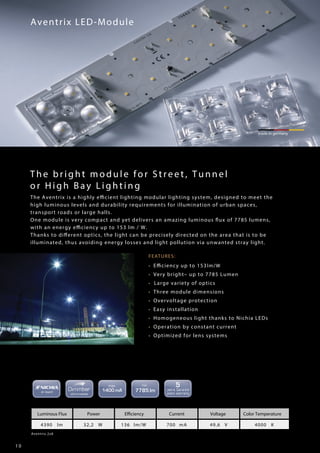

FEATURES:
• Efficiency up to 153lm/W
• Very bright– up to 7785 Lumen
• Large variety of optics
• Three module dimensions
• Overvoltage protection
• Easy installation
• Homogeneous light thanks to Nichia LEDs
• Operation by constant current
• Optimized for lens systems
Aventrix LED-Module
made in germany
Aventrix 2x8
Luminous Flux Power Efficiency Current Voltage Color Temperature
4390 lm 32,2 W 136 lm/W 700 mA 49,6 V 4000 K
The bright module for Street, Tunnel
or High Ba y Li ghti ng
The Aventrix is a highly efficient lighting modular lighting system, designed to meet the
high luminous levels and durability requirements for illumination of urban spaces,
transport roads or large halls.
One module is very compact and yet delivers an amazing luminous flux of 7785 lumens,
with an energy efficiency up to 153 lm / W.
Thanks to different optics, the light can be precisely directed on the area that is to be
illuminated, thus avoiding energy losses and light pollution via unwanted stray light.

10. 1 1
FEATURES:
• Simple Plug & Play System
• Optimized for office and residential spaces
• Easy Installation
• 24 LEDs or 44 LEDs
• Natural color reproduction
at a high CRI value over 90
• Very good price performance ratio
• No heatsink required
• Homogeneous light thanks to Nichia
3-Step MacAdam Binning
made in germany

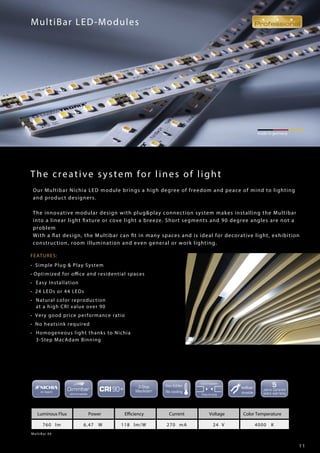

MultiBar LED-Modules
MultiBar 44
Luminous Flux Power Efficiency Current Voltage Color Temperature
760 lm 6,47 W 118 lm/W 270 mA 24 V 4000 K
The creative system for lines of light
Our Multibar Nichia LED module brings a high degree of freedom and peace of mind to lighting
and product designers.
The innovative modular design with plug&play connection system makes installing the Multibar
into a linear light fixture or cove light a breeze. Short segments and 90 degree angles are not a
problem
With a flat design, the Multibar can fit in many spaces and is ideal for decorative light, exhibition
construction, room illumination and even general or work lighting.

11. 1 2
FEATURES:
• Durable LEDs from Nichia,
Cree and Osram
• Easy to use Plug & Play System
• No resistors: for operation
with a constant current source
• Very high Luminous Flux up to 3050 lm
• View angle 120°
• Divisible at after each segment
• Optimized for lens systems
• Optional self-adhesive film
PowerBar LED-Modules
made in germany
High performance for demanding lighting
PowerBar Nichia PB2 219 white
Luminous Flux Power Efficiency Current Voltage Color Temperature
2600 lm 24,7 W 105 lm/W 700 mA 35,3 V 5000 K
PowerBar LED strips are available in different configurations with LEDs from Nichia, Cree or
Osram and different colored LEDs, for meeting the requirements of a wide range of applica-
tions.
The applications range from technical specialty lamps, optical systems for imaging process
to applications in the private sector or in plant breeding.

12. 1 3
FEATURES:
• Very long service life
• Easy Plug & Play System
• Constant LED spacing at
connection of two modules
• Very bright and efficient
• View angle120˚
• On request also with other light
temperature and CRI 90+
made in germany

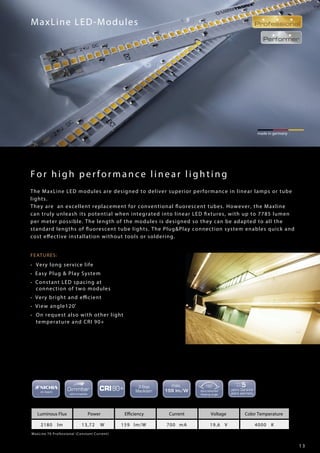

MaxLine LED-Modules
For high performance linear lighting
MaxLine 70 Professional (Constant Current)
Luminous Flux Power Efficiency Current Voltage Color Temperature
2180 lm 13,72 W 159 lm/W 700 mA 19,6 V 4000 K
The MaxLine LED modules are designed to deliver superior performance in linear lamps or tube
lights.
They are an excellent replacement for conventional fluorescent tubes. However, the Maxline
can truly unleash its potential when integrated into linear LED fixtures, with up to 7785 lumen
per meter possible. The length of the modules is designed so they can be adapted to all the
standard lengths of fluorescent tube lights. The Plug&Play connection system enables quick and
cost effective installation without tools or soldering.

13. 1 4
FEATURES:
• Tunable White control unit with dimming
Function and Dim2 Warm Mode
• For controlling constant voltage
LED modules
• Very small dimensions and thus
ideal for integration into luminaires
• High current carrying capacity of up to 2.5 A
• High output power of up to 75 W
• Very low standby power of
< 36 mW at 12 V
• Three different modes selectable
via Jumper
• Integrated button to control all functions
• Memory function: values remain at
the saved values after a power
failure or off switch
• Made in Germany with high quality
components
• WAGO PCB terminals for a
rapid tool-free connection
• Ideal for integration in floor, table,
wall, pendant lamps or for incorporation into
Appliances e.g. Hoods
• Easy control of the following
Nichia Tunable White Products:®
LumiFlex, SlimFlex, BackMatrix and
SmartArray 24V

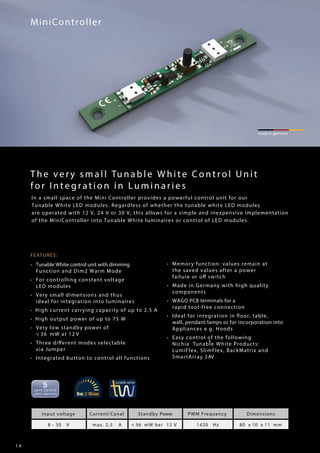

MiniController
made in germany
Input voltage Current/Canal Standby Power PWM Frequency Dimensions
8 - 30 V max. 2,5 A < 36 mW bei 12 V 1420 Hz 80 x 10 x 11 mm
The very small Tuna ble White Control Unit
for In tegr a tion in Luminarie s
In a small space of the Mini Controller provides a powerful control unit for our
Tunable White LED modules. Regardless of whether the tunable white LED modules
are operated with 12 V, 24 V or 30 V, this allows for a simple and inexpensive implementation
of the MiniController into Tunable White luminaires or control of LED modules.

14. 1 5
FEATURES:
• Tunable White control unit with dimming
Function and Dim2warm / Dim2Cold-
Mode
• For controlling constant voltage
LED-Modules
• Small dimensions
• High current carrying capacity of up to 5A
• High output power of up to 150W
• Very low standby power
max 100 mW
• Memory function: values remain after
a power failure or turning off
• Dim2 Hot / Cold Dim2 cable bridge
activated (default mode: Tunable White)
• Two separately adjustable universal
outputs for controlling the brightness and the
color temperature
• Separate input to connect via 1-10V
external sensors (light sensors,
motion)
• Ideal for controlling all kinds of
LED modules with Tunable White Technology,
for ceiling, industrial, floor, wall, and
pendant lights
• Easy control of the following
Nichia Tunable White Modules:®
LumiFlex, SlimFlex, BackMatrix and
SmartArray 24V
made in germany

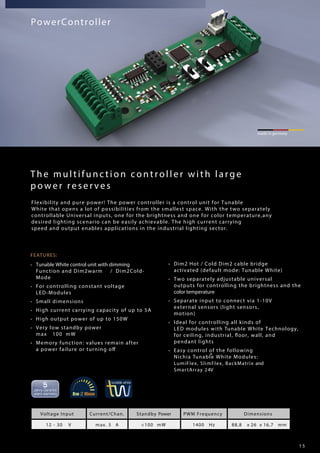

PowerController
Voltage Input Current/Chan. Standby Power PWM Frequency Dimensions
12 - 30 V max. 5 A <100 mW 1400 Hz 88,8 x 26 x 16,7 mm
The multifunction controller with large
power reserves
Flexibility and pure power! The power controller is a control unit for Tunable
White that opens a lot of possibilities from the smallest space. With the two separately
controllable Universal inputs, one for the brightness and one for color temperature,any
desired lighting scenario can be easily achievable. The high current carrying
speed and output enables applications in the industrial lighting sector.

15. High-Performance Nichia LED-Technologies & Solutions
www.ledrise.com
Germany - Hong Kong - Romania
