2. Abstract

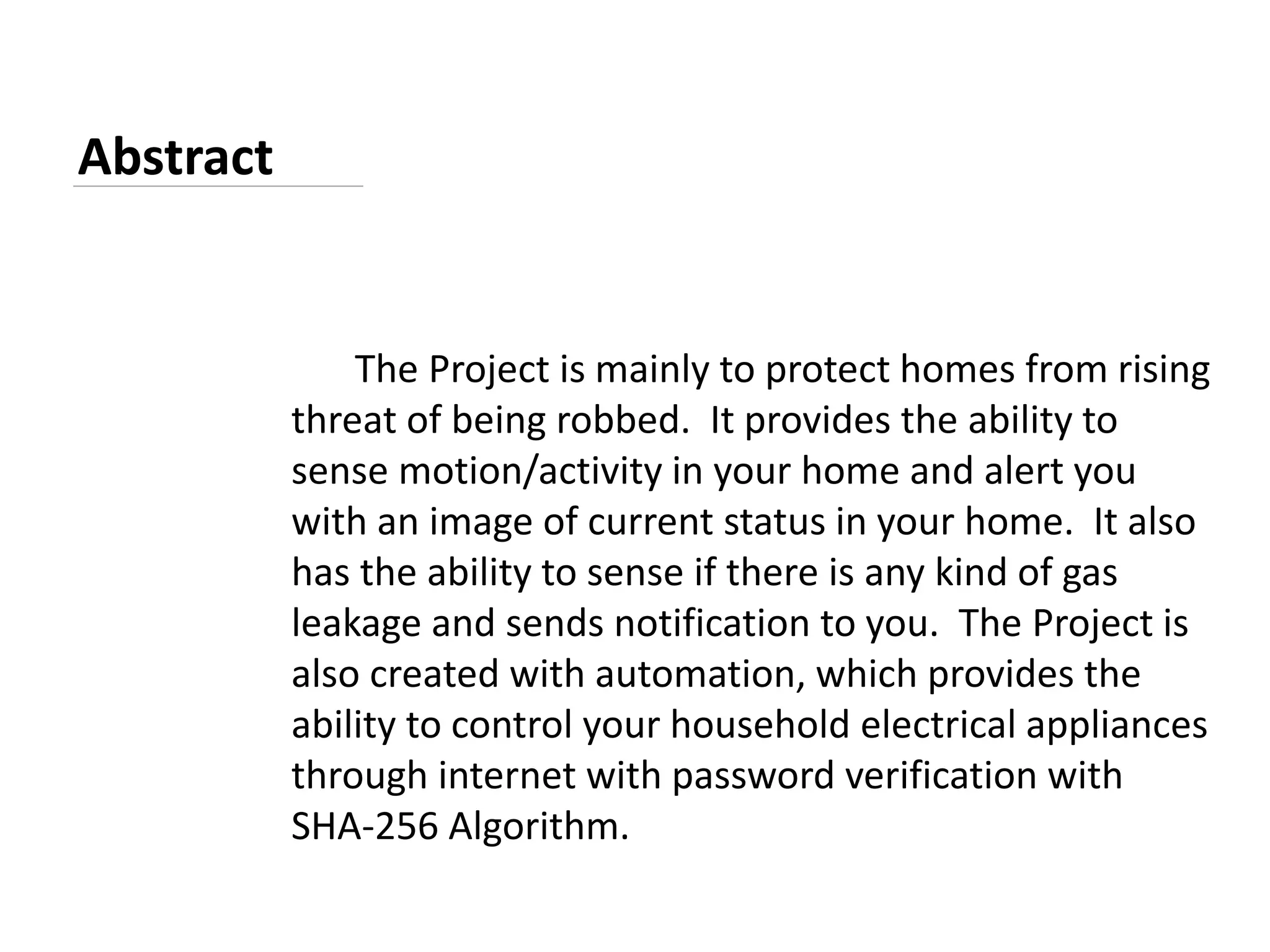

The Project is mainly to protect homes from rising
threat of being robbed. It provides the ability to
sense motion/activity in your home and alert you
with an image of current status in your home. It also
has the ability to sense if there is any kind of gas
leakage and sends notification to you. The Project is
also created with automation, which provides the
ability to control your household electrical appliances
through internet with password verification with
SHA-256 Algorithm.

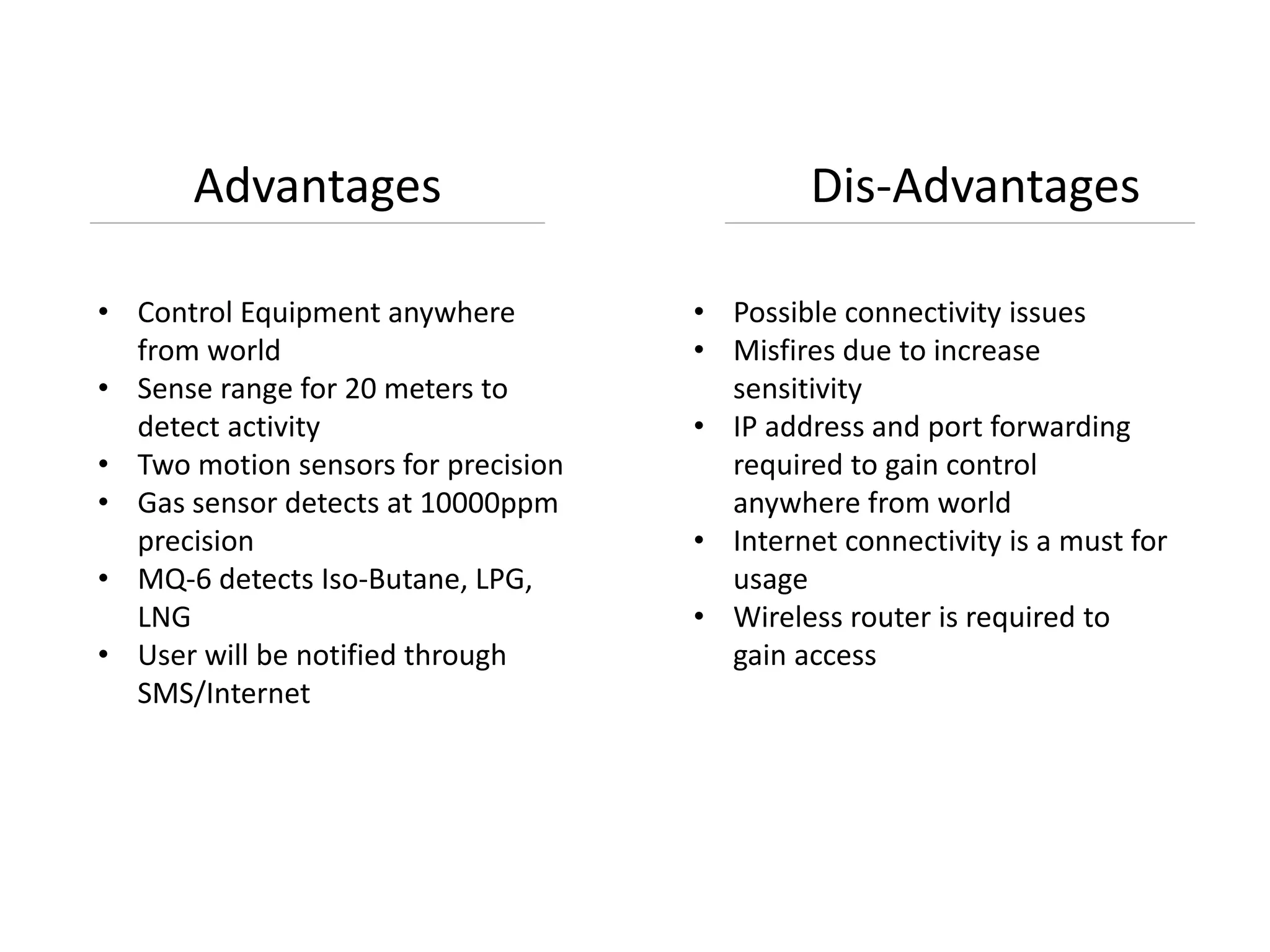

3. Advantages Dis-Advantages
• Control Equipment anywhere
from world
• Sense range for 20 meters to
detect activity
• Two motion sensors for precision
• Gas sensor detects at 10000ppm
precision
• MQ-6 detects Iso-Butane, LPG,
LNG
• User will be notified through
SMS/Internet
• Possible connectivity issues
• Misfires due to increase
sensitivity
• IP address and port forwarding
required to gain control
anywhere from world
• Internet connectivity is a must for
usage
• Wireless router is required to
gain access

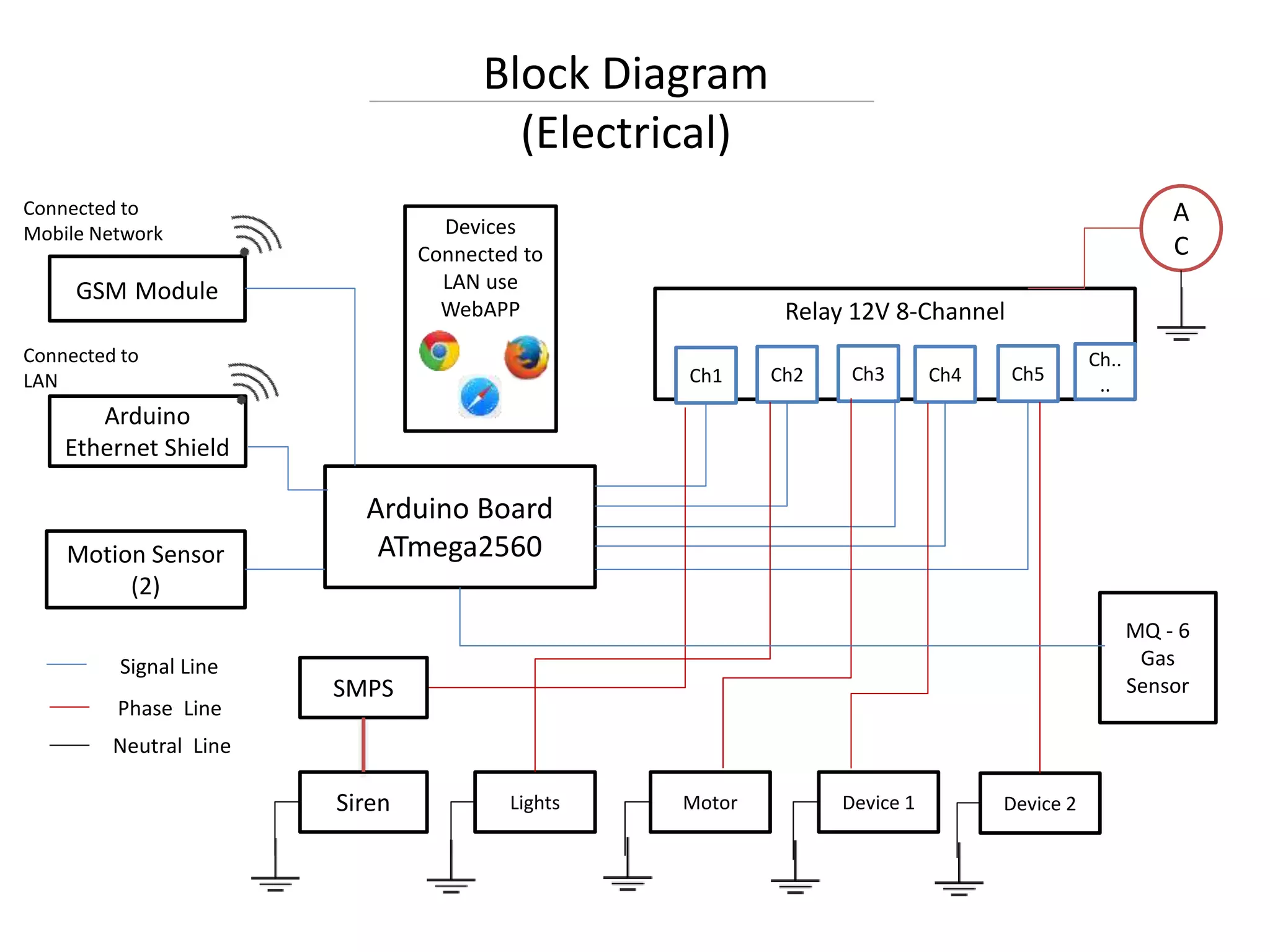

4. Block Diagram
(Electrical)
GSM Module
Arduino
Ethernet Shield
Arduino Board
ATmega2560Motion Sensor
(2)
Relay 12V 8-Channel
Ch1 Ch2 Ch3 Ch4 Ch5
A
C
Siren Lights Motor Device 1 Device 2
Signal Line
Phase Line
Neutral Line
Ch..
..
SMPS
Connected to
LAN
Connected to
Mobile Network Devices
Connected to
LAN use
WebAPP
MQ - 6
Gas
Sensor
5. Block Diagram
(Cloud)
Server Machine
(IP: 10.0.0.X)
LAN
(10.0.0.1)
Arduino Server
(IP: 10.0.0.Y)
Performs Operation
Sends Response
MySQL (Port: 3306)
Table(Login Details)
User Name
Password (SHA-256)
PHP(Port: 80)
Query
Response
HTTP Request
To
Arduino Server
HTTP Response
From
Arduino Server
Request
From
PHP Server
Response
To
PHP Server
Query
Request
Connected to Internet

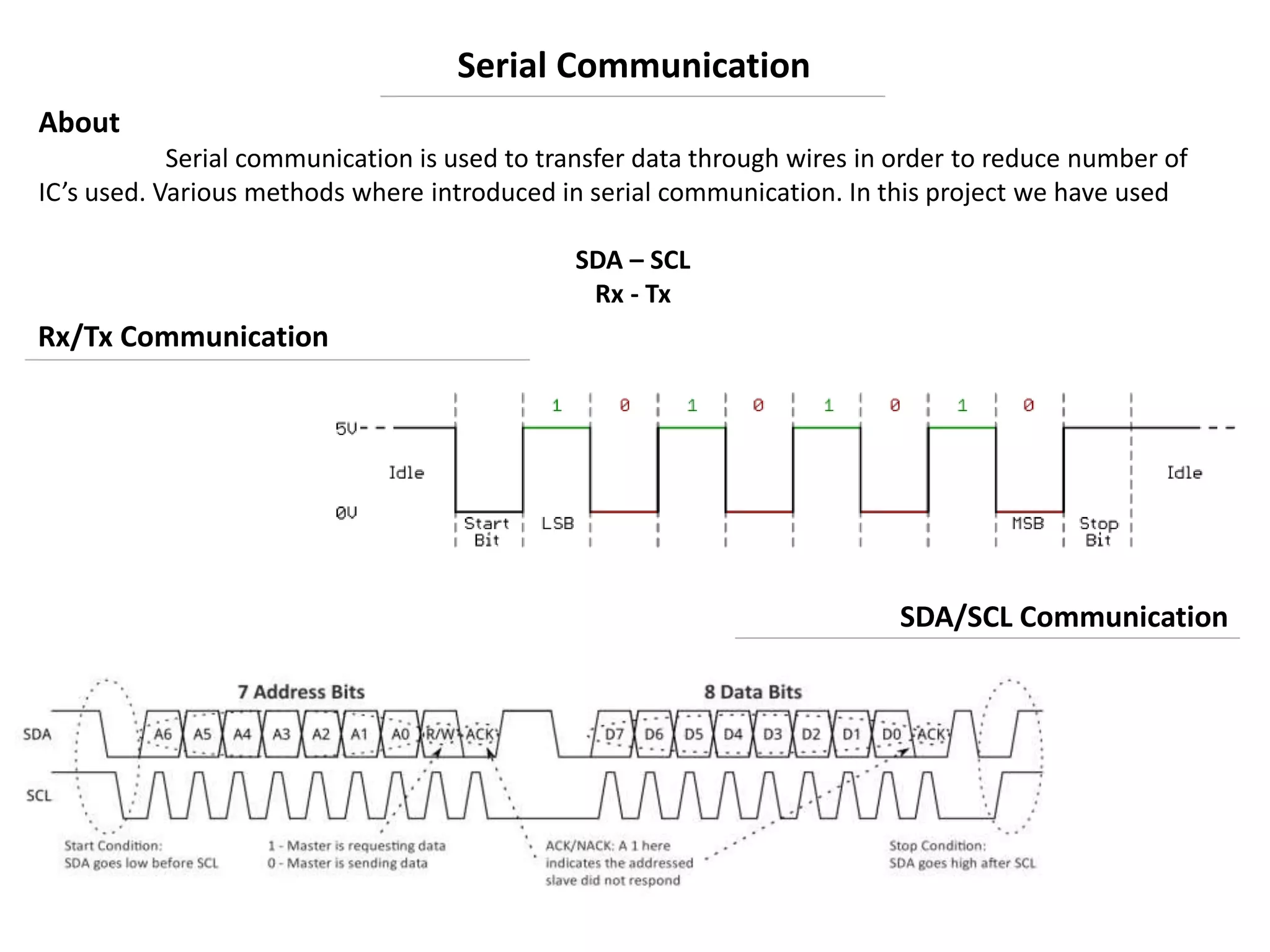

6. Serial Communication
About
Serial communication is used to transfer data through wires in order to reduce number of
IC’s used. Various methods where introduced in serial communication. In this project we have used
SDA – SCL
Rx - Tx
Rx/Tx Communication
SDA/SCL Communication

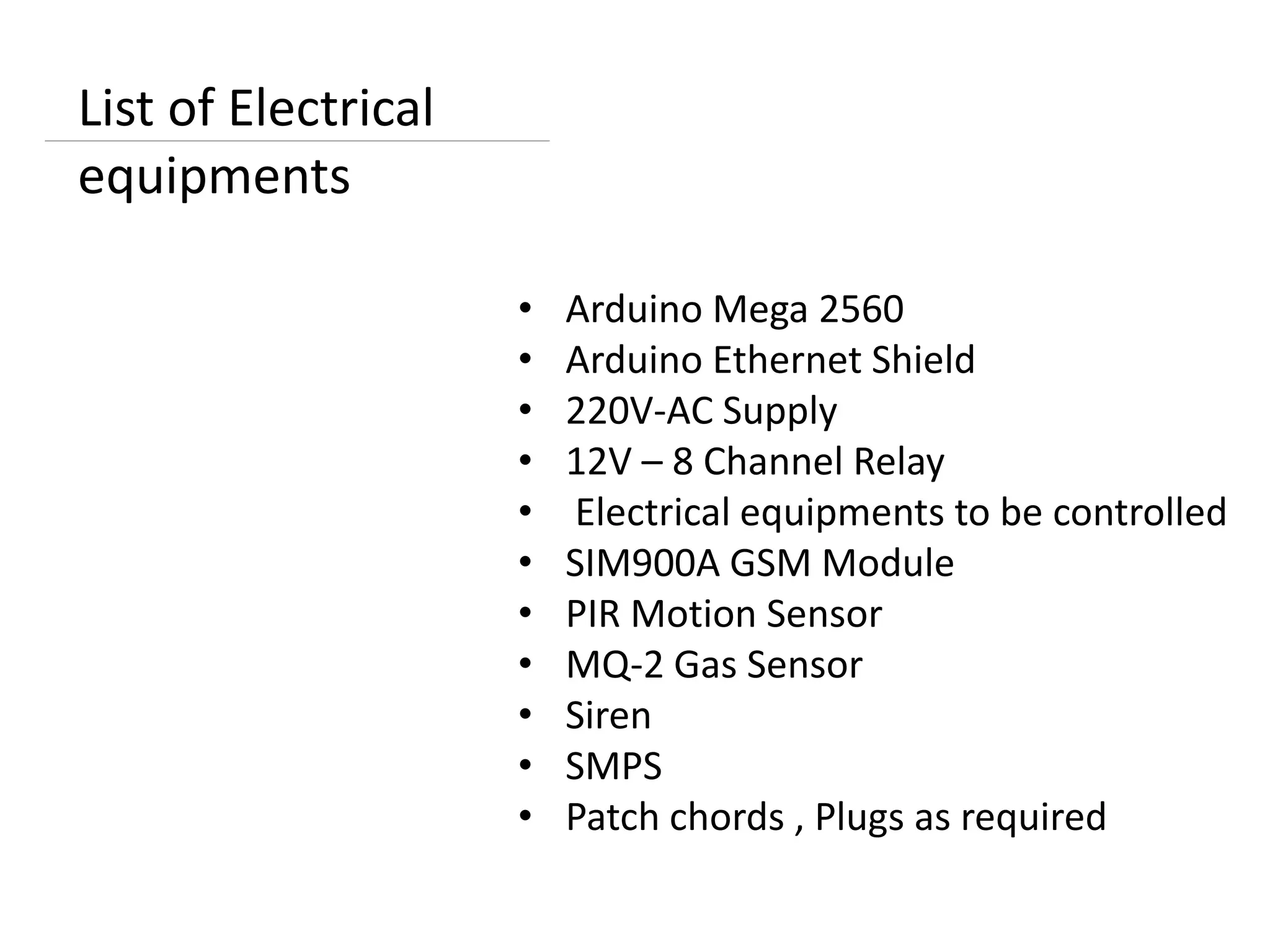

7. List of Electrical
equipments
• Arduino Mega 2560
• Arduino Ethernet Shield
• 220V-AC Supply
• 12V – 8 Channel Relay
• Electrical equipments to be controlled
• SIM900A GSM Module
• PIR Motion Sensor
• MQ-2 Gas Sensor
• Siren

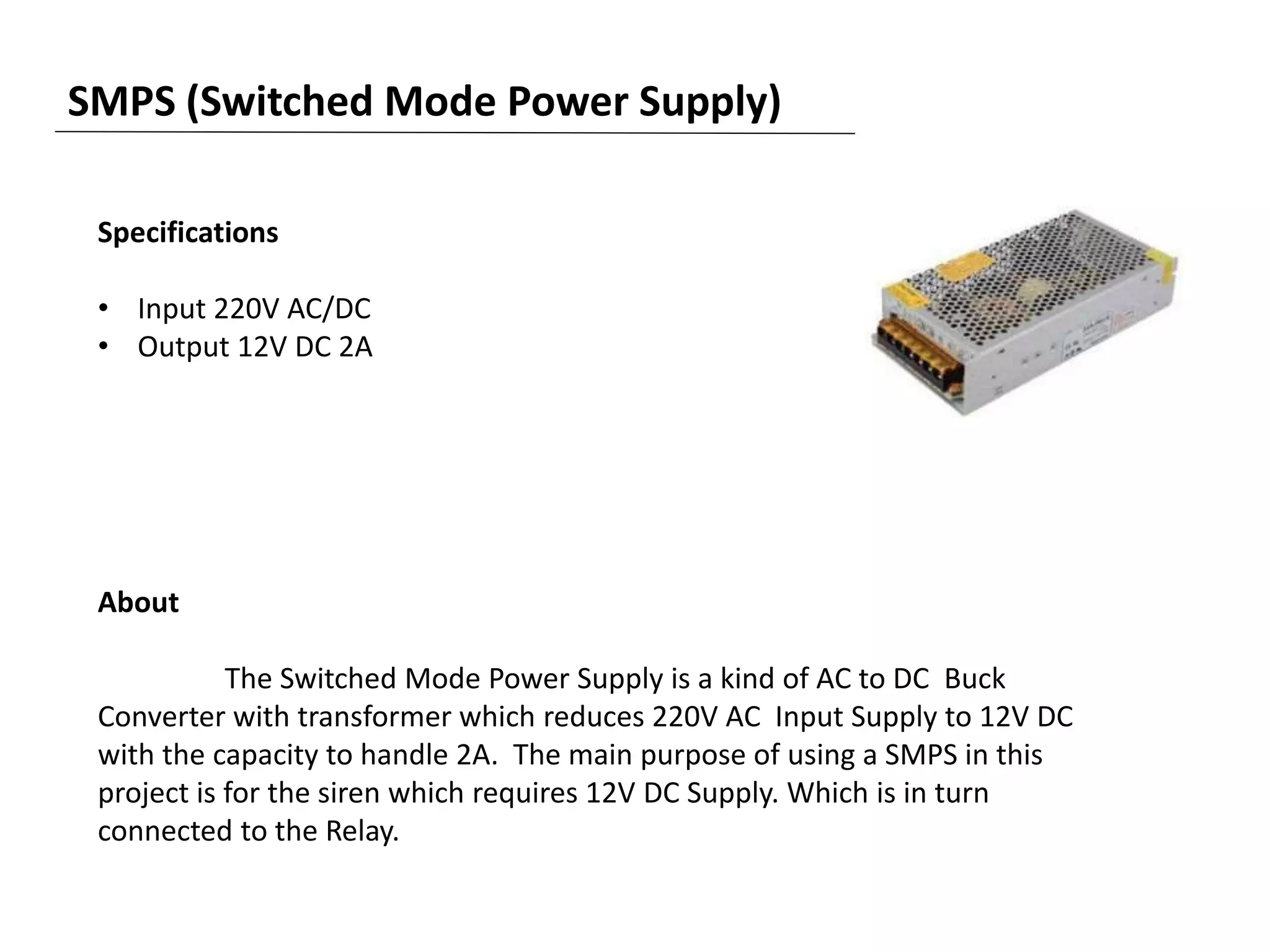

• SMPS
• Patch chords , Plugs as required

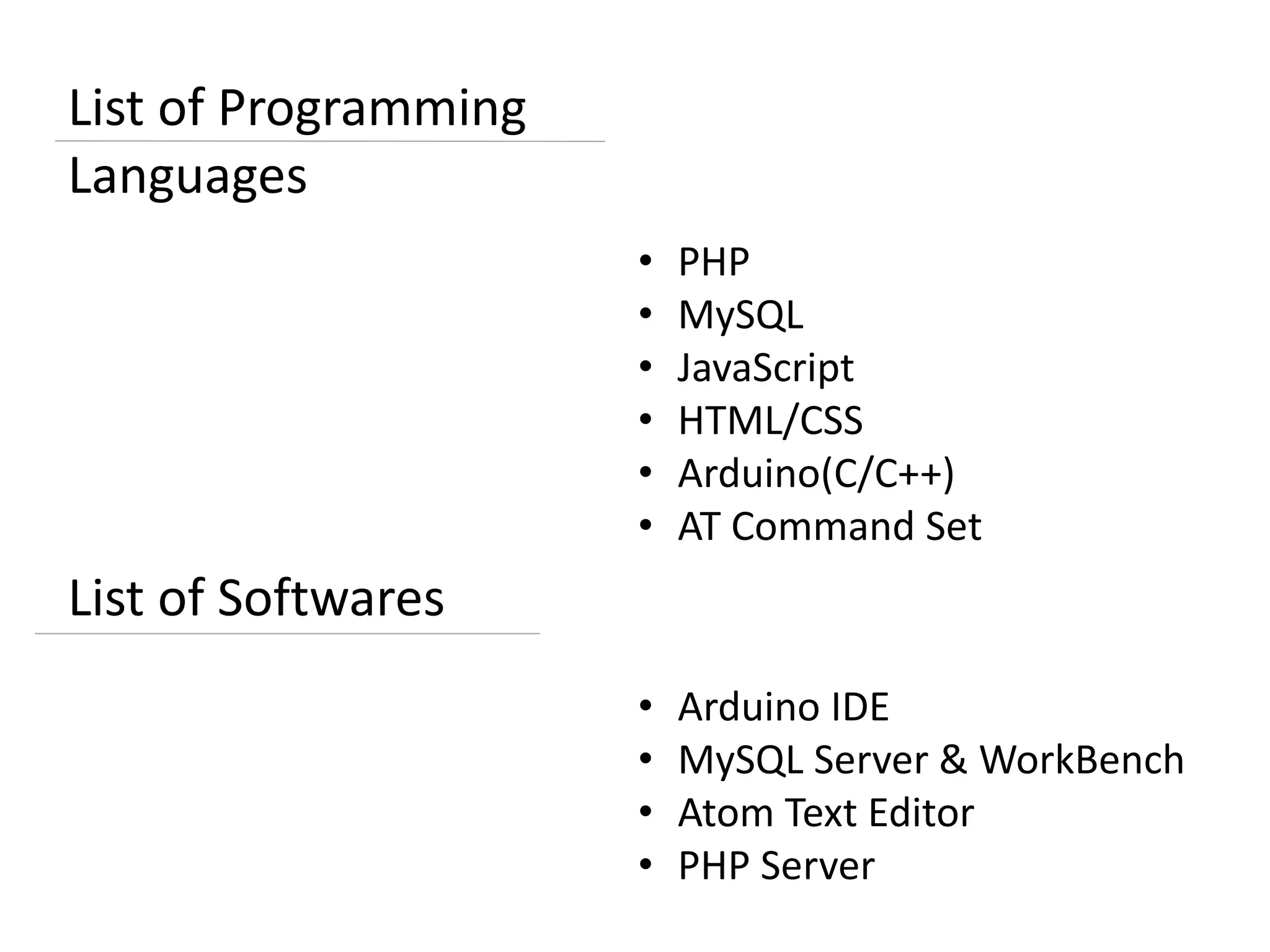

8. List of Programming
Languages
• PHP
• MySQL
• JavaScript
• HTML/CSS
• Arduino(C/C++)
• AT Command Set
List of Softwares
• Arduino IDE
• MySQL Server & WorkBench
• Atom Text Editor
• PHP Server

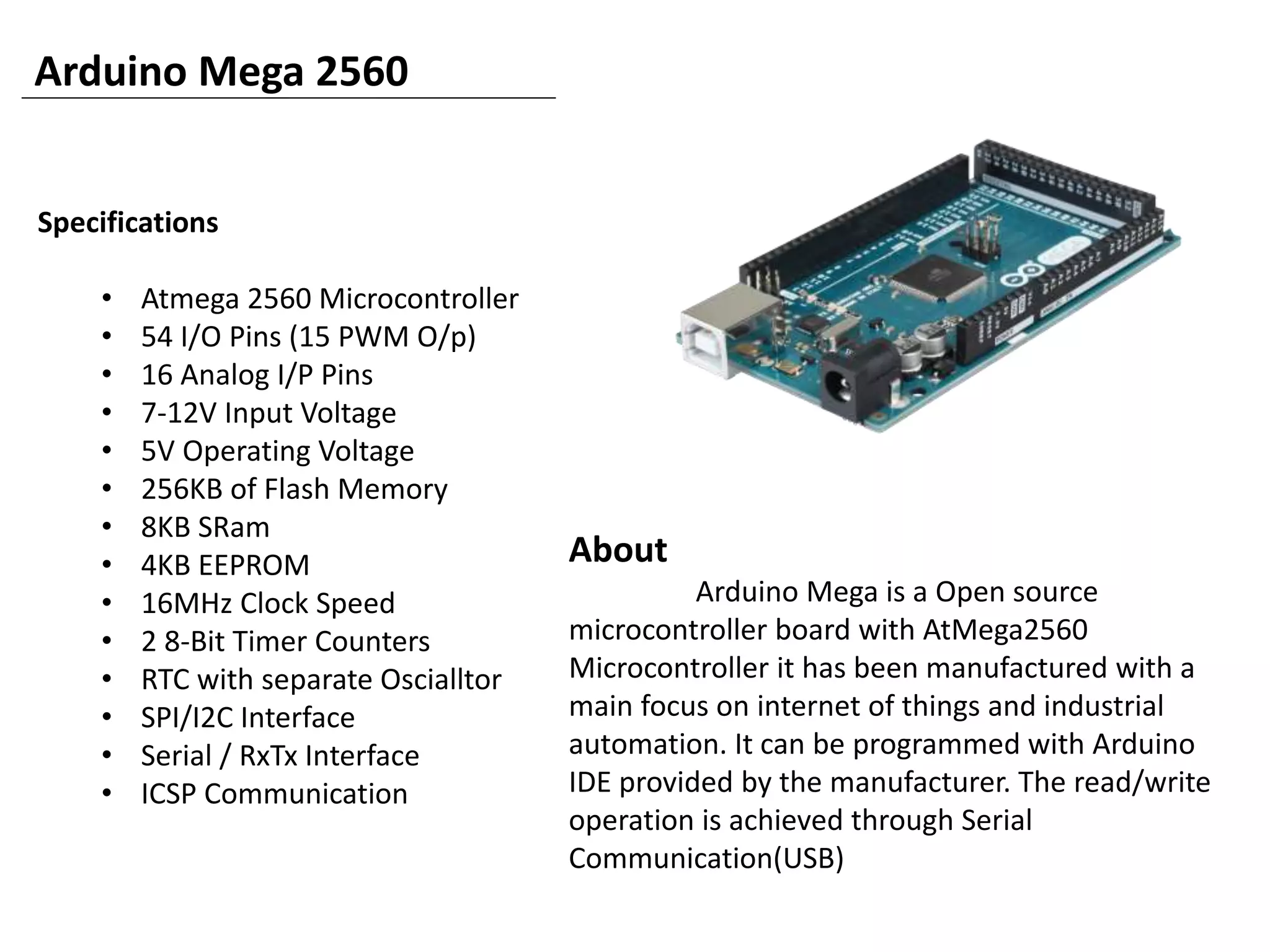

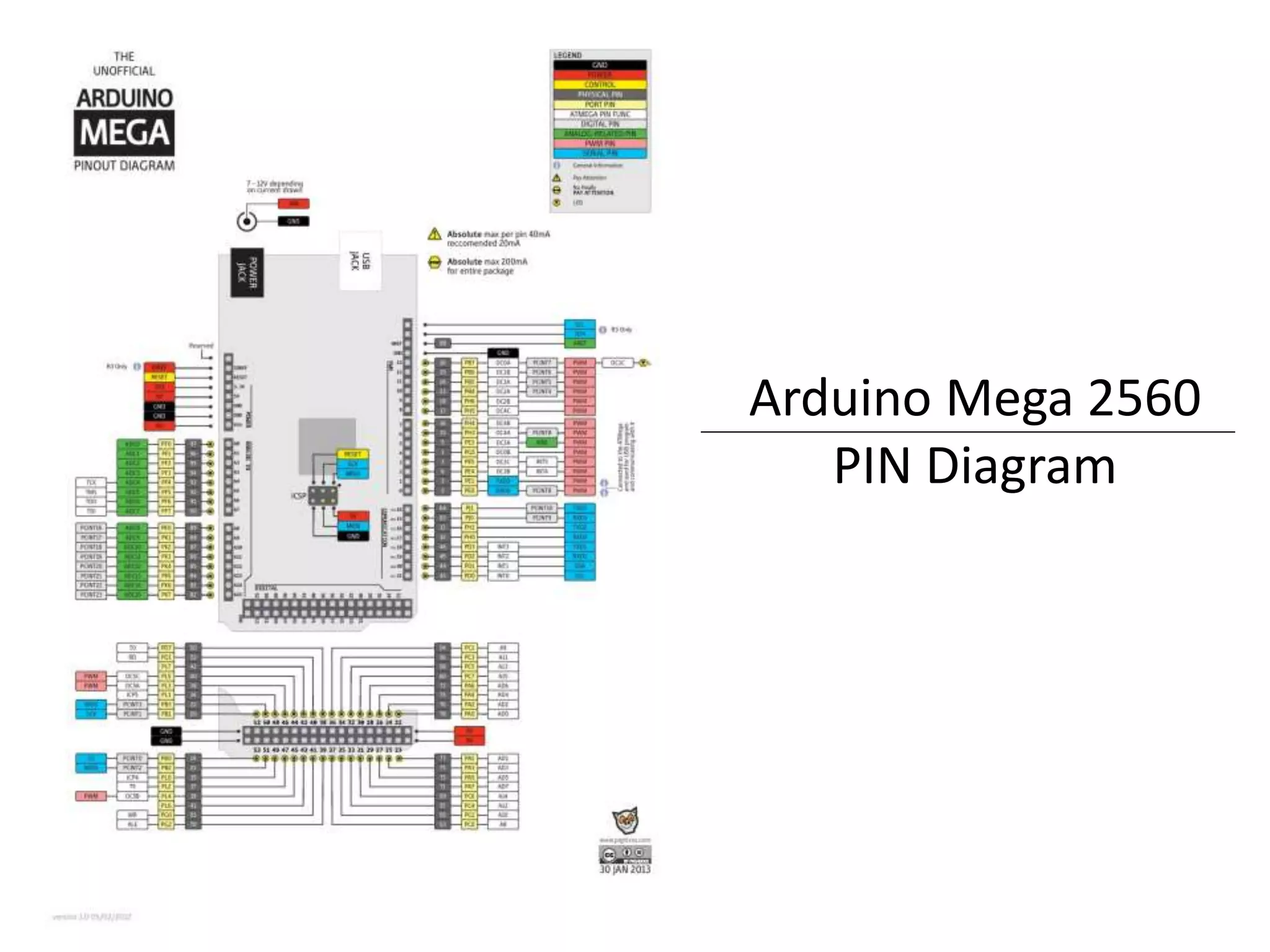

10. Arduino Mega 2560
Specifications
• Atmega 2560 Microcontroller
• 54 I/O Pins (15 PWM O/p)
• 16 Analog I/P Pins
• 7-12V Input Voltage
• 5V Operating Voltage
• 256KB of Flash Memory
• 8KB SRam
• 4KB EEPROM
• 16MHz Clock Speed
• 2 8-Bit Timer Counters
• RTC with separate Oscialltor
• SPI/I2C Interface
• Serial / RxTx Interface
• ICSP Communication
About
Arduino Mega is a Open source
microcontroller board with AtMega2560
Microcontroller it has been manufactured with a
main focus on internet of things and industrial
automation. It can be programmed with Arduino
IDE provided by the manufacturer. The read/write
operation is achieved through Serial
Communication(USB)

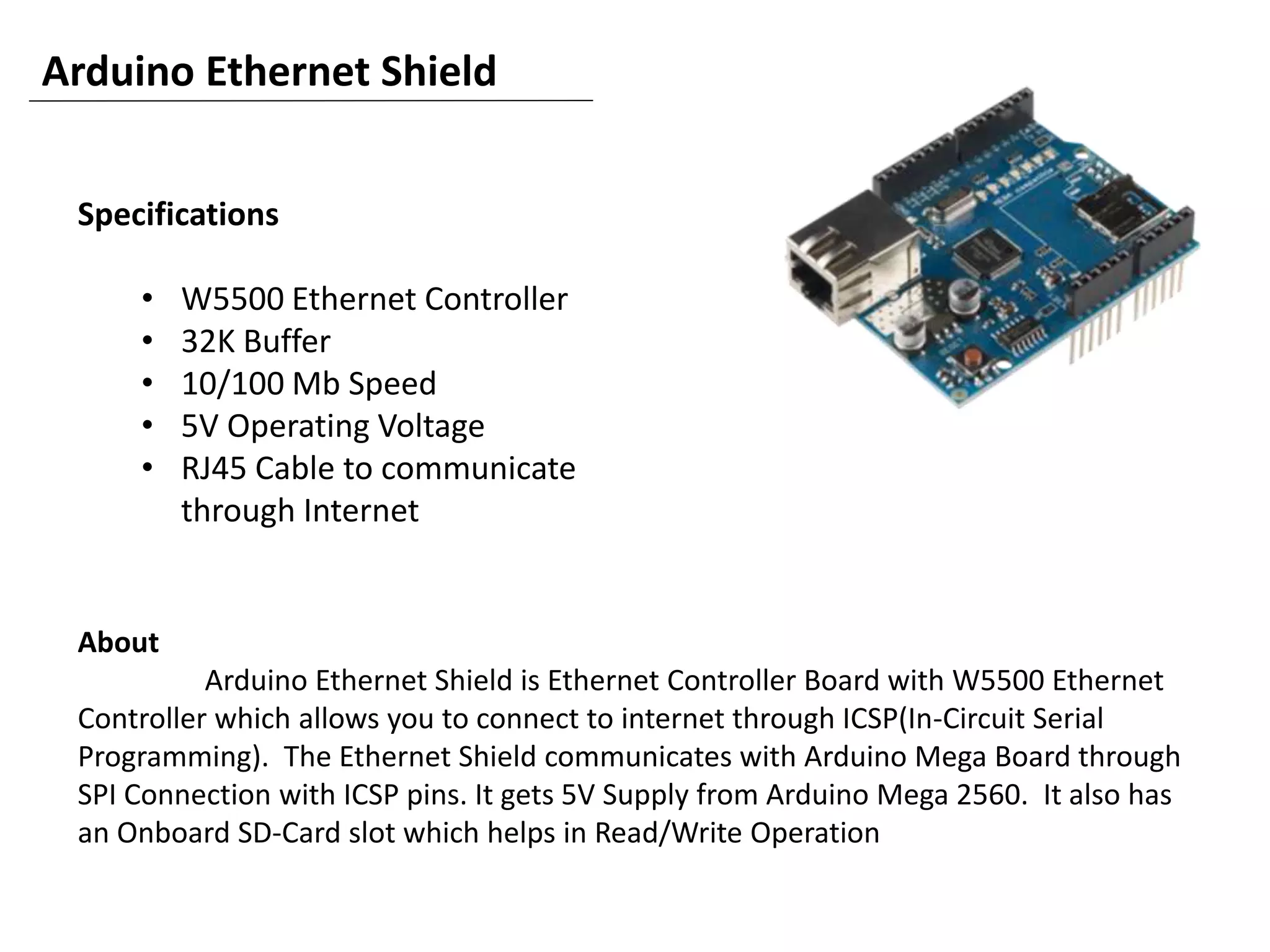

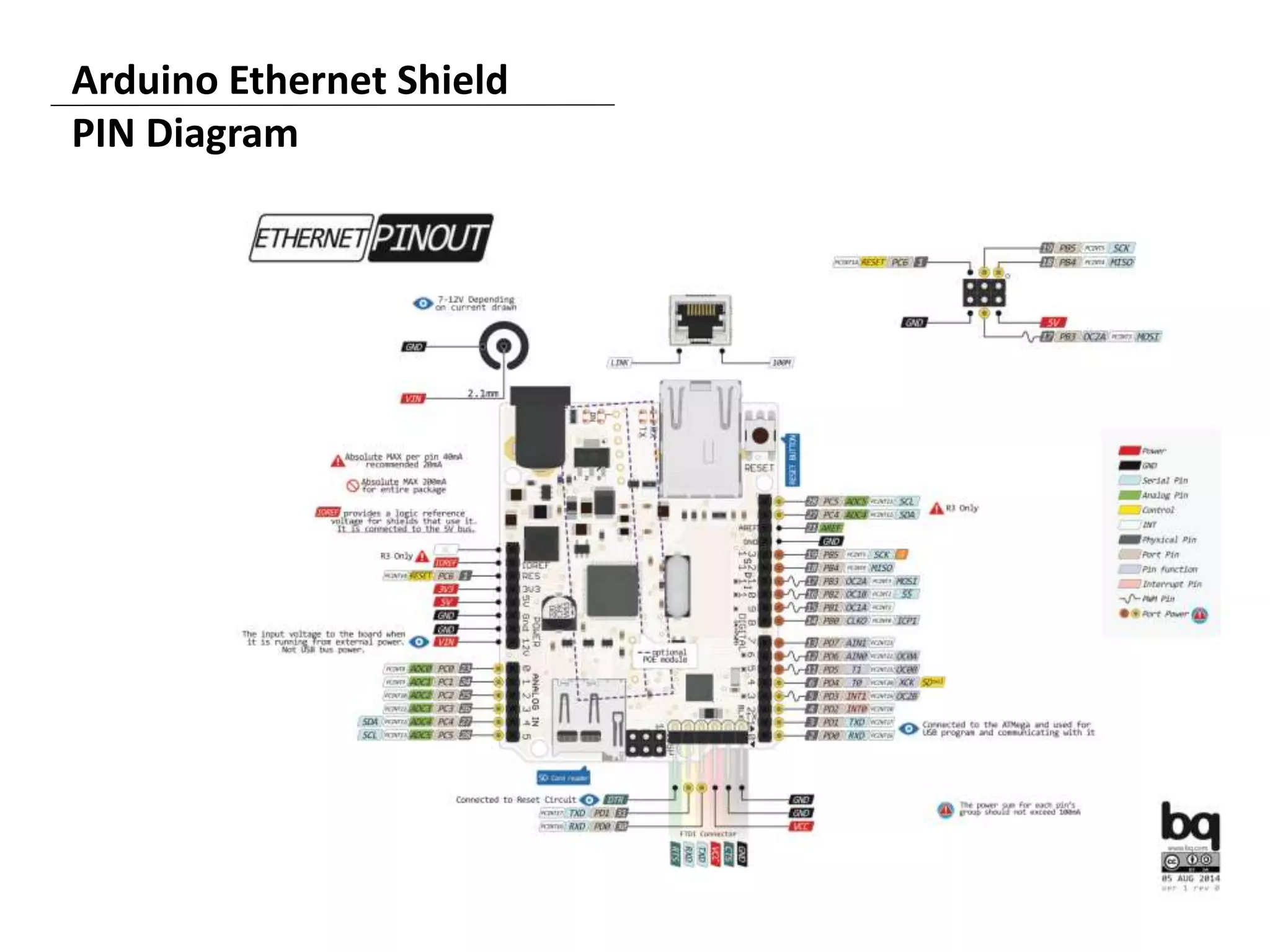

12. Arduino Ethernet Shield
Specifications
• W5500 Ethernet Controller
• 32K Buffer
• 10/100 Mb Speed
• 5V Operating Voltage
• RJ45 Cable to communicate
through Internet
About
Arduino Ethernet Shield is Ethernet Controller Board with W5500 Ethernet
Controller which allows you to connect to internet through ICSP(In-Circuit Serial
Programming). The Ethernet Shield communicates with Arduino Mega Board through
SPI Connection with ICSP pins. It gets 5V Supply from Arduino Mega 2560. It also has
an Onboard SD-Card slot which helps in Read/Write Operation

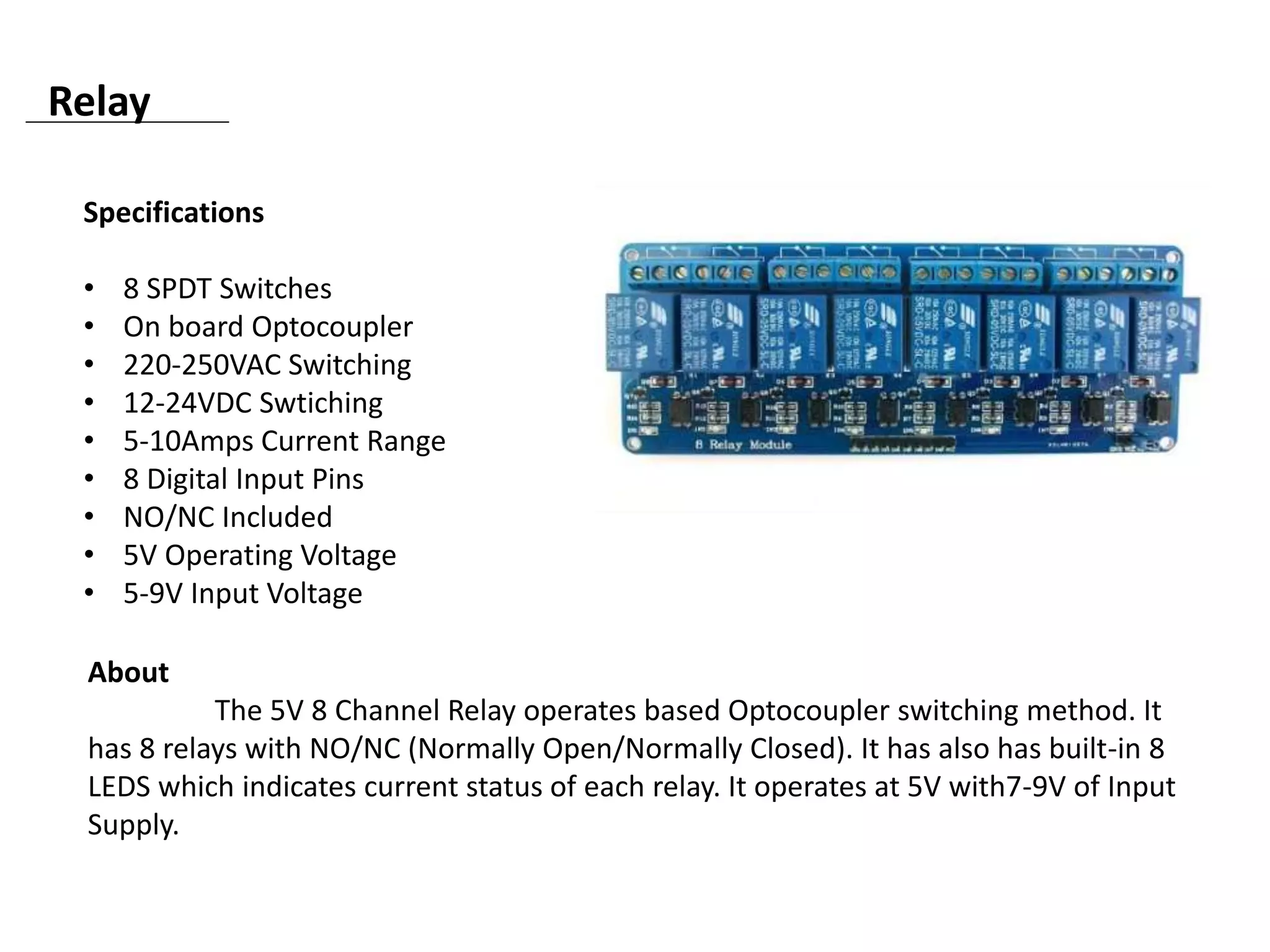

14. Relay
Specifications
• 8 SPDT Switches
• On board Optocoupler
• 220-250VAC Switching
• 12-24VDC Swtiching
• 5-10Amps Current Range
• 8 Digital Input Pins
• NO/NC Included
• 5V Operating Voltage
• 5-9V Input Voltage
About
The 5V 8 Channel Relay operates based Optocoupler switching method. It
has 8 relays with NO/NC (Normally Open/Normally Closed). It has also has built-in 8
LEDS which indicates current status of each relay. It operates at 5V with7-9V of Input
Supply.

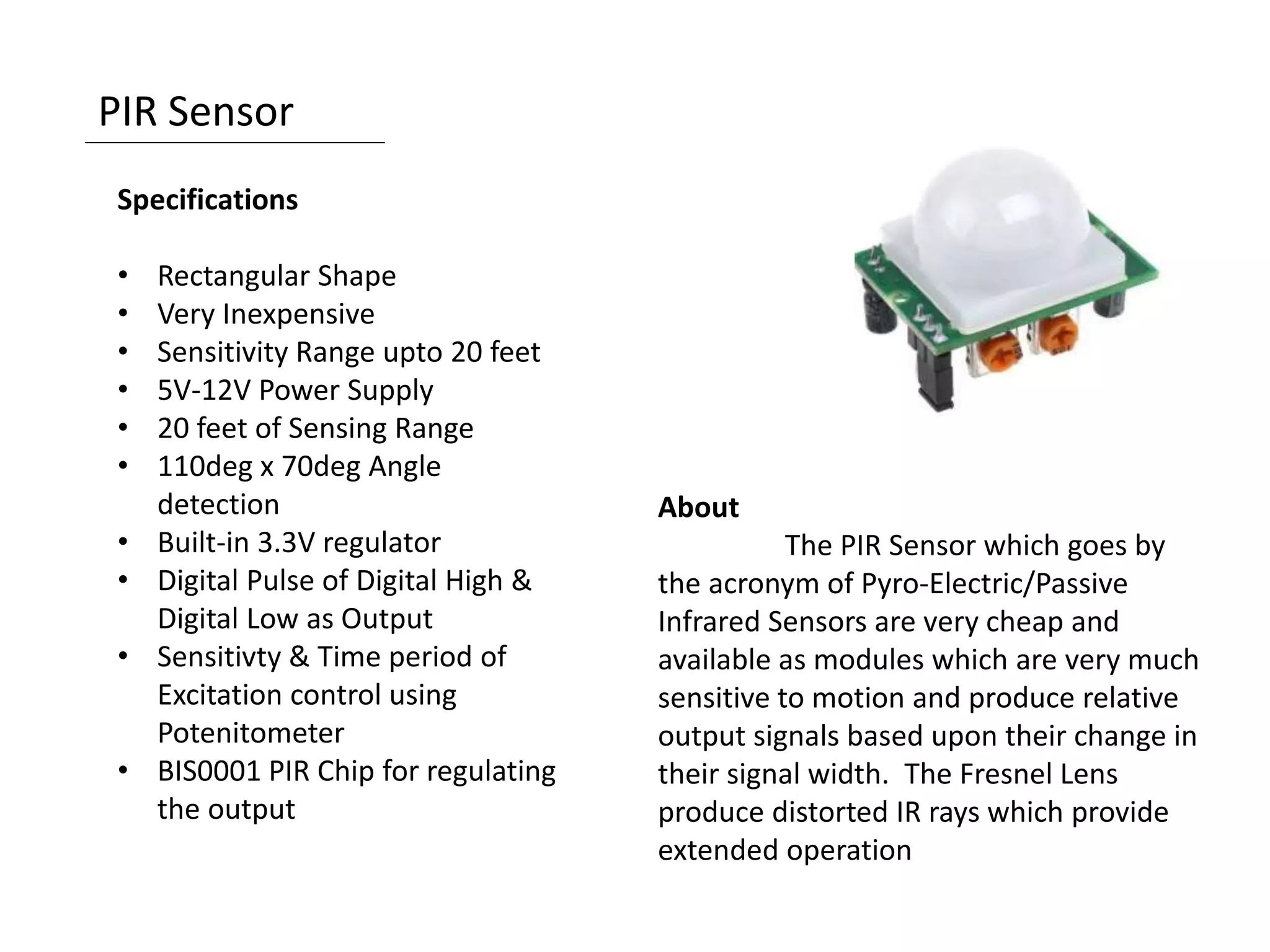

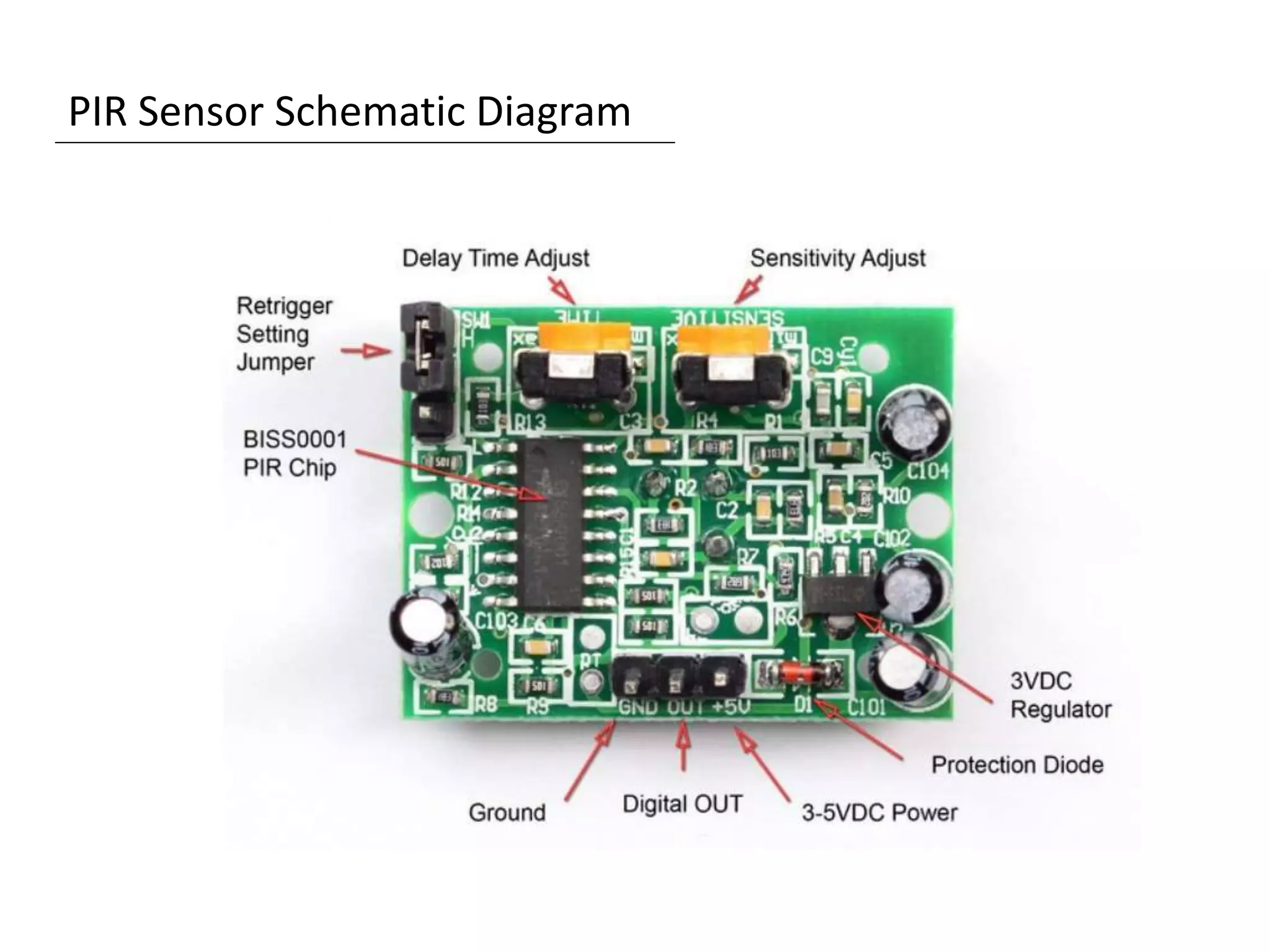

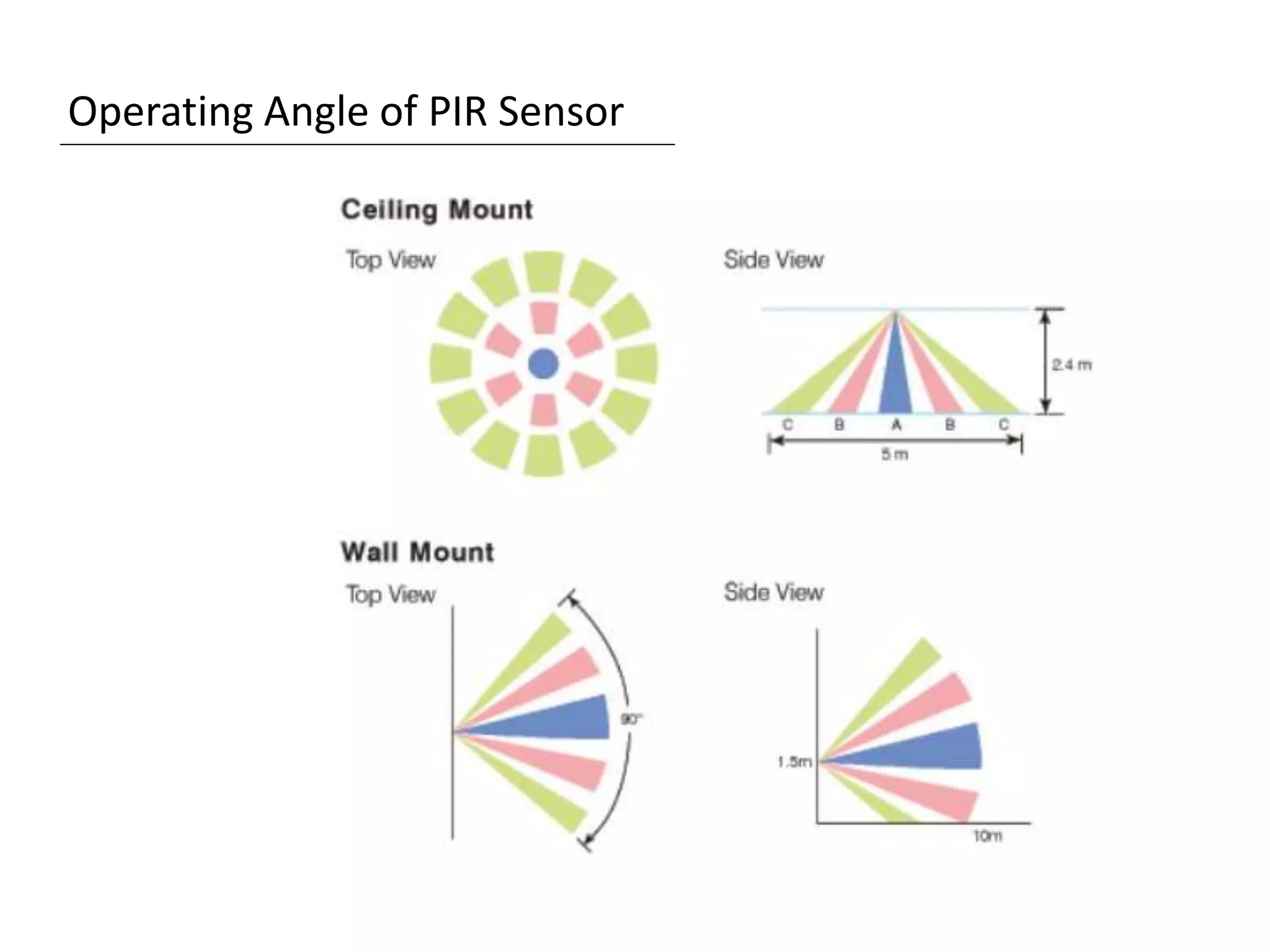

16. PIR Sensor
Specifications
• Rectangular Shape
• Very Inexpensive
• Sensitivity Range upto 20 feet
• 5V-12V Power Supply
• 20 feet of Sensing Range
• 110deg x 70deg Angle
detection
• Built-in 3.3V regulator
• Digital Pulse of Digital High &
Digital Low as Output
• Sensitivty & Time period of
Excitation control using
Potenitometer
• BIS0001 PIR Chip for regulating
the output
About
The PIR Sensor which goes by
the acronym of Pyro-Electric/Passive
Infrared Sensors are very cheap and
available as modules which are very much
sensitive to motion and produce relative
output signals based upon their change in
their signal width. The Fresnel Lens
produce distorted IR rays which provide
extended operation

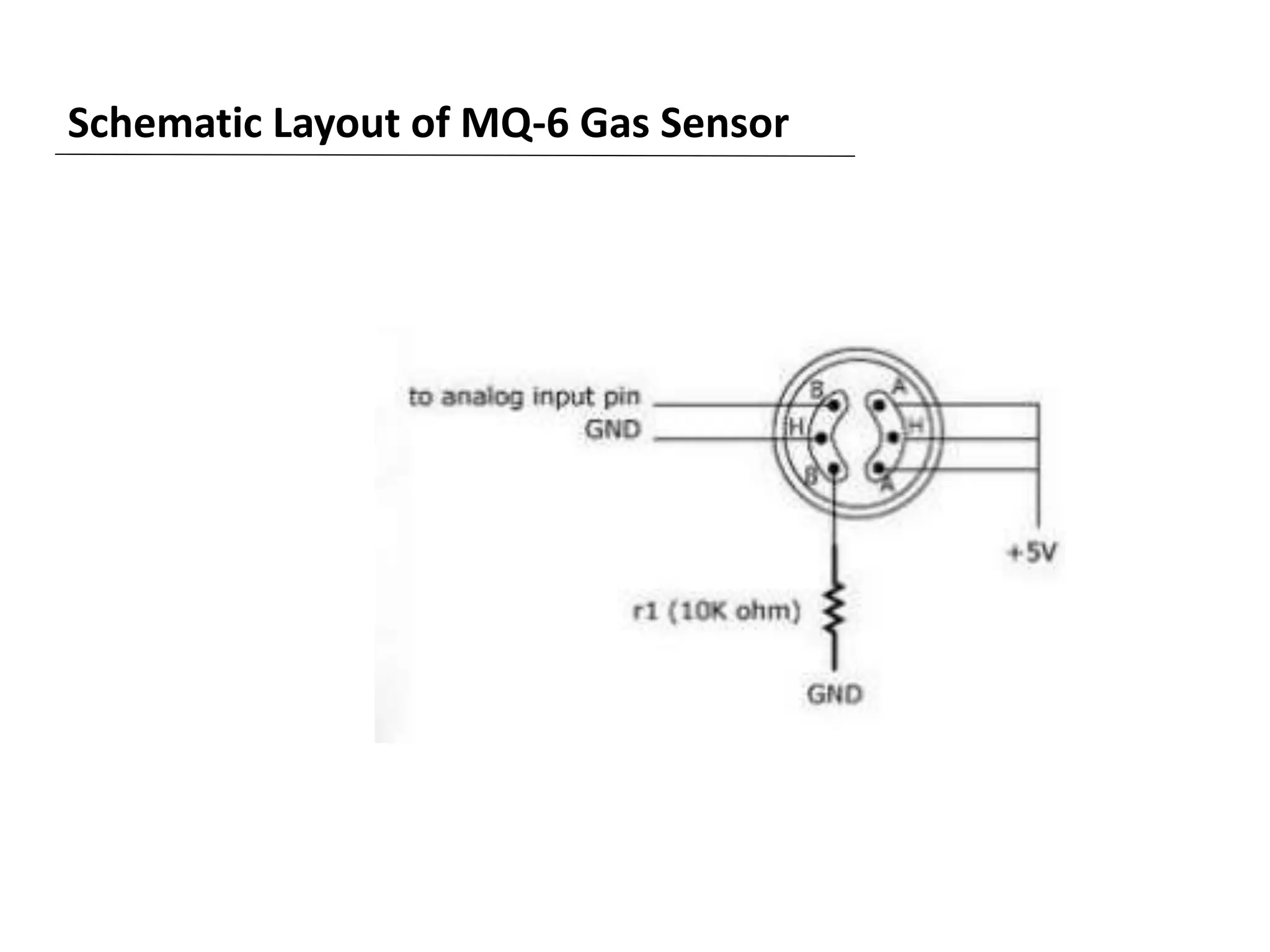

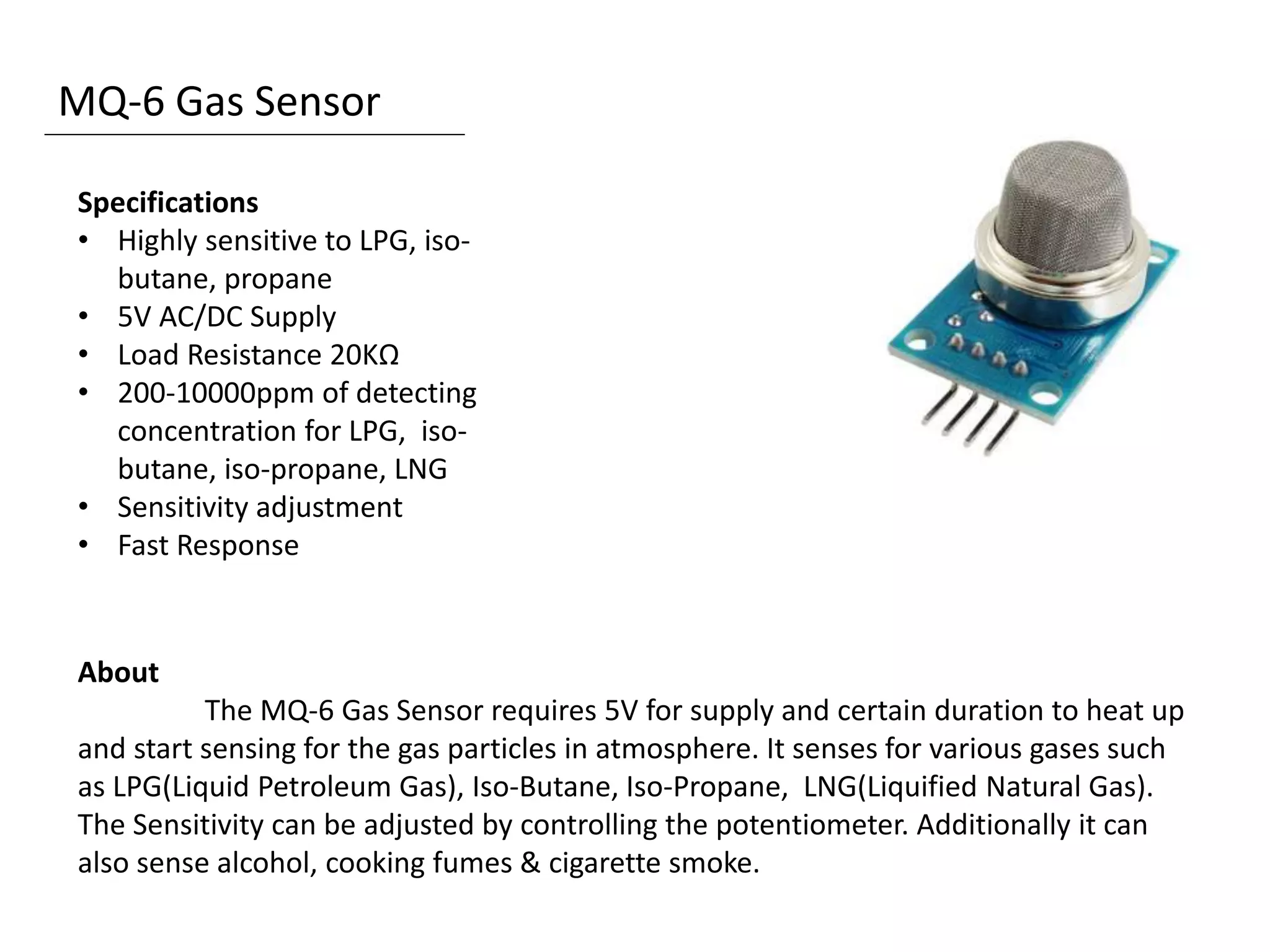

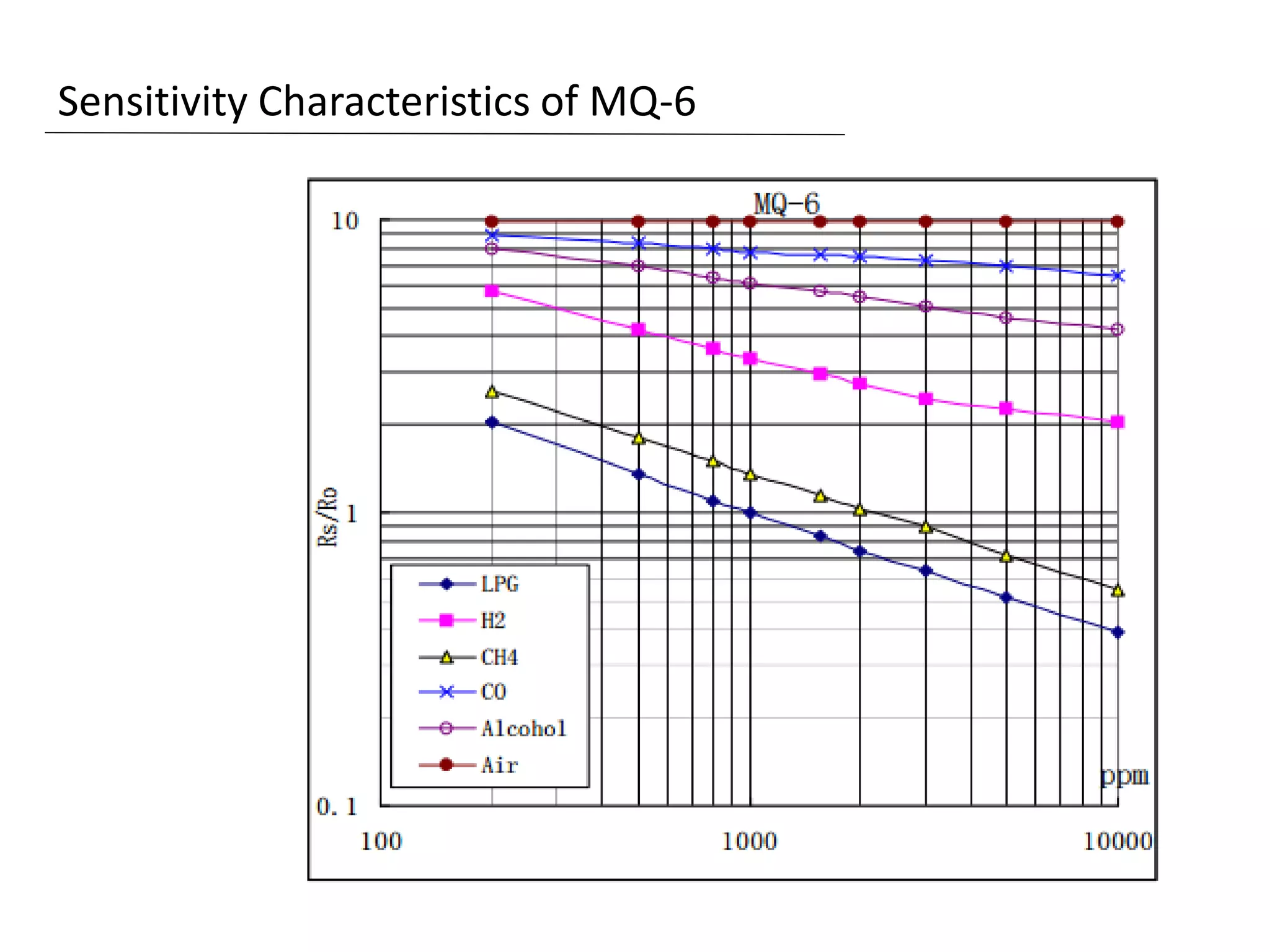

19. MQ-6 Gas Sensor
Specifications
• Highly sensitive to LPG, iso-
butane, propane
• 5V AC/DC Supply
• Load Resistance 20KΩ
• 200-10000ppm of detecting
concentration for LPG, iso-
butane, iso-propane, LNG
• Sensitivity adjustment
• Fast Response
About
The MQ-6 Gas Sensor requires 5V for supply and certain duration to heat up
and start sensing for the gas particles in atmosphere. It senses for various gases such
as LPG(Liquid Petroleum Gas), Iso-Butane, Iso-Propane, LNG(Liquified Natural Gas).
The Sensitivity can be adjusted by controlling the potentiometer. Additionally it can
also sense alcohol, cooking fumes & cigarette smoke.

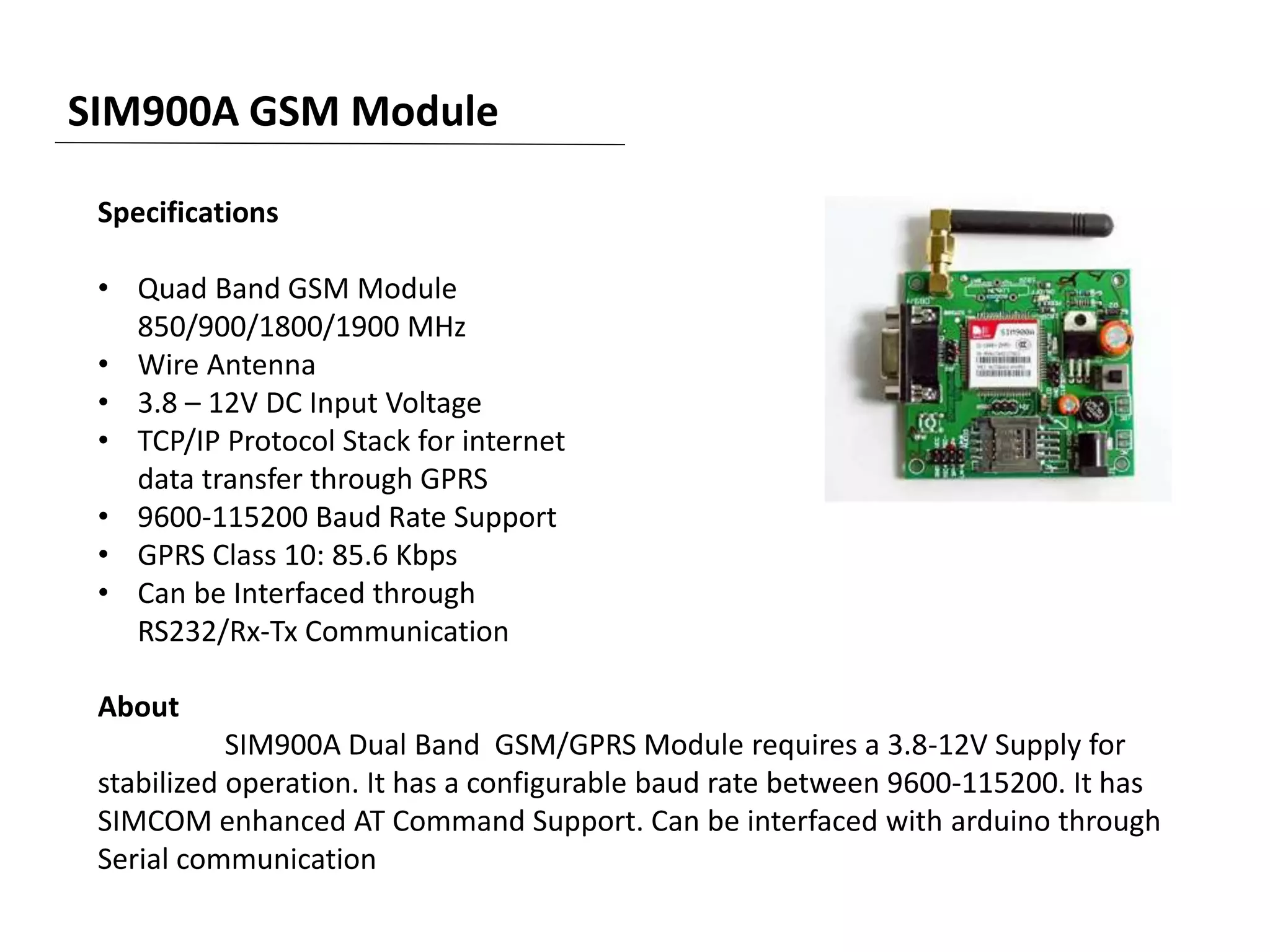

22. SIM900A GSM Module
Specifications
• Quad Band GSM Module
850/900/1800/1900 MHz
• Wire Antenna
• 3.8 – 12V DC Input Voltage
• TCP/IP Protocol Stack for internet
data transfer through GPRS
• 9600-115200 Baud Rate Support
• GPRS Class 10: 85.6 Kbps
• Can be Interfaced through
RS232/Rx-Tx Communication
About
SIM900A Dual Band GSM/GPRS Module requires a 3.8-12V Supply for
stabilized operation. It has a configurable baud rate between 9600-115200. It has
SIMCOM enhanced AT Command Support. Can be interfaced with arduino through
Serial communication

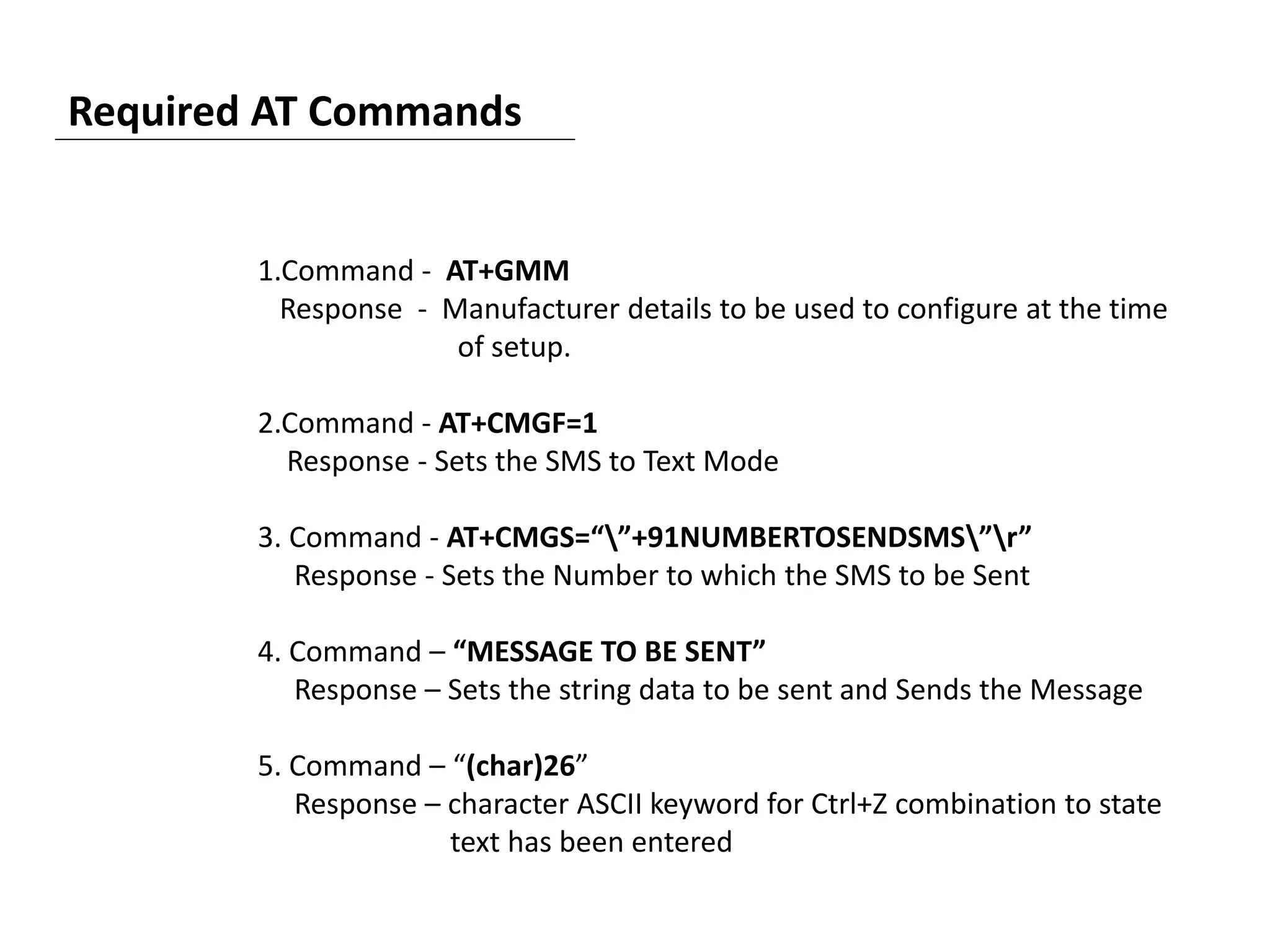

23. Required AT Commands
1.Command - AT+GMM
Response - Manufacturer details to be used to configure at the time
of setup.
2.Command - AT+CMGF=1
Response - Sets the SMS to Text Mode
3. Command - AT+CMGS=“”+91NUMBERTOSENDSMS”r”
Response - Sets the Number to which the SMS to be Sent
4. Command – “MESSAGE TO BE SENT”
Response – Sets the string data to be sent and Sends the Message
5. Command – “(char)26”
Response – character ASCII keyword for Ctrl+Z combination to state
text has been entered
24. SMPS (Switched Mode Power Supply)
Specifications
• Input 220V AC/DC
• Output 12V DC 2A
About
The Switched Mode Power Supply is a kind of AC to DC Buck
Converter with transformer which reduces 220V AC Input Supply to 12V DC
with the capacity to handle 2A. The main purpose of using a SMPS in this
project is for the siren which requires 12V DC Supply. Which is in turn
connected to the Relay.

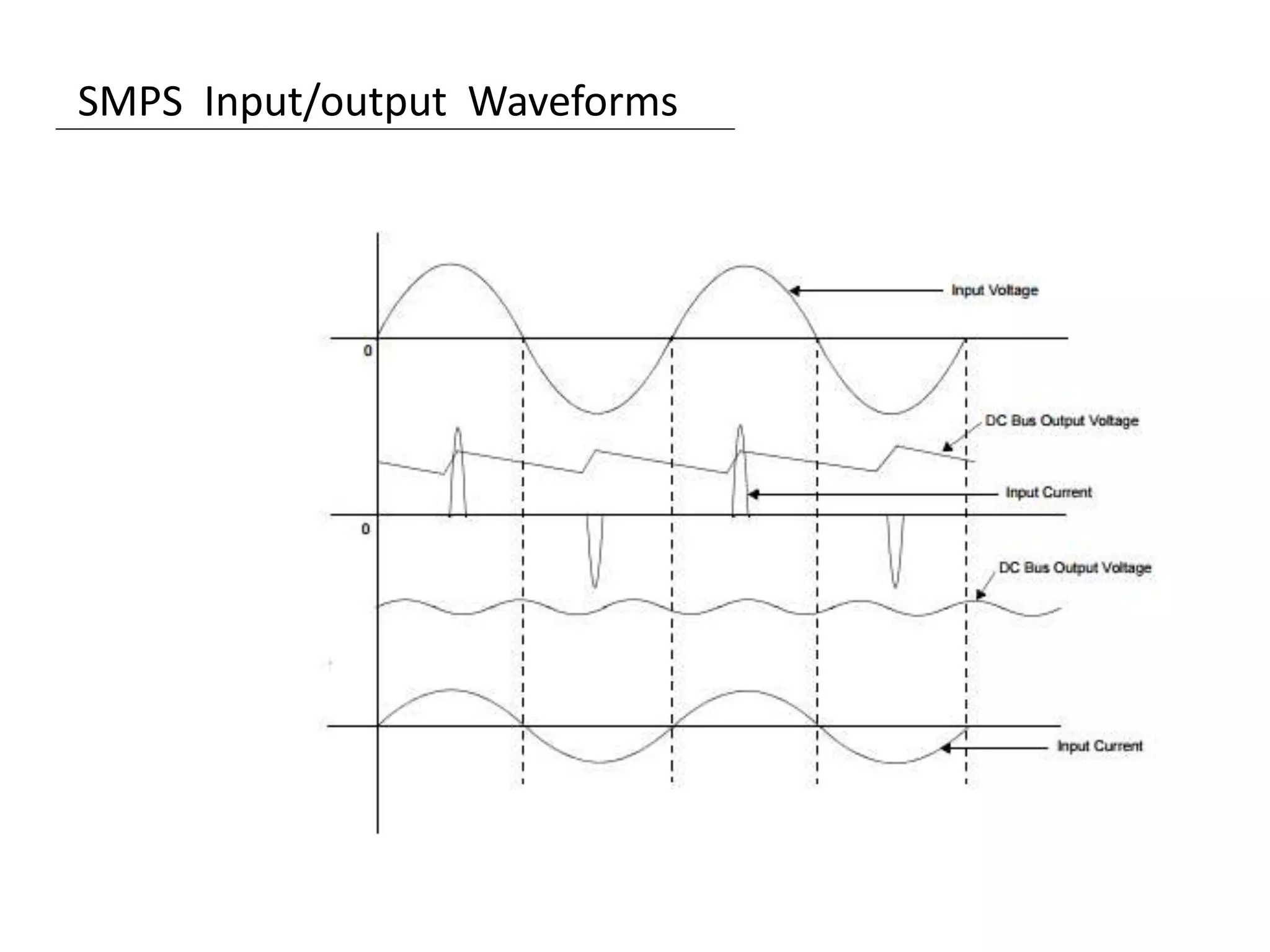

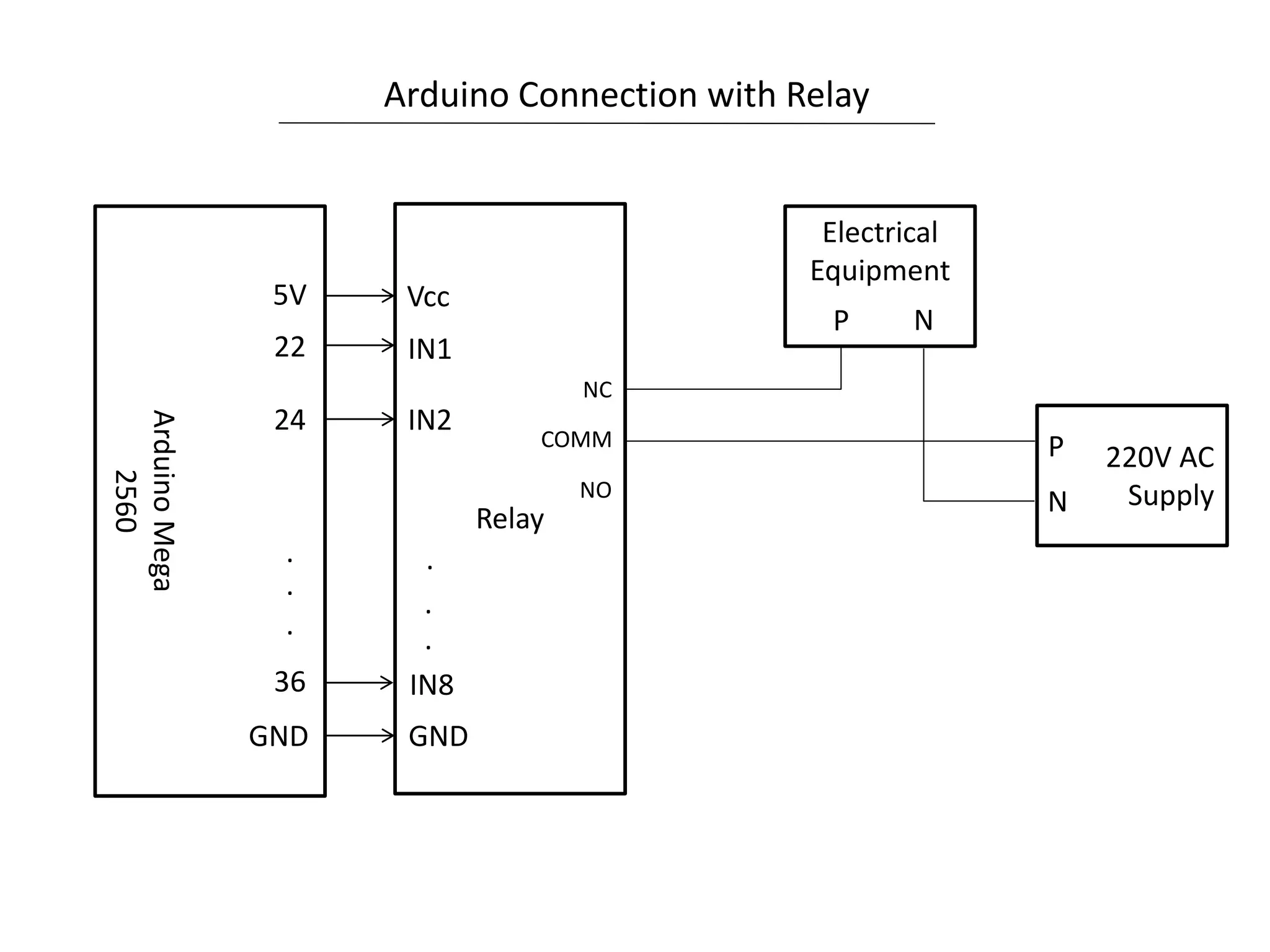

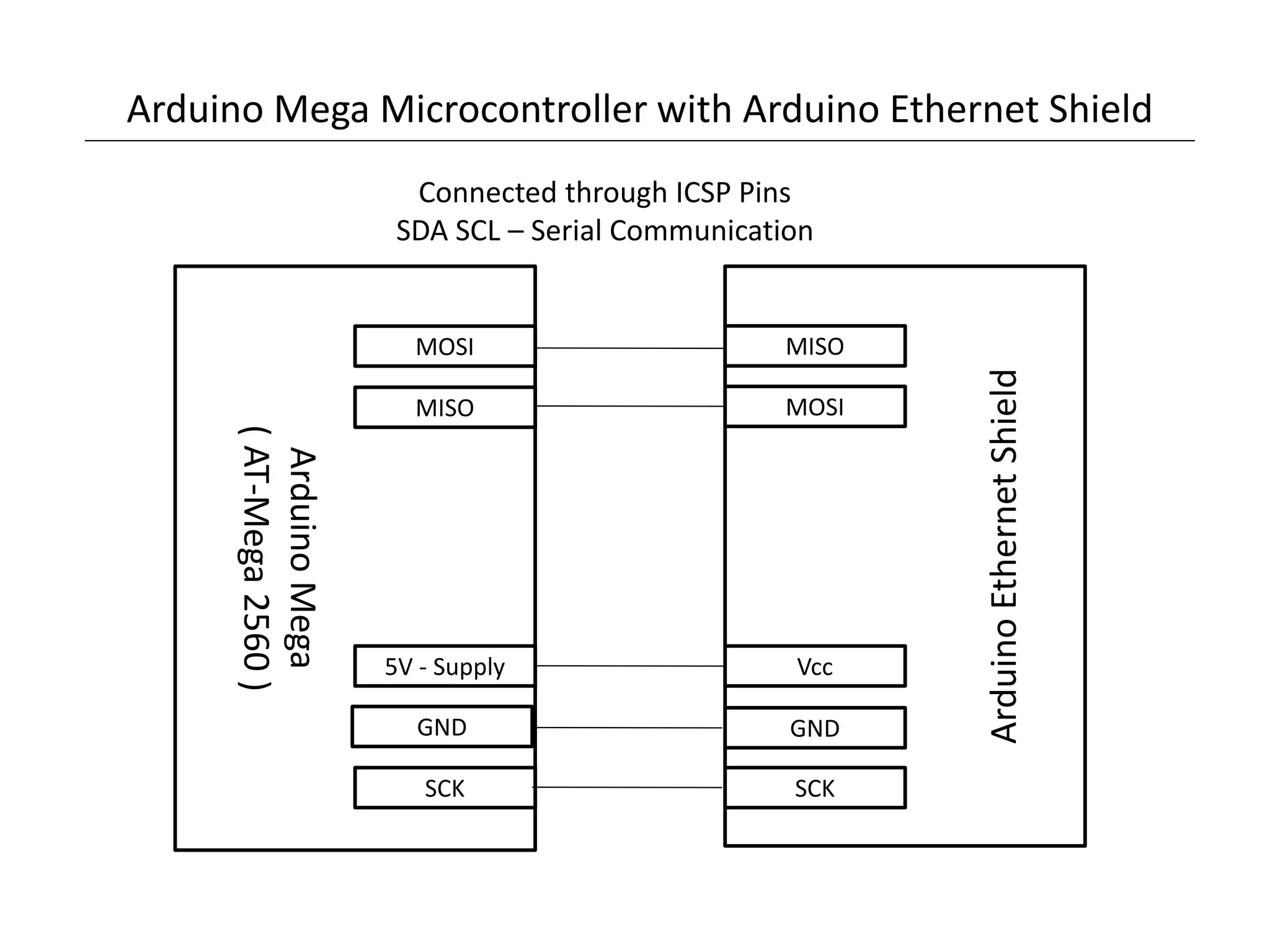

28. Arduino Connection with Relay
ArduinoMega
2560
Relay
Electrical
Equipment
22
24
.
.
.
36
5V Vcc
IN1
IN2
IN8
GND GND
.
.
.
NC
COMM
NO
P N
220V AC
Supply
P
N

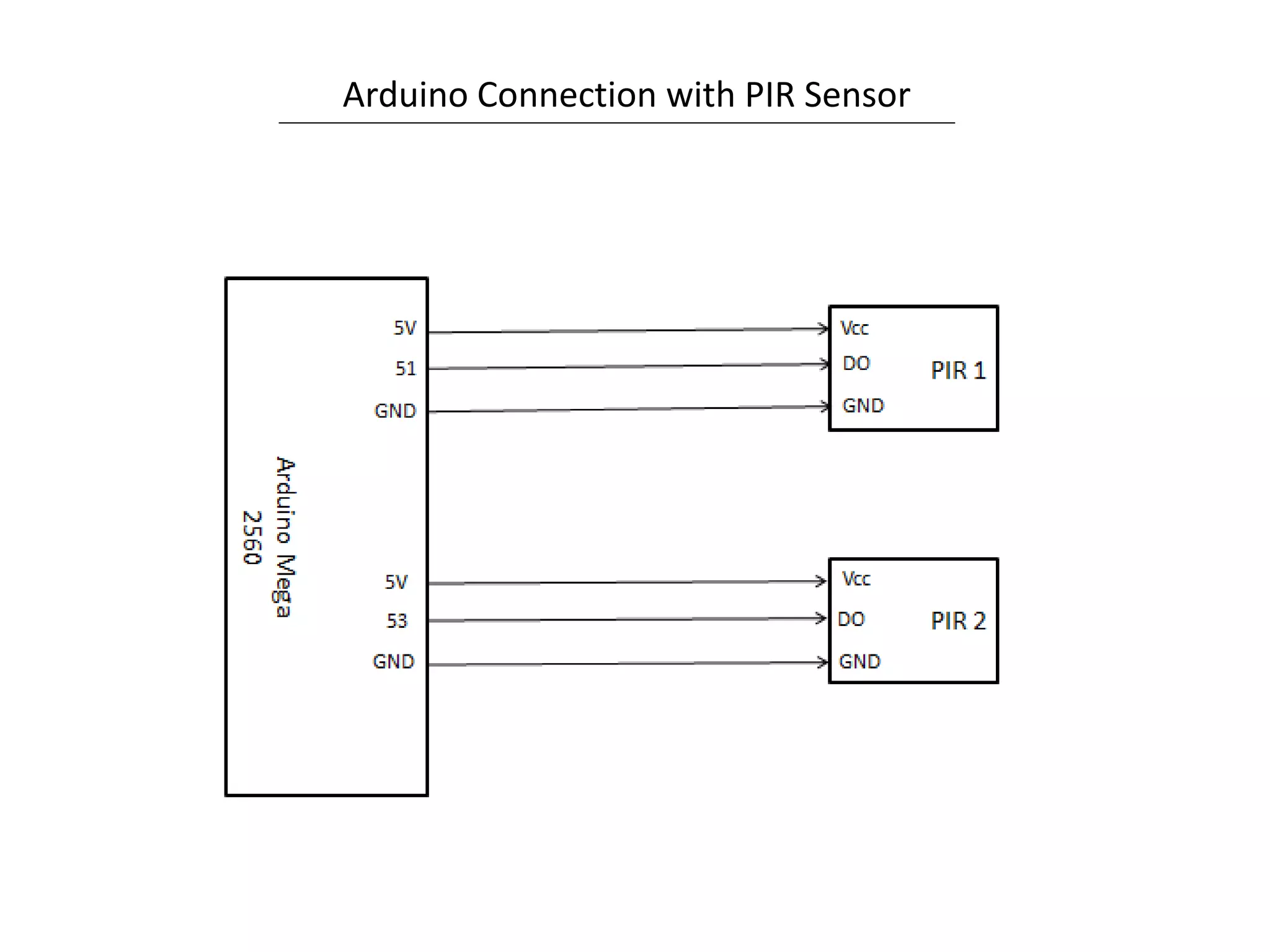

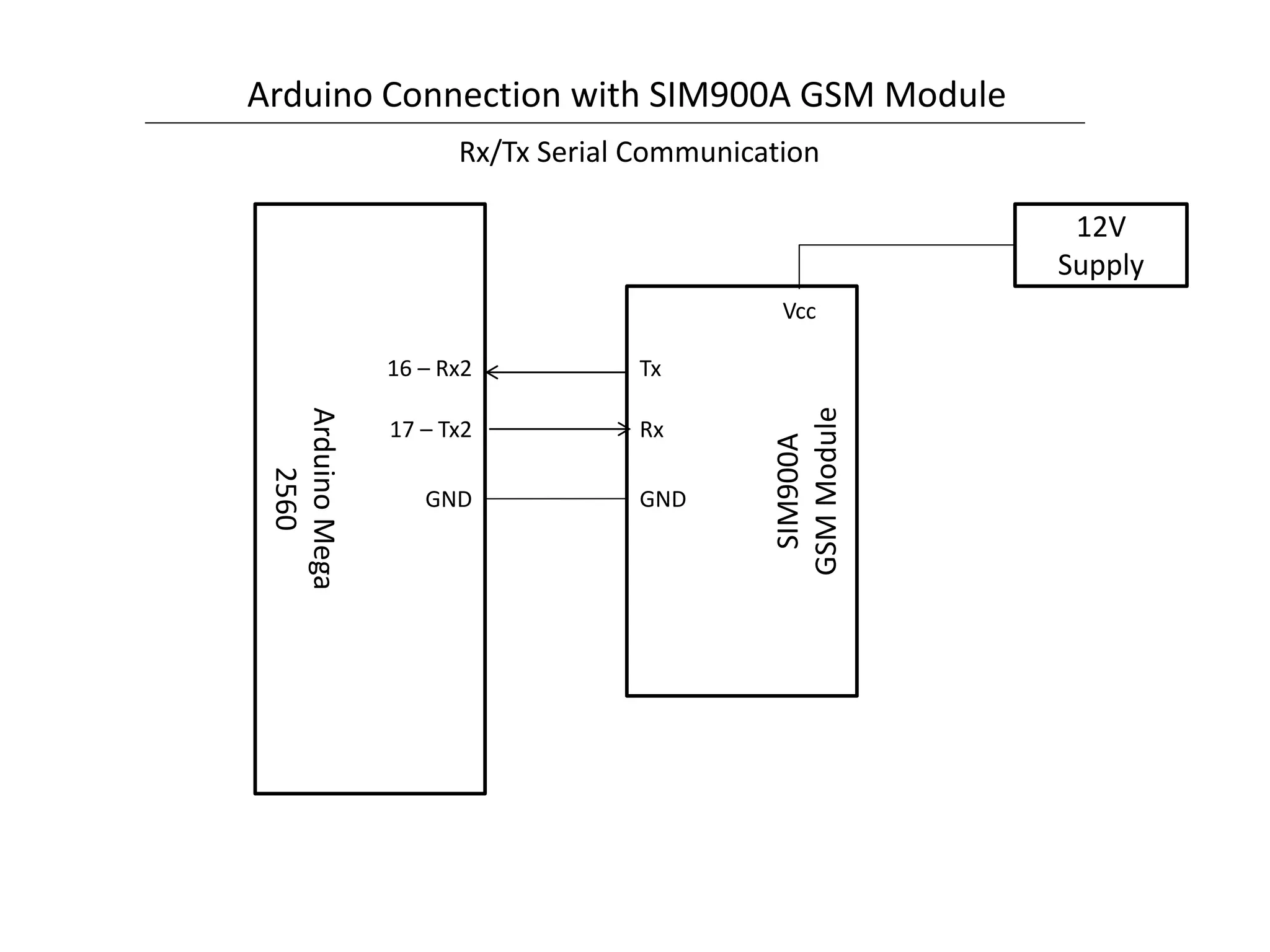

31. Arduino Connection with SIM900A GSM Module
ArduinoMega
2560
SIM900A
GSMModule
16 – Rx2
17 – Tx2
Tx
Rx
GND GND
Vcc
12V
Supply
Rx/Tx Serial Communication

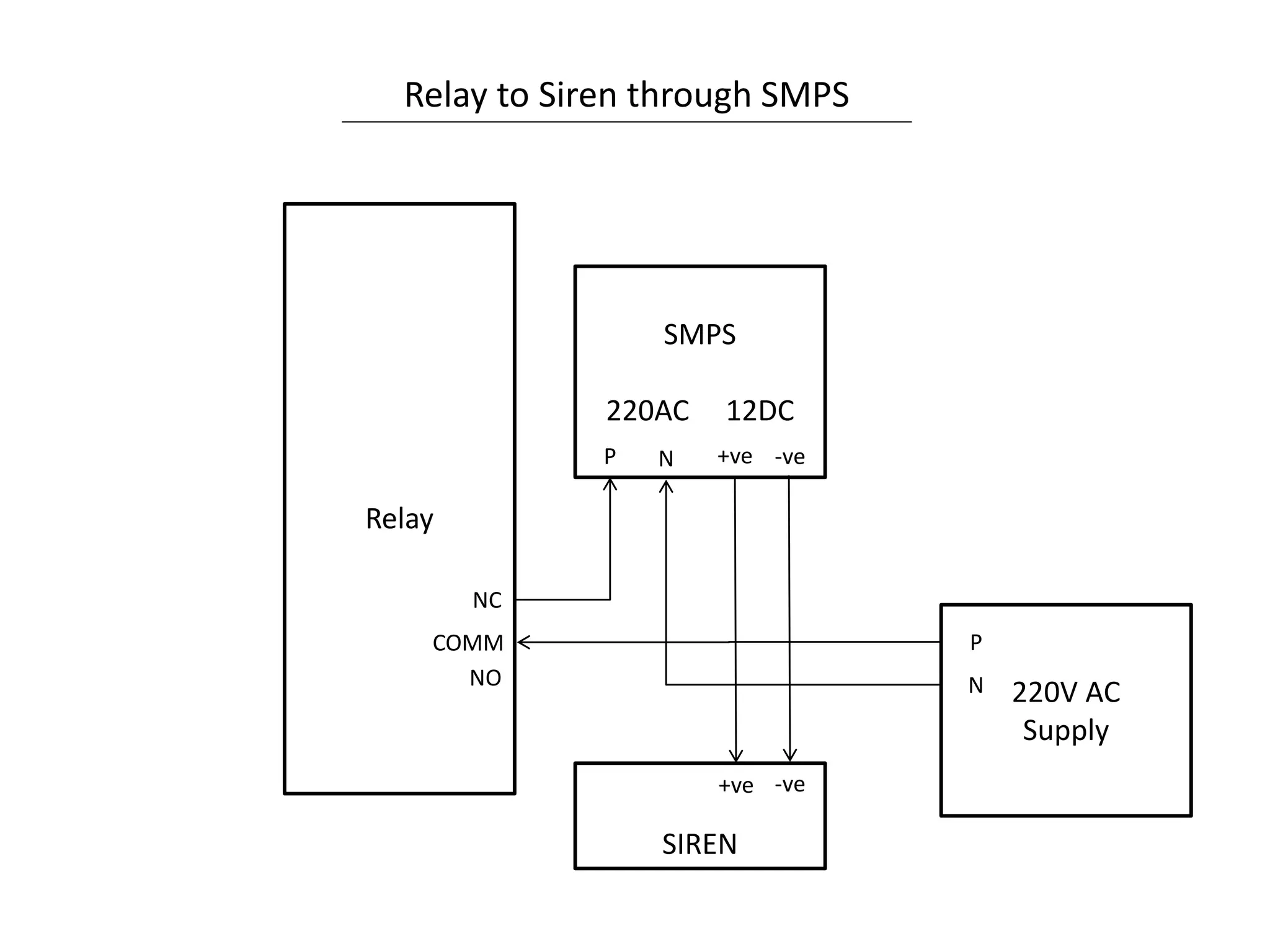

32. Relay to Siren through SMPS
Relay
NO
COMM
NC
SMPS
220AC 12DC
P N +ve -ve
220V AC
Supply
P
N
SIREN
+ve -ve

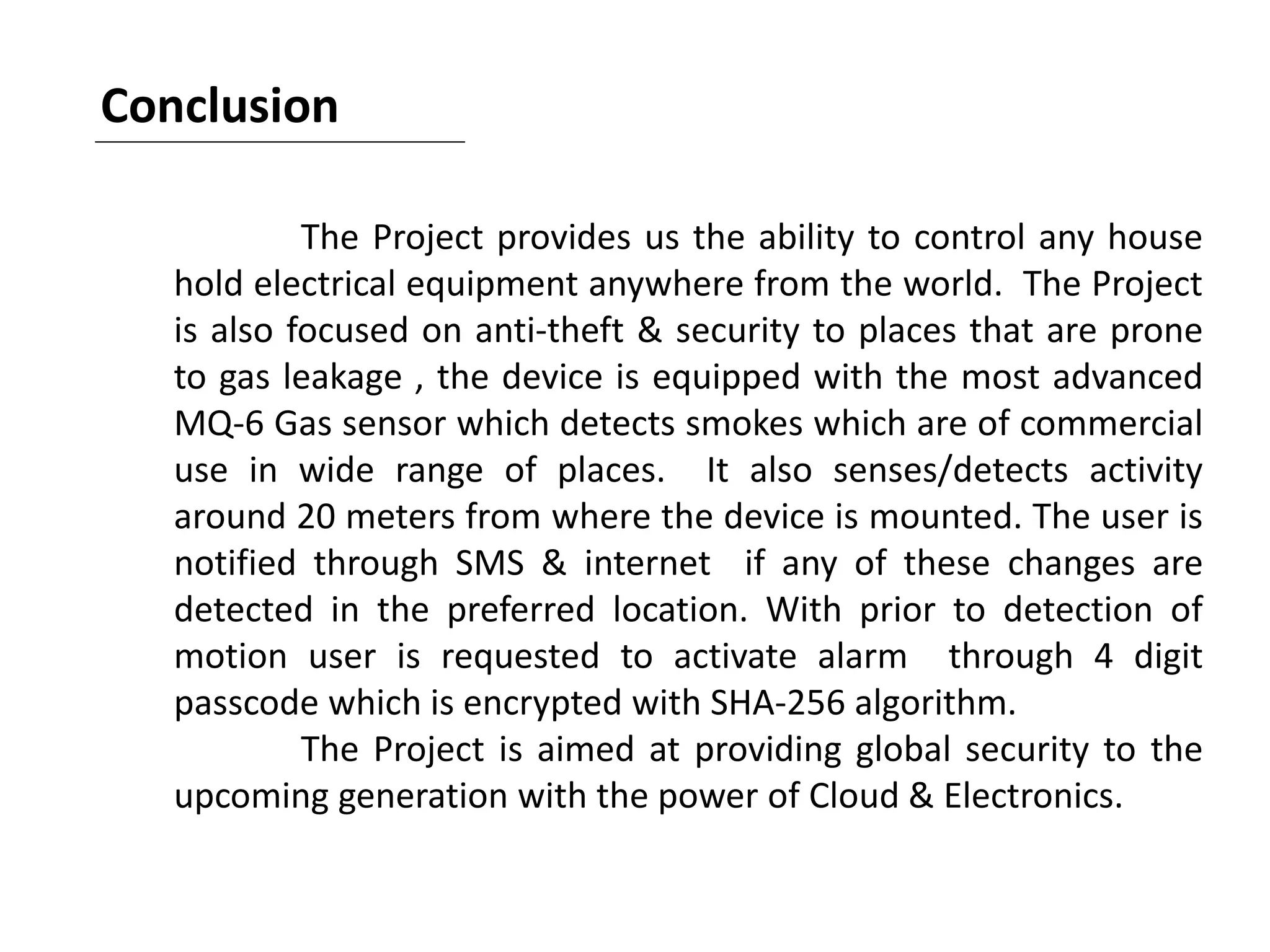

33. Conclusion
The Project provides us the ability to control any house
hold electrical equipment anywhere from the world. The Project
is also focused on anti-theft & security to places that are prone
to gas leakage , the device is equipped with the most advanced
MQ-6 Gas sensor which detects smokes which are of commercial
use in wide range of places. It also senses/detects activity
around 20 meters from where the device is mounted. The user is
notified through SMS & internet if any of these changes are
detected in the preferred location. With prior to detection of
motion user is requested to activate alarm through 4 digit
passcode which is encrypted with SHA-256 algorithm.
The Project is aimed at providing global security to the
upcoming generation with the power of Cloud & Electronics.

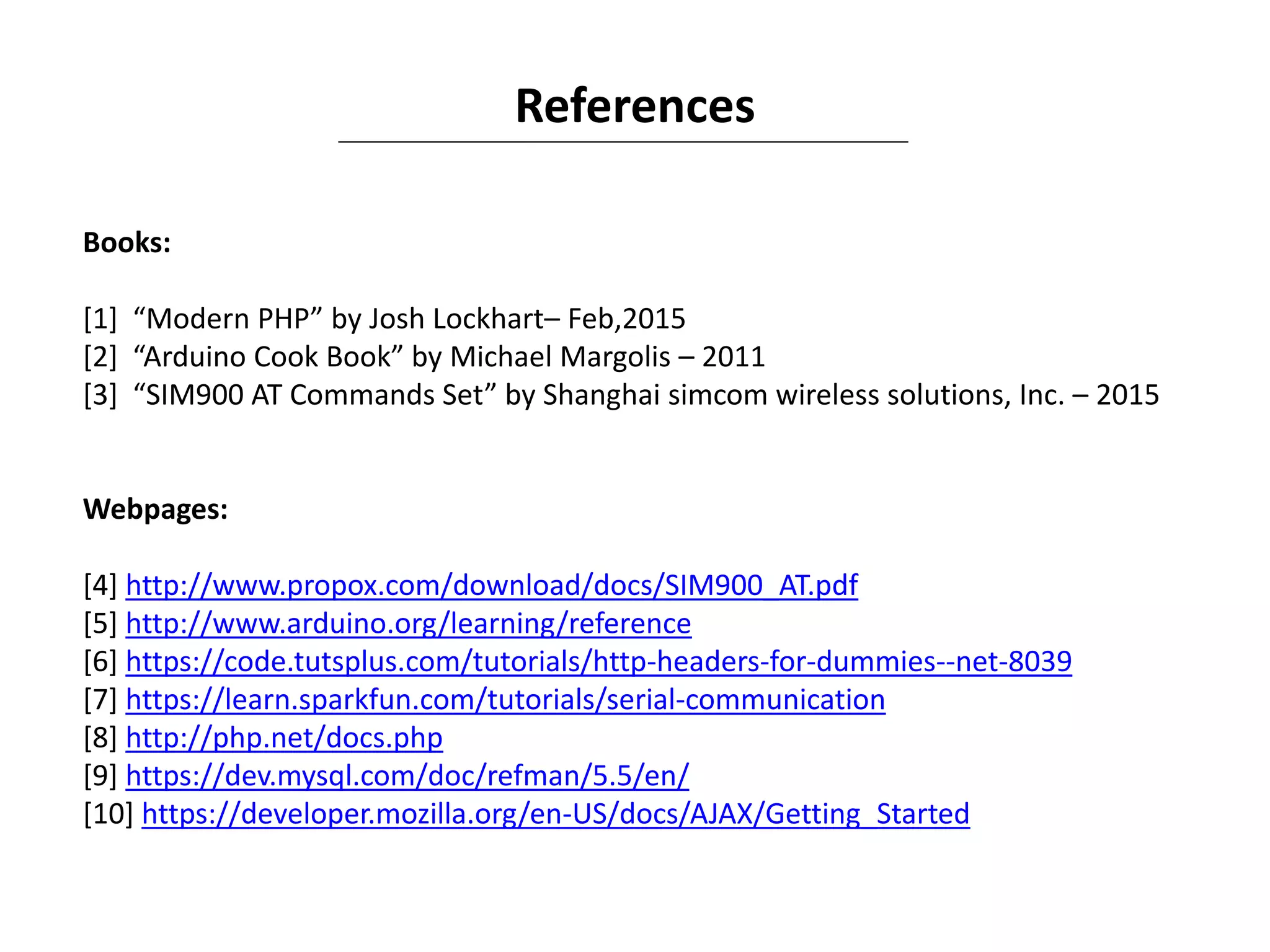

35. References
Books:
[1] “Modern PHP” by Josh Lockhart– Feb,2015
[2] “Arduino Cook Book” by Michael Margolis – 2011
[3] “SIM900 AT Commands Set” by Shanghai simcom wireless solutions, Inc. – 2015
Webpages:
[4] http://www.propox.com/download/docs/SIM900_AT.pdf
[5] http://www.arduino.org/learning/reference
[6] https://code.tutsplus.com/tutorials/http-headers-for-dummies--net-8039
[7] https://learn.sparkfun.com/tutorials/serial-communication
[8] http://php.net/docs.php
[9] https://dev.mysql.com/doc/refman/5.5/en/
[10] https://developer.mozilla.org/en-US/docs/AJAX/Getting_Started
Editor's Notes
SRam – Static Random Access Memory
EEPROM – Electrically Erasable Programmable ROM
ROM – Read Only Memory
RTC – Real Time Clock
SPI – Serial Peripheral Interface
I2C – Inter-Integrated Circuit
Rx/Tx – Recieve/Transfer
ICSP – In-Circuit Serial Programming
