The document describes B-Scan profiles generated by an inspection machine. A B-Scan profile shows the thickness of an inspected object along its length based on multiple A-Scan measurements. Sample 1 is a B-Scan of a 6.5mm thick course over 1850mm, while Sample 2 is a 9mm thick course over 1650mm and detected a 2.7mm deep defect spanning 27mm between 1397-1424mm.

1. Annex 1: B-Scan profiles
The B-Scan profile is a profile generated by the machine showing the aspect of the inspected object within the probe range based on successive A-Scan measures.
The vertical axis presents the measured thickness, while the horizontal axis presents the location of the measure.

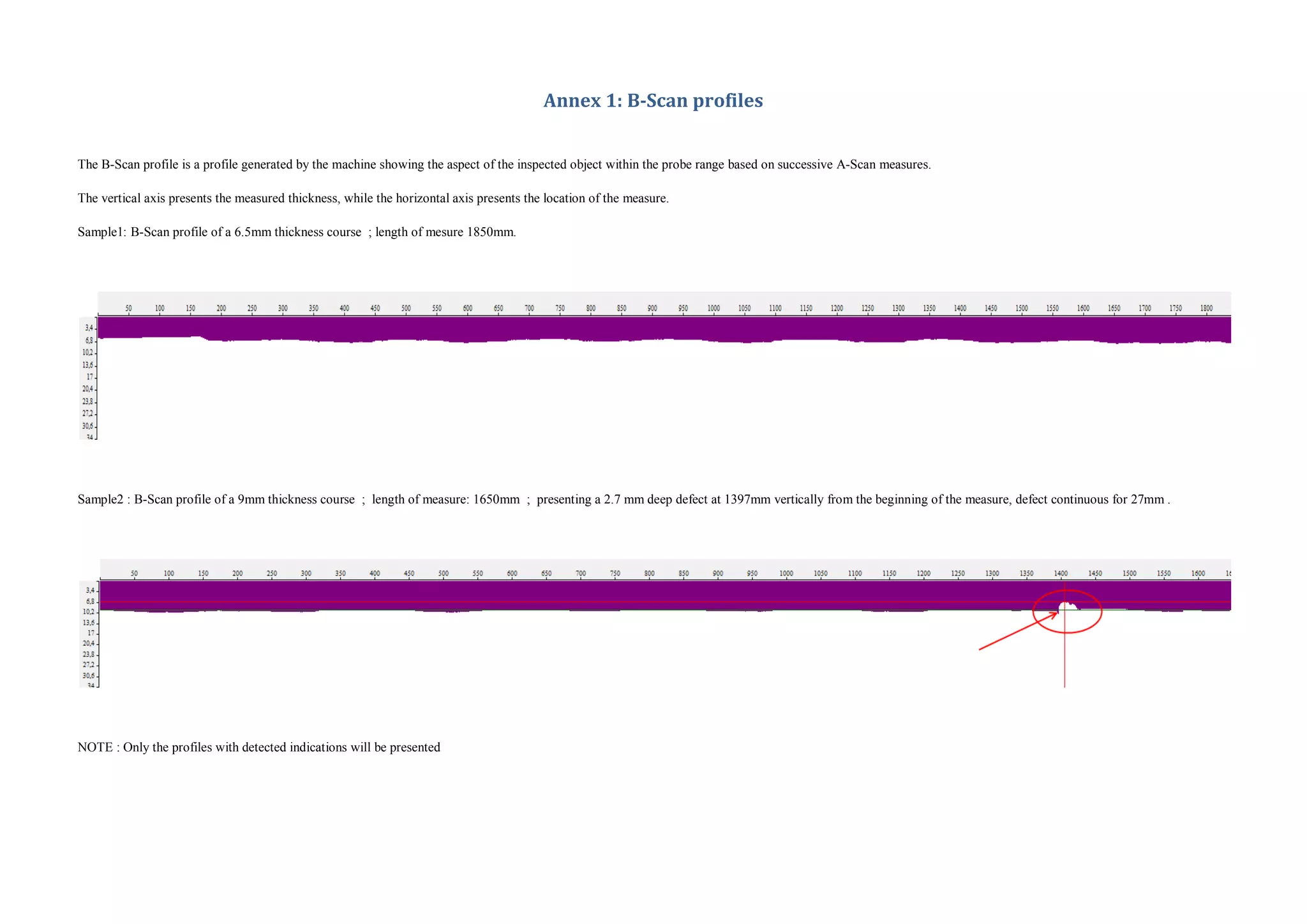

Sample1: B-Scan profile of a 6.5mm thickness course ; length of mesure 1850mm.
Sample2 : B-Scan profile of a 9mm thickness course ; length of measure: 1650mm ; presenting a 2.7 mm deep defect at 1397mm vertically from the beginning of the measure, defect continuous for 27mm .
NOTE : Only the profiles with detected indications will be presented

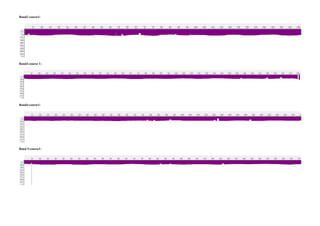

2. Band2-course1:
Band3-course 1:
Band4-course1:
Band 5-course1:

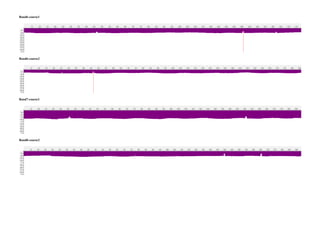

3. Band6-course1
Band6-course2
Band7-course1
Band8-course2
