1. Android Mobile Development & e Flash Platform
Mihai Corlan | Developer Evangelist | h p://corlan.org
© 2011 Adobe Systems Incorporated.

2. About Me
§ Adobe Worldwide Developer Evangelist (since 2008)
§ Flash Builder Engineer 2006-2008
§ Web Developer 2000 - 2006
§ Blog: h p://corlan.org
§ Twi er: h p://twi er.com/mcorlan
§ Email: mihai.corlan@adobe.com
© 2011 Adobe Systems Incorporated.
2

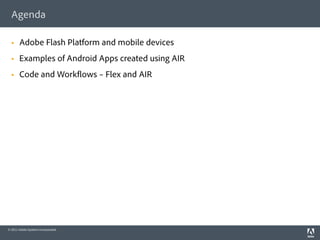

3. Agenda
§ Adobe Flash Platform and mobile devices
§ Examples of Android Apps created using AIR
§ Code and Work ows – Flex and AIR
© 2011 Adobe Systems Incorporated.

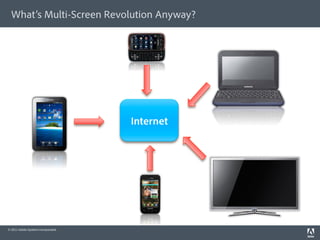

4. What’s Multi-Screen Revolution Anyway?
Internet
© 2011 Adobe Systems Incorporated.

5. Multi-screen and Adobe AIR
Native Native Native Native Native Native
App App App App App App
© 2011 Adobe Systems Incorporated.

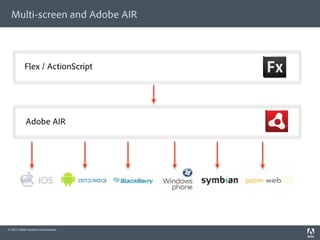

6. Multi-screen and Adobe AIR
Flex / ActionScript
Adobe AIR
© 2011 Adobe Systems Incorporated.

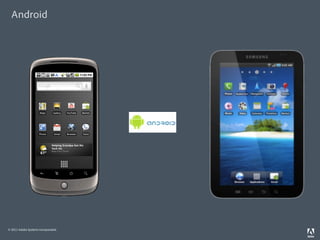

7. Android
© 2011 Adobe Systems Incorporated.

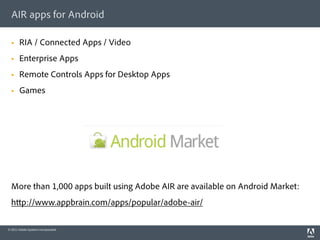

8. AIR apps for Android
§ RIA / Connected Apps / Video
§ Enterprise Apps
§ Remote Controls Apps for Desktop Apps
§ Games
More than 1,000 apps built using Adobe AIR are available on Android Market:
h p://www.appbrain.com/apps/popular/adobe-air/
© 2011 Adobe Systems Incorporated.

9. Examples of AIR for Android Applications
© 2011 Adobe Systems Incorporated.

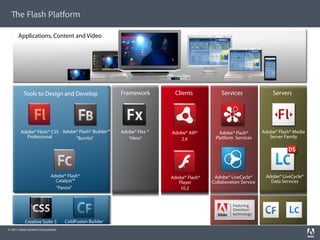

10. e Flash Platform
Applications, Content and Video
Tools to Design and Develop Framework Clients Services Servers
Adobe® Flash® CS5 Adobe® Flash® Builder™ Adobe® Flex ® Adobe® AIR® Adobe® Flash® Adobe® Flash® Media
Professional “Burrito” “Hero” 2.6 Platform Services Server Family
Adobe® Flash® Adobe® Flash® Adobe® LiveCycle® Adobe® LiveCycle®
Catalyst™ Player Collaboration Service Data Services
“Panini” 10.2
Integrating with
the Flash Platform
Creative Suite 5 ColdFusion Builder
© 2011 Adobe Systems Incorporated.

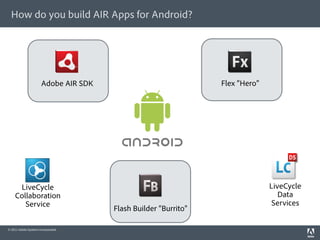

11. How do you build AIR Apps for Android?
Adobe AIR SDK Flex “Hero”
LiveCycle LiveCycle
Collaboration Data
Service Services
Flash Builder “Burrito”
© 2011 Adobe Systems Incorporated.

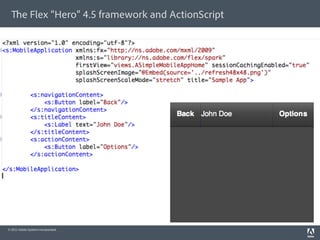

12. e Flex “Hero” 4.5 framework and ActionScript
§ An open source framework of ActionScript classes
§ Rich library of UI components
§ Other “utilities” that speed up app development
(services, validators, data binding, layout managers, …)
§ MXML – a declarative language for quickly layout your app
Flex “Hero”
© 2011 Adobe Systems Incorporated.

13. Tools – Flash Builder “Burrito” 4.5
§ Eclipse based IDE for Flex and ActionScript development
§ Support for design view and local testing
§ Support for packaging the app as an APK le
§ Deploy the app to connected Android devices
§ Debugging the app on the device or desktop simulator
Flash Builder
Download from h p://labs.adobe.com
Free for educational / 60-day trial period
© 2011 Adobe Systems Incorporated.

14. AIR APIs on Android
§ Camera and Microphone access
§ Accelerometer
§ GPS
§ Multitouch/Gestures
§ Screen Orientation / Fullscreen
§ Phone/SMS/Email/Browser/Android Market
§ Camera (Including Camera Roll Support) & Mic
§ StageWebView
Adobe AIR
§ Session Cache Support – Restore App State
§ Hardware Bu ons Support
§ Local database (SQLite)
§ …
© 2011 Adobe Systems Incorporated.

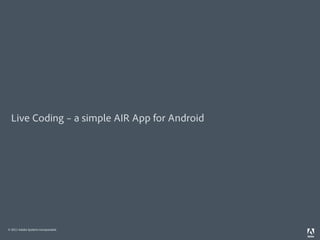

15. Live Coding – a simple AIR App for Android
© 2011 Adobe Systems Incorporated.

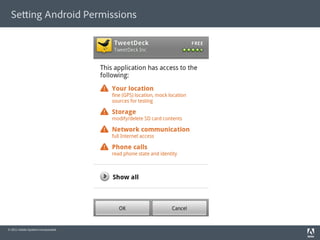

16. Se ing Android Permissions
© 2011 Adobe Systems Incorporated.

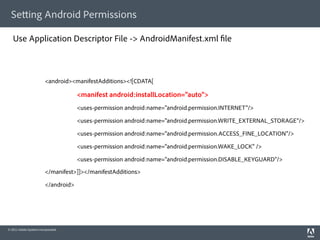

17. Se ing Android Permissions
Use Application Descriptor File -> AndroidManifest.xml le
<android><manifestAdditions><![CDATA[
<manifest android:installLocation="auto">
<uses-permission android:name="android.permission.INTERNET"/>
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE"/>
<uses-permission android:name="android.permission.ACCESS_FINE_LOCATION"/>
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.DISABLE_KEYGUARD"/>
</manifest>]]></manifestAdditions>
</android>
© 2011 Adobe Systems Incorporated.

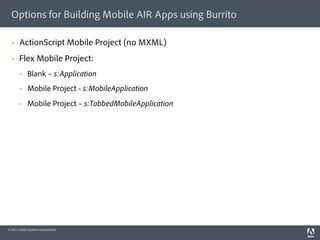

18. Options for Building Mobile AIR Apps using Burrito
§ ActionScript Mobile Project (no MXML)
§ Flex Mobile Project:
§ Blank – s:Application
§ Mobile Project - s:MobileApplication
§ Mobile Project – s:TabbedMobileApplication
© 2011 Adobe Systems Incorporated.

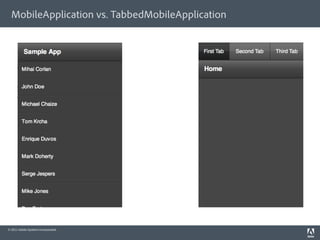

19. MobileApplication vs. TabbedMobileApplication
© 2011 Adobe Systems Incorporated.

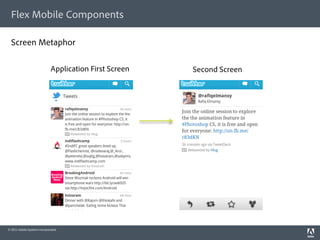

20. Flex Mobile Components
Screen Metaphor
Application First Screen Second Screen
© 2011 Adobe Systems Incorporated.

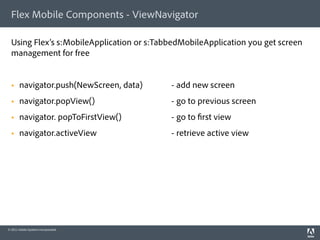

21. Flex Mobile Components - ViewNavigator
Using Flex’s s:MobileApplication or s:TabbedMobileApplication you get screen
management for free
§ navigator.push(NewScreen, data) - add new screen
§ navigator.popView() - go to previous screen
§ navigator. popToFirstView() - go to rst view
§ navigator.activeView - retrieve active view
© 2011 Adobe Systems Incorporated.

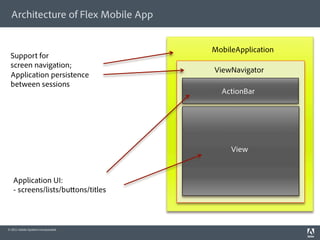

22. Architecture of Flex Mobile App
MobileApplication
Support for
screen navigation;
ViewNavigator
Application persistence
between sessions
ActionBar
View
Application UI:
- screens/lists/bu ons/titles
© 2011 Adobe Systems Incorporated.

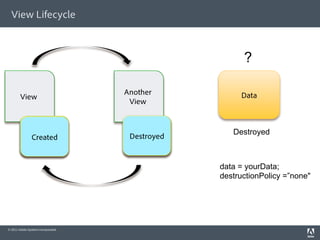

23. View Lifecycle
?
Another Data
View
View
Destroyed
Created
Destroyed Destroyed
Created
data = yourData;
destructionPolicy =”none"
© 2011 Adobe Systems Incorporated.

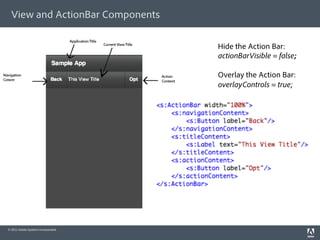

24. View and ActionBar Components
Hide the Action Bar:
actionBarVisible = false;
Overlay the Action Bar:
overlayControls = true;
© 2011 Adobe Systems Incorporated.

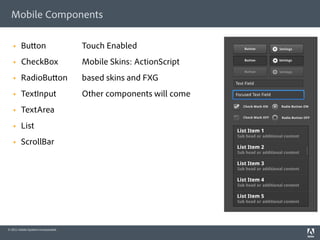

25. Mobile Components
§ Bu on Touch Enabled
§ CheckBox Mobile Skins: ActionScript
§ RadioBu on based skins and FXG
§ TextInput Other components will come
§ TextArea
§ List
§ ScrollBar
© 2011 Adobe Systems Incorporated.

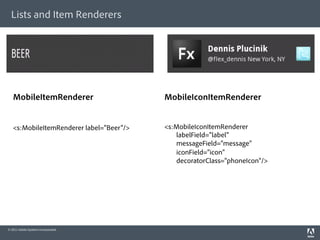

26. Lists and Item Renderers
MobileItemRenderer MobileIconItemRenderer
<s:MobileItemRenderer label="Beer"/> <s:MobileIconItemRenderer
labelField="label"
messageField="message"
iconField="icon"
decoratorClass="phoneIcon"/>
© 2011 Adobe Systems Incorporated.

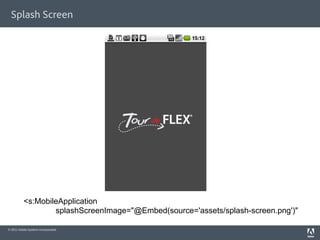

27. Splash Screen
<s:MobileApplication
splashScreenImage="@Embed(source='assets/splash-screen.png')"
© 2011 Adobe Systems Incorporated.

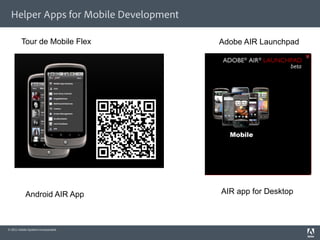

28. Helper Apps for Mobile Development
Tour de Mobile Flex Adobe AIR Launchpad
Android AIR App AIR app for Desktop
© 2011 Adobe Systems Incorporated.

29. What’s Next?
§ 3D APIs GPU Accelerated for Flash Player & AIR on desktop and mobiles
(Direct3D 9 and OpenGL ES)
§ Native extensions for AIR for Android
§ Extending Flex “Hero” to iOS and BlackBerry Tablet OS
© 2011 Adobe Systems Incorporated.

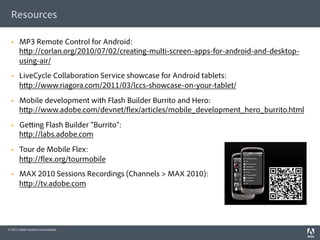

30. Resources
§ MP3 Remote Control for Android:
h p://corlan.org/2010/07/02/creating-multi-screen-apps-for-android-and-desktop-
using-air/
§ LiveCycle Collaboration Service showcase for Android tablets:
h p://www.riagora.com/2011/03/lccs-showcase-on-your-tablet/
§ Mobile development with Flash Builder Burrito and Hero:
h p://www.adobe.com/devnet/ ex/articles/mobile_development_hero_burrito.html
§ Ge ing Flash Builder “Burrito”:
h p://labs.adobe.com
§ Tour de Mobile Flex:
h p:// ex.org/tourmobile
§ MAX 2010 Sessions Recordings (Channels > MAX 2010):
h p://tv.adobe.com
© 2011 Adobe Systems Incorporated.

31. ank You!
h p://corlan.org
mihai.corlan@adobe.com
© 2011 Adobe Systems Incorporated.
