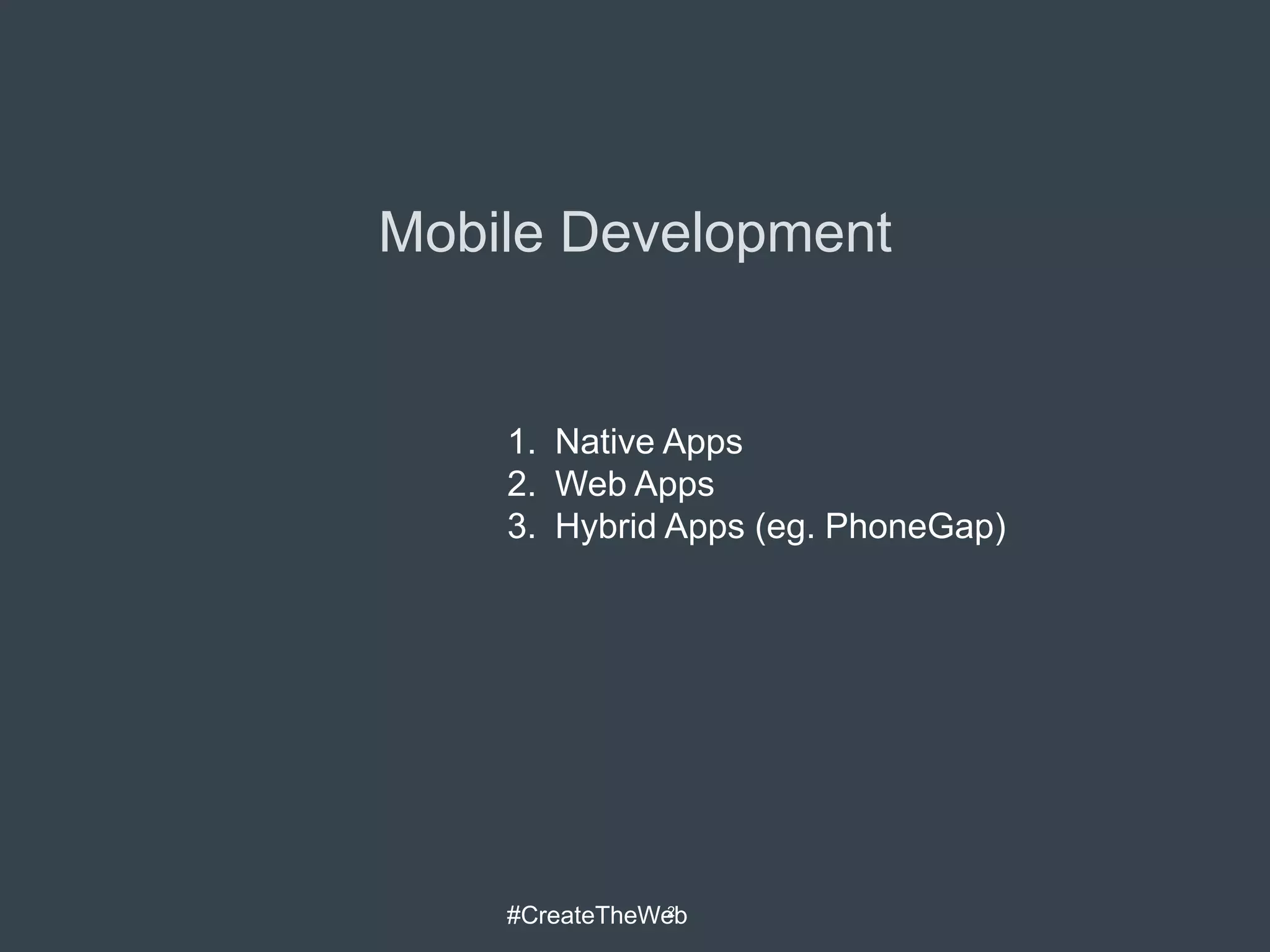

2. Mobile Development
1. Native Apps
2. Web Apps
3. Hybrid Apps (eg. PhoneGap)
#CreateTheWeb
2

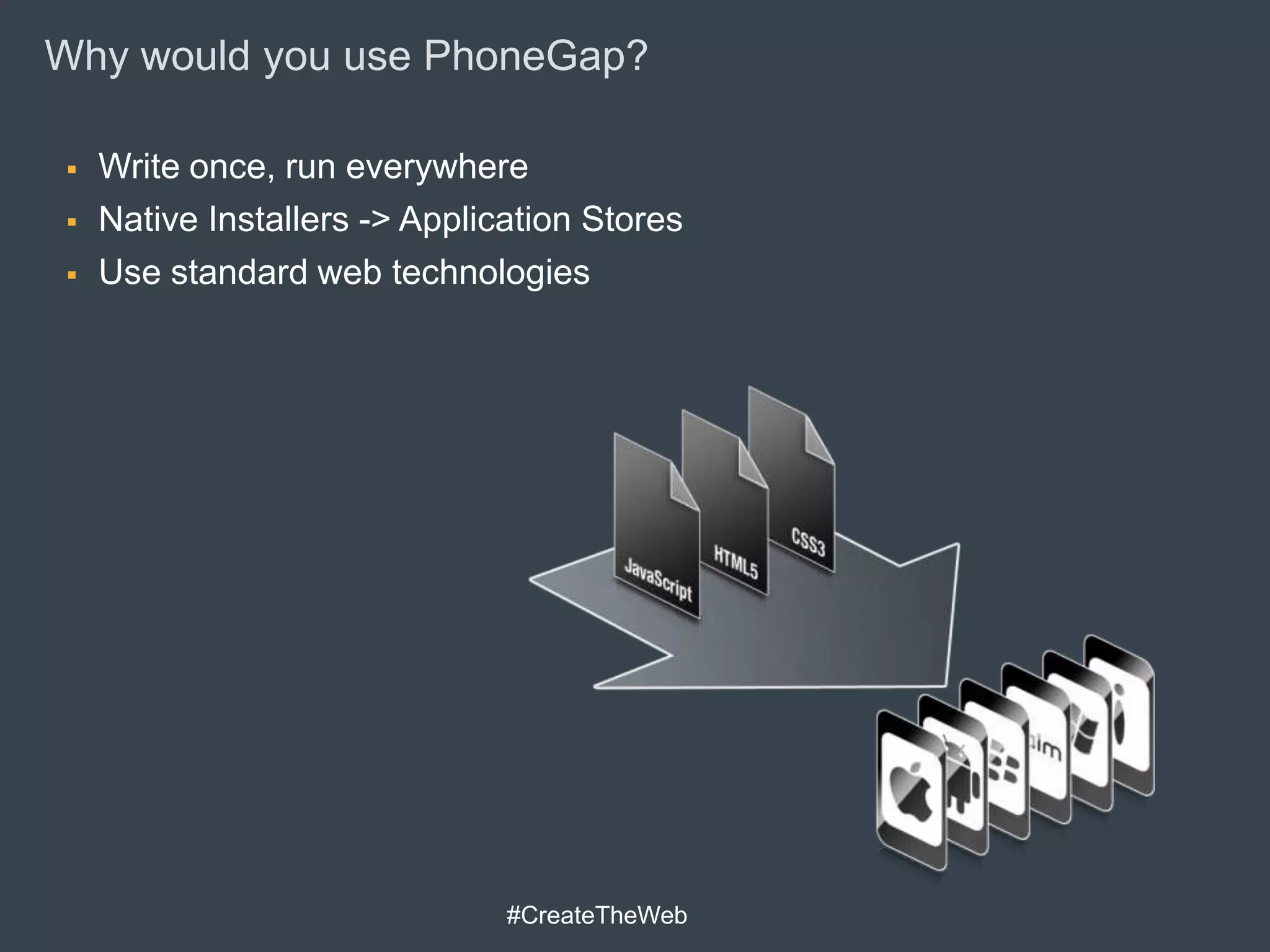

3. Why would you use PhoneGap?
Write once, run everywhere
Native Installers -> Application Stores
Use standard web technologies
#CreateTheWeb

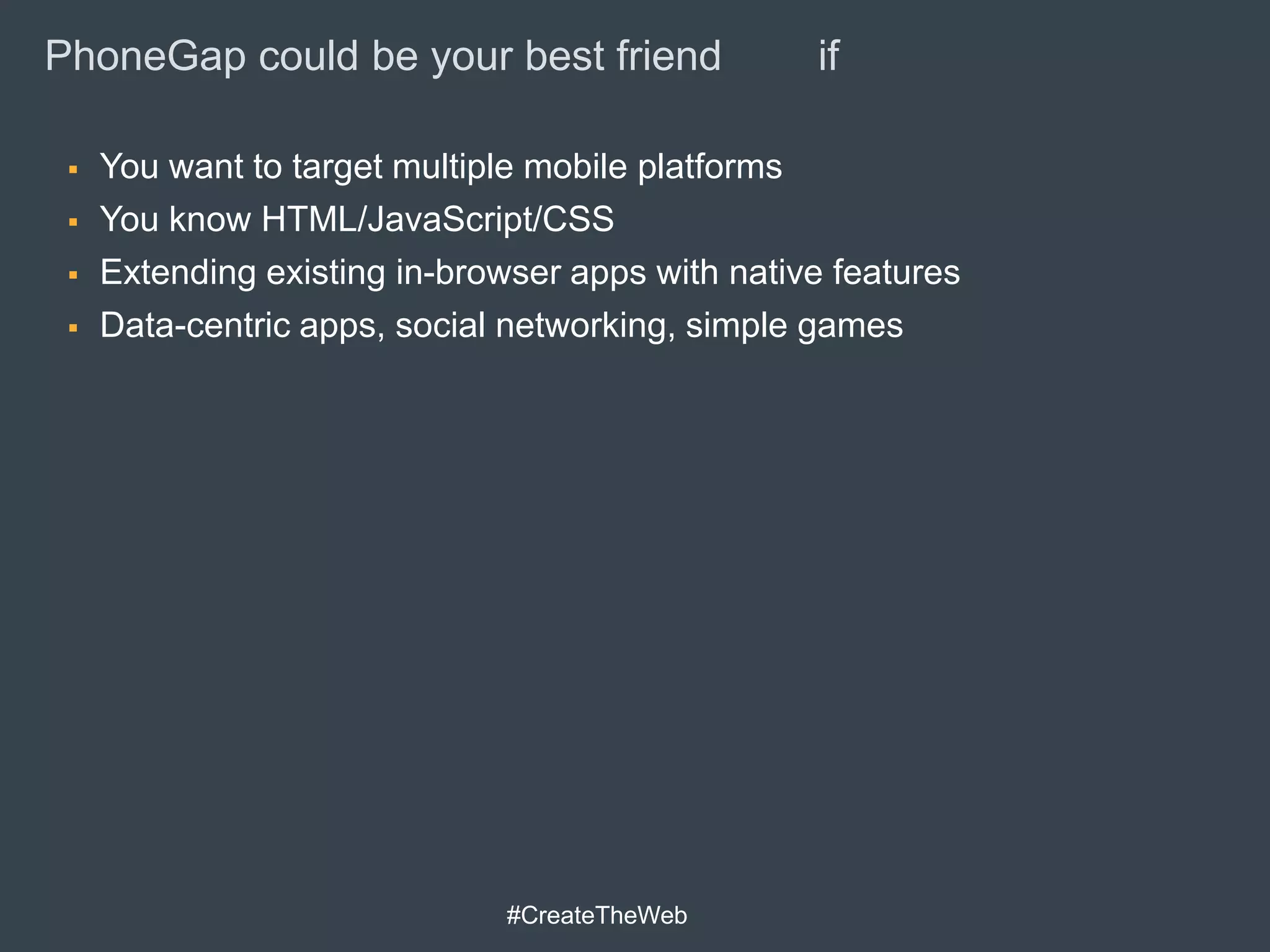

4. PhoneGap could be your best friend if
You want to target multiple mobile platforms
You know HTML/JavaScript/CSS
Extending existing in-browser apps with native features
Data-centric apps, social networking, simple games
#CreateTheWeb

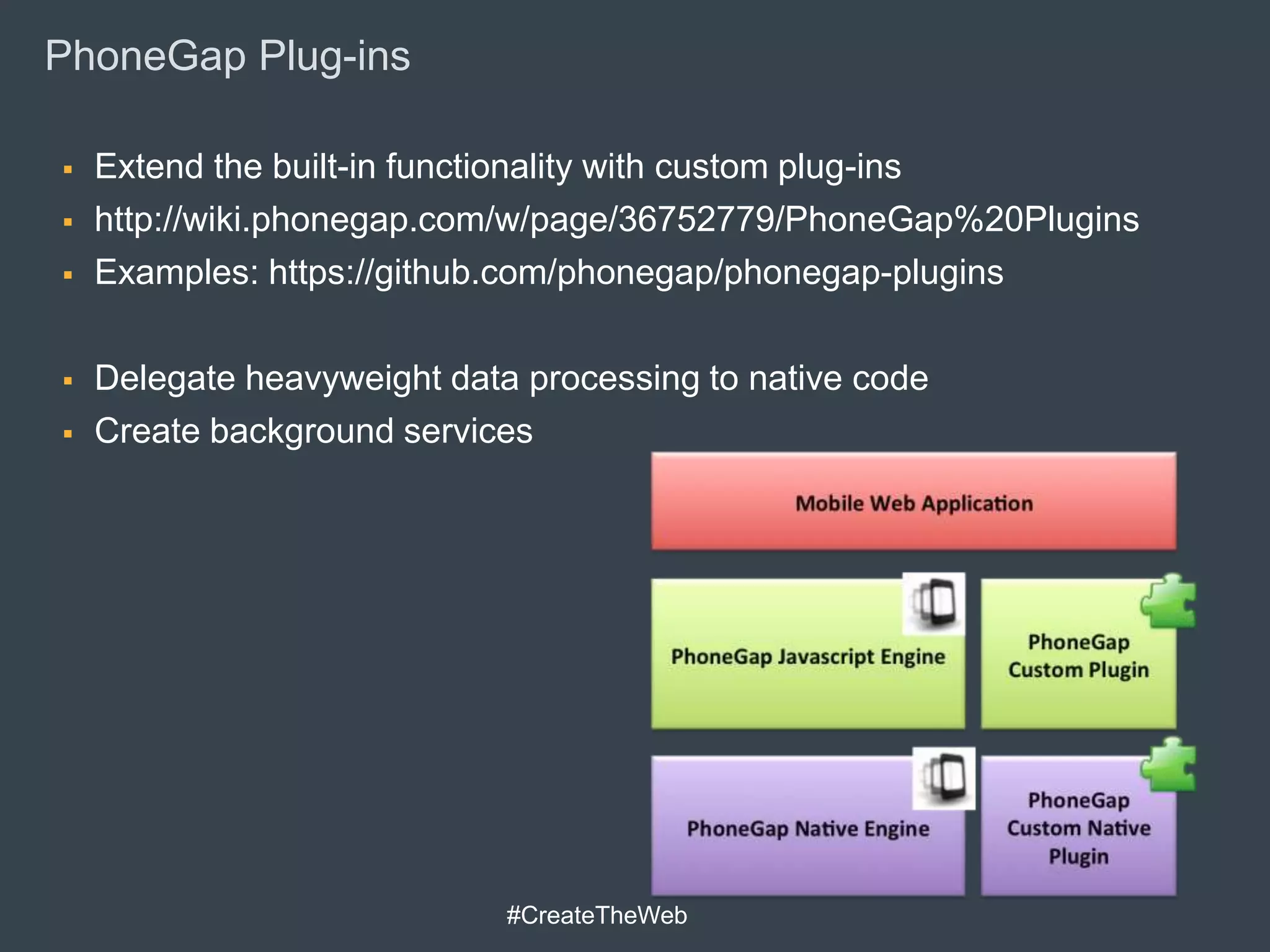

8. PhoneGap Plug-ins
Extend the built-in functionality with custom plug-ins
http://wiki.phonegap.com/w/page/36752779/PhoneGap%20Plugins
Examples: https://github.com/phonegap/phonegap-plugins
Delegate heavyweight data processing to native code
Create background services
#CreateTheWeb
9. Who else is using PhoneGap?
Facebook Mobile SDK
SalesForce.com Mobile SDK
IBM Worklight Platform
SAP
Some numbers:
~ 4% apps in iTunes Store use PhoneGap (Sep 2011)
~ 100,000 monthly downloads of PhoneGap SDK
#CreateTheWeb

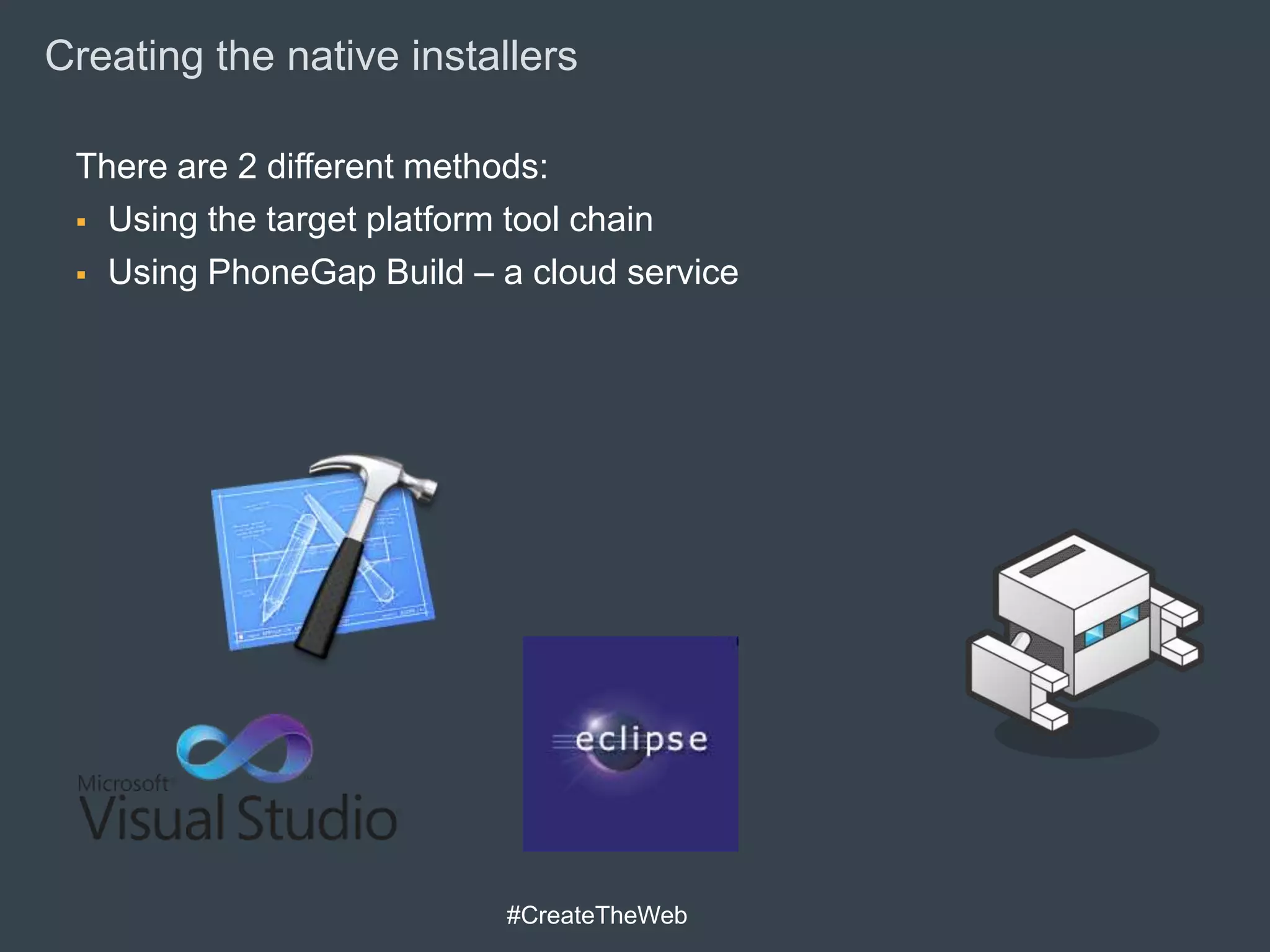

14. Creating the native installers
There are 2 different methods:
Using the target platform tool chain
Using PhoneGap Build – a cloud service
#CreateTheWeb

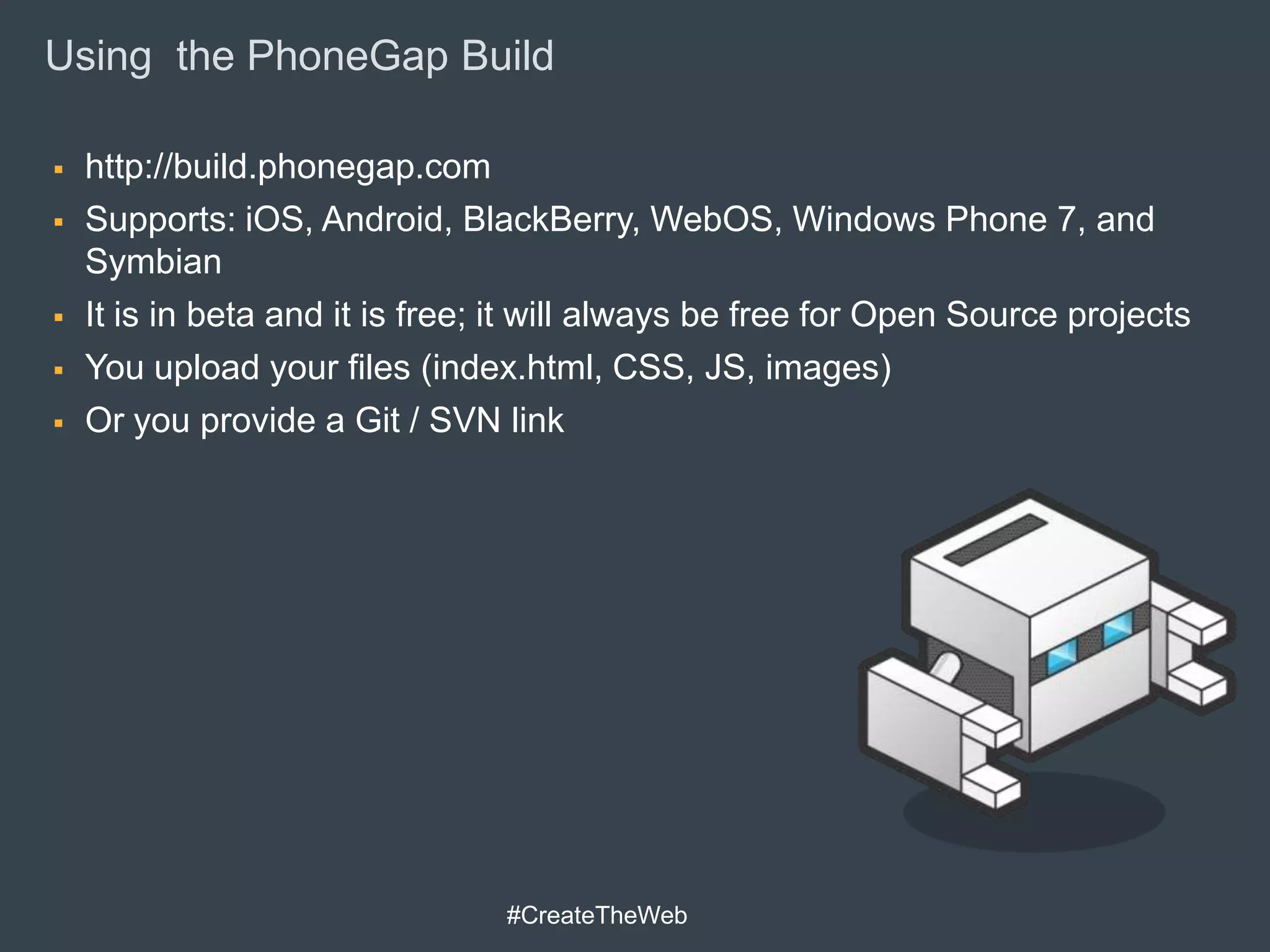

15. Using the PhoneGap Build
http://build.phonegap.com
Supports: iOS, Android, BlackBerry, WebOS, Windows Phone 7, and
Symbian
It is in beta and it is free; it will always be free for Open Source projects
You upload your files (index.html, CSS, JS, images)
Or you provide a Git / SVN link
#CreateTheWeb

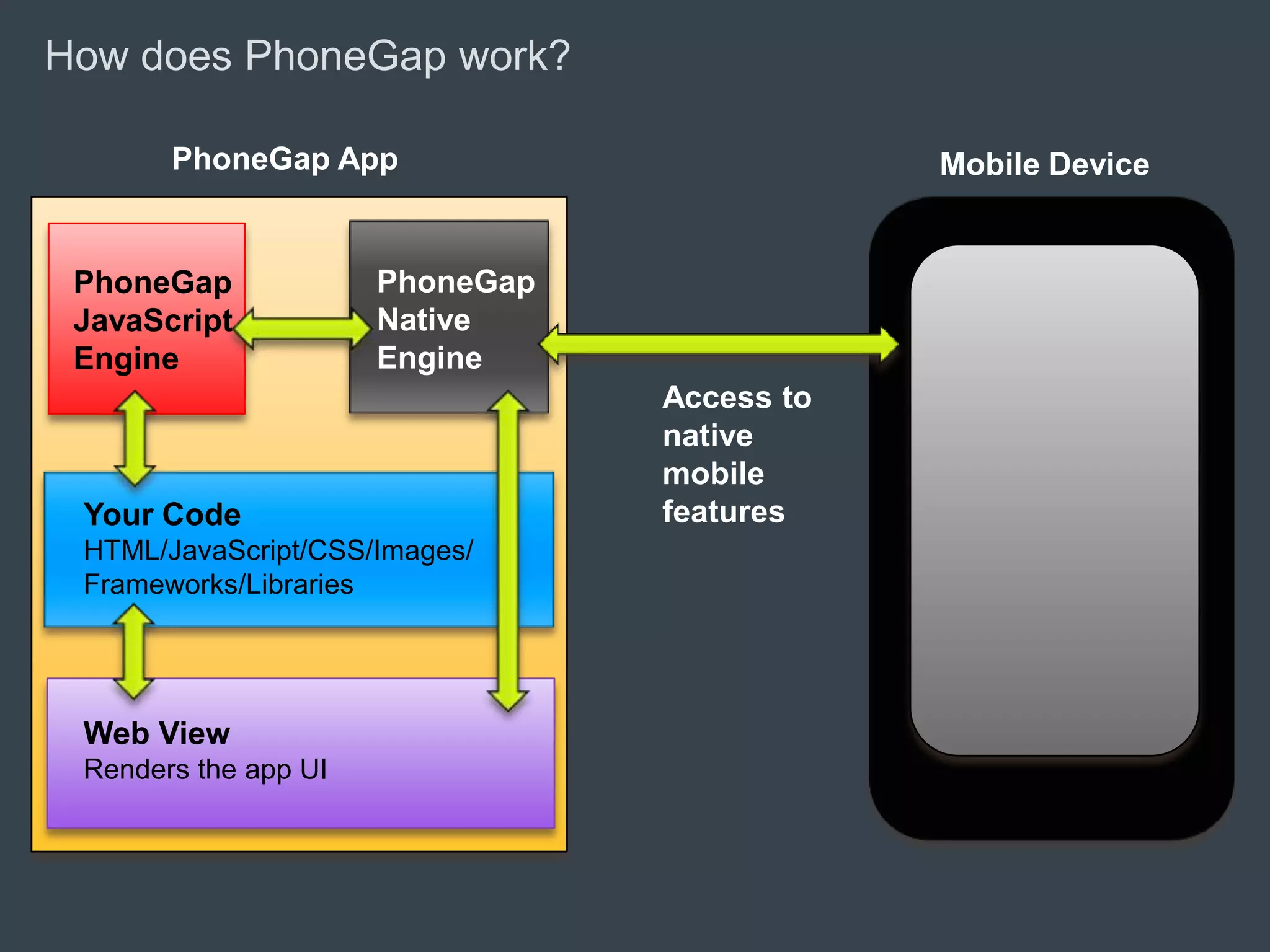

21. How does PhoneGap work?
PhoneGap App Mobile Device
PhoneGap PhoneGap
JavaScript Native
Engine Engine
Access to
native
mobile
Your Code features
HTML/JavaScript/CSS/Images/
Frameworks/Libraries
Web View
Renders the app UI
Editor's Notes
Sorry guys. Thereismoreme in themenu :DWhois a mobile developer?Who knowswhatPhoneGapis?Who hascreated a PhoneGapapplication?
PhoneGap answers another issue many companies / customers / developers have: the ability of distributing web apps through application stores.
PhoneGap could be the default option for many application types especially if you want to target multiple platforms, you know web technologies, and you have an existing REST API that you could reuse with your PhoneGap app.

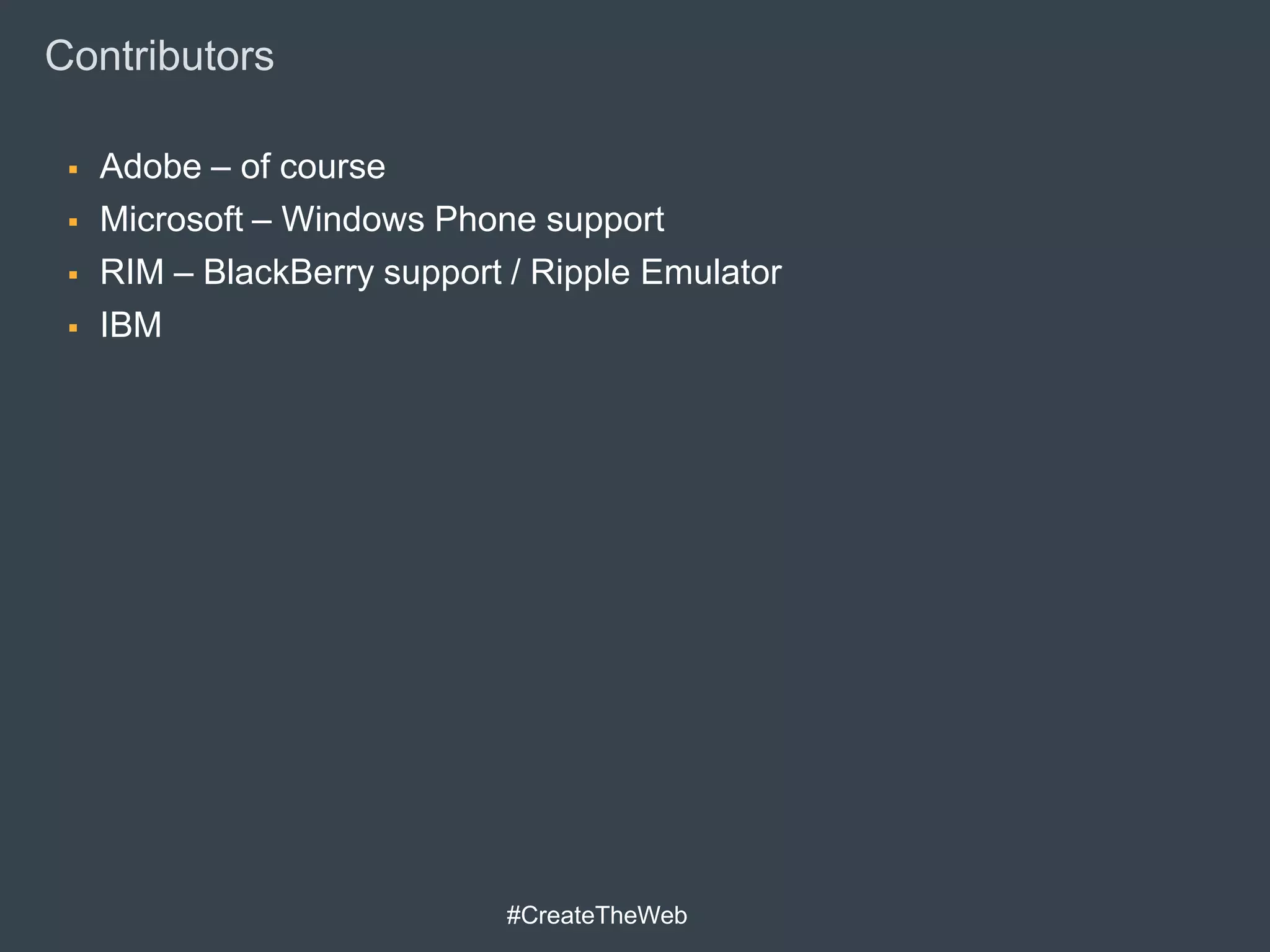

Atthispoint I shouldstopandquicklyexplainwhatistherelationbetweenPhoneGapand Apache Cordova.PhoneGap was developedby a smallcompanycalledNitobi. When Adobe boughtthiscompany last year, wereleasedthesourcecodeas an open sourceprojectunder Apache Foundation. Andthenameofthisproject was changedfromPhoneGaptoCordova. Ofcourse Adobe continuestobeoneofthemaincontributorstogetherwithothercompanieslike IBM, RIM, or Microsoft.Today PhoneGapisthenameofAdobe‘sCordovadistribution.

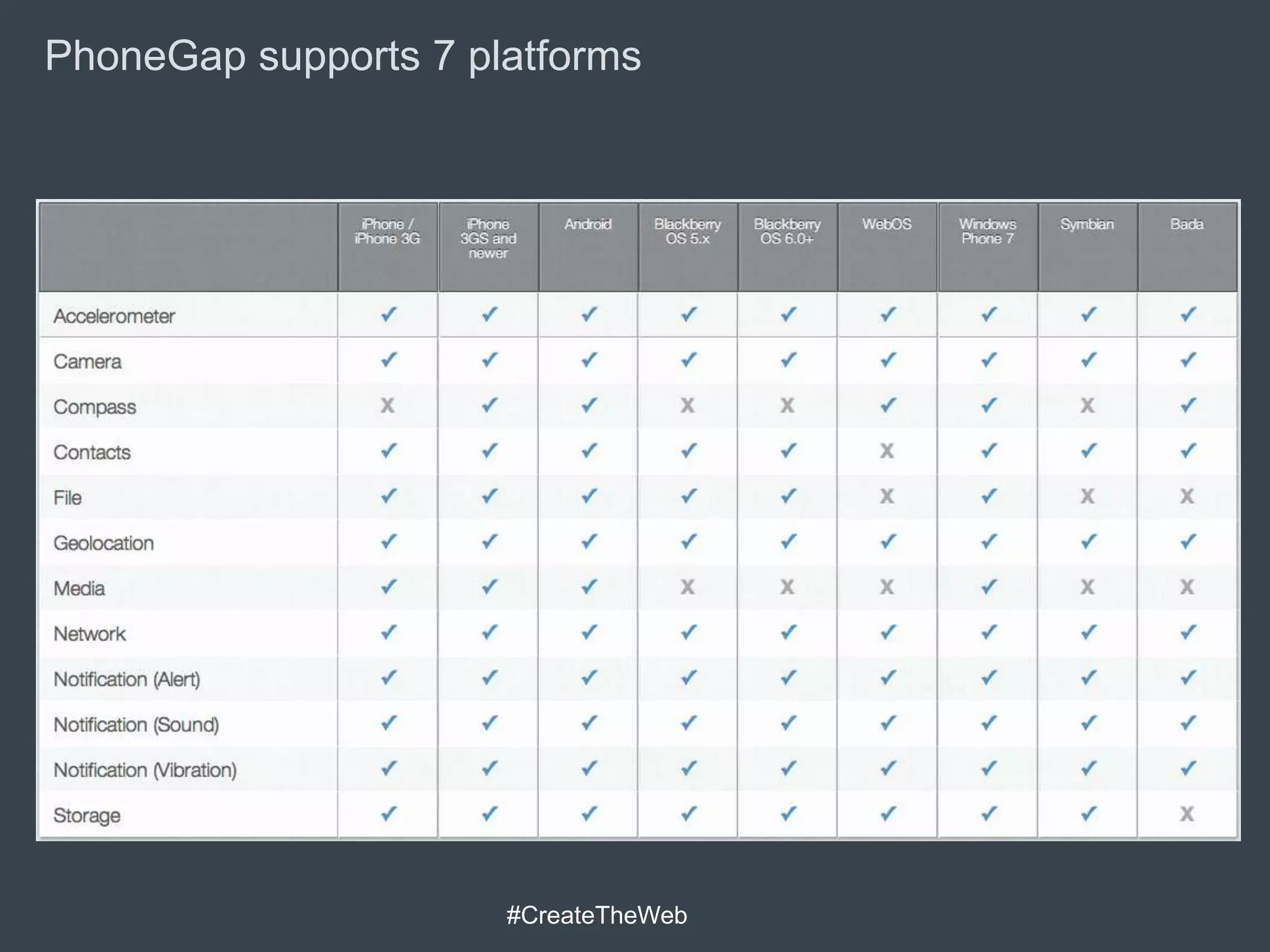

What platforms does PhoneGap support?It is the only open source framework that supports 7 platforms AFAIK. From iOS and Android to Windows Phone and BlackBerryHere is a list of built-in out of the box device APIs supported by PhoneGap. It supports accelerometer, all sort of notifications, storage, contacts and file APIs and so forth. Where you see an X the reason is that the device doesn’t have the capability most of times and not a PhoneGap issue. For example there is no accelerometer on on older iPhones.
You can write plugins in order to expose additional native features to JavaScript. A plugin has two parts: a native part that exposes the native feature and JavaScript part that provides the API that will be used by the developers who want to consume your plugin.
Next let me show you some PhoneGap applications to see for yourself what is possible to build using this platform.WikipediaUntappdPhoneGap API2011 Census ?
PhoneGap doesn’t provide any UI out of the box. This means that you are free to use whatever you want.You can use whatever JavaScript frameworks or libraries you like. Eg. jQuery, jQuery Mobile, Sencha, Backbone, Liquid, Mustache, Bootrstrap, and so onPay attention to performance (mobile vs. desktop)Pay attention to mobile browser features or lack of them (I am talking about SVG)
Most of the time you’ll be building your PhoneGap app the same way you build web apps.- Using your favorite editors (Eclipse, vim, Dreamweaver, Visual Studio)- Test and debug the app using your desktop browser- Test and debug the app using mobile simulators/emulators and the physical devices
PhoneGap Build is
The PhoneGap Emulator allows you to test your PhoneGap application from your desktop browser. PhoneGap's JavaScript APIs are avaialble using Ripple, so you can subscribe to deviceready and even stub responses for your custom plugins.
So how does PhoneGap work? Most mobile platforms offer something called WebView – which is a chromless browser. A full screen browser without location bar, history buttons, without any UI.And using native code this WebView can be extended by exposing device APIs or capabilities to the JavaScript code that runs in this WebView.In this diagram you can see that there is the PhoneGap Native Engine that exposes the native capabilities through a PhoneGap JavaScript API to the application JavaScript. And the application UI is created with HTML/JavaScript/CSS and runs inside the WebViewWebView – chromless browser full screenNative Layer– PhoneGap native engine – PhoneGapJavaScrip APIApplication Files – HTML / JavaScript / CSS
