A talk given at "Social Simulation 2014" at Barcelona in September.
A complex “Data Integration Model” of voter behaviour is described. However it is very complex and hard to analyse. For such a model “thin” samples of the outcomes using classic parameter sweeps are inadequate. In order to get a more holistic picture of its behaviour data- mining techniques are applied to the data generated by many runs of the model, each with randomised parameter values.
Paper is at: http://cfpm.org/aacabm/analysing a complex model-v3.4.pdf
A Critique of the Proposed National Education Policy Reform

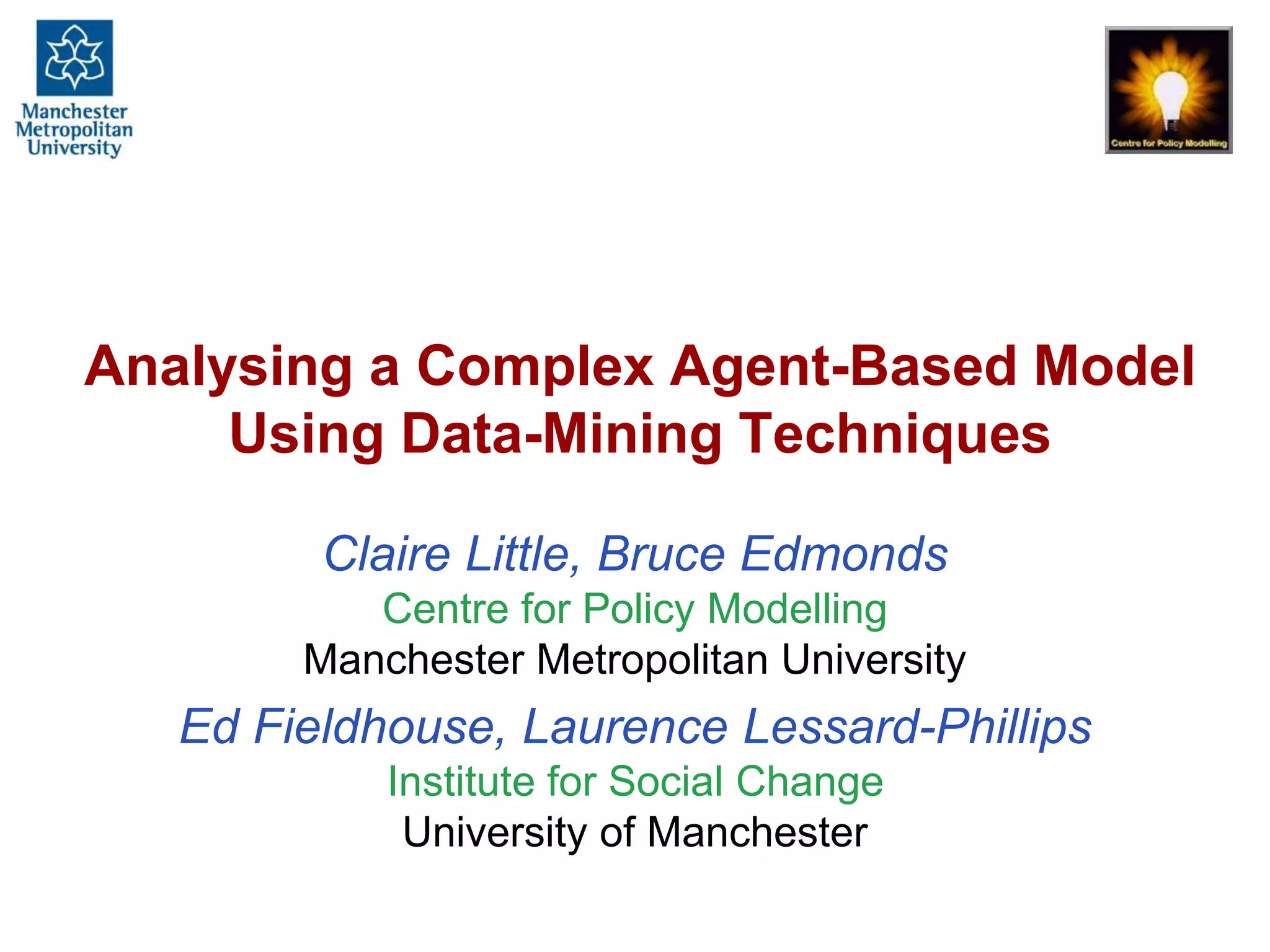

Analysing a Complex Agent-Based Model Using Data-Mining Techniques
1. Analysing a Complex Agent-Based Model
Using Data-Mining Techniques
Claire Little, Bruce Edmonds
Centre for Policy Modelling
Manchester Metropolitan University
Ed Fieldhouse, Laurence Lessard-Phillips
Institute for Social Change
University of Manchester

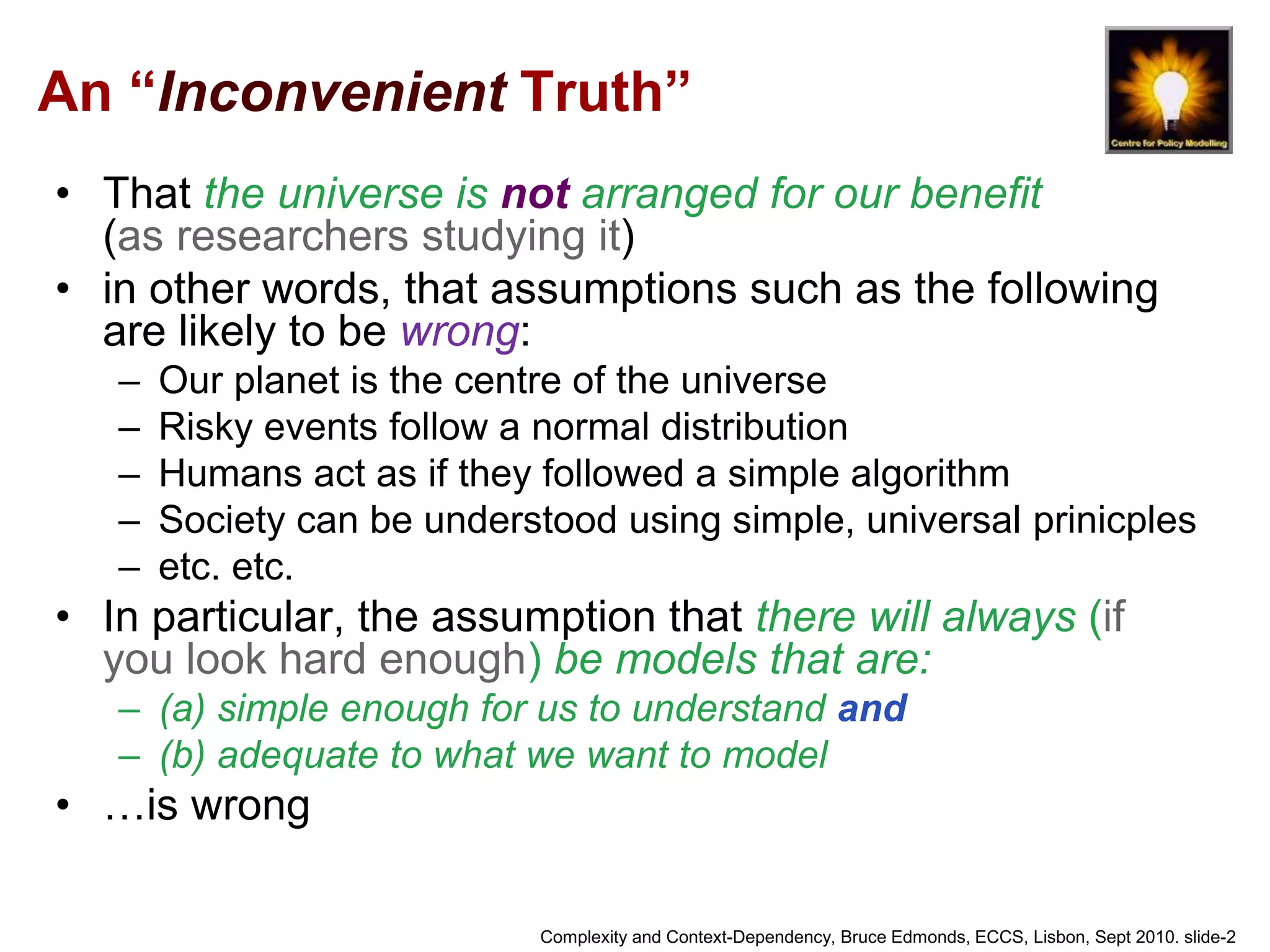

2. An “Inconvenient Truth”
• That the universe is not arranged for our benefit
(as researchers studying it)
• in other words, that assumptions such as the following
are likely to be wrong:
– Our planet is the centre of the universe
– Risky events follow a normal distribution
– Humans act as if they followed a simple algorithm
– Society can be understood using simple, universal prinicples
– etc. etc.
• In particular, the assumption that there will always (if
you look hard enough) be models that are:
– (a) simple enough for us to understand and
– (b) adequate to what we want to model
• …is wrong
Complexity and Context-Dependency, Bruce Edmonds, ECCS, Lisbon, Sept 2010. slide-2

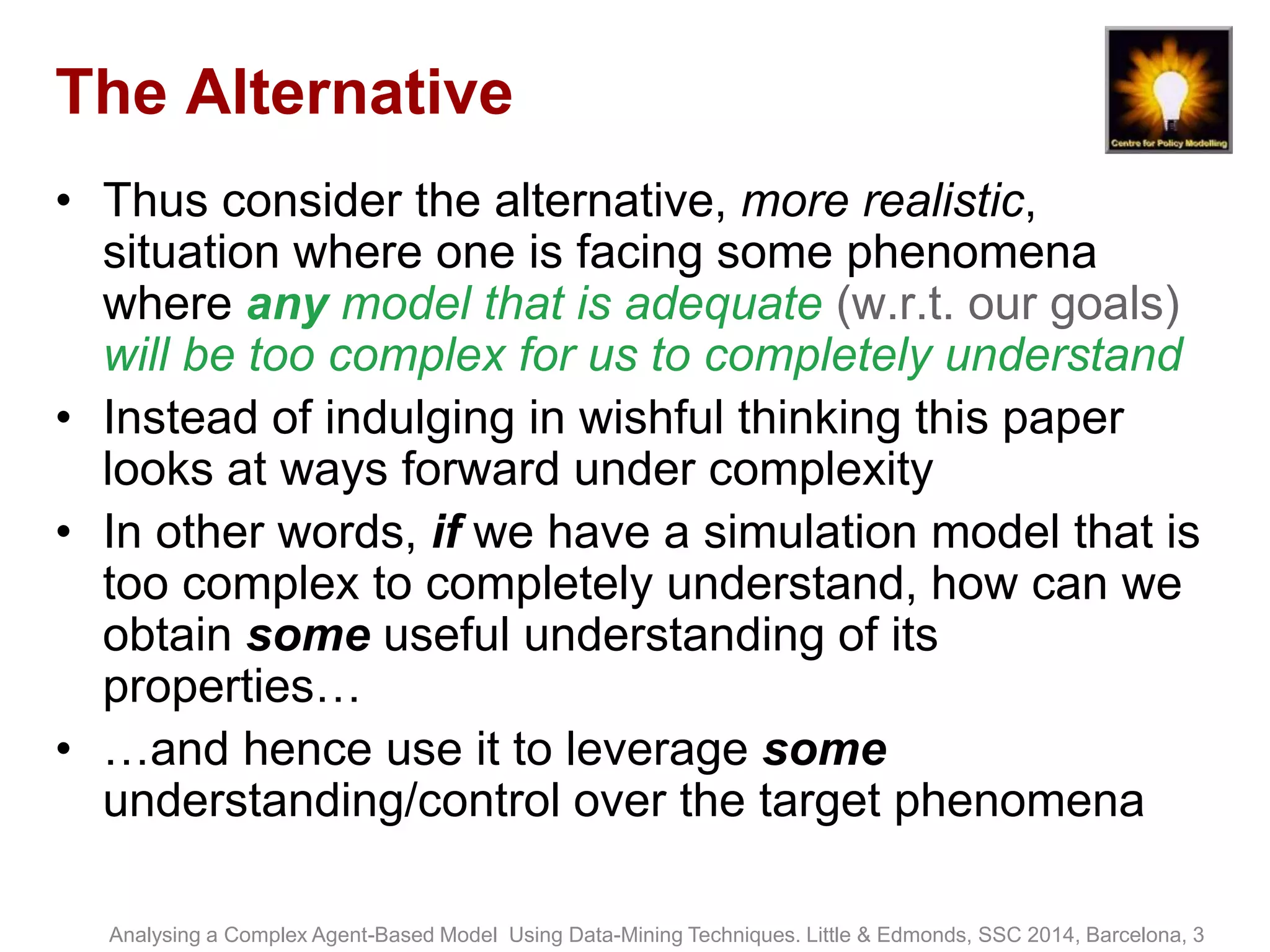

3. The Alternative
• Thus consider the alternative, more realistic,
situation where one is facing some phenomena
where any model that is adequate (w.r.t. our goals)
will be too complex for us to completely understand
• Instead of indulging in wishful thinking this paper
looks at ways forward under complexity
• In other words, if we have a simulation model that is
too complex to completely understand, how can we
obtain some useful understanding of its
properties…
• …and hence use it to leverage some
understanding/control over the target phenomena
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 3

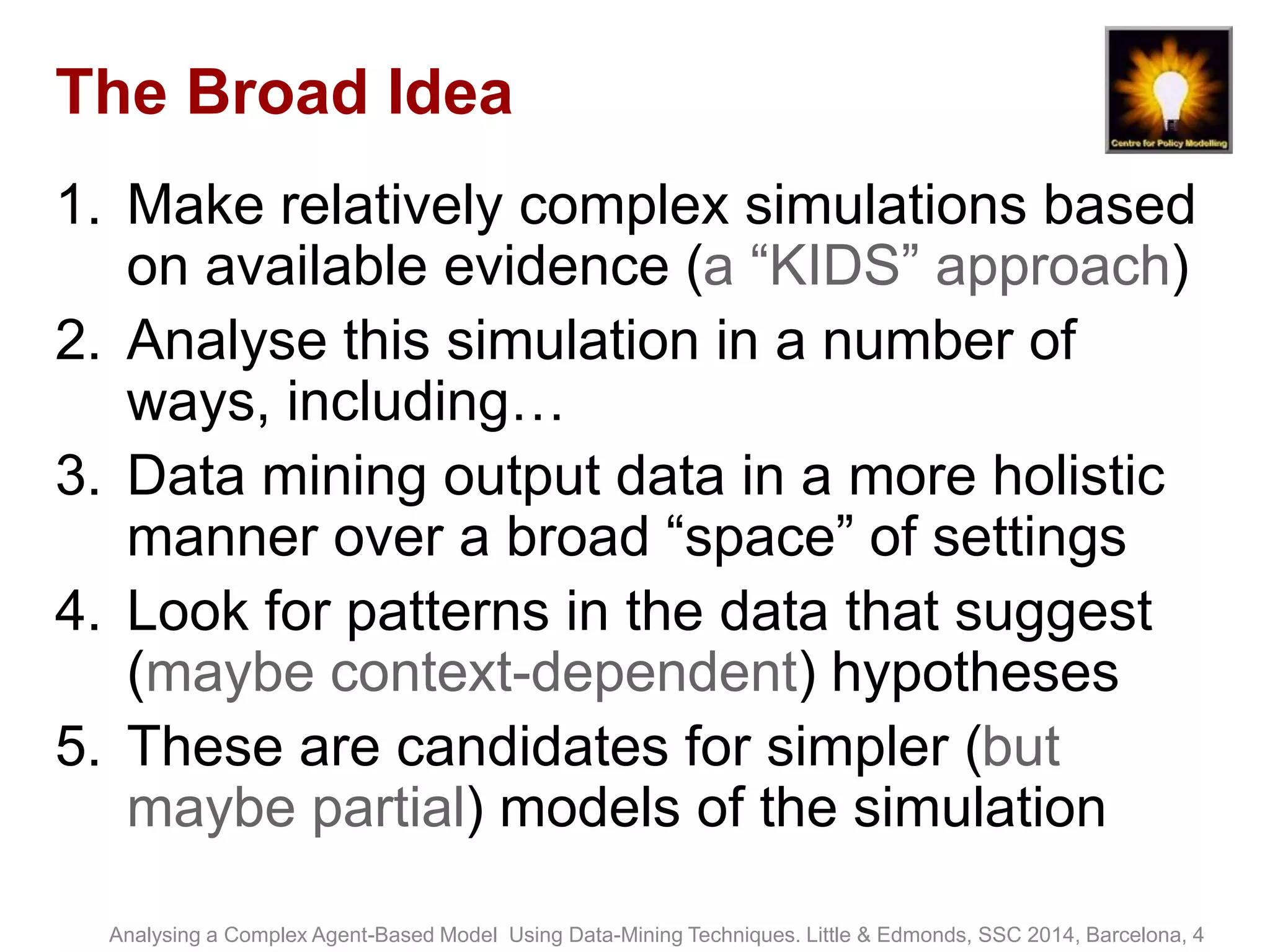

4. The Broad Idea
1. Make relatively complex simulations based
on available evidence (a “KIDS” approach)
2. Analyse this simulation in a number of
ways, including…
3. Data mining output data in a more holistic
manner over a broad “space” of settings
4. Look for patterns in the data that suggest
(maybe context-dependent) hypotheses
5. These are candidates for simpler (but
maybe partial) models of the simulation
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 4

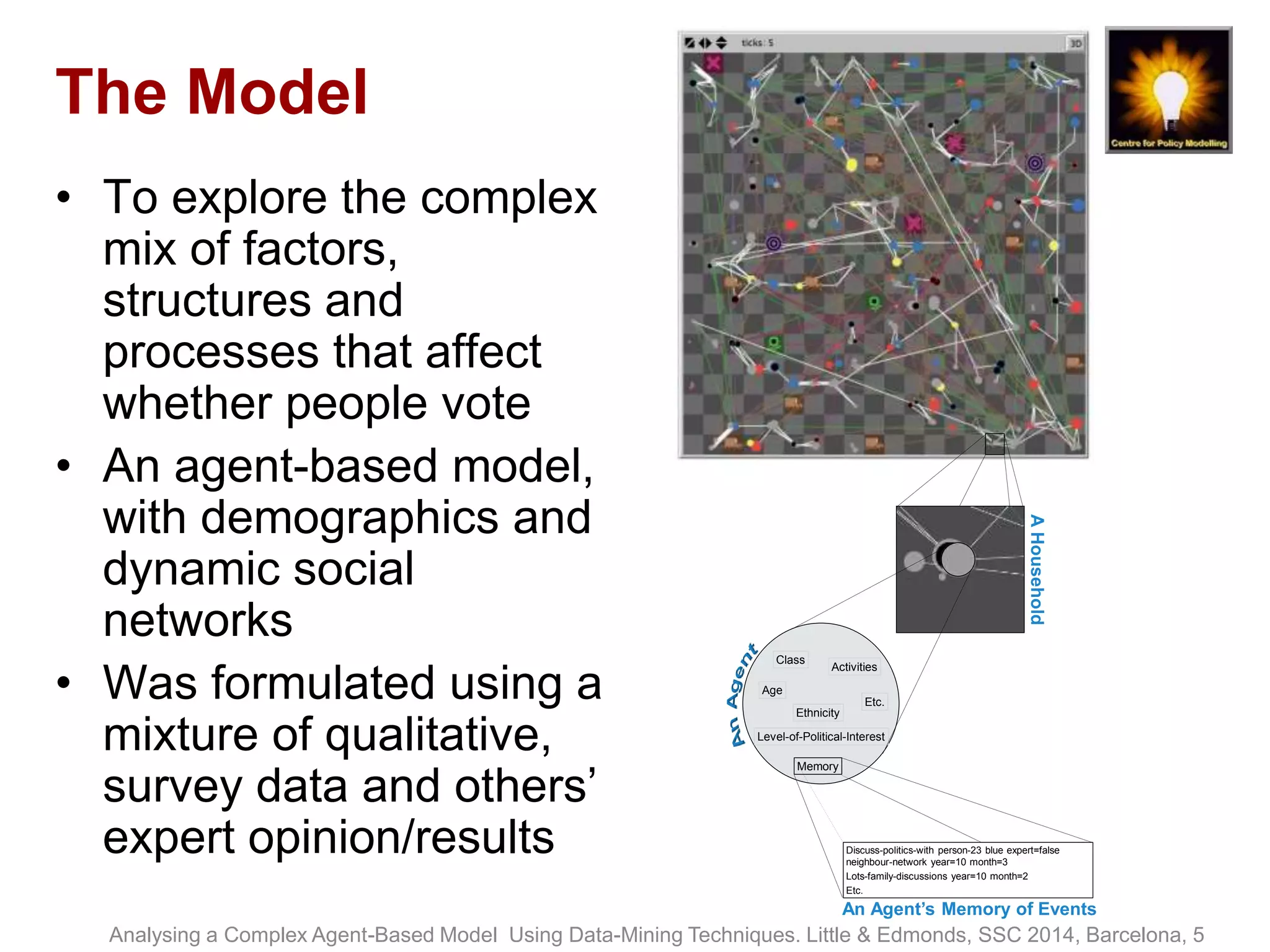

5. The Model
• To explore the complex
mix of factors,
structures and
processes that affect
whether people vote
• An agent-based model,
with demographics and
dynamic social
networks
• Was formulated using a
mixture of qualitative,
survey data and others’
expert opinion/results
Class
Age
Activities
Ethnicity
Etc.
Level-of-Political-Interest
A Household
Discuss-politics-with person-23 blue expert=false
neighbour-network year=10 month=3
Lots-family-discussions year=10 month=2
Etc.
Memory
An Agent’s Memory of Events
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 5

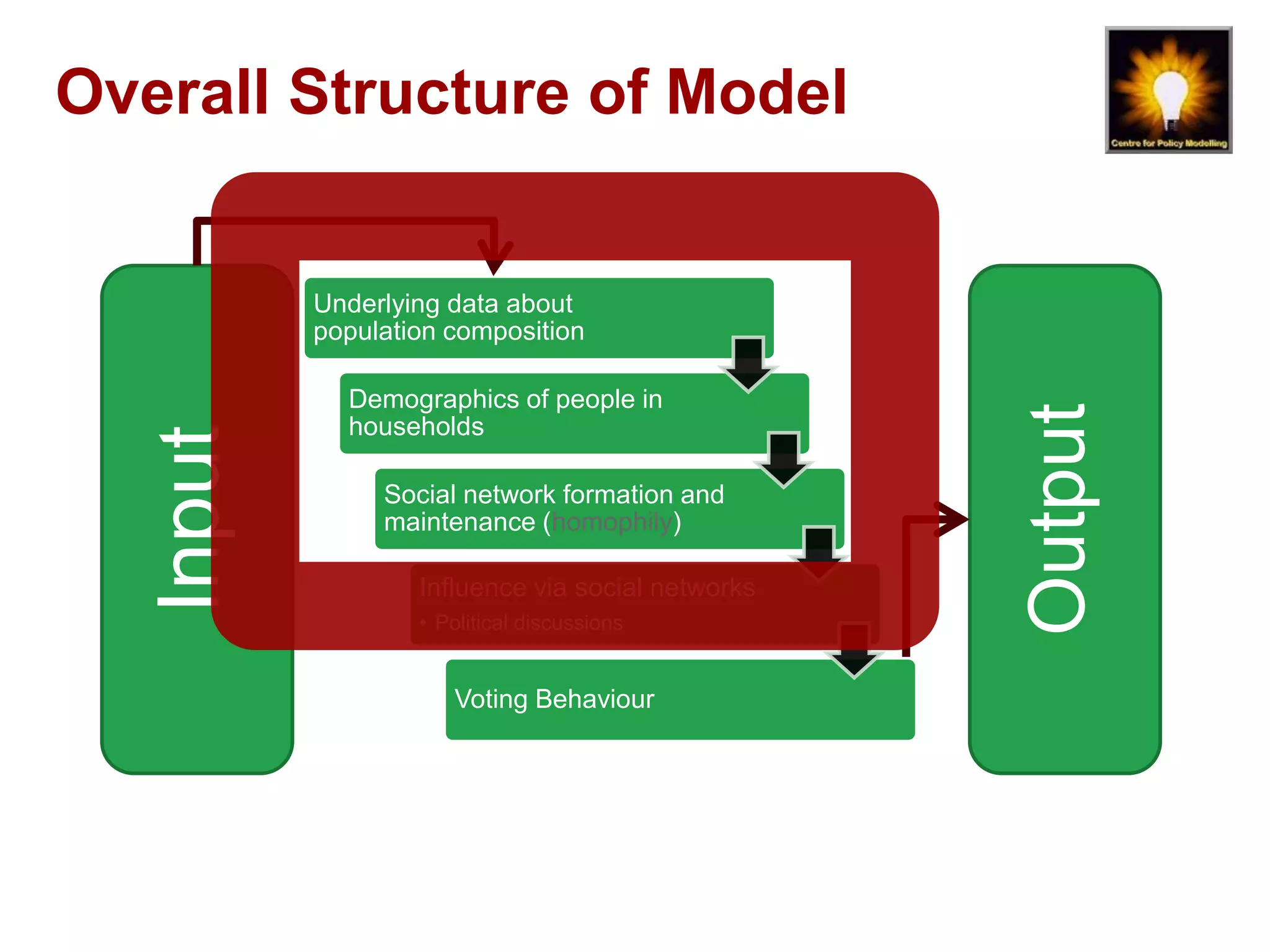

6. Overall Structure of Model
Underlying data about
population composition
Demographics of people in
households
Social network formation and
maintenance (homophily)
Influence via social networks
• Political discussions
Voting Behaviour
Input
Output

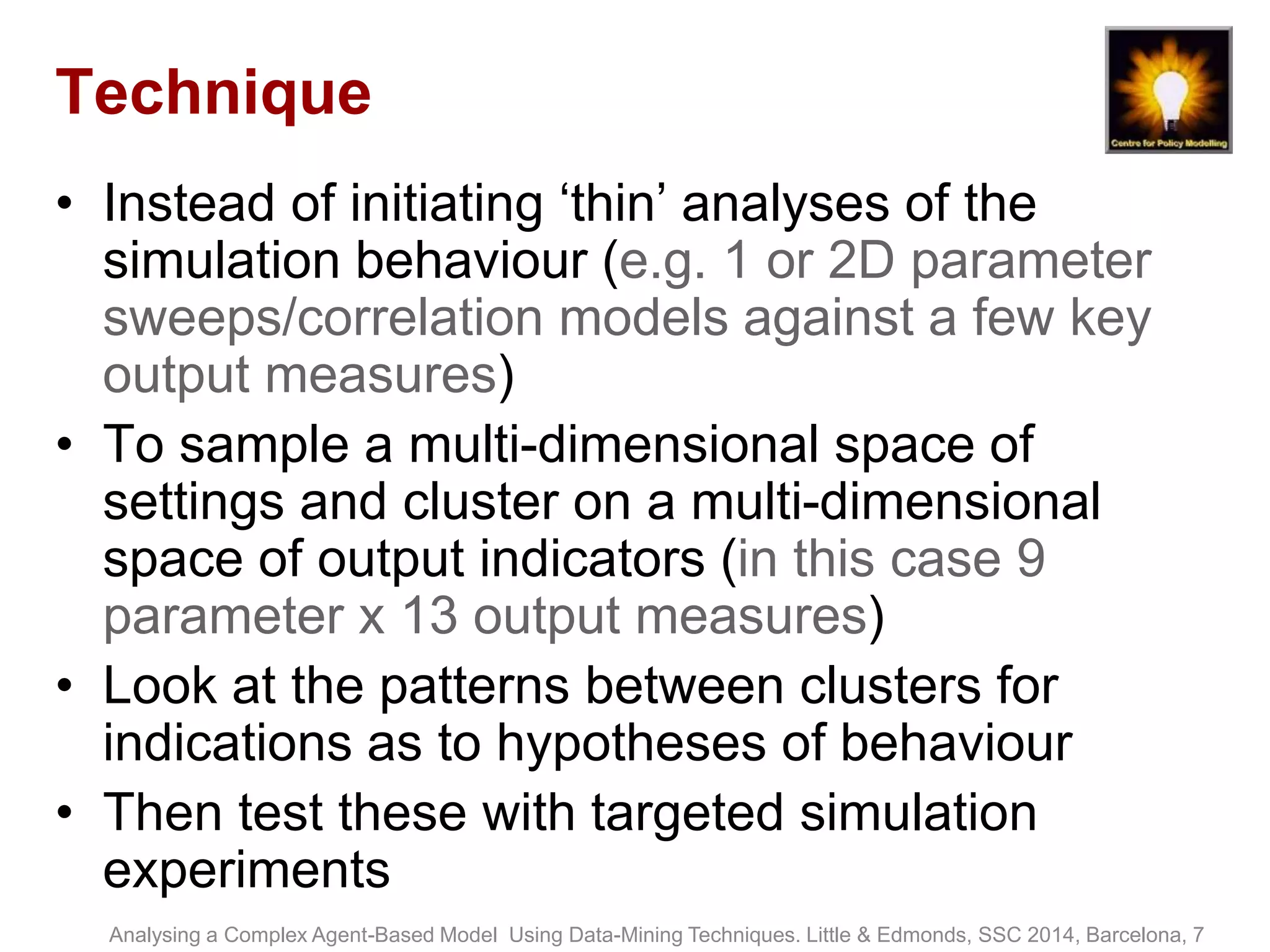

7. Technique
• Instead of initiating ‘thin’ analyses of the
simulation behaviour (e.g. 1 or 2D parameter
sweeps/correlation models against a few key
output measures)
• To sample a multi-dimensional space of
settings and cluster on a multi-dimensional
space of output indicators (in this case 9
parameter x 13 output measures)
• Look at the patterns between clusters for
indications as to hypotheses of behaviour
• Then test these with targeted simulation
experiments
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 7

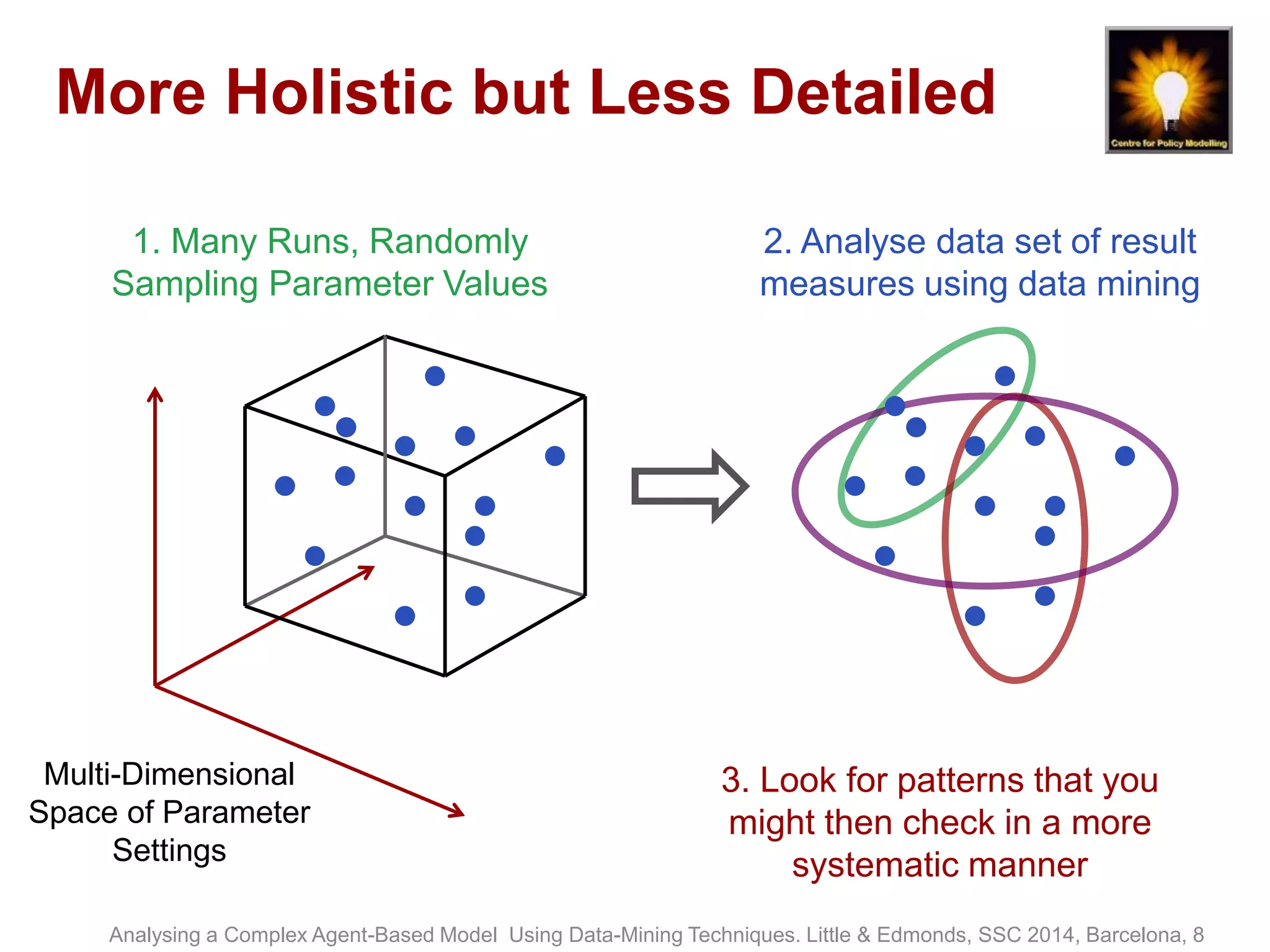

8. More Holistic but Less Detailed
1. Many Runs, Randomly
Sampling Parameter Values
Multi-Dimensional
Space of Parameter
Settings
2. Analyse data set of result
measures using data mining
3. Look for patterns that you
might then check in a more
systematic manner
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 8

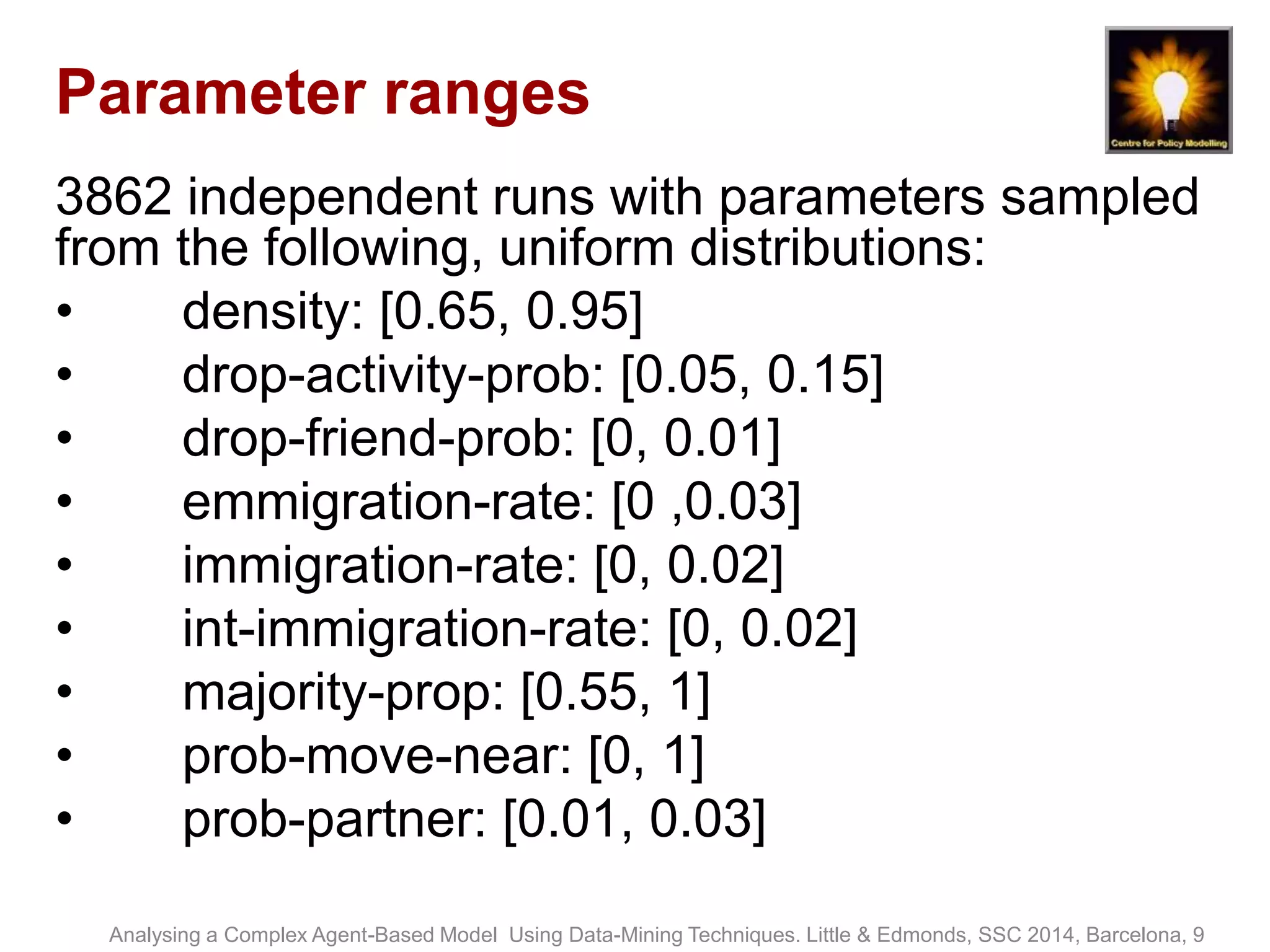

9. Parameter ranges
3862 independent runs with parameters sampled
from the following, uniform distributions:
• density: [0.65, 0.95]
• drop-activity-prob: [0.05, 0.15]
• drop-friend-prob: [0, 0.01]
• emmigration-rate: [0 ,0.03]
• immigration-rate: [0, 0.02]
• int-immigration-rate: [0, 0.02]
• majority-prop: [0.55, 1]
• prob-move-near: [0, 1]
• prob-partner: [0.01, 0.03]
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 9

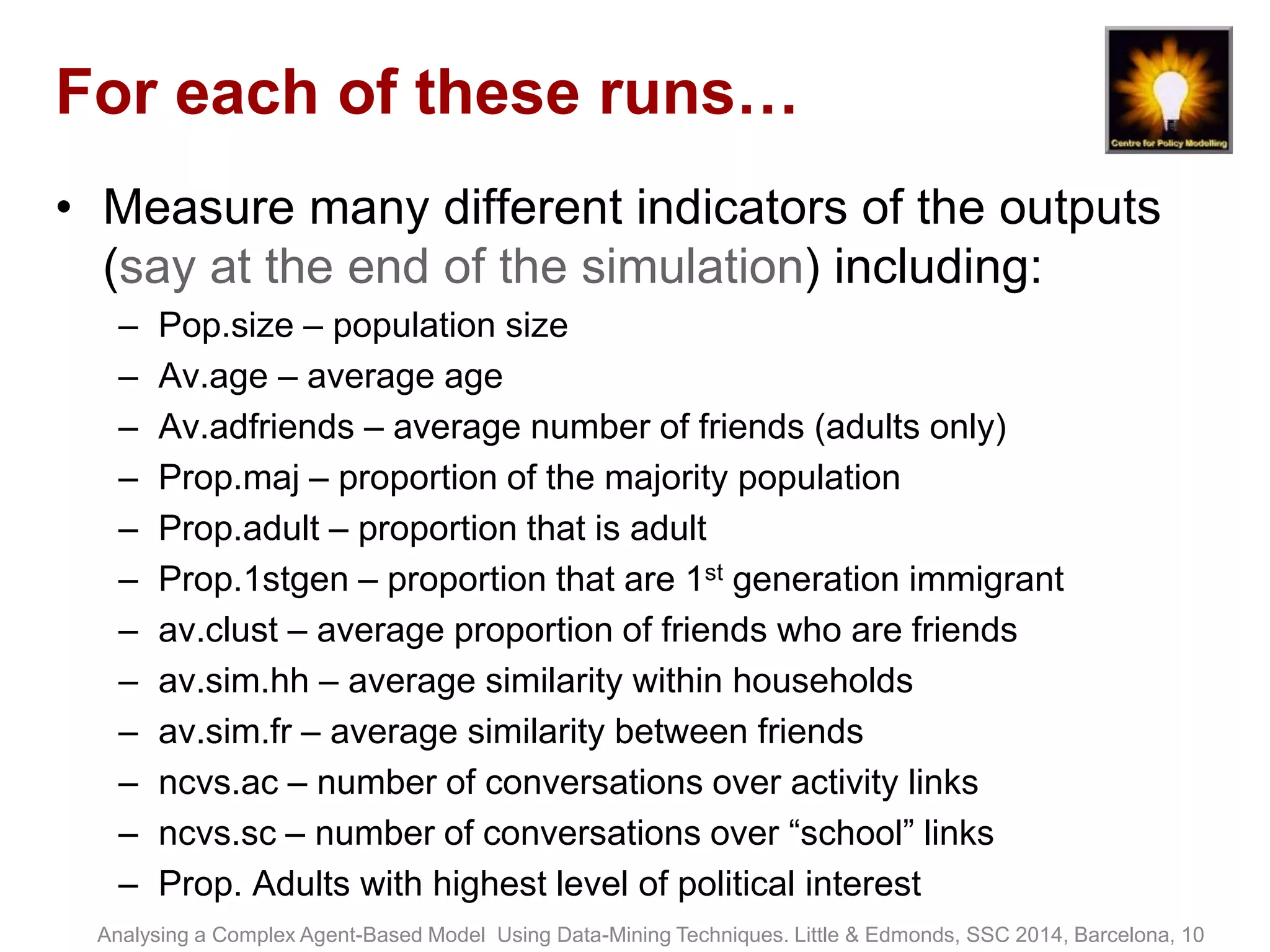

10. For each of these runs…
• Measure many different indicators of the outputs
(say at the end of the simulation) including:
– Pop.size – population size
– Av.age – average age
– Av.adfriends – average number of friends (adults only)
– Prop.maj – proportion of the majority population
– Prop.adult – proportion that is adult
– Prop.1stgen – proportion that are 1st generation immigrant
– av.clust – average proportion of friends who are friends
– av.sim.hh – average similarity within households
– av.sim.fr – average similarity between friends
– ncvs.ac – number of conversations over activity links
– ncvs.sc – number of conversations over “school” links
– Prop. Adults with highest level of political interest
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 10

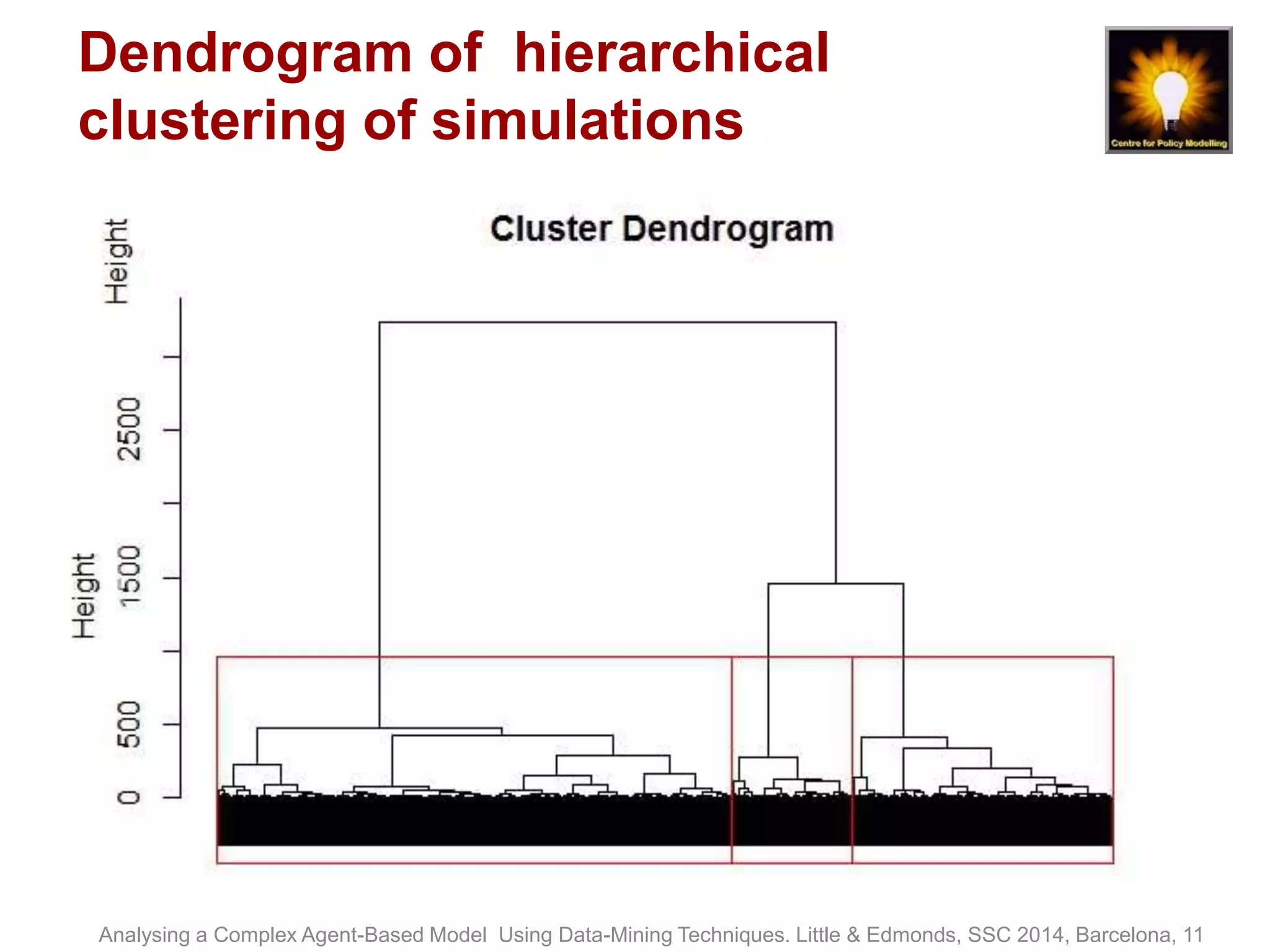

11. Dendrogram of hierarchical
clustering of simulations
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 11

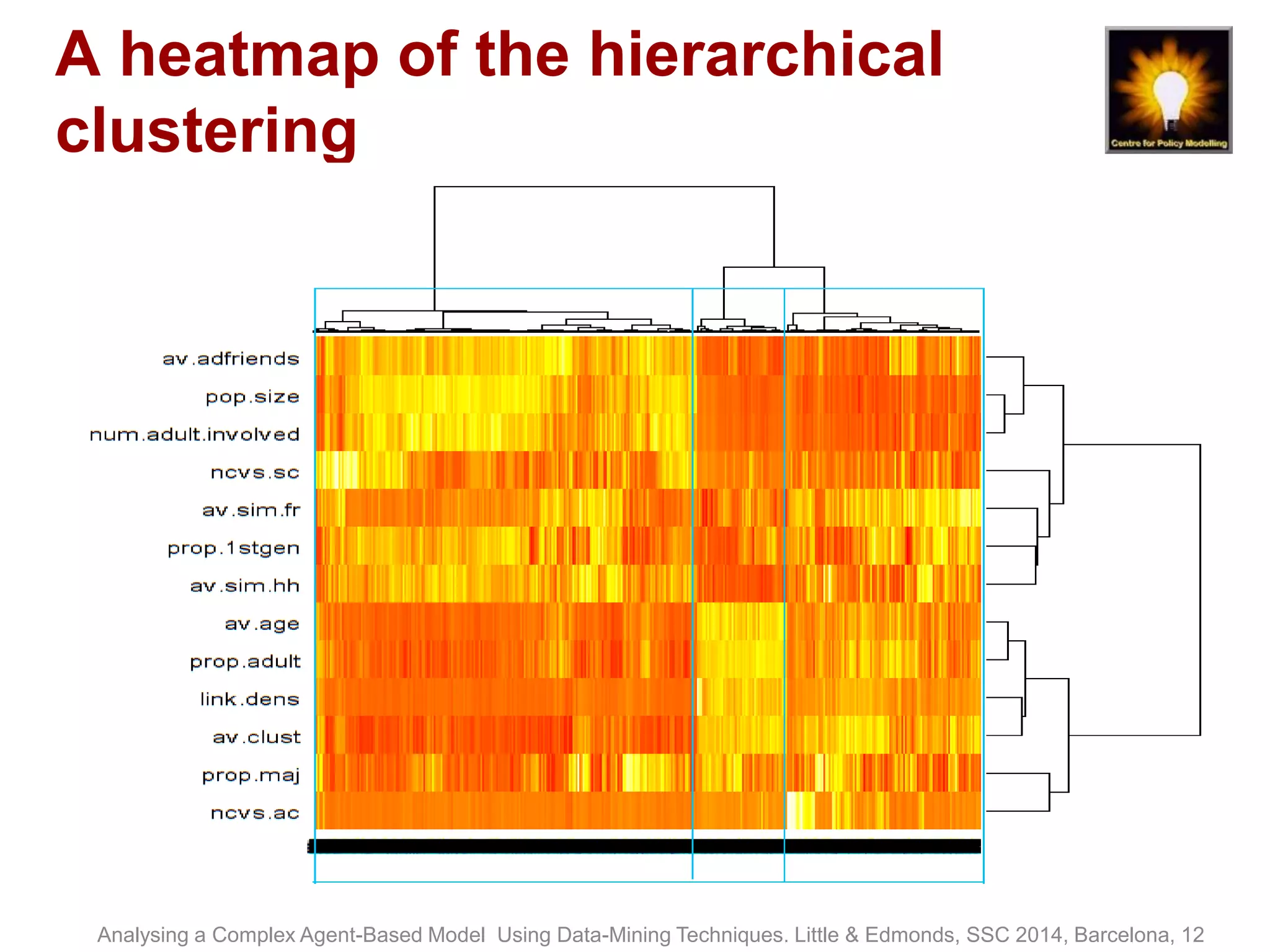

12. A heatmap of the hierarchical
clustering
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 12

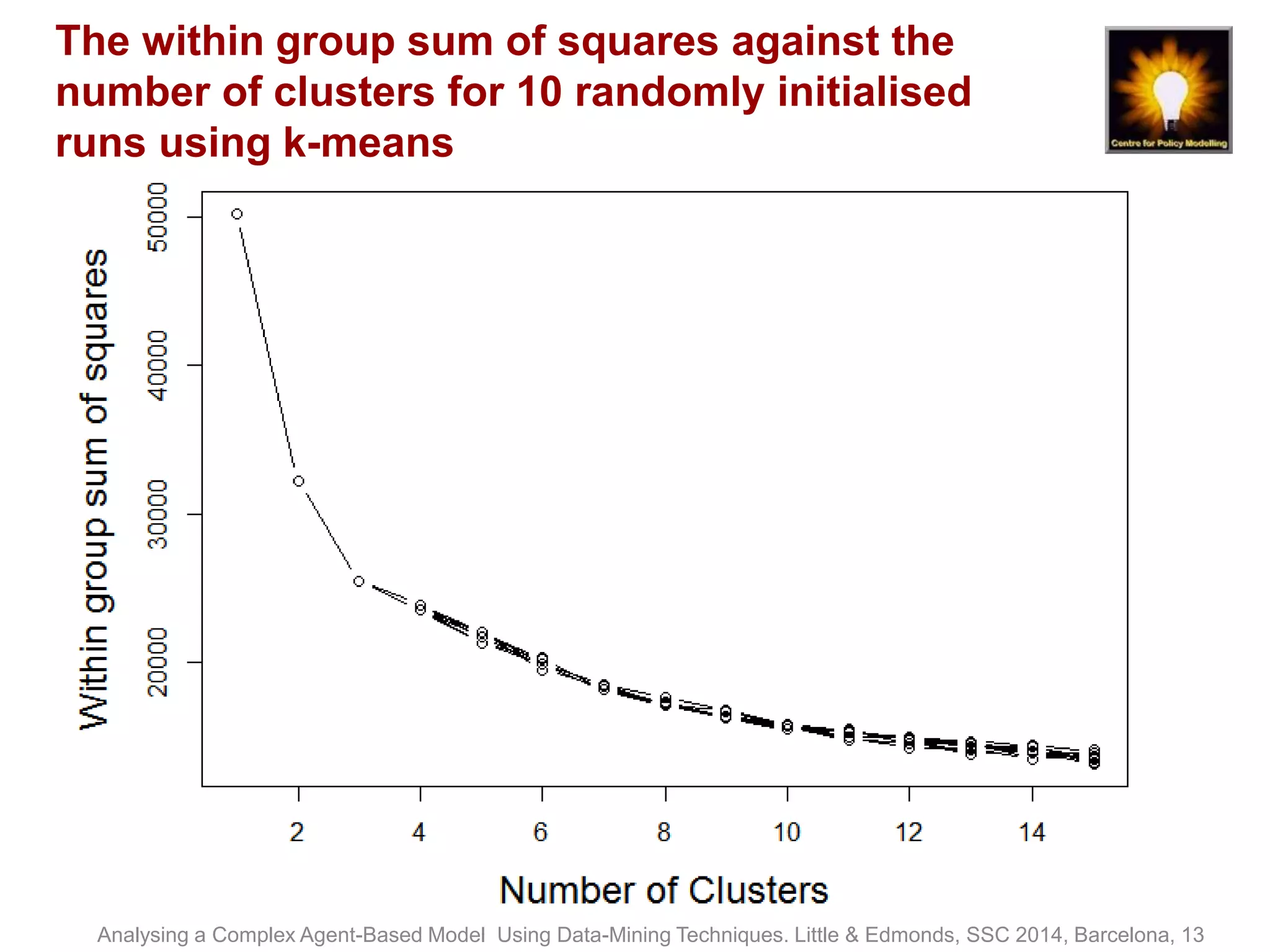

13. The within group sum of squares against the
number of clusters for 10 randomly initialised
runs using k-means
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 13

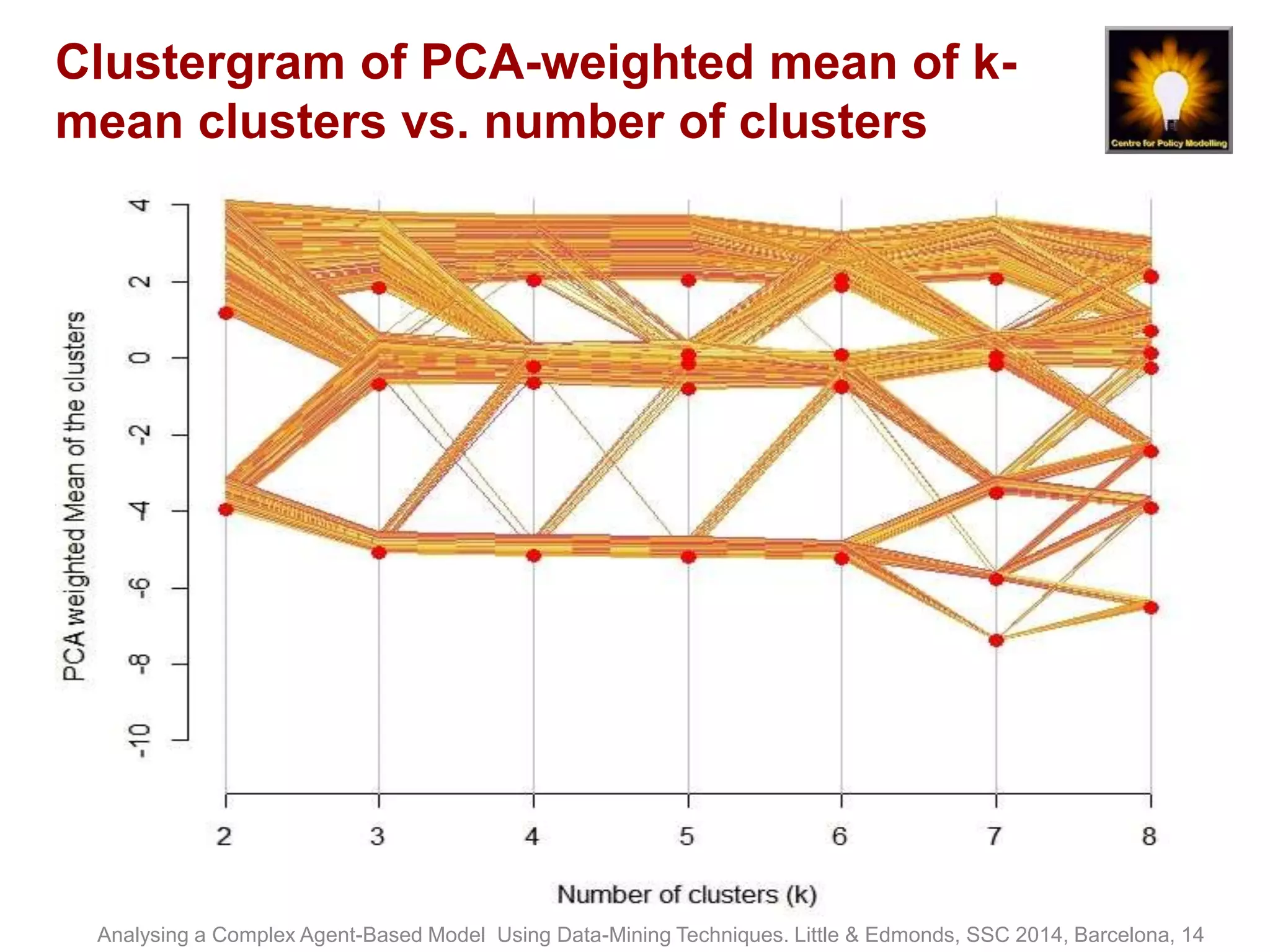

14. Clustergram of PCA-weighted mean of k-mean
clusters vs. number of clusters
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 14

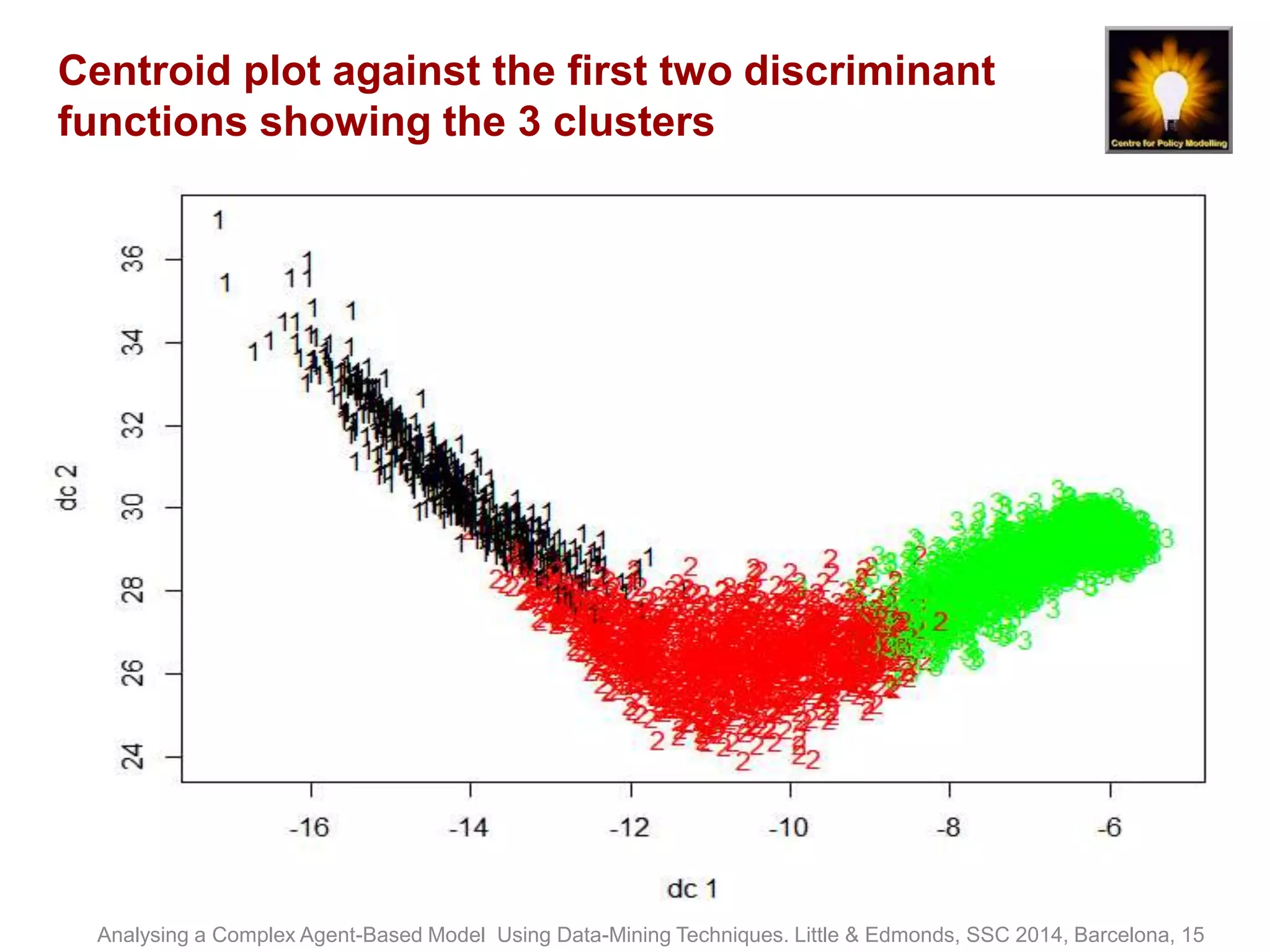

15. Centroid plot against the first two discriminant
functions showing the 3 clusters
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 15

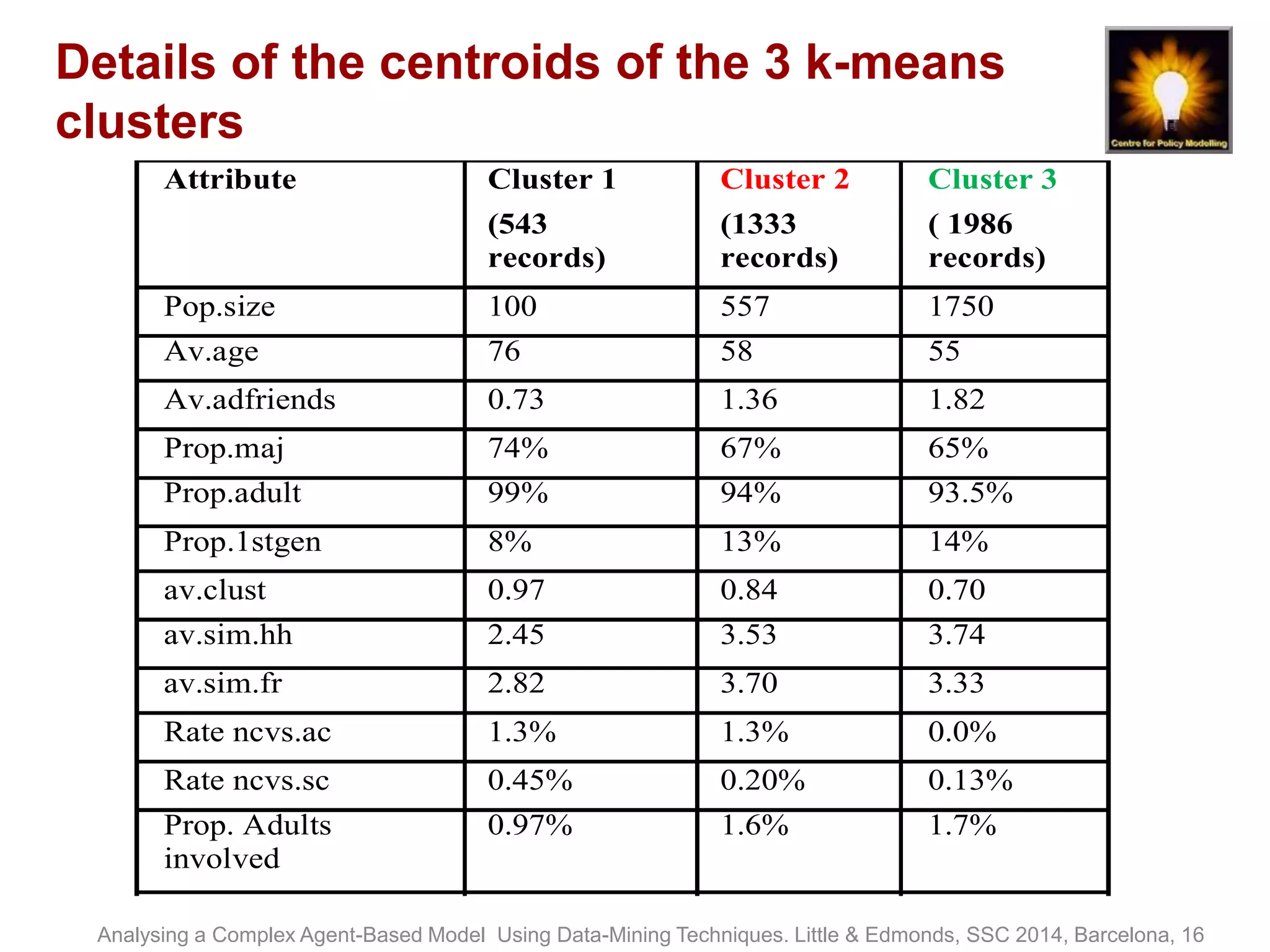

16. Details of the centroids of the 3 k-means
clusters
Attribute Cluster 1
(543
records)
Cluster 2
(1333
records)
Cluster 3
( 1986
records)
Pop.size 100 557 1750
Av.age 76 58 55
Av.adfriends 0.73 1.36 1.82
Prop.maj 74% 67% 65%
Prop.adult 99% 94% 93.5%
Prop.1stgen 8% 13% 14%
av.clust 0.97 0.84 0.70
av.sim.hh 2.45 3.53 3.74
av.sim.fr 2.82 3.70 3.33
Rate ncvs.ac 1.3% 1.3% 0.0%
Rate ncvs.sc 0.45% 0.20% 0.13%
Prop. Adults
0.97% 1.6% 1.7%
involved
Within cluster
sum of squares
6748.243 11288.460 7407.591
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 16

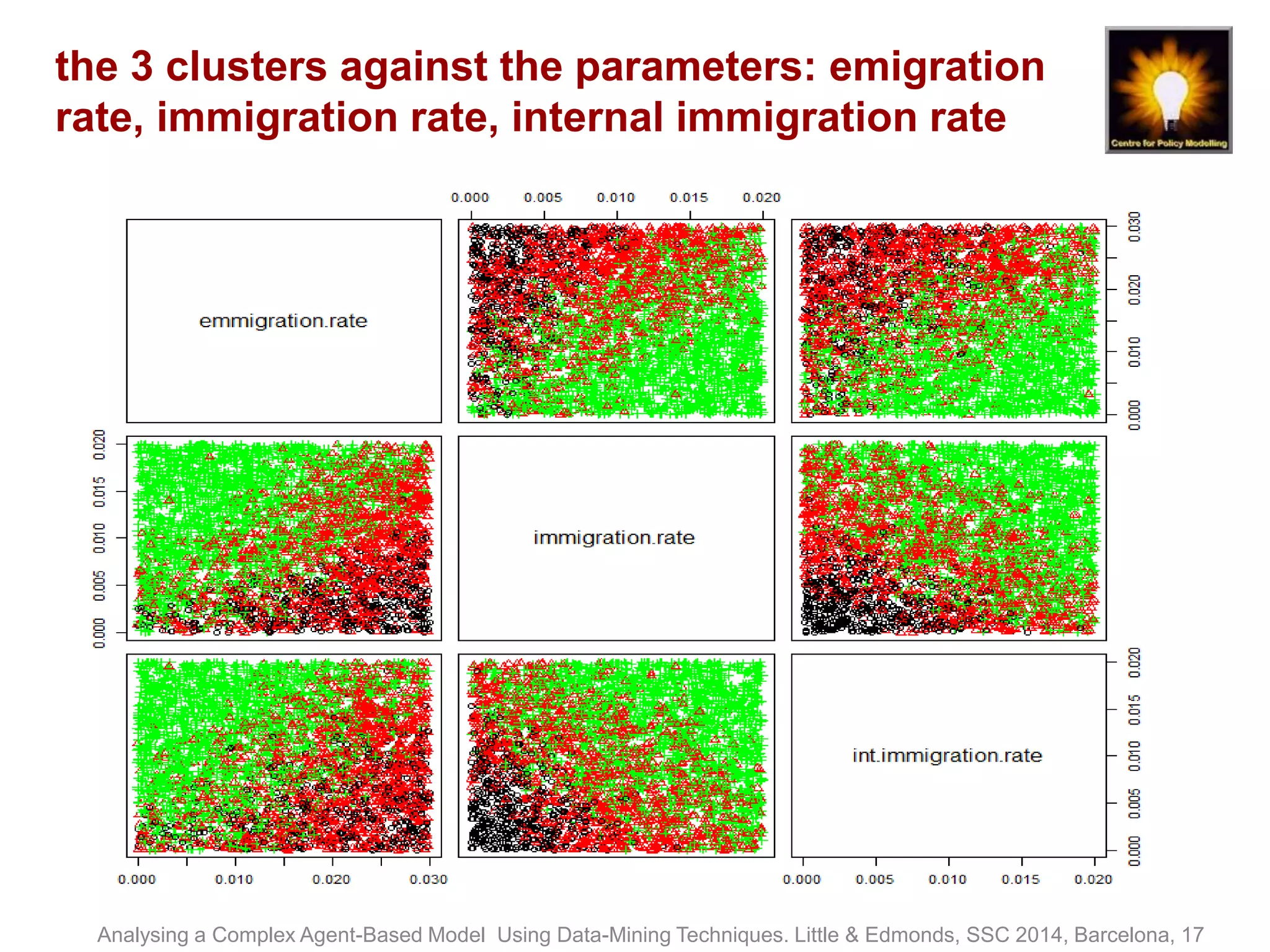

17. the 3 clusters against the parameters: emigration
rate, immigration rate, internal immigration rate
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 17

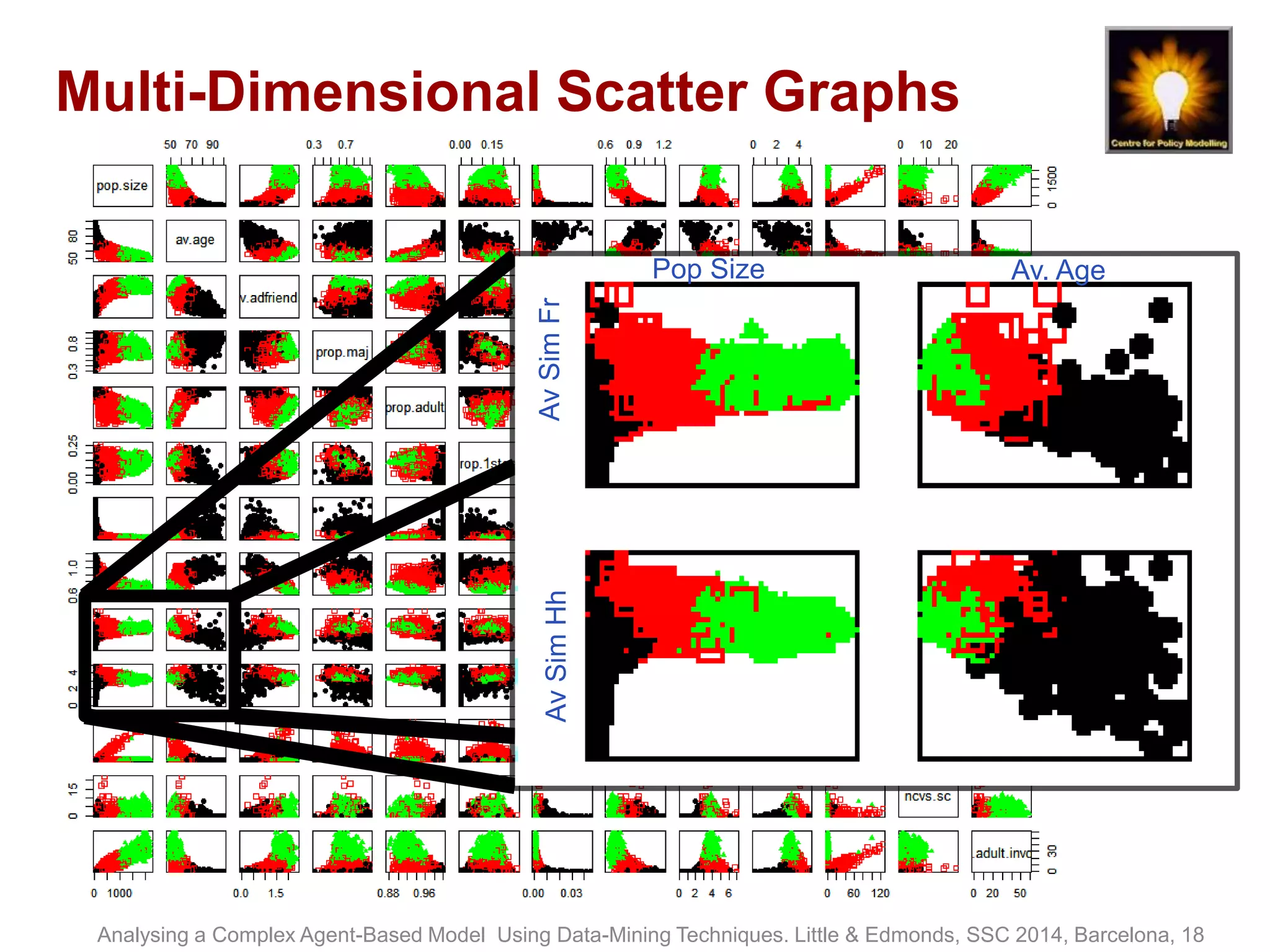

18. Pop Size Av. Age
Multi-Dimensional Scatter Graphs
Av Sim Hh Av Sim Fr
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 18
19. Average proportion of similar friends
against time for different immigration
rates
0.95
0.9
0.85
0.8
0.75
0.7
0 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
0
0.0025
0.005
0.0075
0.01
0.0125
0.015
0.0175
0.02
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 19
20. Average link density against time for
different initial majority proportions
1
0.95
0.9
0.85
0.8
0.75
0.7
0.65
0.6
0.55
0.5
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95
100
mp=0.55
mp=0.6
mp=0.65
mp=0.7
mp=0.75
mp=0.8
mp=0.85
mp=0.9
mp=0.95
mp=1
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 20

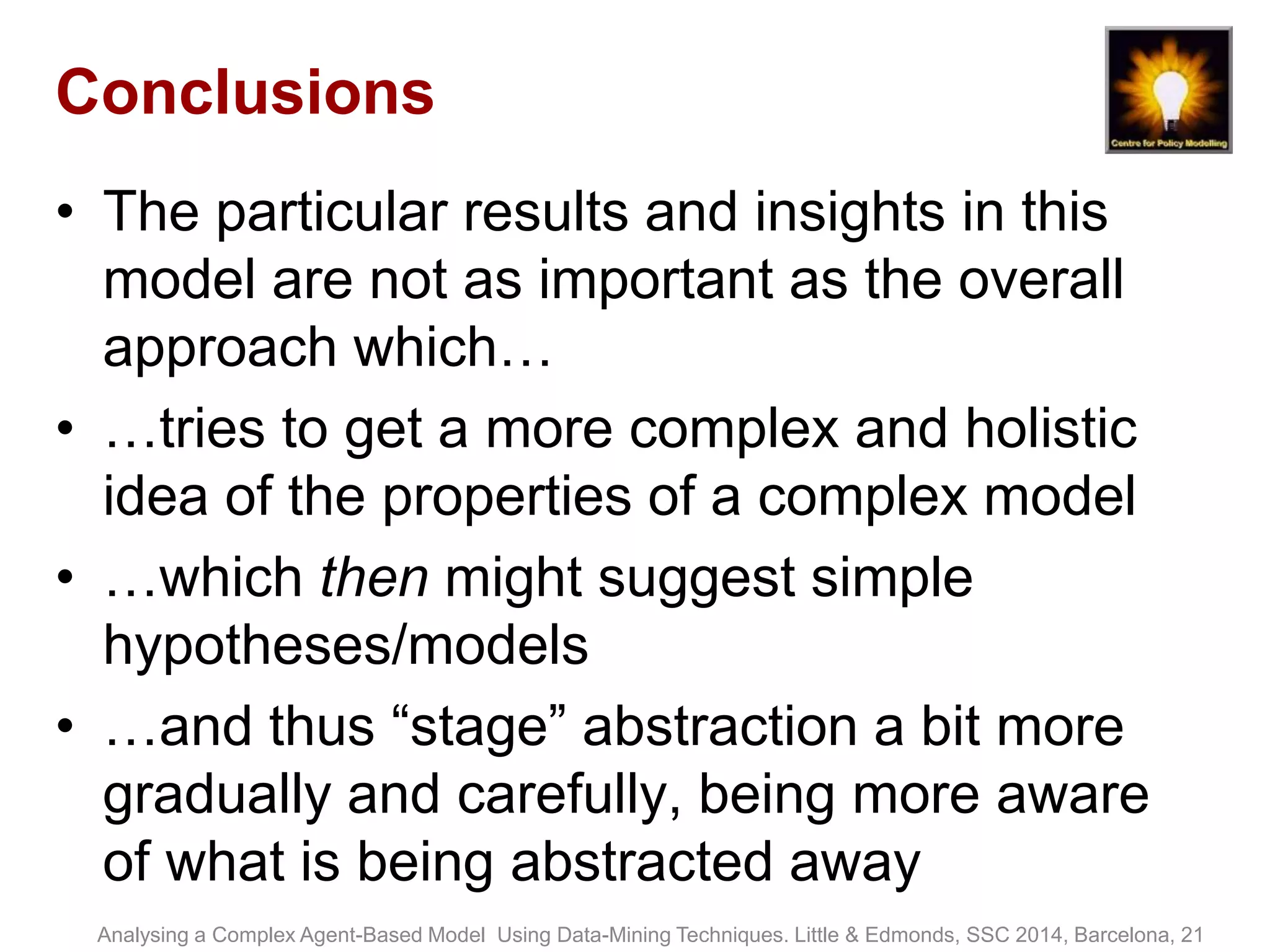

21. Conclusions
• The particular results and insights in this
model are not as important as the overall
approach which…
• …tries to get a more complex and holistic
idea of the properties of a complex model
• …which then might suggest simple
hypotheses/models
• …and thus “stage” abstraction a bit more
gradually and carefully, being more aware
of what is being abstracted away
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 21

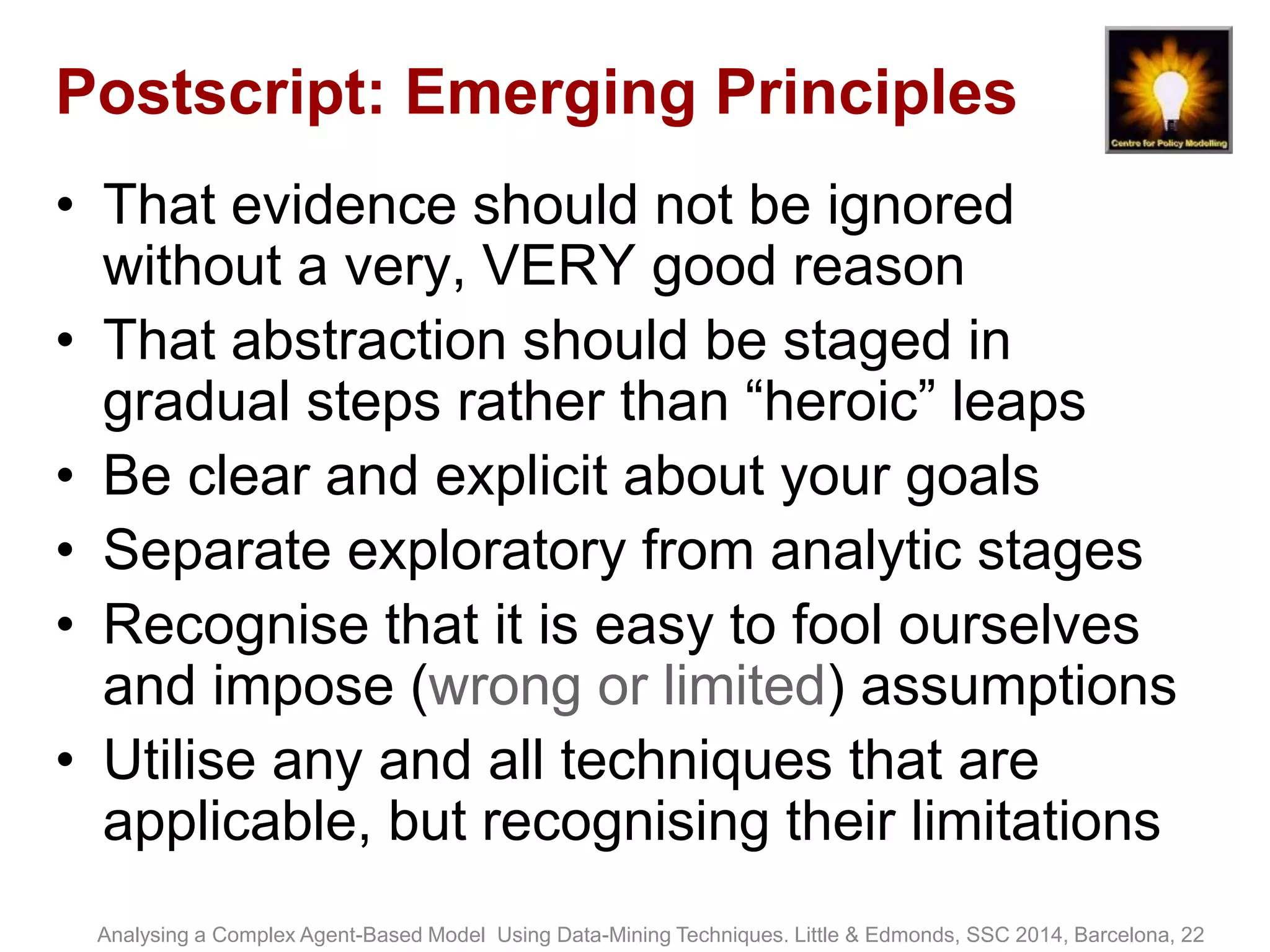

22. Postscript: Emerging Principles
• That evidence should not be ignored
without a very, VERY good reason
• That abstraction should be staged in
gradual steps rather than “heroic” leaps
• Be clear and explicit about your goals
• Separate exploratory from analytic stages
• Recognise that it is easy to fool ourselves
and impose (wrong or limited) assumptions
• Utilise any and all techniques that are
applicable, but recognising their limitations
Analysing a Complex Agent-Based Model Using Data-Mining Techniques. Little & Edmonds, SSC 2014, Barcelona, 22
23. The End
Claire Little: http://
Bruce Edmonds: http://bruce.edmonds.name
Centre for Policy Modelling: http://cfpm.org
Ed Fieldhouse: http://
Laurence Lessard-Phillips: http://
Institute for Social Change: http://
The SCID Project: http://www.scid-project.org
These slides will be at: http://slideshare.com/BruceEdmonds
The simulation will ‘soon’ be at: http://openabm.org as “The Voter Model”
