This document discusses Infor's migration of its software development environment to AWS. It describes Infor's feature-driven development process and branching strategy. It then discusses how AWS was used to create elastic, on-demand feature test environments for parallel development. Migrating to AWS provided benefits like increased reliability, elasticity, cost optimization, and security compared to maintaining environments on-premises. Hundreds of environments could be created and destroyed as needed for features, reducing development timelines.

1. An Insight into Cloud Migration Story
Bhuvaneswari Subramani
• D i r e c t o r , S o f t w a r e D e v e l o p m e n t
• I n f o r

2. Quick Intro
• Bhuvaneswari Subramani (Bhuvana)
• Director, Software Development, Infor
• AWS Hero since 2019
• Organizer, AWS User Group Bengaluru
https://bhuvana.pro
/bhuvanas
@installjournal

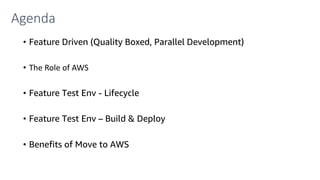

3. Agenda
• Feature Driven (Quality Boxed, Parallel Development)
• The Role of AWS
• Feature Test Env - Lifecycle
• Feature Test Env – Build & Deploy
• Benefits of Move to AWS

4. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Feature Driven Development
(Quality Based, Parallel
Development)

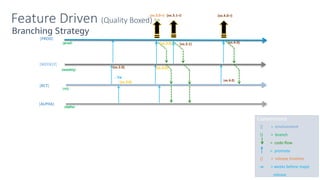

5. Feature Driven (Quality Boxed)
[ALPHA]
(xx.3.0)
(xx.3.1-r) (xx.4.0-r)
(xx.4.0)
[RCT]
[PROD]
(alpha)
(prod)
(rct)
(weekly)
[WEEKLY]
(xx.3.0-r)
(xx.3.1) (xx.4.0)
(xx.3.0)
Conventions
[] = environment
() = branch
= code-flow
= promote
() = release timeline
-w = weeks before major
release
- 7w
Branching Strategy
0 w
(xx.3.0)
(xx.2.0)

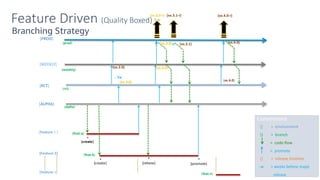

6. Feature Driven (Quality Boxed)
[ALPHA]
[Feature 2]
[Feature 1 ]
(feat-n)
(xx.3.0)
(xx.3.1-r) (xx.4.0-r)
(xx.4.0)
[RCT]
[PROD]
(feat-a)
(feat-b)
[Feature n]
(alpha)
(prod)
(rct)
(weekly)
[WEEKLY]
(xx.3.0-r)
(xx.3.1) (xx.4.0)
(xx.3.0)
Conventions
[] = environment
() = branch
= code-flow
= promote
() = release timeline
-w = weeks before major
release
- 7w
Branching Strategy
0 w
{create}
+
{rebase}
*
{promote}
*
{create}
+
(xx.3.0)
(xx.2.0)

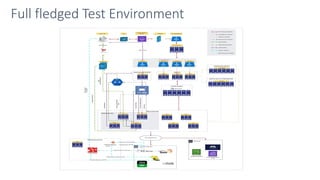

7. Full fledged Test Environment

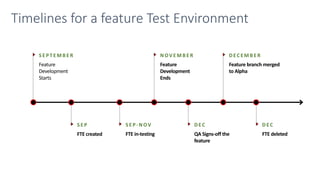

8. Timelines for a feature Test Environment
S EPTEM B ER
Feature
Development
Starts
NOV EM B ER
Feature
Development
Ends
D EC EM B ER
Feature branch merged
to Alpha
S EP- NOV
FTE in-testing
D EC
QA Signs-off the
feature
D EC
FTE deleted
S EP
FTE created

9. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
The Role of AWS

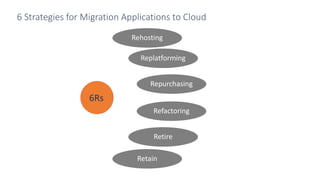

10. 6 Strategies for Migration Applications to Cloud
Rehosting
Replatforming
Repurchasing
Refactoring
Retire
Retain
6Rs

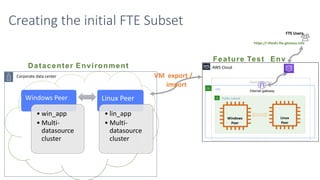

11. Creating the initial FTE Subset
VM export /
import
Datacenter Environment
Windows Peer
• win_app
• Multi-
datasource
cluster
Linux Peer
• lin_app
• Multi-
datasource
cluster
Corporate data center
https://<fteid>.fte.gtnexus.info
AWS Cloud
Availability Zone
VPC
Public subnet
Internet gateway
Windows
Peer
Linux
Peer
Feature Test Env
FTE Users

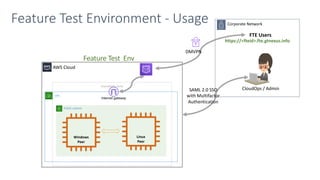

12. Feature Test Environment - Usage
https://<fteid>.fte.gtnexus.info
AWS Cloud
Availability Zone
VPC
Public subnet
Internet gateway
Windows
Peer
Linux
Peer
Feature Test Env
FTE Users
DMVPN
Corporate Network
SAML 2.0 SSO
with Multifactor
Authentication
CloudOps / Admin

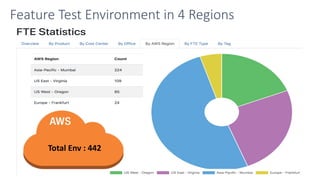

13. Feature Test Environment in 4 Regions
Total Env : 442

14. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Feature Test Env –
Lifecycle

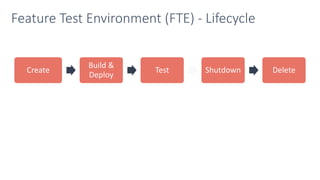

15. Feature Test Environment (FTE) - Lifecycle
Create
Build &
Deploy
Test Shutdown Delete

16. FTE – Create new Environment
Create
Build &
Deploy
Test Shutdown Delete
Power
Down
Launch

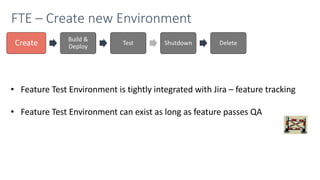

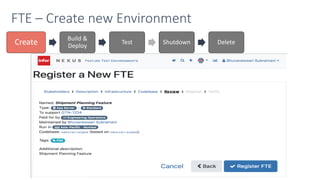

17. FTE – Create new Environment
• Feature Test Environment is tightly integrated with Jira – feature tracking
• Feature Test Environment can exist as long as feature passes QA
Create
Build &
Deploy
Test Shutdown Delete

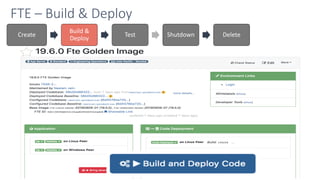

18. FTE – Build & Deploy
Create
Build &
Deploy
Test Shutdown Delete

19. Create
Build &
Deploy
Test Shutdown Delete

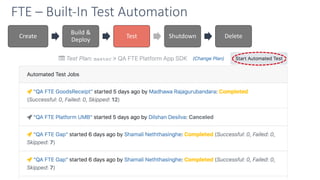

FTE – Built-In Test Automation

20. Create
Build &
Deploy
Test Shutdown Delete
FTE – Built-In Test Automation

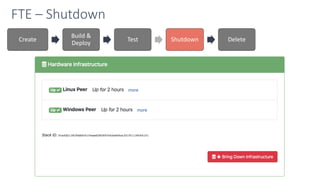

21. FTE – Shutdown
Create
Build &
Deploy
Test Shutdown Delete

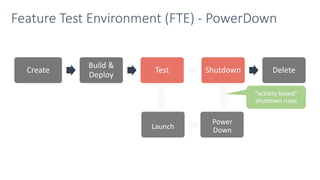

22. Feature Test Environment (FTE) - PowerDown
Create
Build &
Deploy
Test Shutdown Delete
Power
Down
Launch
“activity based”
shutdown rules

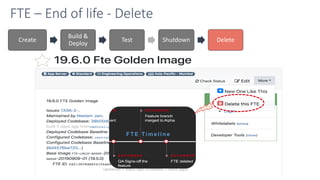

23. FTE – End of life - Delete
Create
Build &
Deploy
Test Shutdown Delete
F T E Time lin e

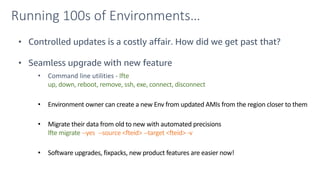

24. Running 100s of Environments…
• Controlled updates is a costly affair. How did we get past that?
• Seamless upgrade with new feature
• Command line utilities - lfte
up, down, reboot, remove, ssh, exe, connect, disconnect
• Environment owner can create a new Env from updated AMIs from the region closer to them
• Migrate their data from old to new with automated precisions
lfte migrate --yes --source <fteid> --target <fteid> -v
• Software upgrades, fixpacks, new product features are easier now!

25. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Feature Test Env –
Build & Deploy

26. FTE Build

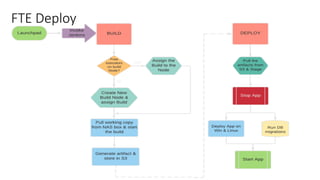

27. FTE Deploy

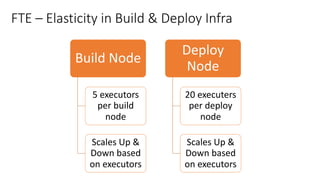

28. FTE – Elasticity in Build & Deploy Infra
Build Node
5 executors
per build
node
Scales Up &
Down based
on executors
Deploy
Node
20 executers
per deploy
node
Scales Up &
Down based
on executors

29. © 2019, Amazon Web Services, Inc. or its affiliates. All rights reserved.
Benefits of Move to AWS

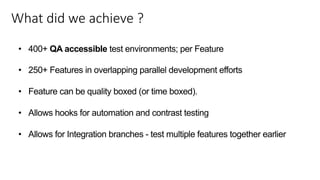

30. What did we achieve ?
• 400+ QA accessible test environments; per Feature
• 250+ Features in overlapping parallel development efforts
• Feature can be quality boxed (or time boxed).
• Allows hooks for automation and contrast testing
• Allows for Integration branches - test multiple features together earlier

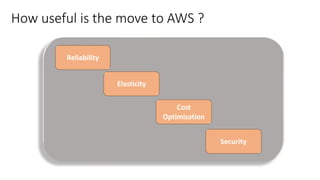

31. How useful is the move to AWS ?
Reliability
Elasticity
Cost
Optimization
Security

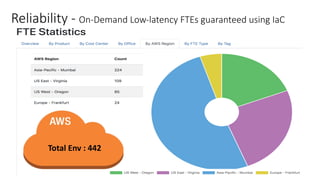

32. Reliability - On-Demand Low-latency FTEs guaranteed using IaC
Total Env : 442

33. Great Elasticity in FTEs using AWS
Create Environments On-Demand
Tear down at End of Feature Development

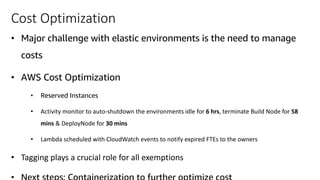

34. Cost Optimization
• Major challenge with elastic environments is the need to manage
costs
• AWS Cost Optimization
• Reserved Instances
• Activity monitor to auto-shutdown the environments idle for 6 hrs, terminate Build Node for 58
mins & DeployNode for 30 mins
• Lambda scheduled with CloudWatch events to notify expired FTEs to the owners
• Tagging plays a crucial role for all exemptions

35. Security
• Federated services to perform single sign-on across the organization
• Restricted access to Dev, QA & Admins based on IAM Groups integrated
with Corporate login credentials
