More Containers Less Operations
The document discusses the advantages of using containers and microservices in modern application development, emphasizing portability, resource efficiency, and flexibility. It outlines key concepts such as the twelve-factor app methodology and AWS services like ECS and Fargate that facilitate container management and orchestration. Additionally, it highlights the benefits of service discovery in automating service registration and communication in distributed applications.
![[CPT DevOps Meetup] Developing Modern Applications in the Cloud](https://cdn.slidesharecdn.com/ss_thumbnails/devopsdeveloping-modern-applications-in-the-cloud-no-notes-190718062311-thumbnail.jpg?width=640&height=640&fit=bounds)
More Containers Less Operations
- 1. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Donnie Prakoso, MSc AWS Technology Evangelist, ASEAN More Containers, Less Operations CTO Day - HCMC @donnieprakoso
- 2. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. >hello world_ Donnie Prakoso, MSc AWS Technology Evangelist, ASEAN @donnieprakoso donnieprakoso • Speak in Go and Python • Machine Learning and Serverless • I AWS User Groups
- 3. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. Let’s Discuss Something • A retrospective look on why containers for our development • What is microservices and why we should consider to adopt it? • Introduction to Twelve-Factor app • Patterns in microservices http://bit.ly/outline-containers

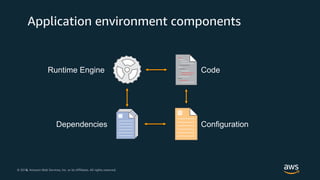

- 4. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Application environment components Runtime Engine Code Dependencies Configuration
- 5. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Local Laptop Staging / QA UAT Production Different environments

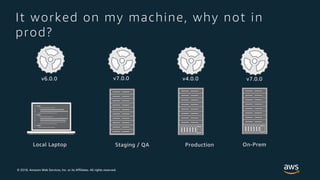

- 6. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Local Laptop Staging / QA Production On-Prem It worked on my machine, why not in prod? v6.0.0 v7.0.0 v4.0.0 v7.0.0
- 7. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Docker to the rescue Runtime Engine Code Dependencies

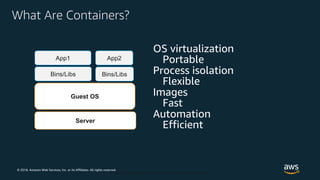

- 8. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. What Are Containers? OS virtualization Process isolation Images Automation Server Guest OS Bins/Libs Bins/Libs App2App1 Portable Flexible Fast Efficient
- 9. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Docker container image bootfs kernel Base image Image Image W ritable Container add ngix add nodejs U buntu References parent image Read only image that is used as a template to launch a container. Start from base images that have your dependencies, add your custom code. Docker file for easy, reproducable builds.

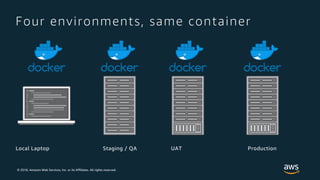

- 10. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Local Laptop Staging / QA UAT Production Four environments, same container

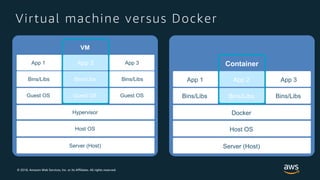

- 11. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Virtual machine versus Docker Server (Host) Host OS Hypervisor App 2 Guest OS Guest OS Guest OS Bins/Libs Bins/Libs Bins/Libs App 1 App 2 App 3 VM Server (Host) Host OS Docker Bins/Libs Bins/Libs Bins/Libs App 1 App 2 App 3 Container

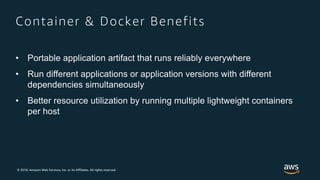

- 12. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Container & Docker Benefits • Portable application artifact that runs reliably everywhere • Run different applications or application versions with different dependencies simultaneously • Better resource utilization by running multiple lightweight containers per host
- 13. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. WHY DO WE LOVE CONTAINERS? Packaging Distribution Immutable infrastructure
- 14. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. BUILDING AN ECOSYSTEM

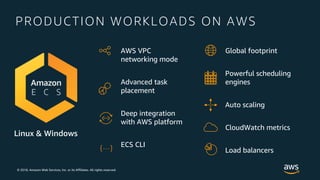

- 15. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. PRODUCTION WORKLOADS ON AWS AWS VPC networking mode Advanced task placement Deep integration with AWS platform ECS CLI…{ } Global footprint Powerful scheduling engines Auto scaling CloudWatch metrics Load balancers Linux & Windows
- 16. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. HELPING CUSTOMERS SCALE CONTAINERS 450+% growth Hundreds of millions of containers started each week millions of container instances
- 17. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.

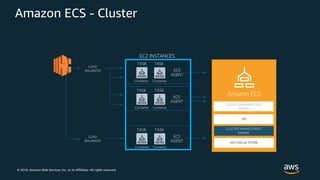

- 18. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon ECS - Cluster EC2 INSTANCES LOAD BALANCER ECS AGENT TASK Container TASK Container ECS AGENT TASK Container TASK Container AGENT COMMUNICATION SERVICE Amazon ECS API CLUSTER MANAGEMENT ENGINE KEY/VALUE STORE ECS AGENT TASK Container TASK Container LOAD BALANCER

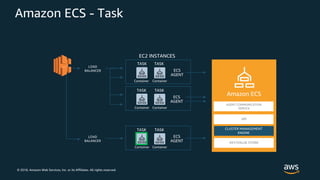

- 19. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon ECS - Task EC2 INSTANCES LOAD BALANCER ECS AGENT TASK Container TASK Container ECS AGENT TASK Container TASK Container AGENT COMMUNICATION SERVICE Amazon ECS API CLUSTER MANAGEMENT ENGINE KEY/VALUE STORE ECS AGENT TASK Container TASK Container LOAD BALANCER
- 20. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Amazon ECS - Service EC2 INSTANCES LOAD BALANCER ECS AGENT TASK Container TASK Container ECS AGENT TASK Container TASK Container AGENT COMMUNICATION SERVICE API CLUSTER MANAGEMENT ENGINE KEY/VALUE STORE ECS AGENT TASK Container TASK Container LOAD BALANCER Amazon ECS
- 21. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Make containers tasks a fundamental compute primitive
- 22. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ENABLE FOCUS ON APPLICATIONS
- 23. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. INTRODUCING AWS FARGATE!

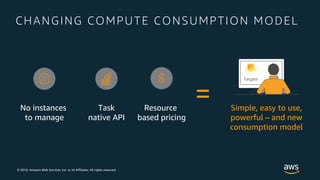

- 24. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. No instances to manage Task native API Resource based pricing Simple, easy to use, powerful – and new consumption model = CHANGING COMPUTE CONSUMPTION MODEL

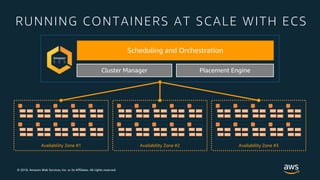

- 25. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Scheduling and Orchestration Cluster Manager Placement Engine RUNNING CONTAINERS AT SCALE WITH ECS Availability Zone #1 Availability Zone #2 Availability Zone #3

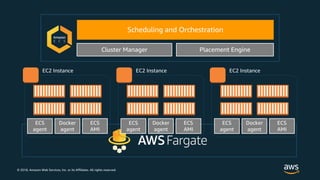

- 26. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Scheduling and Orchestration Cluster Manager Placement Engine ECS AMI Docker agent ECS agent EC2 Instance ECS AMI Docker agent ECS agent EC2 Instance ECS AMI Docker agent ECS agent EC2 Instance
- 27. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. What Is Microservices?

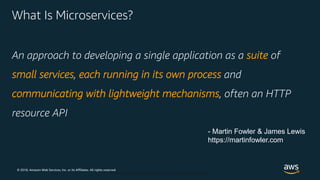

- 28. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. What Is Microservices? An approach to developing a single application as a suite of small services, each running in its own process and communicating with lightweight mechanisms, often an HTTP resource API - Martin Fowler & James Lewis https://martinfowler.com
- 29. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. Monolithic vs. Microservices webserver .package Order UI Order service Inventory service Shipping service Order UI Inventory service Order service Shipping service

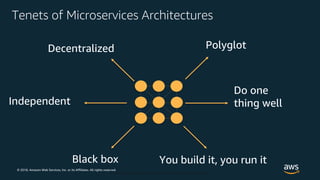

- 30. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. Tenets of Microservices Architectures Do one thing wellIndependent Decentralized Black box Polyglot You build it, you run it

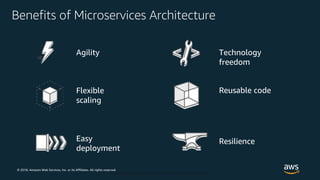

- 31. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. Benefits of Microservices Architecture Agility Flexible scaling Easy deployment Technology freedom Reusable code Resilience

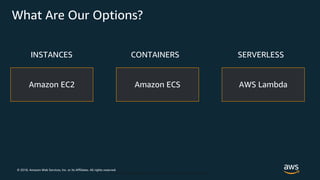

- 32. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. © 2018, Amazon Web Services, Inc. or Its Affiliates. All rights reserved. What Are Our Options? Amazon EC2 Amazon ECS AWS Lambda INSTANCES CONTAINERS SERVERLESS
- 33. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Advanced Patterns in Microservices

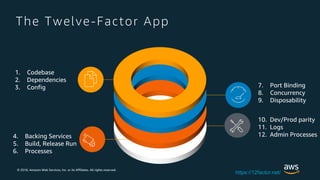

- 34. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. The Twelve-Factor App 1. Codebase 2. Dependencies 3. Config 4. Backing Services 5. Build, Release Run 6. Processes 7. Port Binding 8. Concurrency 9. Disposability 10. Dev/Prod parity 11. Logs 12. Admin Processes https://12factor.net/

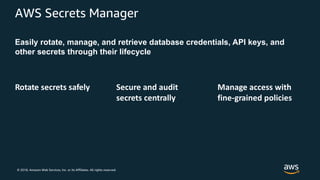

- 35. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Secrets Manager Rotate secrets safely Secure and audit secrets centrally Manage access with fine-grained policies Easily rotate, manage, and retrieve database credentials, API keys, and other secrets through their lifecycle
- 36. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Continuous Deployment

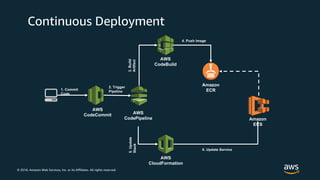

- 37. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Continuous Deployment AWS CodeCommit AWS CodePipeline AWS CodeBuild Amazon ECR Amazon ECS AWS CloudFormation 1. Commit Code 2. Trigger Pipeline 5.Update Stack 6. Update Service 4. Push Image 3.Build Artifact
- 38. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Managed Service Discovery

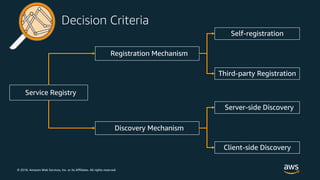

- 39. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Decision Criteria Service Registry Discovery Mechanism Registration Mechanism Self-registration Server-side Discovery Third-party Registration Client-side Discovery

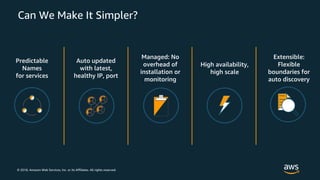

- 40. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Can We Make It Simpler? Predictable Names for services Auto updated with latest, healthy IP, port Managed: No overhead of installation or monitoring High availability, high scale Extensible: Flexible boundaries for auto discovery
- 41. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Introducing Service Discovery for Amazon ECS

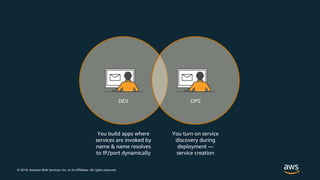

- 42. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. You build apps where services are invoked by name & name resolves to IP/port dynamically You turn on service discovery during deployment — service creation DEV OPS

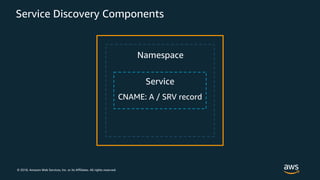

- 43. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Service Discovery Components Service CNAME: A / SRV record Namespace

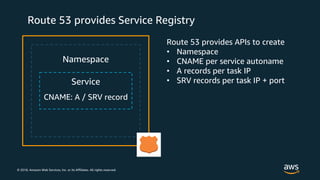

- 44. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Route 53 provides Service Registry Route 53 provides APIs to create • Namespace • CNAME per service autoname • A records per task IP • SRV records per task IP + portService CNAME: A / SRV record Namespace

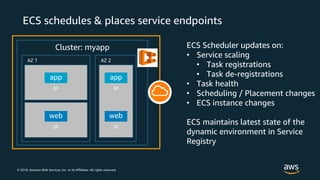

- 45. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS schedules & places service endpoints ECS Scheduler updates on: • Service scaling • Task registrations • Task de-registrations • Task health • Scheduling / Placement changes • ECS instance changes ECS maintains latest state of the dynamic environment in Service Registry Cluster: myapp app IP web IP app IP web IP AZ 1 AZ 2

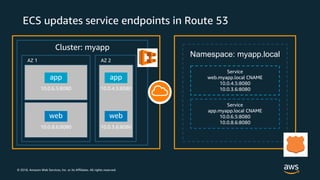

- 46. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. ECS updates service endpoints in Route 53 Cluster: myapp AZ 1 AZ 2 app 10.0.6.5:8080 web 10.0.8.6:8080 app 10.0.4.5:8080 web 10.0.3.6:8080 Namespace: myapp.local Service web.myapp.local CNAME 10.0.4.5:8080 10.0.3.6:8080 Service app.myapp.local CNAME 10.0.6.5:8080 10.0.8.6:8080

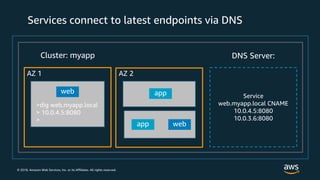

- 47. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Services connect to latest endpoints via DNS Service web.myapp.local CNAME 10.0.4.5:8080 10.0.3.6:8080 app >dig web.myapp.local > 10.0.4.5:8080 > app web web Cluster: myapp DNS Server: AZ 1 AZ 2
- 48. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Enables these use cases 1 Blue green deployments • myapp.staging.local • myapp.prod.local • Private IP • abstract cluster details 2 Internal micro services • web.myapp.local • Expose Private IP 3 External micro services • web.myapp.mycompany.com • Expose public IP or ELB EIP • network + container health check 4 Across ECS & EKS • Service1.myapp.ecs • Service2.myapp.eks 5 Across ECS & AWS & onPrem • Service1.myapp.ecs • Service2.myapp.ec2 • Service3.myapp.onprem 6 Expose to service mesh • Service1.myapp.local • Service2.myapp.local
- 49. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved.© 2017, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Coordinate Microservices with Visual Workflows
- 50. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. AWS Step Functions Easily coordinate multiple Lambda functions using visual workflows Visualize in the console Define in JSON Monitor executions
- 51. © 2018, AmazonWeb Services, Inc. or its Affiliates. All rights reserved. Build On! Donnie Prakoso @donnieprakoso
