An Efficient and Parallel
Abstract Interpreter in Scala
— First Algorithm —
Olivier Pirson — opi@opimedia.be
orcid.org/0000-0001-6296-9659
November 12, 2018
https://bitbucket.org/OPiMedia/efficient-parallel-abstract-interpreter-in-scala
Vrije Universiteit Brussel
Promotors Coen De Roover
Wolfgang De Meuter
Advisor Quentin Stievenart

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
1 The context: Abstract Interpretation for Static Analysis
2 The problematic: Too heavy for real programs
3 First parallel algorithm
4 Implementation
5 First results
6 Done and todo
7 References
An Eﬃcient and Parallel Abstract Interpreter in Scala — First Algorithm 2 / 32

An Efficient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

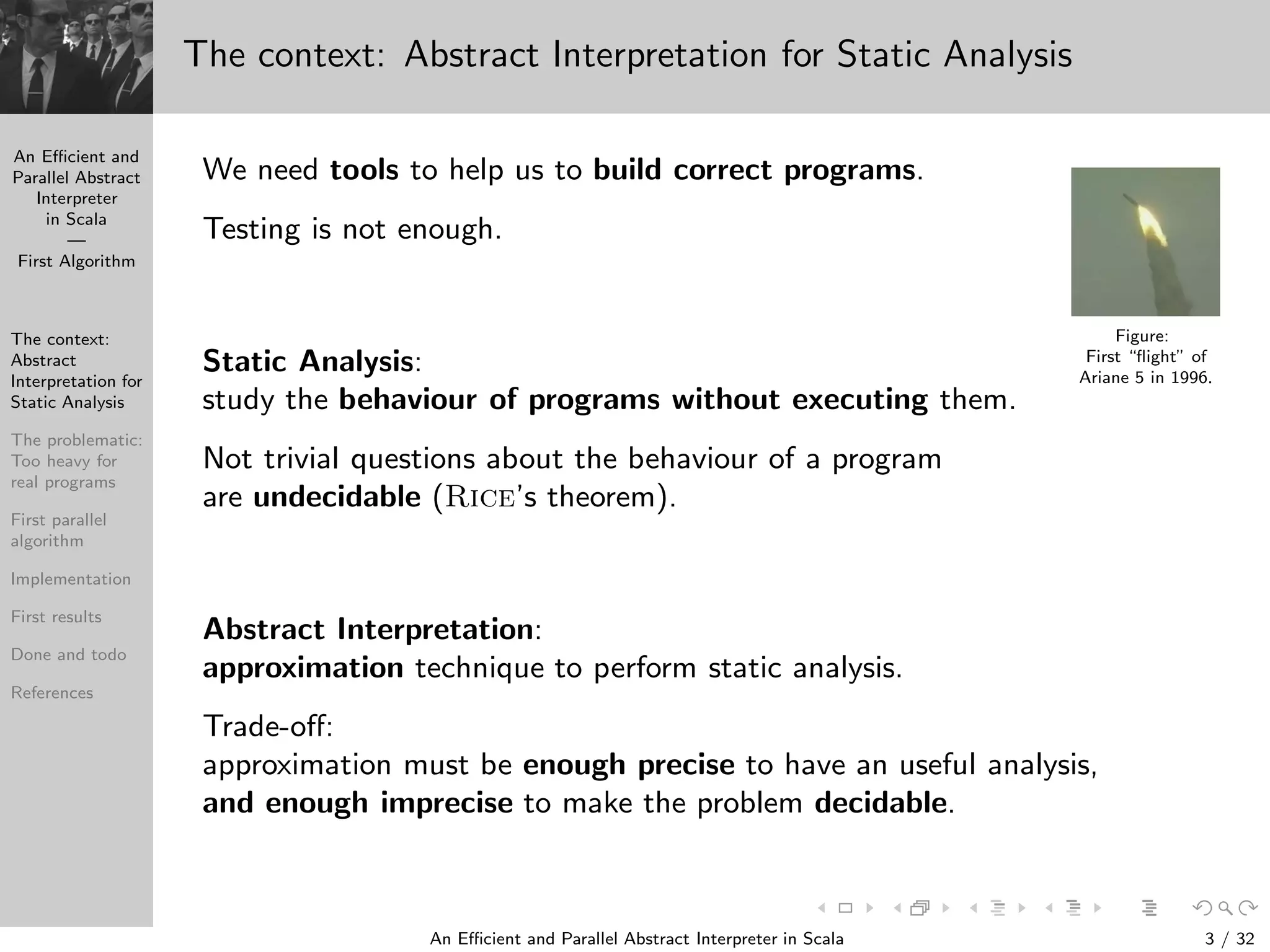

The context: Abstract Interpretation for Static Analysis
We need tools to help us to build correct programs.
Figure:
First “flight” of
Ariane 5 in 1996.
Testing is not enough.
Static Analysis:
study the behaviour of programs without executing them.
Not trivial questions about the behaviour of a program
are undecidable (Rice’s theorem).
Abstract Interpretation:
approximation technique to perform static analysis.
Trade-off:
approximation must be enough precise to have an useful analysis,
and enough imprecise to make the problem decidable.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
From Concrete Interpretation. . .

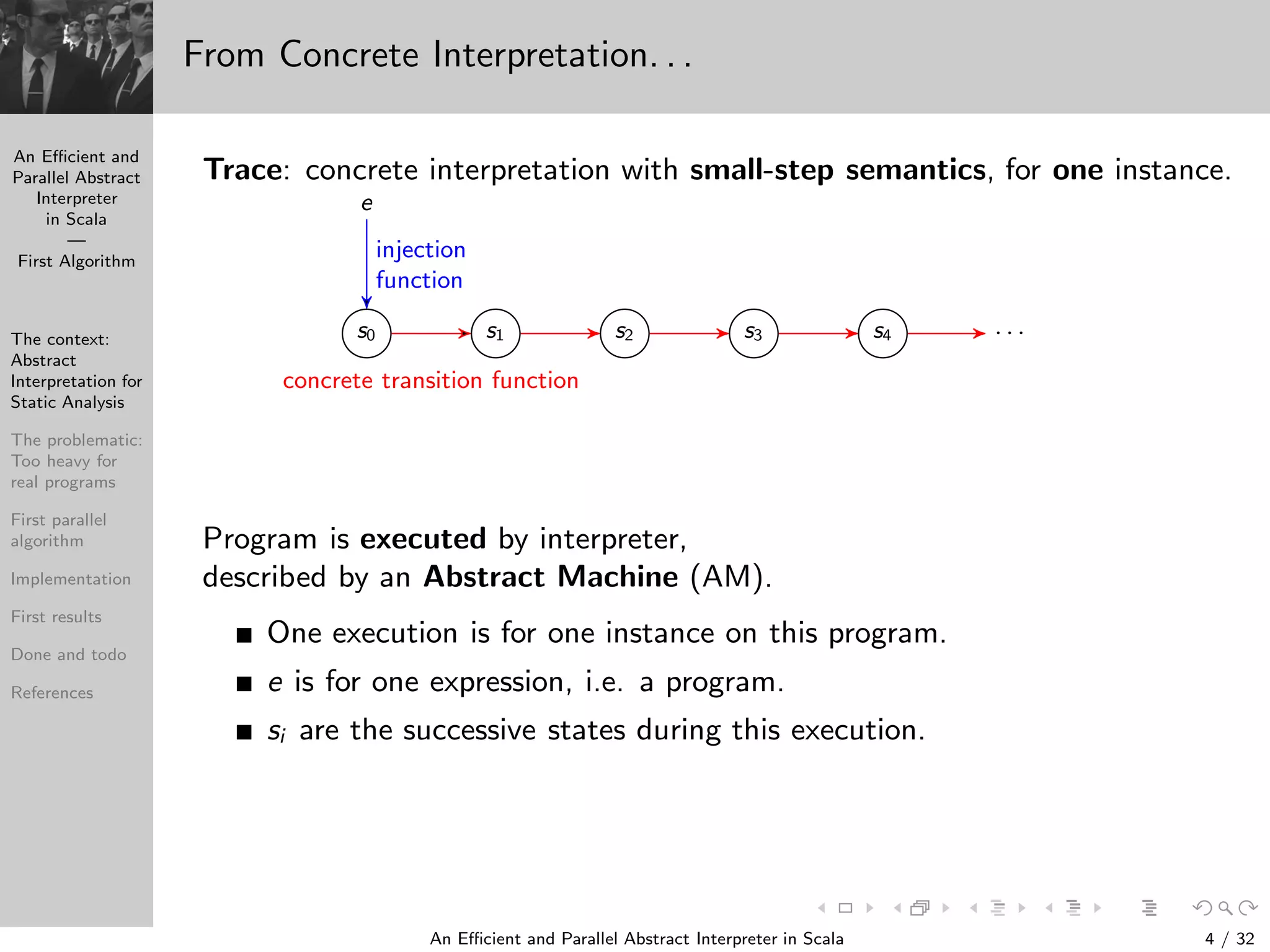

Trace: concrete interpretation with small-step semantics, for one instance.
e
s0 s1 s2 s3 s4 · · ·
injection
function
concrete transition function
Program is executed by interpreter,
described by an Abstract Machine (AM).
One execution is for one instance on this program.
e is for one expression, i.e. a program.
si are the successive states during this execution.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
From Concrete Interpretation to Abstract Interpretation

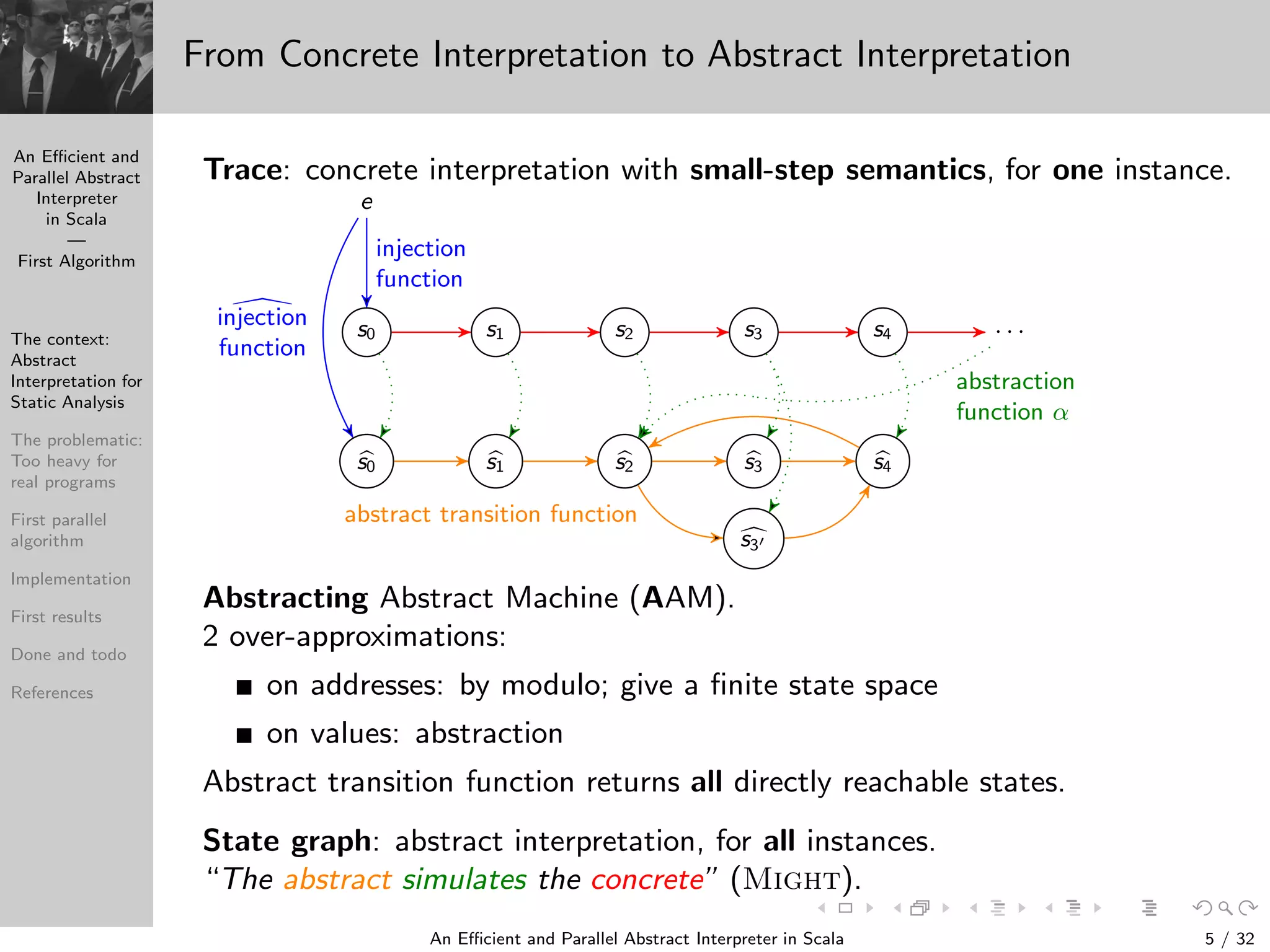

Trace: concrete interpretation with small-step semantics, for one instance.
e
s0 s1 s2 s3 s4 · · ·
s0 s1 s2 s3 s4
s3′
injection
function
injection
function
abstract transition function
abstraction
function α
Abstracting Abstract Machine (AAM).
2 over-approximations:
on addresses: by modulo; give a ﬁnite state space
on values: abstraction
Abstract transition function returns all directly reachable states.
State graph: abstract interpretation, for all instances.
“The abstract simulates the concrete” (Might).

An Efficient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

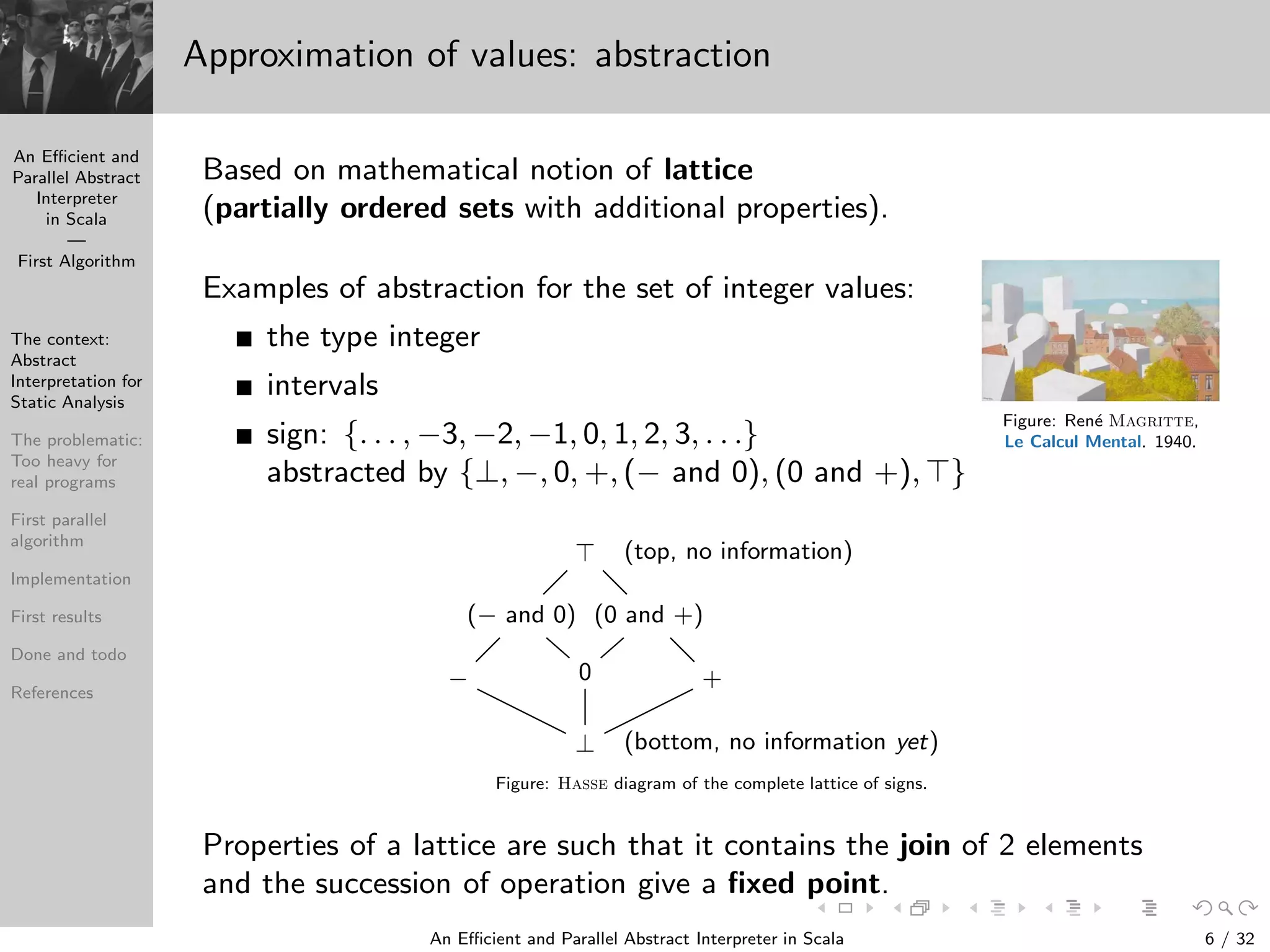

Approximation of values: abstraction
Based on mathematical notion of lattice
(partially ordered sets with additional properties).
Examples of abstraction for the set of integer values:
Figure: René Magritte,
Le Calcul Mental. 1940.
the type integer
intervals
sign: {. . . , −3, −2, −1, 0, 1, 2, 3, . . .}
abstracted by {⊥, −, 0, +, (− and 0), (0 and +), ⊤}
⊤ (top, no information)
(− and 0) (0 and +)
− 0 +
⊥ (bottom, no information yet)
Figure: Hasse diagram of the complete lattice of signs.
Properties of a lattice are such that it contains the join of 2 elements
and the succession of operation give a fixed point.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

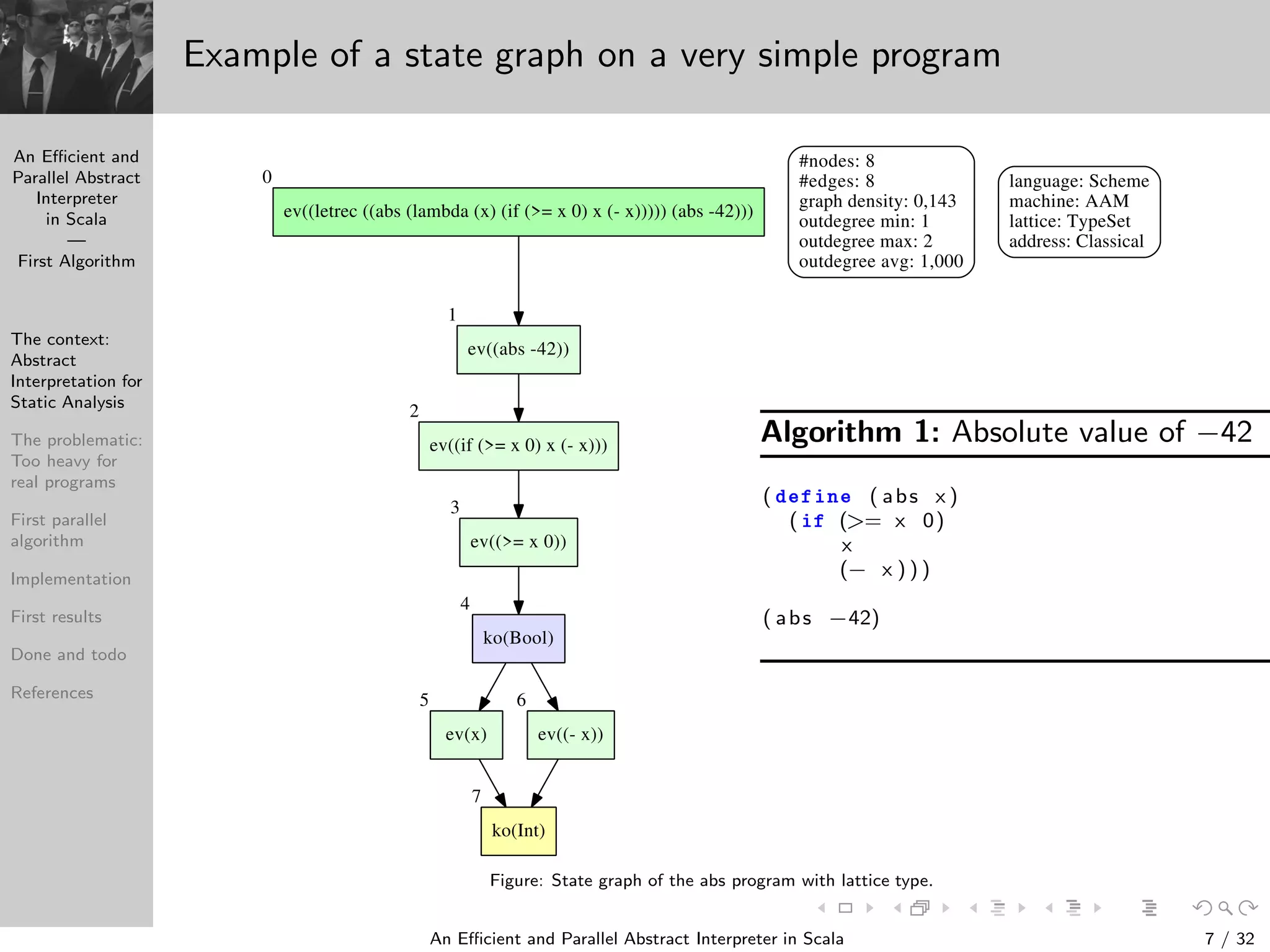

Example of a state graph on a very simple program
ev((letrec ((abs (lambda (x) (if (>= x 0) x (- x))))) (abs -42)))
0
ev((abs -42))
1
ev((if (>= x 0) x (- x)))
2
ev((>= x 0))
3
ko(Bool)
4
ev(x)
5
ev((- x))
6
ko(Int)
7
#nodes: 8
#edges: 8
graph density: 0,143
outdegree min: 1
outdegree max: 2
outdegree avg: 1,000
language: Scheme
machine: AAM
lattice: TypeSet
address: Classical
Figure: State graph of the abs program with lattice type.
Algorithm 1: Absolute value of −42
( Ò ( abs x )
( (>= x 0)
x
(− x ) ) )
( abs −42)

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
4 Implementation
5 First results
6 Done and todo
7 References

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

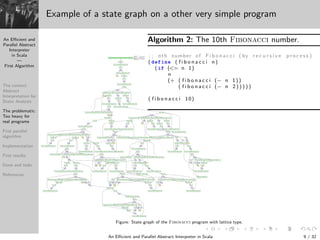

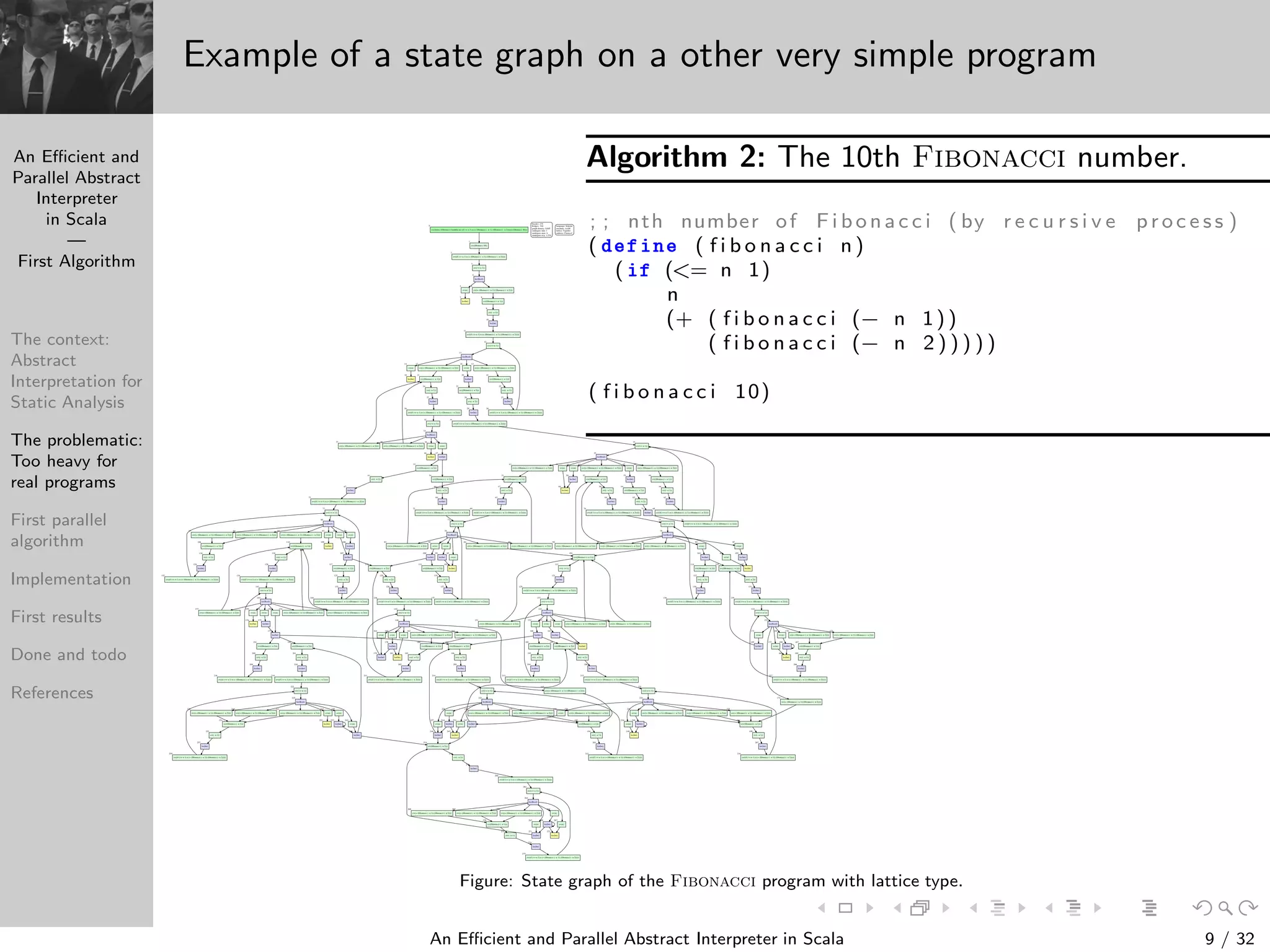

Example of a state graph on a other very simple program
ev((letrec ((fibonacci (lambda (n) (if (<= n 1) n (+ (fibonacci (- n 1)) (fibonacci (- n 2))))))) (fibonacci 10)))
0
ev((fibonacci 10))
1
ev((if (<= n 1) n (+ (fibonacci (- n 1)) (fibonacci (- n 2)))))
2
ev((<= n 1))
3
ko(Bool)
4
ev(n)
5
ev((+ (fibonacci (- n 1)) (fibonacci (- n 2))))
6
ko(Int)
7
ev((fibonacci (- n 1)))
8
ev((- n 1))
9
ko(Int)
10
11
ev((<= n 1))
12
ko(Bool)
13
ev(n)
14
15
ev(n)
16
17
ko(Int)
18
19
ko(Int)
20
21
ev((- n 1))
22
23
ev((- n 1))
24
ko(Int)
25
ev((- n 2))
26
ko(Int)
27
28
ko(Int)
29
30
31
ev((<= n 1))
32
ev((<= n 1))
33
ko(Bool)
34
ko(Bool)
35
ev(n)
36
37
ev(n)
38
39
40
41
ev(n)
42
43
ev(n)
44
ev(n)
45
ko(Int)
46
ko(Int)
47
49
52
ko(Int)
48
51
ko(Int)
50
ko(Int)
53
54
55
ev((- n 1))
56
ev((- n 1))
57
ev((- n 1))
58
59
ev((- n 2))
60
ev((- n 2))
61
ko(Int)
62
ko(Int)
63
ko(Int)
64
ev((- n 2))
65
ko(Int)
66
ko(Int)
67
68
69
70
ko(Int)
71
72
73
ev((<= n 1))
74
ev((<= n 1))
75
76
ev((<= n 1))
77
ko(Bool)
78
ko(Bool)
79
ko(Bool)
80
ev(n)
81
ev(n)
82
83
84
ev(n)
85
86
ev(n)
87
88
ev(n)
89
90
91
ev(n)
92
ev(n)
93
94
95
ev(n)
96
97
ev(n)
98
ko(Int)
100
ko(Int)
99
101
ko(Int)
102
ko(Int)
103
ko(Int)
105
ko(Int)
104
ko(Int)
109
106
110
ko(Int)
108
ko(Int)
107
111
112
ev((- n 1))
113
114
115
ev((- n 1))
116
117
ev((- n 1))
118
ev((- n 2))
119
ev((- n 2))
120
ko(Int)
121
ev((- n 2))
122
ev((- n 2))
123
ko(Int)
124
ev((- n 2))
125
ko(Int)
126
ko(Int)
127
ko(Int)
128
129
ko(Int)
130
ko(Int)
131
132
ko(Int)
133
134
135
136
ev((<= n 1))
137
138
139
140
ev((<= n 1))
141
ev((<= n 1))
142
ko(Bool)
143
ev((<= n 1))
144
ko(Bool)
145
ko(Bool)
146
ev(n)
147
148
149
ev(n)
150
151
ev(n)
152
ko(Bool)
153
154
155
ev(n)
156
157
ev(n)
158
ev(n)
159
ev(n)
160
161
162
ev(n)
163
ev(n)
164
165
ko(Int)
167
ko(Int)
168
ko(Int)
166
ev(n)
169
170
ev(n)
171
ev(n)
172
173
174
ko(Int)
177
ko(Int)
175
ko(Int)
176
ko(Int)
178
180
ko(Int)
181
ko(Int)
179
182
183
184
185
ko(Int)
190
187
ko(Int)
189
ko(Int)
188
186
191
192
ev((- n 1))
193
ev((- n 1))
194
ev((- n 2))
195
ev((- n 2))
196
ev((- n 2))
197
ev((- n 1))
198
ev((- n 1))
199
ev((- n 2))
200
ev((- n 2))
201
ko(Int)
202
ko(Int)
203
ko(Int)
204
ko(Int)
205
ko(Int)
206
ko(Int)
207
ko(Int)
208
ko(Int)
209
ko(Int)
210
211
212
213
214
215
216
217
218
219
ev((<= n 1))
220
ev((<= n 1))
221
ev((<= n 1))
222
ko(Bool)
223
ko(Bool)
224
ko(Bool)
225
226
ev(n)
227
ev(n)
228
229
230
ev(n)
231
232
ev(n)
233
ev(n)
234
235
ev(n)
236
237
238
ev(n)
239
240
241
ev(n)
242
ev(n)
243
ko(Int)
246
ko(Int)
244
ko(Int)
245
ko(Int)
248
ko(Int)
249
ko(Int)
247
251
ko(Int)
253
ko(Int)
250
ko(Int)
252
254
ev((- n 1))
255
ev((- n 2))
256
ko(Int)
257
ko(Int)
258
259
260
ev((<= n 1))
261
ko(Bool)
262
ev(n)
263
ev(n)
264
265
266
ev(n)
267
268
ko(Int)
271
ko(Int)
269
270
ko(Int)
272
ev((- n 1))
273
ko(Int)
274
275
#nodes: 276
#edges: 346
outdegree min: 1
outdegree max: 6
language: Scheme
machine: AAM
lattice: TypeSet
address: Classical
Figure: State graph of the Fibonacci program with lattice type.
Algorithm 2: The 10th Fibonacci number.
; ; nth number of F i b o n a c c i ( by r e c u r s i v e p r o c e s s )
( Ò ( f i b o n a c c i n )
( (<= n 1)
n
(+ ( f i b o n a c c i (− n 1))
( f i b o n a c c i (− n 2 ) ) ) ) )
( f i b o n a c c i 10)

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

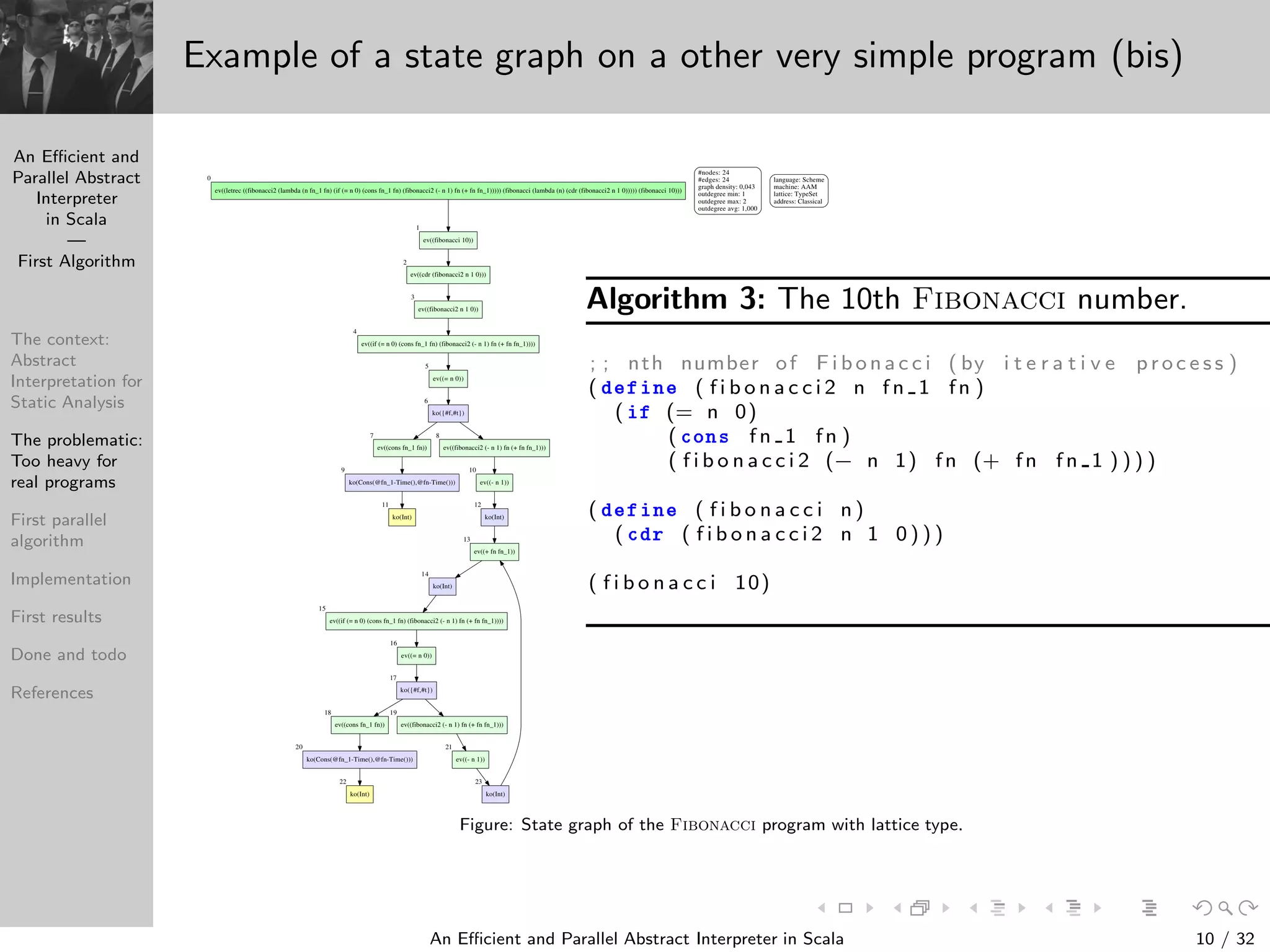

Example of a state graph on a other very simple program (bis)
ev((letrec ((fibonacci2 (lambda (n fn_1 fn) (if (= n 0) (cons fn_1 fn) (fibonacci2 (- n 1) fn (+ fn fn_1))))) (fibonacci (lambda (n) (cdr (fibonacci2 n 1 0))))) (fibonacci 10)))
0
ev((fibonacci 10))
1
ev((cdr (fibonacci2 n 1 0)))
2
ev((fibonacci2 n 1 0))
3
ev((if (= n 0) (cons fn_1 fn) (fibonacci2 (- n 1) fn (+ fn fn_1))))
4
ev((= n 0))
5
ko({#f,#t})
6
ev((cons fn_1 fn))
7
ev((fibonacci2 (- n 1) fn (+ fn fn_1)))
8
ko(Cons(@fn_1-Time(),@fn-Time()))
9
ev((- n 1))
10
ko(Int)
11
ko(Int)
12
ev((+ fn fn_1))
13
ko(Int)
14
ev((if (= n 0) (cons fn_1 fn) (fibonacci2 (- n 1) fn (+ fn fn_1))))
15
ev((= n 0))
16
ko({#f,#t})
17
ev((cons fn_1 fn))
18
ev((fibonacci2 (- n 1) fn (+ fn fn_1)))
19
ko(Cons(@fn_1-Time(),@fn-Time()))
20
ev((- n 1))
21
ko(Int)
22
ko(Int)
23
#nodes: 24
#edges: 24
outdegree min: 1
outdegree max: 2
language: Scheme
machine: AAM
lattice: TypeSet
address: Classical
Figure: State graph of the Fibonacci program with lattice type.
Algorithm 3: The 10th Fibonacci number.
; ; nth number of F i b o n a c c i ( by i t e r a t i v e p r o c e s s )
( Ò ( f i b o n a c c i 2 n f n 1 fn )
( (= n 0)
(
ÓÒ× f n 1 fn )
( f i b o n a c c i 2 (− n 1) fn (+ fn f n 1 ) ) ) )
( Ò ( f i b o n a c c i n )
(
Ö ( f i b o n a c c i 2 n 1 0 ) ) )
( f i b o n a c c i 10)

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

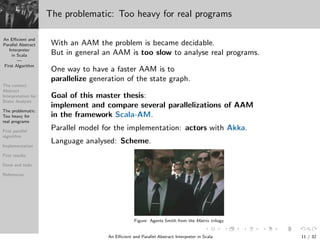

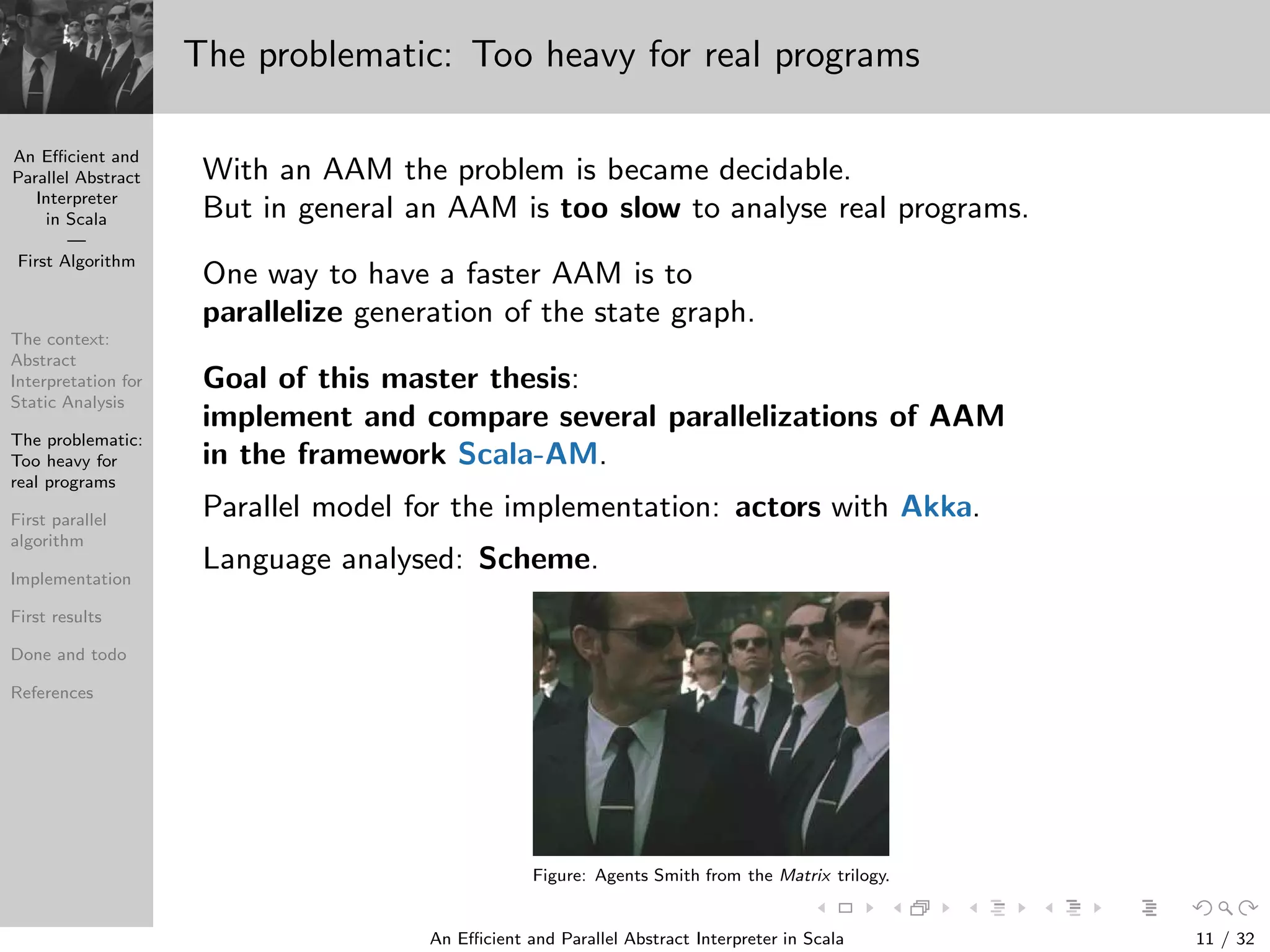

The problematic: Too heavy for real programs
With an AAM the problem is became decidable.
But in general an AAM is too slow to analyse real programs.
One way to have a faster AAM is to
parallelize generation of the state graph.
Goal of this master thesis:
implement and compare several parallelizations of AAM
in the framework Scala-AM.
Parallel model for the implementation: actors with Akka.
Language analysed: Scheme.
Figure: Agents Smith from the Matrix trilogy.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

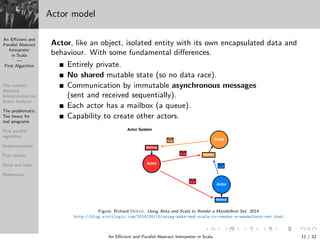

Actor model
Actor, like an object, isolated entity with its own encapsulated data and
behaviour. With some fundamental diﬀerences.
Entirely private.
No shared mutable state (so no data race).
Communication by immutable asynchronous messages
(sent and received sequentially).
Each actor has a mailbox (a queue).
Capability to create other actors.

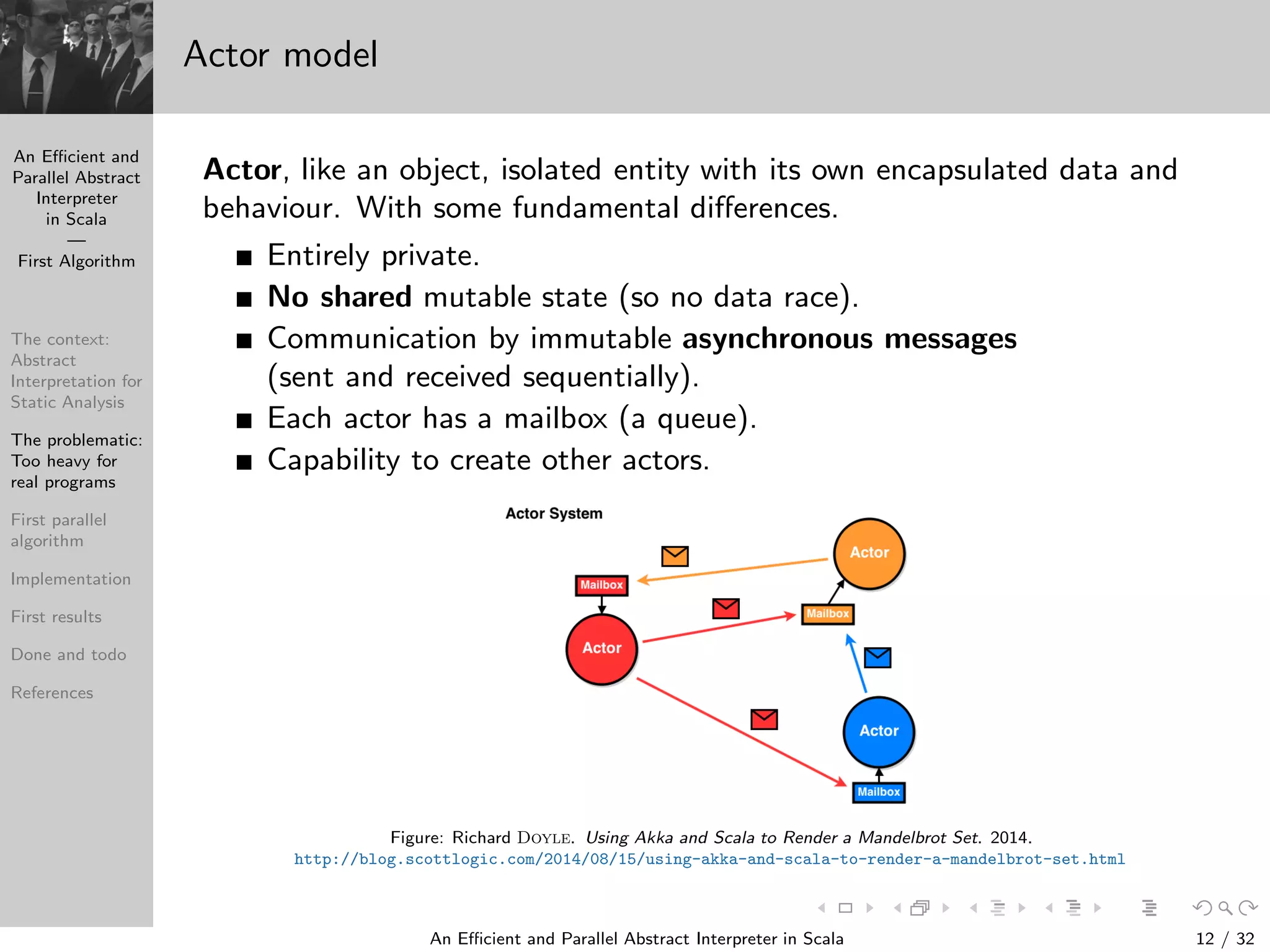

Figure: Richard Doyle. Using Akka and Scala to Render a Mandelbrot Set. 2014.
http://blog.scottlogic.com/2014/08/15/using-akka-and-scala-to-render-a-mandelbrot-set.html

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

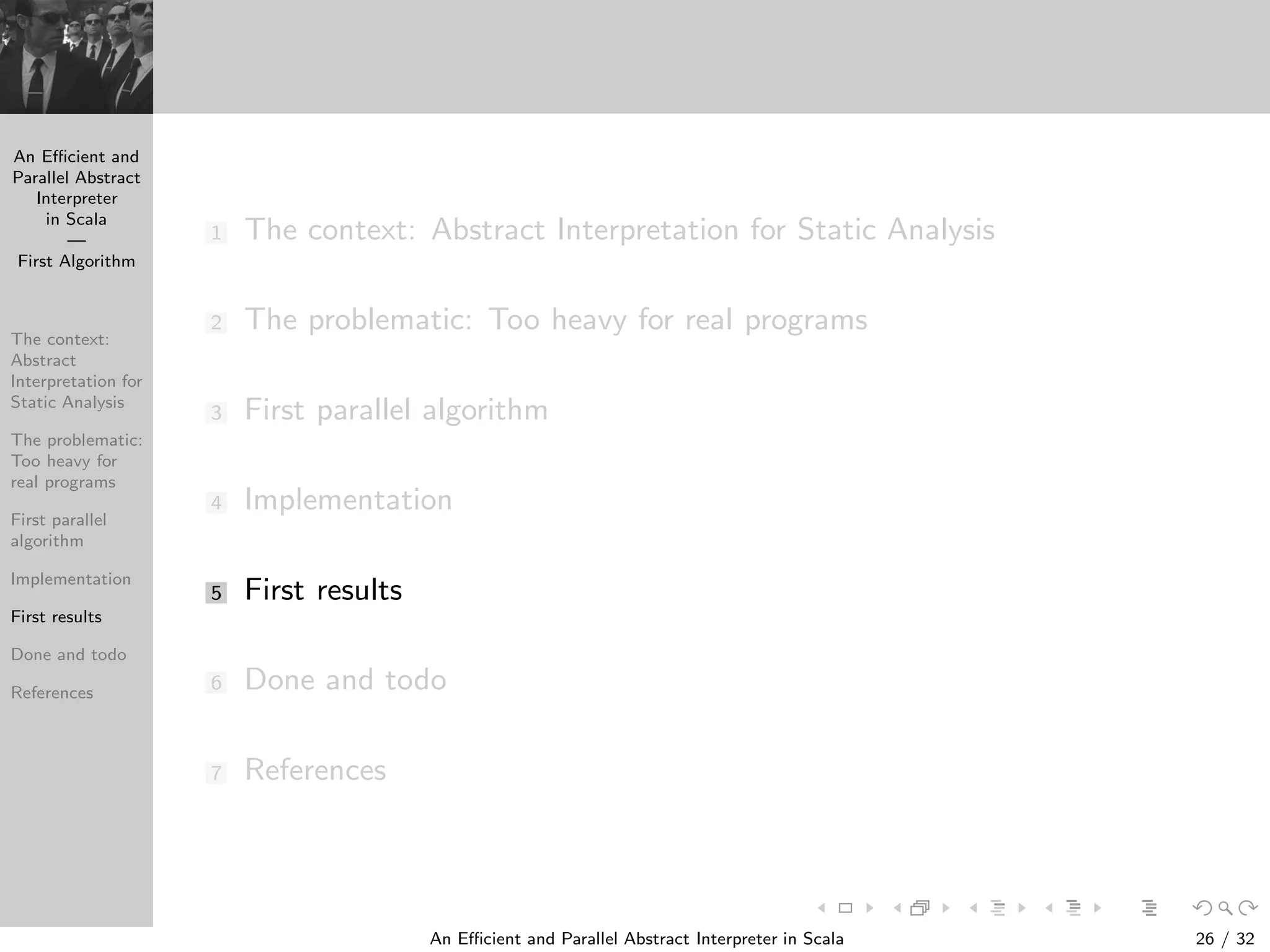

4 Implementation
5 First results
6 Done and todo
7 References

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

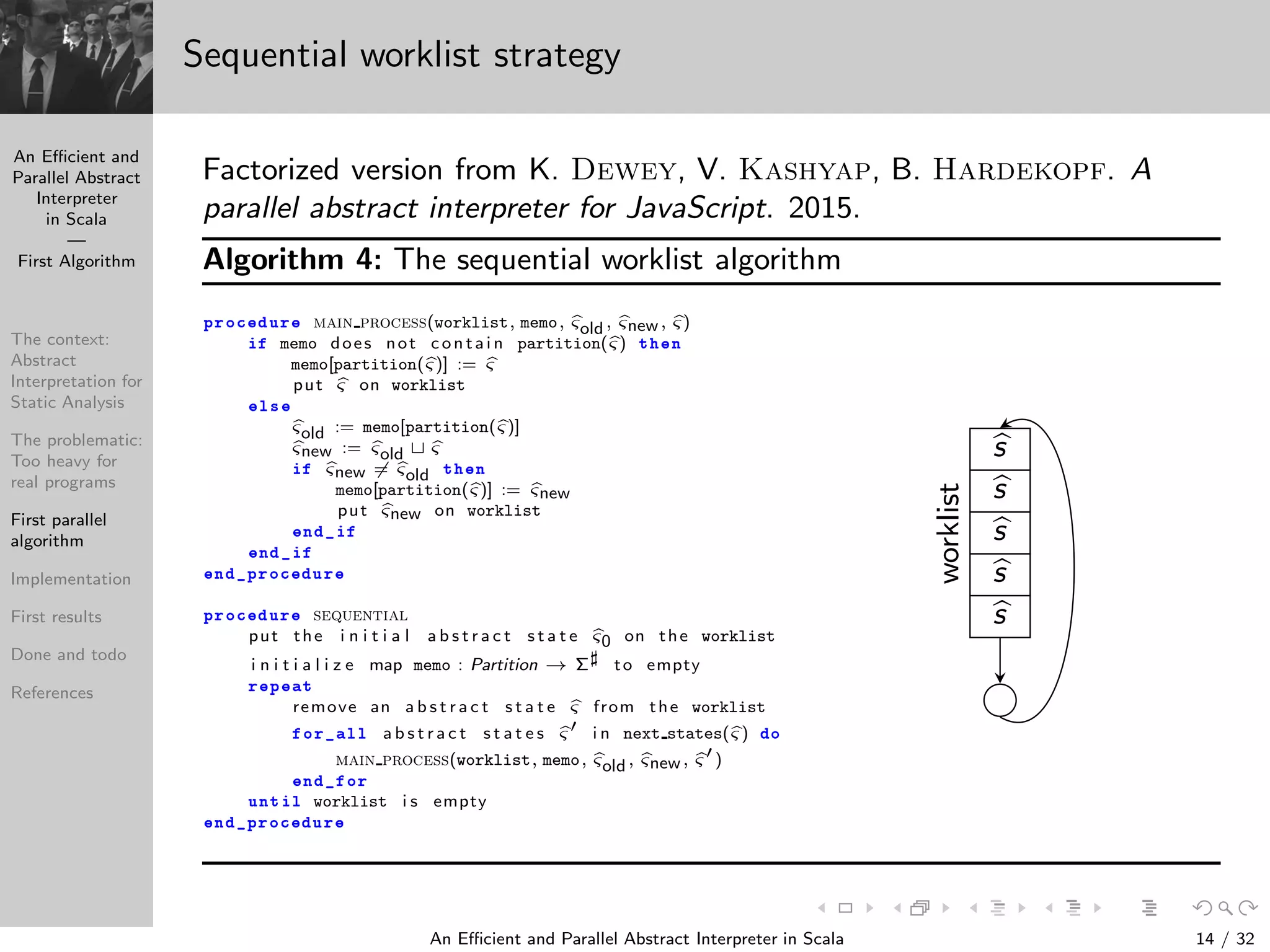

Sequential worklist strategy
Factorized version from K. Dewey, V. Kashyap, B. Hardekopf. A
parallel abstract interpreter for JavaScript. 2015.
Algorithm 4: The sequential worklist algorithm
ÔÖÓ
ÙÖ main process(worklist, memo, ςold, ςnew, ς)
memo does not c on tai n partition(ς) Ø Ò
memo[partition(ς)] := ς
put ς on worklist
Ð×
ςold := memo[partition(ς)]
ςnew := ςold ⊔ ς
ςnew = ςold Ø Ò
memo[partition(ς)] := ςnew
put ςnew on worklist
Ò
Ò
Ò ÔÖÓ
ÙÖ
ÔÖÓ
ÙÖ sequential
put the i n i t i a l a b s t r a c t s t a t e ς0 on the worklist
i n i t i a l i z e map memo : Partition → Σ♯ to empty
Ö Ô Ø
remove an a b s t r a c t s t a t e ς from the worklist
ÓÖ ÐÐ a b s t r a c t s t a t e s ς′ i n next states(ς) Ó
main process(worklist, memo, ςold, ςnew, ς′)
Ò ÓÖ
ÙÒØ Ð worklist i s empty
Ò ÔÖÓ
ÙÖ
s
s
s
s
s
worklistAn Eﬃcient and Parallel Abstract Interpreter in Scala — First Algorithm 14 / 32

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

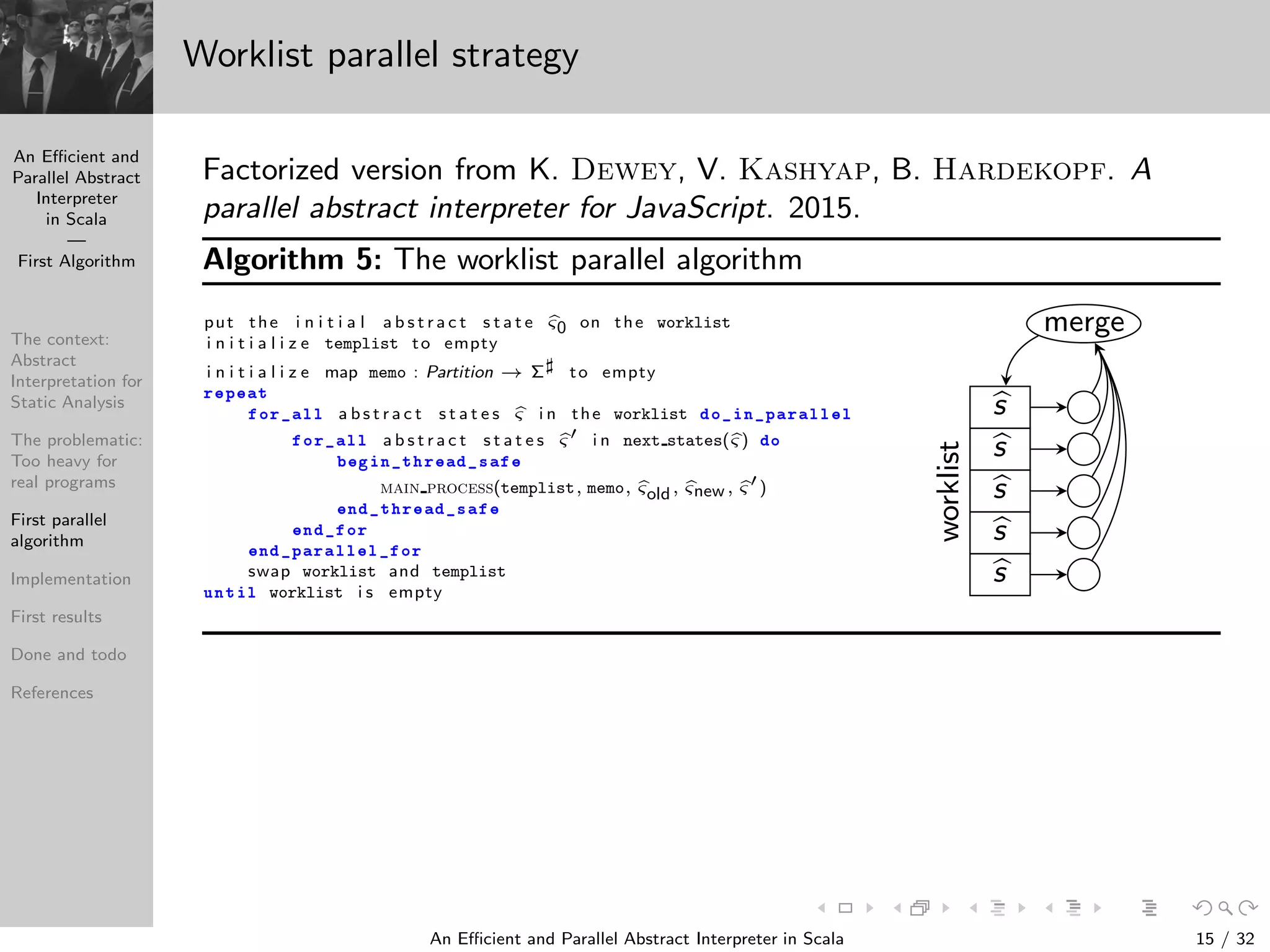

Worklist parallel strategy
Factorized version from K. Dewey, V. Kashyap, B. Hardekopf. A
parallel abstract interpreter for JavaScript. 2015.
Algorithm 5: The worklist parallel algorithm
put the i n i t i a l a b s t r a c t s t a t e ς0 on the worklist
i n i t i a l i z e templist to empty
i n i t i a l i z e map memo : Partition → Σ♯ to empty
Ö Ô Ø
ÓÖ ÐÐ a b s t r a c t s t a t e s ς i n the worklist Ó Ò Ô Ö ÐÐ Ð
ÓÖ ÐÐ a b s t r a c t s t a t e s ς′ i n next states(ς) Ó
Ò Ø Ö ×
main process(templist, memo, ςold, ςnew, ς′)
Ò Ø Ö ×
Ò ÓÖ
Ò Ô Ö ÐÐ Ð ÓÖ
swap worklist and templist
ÙÒØ Ð worklist i s empty
s
s
s
s
s
worklist
merge

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

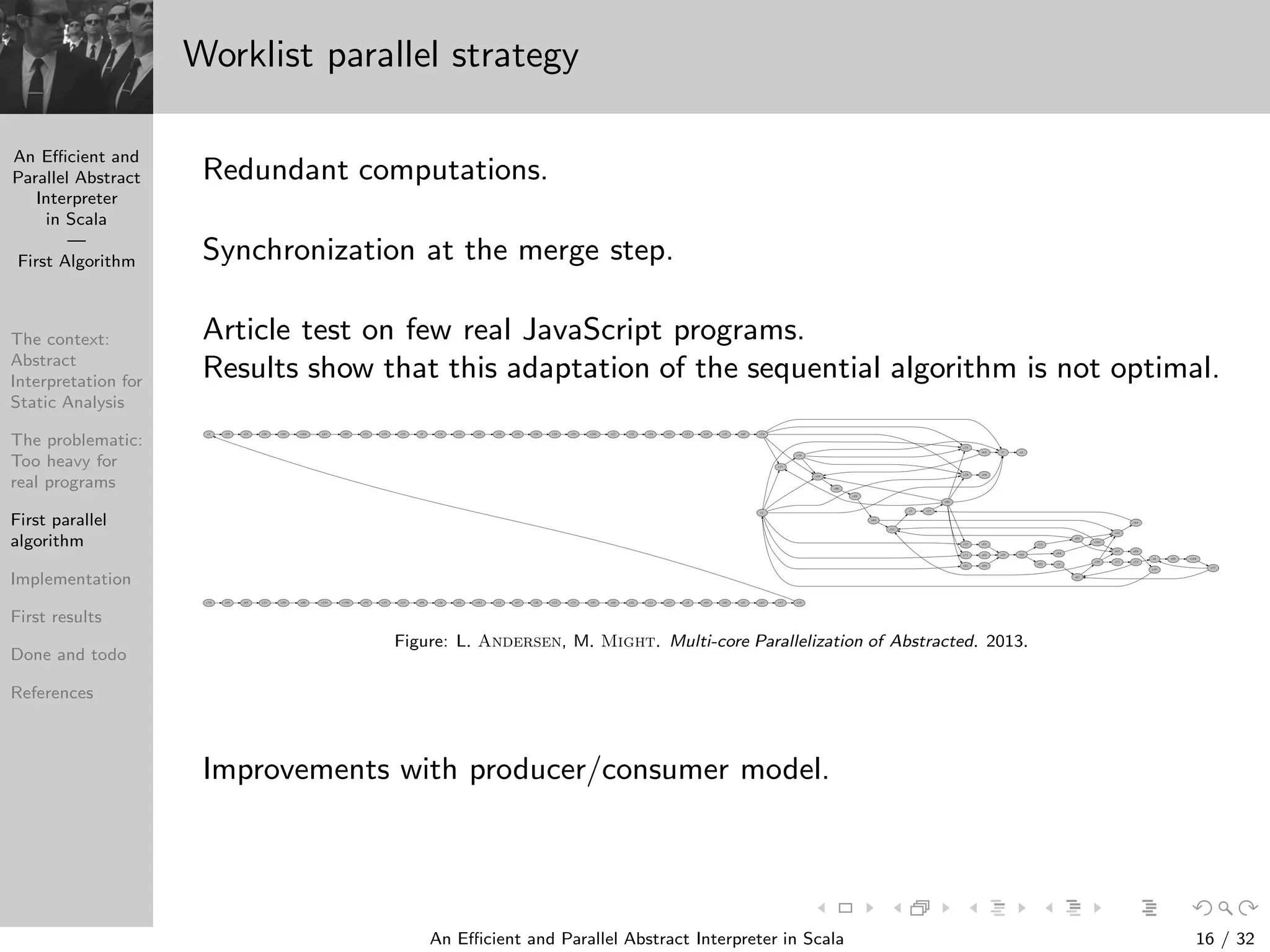

Worklist parallel strategy
Redundant computations.
Synchronization at the merge step.
Article test on few real JavaScript programs.
Results show that this adaptation of the sequential algorithm is not optimal.
Figure: L. Andersen, M. Might. Multi-core Parallelization of Abstracted. 2013.
Improvements with producer/consumer model.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

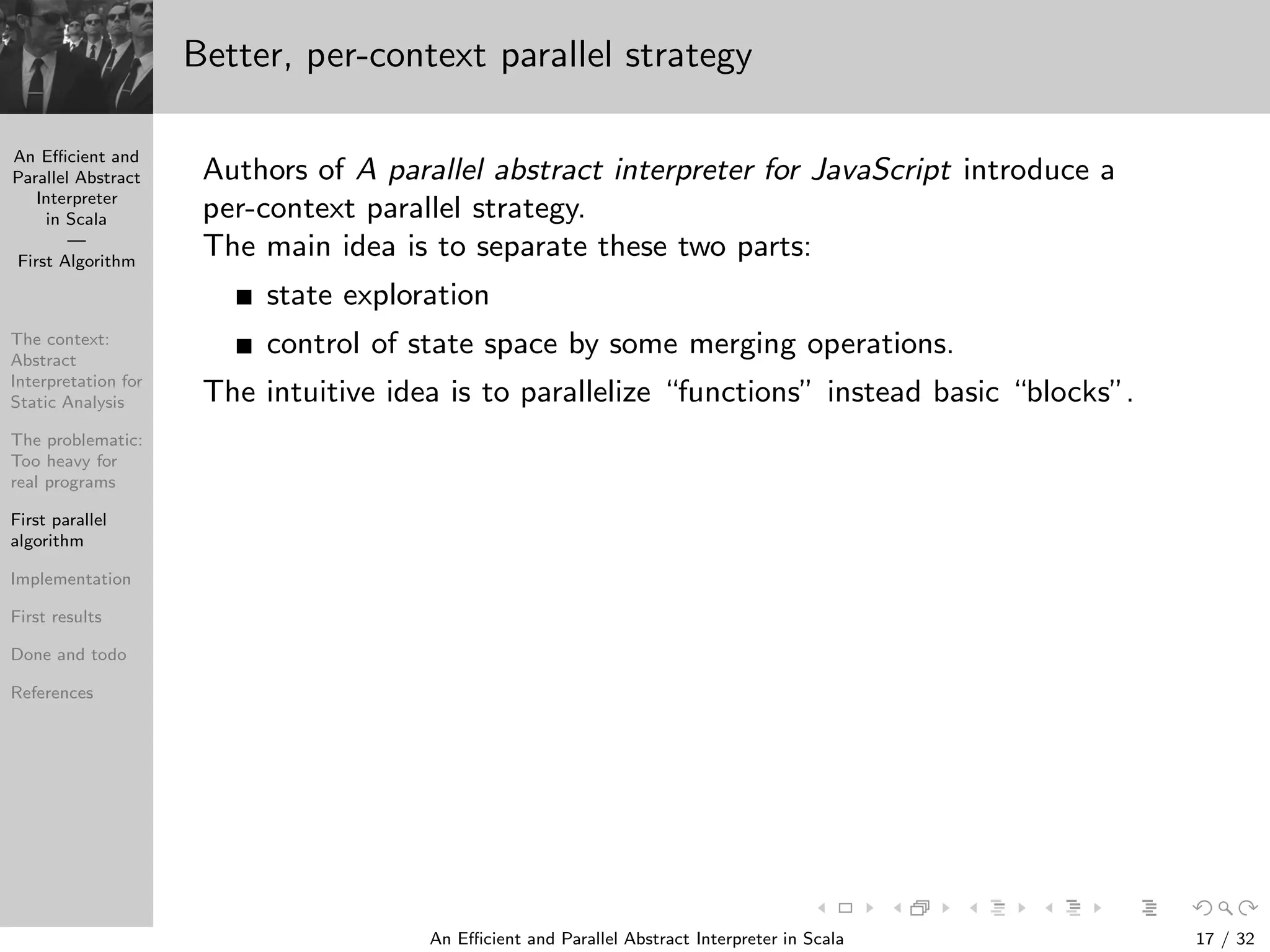

Better, per-context parallel strategy
Authors of A parallel abstract interpreter for JavaScript introduce a
per-context parallel strategy.
The main idea is to separate these two parts:
state exploration
control of state space by some merging operations.
The intuitive idea is to parallelize “functions” instead basic “blocks”.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
4 Implementation
5 First results
6 Done and todo
7 References

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

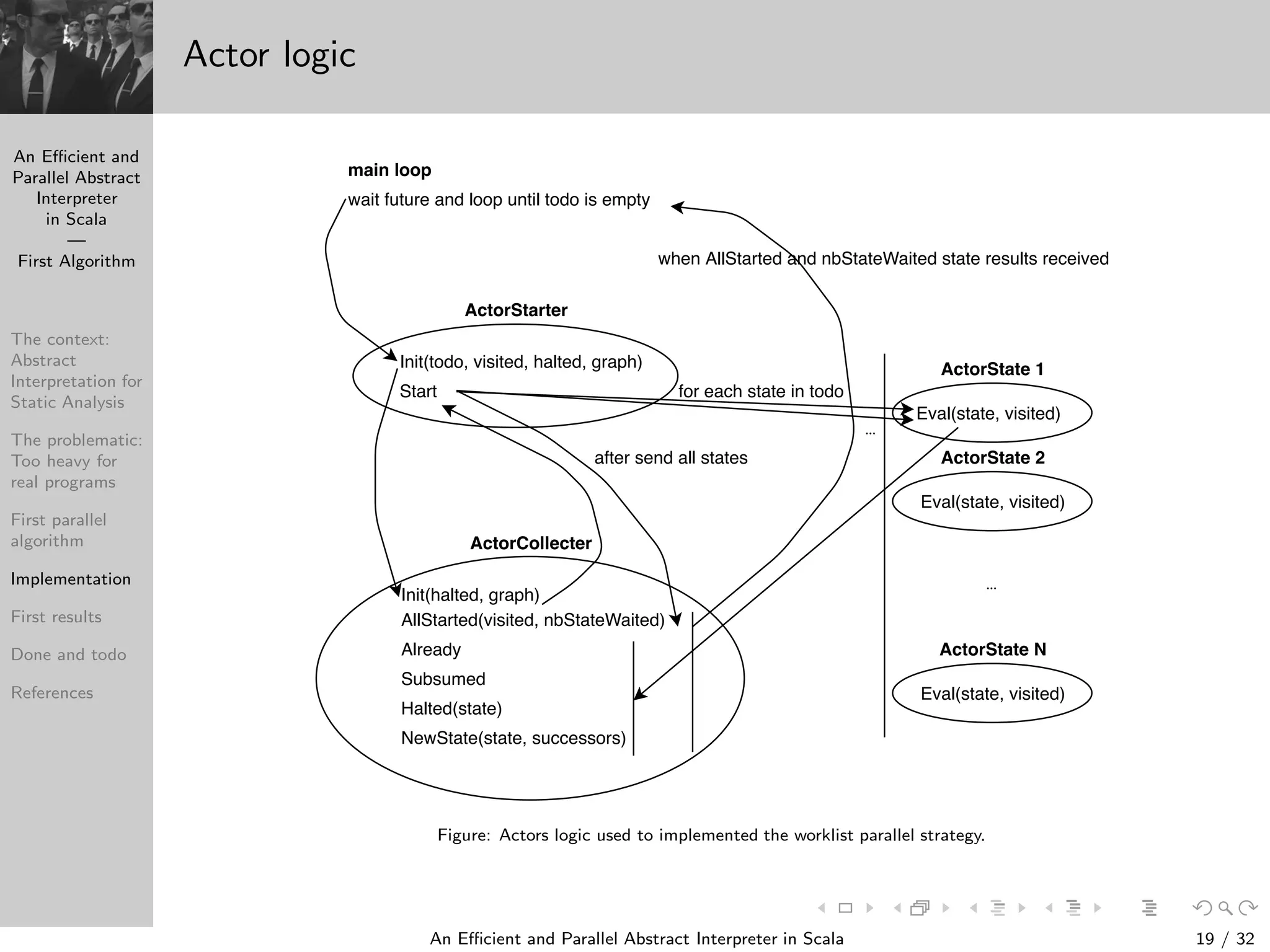

Actor logic
ZDLW IXWXUH DQG ORRS XQWLO WRGR LV HPSW
$FWRU6WDWH 1
(YDO VWDWH YLVLWHG
$FWRU6WDUWHU
,QLW WRGR YLVLWHG KDOWHG JUDSK
6WDUW
$FWRU6WDWH
(YDO VWDWH YLVLWHG
$FWRU6WDWH
(YDO VWDWH YLVLWHG
«
IRU HDFK VWDWH LQ WRGR
DIWHU VHQG DOO VWDWHV
$FWRU&ROOHFWHU
,QLW KDOWHG JUDSK
$OO6WDUWHG YLVLWHG QE6WDWH:DLWHG
$OUHDG
6XEVXPHG
+DOWHG VWDWH
1HZ6WDWH VWDWH VXFFHVVRUV
ZKHQ $OO6WDUWHG DQG QE6WDWH:DLWHG VWDWH UHVXOWV UHFHLYHG
PDLQ ORRS
«
Figure: Actors logic used to implemented the worklist parallel strategy.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

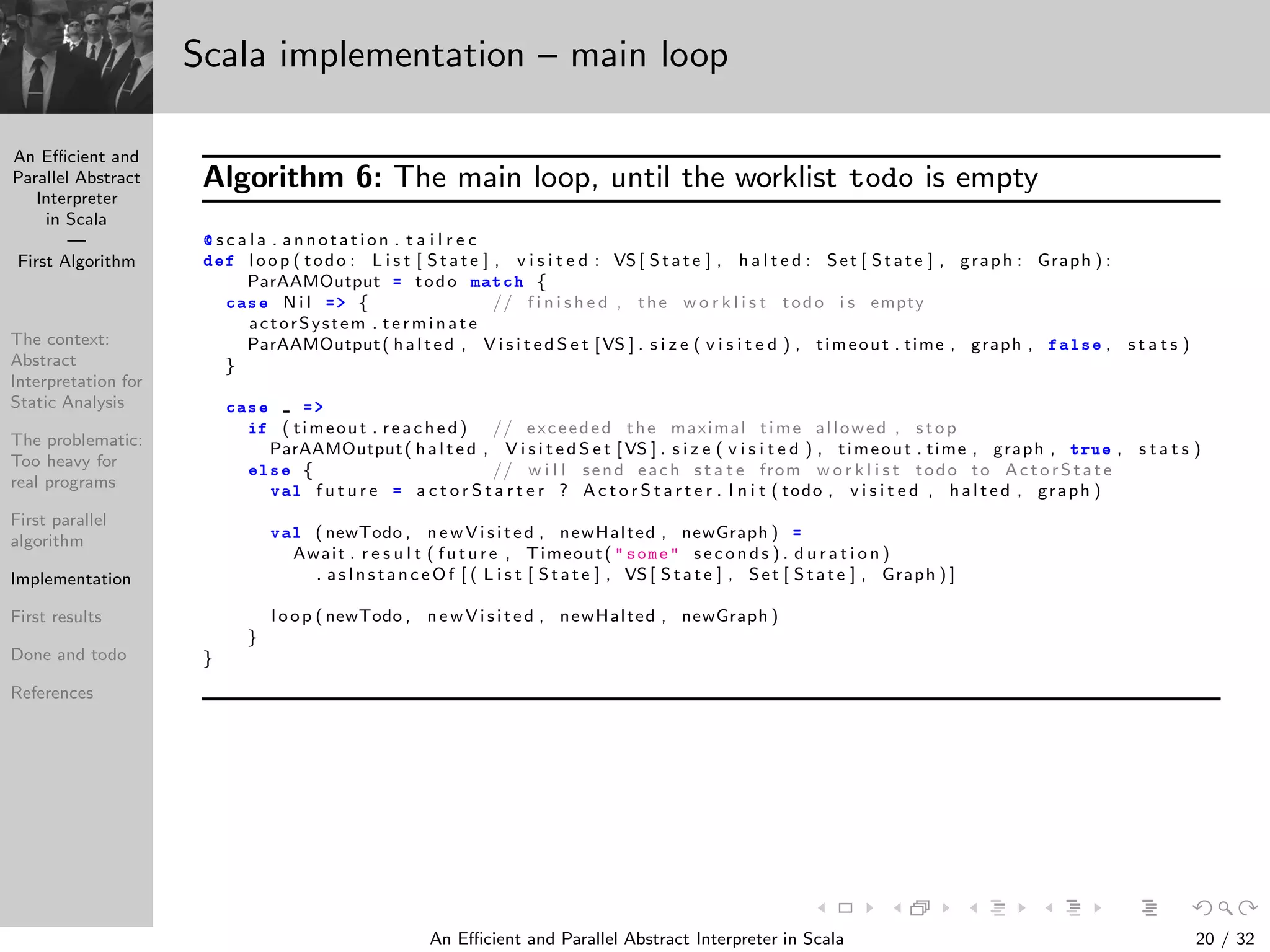

Scala implementation – main loop
Algorithm 6: The main loop, until the worklist todo is empty
s c a l a . an n otati on . t a i l r e c
l oop ( todo : L i s t [ S tate ] , v i s i t e d : VS [ S tate ] , h a l t e d : Set [ S tate ] , graph : Graph ) :
ParAAMOutput todo Ñ Ø
{

× N i l { // f i n i s h e d , the w o r k l i s t todo i s empty
actorSystem . te rmi n ate
ParAAMOutput( h al te d , V i s i t e d S e t [VS ] . s i z e ( v i s i t e d ) , timeout . time , graph , Ð× , s t a t s )
}

×
( timeout . re ac h e d ) // exceeded the maximal time allowed , stop
ParAAMOutput( h al te d , V i s i t e d S e t [VS ] . s i z e ( v i s i t e d ) , timeout . time , graph , ØÖÙ , s t a t s )
Ð× { // w i l l send each s t a t e from w o r k l i s t todo to Ac torS tate
Ú Ð f u t u r e a c t o r S t a r t e r ? A c t o r S t a r t e r . I n i t ( todo , v i s i t e d , h al te d , graph )
Ú Ð ( newTodo , n e wVi si te d , newHalted , newGraph )
Await . r e s u l t ( fu tu re , Timeout( some se c on d s ) . d u r a t i o n )
. asIn stan c e O f [ ( L i s t [ S tate ] , VS [ S tate ] , Set [ S tate ] , Graph ) ]
l oop ( newTodo , n e wVi si te d , newHalted , newGraph )
}
}

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

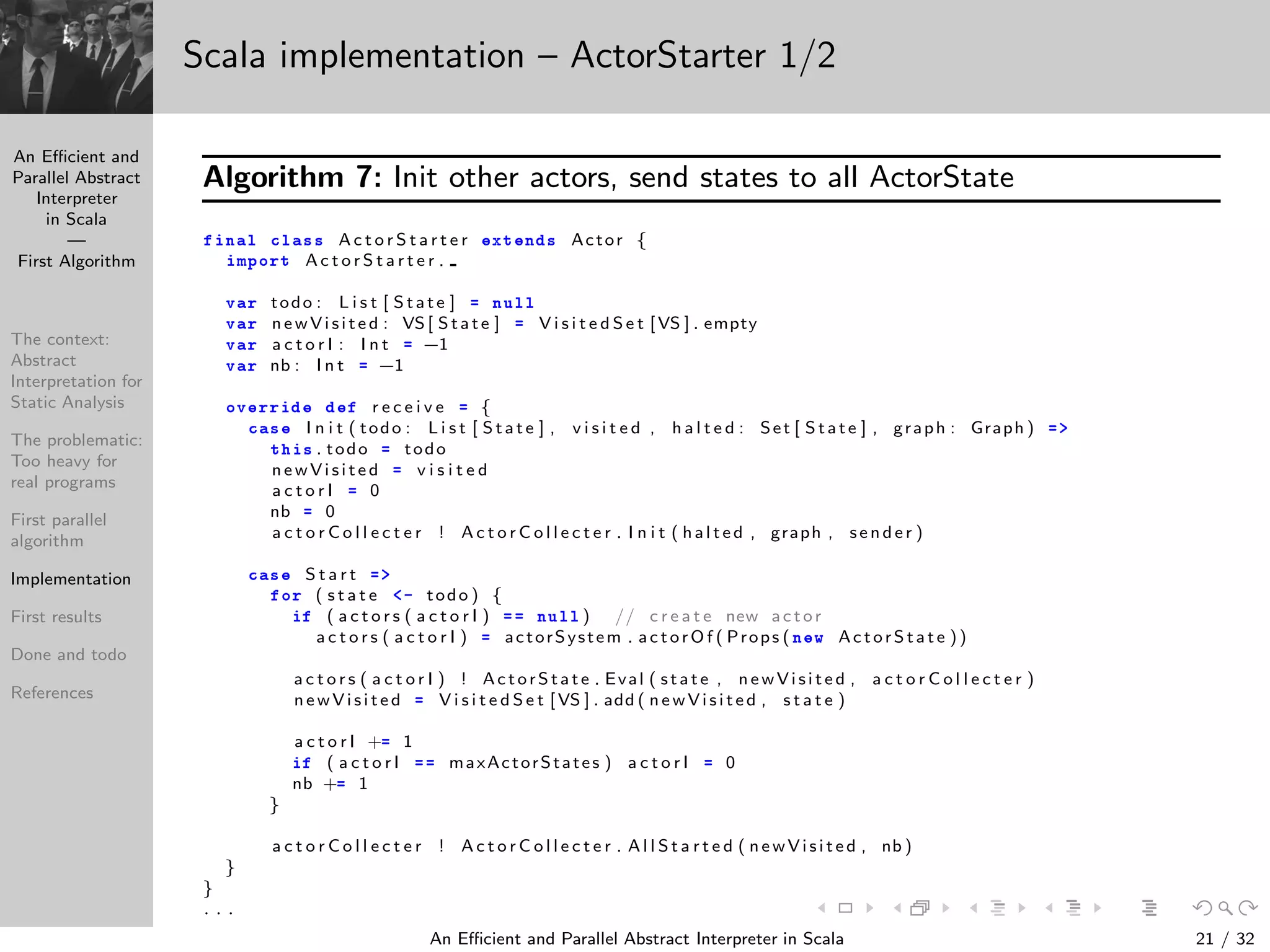

Scala implementation – ActorStarter 1/2
Algorithm 7: Init other actors, send states to all ActorState
Ò Ð
Ð ×× A c t o r S t a r t e r ÜØ Ò × Actor {
ÑÔÓÖØ A c t o r S t a r t e r .
Ú Ö todo : L i s t [ S tate ] ÒÙÐÐ
Ú Ö n e wVi si te d : VS [ S tate ] V i s i t e d S e t [VS ] . empty
Ú Ö a c t o r I : I n t −1
Ú Ö nb : I n t −1
ÓÚ ÖÖ r e c e i v e {

× I n i t ( todo : L i s t [ S tate ] , v i s i t e d , h a l t e d : Set [ S tate ] , graph : Graph )
Ø × . todo todo
n e wVi si te d v i s i t e d
a c t o r I 0
nb 0
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . I n i t ( h al te d , graph , se n d e r )

× S t a r t
ÓÖ ( s t a t e ¹ todo ) {
( a c t o r s ( a c t o r I ) ÒÙÐÐ ) // c r e a t e new ac tor
a c t o r s ( a c t o r I ) actorSystem . ac torO f ( Props ( Ò Û Ac torS tate ))
a c t o r s ( a c t o r I ) ! Ac torS tate . Eval ( state , n e wVi si te d , a c t o r C o l l e c t e r )
n e wVi si te d V i s i t e d S e t [VS ] . add ( n e wVi si te d , s t a t e )
a c t o r I + 1
( a c t o r I maxActorStates ) a c t o r I 0
nb + 1
}
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . A l l S t a r t e d ( n e wVi si te d , nb )
}
}
. . .

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

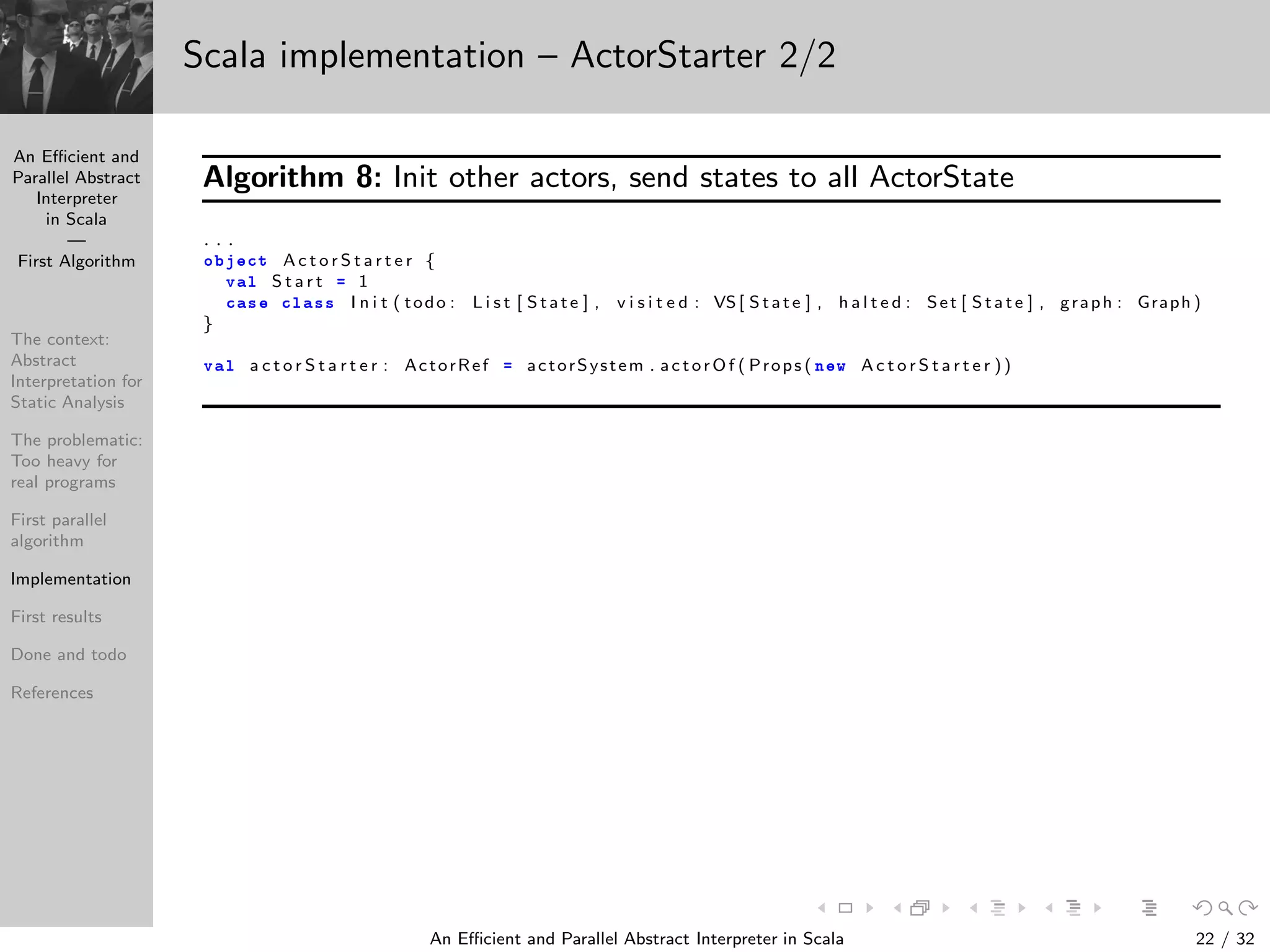

Scala implementation – ActorStarter 2/2
Algorithm 8: Init other actors, send states to all ActorState
. . .
Ó
Ø A c t o r S t a r t e r {
Ú Ð S t a r t 1

×
Ð ×× I n i t ( todo : L i s t [ S tate ] , v i s i t e d : VS [ S tate ] , h a l t e d : Set [ S tate ] , graph : Graph )
}
Ú Ð a c t o r S t a r t e r : ActorRef actorSystem . ac torO f ( Props ( Ò Û A c t o r S t a r t e r ))

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

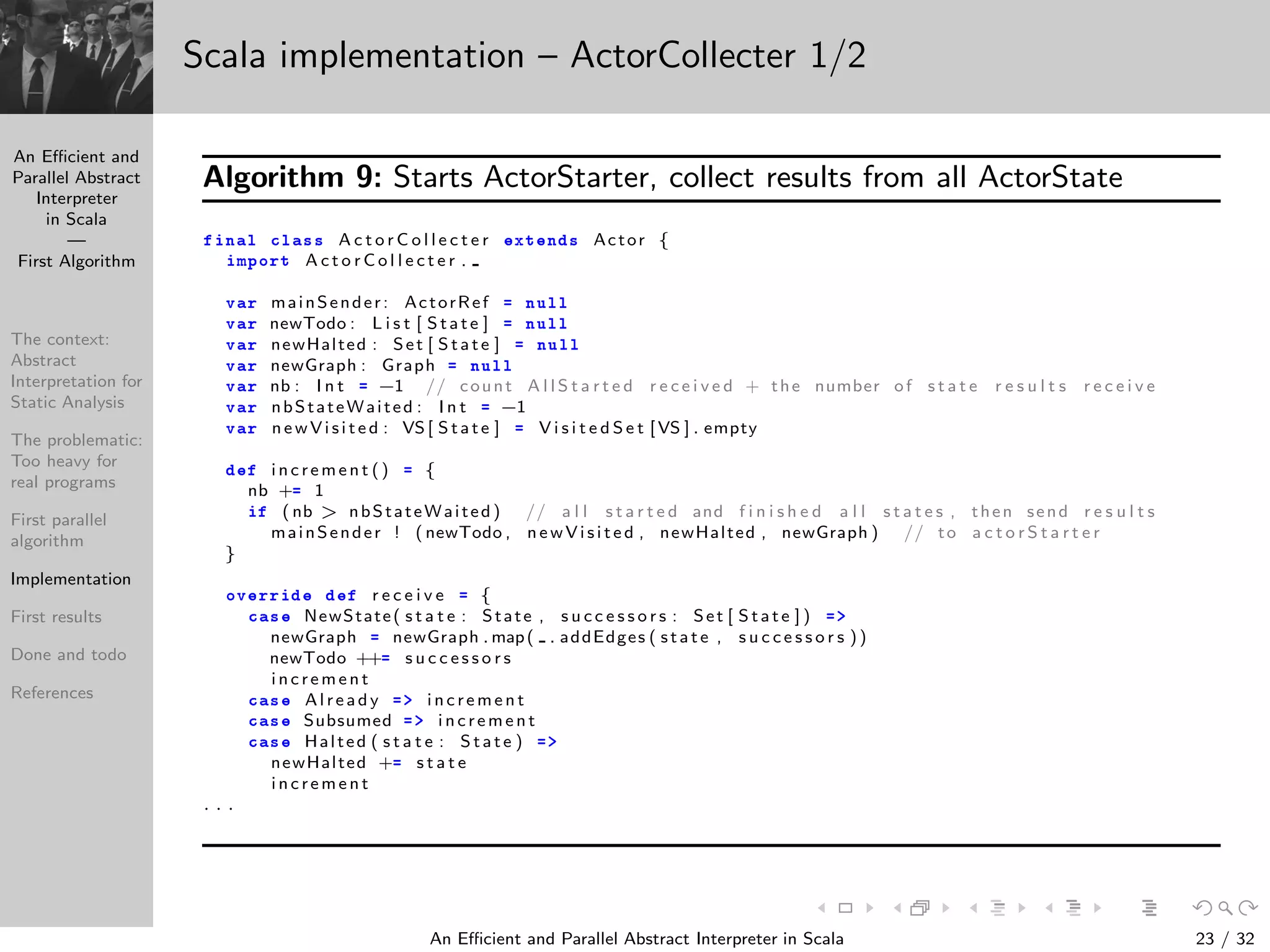

Scala implementation – ActorCollecter 1/2
Algorithm 9: Starts ActorStarter, collect results from all ActorState
Ò Ð
Ð ×× A c t o r C o l l e c t e r ÜØ Ò × Actor {
ÑÔÓÖØ A c t o r C o l l e c t e r .
Ú Ö mainSender: ActorRef ÒÙÐÐ
Ú Ö newTodo : L i s t [ S tate ] ÒÙÐÐ
Ú Ö newHalted : Set [ S tate ] ÒÙÐÐ
Ú Ö newGraph : Graph ÒÙÐÐ
Ú Ö nb : I n t −1 // count A l l S t a r t e d r e c e i v e d + the number of s t a t e r e s u l t s r e c e i v e
Ú Ö nbStateWaited : I n t −1
Ú Ö n e wVi si te d : VS [ S tate ] V i s i t e d S e t [VS ] . empty
i n c re me n t () {
nb + 1
( nb nbStateWaited ) // a l l s t a r t e d and f i n i s h e d a l l s t a t e s , then send r e s u l t s
mainSender ! ( newTodo , n e wVi si te d , newHalted , newGraph ) // to a c t o r S t a r t e r
}

× NewState( s t a t e : State , s u c c e s s o r s : Set [ S tate ] )
newGraph newGraph . map( . addEdges ( state , s u c c e s s o r s ))
newTodo ++ s u c c e s s o r s
i n c re me n t

× Al re ad y i n c re me n t

× Subsumed i n c re me n t

× Halted ( s t a t e : S tate )
newHalted + s t a t e
i n c re me n t
. . .

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

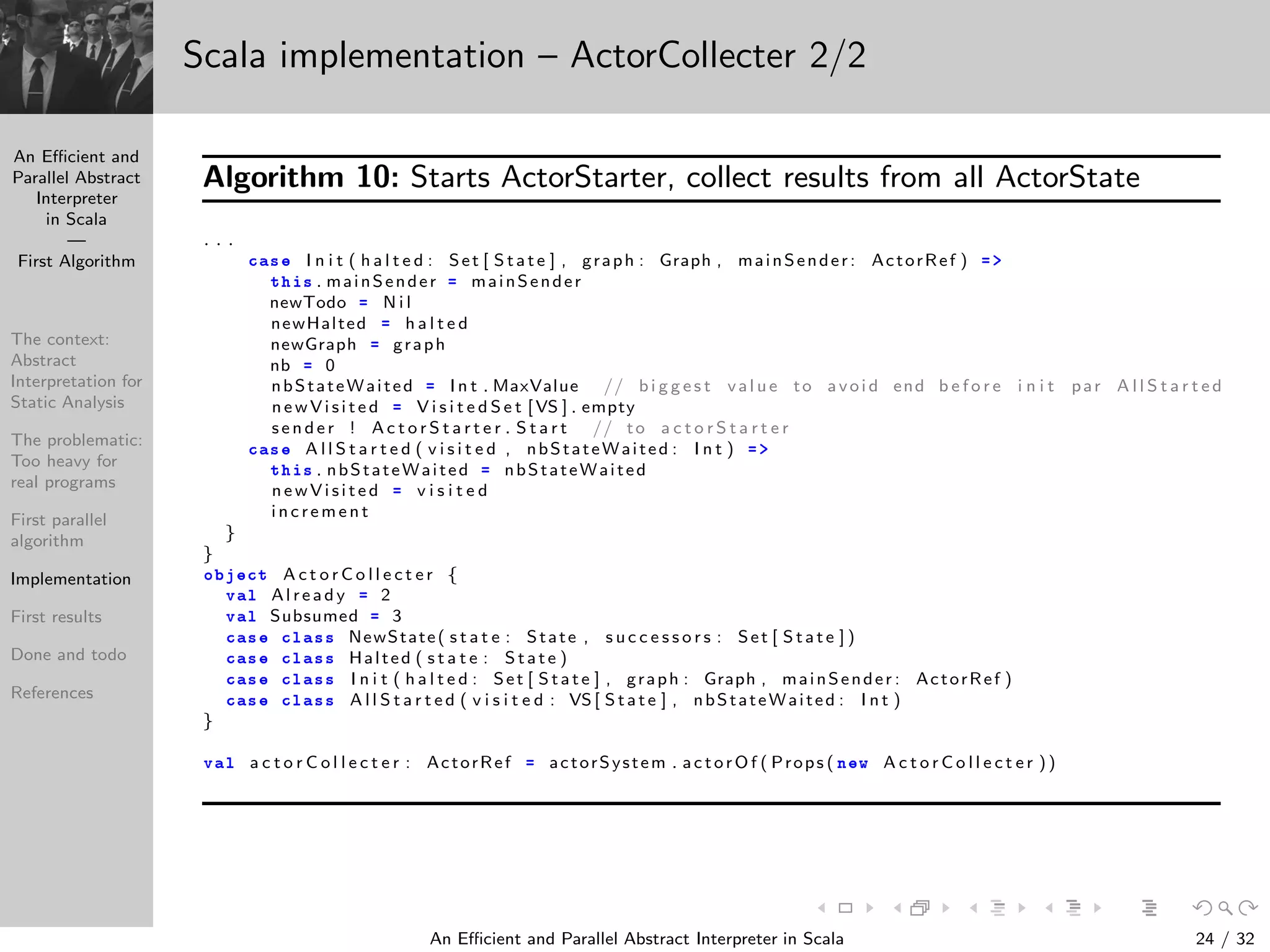

Scala implementation – ActorCollecter 2/2
Algorithm 10: Starts ActorStarter, collect results from all ActorState
. . .

× I n i t ( h a l t e d : Set [ S tate ] , graph : Graph , mainSender: ActorRef )
Ø × . mainSender mainSender
newTodo N i l
newHalted h a l t e d
newGraph graph
nb 0
nbStateWaited I n t . MaxValue // b i g g e s t val u e to avoi d end b e f o r e i n i t par A l l S t a r t e d
n e wVi si te d V i s i t e d S e t [VS ] . empty
se n d e r ! A c t o r S t a r t e r . S t a r t // to a c t o r S t a r t e r

× A l l S t a r t e d ( v i s i t e d , nbStateWaited : I n t )
Ø × . nbStateWaited nbStateWaited
n e wVi si te d v i s i t e d
i n c re me n t
}
}
Ó
Ø A c t o r C o l l e c t e r {
Ú Ð Al re ad y 2
Ú Ð Subsumed 3

×
Ð ×× NewState( s t a t e : State , s u c c e s s o r s : Set [ S tate ] )

×
Ð ×× Halted ( s t a t e : S tate )

×
Ð ×× I n i t ( h a l t e d : Set [ S tate ] , graph : Graph , mainSender : ActorRef )

×
Ð ×× A l l S t a r t e d ( v i s i t e d : VS [ S tate ] , nbStateWaited : I n t )
}
Ú Ð a c t o r C o l l e c t e r : ActorRef actorSystem . ac torO f ( Props ( Ò Û A c t o r C o l l e c t e r ))

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

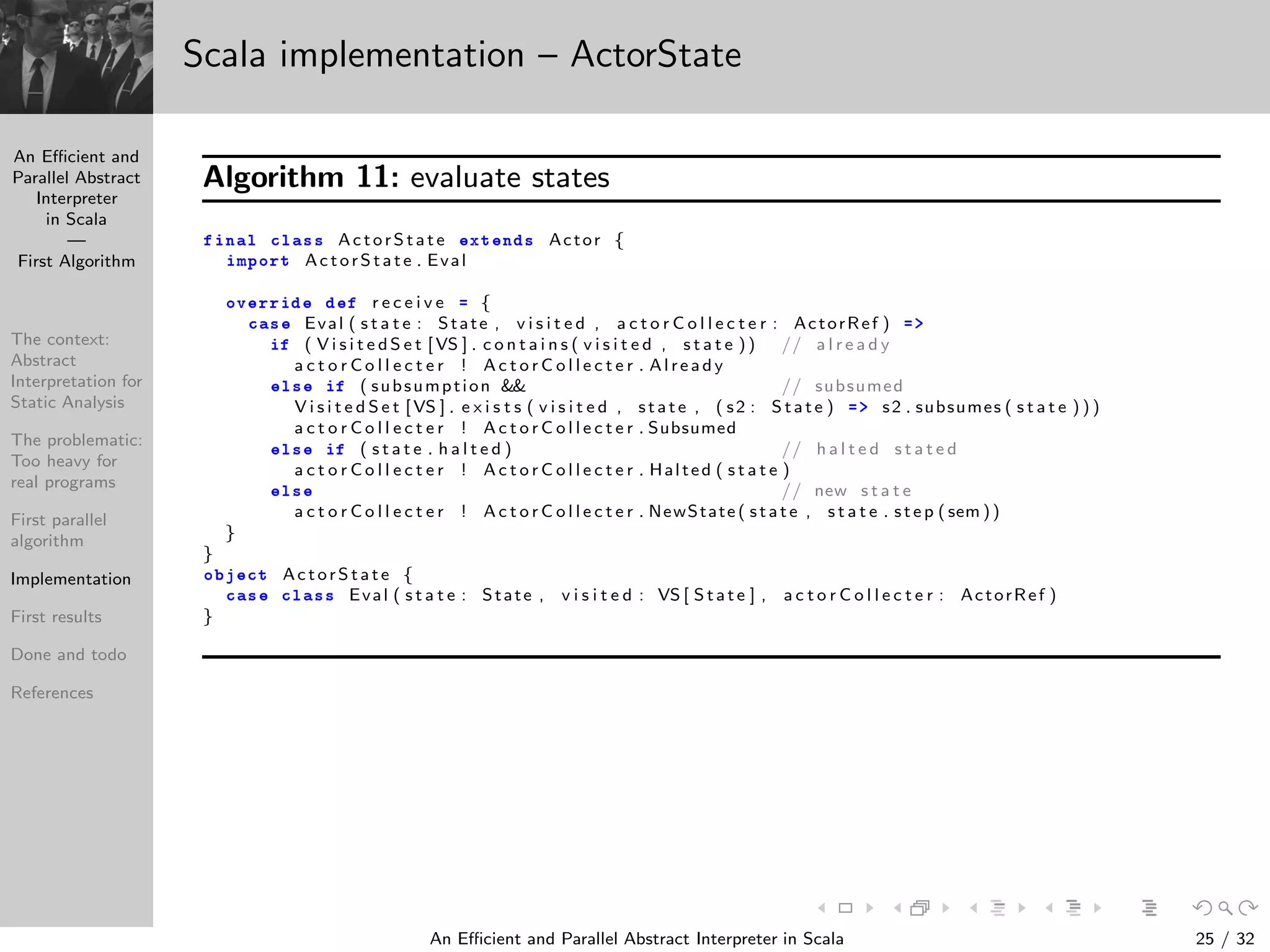

Scala implementation – ActorState
Algorithm 11: evaluate states
Ò Ð
Ð ×× Ac torS tate ÜØ Ò × Actor {
ÑÔÓÖØ Ac torS tate . Eval

× Eval ( s t a t e : State , v i s i t e d , a c t o r C o l l e c t e r : ActorRef )
( V i s i t e d S e t [VS ] . c o n t a i n s ( v i s i t e d , s t a t e )) // a l r e a d y
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . Al re ad y
Ð× ( subsumption // subsumed
V i s i t e d S e t [VS ] . e x i s t s ( v i s i t e d , state , ( s2 : S tate ) s2 . subsumes ( s t a t e ) ) )
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . Subsumed
Ð× ( s t a t e . h a l t e d ) // h a l t e d s t a t e d
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . Halted ( s t a t e )
Ð× // new s t a t e
a c t o r C o l l e c t e r ! A c t o r C o l l e c t e r . NewState ( state , s t a t e . ste p ( sem ))
}
}
Ó
Ø Ac torS tate {

×
Ð ×× Eval ( s t a t e : State , v i s i t e d : VS [ S tate ] , a c t o r C o l l e c t e r : ActorRef )
}

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

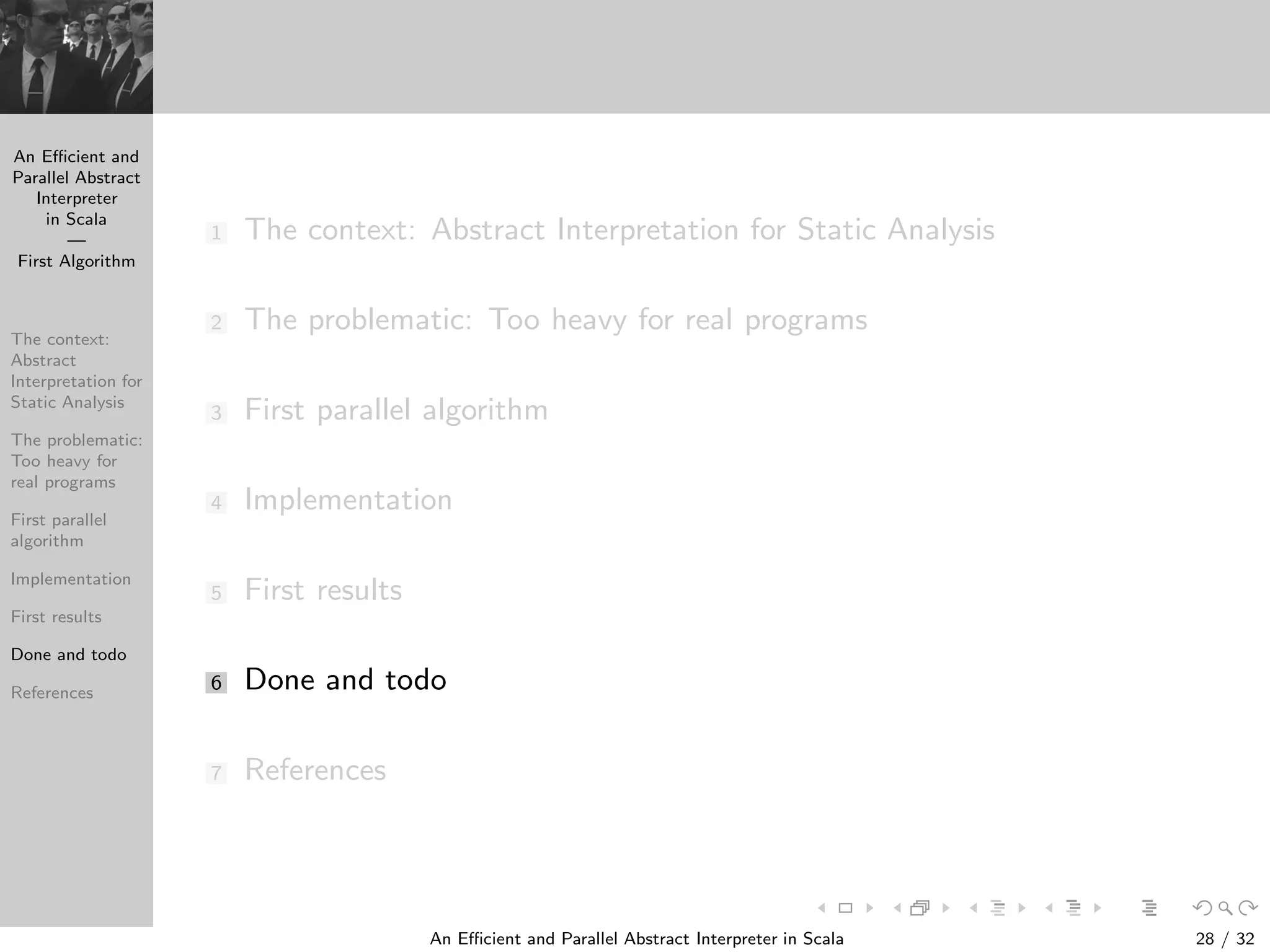

4 Implementation
5 First results
6 Done and todo

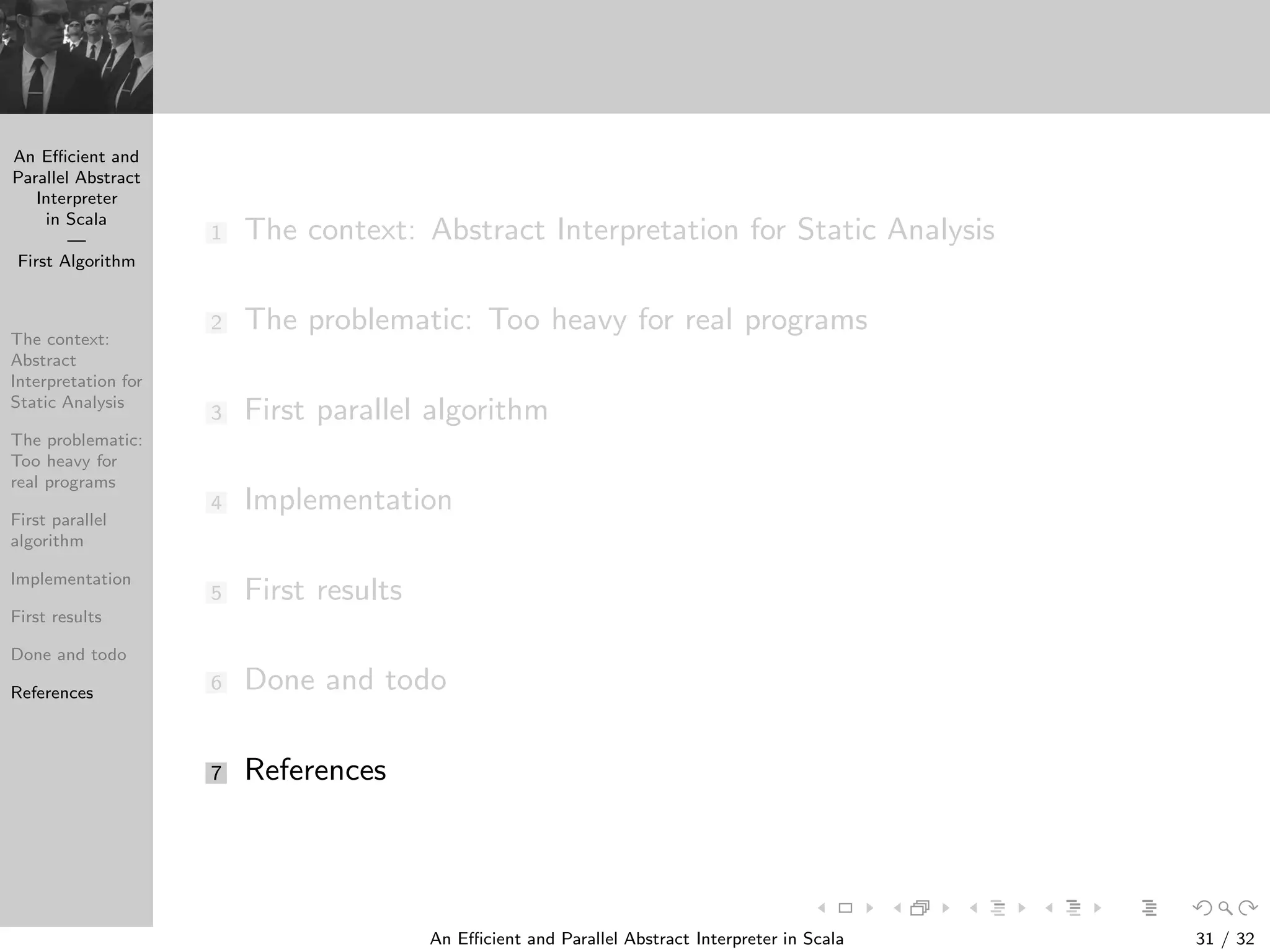

7 References

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

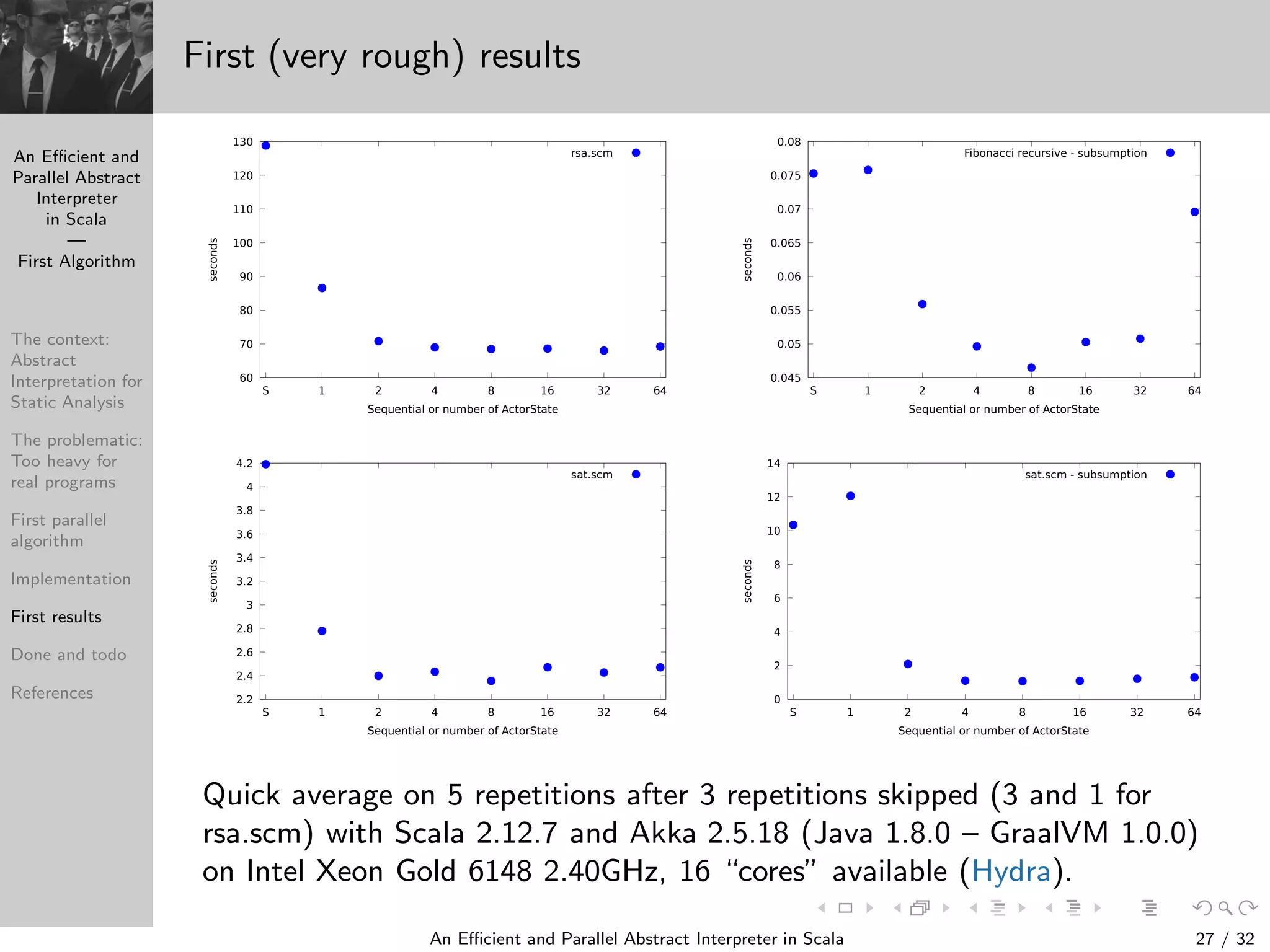

First (very rough) results
60
70
80
90
100
110
120
130
S 1 2 4 8 16 32 64
seconds
Sequential or number of ActorState
rsa.scm
0.045
0.05
0.055
0.06
0.065
0.07
0.075
0.08
S 1 2 4 8 16 32 64
seconds
Fibonacci recursive - subsumption
2.2
2.4
2.6
2.8
3
3.2
3.4
3.6
3.8
4
4.2
S 1 2 4 8 16 32 64
seconds
sat.scm
0
2
4
6
8
10
12
14
S 1 2 4 8 16 32 64
seconds
sat.scm - subsumption
Quick average on 5 repetitions after 3 repetitions skipped (3 and 1 for
rsa.scm) with Scala 2.12.7 and Akka 2.5.18 (Java 1.8.0 – GraalVM 1.0.0)
on Intel Xeon Gold 6148 2.40GHz, 16 “cores” available (Hydra).

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
4 Implementation
5 First results
6 Done and todo
7 References

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

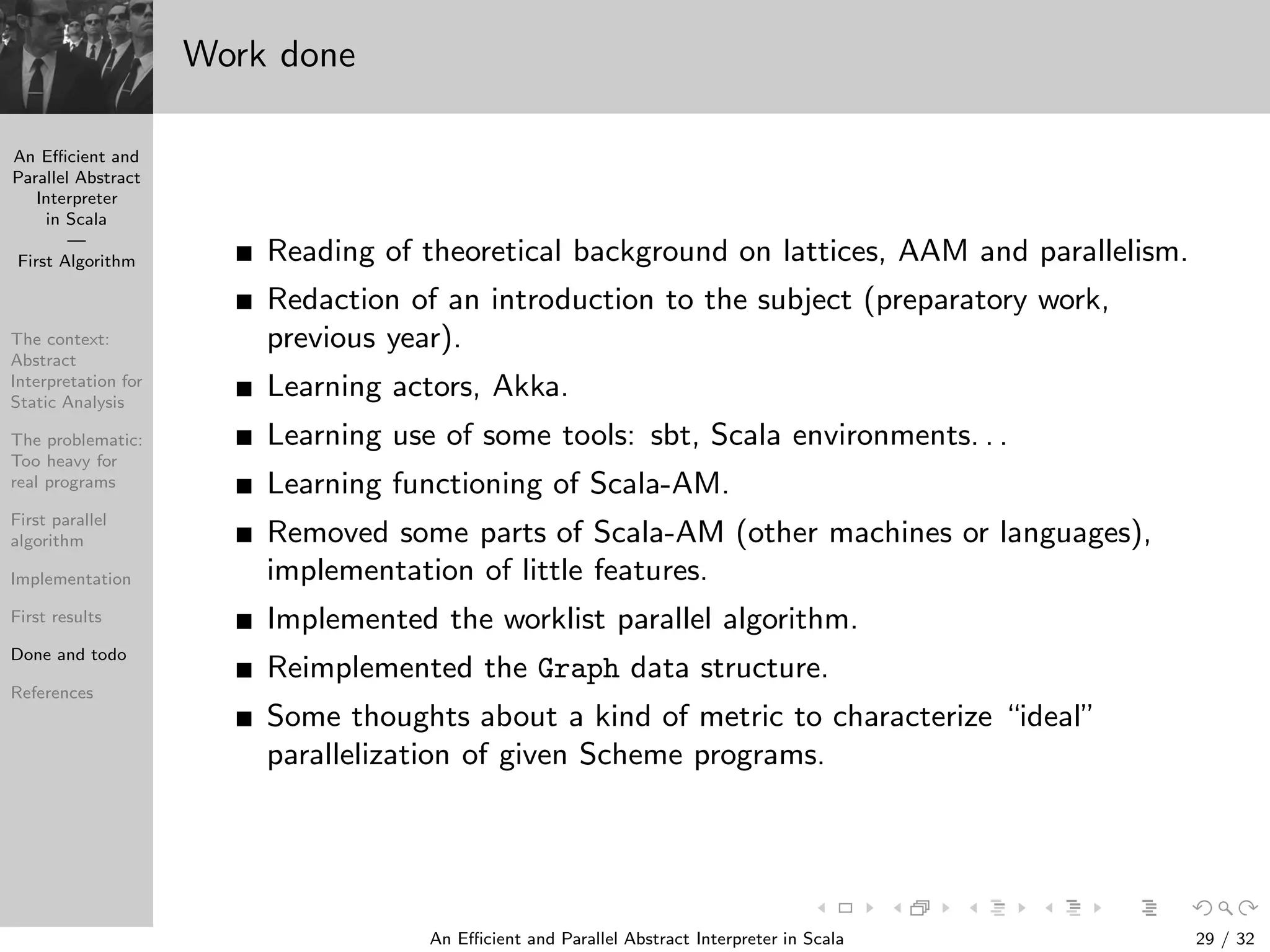

Work done
Reading of theoretical background on lattices, AAM and parallelism.
Redaction of an introduction to the subject (preparatory work,
previous year).
Learning actors, Akka.
Learning use of some tools: sbt, Scala environments. . .
Learning functioning of Scala-AM.
Removed some parts of Scala-AM (other machines or languages),
implementation of little features.
Implemented the worklist parallel algorithm.
Reimplemented the Graph data structure.
Some thoughts about a kind of metric to characterize “ideal”
parallelization of given Scheme programs.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

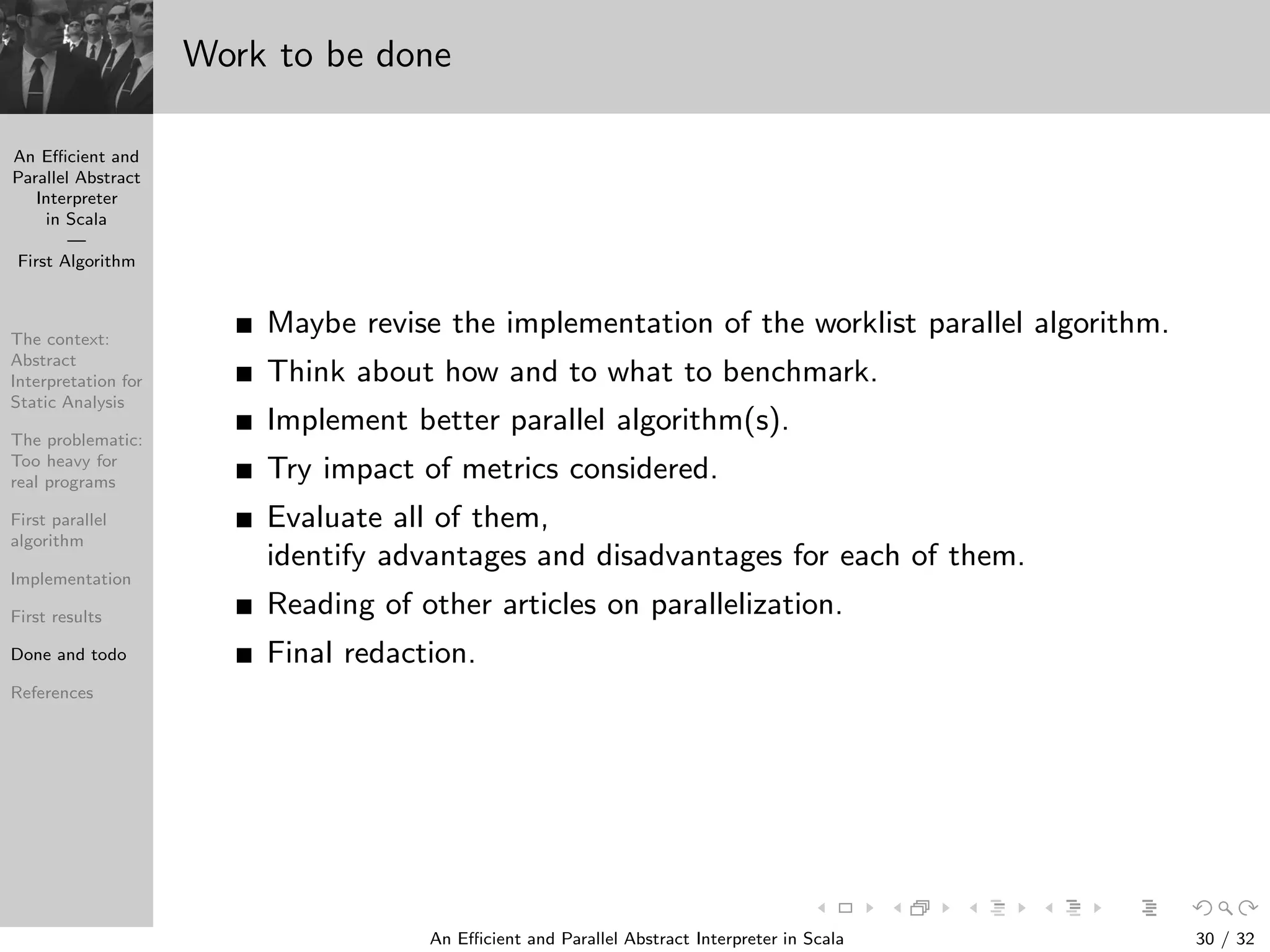

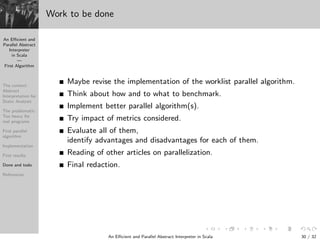

Work to be done
Maybe revise the implementation of the worklist parallel algorithm.
Think about how and to what to benchmark.
Implement better parallel algorithm(s).
Try impact of metrics considered.
Evaluate all of them,
identify advantages and disadvantages for each of them.
Reading of other articles on parallelization.
Final redaction.

An Eﬃcient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References
4 Implementation
5 First results
6 Done and todo
7 References

An Efficient and
Parallel Abstract
Interpreter
in Scala
—
First Algorithm
The context:
Abstract
Interpretation for
Static Analysis
The problematic:
Too heavy for
real programs
First parallel
algorithm
Implementation
First results
Done and todo
References

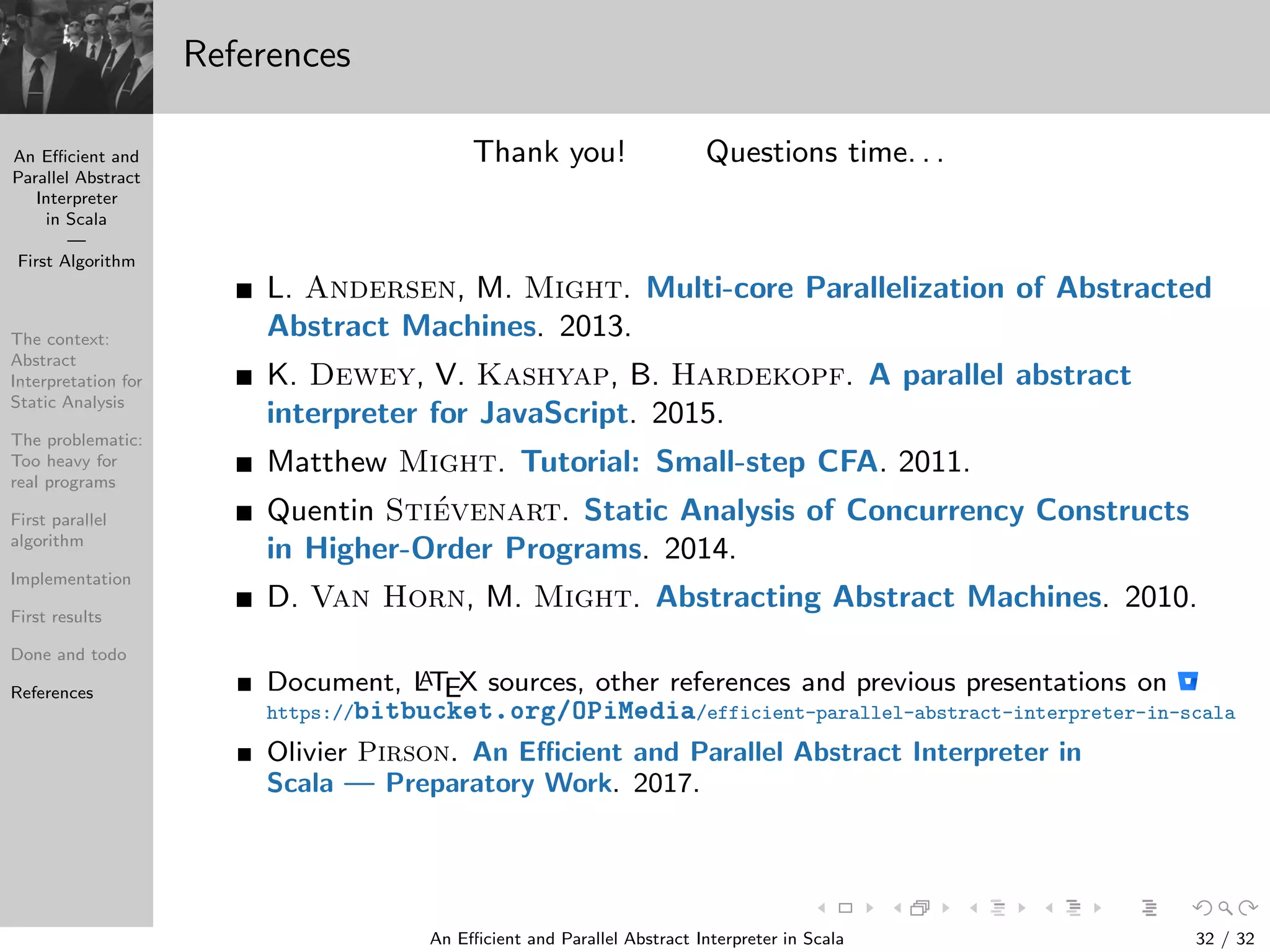

References
Thank you! Questions time. . .
L. Andersen, M. Might. Multi-core Parallelization of Abstracted
Abstract Machines. 2013.
K. Dewey, V. Kashyap, B. Hardekopf. A parallel abstract
interpreter for JavaScript. 2015.
Matthew Might. Tutorial: Small-step CFA. 2011.
Quentin Stiévenart. Static Analysis of Concurrency Constructs
in Higher-Order Programs. 2014.
D. Van Horn, M. Might. Abstracting Abstract Machines. 2010.
Document, LATEX sources, other references and previous presentations on
https:// Ø Ù
ØºÓÖ »ÇÈ Å /efficient-parallel-abstract-interpreter-in-scala
Olivier Pirson. An Efficient and Parallel Abstract Interpreter in
Scala — Preparatory Work. 2017.

An Efficient and Parallel Abstract Interpreter in Scala — First Algorithm

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to An Efficient and Parallel Abstract Interpreter in Scala — First Algorithm

Similar to An Efficient and Parallel Abstract Interpreter in Scala — First Algorithm (20)

More from 🌳 Olivier Pirson — OPi 🇧🇪🇫🇷🇬🇧 🐧 👨‍💻 👨‍🔬

More from 🌳 Olivier Pirson — OPi 🇧🇪🇫🇷🇬🇧 🐧 👨‍💻 👨‍🔬 (6)

Recently uploaded

Recently uploaded (20)

An Efficient and Parallel Abstract Interpreter in Scala — First Algorithm
