Axway's presentation focuses on their highly available distributed architecture (HADA), designed to ensure fault-tolerant service and data availability for their MFT gateway product, SecureTransport. The HADA aims to enhance user experience through capabilities like zero downtime, failover/recovery, and scalable data exchange across multiple data centers. Key developments and timelines are outlined, highlighting improvements in support for Kubernetes, multi-cluster capabilities, and centralized tracking for enhanced performance and reliability by 2019.

1. imaginesummits.com
Continuous Service Availability
Chandu MANDA

2. axway.comaxway.com

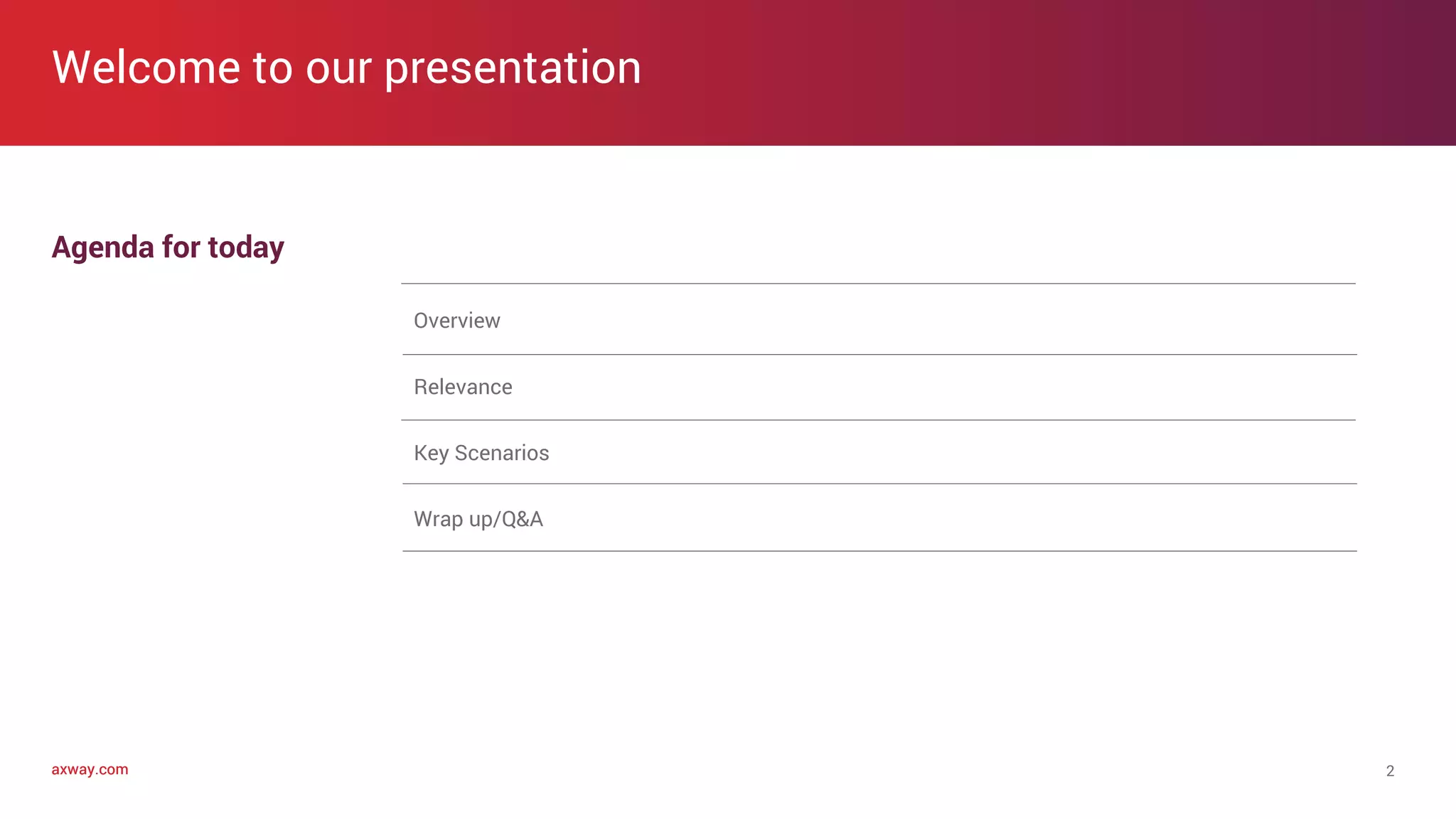

Welcome to our presentation
Overview
Relevance
Key Scenarios
Wrap up/Q&A
Agenda for today
2

3. axway.com
Image Courtesy: Chattanooga Times Free Press, Artist: Clay Bennett

4. axway.com

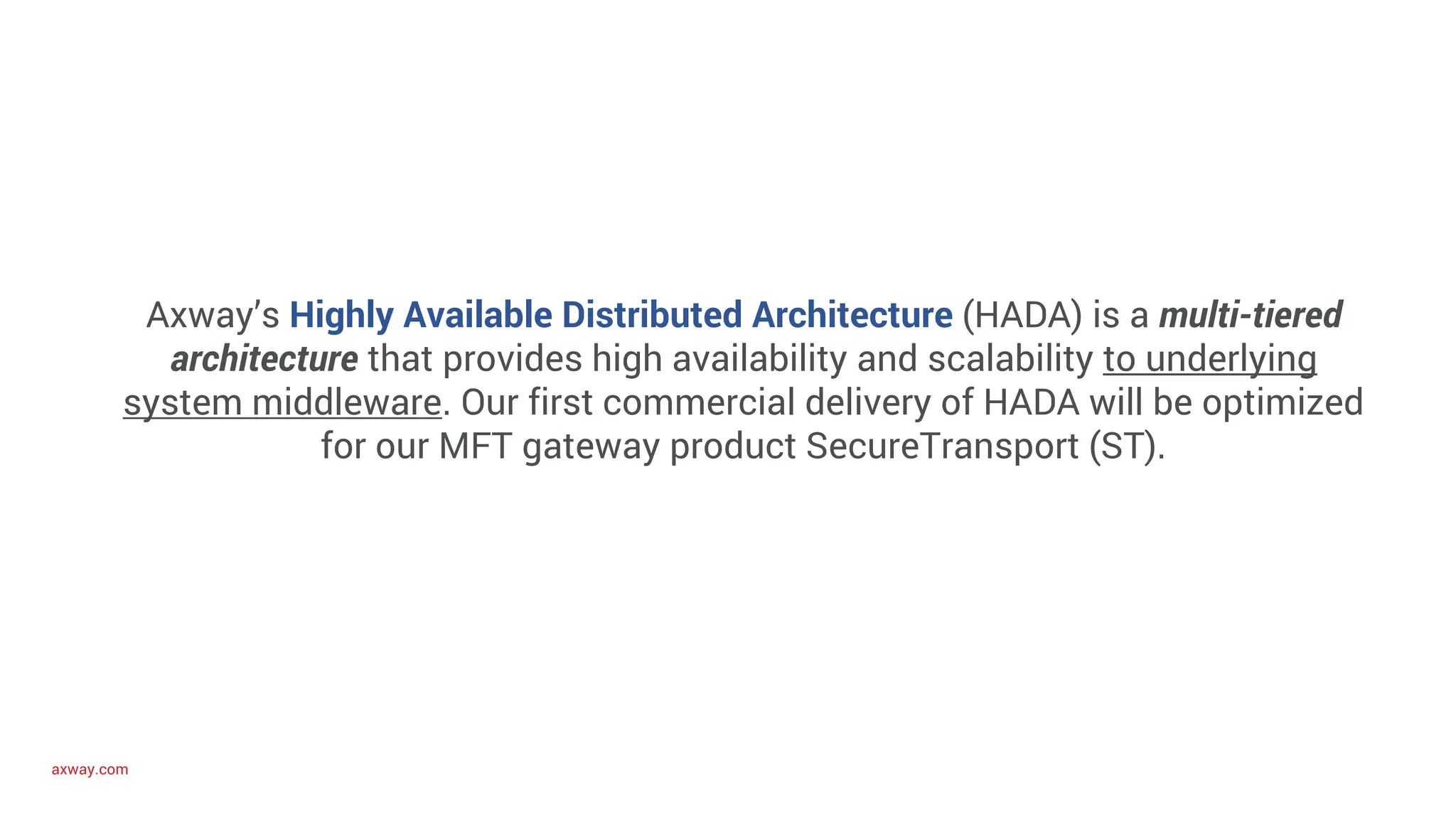

Axway’s Highly Available Distributed Architecture (HADA) is a multi-tiered
architecture that provides high availability and scalability to underlying
system middleware. Our first commercial delivery of HADA will be optimized
for our MFT gateway product SecureTransport (ST).

5. axway.comaxway.com

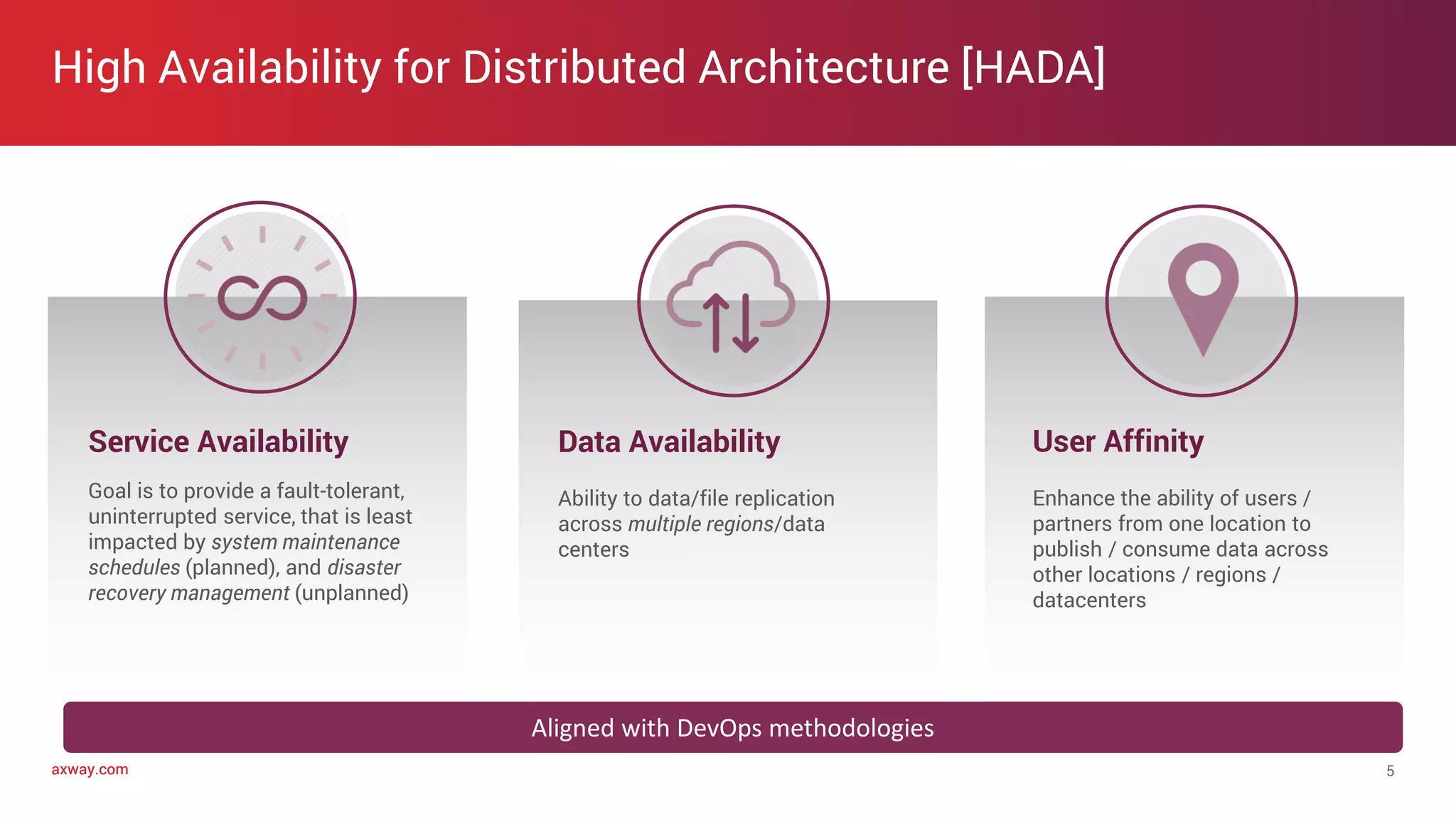

Service Availability
Goal is to provide a fault-tolerant,
uninterrupted service, that is least
impacted by system maintenance
schedules (planned), and disaster
recovery management (unplanned)
Data Availability
Ability to data/file replication
across multiple regions/data
centers
User Affinity
Enhance the ability of users /
partners from one location to
publish / consume data across
other locations / regions /
datacenters
High Availability for Distributed Architecture [HADA]
5
Aligned with DevOps methodologies

6. axway.comaxway.com

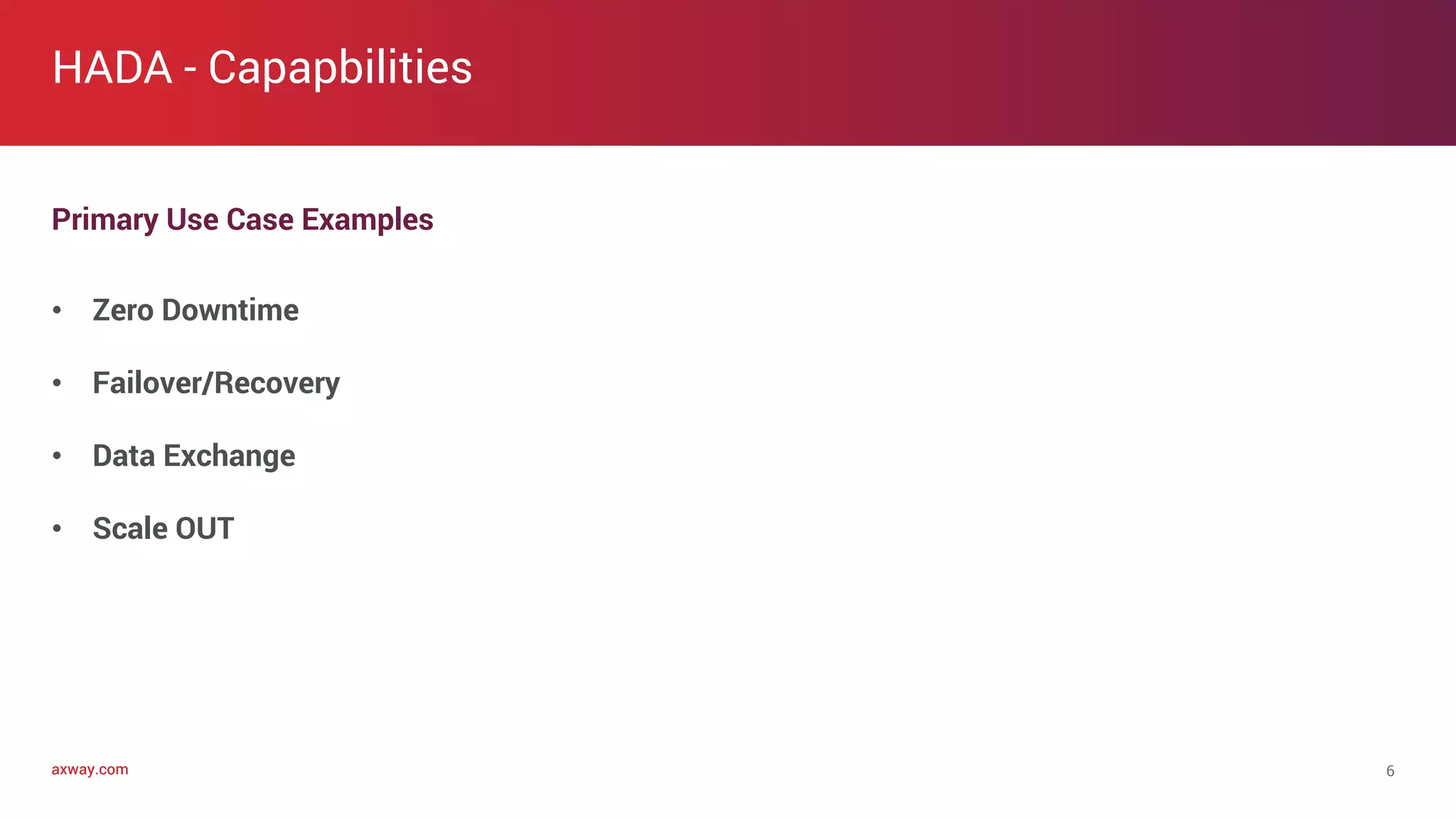

Primary Use Case Examples
• Zero Downtime
• Failover/Recovery
• Data Exchange
• Scale OUT
HADA - Capapbilities
6

7. axway.comaxway.com

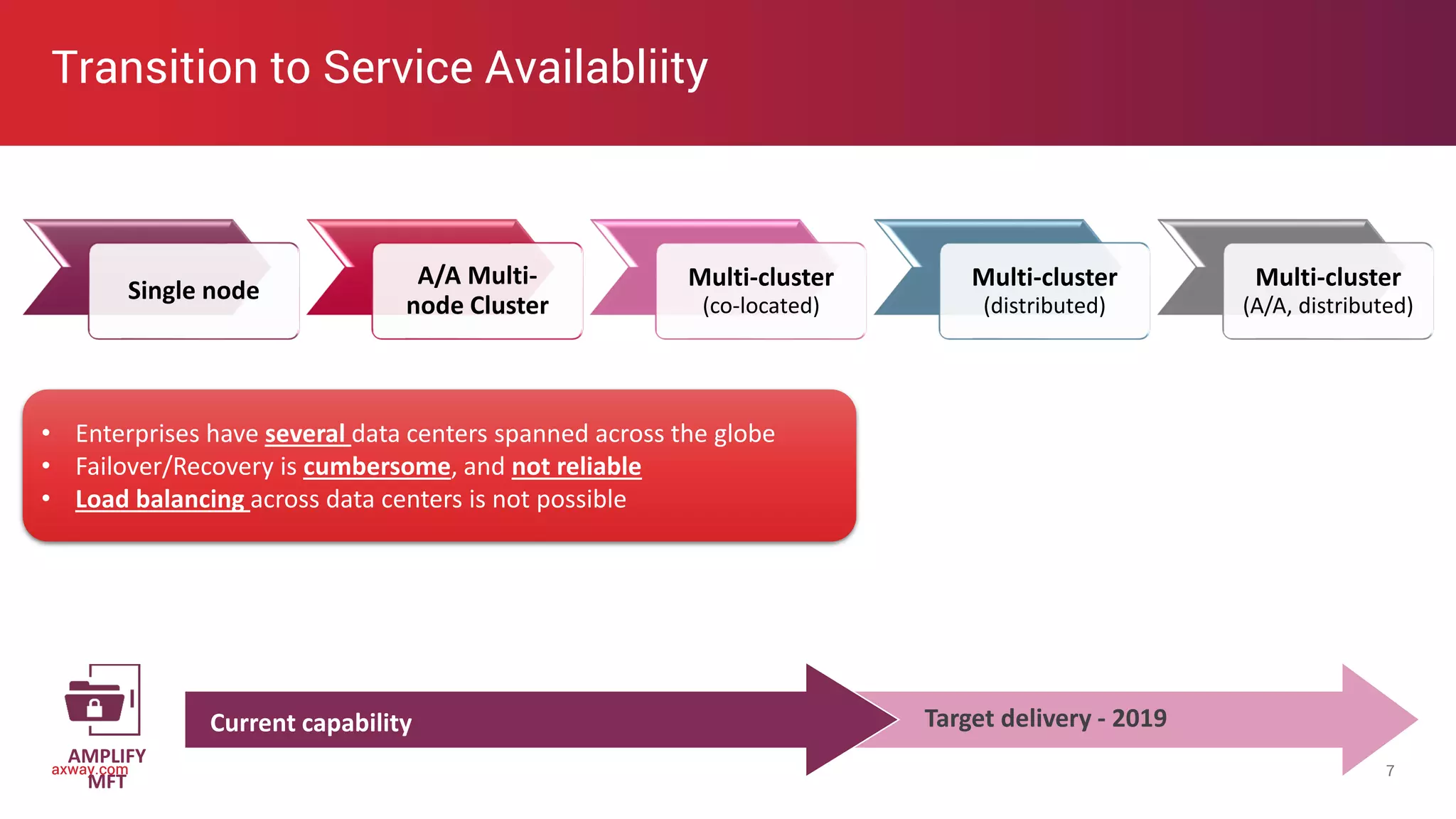

Transition to Service Availabliity
7
Target delivery - 2019
AMPLIFY
MFT
Current capability
Single node
A/A Multi-
node Cluster
Multi-cluster
(co-located)
Multi-cluster
(distributed)
Multi-cluster
(A/A, distributed)
• Enterprises have several data centers spanned across the globe
• Failover/Recovery is cumbersome, and not reliable
• Load balancing across data centers is not possible

8. axway.comaxway.com

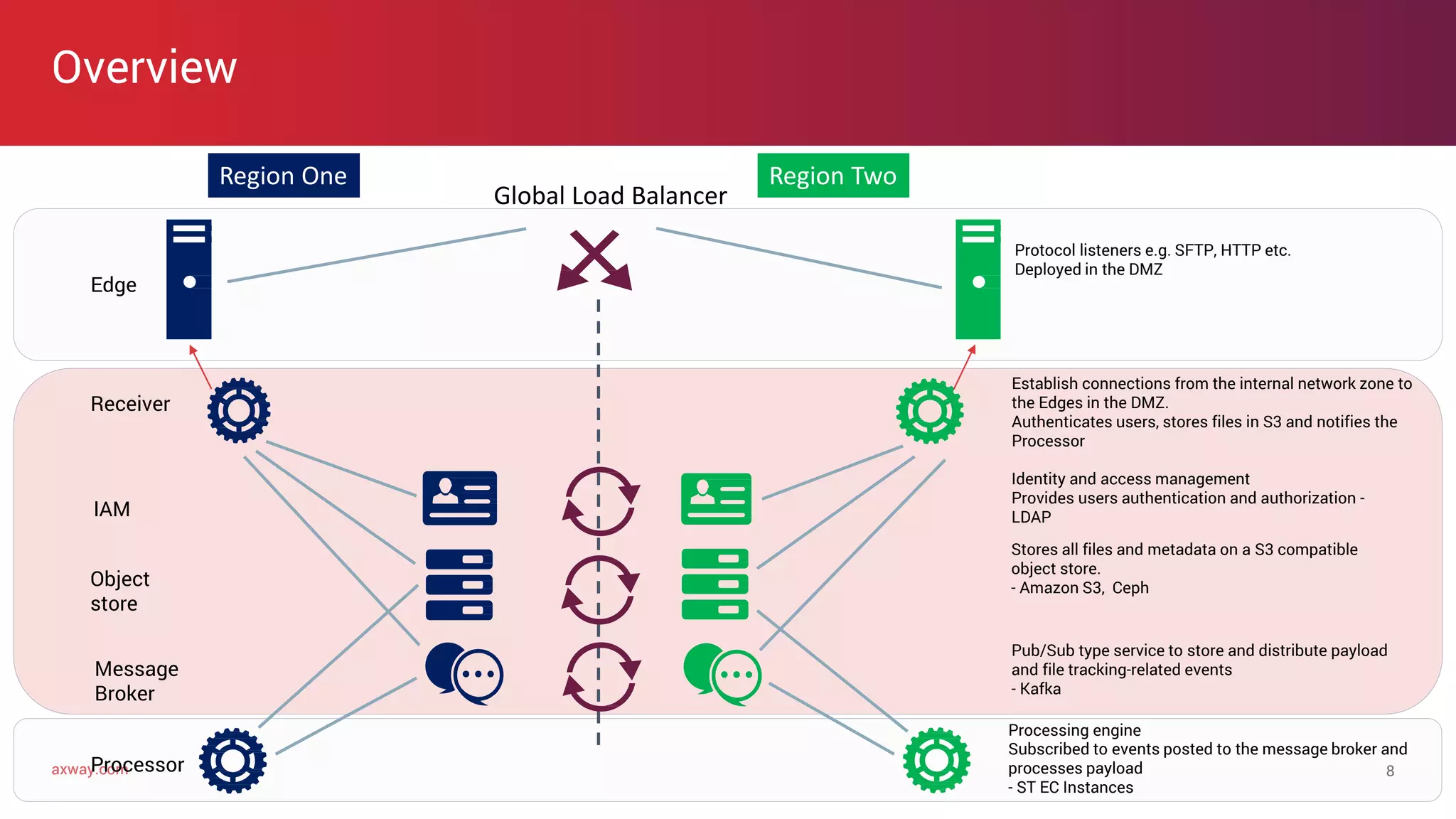

Overview
8
Edge
IAM
Object
store
Message
Broker
Processor
Receiver
Stores all files and metadata on a S3 compatible
object store.
- Amazon S3, Ceph
Protocol listeners e.g. SFTP, HTTP etc.
Deployed in the DMZ
Establish connections from the internal network zone to
the Edges in the DMZ.
Authenticates users, stores files in S3 and notifies the
Processor
Pub/Sub type service to store and distribute payload
and file tracking-related events
- Kafka
Processing engine
Subscribed to events posted to the message broker and
processes payload
- ST EC Instances
Identity and access management
Provides users authentication and authorization -
LDAP
Global Load Balancer
Region One Region Two

9. axway.comaxway.com

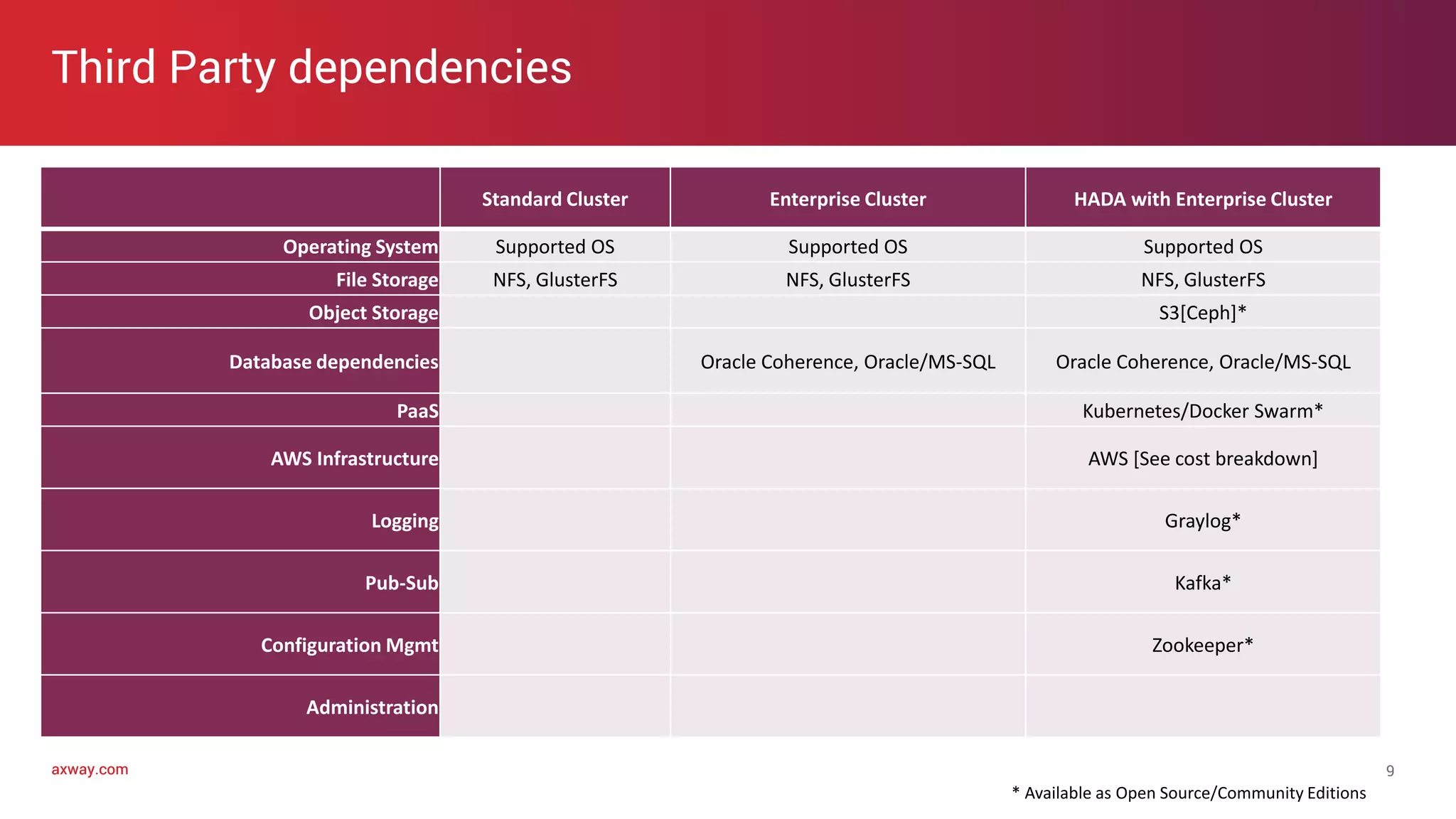

Third Party dependencies
9
Standard Cluster Enterprise Cluster HADA with Enterprise Cluster
Operating System Supported OS Supported OS Supported OS
File Storage NFS, GlusterFS NFS, GlusterFS NFS, GlusterFS
Object Storage S3[Ceph]*
Database dependencies Oracle Coherence, Oracle/MS-SQL Oracle Coherence, Oracle/MS-SQL
PaaS Kubernetes/Docker Swarm*
AWS Infrastructure AWS [See cost breakdown]
Logging Graylog*
Pub-Sub Kafka*
Configuration Mgmt Zookeeper*
Administration
* Available as Open Source/Community Editions

10. axway.comaxway.com
Capabilities
10
Zero Downtime Failover/Recovery Data Exchange Scale OUT

11. axway.comaxway.com

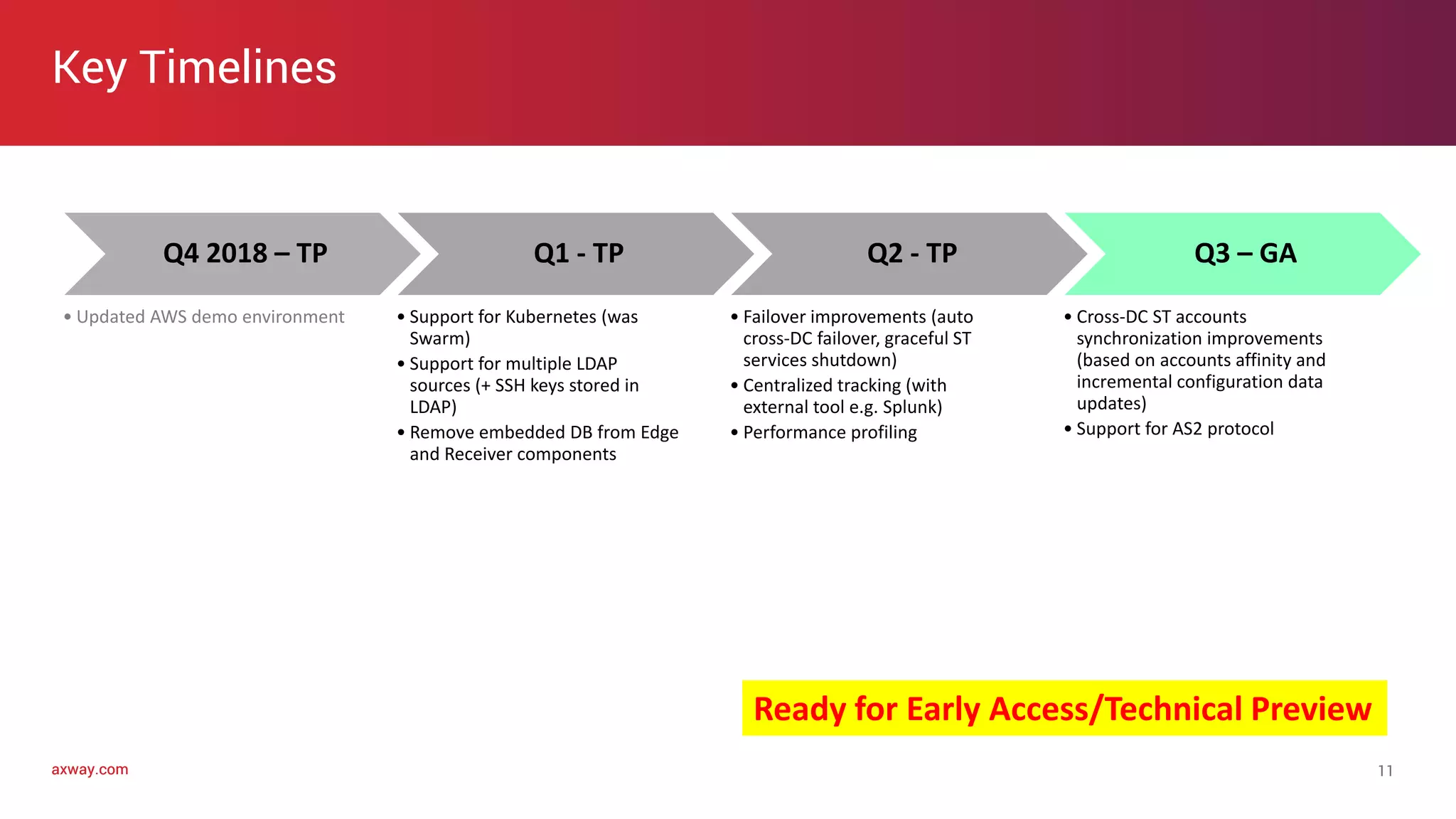

Key Timelines
11
Q4 2018 – TP
• Updated AWS demo environment
Q1 - TP
• Support for Kubernetes (was
Swarm)
• Support for multiple LDAP
sources (+ SSH keys stored in
LDAP)
• Remove embedded DB from Edge
and Receiver components
Q2 - TP
• Failover improvements (auto
cross-DC failover, graceful ST
services shutdown)
• Centralized tracking (with
external tool e.g. Splunk)
• Performance profiling
Q3 – GA
• Cross-DC ST accounts
synchronization improvements
(based on accounts affinity and
incremental configuration data
updates)
• Support for AS2 protocol
Ready for Early Access/Technical Preview

12. axway.comaxway.com

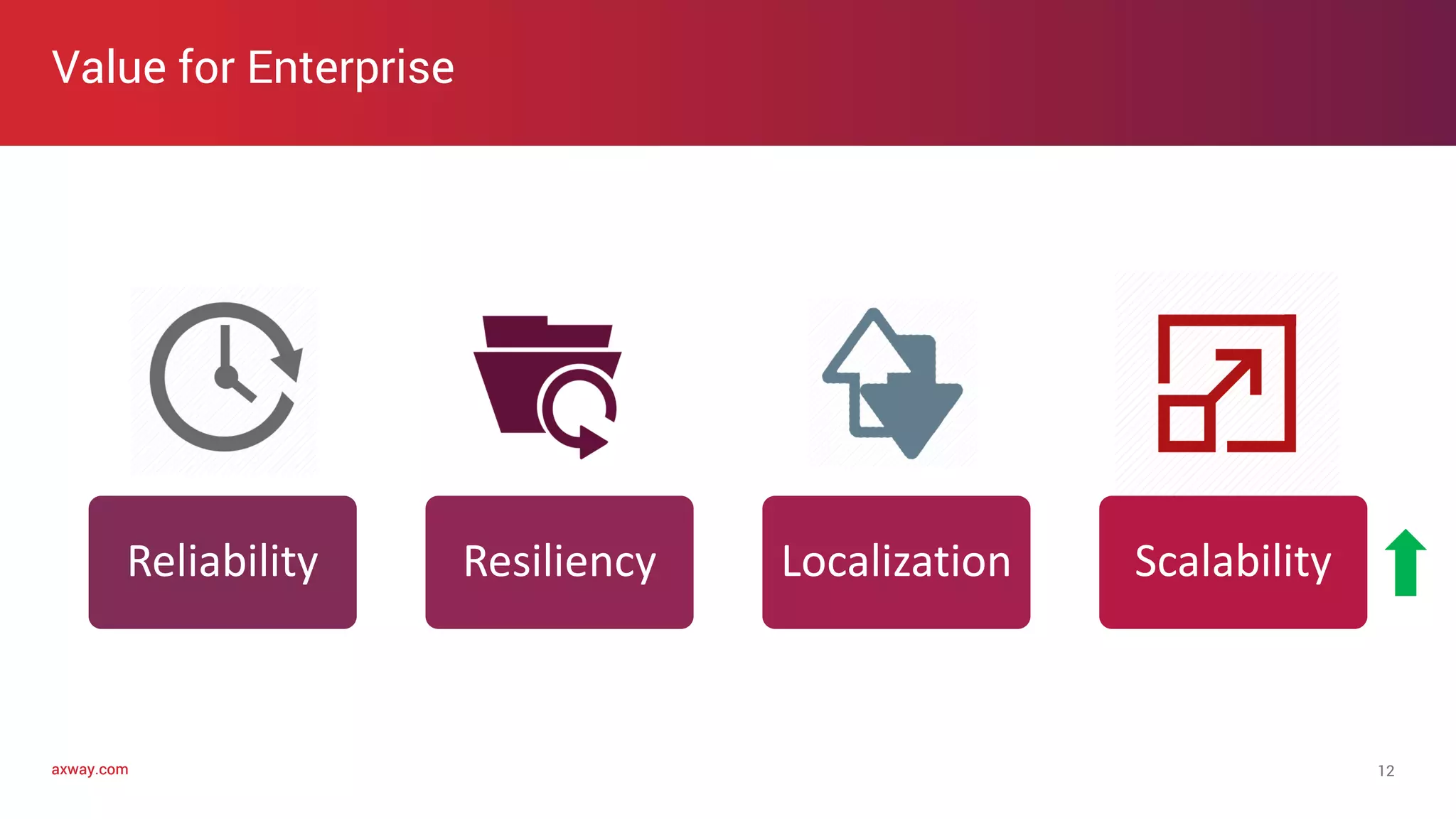

Value for Enterprise
12
Reliability Resiliency Localization Scalability

13. © 2019 Axway | CONFIDENTIAL
Thank You
