1. API Management
Microservices
beyond HIP

2. 2
INTRODUCTION
MICROSERVICE
APPROACH
Q&A
API MANAGEMENT
BRIEF UPDATE
1
2
3
4
5
Agenda
HOW AXWAY EMPOWERS
MICROSERVICES
GOVERNANCE

3. API Management brief update

4. 4
API Management is a pillar in Digital value chain
Explosion of APIsExplosion of API
Consumers Monitoring
Governance
Applications
Ecosystems
Micro-
Services
Ecosystems
Dev
Portal
API
Catalog
API
Enablement
Threat
Protection Security
Micro-
Services

5. Leverage API Gateway to API Management
5
REST
Traditional IT
Services
• Self-service
• Discover & Try
• Support
REST
API Builder
REST
API PublishAPI Disco&Consume
Big
data
social
IOT
• Predictive Insights
• Identitication of abonormal situations
Embedded
Analytics
• Qos
• Security
• Monitoring
• Embedded oAuth
• Lifecycle Mgmt.
• API Catalog
• Partner mgmt.
• Quotas
API Management
Extended IT
MEASURE
API Enablement
API Portal
NATIVE API
• Virtualization
• API Creation
• Model Driven & API FirstAPI Gateway

6. 6
Keys benefits for Axway API Management
Multi form factorsMulti form factorsIndependant Software
vendor with proven tracks
+150Ref. over last 3 years in Europe
Major Top500 Companies
Security PedigreeSecurity Pedigree Full API lifecycle stackFull API lifecycle stack

7. 7
The next episode is on the Way! Have you said Microservices?

8. Microservices approach

9. 9
What is a microservice?
“Loosely coupled
autonomous
service oriented
architecture with
bounded contexts”
Microservices are variants of APIs

10. 0
20
40
60
80
100
120
2004-01
2004-05
2004-09
2005-01
2005-05
2005-09
2006-01
2006-05
2006-09
2007-01
2007-05
2007-09
2008-01
2008-05
2008-09
2009-01
2009-05
2009-09
2010-01
2010-05
2010-09
2011-01
2011-05
2011-09
2012-01
2012-05
2012-09
2013-01
2013-05
2013-09
2014-01
2014-05
2014-09
2015-01
2015-05
2015-09
2016-01
2016-05
2016-09
2017-01
2017-05
2017-09
2018-01
2018-05
2018-09
2019-01

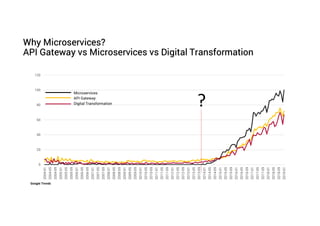

Why Microservices?
API Gateway vs Microservices vs Digital Transformation
Google Trends
?
Microservices
API Gateway
Digital Transformation

11. The technology is mature:
containerization enables fined
grained services at the right
scale
IT services sprawl over the
traditional boundaries and
towards cloud
Because they can be deployed
everywhere, services, to be
efficient are requested to be
cloud native driven
Business lines need more and
more agility of their IT to
rapidly adapt to the changes
in their ecosystem
Agility
Why now Microservices?

12. A Microservice is simple as a concept BUT
Microservice architecture is complex!

13. 13
The Challenges for Microservices
DevOps readiness
Monitoring and Governance Distributed, resilient infra for
autonomous Microservices
Microservices Security

14. 14
North-Southtrafficmanagement
Traditional Governance challenge for API Management:
North-South Governance
API ManagementEdge API Gateway
API Enablement,
Orchestration & Mediation
Apps

15. 15
Challenge for Microservices Governance: monitor East-
West traffic
API Management
Monitoring
Microservices
Registry
Build &
orchestrate
API
Catalog
Policy
Library
Producti-
zation
Client
Registry
&Portal
Ground
Orchestration
Domain
Edge
Domain
Edge
East West traffic management(hybrid deployments)
External Edge
Gateway
Control plane
Service Mesh
Apps

16. How Axway empowers
Microservices Governance

17. 17
The vision
“Simplify and accelerate how organizations build, secure, publicize, monitor and scale their APIs and
Microservices to create vibrant ecosystems that deliver new business models”
APIs Everywhere from Edge to Internal
Microservices are Spreading Like a Virus
Across the Enterprise
Security at the endpoint and at each level to
protect vital data
Need for Speed – Continuous Integration,
Continuous Delivery
Need for Automated Self Registration so that
enterprise can fully delegate the deliver
process to teams without compromising
security
Axway API Central vision

18. 18
Axway’sapproach to manage API Traffic with Microservices
Manages
• Modern and robust proxy
• Saas or on premise
• Control plane in the cloud
managed by Axway removing
burden from customer
• Data plane is where customer
wants it to be
• Axway managed
• Customer managed
• K8s, AWS EKS, OpenShift

19. 19
Anatomy of API Central and microservices
API Central provides a central control plane which manages API traffic
management across multiple environments
Axway Public Cloud
SaaS Control Plane
On-premise control plane
Container Orchestration
On-premise data plane
Axway’s Mesh Agents configure Istio and
monitor services and API trafficManages
Service
discovery &
Telemetry
Policies &
rules
Environment 1
Manages
Service
discovery &
Telemetry
Policies &
rules
Environment n…….
Data plane – Proxy (Envoy), mediates
inbound and outbound traffic for all
Istio-managed services. It enforces
access control and usage policies, and
provides rich routing, load balancing,
and protocol conversion.

20. 20
Axway Mesh Agents
Axway Mesh Agents (AMAs) can be deployed to
any Kubernetes cluster and …
• Help us manage Istio control plane in the
customer's environment
• Use a service account in API Central to
authenticate and authorize their functions
AMAs are…
• Written in go
• Provided as docker images
• Packaged in HELM chart
Current AMAs deployed to hybrid environments…
• Service Discovery Agent
• Configuration Synchronization Agent
• Telemetry Agent
Manages
Service
discovery &
Telemetry
Policies &
rules
Environment n
Axway Mesh
Agents

21. 21
Service Discovery Agent
Listens for services information
Configured with a service account to
get/watch/list operations on services
resource
Publishes the following information to
the Service Registry:
1. Service Information
• Service name
• Listening ports
• Labels
• Metadata
2. API definitions (Swagger) if found
in known or configured paths
Manages
Service
information
API
definitions
Environment n
Service
Discovery
Agent

22. 22
Configuration Synchronization Agent
Configures policy enforcement in Envoy
Data by:
• Listening for policy events from API
Central
• Writes policies to Custom Resource
Definitions (CRD) in Kubernetes
• Istio Pilot listens for CRD updates
• Envoy proxy has active connection
to Pilot in order to get policies to
enforce
Manages
Policies &
rules
Environment n
Configuration Synchronization
Agent

23. 23
Telemetry Agent
Recap - Mixer in Istio is responsible
collecting telemetry data from the
Envoy proxy and other services.
The Telemetry Agent combines:
• A Mixer adapter added to forward
logs to the Telemetry agent (TA)
• The TA acts as a log processor and
forwarder
• The TA transforms and sends
securely to SaaS control plane
Logs/metr
ics
Telemetry
Environment n
Telemetry
Agent

24. 24
End to End Scenario – Available Self-Service

25. 25
Wrap Up for Microservices

26. ServicesApplications Data
Service
Mesh
Messaging
Backend
Services
Edge
Gateway
Mesh Gateway/
Domain Gateway
• CaptainAmerica’sShield
• ProtectsNorth-Southtraffic
• Trusted traffic only(AAA)
• API Firewall
• Routing
• Public Catalog
• AntMan livesbeside
MicroService
• ProtectsEast-Westtraffic
• TrafficManagement
• Policyenforcement
• Monitoring (Metrics,Trace,
Log)
• AuthN &AuthZ
Data
Domain
Edge
Edge Gateway (e.g. on-Prem)
Ground
Orchestration

27. 27
How Axway resolves Microservices Challenges
Challenges
 DevOps: Adoption of
DevOps culture is
mandatory!
 Security: isa concern for
inter Microservices
communication!
 Distributed: Its hard to
manage distributed
computing
 Governance: how to
efficient monitor constant
growth of hundreds of
dynamic located services?
 Full integration with
CI/CDs pipelines
 Secure, microservices
intercommunication at the
platform level, let
developers focus on
business logic
 Provide a robust, resilient,
multi factor platform to
work beyond traditional IT
 Provide unified and
centralized governance of
the microservices where
ever they are
Solution Why Axway?
 AMPLIFY Central integrates with
CI/CDs (ad hoc and citizen
integrator tools)
 AMPLIFY Central secure
microservices where ever they
are deployed (Cloud, on Premise)
based on best in class
technologies (K8s, Envoy, Istio)
 AMPLIFY Central is the place to
govern microservices
 AMPLIFY Central provide
additional HIP Services such as
iPaas
 AMPLIFY Central provide a
unique Catalog of all type of HIP
Services (API, MFT,B2B etc..)

28. Beyond Microservices
Axway opens for Hybrid
Integration Platform

29. 29
Hybrid
On-Premises
Cloud
Containers
App
Development
MFT
B2B
Analytics
Content
Collaboration
API
Management
Integration
Specialist Digital
Integrators
Line of
Business
Legacy
Systems
Mobile
Cloud
Services
Things
People
New integration
patterns that go beyond
traditional core
integration
Expanding number of
Endpoints, applications
and governance
requirements
Mixed deployment
models with choices on
what to leverage and
what to deprecate
Wider audiences, and
the mind-shift to a
network approach
Enterprise Ready
Integration
For Innovation
Axway AMPLIFY: One Platform, One Experience,
The challenges that we solve

30. axway.com
Axway AMPLIFY: One Platform, One Experience,
Which Flavor of HIP do you speak ?
30
