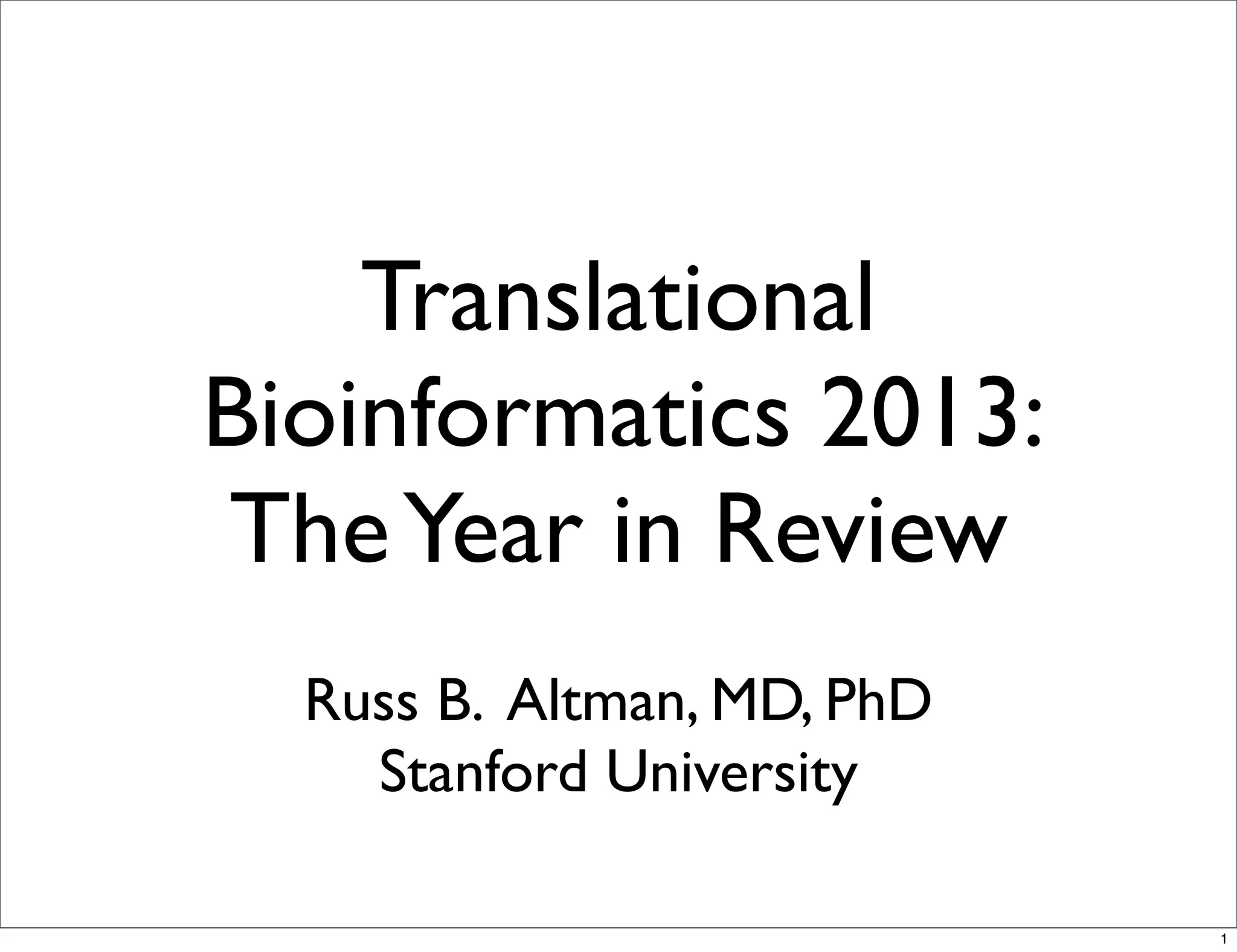

1. Translational
Bioinformatics 2013:
TheYear in Review
Russ B. Altman, MD, PhD
Stanford University
1

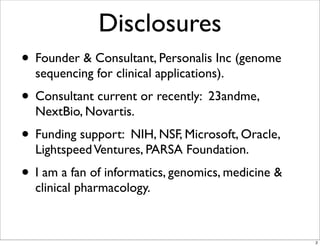

2. Disclosures
• Founder & Consultant, Personalis Inc (genome
sequencing for clinical applications).
• Consultant current or recently: 23andme,
NextBio, Novartis.
• Funding support: NIH, NSF, Microsoft, Oracle,
LightspeedVentures, PARSA Foundation.
• I am a fan of informatics, genomics, medicine &
clinical pharmacology.
2

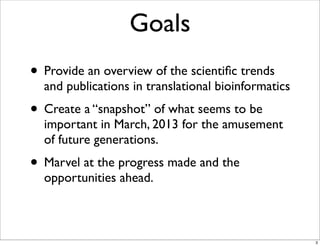

3. Goals
• Provide an overview of the scientific trends
and publications in translational bioinformatics
• Create a “snapshot” of what seems to be
important in March, 2013 for the amusement
of future generations.
• Marvel at the progress made and the
opportunities ahead.
3

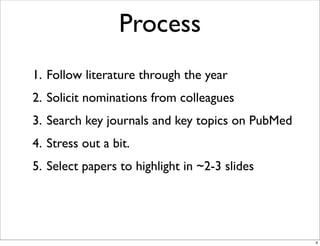

4. Process
1. Follow literature through the year
2. Solicit nominations from colleagues
3. Search key journals and key topics on PubMed
4. Stress out a bit.
5. Select papers to highlight in ~2-3 slides
4

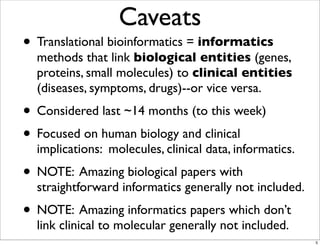

5. Caveats
• Translational bioinformatics = informatics
methods that link biological entities (genes,
proteins, small molecules) to clinical entities
(diseases, symptoms, drugs)--or vice versa.
• Considered last ~14 months (to this week)
• Focused on human biology and clinical
implications: molecules, clinical data, informatics.
• NOTE: Amazing biological papers with
straightforward informatics generally not included.
• NOTE: Amazing informatics papers which don’t
link clinical to molecular generally not included.
5

6. Final list
• 350 Quarter finalists, 242 Semi finalists, 98 finalists
• 27 Presented here (briefly) + 10 “shout outs”
• Apologies to those I misjudged. Mistakes are mine.
• This talk and bibliography will be made available on
the conference website and my blog on
rbaltman.wordpress.com
• TOPICS: Omics medicine, cool methods, cancer,
drugs, delivery.
6

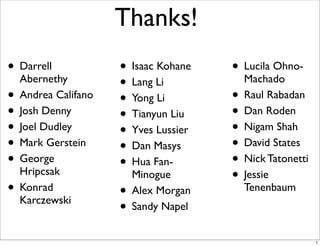

7. Thanks!
• Darrell
Abernethy
• Andrea Califano
• Josh Denny
• Joel Dudley
• Mark Gerstein
• George
Hripcsak
• Konrad
Karczewski
• Isaac Kohane
• Lang Li
• Yong Li
• Tianyun Liu
• Yves Lussier
• Dan Masys
• Hua Fan-
Minogue
• Alex Morgan
• Sandy Napel
• Lucila Ohno-
Machado
• Raul Rabadan
• Dan Roden
• Nigam Shah
• David States
• Nick Tatonetti
• Jessie
Tenenbaum
7

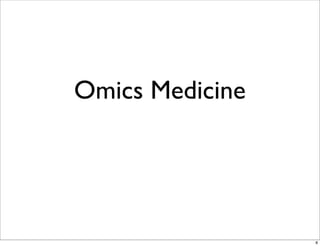

8. Omics Medicine
8

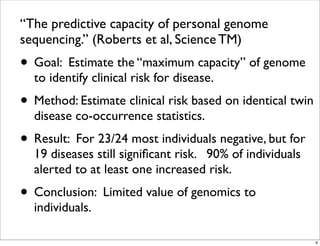

9. “The predictive capacity of personal genome
sequencing.” (Roberts et al, Science TM)
• Goal: Estimate the “maximum capacity” of genome
to identify clinical risk for disease.
• Method: Estimate clinical risk based on identical twin
disease co-occurrence statistics.
• Result: For 23/24 most individuals negative, but for
19 diseases still significant risk. 90% of individuals
alerted to at least one increased risk.
• Conclusion: Limited value of genomics to
individuals.
9

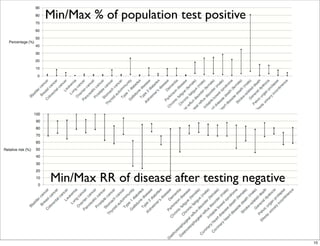

10. Min/Max % of population test positive
Min/Max RR of disease after testing negative
10

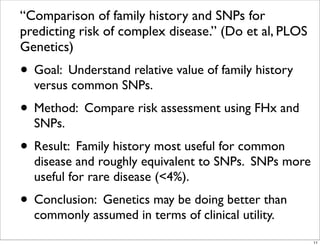

11. “Comparison of family history and SNPs for
predicting risk of complex disease.” (Do et al, PLOS
Genetics)
• Goal: Understand relative value of family history
versus common SNPs.
• Method: Compare risk assessment using FHx and
SNPs.
• Result: Family history most useful for common
disease and roughly equivalent to SNPs. SNPs more
useful for rare disease (<4%).
• Conclusion: Genetics may be doing better than
commonly assumed in terms of clinical utility.
11

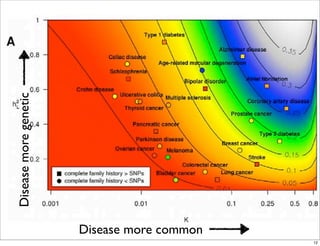

12. Disease more common
Diseasemoregenetic
12

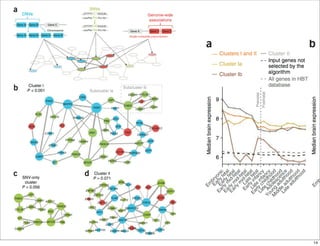

13. “Diverse types of genetic variation converge on
functional gene networks involved in
schizophrenia.” (Gilman et al, Nature Neuro)
• Goal: Define the underlying molecular mechanisms
of schizophrenia.
• Method: Integrated analysis of disease-related
genetic data (CNVs, SNVs, GWAS associations).
• Result: Several cohesive networks identified. Genes
expressed in brain, especially prenatally. Pathways
related, but mutations different from those seen in
autism.
• Conclusion: Schizophrenia may begin to yield...
13

14. 14

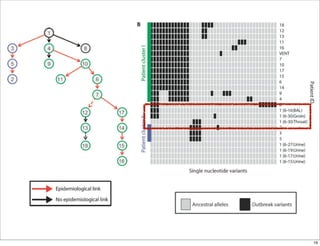

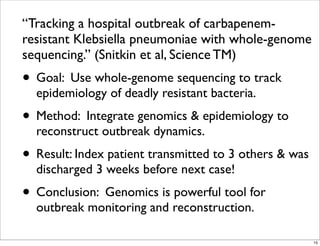

15. “Tracking a hospital outbreak of carbapenem-
resistant Klebsiella pneumoniae with whole-genome
sequencing.” (Snitkin et al, Science TM)
• Goal: Use whole-genome sequencing to track
epidemiology of deadly resistant bacteria.
• Method: Integrate genomics & epidemiology to
reconstruct outbreak dynamics.
• Result: Index patient transmitted to 3 others & was
discharged 3 weeks before next case!
• Conclusion: Genomics is powerful tool for
outbreak monitoring and reconstruction.
15

16. 16

17. 16

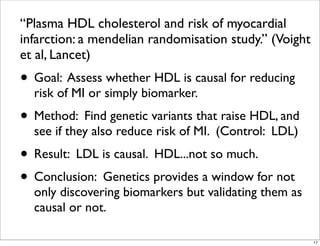

18. “Plasma HDL cholesterol and risk of myocardial
infarction: a mendelian randomisation study.” (Voight
et al, Lancet)
• Goal: Assess whether HDL is causal for reducing
risk of MI or simply biomarker.
• Method: Find genetic variants that raise HDL, and
see if they also reduce risk of MI. (Control: LDL)
• Result: LDL is causal. HDL...not so much.
• Conclusion: Genetics provides a window for not
only discovering biomarkers but validating them as
causal or not.
17

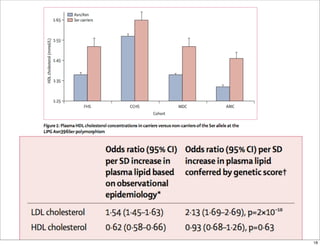

19. 18

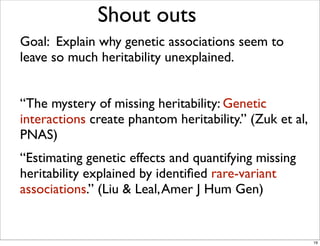

20. Goal: Explain why genetic associations seem to
leave so much heritability unexplained.
“The mystery of missing heritability: Genetic
interactions create phantom heritability.” (Zuk et al,
PNAS)
“Estimating genetic effects and quantifying missing
heritability explained by identified rare-variant
associations.” (Liu & Leal,Amer J Hum Gen)
Shout outs
19

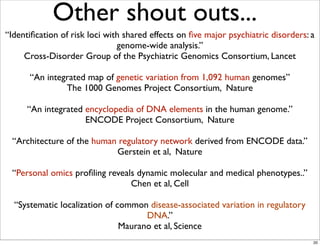

21. Other shout outs...
“Identification of risk loci with shared effects on five major psychiatric disorders: a
genome-wide analysis.”
Cross-Disorder Group of the Psychiatric Genomics Consortium, Lancet
“An integrated map of genetic variation from 1,092 human genomes”
The 1000 Genomes Project Consortium, Nature
“An integrated encyclopedia of DNA elements in the human genome.”
ENCODE Project Consortium, Nature
“Architecture of the human regulatory network derived from ENCODE data.”
Gerstein et al, Nature
“Personal omics profiling reveals dynamic molecular and medical phenotypes..”
Chen et al, Cell
“Systematic localization of common disease-associated variation in regulatory
DNA.”
Maurano et al, Science
20

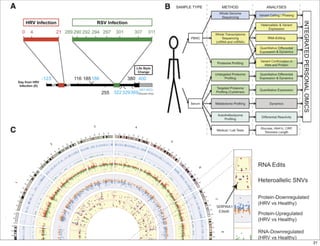

22. 21

23. 22

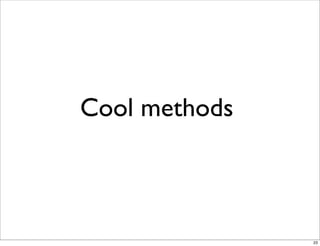

24. Cool methods
23

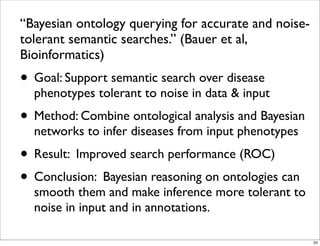

25. “Bayesian ontology querying for accurate and noise-
tolerant semantic searches.” (Bauer et al,
Bioinformatics)
• Goal: Support semantic search over disease
phenotypes tolerant to noise in data & input
• Method: Combine ontological analysis and Bayesian
networks to infer diseases from input phenotypes
• Result: Improved search performance (ROC)
• Conclusion: Bayesian reasoning on ontologies can
smooth them and make inference more tolerant to
noise in input and in annotations.
24

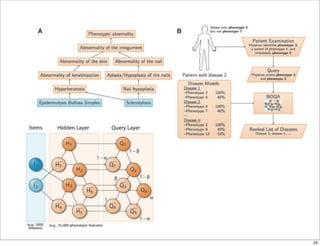

26. 25

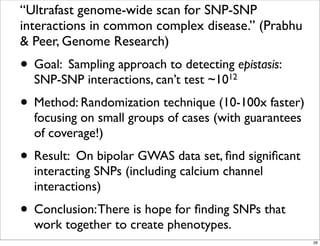

27. “Ultrafast genome-wide scan for SNP-SNP
interactions in common complex disease.” (Prabhu
& Peer, Genome Research)
• Goal: Sampling approach to detecting epistasis:
SNP-SNP interactions, can’t test ~1012
• Method: Randomization technique (10-100x faster)
focusing on small groups of cases (with guarantees
of coverage!)
• Result: On bipolar GWAS data set, find significant
interacting SNPs (including calcium channel
interactions)
• Conclusion:There is hope for finding SNPs that
work together to create phenotypes.
26

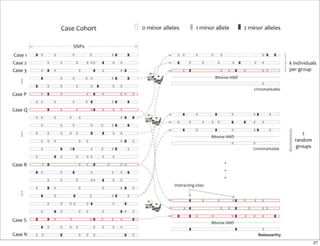

28. 27

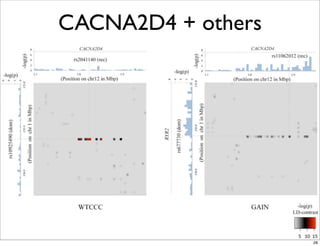

29. CACNA2D4 + others
28

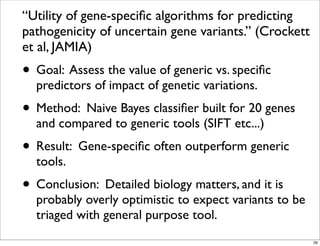

30. “Utility of gene-specific algorithms for predicting
pathogenicity of uncertain gene variants.” (Crockett
et al, JAMIA)
• Goal: Assess the value of generic vs. specific
predictors of impact of genetic variations.
• Method: Naive Bayes classifier built for 20 genes
and compared to generic tools (SIFT etc...)
• Result: Gene-specific often outperform generic
tools.
• Conclusion: Detailed biology matters, and it is
probably overly optimistic to expect variants to be
triaged with general purpose tool.

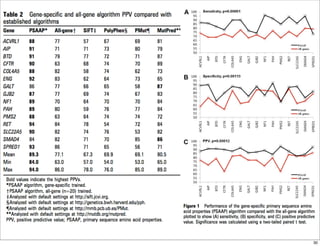

29

31. 30

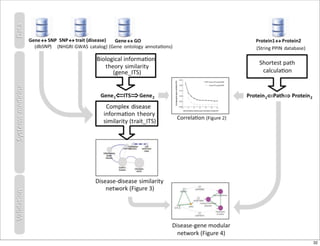

32. “Complex-disease networks of trait-associated
single-nucleotide polymorphisms (SNPs) unveiled by
information theory.” (Li et al, JAMIA)
• Goal: GWAS “hits” may reveal complex disease
modularity and suggest drug repositioning.
• Method: Compute phenotype similarity based on
GWAS hits, GO annotations.
• Result: 177 disease traits connected, similarity
correlates with shortest protein interaction
distance.
• Conclusion: GWAS hits are not only individually
useful, but in aggregate for “GWAS repurposing.”
31

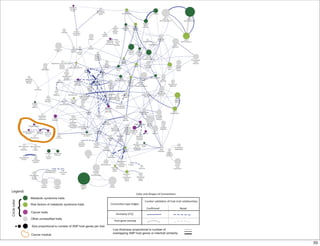

33. 32

34. 33

35. 34

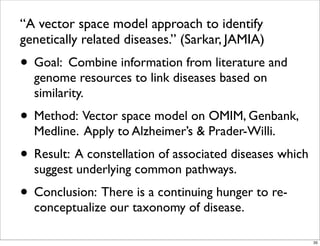

36. “A vector space model approach to identify
genetically related diseases.” (Sarkar, JAMIA)
• Goal: Combine information from literature and
genome resources to link diseases based on
similarity.
• Method: Vector space model on OMIM, Genbank,
Medline. Apply to Alzheimer’s & Prader-Willi.
• Result: A constellation of associated diseases which
suggest underlying common pathways.
• Conclusion: There is a continuing hunger to re-
conceptualize our taxonomy of disease.
35

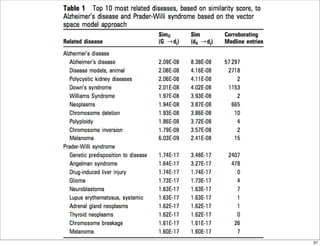

37. 36

38. 37

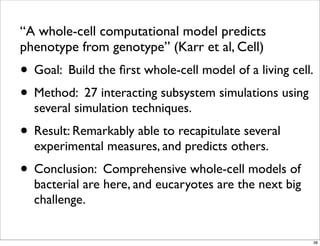

39. “A whole-cell computational model predicts
phenotype from genotype” (Karr et al, Cell)
• Goal: Build the first whole-cell model of a living cell.
• Method: 27 interacting subsystem simulations using
several simulation techniques.
• Result: Remarkably able to recapitulate several
experimental measures, and predicts others.
• Conclusion: Comprehensive whole-cell models of
bacterial are here, and eucaryotes are the next big
challenge.
38

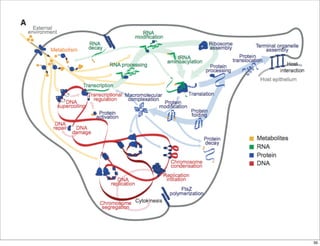

40. 39

41. 40

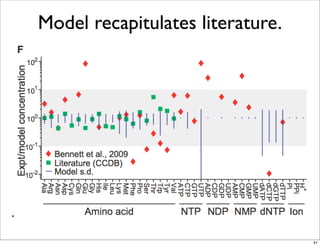

42. Model recapitulates literature.
41

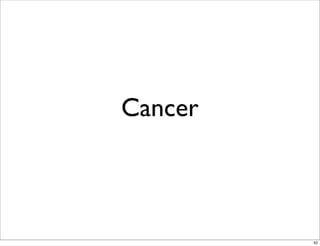

43. Cancer
42

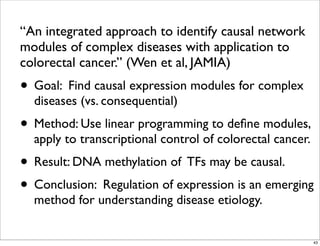

44. “An integrated approach to identify causal network
modules of complex diseases with application to
colorectal cancer.” (Wen et al, JAMIA)
• Goal: Find causal expression modules for complex
diseases (vs. consequential)
• Method: Use linear programming to define modules,
apply to transcriptional control of colorectal cancer.
• Result: DNA methylation of TFs may be causal.
• Conclusion: Regulation of expression is an emerging
method for understanding disease etiology.
43

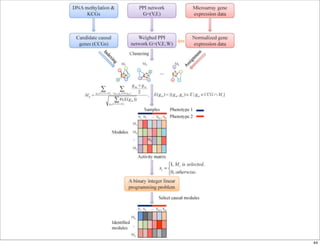

45. 44

46. Rows = modules, Cols = (N)ormal, Colon Cancer
45

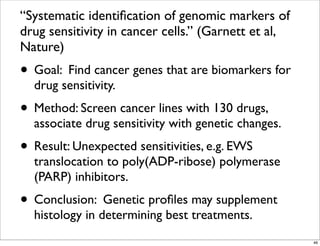

47. “Systematic identification of genomic markers of
drug sensitivity in cancer cells.” (Garnett et al,
Nature)
• Goal: Find cancer genes that are biomarkers for
drug sensitivity.
• Method: Screen cancer lines with 130 drugs,
associate drug sensitivity with genetic changes.
• Result: Unexpected sensitivities, e.g. EWS
translocation to poly(ADP-ribose) polymerase
(PARP) inhibitors.
• Conclusion: Genetic profiles may supplement
histology in determining best treatments.
46

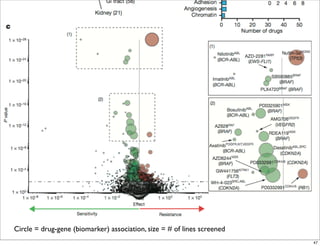

48. Circle = drug-gene (biomarker) association, size = # of lines screened
47

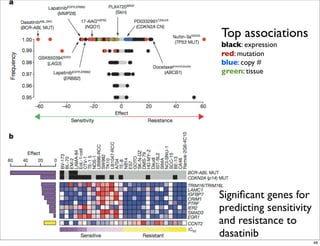

49. Top associations
black: expression
red: mutation
blue: copy #
green: tissue
Significant genes for
predicting sensitivity
and resistance to
dasatinib
48

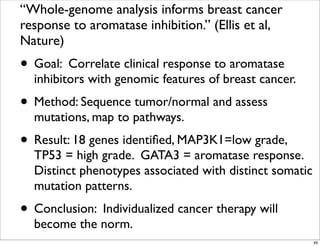

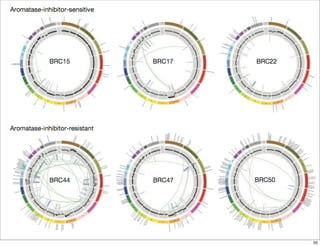

50. “Whole-genome analysis informs breast cancer
response to aromatase inhibition.” (Ellis et al,
Nature)
• Goal: Correlate clinical response to aromatase
inhibitors with genomic features of breast cancer.
• Method: Sequence tumor/normal and assess
mutations, map to pathways.
• Result: 18 genes identified, MAP3K1=low grade,
TP53 = high grade. GATA3 = aromatase response.
Distinct phenotypes associated with distinct somatic
mutation patterns.
• Conclusion: Individualized cancer therapy will
become the norm.
49

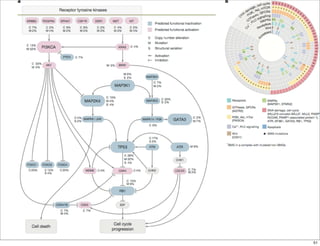

51. 50

52. 51

53. 52

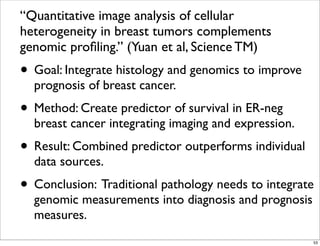

54. “Quantitative image analysis of cellular
heterogeneity in breast tumors complements
genomic profiling.” (Yuan et al, Science TM)
• Goal: Integrate histology and genomics to improve
prognosis of breast cancer.
• Method: Create predictor of survival in ER-neg
breast cancer integrating imaging and expression.
• Result: Combined predictor outperforms individual
data sources.
• Conclusion: Traditional pathology needs to integrate
genomic measurements into diagnosis and prognosis
measures.
53

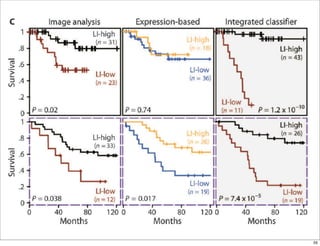

55. 54

56. 55

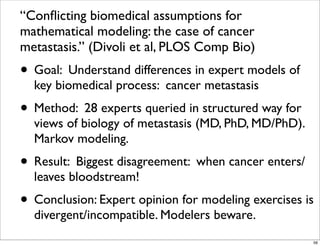

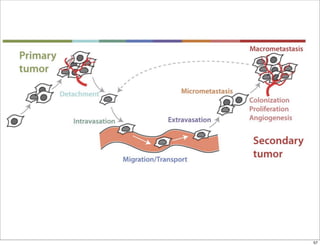

57. “Conflicting biomedical assumptions for
mathematical modeling: the case of cancer
metastasis.” (Divoli et al, PLOS Comp Bio)

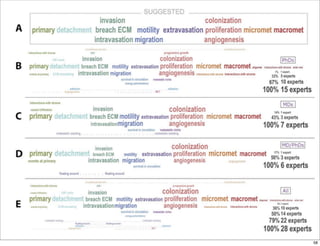

• Goal: Understand differences in expert models of
key biomedical process: cancer metastasis
• Method: 28 experts queried in structured way for
views of biology of metastasis (MD, PhD, MD/PhD).
Markov modeling.
• Result: Biggest disagreement: when cancer enters/
leaves bloodstream!
• Conclusion: Expert opinion for modeling exercises is
divergent/incompatible. Modelers beware.
56

58. 57

59. 58

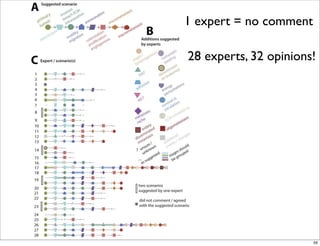

60. 28 experts, 32 opinions!
1 expert = no comment
59

61. Drugs
60

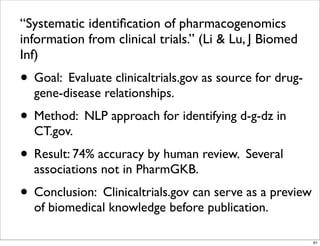

62. “Systematic identification of pharmacogenomics
information from clinical trials.” (Li & Lu, J Biomed
Inf)
• Goal: Evaluate clinicaltrials.gov as source for drug-
gene-disease relationships.
• Method: NLP approach for identifying d-g-dz in
CT.gov.

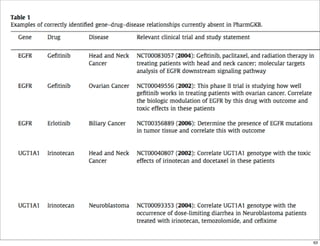

• Result: 74% accuracy by human review. Several
associations not in PharmGKB.
• Conclusion: Clinicaltrials.gov can serve as a preview
of biomedical knowledge before publication.
61

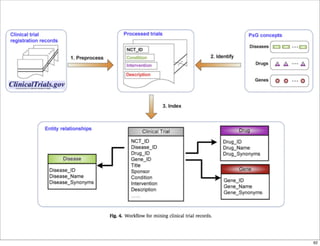

63. 62

64. 63

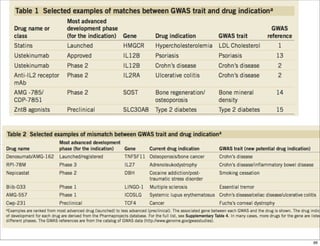

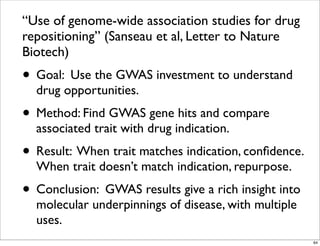

65. “Use of genome-wide association studies for drug
repositioning” (Sanseau et al, Letter to Nature
Biotech)
• Goal: Use the GWAS investment to understand
drug opportunities.

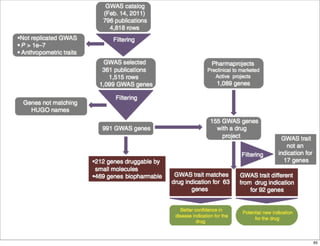

• Method: Find GWAS gene hits and compare
associated trait with drug indication.
• Result: When trait matches indication, confidence.
When trait doesn’t match indication, repurpose.
• Conclusion: GWAS results give a rich insight into
molecular underpinnings of disease, with multiple
uses.
64

66. 65

67. 66

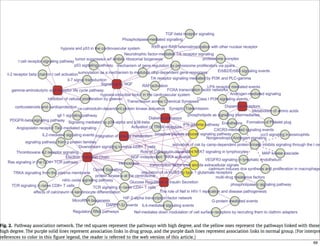

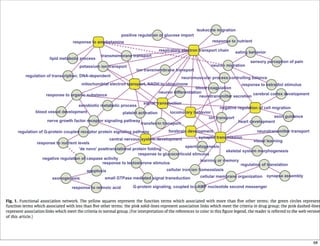

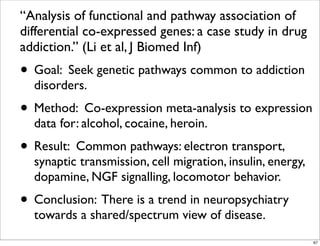

68. “Analysis of functional and pathway association of
differential co-expressed genes: a case study in drug
addiction.” (Li et al, J Biomed Inf)
• Goal: Seek genetic pathways common to addiction
disorders.
• Method: Co-expression meta-analysis to expression
data for: alcohol, cocaine, heroin.
• Result: Common pathways: electron transport,
synaptic transmission, cell migration, insulin, energy,
dopamine, NGF signalling, locomotor behavior.
• Conclusion: There is a trend in neuropsychiatry
towards a shared/spectrum view of disease.
67

69. 68

70. 69

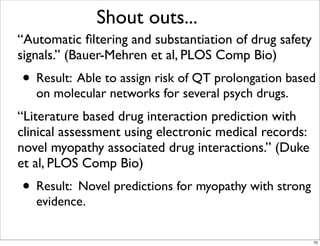

71. “Automatic filtering and substantiation of drug safety
signals.” (Bauer-Mehren et al, PLOS Comp Bio)
• Result: Able to assign risk of QT prolongation based
on molecular networks for several psych drugs.
“Literature based drug interaction prediction with
clinical assessment using electronic medical records:
novel myopathy associated drug interactions.” (Duke
et al, PLOS Comp Bio)
• Result: Novel predictions for myopathy with strong
evidence.
Shout outs...
70

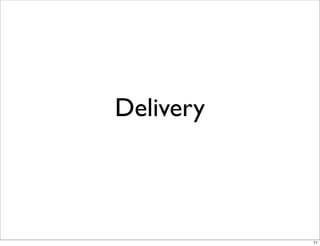

72. Delivery
71

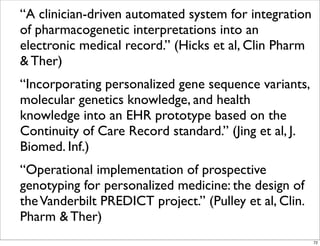

73. “A clinician-driven automated system for integration
of pharmacogenetic interpretations into an
electronic medical record.” (Hicks et al, Clin Pharm
& Ther)

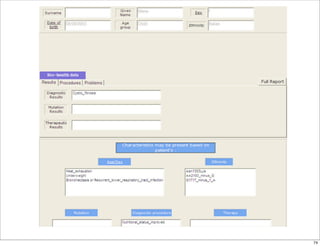

“Incorporating personalized gene sequence variants,
molecular genetics knowledge, and health
knowledge into an EHR prototype based on the
Continuity of Care Record standard.” (Jing et al, J.
Biomed. Inf.)

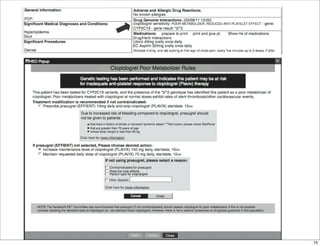

“Operational implementation of prospective
genotyping for personalized medicine: the design of
theVanderbilt PREDICT project.” (Pulley et al, Clin.
Pharm & Ther)
72

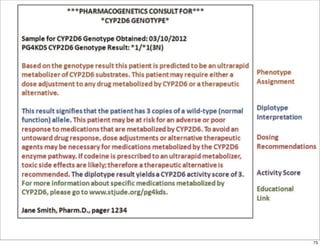

74. 73

75. 74

76. 75

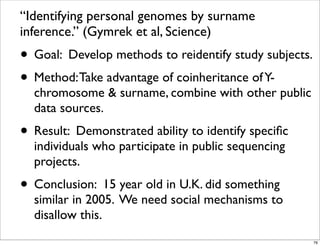

77. “Identifying personal genomes by surname
inference.” (Gymrek et al, Science)
• Goal: Develop methods to reidentify study subjects.
• Method:Take advantage of coinheritance ofY-
chromosome & surname, combine with other public
data sources.
• Result: Demonstrated ability to identify specific
individuals who participate in public sequencing
projects.

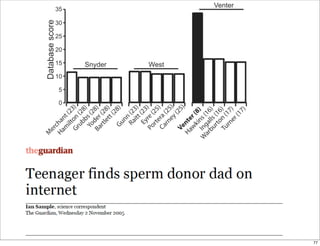

• Conclusion: 15 year old in U.K. did something
similar in 2005. We need social mechanisms to
disallow this.
76

78. 77

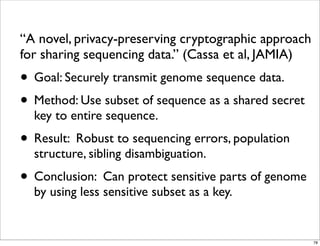

79. “A novel, privacy-preserving cryptographic approach
for sharing sequencing data.” (Cassa et al, JAMIA)
• Goal: Securely transmit genome sequence data.
• Method: Use subset of sequence as a shared secret
key to entire sequence.
• Result: Robust to sequencing errors, population
structure, sibling disambiguation.
• Conclusion: Can protect sensitive parts of genome
by using less sensitive subset as a key.
78

80. 79

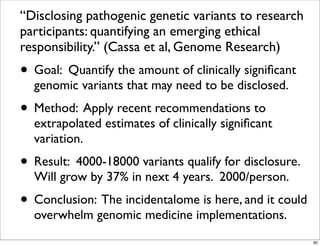

81. “Disclosing pathogenic genetic variants to research
participants: quantifying an emerging ethical
responsibility.” (Cassa et al, Genome Research)
• Goal: Quantify the amount of clinically significant
genomic variants that may need to be disclosed.
• Method: Apply recent recommendations to
extrapolated estimates of clinically significant
variation.
• Result: 4000-18000 variants qualify for disclosure.
Will grow by 37% in next 4 years. 2000/person.
• Conclusion: The incidentalome is here, and it could
overwhelm genomic medicine implementations.
80

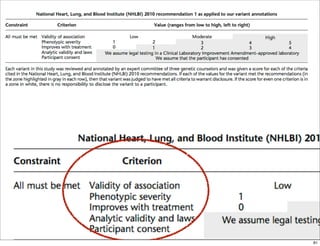

82. 81

83. 82

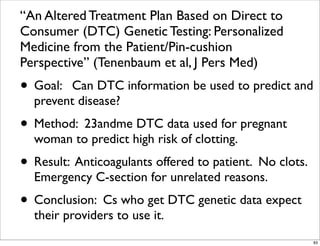

84. “An Altered Treatment Plan Based on Direct to
Consumer (DTC) Genetic Testing: Personalized
Medicine from the Patient/Pin-cushion
Perspective” (Tenenbaum et al, J Pers Med)
• Goal: Can DTC information be used to predict and
prevent disease?
• Method: 23andme DTC data used for pregnant
woman to predict high risk of clotting.
• Result: Anticoagulants offered to patient. No clots.
Emergency C-section for unrelated reasons.
• Conclusion: Cs who get DTC genetic data expect
their providers to use it.
83

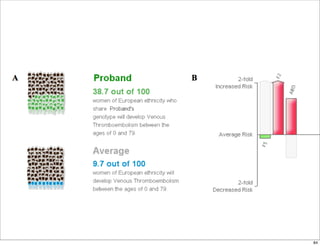

85. 84

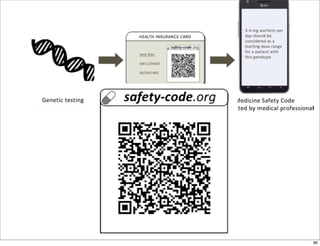

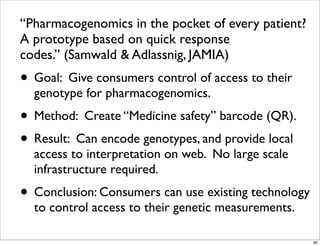

86. “Pharmacogenomics in the pocket of every patient?
A prototype based on quick response
codes.” (Samwald & Adlassnig, JAMIA)
• Goal: Give consumers control of access to their
genotype for pharmacogenomics.
• Method: Create “Medicine safety” barcode (QR).
• Result: Can encode genotypes, and provide local
access to interpretation on web. No large scale
infrastructure required.
• Conclusion: Consumers can use existing technology
to control access to their genetic measurements.
85

87. 86

88. 2012 Crystal ball...
Cloud computing will contribute to major biomedical
discovery.
Informatics applications to stem cell science will
increase
Immune genomics will emerge as powerful data
Flow cytometry informatics will grow
Molecular & expression data will combine for drug
repurposing
Exome sequencing will persist longer than expected
Progress in interpreting non-coding DNA variations
87

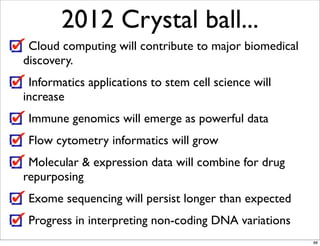

89. 2012 Crystal ball...
Cloud computing will contribute to major biomedical
discovery.
Informatics applications to stem cell science will
increase
Immune genomics will emerge as powerful data
Flow cytometry informatics will grow
Molecular & expression data will combine for drug
repurposing
Exome sequencing will persist longer than expected
Progress in interpreting non-coding DNA variations
88

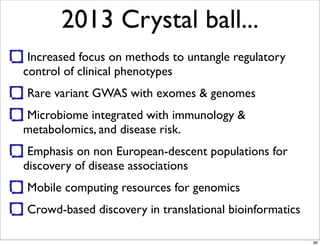

90. 2013 Crystal ball...
Increased focus on methods to untangle regulatory
control of clinical phenotypes
Rare variant GWAS with exomes & genomes
Microbiome integrated with immunology &
metabolomics, and disease risk.
Emphasis on non European-descent populations for
discovery of disease associations
Mobile computing resources for genomics
Crowd-based discovery in translational bioinformatics
89

91. Thanks.
russ.altman@stanford.edu
90
