This document discusses attributes in YUI and their advantages over plain object properties. It explains that attributes provide encapsulation of state and configuration through features like getters, setters, default values, and change events. It describes how attributes are implemented using the Y.AttributeCore and Y.AttributeObservable modules to provide this magic functionality. The document addresses some costs of using attributes, like additional processing during object initialization and property access compared to plain properties. It provides guidance on when it may make sense to use attributes versus properties.

2. Attribute
Luke Smith
@ls_n

3. You know this stuff
model.get(“id”);
overlay.set(“visible”, true);
var drag = new Y.DD.Drag({
node: “#dragme”
});

4. You know this stuff
Bakery.ATTRS = {
flour: {
value: “pastry”
},
...
};

5. What is an attribute?
Encapsulation of a value state and set of
feature configurations for customizing logic
associated with the mutation and storage of
that state, while providing opportunities to
monitor changes.

6. What is an attribute?
Object property + magic

7. The magic
• What it is
• Why we need it
• Where it comes from
• How it works
• What it costs
• Is it worth it?

8. The magic
• What it is
• Why we need it
• Where it comes from
• How it works
• What it costs
• “Should I use a property or an attribute?”

9. What is the magic?

10. What is the magic?
• getters
• setters
• default values
• change events

11. ES5 has magic
Object.defineProperties(this, {
flour: {
value: “pastry”,
getter: ...
setter: ...
...

12. ES5 has magic ... except
IE6 IE7 IE8

13. ES5 has magic ... except
IE6 IE7 IE8
* Dear old IE, please die in a fire.

14. So, here we are
obj.get(“attr”);
obj.set(“attr”, “I’m needed, thanks IE!”);

15. Why do we want magic?

16. Why do we want magic?
Properties are dumb

17. Why do we want magic?
1. Properties are dumb
2. Maintenance

18. Where is the magic?

19. The Classes
(all the things)
Y.Base

20. The Classes
(all the things)
Y.Base
Y.BaseCore Y.BaseObservable Y.AE

21. The Classes
(all the things)
Y.Base
Y.BaseCore Y.BaseObservable Y.AE
Y.AttributeCore Y.AttributeObservable

22. The Classes
(all the things)
Y.Base
Y.BaseCore Y.BaseObservable Y.AE
Y.AttributeCore Y.AttributeObservable
Y.State Y.EventTarget

23. The Modules
(all the things)
base
base-core base-observable a-extras
attribute-core attribute-observable
(attribute-core) event-custom-complex

24. The Modules
(all the things)
base
base-core base-observable a-extras
Y.AttributeCore
attribute-core Y.AttributeObservable
attribute-observable
(attribute-core) event-custom-complex

25. The Modules
Y.AttributeCore Y.AttributeObservable
attribute-core attribute-observable

26. Y.AttributeCore
obj.get(name);
obj.set(name, value);
obj.getAttrs(); // see docs
obj.setAttrs({ vals });

27. Y.AttributeCore
Class.ATTRS = { configs }; // sort of
obj.addAttr(name, { config }, lazy?);
obj.addAttrs({ configs }, { values }, lazy?);
obj.attrAdded(name);

28. Y.AttributeObservable
bakery.on(“flourChange”, callback);
bakery.after(“flourChange”, callback);
bakery.once(...);
bakery.addTarget(...); // etc.

29. Creating attributes
One at a time
bakery.addAttr(“flour”, {
setter: “_setFlour”,
value: “whole wheat”
});

30. Creating attributes
A bunch at a time
bakery.addAttrs({
flour: {
setter: “_setFlour”,
value: “whole wheat”
}, ...
});

31. Creating attributes
Statically for a class
Bakery.ATTRS = {
flour: {
setter: “_setFlour”,
value: “whole wheat”
}
});

32. How does the magic work?

33. Configurations
• value • valueFn
• getter • validator
• setter • readOnly
• writeOnce
• lazyAdd
http://yuilibrary.com/yui/docs/attribute/#configuration

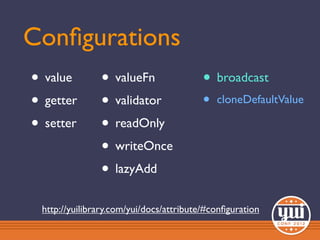

34. Configurations
• value • valueFn • broadcast
• getter • validator • cloneDefaultValue
• setter • readOnly
• writeOnce
• lazyAdd
http://yuilibrary.com/yui/docs/attribute/#configuration

35. value and valueFn
• Most expensive
• lazyAdd = true to defer cost
• valueFn always called at instantiation

36. lazyAdd
• Minimal setup, no set()
• Full setup on first call to get() or set()
• Some might never get fully setup (good)
• Y.BaseCore defaults lazyAdd = true for all
(override with prototype._lazyAddAttrs)
• Beware lazyAdd + setter

37. setter for robustness
• Use for
a) Input normalization, or
b) Tightly coupled state related logic
• Not for side effects (use events)
• setter + lazyAdd gotcha

38. setter vs validator
• validator is called before setter
• If you have a setter, validate inline
_setFlour: function (val) {
return (typeof val === “string”) ?
val.toLowerCase() :
Y.Attribute.INVALID_VALUE;

39. getter, setter, etc
• Pass string values to late bind handlers
flour: {
setter : “_setFlour” // this._setFlour(val)
getter : “_getFlour”,
validator: “_validateFlour”,
valueFn : “_initFlour”,

40. cloneDefaultValue
• {undefined, true, “deep”}, “shallow”, false
• Y.Base defaults Y.clone() behavior
• Always set or use a valueFn instead
flour: {
value: { grain: ‘fine’, gluten: false, ... },
cloneDefaultValue: true,

41. Change events
• For decoupling systems
• Why custom events have on() and after()
• Assigning initial value does NOT fire event
• Change event published on first set()

42. Ad hoc attributes
• From Y.BaseCore
• Create dynamic objects with Attribute API
• prototype._allowAdHocAttrs = true
• static _NON_ATTRS_CFG to blacklist

43. Ad hoc attributes
Bakery.prototype._allowAdHocAttrs = true;
var llamaBakery = new Bakery({
flour: “pastry”,
llamas: “sheared” // unknown, but added
});

44. What does the magic cost?

45. Magic taxes
1. Attribute setup cost
2. get()/set() cost
*Many Bothans died to bring us this information

46. Attribute setup

47. Attribute setup
1. Creates State object

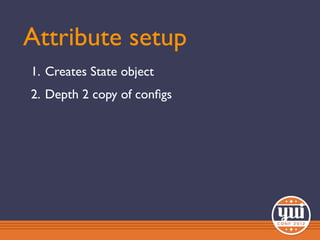

48. Attribute setup
1. Creates State object
2. Depth 2 copy of configs

49. Attribute setup
1. Creates State object
2. Depth 2 copy of configs
3. Gets value from construction values,
valueFn, or value

50. Attribute setup
1. Creates State object
2. Depth 2 copy of configs
3. Gets value from construction values,
valueFn, or value
4. lazyAdd attributes are stowed in State

51. Attribute setup
1. Creates State object
2. Depth 2 copy of configs
3. Gets value from construction values,
valueFn, or value
4. lazyAdd attributes are stowed in State
5. non-lazy populate State and set(value)

52. Attribute setup
LOC fn calls
no attributes 34 9
+lazy attr +46 +14
+empty attr +56 +16
+attr property +7 +0
+value +80 +20
+valueFn +3 +1

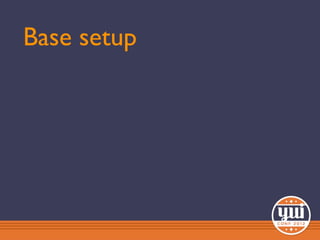

53. Base setup

54. Base setup
1. Creates State object

55. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain

56. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...

57. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...
1. class extension constructors

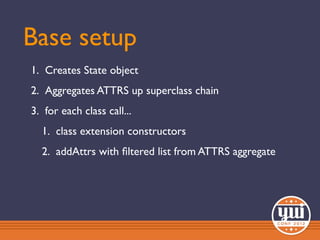

58. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...
1. class extension constructors
2. addAttrs with filtered list from ATTRS aggregate

59. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...
1. class extension constructors
2. addAttrs with filtered list from ATTRS aggregate
3. initializer

60. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...
1. class extension constructors
2. addAttrs with filtered list from ATTRS aggregate
3. initializer
4. class extension initializers

61. Base setup
1. Creates State object
2. Aggregates ATTRS up superclass chain
3. for each class call...
1. class extension constructors
2. addAttrs with filtered list from ATTRS aggregate
3. initializer 2.5. addAttrs(ad-hocs)
4. class extension initializers

62. get()
1. Checks if attribute is lazy, inits if necessary
2. Gets the value and getter from State
3. Returns value or result of calling getter

63. get()
LOC fn calls
get(attr) 10 6
get(sub.attr) +3 +5
+getter +2 +1
+lazy init +100 +20

64. set()
http://yuilibrary.com/yui/docs/attribute/setflow.html

66. set() - just attribute
LOC fn calls
set(attr) 80 20
set(sub.attr) +27 +4
+lazy init +100 +20
+validator +5 +1
+setter +6 +1

67. set() - events
LOC fn calls
set(attr) 80 20
set(sub.attr) +27 +4
+change event +151 +24
+first event +100 +12
+per subscriber +27 +5
+per bubble +205 +21

68. Avoid Subattributes
obj.set(“nested.sub.attribute”, false);
• Triggered by . in attribute name
• A lot of extra work, most is wasted
• Confusing relationship with getter/setter
* sorry about this

69. Is the magic worth it?
Should you use a property or an attribute?

70. Property
PROs CONs
• Fast • Dumb
• Terse • Can’t migrate to
attribute w/o API
• Nested structs are breakage
the same
• Magic allowed if
environment
mandated

71. Attribute
PROs CONs
• Stable abstraction • Slow
• Code organization • Nested structs are
awkward
• Consistent API (subattributes--)
• Easy loose coupling
• More typing
with events
• Abstraction
performance can
improve invisibly

72. Property or Attribute?
• Will it be accessed a lot? Like, really A LOT.
• Will there be lots of instances? (see #1)
• Will it be public, or interesting outside the
object?
• Might the class be extended? Plugged?
• Would it amount to a micro-optimization?

73. Property or Attribute?
Justify the use of properties
rather than
justifying the use of attributes
(It’s less likely to bite you in the ass)

74. The Future

75. Attribute
PROs CONs
• Stable abstraction • Slow
• Code organization • Nested structs are
awkward
• Consistent API (subattributes--)
• Easy loose coupling
• More typing
with events
• Abstraction
performance can
improve invisibly

76. Faster; no new features

77. Faster; no new features
• Replace State with ES5 objects or shim

78. Faster; no new features
• Replace State with ES5 objects or shim
• Compile configs once for all instances

79. Faster; no new features
• Replace State with ES5 objects or shim
• Compile configs once for all instances
• Event optimizations

80. kittens + pancakes = future

81. The End.
Thanks!
Luke Smith
@ls_n
