1. INTA122RP/Textiles
Tara Miller
Week 6 Assignment 1/Sept. 22, 2015
Julie Boettcher
Final Presentation

2. Code Compliance
Tara Miller
INTA 122RP
Julie Boettcher
Sept. 5, 2015

3. Part 1: Flammability Codes and Tests
Complete the following questions.
1. First research the commercial building code in your state or local jurisdiction. What version of
the International Building Code (IBC) is in force?
In Georgia, the 2012 version of the International Building Code is in force with state amendments
from 2014 and 2015 (Georgia Construction Codes).
2. Determine the flammability test for draperies and hanging textiles per the IBC in your area,
usually found in Section 8 of the Code. What is the unique value of this test method to fire researchers?
Hanging Textiles and Draperies must be non-combustible or meet the “flame propagation performance
criteria of NFPA 701”(ICC IBC (2012), 197). The NFPA (National Fire Protection Association) is a
scope of two tests that apply to different interior fabrics that are used as hanging draperies in com-
mercial settings. Test 1 is used on most single and multi-layered fabrics that are sewn together. Test 2
is used for vinyl coated fabrics (NFPA 701). Each test is a series of three that burns a small sample of
fabric and dertmines Pass/Fail from the Flame, Char Length and Flaming Residue (Flame Retardancy).
These tests are valuable to fire researchers because by testing small samples of fabrics in controlled
environments, researchers can get an idea of how flame will behave when exposed to certain fabrics. By
regulating these fabrics and knowing how they behave, researchers can help create safer environments
and give the public the best chance of survival.
3. Determine the flammability test for upholstery fabrics as recommended per the Association for
Contract Textiles. What is the unique value of this test method to fire researchers?
In a small recreation of a chair seat and back the fabric is exposed to a lighted cigarette. This test is in-
tended to “test the performance of upholstered furniture under conditions of exposure to a smoldering
cigarette” (California).
This test can help researchers determine how a fabric will most likely behave in a home environment
where this type of flame exposure is common. By studying this exposure regulations can be drafted to
ensure safer fabrics, safer upholstery materials to prevent fire growth or slow it down to allow for safe
exits or extinguishing.

4. Part 2: Commercial Textile Application
1. Identify one window treatment textile
2. Identify at least two textiles to be used as upholstery
Coastal California Hotel

5. Fabric Specification
Project- Coastal California Hotel
Designer- Tara Miller
Item Key Code- N/A
Room/Location- Gathering space
Use- Throw Pillows
Manufacturer- Carnegie
Collection- Edge
Pattern Name & Number- Edge/ 6252
Color Name & Number- 8
Fabric Width- 54”
Pattern Repeat-N/A
Fiber Content- 100% Polyurethane, Back 100% Polyester
knit
Flammability- California Bulletin 117E
Cost per Unit
Units needed
Total Cost
Description- For use as throw pillows on sofa and chair
Remarks- Fabric sample on file and amount reserved with manufacturer. Yardage to be reviewed
by upholsterer. Fabric to be picked up at designer's office.
Care Instructions: Blot spills ASAP. Wash with mild detergent. Do not saturate. For serious
staining or soiling, use professional cleaning service.
$47.00
5 yards
$235.00

6. Fabric Specification
Project- Coastal California Hotel
Designer- Tara Miller
Item Key Code- N/A
Room/Location- Gathering space
Use- Sofa and chair
Manufacturer- Xorel
Collection- Dash
Pattern Name & Number- Dash S/ 6603S
Color Name & Number- 23
Fabric Width- 54”
Pattern Repeat-N/A
Fiber Content- 100% Xorel (65% Biobased PE, 35% PE)
Flammability- California Bulletin 117E, NFPA 260
Class 1
Cost per Unit
Units needed
Total Cost
Description-For use on armless lounge sofa and accent chair
Remarks- Sample on file. Fabric has been reserved and yardage should be confirmed by
upholsterer.
Care Instructions: Vacuum regularly. Wipe stains with cloth soaked in hot water. More serious
stains can be cleaned with a stiff brush or solvent cleaner, spot tested first.
$39.00
13 yards
$507.00

7. Fabric Specification
Project- Coastal California Hotel
Designer- Tara Miller
Item Key Code- N/A
Room/Location- Gathering space
Use- Window Panels
Manufacturer- Creation Baumann
Collection- Saphir
Pattern Name & Number- Saphir/36515
Color Name & Number- 817
Fabric Width- 118”
Pattern Repeat-N/A
Fiber Content- 100% Trevira CS Polyester
Flammability- NFPA 701
Cost per Unit
Units needed
Total Cost
Description- Two panels for back window, no panels needed for side window.
Remarks- Sample is on file. Yardages to be confirmed by fabricator and picked up at
designer's office. Pinch pleated panels with curtain hooks for curtain track (already
mounted).
Care instructions: Machine wash warm on delicate, color safe bleach as needed. Line
dry. Only iron with commercial steam press. Can be dry cleaned by commercial
cleaners.
$75.00
14 yards (2 panels)
$1050.00

8. Carpet Specification
PROJECT: - Coastal California Hotel
DESIGNER: - Tara Miller
ITEM KEY CODE: -C1
ROOM / LOCATION: -Ladies Gathering Space
USE: -Flooring
MANUFACTURER: -Durkan
COLLECTION: -ColorEffect Tile
PATTERN (STYLE) NAME & NO: -N/A
COLOR NAME & NO: - MD0004-631
WIDTH / SIZE: -24’’ sq
FIBER CONTENT -Duracolor Premium Nylon
PATTERN REPEAT: -N/A
FLAMMABILITY: - ASTM E 648 Class 1
COST PER UNIT: - N/A
UNITS NEEDED: - 62 Tiles
TOTAL COST: - N/A
DESCRIPTION: - Tan carpet tiles for use in ladies gathering area as main carpet.
REMARKS: - Carpet sample on file. 56 tiles needed for border plus 6 tiles (10%) in case of mistakes or
damage. Installer: please see attached floor plan for design of border.
Care Instructions: Vacuum regularly, spot clean stains. See included Care & Maintenance packet,
to be delivered with carpeting.

9. Carpet Specification
PROJECT: - Coastal California Hotel
DESIGNER: - Tara Miller
ITEM KEY CODE: -C2
ROOM / LOCATION: -Ladies Gathering Space
USE: -Flooring
MANUFACTURER: -Durkan
COLLECTION: -ColorEffect Tile
PATTERN (STYLE) NAME & NO: -N/A
COLOR NAME & NO: - MD0004-646
WIDTH / SIZE: -24’’ sq
FIBER CONTENT -Duracolor Premium Nylon
PATTERN REPEAT: -N/A
FLAMMABILITY: - ASTM E 648 Class 1
COST PER UNIT: - N/A
UNITS NEEDED: - 27 Tiles
TOTAL COST: - N/A
DESCRIPTION: - Sage green carpet tiles for use in ladies gathering area as perimeter border.
REMARKS: - Carpet sample on file. 24 tiles needed for border plus 3 tiles in case of
mistakes or damage. Installer: please see attached floor plan for design of border.
Care Instructions: Vacuum regularly, spot clean stains. See included Care &
Maintenance packet, to be delivered with carpeting.

10. Carpet Specification
PROJECT: - Coastal California Hotel
DESIGNER: - Tara Miller
ITEM KEY CODE: -C3
ROOM / LOCATION: -Ladies Gathering Space
USE: -Flooring
MANUFACTURER: -Durkan
COLLECTION: -Santa Clarita
PATTERN (STYLE) NAME & NO: -Santa Clarita
COLOR NAME & NO: - MH330-731
WIDTH / SIZE: -19.7’’
FIBER CONTENT -ColorStrand SD Nylon
PATTERN REPEAT: -9’’ (W) x 36’’ (L)
FLAMMABILITY: - ASTM E-648
COST PER UNIT: - N/A
UNITS NEEDED: - 480 Sq Ft/ 54 Sq Yds
TOTAL COST: - N/A
DESCRIPTION:
REMARKS:
- Light tan colored broadloom with variegated stranding running vertically for use in
the ladies gathering area.
- Carpet sample on file. 300 sq ft of carpet needed plus 180 sq ft of excess.

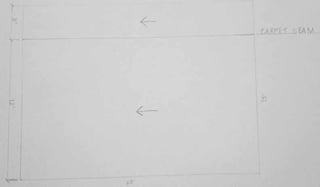

Installer: please see attached floor plan for seam placement and nap direction.
Care Instructions: Vacuum regularly, spot clean stains. See included Care &
Maintenance packet, to be delivered with carpeting.

11. Justification of Carpeting Choices for Coastal California Hotel
The attached carpeting choices for the Coastal California Hotel have been carefully selected for their
stain resistant, durability and colorfastness.
The first choice is a Durkan carpet tile featuring an in-laid border design. The main carpet color is tan
with a 24’’ floating perimeter border in sage green. The sage green border mirrors the pool water as well
as the upholstery and drapes. The carpet tiles feature a loop pile which is soft underfoot and has
excellent wear. The tiles feature a limited lifetime tile warranty and stain resistance, as well as an indoor
air quality green certification. Each tile can be removed for easy cleaning and replacement.
The second choice is a Durkan broadloom in a sand color with stria in lighter and darker shades. The
stria will be installed to run vertically from the changing area to the pool. The stria mimics the ripples of
water or the sand on a beach. The soft, tan color will blend well with the selected upholstery and drapes
to create a spa-like atmosphere. The soft loop pile is rated heavy and features a limited lifetime
warranty on wear and colorfastness as well as a 10 year stain resistant warranty. The busy pattern will
disguise dirt between cleanings and will keep guest energized and moving towards the pool and bar
area.

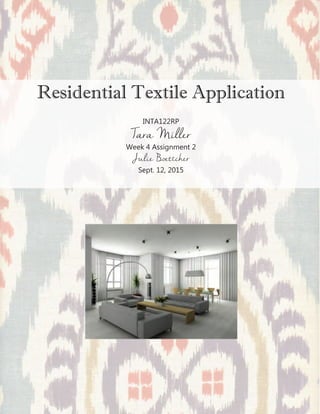

14. Residential Textile Application
INTA122RP
Tara Miller
Week 4 Assignment 2
Julie Boettcher
Sept. 12, 2015

15. Fabric Specification
PROJECT: - Young, Married Couple
DESIGNER - Tara Miller
ITEM KEY CODE F-1
ROOM / LOCATION: Living Room
USE: Two Long Sofas
MANUFACTURER: Lewis & Sheron
COLLECTION: Westridge
PATTERN NAME & NO: Westridge/1118048
COLOR NAME & NO: Pewter
FABRIC WIDTH: 54”
PATTERN REPEAT: N/A
FIBER CONTENT: 47% Acrylic, 29% Olefin, 24%
Polyester
FLAMMABILITY: N/A
COST PER UNIT: $30.00
UNITS NEEDED: 40
TOTAL COST: $1200.00
DESCRIPTION: Light grey chenille fabric for use on two contemporary, tufted sofas.
REMARKS: Fabric on reserve and yardage must be confirmed by upholsterer. Fabric to be picked
up from designer’s office to confirm. Sofas will be treated with Green Guard by Triplex
for stain resistance.
Care Instructions: Do not remove covers from cushions. Rotate and flip cushions
regularly to distribute wear. Gently blot spills and vacuum sofas regularly. For severe
stains, call a professional cleaning service.

16. Fabric Specification
PROJECT: - Young, Married Couple
DESIGNER - Tara Miller
ITEM KEY CODE F-2
ROOM / LOCATION: Living Room
USE: Accent Chair
MANUFACTURER: Lewis & Sheron
COLLECTION: Granby
PATTERN NAME & NO: Granby/1113783
COLOR NAME & NO: Stone
FABRIC WIDTH: 54”
PATTERN REPEAT: 0”
FIBER CONTENT: 100% Cotton
FLAMMABILITY: N/A
COST PER UNIT: $35.00
UNITS NEEDED: 12
TOTAL COST: $420.00
DESCRIPTION:
REMARKS:
Wide, striped, stria, cotton for use on the accent chair
Stripe to run vertically on all surfaces and be centered on all areas. No piping. Fabric on
reserve and yardage must be confirmed by upholsterer. Fabric to be picked up from
designer’s office to confirm. Chair to be treated with Green Guard by Triplex for stain
resistance.
Care Instructions: Do not remove covers from cushions. Rotate and flip cushions regularly to
distribute wear. Gently blot spills and vacuum sofas regularly. For severe stains, call a
professional cleaning service.

17. Fabric Specification
PROJECT: - Young, Married Couple
DESIGNER - Tara Miller
ITEM KEY CODE F-3
ROOM / LOCATION: Living Room
USE: Window Drapes
MANUFACTURER: Lewis & Sheron
COLLECTION: Bonita
PATTERN NAME & NO: Bonita/1116475
COLOR NAME & NO: Indigo
FABRIC WIDTH: 54”
PATTERN REPEAT: 25” Repeat
FIBER CONTENT: 90% Cotton, 10% Linen
FLAMMABILITY: N/A
COST PER UNIT: $24.98
UNITS NEEDED: 40
TOTAL COST: $999.20
DESCRIPTION:
REMARKS:
Cotton/Linen Blend, Ikat pattern for use as window drapes.
Drapes are to be lined. Triple pleat tape is to be used along with curtain hooks. Each
panel will be 1 & ½ width with 6 in. deep hem. Fabric on reserve and yardage must be
confirmed by fabricator. Fabric to be picked up from designer’s office to confirm. Drapes
will be treated with Green Guard by Triplex for stain resistance.
Care Instructions: Drapes should be dry cleaned only.

18. Carpet Specification
PROJECT: - Young, Married Couple
DESIGNER: - Tara Miller
ITEM KEY CODE: -C1
ROOM / LOCATION: -Living Room
USE: -Flooring
MANUFACTURER: -Shaw
COLLECTION: -Soft Shades
PATTERN (STYLE) NAME & NO: -Confident Smile/E0649
COLOR NAME & NO: - Silver Sage/00350
WIDTH / SIZE: -12’
FIBER CONTENT -100% Nylon
PATTERN REPEAT: -N/A
FLAMMABILITY: -N/A
COST PER UNIT: - N/A
UNITS NEEDED: - 480 sq ft/54 sq yds
TOTAL COST: - N/A
DESCRIPTION: - Mottled light grey carpet for use in the living room
REMARKS: - Carpet sample on file. Square yardage has been reserved. Installers: please use
upgraded padding for high traffic areas as discussed . Please see attached floor plan for
seam placement.
Care Instructions: Vacuum regularly and steam clean with every 12-18 months.
Download the Shaw Flooring app for stain removal ideas.

19. Carpet Specification
PROJECT: - Young, Married Couple
DESIGNER: - Tara Miller
ITEM KEY CODE: -C2
ROOM / LOCATION: -Living Room
USE: -Flooring
MANUFACTURER: -Flor
COLLECTION: -N/A
PATTERN (STYLE) NAME & NO: -Vintage Vibe
COLOR NAME & NO: - Cream
WIDTH / SIZE: -19.7’’
FIBER CONTENT -Nylon, 63% Recycled
PATTERN REPEAT: -N/A
FLAMMABILITY: -N/A
COST PER UNIT: - $30.00
UNITS NEEDED: - 122 Tiles
TOTAL COST: - $3720.00
DESCRIPTION:
REMARKS:
- Grey diamond shape with star-burst pattern throughout over cream background.
For use in living room
Carpet sampled on file. 111 carpet tiles plus 11 tiles (10%) has been reserved.
Installer: please start installing tiles in the center of the room and leave cut tiles
around the perimeter.
Care Instruction: Vacuum regularly and spot clean as needed with warm water.
Every 12 months get carpet tiles professional steam cleaned.

20. Justification for Carpeting Choices for Young Married Couple
The carpeting choices curated for the Young family include a soft variegated broadloom in a soft grey
and a moroccan inspired luxurious carpet tile in cream and dark grey.
The first choice is the Shaw broadloom in Silver Sage. This supple carpet is variegated to hide pet hair
and dirt. The style type is called texture which creates a semi-formal look with smooth twisted yarns.
This carpet is treated for stain resistance. It will be installed with an upgraded padding for increased
softness, durability and to reduce the signs of wear.
The second choice is an upgraded carpet tile from Flor. The design features small inter-connected
diamonds with star-bursts in dark grey on a cream background. The busy design will disguise pet hair
and dirt but is subtle and won’t compete with the upholstery and drapes. The carpet tiles feature a loop
pile for a neat appearance and are made with 63% recycled materials. Flor tiles are not stain resistant
but individual tiles can be removed for easy cleaning or replacement.

21. (--
].O

22. Works Cited:
California Bureau Of Home Furnishings And Thermal Insulation And Appliance Repair.
“TECHNICAL BULLETIN 117-2013.” State of California Department of Consumer Af-fairs
Technical Bulletin 117-2013 (Attachment 11) 117 (2013): 1-2. Jan. 2013. Web. 03 Sept. 2015.
"Carpet Care & Maintenance." Shaw Floors. Shaw Industries Group, n.d. Web. 20 Sept. 2015.
ColorEffect Tile. Digital image. Durkan. Mohawk Group, n.d. Web. 17 Sept. 2015.
Confident Smile. Digital image. Shaw Floors. Shaw Industries Group, n.d. Web. 17 Sept. 2015.
"Dash." Carnegie Fabrics. Carnegie, n.d. Web. 20 Sept. 2015.
"Edge." Carnegie Fabrics. Carnegie, n.d. Web. 20 Sept. 2015.
“Flame Retardancy.” Sew What? Sew What? Inc., n.d. Web. 03 Sept. 2015.
“Georgia’s Construction Codes.” DCA. N.p., n.d. Web. 03 Sept. 2015.
"General Use & Maintenance." FLOR. Flor, n.d. Web. 21 Sept. 2015.
Granby Stone. Digital image. Lewis & Sharon Texiles. Lewis & Sharon Texiles, n.d. Web. 10 Sept.
2015.
Grootens, Joost. 101. Amsterdam: Grootens, 2011. Mohawk. Mohawk Group. Web. 20 Sept. 2015.
“ICC IBC (2012): International Building Code.” ICC IBC (2012): International Building Code. N.p.,
n.d. Web. 03 Sept. 2015.
Lewis & Sheron Textiles Co. Digital image. Lewis & Sharon Texiles. Lewis & Sharon Texiles, n.d.
Web. 10 Sept. 2015.
Lewis & Sheron Textiles Co. Digital image. Lewis & Sharon Texiles. Lewis & Sharon Texiles, n.d.
Web. 10 Sept. 2015.
Lewis & Sheron Textiles Co. Digital image. Westridge. N.p., n.d. Web. 10 Sept. 2015.
“NFPA 701: Standard Methods of Fire Tests for Flame Propagation of Textiles and Films.” NFPA 701:
Standard Methods of Fire Tests for Flame Propagation of Textiles and Films. N.p., n.d. Web. 03
Sept. 2015.
Santa Clarita. Digital image. Durkan. Mohawk Group, n.d. Web. 17 Sept. 2015.

23. "Saphir." Carnegie Fabrics. Carnegie, n.d. Web. 20 Sept. 2015.
"Standford - Jeffrey Alan Marks - Pewter." CalicoCorners. Everfast Inc., n.d. Web. 21 Sept. 2015.
Vintage Vibe. Digital image. Flor. Flor, n.d. Web. 17 Sept. 2015.
