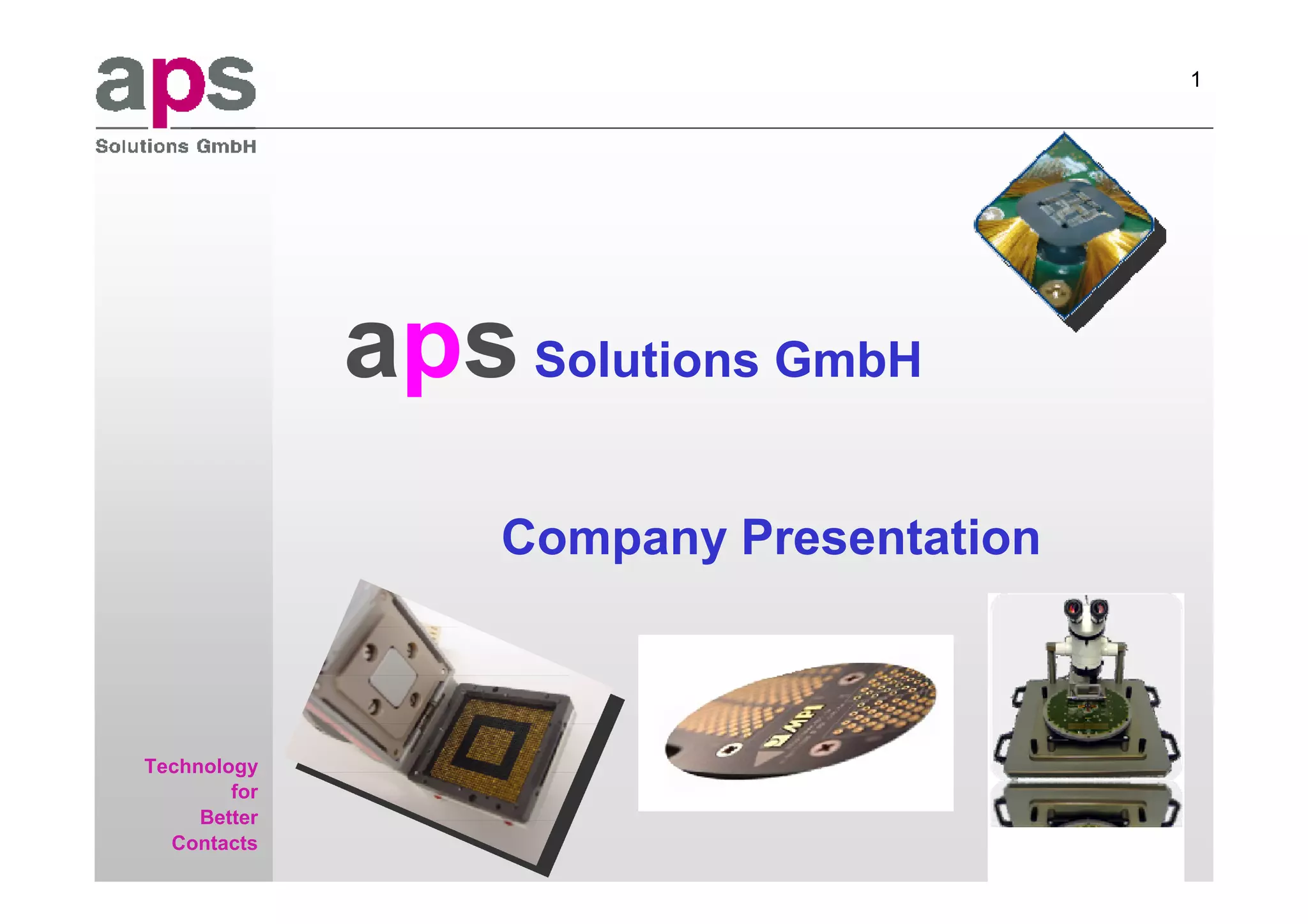

Active thermal control is easy way to test your application under thermal conditions

1. 1
aps
Sales & Service GmbH
aps Solutions GmbH
Company Presentation
Technology
for
Better
Contacts

2. 16
aps
Sales & Service GmbH

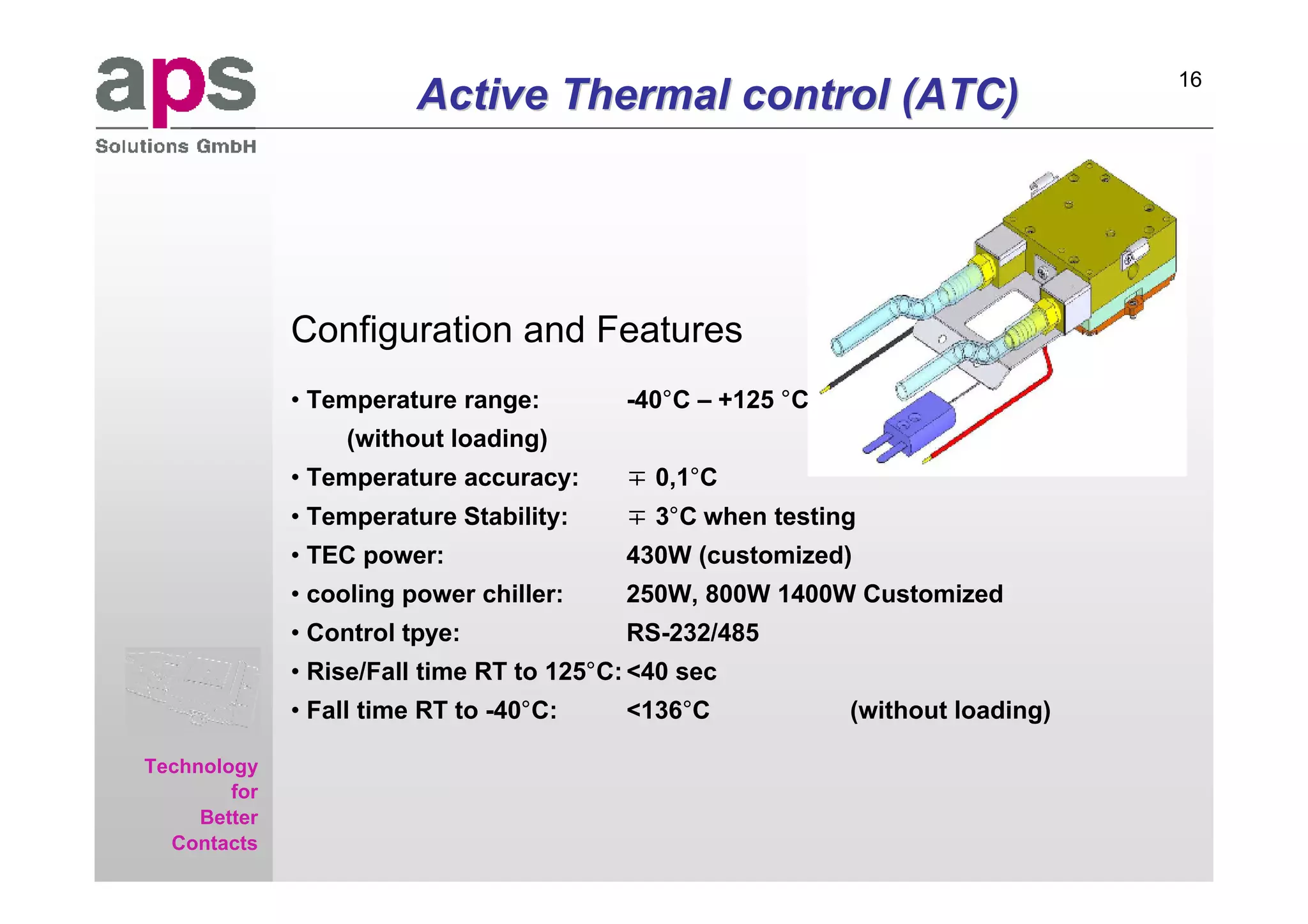

Active Thermal control (ATC)
Configuration and Features
• Temperature range: -40°C – +125 °C
(without loading)
• Temperature accuracy:  0,1°C
• Temperature Stability:  3°C when testing
• TEC power: 430W (customized)
• cooling power chiller: 250W, 800W 1400W Customized
• Control tpye: RS-232/485
• Rise/Fall time RT to 125°C: <40 sec
• Fall time RT to -40°C: <136°C (without loading)
Technology
for
Better
Contacts

3. 56
aps
Sales & Service GmbH

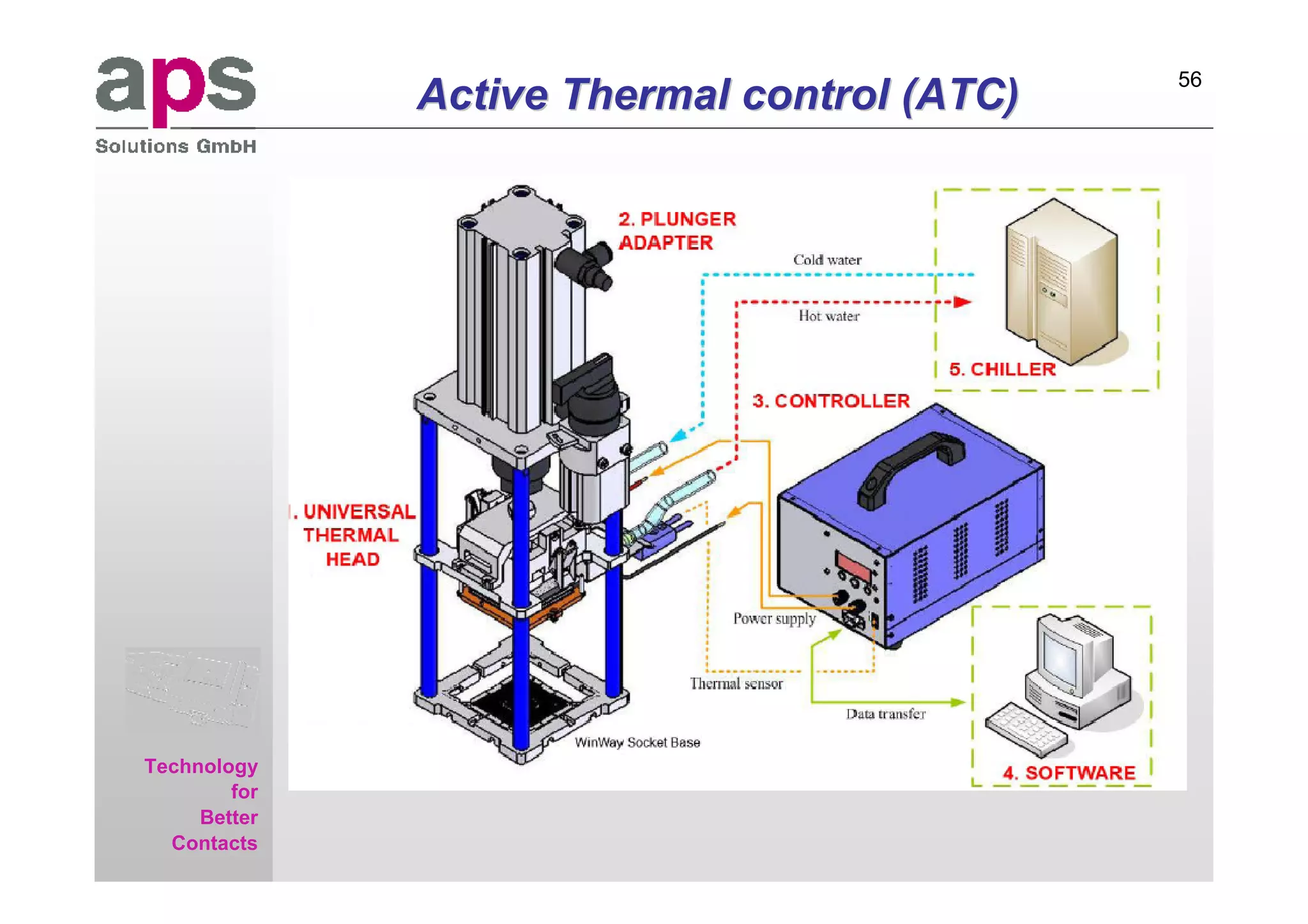

Active Thermal control (ATC)
Technology
for
Better
Contacts

4. 57
aps
Sales & Service GmbH
Active Thermal control (ATC)

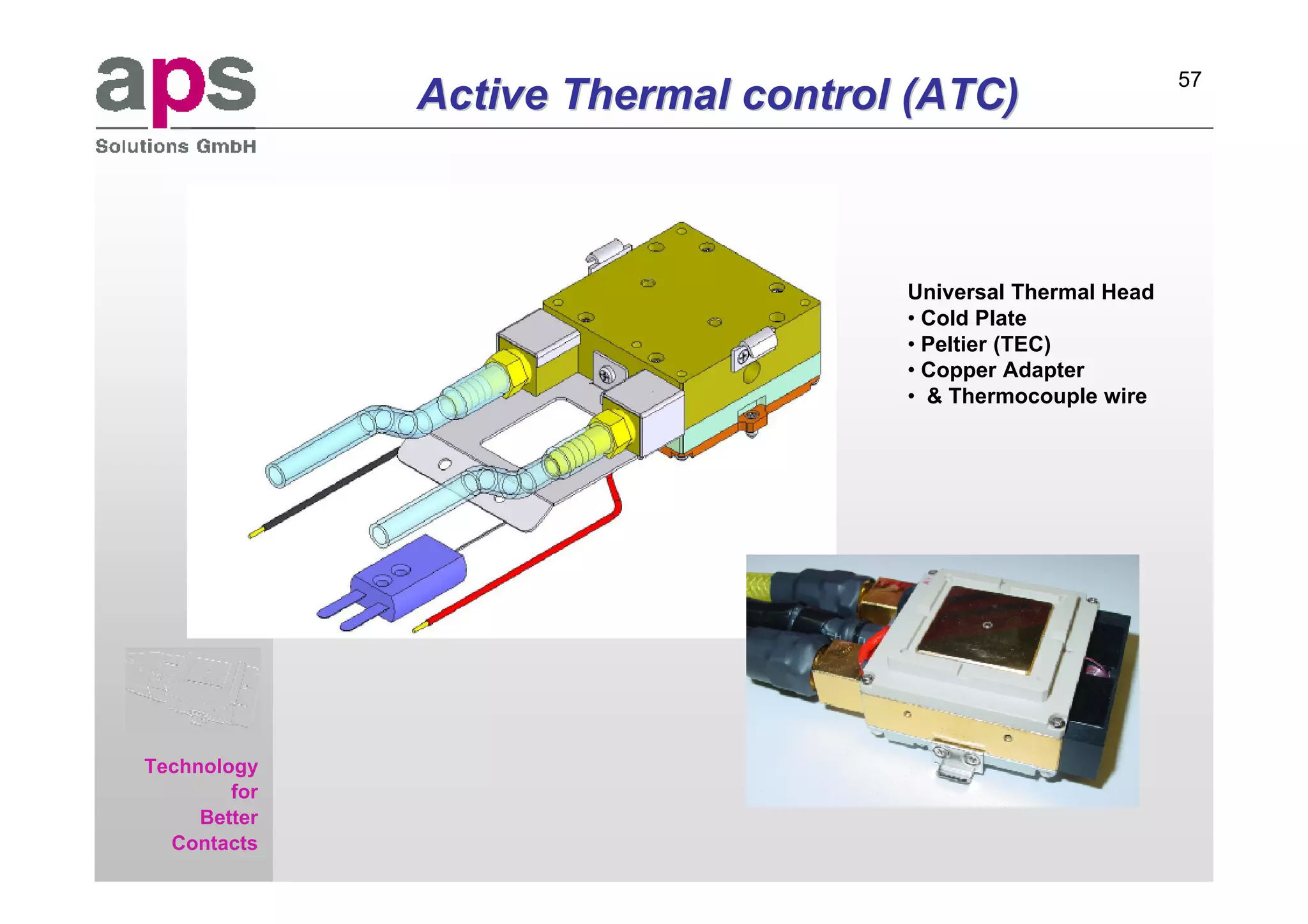

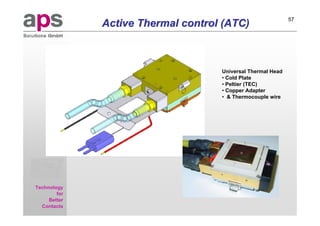

Universal Thermal Head
• Cold Plate
• Peltier (TEC)
• Copper Adapter
• & Thermocouple wire
Technology
for
Better
Contacts

5. 58
aps
Sales & Service GmbH

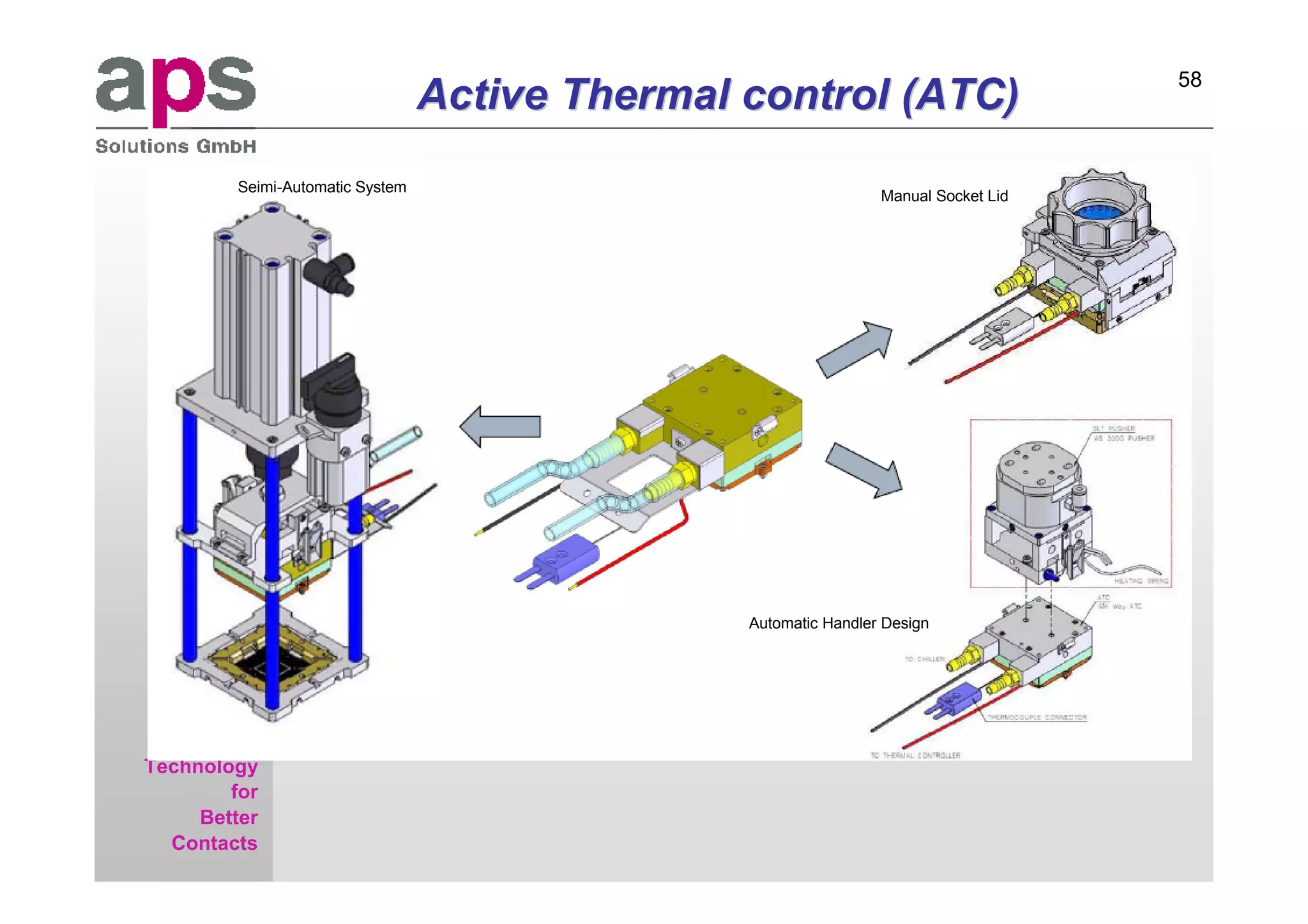

Active Thermal control (ATC)
Seimi-Automatic System
Manual Socket Lid
Automatic Handler Design
Technology
for
Better
Contacts

6. 59
aps
Sales & Service GmbH

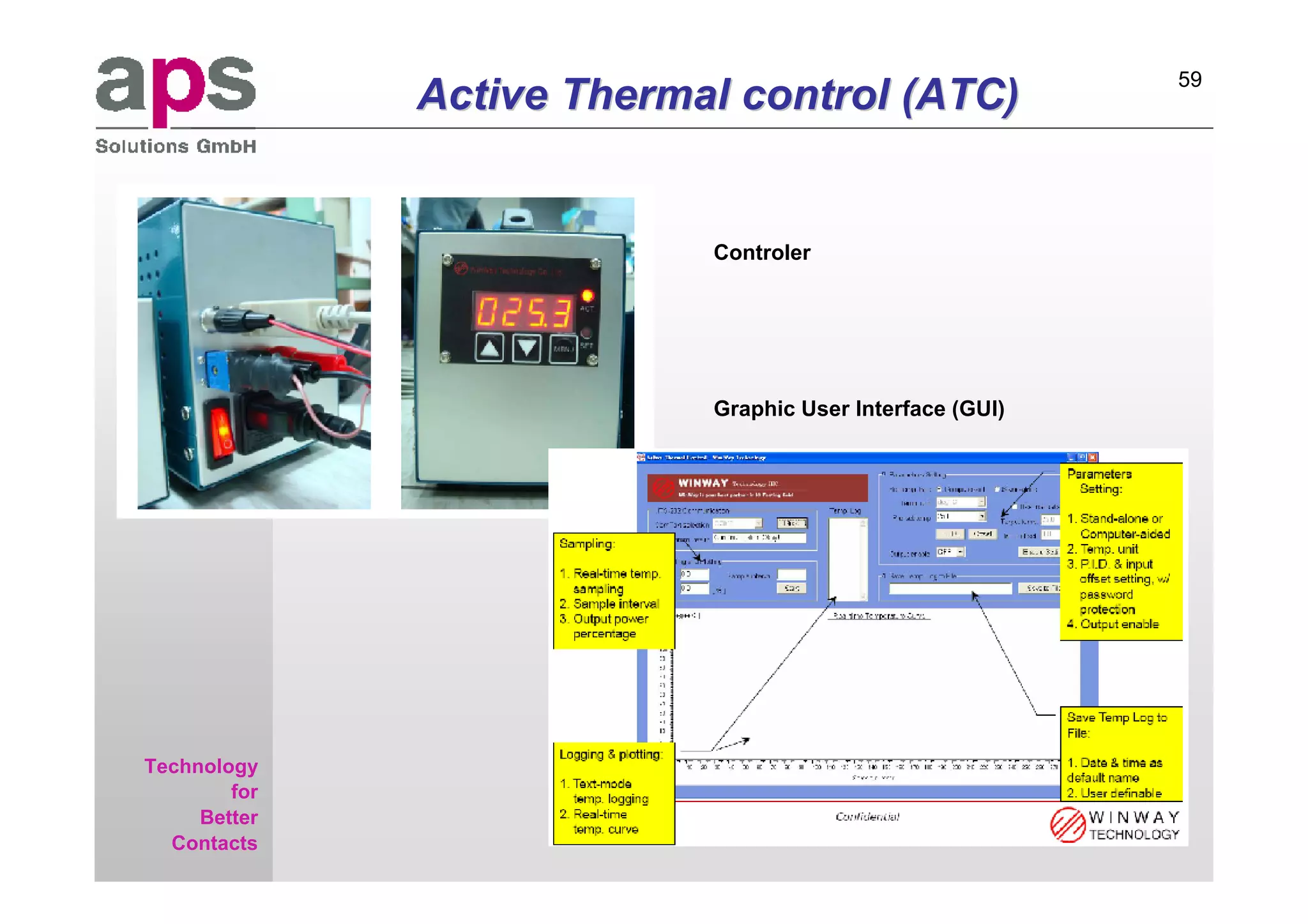

Active Thermal control (ATC)
Controler
Graphic User Interface (GUI)
Technology
for
Better
Contacts

7. 60
aps
Sales & Service GmbH

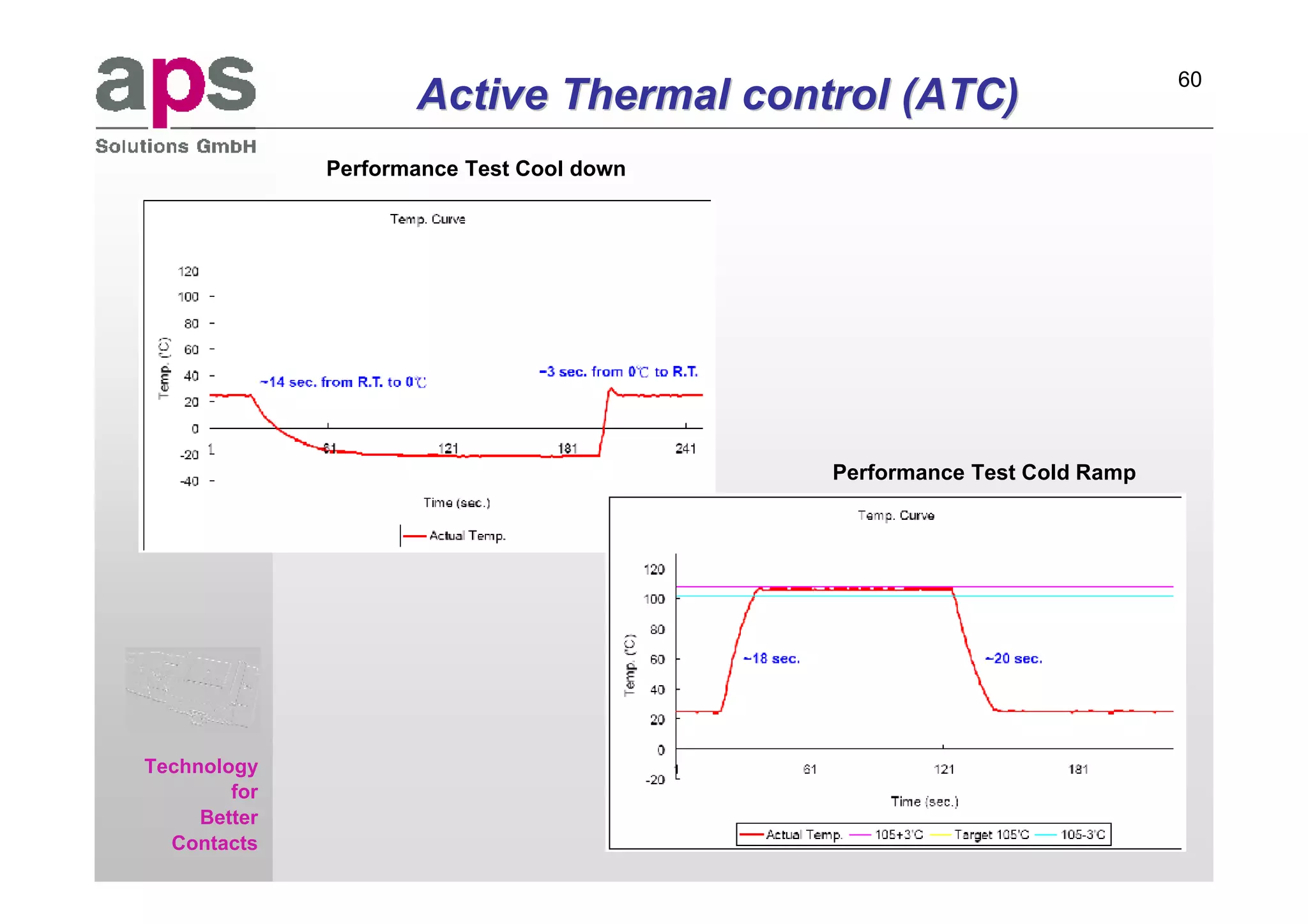

Active Thermal control (ATC)
Performance Test Cool down
Performance Test Cold Ramp
Technology
for
Better
Contacts

8. 61
aps
Sales & Service GmbH
Technology
for
Better
Contacts
