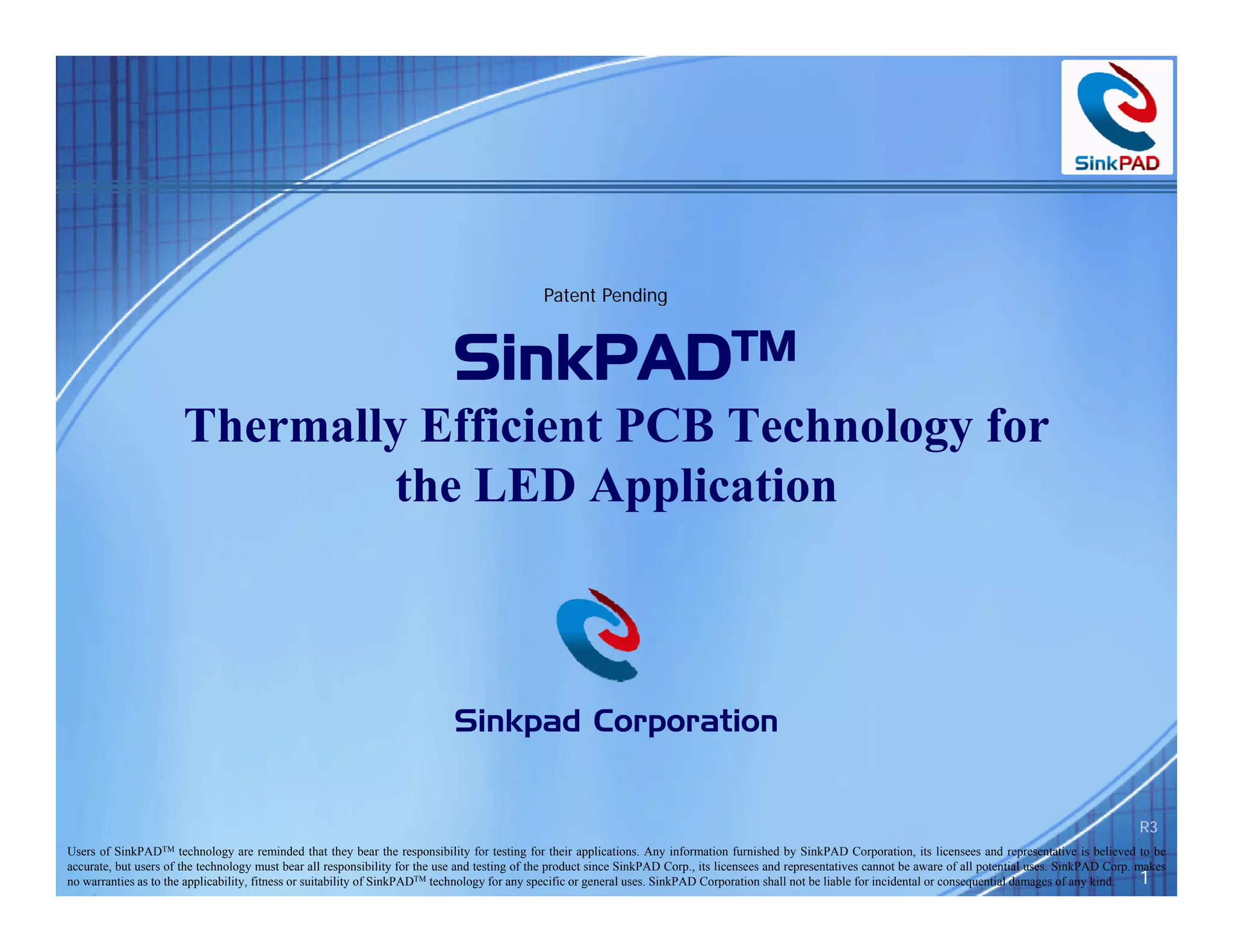

1. Patent Pending
SinkPADTM
Thermally Effi i t PCB Technology for
Th ll Efficient T h l f
the LED Application
Sinkpad Corporation
R3
Users of SinkPADTM technology are reminded that they bear the responsibility for testing for their applications. Any information furnished by SinkPAD Corporation, its licensees and representative is believed to be
accurate, but users of the technology must bear all responsibility for the use and testing of the product since SinkPAD Corp., its licensees and representatives cannot be aware of all potential uses. SinkPAD Corp. makes
no warranties as to the applicability, fitness or suitability of SinkPADTM technology for any specific or general uses. SinkPAD Corporation shall not be liable for incidental or consequential damages of any kind. 1
2. PRESENTATION OUTLINE
Thermal Challenges In The LED Applications
How it is Addressed? Metal Back PCB Technology
Is There a Better Way? SinkPADTM Technology
y gy
What Would I Gain Using SinkPADTM?
Comparisons Of “Metal Back & “SinkPADTM”
Metal Back” SinkPAD
Potential Applications
Test Data
Conclusion
R3 2
3. THERMAL CHALLANGES
Increasing Trend For LED Power
Increasing Trend For Higher Brightness
Primary Thermal Path: Conduction Cooling
Higher Thermal Resistance
Power Density Increasing – more LEDs in a small area
Long Life Expectation
R3 3
4. How Heat Issues Addressed Historically?
Metal Back PCB Technology THERMALLY CONDUCTIVE DIELECTRICS
Example: MCPCB, Aluminum PCB etc…type products Arlon 92ML – 2.0W/m.k
Bergquist – 2.2-3.0W/m.k
Doosan – 2.0W/m.k
Denka Hit Plate – 2.0-8.0 W/m.k
DuPont CoolLam – Polyimide based – 0.80W/m.k
ITEQ- IT859 GTA – 2.0W/m.k
Laird Technology HKA – 3 0W/m k
3.0W/m.k
Polytronics – 2.7W/m.k
Sekisui – 2.0W/m.k
Ventec - VT 4A1 – 1.6W/m.k
Thermally Conductive Dielectric
(TC~ 1 to 4 W/m.k)
Thermal Pad
or Bond Pad
Z-axis Heat
Transfer rate:
Metal Thermal Conductivity (TC)
Al ~135-180W/m.k Only 1-4 W/m.k
Cu ~385W/m.k
Z-axis heat transfer is limited by the TC & thickness of the Dielectric Material
R3 4
5. Is There a Better Way to Remove Heat?
YES
SinkPADTM Technology
R3 5
6. What is SinkPAD?
SinkPADTM is a MCPCB Technology
gy
Which Provides
Direct Thermal Path to Hot LED
R3 6
7. “SinkPADTM” TECHNOLOGY
Patent Pending
Direct Heat Transfer
To view & download this info
“Register” below
Register below.
If you already have Registered
before; click on “login” below
Or send an email request at
q
eng@sinkpad.com
Z-axis Heat
Transfer rate:
Metal Thermal Conductivity (TC)
Al ~135-180W/m.k 150-385 W/m.k
Cu ~385W/m.k
385W/m.k
Z-axis heat transfer is same as the TC of the base material used
R3 7
8. What would I gain using SinkPAD?
SinkPAD PCB will Lower LED Junction Temperature
Which means :
1) O ti to run LED at lower junction temperature
Option t tl j ti t t
i.e Increase Life of the LED Fixture
2) Option to run LED at higher power / maintain temperature
i.e. Get more lumens per LED
3) R d
Reduce number of LED to get same li h
b f LEDs light
i.e. Reduces Fixture Cost
4) Hi h Drive Currents, B i ht Li ht Fewer Components
Higher D i C t Brighter Light, F C t
R3 8
9. “SinkPADTM” TECHNOLOGY
Patent Pending
Top View of a SinkPADTM PCB
SinkPAD
Circuit pad
Circuit traces
R2 9
11. COMPARISION OF “METAL BACK” & “SinkPAD”
Patent Pending
“Metal Back PCB” “SinkPADTM PCB”
To view & download this info
“Register” below.
If you already have Registered
before; click on “login” below
Or send an email request at
eng@sinkpad.com
Higher Thermal Resistance Direct Thermal Path
Slow Heat Transfer Rate Fast Heat Transfer Rate
Special Dielectric Required Standard Dielectric Used
Thick Base Metal Required
q Thinner Base Metal Options
p
Limited to Epoxy dielectric only Epoxy, Polyimide or any typical dielectric can be
Metal is Insulated Thermally From The used
Component Metal is Connected Thermally to the Component
“No” PCB Design Change Required
No
R5 9
12. “SinkPADTM” TECHNOLOGY
Patent Pending
Multilayer Examples
“Metal Back PCB”
“ l k C ” “SinkPADTM PCB”
SinkPAD PCB
Substantial increase in thermal resistance Does not increase thermal resistance
To view & download this info
“Register” below.
If you already have Registered
before; click on “login” below
Or send an email request at
eng@sinkpad.com
eng@sinkpad com
Limitation: Components can be assembled only on one side of the PCB
R3 12
13. REQUIREMENT TO USE SinkPADTM
To i
T view & ddownload thi i f
l d this info
“Register” below.
If you already have Registered
before; click on “login” below
Or send an email request at
eng@sinkpad.com
13
20. TEST DATA
SinkPAD v/s MCPCB thermal data
SinkPAD Rth: 0.45 0C/W
MCPCB Rth : 1.75 0C/W
dT *deg C)
Power (W)
SinkPADTM makes a lot of sense at mid to high power application, for example the new Cree XML can be
driven up to 3A. At this power level, It can be a big difference in junction temp
R5 20
21. TEST DATA, Cree 1-XPG
SinkPAD v/s Typical Aluminum back PCB thermal data
R5 21
22. TEST DATA, Cree XP-G
SinkPAD v/s Conventional MCPCB thermal data (IR Camera)
- Cree XPG 9 LEDs
- Current: 1 Amp.
- Power: 3W each MCPCB SinkPAD PCB
- PCB ~ 1”x1” To view & download this info
“Register” below.
If you already have Registered
before; click on “login” below
Or send an email request at
eng@sinkpad.com
1410 C 1190 C
SinkPADTM PCB & Aluminum PCB mounted onto a separate heatsink. LEDs on a SinkPADTM pcb running
~220C cooler than on the conventional MCPCB
R3 22
23. TEST DATA, Luxeon Rebel at 700mA
SinkPAD v/s Conventional MCPCB thermal data (Thermocouple method)
- Luxeon Rebel at 700mA
MCPCB Type 1
Type-1
MCPCB Type-24
MCPCB 1
MCPCB-1
MCPCB-2
Test was conducted by Quadica Developments Inc
LED on a SinkPADTM PCB running ~290C cooler than on the MCPCB-1 and 100C cooler than the MCPCB-2
R5 23
24. TEST DATA, Luxeon Rebel at 1A
SinkPAD v/s Conventional MCPCB thermal data (Thermocouple method)
- Luxeon Rebel at 1000mA
MCPCB Type-1
MCPCB Type-24
MCPCB-1
MCPCB-2
Test was conducted by Quadica Developments Inc
LED on a SinkPADTM PCB running ~470C cooler than on the MCPCB-1 and 160C cooler than the MCPCB-2
R5 24
25. Other Available Test Data
Nichia N219
Luxeon Rebel
Cree MTG
Osram Oslon SSL
Cree XML
Customize Your Test
R5 25
26. Highlights and Q&A
Patent Pending
Magnitude Higher Thermal Transfer Rate
Direct Thermal Path
135 to 385W/m.k vs. 1 to 4 W/m.k
LOWER JUNCTION TEMPERATURE
High Tg (Up to 225oC)
Multilayer Possible Without Increase In Thermal Resistance
Weight Saving
Possibly thinner profile
Di t Replacement for MCPCB, M t l B k PCB & Al i
Direct R l t f MCPCB Metal Back Aluminum PCB
Most Economical Direct Thermal Path Solution
Any Questions….. Contact us
yQ
R5 26
27. THANK YOU
For more information contact
eng@sinkpad.com
Visit us at www.sinkpad.com
714-660-2944
R3
