Active Cloud DB at CloudComp '10

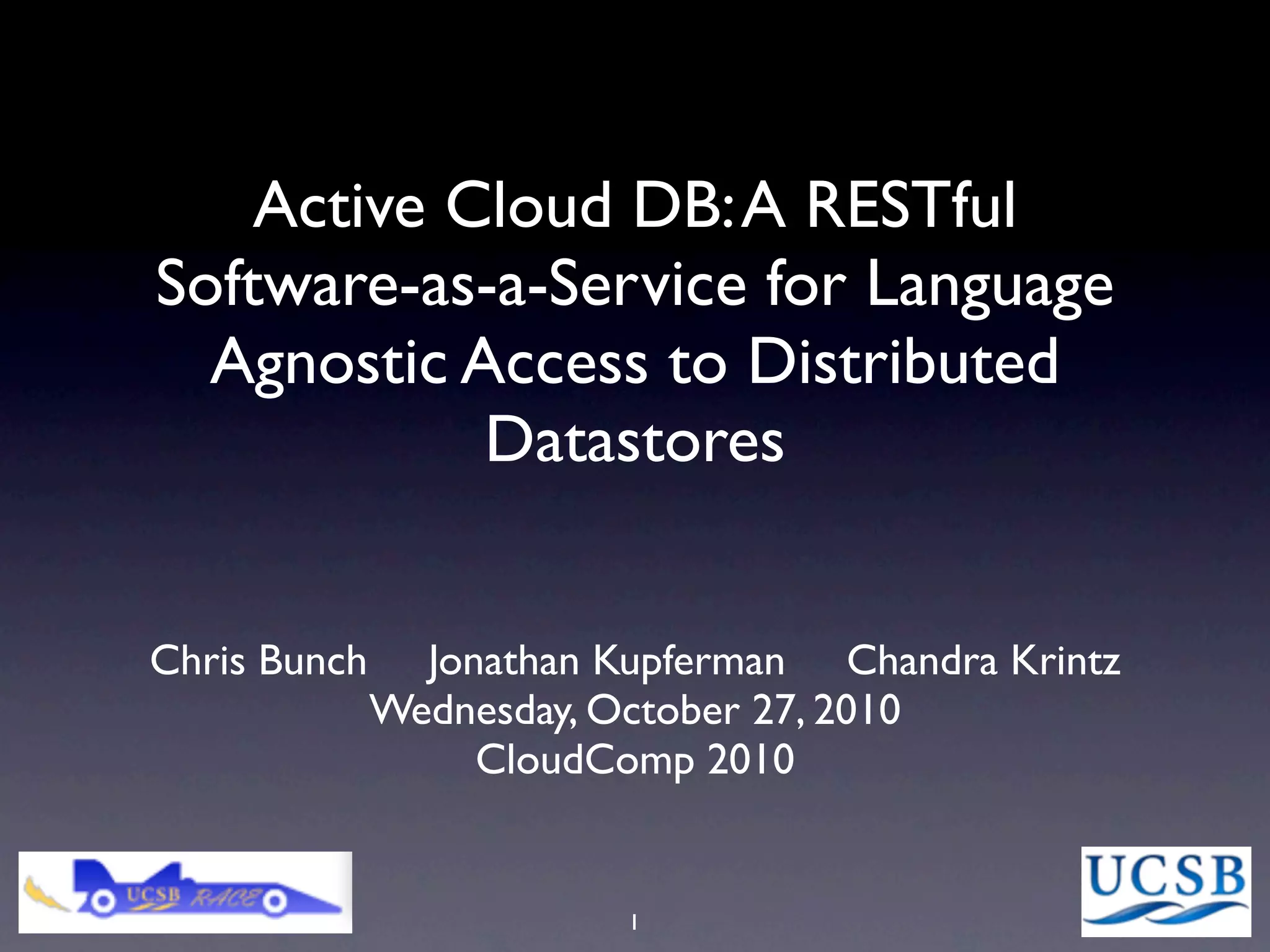

- 1. Active Cloud DB:A RESTful Software-as-a-Service for Language Agnostic Access to Distributed Datastores Chris Bunch Jonathan Kupferman Chandra Krintz Wednesday, October 27, 2010 CloudComp 2010 1

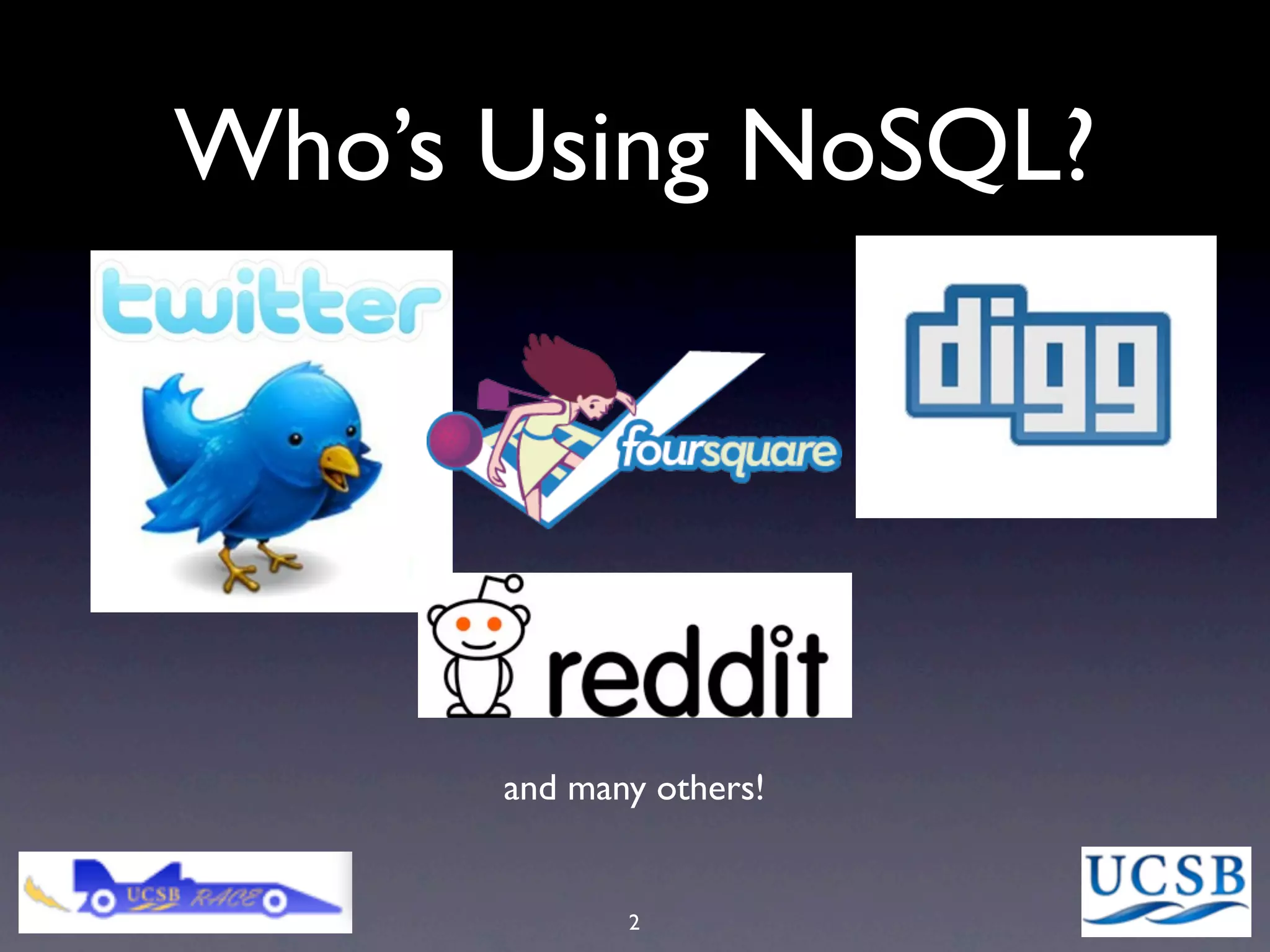

- 2. Who’s Using NoSQL? 2 and many others!
- 3. Do ItYourself! • Pick a datastore • Learn how the interfaces SHOULD work • Learn how the interfaces REALLY work • Migrate to a non-relational data model • each of these are non-trivial! 3
- 4. Trouble in Paradise 4 (at least they’re honest about it)
- 5. The Problem • No way to compare databases with real applications • No standard on what a real test is • Too many variables in the equation • Topology, query language, data model, APIs, consistency settings (to name a few) 5
- 6. You Need A Better Way • Need a platform to: • Easily evaluate datastores • Quickly evaluate datastores • Evaluate datastores on similar metrics 6
- 7. Our Contribution • Active Cloud DB:A Google App Engine app that exposes the DB via REST • Exposes string key/value DB • Speed up repeated operations via caching • Works on Google or AppScale •Free access to BigTable 7
- 8. 8
- 9. Realistically Speaking • One test takes ~ 2 hours • In one day at work you could generate a graph comparing: • HBase • Cassandra • Google BigTable • Amazon SimpleDB 9
- 10. RESTful Interface • GET /resources/key ➜ get • POST /resources/key (with value) ➜ put • DELETE /resources/key ➜ delete • GET /resources ➜ query (get all) 10
- 11. Caching Support • Leverages Memcache API / memcached • Provides a Least-Recently-Used Cache • Write-through caching strategy - all puts / deletes are written to the cache • Generational caching strategy - queries use a generation number 11
- 12. Bookstore App • Four prototypes available that use Active Cloud DB: • Ruby on Rails • Ruby (through Sinatra) • Python (via Django) • Python (through web.py) 12
- 13. 13
- 14. The Actual Code • With BigTable: • val = `curl -X GET http://your- app.appspot.com/resources/#{key}` • Or in AppScale: • val = `curl -X GET http:// 128.111.55.223:8080/resources/#{key}` 14
- 15. • Originally presented at CloudComp 2009 • An open-source implementation of the Google App Engine APIs • Automatically configures and deploys cloud infrastructures to run your application •includes database deployment 15
- 16. • Supported Datastores as of AppScale 1.4: • HBase, Hypertable • MySQL • Cassandra,Voldemort, Scalaris • MongoDB • MemcacheDB • Amazon SimpleDB 16
- 17. 17
- 18. Not Good Enough • AppScale / GAE solve the problem for Python and Java • But only with certain APIs • And with certain restrictions • Need something general purpose •All languages, no restrictions 18
- 19. But how do we test it? • Cassandra 0.5.0 / MemcacheDB 1.2.1β • Place 1000 items in the database and time: • Get, put, query, delete operations • Nine accessor threads • Standard deployment model 19
- 20. 20
- 21. 21
- 22. 22
- 23. A different type of test • Workload model • 10000 random operations selected • 50/30/20 get/put/query ratio • Constrained to 16 nodes • Performed on initially empty database 23
- 24. 24
- 25. 25
- 26. 26
- 27. Future Work • Performance impact of: • Cache size • Millions of items in DB • Overhead of Active Cloud DB • Transaction support 27
- 28. Related Work • BigTable as a Web Service • Not open source, HBase-like API • Yahoo Cloud Serving Benchmark[SOCC10] • Doesn’t run applications • No automation - you set up the DB, you set up the schemas, etc. 28
- 29. Active Cloud DB is Open for Business • Open source - free to use • Customize your own batch test or workload test • Access it via any programming language • Bookstore applications included 29
- 30. Thanks! • Download Active Cloud DB and AppScale: • http://appscale.cs.ucsb.edu • To my advisor, Chandra Krintz • To the AppScale team, especially co-lead Navraj Chohan 30
