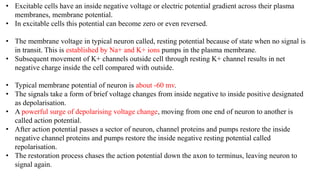

2. • Excitable cells have an inside negative voltage or electric potential gradient across their plasma
membranes, membrane potential.
• In excitable cells this potential can become zero or even reversed.
• The membrane voltage in typical neuron called, resting potential because of state when no signal is
in transit. This is established by Na+ and K+ ions pumps in the plasma membrane.
• Subsequent movement of K+ channels outside cell through resting K+ channel results in net
negative charge inside the cell compared with outside.
• Typical membrane potential of neuron is about -60 mv.
• The signals take a form of brief voltage changes from inside negative to inside positive designated
as depolarisation.
• A powerful surge of depolarising voltage change, moving from one end of neuron to another is
called action potential.
• After action potential passes a sector of neuron, channel proteins and pumps restore the inside
negative channel proteins and pumps restore the inside negative resting potential called
repolarisation.
• The restoration process chases the action potential down the axon to terminus, leaving neuron to
signal again.

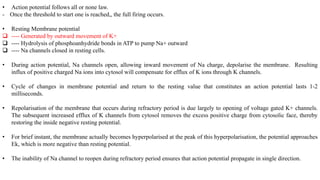

3. • Action potential follows all or none law.
- Once the threshold to start one is reached,, the full firing occurs.
• Resting Membrane potential
---- Generated by outward movement of K+
---- Hydrolysis of phosphoanhydride bonds in ATP to pump Na+ outward
---- Na channels closed in resting cells.
• During action potential, Na channels open, allowing inward movement of Na charge, depolarise the membrane. Resulting
influx of positive charged Na ions into cytosol will compensate for efflux of K ions through K channels.
• Cycle of changes in membrane potential and return to the resting value that constitutes an action potential lasts 1-2
milliseconds.
• Repolarisation of the membrane that occurs during refractory period is due largely to opening of voltage gated K+ channels.
The subsequent increased efflux of K channels from cytosol removes the excess positive charge from cytosolic face, thereby
restoring the inside negative resting potential.
• For brief instant, the membrane actually becomes hyperpolarised at the peak of this hyperpolarisation, the potential approaches
Ek, which is more negative than resting potential.
• The inability of Na channel to reopen during refractory period ensures that action potential propagate in single direction.

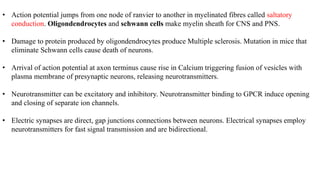

4. • Action potential jumps from one node of ranvier to another in myelinated fibres called saltatory
conduction. Oligondendrocytes and schwann cells make myelin sheath for CNS and PNS.
• Damage to protein produced by oligondendrocytes produce Multiple sclerosis. Mutation in mice that
eliminate Schwann cells cause death of neurons.
• Arrival of action potential at axon terminus cause rise in Calcium triggering fusion of vesicles with
plasma membrane of presynaptic neurons, releasing neurotransmitters.
• Neurotransmitter can be excitatory and inhibitory. Neurotransmitter binding to GPCR induce opening
and closing of separate ion channels.
• Electric synapses are direct, gap junctions connections between neurons. Electrical synapses employ
neurotransmitters for fast signal transmission and are bidirectional.
