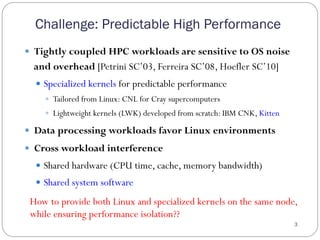

![Challenge: Predictable High Performance
3
— Tightly coupled HPC workloads are sensitive to OS noise
and overhead [Petrini SC’03, Ferreira SC’08, Hoefler SC’10]
— Specialized kernels for predictable performance
— Tailored from Linux: CNL for Cray supercomputers
— Lightweight kernels (LWK) developed from scratch: IBM CNK, Kitten
— Data processing workloads favor Linux environments
— Cross workload interference
— Shared hardware (CPU time, cache, memory bandwidth)
— Shared system software
How to provide both Linux and specialized kernels on the same node,
while ensuring performance isolation??](https://image.slidesharecdn.com/hpdc15-pisces-slides-160408035124/85/Achieving-Performance-Isolation-with-Lightweight-Co-Kernels-3-320.jpg)
![Building Blocks: Kitten and Palacios
— the Kitten Lightweight Kernel (LWK)
— Goal: provide predictable performance for massively parallel HPC applications
— Simple resource management policies
— Limited kernel I/O support + direct user-level network access
— the Palacios LightweightVirtual Machine Monitor (VMM)
— Goal: predictable performance
— Lightweight resource management policies
— Established history of providing virtualized environments for HPC [Lange et al.
VEE ’11, Kocoloski and Lange ROSS‘12]
Kitten: https://software.sandia.gov/trac/kitten
Palacios: http://www.prognosticlab.org/palacios http://www.v3vee.org/](https://image.slidesharecdn.com/hpdc15-pisces-slides-160408035124/85/Achieving-Performance-Isolation-with-Lightweight-Co-Kernels-6-320.jpg)

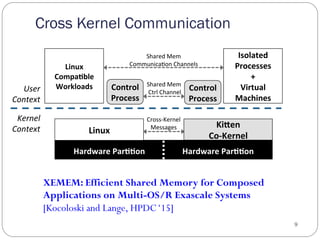

![Cross Kernel Communication
9
Hardware'Par))on' Hardware'Par))on'
User%
Context%
Kernel%
Context% Linux'
Cross%Kernel*
Messages*
Control'
Process'
Control'
Process'
Shared*Mem*
*Ctrl*Channel*
Linux'
Compa)ble'
Workloads'
Isolated'
Processes''
+'
Virtual'
Machines'
Shared*Mem*
Communica6on*Channels*
Ki@en'
CoAKernel'
XEMEM: Efficient Shared Memory for Composed
Applications on Multi-OS/R Exascale Systems
[Kocoloski and Lange, HPDC‘15]](https://image.slidesharecdn.com/hpdc15-pisces-slides-160408035124/85/Achieving-Performance-Isolation-with-Lightweight-Co-Kernels-9-320.jpg)

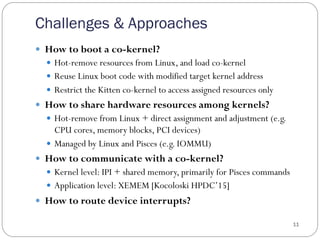

![Challenges & Approaches
11
— How to boot a co-kernel?
— Hot-remove resources from Linux, and load co-kernel
— Reuse Linux boot code with modified target kernel address
— Restrict the Kitten co-kernel to access assigned resources only
— How to share hardware resources among kernels?
— Hot-remove from Linux + direct assignment and adjustment (e.g.
CPU cores, memory blocks, PCI devices)
— Managed by Linux and Pisces (e.g. IOMMU)
— How to communicate with a co-kernel?
— Kernel level: IPI + shared memory, primarily for Pisces commands
— Application level: XEMEM [Kocoloski HPDC’15]
— How to route device interrupts?](https://image.slidesharecdn.com/hpdc15-pisces-slides-160408035124/85/Achieving-Performance-Isolation-with-Lightweight-Co-Kernels-11-320.jpg)
More Related Content
Similar to Achieving Performance Isolation with Lightweight Co-Kernels
![20260201 [FOSDEM] gomodjail - library sandboxing for Go modules.pdf](https://cdn.slidesharecdn.com/ss_thumbnails/20260201fosdemgomodjail-librarysandboxingforgomodules-260201225659-76609ec4-thumbnail.jpg?width=640&height=640&fit=bounds)
Achieving Performance Isolation with Lightweight Co-Kernels
- 1. Jiannan Ouyang, BrianKocoloski, John Lange The Prognostic Lab @ University of Pittsburgh Kevin Pedretti Sandia National Laboratories HPDC 2015 Achieving Performance Isolation with Lightweight Co-Kernels

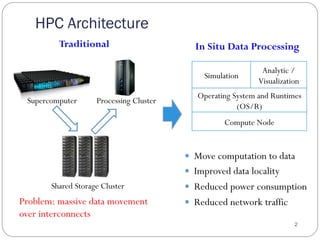

- 2. HPC Architecture 2 — Movecomputation to data — Improved data locality — Reduced power consumption — Reduced network traffic Compute Node Operating System and Runtimes (OS/R) Simulation Analytic / Visualization Supercomputer Shared Storage Cluster Processing Cluster Problem: massive data movement over interconnects Traditional In Situ Data Processing
- 3. Challenge: Predictable HighPerformance 3 — Tightly coupled HPC workloads are sensitive to OS noise and overhead [Petrini SC’03, Ferreira SC’08, Hoefler SC’10] — Specialized kernels for predictable performance — Tailored from Linux: CNL for Cray supercomputers — Lightweight kernels (LWK) developed from scratch: IBM CNK, Kitten — Data processing workloads favor Linux environments — Cross workload interference — Shared hardware (CPU time, cache, memory bandwidth) — Shared system software How to provide both Linux and specialized kernels on the same node, while ensuring performance isolation??

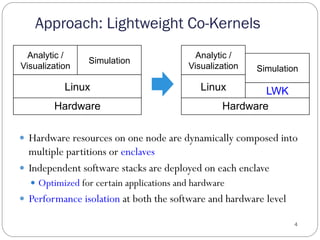

- 4. Approach: Lightweight Co-Kernels 4 — Hardware resources on one node are dynamically composed into multiple partitions or enclaves — Independent software stacks are deployed on each enclave — Optimized for certain applications and hardware — Performance isolation at both the software and hardware level Hardware Linux LWK Analytic / Visualization Hardware Linux Analytic / Visualization Simulation Simulation
- 5. Agenda 5 — Introduction — ThePisces Lightweight Co-Kernel Architecture — Implementation — Evaluation — RelatedWork — Conclusion

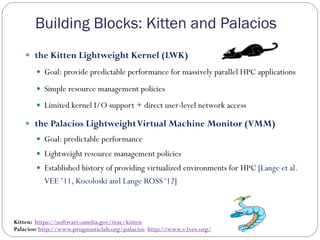

- 6. Building Blocks: Kittenand Palacios — the Kitten Lightweight Kernel (LWK) — Goal: provide predictable performance for massively parallel HPC applications — Simple resource management policies — Limited kernel I/O support + direct user-level network access — the Palacios LightweightVirtual Machine Monitor (VMM) — Goal: predictable performance — Lightweight resource management policies — Established history of providing virtualized environments for HPC [Lange et al. VEE ’11, Kocoloski and Lange ROSS‘12] Kitten: https://software.sandia.gov/trac/kitten Palacios: http://www.prognosticlab.org/palacios http://www.v3vee.org/

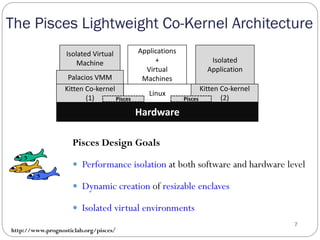

- 7. The Pisces LightweightCo-Kernel Architecture 7 Linux Hardware Isolated Virtual Machine Applications + Virtual MachinesPalacios VMM Kitten Co-kernel (1) Kitten Co-kernel (2) Isolated Application Pisces Pisces http://www.prognosticlab.org/pisces/ Pisces Design Goals — Performance isolation at both software and hardware level — Dynamic creation of resizable enclaves — Isolated virtual environments

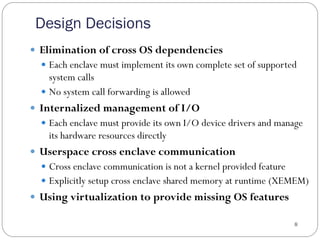

- 8. Design Decisions 8 — Eliminationof cross OS dependencies — Each enclave must implement its own complete set of supported system calls — No system call forwarding is allowed — Internalized management of I/O — Each enclave must provide its own I/O device drivers and manage its hardware resources directly — Userspace cross enclave communication — Cross enclave communication is not a kernel provided feature — Explicitly setup cross enclave shared memory at runtime (XEMEM) — Using virtualization to provide missing OS features
- 9. Cross Kernel Communication 9 Hardware'Par))on'Hardware'Par))on' User% Context% Kernel% Context% Linux' Cross%Kernel* Messages* Control' Process' Control' Process' Shared*Mem* *Ctrl*Channel* Linux' Compa)ble' Workloads' Isolated' Processes'' +' Virtual' Machines' Shared*Mem* Communica6on*Channels* Ki@en' CoAKernel' XEMEM: Efficient Shared Memory for Composed Applications on Multi-OS/R Exascale Systems [Kocoloski and Lange, HPDC‘15]

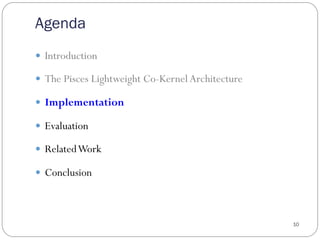

- 10. Agenda 10 — Introduction — ThePisces Lightweight Co-Kernel Architecture — Implementation — Evaluation — RelatedWork — Conclusion
- 11. Challenges & Approaches 11 — How to boot a co-kernel? — Hot-remove resources from Linux, and load co-kernel — Reuse Linux boot code with modified target kernel address — Restrict the Kitten co-kernel to access assigned resources only — How to share hardware resources among kernels? — Hot-remove from Linux + direct assignment and adjustment (e.g. CPU cores, memory blocks, PCI devices) — Managed by Linux and Pisces (e.g. IOMMU) — How to communicate with a co-kernel? — Kernel level: IPI + shared memory, primarily for Pisces commands — Application level: XEMEM [Kocoloski HPDC’15] — How to route device interrupts?
- 12. I/O Interrupt Routing 12 Legacy Device IO-APIC Management KernelCo-Kernel IRQ Forwarder IRQ Handler MSI/MSI-X Device Management Kernel Co-Kernel IRQ Forwarder IRQ Handler MSI/MSI-X Device MSI MSI INTx IPI Legacy Interrupt Forwarding Direct Device Assignment (w/ MSI) • Legacy interrupt vectors are potentially shared among multiple devices • Pisces provides IRQ forwarding service • IRQ forwarding is only used during initialization for PCI devices • Modern PCI devices support dedicated interrupt vectors (MSI/MSI-X) • Directly route to the corresponding enclave

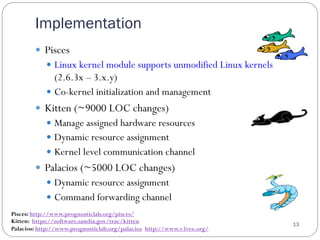

- 13. Implementation 13 — Pisces — Linuxkernel module supports unmodified Linux kernels (2.6.3x – 3.x.y) — Co-kernel initialization and management — Kitten (~9000 LOC changes) — Manage assigned hardware resources — Dynamic resource assignment — Kernel level communication channel — Palacios (~5000 LOC changes) — Dynamic resource assignment — Command forwarding channel Pisces: http://www.prognosticlab.org/pisces/ Kitten: https://software.sandia.gov/trac/kitten Palacios: http://www.prognosticlab.org/palacios http://www.v3vee.org/

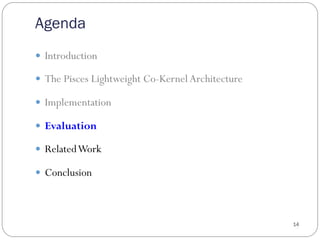

- 14. Agenda 14 — Introduction — ThePisces Lightweight Co-Kernel Architecture — Implementation — Evaluation — RelatedWork — Conclusion

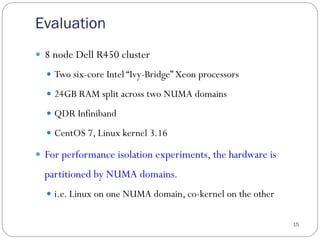

- 15. Evaluation 15 — 8 nodeDell R450 cluster — Two six-core Intel “Ivy-Bridge” Xeon processors — 24GB RAM split across two NUMA domains — QDR Infiniband — CentOS 7, Linux kernel 3.16 — For performance isolation experiments, the hardware is partitioned by NUMA domains. — i.e. Linux on one NUMA domain, co-kernel on the other

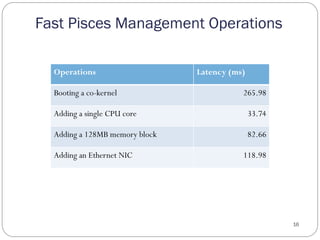

- 16. Fast Pisces ManagementOperations 16 Operations Latency (ms) Booting a co-kernel 265.98 Adding a single CPU core 33.74 Adding a 128MB memory block 82.66 Adding an Ethernet NIC 118.98

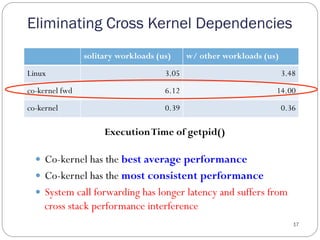

- 17. Eliminating Cross KernelDependencies 17 solitary workloads (us) w/ other workloads (us) Linux 3.05 3.48 co-kernel fwd 6.12 14.00 co-kernel 0.39 0.36 ExecutionTime of getpid() — Co-kernel has the best average performance — Co-kernel has the most consistent performance — System call forwarding has longer latency and suffers from cross stack performance interference
- 18. Noise Analysis 18 0 5 10 15 20 0 12 3 4 5 Latency(us) Time (seconds) (a) without competing workloads 0 1 2 3 4 5 Time (seconds) (b) with competing workloads 0 5 10 15 20 0 1 2 3 4 5 Latency(us) Time (seconds) (a) without competing workloads 0 1 2 3 4 5 Time (seconds) (b) with competing workloads Linux Kitten co-kernel Co-Kernel: less noise + better isolation * Each point represents the latency of an OS interruption

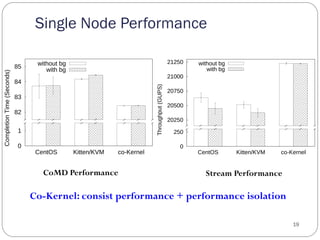

- 19. Single Node Performance 19 0 1 CentOSKitten/KVM co-Kernel 82 83 84 85 CompletionTime(Seconds) without bg with bg 0 250 CentOS Kitten/KVM co-Kernel 20250 20500 20750 21000 21250 Throughput(GUPS) without bg with bg CoMD Performance Stream Performance Co-Kernel: consist performance + performance isolation

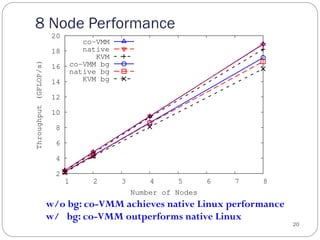

- 20. 8 Node Performance 20 2 4 6 8 10 12 14 16 18 20 12 3 4 5 6 7 8 Throughput(GFLOP/s) Number of Nodes co-VMM native KVM co-VMM bg native bg KVM bg w/o bg: co-VMM achieves native Linux performance w/ bg: co-VMM outperforms native Linux

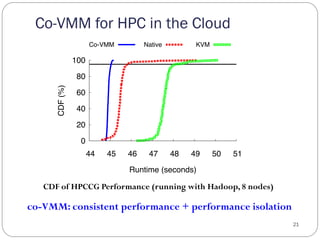

- 21. Co-VMM for HPCin the Cloud 21 0 20 40 60 80 100 44 45 46 47 48 49 50 51 CDF(%) Runtime (seconds) Co-VMM Native KVM CDF of HPCCG Performance (running with Hadoop, 8 nodes) co-VMM: consistent performance + performance isolation

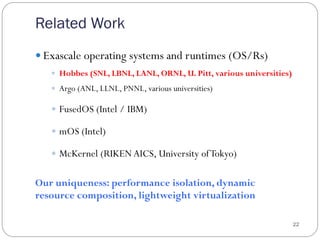

- 22. Related Work 22 — Exascale operatingsystems and runtimes (OS/Rs) — Hobbes (SNL, LBNL, LANL, ORNL, U. Pitt, various universities) — Argo (ANL, LLNL, PNNL, various universities) — FusedOS (Intel / IBM) — mOS (Intel) — McKernel (RIKENAICS, University ofTokyo) Our uniqueness: performance isolation, dynamic resource composition, lightweight virtualization

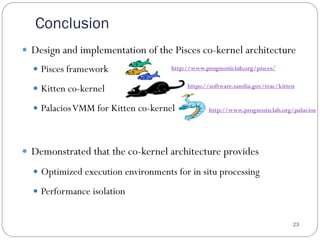

- 23. Conclusion 23 — Design andimplementation of the Pisces co-kernel architecture — Pisces framework — Kitten co-kernel — PalaciosVMM for Kitten co-kernel — Demonstrated that the co-kernel architecture provides — Optimized execution environments for in situ processing — Performance isolation https://software.sandia.gov/trac/kitten http://www.prognosticlab.org/pisces/ http://www.prognosticlab.org/palacios
- 24. Thank You Jiannan Ouyang — Ph.D. Candidate @ University of Pittsburgh — ouyang@cs.pitt.edu — http://people.cs.pitt.edu/~ouyang/ — The Prognostic Lab @ U. Pittsburgh — http://www.prognosticlab.org
