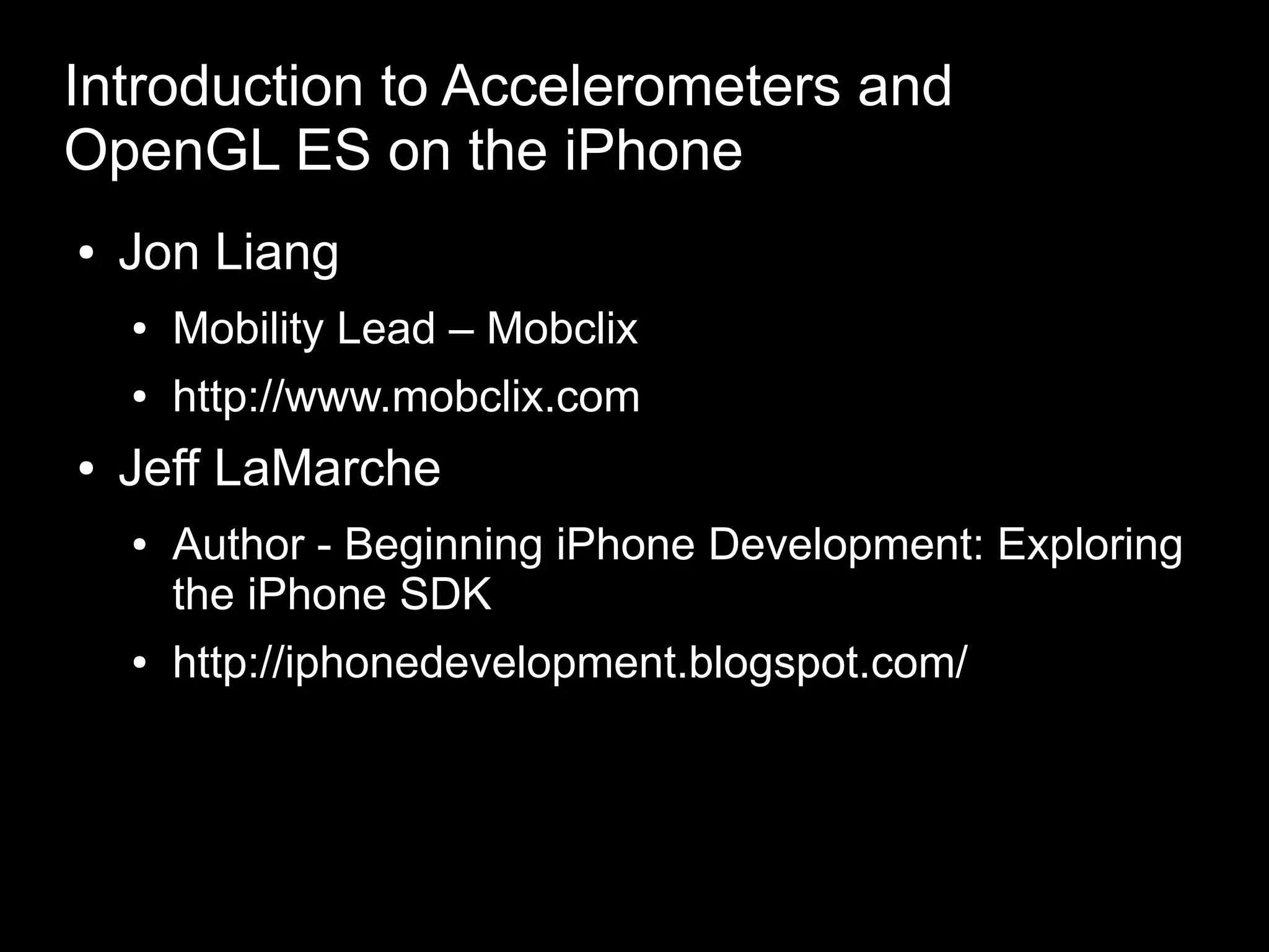

1. Introduction to Accelerometers and
OpenGL ES on the iPhone
Jon Liang
●
Mobility Lead – Mobclix
●
http://www.mobclix.com
●
Jeff LaMarche
●
Author - Beginning iPhone Development: Exploring
●
the iPhone SDK
http://iphonedevelopment.blogspot.com/
●

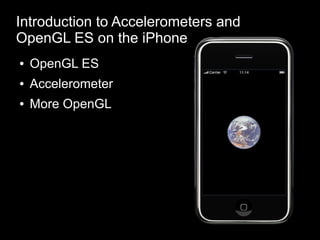

2. Introduction to Accelerometers and
OpenGL ES on the iPhone
OpenGL ES
●
Accelerometer
●
More OpenGL
●

3. OpenGL ES 1.1 - Open Graphics Library for
Embedded Systems

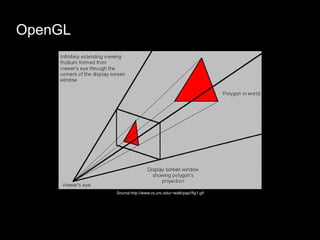

4. OpenGL
Source:http://www.cs.unc.edu/~walk/pap//fig1.gif

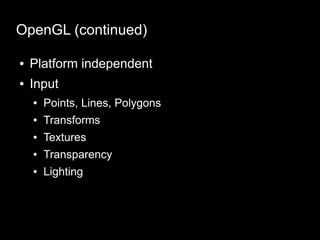

5. OpenGL (continued)
Platform independent
●
Input
●
Points, Lines, Polygons
●
Transforms
●
Textures
●
Transparency
●
Lighting
●

6. OpenGL Pipeline
Source: Apple

7. Code: Hello World

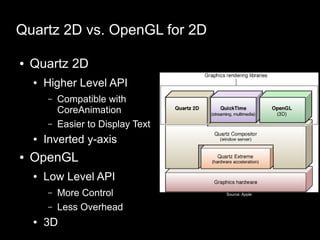

8. Quartz 2D vs. OpenGL for 2D
Quartz 2D
●
Higher Level API
●
Compatible with
–
CoreAnimation
Easier to Display Text
–
Inverted y-axis
●
OpenGL
●
Low Level API
●
More Control
– Source: Apple
Less Overhead
–
3D
●

9. iPhone Limitations
24 MB of Memory for textures and surfaces.
●
The maximum texture size is 1024 x 1024.
●
2D texture targets are supported; other texture
●
targets are not.
Stencil buffers aren’t available.
●
More Info:
●
http://developer.apple.com/iphone/library/documentation/i
–
Phone/Conceptual/iPhoneOSProgrammingGuide/Graphi
csandDrawing/chapter_6_section_5.html#//apple_ref/doc
/uid/TP40007072-CH10-SW18

10. Open GL → OpenGL ES
Removed glBegin() and glEnd()
●
Use glDrawArrays() or glDrawElements()
●
Added Fixed Point data types
●
Embedded systems often don't have FPU's.
●
Removed convenience functions
●
More lightweight implementation.
●

11. Questions?

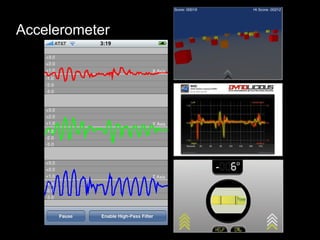

12. Accelerometer

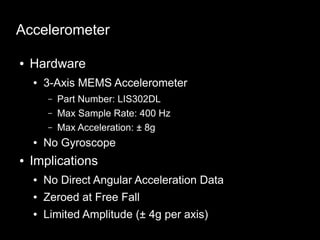

13. Accelerometer
Hardware
●
3-Axis MEMS Accelerometer
●
Part Number: LIS302DL
–
Max Sample Rate: 400 Hz
–
Max Acceleration: ± 8g
–
No Gyroscope
●
Implications
●
No Direct Angular Acceleration Data
●
Zeroed at Free Fall
●
Limited Amplitude (± 4g per axis)
●

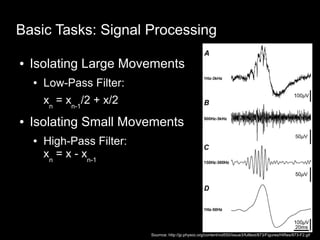

14. Basic Tasks: Signal Processing
Isolating Large Movements
●
Low-Pass Filter:
●
xn = xn-1/2 + x/2
Isolating Small Movements
●
High-Pass Filter:
●
xn = x - xn-1
Sournce: http://jp.physoc.org/content/vol550/issue3/fulltext/873/Figures/HiRes/873-F2.gif

15. Basic Tasks: Ground Angle
2 Dimensions:
●
Θ = atan(y/x)
Axis-Plane:
●
Θ = atan(z/sqrt(x2+y2))
Source: http://www.forestgumpsays.com/wp-content/uploads/2008/03/3iphoneaxes.jpg

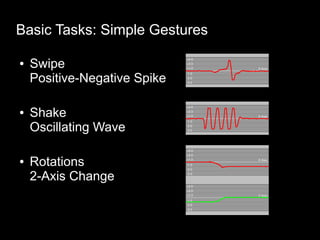

16. Basic Tasks: Simple Gestures
Swipe
●
Positive-Negative Spike
Shake
●
Oscillating Wave
Rotations
●
2-Axis Change

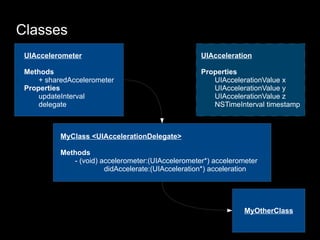

17. Classes
UIAccelerometer UIAcceleration
Methods Properties
+ sharedAccelerometer UIAccelerationValue x
Properties UIAccelerationValue y
updateInterval UIAccelerationValue z
delegate NSTimeInterval timestamp
MyClass <UIAccelerationDelegate>
Methods
- (void) accelerometer:(UIAccelerometer*) accelerometer
didAccelerate:(UIAcceleration*) acceleration
MyOtherClass

18. Code: Hello World (continued)

19. Questions?

20. More Open GL

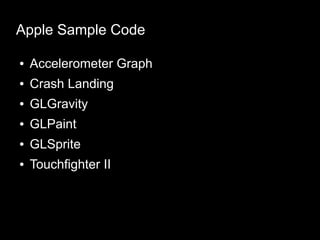

21. Apple Sample Code
Accelerometer Graph
●
Crash Landing
●
GLGravity
●
GLPaint
●
GLSprite
●
Touchfighter II
●

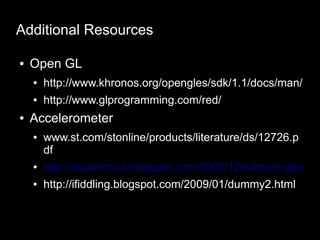

22. Additional Resources
Open GL
●
http://www.khronos.org/opengles/sdk/1.1/docs/man/
●
http://www.glprogramming.com/red/
●
Accelerometer
●
www.st.com/stonline/products/literature/ds/12726.p
●
df
http://squallchua.blogspot.com/2008/12/wiimote-gesture
●
http://ifiddling.blogspot.com/2009/01/dummy2.html
●

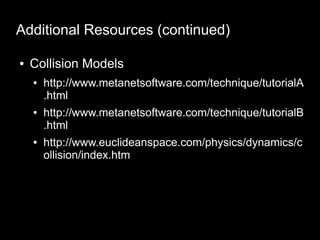

23. Additional Resources (continued)
Collision Models
●
http://www.metanetsoftware.com/technique/tutorialA
●
.html
http://www.metanetsoftware.com/technique/tutorialB
●
.html
http://www.euclideanspace.com/physics/dynamics/c
●
ollision/index.htm
