A tour of F9 microkernel and BitSec hypervisor

The document discusses the evolution of the F9 microkernel and BitSec hypervisor, focusing on improvements in inter-process communication performance and security features in third-generation microkernels. It highlights key technical concepts such as capability models, memory management, and debugging tools, along with potential bugs and unsolved problems in the system architecture. BitSec is portrayed as a minimal and secure microkernel for high-reliability embedded applications, distinct from a complete operating system.

Embed presentation

Download as ODP, PPTX
A tour of F9 microkernel and BitSec hypervisorA tour of F9 microkernel and BitSec hypervisor Louie Lu (Louie Lu ( 呂紹榕呂紹榕 ) <louie.lu@hopebaytech.com>) <louie.lu@hopebaytech.com> 11/24 @ ARRC Tainan11/24 @ ARRC Tainan
11/25/16 2 Content

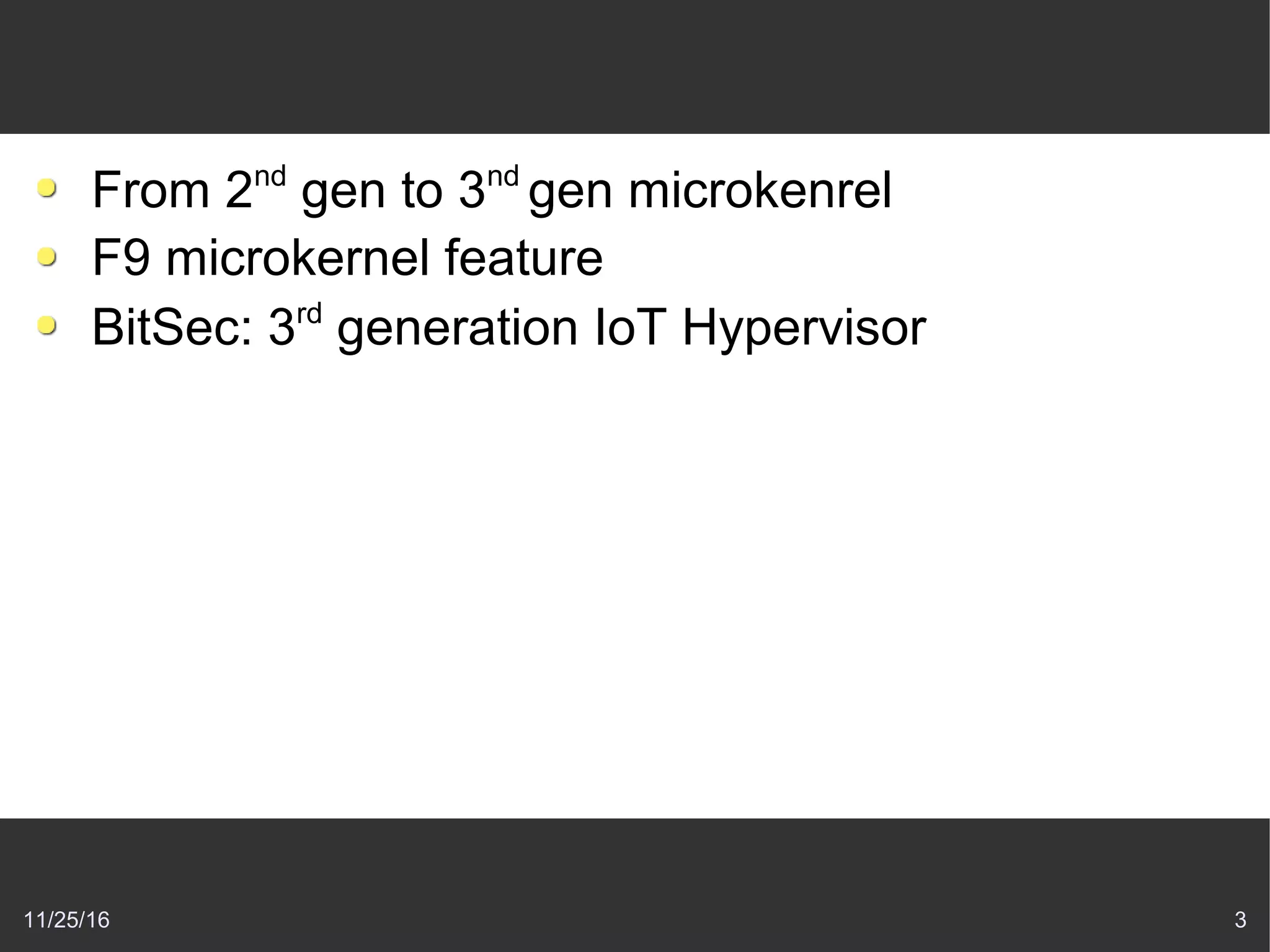

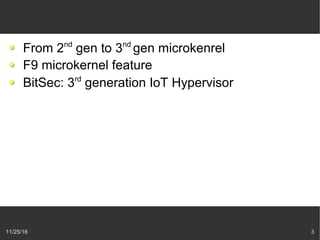

11/25/16 3 From 2nd gen to 3nd gen microkenrel F9 microkernel feature BitSec: 3rd generation IoT Hypervisor
11/25/16 4 From 2nd Gen to 3rd Gen microkernel

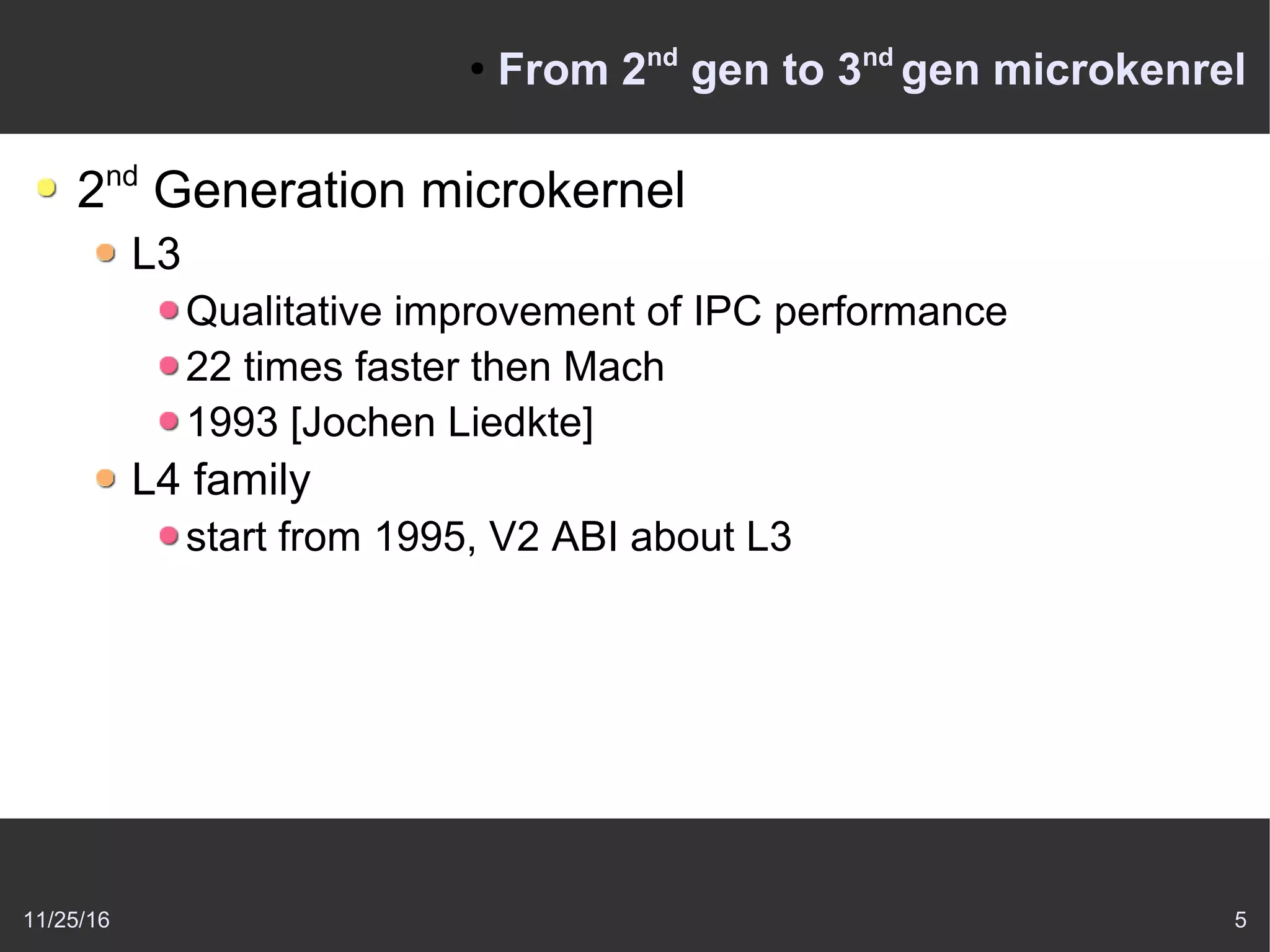

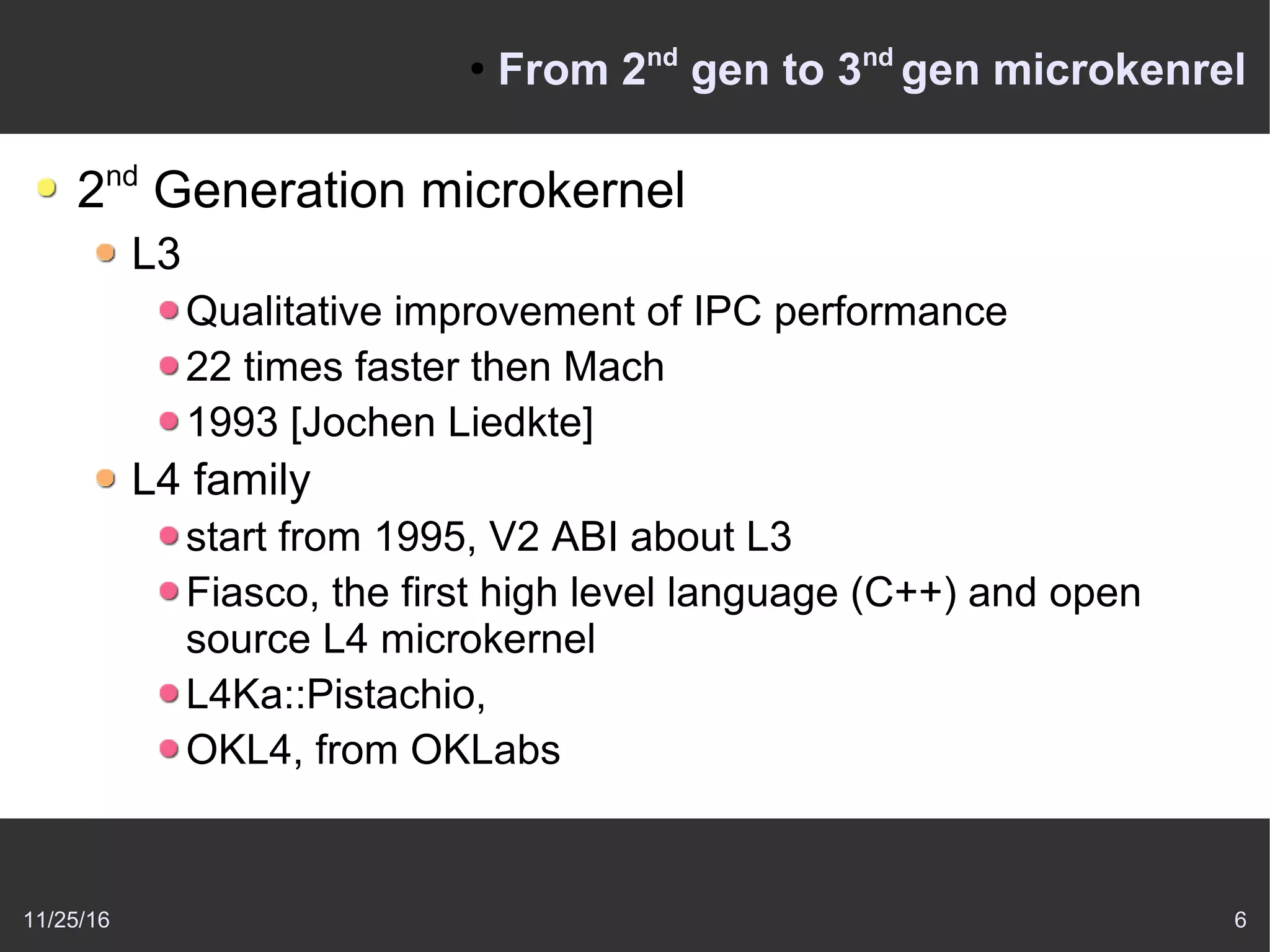

11/25/16 5 ● From 2nd gen to 3nd gen microkenrel 2nd Generation microkernel L3 Qualitative improvement of IPC performance 22 times faster then Mach 1993 [Jochen Liedkte] L4 family start from 1995, V2 ABI about L3
11/25/16 6 ● From 2nd gen to 3nd gen microkenrel 2nd Generation microkernel L3 Qualitative improvement of IPC performance 22 times faster then Mach 1993 [Jochen Liedkte] L4 family start from 1995, V2 ABI about L3 Fiasco, the first high level language (C++) and open source L4 microkernel L4Ka::Pistachio, OKL4, from OKLabs

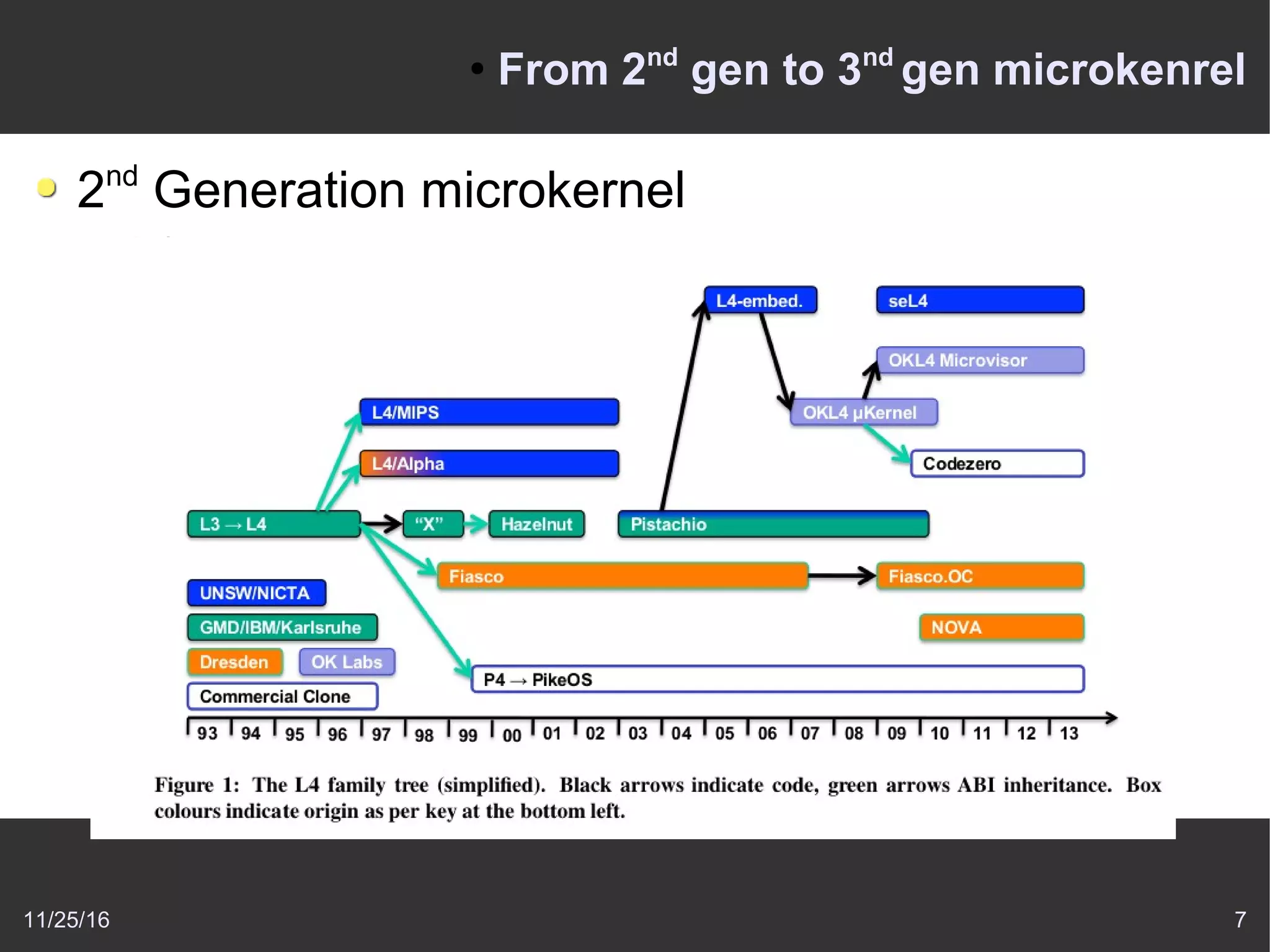

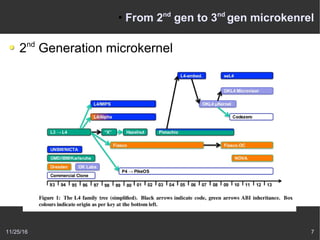

11/25/16 7 ● From 2nd gen to 3nd gen microkenrel 2nd Generation microkernel L3 Qualitative improvement of IPC performance 22 times faster then Mach 1993 [Jochen Liedkte] L4 family start from 1995, V2 ABI about L3 Fiasco, the first high level language (C++) and open source L4 microkernel L4Ka::Pistachio, OKL4, from OKLabs

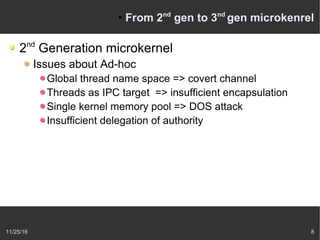

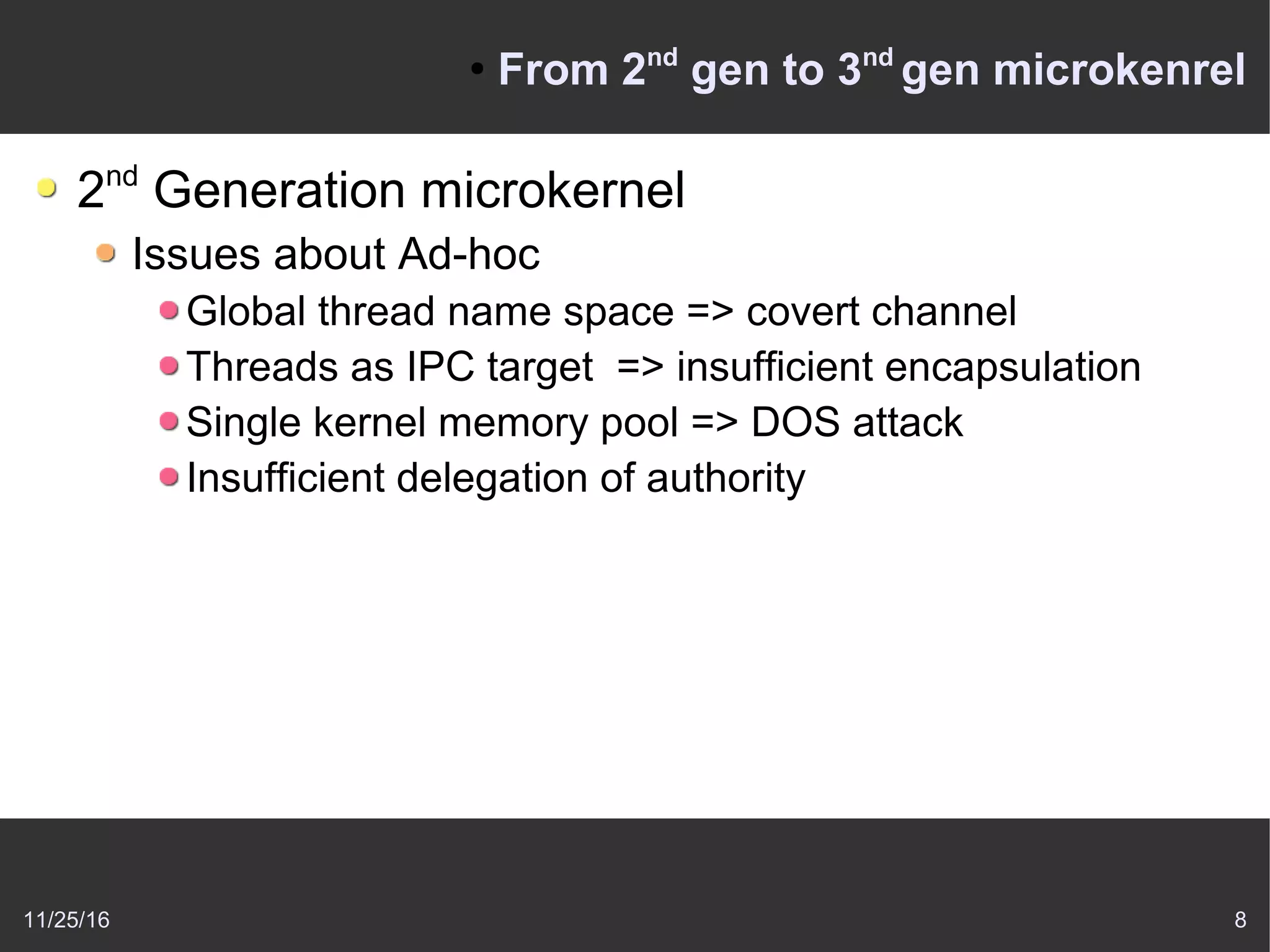

11/25/16 8 ● From 2nd gen to 3nd gen microkenrel 2nd Generation microkernel Issues about Ad-hoc Global thread name space => covert channel Threads as IPC target => insufficient encapsulation Single kernel memory pool => DOS attack Insufficient delegation of authority

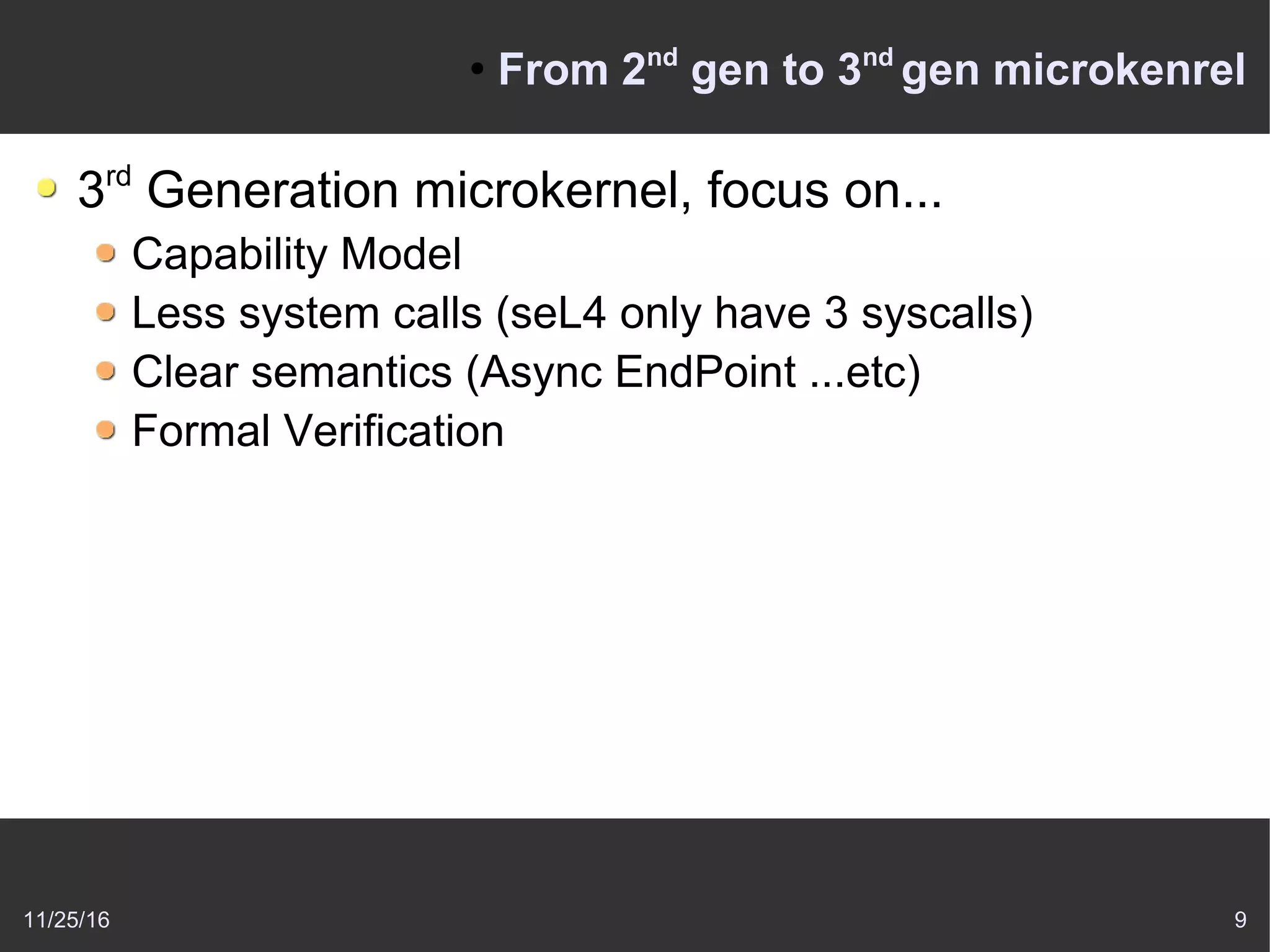

11/25/16 9 ● From 2nd gen to 3nd gen microkenrel 3rd Generation microkernel, focus on... Capability Model Less system calls (seL4 only have 3 syscalls) Clear semantics (Async EndPoint ...etc) Formal Verification

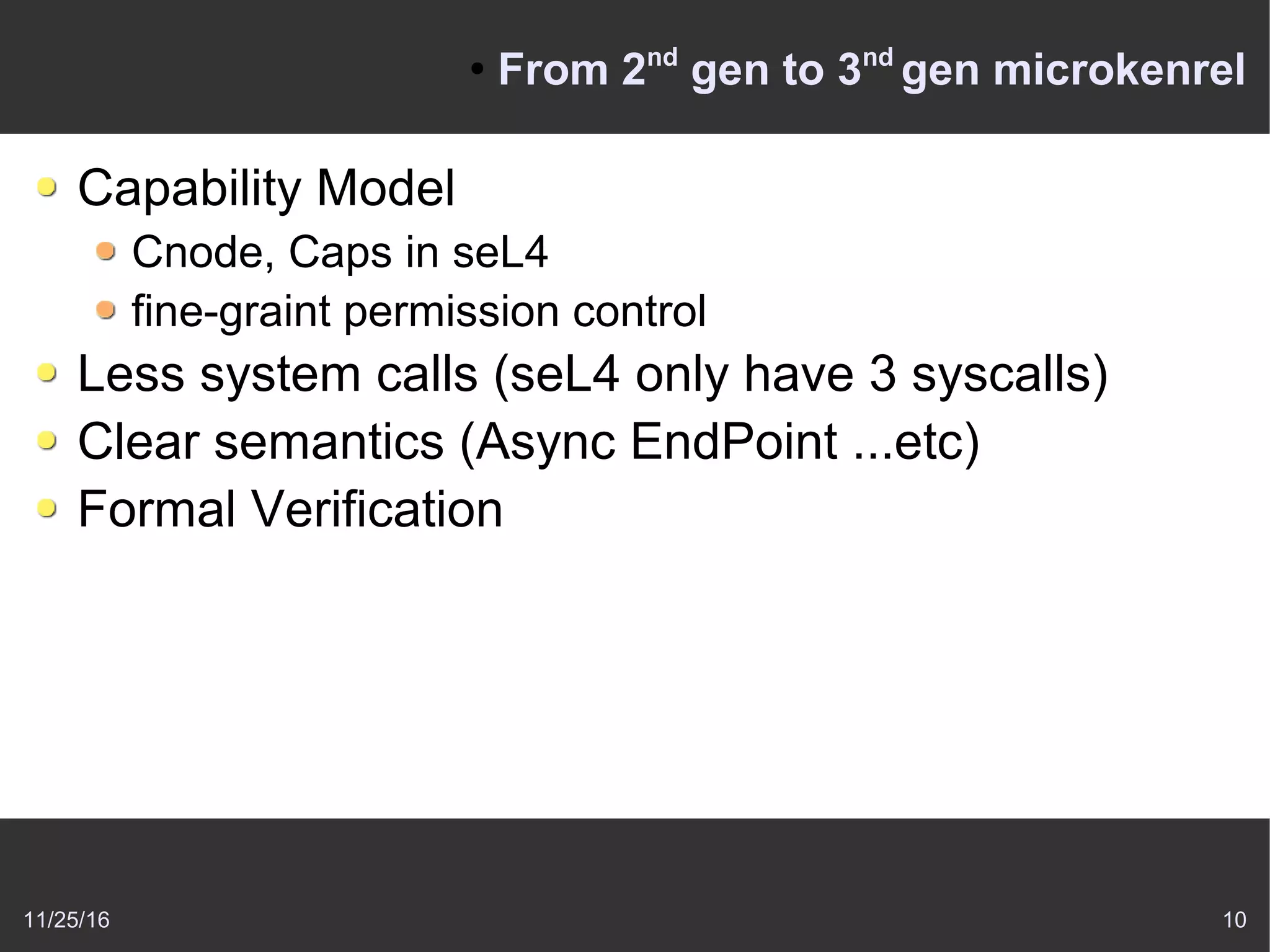

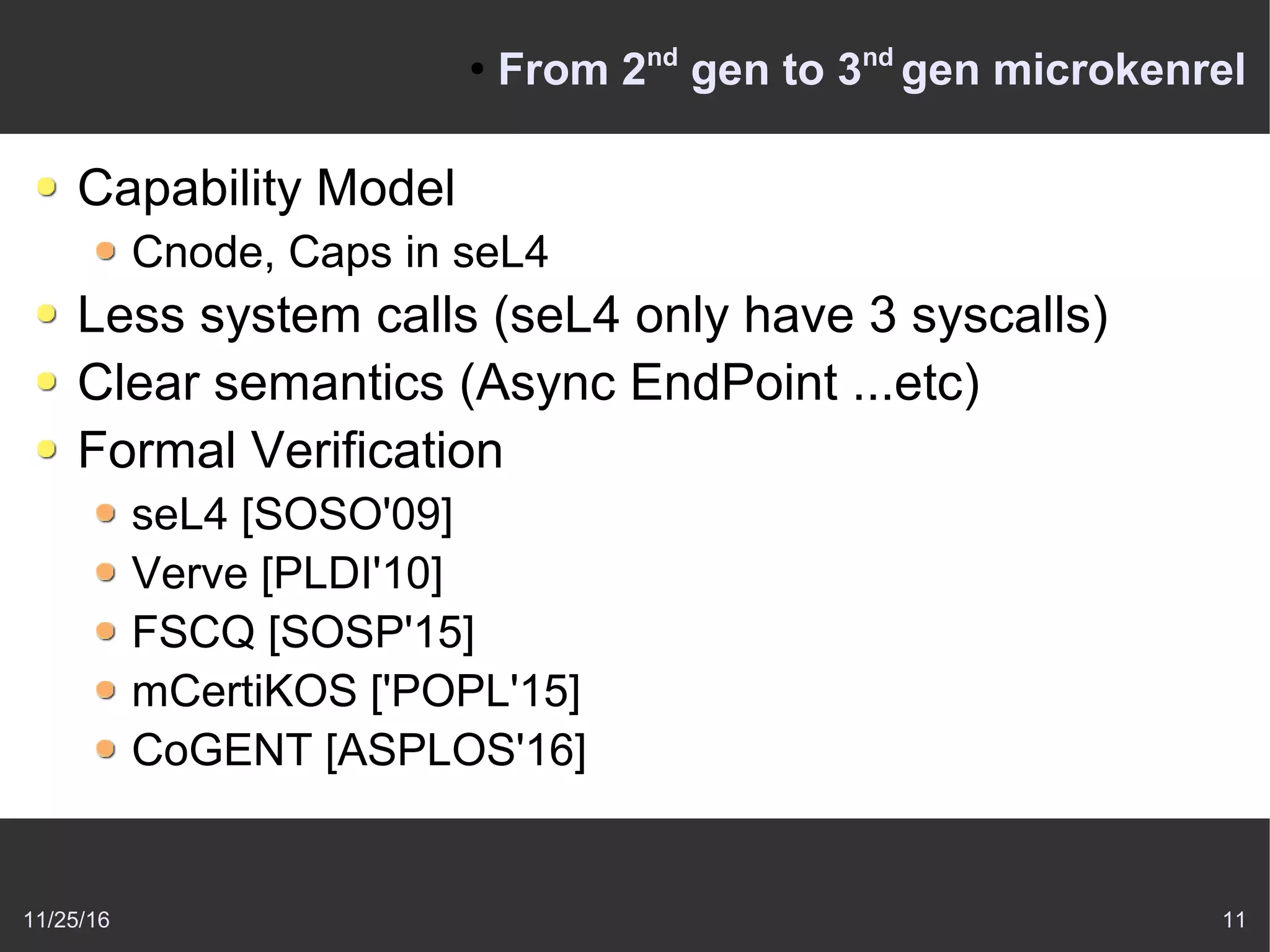

11/25/16 10 ● From 2nd gen to 3nd gen microkenrel Capability Model Cnode, Caps in seL4 fine-graint permission control Less system calls (seL4 only have 3 syscalls) Clear semantics (Async EndPoint ...etc) Formal Verification
11/25/16 11 ● From 2nd gen to 3nd gen microkenrel Capability Model Cnode, Caps in seL4 Less system calls (seL4 only have 3 syscalls) Clear semantics (Async EndPoint ...etc) Formal Verification seL4 [SOSO'09] Verve [PLDI'10] FSCQ [SOSP'15] mCertiKOS ['POPL'15] CoGENT [ASPLOS'16]

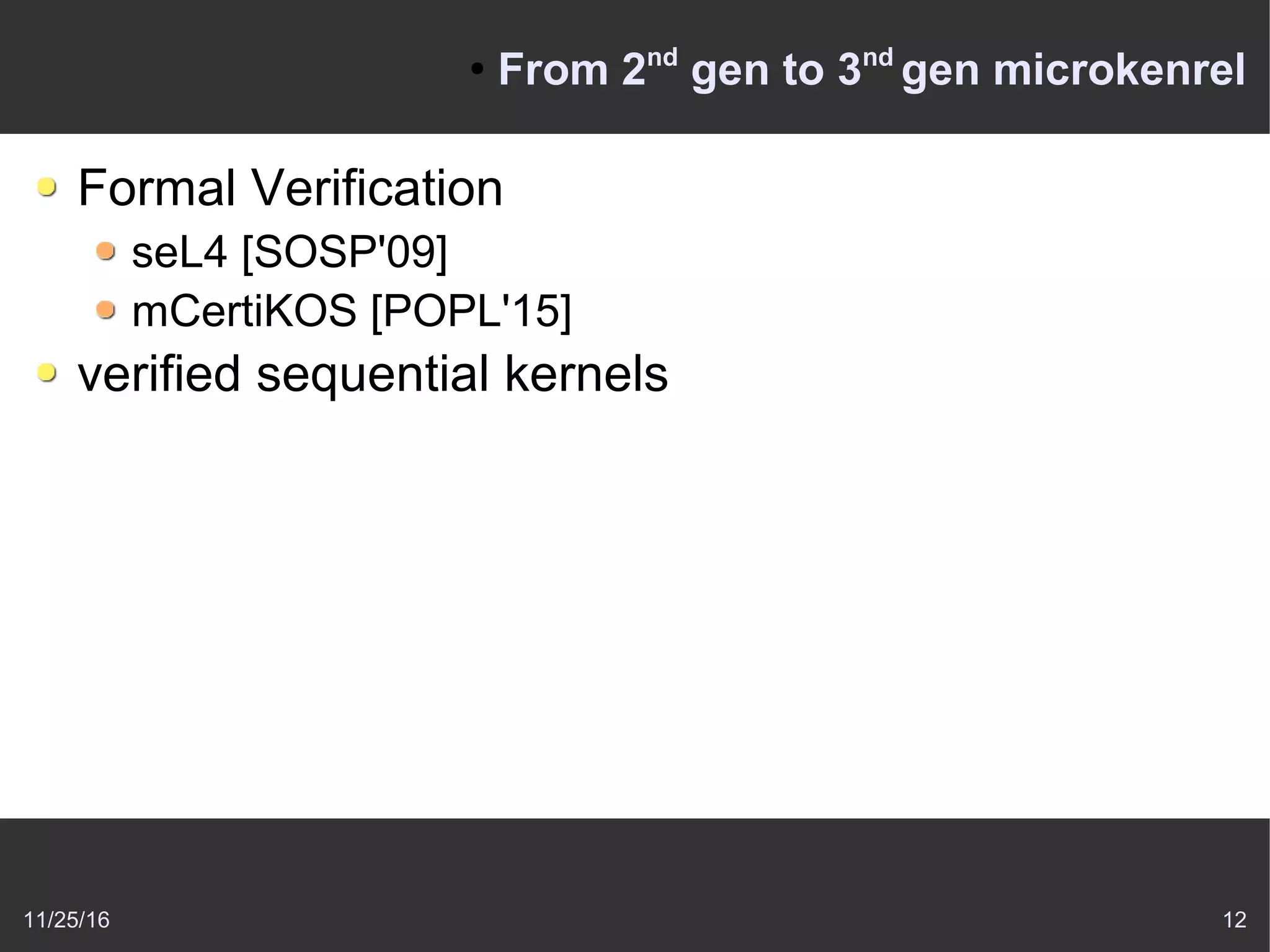

11/25/16 12 ● From 2nd gen to 3nd gen microkenrel Formal Verification seL4 [SOSP'09] mCertiKOS [POPL'15] verified sequential kernels
11/25/16 13 ● From 2nd gen to 3nd gen microkenrel Formal Verification Ironcald [OSDI'14] verified software stack

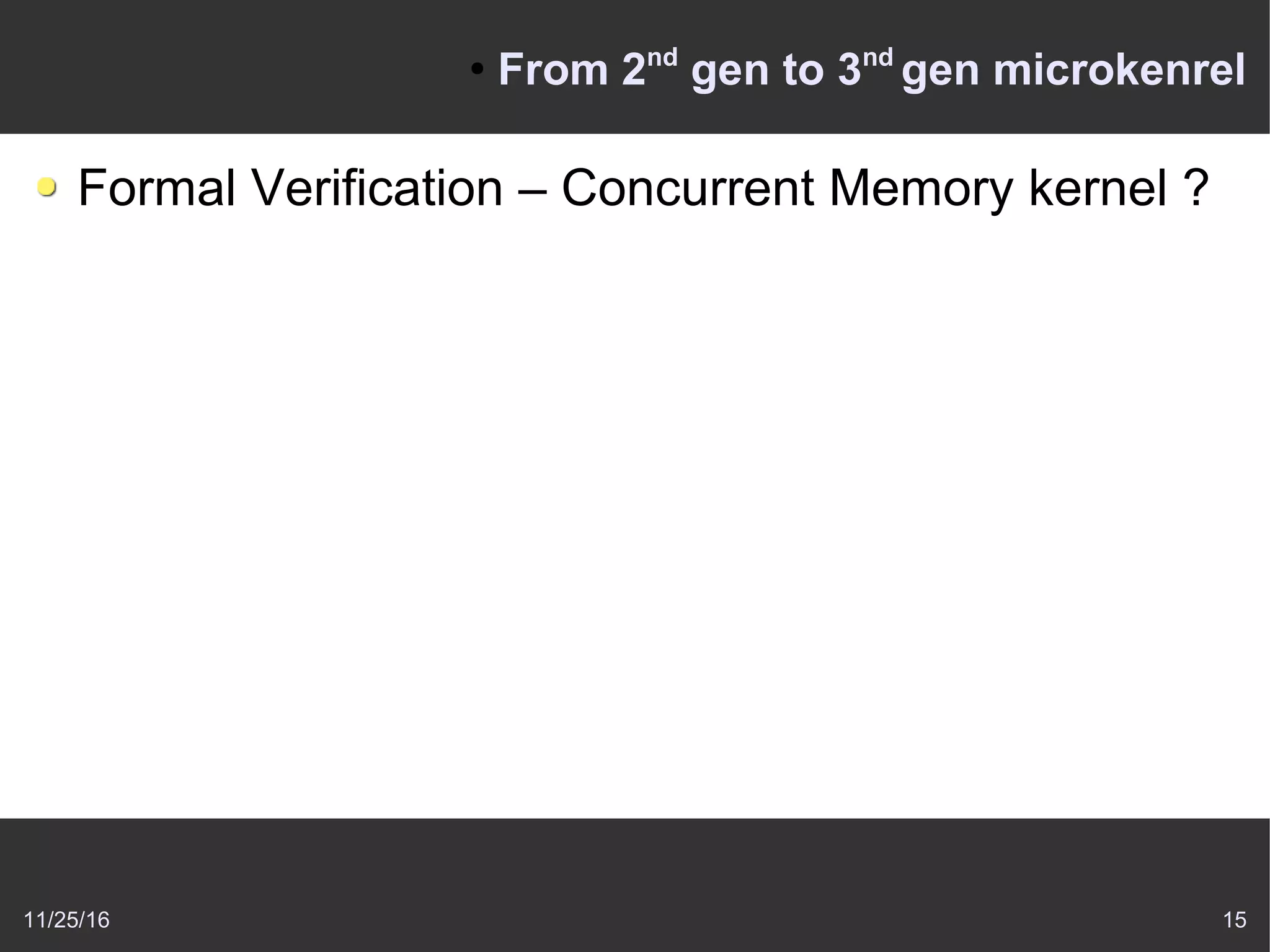

11/25/16 14 ● From 2nd gen to 3nd gen microkenrel Formal Verification FSCQ [SOSP'15] CoGENT [ASPLOS'16] verified sequential file systems

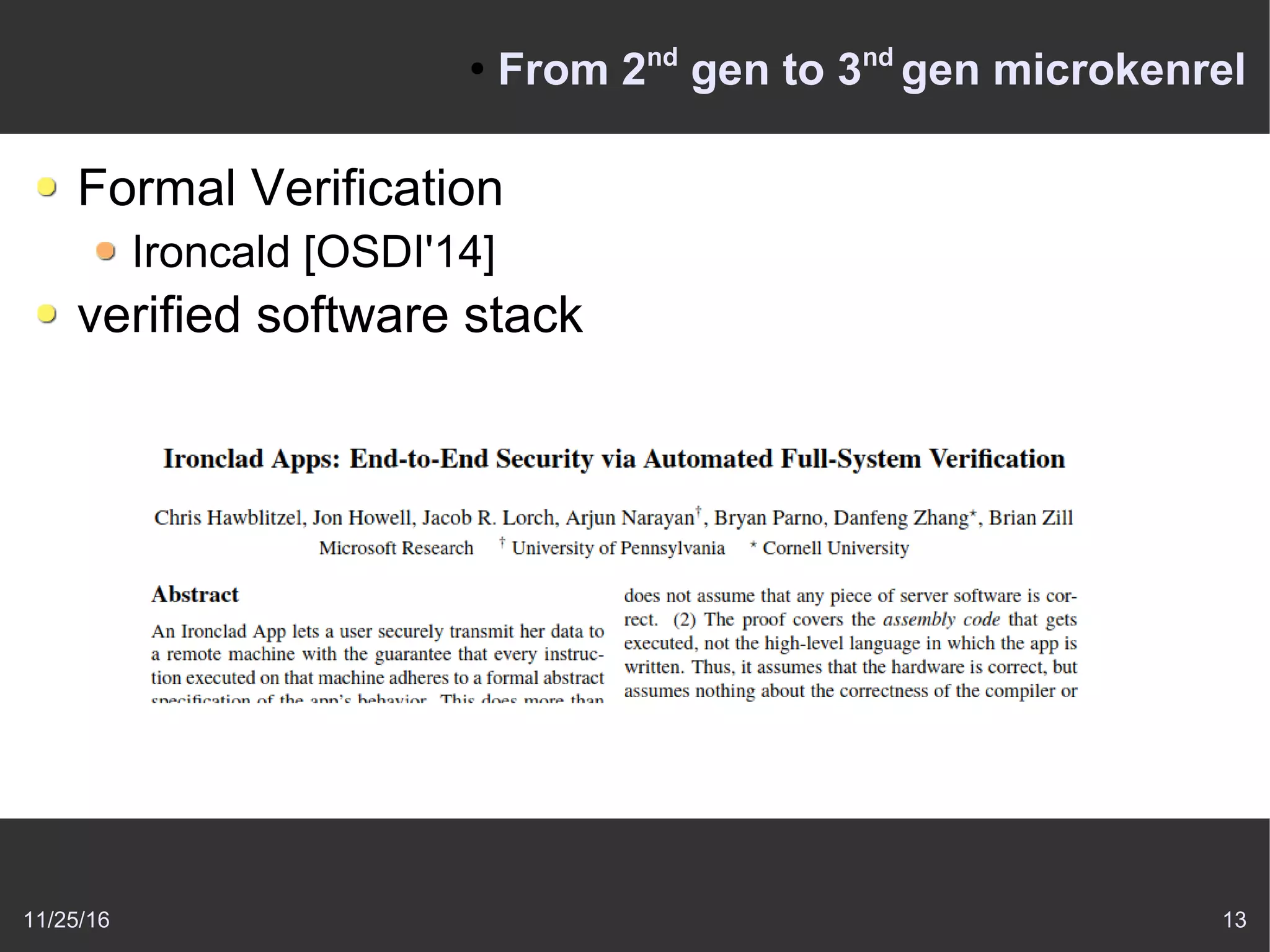

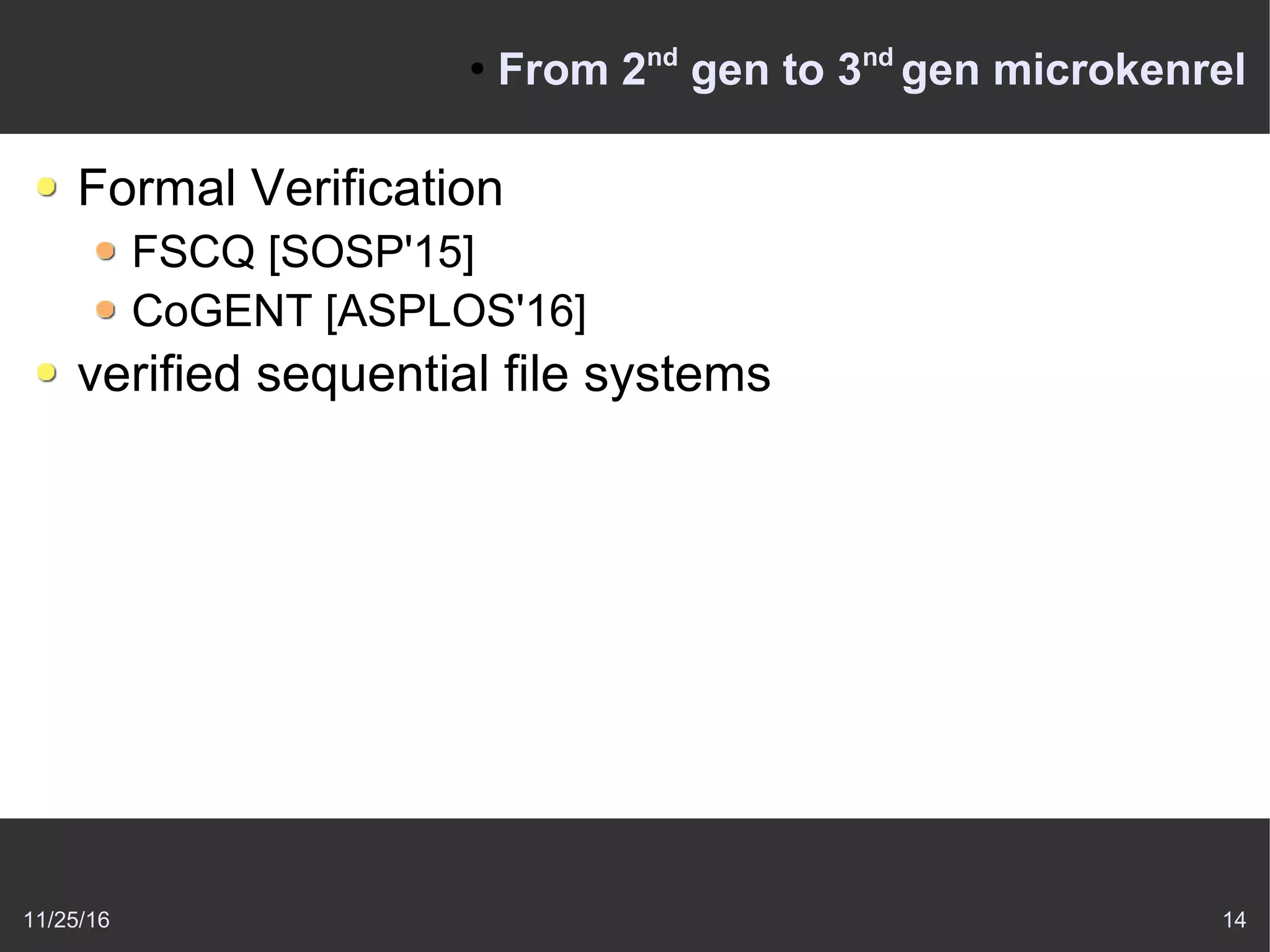

11/25/16 15 ● From 2nd gen to 3nd gen microkenrel Formal Verification – Concurrent Memory kernel ?

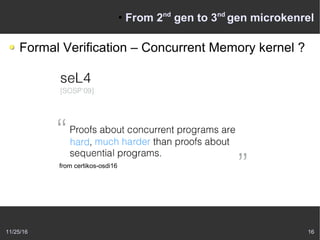

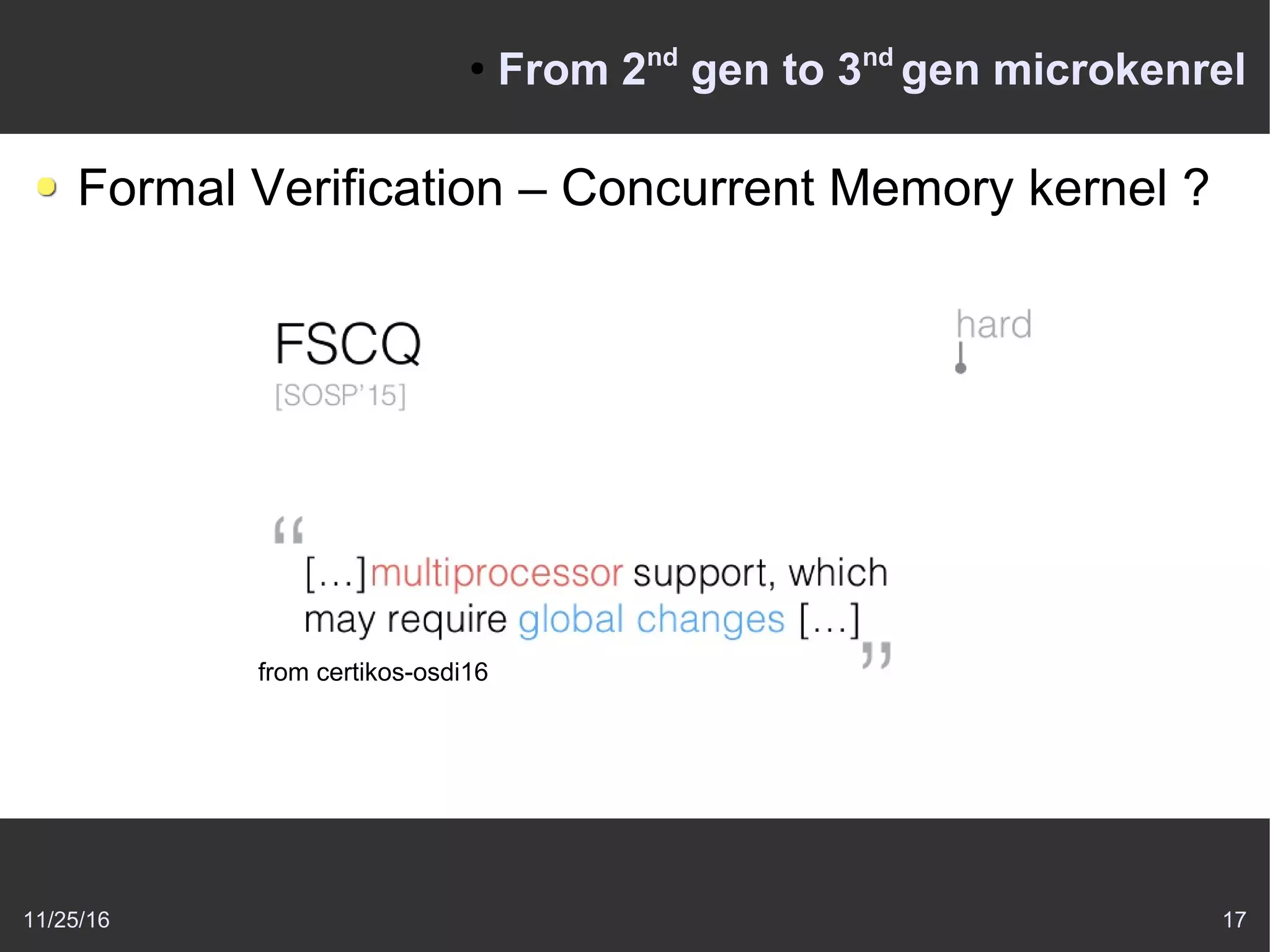

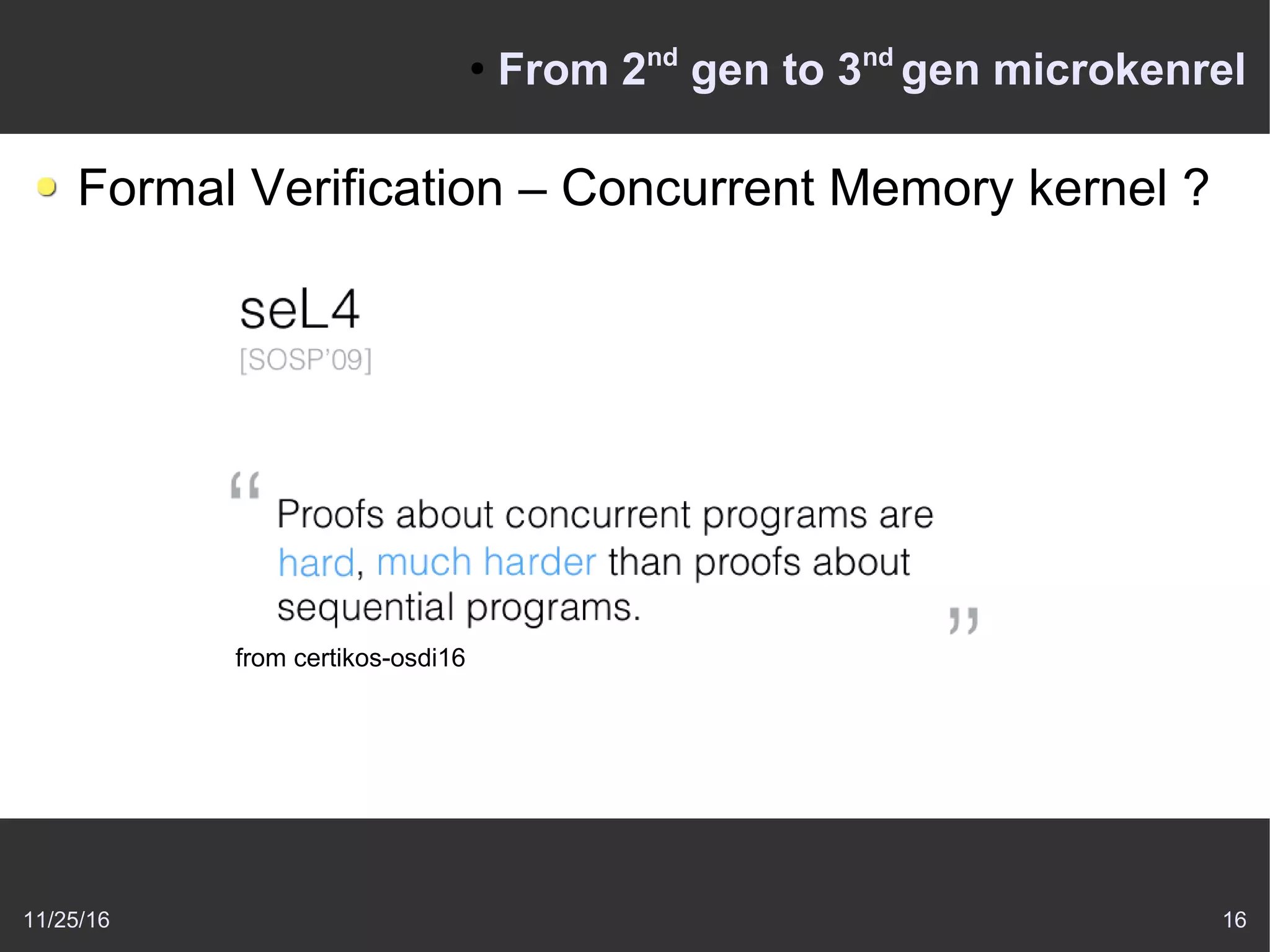

11/25/16 16 ● From 2nd gen to 3nd gen microkenrel Formal Verification – Concurrent Memory kernel ? from certikos-osdi16
11/25/16 17 ● From 2nd gen to 3nd gen microkenrel Formal Verification – Concurrent Memory kernel ? from certikos-osdi16

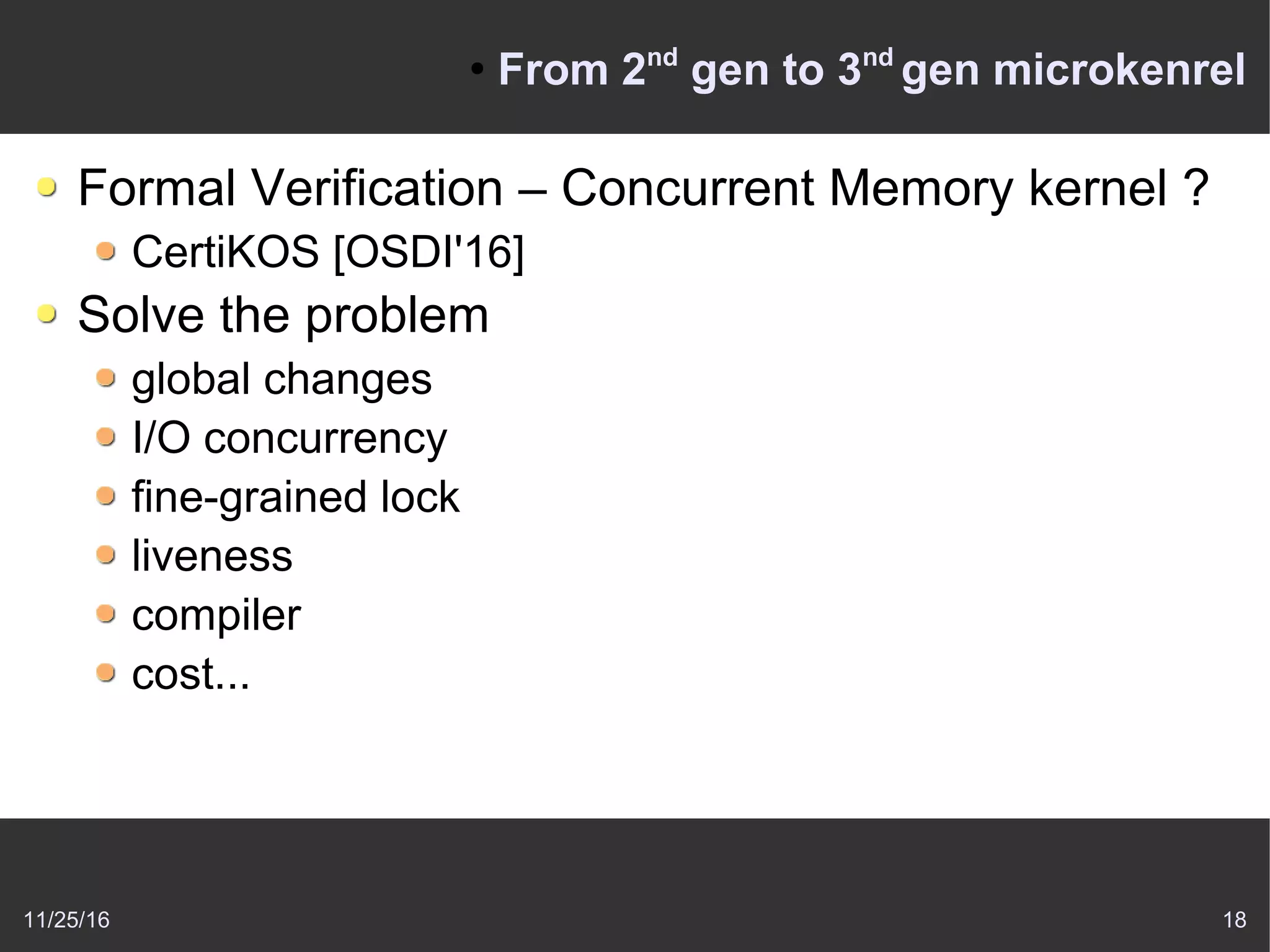

11/25/16 18 ● From 2nd gen to 3nd gen microkenrel Formal Verification – Concurrent Memory kernel ? CertiKOS [OSDI'16] Solve the problem global changes I/O concurrency fine-grained lock liveness compiler cost...

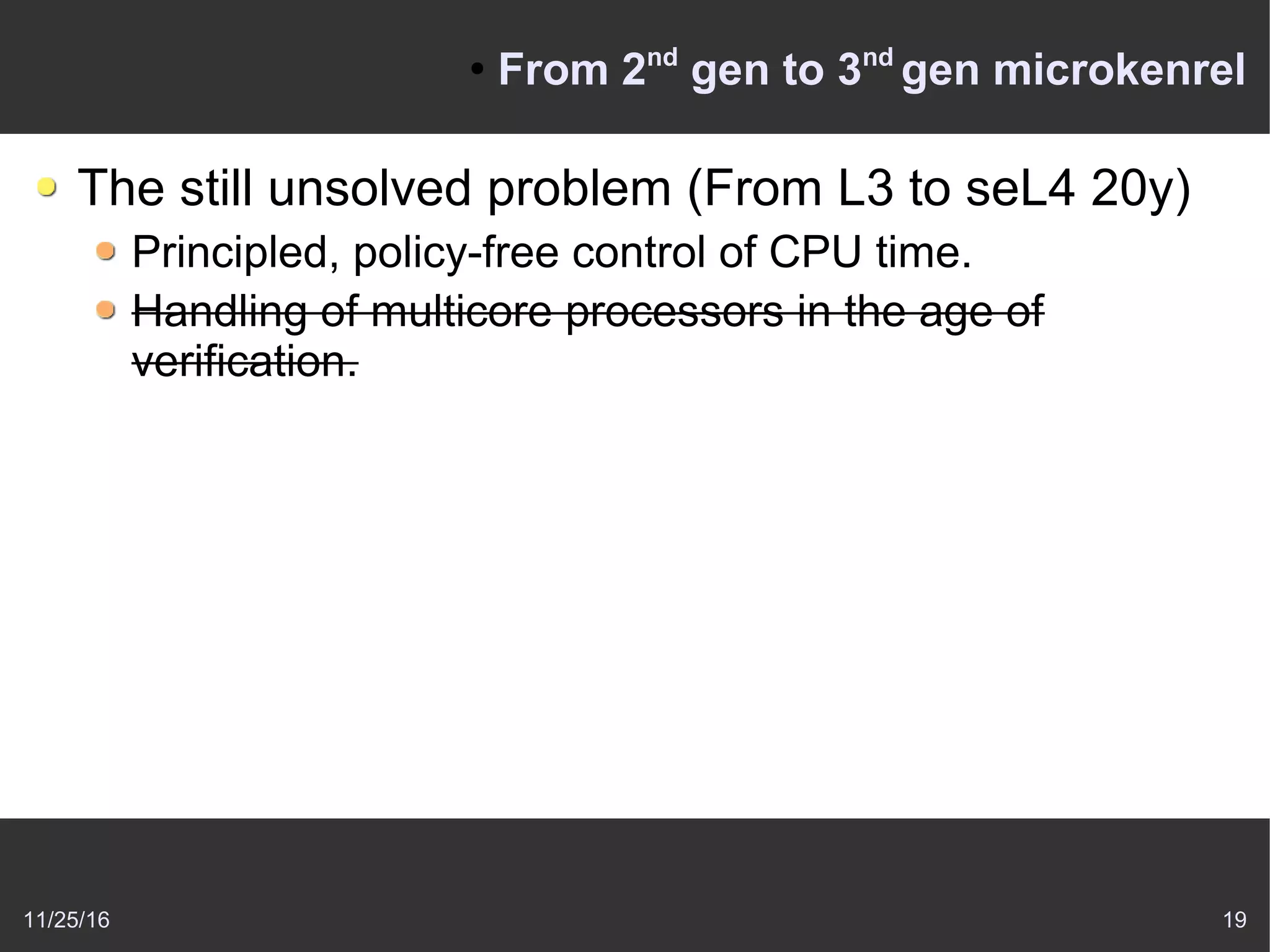

11/25/16 19 ● From 2nd gen to 3nd gen microkenrel The still unsolved problem (From L3 to seL4 20y) Principled, policy-free control of CPU time. Handling of multicore processors in the age of verification.
11/25/16 20 F9 microkernel

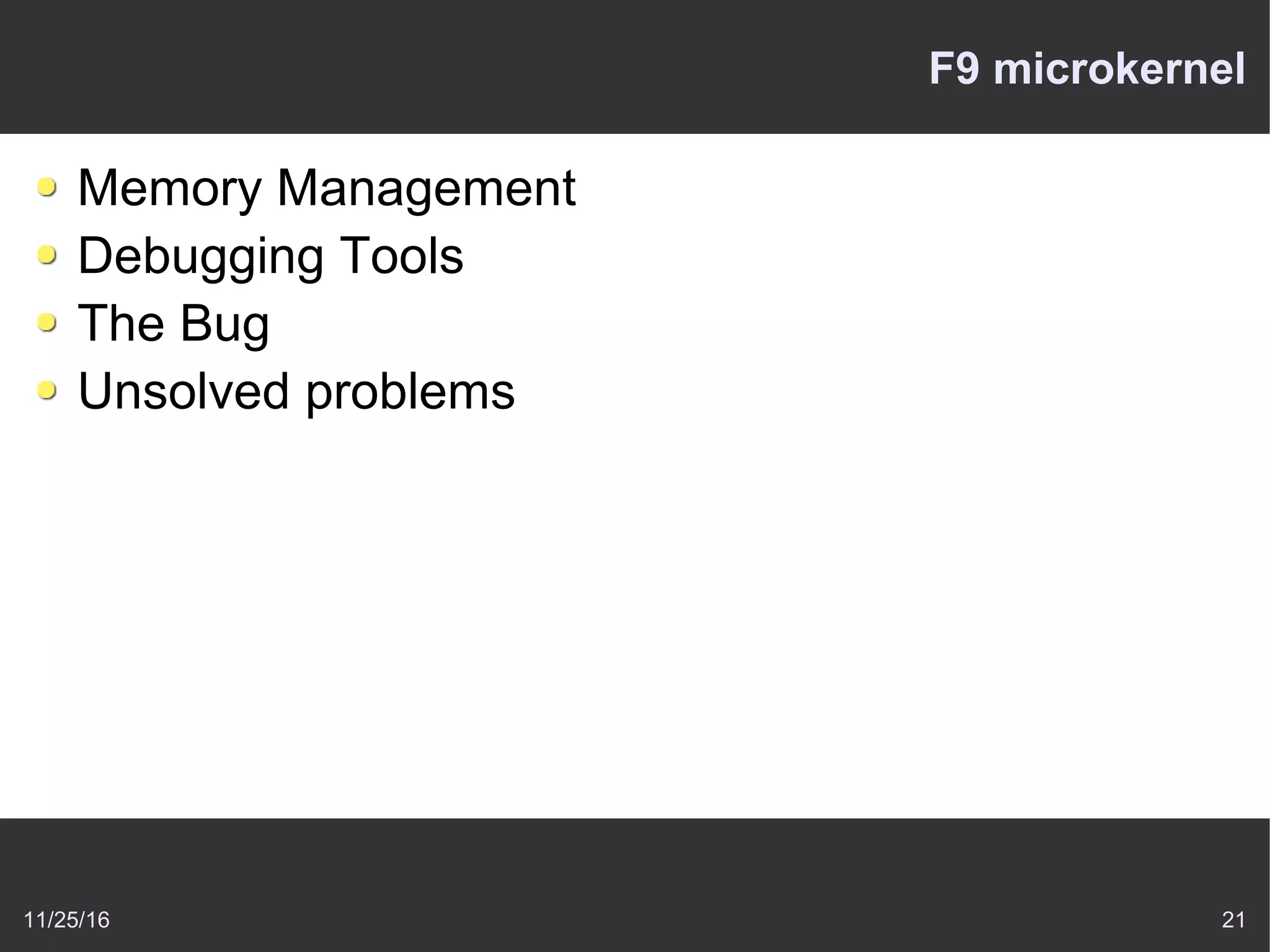

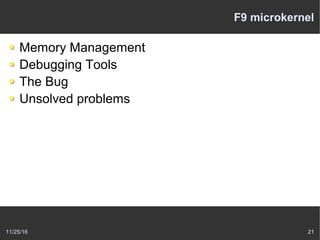

11/25/16 21 F9 microkernel Memory Management Debugging Tools The Bug Unsolved problems

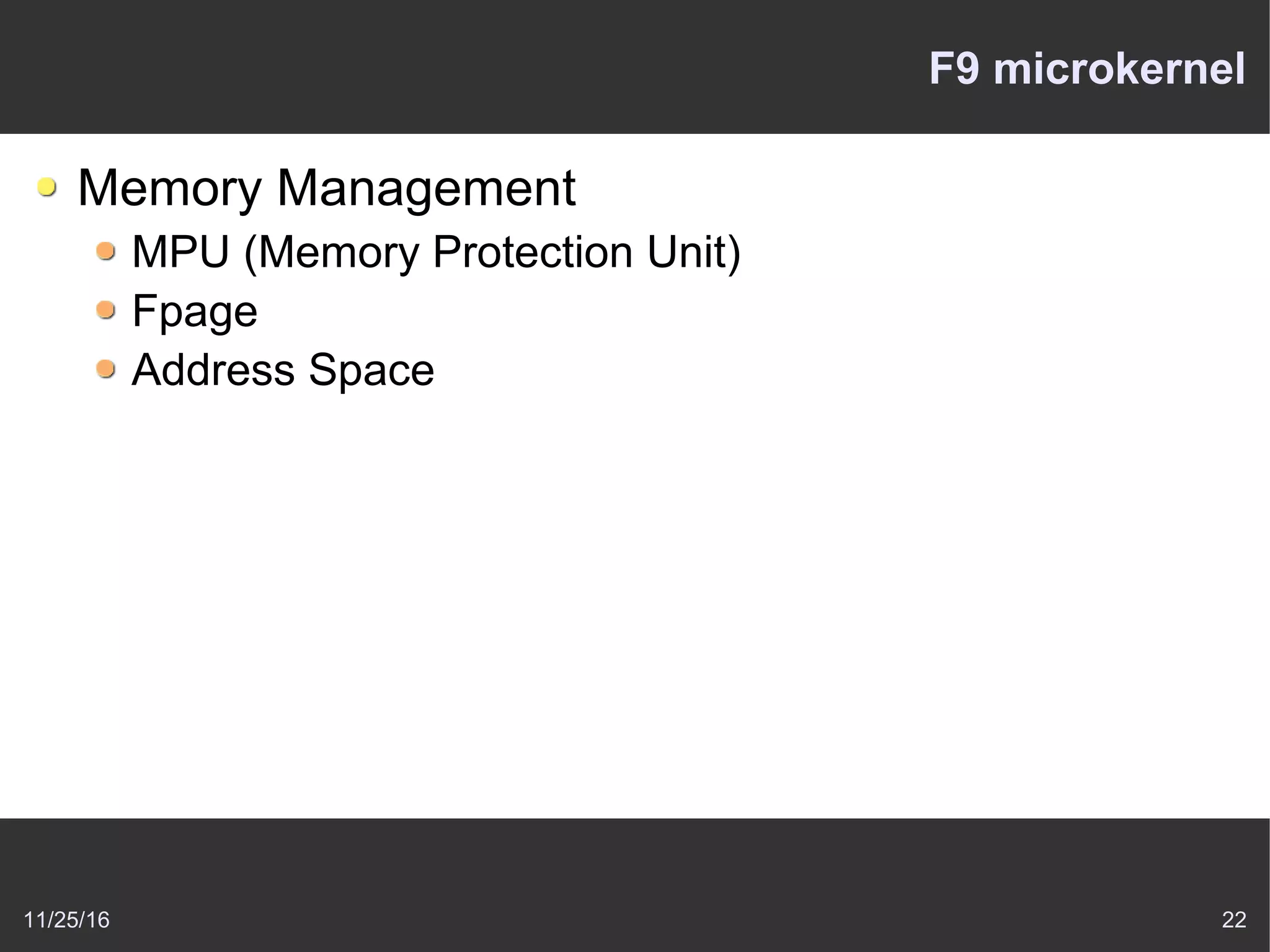

11/25/16 22 F9 microkernel Memory Management MPU (Memory Protection Unit) Fpage Address Space

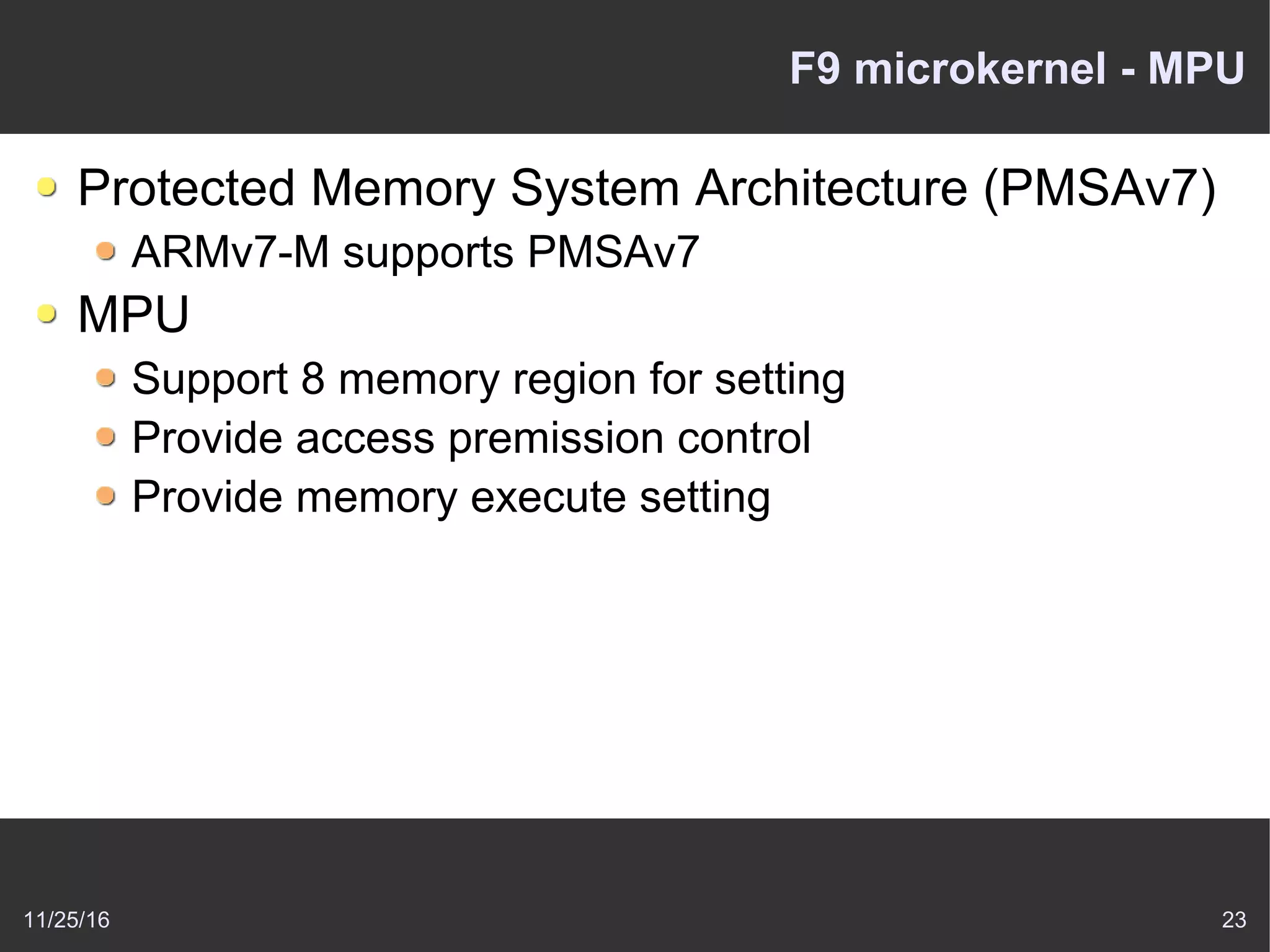

11/25/16 23 F9 microkernel - MPU Protected Memory System Architecture (PMSAv7) ARMv7-M supports PMSAv7 MPU Support 8 memory region for setting Provide access premission control Provide memory execute setting

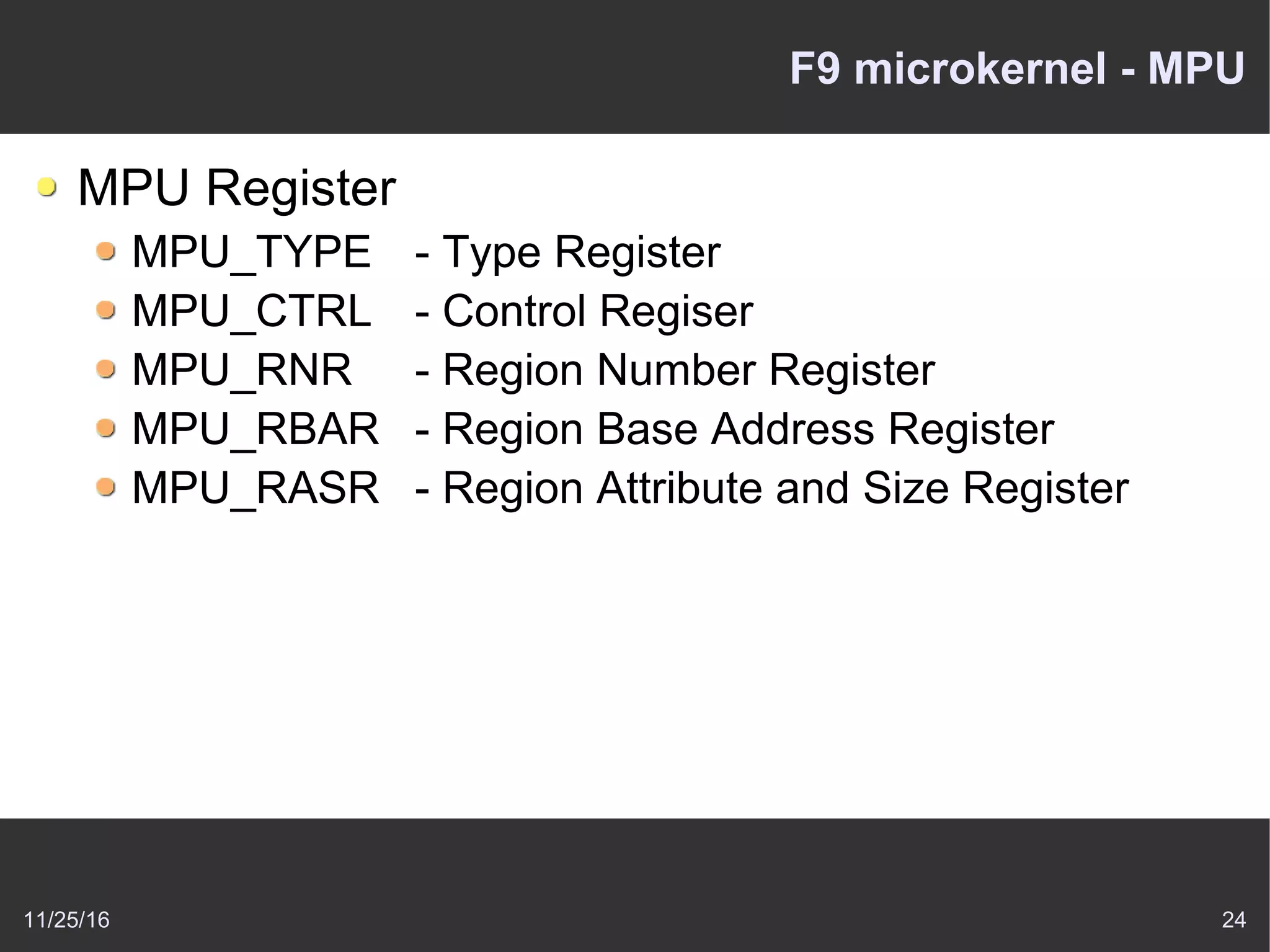

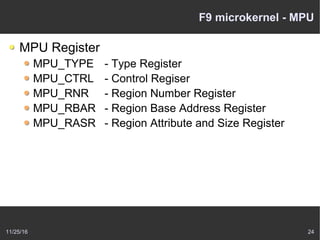

11/25/16 24 F9 microkernel - MPU MPU Register MPU_TYPE - Type Register MPU_CTRL - Control Regiser MPU_RNR - Region Number Register MPU_RBAR - Region Base Address Register MPU_RASR - Region Attribute and Size Register

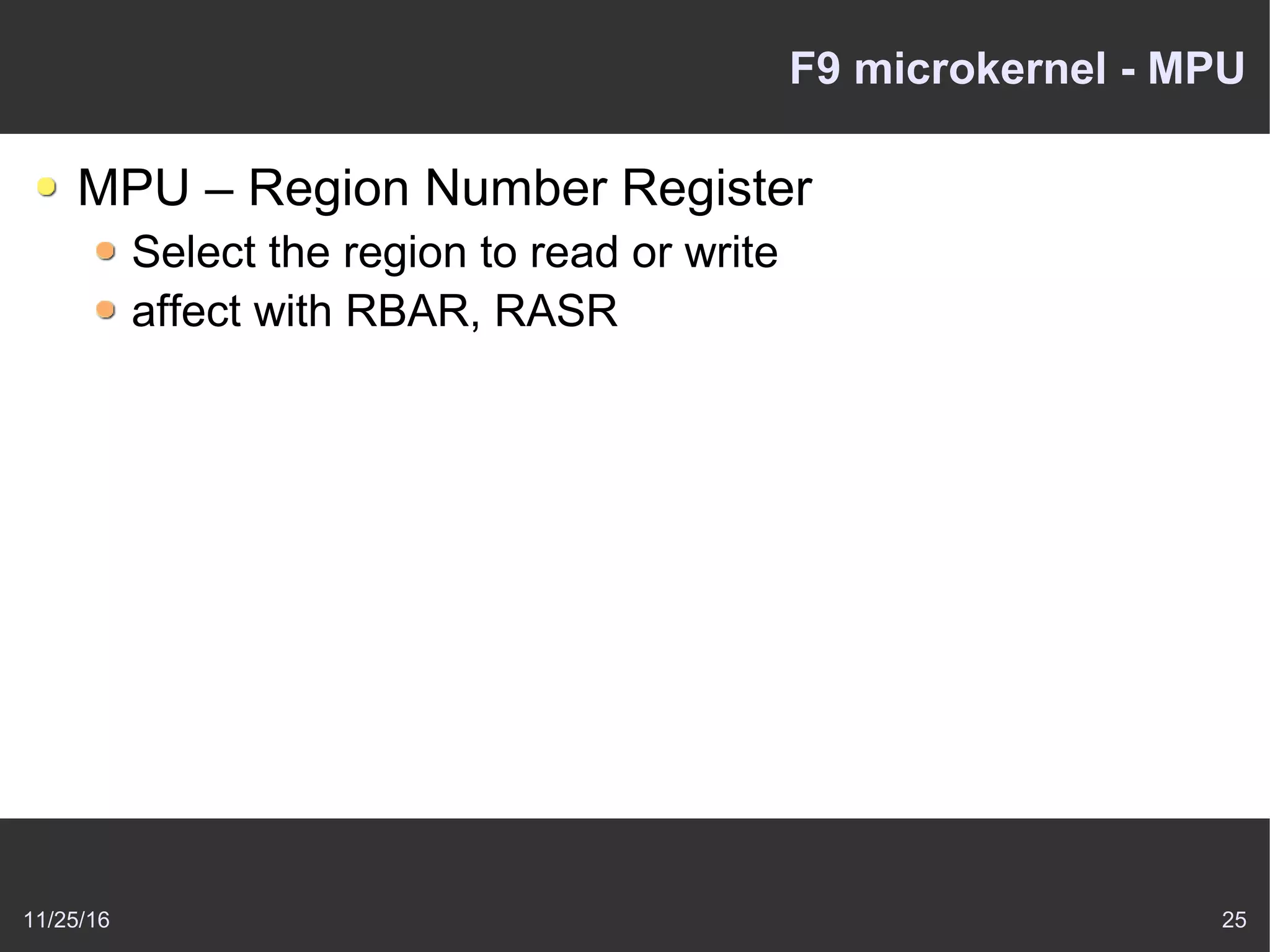

11/25/16 25 F9 microkernel - MPU MPU – Region Number Register Select the region to read or write affect with RBAR, RASR

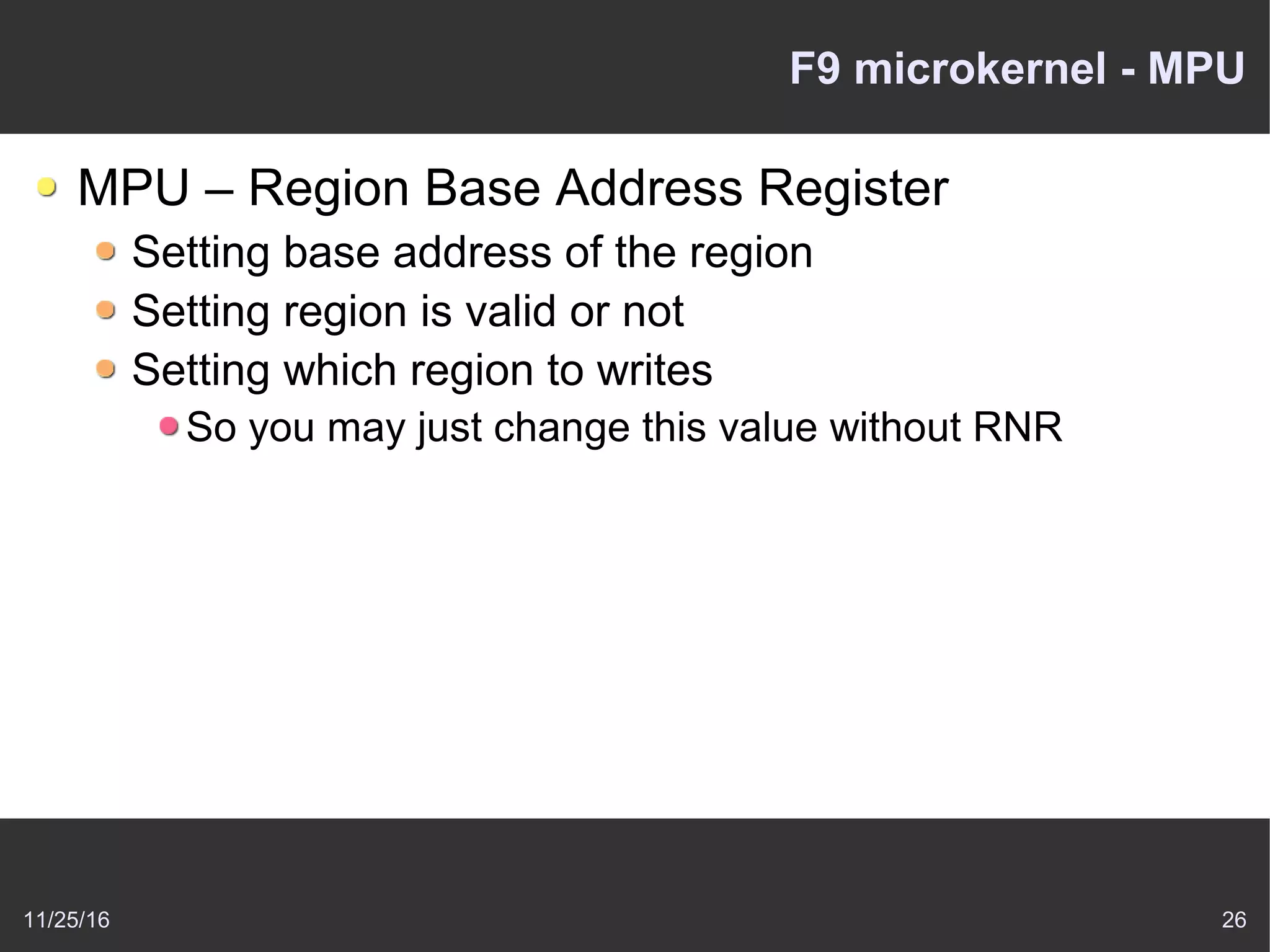

11/25/16 26 F9 microkernel - MPU MPU – Region Base Address Register Setting base address of the region Setting region is valid or not Setting which region to writes So you may just change this value without RNR

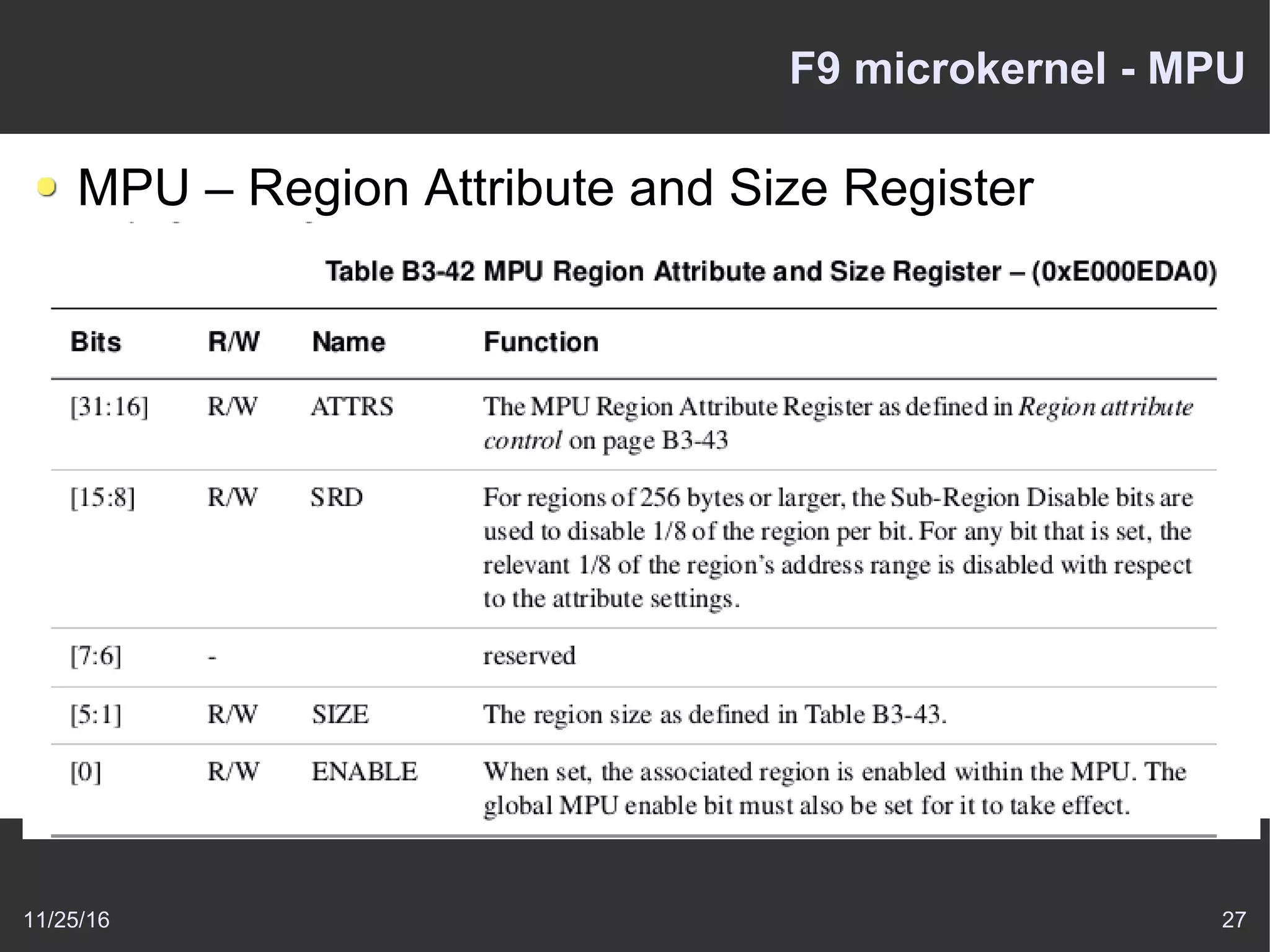

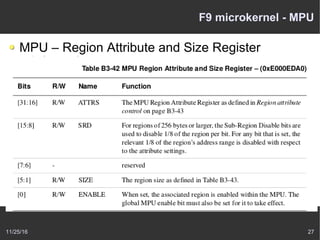

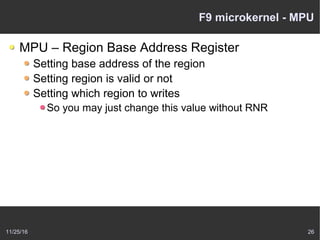

11/25/16 27 F9 microkernel - MPU MPU – Region Attribute and Size Register

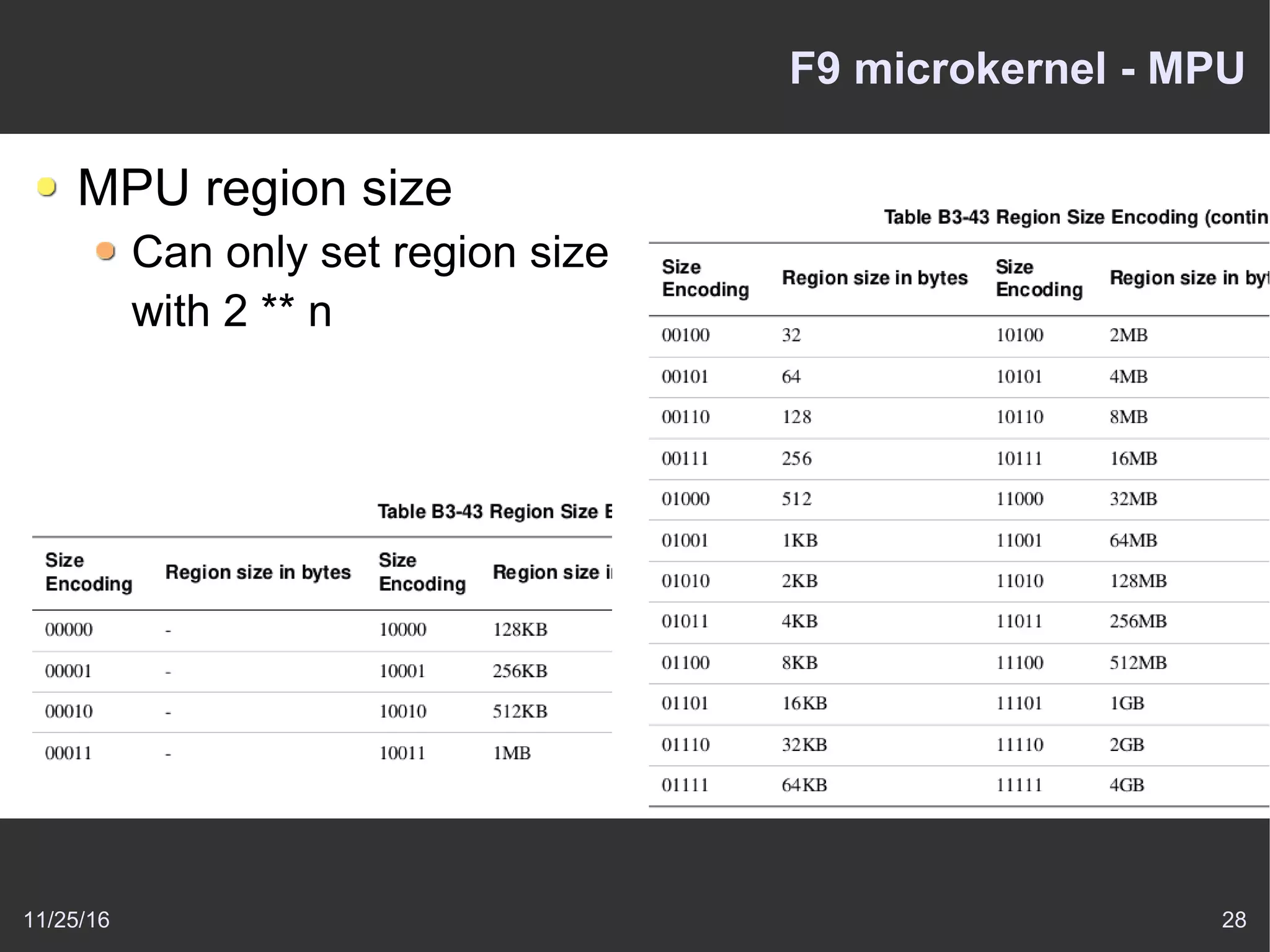

11/25/16 28 F9 microkernel - MPU MPU region size Can only set region size with 2 ** n

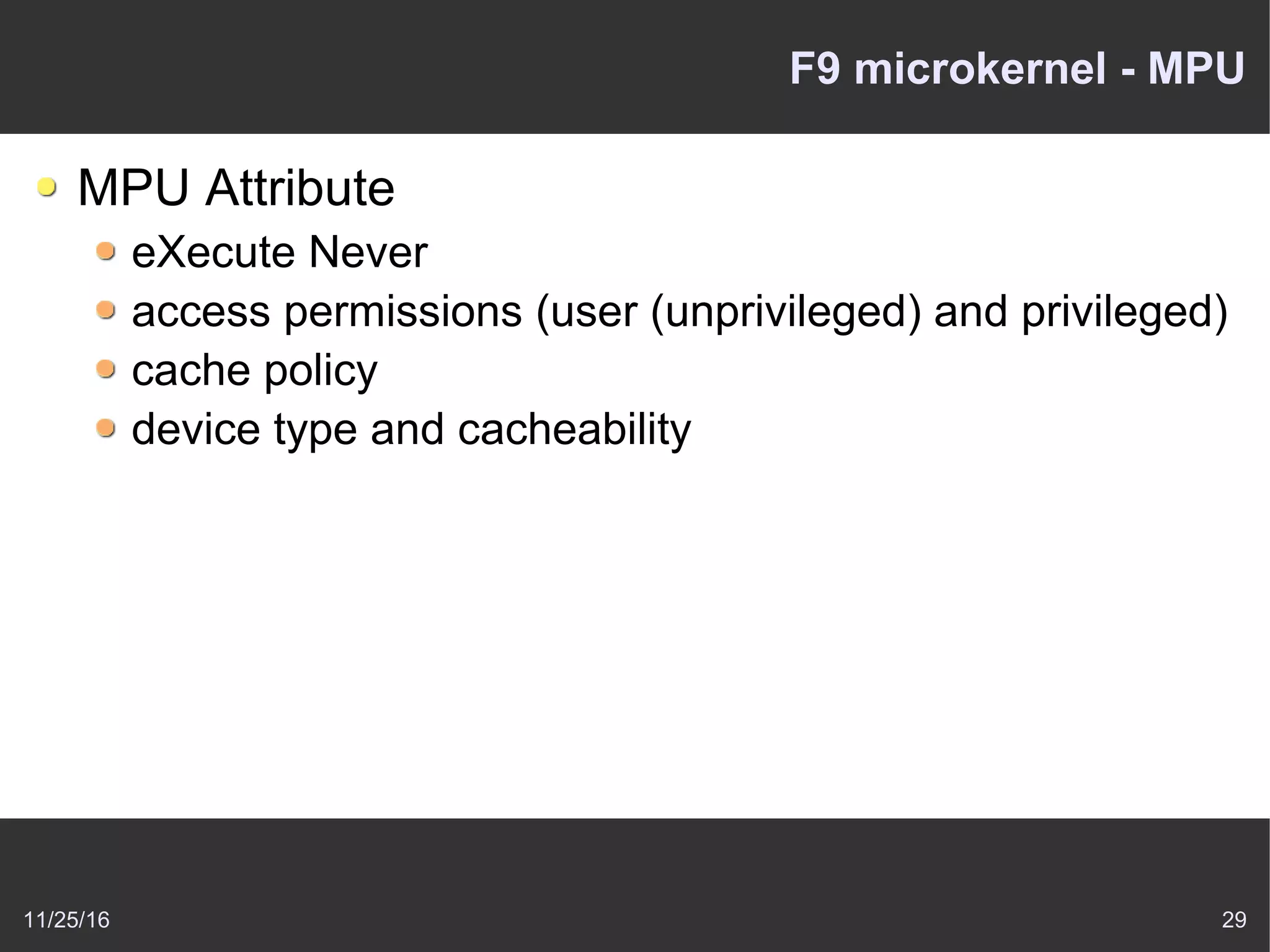

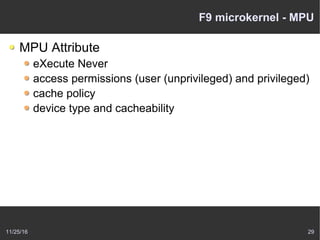

11/25/16 29 F9 microkernel - MPU MPU Attribute eXecute Never access permissions (user (unprivileged) and privileged) cache policy device type and cacheability

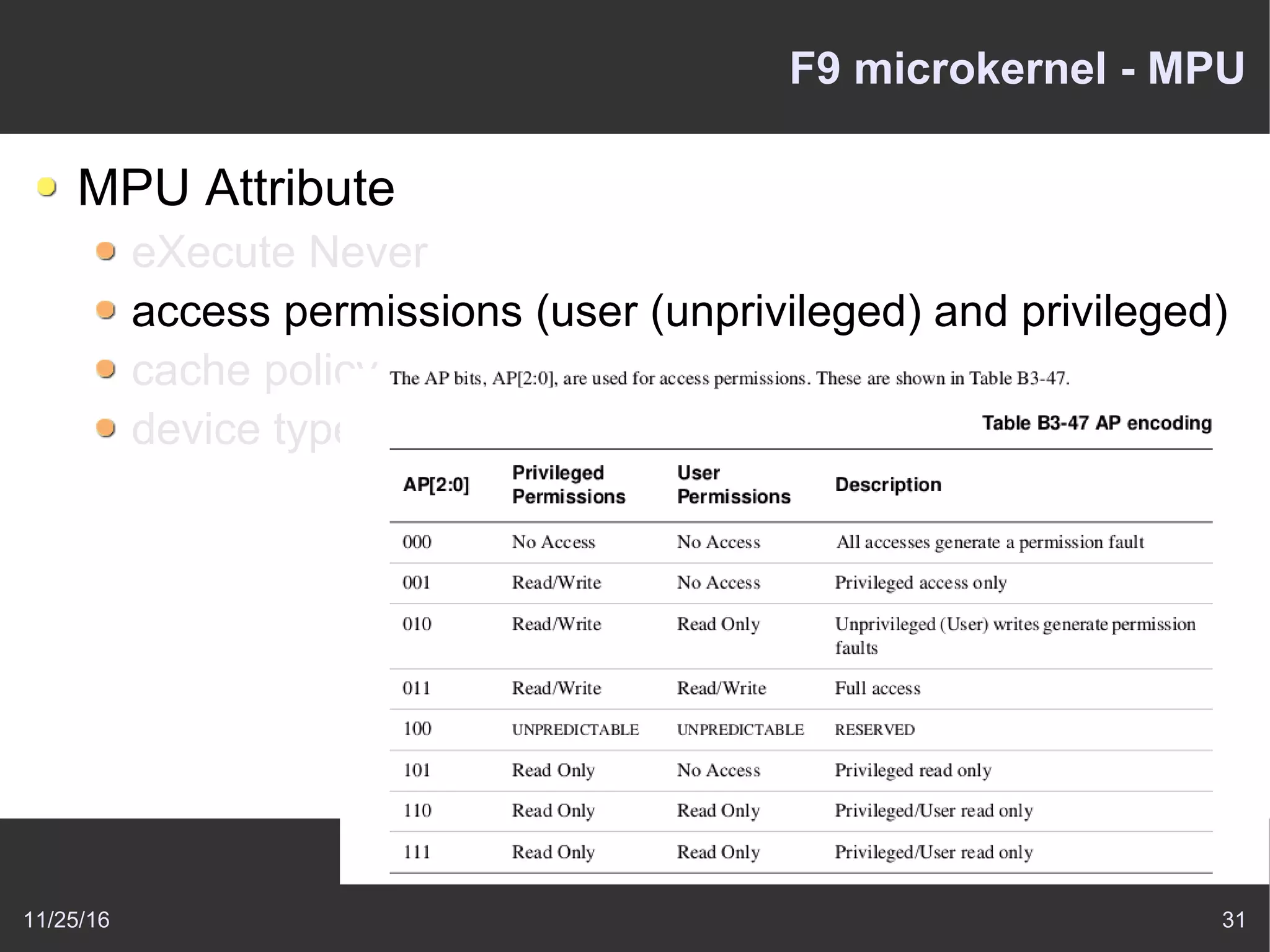

11/25/16 30 F9 microkernel - MPU MPU Attribute eXecute Never access permissions (user (unprivileged) and privileged) cache policy device type and cacheability

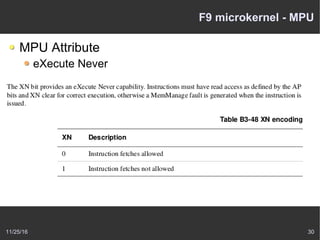

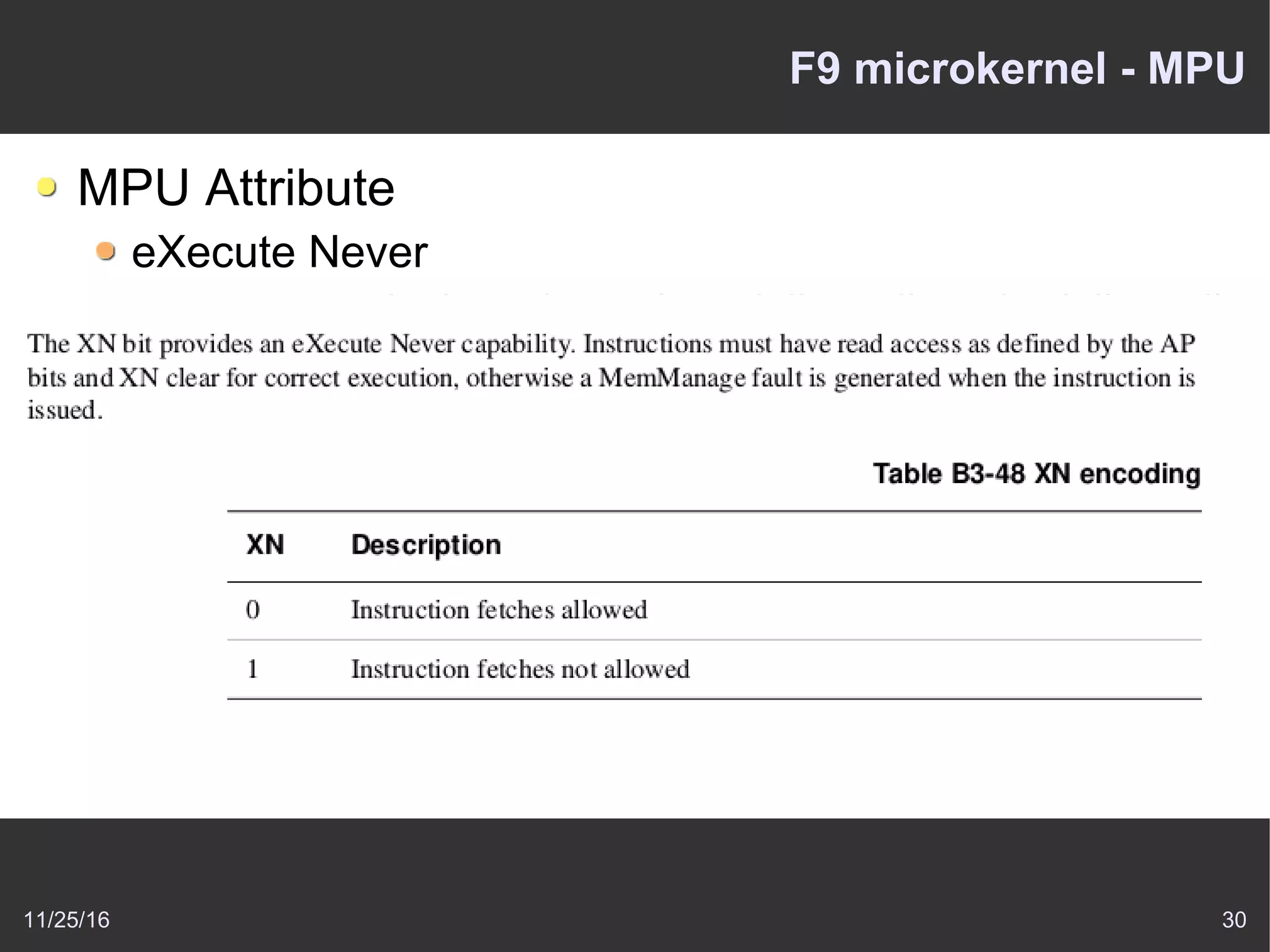

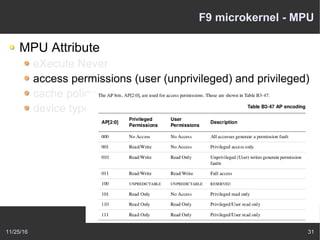

11/25/16 31 F9 microkernel - MPU MPU Attribute eXecute Never access permissions (user (unprivileged) and privileged) cache policy device type and cacheability

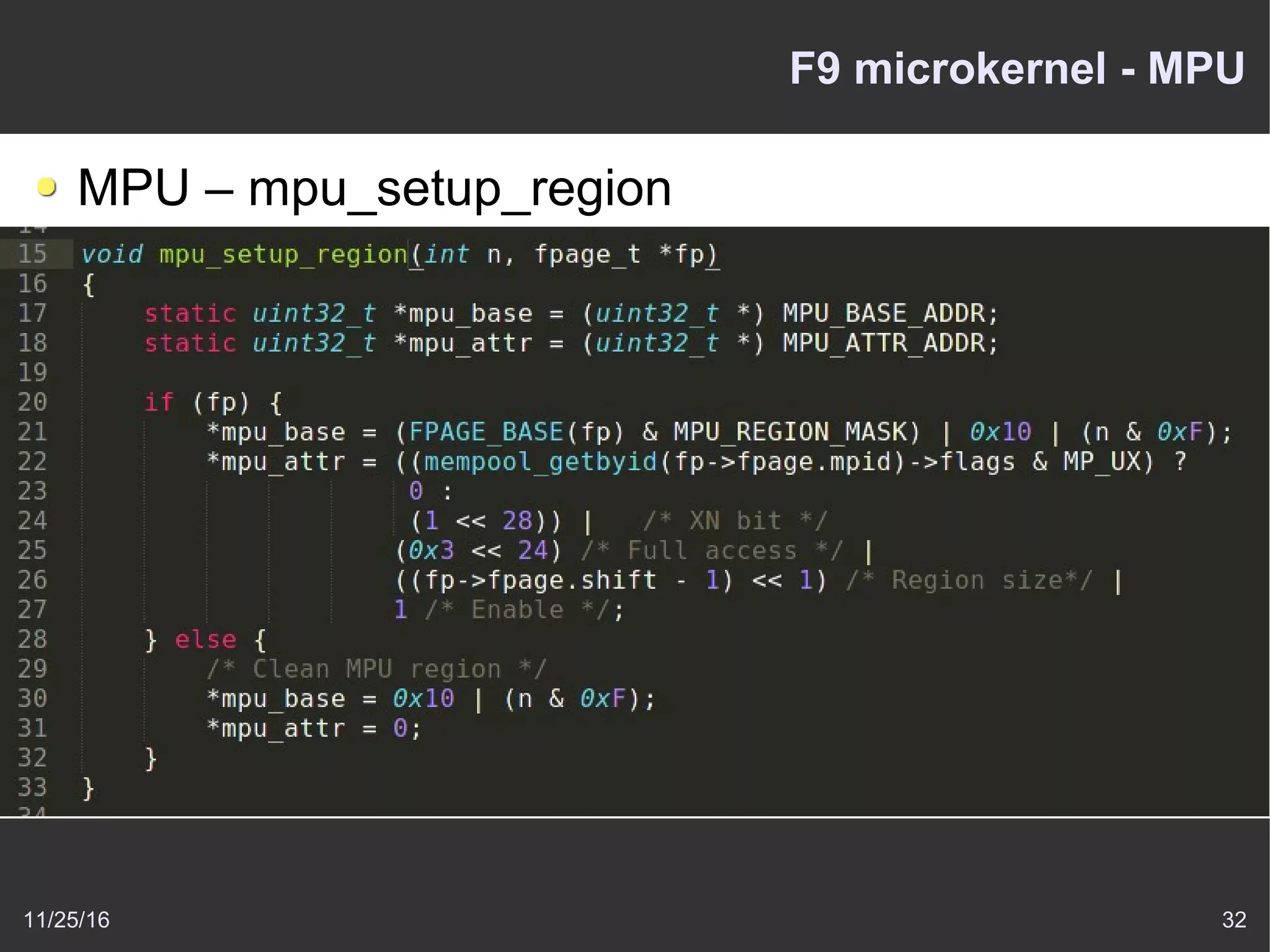

11/25/16 32 F9 microkernel - MPU MPU – mpu_setup_region

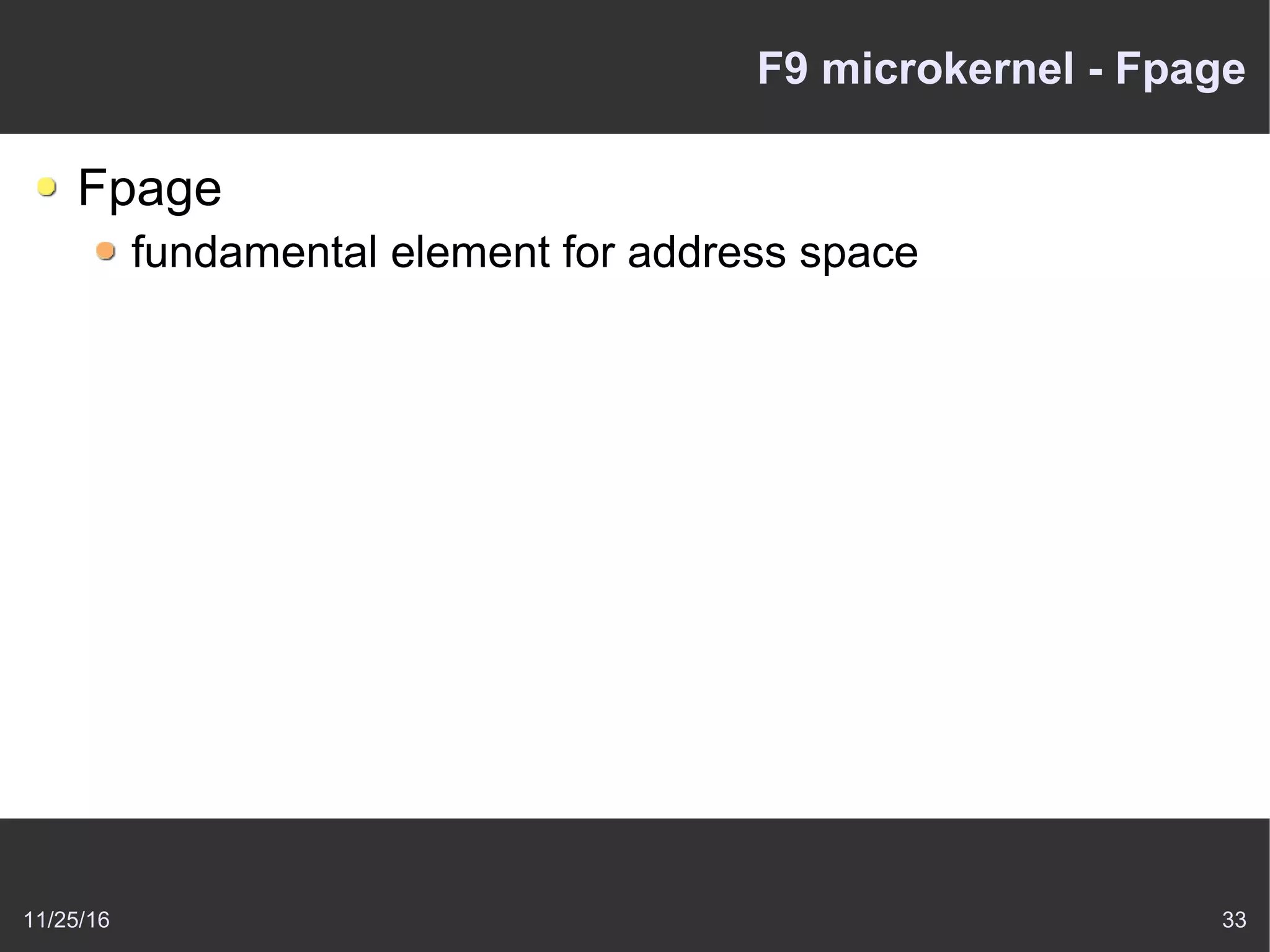

11/25/16 33 F9 microkernel - Fpage Fpage fundamental element for address space

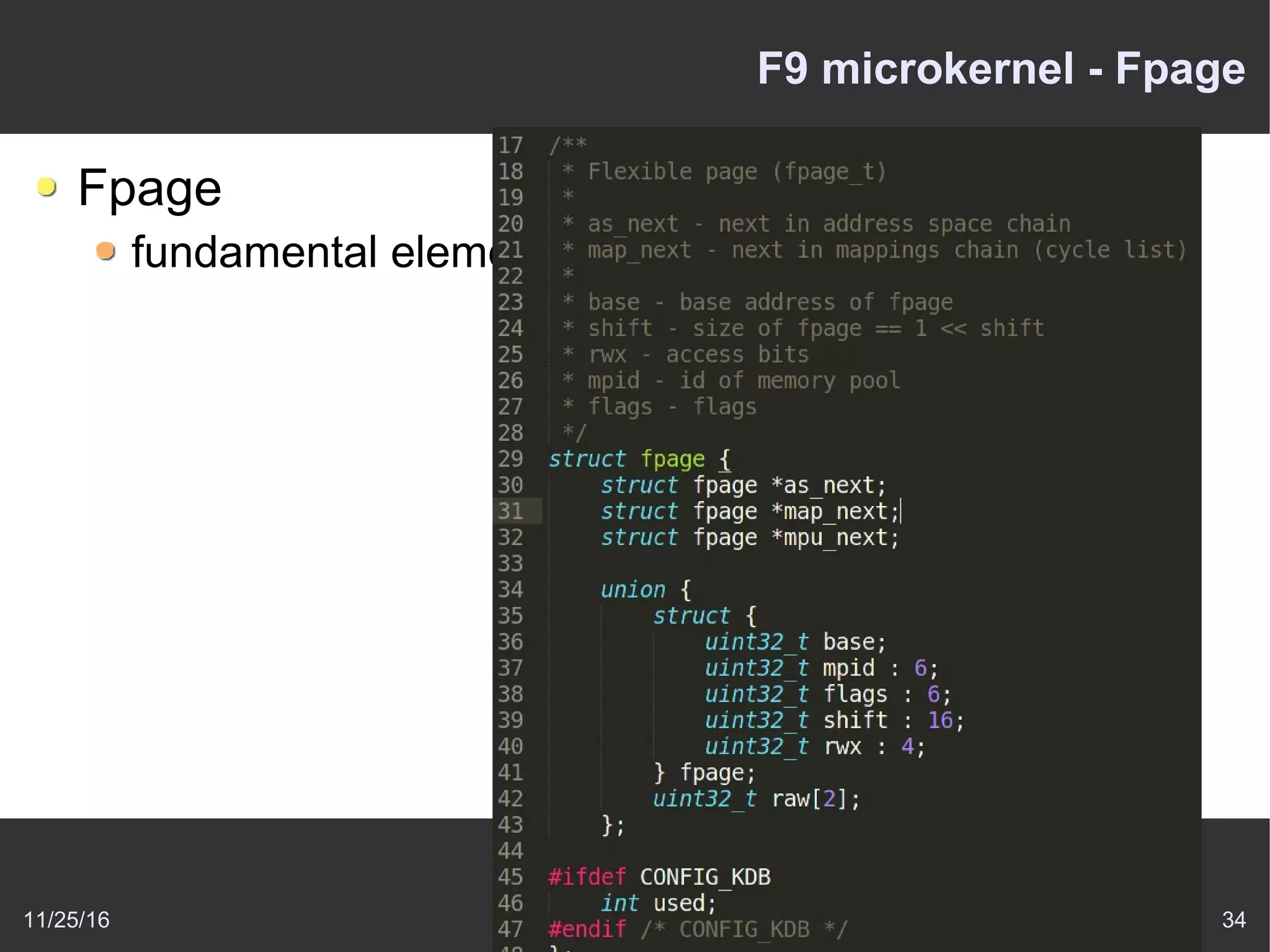

11/25/16 34 F9 microkernel - Fpage Fpage fundamental element for address space

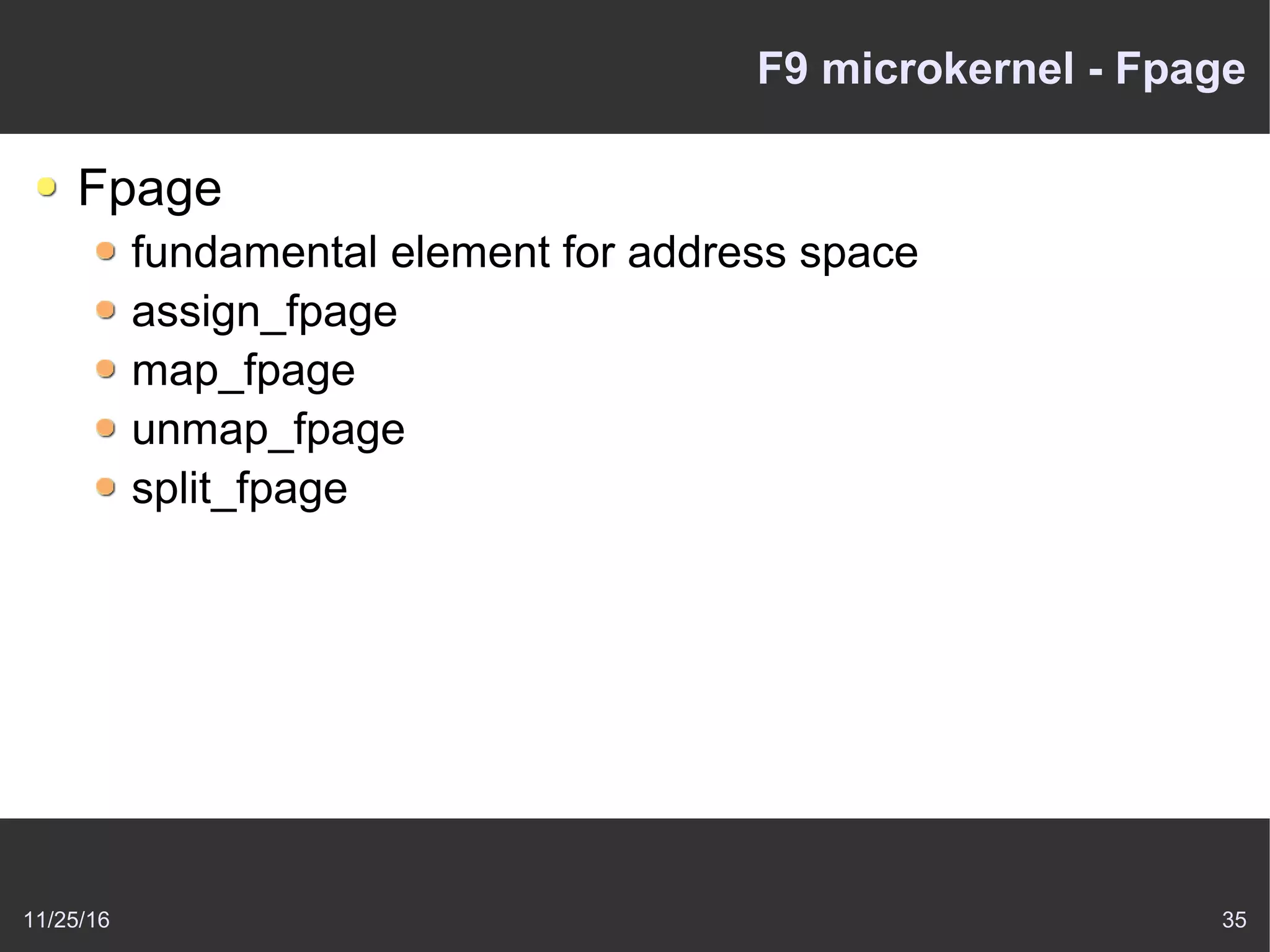

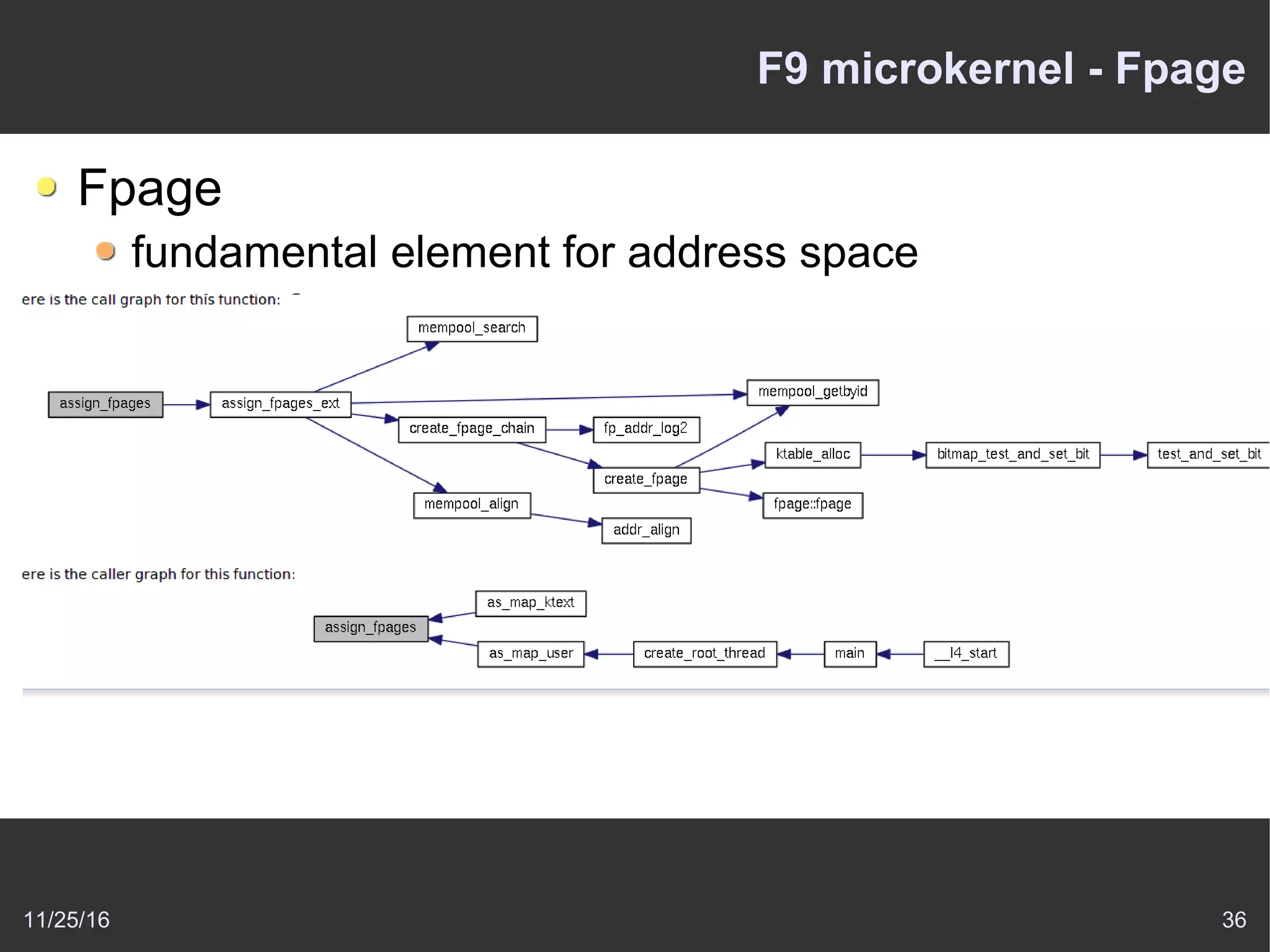

11/25/16 35 F9 microkernel - Fpage Fpage fundamental element for address space assign_fpage map_fpage unmap_fpage split_fpage
11/25/16 36 F9 microkernel - Fpage Fpage fundamental element for address space assign_fpage map_fpage unmap_fpage split_fpage
11/25/16 37 F9 microkernel - Fpage Fpage fundamental element for address space assign_fpage map_fpage unmap_fpage split_fpage

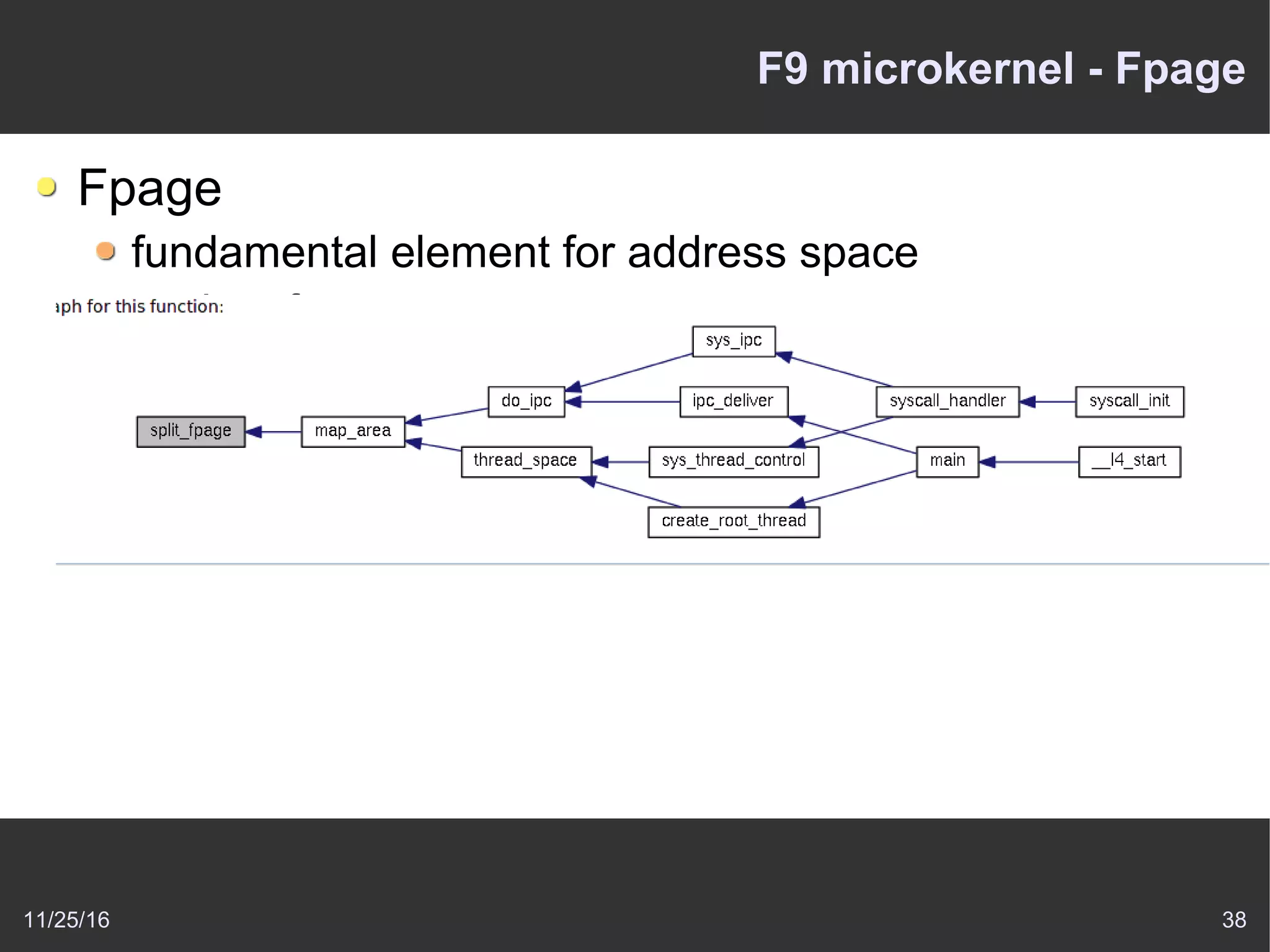

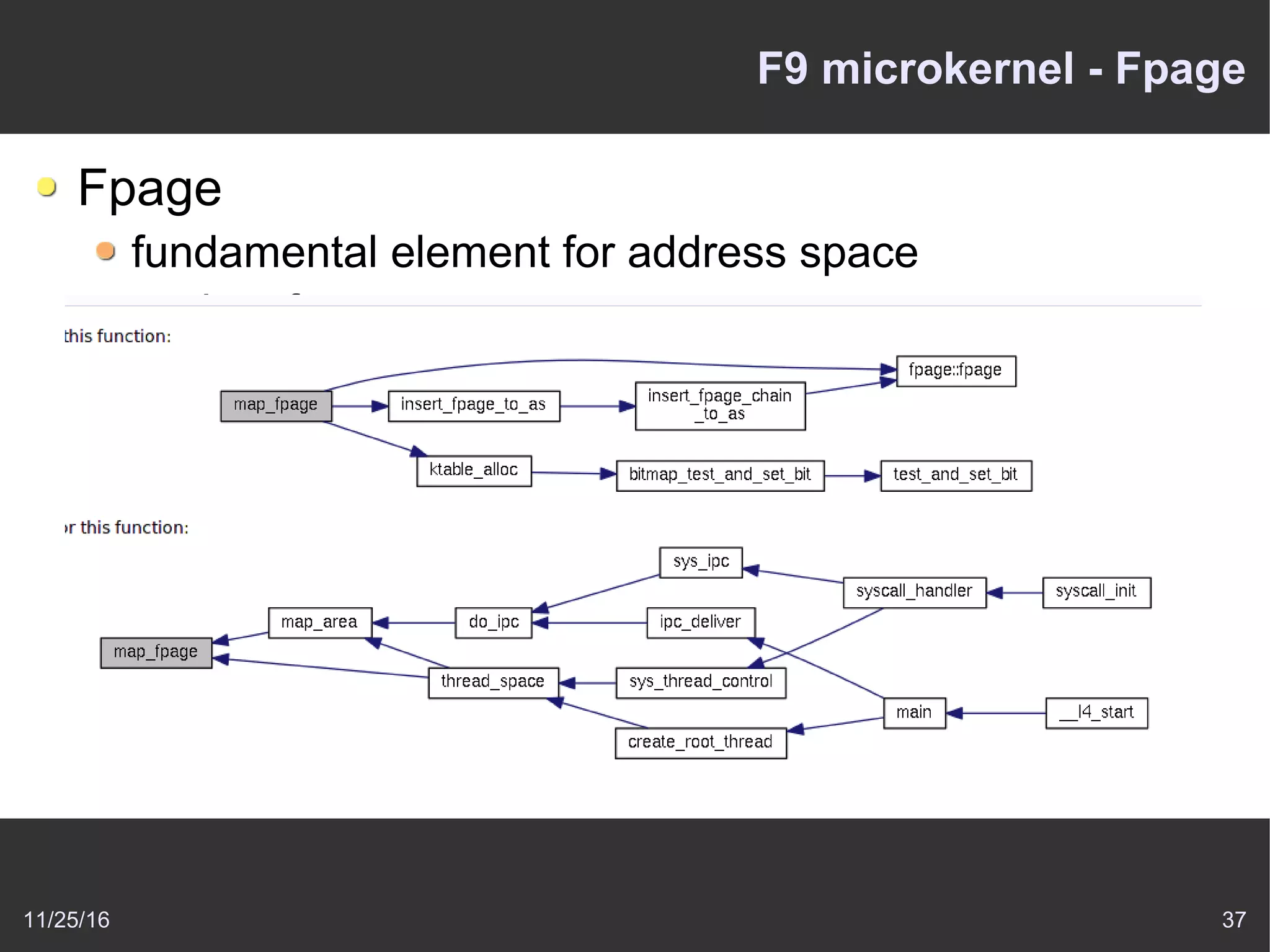

11/25/16 38 F9 microkernel - Fpage Fpage fundamental element for address space assign_fpage map_fpage unmap_fpage split_fpage

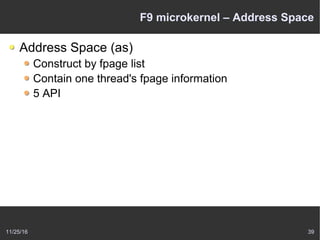

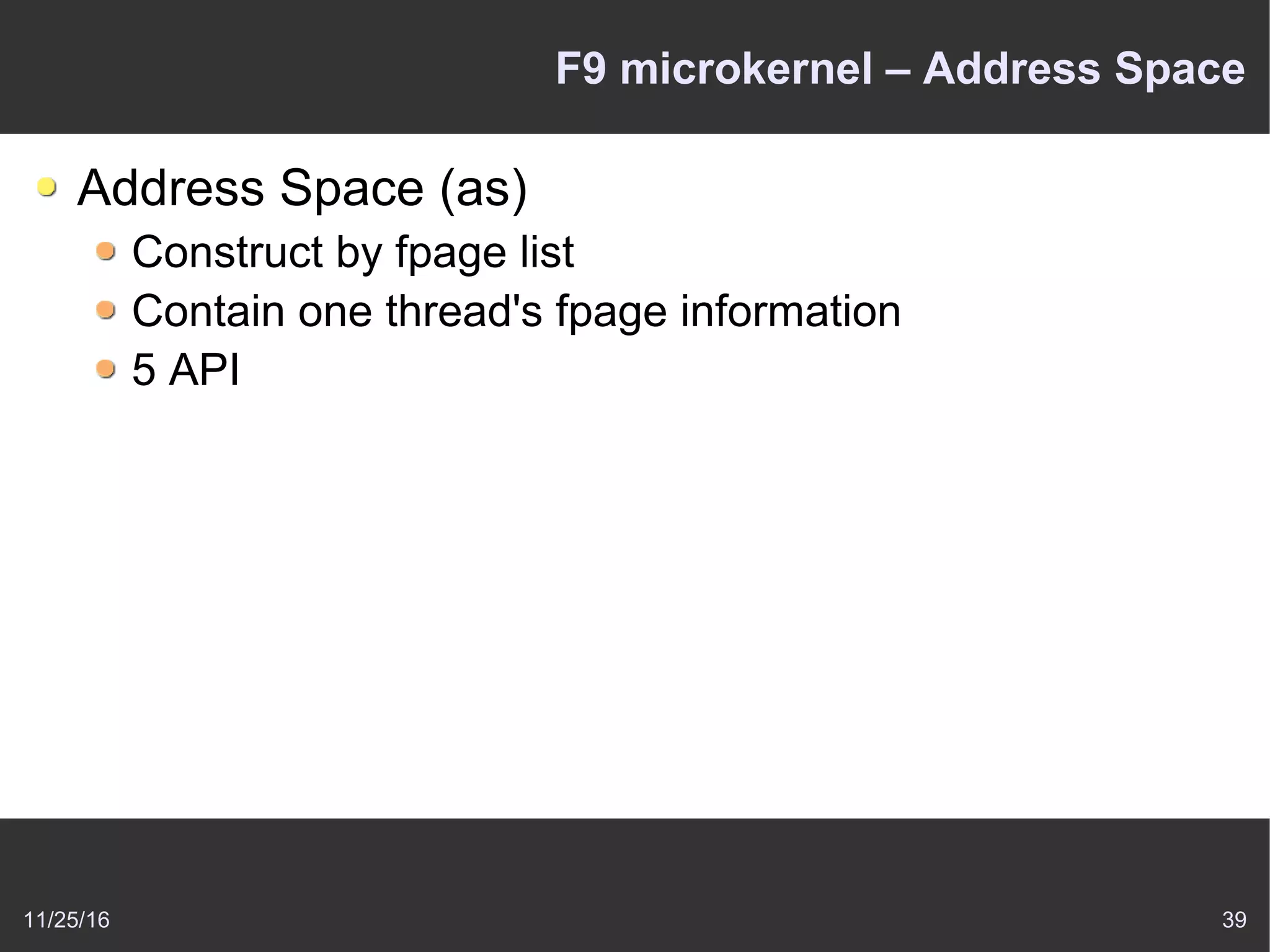

11/25/16 39 F9 microkernel – Address Space Address Space (as) Construct by fpage list Contain one thread's fpage information 5 API

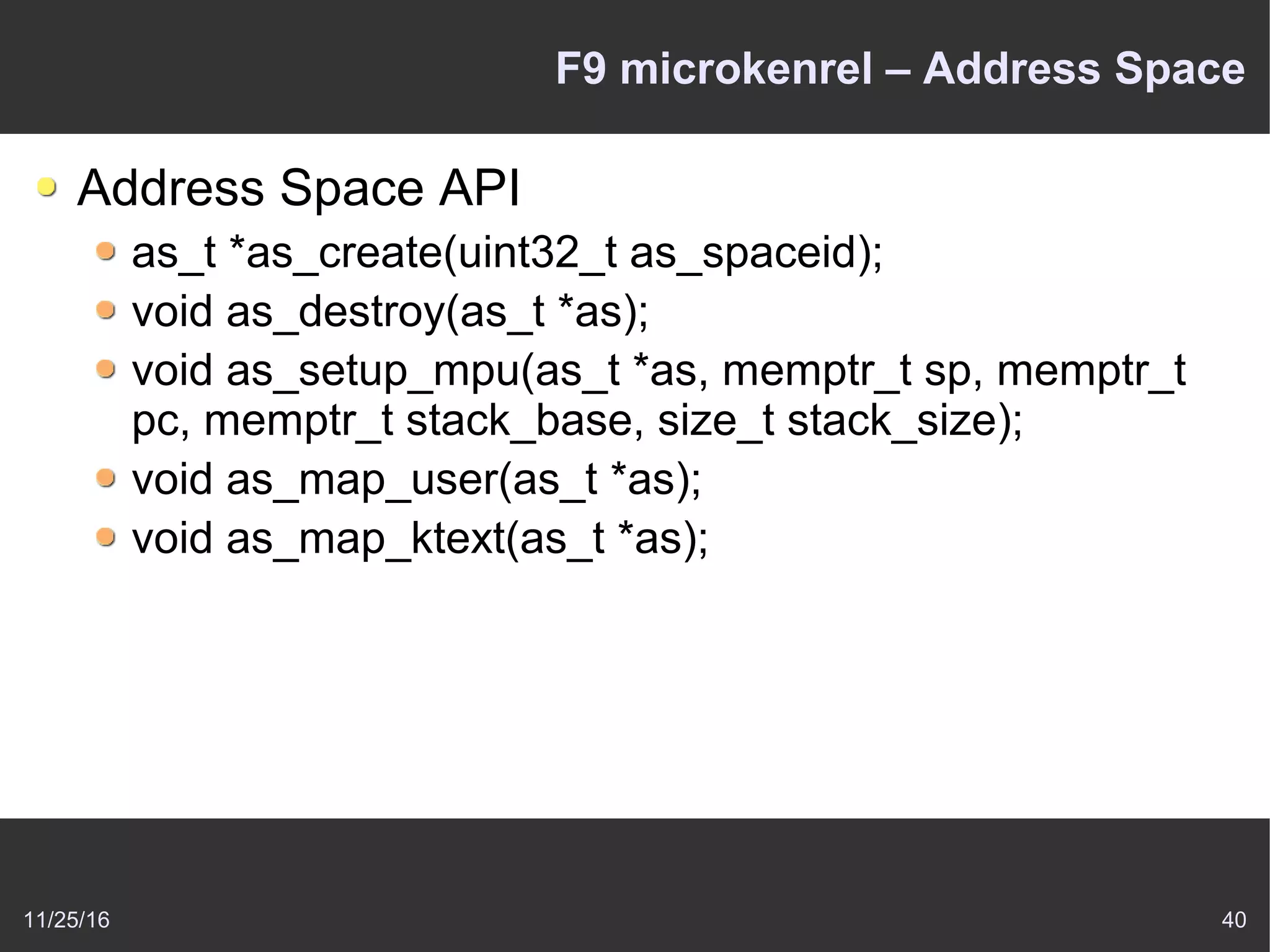

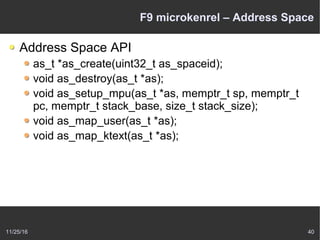

11/25/16 40 F9 microkenrel – Address Space Address Space API as_t *as_create(uint32_t as_spaceid); void as_destroy(as_t *as); void as_setup_mpu(as_t *as, memptr_t sp, memptr_t pc, memptr_t stack_base, size_t stack_size); void as_map_user(as_t *as); void as_map_ktext(as_t *as);

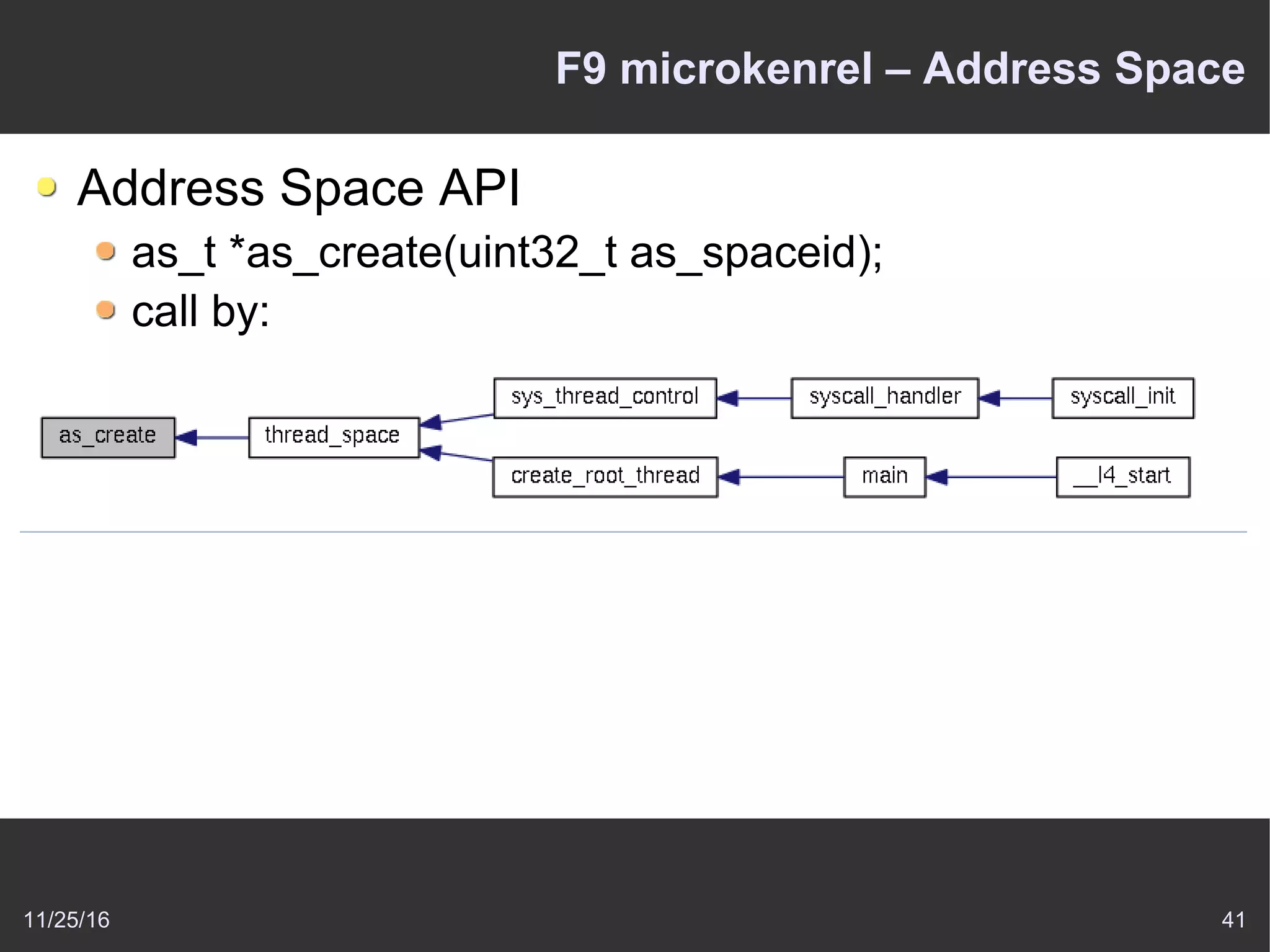

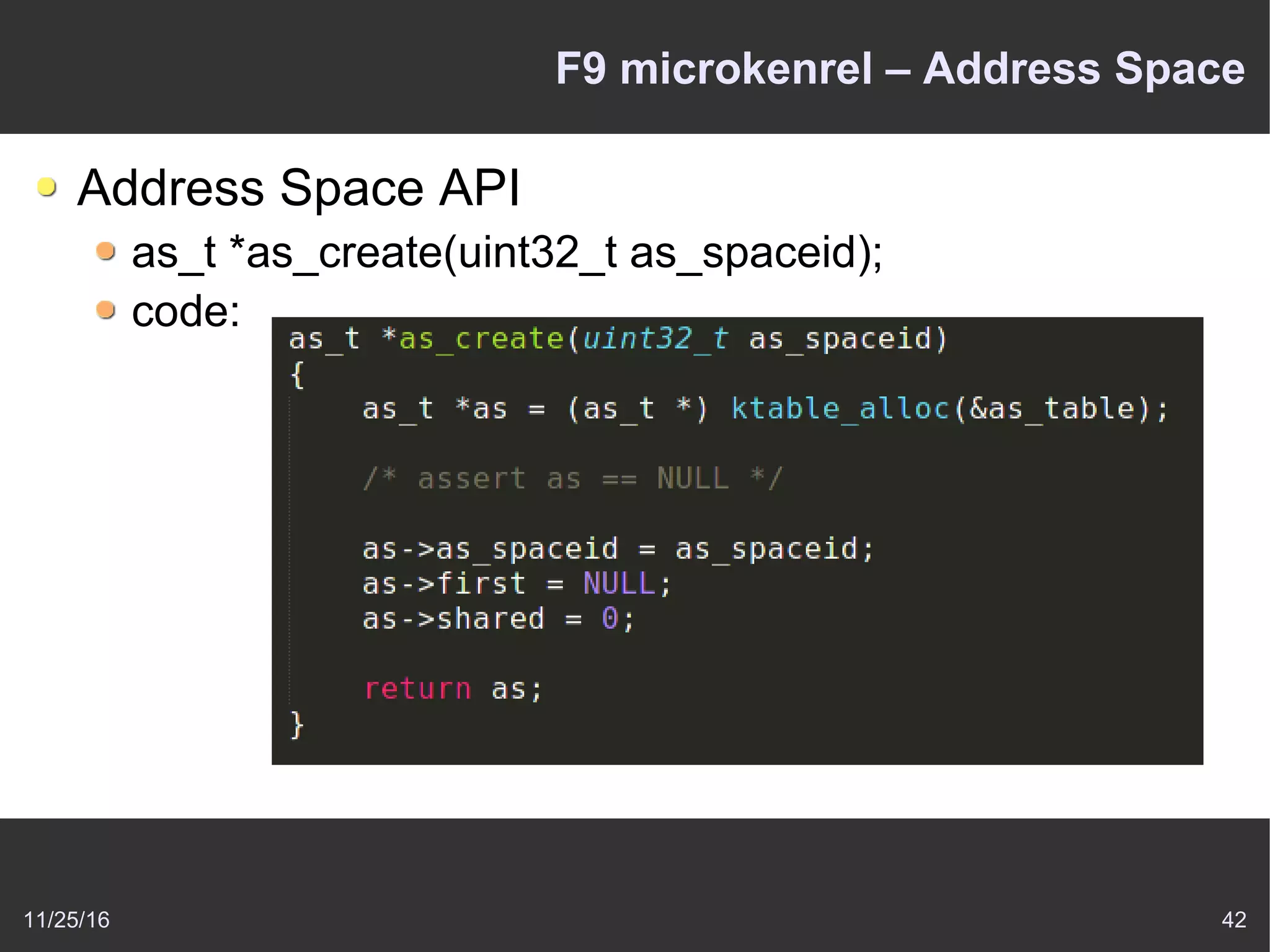

11/25/16 41 F9 microkenrel – Address Space Address Space API as_t *as_create(uint32_t as_spaceid); call by:
11/25/16 42 F9 microkenrel – Address Space Address Space API as_t *as_create(uint32_t as_spaceid); code:

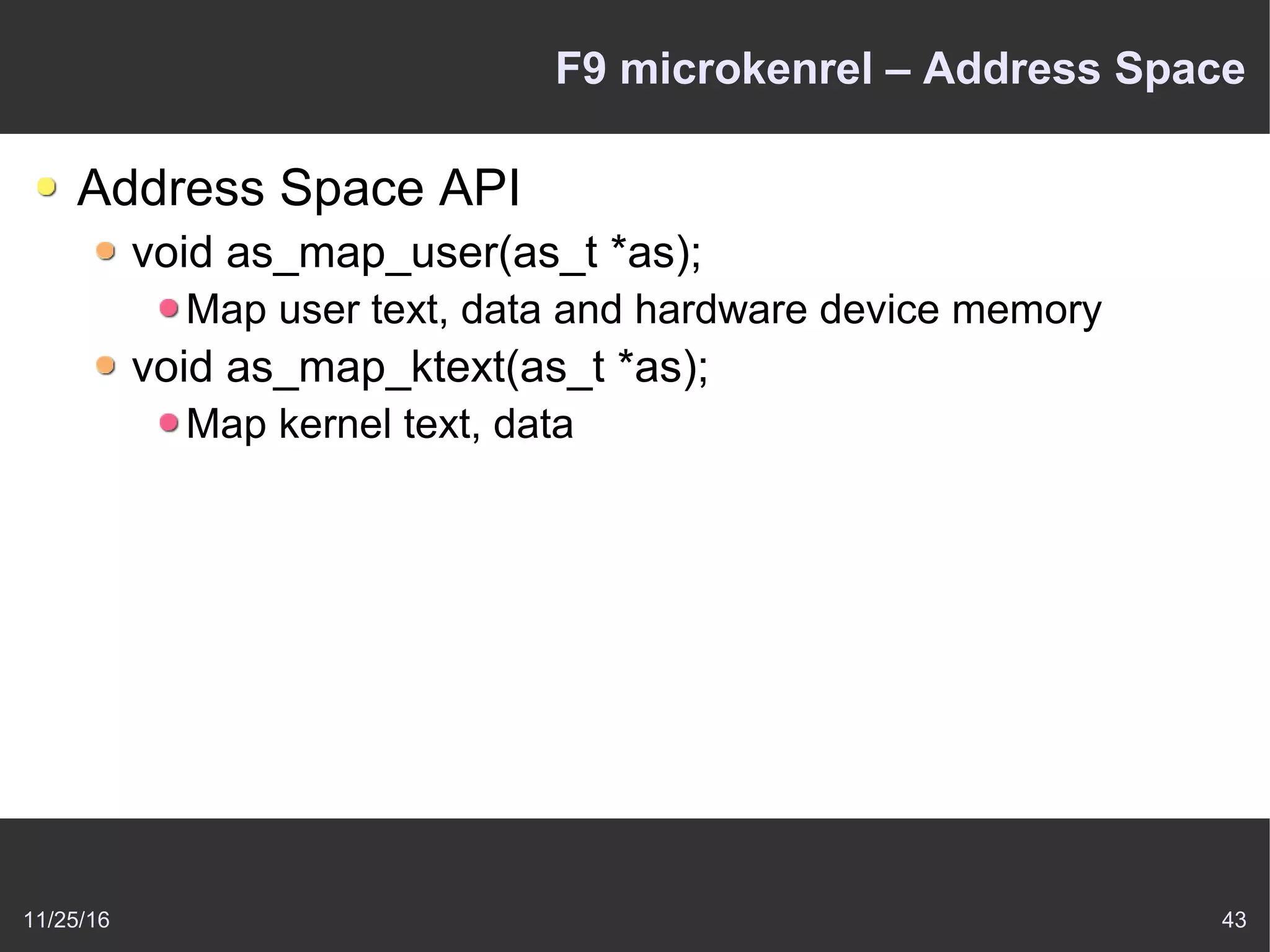

11/25/16 43 F9 microkenrel – Address Space Address Space API void as_map_user(as_t *as); Map user text, data and hardware device memory void as_map_ktext(as_t *as); Map kernel text, data

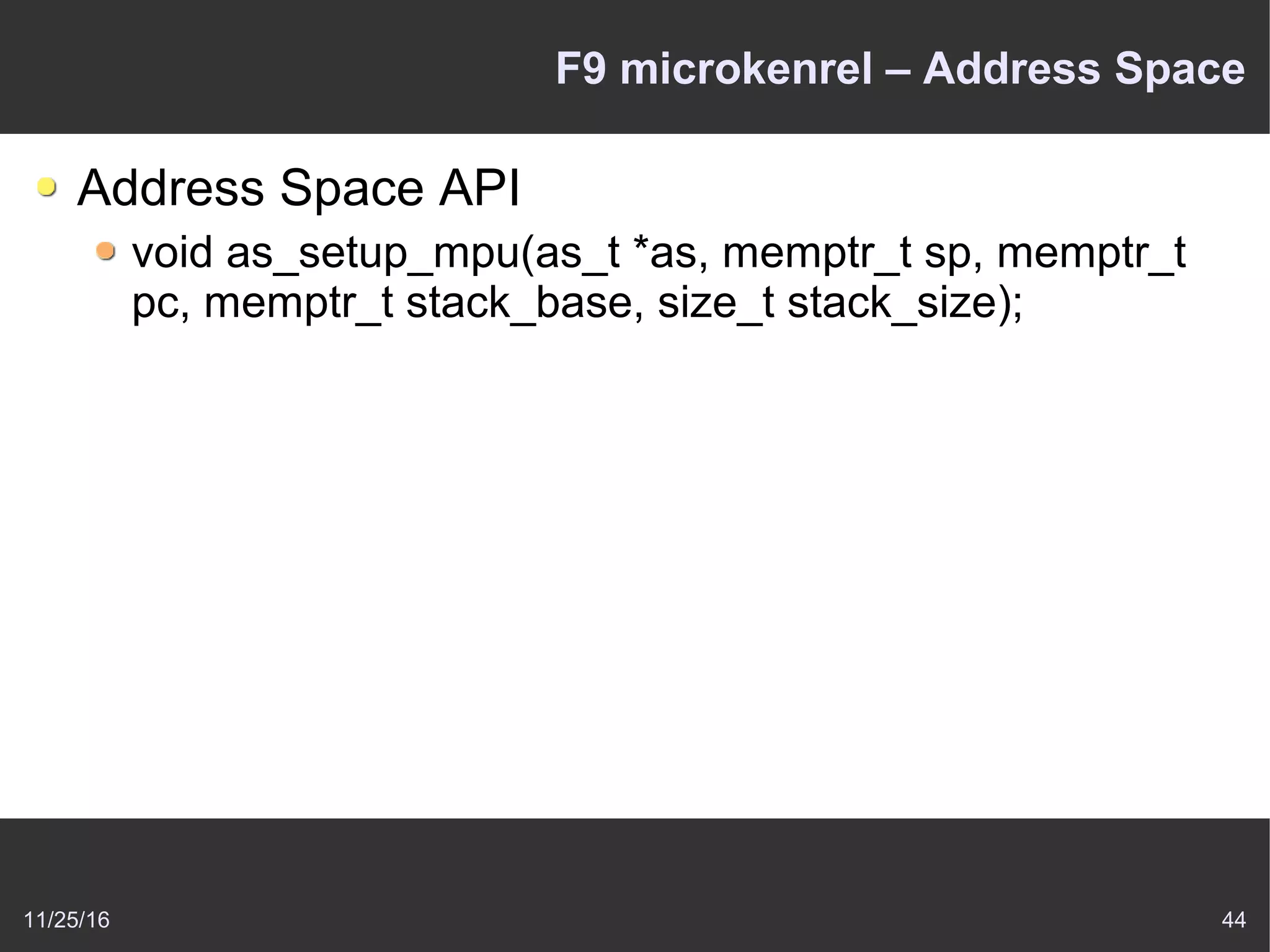

11/25/16 44 F9 microkenrel – Address Space Address Space API void as_setup_mpu(as_t *as, memptr_t sp, memptr_t pc, memptr_t stack_base, size_t stack_size);

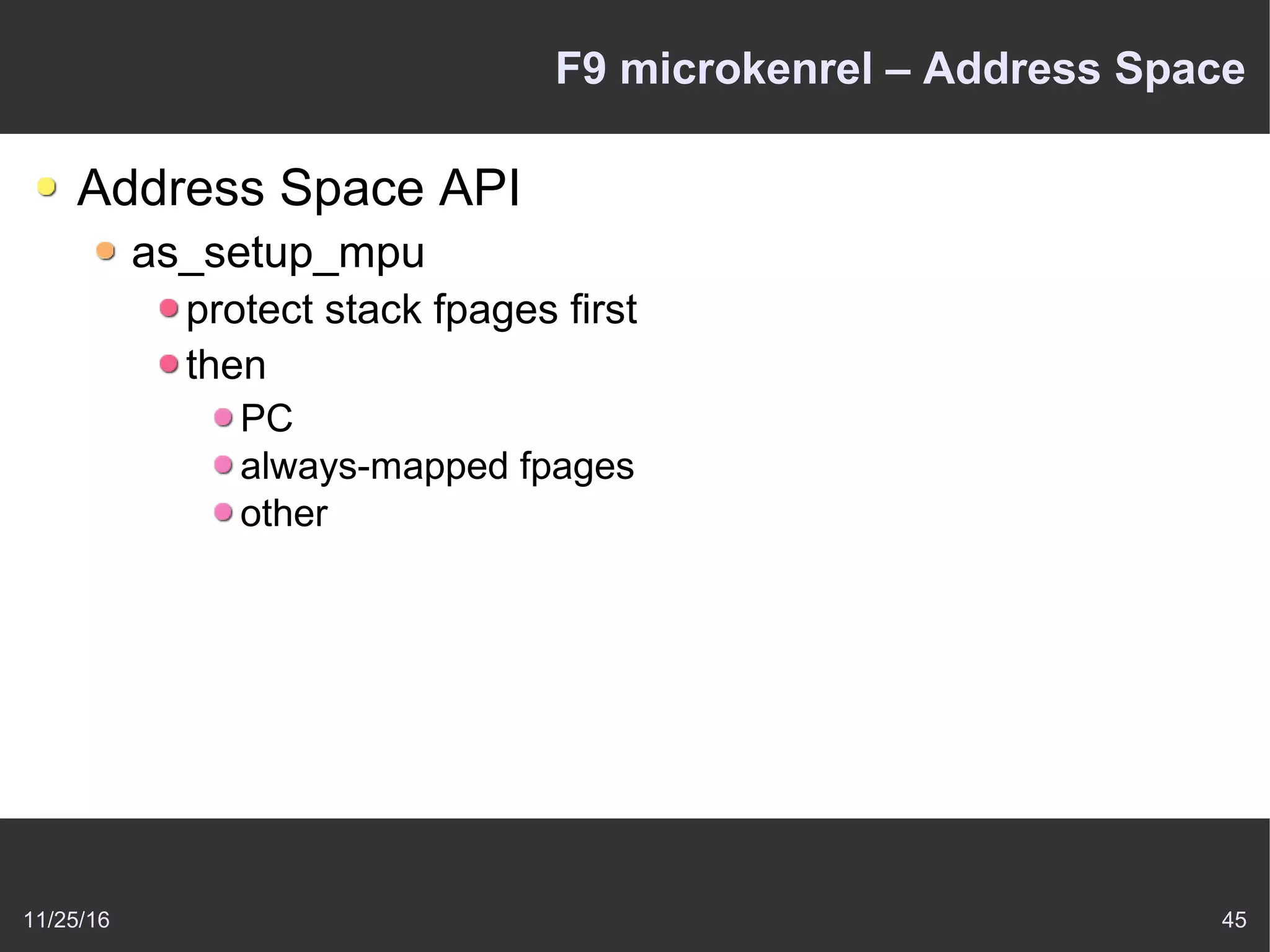

11/25/16 45 F9 microkenrel – Address Space Address Space API as_setup_mpu protect stack fpages first then PC always-mapped fpages other

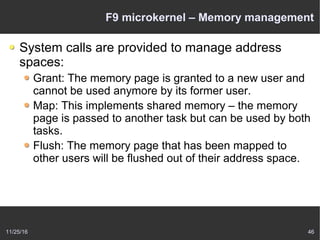

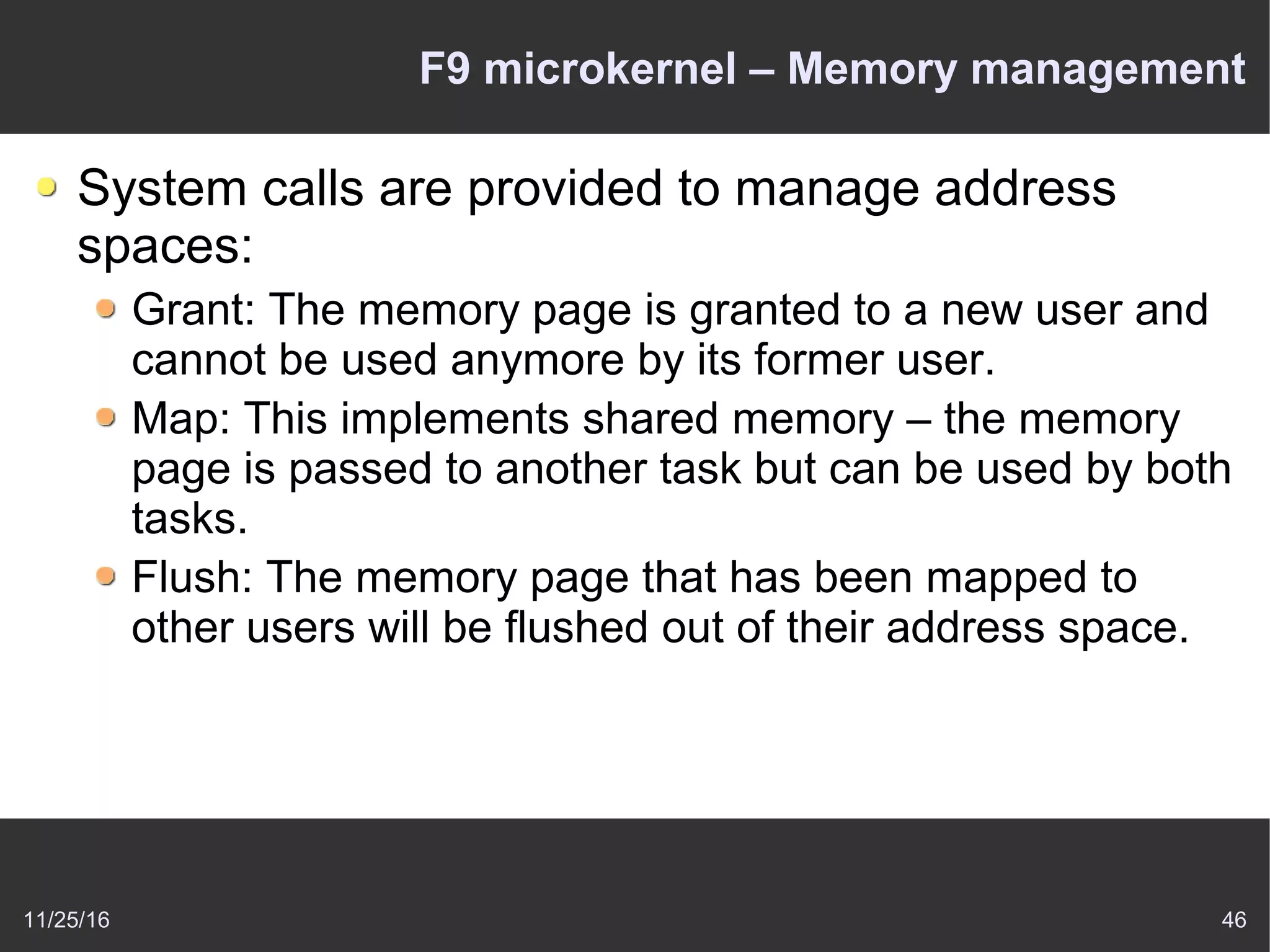

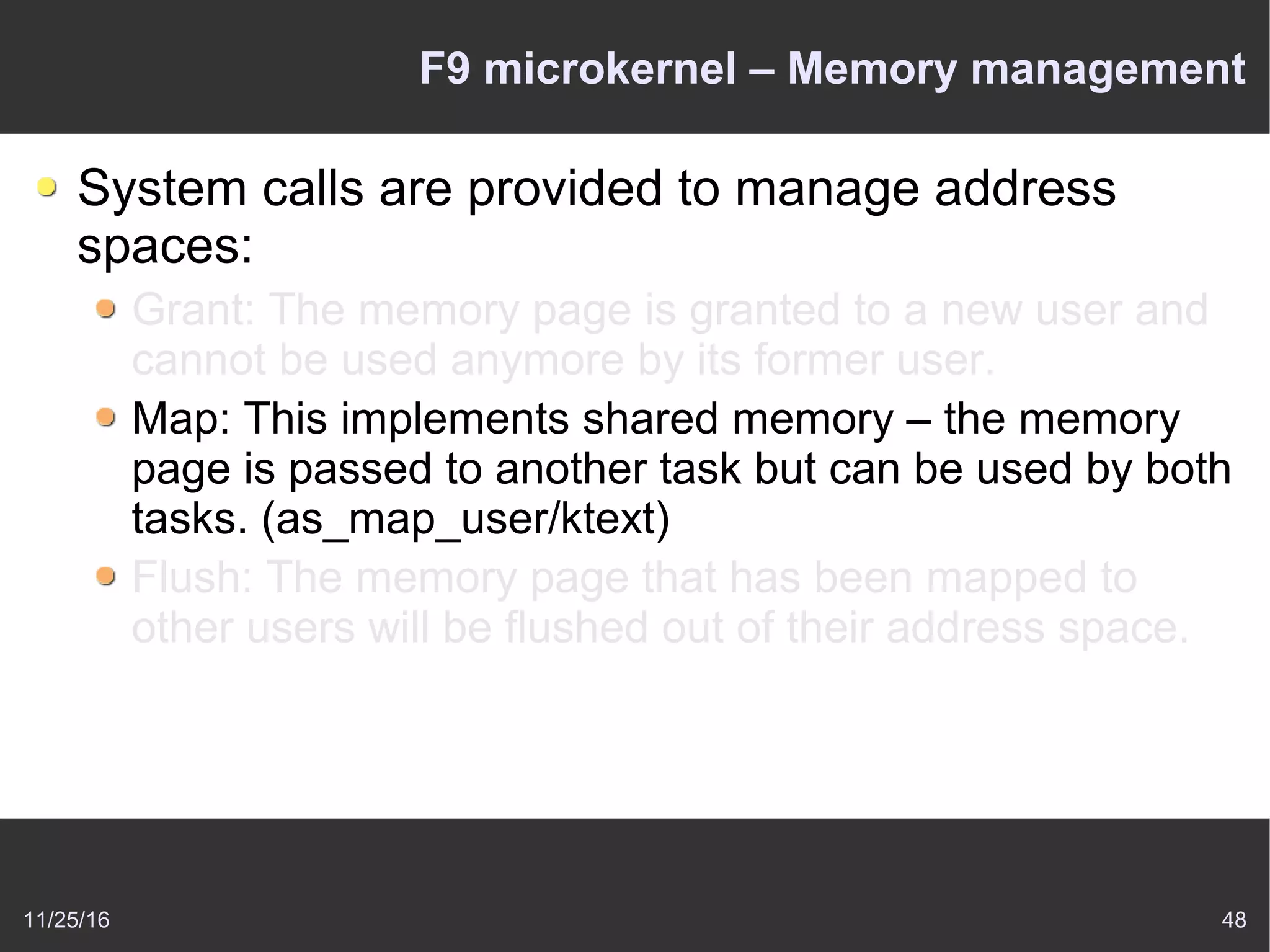

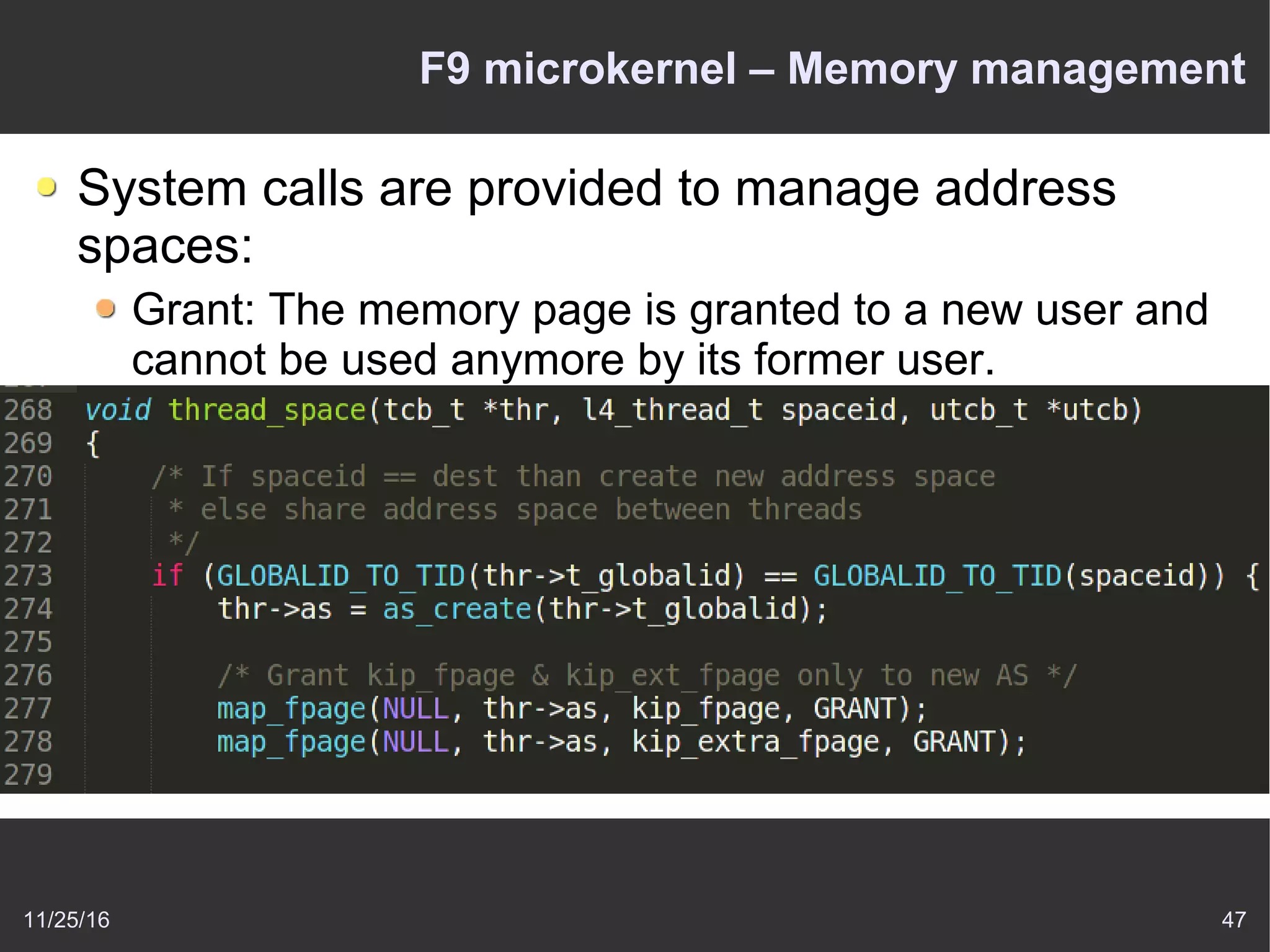

11/25/16 46 F9 microkernel – Memory management System calls are provided to manage address spaces: Grant: The memory page is granted to a new user and cannot be used anymore by its former user. Map: This implements shared memory – the memory page is passed to another task but can be used by both tasks. Flush: The memory page that has been mapped to other users will be flushed out of their address space.
11/25/16 47 F9 microkernel – Memory management System calls are provided to manage address spaces: Grant: The memory page is granted to a new user and cannot be used anymore by its former user. Map: This implements shared memory – the memory page is passed to another task but can be used by both tasks. Flush: The memory page that has been mapped to other users will be flushed out of their address space.
11/25/16 48 F9 microkernel – Memory management System calls are provided to manage address spaces: Grant: The memory page is granted to a new user and cannot be used anymore by its former user. Map: This implements shared memory – the memory page is passed to another task but can be used by both tasks. (as_map_user/ktext) Flush: The memory page that has been mapped to other users will be flushed out of their address space.

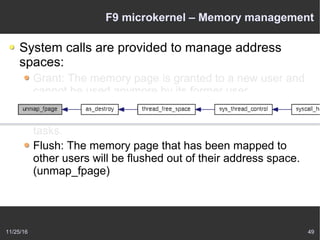

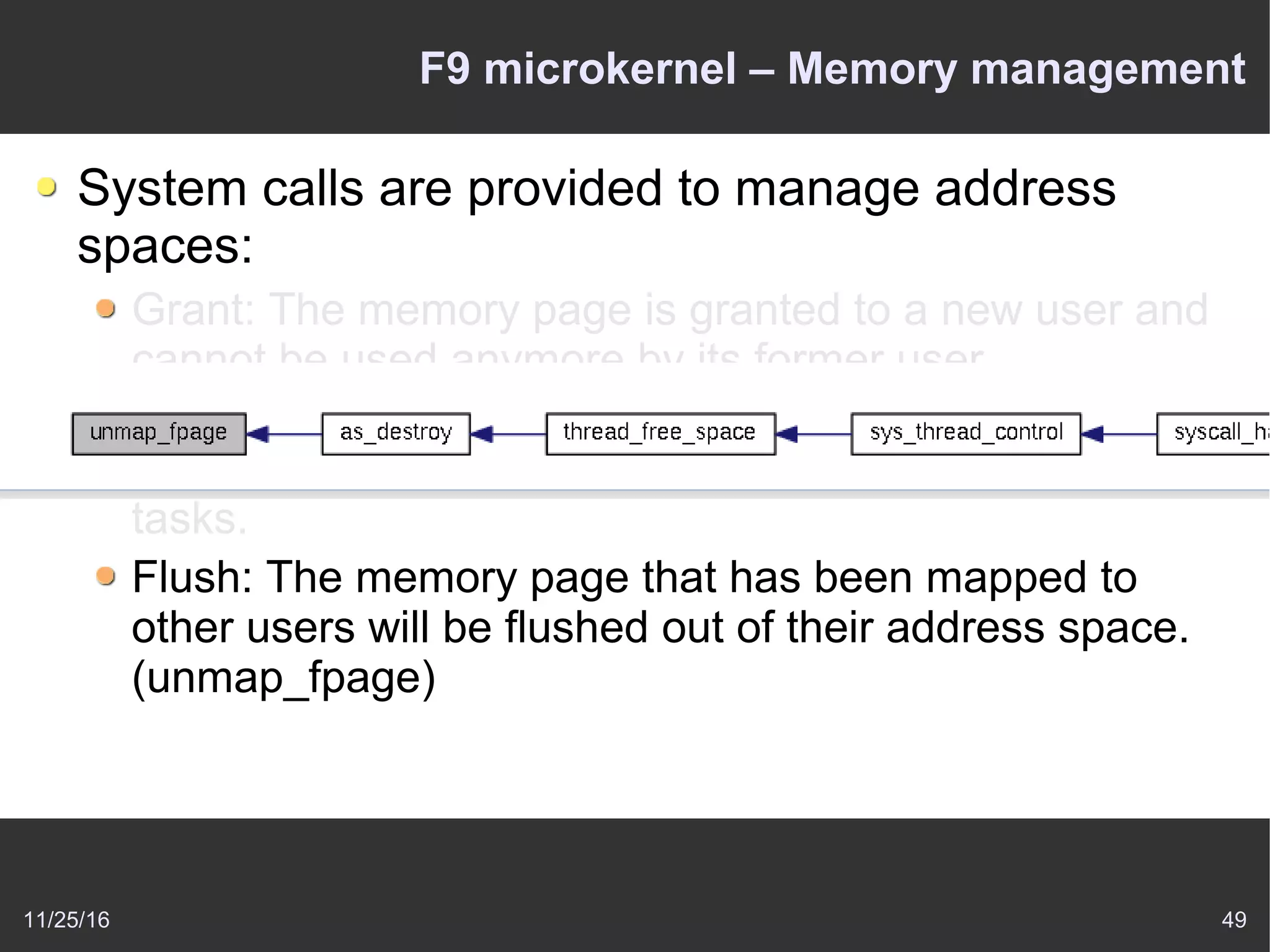

11/25/16 49 F9 microkernel – Memory management System calls are provided to manage address spaces: Grant: The memory page is granted to a new user and cannot be used anymore by its former user. Map: This implements shared memory – the memory page is passed to another task but can be used by both tasks. Flush: The memory page that has been mapped to other users will be flushed out of their address space. (unmap_fpage)

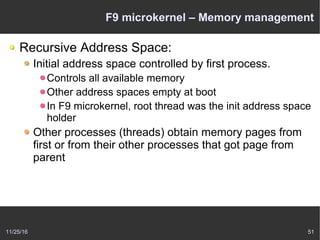

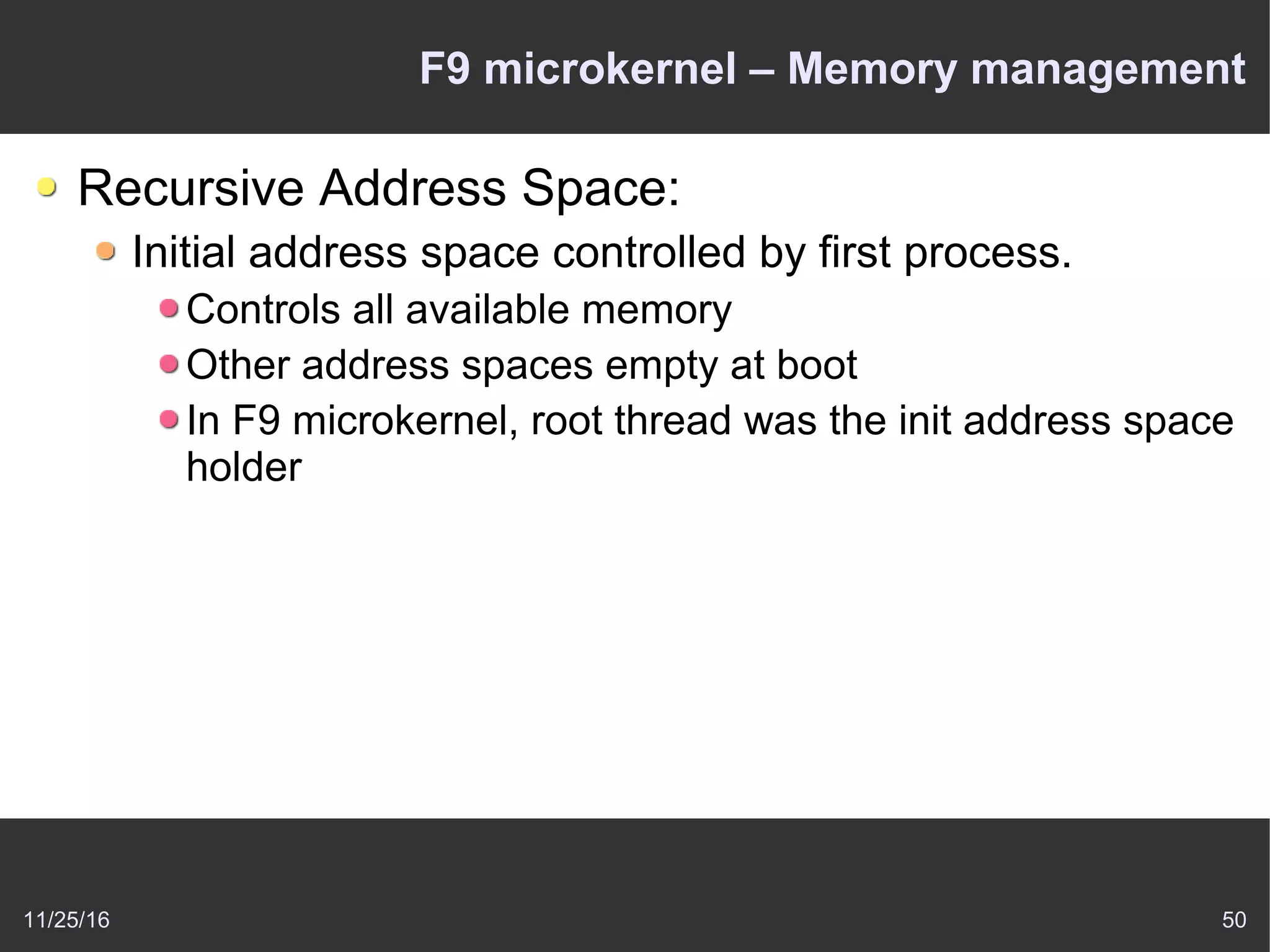

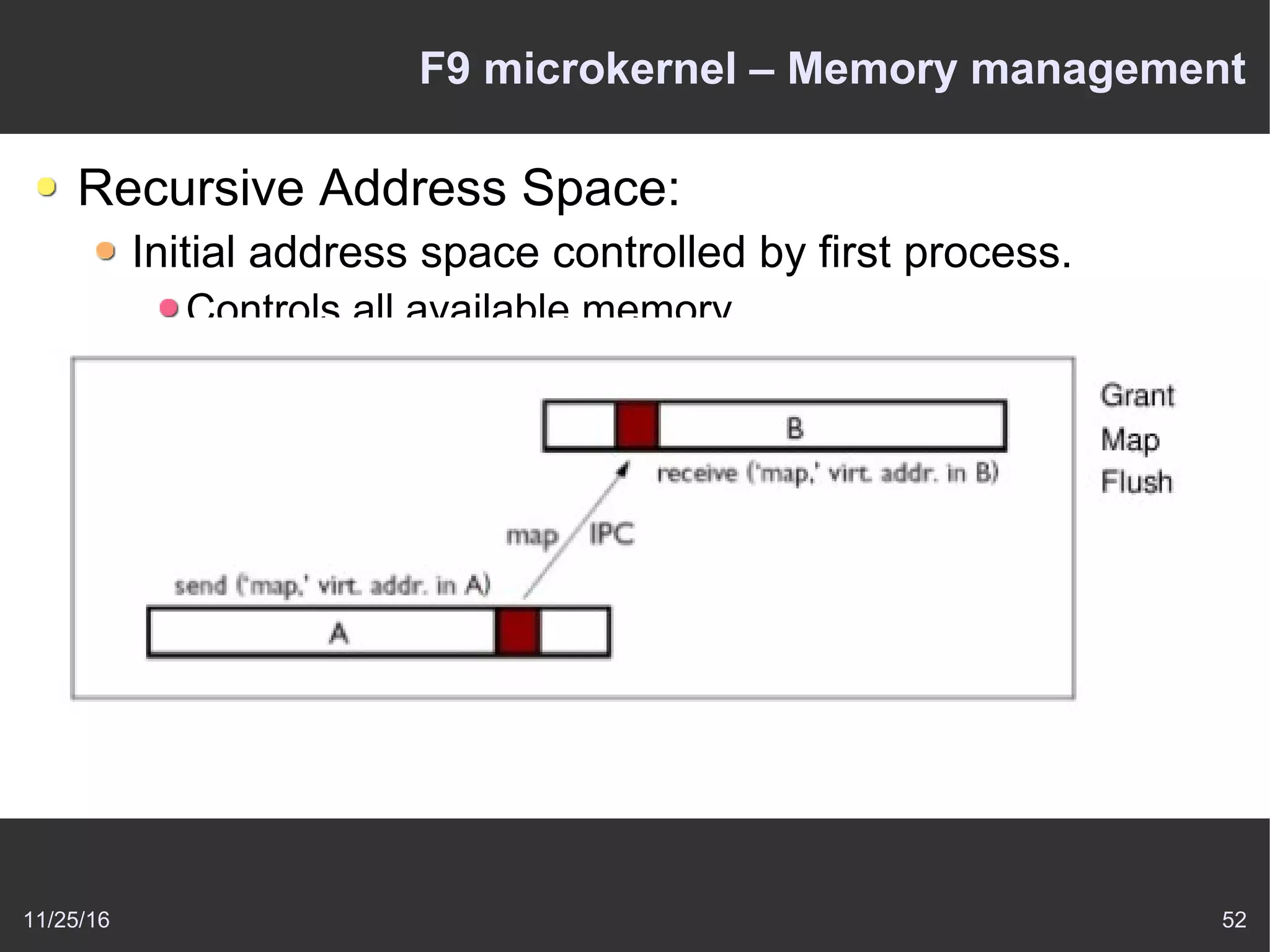

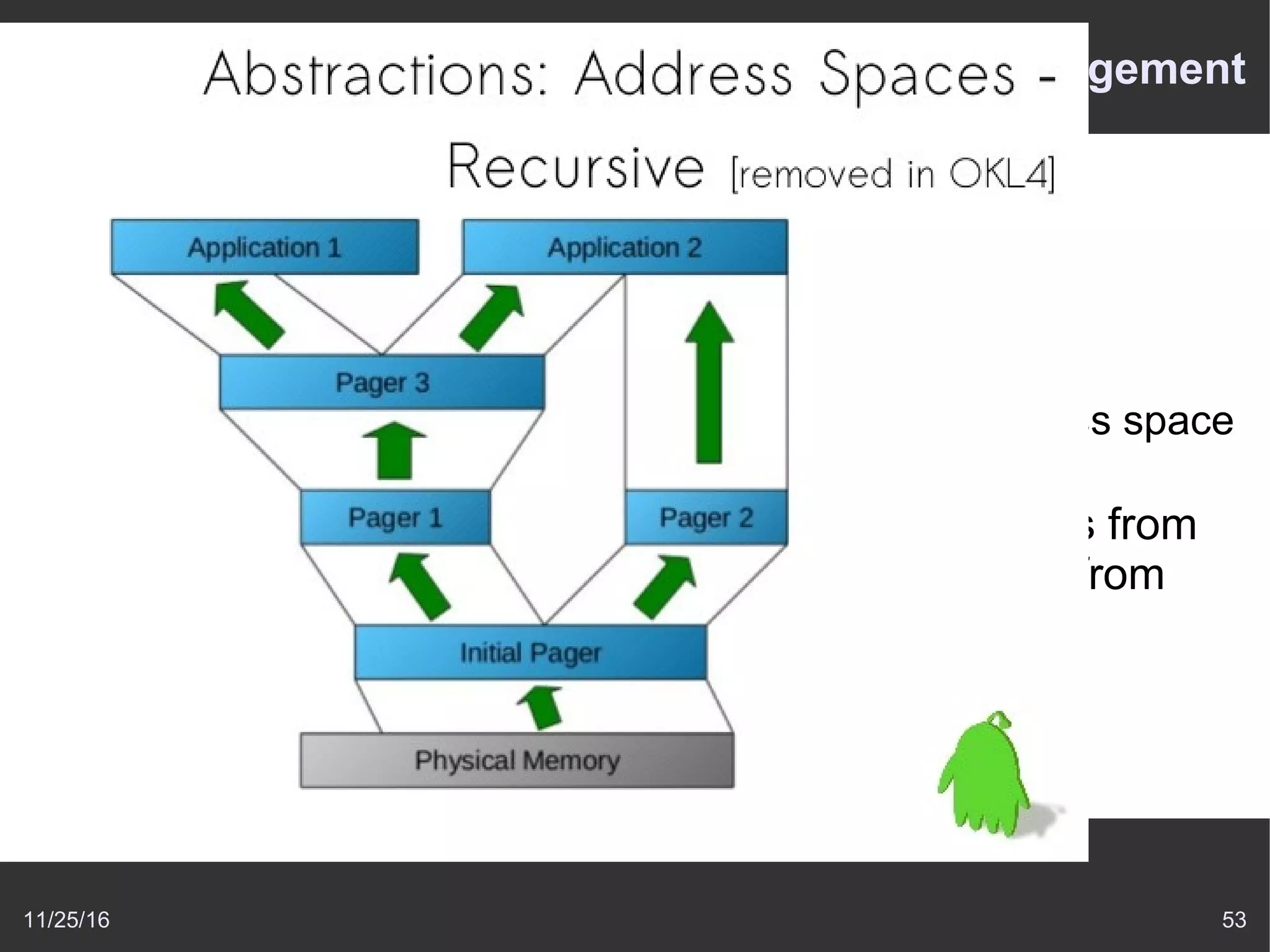

11/25/16 50 F9 microkernel – Memory management Recursive Address Space: Initial address space controlled by first process. Controls all available memory Other address spaces empty at boot In F9 microkernel, root thread was the init address space holder

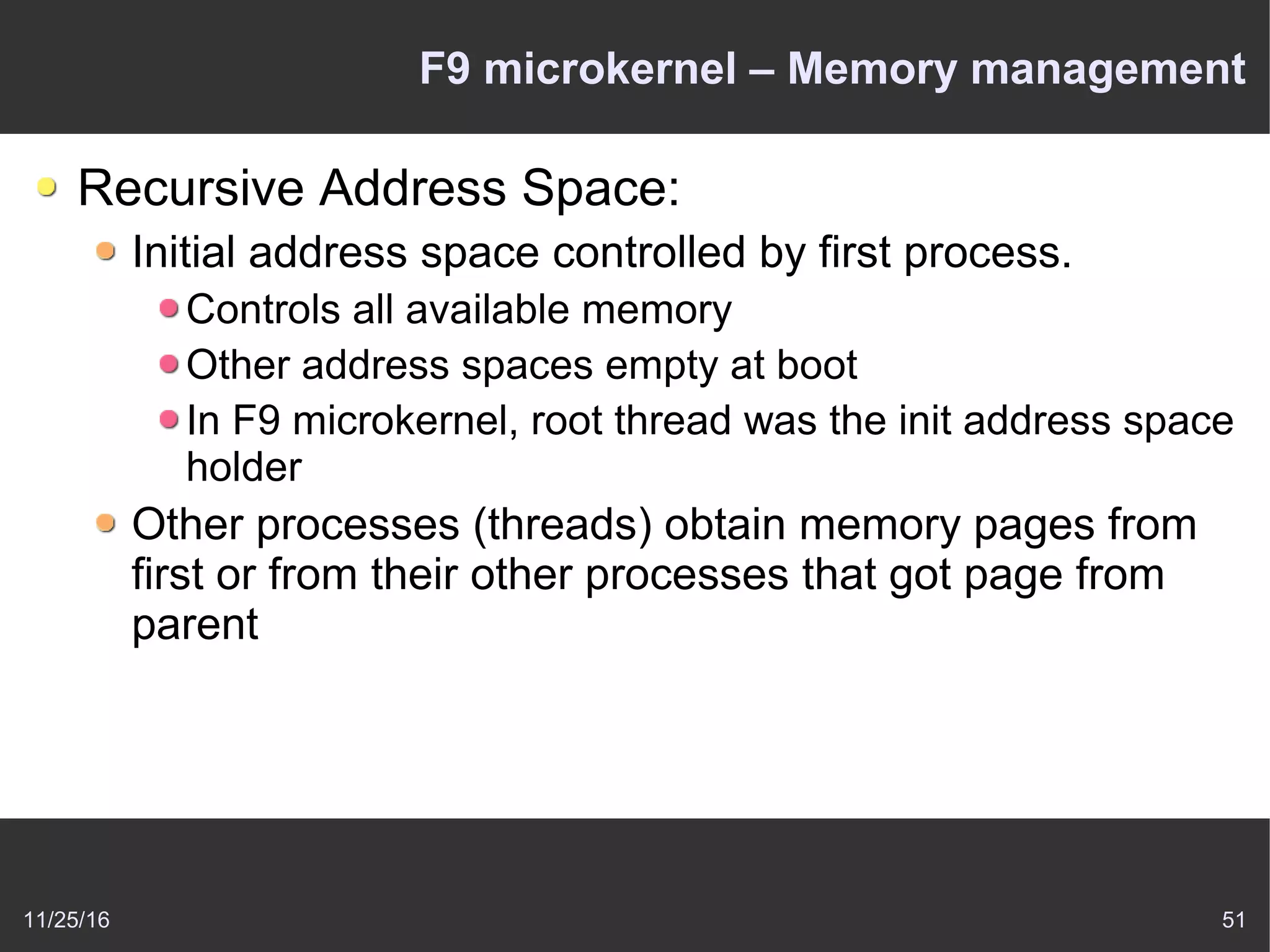

11/25/16 51 F9 microkernel – Memory management Recursive Address Space: Initial address space controlled by first process. Controls all available memory Other address spaces empty at boot In F9 microkernel, root thread was the init address space holder Other processes (threads) obtain memory pages from first or from their other processes that got page from parent
11/25/16 52 F9 microkernel – Memory management Recursive Address Space: Initial address space controlled by first process. Controls all available memory Other address spaces empty at boot In F9 microkernel, root thread was the init address space holder Other processes (threads) obtain memory pages from first or from their other processes that got page from parent
11/25/16 53 F9 microkernel – Memory management Recursive Address Space: Initial address space controlled by first process. Controls all available memory Other address spaces empty at boot In F9 microkernel, root thread was the init address space holder Other processes (threads) obtain memory pages from first or from their other processes that got page from parent

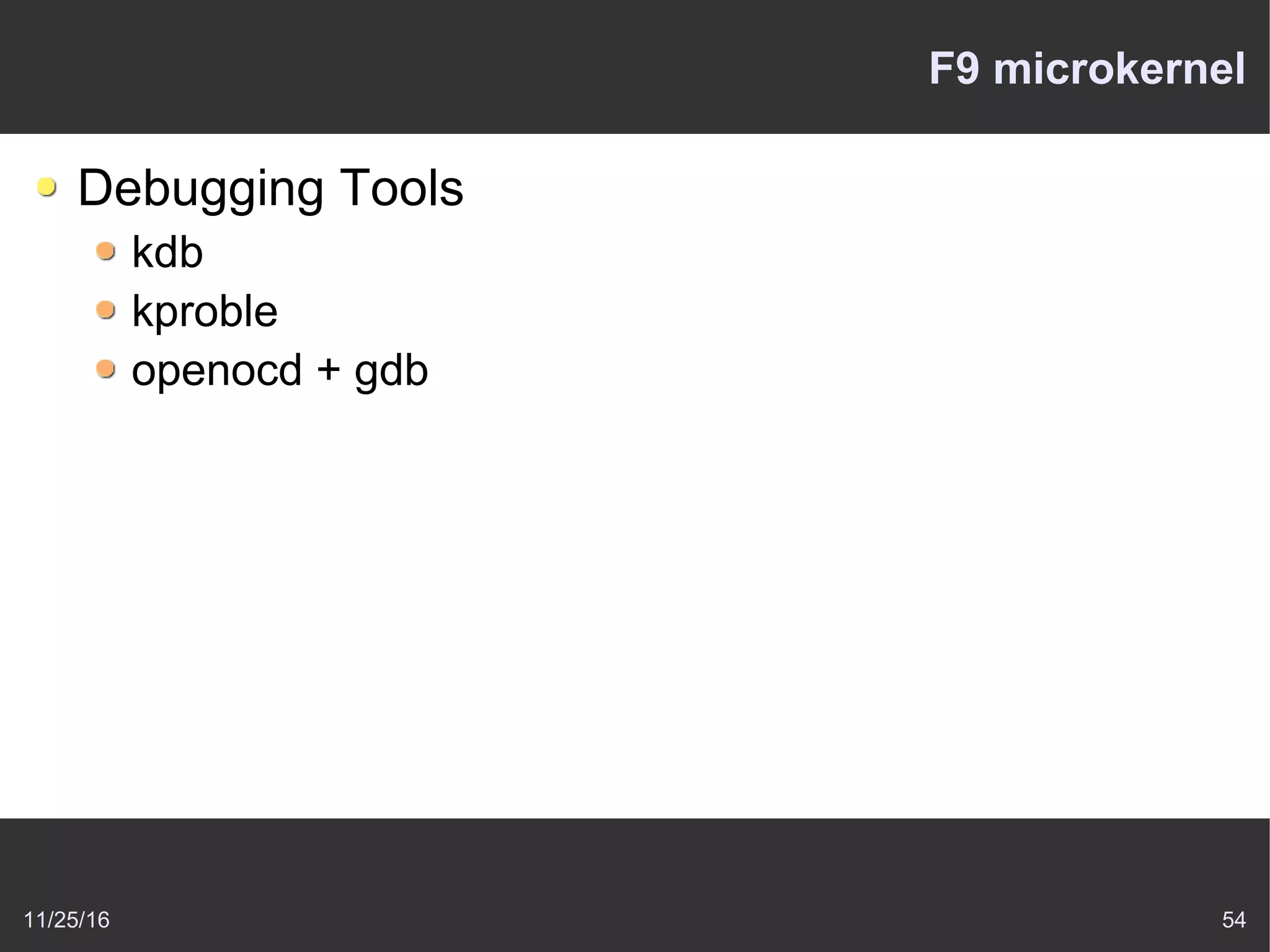

11/25/16 54 F9 microkernel Debugging Tools kdb kproble openocd + gdb

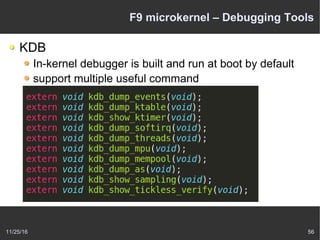

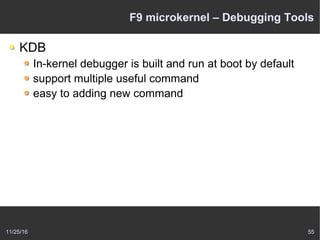

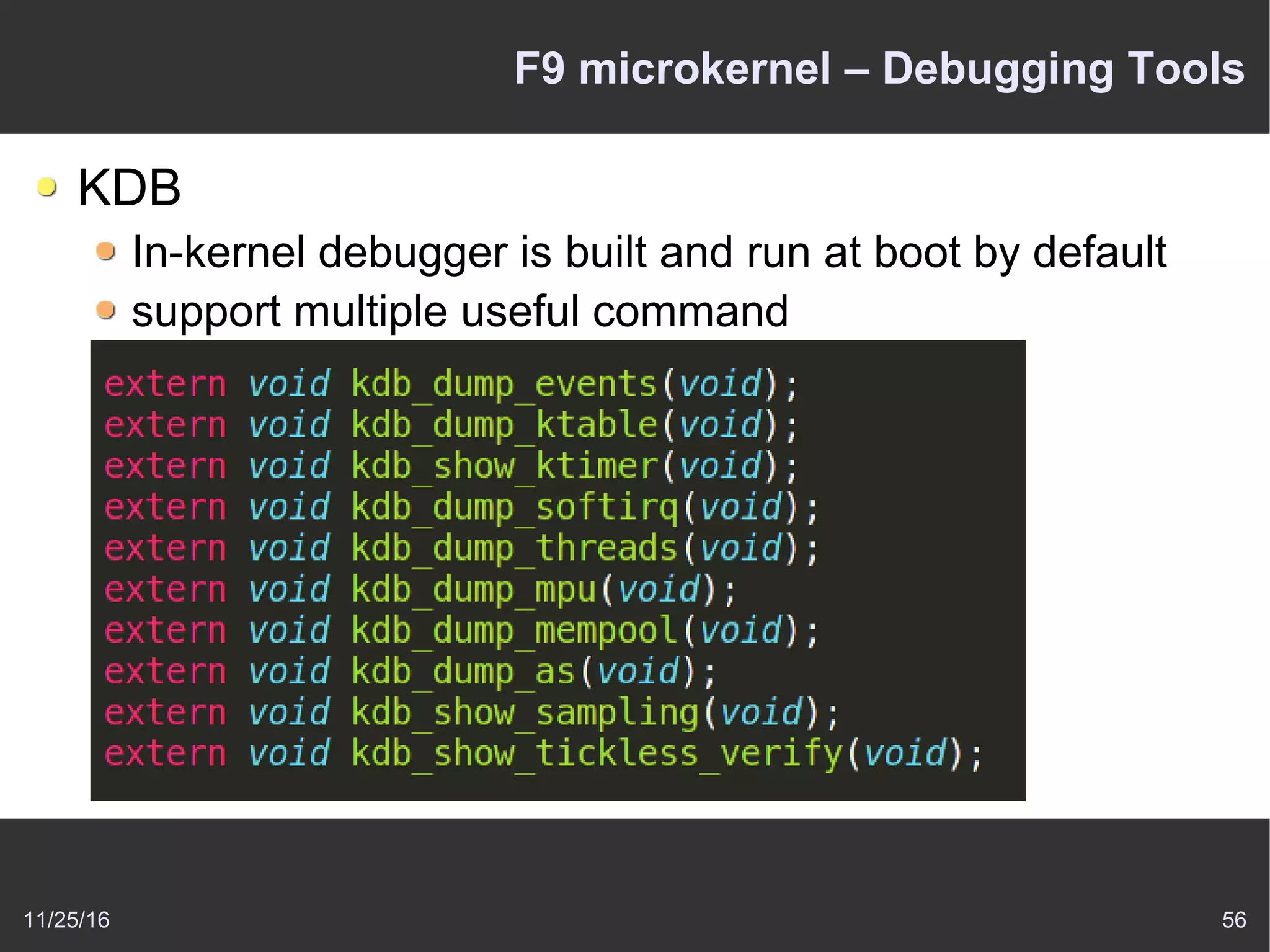

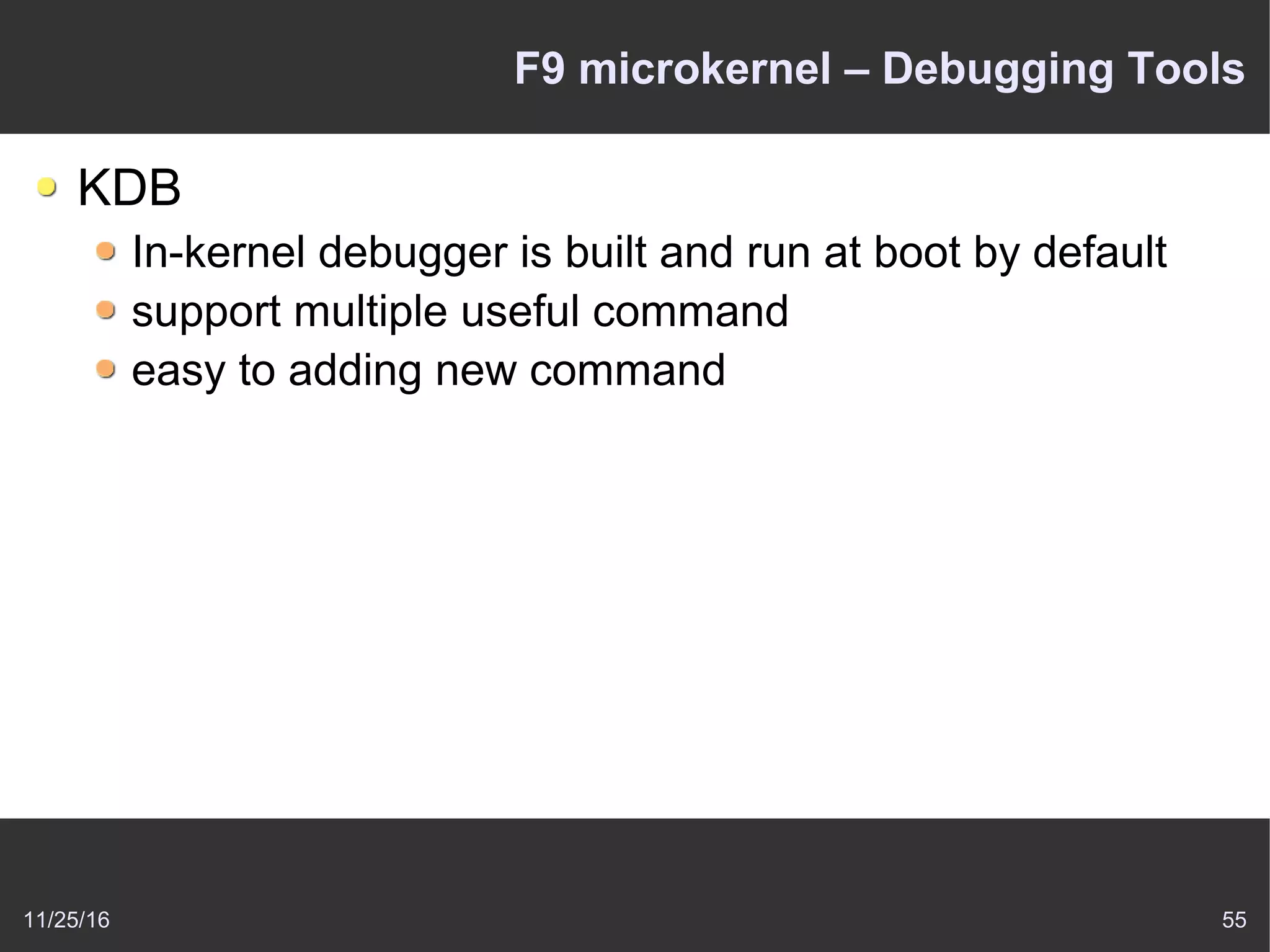

11/25/16 55 F9 microkernel – Debugging Tools KDB In-kernel debugger is built and run at boot by default support multiple useful command easy to adding new command
11/25/16 56 F9 microkernel – Debugging Tools KDB In-kernel debugger is built and run at boot by default support multiple useful command

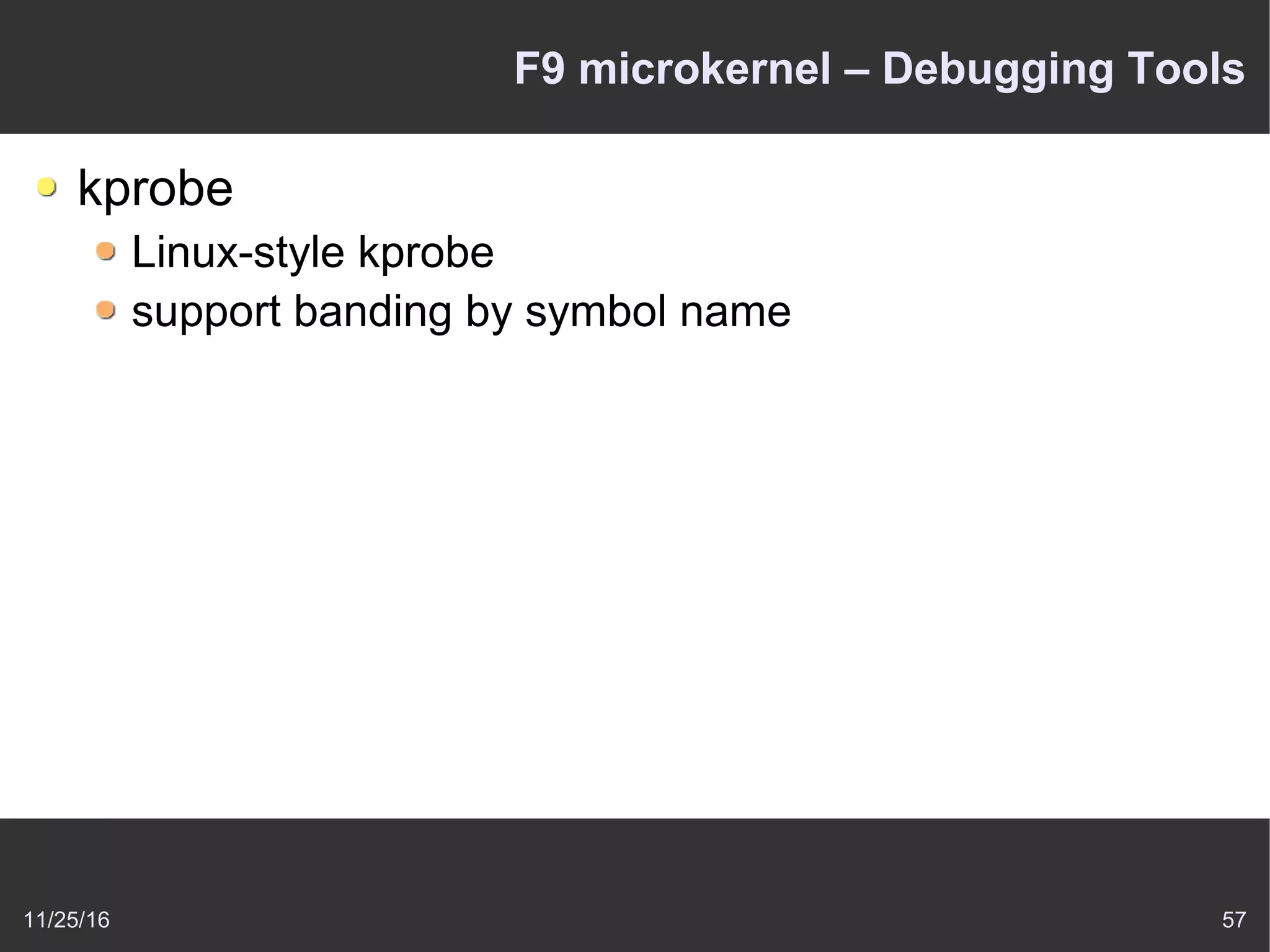

11/25/16 57 F9 microkernel – Debugging Tools kprobe Linux-style kprobe support banding by symbol name
11/25/16 58 F9 microkernel – Debugging Tools openocd + gdb Powerful then st-util useful command: http://openocd.org/doc/html/General-Commands.html

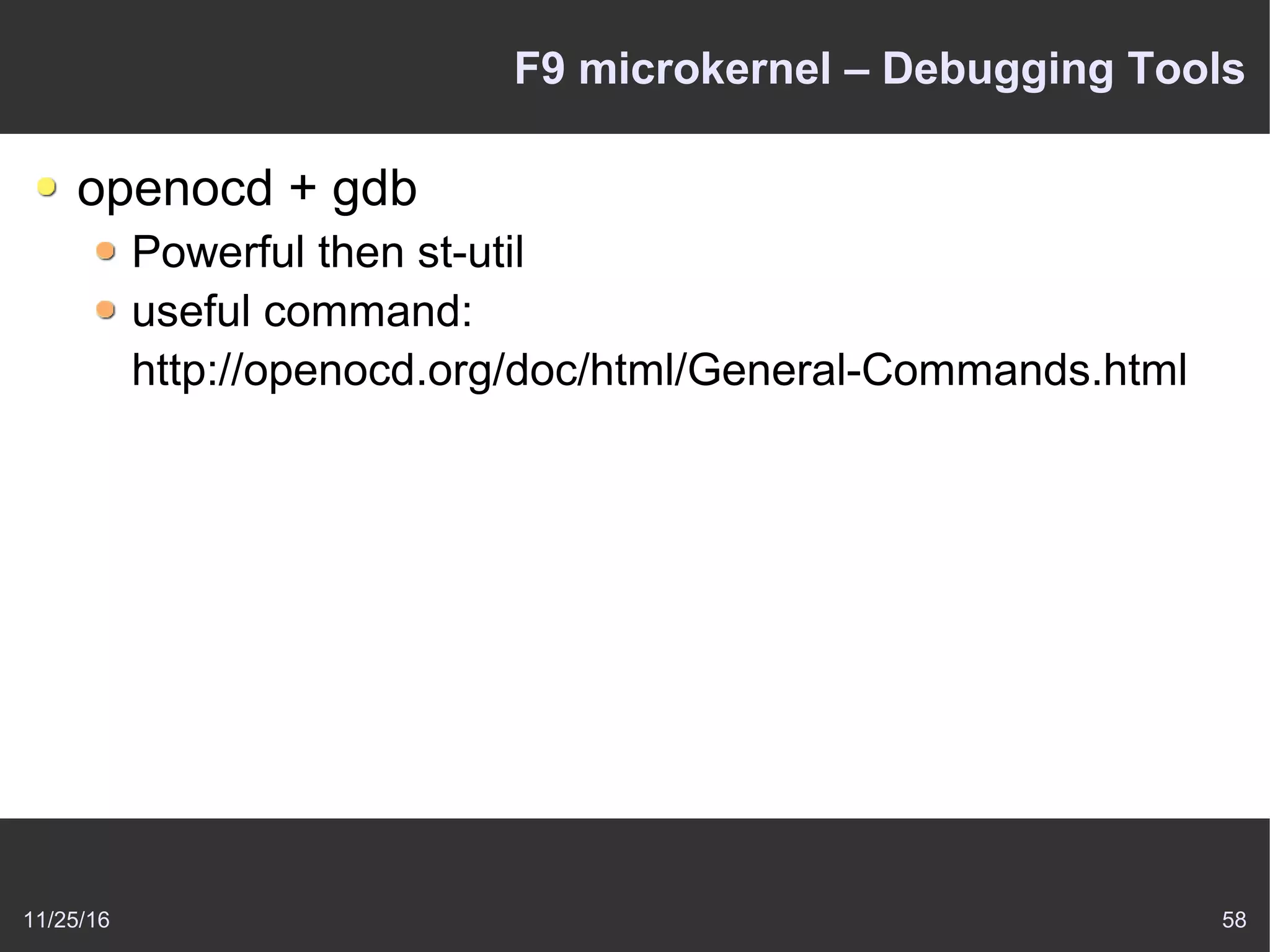

11/25/16 59 F9 microkernel – Debugging Tools openocd + gdb Powerful then st-util useful command: http://openocd.org/doc/html/General-Commands.html

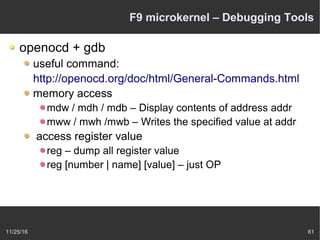

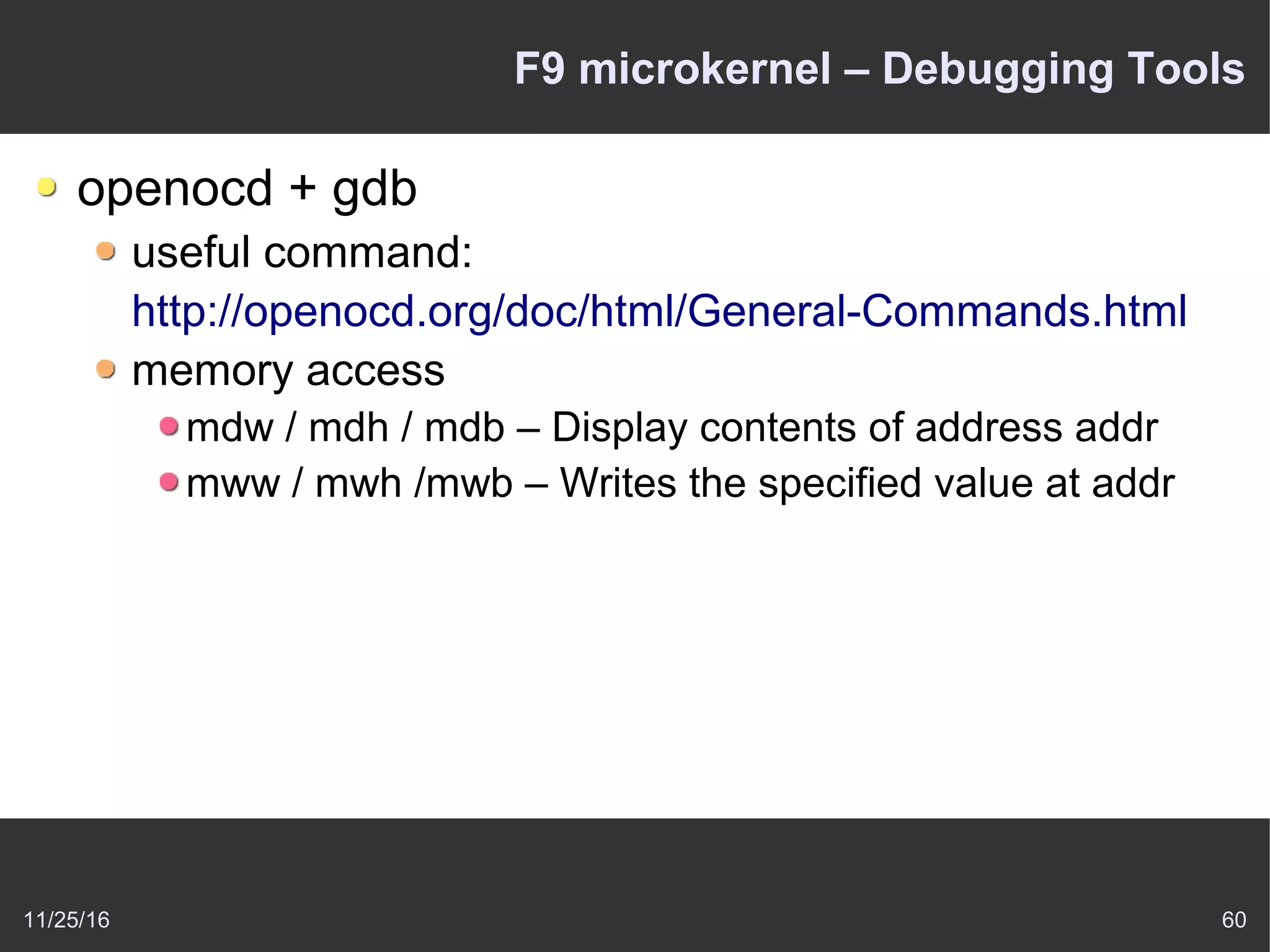

11/25/16 60 F9 microkernel – Debugging Tools openocd + gdb useful command: http://openocd.org/doc/html/General-Commands.html memory access mdw / mdh / mdb – Display contents of address addr mww / mwh /mwb – Writes the specified value at addr

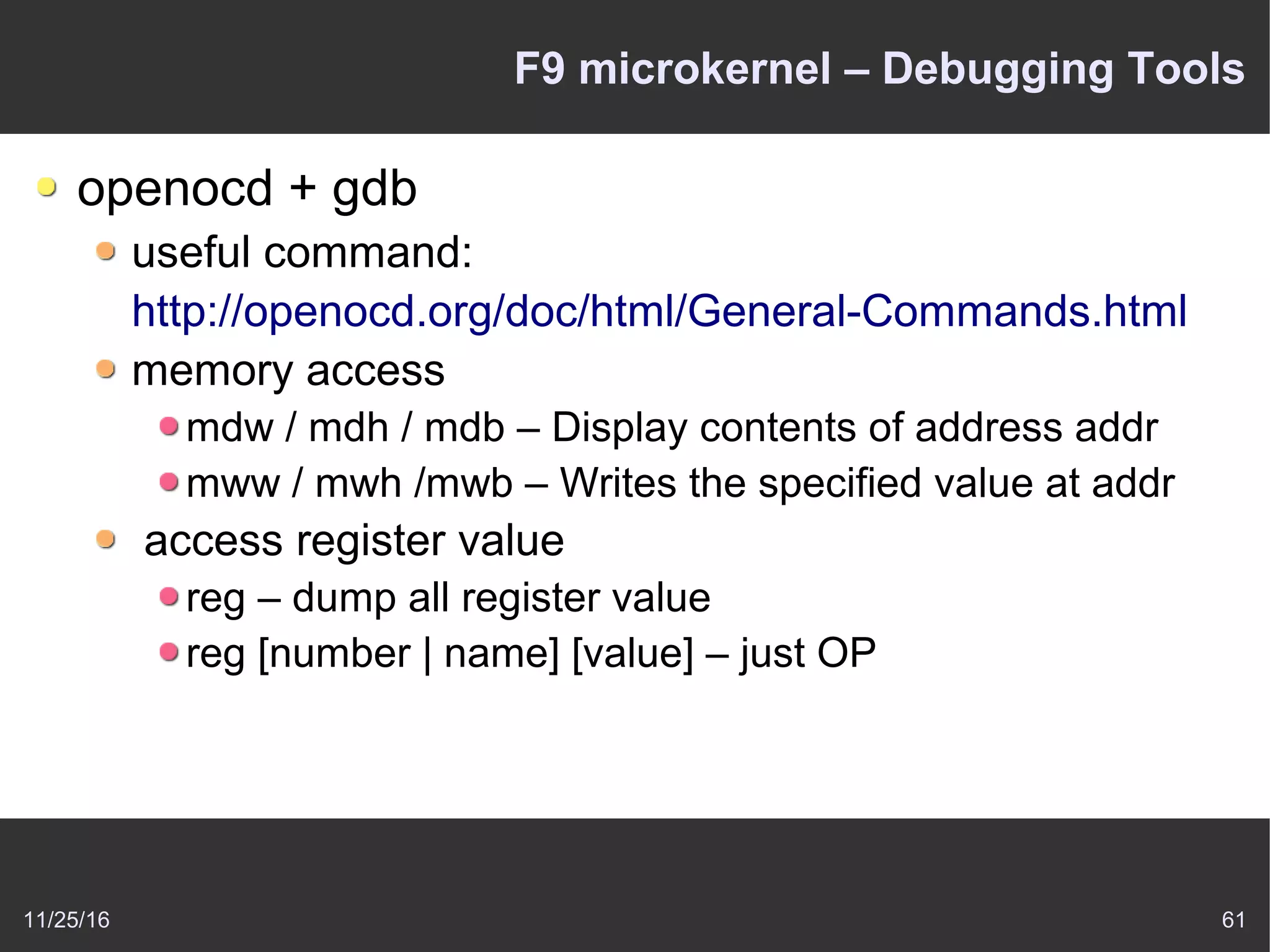

11/25/16 61 F9 microkernel – Debugging Tools openocd + gdb useful command: http://openocd.org/doc/html/General-Commands.html memory access mdw / mdh / mdb – Display contents of address addr mww / mwh /mwb – Writes the specified value at addr access register value reg – dump all register value reg [number | name] [value] – just OP

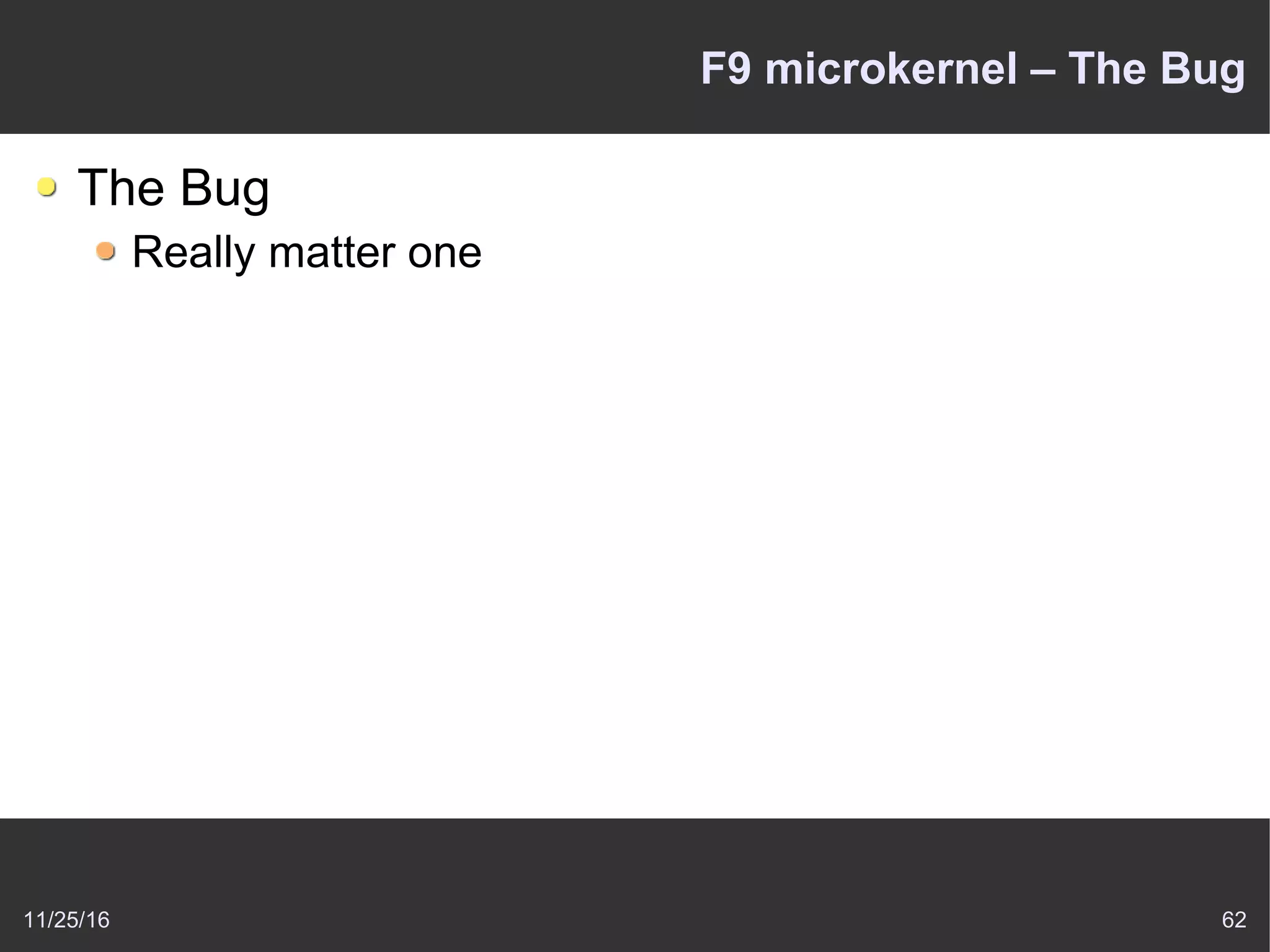

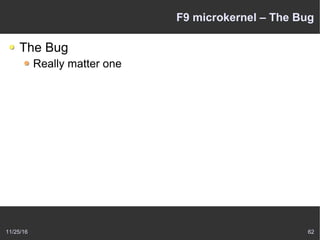

11/25/16 62 F9 microkernel – The Bug The Bug Really matter one

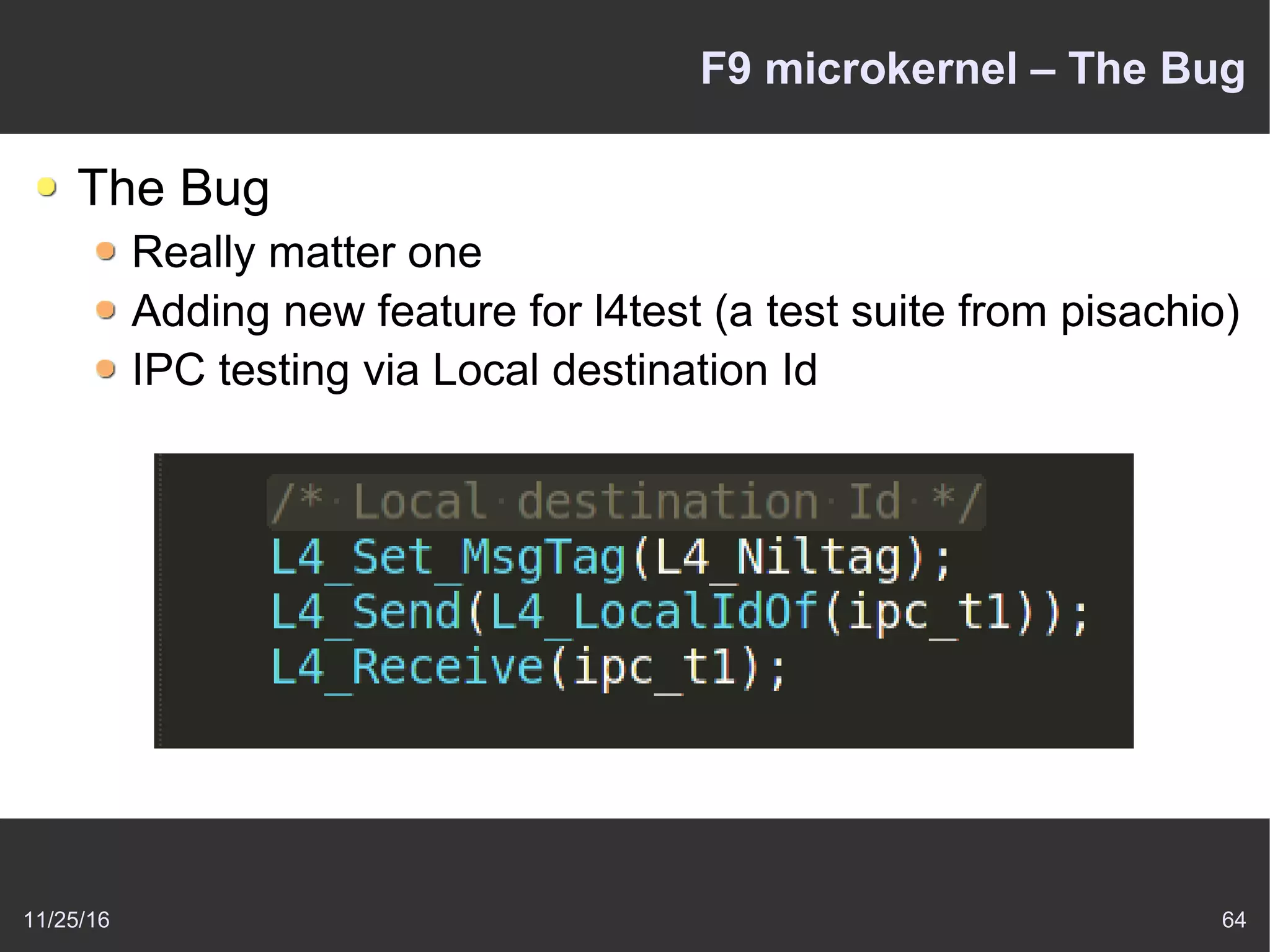

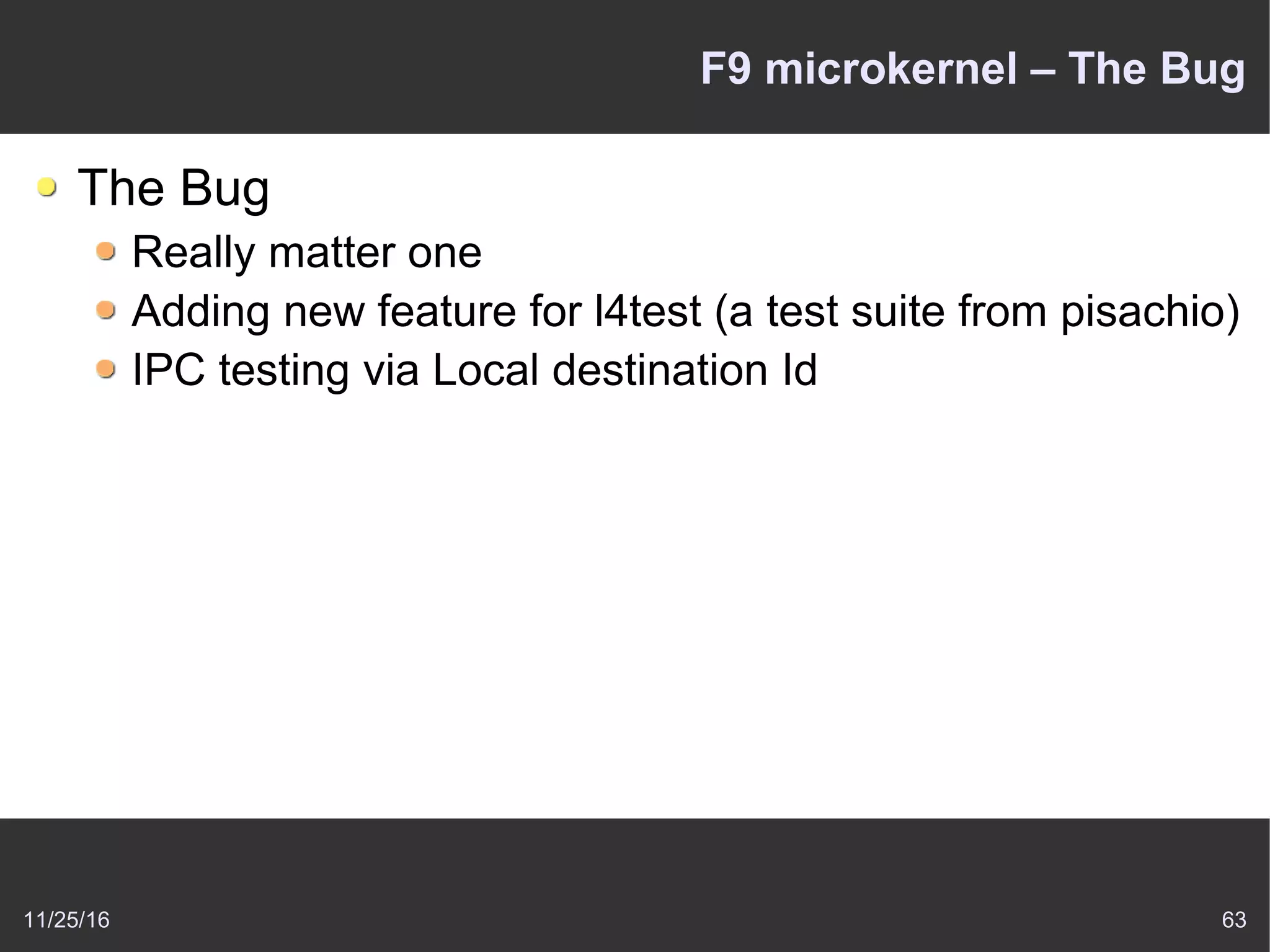

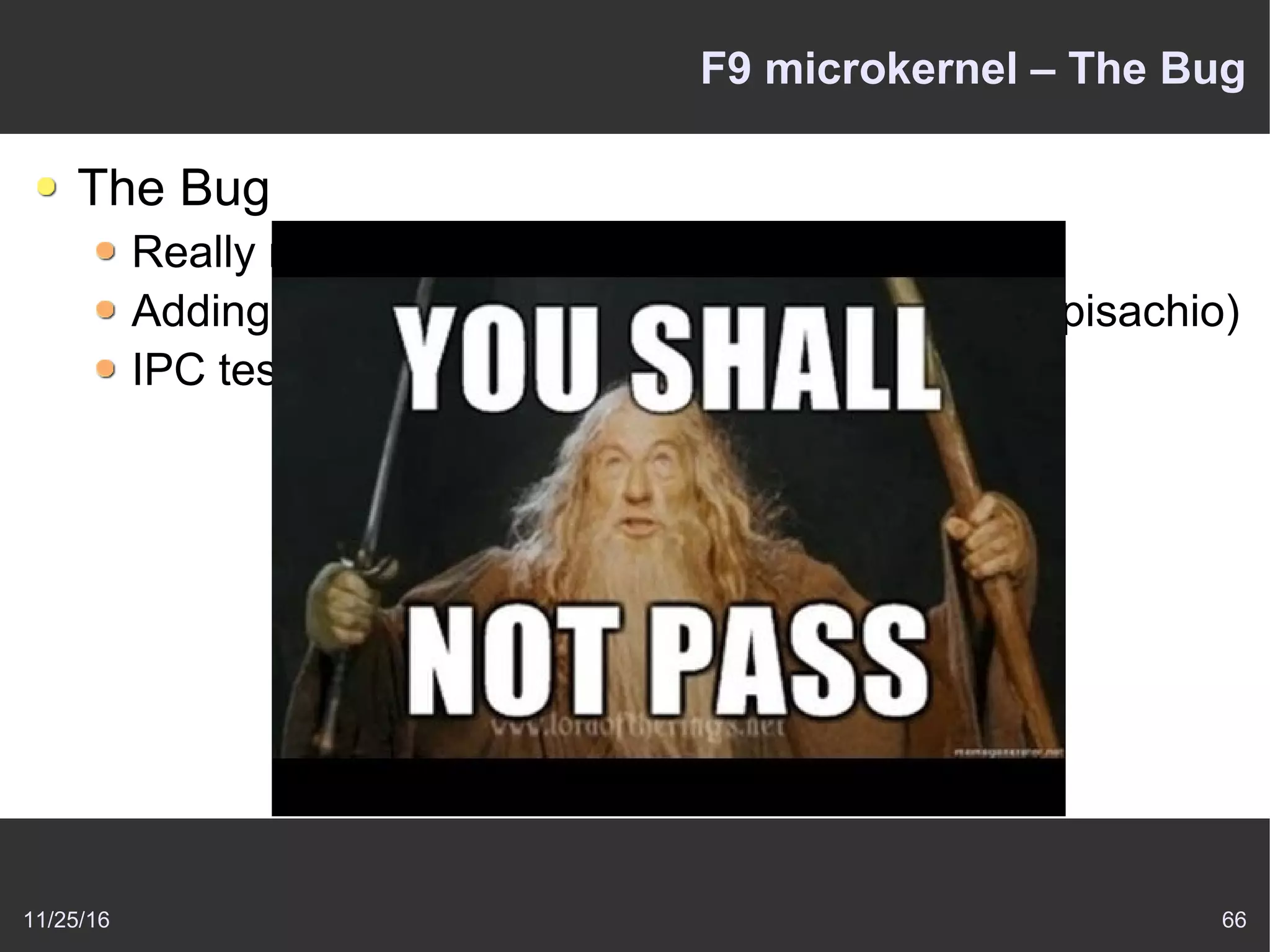

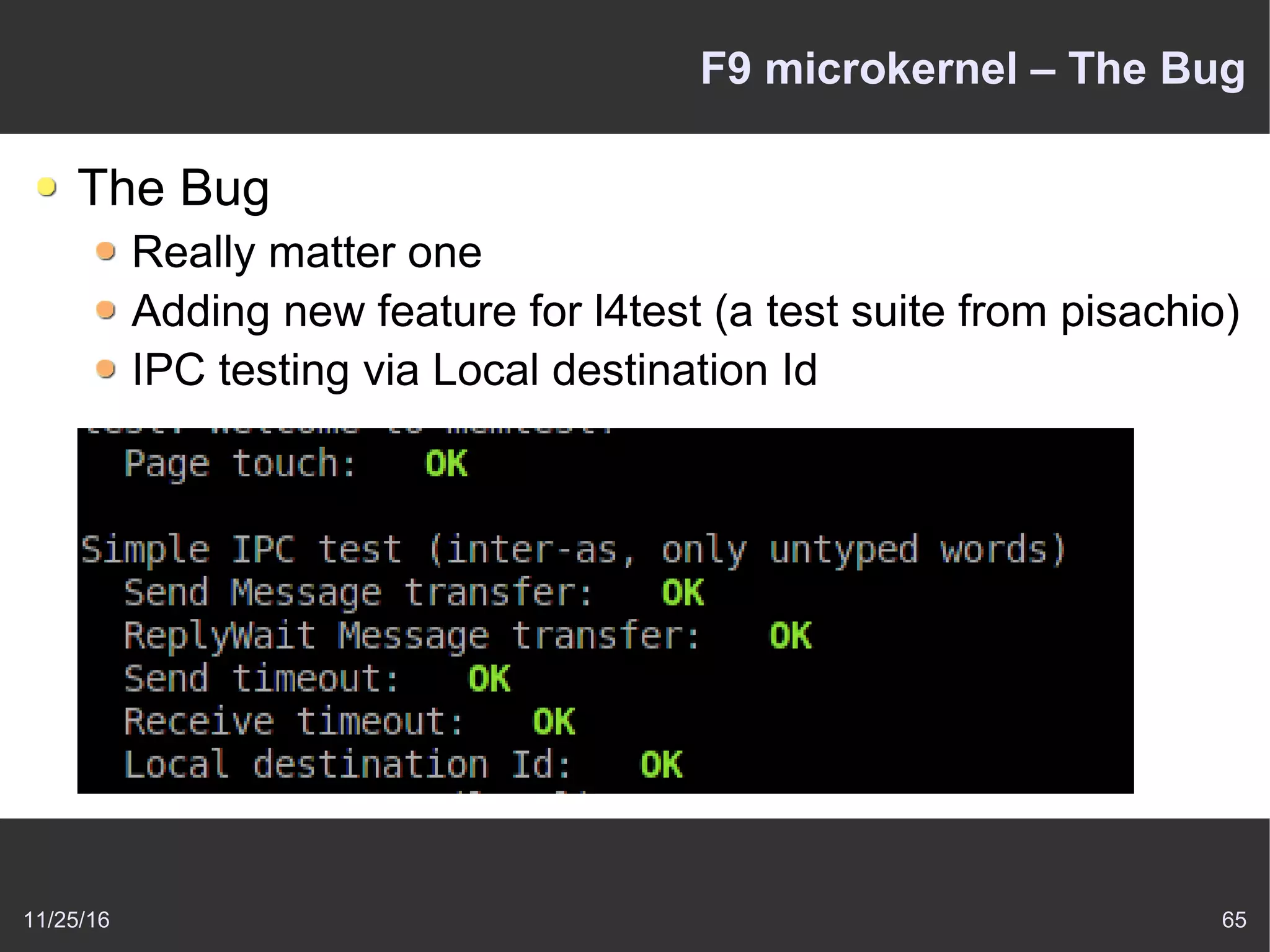

11/25/16 63 F9 microkernel – The Bug The Bug Really matter one Adding new feature for l4test (a test suite from pisachio) IPC testing via Local destination Id
11/25/16 64 F9 microkernel – The Bug The Bug Really matter one Adding new feature for l4test (a test suite from pisachio) IPC testing via Local destination Id
11/25/16 65 F9 microkernel – The Bug The Bug Really matter one Adding new feature for l4test (a test suite from pisachio) IPC testing via Local destination Id
11/25/16 66 F9 microkernel – The Bug The Bug Really matter one Adding new feature for l4test (a test suite from pisachio) IPC testing via Local destination Id

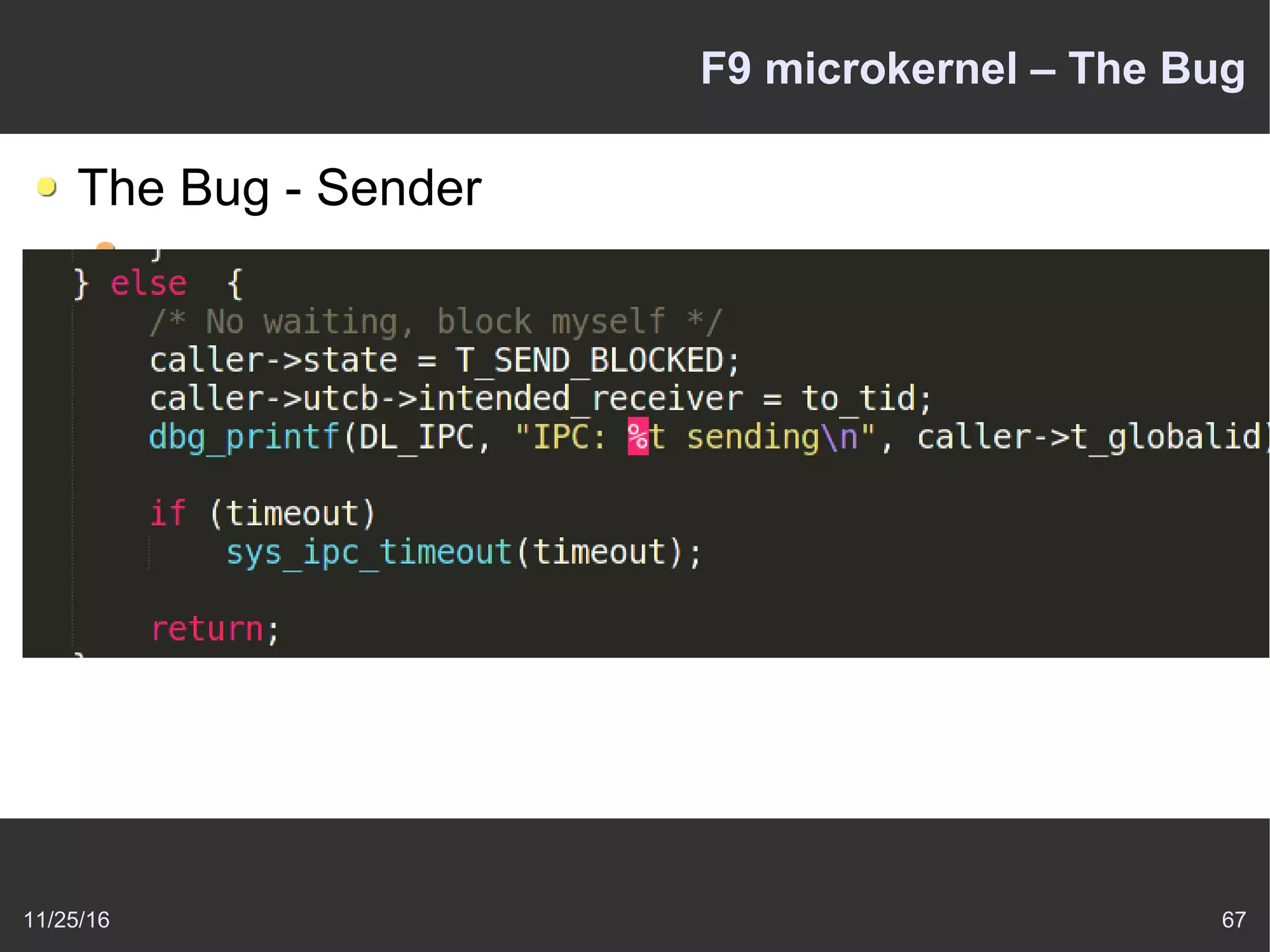

11/25/16 67 F9 microkernel – The Bug The Bug - Sender

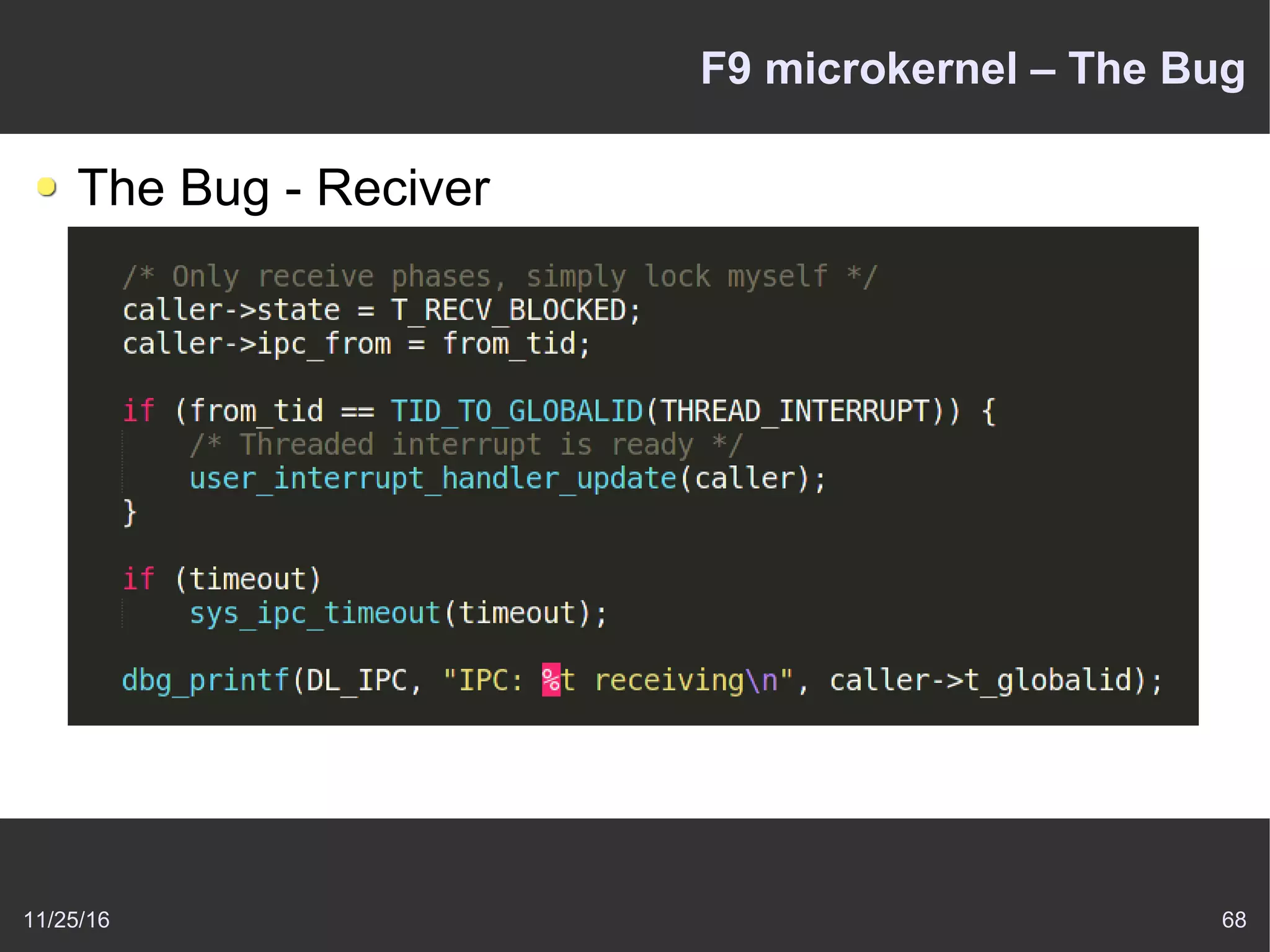

11/25/16 68 F9 microkernel – The Bug The Bug - Reciver

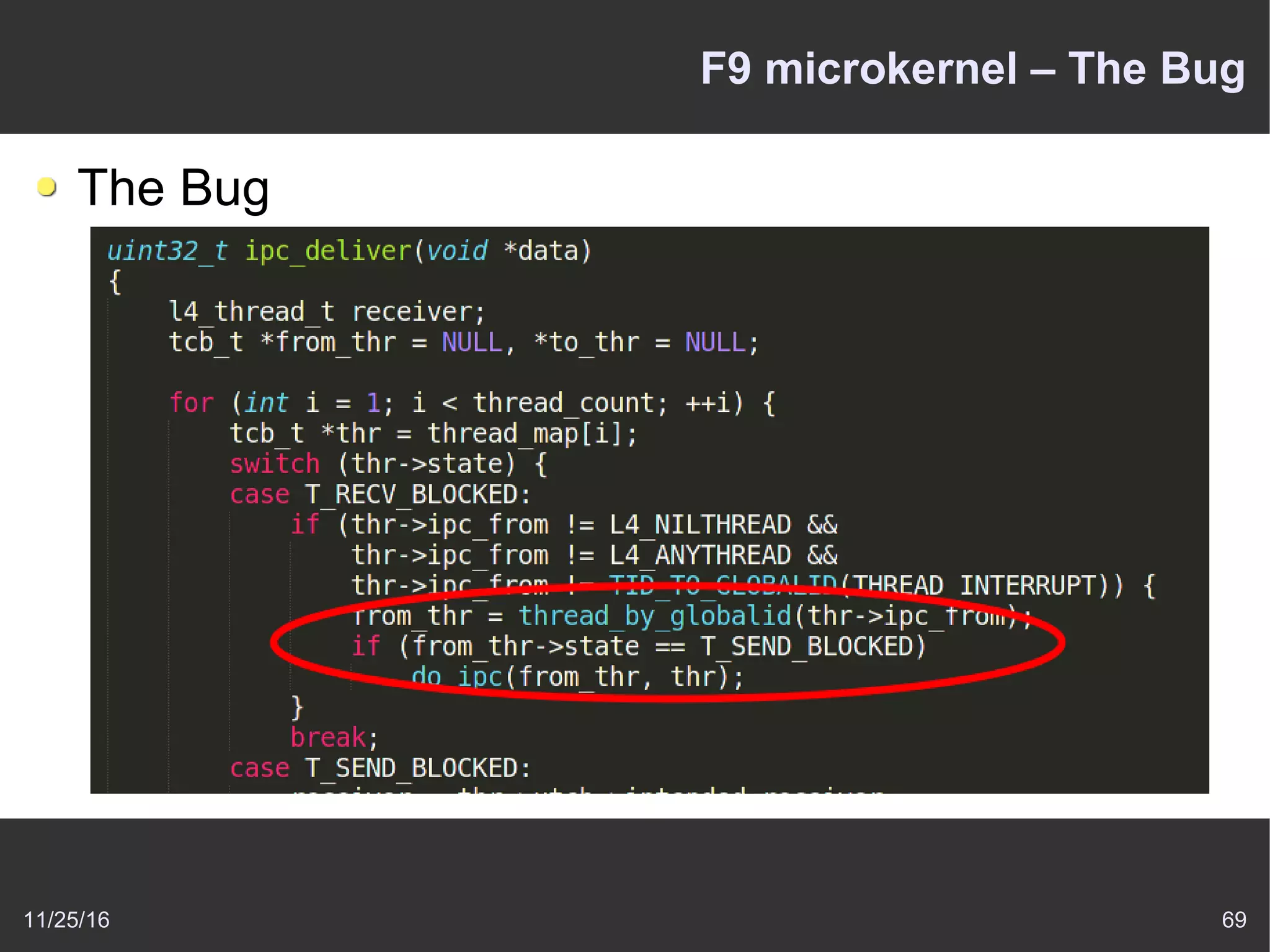

11/25/16 69 F9 microkernel – The Bug The Bug

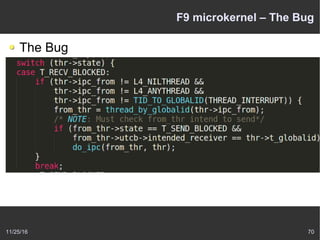

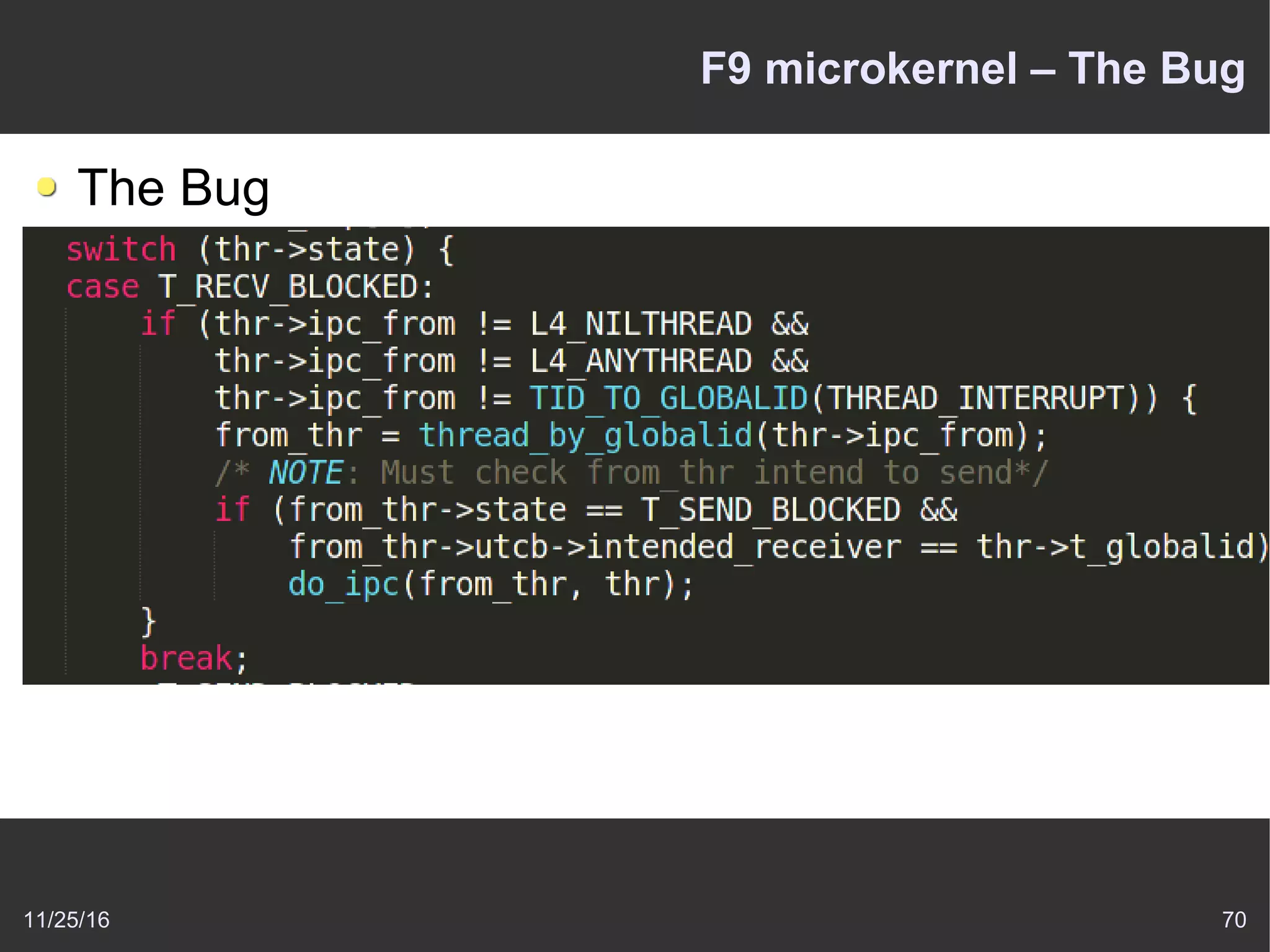

11/25/16 70 F9 microkernel – The Bug The Bug

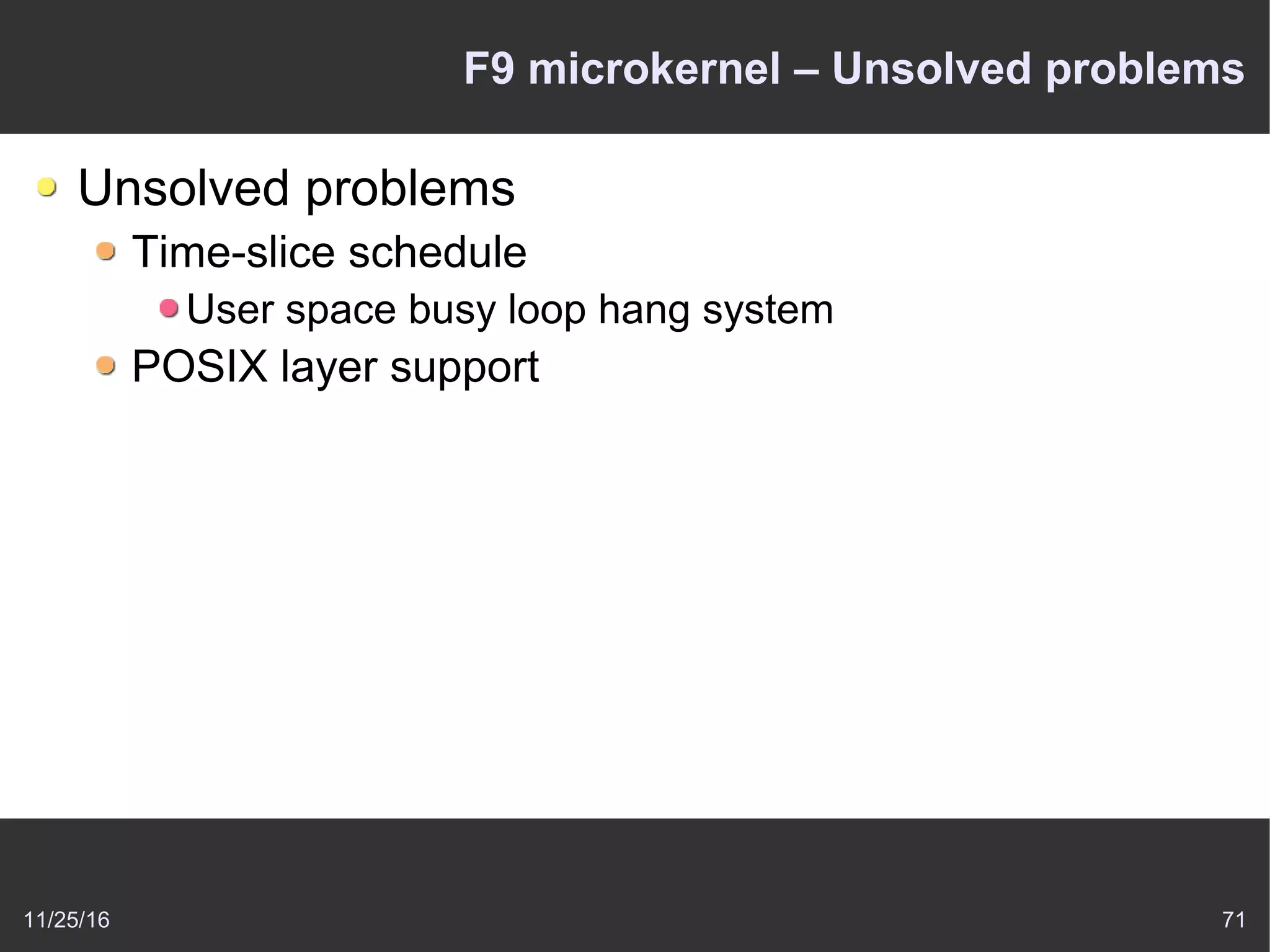

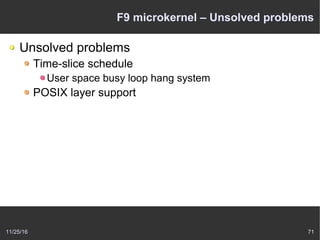

11/25/16 71 F9 microkernel – Unsolved problems Unsolved problems Time-slice schedule User space busy loop hang system POSIX layer support
11/25/16 72 BitSec

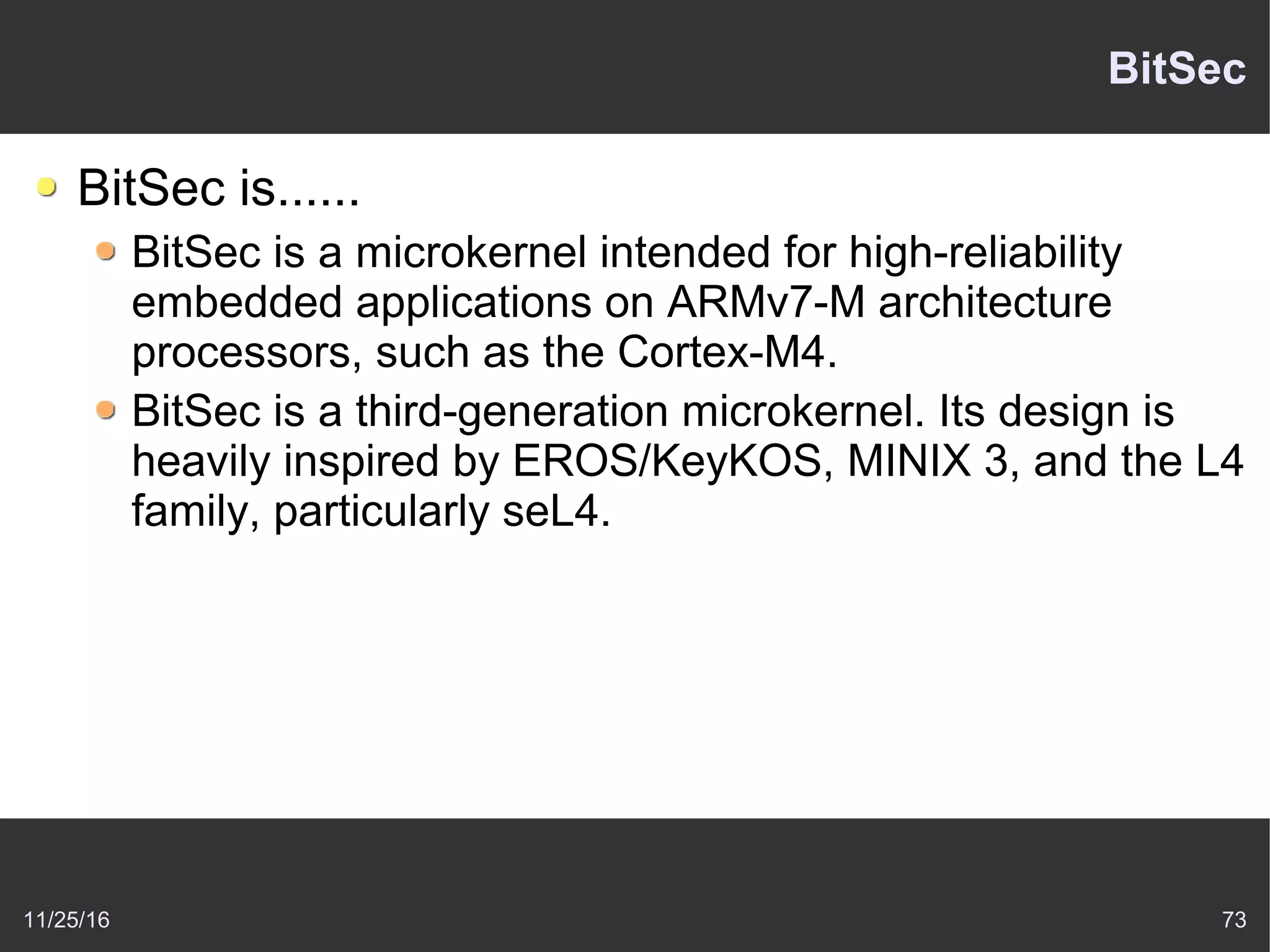

11/25/16 73 BitSec BitSec is...... BitSec is a microkernel intended for high-reliability embedded applications on ARMv7-M architecture processors, such as the Cortex-M4. BitSec is a third-generation microkernel. Its design is heavily inspired by EROS/KeyKOS, MINIX 3, and the L4 family, particularly seL4.

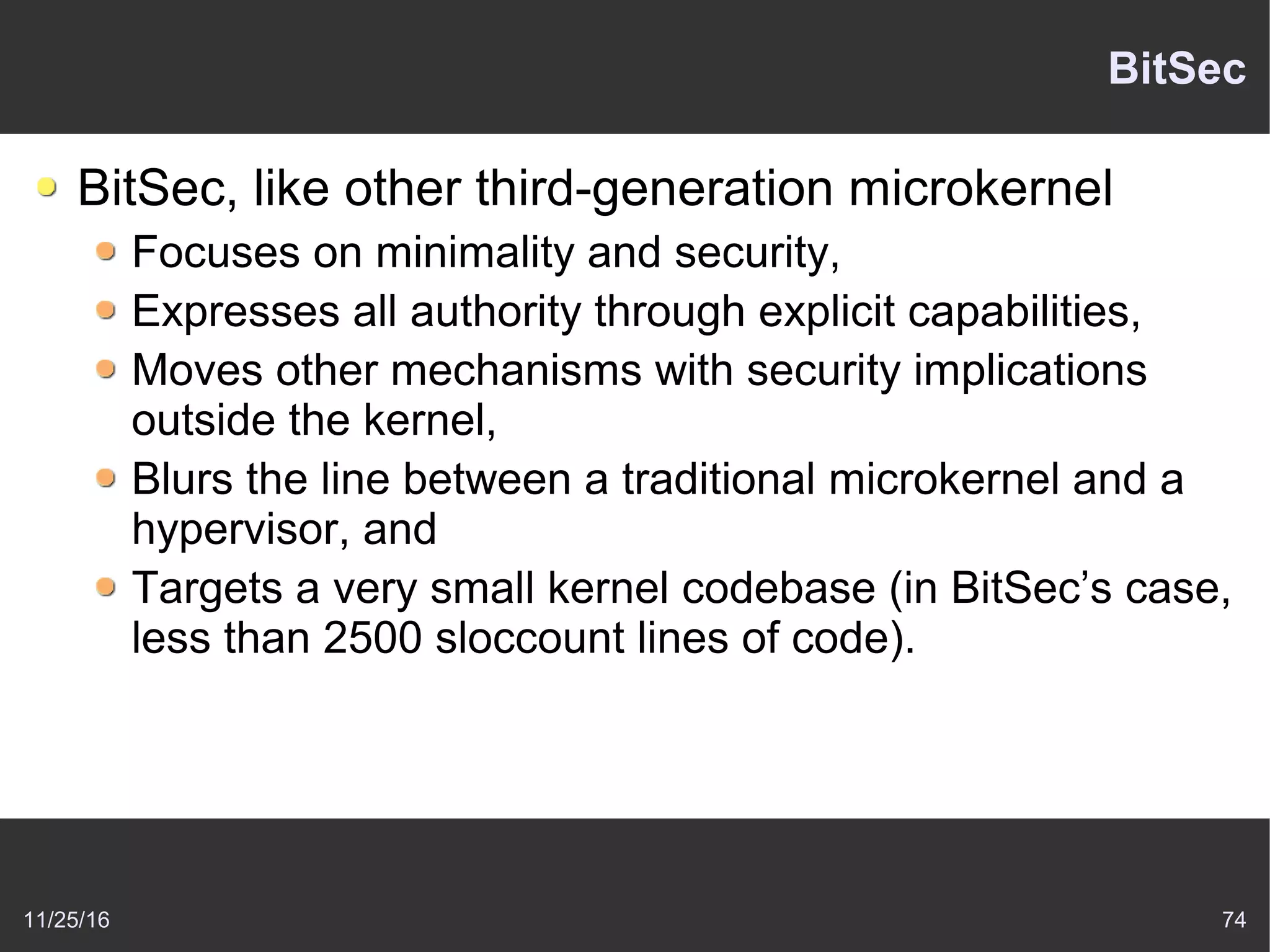

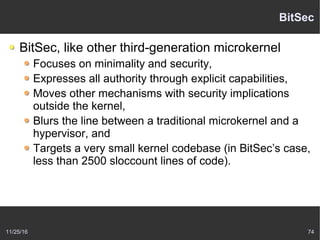

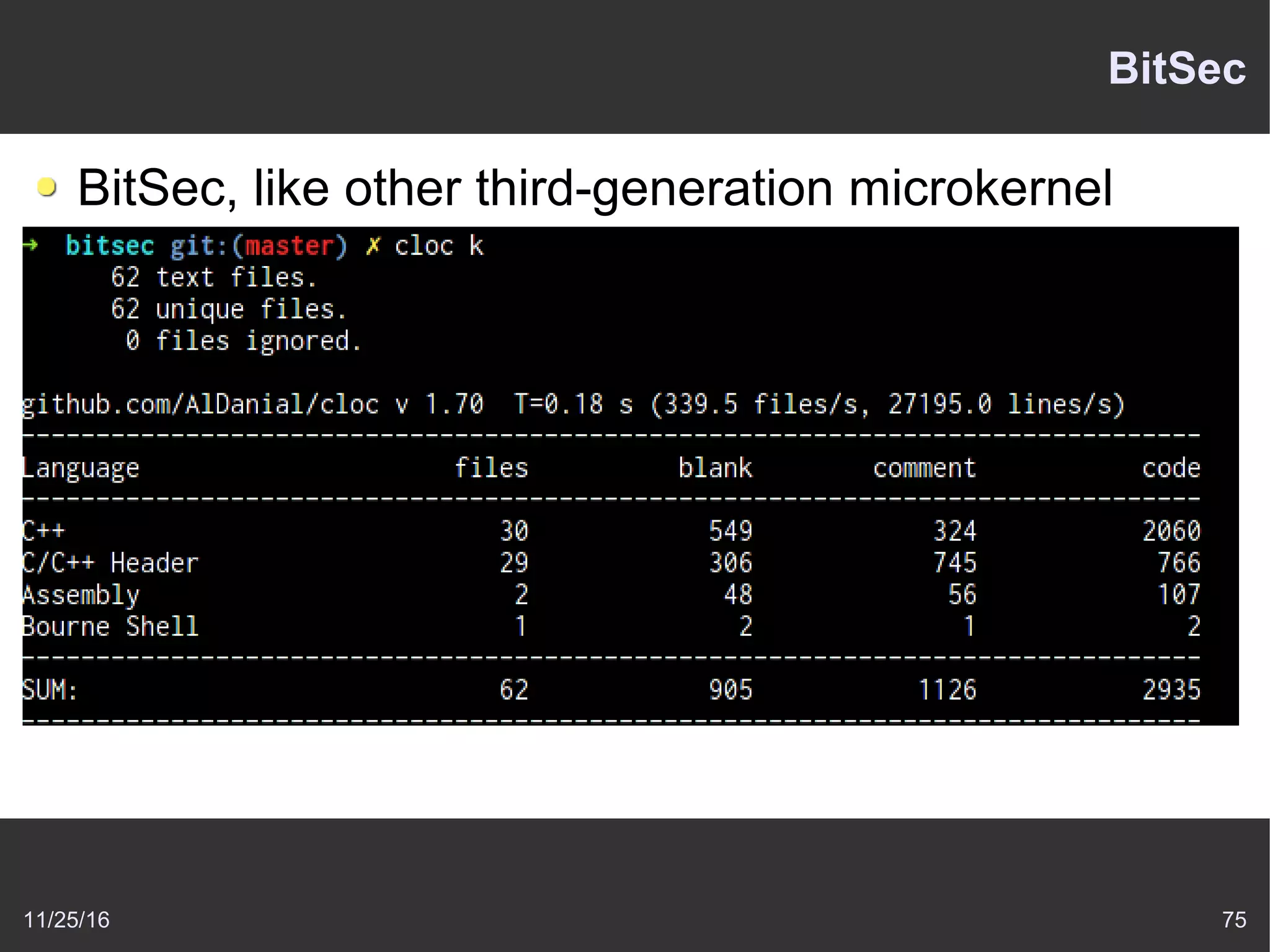

11/25/16 74 BitSec BitSec, like other third-generation microkernel Focuses on minimality and security, Expresses all authority through explicit capabilities, Moves other mechanisms with security implications outside the kernel, Blurs the line between a traditional microkernel and a hypervisor, and Targets a very small kernel codebase (in BitSec’s case, less than 2500 sloccount lines of code).

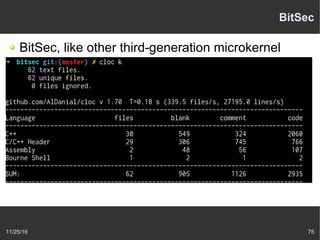

11/25/16 75 BitSec BitSec, like other third-generation microkernel Focuses on minimality and security, Expresses all authority through explicit capabilities, Moves other mechanisms with security implications outside the kernel, Blurs the line between a traditional microkernel and a hypervisor, and Targets a very small kernel codebase (in BitSec’s case, less than 2500 sloccount lines of code).
11/25/16 76 BitSec BitSec is not... A complete operating system

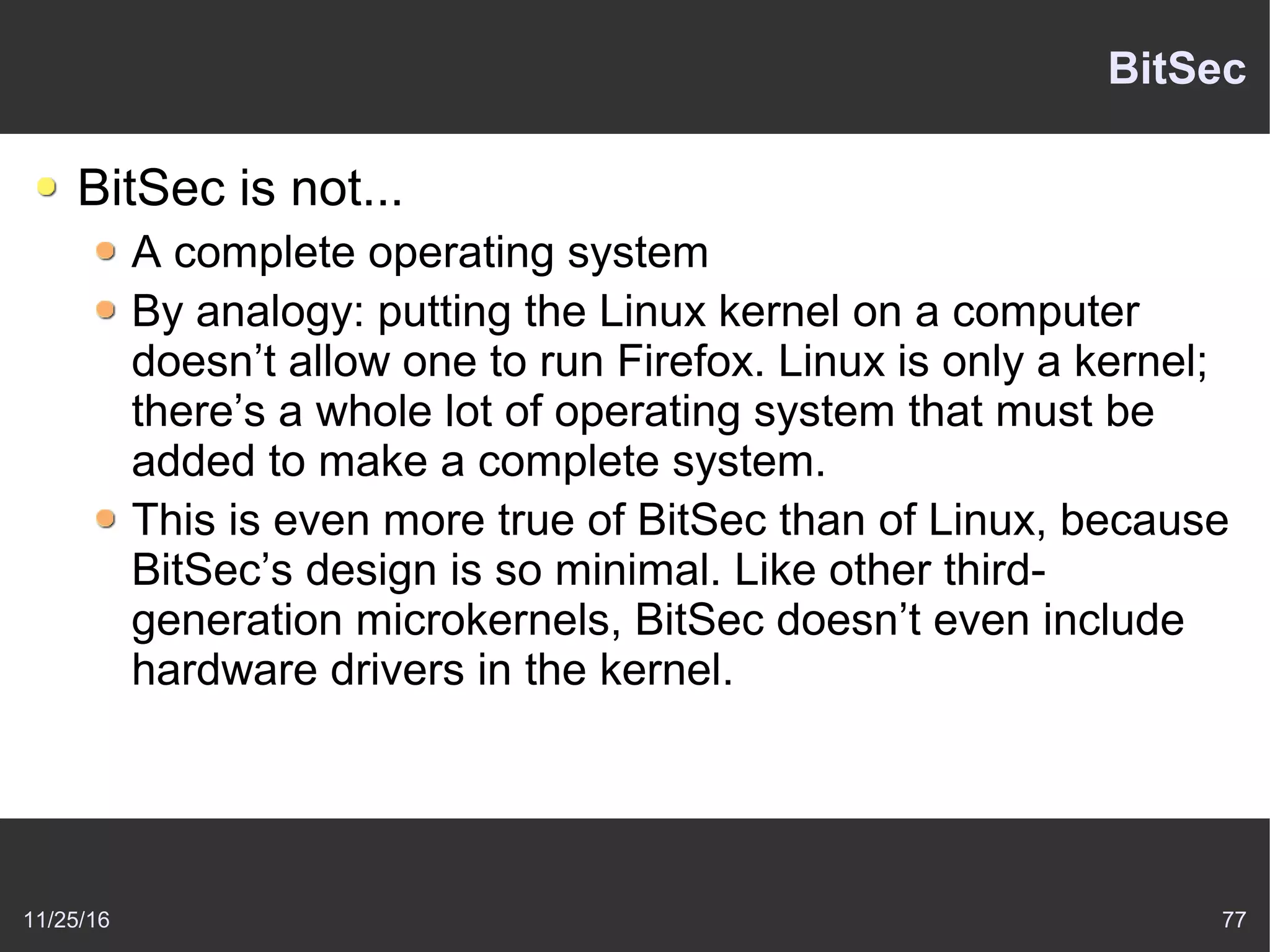

11/25/16 77 BitSec BitSec is not... A complete operating system By analogy: putting the Linux kernel on a computer doesn’t allow one to run Firefox. Linux is only a kernel; there’s a whole lot of operating system that must be added to make a complete system. This is even more true of BitSec than of Linux, because BitSec’s design is so minimal. Like other third- generation microkernels, BitSec doesn’t even include hardware drivers in the kernel.
11/25/16 78 BitSec BitSec is not... A complete operating system
11/25/16 79 BitSec BitSec is not... A complete operating system By analogy: putting the Linux kernel on a computer doesn’t allow one to run Firefox. Linux is only a kernel; there’s a whole lot of operating system that must be added to make a complete system. This is even more true of BitSec than of Linux, because BitSec’s design is so minimal. Like other third- generation microkernels, BitSec doesn’t even include hardware drivers in the kernel.

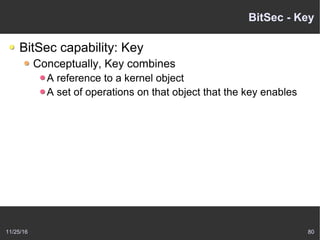

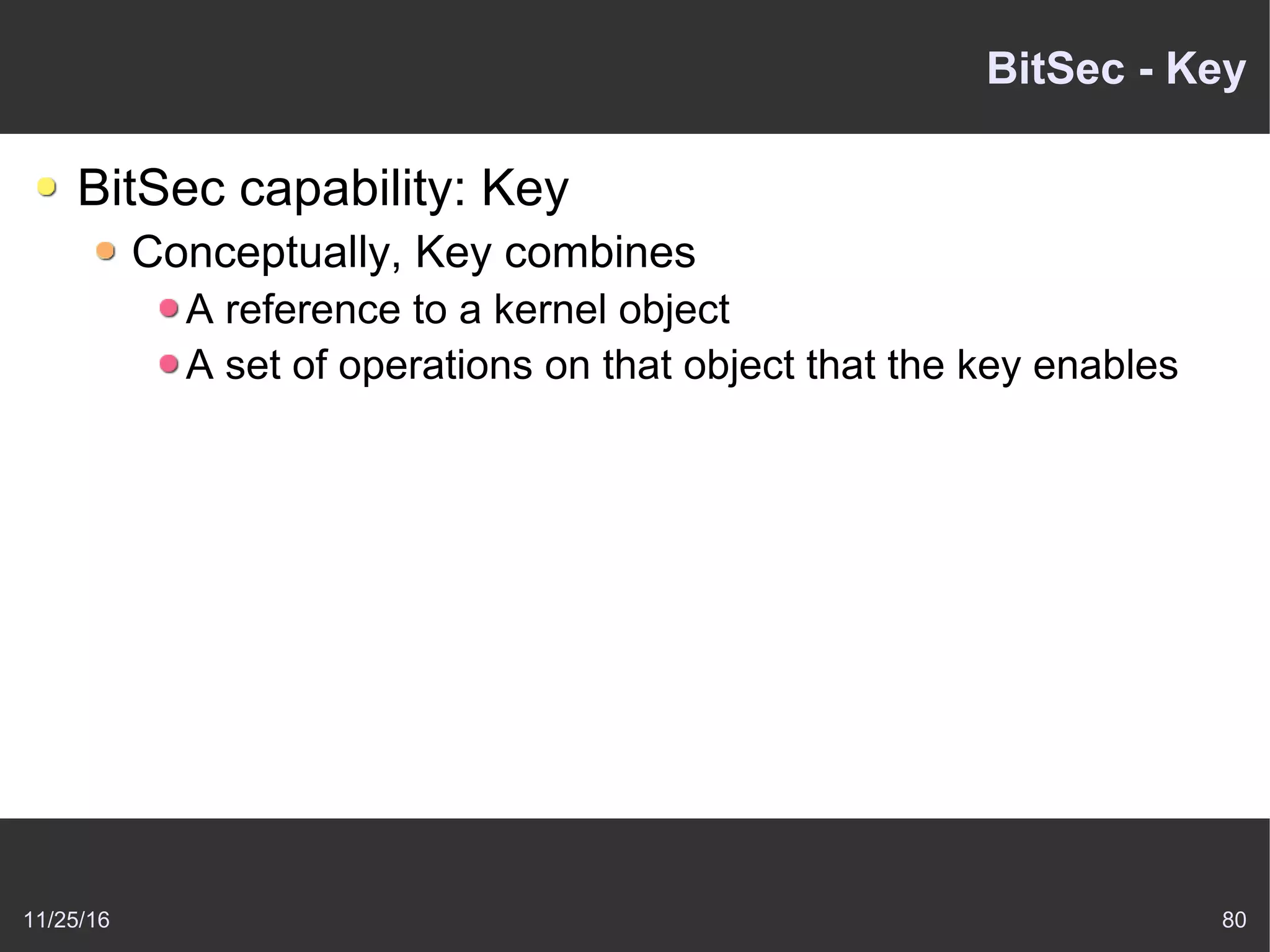

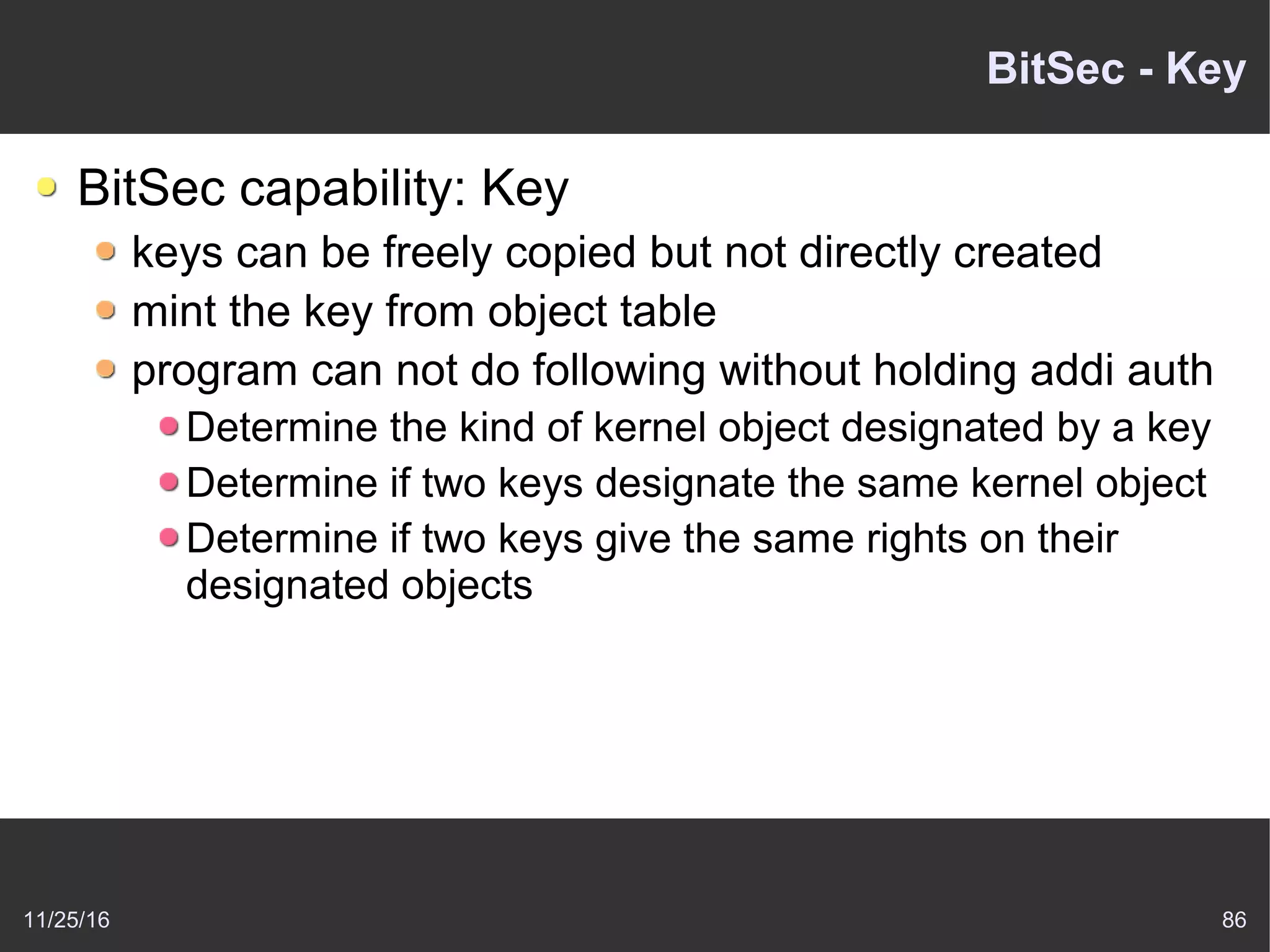

11/25/16 80 BitSec - Key BitSec capability: Key Conceptually, Key combines A reference to a kernel object A set of operations on that object that the key enables

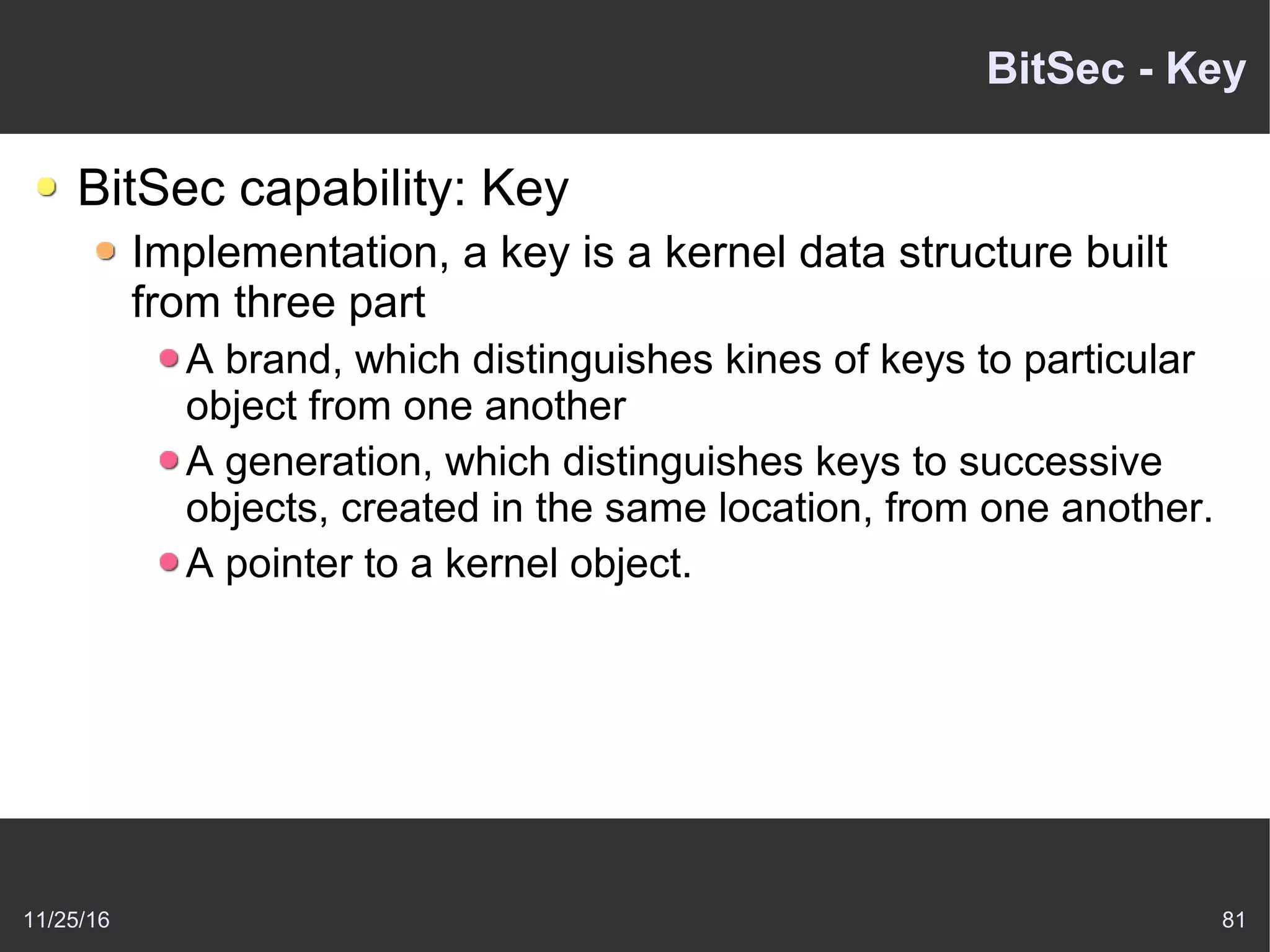

11/25/16 81 BitSec - Key BitSec capability: Key Implementation, a key is a kernel data structure built from three part A brand, which distinguishes kines of keys to particular object from one another A generation, which distinguishes keys to successive objects, created in the same location, from one another. A pointer to a kernel object.

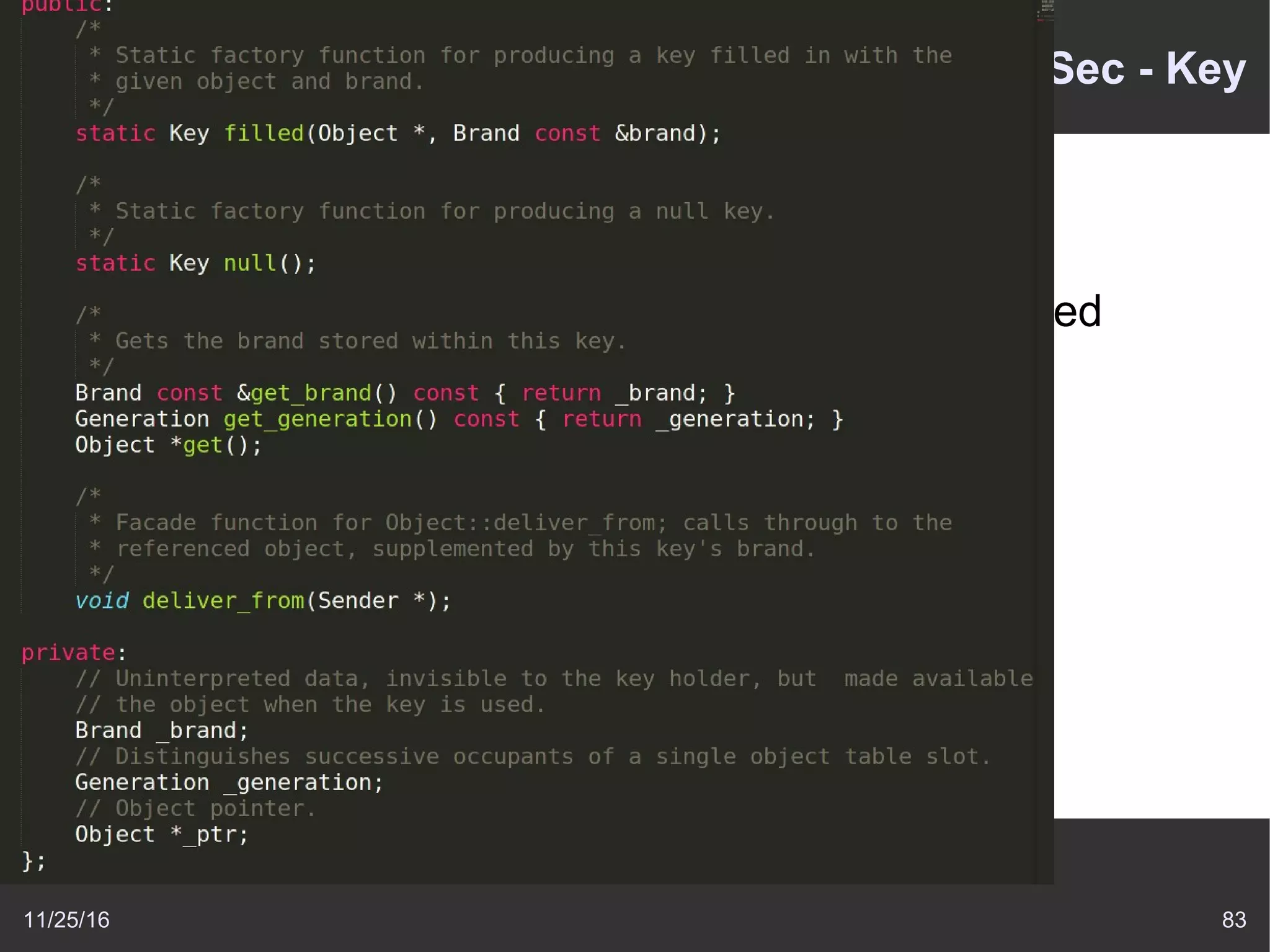

11/25/16 82 BitSec - Key BitSec capability: Key struct
11/25/16 83 BitSec - Key BitSec capability: Key struct keys can be freely copied but not directly created mint the key from object table

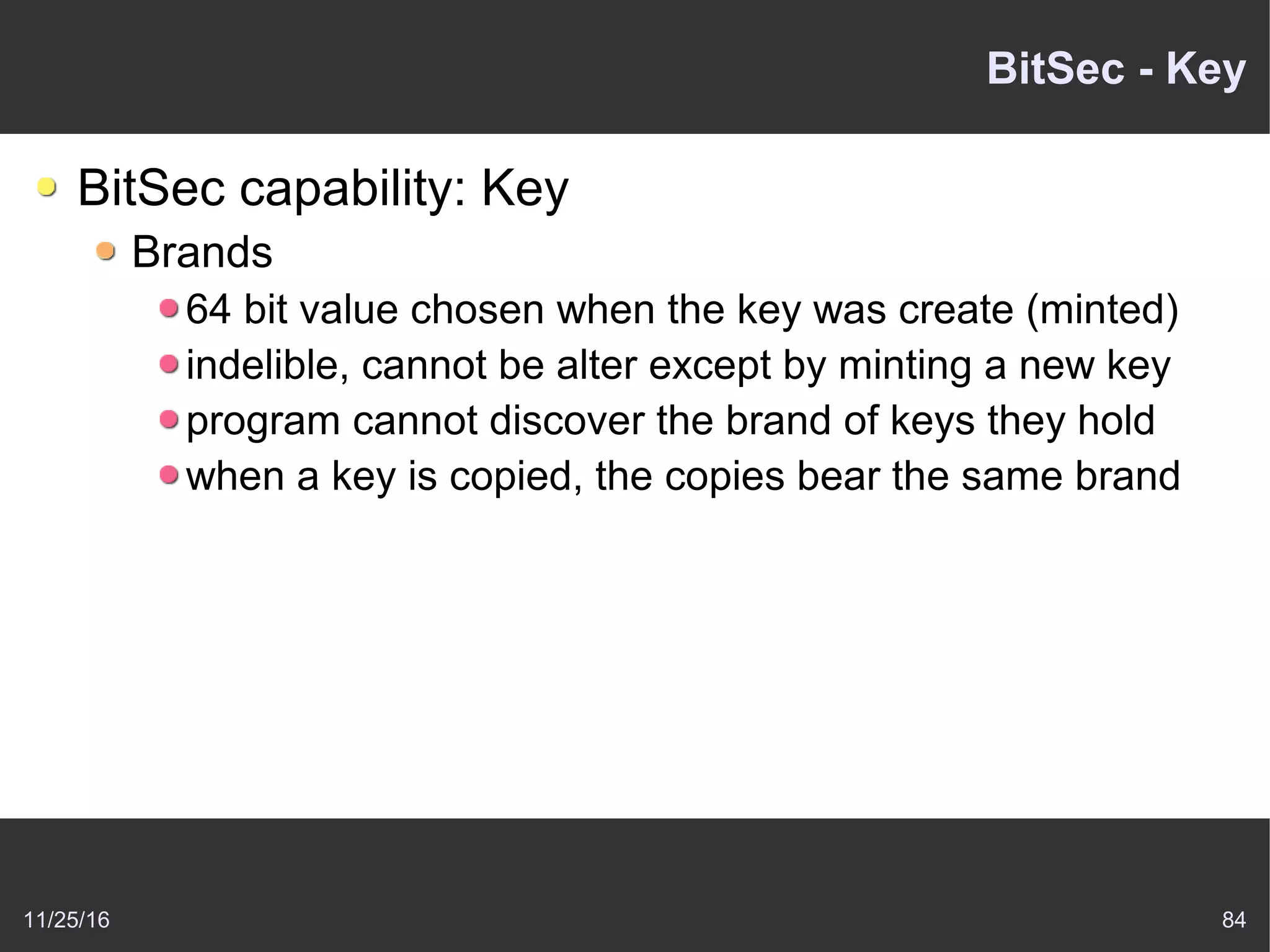

11/25/16 84 BitSec - Key BitSec capability: Key Brands 64 bit value chosen when the key was create (minted) indelible, cannot be alter except by minting a new key program cannot discover the brand of keys they hold when a key is copied, the copies bear the same brand

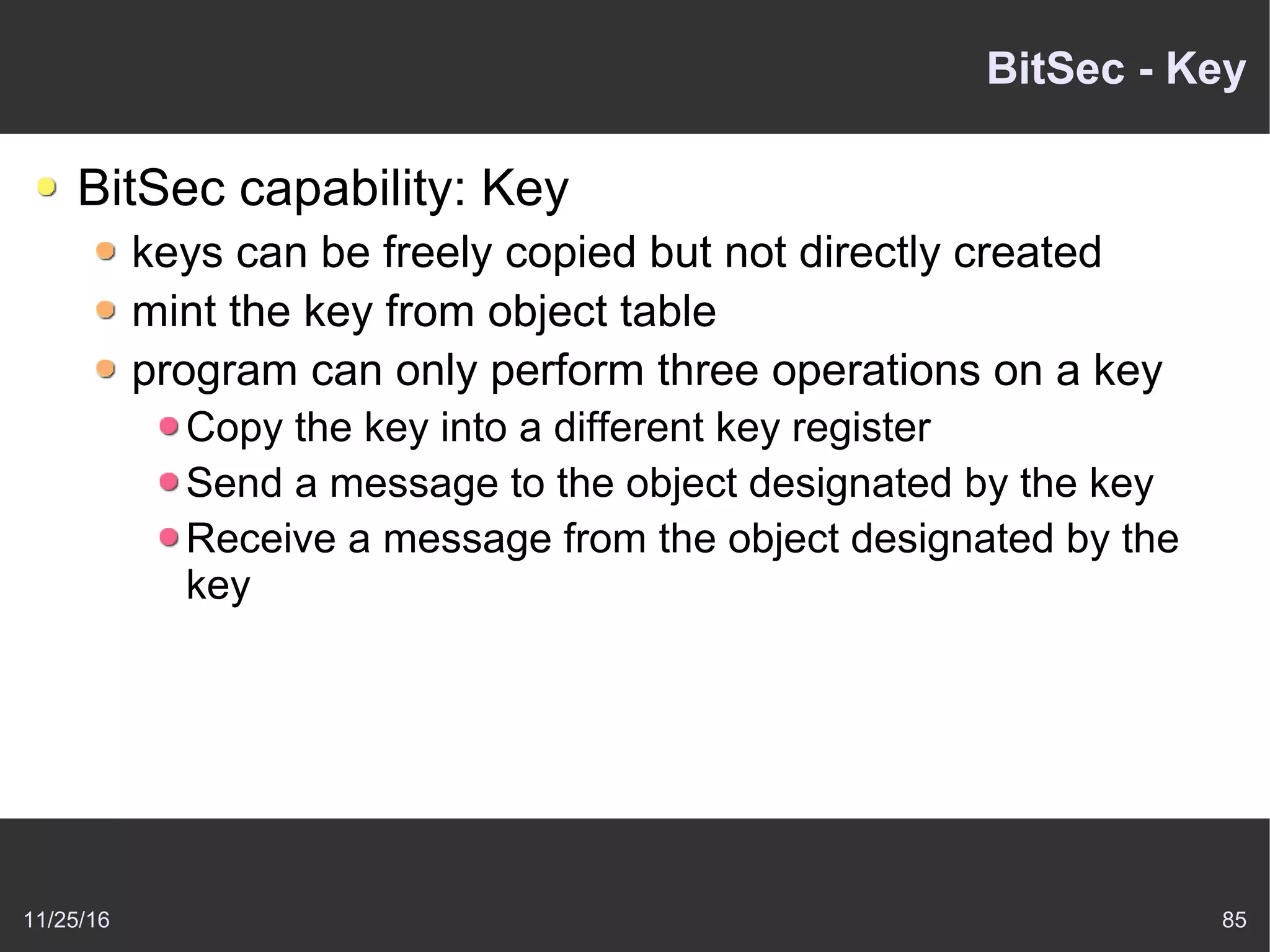

11/25/16 85 BitSec - Key BitSec capability: Key keys can be freely copied but not directly created mint the key from object table program can only perform three operations on a key Copy the key into a different key register Send a message to the object designated by the key Receive a message from the object designated by the key

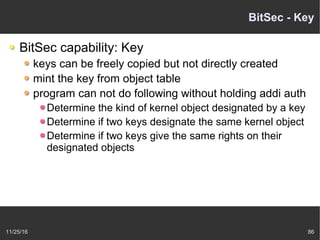

11/25/16 86 BitSec - Key BitSec capability: Key keys can be freely copied but not directly created mint the key from object table program can not do following without holding addi auth Determine the kind of kernel object designated by a key Determine if two keys designate the same kernel object Determine if two keys give the same rights on their designated objects
11/25/16 87 BitSec - Key BitSec capability: Key keys can be freely copied but not directly created mint the key from object table program can not do following without holding addi auth Determine the kind of kernel object designated by a key Determine if two keys designate the same kernel object Determine if two keys give the same rights on their designated objects

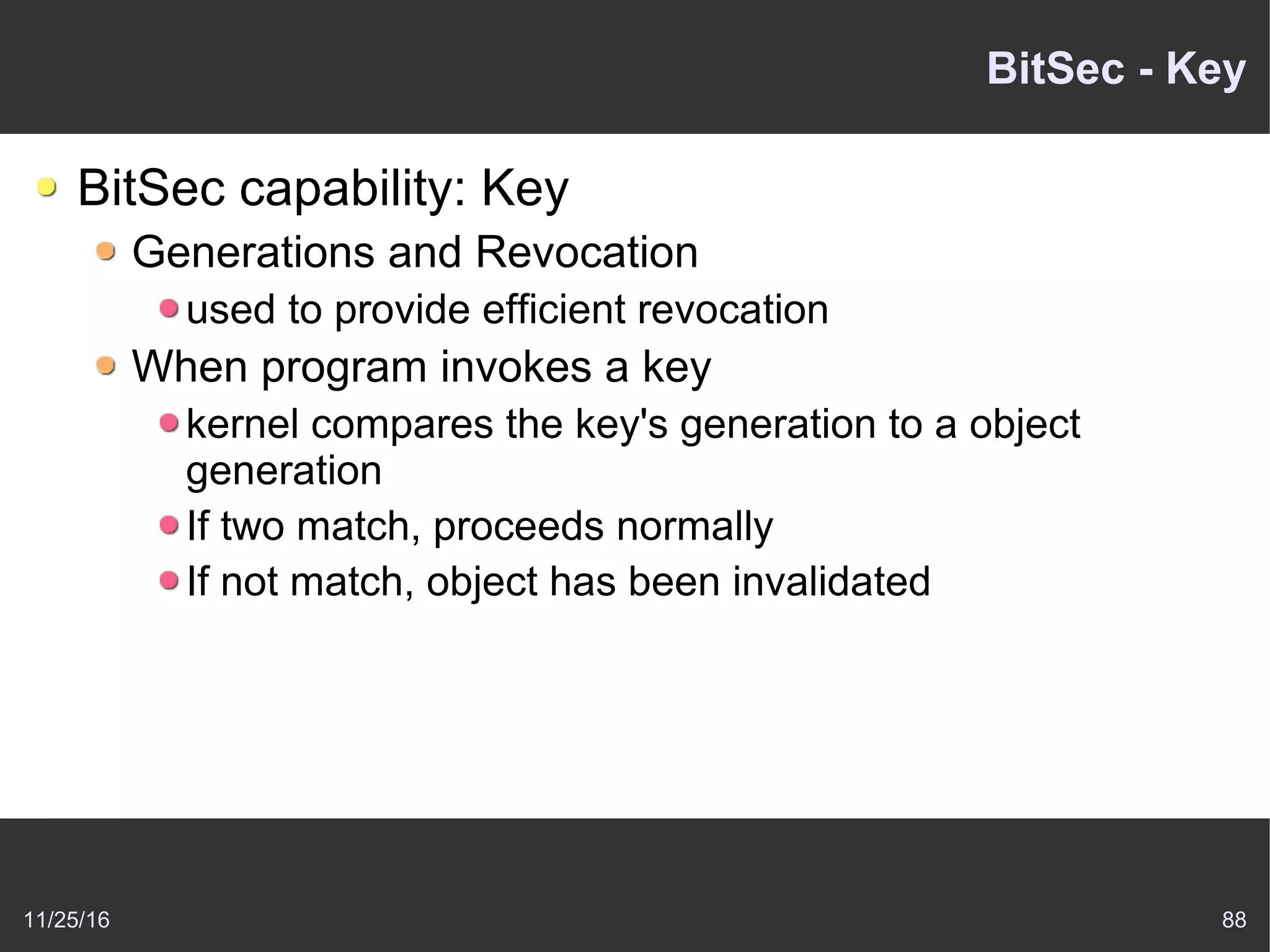

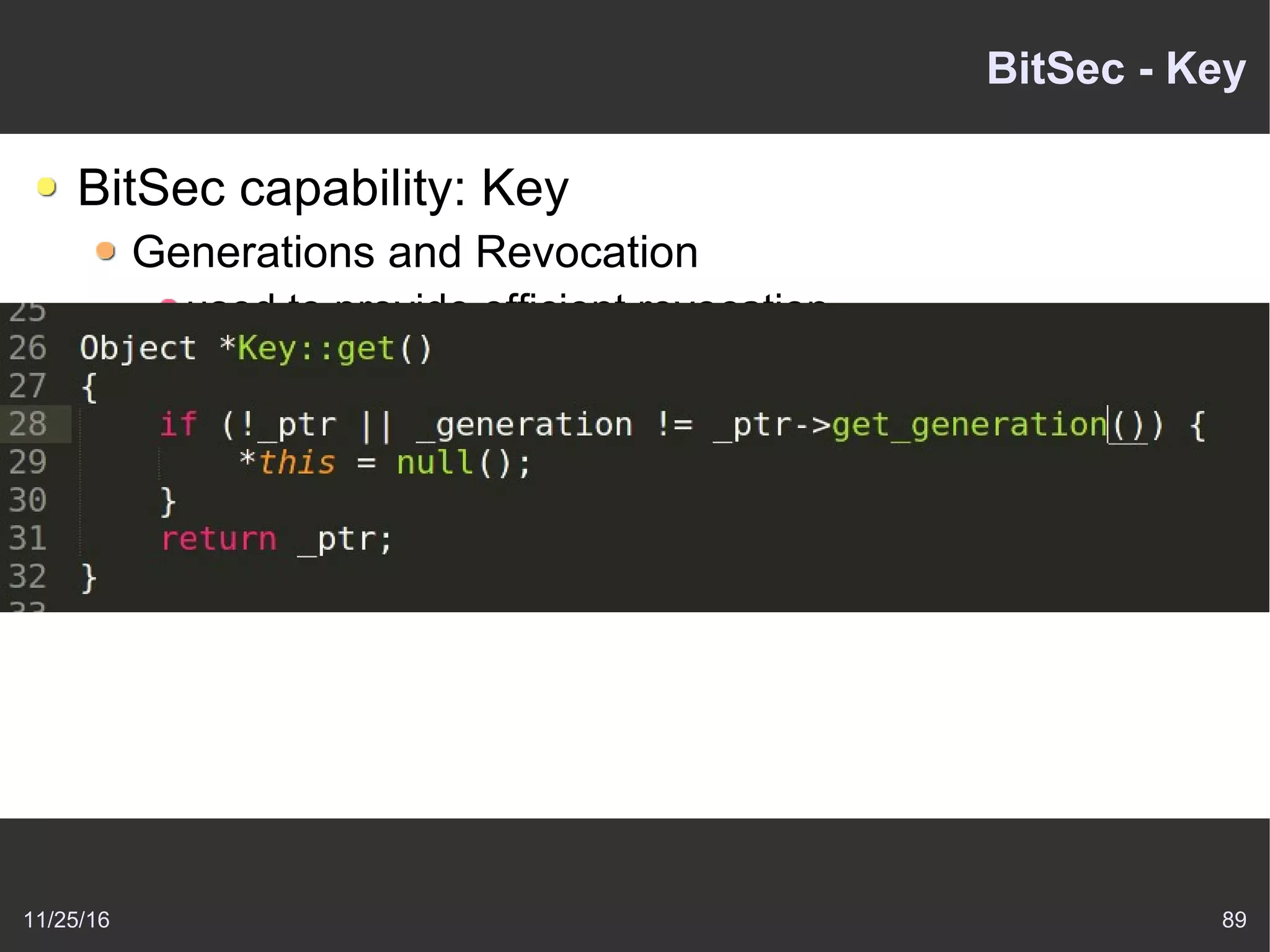

11/25/16 88 BitSec - Key BitSec capability: Key Generations and Revocation used to provide efficient revocation When program invokes a key kernel compares the key's generation to a object generation If two match, proceeds normally If not match, object has been invalidated

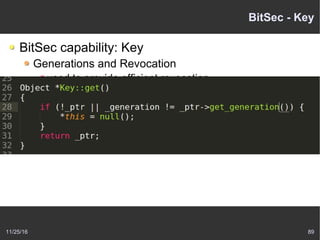

11/25/16 89 BitSec - Key BitSec capability: Key Generations and Revocation used to provide efficient revocation When program invokes a key kernel compares the key's generation to a object generation If two match, proceeds normally If not match, object has been invalidated

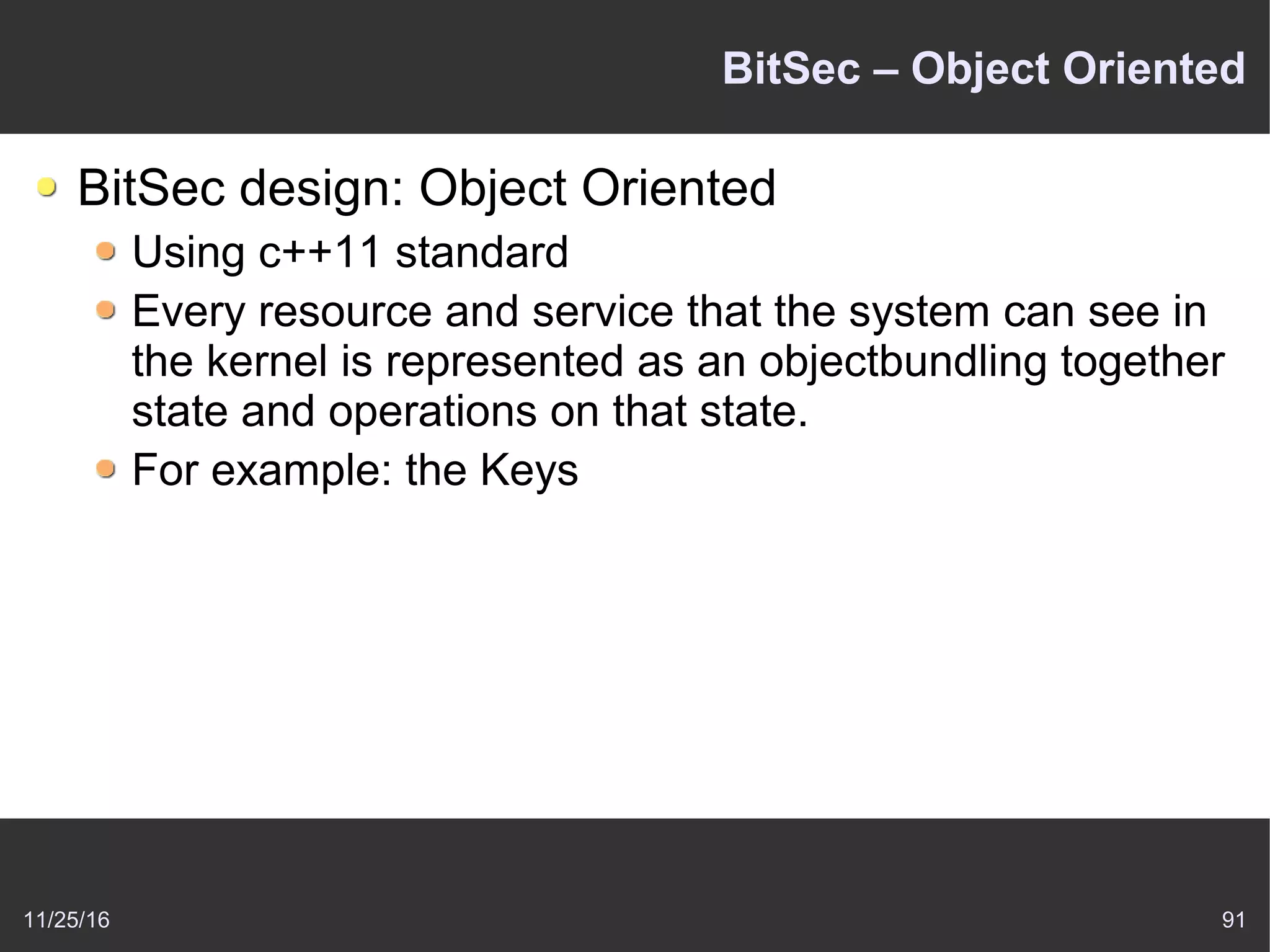

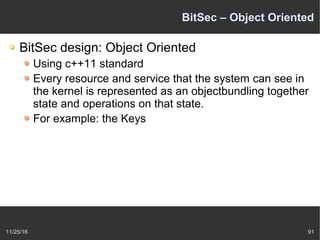

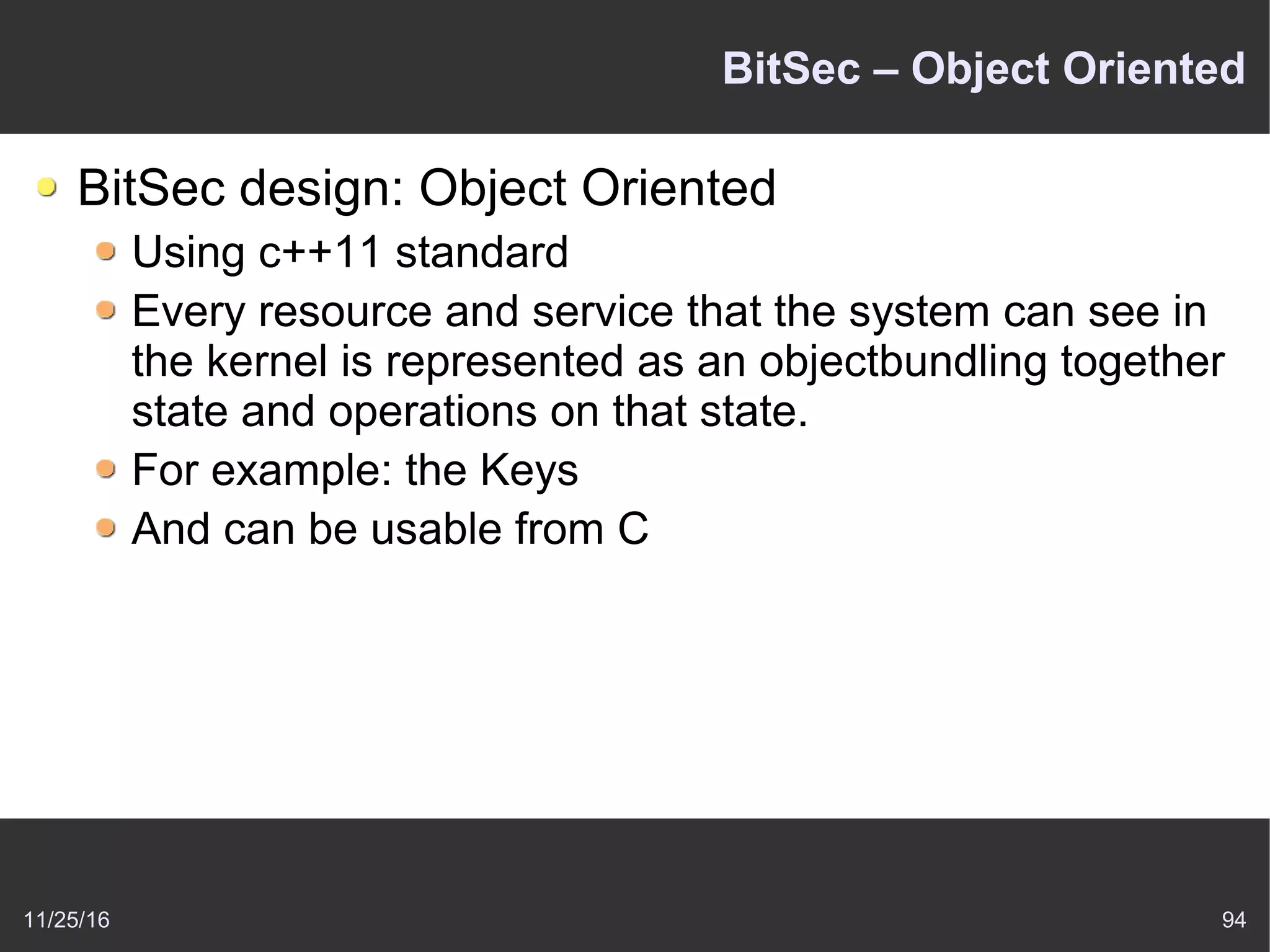

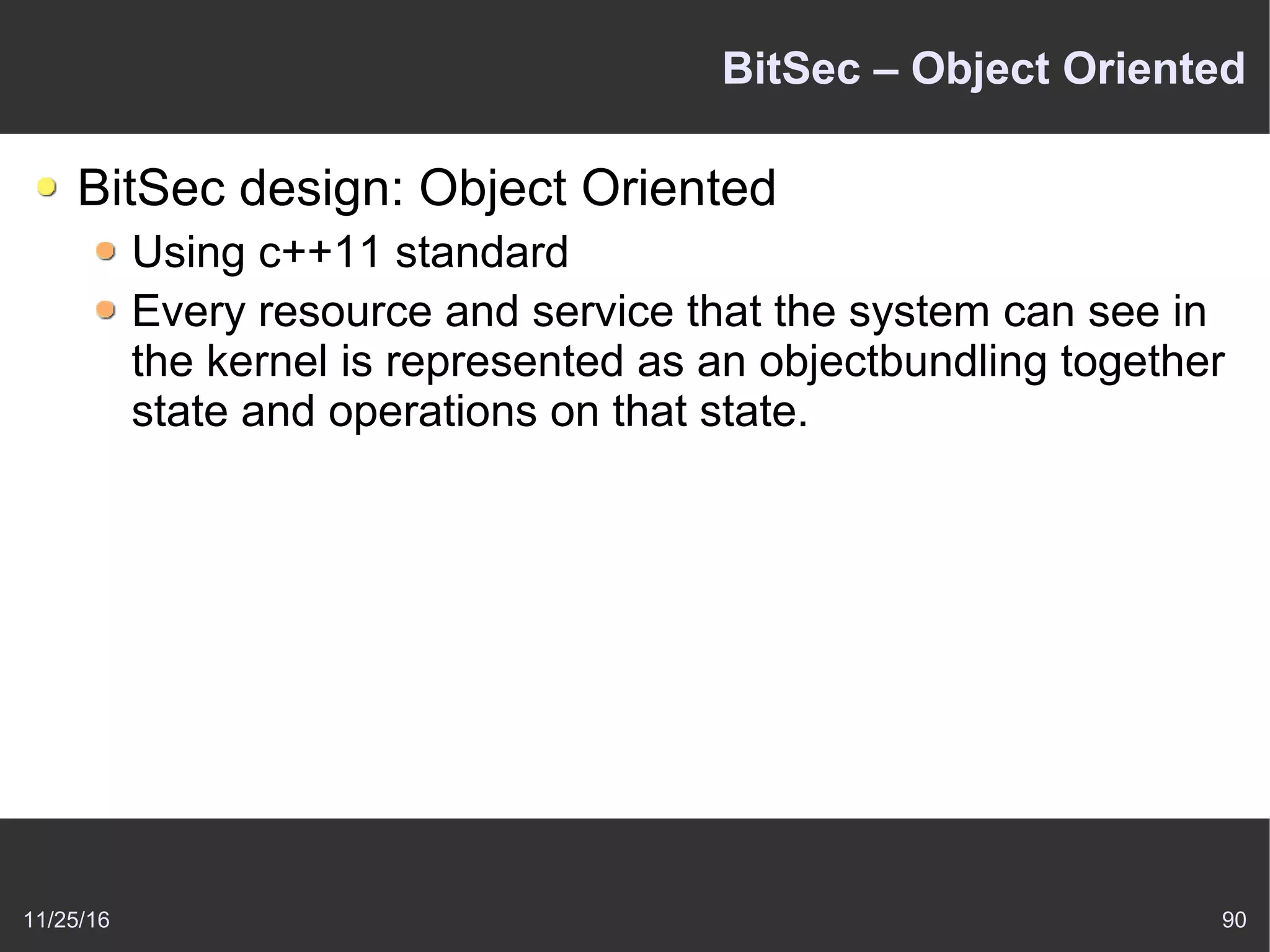

11/25/16 90 BitSec – Object Oriented BitSec design: Object Oriented Using c++11 standard Every resource and service that the system can see in the kernel is represented as an objectbundling together state and operations on that state.
11/25/16 91 BitSec – Object Oriented BitSec design: Object Oriented Using c++11 standard Every resource and service that the system can see in the kernel is represented as an objectbundling together state and operations on that state. For example: the Keys

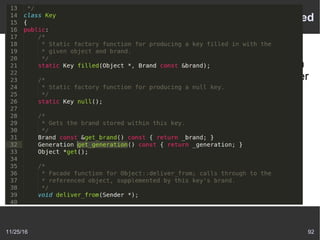

11/25/16 92 BitSec – Object Oriented BitSec design: Object Oriented Every resource and service that the system can see in the kernel is represented as an objectbundling together state and operations on that state. For example: the Keys

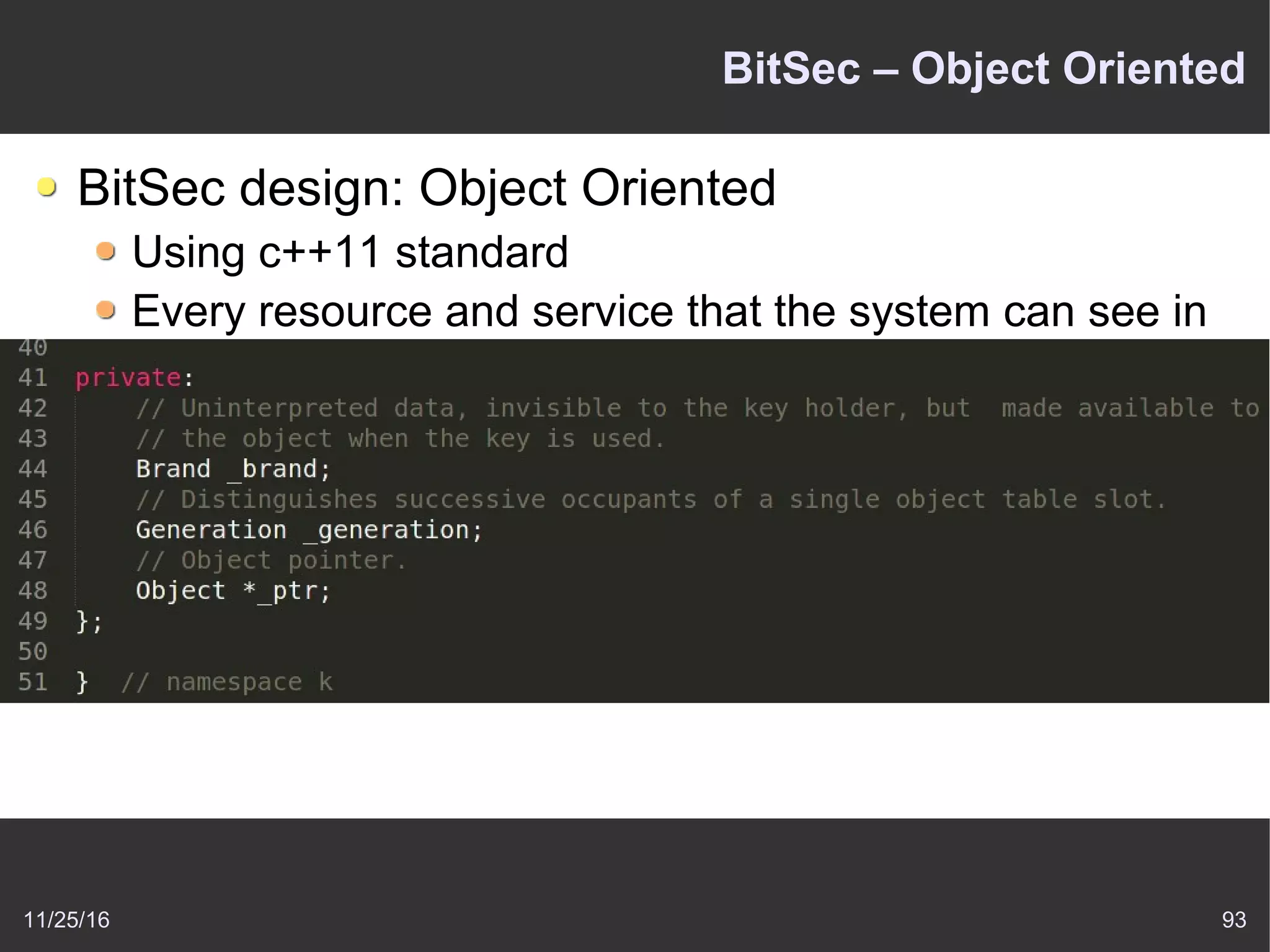

11/25/16 93 BitSec – Object Oriented BitSec design: Object Oriented Using c++11 standard Every resource and service that the system can see in the kernel is represented as an objectbundling together state and operations on that state. For example: the Keys
11/25/16 94 BitSec – Object Oriented BitSec design: Object Oriented Using c++11 standard Every resource and service that the system can see in the kernel is represented as an objectbundling together state and operations on that state. For example: the Keys And can be usable from C

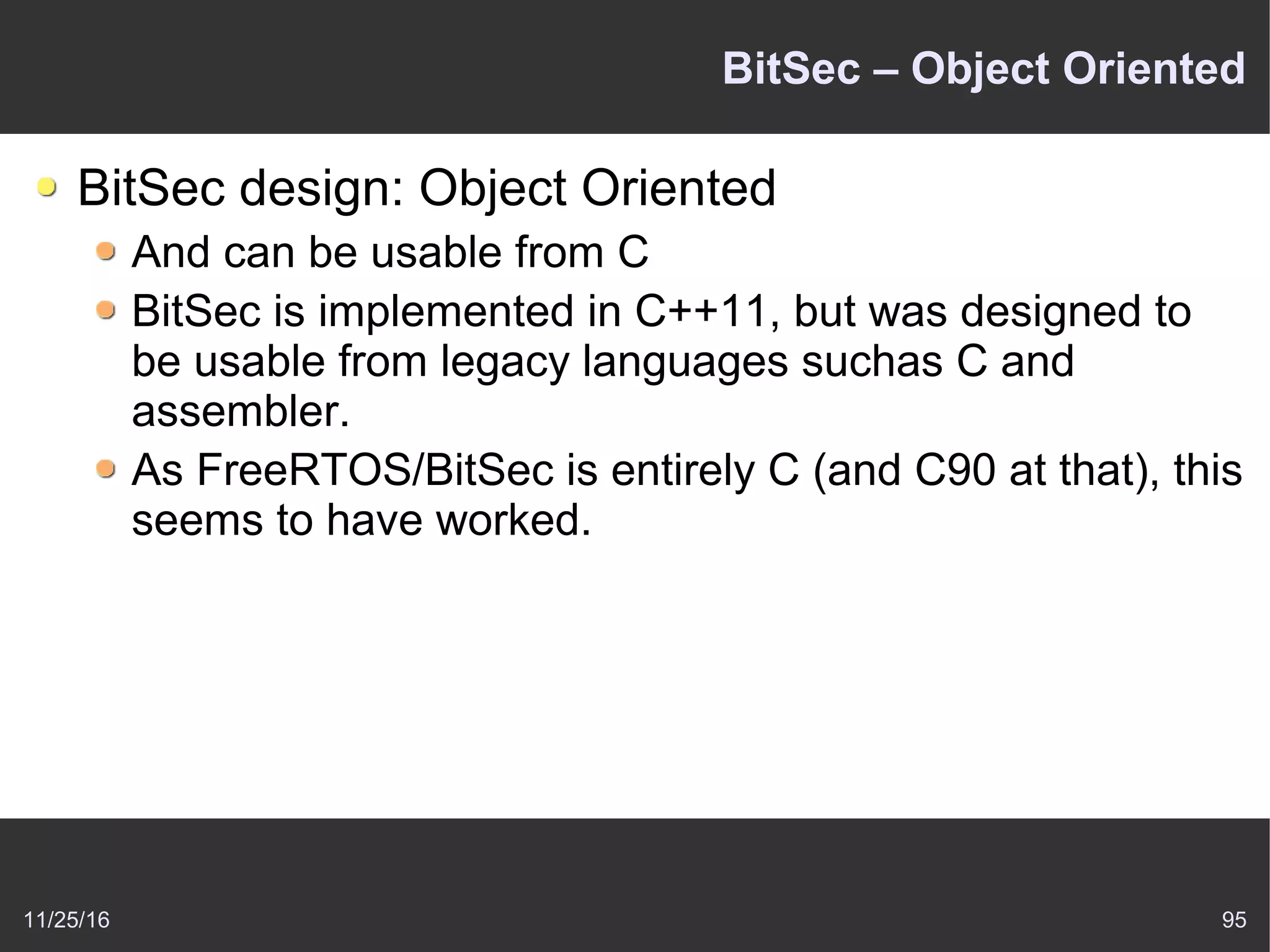

11/25/16 95 BitSec – Object Oriented BitSec design: Object Oriented And can be usable from C BitSec is implemented in C++11, but was designed to be usable from legacy languages suchas C and assembler. As FreeRTOS/BitSec is entirely C (and C90 at that), this seems to have worked.

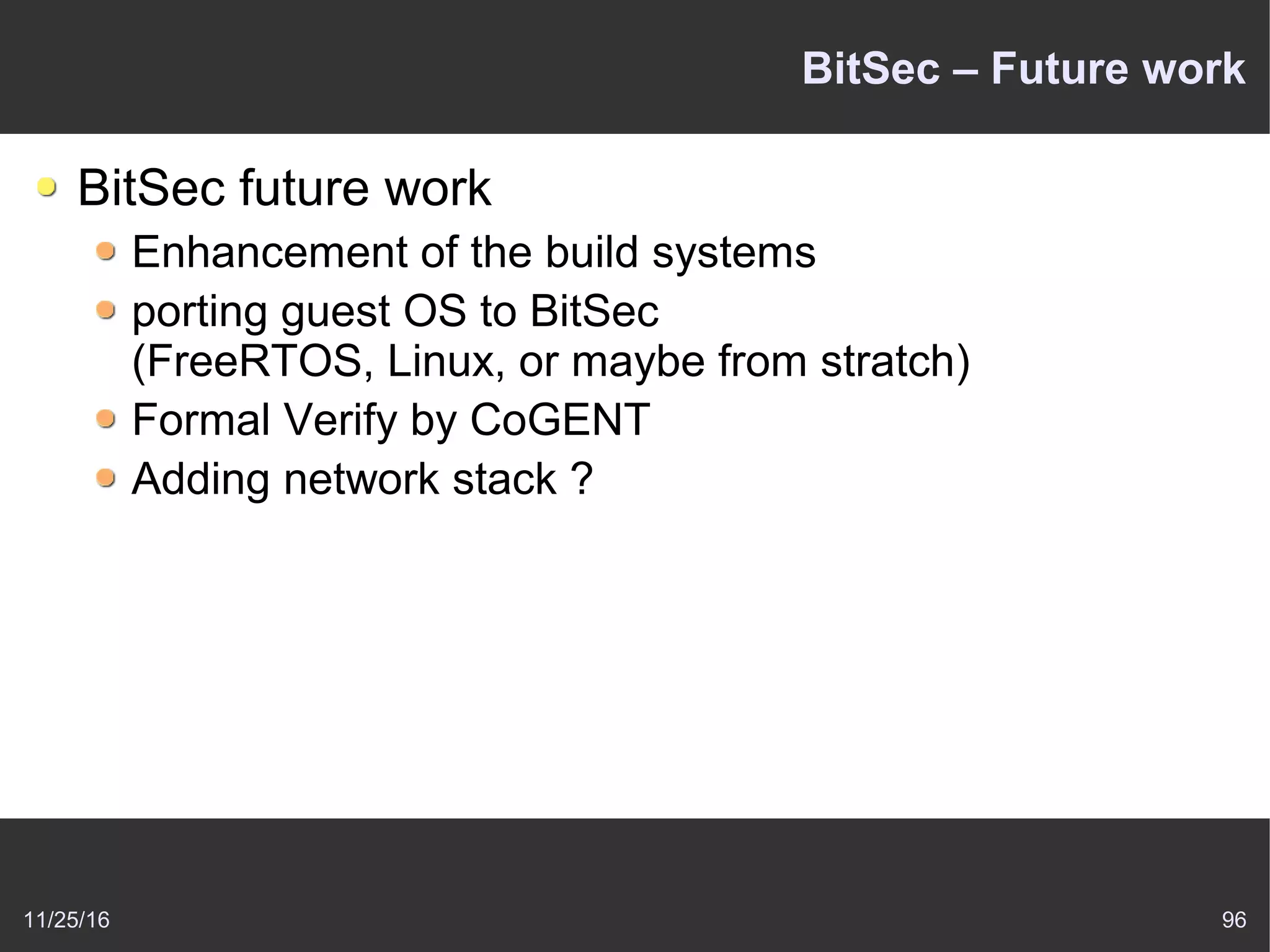

11/25/16 96 BitSec – Future work BitSec future work Enhancement of the build systems porting guest OS to BitSec (FreeRTOS, Linux, or maybe from stratch) Formal Verify by CoGENT Adding network stack ?

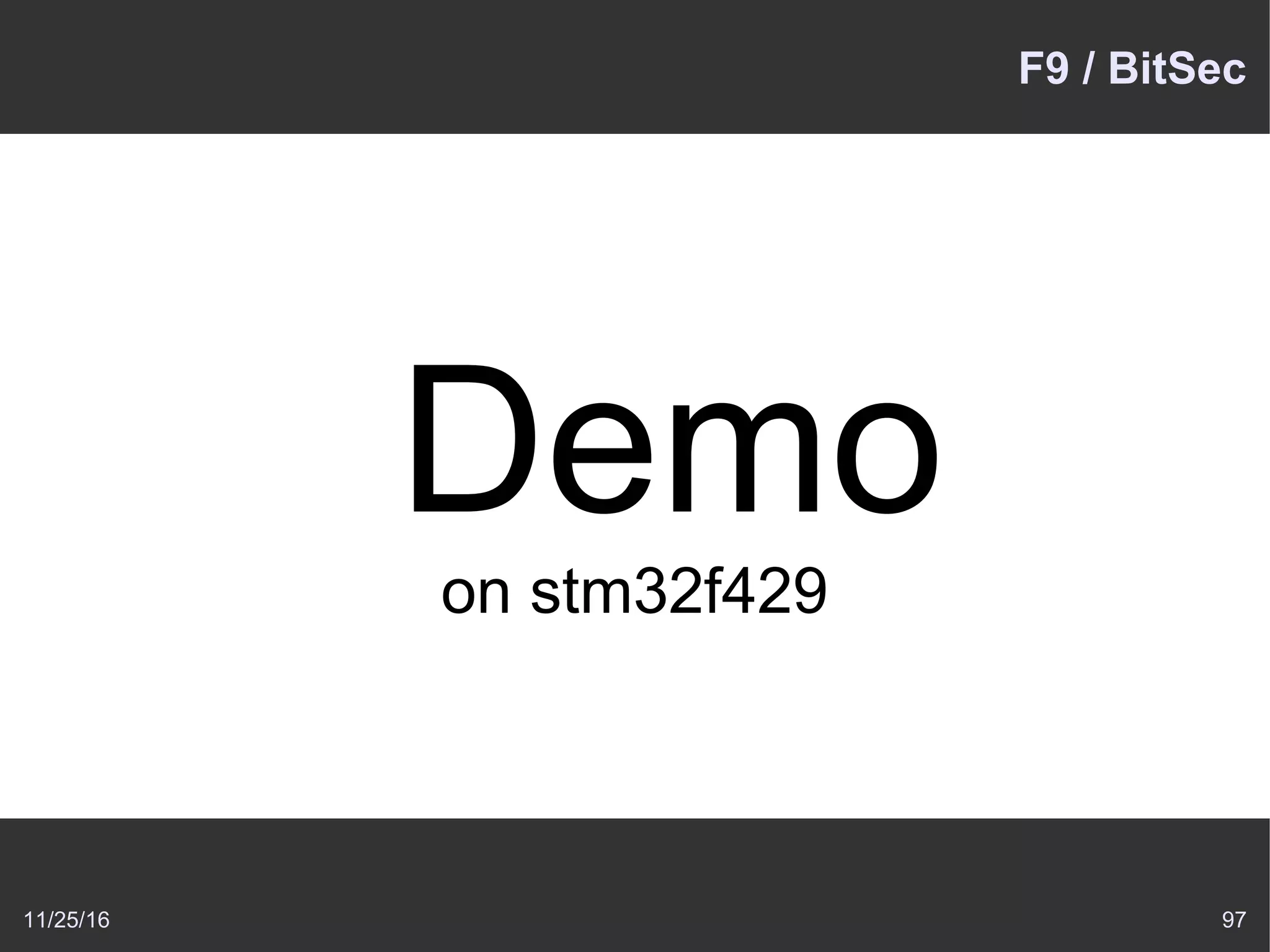

11/25/16 97 F9 / BitSec Demoon stm32f429

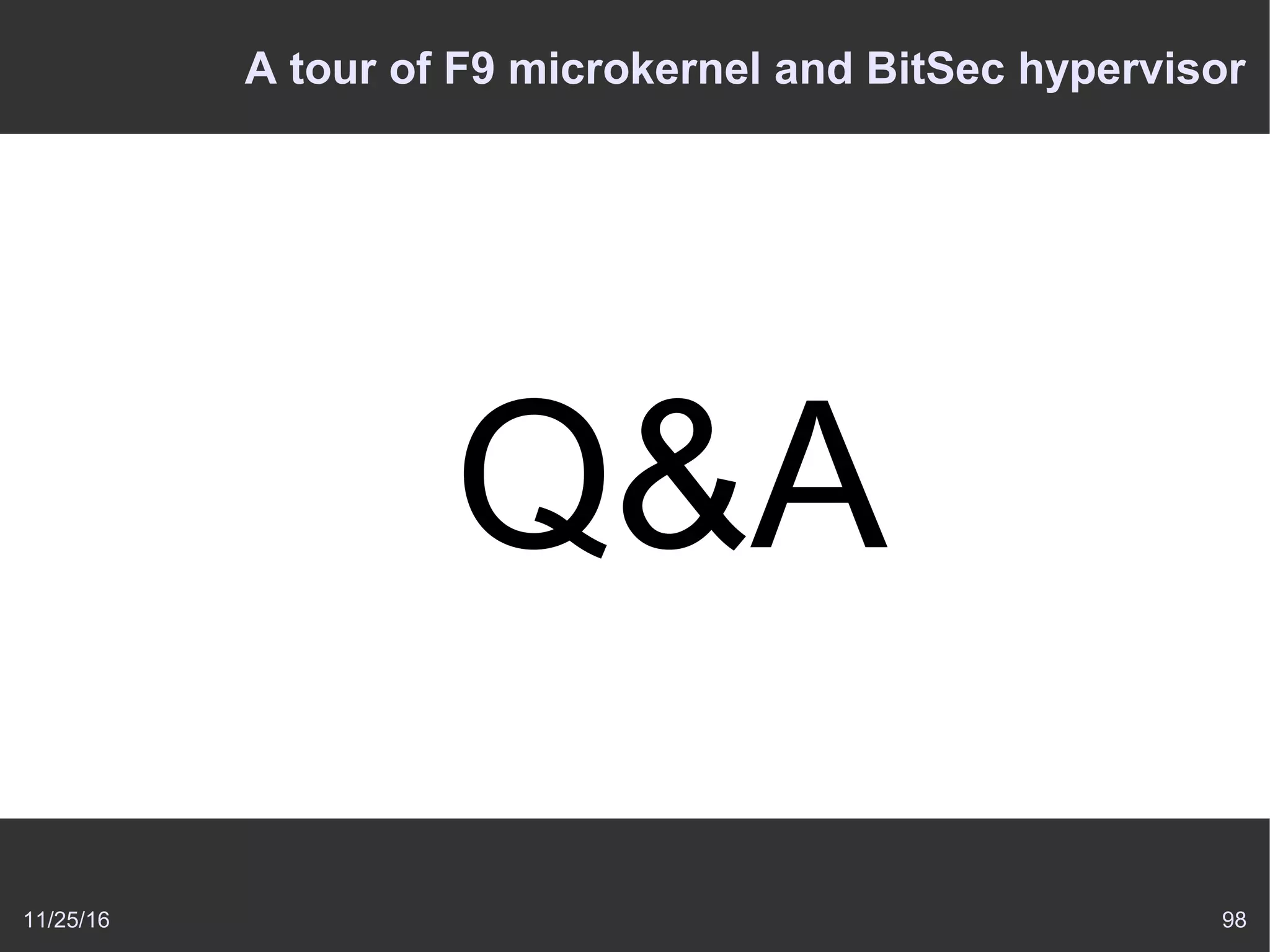

11/25/16 98 A tour of F9 microkernel and BitSec hypervisor Q&A
11/25/16 99 A tour of F9 microkernel and BitSec hypervisor Thanks

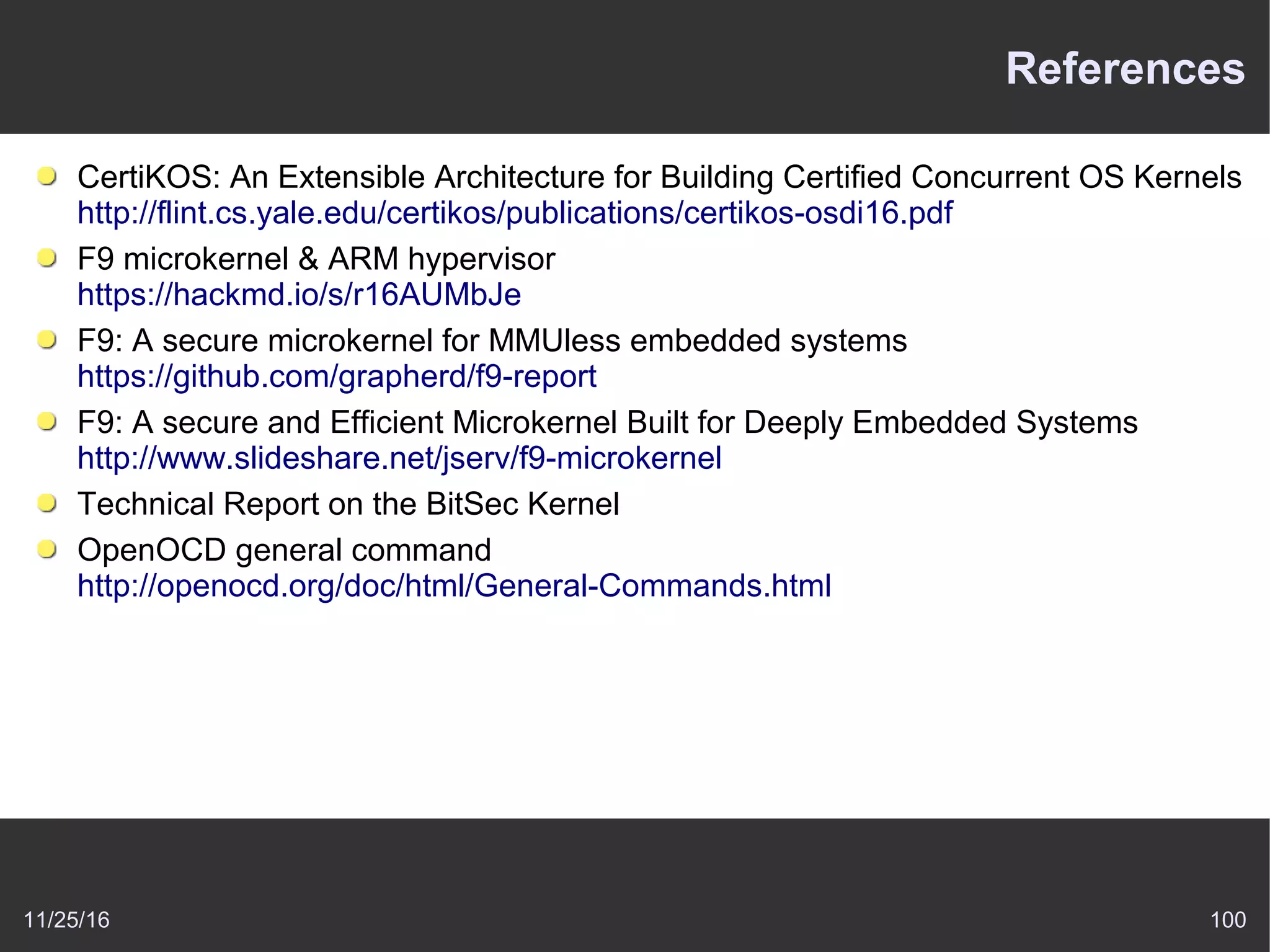

11/25/16 100 References CertiKOS: An Extensible Architecture for Building Certified Concurrent OS Kernels http://flint.cs.yale.edu/certikos/publications/certikos-osdi16.pdf F9 microkernel & ARM hypervisor https://hackmd.io/s/r16AUMbJe F9: A secure microkernel for MMUless embedded systems https://github.com/grapherd/f9-report F9: A secure and Efficient Microkernel Built for Deeply Embedded Systems http://www.slideshare.net/jserv/f9-microkernel Technical Report on the BitSec Kernel OpenOCD general command http://openocd.org/doc/html/General-Commands.html
