A new perspective on Network Visibility - RISK 2015
The document discusses network visibility solutions from Net Optics and Ixia. It summarizes that Net Optics was acquired by Ixia but will remain a brand name. It then discusses challenges of network growth outpacing monitoring tools, security threats increasing, and the need for improved network performance and visibility. The document promotes Ixia and Net Optics solutions like network taps, packet brokers, and virtual monitoring tools that provide intelligent traffic distribution and filtering to gain complete network visibility without blind spots.
More Related Content
Similar to A new perspective on Network Visibility - RISK 2015
A new perspective on Network Visibility - RISK 2015
- 1. A new perspectiveon NETWORK VISIBILITY - 10th RiSK Conference, Laško, Slovenia - Siniša Popović Regional Sales Manager 11-12th March 2015

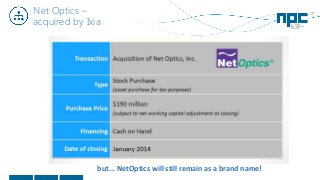

- 2. Net Optics – acquiredby Ixia but... NetOptics will still remain as a brand name!

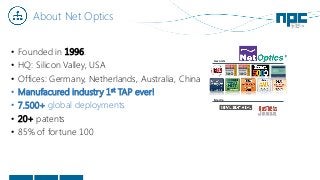

- 3. About Net Optics •Founded in 1996. • HQ: Silicon Valley, USA • Offices: Germany, Netherlands, Australia, China • Manufacured industry 1st TAP ever! • 7.500+ global deployments • 20+ patents • 85% of fortune 100 Awards Media
- 4. Net Optics – acquiredby Ixia but... NetOptics will still remain as a brand name!
- 5. About Net Optics •Founded in 1996. • HQ: Silicon Valley, USA • Offices: Germany, Netherlands, Australia, China • Manufacured industry 1st TAP ever! • 7.500+ global deployments • 20+ patents • 85% of fortune 100 Awards Media

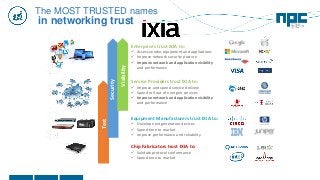

- 6. Service Providers trustIXIA to: Improve and speed service delivery Speed roll out of next gen services Improve network and application visibility and performance Equipment Manufacturers trust IXIA to: Develop next generation devices Speed time to market Improve performance and reliability Enterprises trust IXIA to: Assess vendor equipment and applications Improve network security posture Improve network and application visibility and performance Chip Fabricators trust IXIA to: Validate protocol conformance Speed time to market Test Security Visibility The MOST TRUSTED names in networking trust
- 7.

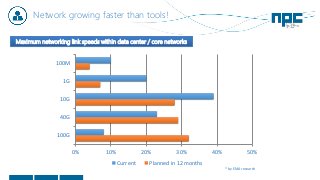

- 8. Network growing fasterthan tools! 0% 10% 20% 30% 40% 50% 100M 1G 10G 40G 100G Current Planned in 12 months * by EMA research Maximum networking link speeds within data center / core networks

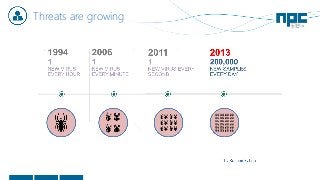

- 9.

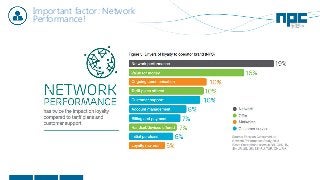

- 10.

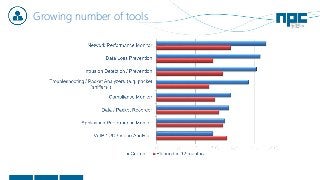

- 11. Growing number oftools

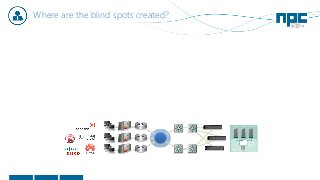

- 12. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3

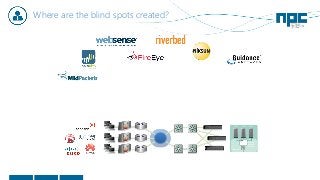

- 13. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3

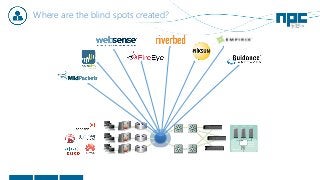

- 14. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3

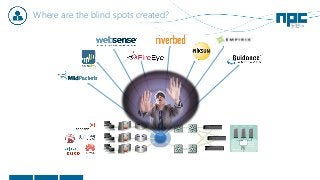

- 15. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3

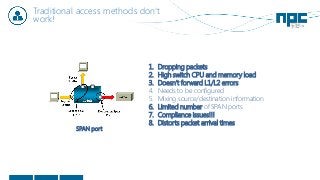

- 16. Traditional access methodsdon‘t work! 1. Dropping packets 2. High switch CPU and memory load 3. Doesn‘t forward L1/L2 errors 4. Needs to be configured 5. Mixing source/destination information 6. Limited number of SPAN ports 7. Compliance issues!!! 8. Distorts packet arrival times SPAN port

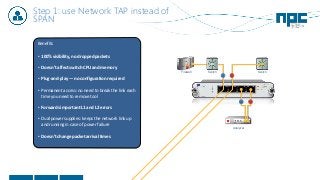

- 17. Step 1: useNetwork TAP instead of SPAN Benefits • 100% visibility, no dropped packets • Doesn’t affect switch CPU and memory • Plug-and-play — no configuration required • Permanent access: no need to break the link each time you need to remove tool • Forwards important L1 and L2 errors • Dual power supplies: keeps the network link up and running in case of power failure • Doesn’t change packet arrival times SwitchFirewall Analyzer Switch

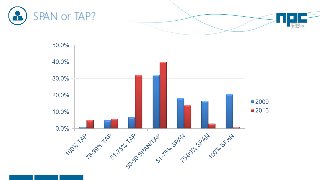

- 18.
- 19. New challenge: amountof traffic is growing! Walmart collects over 1 million transactions every hour. This data is streamed into massive data stores currently containing over 2.5 petabytes of data.

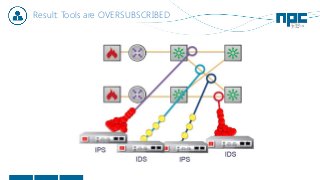

- 20. Result: Tools areOVERSUBSCRIBED
- 21. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3

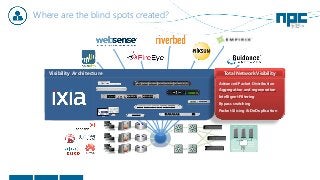

- 22. Where are theblind spots created? ESX Stack Hypervisor Phantom Monitor™ V Switch vm 1 Vm 2 Vm 3 Director Aggregation Visibility Architecture Advanced Packet Distribution Aggregation and regeneration Intelligent Filtering Bypass switching Packet Slicing & DeDuplication Total Network Visibility

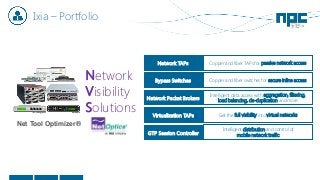

- 23. Ixia – Portfolio NetTool Optimizer® Network Visibility Solutions Network TAPs Copper and fiber TAPs for passive network access Bypass Switches Copper and fiber switches for secure inline access Network Packet Brokers Intelligent data access with aggregation, filtering, load balancing, de-duplication and more Virtualization TAPs Get the full visibility into virtual networks GTP Session Controller Intelligent distribution and control of mobile network traffic

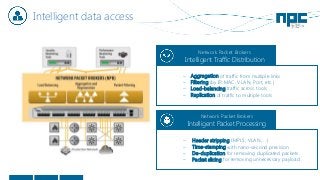

- 24. Intelligent data access NetworkPacket Brokers Intelligent Traffic Distribution − Aggregation of traffic from multiple links − Filtering (by IP, MAC, VLAN, Port, etc.) − Load-balancing traffic across tools − Replication of traffic to multiple tools Network Packet Brokers Intelligent Packet Processing − Header stripping (MPLS, VLAN, ...) − Time-stamping with nano-second precision − De-duplication for removing duplicated packets − Packet slicing for removing unnecessary payload

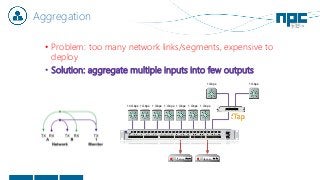

- 25. Aggregation • Problem: toomany network links/segments, expensive to deploy • Solution: aggregate multiple inputs into few outputs 10 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps 1 Gbps1 Gbps

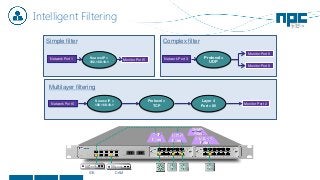

- 26. Intelligent Filtering TCP Filter HTTP Filter 192.0.0.5 Filter SNMP Filter Complex filter NetworkPort 1 Monitor Port 5Source IP = 192.168.10.1 Network Port 3 Monitor Port 6 Protocol= UDP Monitor Port 8 Network Port 6 Source IP = 192.168.10.1 Protocol = TCP Layer 4 Port = 80 Monitor Port 2 Multilayer filtering Simple filter IDS DAM

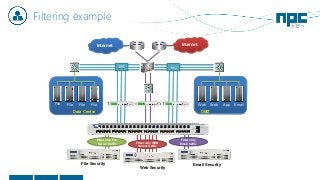

- 27. Filtering example Internet Web WebApp EmailFile File File File Internet File Security Web Security Email Security Data Center DMZ Filter only File Server traffic Filter only WEB Server traffic Filter only Email traffic 10G 10G

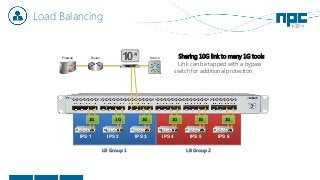

- 28. Load Balancing LB Group2LB Group 1 Switch IPS 1 Firewall Router IPS 2 IPS 3 IPS 4 IPS 5 IPS 6 1G 1G 1G 1G 1G 1G • Sharing 10G link to many 1G tools • Link can be tapped with a bypass switch for additional protection

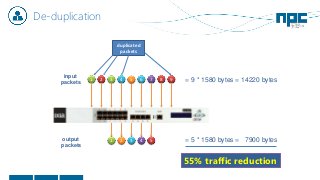

- 29. De-duplication 2 3 45 6 7 8 9 input packets duplicated packets 1 21 3 4 5output packets = 9 * 1580 bytes = 14220 bytes = 5 * 1580 bytes = 7900 bytes 55% traffic reduction

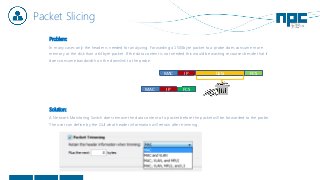

- 30. Packet Slicing Problem: In manycases only the header is needed for analyzing. Forwarding a 1500byte packet to a probe does consume more memory at the disk than a 64byte packet. If the data content is not needed this would be wasting recourses beside that it does consume bandwidth on the downlink to the probe. Solution: A Network Monitoring Switch does remove the data content of a packet before the packet will be forwarded to the probe. The user can define by the GUI what header information will retrain after trimming. MAC IP Data FCS MAC IP FCS

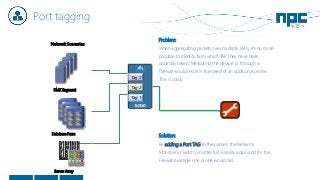

- 31. Port tagging Network Scenarios DMZSegment Database Farm Tag 1 Tag 3 Tag 2 Server Array Problem: When aggregating packets over multiple TAPs, it’s no more possible to identify from which TAP they have been originally taken. Measuring the delay e.g. through a Firewall would result in the need of an additional probe. This is costly. Solution: By adding a Port TAG to the packet, the Network Monitoring Switch provides full visibility again and for the Firewall example one probe would last.

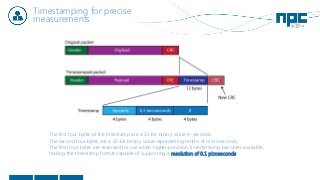

- 32. Timestamping for precise measurements Thefirst four bytes of the timestamp are a 32-bit binary value in seconds. The second four bytes are a 32-bit binary value representing tenths of microseconds; The final four bytes are reserved for use when higher-precision timestamping becomes available, making the timestamp format capable of supporting a resolution of 0.1 picoseconds.

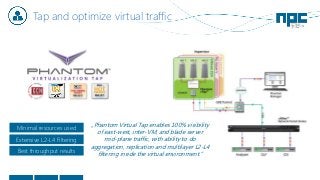

- 33. Tap and optimizevirtual traffic „Phantom Virtual Tap enables 100% visibility of east-west, inter-VM, and blade server mid-plane traffic, with ability to do aggregation, replication and multilayer L2-L4 filtering inside the virtual environment.”Best throughput results Extensive L2-L4 Filtering Minimal resources used

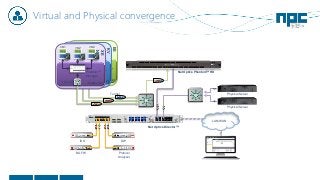

- 34. Virtual and Physicalconvergence ES X App OS VM1 Hypervisor App OS VM2 App OS VM2 V Switch Phantom™ Manager KV M App OS VM1 Hypervisor App OS VM2 App OS VM2 V Switch Phantom™ Manager XE N App OS VM1 Hypervisor App OS VM2 App OS VM2 V Switch Phantom™ Manager Tunnel IDS NGFW Protocol Analyzer DLP Net Optics Director™ Net Optics Phantom™ HD Physical Server Physical Server LAN/WAN

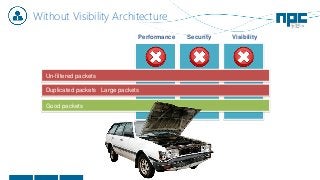

- 35. Without Visibility Architecture PerformanceSecurity Visibility Good packets Duplicated packets Un-filtered packets Large packets

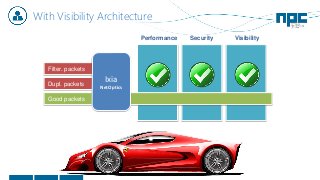

- 36. With Visibility Architecture PerformanceSecurity Visibility Good packets Dupl. packets Ixia NetOptics Filter. packets

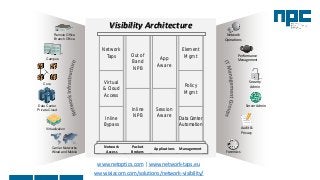

- 37. Carrier Networks Wired andMobile Data Center Private Cloud Virtualization Core Remote Office Branch Office Campus Network Operations Performance Management Security Admin Server Admin Audit & Privacy Forensics Visibility Architecture App Aware Out of Band NPB Network Taps Element Mgmt Virtual & Cloud Access Policy Mgmt Inline NPBInline Bypass Session Aware Data Center Automation Network Access Packet Brokers Applications Management www.ixiacom.com/solutions/network-visibility/ www.netoptics.com | www.network-taps.eu
- 38. The End Thank you! SinišaPopović Regional Sales Manager E: sinisa.popovic@np-channel.com T: +43 676 793 4000
