A Look Inside Google’s Data Center Networks

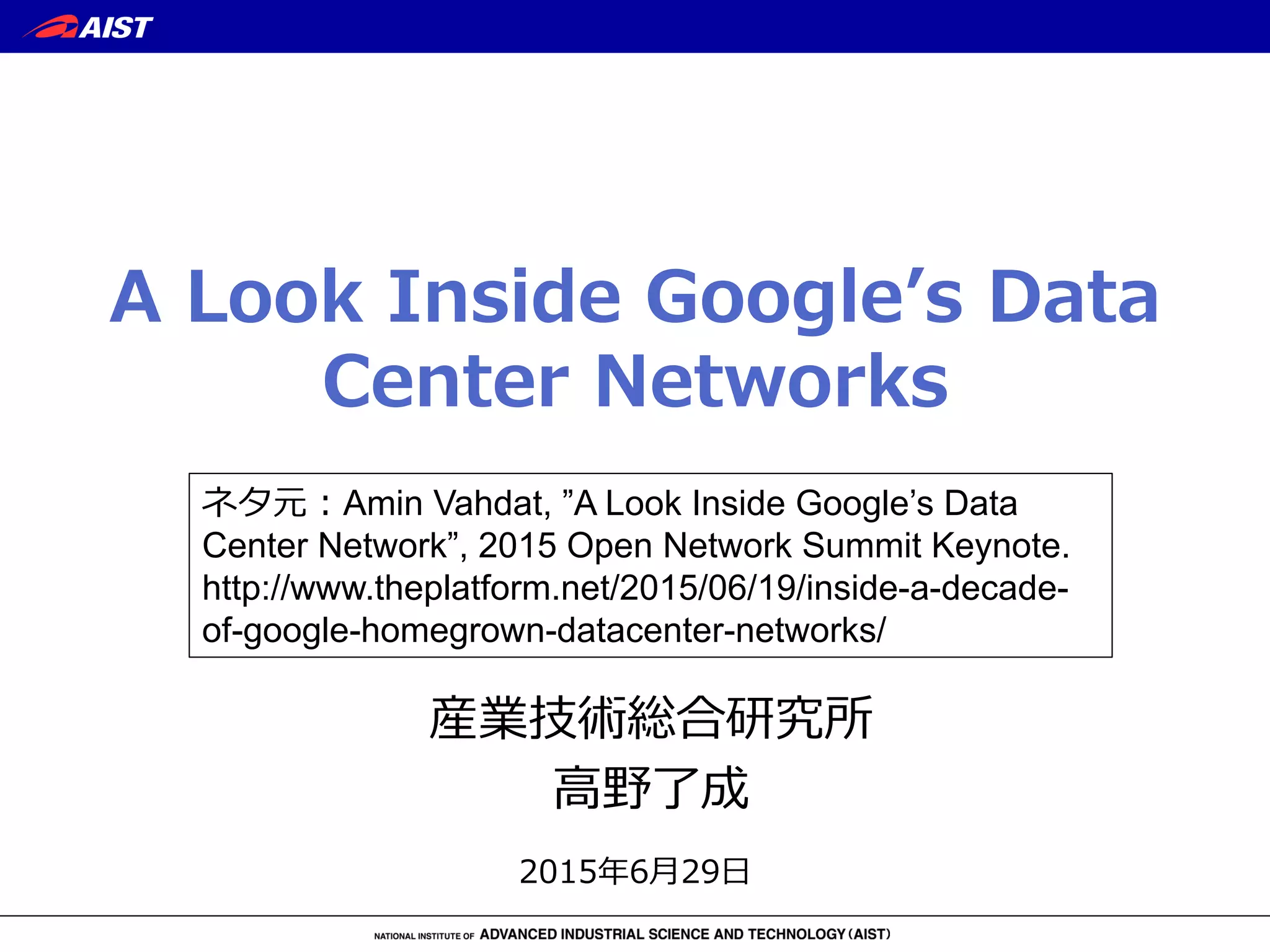

- 1. 産業技術総合研究所 ⾼高野了了成 2015年年6⽉月29⽇日 A Look Inside Googleʼ’s Data Center Networks ネタ元：Amin Vahdat, ”A Look Inside Google’s Data Center Network”, 2015 Open Network Summit Keynote. http://www.theplatform.net/2015/06/19/inside-a-decade- of-google-homegrown-datacenter-networks/

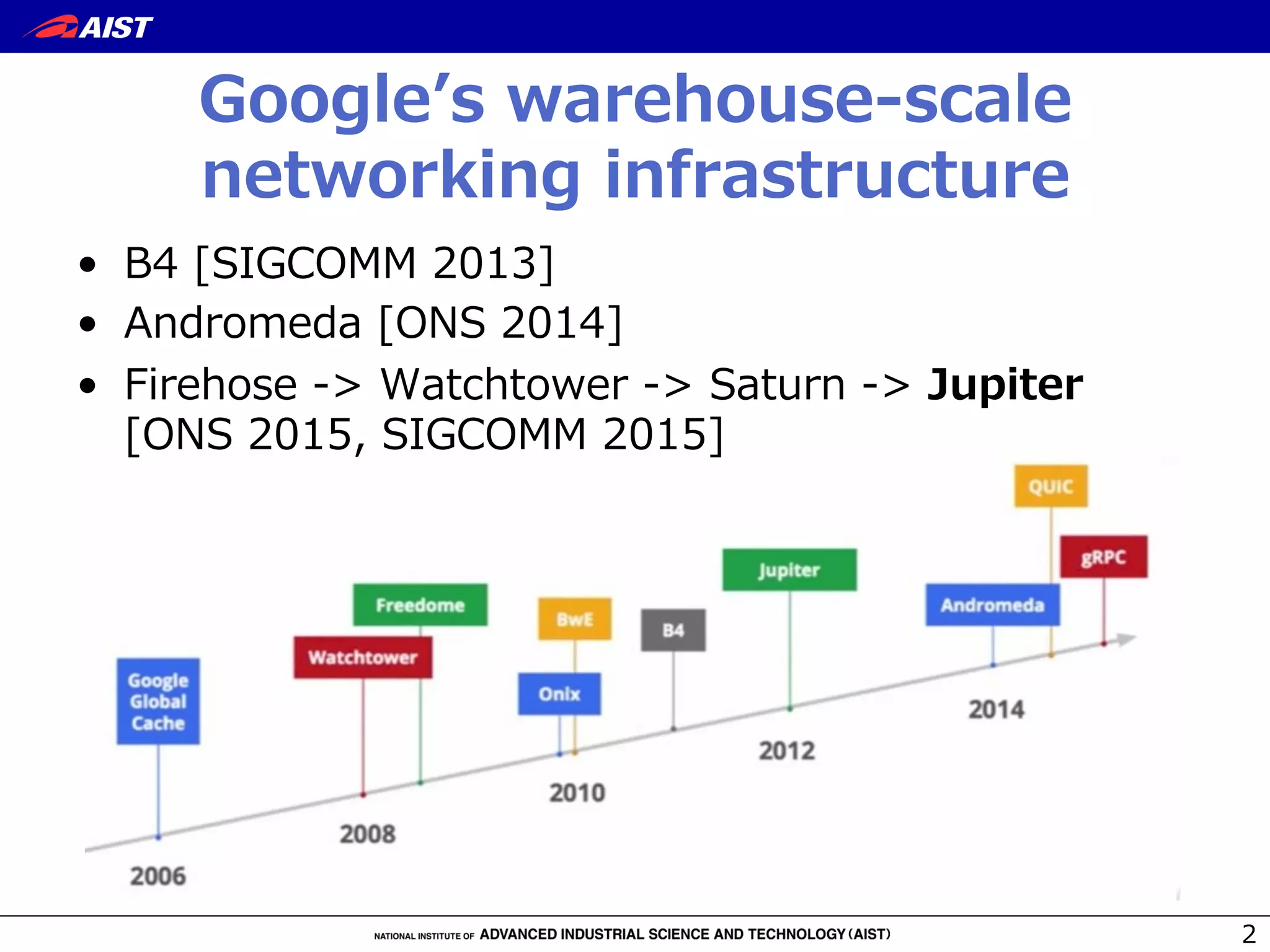

- 2. Googleʼ’s warehouse-‐‑‒scale networking infrastructure 2 • B4 [SIGCOMM 2013] • Andromeda [ONS 2014] • Firehose -‐‑‒> Watchtower -‐‑‒> Saturn -‐‑‒> Jupiter [ONS 2015, SIGCOMM 2015]
- 3. B4: Globally-‐‑‒deployed SDN WAN 3 Google Confidential and Proprietary Google's OpenFlow WAN Google Confidential and Proprietary G-Scale Network Hardware ● Built from merchant silicon ○ 100s of ports of nonblocking 10GE ● OpenFlow support ● Open source routing stacks for BGP, ISIS ● Does not have all features ○ No support for AppleTalk... ● Multiple chassis per site ○ Fault tolerance ○ Scale to multiple Tbps ⽬目的：リンク増設の削減、⾼高価な ネットワーク機器からの脱却 結果：リンク帯域使⽤用率率率30%→ 70%を独⾃自スイッチで実現 OpenFlow@Google, 2012 Open Network Summit

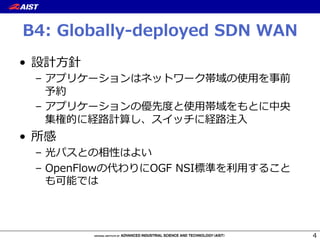

- 4. B4: Globally-‐‑‒deployed SDN WAN • 設計⽅方針 – アプリケーションはネットワーク帯域の使⽤用を事前 予約 – アプリケーションの優先度度と使⽤用帯域をもとに中央 集権的に経路路計算し、スイッチに経路路注⼊入 • 所感 – 光パスとの相性はよい – OpenFlowの代わりにOGF NSI標準を利利⽤用すること も可能では 4
- 5. Andromeda network virtualization • Goal: the raw performance of the underlying network while simultaneously exposing NFV 5 http://googlecloudplatform.blogspot.jp/2014/04/enter-andromeda- zone-google-cloud-platforms-latest-networking-stack.html
- 6. Traffic generated by servers in Google DCs 6
- 7. Motivation • Traditional network architectures could not keep up with bandwidth demands in the DC • Operational complexity of “box-‐‑‒centric” deployment • Inspired by server and storage scale out, employed three principles to redesign DCN – Clos Technologies – Merchant Silicon – Centralized Control 7 Amdahlʼ’s lesser known law (late 1960ʼ’s): 1Mbit/sec of IO for every 1Mhz of computation in parallel computing 1 server (64*2.5 Ghz) : 100 Gb/sec 50k servers : 5 Pb/sec!!

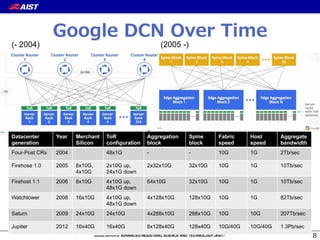

- 8. Google DCN Over Time 8 Datacenter generation Year Merchant Silicon ToR configuration Aggregation block Spine block Fabric speed Host speed Aggregate bandwidth Four-Post CRs 2004 48x1G - - 10G 1G 2Tb/sec Firehose 1.0 2005 8x10G, 4x10G 2x10G up, 24x1G down 2x32x10G 32x10G 10G 1G 10Tb/sec Firehost 1.1 2006 8x10G 4x10G up, 48x1G down 64x10G 32x10G 10G 1G 10Tb/sec Watchtower 2008 16x10G 4x10G up, 48x1G down 4x128x10G 128x10G 10G 1G 82Tb/sec Saturn 2009 24x10G 24x10G 4x288x10G 288x10G 10G 10G 207Tb/sec Jupiter 2012 16x40G 16x40G 8x128x40G 128x40G 10G/40G 10G/40G 1.3Pb/sec (- 2004) (2005 -)

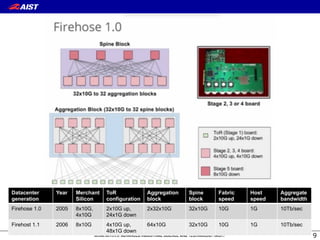

- 9. 9 Datacenter generation Year Merchant Silicon ToR configuration Aggregation block Spine block Fabric speed Host speed Aggregate bandwidth Firehose 1.0 2005 8x10G, 4x10G 2x10G up, 24x1G down 2x32x10G 32x10G 10G 1G 10Tb/sec Firehost 1.1 2006 8x10G 4x10G up, 48x1G down 64x10G 32x10G 10G 1G 10Tb/sec

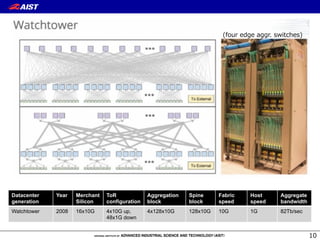

- 10. 10 Datacenter generation Year Merchant Silicon ToR configuration Aggregation block Spine block Fabric speed Host speed Aggregate bandwidth Watchtower 2008 16x10G 4x10G up, 48x1G down 4x128x10G 128x10G 10G 1G 82Tb/sec (four edge aggr. switches)

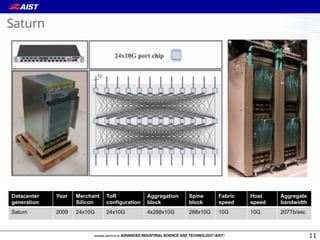

- 11. 11 Datacenter generation Year Merchant Silicon ToR configuration Aggregation block Spine block Fabric speed Host speed Aggregate bandwidth Saturn 2009 24x10G 24x10G 4x288x10G 288x10G 10G 10G 207Tb/sec

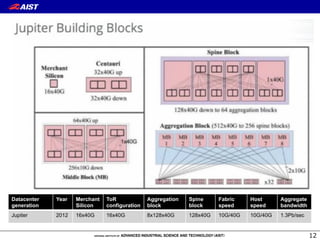

- 12. 12 Datacenter generation Year Merchant Silicon ToR configuration Aggregation block Spine block Fabric speed Host speed Aggregate bandwidth Jupiter 2012 16x40G 16x40G 8x128x40G 128x40G 10G/40G 10G/40G 1.3Pb/sec

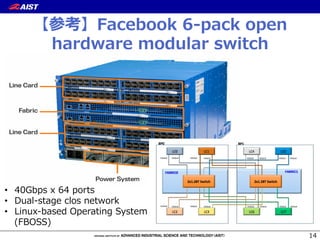

- 14. 【参考】Facebook 6-‐‑‒pack open hardware modular switch 14 • 40Gbps x 64 ports • Dual-‐‑‒stage clos network • Linux-‐‑‒based Operating System (FBOSS)
- 15. 25/50 Gigabit Ethernet • 25 Gigabit Ethernet Consortium – Arista, Broadcom, Google, Mellanox, Microsoft – http://25gethernet.org/ • 2550100 Alliance – http://www.2550100.com/ 15
