Cloud computing Security

1. Cloud Computing Security1

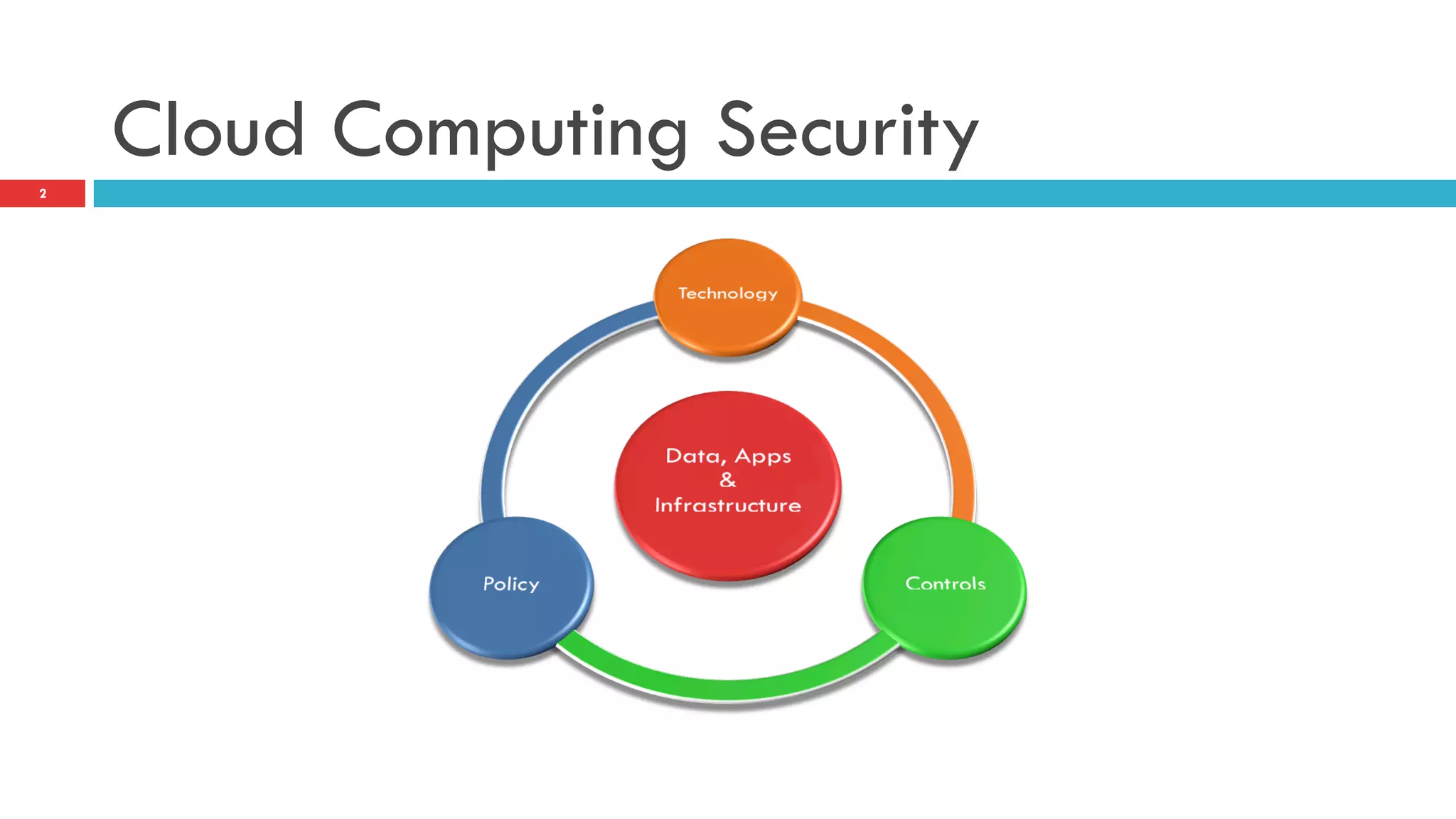

2. Cloud Computing Security
2

3. Cloud Security Issues/Concerns
¨ Faced by providers
¤ Ensure that
infrastructure is secure
¤ Client data and apps
are protected
¨ Faced by clients
¤ Ensure that provider
has taken proper
measures to protect
info
3
Security and
Privacy
Compliance
Legal/
Contractual
issues

4. Security and Privacy
¨ Data Protection
¤ Data stored securely
n when at rest and
n while in motion
¨ Identity Management
¤ ID Federation
¤ Single Sign On
¤ Other Identity Management that
Clients dictate
¨ Physical and Personnel Security
¤ Access is secured and documented
¨ Availability
¤ Regular and predictable access to
data and applications
¨ Application Security
¤ Testing and acceptance procedure for
3rd party code/outsourced code
¤ App level firewalls
¨ Privacy
¤ Only authorized users access
information
¤ Digital identity protection
4

5. Compliance
Cloud providers must enable clients to comply
with regulations
¨ Laws and Regulations
¤ Depends on geography and laws of the
land
¤ e.g., Health Insurance Portability and
Accountability Act (HIPAA), Sarbanes-
Oxley Act (SarbOx)
¨ Industry Standards
¤ e.g., Payment Card Industry Data Security
Standard (PCI DSS)
¨ Regular reporting requirements
¨ Audit Trails
¨ Business Continuity and Data
Recovery
¤ Services continue even in case of
a disaster
¤ Plan for recovery of lost data
¨ Logs and Audit Trails
¤ eDiscovery
¤ Forensic Investigation
¨ Client specific compliance
requirements
¨ Data isolation requirements
5

6. Legal/Contractual Issues
¨ Liability Terms
¨ Intellectual Property
¨ End of service
obligations
¨ Public records
¤ Record keeping
¤ Retain and make data
available
¤ May be stipulated by
law
6

7. Computer Security
7
Secure OS
Secure Architecture
Security by design
Secure coding practise
Vulnerability
Eavesdropping
Exploits
Trojans/Virus/DOS
Payloads
Backdoors/Rootkits/Key
loggers
ComputerSecurity
ComputerInsecurity

8. Security by Design
8
¨ Principle of least privilege
¤ An entity has only the privileges it needs to function
¤ Hacker gaining access to one part would find it equally difficult to access other
parts
¨ Breaking modules into small individual components simplifies correct design
of crucial software subsystems
¨ Rigorous code review and unit testing
¨ Smart Secure Default Settings
¤ Fail to a secure state. Not fail to an insecure state
¤ A secure system should require deliberate, conscious, knowledgeable and free
decision on part of legitimate authority in order to make it insecure

9. Security Architecture
¨ Design artifacts that
describe how security
controls are positioned
to ensure system
quality attributes
9 Confidentiality
Integrity
AvailabilityAccountability
Assurance

10. Hardware Mechanisms for Security
10
¨ Hardware based or hardware assisted compliments
software based security, e.g,
¤ Trusted Platform Modules (TPM)
¤ Devices/Dongles that require physical access

11. Secure OS
11
¨ Ultra-strong secure OS
¤ Based on kernel that guarantee certain security policies are
absolutely enforced in an operating environment
¤ e.g., Bell-LaPadula model
¤ Such OS are not widely known
¤ Used primarily to protect
n National security/Military secrets
¤ e.g., NSA Blacker, Honeywell SCOMP
¤ Achieve the orange book standard
Microprocessor
Hardware Features
such as memory
management
Correctly
implemented
OS kernel

12. Secure Coding
12
¨ Most commercial OS fall in a “low security” category so
applications must make themselves resistant to malicious
subversion
¨ Common software defects include
¤ buffer overflows
¤ format string vulnerabilities
¤ integer overflow
¤ code/command injection
¤ dangling pointers

13. Application Threats/Attacks
¨ Input Validation
¤ Buffer overflow, cross site scripting, SQL injection
¨ Authentication
¤ Eavesdropping, brute force attack, dictionary
attach, cookie replay, credential theft
¨ Authorization
¤ Elevation of privilege, disclosure of confidential
info, data tampering
¨ Configuration Management
¤ Unauth access to admin interfaces, retrieval of
config data in clear text, lack of individual
accountability
¨ Sensitive Information
¤ Unauth access to stored data
¨ Session Management
¤ Session hijacking, session replace, man in the
middle attacks
¨ Cryptography
¤ Poor key generation, weak encryption, improper
key management practices
¨ Parameter Manipulation
¤ Query string manipulation, Form field
manipulation, cookie manipulation, HTTP header
manipulation
¨ Exception management
¤ Improper info disclosure, denial of service
¨ Auditing and logging
¤ User denies performing an operation, attacker
exploits without a trace or covers the tracks
13

14. Questions and discussion on topic
14

15. 15
Thank you.
