Solid-State Series

!! NOTE !!

Covers the following series/models:
! 6100 / ECO-1
! 6200 / ECO-2
! 6220 / ECO-2 Plus
! 6230 / ECO-3
! 9300 / Standard
! 9400 / Deluxe
! 9700 / Ultimate

Refer to INSERT for additional information

To ensure that the system is installed properly,
provide your electrician with these instructions.

http://www.MyPoolSpas.com Wholesale Pool and Spa Parts 920-925-3094

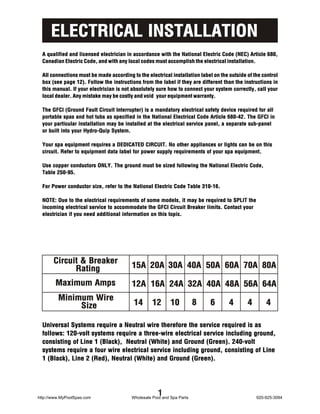

ELECTRICAL INSTALLATION
A qualified and licensed electrician in accordance with the National Electric Code (NEC) Article 680,
Canadian Electric Code, and with any local codes must accomplish the electrical installation.

All connections must be made according to the electrical installation label on the outside of the control
box (see page 12). Follow the instructions from the label if they are different than the instructions in
this manual. If your electrician is not absolutely sure how to connect your system correctly, call your
local dealer. Any mistake may be costly and void your equipment warranty.

The GFCI (Ground Fault Circuit Interrupter) is a mandatory electrical safety device required for all
portable spas and hot tubs as specified in the National Electrical Code Article 680-42. The GFCI in
your particular installation may be installed at the electrical service panel, a separate sub-panel
or built into your Hydro-Quip System.

Your spa equipment requires a DEDICATED CIRCUIT. No other appliances or lights can be on this
circuit. Refer to equipment data label for power supply requirements of your spa equipment.

Use copper conductors ONLY. The ground must be sized following the National Electric Code,
Table 250-95.

For Power conductor size, refer to the National Electric Code Table 310-16.

NOTE: Due to the electrical requirements of some models, it may be required to SPLIT the
incoming electrical service to accommodate the GFCI Circuit Breaker limits. Contact your
electrician if you need additional information on this topic.

Circuit & Breaker
Rating 15A 20A 30A 40A 50A 60A 70A 80A

Maximum Amps 12A 16A 24A 32A 40A 48A 56A 64A
Minimum Wire
Size 14 12 10 8 6 4 4 4

Universal Systems require a Neutral wire therefore the service required is as
follows: 120-volt systems require a three-wire electrical service including ground,
consisting of Line 1 (Black), Neutral (White) and Ground (Green). 240-volt
systems require a four wire electrical service including ground, consisting of Line
1 (Black), Line 2 (Red), Neutral (White) and Ground (Green).

http://www.MyPoolSpas.com
1
Wholesale Pool and Spa Parts 920-925-3094

ELECTRICAL CONNECTIONS
If your system was configured to include a 120VAC power cord, ensure that the proper receptacle
has been installed (a dedicated circuit is required). DO NOT under any circumstances modify a 20
Amp plug to fit into a 15 Amp receptacle or use an extension cord. Doing so will create hazardous
conditions and/orvoid the warranty.

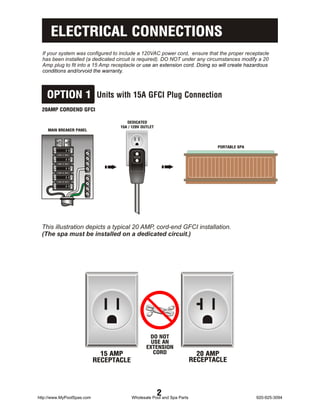

OPTION 1 Units with 15A GFCI Plug Connection
20AMP CORDEND GFCI

DEDICATED
15A / 120V OUTLET
MAIN BREAKER PANEL

PORTABLE SPA

This illustration depicts a typical 20 AMP, cord-end GFCI installation.
(The spa must be installed on a dedicated circuit.)

DO NOT
USE AN
EXTENSION
15 AMP CORD 20 AMP
RECEPTACLE RECEPTACLE

2

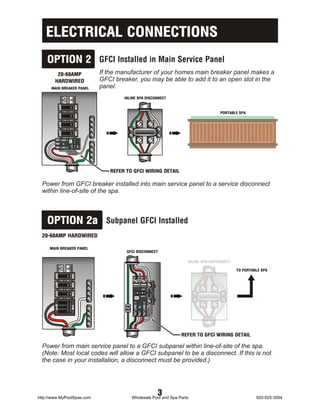

OPTION 2 GFCI Installed in Main Service Panel
20-60AMP If the manufacturer of your homes main breaker panel makes a
HARDWIRED GFCI breaker, you may be able to add it to an open slot in the
MAIN BREAKER PANEL panel.
INLINE SPA DISCONNECT

PORTABLE SPA

LINE 1
N
LINE 2

REFER TO GFCI WIRING DETAIL

Power from GFCI breaker installed into main service panel to a service disconnect
within line-of-site of the spa.

OPTION 2a Subpanel GFCI Installed
20-60AMP HARDWIRED

MAIN BREAKER PANEL
GFCI DISCONNECT


TO PORTABLE SPA
LINE 1

LINE 2
N

REFER TO GFCI WIRING DETAIL

Power from main service panel to a GFCI subpanel within line-of-site of the spa.
(Note: Most local codes will allow a GFCI subpanel to be a disconnect. If this is not
the case in your installation, a disconnect must be provided.)

3


OPTION 3 Systems with GFCI Included
Your system may have an integrated GFCI located on the left side of the
BUILT-IN SYSTEM GFCI control box as shown below. If a GFCI is present there is NO need for
additional GFCI protection illustrated in options 2 & 2a.

MAIN BREAKER PANEL ON

RESET
Located on left side of control box.
TEST

OFF

PORTABLE SPA CONTROL w/BUILT-IN GFCI

Light

POWER
CONTROL
SWITCH
Refer to Operation Pump 1
Manual for testing
and operational
procedures
*Pump 2

Air

Ozone

*Pump 3

*Circ.

*Aux.

*Aux.

*Optional

HEATER
ON

SOLID-STATE
CONTROL SYSTEM

Power from main breaker panel to service disconnect within line-of-site of the spa to portable spa
control equipped with buit-in GFCI.

N IMPORTANT - The NEC and most local codes require that a “disconnect” be
installed within “line-of-site” of the spa.

ELECTRICAL INSTALLATION DETAILS
Refer to the System Data Label for equipment voltage and maximum amperage draws.

Install proper size Ground Fault Circuit Interrupter (GFCI) or circuit breaker, then proper sized wiring
and bonding wire. For Power conductor size, refer to the National Electric Code Table 310-16. For
Ground conductor size, refer to the National Electric Code Table 250-122.

A bonding lug has been provided on the control box to allow connection to local ground points. To
reduce the risk of electrical shock, a solid copper bonding wire should be connected from this lug to

!
any metal ladders, water pipes or other metal object within 5 feet of the spa.

WARNING - BE SURE THAT YOUR POWER SUPPLY CIRCUIT CAN ADEQUATELY HANDLE THE
AMPERAGE YOU SELECT.

The control input power wiring may have been provided. Following NEC and local codes in effect at
the time of installation, connect (refer to wiring diagram located on the inside of control hinged cover)
the Black wire to input Line 1, Blue wire to input Line 2 (if applicable), White wire to Neutral and the
Green wire to ground.

4

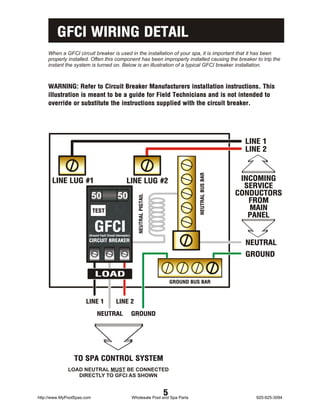

GFCI WIRING DETAIL
When a GFCI circuit breaker is used in the installation of your spa, it is important that it has been
properly installed. Often this component has been improperly installed causing the breaker to trip the
instant the system is turned on. Below is an illustration of a typical GFCI breaker installation.

WARNING: Refer to Circuit Breaker Manufacturers installation instructions. This
illustration is meant to be a guide for Field Technicians and is not intended to
override or substitute the instructions supplied with the circuit breaker.

LINE 1
LINE 2

LINE LUG #1 LINE LUG #2 INCOMING

NEUTRAL BUS BAR
SERVICE
CONDUCTORS
FROM
NEUTRAL PIGTAIL

TEST MAIN
PANEL
GFCI
(Ground Fault Circuit Interrupter)

CIRCUIT BREAKER
NEUTRAL
GROUND

LOAD
GROUND BUS BAR

LINE 1 LINE 2

NEUTRAL GROUND

TO SPA CONTROL SYSTEM
LOAD NEUTRAL MUST BE CONNECTED
DIRECTLY TO GFCI AS SHOWN

5

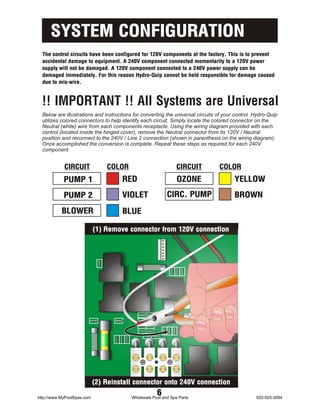

SYSTEM CONFIGURATION
The control circuits have been configured for 120V components at the factory. This is to prevent
accidental damage to equipment. A 240V component connected momentarily to a 120V power
supply will not be damaged. A 120V component connected to a 240V power supply can be
damaged immediately. For this reason Hydro-Quip cannot be held responsible for damage caused
due to mis-wire.

!! IMPORTANT !! All Systems are Universal
Below are illustrations and instructions for converting the universal circuits of your control. Hydro-Quip
utilizes colored connectors to help identify each circuit. Simply locate the colored connector on the
Neutral (white) wire from each components receptacle. Using the wiring diagram provided with each
control (located inside the hinged cover), remove the Neutral connector from its 120V / Neutral
position and reconnect to the 240V / Line 2 connection (shown in parenthesis on the wiring diagram).
Once accomplished the conversion is complete. Repeat these steps as required for each 240V
component.

CIRCUIT COLOR CIRCUIT COLOR
PUMP 1 RED OZONE YELLOW

PUMP 2 VIOLET CIRC. PUMP BROWN

BLOWER BLUE

(1) Remove connector from 120V connection

(2) Reinstall connector onto 240V connection

6

SYSTEM CONFIGURATION

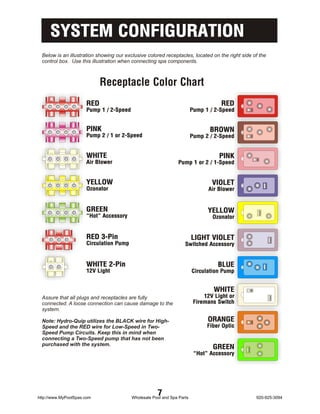

Below is an illustration showing our exclusive colored receptacles, located on the right side of the
control box. Use this illustration when connecting spa components.

Receptacle Color Chart
RED RED
Pump 1 / 2-Speed Pump 1 / 2-Speed

PINK BROWN
Pump 2 / 1 or 2-Speed Pump 2 / 2-Speed

WHITE PINK
Air Blower Pump 1 or 2 / 1-Speed

YELLOW VIOLET
Ozonator Air Blower

GREEN YELLOW
“Hot” Accessory Ozonator

RED 3-Pin LIGHT VIOLET
Circulation Pump Switched Accessory

WHITE 2-Pin BLUE
12V Light Circulation Pump

WHITE
12V Light or
Firemans Switch
Assure that all plugs and receptacles are fully
connected. A loose connection can cause damage to the
system.

Note: Hydro-Quip utilizes the BLACK wire for High- ORANGE
Speed and the RED wire for Low-Speed in Two- Fiber Optic
Speed Pump Circuits. Keep this in mind when
connecting a Two-Speed pump that has not been
purchased with the system.
GREEN
“Hot” Accessory

7

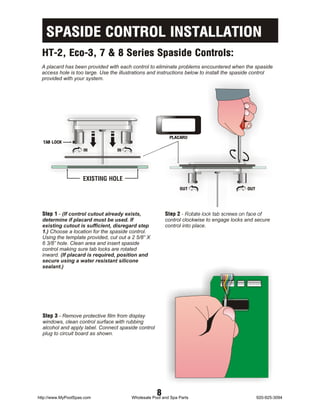

SPASIDE CONTROL INSTALLATION
HT-2, Eco-3, 7 & 8 Series Spaside Controls:
A placard has been provided with each control to eliminate problems encountered when the spaside
access hole is too large. Use the illustrations and instructions below to install the spaside control
provided with your system.

PLACARD
TAB LOCK
IN IN

EXISTING HOLE
OUT OUT

Step 1 - (If control cutout already exists, Step 2 - Rotate lock tab screws on face of
determine if placard must be used. If control clockwise to engage locks and secure
existing cutout is sufficient, disregard step control into place.
1.) Choose a location for the spaside control.
Using the template provided, cut out a 2 5/8” X
6 3/8” hole. Clean area and insert spaside
control making sure tab locks are rotated
inward. (If placard is required, position and
secure using a water resistant silicone
sealant.)

Step 3 - Remove protective film from display
windows, clean control surface with rubbing
alcohol and apply label. Connect spaside control
plug to circuit board as shown.

8

SPASIDE CONTROL INSTALLATION

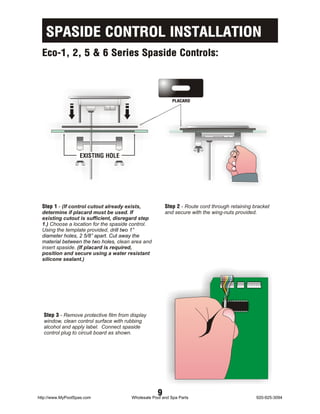

Eco-1, 2, 5 & 6 Series Spaside Controls:

PLACARD

EXISTING HOLE

Step 1 - (If control cutout already exists, Step 2 - Route cord through retaining bracket
determine if placard must be used. If and secure with the wing-nuts provided.
existing cutout is sufficient, disregard step
1.) Choose a location for the spaside control.
Using the template provided, drill two 1”
diameter holes, 2 5/8” apart. Cut away the
material between the two holes, clean area and
insert spaside. (If placard is required,
position and secure using a water resistant
silicone sealant.)

Step 3 - Remove protective film from display
window, clean control surface with rubbing
alcohol and apply label. Connect spaside
control plug to circuit board as shown.

9

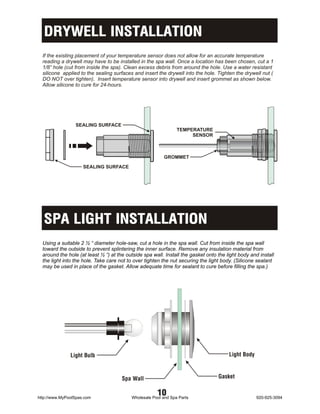

DRYWELL INSTALLATION
If the existing placement of your temperature sensor does not allow for an accurate temperature
reading a drywell may have to be installed in the spa wall. Once a location has been chosen, cut a 1
1/8” hole (cut from inside the spa). Clean excess debris from around the hole. Use a water resistant
silicone applied to the sealing surfaces and insert the drywell into the hole. Tighten the drywell nut (
DO NOT over tighten). Insert temperature sensor into drywell and insert grommet as shown below.
Allow silicone to cure for 24-hours.

SEALING SURFACE
TEMPERATURE
SENSOR

GROMMET

SEALING SURFACE

SPA LIGHT INSTALLATION
Using a suitable 2 ½ “ diameter hole-saw, cut a hole in the spa wall. Cut from inside the spa wall
toward the outside to prevent splintering the inner surface. Remove any insulation material from
around the hole (at least ½ “) at the outside spa wall. Install the gasket onto the light body and install
the light into the hole. Take care not to over tighten the nut securing the light body. (Silicone sealant
may be used in place of the gasket. Allow adequate time for sealant to cure before filling the spa.)

Light Bulb Light Body

Spa Wall Gasket

10

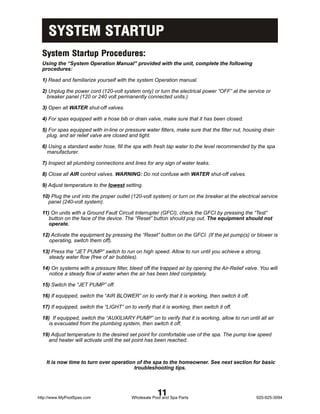

SYSTEM STARTUP
System Startup Procedures:
Using the “System Operation Manual” provided with the unit, complete the following
procedures:

1) Read and familiarize yourself with the system Operation manual.

2) Unplug the power cord (120-volt system only) or turn the electrical power “OFF” at the service or
breaker panel (120 or 240 volt permanently connected units.)

3) Open all WATER shut-off valves.

4) For spas equipped with a hose bib or drain valve, make sure that it has been closed.

5) For spas equipped with in-line or pressure water filters, make sure that the filter nut, housing drain
plug, and air relief valve are closed and tight.

6) Using a standard water hose, fill the spa with fresh tap water to the level recommended by the spa
manufacturer.

7) Inspect all plumbing connections and lines for any sign of water leaks.

8) Close all AIR control valves. WARNING: Do not confuse with WATER shut-off valves.

9) Adjust temperature to the lowest setting.

10) Plug the unit into the proper outlet (120-volt system) or turn on the breaker at the electrical service
panel (240-volt system).

11) On units with a Ground Fault Circuit Interrupter (GFCI), check the GFCI by pressing the “Test”
button on the face of the device. The “Reset” button should pop out. The equipment should not
operate.

12) Activate the equipment by pressing the “Reset” button on the GFCI. (If the jet pump(s) or blower is
operating, switch them off).

13) Press the “JET PUMP” switch to run on high speed. Allow to run until you achieve a strong,
steady water flow (free of air bubbles).

14) On systems with a pressure filter, bleed off the trapped air by opening the Air-Relief valve. You will
notice a steady flow of water when the air has been bled completely.

15) Switch the “JET PUMP” off.

16) If equipped, switch the “AIR BLOWER” on to verify that it is working, then switch it off.

17) If equipped, switch the “LIGHT” on to verify that it is working, then switch it off.

18) If equipped, switch the “AUXILIARY PUMP” on to verify that it is working, allow to run until all air
is evacuated from the plumbing system, then switch it off.

19) Adjust temperature to the desired set point for comfortable use of the spa. The pump low speed
and heater will activate until the set point has been reached.

It is now time to turn over operation of the spa to the homeowner. See next section for basic
troubleshooting tips.

11

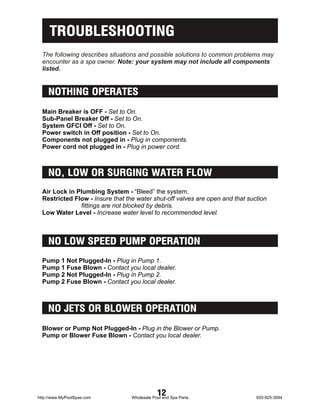

TROUBLESHOOTING
The following describes situations and possible solutions to common problems may
encounter as a spa owner. Note: your system may not include all components
listed.

NOTHING OPERATES
Main Breaker is OFF - Set to On.
Sub-Panel Breaker Off - Set to On.
System GFCI Off - Set to On.
Power switch in Off position - Set to On.
Components not plugged in - Plug in components.
Power cord not plugged in - Plug in power cord.

NO, LOW OR SURGING WATER FLOW
Air Lock in Plumbing System - “Bleed” the system.
Restricted Flow - Insure that the water shut-off valves are open and that suction
fittings are not blocked by debris.
Low Water Level - Increase water level to recommended level.

NO LOW SPEED PUMP OPERATION
Pump 1 Not Plugged-In - Plug in Pump 1.
Pump 1 Fuse Blown - Contact you local dealer.
Pump 2 Not Plugged-In - Plug in Pump 2.
Pump 2 Fuse Blown - Contact you local dealer.

NO JETS OR BLOWER OPERATION
Blower or Pump Not Plugged-In - Plug in the Blower or Pump.
Pump or Blower Fuse Blown - Contact you local dealer.

12

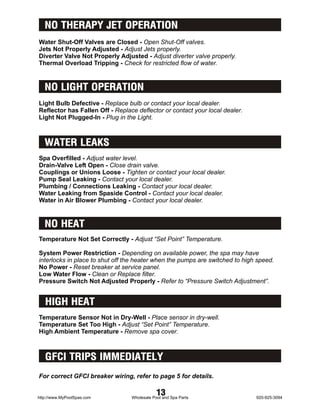

NO THERAPY JET OPERATION
Water Shut-Off Valves are Closed - Open Shut-Off valves.
Jets Not Properly Adjusted - Adjust Jets properly.
Diverter Valve Not Properly Adjusted - Adjust diverter valve properly.
Thermal Overload Tripping - Check for restricted flow of water.

NO LIGHT OPERATION
Light Bulb Defective - Replace bulb or contact your local dealer.
Reflector has Fallen Off - Replace deflector or contact your local dealer.
Light Not Plugged-In - Plug in the Light.

WATER LEAKS
Spa Overfilled - Adjust water level.
Drain-Valve Left Open - Close drain valve.
Couplings or Unions Loose - Tighten or contact your local dealer.
Pump Seal Leaking - Contact your local dealer.
Plumbing / Connections Leaking - Contact your local dealer.
Water Leaking from Spaside Control - Contact your local dealer.
Water in Air Blower Plumbing - Contact your local dealer.

NO HEAT
Temperature Not Set Correctly - Adjust “Set Point” Temperature.

System Power Restriction - Depending on available power, the spa may have
interlocks in place to shut off the heater when the pumps are switched to high speed.
No Power - Reset breaker at service panel.
Low Water Flow - Clean or Replace filter.
Pressure Switch Not Adjusted Properly - Refer to “Pressure Switch Adjustment”.

HIGH HEAT
Temperature Sensor Not in Dry-Well - Place sensor in dry-well.
Temperature Set Too High - Adjust “Set Point” Temperature.
High Ambient Temperature - Remove spa cover.

GFCI TRIPS IMMEDIATELY
For correct GFCI breaker wiring, refer to page 5 for details.

13

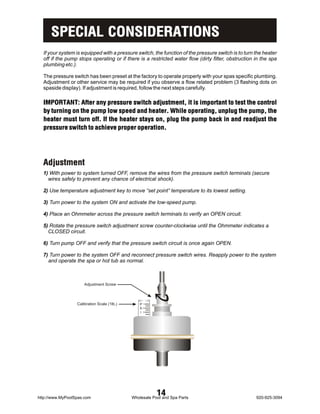

SPECIAL CONSIDERATIONS
If your system is equipped with a pressure switch, the function of the pressure switch is to turn the heater
off if the pump stops operating or if there is a restricted water flow (dirty filter, obstruction in the spa
plumbing etc.).

The pressure switch has been preset at the factory to operate properly with your spas specific plumbing.
Adjustment or other service may be required if you observe a flow related problem (3 flashing dots on
spaside display). If adjustment is required, follow the next steps carefully.

IMPORTANT: After any pressure switch adjustment, it is important to test the control
by turning on the pump low speed and heater. While operating, unplug the pump, the
heater must turn off. If the heater stays on, plug the pump back in and readjust the
pressure switch to achieve proper operation.

Adjustment
1) With power to system turned OFF, remove the wires from the pressure switch terminals (secure
wires safely to prevent any chance of electrical shock).

2) Use temperature adjustment key to move “set point” temperature to its lowest setting.

3) Turn power to the system ON and activate the low-speed pump.

4) Place an Ohmmeter across the pressure switch terminals to verify an OPEN circuit.

5) Rotate the pressure switch adjustment screw counter-clockwise until the Ohmmeter indicates a
CLOSED circuit.

6) Turn pump OFF and verify that the pressure switch circuit is once again OPEN.

7) Turn power to the system OFF and reconnect pressure switch wires. Reapply power to the system
and operate the spa or hot tub as normal.

Adjustment Screw

Calibration Scale (1lb.) P1
S2
I 3

14

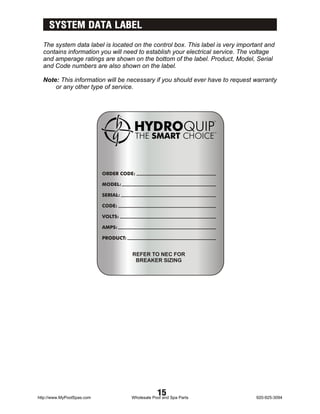

SYSTEM DATA LABEL
The system data label is located on the control box. This label is very important and
contains information you will need to establish your electrical service. The voltage
and amperage ratings are shown on the bottom of the label. Product, Model, Serial
and Code numbers are also shown on the label.

Note: This information will be necessary if you should ever have to request warranty
or any other type of service.

ORDER CODE:

MODEL:

SERIAL:

CODE:

VOLTS:

AMPS:

PRODUCT:

REFER TO NEC FOR
BREAKER SIZING

15

WARRANTY INFORMATION
To all original purchasers, HYDROQUIP warrants its products to be free from defects
in material and workmanship for a period of one year from the date of purchase.

HYDROQUIP will repair or replace the part, which in our opinion, is defective.

This warranty excludes damage as a result of: normal wear, freezing, low voltage,
chemical abuse, accident, negligence, alteration, improper installation, use or care.

To obtain warranty service, return defective products within the warranty period to
HYDROQUIP .

Purchaser is responsible for removal or reinstallation labor, freight charges, or any
other such costs incurred in obtaining warranty service.

HYDROQUIP assumes no responsibility for incidental or consequential damages.
Some states do not allow the exclusion of incidental or consequential damages, so
the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights and you may also have other rights, which vary from state to state.

THE SPA DEALER MAY PROVIDE A DIFFERENT WARRANTY,
CONTACT YOUR SPA DEALER FOR DETAILS

16

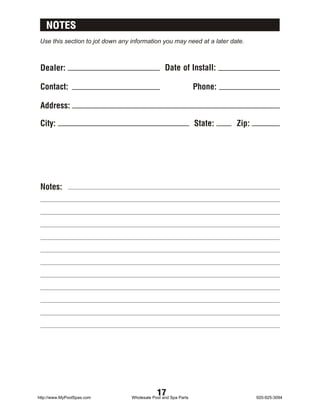

NOTES
Use this section to jot down any information you may need at a later date.

Dealer: Date of Install:

Contact: Phone:

Address:

City: State: Zip:

Notes:

17

85-0135A Rev.1 08/03
http://www.MyPoolSpas.com Wholesale Pool and Spa Parts 920-925-3094

85 0135 a-rev 1_installation manual

More Related Content

What's hot

Viewers also liked

Similar to 85 0135 a-rev 1_installation manual

More from Accurate Pool & Spa Services, llc

85 0135 a-rev 1_installation manual
