This document provides a template for installing spaside controls for pool and spa equipment. The template is only to be used with ECO-1, 2, 5, and 6 series controls and measures 2 5/8 inches by 2 5/8 inches with two 1 inch holes. Installers are directed to refer to the installation manual for details on installation.

1. SPASIDE CONTROL TEMPLATE
IMPORTANT - The template on this page is to be used with ECO-1, 2, 5 & 6 series controls ONLY. Refer to the
“Installation Manual” for installation details.
2 5/8”
(2ea) 1” Holes
85-0136 Rev.0 06/03
http://www.MyPoolSpas.com Wholesale Pool and Spa Parts 920-925-3094

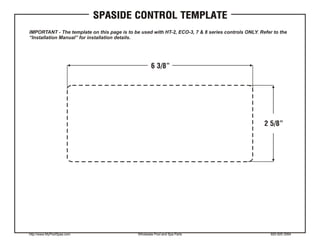

2. SPASIDE CONTROL TEMPLATE
IMPORTANT - The template on this page is to be used with HT-2, ECO-3, 7 & 8 series controls ONLY. Refer to the
“Installation Manual” for installation details.
6 3/8”
2 5/8”
