PS-6502 & PS-6503

PLATINUM SERIES
INSTALLATION/OPERATION GUIDE

http://www.MyPoolSpas.com Pool and Spa Parts
Wholesale 920-925-3094

CONTENTS
Important Safety Instructions· · · · · · · · · · · · · · · · · · · · · · · · 2–3

INSTALLATION· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 4-11
·
Remote heaters · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
Electrical· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 6
Temp Sensor Mounting· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 7
Sensor Placement at Circuit Board Connection · · · · · · · · · · · · 7
Equipment Connections · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 8
Less Heater Cord Connections· · · · · · · · · · · · · · · · · · · · · · · · · 9
Wet Connections · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10
Spa Light · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10
Pressure Switch· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 10

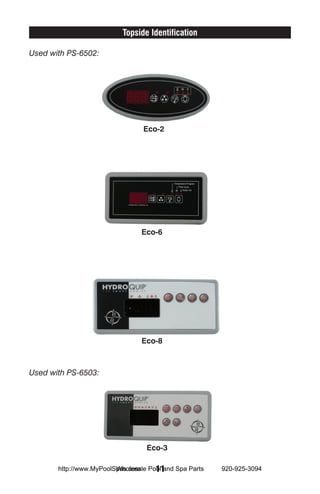

Topside Identification· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 11

SPASIDE CONTROL OPERATION· · · · · · · · · · · · · · · · · · · · · 12-13

LOW LEVEL PROGRAMMING · · · · · · · · · · · · · · · · · · · · · · · · · · 14

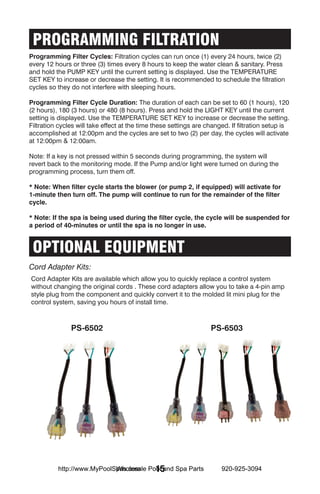

PROGRAMMING FILTRATION· · · · · · · · · · · · · · · · · · · · · · · · · · 15

OPTIONAL EQUIPMENT· · · · · · · · · · · · · · · · · · · · · · · · · · · 15-16
Cord Adapter Kit· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 15
Circulation Pump· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 16

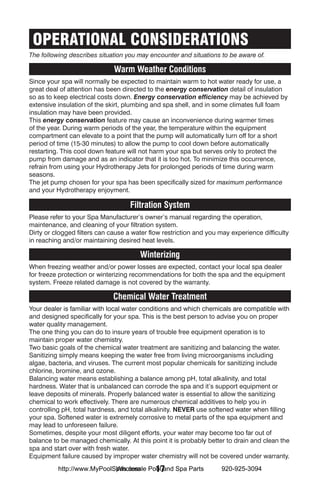

OPERATIONAL CONSIDERATIONS· · · · · · · · · · · · · · · · · · · · · · · 17

Warm Weather Conditions · · · · · · · · · · · · · · · · · · · · · · · · · · · 17
Filtration System · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 17
Winterizing· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 17
Chemical Water Treatment· · · · · · · · · · · · · · · · · · · · · · · · · · · 17

TROUBLESHOOTING · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 18-19

ERROR INDICATION· · · · · · · · · · · · · · · · · · · · · · · · · · · · · 20-21
·

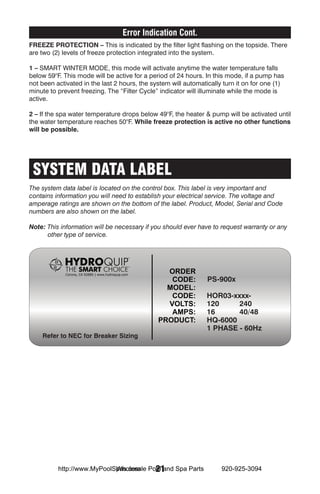

SYSTEM DATA LABEL· · · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 21

WARRANTY INFORMATION · · · · · · · · · · · · · · · · · · · · · · · · · · · 22

TOPSIDE MOUNTING TEMPLATES · · · · · · · · · · · · · · · · · · · 23-24

Wholesale 1
http://www.MyPoolSpas.com Pool and Spa Parts 920-925-3094

IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
DANGER To reduce the risk of injury, do not permit children to use this product unless
they are closely supervised at all times.

WARNING - RISK OF CHILD DROWNING. Extreme caution must be exercised to prevent
unauthorized access by children. To avoid accents, ensure that children cannot use a
spa or hot tub unless they are supervised at all times.

DANGER To reduce the risk of injury to persons, do not remove suction fitting covers.

Spa location must accommodate sufficient drainage of water around the base of the
structure, as well as the power source compartment.

Prolonged immersion in water that is warmer than normal body temperature can result
in a dangerous condition known as HYPERTHERMIA. The causes, symptoms, and
effects of hyperthermia may be described as follows: several degrees above the
normal body temperature of 98.6˚F. The symptoms of hyperthermia include dizziness,
fainting, drowsiness, lethargy, and an increase in the internal temperature of the body.
The effects of hyperthermia include (1) unawareness of impending hazard, (2) failure
to perceive heat, (3) failure to recognize the need to exit spa, (4) physical inability
to exit spa, (5) fetal damage in pregnant women, (6) unconsciousness resulting in
danger of drowning. WARNING The use of alcohol, drugs or medication can greatly
increase the risk of fatal hyperthermia in hot tubs and spas.

DANGER - RISK OF ELECTRICAL SHOCK. Install at least 5 feet (1.5m) from all metal
surfaces. (A spa may be installed within 5 feet of metal surfaces if each metal surface
is permanently connected by a solid copper conductor attached to the ground bar
on the terminal box that is provided for this purpose. Refer to NEC and local codes in
effect at the time of installation.)

A ground or bonding bar is provided on the control box to permit connection of a solid
copper bonding conductor between this point and any equipment, metal enclosures
of electrical equipment, metal water pipe, or conduit within 5 feet (1.5m) of the unit as
needed to comply with local requirements.

Bond accessible metal to the dedicated connector on the equipment grounding bus,
bond the equipment ground bus to the local common bonding grid as part of the
installation in the form of (1) a reinforced concrete slab for support, (2) a ground plate
provided beneath the hot tub or spa, or (3) a permanent ground connection that is
acceptable to the local inspection authority.

DANGER RISK OF ELECTRICAL SHOCK. Do not permit any electrical appliance such as
a light, telephone, radio, or television, within 5 feet (1.5m) of a spa or hot tub.

To reduce the risk of injury:

The water in a spa or hot tub should never exceed 104˚F (40˚C). Water temperatures
between 100˚F (38˚C) and 104˚F (40˚C) are considered safe for a healthy adult.
Lower water temperatures are recommended for extended use (exceeding 10-15
minutes) and for young children.
Excessive water temperatures have a high potential for causing fetal damage during the
early months of pregnancy. Pregnant or possibly pregnant women should limit spa
or hot tub water temperatures to 100˚F (38˚C).
Wholesale 2

Before entering the spa or hot tub, the user should measure the water temperature with an
accurate thermometer.

The use of alcohol, drugs, or medication before or during spa or hot tub use may lead to
unconsciousness with the possibility of drowning.

Persons suffering from obesity or with a medical history of heart disease, low or high blood
pressure, circulatory system problems, or diabetes should consult a physician before
using a spa or hot tub.

Persons using medication should consult a physician before using a spa or hot tub since
some medication may affect heart rate, blood pressure, and circulation.

For Units with a GFCI (Ground Fault Circuit Interrupter)
This appliance is provided with a ground-fault-circuit-interrupter located on the control box.
Before each use and with the unit operating, push the test button. The unit should
stop operating and the reset button should appear. Push the reset button. The unit
should now operate normally. If the interrupter does not perform in this manner, a
ground current is flowing indicating the possibility of electrical shock. Disconnect the
power, or unplug from receptacle, until the fault has been identified and corrected.

For Cord and Plug Connected Units
Connect to a grounded, grounding type receptacle only. NEVER connect the spa to an
extension cord.

Do not bury the cord.

WARNING To reduce the risk of electrical shock, replace damaged cord immediately.

For Permanently Installed Units
A terminal marked “G” or “ground” is provided in the wiring box located inside the
equipment compartment. To reduce the risk of electric shock, connect the terminal
or connector to the grounding terminal of your electrical service or supply panel with
a continuous green insulated copper wire in accordance with National Electric Code
Table 250-95 and any other local codes in effect at the time of installation.

For Permanently Installed Units not Provided with an Internal
Disconnecting Method
The electrical supply for this product must include a suitably rated switch or circuit breaker
to open all ungrounded supply conductors to comply with Section 422-30 of the
National Electric Code, ANSI/NFPA 70 1978. The disconnecting means must be
readily accessible to the tub occupant but installed at least 5 feet (1.5m) from the tub
water.

For Units with Gas Heaters
WARNING - Do not install indoors. This unit uses a gas heater that requires proper
ventilation and is intended for outdoor use only.

For UL Listed Equipment Assemblies
Install at least 5 feet (1.5m) from tub water using nonmetallic plumbing. Install blower
no less than 1 foot (305mm) above the maximum water level to prevent water
from contacting electrical equipment. Install in accordance with blower installation
instructions.
To reduce the risk of drowning from hair and body entrapment, install a suction fitting(s) &
cover(s) with a marked flow rate in gallons-per-minute that equals or exceeds the flow
rate marked on the equipment assembly.
Wholesale 3

INSTALLATION
The Hydro-Quip “Slide” series control offers the ultimate in installation flexibility. The heater
can be installed at the bottom, top, back, or remotely up to 60”* away allowing for full
coverage of all installation variations. *Requires the purchase of optional heater assembly.
If installing with optional “L-shaped” heater, follow back installation below. Hydro-Quip
assumes the person installing this control system is a qualified Service Professional and is
familiar with their local codes and regulations. Slide Configurations

Remove control box and heater assembly from
carton and verify contents for completeness.

For a bottom installation of heater loosen the 2ea.
3/8” nuts on the adjustable clamps then loosen the
adjustable clamps just enough as to move freely.
Slide the heater between the feet placing the studs
from the adjustable clamps into the slots provided
on the feet and tighten the 2ea 3/8” nuts, then
tighten the adjustable clamp.

For Back Installation utilize the slide brackets,
loosen the adjustable clamps just enough as to
move freely. Remove 2ea 3/8” nuts. Align the 2
studs with the slots on the back of the control box.
Reinstall 2ea 3/8” nuts, leave the nuts loose until
you have adjusted the heater to the proper location
then tighten the 2ea 3/8” nuts. Finish by tightening
the adjustable clamps with the box rotated as
explained on page 5.

For Top Installation remove the 8 screws from the
left and right slide brackets, raise each bracket up
one position, than replace all 8 screws. Loosen
the adjustable clamps just enough as to move
freely. Remove 2ea 3/8” nuts. Align the 2 studs with
the slots on the back of the control box. Reinstall
2ea 3/8” nuts, leave the nuts loose until you have
adjusted the heater to the proper location then
tighten the 2ea 3/8” nuts. Finish by tightening
the adjustable clamps with the box rotated as
explained on page 5.

Wholesale 4

Slide Configurations Cont.

Insert the sensor probe(s) under the sensor cover
attached to the heater and tighten the wing-nut
securely.

Ground/Bond the control box directly to the heater
using the included #8 solid copper bonding wire.

Ground/Bond the heater directly to the control box
using the included #8 solid copper bonding wire.

Connect the power and control cords from the
heater to the matching receptacles on the side of
the control box.

Installing in a horizontal position or
pointing down are both proper installation
orientations only.

Failure to follow this instruction may result
in false tripping of the high limit circuit

For proper operation of the heater it must
NOT be installed with the heater box
Correct pointing up.

Correct Wrong
Wholesale 5

Optional Heaters
Remote Heaters:
The Remote Heaters are supplied with a 60” cord which allows for versatile installations
and locations with multiple angles. BE SURE HEATER IS INSTALLED ON PRESSURE
SIDE OF PUMP AND HEATER BOX INSTALLED HORIZONTAL OR PREFERABLY DOWN.
HEATER MUST BE BONDED TO THE CONTROL BOX USING A #8 SOLID COPPER
BONDING WIRE (NOT INCLUDED).

Electrical
Use the illustrations and instruction below to connect
your input power wiring. Always refer to the wiring
diagram provided with your control (located inside the
hinged cover) prior to connecting any wires.

WARNING - Secure wires as defined by the NEC
and in compliance with any local codes in effect
at the time of installation. The system data label
contains specific electrical information required
for

120-VOLT ELECTRICAL SERVICE REQUIREMENTS:

Line 1, Neutral and Ground.

Using Supplied
Jumper,
P51 Connect
between P51
P57 and P57.
(located on
inside cover)

240-VOLT ELECTRICAL SERVICE REQUIREMENTS:

Line 1, Line 2, Neutral and Ground.

IMPORTANT: Always refer to the product
data label (located on top of the control
box) for specific electrical information.

Wholesale 6

Temp Sensor Mounting

1 2 3 4 5 6

Refer to the photos above. When installing the supplied temperature sensor drywell in the
wall of the tub, find a location as low as possible and close to a suction fitting. Try to stay
away from fittings returning water back to the tub. Drill a 1-3/16” hole from inside the tub
(1-2), install the supplied gasket onto the drywell and insert into the hole from inside the
tub (3-4), install the fastening nut from outside the tub shell and tighten 1/4 turn past hand
tight (5), and install the temperature sensor into the drywell (6).

A 3/8” drywell (sold separately) can be
installed in the plumbing if necessary.
Select an area that is located within the
suction lines between the body of water
and the filtration pump for the most
accurate temperature readings.

Sensor Placement at Circuit Board
The diagram below shows the placement of the sensor connections at the circuit board.

jumpers

topside

pressure switch

temp sensor

hi-limit sensor

Wholesale 7

Equipment Connections
Voltage conversion - All equipment circuits in this control system are convertible from
120v to 240v. There are two diagrams available for this purpose: the one shown below and
the one displayed on the front cover of the control box. All boxes come with equipment
configured for 120V.

Pump 1 is a two-speed pump utilizing the red wire for low speed and the black wire for
high speed. For 1spd pumps, using the two speed cord, connect the red and black wire
under the same connection on back of the motor.

Blower (Violet), and Ozone (Yellow) all utilize the black wire for L1 voltage and the white
wire for neutral in 120v operation and L2 in 240v operation.

PS-6502: PS-6503:

P5 P22
P1
P4 P6 P23
P37 P47 P43
P56

33-0024B-R4
P7
P55
P8 P35
P9 P49
P51

P17 P53 P33
P18 P36 P46
P19 P57
P12

P15 JMP1
JMP2
JMP3

Wholesale 8

Equipment Connections Cont.
LH (Less Heater) Cord Connections:
Solid-State Units - Remote Heater Connection Instructions
WARNING - Disconnect all power prior to completing the cord installation. While your
wiring may differ, you must connect each component as shown below.
All existing jumpers and wires must be removed before attempting to connect circuits.
Failure to connect wires exactly as shown will cause an electrical malfunction that will result
in damage to the control and/or heater. This damage will not be covered under warranty.

HEATER POWER CORD (CLEAR 3-PIN MOLDED)
GREEN

WHITE

BLACK

HEATER - POWER CORD
Note: Heater connection is rated for 240VAC / 23Amps maximum.
Securely connect the Black/ 12AWG/ Line 1 wire to one of the heater connectors.
Securely connect the White/ 12AWG/ Line 2 wire to the second heater connectors.
Connect the Green/ 10AWG/ Ground wire to an existing ground point (such as a metal
enclosure).
* Connections must be made without twisting or damaging heater posts. USE 2 WRENCHES, one to hold the post,
one to tighten the nut.

HIGH-LIMIT SENSOR (76” CORD) FROM CONTROL SYSTEM (PLUGS DIRECTLY INTO PCB)

HIGH-LIMIT SENSOR with 76” CORD LENGTH
Secure the High-Limit sensor either in an existing location or on the heater vessel where
elevated water temperature can easily be detected.

PRESSURE SWITCH CORD (LT. VIOLET 3 PIN MOLDED)

WHITE
BLACK

PRESSURE / FLOW SWITCH - CONTROL CORD
Note: Limited energy present
Connect Black and White wire to pressure or flow switch. Ensure pressure switch is
adjusted properly per information provided on page 10.

RED VIOLET
Low Speed Hot

Pump 1/2-Speed High Speed Air Blower

Common Common
PINK YELLOW
Common
Hot
Pump 2/1-Speed Ozonator
Hot
Common

Wholesale 9

Wet (Plumbing) Connections
The control system can be installed wherever it may be convenient, however, it is supplied
with a pressure switch. Therefore, it is only possible to install the heater on the pressure
side of the of the plumbing system. (If you find it necessary to install the heater on the
suction side of the plumbing system, please contact Hydro-Quip for further information).

Spa Light
Your control may contain a high intensity, low
voltage light to enhance nighttime use.

This illustration shows how and where to
find the bulb for replacement. It also shows
the mounted spa light with a replacement
(colored) lens. Colored lenses will further the
enhancement of the light. Simply snap on or off
to change the mood of your spa.

Pressure Switch
The function of the pressure switch is
to turn the heater off if the pumps stops
operating or if there is a restricted water
flow (dirty filter, obstruction in the spa
plumbing etc.)
Adjustment may be required if you
observe a flow related problem (FLO or
FLC on spa-side display) if adjustment is
required follow the next steps carefully.
IMPORTANT: After any pressure switch
adjustment, it is important to test the
control by turning on the pump low speed
and heater. While Operating, unplug the
pump, the heater must turn off. If the heater stays on, plug the pump back in and readjust
the pressure switch to achieve proper operation.
Adjustment:
1) With power to system turned OFF, remove the wires from the pressure switch terminals
(secure wires safely to prevent any chance of electrical shock).
2) Use Temperature adjustment key to move “set point” temperature to its lowest setting.
3) Turn power to the system ON and activate the low-speed pump.
4) Place an Ohmmeter across the pressure switch terminals to verify an OPEN circuit.
5) Rotate the pressure switch adjustment screw counter-clockwise until the Ohm-meter
indicates a CLOSED circuit.
6) Turn pump OFF and verify that the pressure switch circuit is once again OPEN.
7) Turn power to the system OFF and reconnect pressure switch wires. Reapply power to
the system and operate the spa or hot tub as normal.

Wholesale 10

Topside Identification

Used with PS-6502:

Eco-2

Eco-6

Eco-8

Used with PS-6503:

Eco-3

Wholesale 11

SPASIDE CONTROL OPERATION
ECO-2 (Small Oval), ECO-6 (Small Rectangle), and ECO-8 (Large Rectangle) panels. Pictured
below is the ECO-6 (Small Rectangle). Mounting templates can be found on pages 23 and 24.

Pump 1 Key: (If the heater setting has been set above the actual water
temperature, low speed will activate on its own as the water is heating) Press
this key once to activate the low speed of the pump; press the key a second
time to activate high speed; press the key a third time to turn the pump off. The
red indicator above the pump key will illuminate while the pump is on. After
20-minutes the pump will shut off automatically unless done so manually. If a
filter cycle is active, the “filter cycle” indicator will be illuminated and you will
not be able to turn the pump off.

Accessory key: Press this key to turn Accessory on and off. After
20-minutes the accessory will shut off automatically unless done so manually.
The red indicator above the Accessory key will illuminate while the accessory
is on.

Light Key: Press this key to turn the Light on and off. The light will
automatically shut off after 2 hours.

Temperature set key:
Press and hold the Temperature Set key to increase the temperature. Release,
press and hold again to lower the temperature. The temperature can be
adjusted in 1°F increments from 59° to 104°F (5°C to 40°C). The new setting will
remain on the display and the Temperature Program indicator will illuminate for
5-seconds to confirm the setting. The heater will activate when the temperature
drops to 1°F below the set temperature. Heater will continue to be active
until the temperature reaches 1°F above the set temperature. (The Heater On
indicator will illuminate while the heater is on and flash when there is a call for
heat, but the heater has not yet been activated.)

Wholesale 12

SPASIDE CONTROL OPERATION
These instructions apply to the ECO-3 (Large Rectangle, 6-Button panel) only, pictured
below. Mounting templates can be found on pages 23 and 24.

component indicators:
These triangular shaped indicator lights will illuminate when the
circuit of the affected icon is in the “on” status. For a description of
the conditions of illumination for each indicator light, please see the
icon key descriptions below.

Pump 1 Key: (If the heater setting has been set above the actual water
temperature, low speed will activate on its own as the water is heating) Press this
key once to activate the low speed of the pump; press the key a second time to
activate speed; press the key a third time to turn the pump off. The red triangle
shaped indicator in the display window below the Pump 1 icon will illuminate
while the pump is on. After 20-minutes the pump will shut off automatically
unless done so manually.

Pump 2 Key: Press this key to turn Pump 2 on and off. After 20-minutes the
pump will shut off automatically unless done manually. The red triangle shaped
indicator in the display window below the Pump 2 icon will illuminate while the
pump is on.

Air blower key: Press this key to turn Blower on and off. After 20-minutes the
blower will shut off automatically unless done manually. The red triangle shaped
indicator in the display window below the Blower icon will illuminate while the
blower is on.

Light key: Press this key to turn the light on and off. After 2-hours the light
will automatically turn off unless done manually. The red indicator in the display
window below the Light icon will illuminate while the light is on.

Temperature set keys: Press (or press & hold) the Up/Down Arrow key to
increase/decrease the water temperature. The temperature can be adjusted in
1°F increments from 59°F to 104°F (5°C to 40°C). The triangle shaped Set Point
indicator will illuminate in the display window when adjusting the temperature
then revert back to the “current” water temperature display. The triangle shaped
Heater On indicator will illuminate in the display window while the system is
heating.

Wholesale 13

LOW LEVEL PROGRAMMING
It is possible to change the parameters of the system by positioning specific jumpers
located on the system board (see illustration(s) below).

JUMPER 1 = Current Limiting:
Position 1 - (High Current 240vac): There is
no current restriction. This allows the heater
to operator with the pump in high speed.

Position 2 - (Low Current 120vac): The
system will not turn the heater on when the
pump is in high speed. The heater indicator
will flash on the spaside to tell the user that
there is a call for heat but the heater is not
allowed to start.

JUMPER 2 = Temperature Unit:
Position 1 - Fahrenheit

Position 2 - Celsius

JUMPER 3 = Circulation Pump:
Position 1 - System without a Circ. Pump

Position 2 - System with a Circ. Pump

Wholesale 14

PROGRAMMING FILTRATION
Programming Filter Cycles: Filtration cycles can run once (1) every 24 hours, twice (2)
every 12 hours or three (3) times every 8 hours to keep the water clean & sanitary. Press
and hold the PUMP KEY until the current setting is displayed. Use the TEMPERATURE
SET KEY to increase or decrease the setting. It is recommended to schedule the filtration
cycles so they do not interfere with sleeping hours.

Programming Filter Cycle Duration: The duration of each can be set to 60 (1 hours), 120
(2 hours), 180 (3 hours) or 480 (8 hours). Press and hold the LIGHT KEY until the current
setting is displayed. Use the TEMPERATURE SET KEY to increase or decrease the setting.
Filtration cycles will take effect at the time these settings are changed. If filtration setup is
accomplished at 12:00pm and the cycles are set to two (2) per day, the cycles will activate
at 12:00pm & 12:00am.

Note: If a key is not pressed within 5 seconds during programming, the system will
revert back to the monitoring mode. If the Pump and/or light were turned on during the
programming process, turn them off.

* Note: When filter cycle starts the blower (or pump 2, if equipped) will activate for
1-minute then turn off. The pump will continue to run for the remainder of the filter
cycle.

* Note: If the spa is being used during the filter cycle, the cycle will be suspended for
a period of 40-minutes or until the spa is no longer in use.

OPTIONAL EQUIPMENT
Cord Adapter Kits:
Cord Adapter Kits are available which allow you to quickly replace a control system
without changing the original cords . These cord adapters allow you to take a 4-pin amp
style plug from the component and quickly convert it to the molded lit mini plug for the
control system, saving you hours of install time.

PS-6502 PS-6503

Wholesale 15

Optional Equipment Cont.
Circulation Pump - Installation Guide:

Locate Available Knockout Remove Plastic Cover or Slide Circ Pump Receptacle
Clip Out Metal Tab Along Grooves
PS-6502

P37 P34 connect Black wire to P34

ground

P35 for 120V connect White wire to P35

green

white
black

move JMP3 to
position #2

PS-6503

P47 P16 connect Black wire to P16
with ozone wire

ground



move JMP3 to
position #2

Wholesale 16

OPERATIONAL CONSIDERATIONS
The following describes situation you may encounter and situations to be aware of.

Warm Weather Conditions
Since your spa will normally be expected to maintain warm to hot water ready for use, a
great deal of attention has been directed to the energy conservation detail of insulation
so as to keep electrical costs down. Energy conservation efficiency may be achieved by
extensive insulation of the skirt, plumbing and spa shell, and in some climates full foam
insulation may have been provided.
This energy conservation feature may cause an inconvenience during warmer times
of the year. During warm periods of the year, the temperature within the equipment
compartment can elevate to a point that the pump will automatically turn off for a short
period of time (15-30 minutes) to allow the pump to cool down before automatically
restarting. This cool down feature will not harm your spa but serves only to protect the
pump from damage and as an indicator that it is too hot. To minimize this occurrence,
refrain from using your Hydrotherapy Jets for prolonged periods of time during warm
seasons.
The jet pump chosen for your spa has been specifically sized for maximum performance
and your Hydrotherapy enjoyment.

Filtration System
Please refer to your Spa Manufacturer’s owner’s manual regarding the operation,
maintenance, and cleaning of your filtration system.
Dirty or clogged filters can cause a water flow restriction and you may experience difficulty
in reaching and/or maintaining desired heat levels.

Winterizing
When freezing weather and/or power losses are expected, contact your local spa dealer
for freeze protection or winterizing recommendations for both the spa and the equipment
system. Freeze related damage is not covered by the warranty.

Chemical Water Treatment
Your dealer is familiar with local water conditions and which chemicals are compatible with
and designed specifically for your spa. This is the best person to advise you on proper
water quality management.
The one thing you can do to insure years of trouble free equipment operation is to
maintain proper water chemistry.
Two basic goals of the chemical water treatment are sanitizing and balancing the water.
Sanitizing simply means keeping the water free from living microorganisms including
algae, bacteria, and viruses. The current most popular chemicals for sanitizing include
chlorine, bromine, and ozone.
Balancing water means establishing a balance among pH, total alkalinity, and total
hardness. Water that is unbalanced can corrode the spa and it’s support equipment or
leave deposits of minerals. Properly balanced water is essential to allow the sanitizing
chemical to work effectively. There are numerous chemical additives to help you in
controlling pH, total hardness, and total alkalinity. NEVER use softened water when filling
your spa. Softened water is extremely corrosive to metal parts of the spa equipment and
may lead to unforeseen failure.
Sometimes, despite your most diligent efforts, your water may become too far out of
balance to be managed chemically. At this point it is probably better to drain and clean the
spa and start over with fresh water.
Equipment failure caused by improper water chemistry will not be covered under warranty.
Wholesale 17

TROUBLESHOOTING
The following describes situations and possible solutions to common problems you may
encounter as a spa owner.

Nothing Operates
Main Breaker is OFF – Set to on.
Sub-Panel Breaker is OFF – Set to On.
Power switch is in OFF position – Set to on.
Component(s) are not plugged in – Plug in components.
Power cord is not plugged in – Plug in power cord.
Over-Heat Protection is On – Refer to page 20.

No, Low or Surging Water Flow
Air Lock in Plumbing System – “Bleed” the system
Restricted Flow – Insure that the water shut-off valves are open and that suction fittings are
not blocked by debris.
Dirty Filter – Clean or replace filter.
Low Water Level – Increase water level to recommended level.

No Low Speed Pump Operation
Low Level Programming Incorrect – Contact your local dealer
Over-Temperature protection On – Refer to page 20.
Pump Not Plugged- In – Plug in the pump.

No Jets or Blower Operation
Blower or Pump Not Plugged-In – Plug in the Blower or Pump.
Over-Heat Protection On – Refer to page 20.

No Therapy Jet Operation
Water Shut-off Valves are Closed – Open Shut-off valves.
Dirty Filter – Clean or replace filter.
Jets Not Properly Adjusted – Adjust jets.
Diverter Valve Not Properly Adjusted – Adjust diverter valve.
Thermal Overload Tripping – Check for restricted flow of water.

Water Leaks
Spa overfilled – Adjust water level.
Too many people in the Spa – Adjust water level.
Drain-Valve left open – Close drain valve.
Couplings or Unions Loose – Tighten or contact your local dealer.
Pump Seal Leaking – Contact your local dealer.
Plumbing Connections Leaking – Contact your local dealer.
Water Leaking from Spa side Control – Contact your local dealer.
Water in Air Blower Plumbing – Contact your local dealer.

Wholesale 18

No Heat
Temperature Not Set Correctly – Adjust Set Point.
Current limiting On – 120V Systems will not heat if High-speed or Blower is on. Contact
your Local dealer.
No Power – Reset breaker at service panel.
Low Water Flow – Clean or Replace filter.

High Heat
Temperature Sensor Not in Dry-Well – Place sensor in dry-well.
Temperature Set Too High – Adjust Set Point.
High Ambient Temperature – Remove spa cover.

GFCI Trips Occasionally
Lightning or Electrical Storm, Power Surge, Extreme Humid Conditions, or Radio
Frequency Interference – Reset GFCI - Mounted at control box or service panel.
NOTE: GFCI must be properly grounded and bonded.

GFCI Trips Immediately
Defective Component – Contact a qualified service technician for assistance.

If this is a new electrical installation verify that the electrical service is wired as described
below. With the neutral wire, from control box, attached to the neutral terminal on the load
side of the GFCI breaker.

Wholesale 19

ERROR INDICATION
To assist the user in identifying problems with the spa, the system will display an error
message. These messages will be helpful when communicating with your local dealer or
qualified technician if a problem should arise.

Pressure or Flow Switch Activated – The flow or pressure switch
is sensing water pressure or flow while the pump is not running. To clear
the error, try cycling the pump through low and high speeds. If this error
does not clear when the pump is off......

Contact your local spa dealer

Pressure or Flow switch Not Activated – The flow or pressure
switch is not sensing water pressure or flow while the pump is running. To
clear the error, try cycling the pump through low and high speeds. If this
does not clear the error, the spa filter may be dirty, possibly obstructing
water flow. If, after cleaning the filter, cycling the pump through low and
high speeds does not clear the error....


Temperature sensor malfunction – This error will occur when
a problem with the temperature sensor exists. This error may also occur if
the system is activated while the water temperature is below 35°F. The best
thing to do when this error occurs is to....


Overheat or High-Limit Protection – There are three (3) stages of
over heat:

1 – The spa water has exceeded 112°F. The heater, pump and accessory
will be deactivated until the water cools to 109°F. Be sure to check the
actual temperature with an accurate thermometer.

2 – The spa water has exceeded 119°F. The heater will deactivate while
the pump and accessory will still operate. The air blower (if equipped) can
be activated to help cool the water. WATER MUST BE BELOW 119°F AND
POWER MUST BE RESET TO CLEAR THE “HL ERROR ”

A dirty spa filter can also cause restricted flow of water, so be sure the filter
is cleaned regularly and ensure that all water shutoff valves are open.

If the system has been operating normally until now, the pump may be
overheating the spa. Refer to “Programming Filtration” on Page 15 and
reduce the duration and/or number of cycles per day.

3 – If you’ve eliminated items 1&2 as problems, the high limit sensor may
have malfunctioned If this is the case, ...


Wholesale 20

Error Indication Cont.
Freeze Protection – This is indicated by the filter light flashing on the topside. There
are two (2) levels of freeze protection integrated into the system.

1 – SMART WINTER MODE, this mode will activate anytime the water temperature falls
below 59°F. This mode will be active for a period of 24 hours. In this mode, if a pump has
not been activated in the last 2 hours, the system will automatically turn it on for one (1)
minute to prevent freezing. The “Filter Cycle” indicator will illuminate while the mode is
active.

2 – If the spa water temperature drops below 49°F, the heater & pump will be activated until
the water temperature reaches 50°F. While freeze protection is active no other functions
will be possible.

SYSTEM DATA LABEL
The system data label is located on the control box. This label is very important and
contains information you will need to establish your electrical service. The voltage and
amperage ratings are shown on the bottom of the label. Product, Model, Serial and Code
numbers are also shown on the label.

Note: This information will be necessary if you should ever have to request warranty or any
other type of service.

PS-900x

HOR03-xxxx-
120 240
16 40/48
HQ-6000
1 PHASE - 60Hz
Refer to NEC for Breaker Sizing

Wholesale 21

WARRANTY INFORMATION
To all original purchasers, HydroQuip, warrants this product to be free from defects in
material and workmanship for a period of 3 years from the date of purchase.

Hydro-Quip will, at it’s discretion, repair or replace any part which has been found to be
defective.

This warranty excludes damage as a result of: normal wear, freezing, low voltage, chemical
abuse, accident, negligence, alteration, improper installation, use or care.

To obtain warranty service, return defective products within the warranty period to Hydro-
Quip.

The Hydro-Quip Limited Warranty is for service on the control box only. Purchaser is
responsible for removal or reinstallation labor, freight charges, or any other such costs
incurred in obtaining warranty service.

Hydro-Quip assumes no responsibility for incidental or consequential damages. Some
states do not allow the exclusion of incidental or consequential damages, so the above
limitations and exclusions may not apply to you. This warranty gives you specific legal
rights and you may also have other rights, which vary from state to state.

If you are the end user for this control system, the spa dealer may provide a different
warranty; contact your spa dealer for details and warranty information.

Wholesale 22

TOPSIDE MOUNTING
IMPORTANT - The template on this page is to be used with ECO-1, 2, 5 & 6 series
controls ONLY.

2 5/8”

(2ea) 1” Holes

Wholesale 23

IMPORTANT - The template on this page is to be used with HT-2, ECO-3, 7 & 8 series
controls ONLY.

6 3/8”

2 5/8”
Wholesale 24

05/09 Rev. 1.2

Ps 6500 manual-rev1_2

More Related Content

Similar to Ps 6500 manual-rev1_2

More from Accurate Pool & Spa Services, llc

Ps 6500 manual-rev1_2
