1. 8051 (MICROCONTROLLER)
Nitin Ahire
XIE, Mahim
Prof. Nitin Ahire
1

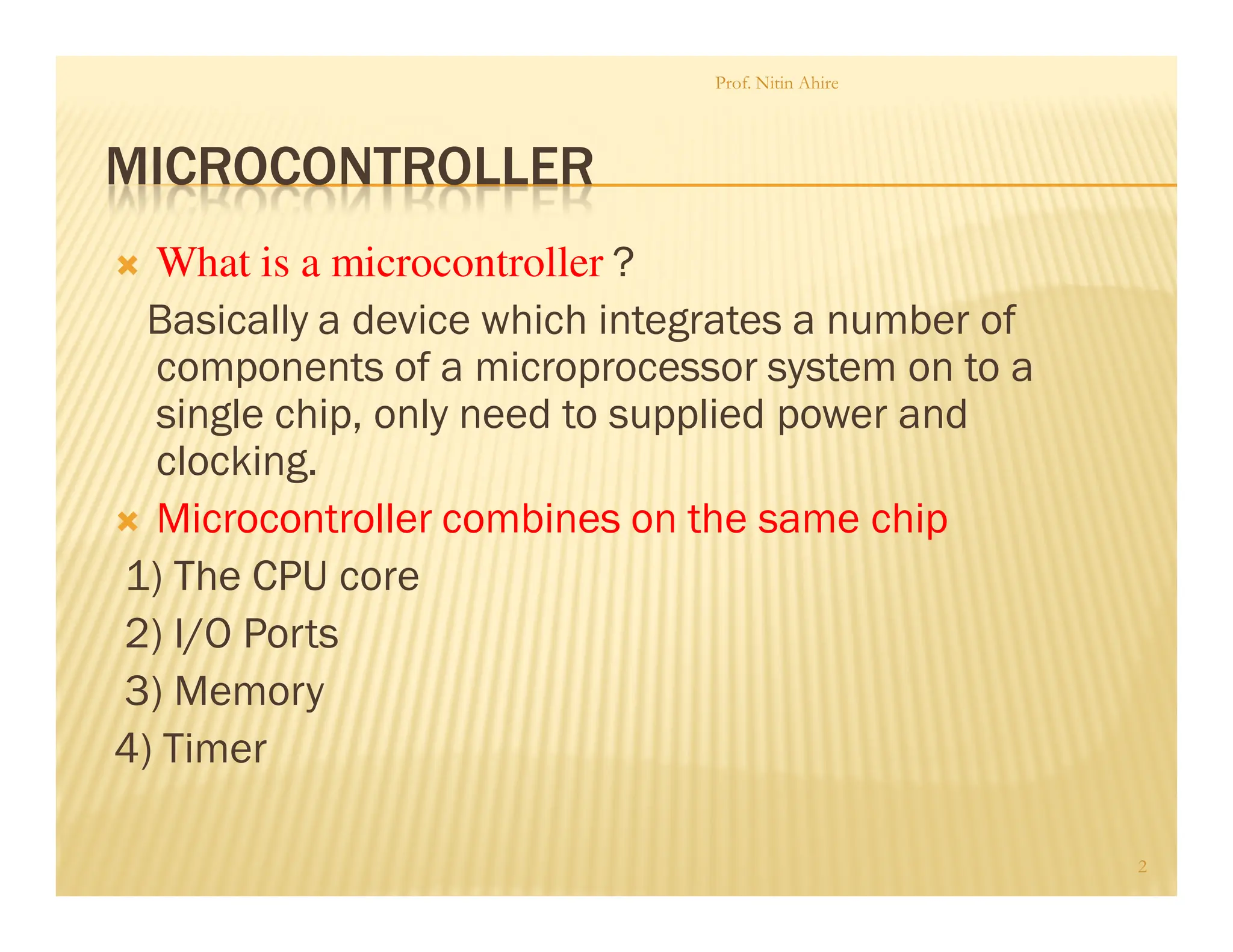

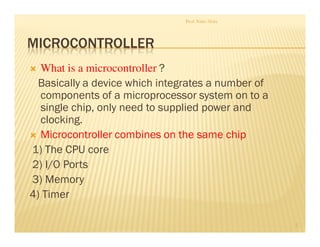

2. MICROCONTROLLER
What is a microcontroller ?
Basically a device which integrates a number of
components of a microprocessor system on to a
single chip, only need to supplied power and
clocking.
Microcontroller combines on the same chip
1) The CPU core
2) I/O Ports
3) Memory
4) Timer
Prof. Nitin Ahire
2

3. HISTORY
In 1981, Intel Corporation introduced an 8 bit
microcontroller called 8051.
It was also referred to as “ system on chip”
The 8051 is the original member of MCS-51
family
Other members of 8051
8031, 8052, 8751, AT89C51, etc
Prof. Nitin Ahire
3

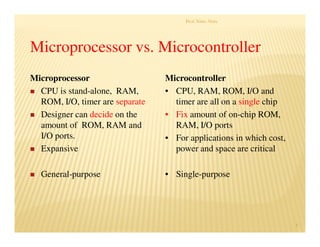

4. Prof. Nitin Ahire
4
Microprocessor
CPU is stand-alone, RAM,
ROM, I/O, timer are separate
Designer can decide on the
amount of ROM, RAM and
I/O ports.
Expansive
General-purpose
Microcontroller
• CPU, RAM, ROM, I/O and
timer are all on a single chip
• Fix amount of on-chip ROM,
RAM, I/O ports
• For applications in which cost,
power and space are critical
• Single-purpose
Microprocessor vs. Microcontroller

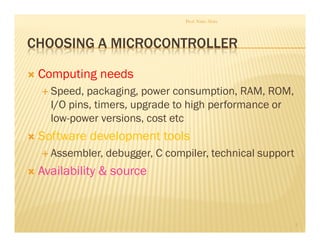

5. CHOOSING A MICROCONTROLLER
Computing needs
Speed, packaging, power consumption, RAM, ROM,
I/O pins, timers, upgrade to high performance or
low-power versions, cost etc
Software development tools
Assembler, debugger, C compiler, technical support
Availability source
Prof. Nitin Ahire
5

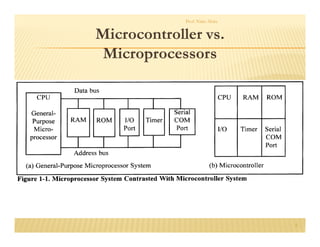

6. Prof. Nitin Ahire
6
Microcontroller vs.
Microcontroller vs.
Microprocessors
Microprocessors

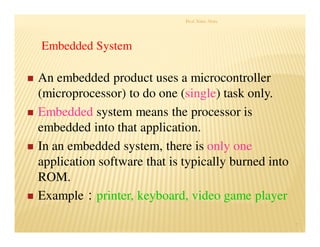

7. Prof. Nitin Ahire
7
An embedded product uses a microcontroller
(microprocessor) to do one (single) task only.
Embedded system means the processor is
embedded into that application.
In an embedded system, there is only one
application software that is typically burned into
ROM.
Example：printer, keyboard, video game player
Embedded System

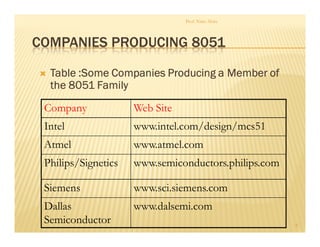

8. COMPANIES PRODUCING 8051
Table :Some Companies Producing a Member of
Table :Some Companies Producing a Member of
Table :Some Companies Producing a Member of
Table :Some Companies Producing a Member of
the 8051 Family
the 8051 Family
the 8051 Family
the 8051 Family
Company Web Site
Intel www.intel.com/design/mcs51
Atmel www.atmel.com
Philips/Signetics www.semiconductors.philips.com
Siemens www.sci.siemens.com
Dallas
Semiconductor
www.dalsemi.com
8
Prof. Nitin Ahire

9. 8051 FAMILY
Table :Comparison of 8051 Family Members
Table :Comparison of 8051 Family Members
Table :Comparison of 8051 Family Members
Table :Comparison of 8051 Family Members
Prof. Nitin Ahire
9
Feature
Feature 8051
8051 8052
8052 8031
8031
ROM (on chip program space in bytes)
ROM (on chip program space in bytes) 4K
4K 8K
8K 0K
0K
RAM (bytes)
RAM (bytes) 128
128 256
256 128
128
Timers
Timers 2
2 3
3 2
2
I/O pins
I/O pins 32
32 32
32 32
32
Serial port
Serial port 1
1 1
1 1
1
Interrupt sources
Interrupt sources 6
6 8
8 6
6

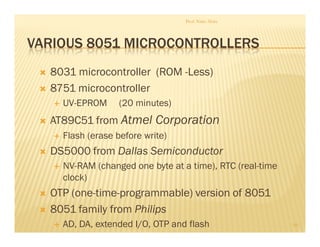

10. VARIOUS 8051 MICROCONTROLLERS
8031 microcontroller (ROM -Less)
8751 microcontroller
UV-EPROM (20 minutes)
AT89C51 from Atmel Corporation
Flash (erase before write)
DS5000 from Dallas Semiconductor
NV-RAM (changed one byte at a time), RTC (real-time
clock)
OTP (one-time-programmable) version of 8051
8051 family from Philips
AD, DA, extended I/O, OTP and flash
Prof. Nitin Ahire
10

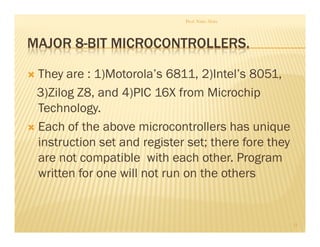

11. MAJOR 8-BIT MICROCONTROLLERS.
They are : 1)Motorola’s 6811, 2)Intel’s 8051,
3)Zilog Z8, and 4)PIC 16X from Microchip
Technology.
Each of the above microcontrollers has unique
instruction set and register set; there fore they
are not compatible with each other. Program
written for one will not run on the others
Prof. Nitin Ahire
11

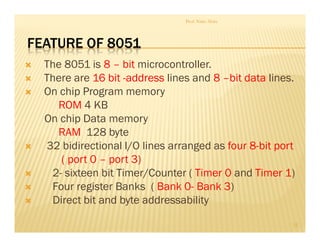

12. FEATURE OF 8051
The 8051 is 8 – bit microcontroller.
There are 16 bit -address lines and 8 –bit data lines.
On chip Program memory
ROM 4 KB
On chip Data memory
RAM 128 byte
32 bidirectional I/O lines arranged as four 8-bit port
( port 0 – port 3)
2- sixteen bit Timer/Counter ( Timer 0 and Timer 1)
Four register Banks ( Bank 0- Bank 3)
Direct bit and byte addressability
Prof. Nitin Ahire
12

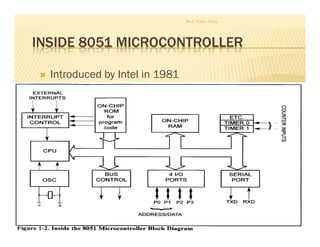

13. INSIDE 8051 MICROCONTROLLER
Introduced by Intel in 1981
13
Prof. Nitin Ahire

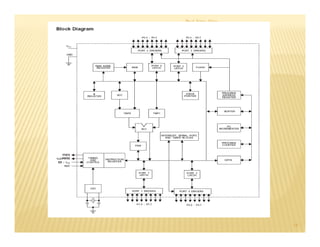

14. Prof. Nitin Ahire
14

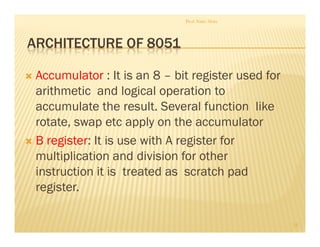

15. ARCHITECTURE OF 8051
Accumulator : It is an 8 – bit register used for
arithmetic and logical operation to
accumulate the result. Several function like
rotate, swap etc apply on the accumulator
B register: It is use with A register for
multiplication and division for other
instruction it is treated as scratch pad
register.
Prof. Nitin Ahire
15

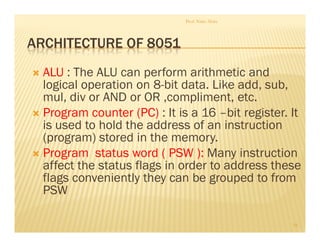

16. ARCHITECTURE OF 8051
ALU : The ALU can perform arithmetic and
logical operation on 8-bit data. Like add, sub,
mul, div or AND or OR ,compliment, etc.
Program counter (PC) : It is a 16 –bit register. It
is used to hold the address of an instruction
(program) stored in the memory.
Program status word ( PSW ): Many instruction
affect the status flags in order to address these
flags conveniently they can be grouped to from
PSW
Prof. Nitin Ahire
16

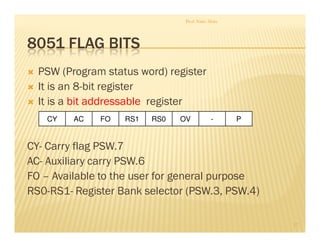

17. 8051 FLAG BITS
PSW (Program status word) register
It is an 8-bit register
It is a bit addressable register
CY- Carry flag PSW.7
AC- Auxiliary carry PSW.6
FO – Available to the user for general purpose
RS0-RS1- Register Bank selector (PSW.3, PSW.4)
Prof. Nitin Ahire
17
CY AC -
OV
RS0
RS1
FO P

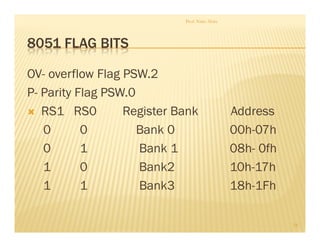

18. 8051 FLAG BITS
OV- overflow Flag PSW.2
P- Parity Flag PSW.0
RS1 RS0 Register Bank Address
0 0 Bank 0 00h-07h
0 1 Bank 1 08h- 0fh
1 0 Bank2 10h-17h
1 1 Bank3 18h-1Fh
Prof. Nitin Ahire
18

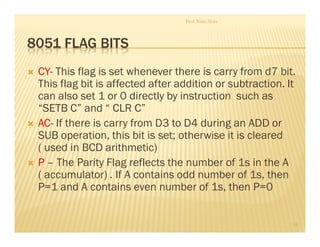

19. 8051 FLAG BITS
CY- This flag is set whenever there is carry from d7 bit.
This flag bit is affected after addition or subtraction. It
can also set 1 or 0 directly by instruction such as
“SETB C” and “ CLR C”
AC- If there is carry from D3 to D4 during an ADD or
SUB operation, this bit is set; otherwise it is cleared
( used in BCD arithmetic)
P – The Parity Flag reflects the number of 1s in the A
( accumulator) . If A contains odd number of 1s, then
P=1 and A contains even number of 1s, then P=0
Prof. Nitin Ahire
19

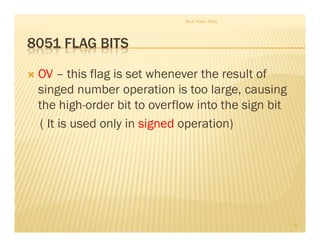

20. 8051 FLAG BITS
OV – this flag is set whenever the result of
singed number operation is too large, causing
the high-order bit to overflow into the sign bit
( It is used only in signed operation)
Prof. Nitin Ahire
20

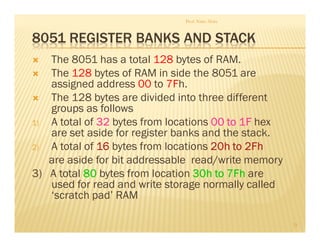

21. 8051 REGISTER BANKS AND STACK
The 8051 has a total 128 bytes of RAM.
The 128 bytes of RAM in side the 8051 are
assigned address 00 to 7Fh.
The 128 bytes are divided into three different
groups as follows
1) A total of 32
32
32
32 bytes from locations 00 to 1F
00 to 1F
00 to 1F
00 to 1F hex
are set aside for register banks and the stack.
2) A total of 16
16
16
16 bytes from locations 20h to 2Fh
20h to 2Fh
20h to 2Fh
20h to 2Fh
are aside for bit addressable read/write memory
3) A total 80
80
80
80 bytes from location 30h to 7Fh
30h to 7Fh
30h to 7Fh
30h to 7Fh are
used for read and write storage normally called
‘scratch pad’ RAM
Prof. Nitin Ahire
21

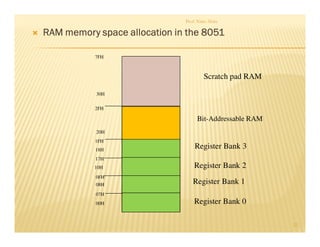

22. RAM memory space allocation in the
RAM memory space allocation in the
RAM memory space allocation in the
RAM memory space allocation in the 8051
8051
8051
8051
Prof. Nitin Ahire
22
7FH
30H
2FH
20H
1FH
17H
10H
0FH
07H
08H
18H
00H Register Bank 0
Register Bank 1
Register Bank 2
Register Bank 3
Bit-Addressable RAM
Scratch pad RAM

23. Prof. Nitin Ahire
23
Bank 0
Bank 2
Bank 1
Bank 3
00
01
02
03
04
05
06
07
08
09
0A
0B
0C
0D
0E
0F
78
79
7A
7B
7C
7D
7E
7F
00
1F
20
2F
30
7F
4 Reg. BANK 8 bytes each
32 bytes
Bit addressable RAM
16 bytes ( 80 bits)
General purpose RAM
80 bytes

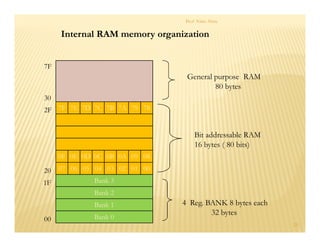

Internal RAM memory organization

24. REGISTER BANKS IN 8051
The 32 bytes of RAM are divided into 4 banks
of register in which each bank has 8 registers,
R0-R7. Bank 0 Bank 1 Bank 2
Bank3
Prof. Nitin Ahire
24
R7
R6
R5
R4
R3
R2
R1
R0
R7
R6
R5
R4
R3
R2
R1
R0
R7
R6
R5
R4
R3
R2
R1
R0
R7
R6
R5
R4
R3
R2
R1
R0

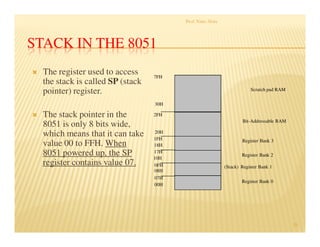

25. STACK IN THE 8051
The register used to access
the stack is called SP (stack
pointer) register.
The stack pointer in the
8051 is only 8 bits wide,
which means that it can take
value 00 to FFH. When
8051 powered up, the SP
register contains value 07.
Prof. Nitin Ahire
25
7FH
30H
2FH
20H
1FH
17H
10H
0FH
07H
08H
18H
00H
Register Bank 0
(Stack) Register Bank 1
Register Bank 2
Register Bank 3
Bit-Addressable RAM
Scratch pad RAM

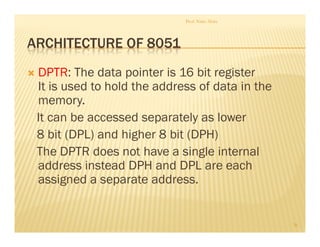

26. ARCHITECTURE OF 8051
DPTR: The data pointer is 16 bit register
It is used to hold the address of data in the
memory.
It can be accessed separately as lower
8 bit (DPL) and higher 8 bit (DPH)
The DPTR does not have a single internal
address instead DPH and DPL are each
assigned a separate address.
Prof. Nitin Ahire
26

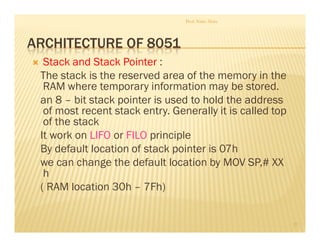

27. ARCHITECTURE OF 8051
Stack and Stack Pointer :
The stack is the reserved area of the memory in the
RAM where temporary information may be stored.
an 8 – bit stack pointer is used to hold the address
of most recent stack entry. Generally it is called top
of the stack
It work on LIFO or FILO principle
By default location of stack pointer is 07h
we can change the default location by MOV SP,# XX
h
( RAM location 30h – 7Fh)
Prof. Nitin Ahire
27

28. ARCHITECTURE OF 8051
SFR (Special Function Registers) :
SFR registers are placed in the address space
immediately above the 128 bytes of RAM,
from address 80h to FF h
The SFR memory consists of important
registers like A,B,PSW,PCON,TCON,TMOD etc
some registers are bit addressable while
remaining are byte addressable.
Prof. Nitin Ahire
28

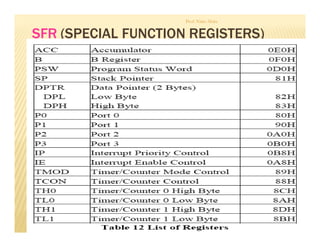

29. SFR (SPECIAL FUNCTION REGISTERS)
Prof. Nitin Ahire
29

30. ARCHITECTURE OF 8051
Some of the address i.e. locations in between
80h to FF h are not used if we try to used, then
we may get the unpredictable result like data
lost
The PC is not the part of SFR the PC does not
have an internal RAM address.
Prof. Nitin Ahire
30

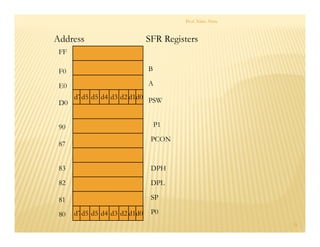

31. Prof. Nitin Ahire
31
A
80
81
82
87
90
FF
F0
E0
83
B
P0
SP
DPL
DPH
PCON
P1
PSW
D0
Address SFR Registers
d7d5 d5 d4 d3 d2 d1d0
d7d5 d5 d4 d3 d2 d1d0

32. HOW STACK ARE ACCESSED IN THE 8051
Pushing data on to the stack
Show the stack and stack pointer for the following
Assume default stack area
MOV R6,#25H ; copy number 25 in R6
MOV R1,#12H ; copy number 12 in R1
MOV R4,#0F3H ; copy number F3 in R4
PUSH 6
PUSH 1
PUSH 4
Prof. Nitin Ahire
32

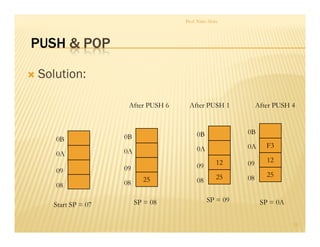

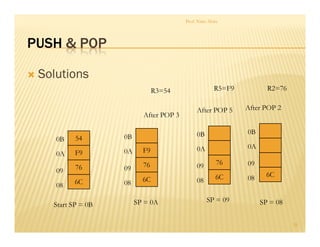

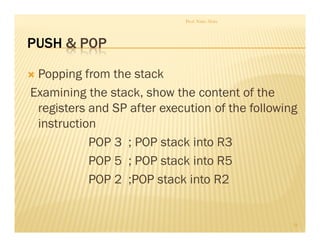

33. PUSH POP
Solution:
Prof. Nitin Ahire
33
08
09
0A
0B
Start SP = 07
25
08
09
0A
0B
SP = 08
25
12
08
09
0A
0B
SP = 09
25
F3
12
08
09
0A
0B
SP = 0A
After PUSH 6 After PUSH 1 After PUSH 4

34. PUSH POP
Popping from the stack
Examining the stack, show the content of the
registers and SP after execution of the following
instruction
POP 3 ; POP stack into R3
POP 5 ; POP stack into R5
POP 2 ;POP stack into R2
Prof. Nitin Ahire
34

35. PUSH POP
Solutions
Prof. Nitin Ahire
35
6C
54
F9
76
08
09
0A
0B
Start SP = 0B
6C
F9
76
08
09
0A
0B
SP = 0A
6C
76
08
09
0A
0B
SP = 09
6C
08
09
0A
0B
SP = 08
R3=54
After POP 5 After POP 2
After POP 3
R5=F9 R2=76

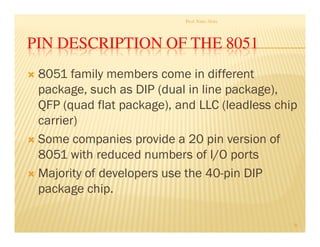

36. PIN DESCRIPTION OF THE 8051
8051 family members come in different
package, such as DIP (dual in line package),
QFP (quad flat package), and LLC (leadless chip
carrier)
Some companies provide a 20 pin version of
8051 with reduced numbers of I/O ports
Majority of developers use the 40-pin DIP
package chip.
Prof. Nitin Ahire
36

37. Prof. Nitin Ahire
37

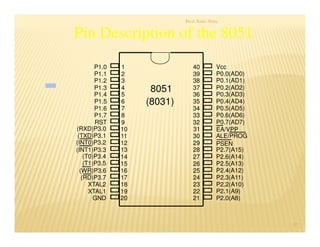

Pin Description of the
Pin Description of the 8051
8051
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
P1.0
P1.1
P1.2
P1.3
P1.4
P1.5
P1.6
P1.7
RST
(RXD)P3.0
(TXD)P3.1
(T0)P3.4
(T1)P3.5
XTAL2
XTAL1
GND
(INT0)P3.2
(INT1)P3.3
(RD)P3.7
(WR)P3.6
Vcc
P0.0(AD0)
P0.1(AD1)
P0.2(AD2)
P0.3(AD3)
P0.4(AD4)
P0.5(AD5)
P0.6(AD6)
P0.7(AD7)
EA/VPP
ALE/PROG
PSEN
P2.7(A15)
P2.6(A14)
P2.5(A13)
P2.4(A12)
P2.3(A11)
P2.2(A10)
P2.1(A9)
P2.0(A8)
8051
(8031)

38. Prof. Nitin Ahire
38

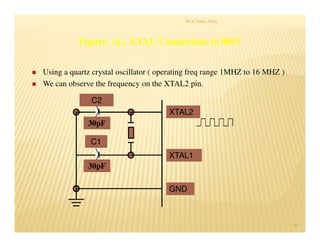

Figure (a). XTAL Connection to
Figure (a). XTAL Connection to 8051
8051
C2
30pF
C1
30pF
XTAL2
XTAL1
GND
Using a quartz crystal oscillator ( operating freq range 1MHZ to 16 MHZ )
We can observe the frequency on the XTAL2 pin.

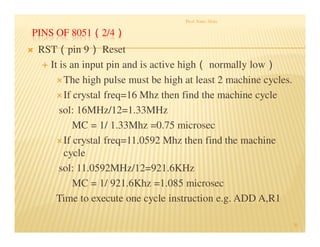

39. PINS OF 8051（2/4）
RST（pin 9） Reset
It is an input pin and is active high（ normally low）
The high pulse must be high at least 2 machine cycles.
If crystal freq=16 Mhz then find the machine cycle
sol: 16MHz/12=1.33MHz
MC = 1/ 1.33Mhz =0.75 microsec
If crystal freq=11.0592 Mhz then find the machine
cycle
sol: 11.0592MHz/12=921.6KHz
MC = 1/ 921.6Khz =1.085 microsec
Time to execute one cycle instruction e.g. ADD A,R1
Prof. Nitin Ahire
39

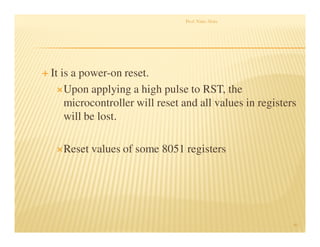

40. It is a power-on reset.
Upon applying a high pulse to RST, the
microcontroller will reset and all values in registers
will be lost.

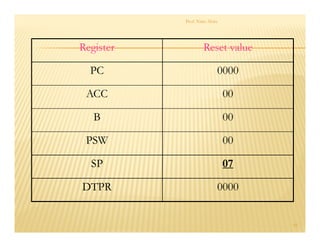

Reset values of some 8051 registers
Prof. Nitin Ahire
40

41. Register
Register Reset value
Reset value
PC
PC 0000
0000
ACC
ACC 00
00
B
B 00
00
PSW
PSW 00
00
SP
SP 07
07
DTPR
DTPR 0000
0000
41
Prof. Nitin Ahire

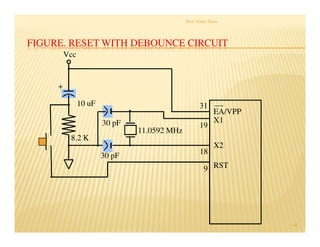

42. FIGURE. RESET WITH DEBOUNCE CIRCUIT
Prof. Nitin Ahire
42
30 pF
30 pF
8.2 K
10 uF
+
Vcc
11.0592 MHz
EA/VPP
X1
X2
RST
31
19
18
9

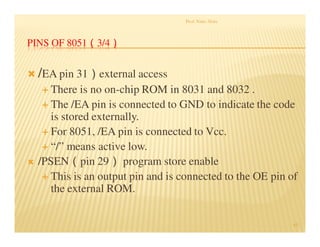

43. PINS OF 8051（3/4）
/EA pin 31）external access
There is no on-chip ROM in 8031 and 8032 .
The /EA pin is connected to GND to indicate the code
is stored externally.
For 8051, /EA pin is connected to Vcc.
“/” means active low.
/PSEN（pin 29） program store enable
This is an output pin and is connected to the OE pin of
the external ROM.
Prof. Nitin Ahire
43

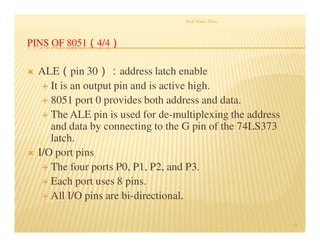

44. PINS OF 8051（4/4）
ALE（pin 30）：address latch enable
It is an output pin and is active high.
8051 port 0 provides both address and data.
The ALE pin is used for de-multiplexing the address
and data by connecting to the G pin of the 74LS373
latch.
I/O port pins
The four ports P0, P1, P2, and P3.
Each port uses 8 pins.
All I/O pins are bi-directional.
.
Prof. Nitin Ahire
44

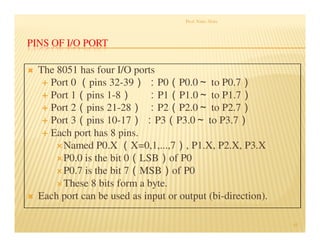

45. PINS OF I/O PORT
The 8051 has four I/O ports
Port 0 （pins 32-39） ：P0（P0.0～ to P0.7）
Port 1（pins 1-8） ：P1（P1.0～ to P1.7）
Port 2（pins 21-28） ：P2（P2.0～ to P2.7）
Port 3（pins 10-17） ：P3（P3.0～ to P3.7）
Each port has 8 pins.
Named P0.X （X=0,1,...,7）, P1.X, P2.X, P3.X
P0.0 is the bit 0（LSB）of P0
P0.7 is the bit 7（MSB）of P0
These 8 bits form a byte.
Each port can be used as input or output (bi-direction).
Prof. Nitin Ahire
45

46. Prof. Nitin Ahire
46
A Pin of Port
A Pin of Port 0
0
8051 IC
D Q
Clk Q
Read latch
Read pin
Write to latch
Internal CPU
bus
M1
P0.X
pin
P1.X
TB1
TB2
P1.x

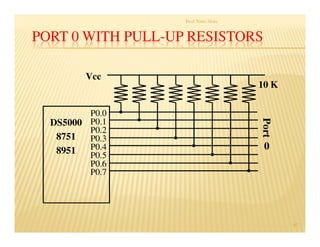

47. PORT 0 WITH PULL-UP RESISTORS
Prof. Nitin Ahire
47
P0.0
P0.1
P0.2
P0.3
P0.4
P0.5
P0.6
P0.7
DS5000
8751
8951
Vcc
10 K
Port
0

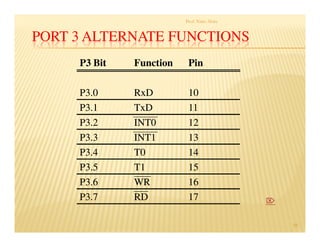

48. PORT 3 ALTERNATE FUNCTIONS
Prof. Nitin Ahire
48
17
17
RD
RD
P
P3
3.
.7
7
16
16
WR
WR
P
P3
3.
.6
6
15
15
T
T1
1
P
P3
3.
.5
5
14
14
T
T0
0
P
P3
3.
.4
4
13
13
INT
INT1
1
P
P3
3.
.3
3
12
12
INT
INT0
0
P3.2
P3.2
11
11
TxD
TxD
P
P3
3.
.1
1
10
10
RxD
RxD
P
P3
3.
.0
0
Pin
Pin
Function
Function
P
P3
3 Bit
Bit

