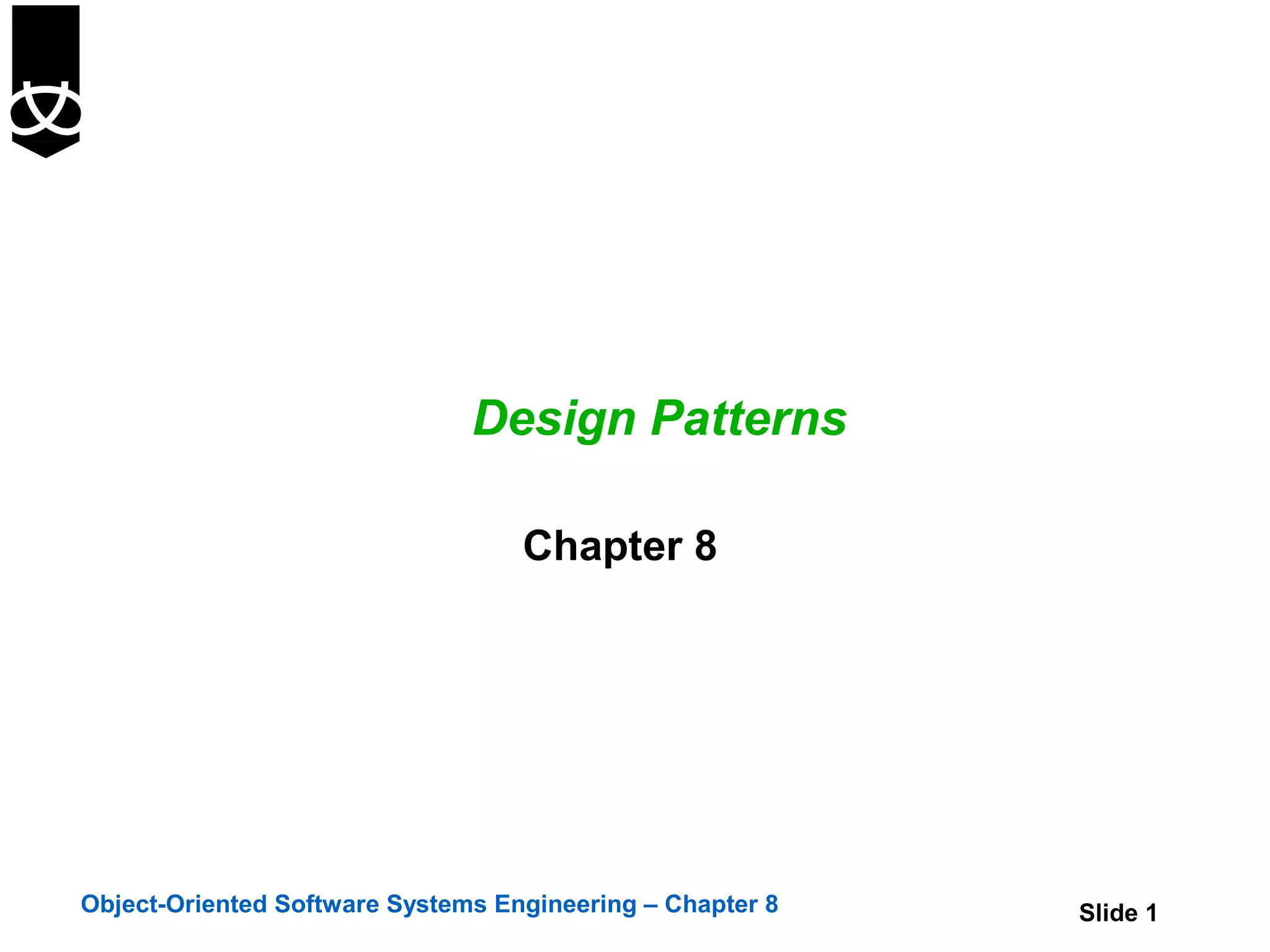

- 1. Design Patterns Chapter 8 Object-Oriented Software Systems Engineering – Chapter 8 Slide 1
- 2. Objectives In thischapter we will: Discuss why software design patterns evolved Define and describe a software design pattern Describe fundamental patterns (GRASP patterns) Object-Oriented Software Systems Engineering – Chapter 8 Slide 2
- 3. Design Patterns –An Introduction Objectives Understand why software design patterns evolved Define and describe a software design pattern Describe fundamental patterns (GRASP patterns) Object-Oriented Software Systems Engineering – Chapter 8 Slide 3

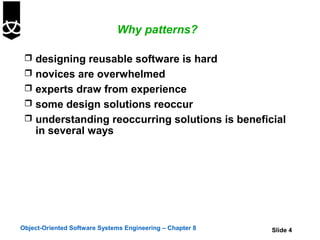

- 4. Why patterns? designing reusable software is hard novices are overwhelmed experts draw from experience some design solutions reoccur understanding reoccurring solutions is beneficial in several ways Object-Oriented Software Systems Engineering – Chapter 8 Slide 4

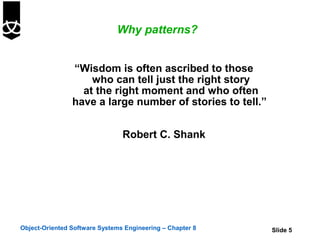

- 5. Why patterns? “Wisdom is often ascribed to those who can tell just the right story at the right moment and who often have a large number of stories to tell.” Robert C. Shank Object-Oriented Software Systems Engineering – Chapter 8 Slide 5

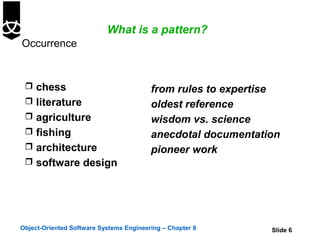

- 6. What is apattern? Occurrence chess from rules to expertise literature oldest reference agriculture wisdom vs. science fishing anecdotal documentation architecture pioneer work software design Object-Oriented Software Systems Engineering – Chapter 8 Slide 6

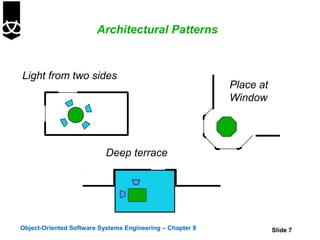

- 7. Architectural Patterns Light fromtwo sides Place at Window Deep terrace Object-Oriented Software Systems Engineering – Chapter 8 Slide 7

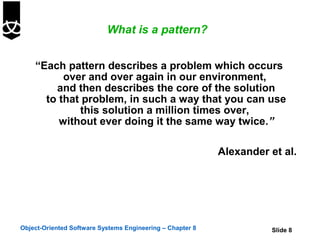

- 8. What is apattern? “Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem, in such a way that you can use this solution a million times over, without ever doing it the same way twice.” Alexander et al. Object-Oriented Software Systems Engineering – Chapter 8 Slide 8

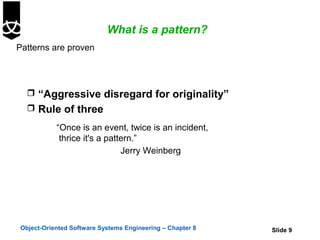

- 9. What is apattern? Patterns are proven “Aggressive disregard for originality” Rule of three “Once is an event, twice is an incident, thrice it's a pattern.” Jerry Weinberg Object-Oriented Software Systems Engineering – Chapter 8 Slide 9

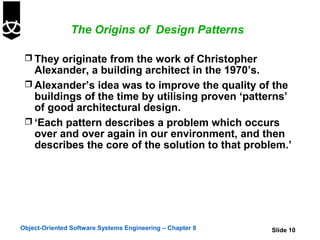

- 10. The Origins ofDesign Patterns They originate from the work of Christopher Alexander, a building architect in the 1970’s. Alexander’s idea was to improve the quality of the buildings of the time by utilising proven ‘patterns’ of good architectural design. ‘Each pattern describes a problem which occurs over and over again in our environment, and then describes the core of the solution to that problem.’ Object-Oriented Software Systems Engineering – Chapter 8 Slide 10
- 11. From Buildings toSoftware Alexander’s work ‘discovered’ by Kent Beck and friends in the 1980’s. They applied Alexander’s ideas about constructing buildings to the building of software. Patterns are found in all areas of computing, from user interface design, the writing of device drivers to the use of databases. Object-Oriented Software Systems Engineering – Chapter 8 Slide 11
- 12. What is asoftware pattern? proven software practice piece of literature building block possible abstraction levels: language construct idiom design pattern architectural pattern Object-Oriented Software Systems Engineering – Chapter 8 Slide 12

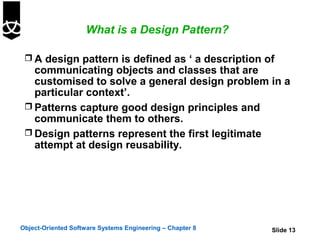

- 13. What is aDesign Pattern? A design pattern is defined as ‘ a description of communicating objects and classes that are customised to solve a general design problem in a particular context’. Patterns capture good design principles and communicate them to others. Design patterns represent the first legitimate attempt at design reusability. Object-Oriented Software Systems Engineering – Chapter 8 Slide 13

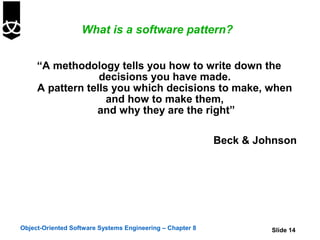

- 14. What is asoftware pattern? “A methodology tells you how to write down the decisions you have made. A pattern tells you which decisions to make, when and how to make them, and why they are the right” Beck & Johnson Object-Oriented Software Systems Engineering – Chapter 8 Slide 14
- 15. GRASP Patterns General Responsibility Assigning Software Patterns Five patterns Expert Creator High Cohesion Low coupling Controller Object-Oriented Software Systems Engineering – Chapter 8 Slide 15

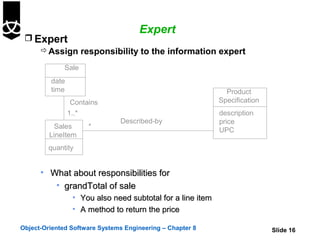

- 16. Expert Expert Assign responsibility to the information expert Sale date time Product Contains Specification 1..* description Described-by price Sales * UPC LineItem quantity • What about responsibilities for • grandTotal of sale • You also need subtotal for a line item • A method to return the price Object-Oriented Software Systems Engineering – Chapter 8 Slide 16

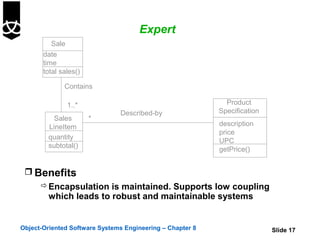

- 17. Expert Sale date time total sales() Contains 1..* Product Described-by Specification Sales * LineItem description price quantity UPC subtotal() getPrice() Benefits Encapsulation is maintained. Supports low coupling which leads to robust and maintainable systems Object-Oriented Software Systems Engineering – Chapter 8 Slide 17

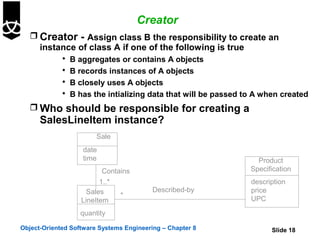

- 18. Creator Creator - Assign class B the responsibility to create an instance of class A if one of the following is true B aggregates or contains A objects B records instances of A objects B closely uses A objects B has the intializing data that will be passed to A when created Who should be responsible for creating a SalesLineItem instance? Sale date time Product Contains Specification 1..* description Sales Described-by price * LineItem UPC quantity Object-Oriented Software Systems Engineering – Chapter 8 Slide 18

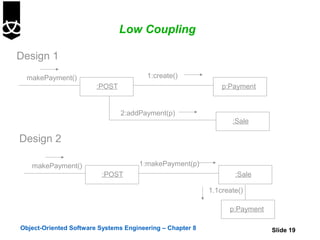

- 19. Low Coupling Design 1 makePayment() 1:create() :POST p:Payment 2:addPayment(p) :Sale Design 2 makePayment() 1:makePayment(p) :POST :Sale 1.1create() p:Payment Object-Oriented Software Systems Engineering – Chapter 8 Slide 19
- 20. High Coupling Design 1 Sale Payment date 1 Paid-by 1 Time amount payment getAmount() 1 totalSales() addPayment(p) Captures makeLineItem(i,q) 1 Post sale.makeLineItem(item,qty) sale endSale() Payment p = new enterItem(item,qty) Payment(cash); makePayment(cash) sale.addPayment(p); Object-Oriented Software Systems Engineering – Chapter 8 Slide 20

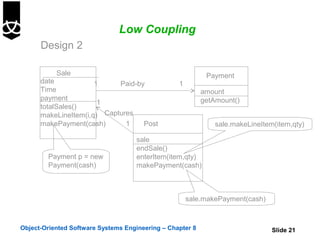

- 21. Low Coupling Design 2 Sale Payment date 1 Paid-by 1 Time amount payment getAmount() 1 totalSales() makeLineItem(i,q) Captures makePayment(cash) 1 Post sale.makeLineItem(item,qty) sale endSale() Payment p = new enterItem(item,qty) Payment(cash) makePayment(cash) sale.makePayment(cash) Object-Oriented Software Systems Engineering – Chapter 8 Slide 21
- 22. High Cohesion Same example can be analysed from point of view of high cohesion (functional cohesion) Design two is better Object-Oriented Software Systems Engineering – Chapter 8 Slide 22
- 23. Controller Assignresponsibility for handling a system event messages Usually assigned to a controller Logically the controller should not be a “window”, “Frame”, “applet”, “application” e.t.c. these classes just handle the events and delegate them to a controller. In practice view and control may be embedded in a single element known as a UI delegate (MVC architecture) endSale(), enterItem() & makePayment() are embedded into the POST class Object-Oriented Software Systems Engineering – Chapter 8 Slide 23
- 24. Design Patterns: Essentials Patterns are found through trial and error and by observation. In general a design pattern has four essential elements: The pattern name The problem the pattern is used to solve The solution or template for implementing the pattern The consequences or results of applying the pattern. Object-Oriented Software Systems Engineering – Chapter 8 Slide 24

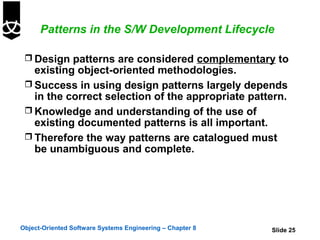

- 25. Patterns in theS/W Development Lifecycle Design patterns are considered complementary to existing object-oriented methodologies. Success in using design patterns largely depends in the correct selection of the appropriate pattern. Knowledge and understanding of the use of existing documented patterns is all important. Therefore the way patterns are catalogued must be unambiguous and complete. Object-Oriented Software Systems Engineering – Chapter 8 Slide 25
- 26. The ‘Gang ofFour’ The most widely known work on design patterns is that of Gamma, Helm, Johnson and Vlissides . ‘The gang of four’ as they are commonly referred to. Their book ‘Design Patterns: Elements of Reusable Object-Oriented Software’ was published in 1994. It contains a description of the concepts of patterns, plus a catalog of 23 design patterns with their full documentation. Object-Oriented Software Systems Engineering – Chapter 8 Slide 26

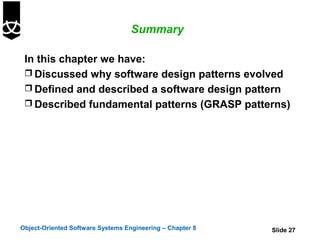

- 27. Summary In thischapter we have: Discussed why software design patterns evolved Defined and described a software design pattern Described fundamental patterns (GRASP patterns) Object-Oriented Software Systems Engineering – Chapter 8 Slide 27
