This document contains building plans and specifications for a two-story home extension that includes a low-level boxing foundation, stairs, and dormer windows. The stairs will have 12 risers at 200mm and 11 goings at 263mm with handrails between 900-1100mm high. The dormer windows will have a warm deck roof construction. The roof will be covered with clay tiles to match the existing home and have uPVC windows and doors with minimum U-values of 1.6 and 1.8 respectively.

1. Scale 1:25
0 1000 2000500 1500 2500
LOW LEVEL BOXING
SVP
LOWLEVELBOXING
Foundations to suit ground conditions
and to building controls agreement.
STAIRS
12 risers @ 200mm
11 going @ 263mm
Handrails to be no less than 900mm or
more than 1100mm high.
Ensure that at no point between
balustrades that a 100mm sphere could
pass through. And that there are no points
of horizontal guarding that a child could
climb on
2235
2355
1100
For roof make up see notes on 7545/102
Note:
Roof to be covered with Marley Eternit
Acme Double Camber plain clay tiles to
match existing.
All dormer windows to be flat roof warm
deck construction
Gutter, fasia and sofit are to be timber.
Style to match existing on main house
New finished floor level
New CG90/100 Catnic lintel
above door opening
New white uPVC double glazed
windows to match existing windows in
make and style
New white uPVC double glazed
patio doors to match existing doors
and windows in make and style
Note:
minimum U-value of new
windows to be 1.6W/m2K
And doors to be 1.8W/m2K
Horizontal timber cladding
Breather membrane to be kept
continuous using Tyvek sealing tape
(or similar approved).
Ensure Alumaflex insulation
meets with dormer roof insulation.
25mm Kingspan Thermaroof TR27 LPC/FM
over 40mm Kingspan OPTIM-R dormer system.
Sealed soffit
Lead apron flashing
Single ply membrane
Firring piece nominal fall
0
Scale 1:10
200 800400 600 1000
THIS DRAWING IS COPYRIGHT AND MUST
NOT BE REPRODUCED WITHOUT PRIOR
CONSENT. FIGURED DIMENSIONS TO BE
USED ONLY. DO NOT SCALE. SITE
DIMENSIONS TO BE CHECKED / VERIFIED
BEFORE WORK IS COMMENCED.
NOTES:

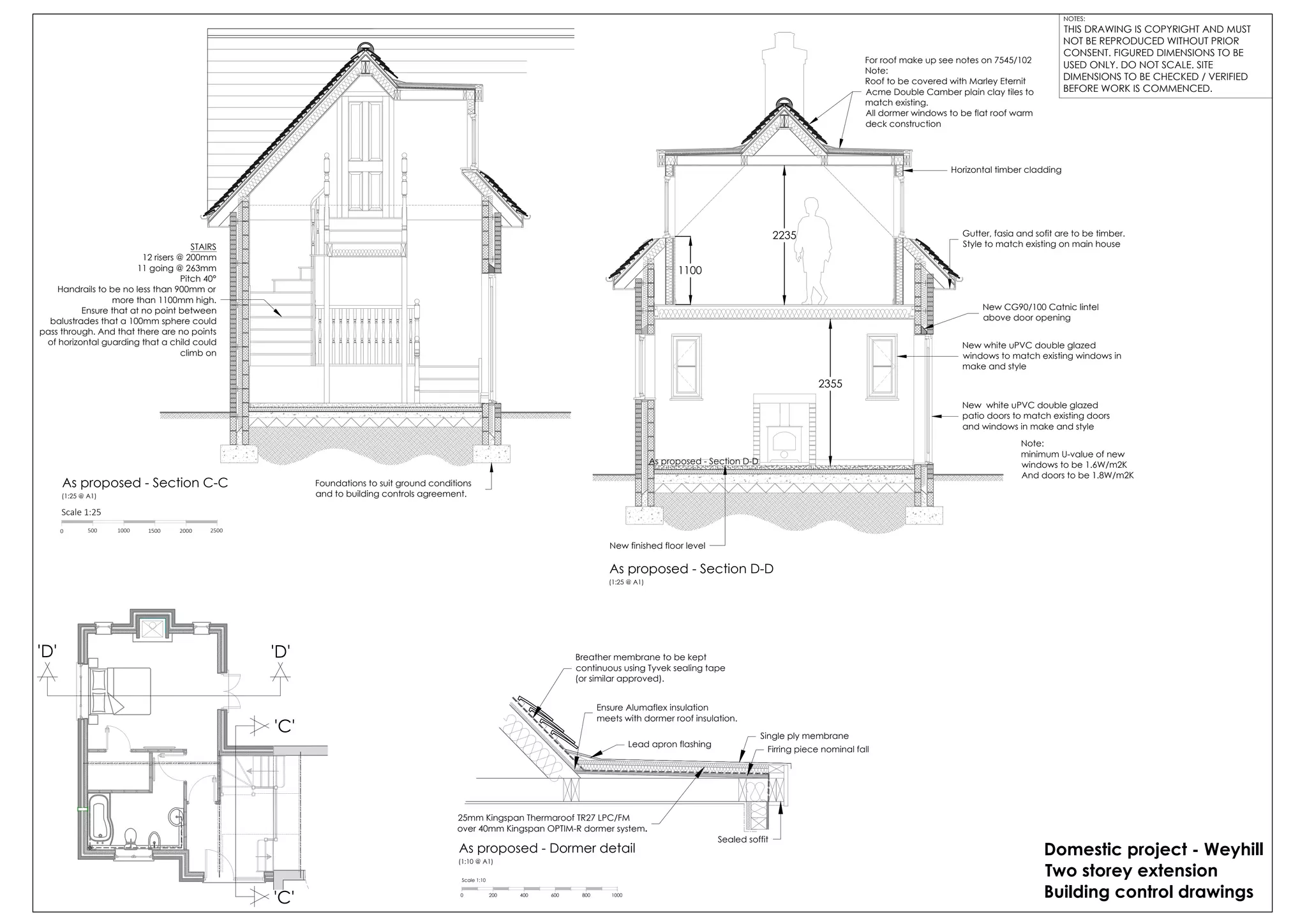

As proposed - Section C-C
(1:25 @ A1)
'D''D'
'C'
'C'
As proposed - Section D-D
As proposed - Section D-D
(1:25 @ A1)
As proposed - Dormer detail
(1:10 @ A1)
Domestic project - Weyhill
Two storey extension
Building control drawings
