1. 3F4 Error Control Coding
Dr. I. J. Wassell

2. Introduction
• Error Control Coding (ECC)
– Extra bits are added to the data at the
transmitter (redundancy) to permit error
detection or correction at the receiver
– Done to prevent the output of erroneous bits
despite noise and other imperfections in the
channel
– The positions of the error control coding and
decoding are shown in the transmission model

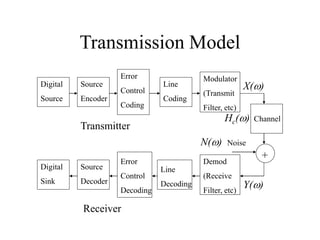

3. Transmission Model
Digital
Source
Source
Encoder
Error
Control
Coding
Line
Coding
Modulator
(Transmit
Filter, etc)
Channel
Noise
Digital
Sink
Source
Decoder
Error
Control
Decoding
Line
Decoding
Demod
(Receive
Filter, etc)
+
Transmitter
Receiver
X(w)
Hc(w)
N(w)
Y(w)

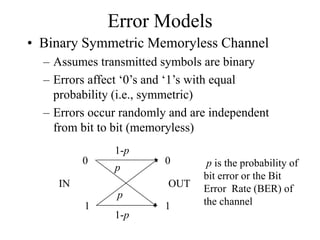

4. Error Models
• Binary Symmetric Memoryless Channel
– Assumes transmitted symbols are binary
– Errors affect ‘0’s and ‘1’s with equal
probability (i.e., symmetric)
– Errors occur randomly and are independent
from bit to bit (memoryless)
IN OUT
0 0
1 1
1-p
1-p
p
p
p is the probability of
bit error or the Bit
Error Rate (BER) of
the channel

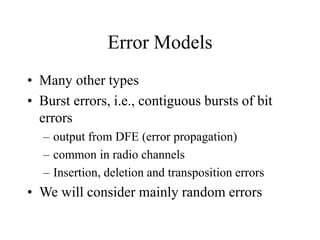

5. Error Models
• Many other types
• Burst errors, i.e., contiguous bursts of bit
errors
– output from DFE (error propagation)
– common in radio channels
– Insertion, deletion and transposition errors
• We will consider mainly random errors

6. Error Control Techniques
• Error detection in a block of data
– Can then request a retransmission, known as
automatic repeat request (ARQ) for sensitive
data
– Appropriate for
• Low delay channels
• Channels with a return path
– Not appropriate for delay sensitive data, e.g.,
real time speech and data

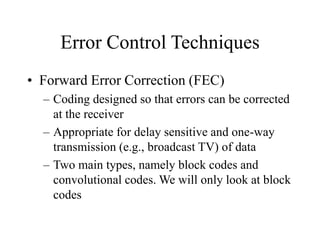

7. Error Control Techniques
• Forward Error Correction (FEC)
– Coding designed so that errors can be corrected
at the receiver
– Appropriate for delay sensitive and one-way
transmission (e.g., broadcast TV) of data
– Two main types, namely block codes and
convolutional codes. We will only look at block
codes

8. Block Codes
• We will consider only binary data
• Data is grouped into blocks of length k bits
(dataword)
• Each dataword is coded into blocks of
length n bits (codeword), where in general
n>k
• This is known as an (n,k) block code

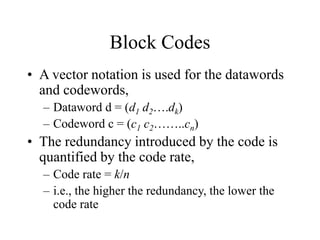

9. Block Codes
• A vector notation is used for the datawords
and codewords,
– Dataword d = (d1 d2….dk)
– Codeword c = (c1 c2……..cn)
• The redundancy introduced by the code is
quantified by the code rate,
– Code rate = k/n
– i.e., the higher the redundancy, the lower the
code rate

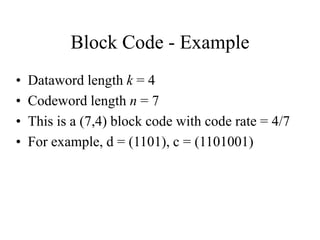

10. Block Code - Example
• Dataword length k = 4
• Codeword length n = 7
• This is a (7,4) block code with code rate = 4/7
• For example, d = (1101), c = (1101001)

11. Error Control Process
1000
1000
101101
Source code
data chopped
into blocks Channel
coder
Codeword
(n bits)
Dataword
(k bits)
Channel
Codeword +
possible errors
(n bits)
Channel
decoder
Dataword
(k bits)
Error flags

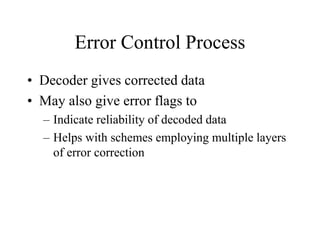

12. Error Control Process
• Decoder gives corrected data
• May also give error flags to
– Indicate reliability of decoded data
– Helps with schemes employing multiple layers
of error correction

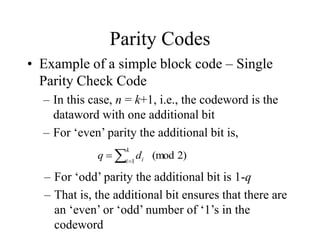

13. Parity Codes
• Example of a simple block code – Single
Parity Check Code
– In this case, n = k+1, i.e., the codeword is the
dataword with one additional bit
– For ‘even’ parity the additional bit is,


k
i i
d
q 1
2)
(mod
– For ‘odd’ parity the additional bit is 1-q
– That is, the additional bit ensures that there are
an ‘even’ or ‘odd’ number of ‘1’s in the
codeword

14. Parity Codes – Example 1
• Even parity
(i) d=(10110) so,
c=(101101)
(ii) d=(11011) so,
c=(110110)

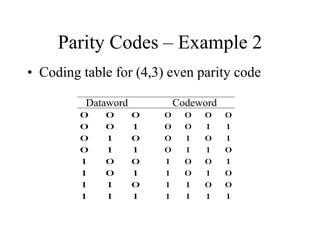

15. Parity Codes – Example 2
• Coding table for (4,3) even parity code
Dataword Codeword
1
1
1
0
1
1
1
0
1
0
0
1
1
1
0
0
1
0
1
0
0
0
0
0
1
1
1
1
0
0
1
1
0
1
0
1
1
0
0
1
0
1
1
0
1
0
1
0
1
1
0
0
0
0
0
0

16. Parity Codes
• To decode
– Calculate sum of received bits in block (mod 2)
– If sum is 0 (1) for even (odd) parity then the dataword is the
first k bits of the received codeword
– Otherwise error
• Code can detect single errors
• But cannot correct error since the error could be in
any bit
• For example, if the received dataword is (100000) the
transmitted dataword could have been (000000) or
(110000) with the error being in the first or second
place respectively
• Note error could also lie in other positions including
the parity bit

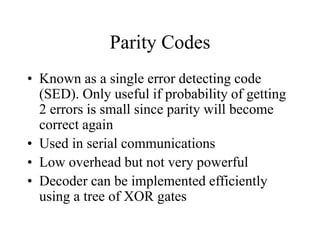

17. Parity Codes
• Known as a single error detecting code
(SED). Only useful if probability of getting
2 errors is small since parity will become
correct again
• Used in serial communications
• Low overhead but not very powerful
• Decoder can be implemented efficiently
using a tree of XOR gates

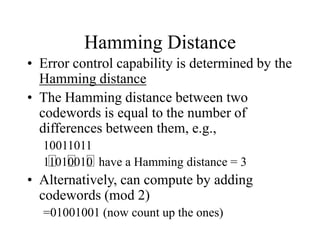

18. Hamming Distance
• Error control capability is determined by the
Hamming distance
• The Hamming distance between two
codewords is equal to the number of
differences between them, e.g.,
10011011
11010010 have a Hamming distance = 3
• Alternatively, can compute by adding
codewords (mod 2)
=01001001 (now count up the ones)

19. Hamming Distance
• The Hamming distance of a code is equal to
the minimum Hamming distance between
two codewords
• If Hamming distance is:
1 – no error control capability; i.e., a single error
in a received codeword yields another valid
codeword
XXXXXXX X is a valid codeword
Note that this representation is diagrammatic
only.
In reality each codeword is surrounded by n
codewords. That is, one for every bit that
could be changed

20. Hamming Distance
• If Hamming distance is:
2 – can detect single errors (SED); i.e., a single
error will yield an invalid codeword
XOXOXO X is a valid codeword
O in not a valid codeword
See that 2 errors will yield a valid (but
incorrect) codeword

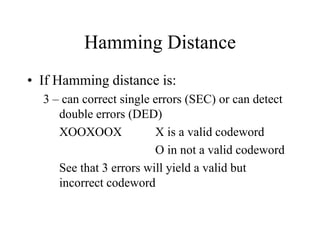

21. Hamming Distance
• If Hamming distance is:
3 – can correct single errors (SEC) or can detect
double errors (DED)
XOOXOOX X is a valid codeword
O in not a valid codeword
See that 3 errors will yield a valid but
incorrect codeword

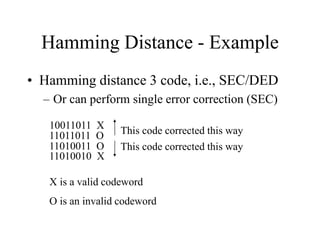

22. Hamming Distance - Example
• Hamming distance 3 code, i.e., SEC/DED
– Or can perform single error correction (SEC)
10011011 X
11011011 O
11010011 O
11010010 X
This code corrected this way
This code corrected this way
X is a valid codeword
O is an invalid codeword

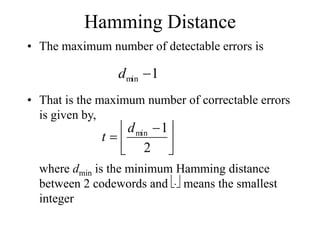

23. Hamming Distance
• The maximum number of detectable errors is
• That is the maximum number of correctable errors
is given by,
where dmin is the minimum Hamming distance
between 2 codewords and means the smallest
integer





 

2
1
min
d
t

.
1
min 
d

24. Linear Block Codes
• As seen from the second Parity Code
example, it is possible to use a table to hold
all the codewords for a code and to look-up
the appropriate codeword based on the
supplied dataword
• Alternatively, it is possible to create
codewords by addition of other codewords.
This has the advantage that there is now no
longer the need to held every possible
codeword in the table.

25. Linear Block Codes
• If there are k data bits, all that is required is to
hold k linearly independent codewords, i.e., a set
of k codewords none of which can be produced by
linear combinations of 2 or more codewords in the
set.
• The easiest way to find k linearly independent
codewords is to choose those which have ‘1’ in
just one of the first k positions and ‘0’ in the other
k-1 of the first k positions.

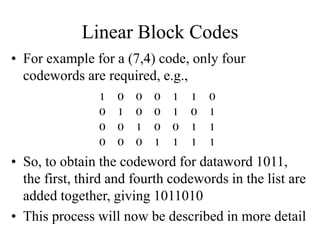

26. Linear Block Codes
• For example for a (7,4) code, only four
codewords are required, e.g.,
1
1
1
1
0
0
0
1
1
0
0
1
0
0
1
0
1
0
0
1
0
0
1
1
0
0
0
1
• So, to obtain the codeword for dataword 1011,
the first, third and fourth codewords in the list are
added together, giving 1011010
• This process will now be described in more detail

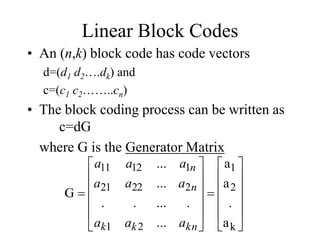

27. Linear Block Codes
• An (n,k) block code has code vectors
d=(d1 d2….dk) and
c=(c1 c2……..cn)
• The block coding process can be written as
c=dG
where G is the Generator Matrix


























k
2
1
2
1
2
22
21
1
12
11
a
.
a
a
...
.
...
.
.
...
...
G
kn
k
k
n
n
a
a
a
a
a
a
a
a
a

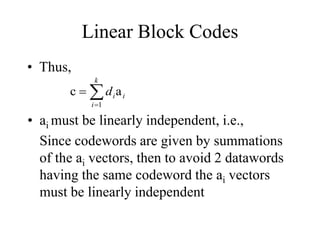

28. Linear Block Codes
• Thus,



k
i
i
i
d
1
a
c
• ai must be linearly independent, i.e.,
Since codewords are given by summations
of the ai vectors, then to avoid 2 datawords
having the same codeword the ai vectors
must be linearly independent

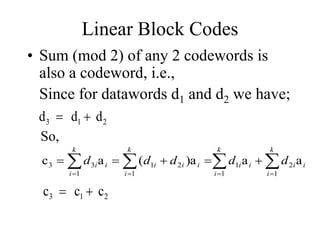

29. Linear Block Codes
• Sum (mod 2) of any 2 codewords is
also a codeword, i.e.,
Since for datawords d1 and d2 we have;
2
1
3 d
d
d 




 








k
i
i
i
k
i
i
i
k
i
i
i
i
k
i
i
i d
d
d
d
d
1
2
1
1
1
2
1
1
3
3 a
a
)a
(
a
c
So,
2
1
3 c
c
c 


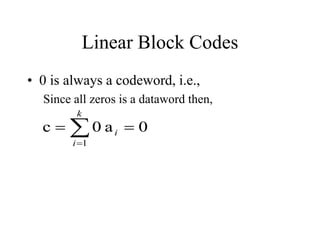

30. Linear Block Codes
• 0 is always a codeword, i.e.,
Since all zeros is a dataword then,
0
a
0
c
1

 

k
i
i

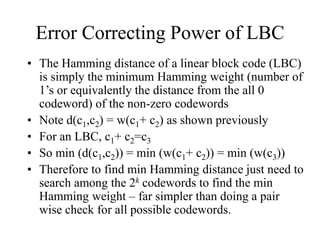

31. Error Correcting Power of LBC
• The Hamming distance of a linear block code (LBC)
is simply the minimum Hamming weight (number of
1’s or equivalently the distance from the all 0
codeword) of the non-zero codewords
• Note d(c1,c2) = w(c1+ c2) as shown previously
• For an LBC, c1+ c2=c3
• So min (d(c1,c2)) = min (w(c1+ c2)) = min (w(c3))
• Therefore to find min Hamming distance just need to
search among the 2k codewords to find the min
Hamming weight – far simpler than doing a pair
wise check for all possible codewords.

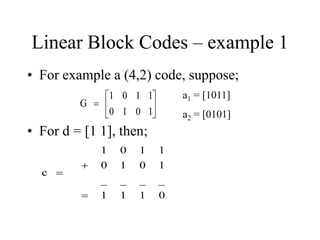

32. Linear Block Codes – example 1
• For example a (4,2) code, suppose;







1
0
1
0
1
1
0
1
G
• For d = [1 1], then;
0
1
1
1
_
_
_
_
1
0
1
0
1
1
0
1
c



a1 = [1011]
a2 = [0101]

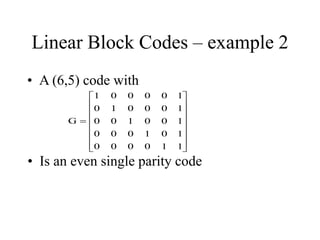

33. Linear Block Codes – example 2
• A (6,5) code with

















1
1
0
0
0
0
1
0
1
0
0
0
1
0
0
1
0
0
1
0
0
0
1
0
1
0
0
0
0
1
G
• Is an even single parity code

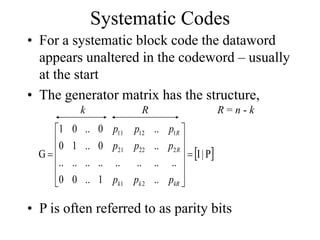

34. Systematic Codes
• For a systematic block code the dataword
appears unaltered in the codeword – usually
at the start
• The generator matrix has the structure,
 
P
|
I
..
1
..
0
0
..
..
..
..
..
..
..
..
..
0
..
1
0
..
0
..
0
1
G
2
1
2
22
21
1
12
11














kR
k
k
R
R
p
p
p
p
p
p
p
p
p
k R R = n - k
• P is often referred to as parity bits

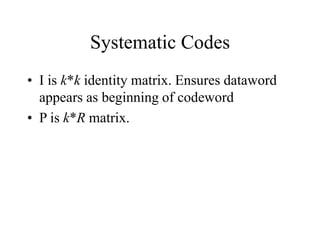

35. Systematic Codes
• I is k*k identity matrix. Ensures dataword
appears as beginning of codeword
• P is k*R matrix.

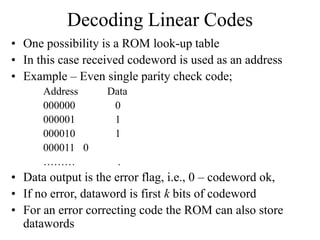

36. Decoding Linear Codes
• One possibility is a ROM look-up table
• In this case received codeword is used as an address
• Example – Even single parity check code;
Address Data
000000 0
000001 1
000010 1
000011 0
……… .
• Data output is the error flag, i.e., 0 – codeword ok,
• If no error, dataword is first k bits of codeword
• For an error correcting code the ROM can also store
datawords

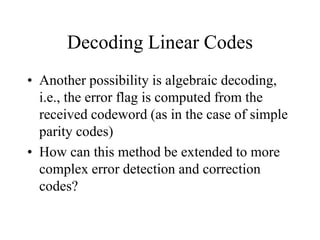

37. Decoding Linear Codes
• Another possibility is algebraic decoding,
i.e., the error flag is computed from the
received codeword (as in the case of simple
parity codes)
• How can this method be extended to more
complex error detection and correction
codes?

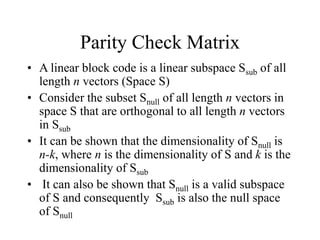

38. Parity Check Matrix
• A linear block code is a linear subspace Ssub of all
length n vectors (Space S)
• Consider the subset Snull of all length n vectors in
space S that are orthogonal to all length n vectors
in Ssub
• It can be shown that the dimensionality of Snull is
n-k, where n is the dimensionality of S and k is the
dimensionality of Ssub
• It can also be shown that Snull is a valid subspace
of S and consequently Ssub is also the null space
of Snull

39. Parity Check Matrix
• Snull can be represented by its basis vectors. In this
case the generator basis vectors (or ‘generator
matrix’ H) denote the generator matrix for Snull - of
dimension n-k = R
• This matrix is called the parity check matrix of the
code defined by G, where G is obviously the
generator matrix for Ssub- of dimension k
• Note that the number of vectors in the basis
defines the dimension of the subspace

40. Parity Check Matrix
• So the dimension of H is n-k (= R) and all vectors
in the null space are orthogonal to all the vectors
of the code
• Since the rows of H, namely the vectors bi are
members of the null space they are orthogonal to
any code vector
• So a vector y is a codeword only if yHT=0
• Note that a linear block code can be specified by
either G or H

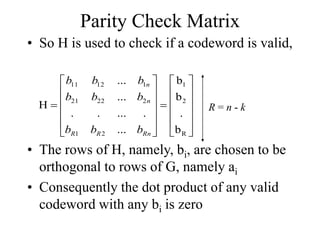

41. Parity Check Matrix
• So H is used to check if a codeword is valid,


























R
2
1
2
1
2
22
21
1
12
11
b
.
b
b
...
.
...
.
.
...
...
H
Rn
R
R
n
n
b
b
b
b
b
b
b
b
b
R = n - k
• The rows of H, namely, bi, are chosen to be
orthogonal to rows of G, namely ai
• Consequently the dot product of any valid
codeword with any bi is zero

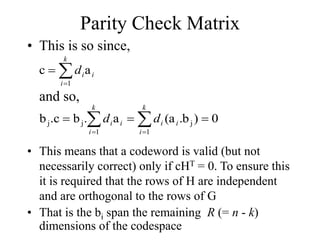

42. Parity Check Matrix
• This is so since,



k
i
i
i
d
1
a
c
and so,

 




k
i
i
i
k
i
i
i d
d
1
j
1
j
j 0
)
b
.
(a
a
.
b
.c
b
• This means that a codeword is valid (but not
necessarily correct) only if cHT = 0. To ensure this
it is required that the rows of H are independent
and are orthogonal to the rows of G
• That is the bi span the remaining R (= n - k)
dimensions of the codespace

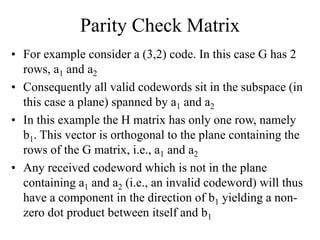

43. Parity Check Matrix
• For example consider a (3,2) code. In this case G has 2
rows, a1 and a2
• Consequently all valid codewords sit in the subspace (in
this case a plane) spanned by a1 and a2
• In this example the H matrix has only one row, namely
b1. This vector is orthogonal to the plane containing the
rows of the G matrix, i.e., a1 and a2
• Any received codeword which is not in the plane
containing a1 and a2 (i.e., an invalid codeword) will thus
have a component in the direction of b1 yielding a non-
zero dot product between itself and b1

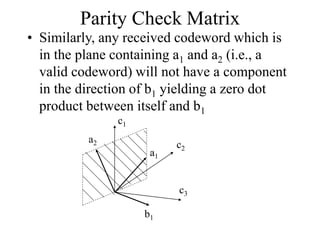

44. Parity Check Matrix
• Similarly, any received codeword which is
in the plane containing a1 and a2 (i.e., a
valid codeword) will not have a component
in the direction of b1 yielding a zero dot
product between itself and b1
c1
c2
c3
a1
a2
b1

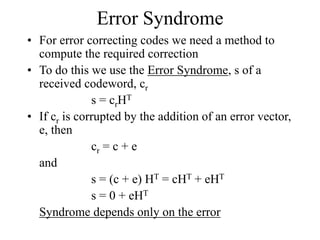

45. Error Syndrome
• For error correcting codes we need a method to
compute the required correction
• To do this we use the Error Syndrome, s of a
received codeword, cr
s = crHT
• If cr is corrupted by the addition of an error vector,
e, then
cr = c + e
and
s = (c + e) HT = cHT + eHT
s = 0 + eHT
Syndrome depends only on the error

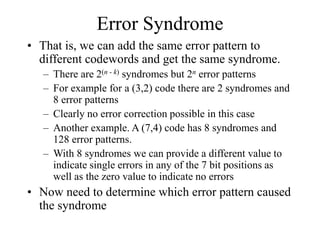

46. Error Syndrome
• That is, we can add the same error pattern to
different codewords and get the same syndrome.
– There are 2(n - k) syndromes but 2n error patterns
– For example for a (3,2) code there are 2 syndromes and
8 error patterns
– Clearly no error correction possible in this case
– Another example. A (7,4) code has 8 syndromes and
128 error patterns.
– With 8 syndromes we can provide a different value to
indicate single errors in any of the 7 bit positions as
well as the zero value to indicate no errors
• Now need to determine which error pattern caused
the syndrome

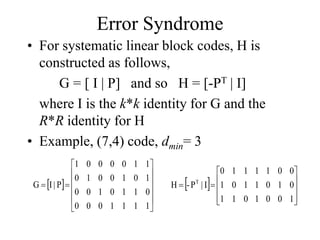

47. Error Syndrome
• For systematic linear block codes, H is
constructed as follows,
G = [ I | P] and so H = [-PT | I]
where I is the k*k identity for G and the
R*R identity for H
• Example, (7,4) code, dmin= 3
 














1
1
1
1
0
0
0
0
1
1
0
1
0
0
1
0
1
0
0
1
0
1
1
0
0
0
0
1
P
|
I
G  












1
0
0
1
0
1
1
0
1
0
1
1
0
1
0
0
1
1
1
1
0
I
|
P
-
H T

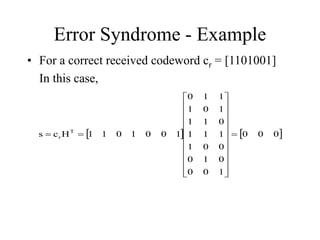

48. Error Syndrome - Example
• For a correct received codeword cr = [1101001]
In this case,
   
0
0
0
1
0
0
0
1
0
0
0
1
1
1
1
0
1
1
1
0
1
1
1
0
1
0
0
1
0
1
1
H
c
s T
r 

























49. Error Syndrome - Example
• For the same codeword, this time with an
error in the first bit position, i.e.,
cr = [1101000]
   
1
0
0
1
0
0
0
1
0
0
0
1
1
1
1
0
1
1
1
0
1
1
1
0
0
0
0
1
0
1
1
H
c
s T
r 
























• In this case a syndrome 001 indicates an
error in bit 1 of the codeword

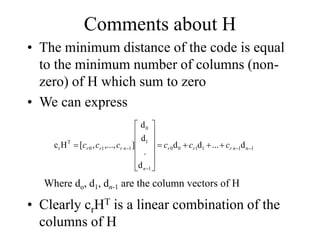

50. Comments about H
• The minimum distance of the code is equal
to the minimum number of columns (non-
zero) of H which sum to zero
• We can express
1
n
1
1
1
0
0
1
1
0
1
1
0
T
r d
...
d
d
d
.
d
d
]
,...,
,
[
H
c 


 















 n
r
r
r
n
n
r
r
r c
c
c
c
c
c
Where do, d1, dn-1 are the column vectors of H
• Clearly crHT is a linear combination of the
columns of H

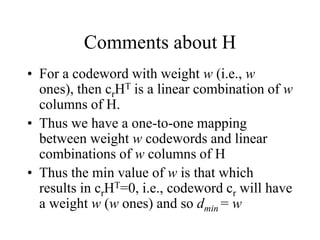

51. Comments about H
• For a codeword with weight w (i.e., w
ones), then crHT is a linear combination of w
columns of H.
• Thus we have a one-to-one mapping
between weight w codewords and linear
combinations of w columns of H
• Thus the min value of w is that which
results in crHT=0, i.e., codeword cr will have
a weight w (w ones) and so dmin = w

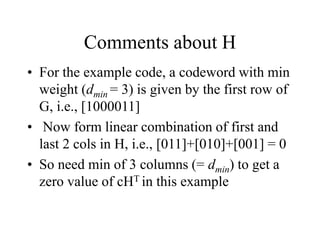

52. Comments about H
• For the example code, a codeword with min
weight (dmin = 3) is given by the first row of
G, i.e., [1000011]
• Now form linear combination of first and
last 2 cols in H, i.e., [011]+[010]+[001] = 0
• So need min of 3 columns (= dmin) to get a
zero value of cHT in this example

53. Standard Array
• From the standard array we can find the
most likely transmitted codeword given a
particular received codeword without
having to have a look-up table at the
decoder containing all possible codewords
in the standard array
• Not surprisingly it makes use of syndromes

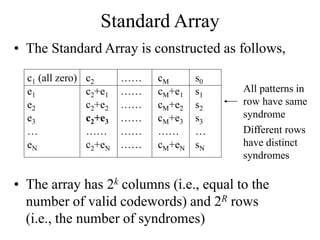

54. Standard Array
• The Standard Array is constructed as follows,
c1 (all zero)
e1
e2
e3
…
eN
c2+e1
c2+e2
c2+e3
……
c2+eN
c2
cM+e1
cM+e2
cM+e3
……
cM+eN
cM
……
……
……
……
……
…… s0
s1
s2
s3
…
sN
All patterns in
row have same
syndrome
Different rows
have distinct
syndromes
• The array has 2k columns (i.e., equal to the
number of valid codewords) and 2R rows
(i.e., the number of syndromes)

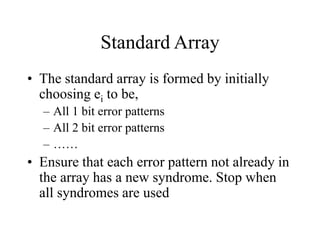

55. Standard Array
• The standard array is formed by initially
choosing ei to be,
– All 1 bit error patterns
– All 2 bit error patterns
– ……
• Ensure that each error pattern not already in
the array has a new syndrome. Stop when
all syndromes are used

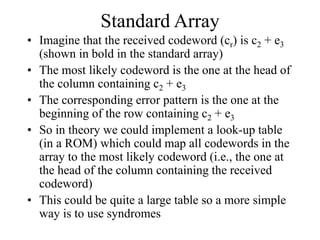

56. Standard Array
• Imagine that the received codeword (cr) is c2 + e3
(shown in bold in the standard array)
• The most likely codeword is the one at the head of
the column containing c2 + e3
• The corresponding error pattern is the one at the
beginning of the row containing c2 + e3
• So in theory we could implement a look-up table
(in a ROM) which could map all codewords in the
array to the most likely codeword (i.e., the one at
the head of the column containing the received
codeword)
• This could be quite a large table so a more simple
way is to use syndromes

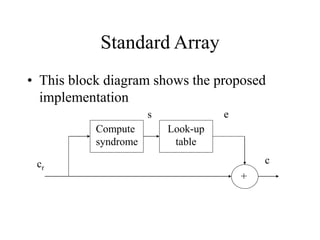

57. Standard Array
• This block diagram shows the proposed
implementation
Compute
syndrome
Look-up
table
+
cr
s e
c

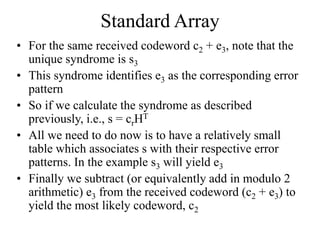

58. Standard Array
• For the same received codeword c2 + e3, note that the
unique syndrome is s3
• This syndrome identifies e3 as the corresponding error
pattern
• So if we calculate the syndrome as described
previously, i.e., s = crHT
• All we need to do now is to have a relatively small
table which associates s with their respective error
patterns. In the example s3 will yield e3
• Finally we subtract (or equivalently add in modulo 2
arithmetic) e3 from the received codeword (c2 + e3) to
yield the most likely codeword, c2

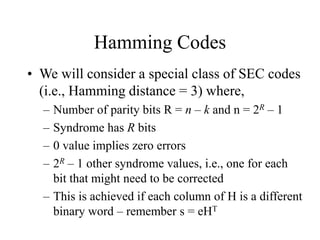

59. Hamming Codes
• We will consider a special class of SEC codes
(i.e., Hamming distance = 3) where,
– Number of parity bits R = n – k and n = 2R – 1
– Syndrome has R bits
– 0 value implies zero errors
– 2R – 1 other syndrome values, i.e., one for each
bit that might need to be corrected
– This is achieved if each column of H is a different
binary word – remember s = eHT

60. Hamming Codes
• Systematic form of (7,4) Hamming code is,
 














1
1
1
1
0
0
0
0
1
1
0
1
0
0
1
0
1
0
0
1
0
1
1
0
0
0
0
1
P
|
I
G  












1
0
0
1
0
1
1
0
1
0
1
1
0
1
0
0
1
1
1
1
0
I
|
P
-
H T
• The original form is non-systematic,













1
0
0
1
0
1
1
0
1
0
1
0
1
0
0
0
1
1
0
0
1
0
0
0
0
1
1
1
G











1
0
1
0
1
0
1
1
1
0
0
1
1
0
1
1
1
1
0
0
0
H
• Compared with the systematic code, the
column orders of both G and H are swapped
so that the columns of H are a binary count

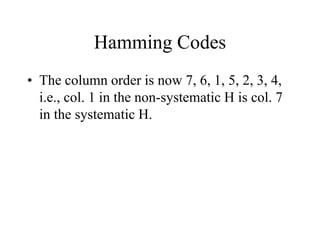

61. Hamming Codes
• The column order is now 7, 6, 1, 5, 2, 3, 4,
i.e., col. 1 in the non-systematic H is col. 7
in the systematic H.

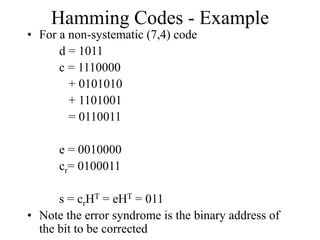

62. Hamming Codes - Example
• For a non-systematic (7,4) code
d = 1011
c = 1110000
+ 0101010
+ 1101001
= 0110011
e = 0010000
cr= 0100011
s = crHT = eHT = 011
• Note the error syndrome is the binary address of
the bit to be corrected

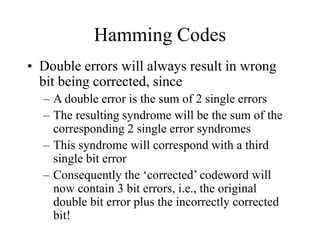

63. Hamming Codes
• Double errors will always result in wrong
bit being corrected, since
– A double error is the sum of 2 single errors
– The resulting syndrome will be the sum of the
corresponding 2 single error syndromes
– This syndrome will correspond with a third
single bit error
– Consequently the ‘corrected’ codeword will
now contain 3 bit errors, i.e., the original
double bit error plus the incorrectly corrected
bit!

64. Bit Error Rates after Decoding
• For a given channel bit error rate (BER),
what is the BER after correction (assuming
a memoryless channel, i.e., no burst errors)?
• To do this we will compute the probability
of receiving 0, 1, 2, 3, …. errors
• And then compute their effect

65. Bit Error Rates after Decoding
• Example – A (7,4) Hamming code with a channel
BER of 1%, i.e., p = 0.01
P(0 errors received) = (1 – p)7 = 0.9321
P(1 error received) = 7p(1 – p)6 = 0.0659
P(3 or more errors) = 1 – P(0) – P(1) – P(2) = 0.000034
002
.
0
)
1
(
2
6
7
received)
errors
P(2 5
2



 p
p

66. Bit Error Rates after Decoding
• Single errors are corrected, so,
0.9321+ 0.0659 = 0.998 codewords are
correctly detected
• Double errors cause 3 bit errors in a 7 bit
codeword, i.e., (3/7)*4 bit errors per 4 bit
dataword, that is 3/7 bit errors per bit.
Therefore the double error contribution is
0.002*3/7 = 0.000856

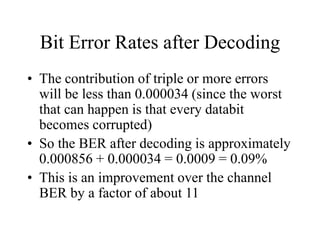

67. Bit Error Rates after Decoding
• The contribution of triple or more errors
will be less than 0.000034 (since the worst
that can happen is that every databit
becomes corrupted)
• So the BER after decoding is approximately
0.000856 + 0.000034 = 0.0009 = 0.09%
• This is an improvement over the channel
BER by a factor of about 11

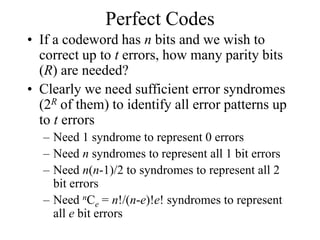

68. Perfect Codes
• If a codeword has n bits and we wish to
correct up to t errors, how many parity bits
(R) are needed?
• Clearly we need sufficient error syndromes
(2R of them) to identify all error patterns up
to t errors
– Need 1 syndrome to represent 0 errors
– Need n syndromes to represent all 1 bit errors
– Need n(n-1)/2 to syndromes to represent all 2
bit errors
– Need nCe = n!/(n-e)!e! syndromes to represent
all e bit errors

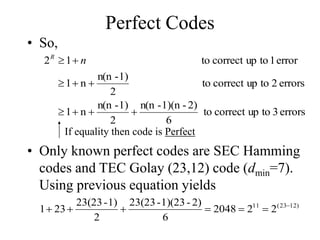

69. Perfect Codes
• So,
errors
3
to
up
correct
to
6
2)
-
1)(n
-
n(n
2
1)
-
n(n
n
1
errors
2
to
up
correct
to
2
1)
-
n(n
n
1
error
1
to
up
correct
to
1
2








 n
R
If equality then code is Perfect
• Only known perfect codes are SEC Hamming
codes and TEC Golay (23,12) code (dmin=7).
Using previous equation yields
)
12
23
(
11
2
2
2048
6
2)
-
1)(23
-
23(23
2
1)
-
23(23
23
1 







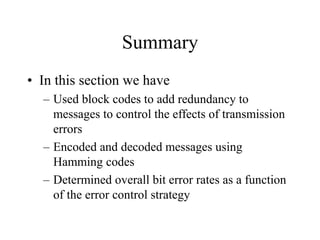

70. Summary
• In this section we have
– Used block codes to add redundancy to
messages to control the effects of transmission
errors
– Encoded and decoded messages using
Hamming codes
– Determined overall bit error rates as a function
of the error control strategy
