3 jdbc

JDBC
Prepared by Viska Mutiawani
1 viska@unsyiah.ac.id

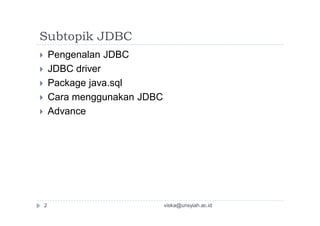

Subtopik JDBC
 Pengenalan JDBC
 JDBC driver
 Package java.sql
 Cara menggunakan JDBC
 Advance

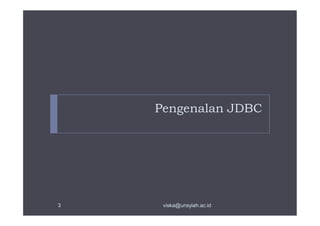

Pengenalan JDBC

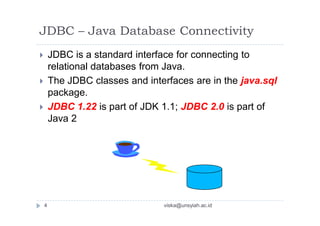

JDBC – Java Database Connectivity
 JDBC is a standard interface for connecting to
relational databases from Java.
 The JDBC classes and interfaces are in the java.sql
package.
 JDBC 1.22 is part of JDK 1.1; JDBC 2.0 is part of
Java 2

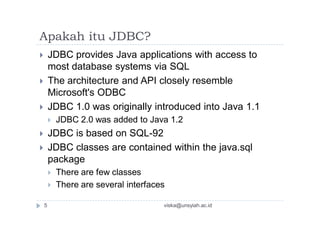

Apakah itu JDBC?
 JDBC provides Java applications with access to
most database systems via SQL
 The architecture and API closely resemble
Microsoft's ODBC
 JDBC 1.0 was originally introduced into Java 1.1
 JDBC 2.0 was added to Java 1.2
 JDBC is based on SQL-92
 JDBC classes are contained within the java.sql
package
 There are few classes
 There are several interfaces

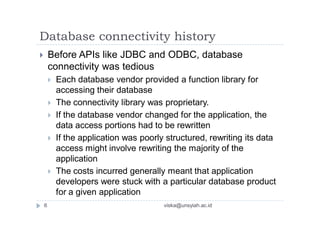

Database connectivity history
 Before APIs like JDBC and ODBC, database
connectivity was tedious
 Each database vendor provided a function library for
accessing their database
 The connectivity library was proprietary.
 If the database vendor changed for the application, the
data access portions had to be rewritten
 If the application was poorly structured, rewriting its data
access might involve rewriting the majority of the
application
 The costs incurred generally meant that application
developers were stuck with a particular database product
for a given application

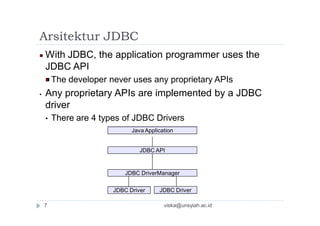

Arsitektur JDBC
With JDBC, the application programmer uses the
JDBC API
The developer never uses any proprietary APIs
• Any proprietary APIs are implemented by a JDBC
driver
• There are 4 types of JDBC Drivers
Java Application
JDBC API
JDBC DriverManager
JDBC Driver JDBC Driver

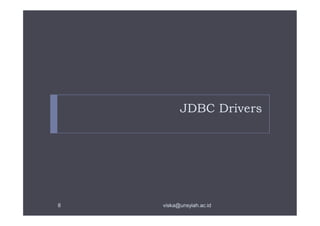

JDBC Drivers

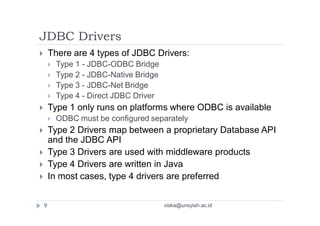

JDBC Drivers
 There are 4 types of JDBC Drivers:
 Type 1 - JDBC-ODBC Bridge
 Type 2 - JDBC-Native Bridge
 Type 3 - JDBC-Net Bridge
 Type 4 - Direct JDBC Driver
 Type 1 only runs on platforms where ODBC is available
 ODBC must be configured separately
 Type 2 Drivers map between a proprietary Database API
and the JDBC API
 Type 3 Drivers are used with middleware products
 Type 4 Drivers are written in Java
 In most cases, type 4 drivers are preferred

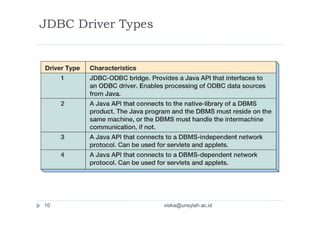

JDBC Driver Types

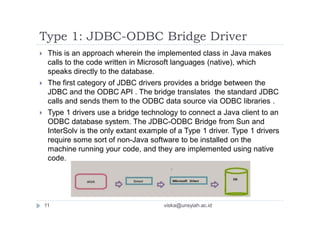

Type 1: JDBC-ODBC Bridge Driver
 This is an approach wherein the implemented class in Java makes
calls to the code written in Microsoft languages (native), which
speaks directly to the database.
 The first category of JDBC drivers provides a bridge between the
JDBC and the ODBC API . The bridge translates the standard JDBC
calls and sends them to the ODBC data source via ODBC libraries .
 Type 1 drivers use a bridge technology to connect a Java client to an
ODBC database system. The JDBC-ODBC Bridge from Sun and
InterSolv is the only extant example of a Type 1 driver. Type 1 drivers
require some sort of non-Java software to be installed on the
machine running your code, and they are implemented using native
code.

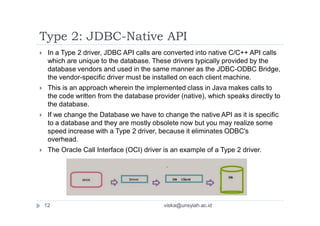

Type 2: JDBC-Native API
 In a Type 2 driver, JDBC API calls are converted into native C/C++ API calls
which are unique to the database. These drivers typically provided by the
database vendors and used in the same manner as the JDBC-ODBC Bridge,
the vendor-specific driver must be installed on each client machine.
 This is an approach wherein the implemented class in Java makes calls to
the code written from the database provider (native), which speaks directly to
the database.
 If we change the Database we have to change the native API as it is specific
to a database and they are mostly obsolete now but you may realize some
speed increase with a Type 2 driver, because it eliminates ODBC's
overhead.
 The Oracle Call Interface (OCI) driver is an example of a Type 2 driver.

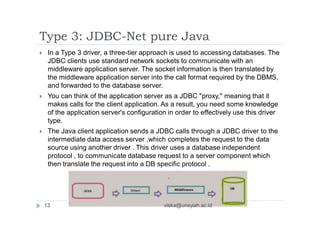

Type 3: JDBC-Net pure Java
 In a Type 3 driver, a three-tier approach is used to accessing databases. The
JDBC clients use standard network sockets to communicate with an
middleware application server. The socket information is then translated by
the middleware application server into the call format required by the DBMS,
and forwarded to the database server.
 You can think of the application server as a JDBC "proxy," meaning that it
makes calls for the client application. As a result, you need some knowledge
of the application server's configuration in order to effectively use this driver
type.
 The Java client application sends a JDBC calls through a JDBC driver to the
intermediate data access server ,which completes the request to the data
source using another driver . This driver uses a database independent
protocol , to communicate database request to a server component which
then translate the request into a DB specific protocol .

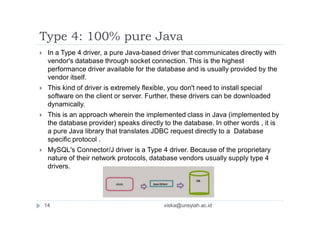

Type 4: 100% pure Java
 In a Type 4 driver, a pure Java-based driver that communicates directly with
vendor's database through socket connection. This is the highest
performance driver available for the database and is usually provided by the
vendor itself.
 This kind of driver is extremely flexible, you don't need to install special
software on the client or server. Further, these drivers can be downloaded
dynamically.
 This is an approach wherein the implemented class in Java (implemented by
the database provider) speaks directly to the database. In other words , it is
a pure Java library that translates JDBC request directly to a Database
specific protocol .
 MySQL's Connector/J driver is a Type 4 driver. Because of the proprietary
nature of their network protocols, database vendors usually supply type 4
drivers.

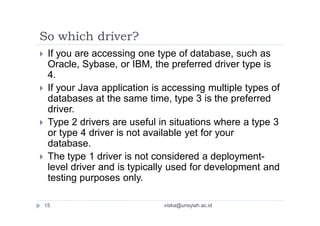

So which driver?
 If you are accessing one type of database, such as
Oracle, Sybase, or IBM, the preferred driver type is
4.
 If your Java application is accessing multiple types of
databases at the same time, type 3 is the preferred
driver.
 Type 2 drivers are useful in situations where a type 3
or type 4 driver is not available yet for your
database.
 The type 1 driver is not considered a deployment-
level driver and is typically used for development and
testing purposes only.

Package java.sql

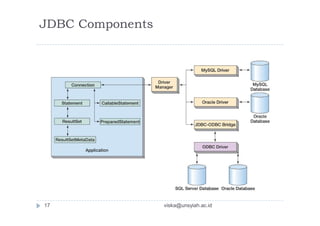

JDBC Components

JDBC Classes
 DriverManager
 Manages JDBC Drivers
 Used to Obtain a connection to a Database
 Types
 Defines constants which identify SQL types
 Date
 Used to Map between java.util.Date and the SQL DATE type
 Time
 Used to Map between java.util.Date and the SQL TIME type
 TimeStamp
 Used to Map between java.util.Date and the SQL TIMESTAMP
type

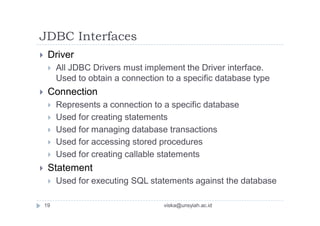

JDBC Interfaces
 Driver
 All JDBC Drivers must implement the Driver interface.
Used to obtain a connection to a specific database type
 Connection
 Represents a connection to a specific database
 Used for creating statements
 Used for managing database transactions
 Used for accessing stored procedures
 Used for creating callable statements
 Statement
 Used for executing SQL statements against the database

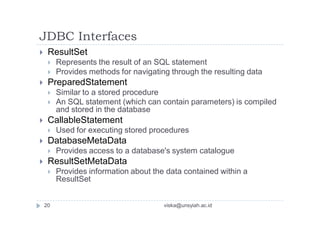

JDBC Interfaces
 ResultSet
 Represents the result of an SQL statement
 Provides methods for navigating through the resulting data
 PreparedStatement
 Similar to a stored procedure
 An SQL statement (which can contain parameters) is compiled
and stored in the database
 CallableStatement
 Used for executing stored procedures
 DatabaseMetaData
 Provides access to a database's system catalogue
 ResultSetMetaData
 Provides information about the data contained within a
ResultSet

Cara Menggunakan JDBC

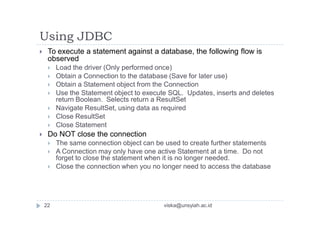

Using JDBC
 To execute a statement against a database, the following flow is
observed
 Load the driver (Only performed once)
 Obtain a Connection to the database (Save for later use)
 Obtain a Statement object from the Connection
 Use the Statement object to execute SQL. Updates, inserts and deletes
return Boolean. Selects return a ResultSet
 Navigate ResultSet, using data as required
 Close ResultSet
 Close Statement
 Do NOT close the connection
 The same connection object can be used to create further statements
 A Connection may only have one active Statement at a time. Do not
forget to close the statement when it is no longer needed.
 Close the connection when you no longer need to access the database

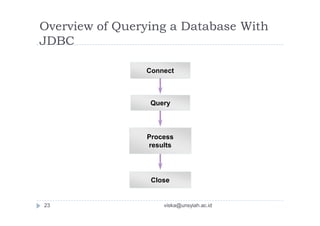

Query
Close
Connect
Process
results
Overview of Querying a Database With
JDBC

Query
Close
Connect
Process
results

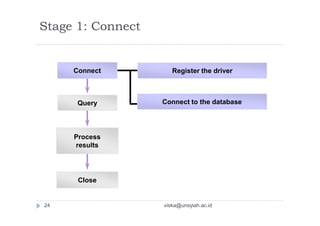

Register the driver
Connect to the database
Stage 1: Connect

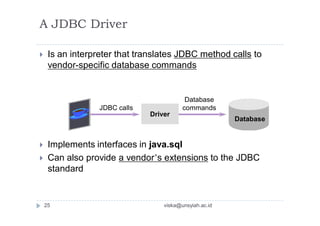

 Is an interpreter that translates JDBC method calls to
vendor-specific database commands
 Implements interfaces in java.sql
 Can also provide a vendor’s extensions to the JDBC
standard
Driver
JDBC calls
Database
commands
Database
A JDBC Driver

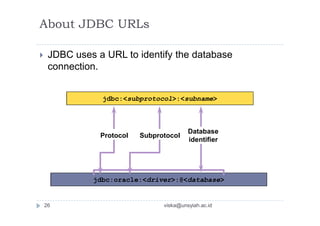

About JDBC URLs
 JDBC uses a URL to identify the database
connection.
jdbc:<subprotocol>:<subname>
Protocol
Database
identifier
jdbc:oracle:<driver>:@<database>
Subprotocol

Nama URL database:
 JDBC-ODBC :
jdbc:odbc:nama_database
 Oracle :
jdbc:oracle:thin:@nama_host:1521:namaDB
 MySQL:
jdbc:mysql://nama_host:3306/namaDB
 PostgreSQL:
jdbc:postgresql://nama_host:5432/namaDB
 Microsoft SQLServer 2000 :
jdbc:microsoft:sqlserver://nama_host:1433;DatabaseName=n
amaDB

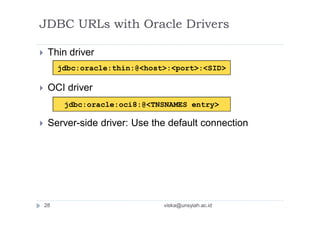

 Thin driver
 OCI driver
 Server-side driver: Use the default connection
jdbc:oracle:thin:@<host>:<port>:<SID>
jdbc:oracle:oci8:@<TNSNAMES entry>
JDBC URLs with Oracle Drivers

Class.forName("com.mysql.jdbc.Driver");
Connection conn = DriverManager.getConnection
(URL, userid, password);
ConnectionConnection connconn ==
DriverManager.getConnectionDriverManager.getConnection("("jdbc:mysqljdbc:mysql://://locloc
alhostalhost/books", "root", "/books", "root", "mysqlmysql");");
2. Connect to the database.
How to Make the Connection
1. Register the driver.

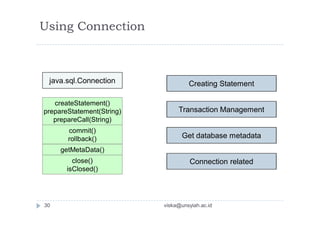

Using Connection
java.sql.Connection Creating Statement
Transaction Management
Get database metadata
Connection related
createStatement()
prepareStatement(String)
prepareCall(String)
commit()
rollback()
getMetaData()
close()
isClosed()

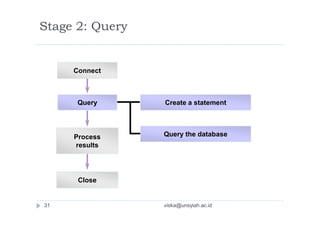

Close
Connect
Query Create a statement
Process
results
Query the database
Stage 2: Query

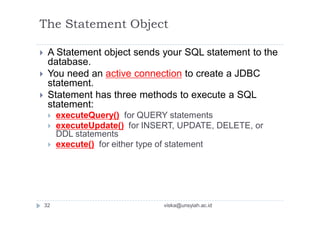

The Statement Object
 A Statement object sends your SQL statement to the
database.
 You need an active connection to create a JDBC
statement.
 Statement has three methods to execute a SQL
statement:
 executeQuery() for QUERY statements
 executeUpdate() for INSERT, UPDATE, DELETE, or
DDL statements
 execute() for either type of statement

1. Create an empty statement object.
2. Execute the statement.
Statement stmt = conn.createStatement();
ResultSet rset = stmt.executeQuery(statement);
int count = stmt.executeUpdate(statement);
boolean isquery = stmt.execute(statement);
How to Query the Database

ResultSet rset = stmt.executeQuery
("select RENTAL_ID, STATUS from ACME_RENTALS");
int rowcount = stmt.executeUpdate
("delete from ACME_RENTAL_ITEMS
where rental_id = 1011");

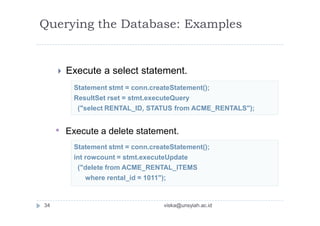

Querying the Database: Examples
 Execute a select statement.
• Execute a delete statement.

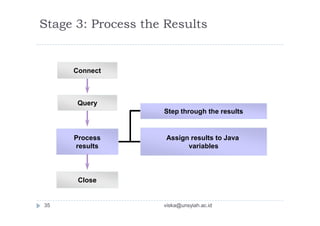

Close
Query
Step through the results
Process
results
Assign results to Java
variables
Connect

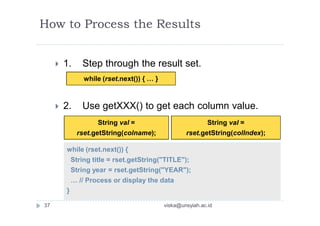

Stage 3: Process the Results

The ResultSet Object
 JDBC returns the results of a query in a ResultSet
object.
 A ResultSet maintains a cursor pointing to its current
row of data.
 Use next() to step through the result set row by row.
 getString(), getInt(), and so on assign each value to
a Java variable.

while (rset.next()) { … }
String val =
rset.getString(colname);
while (rset.next()) {
String title = rset.getString("TITLE");
String year = rset.getString("YEAR");
… // Process or display the data
}
String val =
rset.getString(colIndex);
How to Process the Results
 1. Step through the result set.
 2. Use getXXX() to get each column value.

while (rset.next()) {
String year = rset.getString("YEAR");
if (rset.wasNull() {
… // Handle null value
}
…}
How to Handle SQL Null Values
 Java primitive types cannot have null values.
 Do not use a primitive type when your query
might return a SQL null.
 Use ResultSet.wasNull() to determine whether a
column has a null value.

Mapping Database Types to Java Types
 ResultSet maps database types to Java types.
ResultSet rset = stmt.executeQuery
("select RENTAL_ID, RENTAL_DATE, STATUS
from ACME_RENTALS");
int id = rset.getInt(1);
Date rentaldate = rset.getDate(2);
String status = rset.getString(3);
Col Name
RENTAL_ID
RENTAL_DATE
STATUS
Type
NUMBER
DATE
VARCHAR239 viska@unsyiah.ac.id

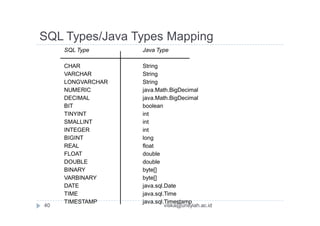

SQL Types/Java Types Mapping
SQL Type Java Type
CHAR String
VARCHAR String
LONGVARCHAR String
NUMERIC java.Math.BigDecimal
DECIMAL java.Math.BigDecimal
BIT boolean
TINYINT int
SMALLINT int
INTEGER int
BIGINT long
REAL float
FLOAT double
DOUBLE double
BINARY byte[]
VARBINARY byte[]
DATE java.sql.Date
TIME java.sql.Time
TIMESTAMP java.sql.Timestamp

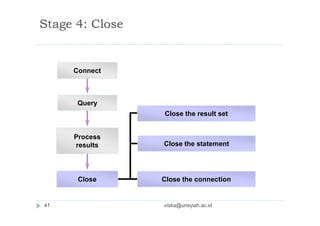

Connect
Query
Process
results
Close
Close the result set
Close the statement
Close the connection

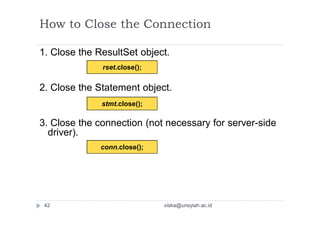

Stage 4: Close

1. Close the ResultSet object.
2. Close the Statement object.
3. Close the connection (not necessary for server-side
driver).
rset.close();
stmt.close();
conn.close();
How to Close the Connection

Connection aConnection;
try
{
Class.forName("sun.jdbc.odbc.JdbcOdbcDriver");
}
catch(ClassNotFoundException x)
{
System.out.println("Cannot find driver class. Check CLASSPATH");
return;
}
try
{
aConnection = DriverManager.getConnection("jdbc:odbc:MyDatabase",
"Username", "Password");
}
catch(SQLException x)
{
System.out.println("Exception connecting to database:" + x);
return;
}
Example Code:

try
{
Statement aStmt = aConnection.createStatement();
StringBuffer sb = new StringBuffer("SELECT Employee_id, Employee_Name");
sb.append(" FROM Employee WHERE EmployeeId>100");
ResultSet rs = aStmt.executeQuery(sb.toString());
while(rs.next())
{
int employeeId = rs.getInt(1);
String employeeName = rs.getString(2);
System.out.println("Id:" + employeeId + "nName:" + employeeName);
}
rs.close();
aStmt.close();
}
catch(SQLException x)
{
System.out.println("Exception while executing query:" + x);
}
Example Code (continued):

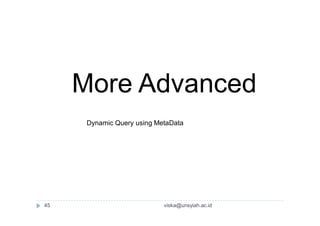

More Advanced
Dynamic Query using MetaData

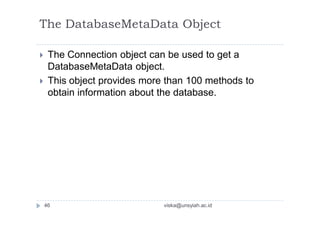

The DatabaseMetaData Object
 The Connection object can be used to get a
DatabaseMetaData object.
 This object provides more than 100 methods to
obtain information about the database.

1. Get the DatabaseMetaData object.
2. Use the object’s methods to get the metadata.
DatabaseMetaData dbmd = conn.getMetaData();
String s1 = dbmd getURL();
String s2 = dbmd.getSQLKeywords();
boolean b1 = dbmd.supportsTransactions();
boolean b2 = dbmd.supportsSelectForUpdate();
How to Obtain Database Metadata
DatabaseMetaData dbmd = conn.getMetaData();

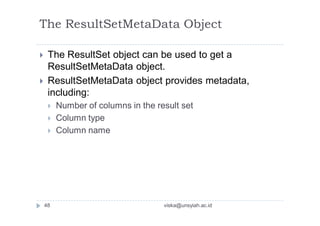

The ResultSetMetaData Object
 The ResultSet object can be used to get a
ResultSetMetaData object.
 ResultSetMetaData object provides metadata,
including:
 Number of columns in the result set
 Column type
 Column name

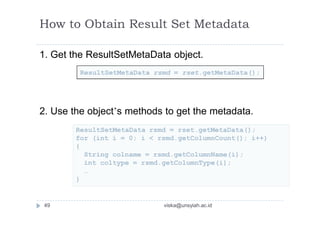

How to Obtain Result Set Metadata
1. Get the ResultSetMetaData object.
2. Use the object’s methods to get the metadata.
ResultSetMetaData rsmd = rset.getMetaData();
for (int i = 0; i < rsmd.getColumnCount(); i++)
{
String colname = rsmd.getColumnName(i);
int coltype = rsmd.getColumnType(i);
…
}
ResultSetMetaData rsmd = rset.getMetaData();

The PreparedStatement Object
 A PreparedStatement object
holds precompiled SQL statements.
 Use this object for statements you want to execute
more than once.
 A prepared statement can contain variables that you
supply each time you execute the statement.

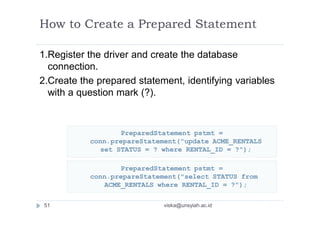

How to Create a Prepared Statement
1.Register the driver and create the database
connection.
2.Create the prepared statement, identifying variables
with a question mark (?).
PreparedStatement pstmt =
conn.prepareStatement("update ACME_RENTALS
set STATUS = ? where RENTAL_ID = ?");
conn.prepareStatement("select STATUS from
ACME_RENTALS where RENTAL_ID = ?");

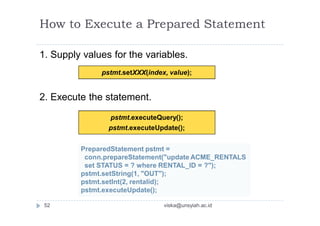

How to Execute a Prepared Statement
1. Supply values for the variables.
pstmt.setXXX(index, value);
pstmt.executeQuery();
pstmt.executeUpdate();
conn.prepareStatement("update ACME_RENTALS
set STATUS = ? where RENTAL_ID = ?");
pstmt.setString(1, "OUT");
pstmt.setInt(2, rentalid);
pstmt.executeUpdate();

The CallableStatement Object
 A CallableStatement object holds parameters for
calling stored procedures.
 A callable statement can contain variables that you
supply each time you execute the call.
 When the stored procedure returns, computed
values (if any) are retrieved through the
CallabableStatement object.

 Register the driver and create the database
connection.
 Create the callable statement, identifying variables
with a question mark (?).
CallableStatement cstmt =
conn.prepareCall("{call " +
ADDITEM + "(?,?,?)}");
cstmt.registerOutParameter(2,Types.INTEGER);
cStmt.registerOutParameter(3,Types.DOUBLE);
How to Create a Callable Statement

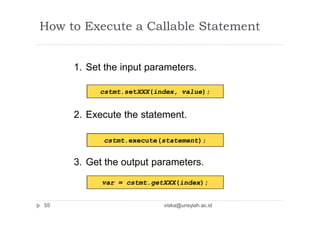

1. Set the input parameters.
3. Get the output parameters.
How to Execute a Callable Statement
cstmt.setXXX(index, value);
cstmt.execute(statement);
var = cstmt.getXXX(index);

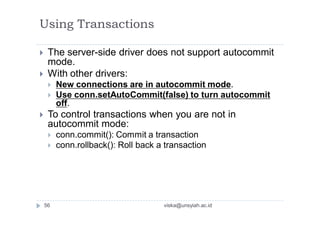

Using Transactions
 The server-side driver does not support autocommit
mode.
 With other drivers:
 New connections are in autocommit mode.
 Use conn.setAutoCommit(false) to turn autocommit
off.
 To control transactions when you are not in
autocommit mode:
 conn.commit(): Commit a transaction
 conn.rollback(): Roll back a transaction

3 jdbc

More Related Content

What's hot

Similar to 3 jdbc

More from Fajar Baskoro

Recently uploaded

3 jdbc
