1. SHENZHEN BASECAMP
PROGRAM
Machine &Tool List

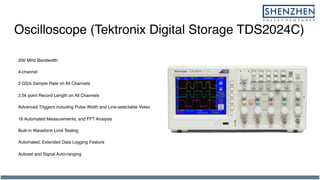

2. Oscilloscope (Tektronix Digital Storage TDS2024C)
200 MHz Bandwidth
4-channel
2 GS/s Sample Rate on All Channels
2.5k point Record Length on All Channels
Advanced Triggers including Pulse Width and Line-selectable Video
16 Automated Measurements, and FFT Analysis
Built-in Waveform Limit Testing
Automated, Extended Data Logging Feature
Autoset and Signal Auto-ranging

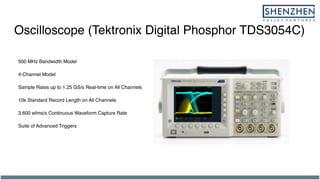

3. Oscilloscope (Tektronix Digital Phosphor TDS3054C)
500 MHz Bandwidth Model
4-Channel Model
Sample Rates up to 1.25 GS/s Real-time on All Channels
10k Standard Record Length on All Channels
3,600 wfms/s Continuous Waveform Capture Rate
Suite of Advanced Triggers

4. 6.5 digit resolution
Basic V dc accuracy of up to 0.0024 %
Dual display
100 μA to 10 A current range, with up to 100 pA resolution
Wide ohms range from 10 Ω to 1 GΩ with up to 10 μΩ resolution
2 x 4 ohms 4-wire measurement technique
Both models measure frequency and period
Measures capacitance and temperature
USB memory drive port
Fluke 45 and Agilent 34401A emulation
Graphical display
Trend Plot paperless recorder mode, statistics, histogram

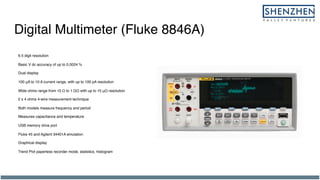

Digital Multimeter (Fluke 8846A)

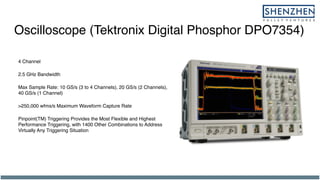

5. Oscilloscope (Tektronix Digital Phosphor DPO7354)
4 Channel
2.5 GHz Bandwidth
Max Sample Rate: 10 GS/s (3 to 4 Channels), 20 GS/s (2 Channels),
40 GS/s (1 Channel)
>250,000 wfms/s Maximum Waveform Capture Rate
Pinpoint(TM) Triggering Provides the Most Flexible and Highest
Performance Triggering, with 1400 Other Combinations to Address
Virtually Any Triggering Situation

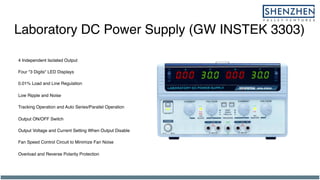

6. Laboratory DC Power Supply (GW INSTEK 3303)
4 Independent Isolated Output
Four "3 Digits" LED Displays
0.01% Load and Line Regulation
Low Ripple and Noise
Tracking Operation and Auto Series/Parallel Operation
Output ON/OFF Switch
Output Voltage and Current Setting When Output Disable
Fan Speed Control Circuit to Minimize Fan Noise
Overload and Reverse Polarity Protection

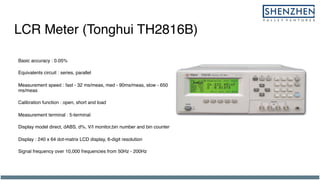

7. LCR Meter (Tonghui TH2816B)
Basic accuracy : 0.05%
Equivalents circuit : series, parallel
Measurement speed : fast - 32 ms/meas, med - 90ms/meas, slow - 650
ms/meas
Calibration function : open, short and load
Measurement terminal : 5-terminal
Display model direct, dABS, d%, V/I monitor,bin number and bin counter
Display : 240 x 64 dot-matrix LCD display, 6-digit resolution
Signal frequency over 10,000 frequencies from 50Hz - 200Hz

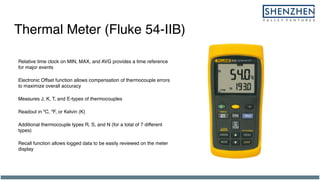

8. Thermal Meter (Fluke 54-IIB)
Relative time clock on MIN, MAX, and AVG provides a time reference
for major events
Electronic Offset function allows compensation of thermocouple errors
to maximize overall accuracy
Measures J, K, T, and E-types of thermocouples
Readout in ºC, ºF, or Kelvin (K)
Additional thermocouple types R, S, and N (for a total of 7 different
types)
Recall function allows logged data to be easily reviewed on the meter
display

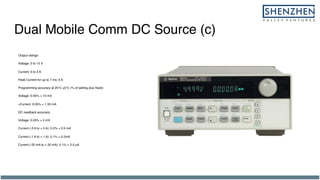

9. Dual Mobile Comm DC Source (c)
Output ratings:
Voltage: 0 to 15 V
Current: 0 to 3 A
Peak Current for up to 7 ms: 5 A
Programming accuracy at 25°C ±5°C (% of setting plus fixed):
Voltage: 0.05% + 10 mV
+Current: 0.05% + 1.33 mA
DC readback accuracy:
Voltage: 0.03% + 5 mV
Current (-3 A to + 5 A): 0.2% + 0.5 mA
Current (-1 A to + 1 A): 0.1% + 0.2mA
Current (-20 mA to + 20 mA): 0.1% + 2.5 µA

10. DC Electronic Loads (Chroma 6314A)
RS232 Standard
Max Power: 200W, 100Wx2(Dual),30W & 250W, 300W, 350W, 600W, 1200W
Wide range 0~600V operating voltage
Up to eight channels in one mainframe, for testing multiple output SMPS
Parallel load modules up to 1400W for high current and power applications
Synchronization with multiple loads
Flexible CC, CR, CP and CV operation modes
Dynamic loading with speeds up to 20 kHz
Fast response of 0.32mA/μs ~ 10A/μs slew rate

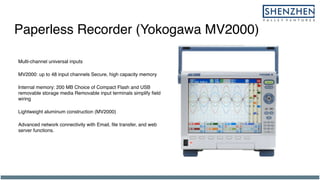

11. Paperless Recorder (Yokogawa MV2000)
Multi-channel universal inputs
MV2000: up to 48 input channels Secure, high capacity memory
Internal memory: 200 MB Choice of Compact Flash and USB
removable storage media Removable input terminals simplify field
wiring
Lightweight aluminum construction (MV2000)
Advanced network connectivity with Email, file transfer, and web
server functions.

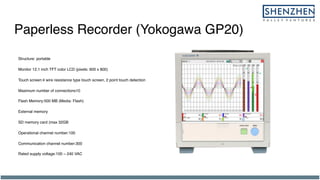

12. Paperless Recorder (Yokogawa GP20)
Structure: portable
Monitor 12.1 inch TFT color LCD (pixels: 600 x 800)
Touch screen:4 wire resistance type touch screen, 2 point touch detection
Maximum number of connections10
Flash Memory:500 MB (Media: Flash)
External memory
SD memory card (max 32GB
Operational channel number:100
Communication channel number:300
Rated supply voltage:100 ~ 240 VAC

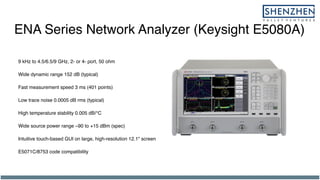

13. ENA Series Network Analyzer (Keysight E5080A)
9 kHz to 4.5/6.5/9 GHz, 2- or 4- port, 50 ohm
Wide dynamic range 152 dB (typical)
Fast measurement speed 3 ms (401 points)
Low trace noise 0.0005 dB rms (typical)
High temperature stability 0.005 dB/°C
Wide source power range –90 to +15 dBm (spec)
Intuitive touch-based GUI on large, high-resolution 12.1" screen
E5071C/8753 code compatibility

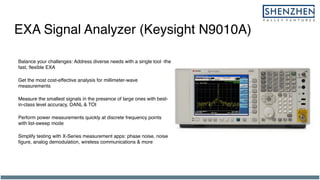

14. EXA Signal Analyzer (Keysight N9010A)
Balance your challenges: Address diverse needs with a single tool -the
fast, flexible EXA
Get the most cost-effective analysis for millimeter-wave
measurements
Measure the smallest signals in the presence of large ones with best-
in-class level accuracy, DANL & TOI
Perform power measurements quickly at discrete frequency points
with list-sweep mode
Simplify testing with X-Series measurement apps: phase noise, noise
figure, analog demodulation, wireless communications & more

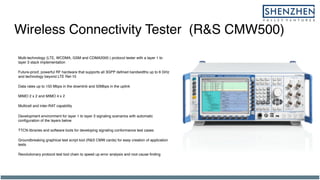

15. Wireless Connectivity Tester (R&S CMW500)
Multi-technology (LTE, WCDMA, GSM and CDMA2000 ) protocol tester with a layer 1 to
layer 3 stack implementation
Future-proof, powerful RF hardware that supports all 3GPP defined bandwidths up to 6 GHz
and technology beyond LTE Rel-10
Data rates up to 150 Mbps in the downlink and 50Mbps in the uplink
MIMO 2 x 2 and MIMO 4 x 2
Multicell and inter-RAT capability
Development environment for layer 1 to layer 3 signaling scenarios with automatic
configuration of the layers below
TTCN libraries and software tools for developing signaling conformance test cases
Groundbreaking graphical test script tool (R&S CMW cards) for easy creation of application
tests
Revolutionary protocol test tool chain to speed up error analysis and root cause finding

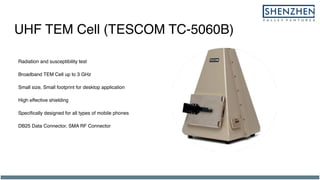

16. UHF TEM Cell (TESCOM TC-5060B)
Radiation and susceptibility test
Broadband TEM Cell up to 3 GHz
Small size, Small footprint for desktop application
High effective shielding
Specifically designed for all types of mobile phones
DB25 Data Connector, SMA RF Connector

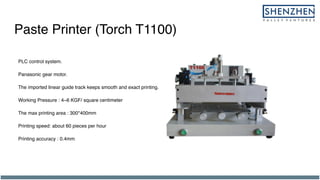

17. Paste Printer (Torch T1100)
PLC control system.
Panasonic gear motor.
The imported linear guide track keeps smooth and exact printing.
Working Pressure : 4~6 KGF/ square centimeter
The max printing area : 300*400mm
Printing speed: about 60 pieces per hour
Printing accuracy : 0.4mm

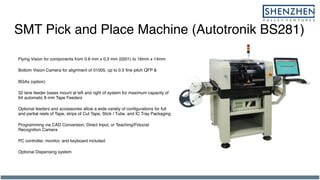

18. SMT Pick and Place Machine (Autotronik BS281)
Flying Vision for components from 0.6 mm x 0.3 mm (0201) to 16mm x 14mm
Bottom Vision Camera for alignment of 01005, up to 0.5 fine pitch QFP &
BGAs (option)
32 lane feeder bases mount at left and right of system for maximum capacity of
64 automatic 8 mm Tape Feeders
Optional feeders and accessories allow a wide variety of configurations for full
and partial reels of Tape, strips of Cut Tape, Stick / Tube, and IC Tray Packaging
Programming via CAD Conversion, Direct Input, or Teaching/Fiducial
Recognition Camera
PC controller, monitor, and keyboard included
Optional Dispensing system

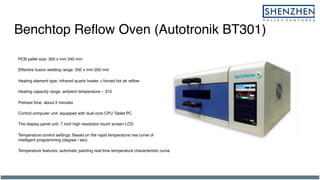

19. Benchtop Reflow Oven (Autotronik BT301)
PCB pallet size: 350 x mm 240 mm
Effective fusion welding range: 250 x mm 200 mm
Heating element type: infrared quartz heater + forced hot air reflow
Heating capacity range: ambient temperature – 310
Preheat time: about 2 minutes
Control computer unit: equipped with dual core CPU Tablet PC
The display panel unit: 7 inch high resolution touch screen LCD
Temperature control settings: Based on the rapid temperature rise curve of
intelligent programming (degree / sec)
Temperature features: automatic painting real-time temperature characteristic curve

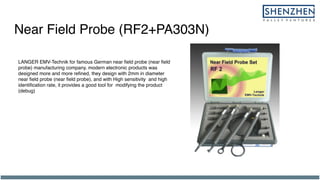

20. Near Field Probe (RF2+PA303N)
LANGER EMV-Technik for famous German near field probe (near field
probe) manufacturing company. modern electronic products was
designed more and more refined, they design with 2mm in diameter
near field probe (near field probe), and with High sensitivity and high
identification rate, it provides a good tool for modifying the product
(debug)

21. Microscope PCB-500V
PCB-500V computer circuit board detection microscope system is the
traditional optical microscope and computer through the photoelectric
conversion organic unifies in together, not only can make microscopic
observation in the eyepiece, but also in observation of real-time
dynamic image on the screen of the computer (digital camera) and the
need for photo editing, save and print
objective lens zoom range 0.8X-5X
The microscope can zoom in a row, the ratio of is 6.5:1
Double pupil distance adjustment range: 55-75mm
mobile working distance: 95mm
total magnification: 8 - 50X

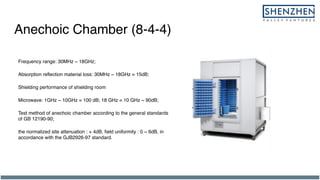

22. Anechoic Chamber (8-4-4)
Frequency range: 30MHz ~ 18GHz;
Absorption reflection material loss: 30MHz ~ 18GHz = 15dB;
Shielding performance of shielding room
Microwave: 1GHz ~ 10GHz = 100 dB; 18 GHz = 10 GHz ~ 90dB;
Test method of anechoic chamber according to the general standards
of GB 12190-90;
the normalized site attenuation : + 4dB, field uniformity : 0 ~ 6dB, in
accordance with the GJB2926-97 standard.

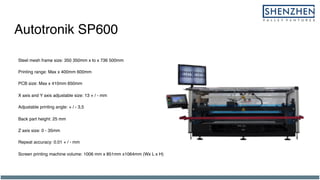

23. Autotronik SP600
Steel mesh frame size: 350 350mm x to x 736 500mm
Printing range: Max x 400mm 600mm
PCB size: Max x 410mm 650mm
X axis and Y axis adjustable size: 13 + / - mm
Adjustable printing angle: + / - 3,5
Back part height: 25 mm
Z axis size: 0 - 35mm
Repeat accuracy: 0.01 + / - mm
Screen printing machine volume: 1006 mm x 851mm x1064mm (Wx L x H)

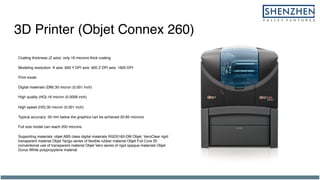

24. 3D Printer (Objet Connex 260)
Coating thickness (Z axis): only 16 microns thick coating
Modeling resolution: X axis: 600 Y DPI axis: 600 Z DPI axis: 1600 DPI
Print mode:
Digital materials (DM):30 micron (0.001 inch)
High quality (HQ):16 micron (0.0006 inch)
High speed (HS):30 micron (0.001 inch)
Typical accuracy: 50 mm below the graphics can be achieved 20-85 microns
Full size model can reach 200 microns
Supporting materials: objet ABS class digital materials RGD5160-DM Objet VeroClear rigid
transparent material Objet Tango series of flexible rubber material Objet Full Cure 20
conventional use of transparent material Objet Vero series of rigid opaque materials Objet
Durus White polypropylene material

25. 3D Printer (Projet 3500)
Printing mode:HD HD /HS - high speed/UHD - Ultra – clear/ XHD - extreme HD
Construction size: 298 x 185 x 203 mm
resolving power
HD mode:375 x 375 x 790 DPI (XYZ); 32 μ
HS mode:375 x 375 x 790 DPI (XYZ); 32 μ
UHD mode:750 x 750 x 890 DPI (XYZ); 29 μ
XHD mode:750 x 750 x 1600 DPI (XYZ); 16 μ
Accuracy (typical)
Component size is 0.001-0.002 inches per inch (0.025-0.05 mm).
Modeling material
VisiJet X
VisiJet Crystal
VisiJet Proplast
VisiJet Navy
VisiJet Techplast
VisiJet Procast

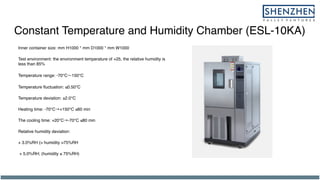

26. Constant Temperature and Humidity Chamber (ESL-10KA)
Inner container size: mm H1000 * mm D1000 * mm W1000
Test environment: the environment temperature of +25, the relative humidity is
less than 85%
Temperature range: -70℃ 150℃
Temperature fluctuation: ≤0.50℃
Temperature deviation: ±2.0℃
Heating time: -70℃→+150℃ ≤60 min
The cooling time: +20℃→-70℃ ≤80 min
Relative humidity deviation:
+ 3.0%RH (> humidity >75%RH
+ 5.0%RH; (humidity ≤ 75%RH)

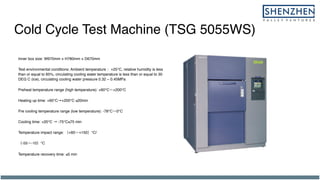

27. Cold Cycle Test Machine (TSG 5055WS)
Inner box size: W970mm × H780mm × D670mm
Test environmental conditions: Ambient temperature +25℃, relative humidity is less
than or equal to 85%, circulating cooling water temperature is less than or equal to 30
DEG C (ice), circulating cooling water pressure 0.32 ~ 0.45MPa
Preheat temperature range (high temperature): +60℃ +200℃
Heating up time: +60℃→+200℃ ≤20min
Pre cooling temperature range (low temperature): -78℃ 0℃
Cooling time: +20℃ → -75℃≤75 min
Temperature impact range: +60 +150 ℃/
-55 -10 ℃
Temperature recovery time: ≤5 min

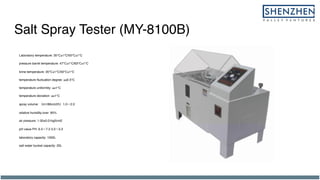

28. Salt Spray Tester (MY-8100B)
Laboratory temperature: 35℃±1℃/50℃±1℃
pressure barrel temperature: 47℃±1℃/63℃±1℃
brine temperature: 35℃±1℃/50℃±1℃
temperature fluctuation degree: ≤±0.5℃
temperature uniformity: ≤±1℃
temperature deviation: ≤±1℃
spray volume: m1/80cm2/h 1.0 2.0
relative humidity:over 85%
air pressure: 1.00±0.01kgf/cm2
pH value PH: 6.5 7.2 3.0 3.3
laboratory capacity: 1000L
salt water bucket capacity: 20L

29. Hot Filament Tester (CRS-GWT)
Hot wire Ø 4mm±0.04mm NiCr(80/20)
Thermocouple Ø0.5mmK
Electric heating hot wire temperature 500℃ 1100℃
Test article on hot wire test pressure: 1.0N + 0.1N
Maximum ironing depth: 7mm + 0.5mm;
Test product movement speed: 10mm/s ~ 25 mm/s;
Test time: 30s + 0.1s
The test volume ≥0.5m3
Background illumination ≤20Lx
Outline dimension W1100mm * D600mm * H1220mm,
Vent hole Ø100mm;
Power 220V 50-60Hz 1kVA

30. Needle Flame Tester (CRS-NFT)
Needle hole burner: endoporus: Φ 0.5mm ± 0.1mm
External diameter: ≤Φ 0.9mm; length: ≥ 35mm
Burner angle: 45
The burning time: 0-999.9s ± 0.1s
The holding time: 0-999.9s ± 0.1s,
The flame height: 12mm ± 1mm
The application of gas: 95%
Temperature measurement range: 0~1000
Thermocouple: Φ0.5mm

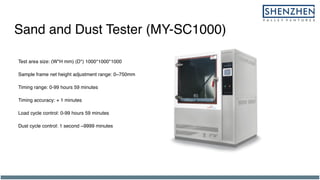

31. Sand and Dust Tester (MY-SC1000)
Test area size: (W*H mm) (D*) 1000*1000*1000
Sample frame net height adjustment range: 0~750mm
Timing range: 0-99 hours 59 minutes
Timing accuracy: + 1 minutes
Load cycle control: 0-99 hours 59 minutes
Dust cycle control: 1 second ~9999 minutes

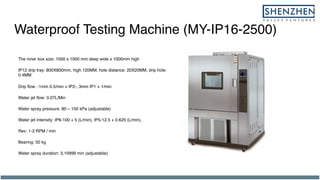

32. Waterproof Testing Machine (MY-IP16-2500)
The inner box size: 1000 x 1000 mm deep wide x 1000mm high
IP12 drip tray: 800X800mm, high 120MM, hole distance: 20X20MM, drip hole:
0.4MM
Drip flow: -1mm 0.5/min + IP2-, 3mm IP1 + 1/min
Water jet flow: 0.07L/Min
Water spray pressure: 80 ~ 150 kPa (adjustable)
Water jet intensity: IP6-100 + 5 (L/min), IP5-12.5 + 0.625 (L/min),
Rev: 1-3 RPM / min
Bearing: 50 kg
Water spray duration: 3,10999 min (adjustable)

33. CNC Machine (JDVT 600-A12S)
X/Y/Z axis motion positioning accuracy: 0.005,0.005,0.005mm
X/Y/Z axis repeated positioning accuracy: 0.0045,0.0045,0.0045mm
X/Y/Z axis working stroke: 600/400/350mm
Table size: 730*400mm
Maximum working load: 300kg
Spindle maximum speed: 24000rpm
Shank size: BT30
Tool magazine capacity: 24
Fast moving speed: 15m/min
Maximum cutting feed rate: 15m/min
Drive system: AC servo
Working voltage: three phase 380V/50Hz
Gas source pressure: 0.52MPa
Machine weight: 4000Kg

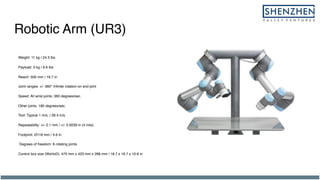

34. Robotic Arm (UR3)
Weight: 11 kg / 24.3 lbs
Payload: 3 kg / 6.6 lbs
Reach: 500 mm / 19.7 in
Joint ranges: +/- 360° Infinite rotation on end joint
Speed: All wrist joints: 360 degrees/sec.
Other joints: 180 degrees/sec.
Tool: Typical 1 m/s. / 39.4 in/s.
Repeatability: +/- 0.1 mm / +/- 0.0039 in (4 mils)
Footprint: Ø118 mm / 4.6 in
Degrees of freedom: 6 rotating joints
Control box size (WxHxD): 475 mm x 423 mm x 268 mm / 18.7 x 16.7 x 10.6 in
