1. Fiber Pipe Laser cutting Machine
Golden Vtop Laser

3. 3

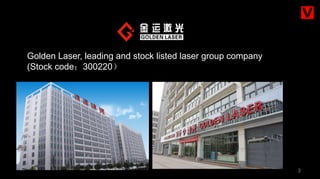

Golden Laser, leading and stock listed laser group company
(Stock code：300220）

4. Subsidiary of GOLDEN LASER
Focus on high-end intelligent
laser solution provider

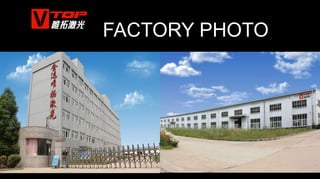

5. FACTORY PHOTO

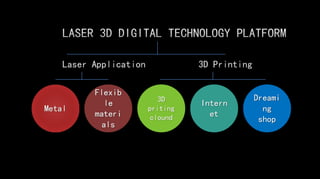

7. Sheet
Metal
cutting
Tube
Cutting
3D
robotic
cutting/
weldin
g
Metal
and
non-
metal
cutting

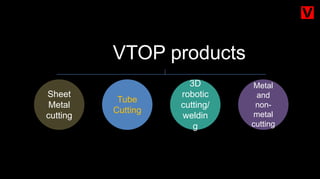

VTOP products

8. Presenting the highest
cost effectiveness tube
cutting machine for global
customers. Focus on
professional applications.
Objectives:

9. 1.Gem equipments
2.Furniture industry
3.Exhibition device & Shelves
4.Construction indsutry
5.Processing company
6.Equipments manufacturer
Customers Applications:

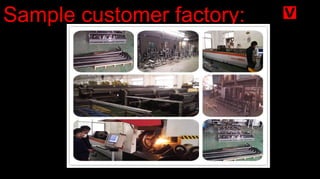

10. Sample customer factory:

11. Why do we manufacture
professional tube cutting machine?
The trends and requirements on tube cutting
is batch, order production, our product
meets the customers' requirements on
cutting flexibility for all kind of tubes, to
improve efficiency.

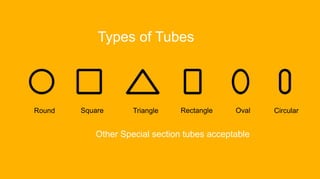

12. Round Square Triangle Rectangle Oval Circular
Other Special section tubes acceptable
Types of Tubes

14. Hardware advantages:

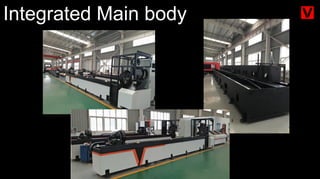

15. Integrated Main body
BETTER coaxiality, Verticality and
accuracy
Length 8000 mm Weight 10 T

16. Integrated Main body

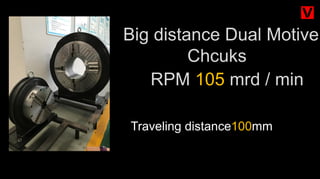

17. Big distance Dual Motive
Chcuks
g traveling distance
Dual driving roatry
RPM 105 mrd / min
Traveling distance100mm

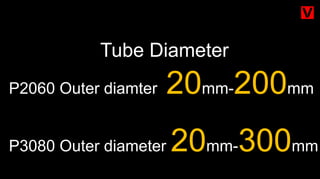

18. Tube Diameter
P2060 Outer diamter 20mm-200mm
P3080 Outer diameter 20mm-300mm

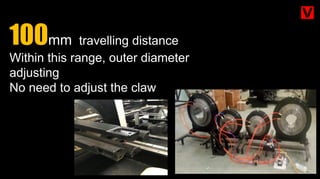

19. 100mm travelling distance
Within this range, outer diameter
adjusting
No need to adjust the claw

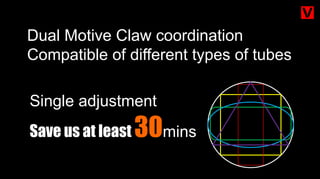

20. Dual Motive Claw coordination
Compatible of different types of tubes
Single adjustment
Save us at least 30mins

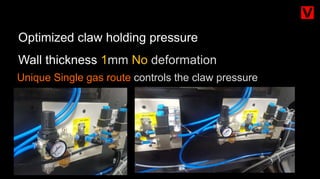

21. Unique Single gas route controls the claw pressure
Optimized claw holding pressure
Wall thickness 1mm No deformation

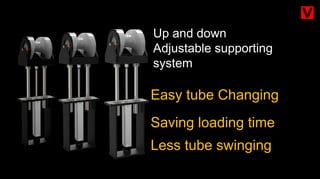

22. Up and down
Adjustable supporting
system
Easy tube Changing
Saving loading time
Less tube swinging

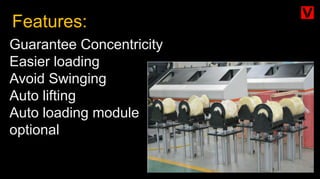

23. Features:
Guarantee Concentricity
Easier loading
Avoid Swinging
Auto lifting
Auto loading module
optional

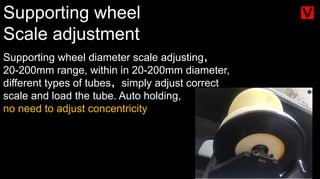

24. Supporting wheel
Scale adjustment
Supporting wheel diameter scale adjusting，
20-200mm range, within in 20-200mm diameter,
different types of tubes，simply adjust correct
scale and load the tube. Auto holding,
no need to adjust concentricity

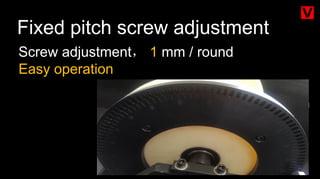

25. Fixed pitch screw adjustment
Screw adjustment， 1 mm / round
Easy operation

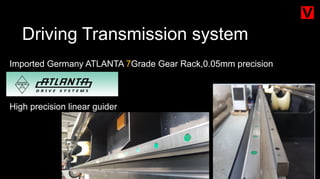

26. Driving Transmission system
Imported Germany ATLANTA 7Grade Gear Rack,0.05mm precision
High precision linear guider

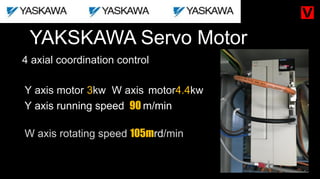

27. YAKSKAWA Servo Motor
Y axis running speed 90 m/min
4 axial coordination control
Y axis motor 3kw W axis motor4.4kw
W axis rotating speed 105mrd/min

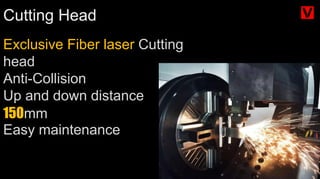

28. Cutting Head
Exclusive Fiber laser Cutting
head
Anti-Collision
Up and down distance
150mm
Easy maintenance

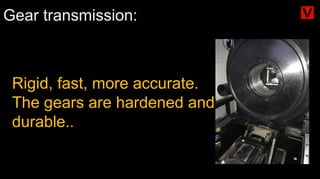

29. Gear transmission:
Rigid, fast, more accurate.
The gears are hardened and
durable..

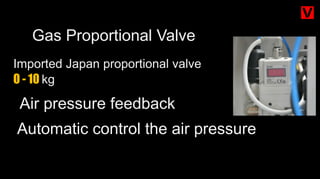

30. Gas Proportional Valve
Imported Japan proportional valve
0 - 10 kg
Air pressure feedback
Automatic control the air pressure

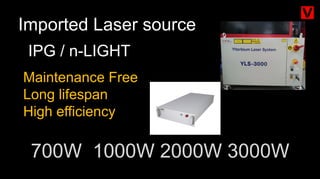

31. Imported Laser source
IPG / n-LIGHT
700W 1000W 2000W 3000W
Maintenance Free
Long lifespan
High efficiency

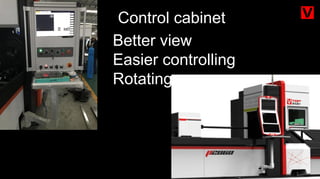

32. Control cabinet
Better view
Easier controlling
Rotating

33. Integrated Circuit
Compact designing
Low failure
Easy maintenance

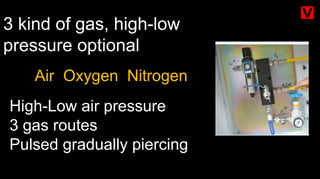

34. High-Low air pressure
3 gas routes
Pulsed gradually piercing
Air Oxygen Nitrogen
3 kind of gas, high-low
pressure optional

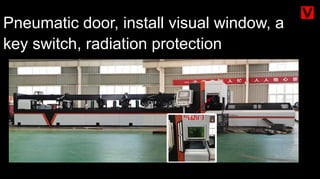

35. Pneumatic door, install visual window, a
key switch, radiation protection, anti
glare, anti dust.

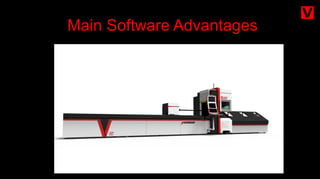

36. Main Software Advantages

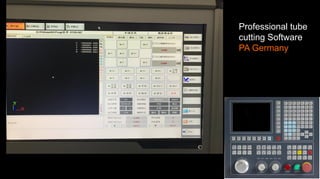

37. Professional tube
cutting Software
PA Germany

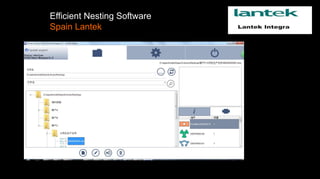

38. Efficient Nesting Software
Spain Lantek

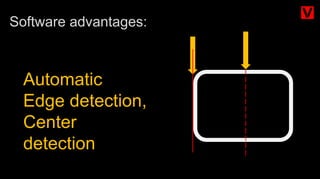

39. Automatic
Edge detection,
Center
detection
Software advantages:

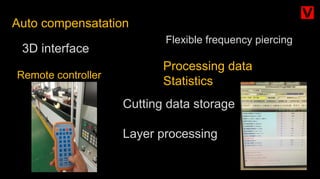

40. Auto compensatation
3D interface
Remote controller
Cutting data storage
Layer processing
Flexible frequency piercing
Processing data
Statistics

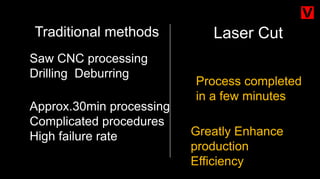

41. Traditional methods Laser Cut
Saw CNC processing
Drilling Deburring
Approx.30min processing
Complicated procedures
High failure rate
Process completed
in a few minutes
Greatly Enhance
production
Efficiency

42. For customers
batch production
Multi types production
Order outside sourcing Enterprises

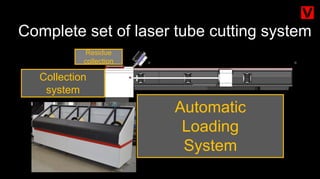

43. Automatic
Loading
System
Collection
system
Complete set of laser tube cutting system
Residue
collection

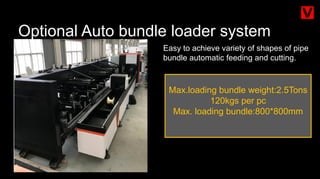

44. Optional Auto bundle loader system
Max.loading bundle weight:2.5Tons
120kgs per pc
Max. loading bundle:800*800mm
Easy to achieve variety of shapes of pipe
bundle automatic feeding and cutting.

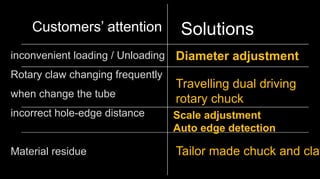

45. inconvenient loading / Unloading
Rotary claw changing frequently
when change the tube
incorrect hole-edge distance
Material residue
Customers’ attention Solutions
Diameter adjustment
Travelling dual driving
rotary chuck
Scale adjustment
Auto edge detection
Tailor made chuck and claw

46. 2018-3-23
P2060A• XJGC 20600G

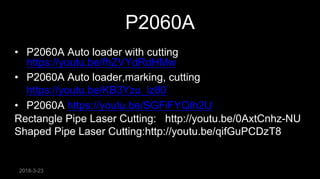

• • Metal Pipe Laser Cutting Machine: http://youtu.be/1Fm9-3jUy8Y
• P2060A Auto loader with cutting
https://youtu.be/fhZVYdRdHMw
• P2060A Auto loader,marking, cutting
https://youtu.be/KB3Yzu_iz80
• P2060A https://youtu.be/SGFiFYQIh2U
Rectangle Pipe Laser Cutting: http://youtu.be/0AxtCnhz-NU
Shaped Pipe Laser Cutting:http://youtu.be/qifGuPCDzT8

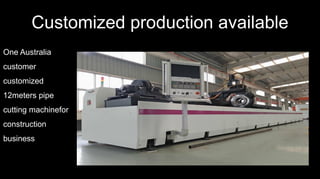

47. Customized production available
One Australia
customer
customized
12meters pipe
cutting machinefor
construction
business

48. Wish we have chance
to cooperte!
