The document discusses a model driven software development platform called Speedy Framework. It provides the following key points: 1. Speedy Framework enables developers to work on a common model and generates code, documentation and tests from this model. This allows faster development and a common vision. 2. It provides reusable middleware services and a predefined architecture to build applications. This reduces development costs and bugs. 3. The framework standardizes the development process and incorporates best practices, leading to higher quality software that is less dependent on individual developers.

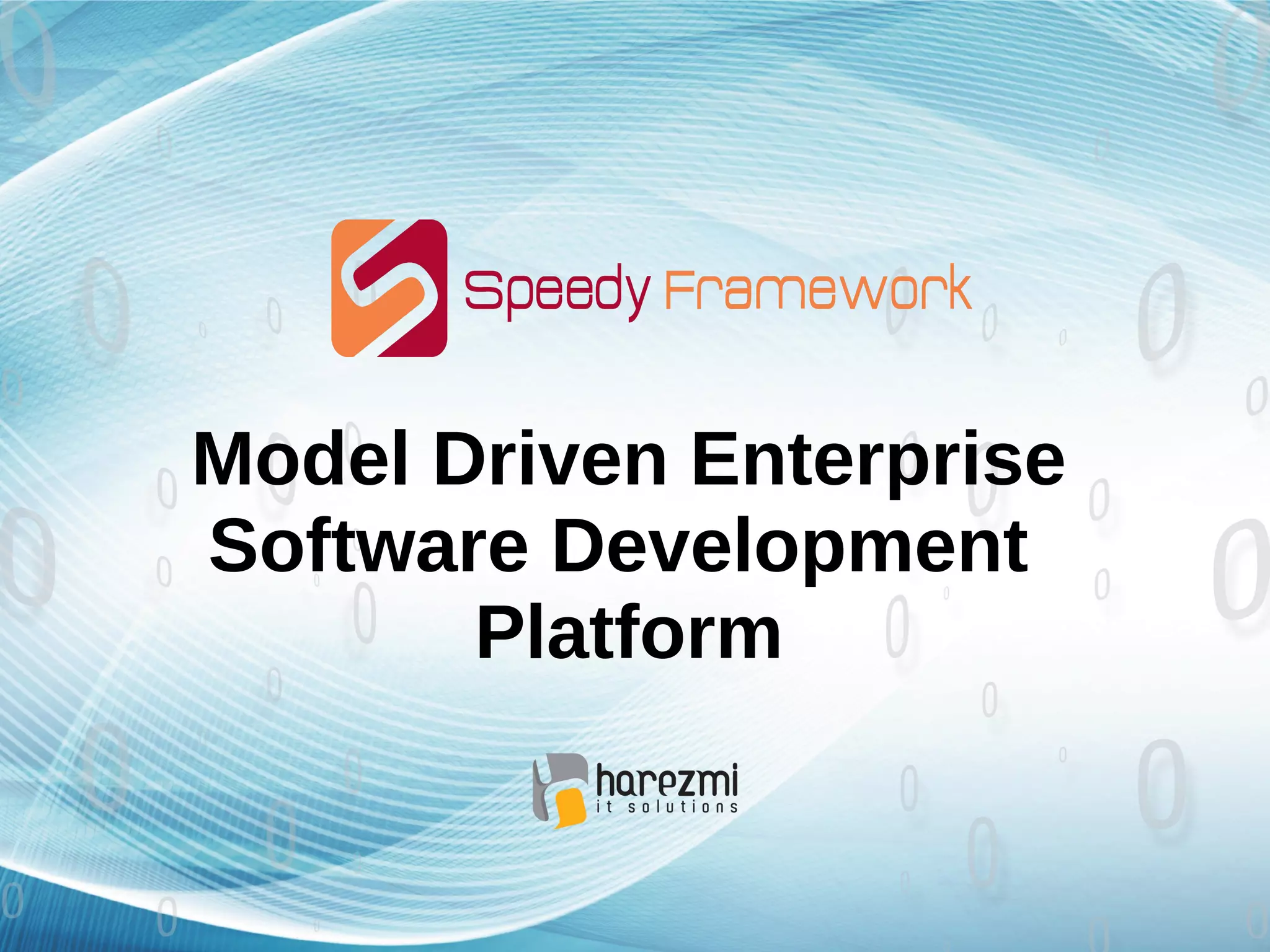

1. Model Driven Enterprise
Software Development
Platform

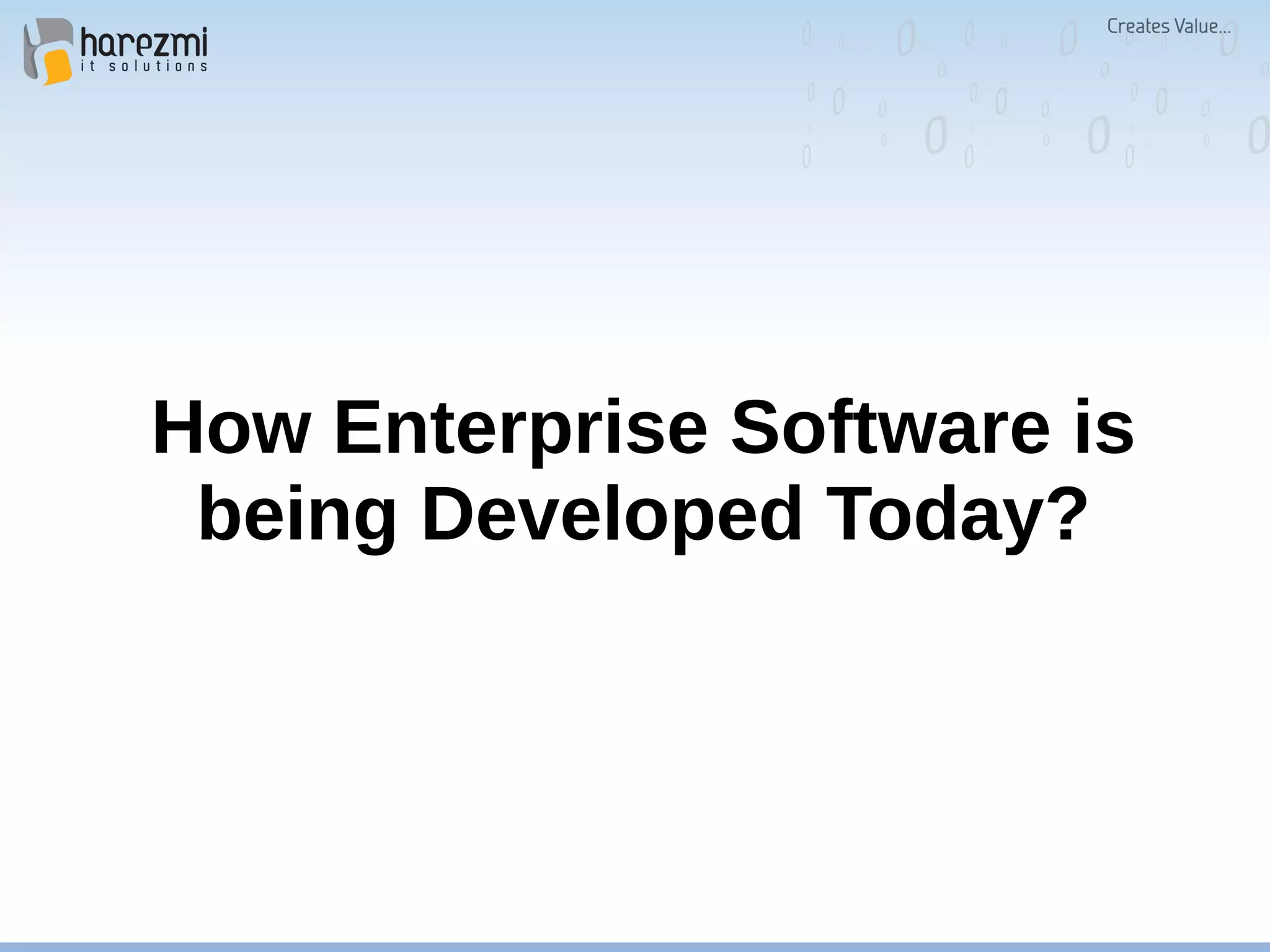

2. How Enterprise Software is
being Developed Today?

3. Resulting, development of almost everything from
ground zero for each new project!
Inability to transfer already developed solutions to
new projects...

4. No initial architectural foundation is ready at
the beginning, instead it evolves over time...

5. Inability to create a common vision among project
members...

6. Using bunch of technologies which are not fully
comprehended by the developers...

7. Customer requirements are always changing, and no clear
picture of end result can be put on the table at the
beginning...

8. What are the Negative
Effects of the Current
Situation?

9. In terms of Companies
• Overbuget projects
• High maintenance costs
In terms of Managers
• Failing plans
• Delayed delivery dates

10. In terms of Developers
• Overtimes, sleepless nights
• Inability to specialize in a
specific topic
In terms of Customers
• Late delivered solutions with
missing functionalities
• Low quality, hard to use
solutions

11. What are the Expectations of
Contemporary Software
Houses?

12. Delivering products in shorter
time periods
Improving software development
productivity
Lowering costs of project
development

13. Then What is
the Solution?

14. Main Features of the Solution
Should allow creation of a
working solution based
on customer
requirements from day one
Should enable software
development with
reusable components
Should provide a
ready to use
architecture to place
application on top
Should help team
members work on a
common model

15. Fundamental Building Blocks of the
Solution
• Model Driven Software
Development
• Enterprise Middleware
Services

16. Model Driven Software
Development
It aims software developers to work on a
common model
Turns software development into an activity which
is more visual

17. Model Driven Software
Development
Common model becomes originating place for
source code, documentation and tests
Source code
documentation

18. Model Driven Software
Development
Helps developers to focus more on business
requirements

19. Model Driven Software
Development
Creation of working solutions becomes faster

20. Enterprise Middleware Services
• They are orthogonal to business requirements
• Business requirements are built on top of those
services

21. They can be implemented
as reusable building
blocks
Appear in every
enterprise project again
and again
Deja Vu?
Enterprise Middleware Services

22. • security,
• data access,
• reporting,
• internationalization,
• logging,
• messaging,
• auditing,
• monitoring,
• help...
and similar requirements are satisfied
by those kind of services
Enterprise Middleware Services

23. Our Solution!

24. Speedy Framework
Enables developers to work on a common model

25. Speedy Framework
Provides ready to use software components

26. Speedy Framework
Provides a well defined, and ready to use
architecture to build apps on top

27. Speedy Framework
Brings several different frameworks and libraries
together and integrates them

28. Speedy Framework
Brings a more systematic and automatic approach to
enterprise software development activity

29. Speedy Framework
Modules
core jdbc orm security web
ui reporting auditing monitoring bpm
Spring
JPA/
Hibernate
Vaadin
Spring
Security
Activiti
Jasper
Reports
jdbc-h2
jdbc-
oracle
jdbc-
c3p0
jdbc-
dbcp
orm-
hibernate
security-
cas
ui-
security
ui-
reporting
ui-
auditing
ui-
monitoring
ui-
settings
Technology
Stack
Core
Modules
Stack
Optional
Modules
Stack
Pluggable
Modules
Stack
AspectJ

30. Speedy Tools Suite
Eclipse Plugin Stack
Speedy New Project Wizard
Speedy Robustness Diagram Editor
Speedy Class Diagram Editor
Speedy Properties Editor
Eclipse Platform

31. Robustness Diagram Editor

32. Class Diagram Editor

33. Speedy Framework
Main Features
●
Event based UI programming model based on MVP and
Mediator patterns
●
Enabling development of modular, decoupled and
reusable UI components
●
View Model support to managing binding of persistent
domain instances to UI pages effectively
●
Master-detail oriented page structures ready to use to
develop CRUD like scenarios easier and faster
●
Read-only and read-write mode support for master and
detail pages

34. Speedy Framework
Main Features
●
Search criteria build and dynamic query generation
support
●
Managing user defined queries for later uses
●
Paging support to display large amount of search
results page by page
●
Dashboard support
●
Support to define user menu declaratively
●
User Preferences support to manage user specific
data

35. Speedy Framework
Main Features
●
Support to display confirmation dialogs before
executing UI tasks
●
Dirty content checking mechanism to detect unsaved
user modification during page navigation
●
Bread crumb support to help users see where they
are currently located and navigate to previous
pages they viewed
●
Exception translation support to convert application
specific errors to user friendly messages

36. Speedy Framework
Main Features
●
Support to record functional UI tests and run them
automatically
●
Allowing developers to pause functional UI tests to
examine and execute UI test scenarios manually
●
Sample test data loading mechanism
●
Target platform support, to manage customization of
application according to target deployment
platform

37. Speedy Framework
Main Features
●
Internationalization and localization support
●
Regional settings support manage Locale, Language,
TimeZone and Currency related user specific data
●
Context sensitive help mechanism to display help
content related with a specific UI component, page
part, or current page
●
Tool-tip support to display tooltips for UI components
●
Support to manage help content either within file
system or in relational database

38. Speedy Framework
Main Features
●
Declarative and programmatic transaction
management support
●
SQL Exception translation support to convert SQL
error codes into meaningful data access related
exceptions
●
Multi tenancy and protection domain support to host
several clients in the same application
●
ORM and JPA support
●
Support to use Hibernate as an SQL mapping tool

39. Speedy Framework
Main Features
●
Support to code domain classes faster and easier, like
equals, hashCode, compareTo methods, ready to use
domain class hierarchies
●
Generic service and DAO API to perform CRUD
operations on domain classes
●
Video streaming capability over HTTP
●
Dynamic report generation for search results, and detail
views
●
Exporting reports in various formats, such as PDF,
DOC, XSL or HTML

40. Speedy Framework
Main Features
●
Redirecting report output to different targets, like
screen, e-mail or file
●
Scheduled task execution support, to execute jobs in
predefined times, and in repeated time intervals
●
Synchronous and asynchronous mail sending
capability
●
Support to monitor web requests, published events,
service method calls in detail, their execution time,
and their call hierarchies

41. Speedy Framework
Main Features
●
Support for different authentication methods, such as
form login, HTTP basic auth, LDAP etc
●
Additional authentication checks during user login,
like account status check, credentials expiration,
allowed IP range check etc
●
Captcha support for multi factor authentication
●
Storing password encrypted
●
Redirecting users to different pages after their
authentication based on their roles

42. Speedy Framework
Main Features
●
Remember-me support
●
Managing authentication data in various user realms,
like DB, LDAP
●
Authentication bypass support for testing purposes
●
User session management to allow max concurrent
sessions opened by a single user account
●
Protecting users from session fixation attacks
●
CSRF protection support

43. Speedy Framework
Main Features
●
Hierarchical group and authority management
●
Authorization support to protect web requests, service
method invocations and access to domain objects
●
Hierarchical page level security to manage access
rights to pages and parts defined in those pages
●
Switching from one user account to another at runtime
●
Invoking a service method with different privileges at
runtime

44. Speedy Framework
Main Features
●
Support to create and manage domain object level
security metadata (ACL data)
●
Security operations related event publish support to
let applications customize their authentication and
authorization scenarios
●
Entity and service level auditing to record user
operations performed in the system in order to give
answers to questions like who, when, from where
and what

45. Speedy Framework
Main Features
●
Support to validate input arguments and return
values of service method calls
●
Support to cache service method results
●
Fail safe log4j configuration during bootstrapping
process

46. • Software development becomes faster as most of
the middleware services are provided out of the
box, and a ready to use architecture available from
the beginning
• Ensures a same level of quality accross the
whole system
• Quality will be less dependent on individual
software developers
Expected Benefits

47. Expected Benefits
• Cuts number of bugs down as considerable
amount of code won't be written because of
reusable software components, and generation of
source code out of model
• Learning curve of finished system for end users
will be much lower as system will have more
standardized look and feel, and standard handling
of user scenarios
• Project costs in every phase of the software
development will be lower

48. Business Model
●
Speedy Core Framework will be open source Apache
Version 2.0 License
●
Speedy UI Modules and Speedy Tool Suite will be open
source, too, but are planned to be commercial licensed
●
We expect to earn money by selling professional support
●
We are already using Speedy Framework to develop
contract based enterprise web application solutions,
●
and expect an increase in number of such development
projects

49. Business Model
●
Offer mentoring and consultancy services related
with developing enterprise software
●
Organize public and private trainings related with
enterprise technologies we are highly
knowledgeable and experienced

50. Target Customer Profile
●
Any organization or company in which enterprise web
application development performed is a potential
customer for Speedy
●
Those organizations or companies might be producing
enterprise software for their customers,
●
Or they might be developing software for their own
use within their IT departments
●
We aim to persuade technical people of those
organizations that employing our solution makes
their progress much faster and easier

51. Marketing & Sales
●
Advertise our solution set in IT related conferences
and public speaks
●
Publish technical articles on popular technology
related sites and magazines to demonstrate our
technical expertise,
●
and how common pain points in enterprise web
application development are solved by employing
our solution
●
Visit potential customers on site to demonstrate our
product

52. Competitors
●
There are several tools and frameworks which
address parts of our solution
●
However, three main competitors appear as close
competitors to what we offer as full stack
enterprise software development platform
●
CUBA Enterprise Application Development
Platform
●
Radicore Application Development Toolkit
●
Evolutility CRUD Framework

53. CUBA Enterprise
Application Development Platform
●
Data aware visual components
●
UI style customization
●
Generic data filter
●
Support for persistence and data access operations
●
Built-in report engine
●
Multiple languages support
●
Scheduled tasks
●
Audit support
●
Admins tools
●
Async e-mail sending

54. CUBA Enterprise
Application Development Platform
●
Java EE based technology stack used
●
Runtime framework is open sourced with Apache
Version 2
●
Development Studio is available as commercial
product

55. Radicore Application
Development Toolkit
●
Automatic generation of Business model, CRUD services and UI
●
Built-in menu and navigation system
●
Role based access control system
●
Built-in messaging between components
●
Workflow engine
●
Support for audit logging
●
Internationalization and localization
●
Online help support
●
Export to different formats, like XSL, PDF

56. Radicore Application
Development Toolkit
●
PHP based technology used
●
Offers dual licensing
– AGPL v3 for non-commercial use
– Commercial license

57. Evolutility CRUD Framework
●
Metadata-driven framework to develop database
oriented applications without hand-coding
●
Supports CRUD based UI generation
●
Master-detail pages and CRUD functionality
●
Multi-user support with password protection, row level
security
●
Multi-lingual
●
Support for multiple export formats
●
Cross-browser support

58. Evolutility CRUD Framework
●
Microsoft .NET platform as technology stack
●
Offers dual licensing
– AGPL v3 for non commercial uses
– Commercial license

59. Organizations We Work Together

60. Contact
Harezmi IT Solutions
Speedy Framework
http://www.harezmi.com.tr
info@harezmi.com.tr
Tel: +90312 210 1036
Cep: +90533 638 2091
