1. Quantum Security Groups
Session
Dave Lapsley
@davlaps
http://slidesha.re/HQvDTk
http://etherpad.openstack.org/quantum-folsom

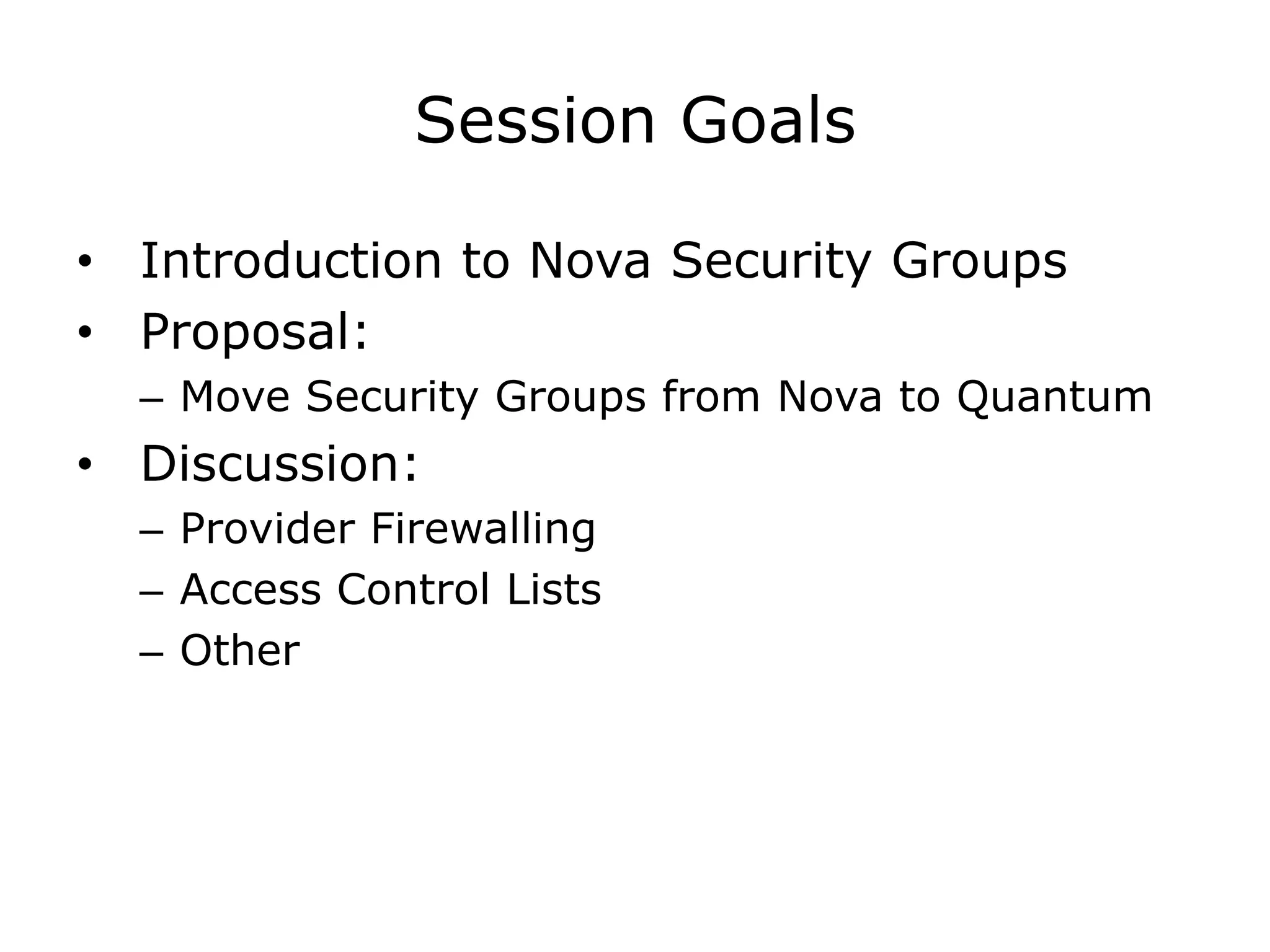

2. Session Goals
• Introduction to Nova Security Groups
• Proposal:
– Move Security Groups from Nova to Quantum
• Discussion:
– Provider Firewalling
– Access Control Lists
– Other

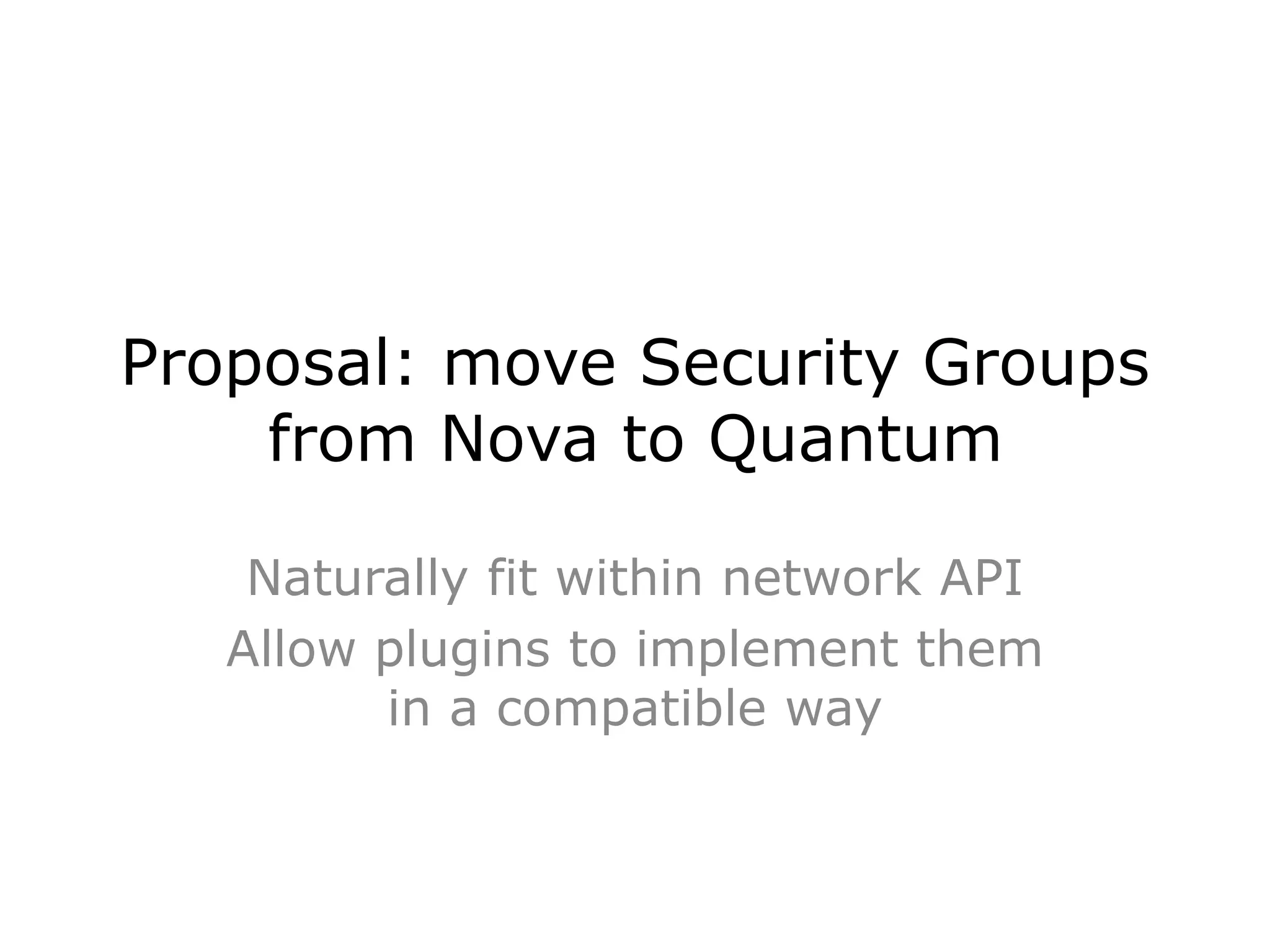

3. Proposal: move Security Groups
from Nova to Quantum
Naturally fit within network API
Allow plugins to implement them
in a compatible way

4. Features and Use Cases

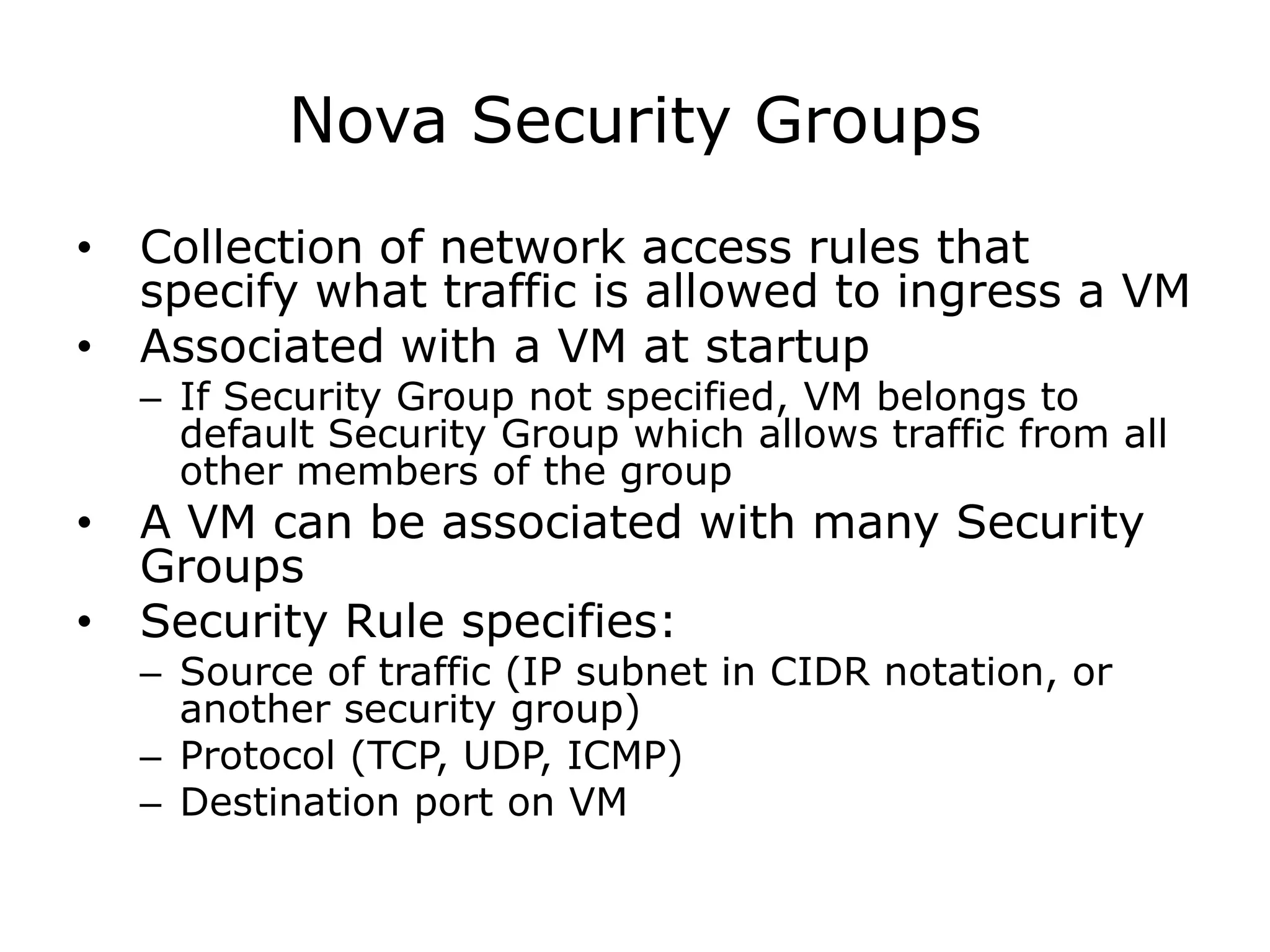

5. Nova Security Groups
• Collection of network access rules that
specify what traffic is allowed to ingress a VM
• Associated with a VM at startup
– If Security Group not specified, VM belongs to
default Security Group which allows traffic from all
other members of the group
• A VM can be associated with many Security
Groups
• Security Rule specifies:
– Source of traffic (IP subnet in CIDR notation, or
another security group)
– Protocol (TCP, UDP, ICMP)
– Destination port on VM

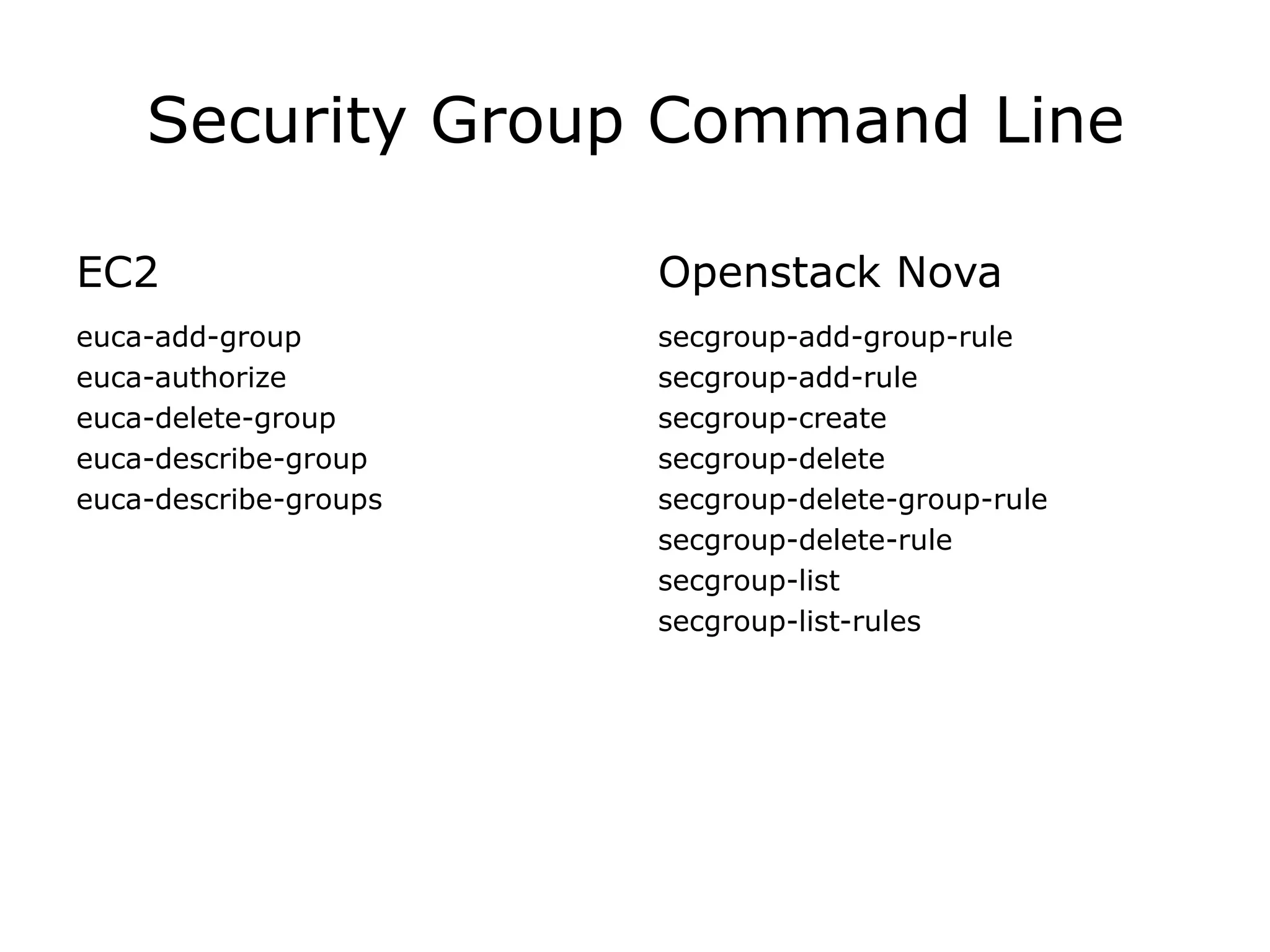

6. Security Group Command Line
EC2 Openstack Nova
euca-add-group secgroup-add-group-rule
euca-authorize secgroup-add-rule
euca-delete-group secgroup-create
euca-describe-group secgroup-delete
euca-describe-groups secgroup-delete-group-rule
secgroup-delete-rule
secgroup-list
secgroup-list-rules

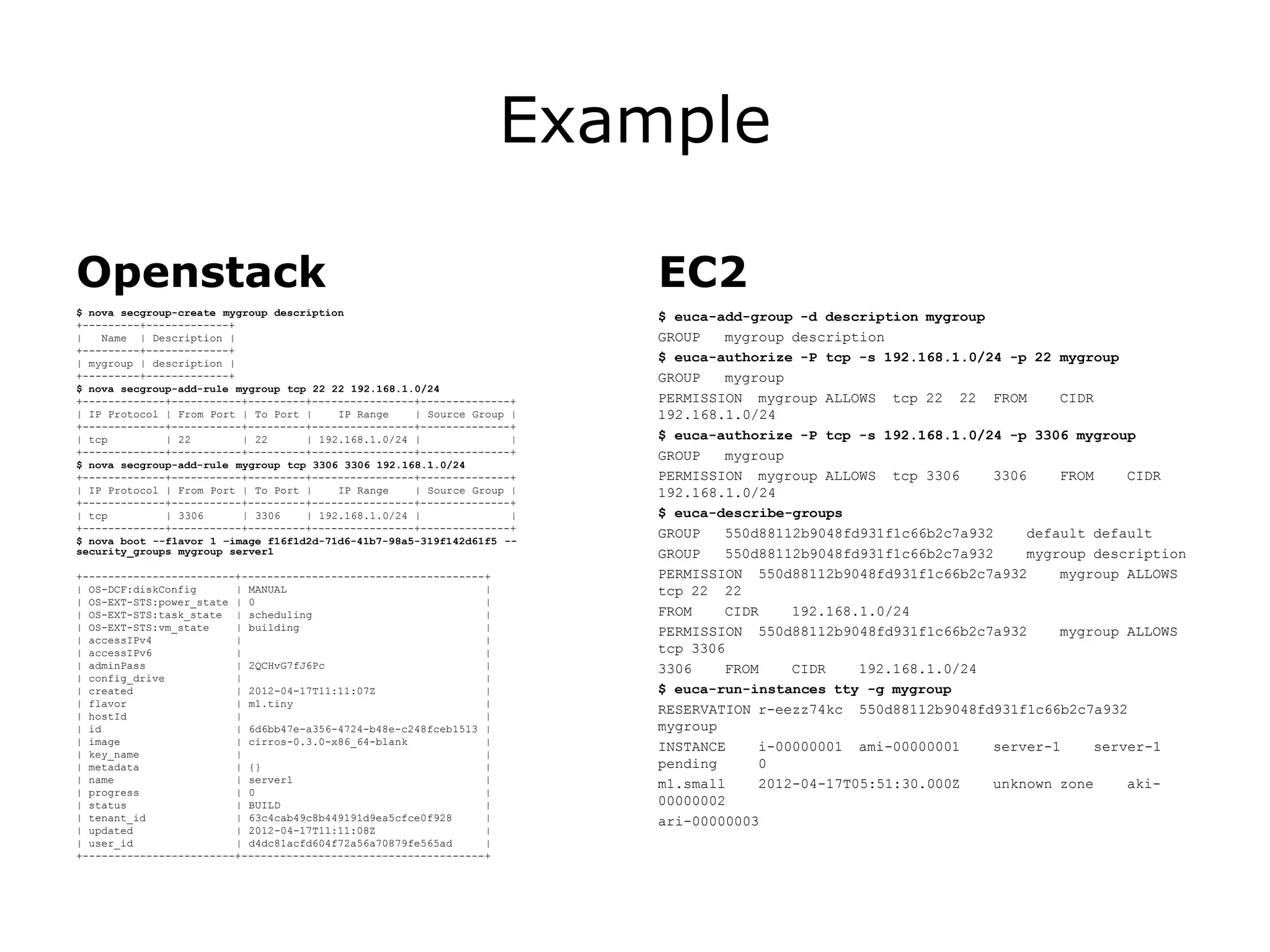

7. Example
Openstack EC2
$ nova secgroup-create mygroup description $ euca-add-group -d description mygroup
+---------+-------------+
| Name | Description | GROUP mygroup description
+---------+-------------+
| mygroup | description | $ euca-authorize -P tcp -s 192.168.1.0/24 -p 22 mygroup
+---------+-------------+ GROUP mygroup
$ nova secgroup-add-rule mygroup tcp 22 22 192.168.1.0/24
+-------------+-----------+---------+----------------+--------------+ PERMISSION mygroup ALLOWS tcp 22 22 FROM CIDR
| IP Protocol | From Port | To Port | IP Range | Source Group | 192.168.1.0/24
+-------------+-----------+---------+----------------+--------------+
| tcp | 22 | 22 | 192.168.1.0/24 | | $ euca-authorize -P tcp -s 192.168.1.0/24 -p 3306 mygroup
+-------------+-----------+---------+----------------+--------------+ GROUP mygroup
$ nova secgroup-add-rule mygroup tcp 3306 3306 192.168.1.0/24
+-------------+-----------+---------+----------------+--------------+ PERMISSION mygroup ALLOWS tcp 3306 3306 FROM CIDR
| IP Protocol | From Port | To Port | IP Range | Source Group | 192.168.1.0/24
+-------------+-----------+---------+----------------+--------------+
| tcp | 3306 | 3306 | 192.168.1.0/24 | | $ euca-describe-groups
+-------------+-----------+---------+----------------+--------------+
$ nova boot --flavor 1 –image f16f1d2d-71d6-41b7-98a5-319f142d61f5 --
GROUP 550d88112b9048fd931f1c66b2c7a932 default default
security_groups mygroup server1 GROUP 550d88112b9048fd931f1c66b2c7a932 mygroup description
+------------------------+--------------------------------------+ PERMISSION 550d88112b9048fd931f1c66b2c7a932 mygroup ALLOWS
| OS-DCF:diskConfig | MANUAL | tcp 22 22
| OS-EXT-STS:power_state | 0 |
| OS-EXT-STS:task_state | scheduling | FROM CIDR 192.168.1.0/24
| OS-EXT-STS:vm_state | building | PERMISSION 550d88112b9048fd931f1c66b2c7a932 mygroup ALLOWS
| accessIPv4 | |
| accessIPv6 | | tcp 3306
| adminPass | 2QCHvG7fJ6Pc | 3306 FROM CIDR 192.168.1.0/24
| config_drive | |
| created | 2012-04-17T11:11:07Z | $ euca-run-instances tty -g mygroup
| flavor | m1.tiny |
| hostId | |
RESERVATION r-eezz74kc 550d88112b9048fd931f1c66b2c7a932
| id | 6d6bb47e-a356-4724-b48e-c248fceb1513 | mygroup
| image | cirros-0.3.0-x86_64-blank |
| key_name | |
INSTANCE i-00000001 ami-00000001 server-1 server-1
| metadata | {} | pending 0
| name | server1 | m1.small 2012-04-17T05:51:30.000Z unknown zone aki-
| progress | 0 |
| status | BUILD | 00000002
| tenant_id | 63c4cab49c8b449191d9ea5cfce0f928 | ari-00000003
| updated | 2012-04-17T11:11:08Z |
| user_id | d4dc81acfd604f72a56a70879fe565ad |
+------------------------+--------------------------------------+

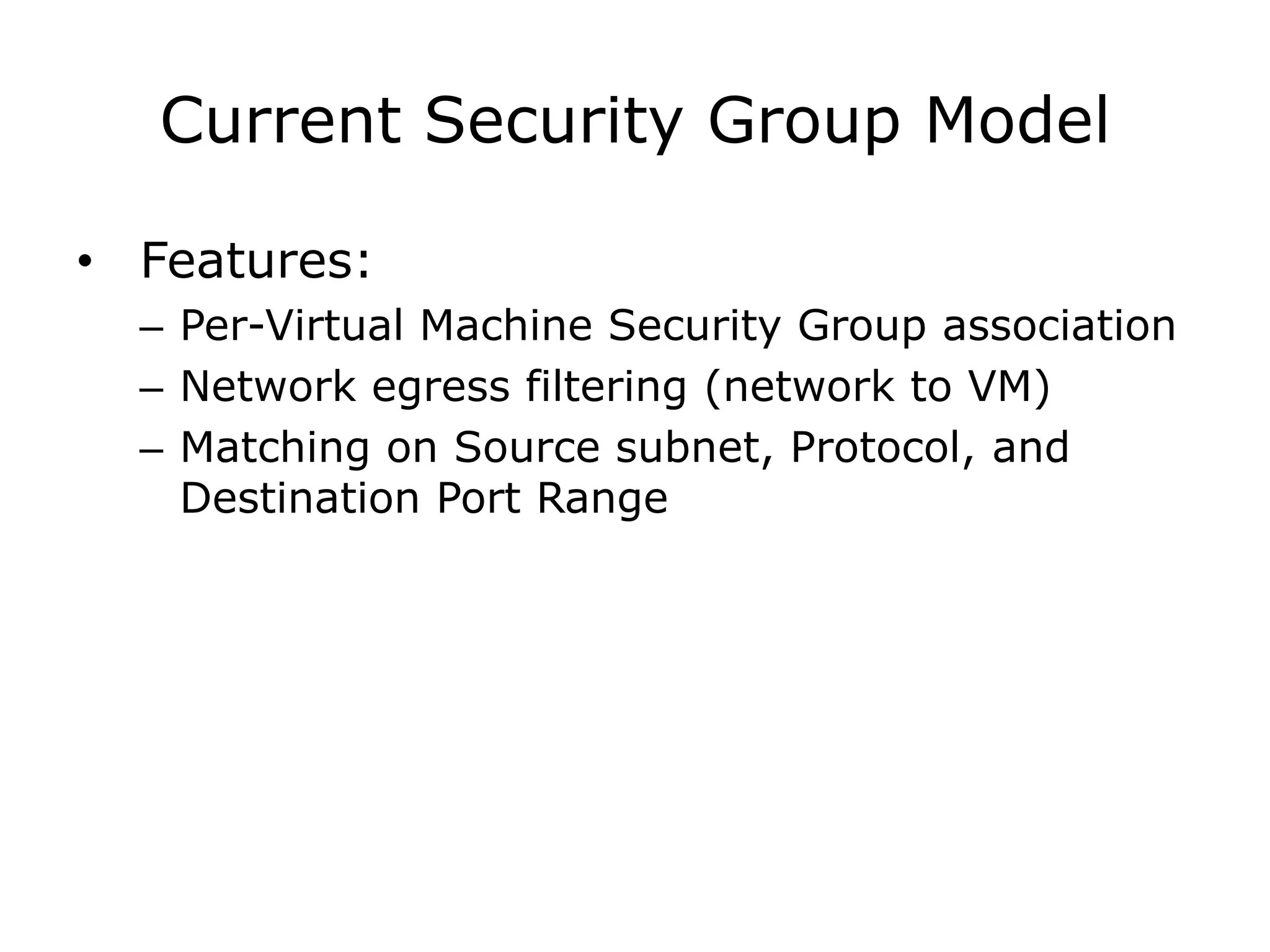

8. Current Security Group Model
• Features:
– Per-Virtual Machine Security Group association
– Network egress filtering (network to VM)
– Matching on Source subnet, Protocol, and
Destination Port Range

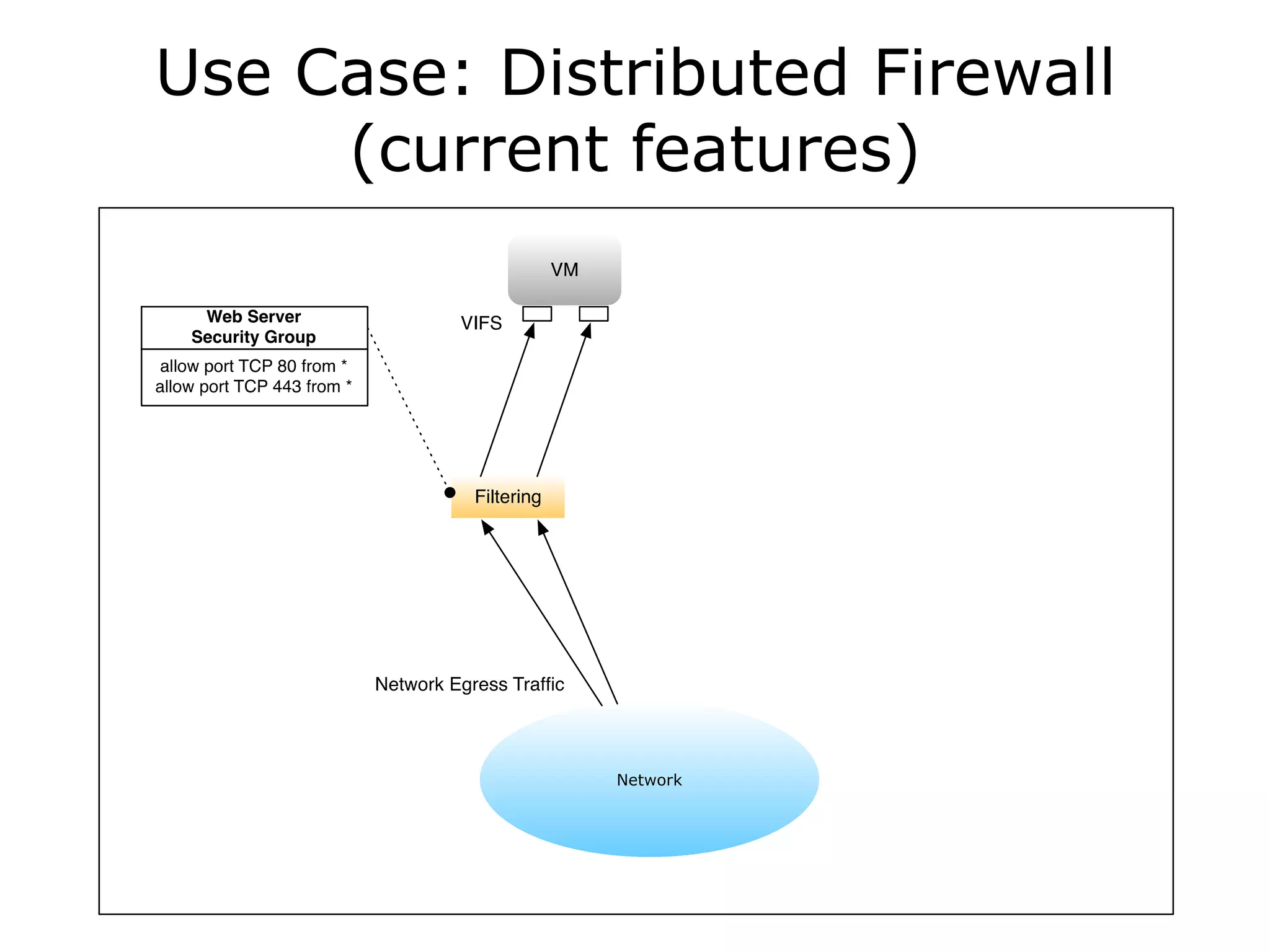

9. Use Case: Distributed Firewall
(current features)

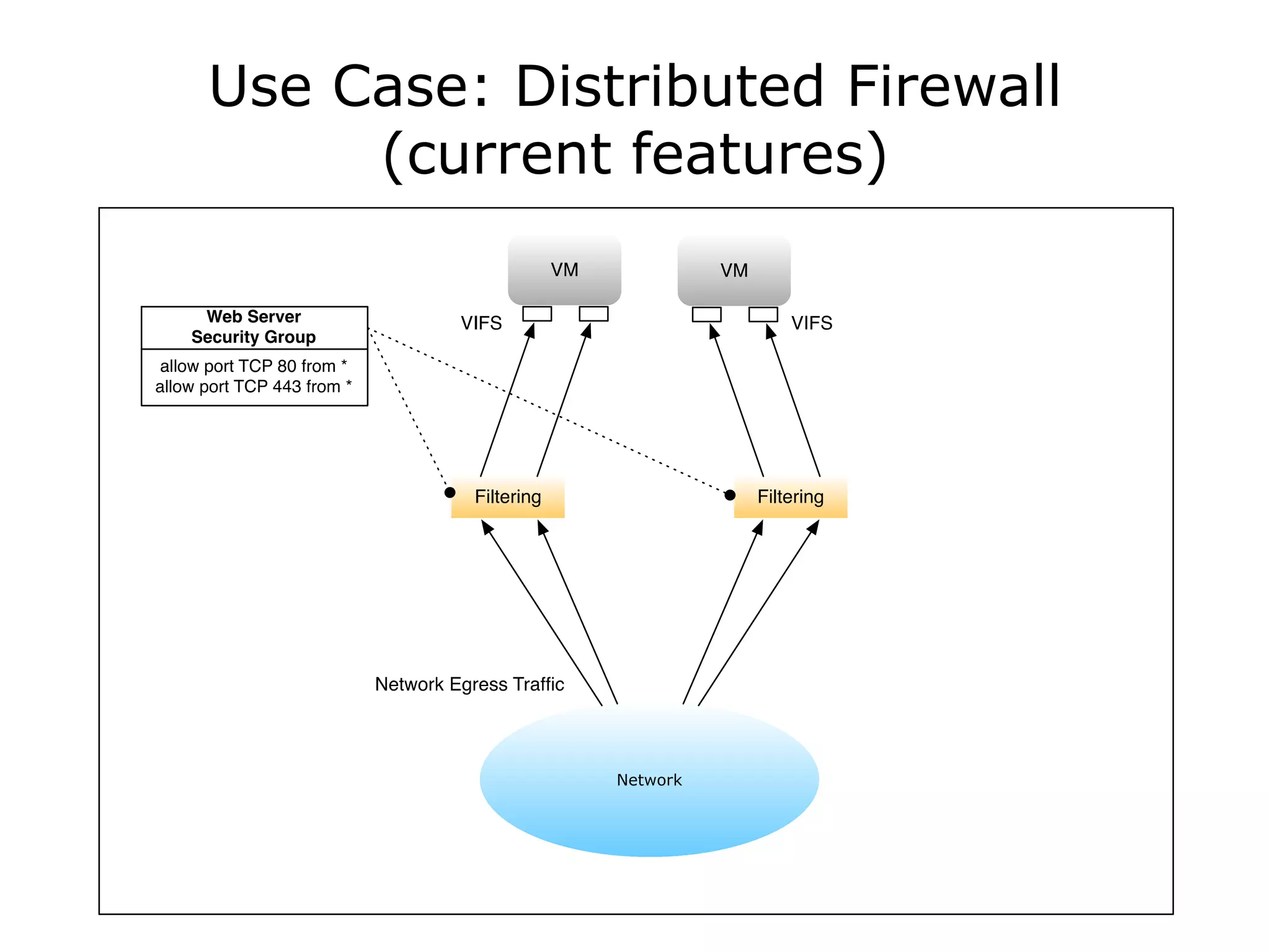

10. Use Case: Distributed Firewall
(current features)

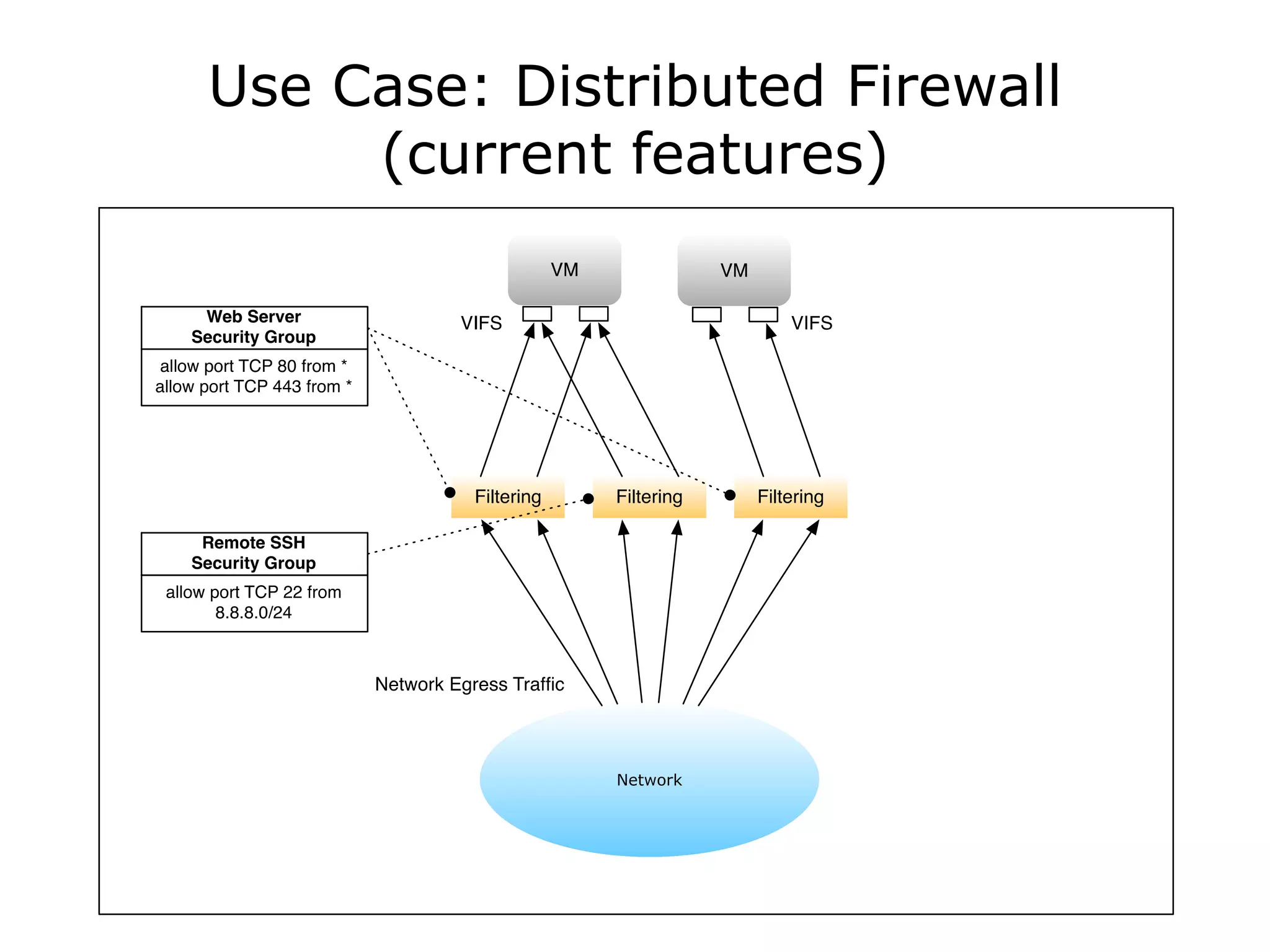

11. Use Case: Distributed Firewall
(current features)

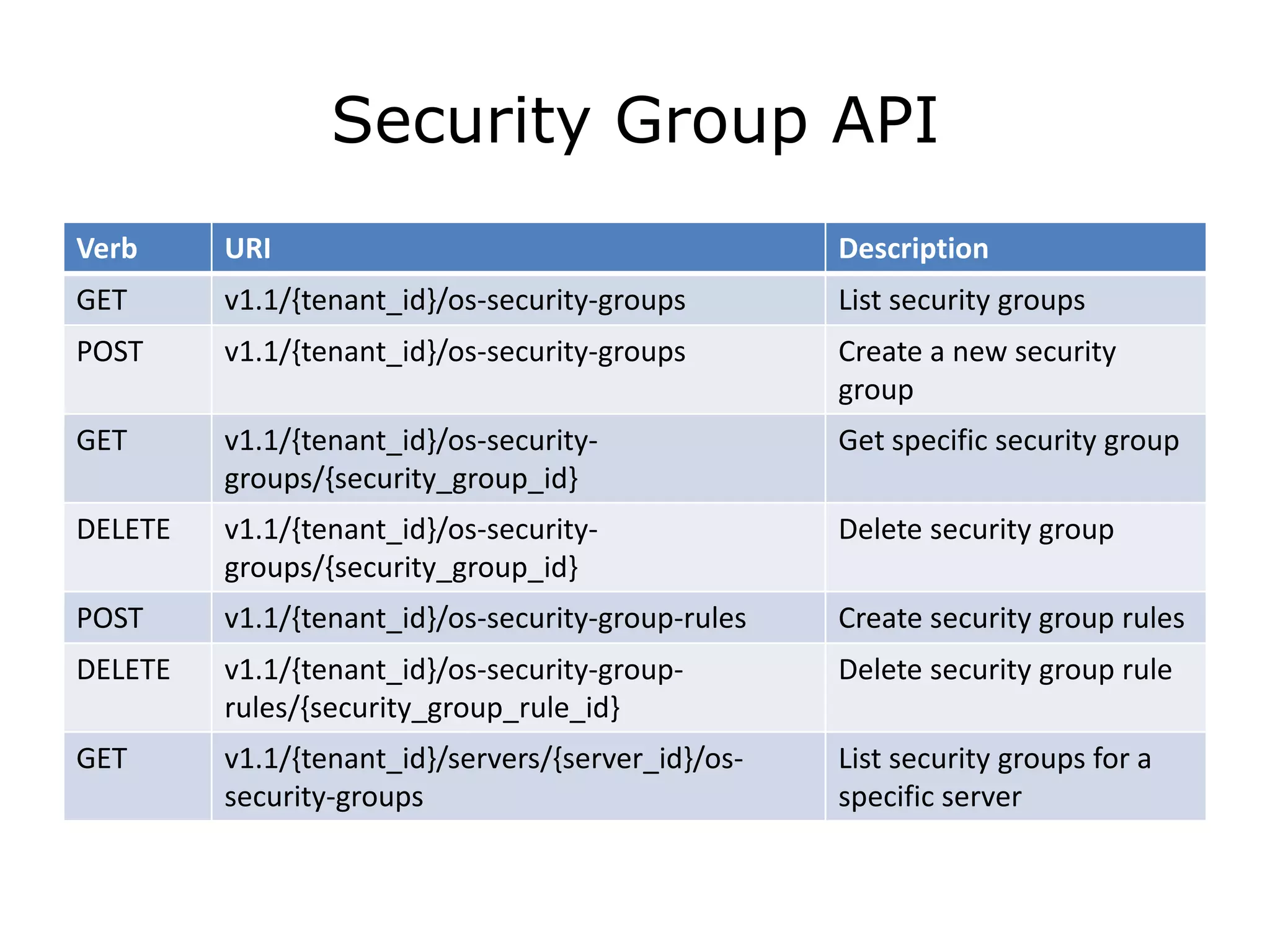

12. Security Group API
Verb URI Description
GET v1.1/{tenant_id}/os-security-groups List security groups
POST v1.1/{tenant_id}/os-security-groups Create a new security
group
GET v1.1/{tenant_id}/os-security- Get specific security group
groups/{security_group_id}
DELETE v1.1/{tenant_id}/os-security- Delete security group
groups/{security_group_id}
POST v1.1/{tenant_id}/os-security-group-rules Create security group rules
DELETE v1.1/{tenant_id}/os-security-group- Delete security group rule
rules/{security_group_rule_id}
GET v1.1/{tenant_id}/servers/{server_id}/os- List security groups for a
security-groups specific server

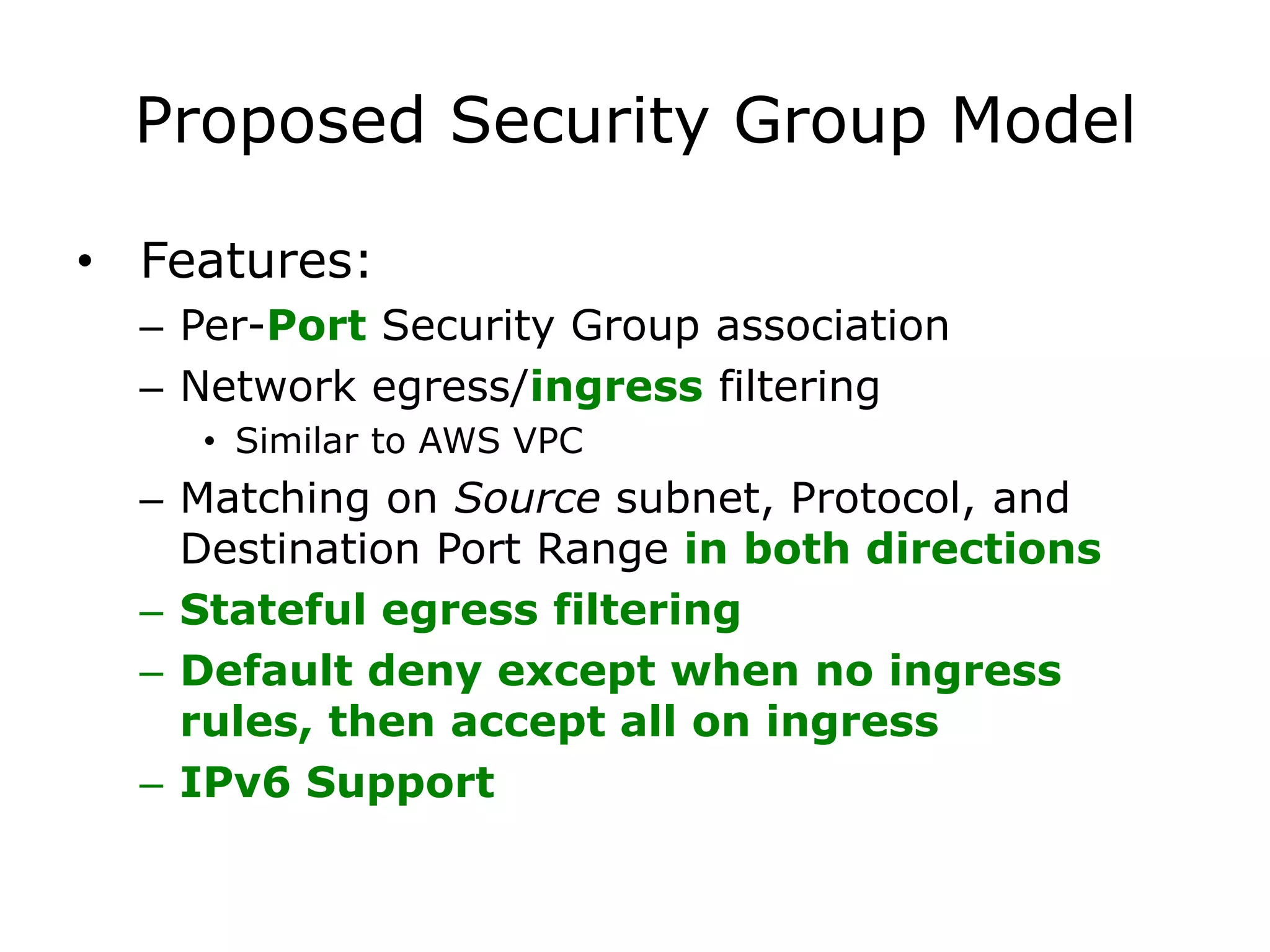

13. Proposed Security Group Model
• Features:
– Per-Port Security Group association
– Network egress/ingress filtering
• Similar to AWS VPC
– Matching on Source subnet, Protocol, and
Destination Port Range in both directions
– Stateful egress filtering
– Default deny except when no ingress
rules, then accept all on ingress
– IPv6 Support

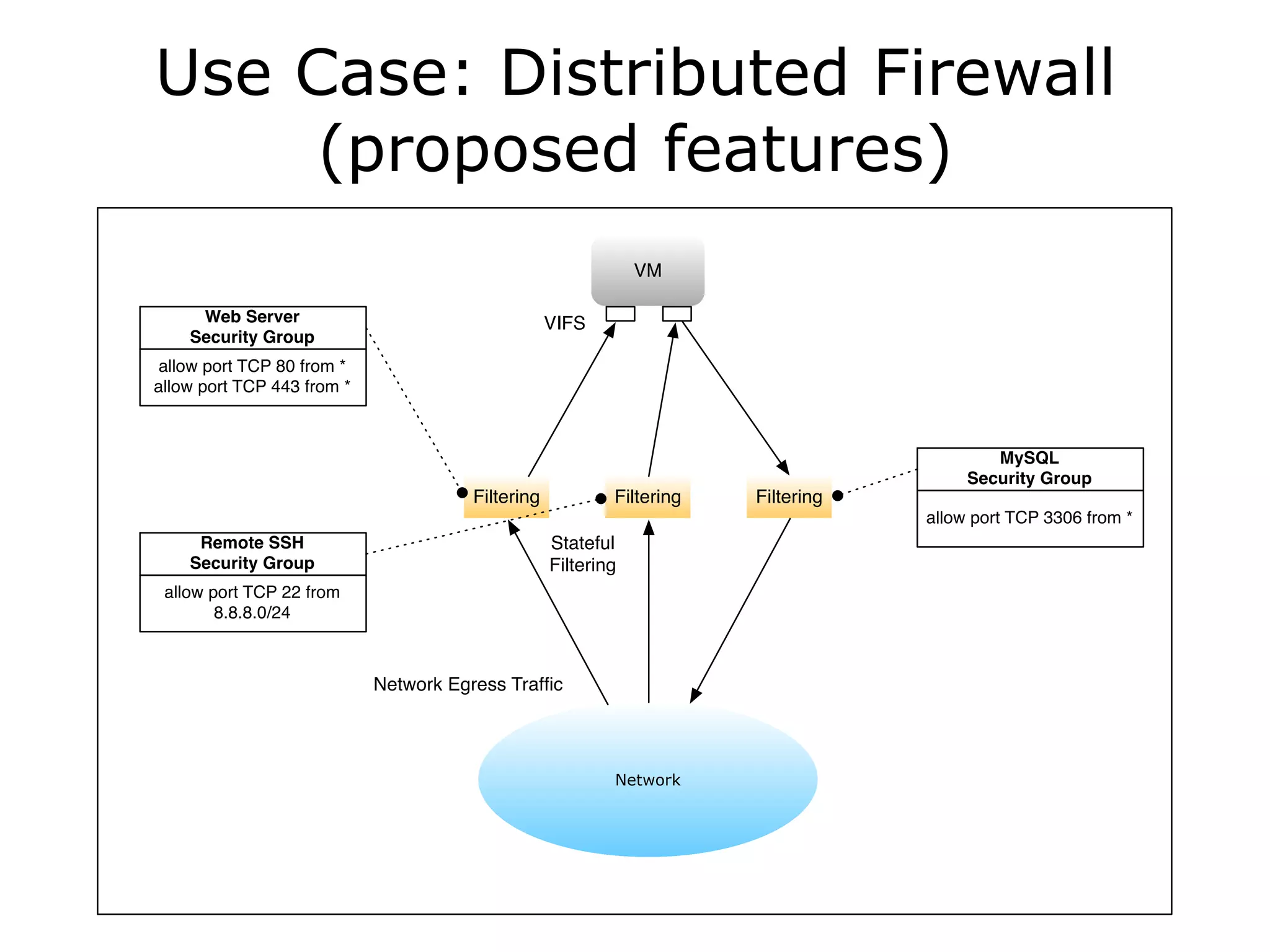

14. Use Case: Distributed Firewall
(proposed features)

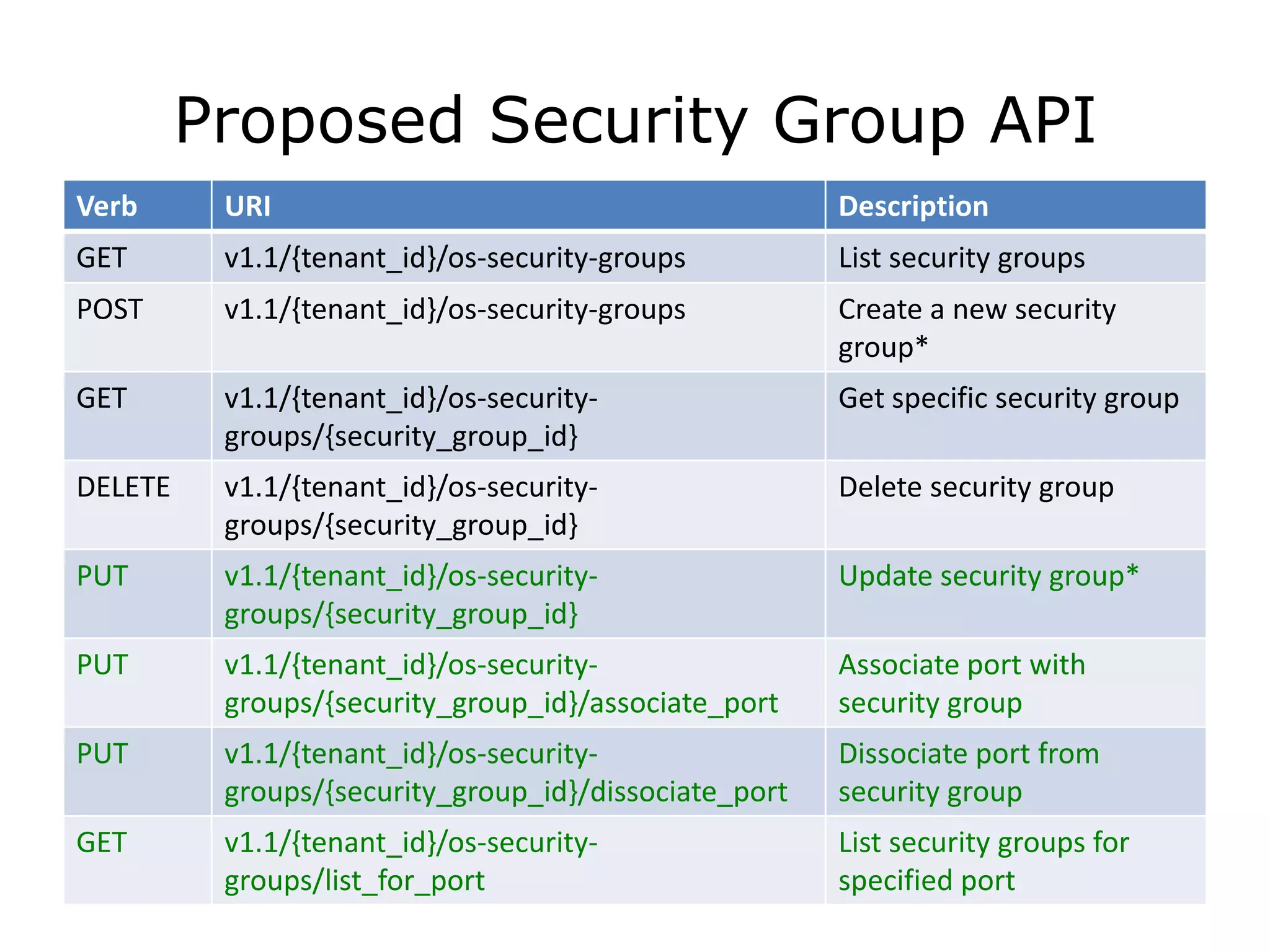

15. Proposed Security Group API
Verb URI Description
GET v1.1/{tenant_id}/os-security-groups List security groups
POST v1.1/{tenant_id}/os-security-groups Create a new security
group*
GET v1.1/{tenant_id}/os-security- Get specific security group
groups/{security_group_id}
DELETE v1.1/{tenant_id}/os-security- Delete security group
groups/{security_group_id}
PUT v1.1/{tenant_id}/os-security- Update security group*
groups/{security_group_id}
PUT v1.1/{tenant_id}/os-security- Associate port with
groups/{security_group_id}/associate_port security group
PUT v1.1/{tenant_id}/os-security- Dissociate port from
groups/{security_group_id}/dissociate_port security group
GET v1.1/{tenant_id}/os-security- List security groups for
groups/list_for_port specified port

16. Architecture

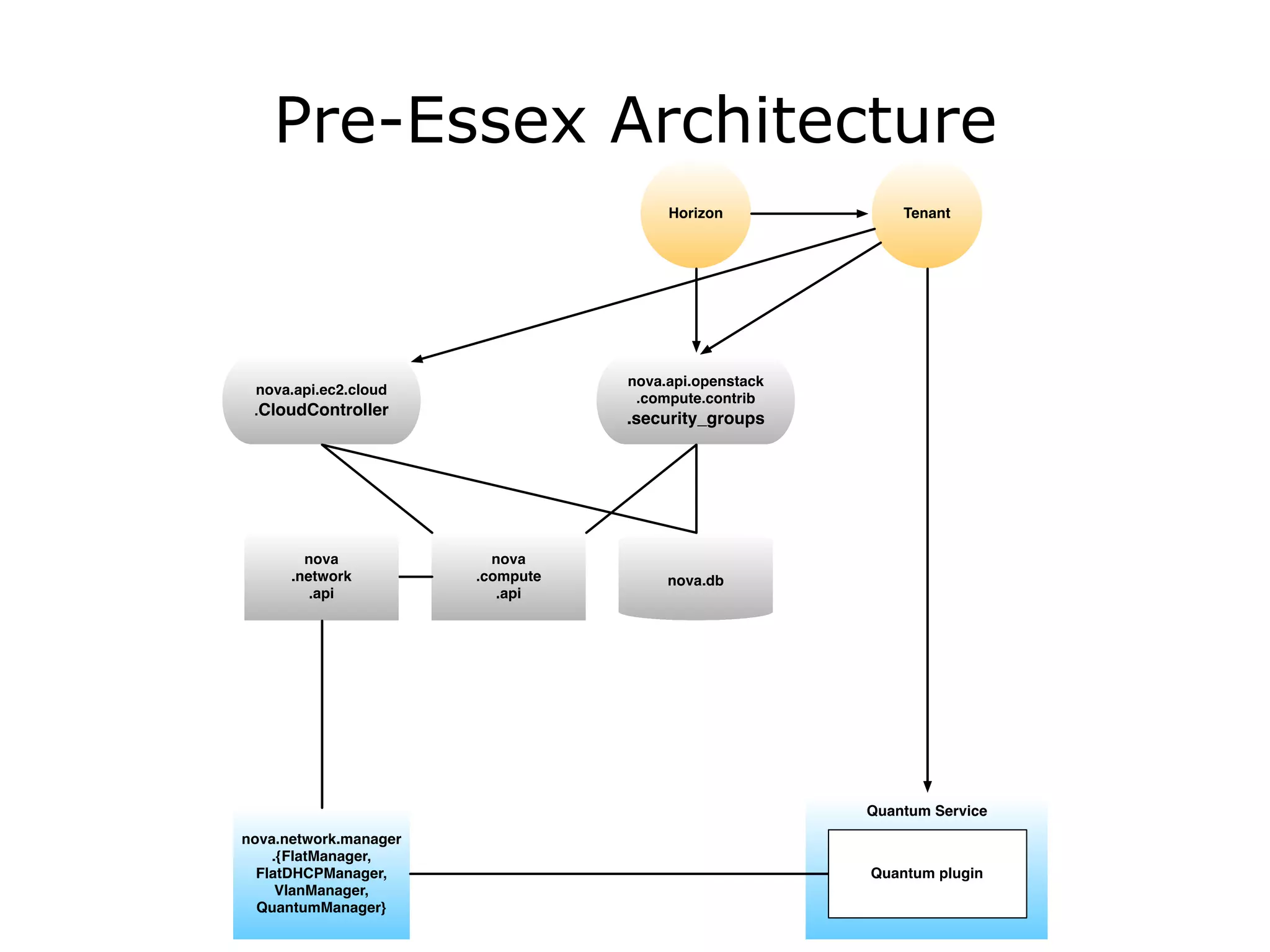

17. Pre-Essex Architecture

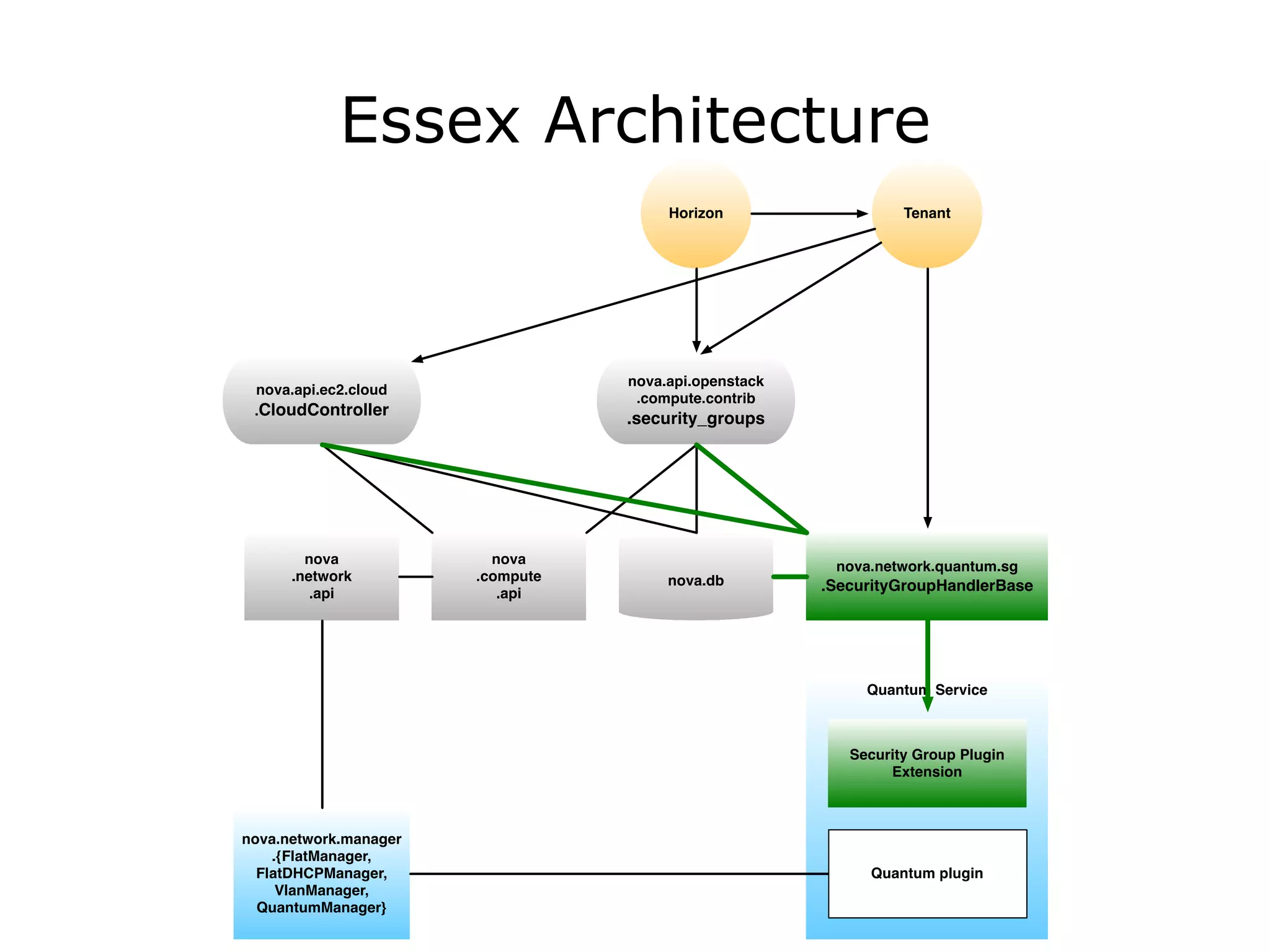

18. Essex Architecture

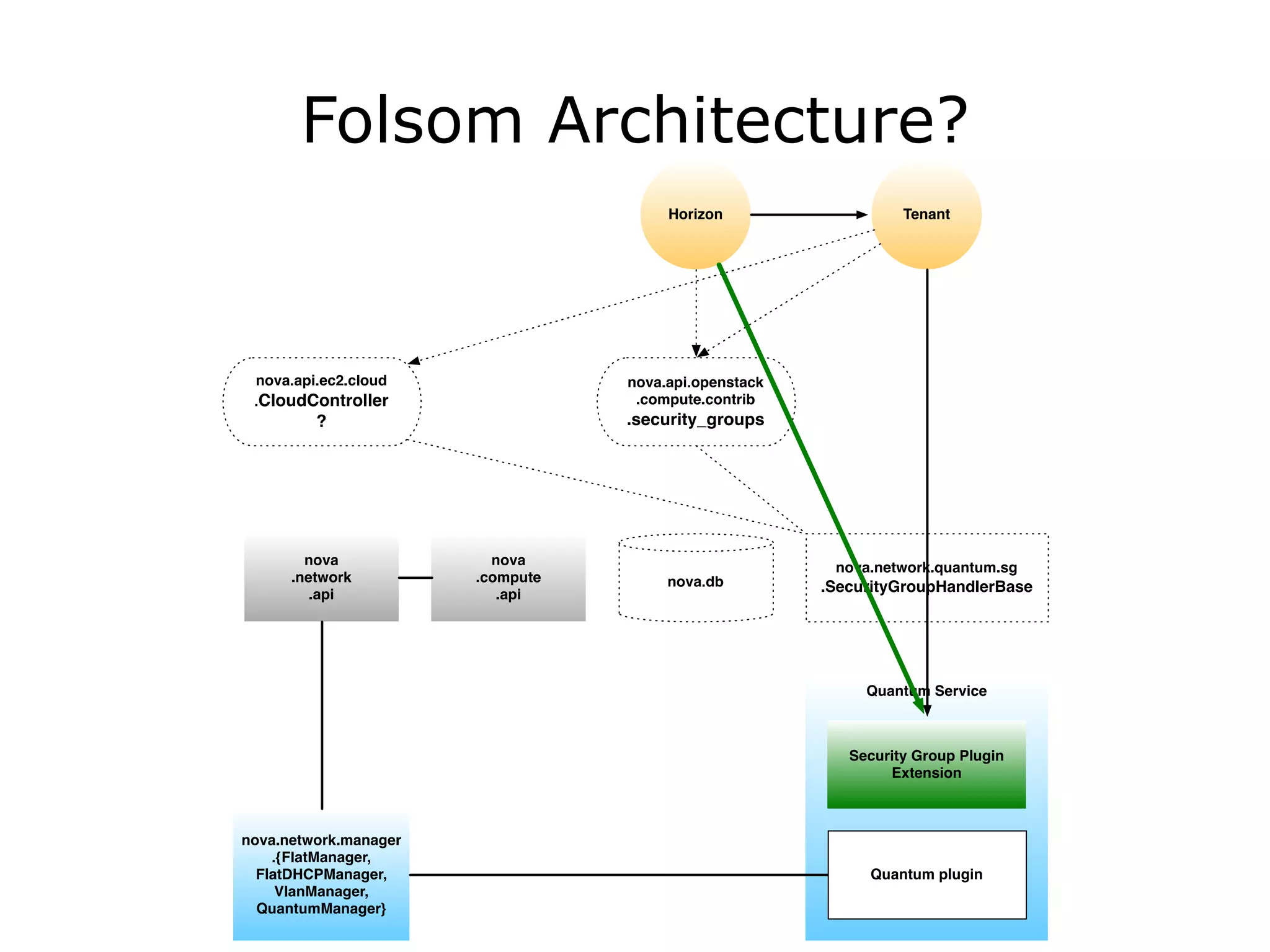

19. Folsom Architecture?

20. Other Features

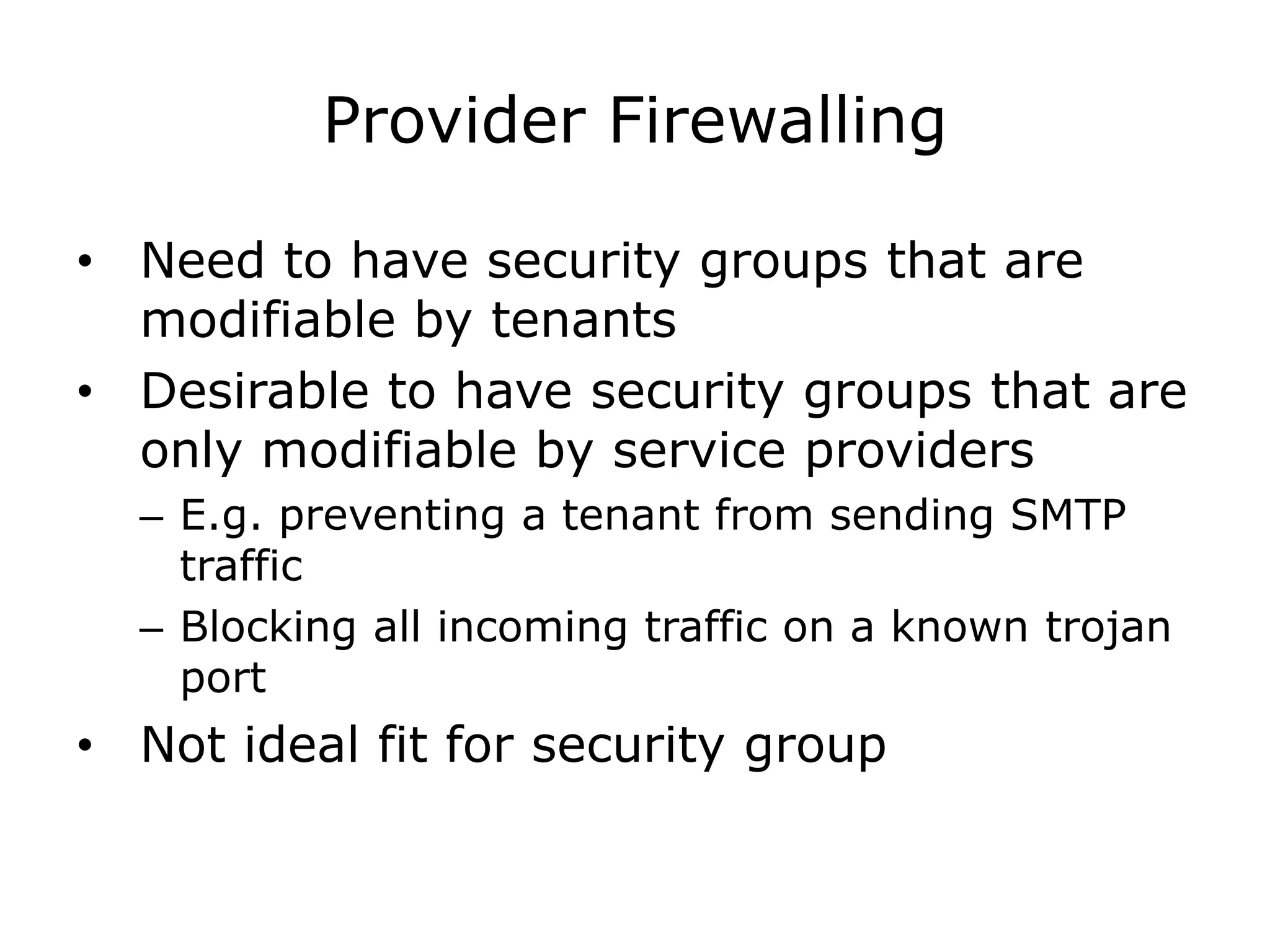

21. Provider Firewalling
• Need to have security groups that are
modifiable by tenants
• Desirable to have security groups that are
only modifiable by service providers
– E.g. preventing a tenant from sending SMTP
traffic
– Blocking all incoming traffic on a known trojan
port
• Not ideal fit for security group

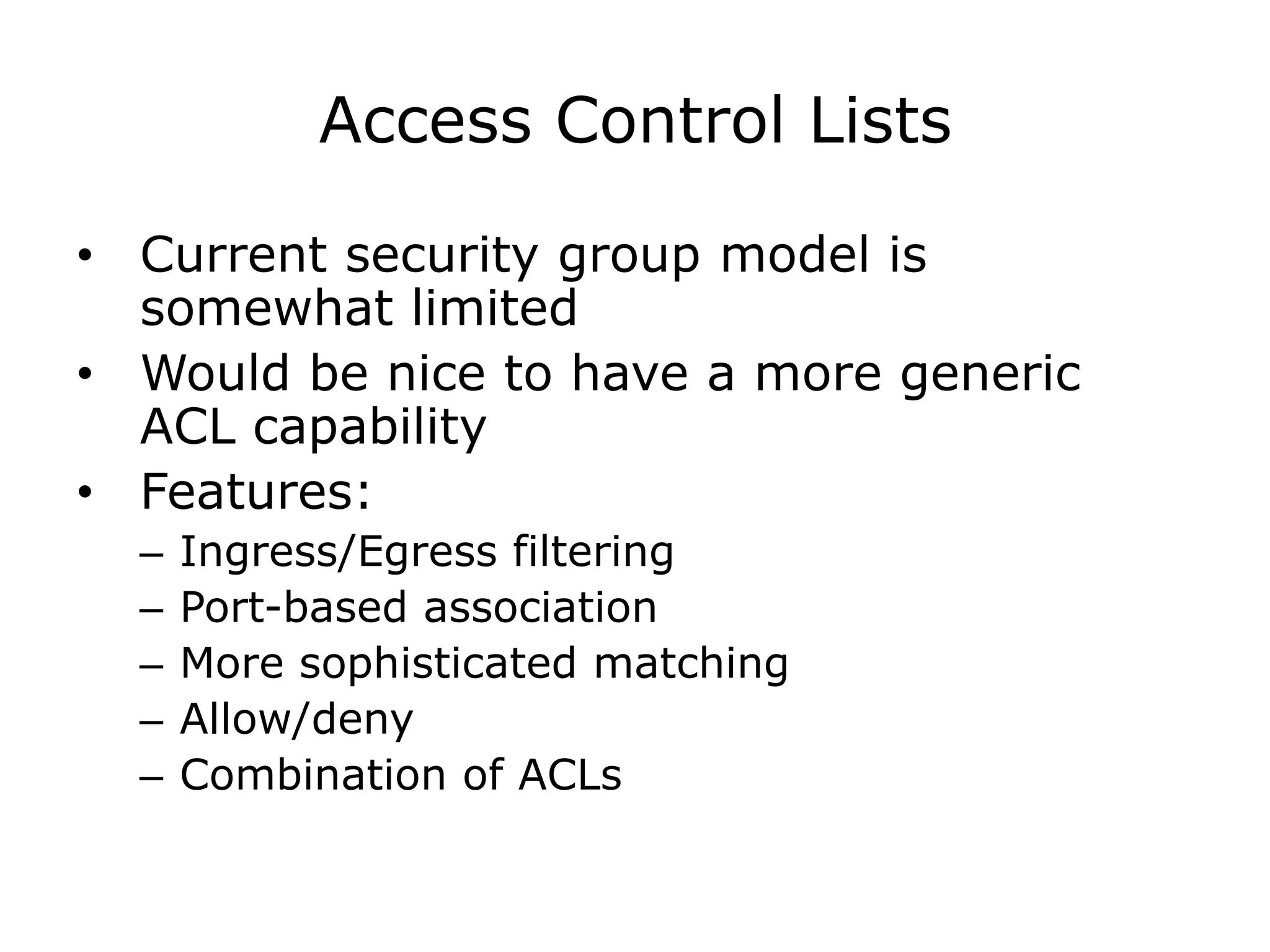

22. Access Control Lists
• Current security group model is
somewhat limited
• Would be nice to have a more generic
ACL capability
• Features:
– Ingress/Egress filtering
– Port-based association
– More sophisticated matching
– Allow/deny
– Combination of ACLs

23. Comments, Questions,
Suggestions?
@davlaps
