1. User manual V2.0

2. Thank you for purchasing BlackView.BlackView is a
portable, Stylish, high-performance vehicle drive
recorder. It has 5.0M effective pixel high-definition CMOS
image sensor, intelligent voice reminder, enhanced
night shooting,140°wide-angle lens.
Specific performance parameters are as follows:
CMOS sensor 5,000,000 pixels
Viewing angle o f lens Wide-angle 140°
Turning angle of lens 200° back and fo rth
Screen 2.0TFT high resolution
Quality vedio HD(1280×720)@30 fps
Night vision Enhanced night vision
Format of picture JPEG
Pixel of picture 2560x1920
Voice guidance intelligent voice guidance
Type of memory card TF card
Capacity of memory Card Supports up to 32G
Battery 800MA Polymer lithium battery
Power consumption 150MA

3. Checking the packing content
Check the product and the accompanied accessories
!
If there is any problem of the accessories, contact your local product
distributor.
BlackView Support Slot
User m n aual Cable holders
Power cable Driver disk

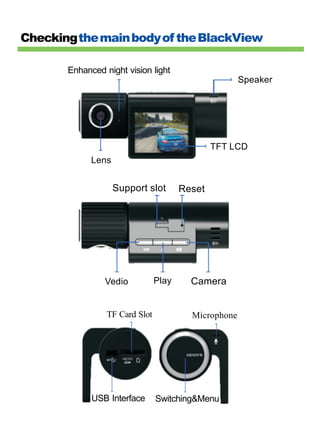

4. Checking the main body of the BlackView
Enhanced night vision light
Speaker
TFT LCD
Lens
Support slot Reset
Vedio Play Camera
TF Card Slot Microphone
USB Interface Switching&Menu

5. Installing the BlackView
1.Stop the engine and remove the key from the ignition.
Install the BlackView in a well-lit and safe location.
2.Insert the Micro SD card into the BlackView.
3.Attach the BlackView into the windshield of your car
using double-sided tape.
Use a soft and dry cloth to wipe the foreign material and moisture
attached in the surface of the support slot.
4.Connect the [USB] terminal of the BlackView and the
cigarette jack of your car using the power cable.
5.Tie the power cable
Use the provided cable holder, when necessary.
6.Adjust the position of the camera lens of the BlackView.
Ensure that it is level with the ground.
7.Start the engine. Check whether the BlackView is installed
When the BlackVue is installed correctly, its Intelligent voice systems
will play“The BlackView has been starting normal recording”.

6. Using the BlackView
Using the Normal Recording Function
Start the engine.
BlackView turns on and starts the Normal Recording function. After
it is turned on, it will records and saves scenes at each specified
period.
Stop the engine.
BlackView will turn off after about 5 seconds.
Using the Manual Reconrding Function
Press the <Switching> button on the BlackView.
After BlackView turns on.Press the <Camera> button to starts the
Manual Recording function. It will record and saves scenes at each
specified period.
Press the <Camera> button again.BlackView will exit Manual
Recording function.
Using the Camera Function
When BlackView turns on.
To enter the Camera Function Press the <Camera> button.
Press the <Camera> button again.BlackView will take photograph.
Using the Playback Function
When BlackView turns on.
Press and hold <Play> button for 2 seconds to enter the Playback
Function.
Press <Camera> or <Vedio>button to select the video or photo
which you want,Then Press <Play> button to play.
Press and hold <Play> button for 2 seconds again. The BlackView
will exit the Playback Function.

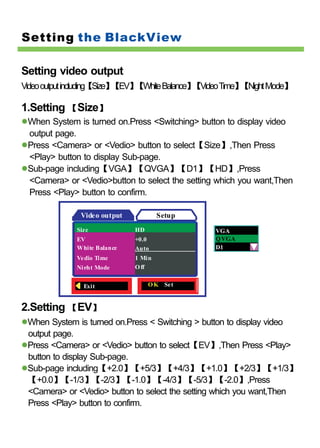

7. Setting the BlackView
Setting video output
Video output including【Size】【EV】【White Balance】 deo Time】 ght Mode】
【Vi 【Ni
1.Setting 【Size】
When System is turned on.Press <Switching> button to display video
output page.
Press <Camera> or <Vedio> button to select【Size】,Then Press
<Play> button to display Sub-page.
Sub-page including【VGA】【QVGA】【D1】【HD】,Press
<Camera> or <Vedio>button to select the setting which you want,Then
Press <Play> button to confirm.
Video output Setup
Size HD VGA
EV +0.0 Q VGA
White Balance Auto D1
Ve dio Time 1 Min
Night Mode O ff
Exit O K Set
2.Setting 【EV】
When System is turned on.Press < Switching > button to display video
output page.
Press <Camera> or <Vedio> button to select【EV】,Then Press <Play>
button to display Sub-page.
Sub-page including【+2.0】【+5/3】【+4/3】【+1.0】【+2/3】【+1/3】
【+0.0】【-1/3】【-2/3】【-1.0】【-4/3】【-5/3】【-2.0】,Press
<Camera> or <Vedio> button to select the setting which you want,Then
Press <Play> button to confirm.

8. Setting the BlackView
Video output Setup
Size HD +1/3
EV +0.0 +0.0
White Balance Auto -1/3
Ve dio Time 1 Min -2/3
-1.0
Night Mode O ff
Exit O K Set
3.Setting 【White Blance】
When System is turned on.Press < Switching > button to display video output
page.
Press <Camera> or <Vedio> button to select【White Blance】,Then
Press <Play> button to display Sub-page.
Sub-page including【Auto】【Daylight】【Cloudy】【Tungsten】【
Fluorescent】,Press <Camera> or <Vedio> button to select the setting
which you want,Then Press <Play> button to confirm.
Video output Setup
Size HD Auto
EV +0.0 Daylight
White Balance Auto Cloudy
Ve dio Time 1 Min Tungsten
Fluoresce nt
Night Mode O ff
Exit O K Set

9. Setting the BlackView
4.Setting 【Vedio Time】
When System is turned on.Press < Switching > button to display video
output page.
Press <Camera> or <Vedio> button to select【Night Mode】,Then
Press <Play> button to display Sub-page.
Sub-page including【Off】【On】,Press <Camera> or <Vedio> button
to select the setting which you want,Then Press <Play> button to
confirm.
Video output Setup
Size HD O ff
EV +0.0 1 Min
White Balance Auto 2 Min
Vide o Time 1 Min
Night Mode O ff
Exit O K Set
5.Setting 【Night Mode】
When System is turned on.Press < Switching > button to display video
output page.
Press <Camera> or <Vedio> button to select【Night Mode】,Then
Press <Play> button to display Sub-page.
Sub-page including【Off】【On】,Press <Camera> or <Vedio> button
to select the setting which you want,Then Press <Play> button to
confirm.

10. Setting the BlackView
Video output Setup
Size HD
EV +0.0 O ff
On
White Balance Auto
Ve dio Time 1 Min
Night Mode O ff
Exit O K Set
Setting Setup
Setup including【Format】【beep】【language】【auto off】【sys.reset】
【Light Freq.】【USB】【Screen Set】
1.Setting 【Format】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Format】,Then Press
<Play> button to display subpage.
Subpage including【Cancel】【Execute】,Press <Camera> or <Vedio>
button to select the setting which you want,Then Press <Play> button to
confirm.
Video output Setup
Format Ne xt Me nu
Bee p On Cancel
Language English Exe cute
Auto Off O ff
Sys.Re se t Ne xt Me nu
Exit O K Set

11. Setting the BlackView
2.Setting 【Beep】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Beep】,Then Press
<Play> button to display subpage.
Subpage including【On】【Off】,Press <Camera> or <Vedio> button to
select the setting which you want,Then Press <Play> button to confirm.
Video output Setup
Format Ne xt Me nu
Bee p On On
Language English O ff
Auto Off O ff
Sys.Re se t Ne xt Me nu
Exit O K Set
3.Setting 【Language】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Language】,Then
Press <Play> button to display subpage.
Subpage including【English】【繁體中文】【简体中文】【日本語】【
Русский】,Press <Camera> or <Vedio> button to select setting
which you want,Then Press <Play> button to confirm.

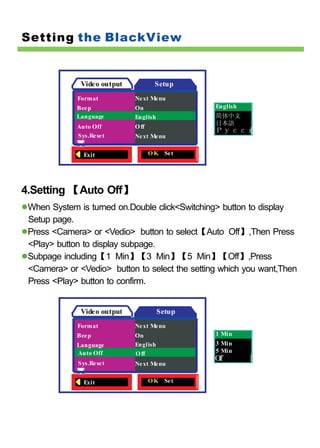

12. Setting the BlackView
Video output Setup
Format Ne xt Me nu
Bee p On English
Language English 简体中文
日本語
Auto Off O ff
Русский
Sys.Re se t Ne xt Me nu 文
Exit O K Set
4.Setting 【Auto Off】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Auto Off】,Then Press
<Play> button to display subpage.
Subpage including【1 Min】【3 Min】【5 Min】【Off】,Press
<Camera> or <Vedio> button to select the setting which you want,Then
Press <Play> button to confirm.
Video output Setup
Format Ne xt Me nu
Bee p On 1 Min
Language English 3 Min
Auto Off O ff 5 Min
Off
Sys.Re se t Ne xt Me nu
Exit O K Set

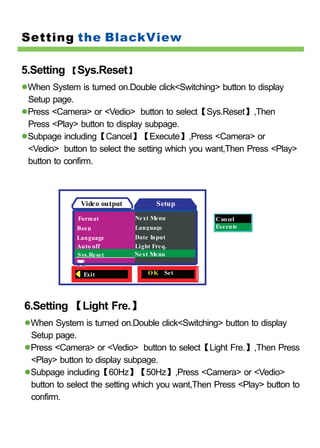

13. Setting the BlackView
5.Setting 【Sys.Reset】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Sys.Reset】,Then
Press <Play> button to display subpage.
Subpage including【Cancel】【Execute】,Press <Camera> or
<Vedio> button to select the setting which you want,Then Press <Play>
button to confirm.
Video output Setup
Format Ne xt Me nu Cancel
Bee p Language Exe cute
Language Date Input
Auto off Light Fre q.
Sys.Re se t Ne xt Me nu
Exit O K Set
6.Setting 【Light Fre.】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Light Fre.】,Then Press
<Play> button to display subpage.
Subpage including【60Hz】【50Hz】,Press <Camera> or <Vedio>
button to select the setting which you want,Then Press <Play> button to
confirm.

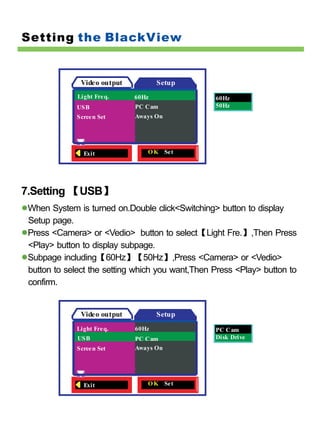

14. Setting the BlackView
Video output Setup
Light Fre q. 60Hz 60Hz
USB PC Cam 50Hz
Scree n Set Aways On
Exit O K Set
7.Setting 【USB】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Light Fre.】,Then Press
<Play> button to display subpage.
Subpage including【60Hz】【50Hz】,Press <Camera> or <Vedio>
button to select the setting which you want,Then Press <Play> button to
confirm.
Video output Setup
Light Fre q. 60Hz PC Cam
USB PC Cam Disk Drive
Scree n Set Aways On
Exit O K Set

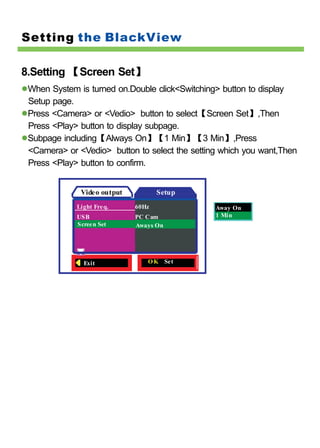

15. Setting the BlackView
8.Setting 【Screen Set】
When System is turned on.Double click<Switching> button to display
Setup page.
Press <Camera> or <Vedio> button to select【Screen Set】,Then
Press <Play> button to display subpage.
Subpage including【Always On】【1 Min】【3 Min】,Press
<Camera> or <Vedio> button to select the setting which you want,Then
Press <Play> button to confirm.
Video output Setup
Light Fre q. 60Hz Away On
USB PC Cam 1 Min
Scree n Set Aways On
Exit O K Set
