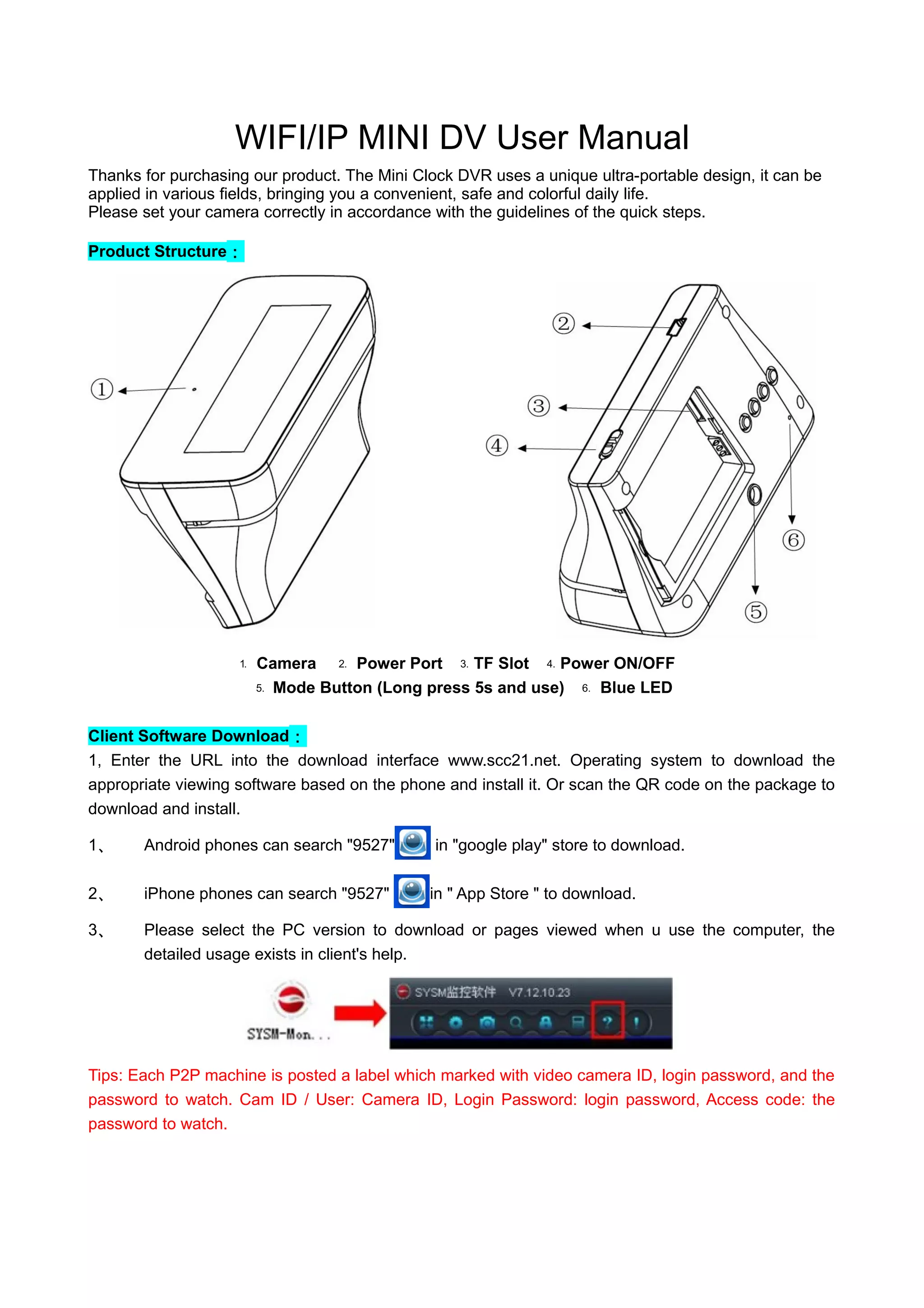

1. WIFI/IP MINI DV User Manual
Thanks for purchasing our product. The Mini Clock DVR uses a unique ultra-portable design, it can be
applied in various fields, bringing you a convenient, safe and colorful daily life.
Please set your camera correctly in accordance with the guidelines of the quick steps.
Product Structure：
⒈ Camera Power Port TF Slot Power ON/OFF⒉ ⒊ ⒋
⒌ Mode Button (Long press 5s and use) Blue LED⒍
Client Software Download：
1, Enter the URL into the download interface www.scc21.net. Operating system to download the
appropriate viewing software based on the phone and install it. Or scan the QR code on the package to
download and install.
1、 Android phones can search "9527" in "google play" store to download.
2、 iPhone phones can search "9527" in " App Store " to download.
3、 Please select the PC version to download or pages viewed when u use the computer, the
detailed usage exists in client's help.
Tips: Each P2P machine is posted a label which marked with video camera ID, login password, and the
password to watch. Cam ID / User: Camera ID, Login Password: login password, Access code: the
password to watch.

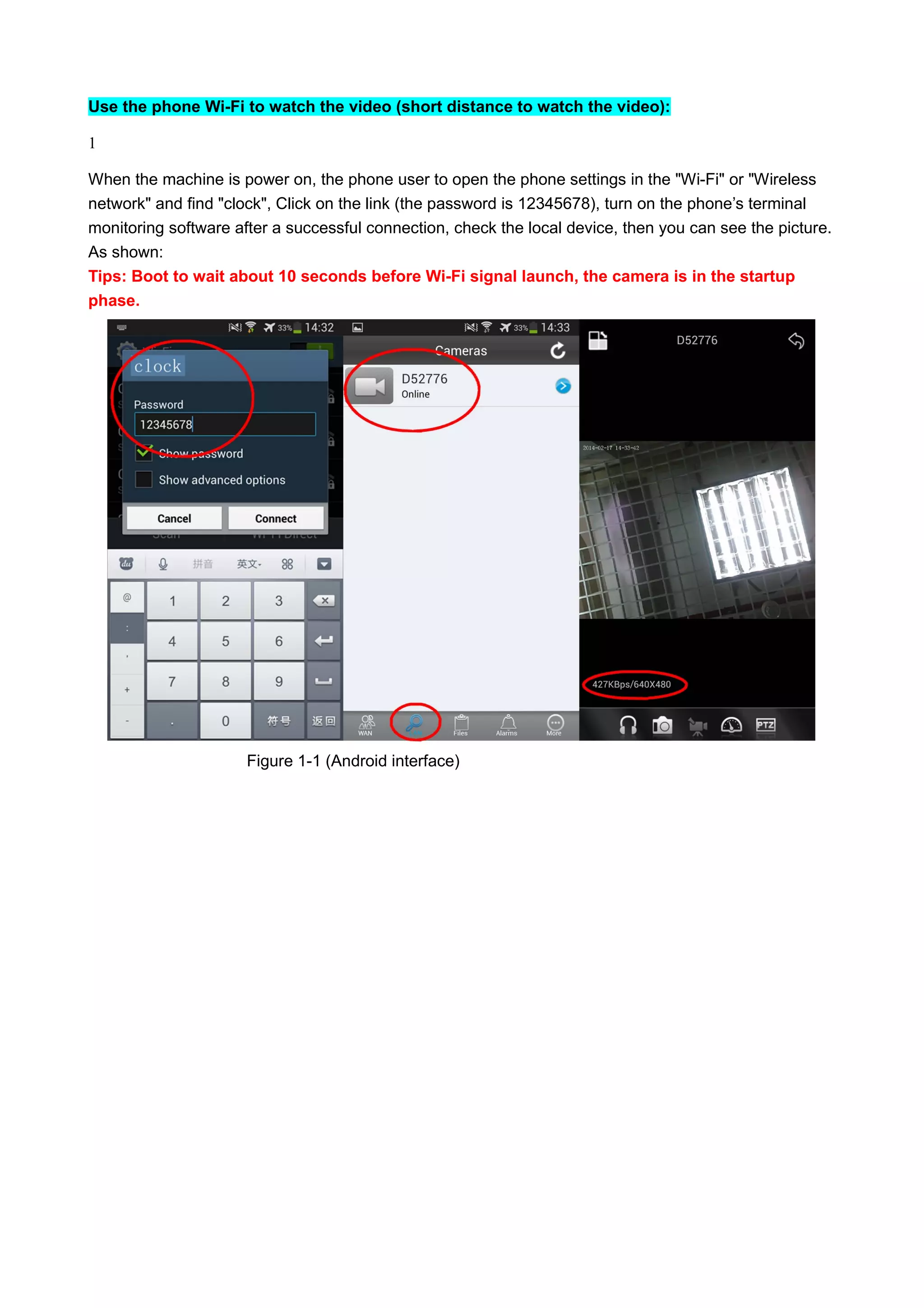

2. Use the phone Wi-Fi to watch the video (short distance to watch the video):
1
When the machine is power on, the phone user to open the phone settings in the "Wi-Fi" or "Wireless
network" and find "clock", Click on the link (the password is 12345678), turn on the phone’s terminal
monitoring software after a successful connection, check the local device, then you can see the picture.
As shown:
Tips: Boot to wait about 10 seconds before Wi-Fi signal launch, the camera is in the startup
phase.
Figure 1-1 (Android interface)

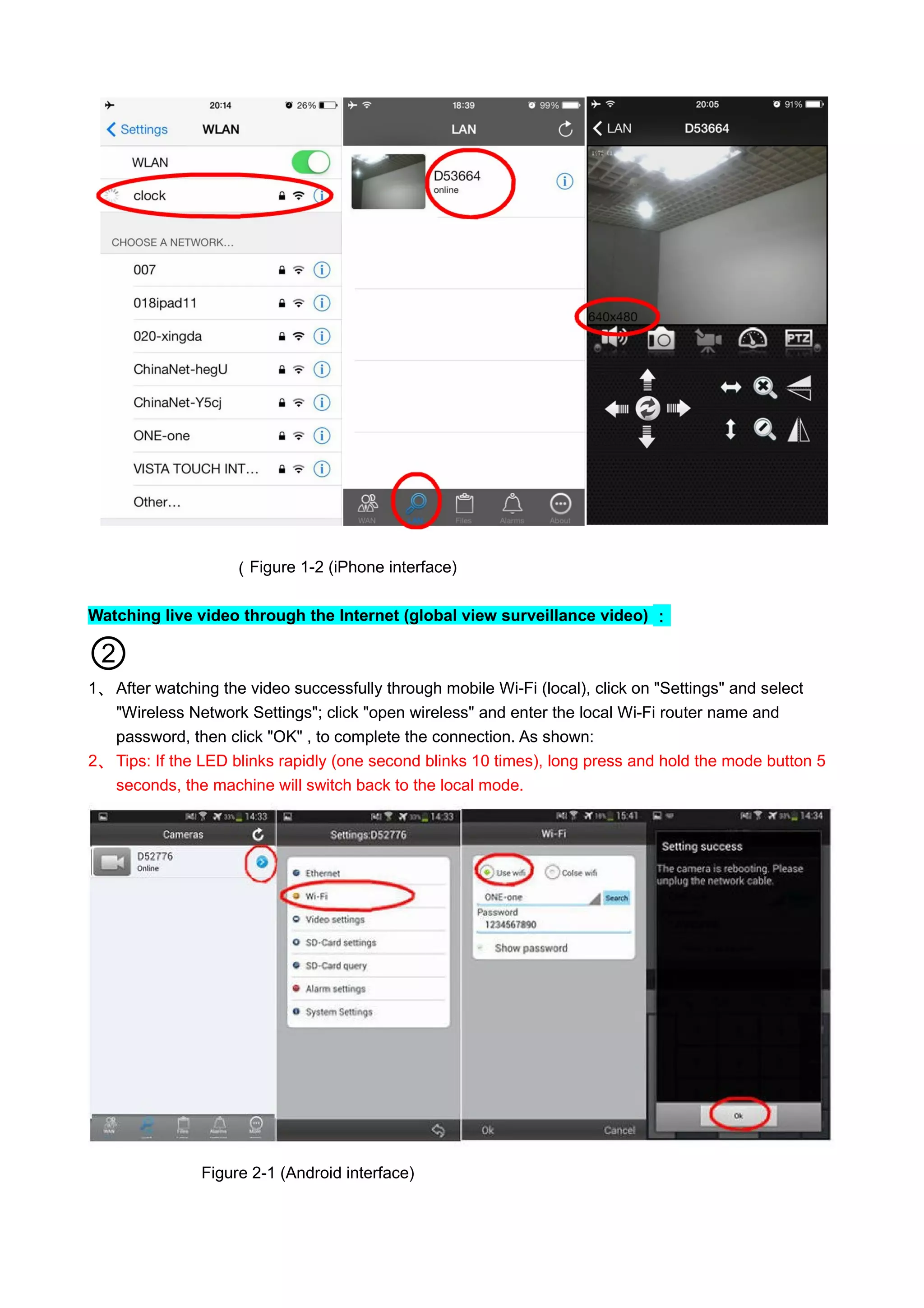

3. （Figure 1-2 (iPhone interface)
Watching live video through the Internet (global view surveillance video) ：
②
1、 After watching the video successfully through mobile Wi-Fi (local), click on "Settings" and select
"Wireless Network Settings"; click "open wireless" and enter the local Wi-Fi router name and
password, then click "OK" , to complete the connection. As shown:
2、 Tips: If the LED blinks rapidly (one second blinks 10 times), long press and hold the mode button 5
seconds, the machine will switch back to the local mode.
Figure 2-1 (Android interface)

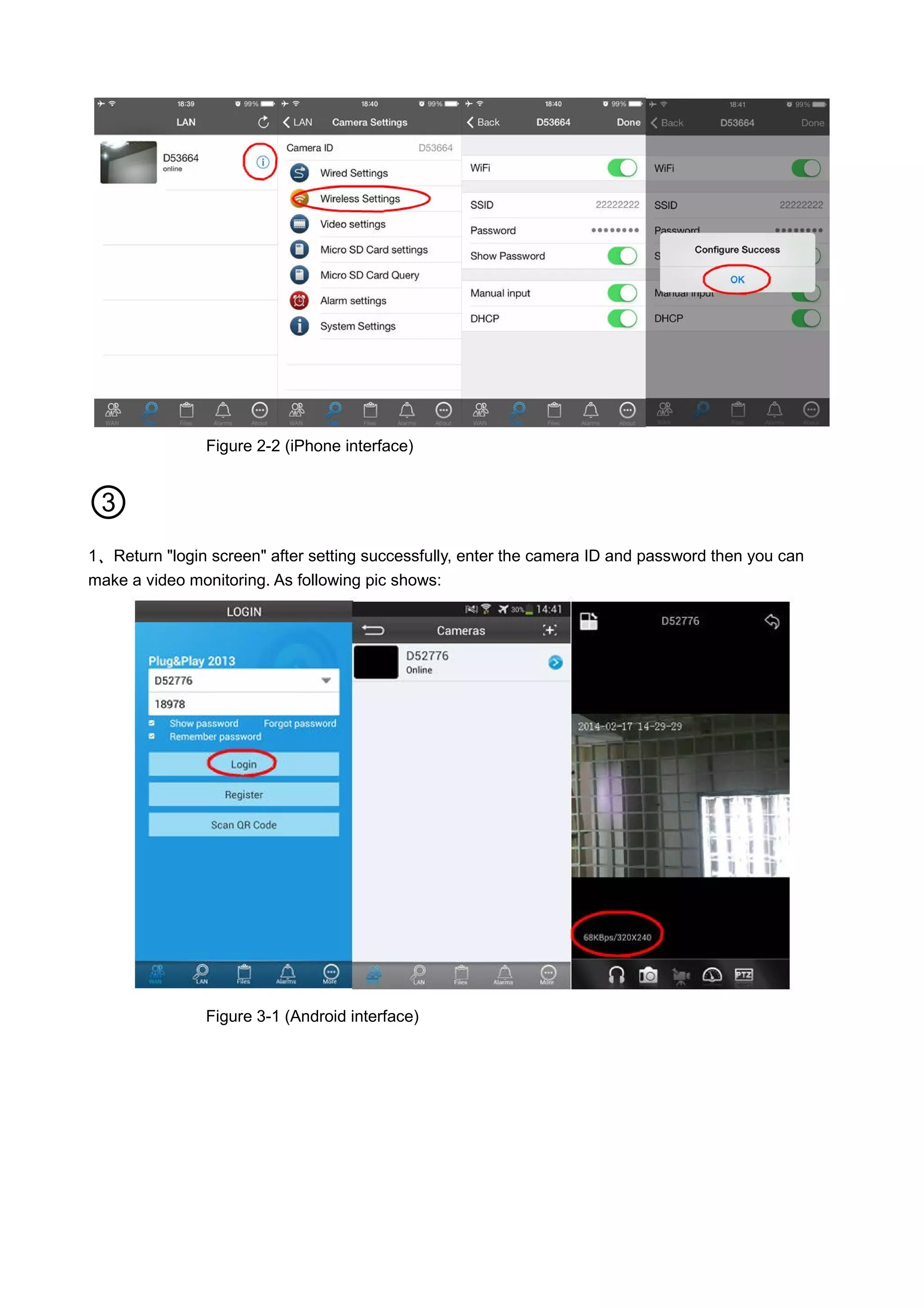

4. Figure 2-2 (iPhone interface)
③
1、Return "login screen" after setting successfully, enter the camera ID and password then you can
make a video monitoring. As following pic shows:
Figure 3-1 (Android interface)

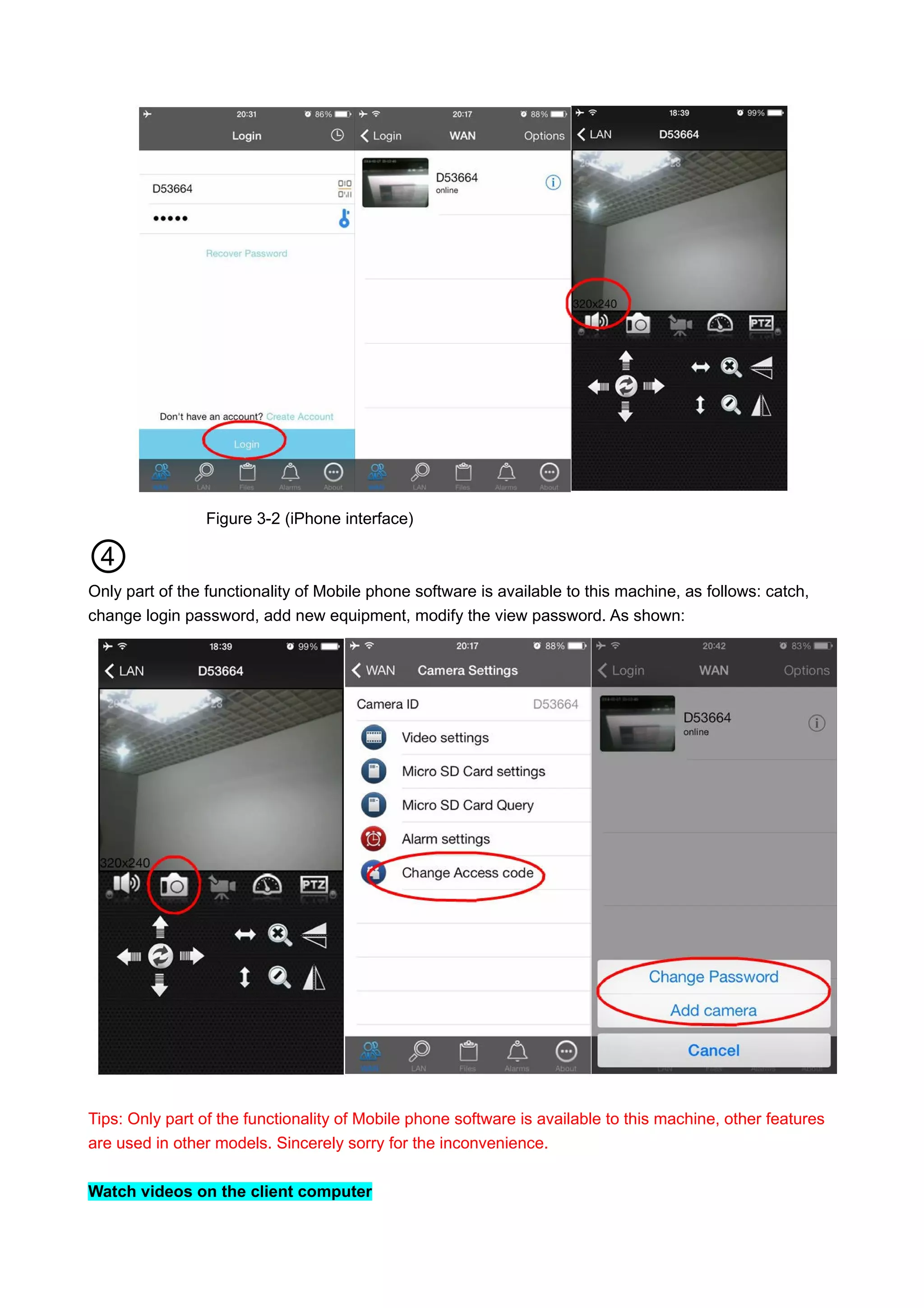

5. Figure 3-2 (iPhone interface)
④
Only part of the functionality of Mobile phone software is available to this machine, as follows: catch,
change login password, add new equipment, modify the view password. As shown:
Tips: Only part of the functionality of Mobile phone software is available to this machine, other features
are used in other models. Sincerely sorry for the inconvenience.
Watch videos on the client computer

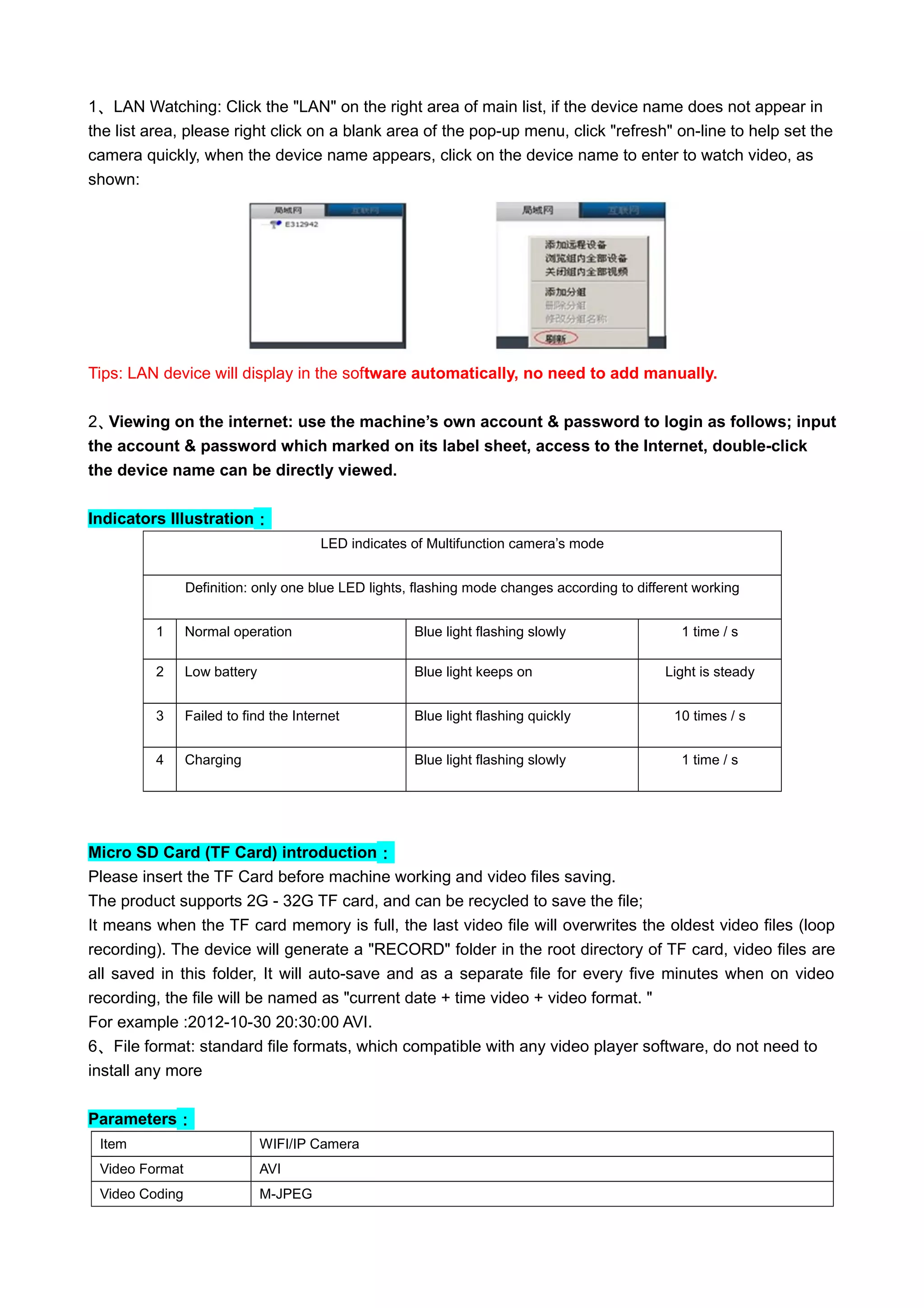

6. 1、LAN Watching: Click the "LAN" on the right area of main list, if the device name does not appear in
the list area, please right click on a blank area of the pop-up menu, click "refresh" on-line to help set the
camera quickly, when the device name appears, click on the device name to enter to watch video, as
shown:
Tips: LAN device will display in the software automatically, no need to add manually.
2、Viewing on the internet: use the machine’s own account & password to login as follows; input
the account & password which marked on its label sheet, access to the Internet, double-click
the device name can be directly viewed.
Indicators Illustration：
LED indicates of Multifunction camera’s mode
Definition: only one blue LED lights, flashing mode changes according to different working
conditions1 Normal operation Blue light flashing slowly 1 time / s
2 Low battery Blue light keeps on Light is steady
3 Failed to find the Internet Blue light flashing quickly 10 times / s
4 Charging Blue light flashing slowly 1 time / s
Micro SD Card (TF Card) introduction：
Please insert the TF Card before machine working and video files saving.
The product supports 2G - 32G TF card, and can be recycled to save the file;
It means when the TF card memory is full, the last video file will overwrites the oldest video files (loop
recording). The device will generate a "RECORD" folder in the root directory of TF card, video files are
all saved in this folder, It will auto-save and as a separate file for every five minutes when on video
recording, the file will be named as "current date + time video + video format. "
For example :2012-10-30 20:30:00 AVI.
6、File format: standard file formats, which compatible with any video player software, do not need to
install any more

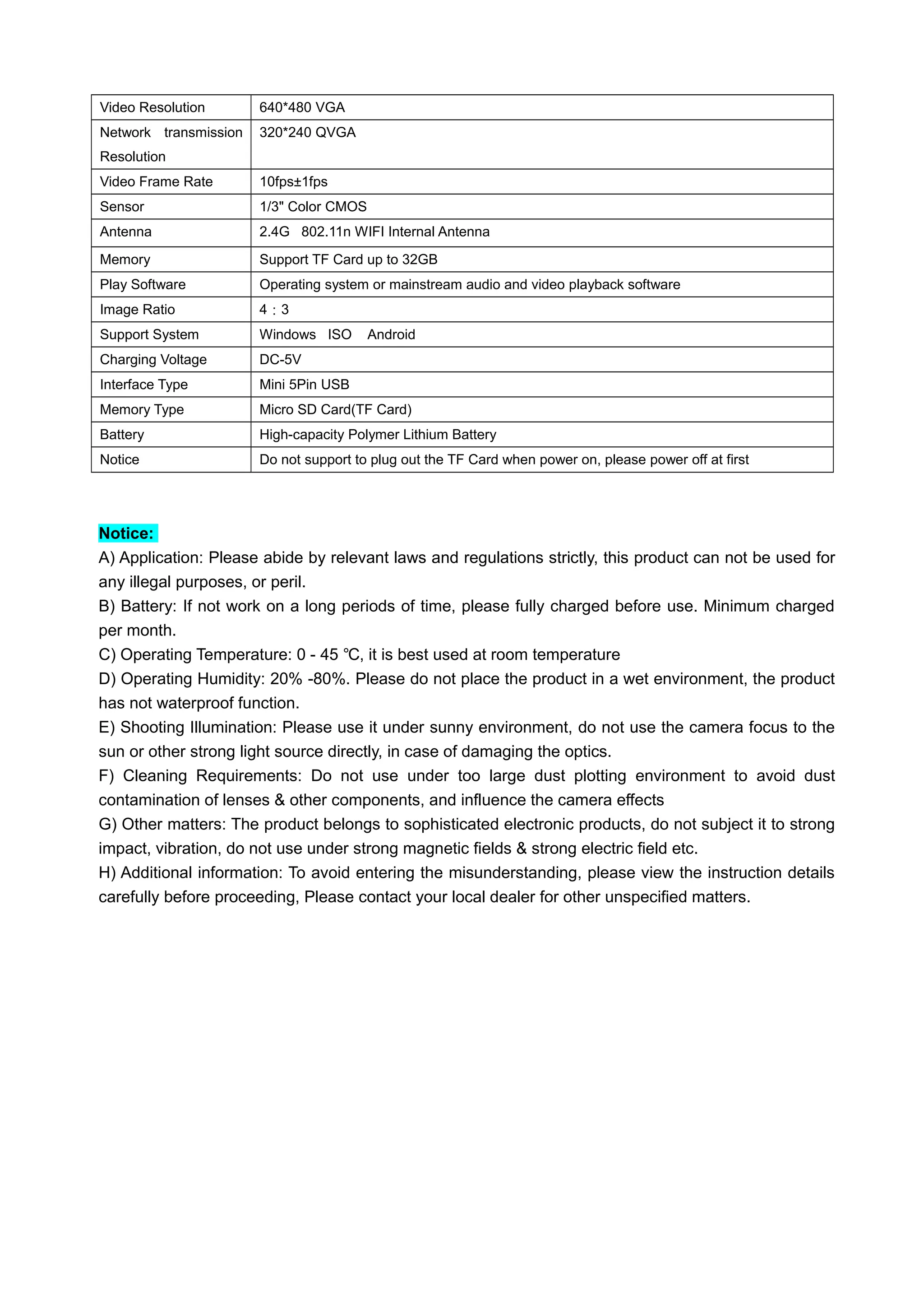

Parameters：
Item WIFI/IP Camera
Video Format AVI
Video Coding M-JPEG

7. Video Resolution 640*480 VGA
Network transmission
Resolution
320*240 QVGA
Video Frame Rate 10fps±1fps
Sensor 1/3" Color CMOS
Antenna 2.4G 802.11n WIFI Internal Antenna
Memory Support TF Card up to 32GB
Play Software Operating system or mainstream audio and video playback software
Image Ratio 4：3
Support System Windows ISO Android
Charging Voltage DC-5V
Interface Type Mini 5Pin USB
Memory Type Micro SD Card(TF Card)
Battery High-capacity Polymer Lithium Battery
Notice Do not support to plug out the TF Card when power on, please power off at first
Notice:
A) Application: Please abide by relevant laws and regulations strictly, this product can not be used for
any illegal purposes, or peril.
B) Battery: If not work on a long periods of time, please fully charged before use. Minimum charged
per month.
C) Operating Temperature: 0 - 45 , it is best used at room temperature℃
D) Operating Humidity: 20% -80%. Please do not place the product in a wet environment, the product
has not waterproof function.
E) Shooting Illumination: Please use it under sunny environment, do not use the camera focus to the
sun or other strong light source directly, in case of damaging the optics.
F) Cleaning Requirements: Do not use under too large dust plotting environment to avoid dust
contamination of lenses & other components, and influence the camera effects
G) Other matters: The product belongs to sophisticated electronic products, do not subject it to strong
impact, vibration, do not use under strong magnetic fields & strong electric field etc.
H) Additional information: To avoid entering the misunderstanding, please view the instruction details
carefully before proceeding, Please contact your local dealer for other unspecified matters.
