03.eGovFrame Runtime Environment Training Book Supplement

eGovFrame Training Book
Runtime Environment
<Supplement>

eGovFrame Center
2012

Table of contents

I Overview
II Foundation Layer
III Persistence Layer
IV Presentation Layer

Page l 2

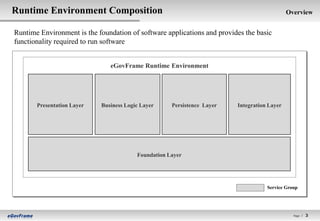

Runtime Environment Composition Overview

Runtime Environment is the foundation of software applications and provides the basic
functionality required to run software

eGovFrame Runtime Environment

Presentation Layer Business Logic Layer Persistence Layer Integration Layer

Foundation Layer

Service Group

Page l 3

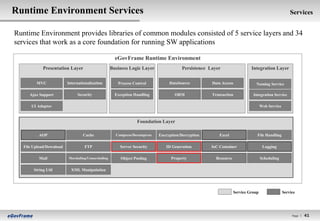

Runtime Environment Composition Overview

Runtime Environment provides libraries of common modules consisted of 5 service layers and 34
services that work as a core foundation for running SW applications


MVC Internationalization Process Control DataSource Data Access Naming Service

Ajax Support Security Exception Handling 2. 공통기반 레이어
ORM Transaction Integration Service

UI Adaptor Web Service

Foundation Layer

AOP Cache Compress/Decompress Encryption/Decryption Excel File Handling

File Upload/Download FTP Server Security ID Generation IoC Container Logging

Mail Marshalling/Unmarshalling Object Pooling Property Resource Scheduling

String Util XML Manipulation

Service Group Service

Page l 4

Features & Effects Overview

 Features
• Adopt proven open source SW, optimized for e-government projects
• Utilize Spring framework as a core foundation that is a pervasive lightweight framework
• Apply DI, AOP, MVC, etc for SW architecture and implementation
• Provide a common interface for integrating solutions as defining associated standard interface

 Effects
• Improve development productivity
• Improve e-government system reusability
• Improve interoperability of e-government system
• Standardize e-government application software
• Promote Open Source Software
• Enhance SMEs competitiveness

Page l 5

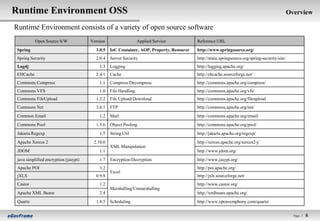

Runtime Environment OSS Overview

Runtime Environment consists of a variety of open source software
Open Source S/W Version Applied Service Reference URL
Spring 3.0.5 IoC Container, AOP, Property, Resource http://www.springsource.org/
Spring Security 2.0.4 Server Security http://static.springsource.org/spring-security/site/
Log4j 1.3 Logging http://logging.apache.org/
EHCache 2.4.1 Cache http://ehcache.sourceforge.net/
Commons Compress 1.1 Compress/Decompress http://commons.apache.org/compress/
Commons VFS 1.0 File Handling http://commons.apache.org/vfs/
Commons FileUpload 1.2.2 File Upload/Download http://commons.apache.org/fileupload
Commons Net 3.0.1 FTP http://commons.apache.org/net/
Common Email 1.2 Mail http://commons.apache.org/email/
Commons Pool 1.5.6 Object Pooling http://commons.apache.org/pool/
Jakarta Regexp 1.5 String Util http://jakarta.apache.org/regexp/
Apache Xerces 2 2.10.0 http://xerces.apache.org/xerces2-j/
XML Manipulation
JDOM 1.1 http://www.jdom.org/
java simplified encryption (jasypt) 1.7 Encryption/Decryption http://www.jasypt.org/
Apache POI 3.2 http://poi.apache.org/
Excel
jXLS 0.9.8 http://jxls.sourceforge.net/
Castor 1.2 http://www.castor.org/
Marshalling/Unmarshalling
Apache XML Beans 2.4 http://xmlbeans.apache.org/
Quartz 1.8.5 Scheduling http://www.opensymphony.com/quartz/

Page l 6

RE*) Open Source - Spring Framework Overview Foundation Layer

 Overview
• Open source framework supports Java based enterprise applications
• POJO based lightweight container (very loosely coupled)
• Developed by Rod Johnson (Based on “Expert one-on-one J2EE Design and Development”)

 Spring Mission and Goals
• Spring should be fun and easier than J2EE in use.
• Spring should not depend on the API.
• Spring integrates with existing good solutions rather than competing.

 EJB Problems
• Heavy weight remote model
• High complexity + Portability, Difficult to ensure performance and scalability

·RE*) : Runtime Environment

Page l 7

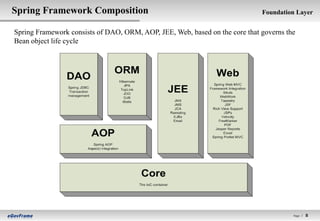

Spring Framework Composition Foundation Layer

Spring Framework consists of DAO, ORM, AOP, JEE, Web, based on the core that governs the
Bean object life cycle

Page l 8

IoC Container Foundation Layer

 Overview
• Manage creating objects and object dependencies by external setting, rather than hard coding
within source code
• IoC is an abbreviation of the “Inversion of Control” or referred to “Reverse control”
• Improve flexibility and scalability

 Key Features
• Dependency Injection
- Inject dependencies among objects in the external setting

- Framework determines dependencies(objects) and relationships which will be used at run time

• Bean Lifecycle Management
- Manage the life cycle of object creation, destruction, etc

Page l 9

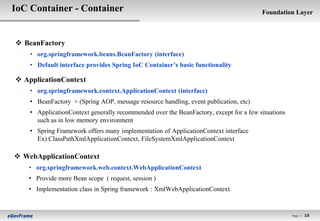

IoC Container - Container Foundation Layer

 BeanFactory
• org.springframework.beans.BeanFactory (interface)
• Default interface provides Spring IoC Container’s basic functionality

 ApplicationContext
• org.springframework.context.ApplicationContext (interface)
• BeanFactory + (Spring AOP, message resource handling, event publication, etc)
• ApplicationContext generally recommended over the BeanFactory, except for a few situations
such as in low memory environment
• Spring Framework offers many implementation of ApplicationContext interface
Ex) ClassPathXmlApplicationContext, FileSystemXmlApplicationContext

 WebApplicationContext
• org.springframework.web.context.WebApplicationContext
• Provide more Bean scope ( request, session )
• Implementation class in Spring framework : XmlWebApplicationContext

Page l 10

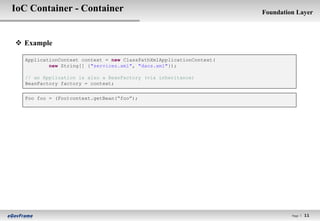

IoC Container - Container Foundation Layer

 Example

ApplicationContext context = new ClassPathXmlApplicationContext(
new String[] {"services.xml", "daos.xml"});

// an Application is also a BeanFactory (via inheritance)
BeanFactory factory = context;

Foo foo = (Foo)context.getBean(“foo”);

Page l 11

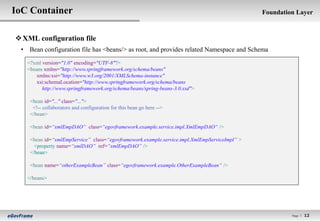

 XML configuration file
• Bean configuration file has <beans/> as root, and provides related Namespace and Schema
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd">

<bean id="..." class="...">

</bean>

<bean id=“xmlEmpDAO” class=“egovframework.example.service.impl.XmlEmpDAO“ />

<bean id=“xmlEmpService” class=“egovframework.example.service.impl.XmlEmpServiceImpl” >
<property name=“xmlDAO” ref=“xmlEmpDAO” />
</bean>

<bean name=“otherExampleBean” class=“egovframework.example.OtherExampleBean“ />

</beans>

Page l 12

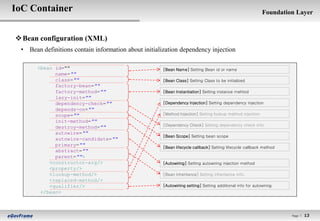

 Bean configuration (XML)
• Bean definitions contain information about initialization dependency injection

<bean id="" [Bean Name] Setting Bean id or name
name=""
class="" [Bean Class] Setting Class to be initialized
factory-bean=""
factory-method="" [Bean Instantiation] Setting instance mehtod
lazy-init=""
dependency-check="" [Dependency Injection] Setting dependency injection
depends-on=""
scope="" [Method Injection] Setting lookup method injection
init-method=""
destroy-method="" [Dependency Check] Setting dependency check info.
autowire=""
[Bean Scope] Setting bean scope
autowire-candidate=""
primary="" [Bean lifecycle callback] Setting lifecycle callback method
abstract=""
parent="">
<constructor-arg/> [Autowiring] Setting autowiring injection method
<property/>
<lookup-method/> [Bean inheritance] Setting inheritance info.
<replaced-method/>
<qualifier/> [Autowiriing setting] Setting additional info for autowiring
</bean>

Page l 13

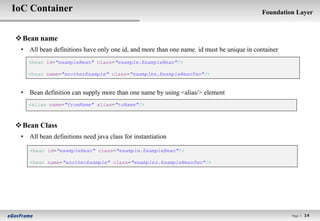

 Bean name
• All bean definitions have only one id, and more than one name. id must be unique in container
<bean id="exampleBean" class="example.ExampleBean"/>

<bean name="anotherExample" class="examples.ExampleBeanTwo"/>

• Bean definition can supply more than one name by using <alias/> element
<alias name="fromName" alias="toName"/>

 Bean Class
• All bean definitions need java class for instantiation

<bean id="exampleBean" class="example.ExampleBean"/>

<bean name="anotherExample" class="examples.ExampleBeanTwo"/>

Page l 14

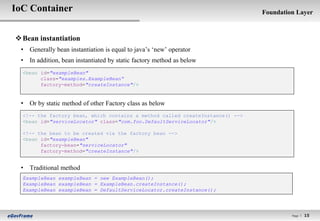

 Bean instantiation
• Generally bean instantiation is equal to java‟s „new‟ operator
• In addition, bean instantiated by static factory method as below
<bean id="exampleBean"
class="examples.ExampleBean“
factory-method="createInstance"/>

• Or by static method of other Factory class as below

<bean id="serviceLocator" class="com.foo.DefaultServiceLocator"/>


<bean id="exampleBean"
factory-bean="serviceLocator"
factory-method="createInstance"/>

• Traditional method
ExampleBean exampleBean = new ExampleBean();
ExampleBean exampleBean = ExampleBean.createInstance();
ExampleBean exampleBean = DefaultServiceLocator.createInstance();

Page l 15

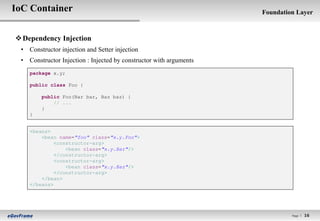

 Dependency Injection
• Constructor injection and Setter injection
• Constructor Injection : Injected by constructor with arguments
package x.y;

public class Foo {

public Foo(Bar bar, Baz baz) {
// ...
}
}

<beans>
<bean name="foo" class="x.y.Foo">
<constructor-arg>
<bean class="x.y.Bar"/>
</constructor-arg>
<constructor-arg>
<bean class="x.y.Baz"/>
</constructor-arg>
</bean>
</beans>

Page l 16

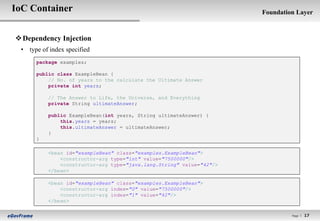

• type of index specified
package examples;

public class ExampleBean {
// No. of years to the calculate the Ultimate Answer
private int years;

// The Answer to Life, the Universe, and Everything
private String ultimateAnswer;

public ExampleBean(int years, String ultimateAnswer) {
this.years = years;
this.ultimateAnswer = ultimateAnswer;
}
}

<bean id="exampleBean" class="examples.ExampleBean">
<constructor-arg type="int" value="7500000"/>
<constructor-arg type="java.lang.String" value="42"/>
</bean>

<constructor-arg index="0" value="7500000"/>
<constructor-arg index="1" value="42"/>
</bean>

Page l 17

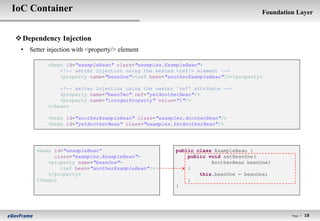

• Setter injection with <property/> element


<property name="beanOne"><ref bean="anotherExampleBean"/></property>


<property name="beanTwo" ref="yetAnotherBean"/>
<property name="integerProperty" value="1"/>
</bean>

<bean id="anotherExampleBean" class="examples.AnotherBean"/>
<bean id="yetAnotherBean" class="examples.YetAnotherBean"/>

<bean id="exampleBean“ public class ExampleBean {
class="examples.ExampleBean"> public void setBeanOne(
<property name="beanOne"> AnotherBean beanOne)
<ref bean="anotherExampleBean"/> {
</property> this.beanOne = beanOne;
</bean> }
}

Page l 18

• Straight values (primitives, Strings, and so on)

<bean id="myDataSource" class="org.apache.commons.dbcp.BasicDataSource“
destroy-method="close">

<property name="driverClassName">
<value>com.mysql.jdbc.Driver</value>
</property>
<property name="url">
<value>jdbc:mysql://localhost:3306/mydb</value>
</property>
<property name="username">
<value>root</value>
</property>
<property name="password">
<value>masterkaoli</value>
</property>
</bean>

Page l 19

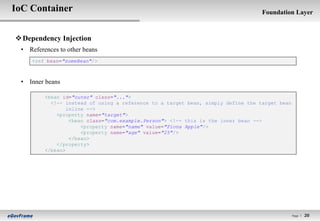

• References to other beans
<ref bean="someBean"/>

• Inner beans

<bean id="outer" class="...">

<property name="target">
<bean class="com.example.Person">
<property name="name" value="Fiona Apple"/>
<property name="age" value="25"/>
</bean>
</property>
</bean>

Page l 20

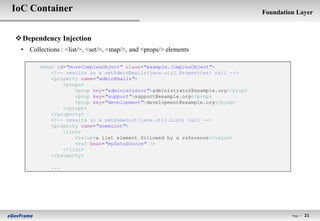

• Collections : <list/>, <set/>, <map/>, and <props/> elements

<bean id="moreComplexObject" class="example.ComplexObject">

<property name="adminEmails">
<props>
<prop key="administrator">administrator@example.org</prop>
<prop key="support">support@example.org</prop>
<prop key="development">development@example.org</prop>
</props>
</property>

<property name="someList">
<list>
<value>a list element followed by a reference</value>
<ref bean="myDataSource" />
</list>
</property>

...

Page l 21

• Collections : <list/>, <set/>, <map/>, and <props/> elements

...


<property name="someMap">
<map>
<entry>
<key><value>an entry</value></key>
<value>just some string</value>
</entry>
<entry>
<key><value>a ref</value></key>
</entry>
</map>
</property>

<property name="someSet">
<set>
<value>just some string</value>
</set>
</property>
</bean>

Page l 22


 Bean Scope
• Spring framework supports five scopes as follows .

Scope 설 명

singleton (default) Scopes a singe bean definition to single object instance per IoC container

prototype Scopes a single bean definition to any number of object instances

Scopes a single bean definition to the lifecycle of a single HTTP request
request
Only valid in the context of a web-aware Spring ApplicationContext

Scopes a single bean definition to the lifecycle of an HTTP Session
session
Only valid in the context of a web-aware Spring ApplicationContext

Scopes a single bean definition to the lifecycle of a global HTTP Session
global session
Only valid when used in a portlet context

Page l 23

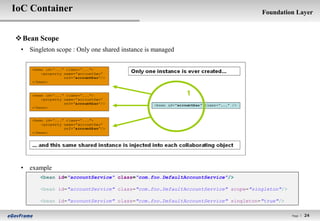

 Bean Scope
• Singleton scope : Only one shared instance is managed

• example
<bean id="accountService" class="com.foo.DefaultAccountService"/>

<bean id="accountService" class="com.foo.DefaultAccountService" scope="singleton"/>

<bean id="accountService" class="com.foo.DefaultAccountService" singleton="true"/>

Page l 24


 Bean Scope
• Prototype scope : Creation of a new bean instance every time a request for that specific bean is made

• example

<bean id="accountService" class="com.foo.DefaultAccountService" scope="prototype"/>

<bean id="accountService" class="com.foo.DefaultAccountService" singleton="false"/>

Page l 25

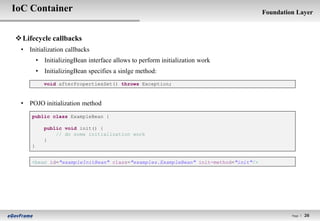

 Lifecycle callbacks
• Initialization callbacks
• InitializingBean interface allows to perform initialization work
• InitializingBean specifies a sinlge method:
void afterPropertiesSet() throws Exception;

• POJO initialization method

public void init() {
// do some initialization work
}
}

<bean id="exampleInitBean" class="examples.ExampleBean" init-method="init"/>

Page l 26


 Lifecycle callbacks
• Destruction callbacks
• DisposableBean interface allows to perform disposable work
• DisposableBean specifies a sinlge method:
void destroy() throws Exception;

• POJO initialization method


public void cleanup() {
// do some destruction work (like releasing pooled connections)
}
}

<bean id="exampleInitBean" class="examples.ExampleBean" destroy-method="cleanup"/>

Page l 27

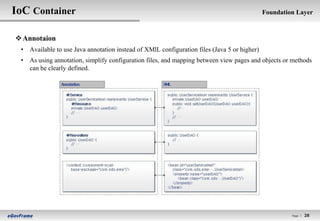

 Annotaion
• Available to use Java annotation instead of XMlL configuration files (Java 5 or higher)
• As using annotation, simplify configuration files, and mapping between view pages and objects or methods
can be clearly defined.

Page l 28

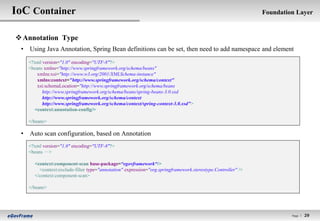

 Annotation Type
• Using Java Annotation, Spring Bean definitions can be set, then need to add namespace and element
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-3.0.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-3.0.xsd">
<context:annotation-config/>

</beans>

• Auto scan configuration, based on Annotation
<beans ··>
·

<context:component-scan base-package=“egovframework“/>
<context:exclude-filter type="annotation" expression="org.springframework.stereotype.Controller" />
</context:component-scan>

</beans>

Page l 29


 Annotation type
• @Required : Applied to setter method, mark a property as being 'required-to-be-set' (i.e. an annotated
(setter) method of a class must be configured to be dependency injected with a value) methods
public class SimpleMovieLister {
// the SimpleMovieLister has a dependency on the MovieFinder
private MovieFinder movieFinder;
// a setter method so that the Spring container can 'inject' a MovieFinder
@Required
public void setMovieFinder(MovieFinder movieFinder) {
this.movieFinder = movieFinder;
}
// business logic that actually 'uses' the injected MovieFinder is omitted...
}

• @Autowired : auto wire a bean on the setter method, constructor or a field. It can autowire property
in a particular bean
• @Resource : marks a resource that is needed by the application. It finds the target bean with name
@Service public UserServiceImpl implements UserService {
@Resource (name="userDAO")
private UserDAO userDAO;
}

• @PostConstruct, @PreDestroy : Use to assign Instantiation callback, Destruction callback methods

Page l 30

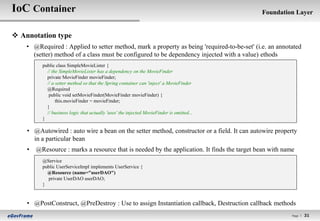

 Annotation type
• @Required : Applied to setter method, mark a property as being 'required-to-be-set' (i.e. an annotated
(setter) method of a class must be configured to be dependency injected with a value) ethods
// the SimpleMovieLister has a dependency on the MovieFinder
private MovieFinder movieFinder;
// a setter method so that the Spring container can 'inject' a MovieFinder
@Required
public void setMovieFinder(MovieFinder movieFinder) {
this.movieFinder = movieFinder;
}
// business logic that actually 'uses' the injected MovieFinder is omitted...
}

• @Autowired : auto wire a bean on the setter method, constructor or a field. It can autowire property
in a particular bean
• @Resource : marks a resource that is needed by the application. It finds the target bean with name
@Service
public UserServiceImpl implements UserService {
@Resource (name="userDAO")
private UserDAO userDAO;
}

• @PostConstruct, @PreDestroy : Use to assign Instantiation callback, Destruction callback methods
Page l 31

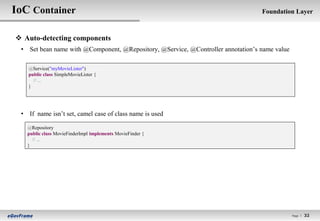

 Auto-detecting components
• Set bean name with @Component, @Repository, @Service, @Controller annotation‟s name value

@Service("myMovieLister")
// ...
}

• If name isn‟t set, camel case of class name is used

@Repository
public class MovieFinderImpl implements MovieFinder {
// ...
}

Page l 32


 ApplicationContext for web application
• Spring provides classes for easy WebApplicationContext setting
• Add following settings in web.xml for ApplicationContext setting with the Listener (Servlet 2.4 or
later)
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/daoContext.xml /WEB-INF/applicationContext.xml</param-value>
</context-param>

<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

Page l 33

AOP Foundation Layer

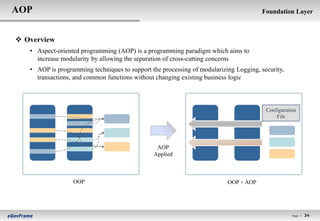

 Overview
• Aspect-oriented programming (AOP) is a programming paradigm which aims to
increase modularity by allowing the separation of cross-cutting concerns
• AOP is programming techniques to support the processing of modularizing Logging, security,
transactions, and common functions without changing existing business logic

Configuration
File

AOP
Applied

OOP OOP + AOP

Page l 34

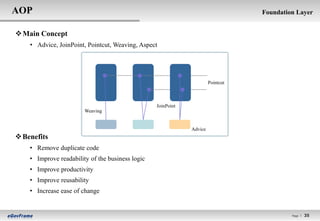

 Main Concept
• Advice, JoinPoint, Pointcut, Weaving, Aspect

Pointcut

JoinPoint
Weaving

Advice
 Benefits
• Remove duplicate code
• Improve readability of the business logic
• Improve productivity
• Improve reusability
• Increase ease of change

Page l 35

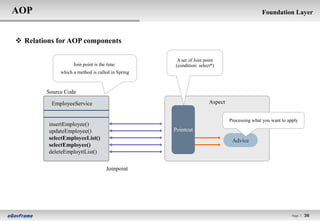

 Relations for AOP components

A set of Join point
Join point is the time (condition: select*)
which a method is called in Spring

Source Code

EmployeeService Aspect
소스코드

Processing what you want to apply
insertEmployee()
updateEmployee() Pointcut
selectEmployeeList() Advice
selectEmployee()
deleteEmployttList()

Joinpoint

Page l 36

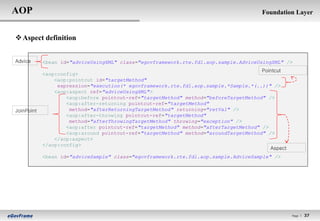

 Aspect definition

Advice <bean id="adviceUsingXML" class="egovframework.rte.fdl.aop.sample.AdviceUsingXML" />
Pointcut
<aop:config>
<aop:pointcut id="targetMethod"
expression="execution(* egovframework.rte.fdl.aop.sample.*Sample.*(..))" />
<aop:aspect ref="adviceUsingXML">
<aop:before pointcut-ref="targetMethod" method="beforeTargetMethod" />
<aop:after-returning pointcut-ref="targetMethod"
JoinPoint method="afterReturningTargetMethod" returning="retVal" />
<aop:after-throwing pointcut-ref="targetMethod"
method="afterThrowingTargetMethod" throwing="exception" />
<aop:after pointcut-ref="targetMethod" method="afterTargetMethod" />
<aop:around pointcut-ref="targetMethod" method="aroundTargetMethod" />
</aop:aspect>
</aop:config>
Aspect
<bean id="adviceSample" class="egovframework.rte.fdl.aop.sample.AdviceSample" />

Page l 37


 Advice definition - before

public class AdviceUsingXML {

public void beforeTargetMethod(JoinPoint thisJoinPoint) {
Class clazz = thisJoinPoint.getTarget().getClass();
String className = thisJoinPoint.getTarget().getClass().getSimpleName();
String methodName = thisJoinPoint.getSignature().getName();

// target class name and method name are logged
Log logger = LogFactory.getLog(clazz);
logger.debug(className + "." + methodName + " executed.");
}
}

 Advice definition – after returning


public void afterReturningTargetMethod(JoinPoint thisJoinPoint,
Object retVal) {
System.out.println("AspectUsingAnnotation.afterReturningTargetMethod executed.” +
“ return value is [“ + retVal + "]");
} …
}

Page l 38


 Advice definition – after throwing
...
public void afterThrowingTargetMethod(JoinPoint thisJoinPoint,
Exception exception) throws Exception{
System.out.println("AdviceUsingXML.afterThrowingTargetMethod executed.");
System.err.println(“Error occurs.", exception);
throw new BizException(“Error occurs", exception);
}
...
}

 Advice definition – after (finally)


public void afterTargetMethod(JoinPoint thisJoinPoint) {
System.out.println("AspectUsingAnnotation.afterTargetMethod executed.");
}
…
}

Page l 39

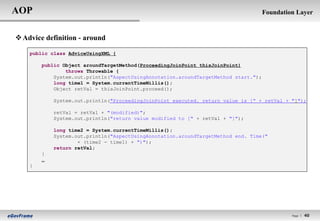

 Advice definition - around


public Object aroundTargetMethod(ProceedingJoinPoint thisJoinPoint)
throws Throwable {
System.out.println("AspectUsingAnnotation.aroundTargetMethod start.");
long time1 = System.currentTimeMillis();
Object retVal = thisJoinPoint.proceed();

System.out.println("ProceedingJoinPoint executed. return value is [“ + retVal + "]");

retVal = retVal + "(modified)";
System.out.println("return value modified to [" + retVal + "]");

long time2 = System.currentTimeMillis();
System.out.println("AspectUsingAnnotation.aroundTargetMethod end. Time("
+ (time2 - time1) + ")");
return retVal;
}
…
}

Page l 40

Runtime Environment Services Services

Runtime Environment provides libraries of common modules consisted of 5 service layers and 34
services that work as a core foundation for running SW applications


MVC Internationalization Process Control DataSource Data Access Naming Service

Ajax Support Security Exception Handling 2. 공통기반 레이어
ORM Transaction Integration Service

UI Adaptor Web Service

Foundation Layer

AOP Cache Compress/Decompress Encryption/Decryption Excel File Handling

File Upload/Download FTP Server Security ID Generation IoC Container Logging

Mail Marshalling/Unmarshalling Object Pooling Property Resource Scheduling

String Util XML Manipulation

Service Group Service

Page l 41

Server Security Foundation Layer

 Overview
• Spring Security provides comprehensive security services for J2EE-based enterprise applications.
• Security comprises two major operations : authentication, authorization

 Features
• Authentication : the process of establishing a principal is who they claim to be
• URL-based Authorization : the process of deciding whether a principal is allowed to perform an
access URL in application
• Method invocation-based Authorization : the process of deciding whether a principal allowed to
perform a method invocation
• Session Management

Page l 42

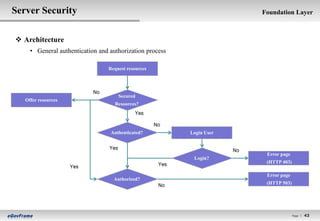

 Architecture
• General authentication and authorization process

Request resources

No
Secured
Offer resources
Resources?
Yes

No
Authenticated? Login User

Yes No
Error page
Login?
Yes (HTTP 403)
Yes
Error page
Authorized?
No (HTTP 503)

Page l 43


 Architecture

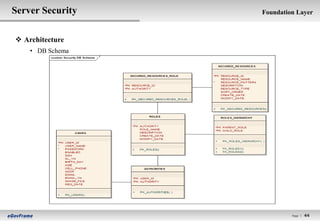

• DB Schema

Page l 44

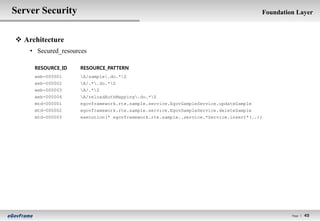

 Architecture
• Secured_resources

RESOURCE_ID RESOURCE_PATTERN
web-000001 A/sample.do.*Z
web-000002 A/.*.do.*Z
web-000003 A/.*Z
web-000004 A/reloadAuthMapping.do.*Z
mtd-000001 egovframework.rte.sample.service.EgovSampleService.updateSample
mtd-000002 egovframework.rte.sample.service.EgovSampleService.deleteSample
mtd-000003 execution(* egovframework.rte.sample..service.*Service.insert*(..))

Page l 45

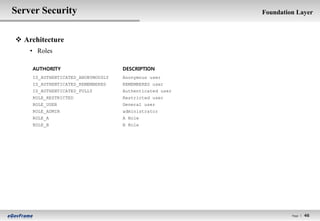

 Architecture
• Roles

AUTHORITY DESCRIPTION
IS_AUTHENTICATED_ANONYMOUSLY Anonymous user
IS_AUTHENTICATED_REMEMBERED REMEMBERED user
IS_AUTHENTICATED_FULLY Authenticated user
ROLE_RESTRICTED Restricted user
ROLE_USER General user
ROLE_ADMIN administrator
ROLE_A A Role
ROLE_B B Role

Page l 46

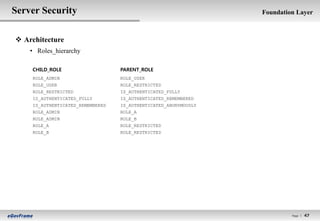

 Architecture
• Roles_hierarchy

CHILD_ROLE PARENT_ROLE
ROLE_ADMIN ROLE_USER
ROLE_USER ROLE_RESTRICTED
ROLE_RESTRICTED IS_AUTHENTICATED_FULLY
IS_AUTHENTICATED_FULLY IS_AUTHENTICATED_REMEMBERED
IS_AUTHENTICATED_REMEMBERED IS_AUTHENTICATED_ANONYMOUSLY
ROLE_ADMIN ROLE_A
ROLE_ADMIN ROLE_B
ROLE_A ROLE_RESTRICTED
ROLE_B ROLE_RESTRICTED

Page l 47


 Authentication
• <http>

<http auto-config='true'>
<intercept-url pattern="/**" access="ROLE_USER"/>
</http>

• auto-config <http>
<intercept-url pattern="/**" access="ROLE_USER" />
<form-login />
<anonymous />
<http-basic />
<logout />
<remember-me />
</http>

• Authentication Provider
<authentication-provider>
<user-service>
<user name="jimi" password="jimispassword" authorities="ROLE_USER, ROLE_ADMIN" />
<user name="bob" password="bobspassword" authorities="ROLE_USER" />
</user-service>
</authentication-provider>

Page l 48

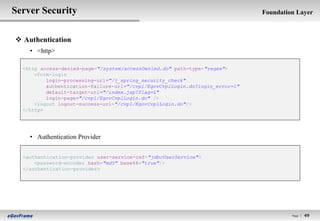

 Authentication
• <http>

<http access-denied-page="/system/accessDenied.do" path-type="regex">
<form-login
login-processing-url="/j_spring_security_check"
authentication-failure-url="/cvpl/EgovCvplLogin.do?login_error=1"
default-target-url="/index.jsp?flag=L"
login-page="/cvpl/EgovCvplLogin.do" />
<logout logout-success-url="/cvpl/EgovCvplLogin.do"/>
</http>

• Authentication Provider

<authentication-provider user-service-ref="jdbcUserService">
<password-encoder hash="md5" base64="true"/>
</authentication-provider>

Page l 49

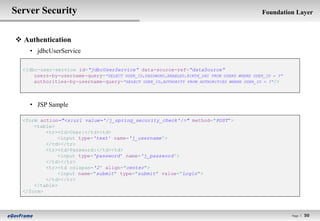

 Authentication
• jdbcUserService

<jdbc-user-service id=“jdbcUserService“ data-source-ref=“dataSource“
users-by-username-query=“SELECT USER_ID,PASSWORD,ENABLED,BIRTH_DAY FROM USERS WHERE USER_ID = ?“
authorities-by-username-query=“SELECT USER_ID,AUTHORITY FROM AUTHORITIES WHERE USER_ID = ?“/>

• JSP Sample

<form action="<s:url value='/j_spring_security_check'/>" method="POST">
<table>
<tr><td>User:</td><td>
<input type='text' name='j_username'>
</td></tr>
<tr><td>Password:</td><td>
<input type='password' name='j_password'>
</td></tr>
<tr><td colspan='2' align="center">
<input name="submit" type="submit" value=“Login">
</td></tr>
</table>
</form>

Page l 50

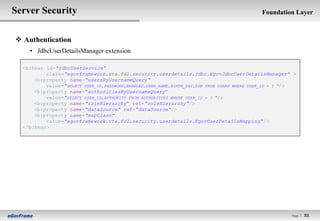

 Authentication
• JdbcUserDetailsManager extension

<b:bean id=“jdbcUserService“
class=“egovframework.rte.fdl.security.userdetails.jdbc.EgovJdbcUserDetailsManager“ >
<b:property name=“usersByUsernameQuery“
value=“SELECT USER_ID,PASSWORD,ENABLED,USER_NAME,BIRTH_DAY,SSN FROM USERS WHERE USER_ID = ? “/>
<b:property name="authoritiesByUsernameQuery“
value=“SELECT USER_ID,AUTHORITY FROM AUTHORITIES WHERE USER_ID = ? “/>
<b:property name=“roleHierarchy" ref=“roleHierarchy“/>
<b:property name=“dataSource“ ref=“dataSource“/>
<b:property name=“mapClass“
value=“egovframework.rte.fdl.security.userdetails.EgovUserDetailsMapping“/>
</b:bean>

Page l 51

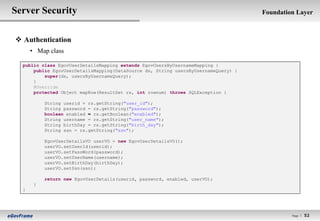

 Authentication
• Map class

public class EgovUserDetailsMapping extends EgovUsersByUsernameMapping {
public EgovUserDetailsMapping(DataSource ds, String usersByUsernameQuery) {
super(ds, usersByUsernameQuery);
}
@Override
protected Object mapRow(ResultSet rs, int rownum) throws SQLException {

String userid = rs.getString("user_id");
String password = rs.getString("password");
boolean enabled = rs.getBoolean("enabled");
String username = rs.getString("user_name");
String birthDay = rs.getString("birth_day");
String ssn = rs.getString("ssn");

EgovUserDetailsVO userVO = new EgovUserDetailsVO();
userVO.setUserId(userid);
userVO.setPassWord(password);
userVO.setUserName(username);
userVO.setBirthDay(birthDay);
userVO.setSsn(ssn);

return new EgovUserDetails(userid, password, enabled, userVO);
}
}

Page l 52

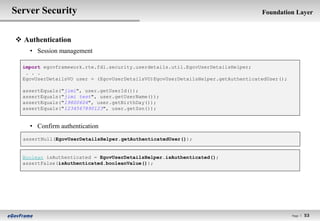

 Authentication
• Session management

import egovframework.rte.fdl.security.userdetails.util.EgovUserDetailsHelper;
. . .
EgovUserDetailsVO user = (EgovUserDetailsVO)EgovUserDetailsHelper.getAuthenticatedUser();

assertEquals("jimi", user.getUserId());
assertEquals("jimi test", user.getUserName());
assertEquals("19800604", user.getBirthDay());
assertEquals("1234567890123", user.getSsn());

• Confirm authentication
assertNull(EgovUserDetailsHelper.getAuthenticatedUser());

Boolean isAuthenticated = EgovUserDetailsHelper.isAuthenticated();
assertFalse(isAuthenticated.booleanValue());

Page l 53


 Authorization
• Role
List<String> authorities = EgovUserDetailsHelper.getAuthorities();

// example
// 1. check authorities (TRUE/FALSE)
assertTrue(authorities.contains("ROLE_USER"));
assertTrue(authorities.contains("ROLE_RESTRICTED"));
assertTrue(authorities.contains("IS_AUTHENTICATED_ANONYMOUSLY"));
assertTrue(authorities.contains("IS_AUTHENTICATED_FULLY"));
assertTrue(authorities.contains("IS_AUTHENTICATED_REMEMBERED"));

// 2. in case of several authorities
for (Iterator<String> it = authorities.iterator(); it.hasNext();) {
String auth = it.next();
}

// 3. in case of just one authorities
String auth = (String) authorities.toArray()[0];

Page l 54

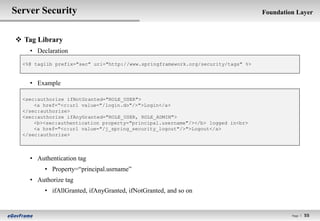

 Tag Library
• Declaration
<%@ taglib prefix="sec" uri="http://www.springframework.org/security/tags" %>

• Example

<sec:authorize ifNotGranted="ROLE_USER">
<a href=“<c:url value="/login.do"/>">Login</a>
</sec:authorize>
<sec:authorize ifAnyGranted="ROLE_USER, ROLE_ADMIN">
<b><sec:authentication property="principal.username"/></b> logged in<br>
<a href="<c:url value="/j_spring_security_logout"/>">Logout</a>
</sec:authorize>

• Authentication tag
• Property=“principal.usrname”
• Authorize tag
• ifAllGranted, ifAnyGranted, ifNotGranted, and so on

Page l 55

ID Generation Foundation Layer

 Overview
• Service for making ID(identifier) in various format and algorithms

 Features
• UUID (Universal Unique Identifier) generation
• Sequence ID generation
• DB Sequence ID
• Table Sequence ID

Page l 56


 UUID
• A standard for identifier adopted by OSF(Open Software Foundation)
• It consists of 16-byte number and expressed in 8-4-4-4-12 format
• Ex: 550e8400-e29b-41d4-a716-446655440000

 Version
• Version 1 (MAC Address) : Computer‟s MAC address
• Version 2 (DCE Security) : POSIX UID
• Version 3 (MD5 Hash)
• Version 4 (Random)
• Version 5 (SHA-1)

Page l 57


 Mac Address Base Service
<bean name="UUIdGenerationService“
class="egovframework.rte.fdl.idgnr.impl.EgovUUIdGnrService">
<property name="address">
<value>00:00:F0:79:19:5B</value>
</property>
</bean>

 IP Address Base Service
<bean name=" UUIdGenerationService"
class="egovframework.rte.fdl.idgnr.impl.EgovUUIdGnrService">
<property name="address">
<value>100.128.120.107</value>
</property>
</bean>

 No Address Base Service
<bean name=" UUIdGenerationService"
class="egovframework.rte.fdl.idgnr.impl.EgovUUIdGnrService“/>

Page l 58

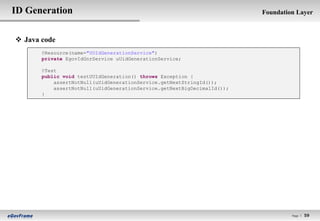

 Java code
@Resource(name="UUIdGenerationService")
private EgovIdGnrService uUidGenerationService;

@Test
public void testUUIdGeneration() throws Exception {
assertNotNull(uUidGenerationService.getNextStringId());
assertNotNull(uUidGenerationService.getNextBigDecimalId());
}

Page l 59

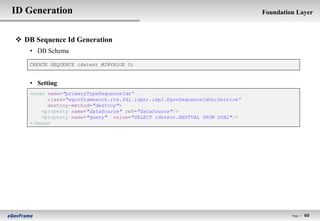

 DB Sequence Id Generation
• DB Schema

CREATE SEQUENCE idstest MINVALUE 0;

• Setting
<bean name="primaryTypeSequenceIds“
class="egovframework.rte.fdl.idgnr.impl.EgovSequenceIdGnrService“
destroy-method="destroy">
<property name="dataSource" ref="dataSource"/>
<property name="query" value="SELECT idstest.NEXTVAL FROM DUAL"/>
</bean>

Page l 60


 DB Table Id Generation
• DB Schema
CREATE TABLE ids ( table_name varchar(16) NOT NULL,
next_id DECIMAL(30) NOT NULL,
PRIMARY KEY (table_name));
INSERT INTO ids VALUES('id','0');

• Setting
<bean name="basicService" class="egovframework.rte.fdl.idgnr.impl.EgovTableIdGnrService"
<property name="blockSize" value="10"/>
<property name="table" value="ids"/>
<property name="tableName" value="id"/>
</bean>

• blockSize : the number of cached item in memory
• table : table name to be used to store
• tableName : table‟s record key value to be used

Page l 61

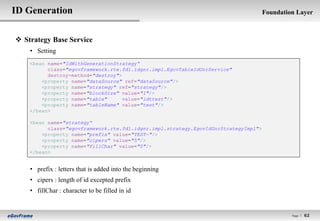

 Strategy Base Service
• Setting
<bean name="IdWithGenerationStrategy“
class="egovframework.rte.fdl.idgnr.impl.EgovTableIdGnrService"
<property name="strategy" ref="strategy"/>
<property name="blockSize" value="1"/>
<property name="table" value="idttest"/>
<property name="tableName" value="test"/>
</bean>

<bean name="strategy“
class="egovframework.rte.fdl.idgnr.impl.strategy.EgovIdGnrStrategyImpl">
<property name="prefix" value="TEST-"/>
<property name="cipers" value="5"/>
<property name="fillChar" value="0"/>
</bean>

• prefix : letters that is added into the beginning
• cipers : length of id excepted prefix
• fillChar : character to be filled in id

Page l 62

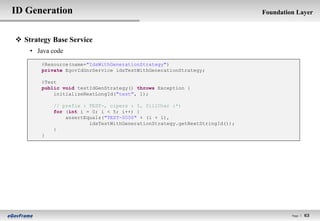

 Strategy Base Service
• Java code
@Resource(name="IdsWithGenerationStrategy")
private EgovIdGnrService idsTestWithGenerationStrategy;

@Test
public void testIdGenStrategy() throws Exception {
initializeNextLongId("test", 1);

// prefix : TEST-, cipers : 5, fillChar :*)
for (int i = 0; i < 5; i++) {
assertEquals("TEST-0000" + (i + 1),
idsTestWithGenerationStrategy.getNextStringId());
}
}

Page l 63

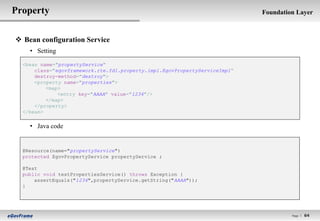

Property Foundation Layer

 Bean configuration Service
• Setting

<bean name="propertyService“
class="egovframework.rte.fdl.property.impl.EgovPropertyServiceImpl“
<property name="properties">
<map>
<entry key="AAAA" value="1234"/>
</map>
</property>
</bean>

• Java code

@Resource(name="propertyService")
protected EgovPropertyService propertyService ;

@Test
public void testPropertiesService() throws Exception {
assertEquals("1234",propertyService.getString("AAAA"));
}

Page l 64

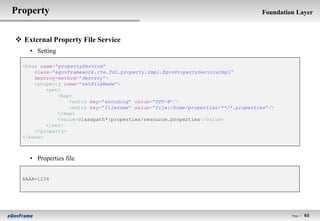

Property Foundation Layer

 External Property File Service
• Setting

<bean name="propertyService"
class="egovframework.rte.fdl.property.impl.EgovPropertyServiceImpl“
destroy-method="destroy“>
<property name="extFileName">
<set>
<map>
<entry key="encoding" value="UTF-8"/>
<entry key="filename" value="file:/home/properties/**/*.properties"/>
</map>
<value>classpath*:properties/resource.properties</value>
</set>
</property>
</bean>

• Properties file

AAAA=1234

Page l 65

Data Source Persistence Layer

 Overview
• Service for providing database connection

• Remove dependencies about business logic and database connection

 Key Features
• Service to connect database

- Create database connection, using JDBC driver

<bean id="dataSource”
class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="${driver}" />
<property name="url" value="${dburl}" />
<property name="username" value="${username}" />
<property name="password" value="${password}" />
</bean>
• driverClassName : JDBC driver class name
• url : Database access JDBC URL
• username : Database access username
• password : Database access password

Page l 66


 Key Features
• DBCP DataSource

- Database connection module, using JDBC driver. This is database connection pool, called Commons DBCP
in Jakarta projects.

<bean id="dataSource” class="org.apache.commons.dbcp.BasicDataSource” destroy-method="close">
<property name="driverClassName" value="${driver}" />
<property name="url" value="${dburl}" />
<property name="username" value="${username}" />
<property name="password" value="${password}" />
<property name="defaultAutoCommit" value="false" />
<property name="poolPreparedStatements" value="true" />
</bean>
• driverClassName : jdbc driver class name
• url : DataBase url
• username : DataBase access user name
• password : DataBase access password
• defaultAutoCommit : configure auto-commit function about connection
• poolPreparedStatements : PreparedStatement configuration (user or not)

Page l 67

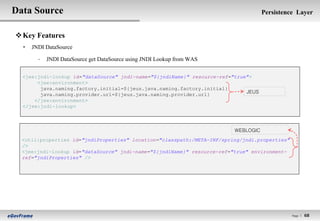

 Key Features
• JNDI DataSource

- JNDI DataSource get DataSource using JNDI Lookup from WAS

<jee:jndi-lookup id="dataSource" jndi-name="${jndiName}" resource-ref="true">
<jee:environment>
java.naming.factory.initial=${jeus.java.naming.factory.initial}
JEUS
java.naming.provider.url=${jeus.java.naming.provider.url}
</jee:environment>
</jee:jndi-lookup>

WEBLOGIC
<util:properties id="jndiProperties" location="classpath:/META-INF/spring/jndi.properties"
/>
<jee:jndi-lookup id="dataSource" jndi-name="${jndiName}" resource-ref="true" environment-
ref="jndiProperties" />

Page l 68

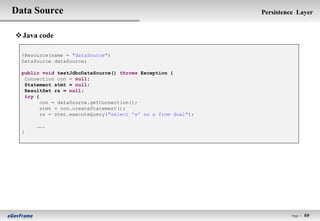

 Java code

@Resource(name = "dataSource")
DataSource dataSource;

public void testJdbcDataSource() throws Exception {
Connection con = null;
Statement stmt = null;
ResultSet rs = null;
try {
con = dataSource.getConnection();
stmt = con.createStatement();
rs = stmt.executeQuery("select 'x' as x from dual");

…….
}

Page l 69

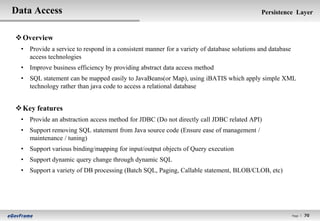

Data Access Persistence Layer

 Overview
• Provide a service to respond in a consistent manner for a variety of database solutions and database
access technologies
• Improve business efficiency by providing abstract data access method
• SQL statement can be mapped easily to JavaBeans(or Map), using iBATIS which apply simple XML
technology rather than java code to access a relational database

 Key features
• Provide an abstraction access method for JDBC (Do not directly call JDBC related API)
• Support removing SQL statement from Java source code (Ensure ease of management /
maintenance / tuning)
• Support various binding/mapping for input/output objects of Query execution
• Support dynamic query change through dynamic SQL
• Support a variety of DB processing (Batch SQL, Paging, Callable statement, BLOB/CLOB, etc)

Page l 70

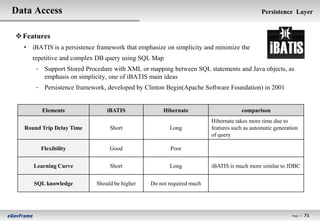

 Features
• iBATIS is a persistence framework that emphasize on simplicity and minimize the
repetitive and complex DB query using SQL Map
- Support Stored Procedure with XML or mapping between SQL statements and Java objects, as
emphasis on simplicity, one of iBATIS main ideas
- Persistence framework, developed by Clinton Begin(Apache Software Foundation) in 2001

Elements iBATIS Hibernate comparison
Hibernate takes more time due to
Round Trip Delay Time Short Long features such as automatic generation
of query

Flexibility Good Poor

Learning Curve Short Long iBATIS is much more similar to JDBC

SQL knowledge Should be higher Do not required much

Page l 71

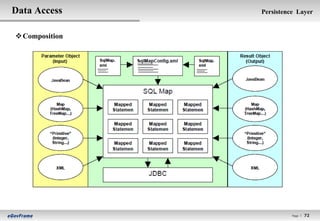

 Composition

Page l 72

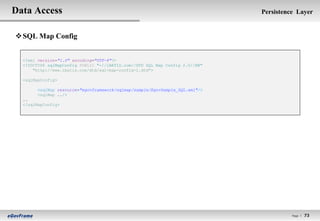

 SQL Map Config

<!DOCTYPE sqlMapConfig PUBLIC "-//iBATIS.com//DTD SQL Map Config 2.0//EN"
"http://www.ibatis.com/dtd/sql-map-config-2.dtd">

<sqlMapConfig>

<sqlMap resource="egovframework/sqlmap/sample/EgovSample_SQL.xml"/>
<sqlMap ../>
..
</sqlMapConfig>

Page l 73

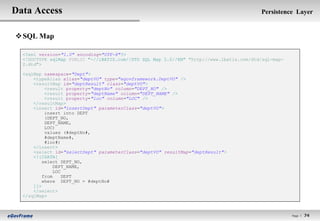

 SQL Map

<!DOCTYPE sqlMap PUBLIC "-//iBATIS.com//DTD SQL Map 2.0//EN" "http://www.ibatis.com/dtd/sql-map-
2.dtd">

<sqlMap namespace="Dept">
<typeAlias alias="deptVO" type="egovframework.DeptVO" />
<resultMap id="deptResult" class="deptVO">
<result property="deptNo" column="DEPT_NO" />
<result property="deptName" column="DEPT_NAME" />
<result property="loc" column="LOC" />
</resultMap>
<insert id="insertDept" parameterClass="deptVO">
insert into DEPT
(DEPT_NO,
DEPT_NAME,
LOC)
values (#deptNo#,
#deptName#,
#loc#)
</insert>
<select id="selectDept" parameterClass="deptVO" resultMap="deptResult">
<![CDATA[
select DEPT_NO,
DEPT_NAME,
LOC
from DEPT
where DEPT_NO = #deptNo#
]]>
</select>
</sqlMap>

Page l 74

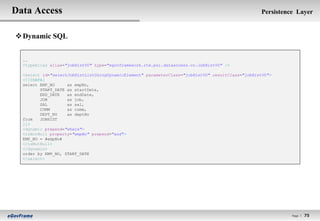

 Dynamic SQL

..
<typeAlias alias="jobHistVO" type="egovframework.rte.psl.dataaccess.vo.JobHistVO" />

<select id="selectJobHistListUsingDynamicElement" parameterClass="jobHistVO" resultClass="jobHistVO">
<![CDATA[
select EMP_NO as empNo,
START_DATE as startDate,
END_DATE as endDate,
JOB as job,
SAL as sal,
COMM as comm,
DEPT_NO as deptNo
from JOBHIST
]]>
<dynamic prepend="where">
<isNotNull property="empNo" prepend="and">
EMP_NO = #empNo#
</isNotNull>
</dynamic>
order by EMP_NO, START_DATE
</select>

Page l 75

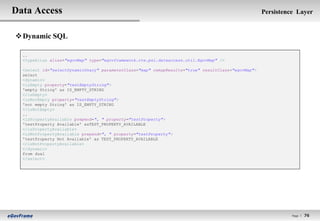

 Dynamic SQL

..
<typeAlias alias="egovMap" type="egovframework.rte.psl.dataaccess.util.EgovMap" />

<select id="selectDynamicUnary" parameterClass="map" remapResults="true" resultClass="egovMap">
select
<dynamic>
<isEmpty property="testEmptyString">
'empty String' as IS_EMPTY_STRING
</isEmpty>
<isNotEmpty property="testEmptyString">
'not empty String' as IS_EMPTY_STRING
</isNotEmpty>
..
<isPropertyAvailable prepend=", " property="testProperty">
'testProperty Available' asTEST_PROPERTY_AVAILABLE
</isPropertyAvailable>
<isNotPropertyAvailable prepend=", " property="testProperty">
'testProperty Not Available' as TEST_PROPERTY_AVAILABLE
</isNotPropertyAvailable>
</dynamic>
from dual
</select>

Page l 76

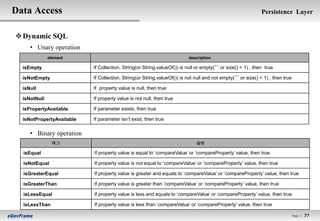

 Dynamic SQL
• Unary operation
element description

isEmpty If Collection, String(or String.valueOf()) is null or empty(”” or size() < 1) , then true

isNotEmpty If Collection, String(or String.valueOf()) is not null and not empty(”” or size() < 1) , then true

isNull If property value is null, then true

isNotNull If property value is not null, then true

isPropertyAvailable If parameter exists, then true

isNotPropertyAvailable If parameter isn’t exist, then true

• Binary operation
태그 설명

isEqual If property value is equal to ‘compareValue’ or ‘compareProperty’ value, then true

isNotEqual If property value is not equal to ‘compareValue’ or ‘compareProperty’ value, then true

isGreaterEqual If property value is greater and equals to ‘compareValue’ or ‘compareProperty’ value, then true

isGreaterThan If property value is greater than ‘compareValue’ or ‘compareProperty’ value, then true

isLessEqual If property value is less and equals to ‘compareValue’ or ‘compareProperty’ value, then true

isLessThan If property value is less than ‘compareValue’ or ‘compareProperty’ value, then true

Page l 77

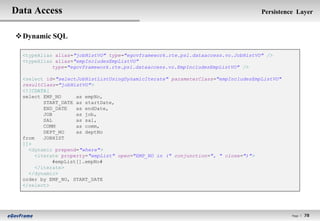

 Dynamic SQL

<typeAlias alias="jobHistVO" type="egovframework.rte.psl.dataaccess.vo.JobHistVO" />
<typeAlias alias="empIncludesEmpListVO"
type="egovframework.rte.psl.dataaccess.vo.EmpIncludesEmpListVO" />

<select id="selectJobHistListUsingDynamicIterate" parameterClass="empIncludesEmpListVO"
resultClass="jobHistVO">
<![CDATA[
select EMP_NO as empNo,
START_DATE as startDate,
END_DATE as endDate,
JOB as job,
SAL as sal,
COMM as comm,
DEPT_NO as deptNo
from JOBHIST
]]>
<dynamic prepend="where">
<iterate property="empList" open="EMP_NO in (" conjunction=", " close=")">
#empList[].empNo#
</iterate>
</dynamic>
order by EMP_NO, START_DATE
</select>

Page l 78

MVC Presentation Layer

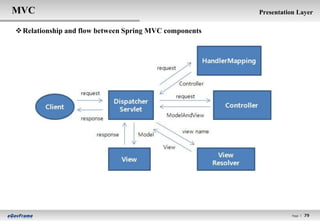

 Relationship and flow between Spring MVC components

Page l 79


 Relationship and flow between Spring MVC components

Page l 80

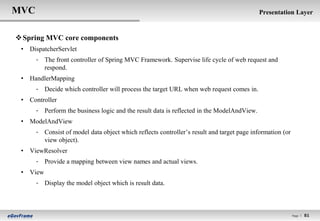

 Spring MVC core components
• DispatcherServlet
- The front controller of Spring MVC Framework. Supervise life cycle of web request and
respond.
• HandlerMapping
- Decide which controller will process the target URL when web request comes in.
• Controller
- Perform the business logic and the result data is reflected in the ModelAndView.
• ModelAndView
- Consist of model data object which reflects controller‟s result and target page information (or
view object).
• ViewResolver
- Provide a mapping between view names and actual views.
• View
- Display the model object which is result data.

Page l 81

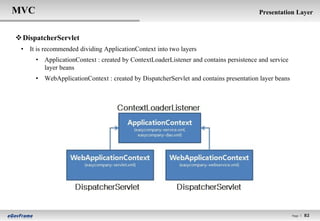

 DispatcherServlet
• It is recommended dividing ApplicationContext into two layers
• ApplicationContext : created by ContextLoaderListener and contains persistence and service
layer beans
• WebApplicationContext : created by DispatcherServlet and contains presentation layer beans

Page l 82

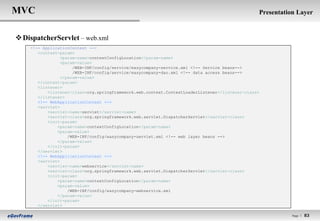

 DispatcherServlet – web.xml

<context-param>
<param-value>
/WEB-INF/config/service/easycompany-service.xml
/WEB-INF/config/service/easycompany-dao.xml
</param-value>
</context-param>
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>

<servlet>
<servlet-name>servlet</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-value>
/WEB-INF/config/easycompany-servlet.xml
</param-value>
</init-param>
</servlet>

<servlet>
<servlet-name>webservice</servlet-name>
<servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
<init-param>
<param-value>
/WEB-INF/config/easycompany-webservice.xml
</param-value>
</init-param>
</servlet>

Page l 83

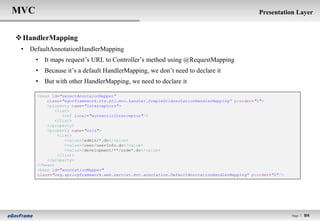

 HandlerMapping
• DefaultAnnotationHandlerMapping
• It maps request‟s URL to Controller‟s method using @RequestMapping
• Because it‟s a default HandlerMapping, we don‟t need to declare it
• But with other HandlerMapping, we need to declare it

<bean id="selectAnnotaionMapper“
class="egovframework.rte.ptl.mvc.handler.SimpleUrlAnnotationHandlerMapping” p:order="1">
<property name="interceptors">
<list>
<ref local="authenticInterceptor"/>
</list>
</property>
<property name="urls">
<list>
<value>/admin/*.do</value>
<value>/user/userInfo.do</value>
<value>/development/**/code*.do</value>
</list>
</property>
</bean>
<bean id="annotationMapper"
class="org.springframework.web.servlet.mvc.annotation.DefaultAnnotationHandlerMapping“ p:order="2"/>

Page l 84

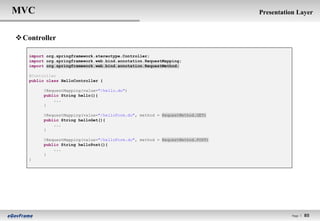

 Controller

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;

@Controller
public class HelloController {

@RequestMapping(value="/hello.do")
public String hello(){
...
}

@RequestMapping(value="/helloForm.do", method = RequestMethod.GET)
public String helloGet(){
...
}

@RequestMapping(value="/helloForm.do", method = RequestMethod.POST)
public String helloPost(){
...
}
}

Page l 85

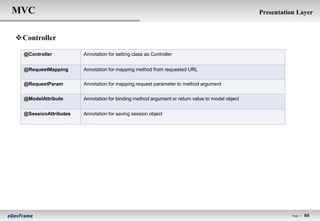

 Controller

@Controller Annotation for setting class as Controller

@RequestMapping Annotation for mapping method from requested URL

@RequestParam Annotation for mapping request parameter to method argument

@ModelAttribute Annotation for binding method argument or return value to model object

@SessionAttributes Annotation for saving session object

Page l 86

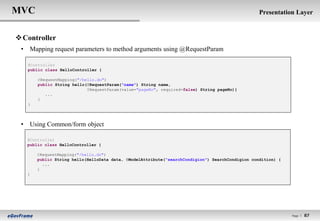

 Controller
• Mapping request parameters to method arguments using @RequestParam

@Controller

@RequestMapping("/hello.do")
public String hello(@RequestParam("name") String name,
@RequestParam(value="pageNo", required=false) String pageNo){
...
}
}

• Using Common/form object

@Controller

@RequestMapping("/hello.do")
public String hello(HelloData data, @ModelAttribute(“searchCondigion") SearchCondigion condition) {
...
}
}

Page l 87

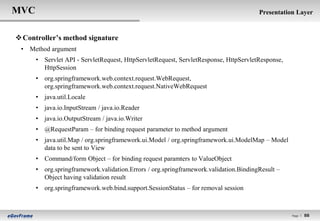

 Controller’s method signature
• Method argument
• Servlet API - ServletRequest, HttpServletRequest, ServletResponse, HttpServletResponse,
HttpSession
• org.springframework.web.context.request.WebRequest,
org.springframework.web.context.request.NativeWebRequest
• java.util.Locale
• java.io.InputStream / java.io.Reader
• java.io.OutputStream / java.io.Writer
• @RequestParam – for binding request parameter to method argument
• java.util.Map / org.springframework.ui.Model / org.springframework.ui.ModelMap – Model
data to be sent to View
• Command/form Object – for binding request paramters to ValueObject
• org.springframework.validation.Errors / org.springframework.validation.BindingResult –
Object having validation result
• org.springframework.web.bind.support.SessionStatus – for removal session

Page l 88


 Controller’s method signature
• Return value type
• ModelAndView – Object with model and view
• Map, Model, or ModelMap – Model data to be sent to view
View name is automatically decided by RequestToViewNameTranslator (url –> view name)
• String – View name
Model data to be declared in method argument
• void – in case that we direct control ServletResponse or HttpServletResponses

Page l 89


 ViewResolver

<bean class="org.springframework.web.servlet.view.UrlBasedViewResolver" p:order="1"
p:viewClass="org.springframework.web.servlet.view.JstlView"
p:prefix="/WEB-INF/jsp/" p:suffix=".jsp"/>

<bean id="tilesViewResolver" class="org.springframework.web.servlet.view.UrlBasedViewResolver">
<property name="viewClass" value="org.springframework.web.servlet.view.tiles2.TilesView" />
<property name="order" value="0" />
</bean>

Page l 90


 View (JSP)
...
<%@ page contentType="text/html; charset=utf-8"%>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<%@ taglib prefix="form" uri="http://www.springframework.org/tags/form" %>
...
<form:form commandName="department">
<table>
<tr>
<th>Department No.</th><td><c:out value="${department.deptid}"/></td>
</tr>
<tr>
<th>Department Name</th><td><form:input path="deptname" size="20"/></td>
</tr>
<tr>
<th>Upper Dept.</th>
<td>
<form:select path="superdeptid">
<option value="">Select upper dept.</option>
<form:options items="${deptInfoOneDepthCategory}" />
</form:select>
</td>
</tr>
<tr>
<th>Desc.</th><td><form:textarea path="description" rows="10" cols="40"/></td>
</tr>
</table>
...
<input type="submit" value=“Save"/>
<input type="button" value=“List Page" onclick="location.href='/easycompany/departmentList.do?depth=1'"/>
...
</form:form>

Page l 91

03.eGovFrame Runtime Environment Training Book Supplement

More Related Content

What's hot

Viewers also liked

Similar to 03.eGovFrame Runtime Environment Training Book Supplement

More from Chuong Nguyen

Recently uploaded

03.eGovFrame Runtime Environment Training Book Supplement
