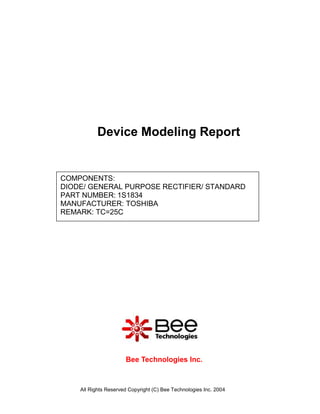

1. Device Modeling Report
COMPONENTS:
DIODE/ GENERAL PURPOSE RECTIFIER/ STANDARD
PART NUMBER: 1S1834
MANUFACTURER: TOSHIBA
REMARK: TC=25C
Bee Technologies Inc.
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

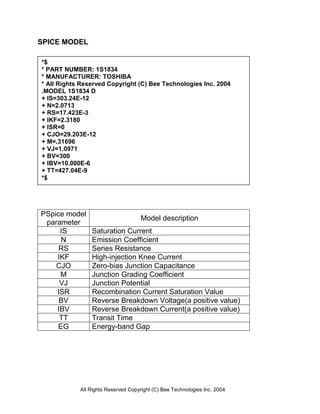

2. SPICE MODEL
*$
* PART NUMBER: 1S1834
* MANUFACTURER: TOSHIBA
* All Rights Reserved Copyright (C) Bee Technologies Inc. 2004
.MODEL 1S1834 D
+ IS=303.24E-12
+ N=2.0713
+ RS=17.423E-3
+ IKF=2.3180
+ ISR=0
+ CJO=29.203E-12
+ M=.31696
+ VJ=1.0971
+ BV=300
+ IBV=10.000E-6
+ TT=427.04E-9
*$
PSpice model
Model description
parameter
IS Saturation Current
N Emission Coefficient
RS Series Resistance
IKF High-injection Knee Current
CJO Zero-bias Junction Capacitance
M Junction Grading Coefficient
VJ Junction Potential
ISR Recombination Current Saturation Value
BV Reverse Breakdown Voltage(a positive value)
IBV Reverse Breakdown Current(a positive value)
TT Transit Time
EG Energy-band Gap
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

3. Forward Current Characteristic
Circuit Simulation Result
Evaluation Circuit
R1
0.01m
D1
V1
0Vdc
1S1834
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

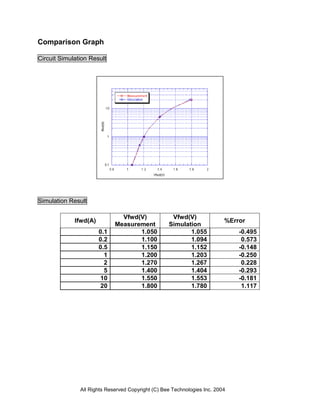

4. Comparison Graph
Circuit Simulation Result
Simulation Result
Vfwd(V) Vfwd(V)
Ifwd(A) %Error
Measurement Simulation
0.1 1.050 1.055 -0.495
0.2 1.100 1.094 0.573
0.5 1.150 1.152 -0.148
1 1.200 1.203 -0.250
2 1.270 1.267 0.228
5 1.400 1.404 -0.293
10 1.550 1.553 -0.181
20 1.800 1.780 1.117
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

5. Junction Capacitance Characteristic
Circuit Simulation Result
Evaluation Circuit
V2
0Vdc
D1
V2 = 300 V1
V1 = 0
TD = 0
TR = 10n
TF = 50ns
PW = 5us
PER = 10us 1S1834
0
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

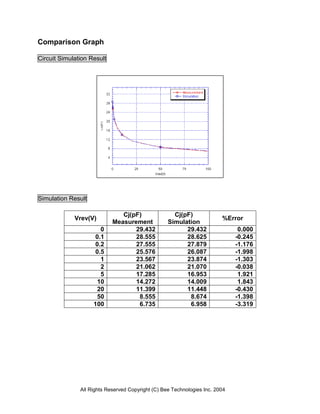

6. Comparison Graph
Circuit Simulation Result
Simulation Result
Cj(pF) Cj(pF)
Vrev(V) %Error
Measurement Simulation
0 29.432 29.432 0.000
0.1 28.555 28.625 -0.245
0.2 27.555 27.879 -1.176
0.5 25.576 26.087 -1.998
1 23.567 23.874 -1.303
2 21.062 21.070 -0.038
5 17.285 16.953 1.921
10 14.272 14.009 1.843
20 11.399 11.448 -0.430
50 8.555 8.674 -1.398
100 6.735 6.958 -3.319
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

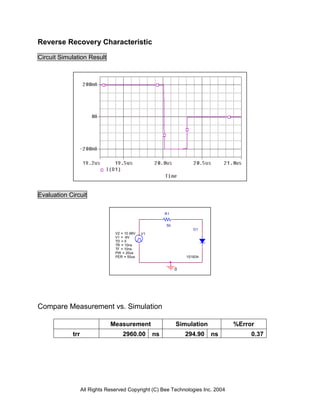

7. Reverse Recovery Characteristic
Circuit Simulation Result
Evaluation Circuit
R1
50
D1
V2 = 10.98V V1
V1 = -9V
TD = 0
TR = 10ns
TF = 10ns
PW = 20us
PER = 50us 1S1834
0
Compare Measurement vs. Simulation
Measurement Simulation %Error
trr 2960.00 ns 294.90 ns 0.37
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004

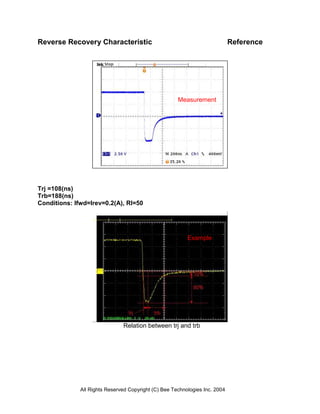

8. Reverse Recovery Characteristic Reference
Measurement
Trj =108(ns)
Trb=188(ns)
Conditions: Ifwd=Irev=0.2(A), Rl=50
Example
Relation between trj and trb
All Rights Reserved Copyright (C) Bee Technologies Inc. 2004
