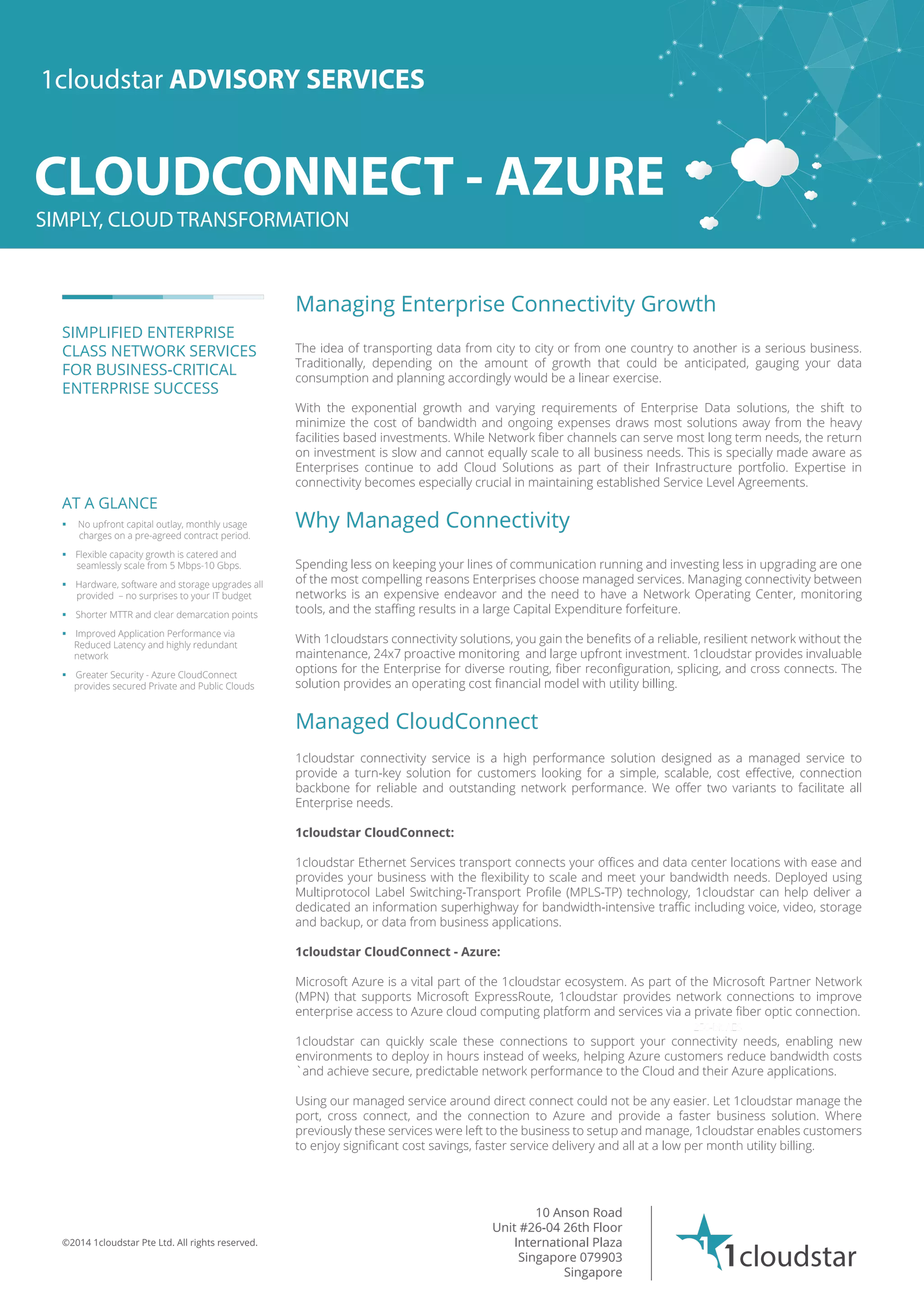

1. 1cloudstar ADVISORY SERVICES
CLOUDCONNECT - AZURE
SIMPLY, CLOUD TRANSFORMATION
SIMPLIFIED ENTERPRISE
CLASS NETWORK SERVICES
FOR BUSINESS-CRITICAL
ENTERPRISE SUCCESS
Managing Enterprise Connectivity Growth
The idea of transporting data from city to city or from one country to another is a serious business.
Traditionally, depending on the amount of growth that could be anticipated, gauging your data
consumption and planning accordingly would be a linear exercise.
With the exponential growth and varying requirements of Enterprise Data solutions, the shift to
minimize the cost of bandwidth and ongoing expenses draws most solutions away from the heavy
facilities based investments. While Network fiber channels can serve most long term needs, the return
on investment is slow and cannot equally scale to all business needs. This is specially made aware as
Enterprises continue to add Cloud Solutions as part of their Infrastructure portfolio. Expertise in
connectivity becomes especially crucial in maintaining established Service Level Agreements.
Why Managed Connectivity
Spending less on keeping your lines of communication running and investing less in upgrading are one
of the most compelling reasons Enterprises choose managed services. Managing connectivity between
networks is an expensive endeavor and the need to have a Network Operating Center, monitoring
tools, and the staffing results in a large Capital Expenditure forfeiture.
With 1cloudstars connectivity solutions, you gain the benefits of a reliable, resilient network without the
maintenance, 24x7 proactive monitoring and large upfront investment. 1cloudstar provides invaluable
options for the Enterprise for diverse routing, fiber reconfiguration, splicing, and cross connects. The
solution provides an operating cost financial model with utility billing.
Managed CloudConnect
1cloudstar connectivity service is a high performance solution designed as a managed service to
provide a turn-key solution for customers looking for a simple, scalable, cost effective, connection
backbone for reliable and outstanding network performance. We offer two variants to facilitate all
Enterprise needs.
1cloudstar CloudConnect:
1cloudstar Ethernet Services transport connects your offices and data center locations with ease and
provides your business with the flexibility to scale and meet your bandwidth needs. Deployed using
Multiprotocol Label Switching-Transport Profile (MPLS-TP) technology, 1cloudstar can help deliver a
dedicated an information superhighway for bandwidth-intensive traffic including voice, video, storage
and backup, or data from business applications.
1cloudstar CloudConnect - Azure:
Microsoft Azure is a vital part of the 1cloudstar ecosystem. As part of the Microsoft Partner Network
(MPN) that supports Microsoft ExpressRoute, 1cloudstar provides network connections to improve
enterprise access to Azure cloud computing platform and services via a private fiber optic connection.
1cloudstar can quickly scale these connections to support your connectivity needs, enabling new
environments to deploy in hours instead of weeks, helping Azure customers reduce bandwidth costs
`and achieve secure, predictable network performance to the Cloud and their Azure applications.
Using our managed service around direct connect could not be any easier. Let 1cloudstar manage the
port, cross connect, and the connection to Azure and provide a faster business solution. Where
previously these services were left to the business to setup and manage, 1cloudstar enables customers
to enjoy significant cost savings, faster service delivery and all at a low per month utility billing.
AT A GLANCE
§ No upfront capital outlay, monthly usage
charges on a pre-agreed contract period.
§ Flexible capacity growth is catered and
seamlessly scale from 5 Mbps-10 Gbps.
§ Hardware, software and storage upgrades all
provided – no surprises to your IT budget
§ Shorter MTTR and clear demarcation points
§ Improved Application Performance via
Reduced Latency and highly redundant
network
§ Greater Security - Azure CloudConnect
provides secured Private and Public Clouds
10 Anson Road
Unit #26-04 26th Floor
International Plaza
Singapore 079903
1cloudstar ©2014 1cloudstar Pte Ltd. All rights reserved.
Singapore
256-bit AES

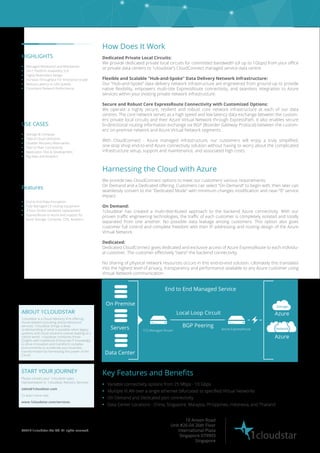

2. How Does It Work
Dedicated Private Local Circuits:
We provide dedicated private local circuits for committed bandwidth (of up to 1Gbps) from your office
or private data centers to 1cloudstar’s CloudConnect managed service data centre.
Flexible and Scalable “Hub-and-Spoke” Data Delivery Network Infrastructure:
Our “Hub-and-Spoke” data delivery network infrastructure are engineered from ground-up to provide
native flexibility, empowers multi-site ExpressRoute connectivity, and seamless integration to Azure
services within your existing private network infrastructure.
Secure and Robust Core ExpressRoute Connectivity with Customized Options:
We operate a highly secure, resilient and robust core network infrastructure at each of our data
centres. The core network serves as a high speed and low latency data exchange between the custom-ers’
private local circuits and their Azure Virtual Network through ExpressPath. It also enables secure
bi-directional routing information exchange via BGP (Boarder Gateway Protocol) between the custom-ers’
on-premise network and Azure Virtual Network segments.
With CloudConnect - Azure managed infrastructure, our customers will enjoy a truly simplified,
one-stop shop end-to-end Azure connectivity solution without having to worry about the complicated
infrastructure setup, support and maintenance, and associated high costs.
Harnessing the Cloud with Azure
We provide two CloudConnect options to meet our customers’ various requirements:
On Demand and a Dedicated offering. Customers can select “On Demand” to begin with, then later can
seamlessly convert to the “Dedicated Mode” with minimum changes modification and near-“0” service
impact.
On Demand:
1cloudstar has created a multi-distributed approach to the backend Azure connectivity. With our
proven traffic engineering technologies, the traffic of each customer is completely isolated and totally
separated from one another. No possible data leakage among customers. This option also gives
customer full control and complete freedom with their IP addressing and routing design of the Azure
Virtual Network.
Dedicated:
Dedicated CloudConnect gives dedicated and exclusive access of Azure ExpressRoute to each individu-al
customer. The customer effectively “owns” the backend connectivity.
No sharing of physical network resources occurs in this end-to-end solution. Ultimately this translates
into the highest level of privacy, transparency and performance available to any Azure customer using
Virtual Network communication.
End to End Managed Service
Key Features and Benefits
§ Variable connectivity options from 25 Mbps - 10 Gbps
§ Multiple VLAN over a single ethernet bifurcated to specified Virtual Networks
§ On Demand and Dedicated port connectivity
§ Data Center Locations : China, Singapore, Malaysia, Philippines, Indonesia, and Thailand
HIGHLIGHTS
§ Managed Monitored and Maintained
§ 24×7 Platform Availability SLA
§ Highly Redundant Design
§ Increase Throughput For Enterprise Grade
§ Reduce Latency to LAN Speeds
§ Consistent Network Performance
USE CASES
§ Storage & Compute
§ Hybrid Cloud Utilization
§ Disaster Recovery Alternatives
§ Peer to Peer Connectivity
§ Application Test & Development
§ Big Data and Analytics
Features
§ End to End Data Encryption
§ Fully Managed CE routing equipment
§ 4 hour Onsite Hardware replacement
§ ExpressRoute to Azure and support for
Azure Storage, Compute, CDN, Analytics
START YOUR JOURNEY
Please contact your 1cloudstar sales
representative or 1cloudstar Advisory Services.
sales@1cloudstar.com
To learn more visit:
www.1cloudstar.com/services
10 Anson Road
Unit #26-04 26th Floor
International Plaza
Singapore 079903
Storage
1cloudstar ©2014 1cloudstar Pte Ltd. All rights reserved.
Singapore
ABOUT 1CLOUDSTAR
1cloudstar is a Cloud Advisory firm offering
cloud-related consulting and professional
services. 1cloudstar brings a deep
understanding of what is possible when legacy
systems and cloud solutions coexist leading to a
hybrid world. 1cloudstar combines those
insights with traditional Enterprise IT knowledge
to drive innovation and transform complex
environments to accelerate your business
transformation by harnessing the power of the
Cloud.
End to End Managed Service
On Premise
Servers
Data Center
1cloudstar
Local Loop Circuit
BGP Peering 1cloudstar
1CS Managed Router
Azure
S3
Azure
Azure ExpressRoute
Network
