3. RFID
RFID = Radio Frequency Identification
Electronic labeling and wireless identification of objects using radio frequency
Tag carries with its information
a serial number
Model number
Color or any other imaginable data
When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object
10/19/2015 FRID & Its Applications 3

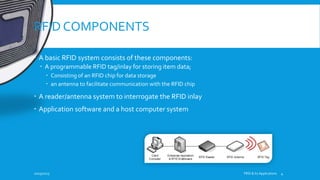

4. RFID COMPONENTS
A basic RFID system consists of these components:
A programmable RFID tag/inlay for storing item data;
Consisting of an RFID chip for data storage
an antenna to facilitate communication with the RFID chip
A reader/antenna system to interrogate the RFID inlay
Application software and a host computer system
10/19/2015 FRID & Its Applications 4

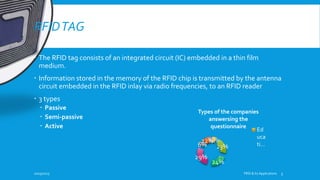

5. RFIDTAG
The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
Information stored in the memory of the RFID chip is transmitted by the antenna
circuit embedded in the RFID inlay via radio frequencies, to an RFID reader
3 types
Passive
Semi-passive
Active
10/19/2015 FRID & Its Applications 5
6%
23%
24%
29%
6%
12%
Types of the companies
answersing the
questionnaire
Ed
uca
ti…

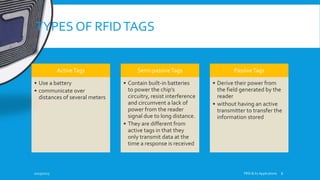

6. TYPES OF RFIDTAGS
ActiveTags
• Use a battery
• communicate over
distances of several meters
Semi-passiveTags
• Contain built-in batteries
to power the chip’s
circuitry, resist interference
and circumvent a lack of
power from the reader
signal due to long distance.
• They are different from
active tags in that they
only transmit data at the
time a response is received
PassiveTags
• Derive their power from
the field generated by the
reader
• without having an active
transmitter to transfer the
information stored
10/19/2015 FRID & Its Applications 6

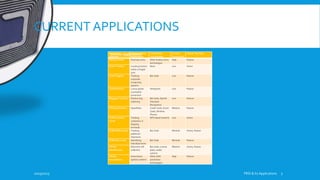

7. CURRENT APPLICATIONS
Application
Segment
Representative
Applications
Competitive
Technologies
Current
Penetration
Typical Tag Type
Access Control Doorway entry Other keyless entry
technologies
High Passive
Asset Tracking Locating tractors
within a freight
yard
None Low Active
Asset Tagging Tracking
corporate
computing
systems
Bar Code Low Passive
Authentication Luxury goods
counterfeit
prevention
Holograms Low Passive
Baggage Tracking Positive bag
matching
Bar Code, Optical
Character
Recognition
Low Passive
POS Applications SpeedPass Credit Cards, Smart
Cards, Wireless
Phones
Medium Passive
SCM (Container
Level)
Tracking
containers in
shipping
terminals
GPS-based Systems Low Active
SCM (Pallet Level) Tracking
palletized
shipments
Bar Code Minimal Active, Passive
SCM (Item Level) Identifying
individual items
Bar Code Minimal Passive
Vehicle
Identification
Electronic toll
collection
Bar Code, License
plate, reader
systems
Medium Active, Passive
Vehicle
Immobilizers
Automotive
ignition systems
Other theft
prevention
technologies
High Passive
10/19/2015 FRID & Its Applications 7
Current Applications

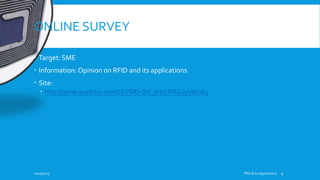

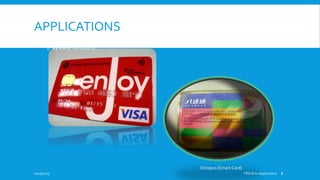

9. ONLINE SURVEY
Target: SME
Information: Opinion on RFID and its applications
Site:
http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4
10/19/2015 FRID & Its Applications 9
10. SURVEY RESULT
10/19/2015 FRID & Its Applications 10

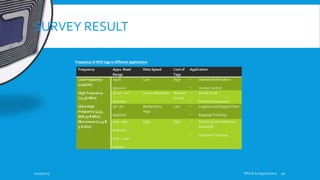

Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High
Frequency (433,
868-928 Mhz)
3m -7m
(passive)
Moderate to
High
Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking
Frequency of RFID tags in different applications

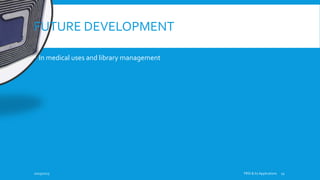

11. FUTURE DEVELOPMENT
In medical uses and library management
10/19/2015 FRID & Its Applications 11
12. VIDEO
In medical uses and library management
10/19/2015 FRID & Its Applications 12

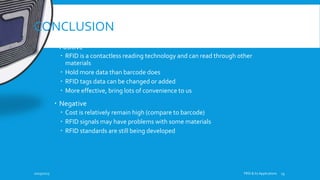

13. CONCLUSION
Positive
RFID is a contactless reading technology and can read through other
materials
Hold more data than barcode does
RFID tags data can be changed or added
More effective, bring lots of convenience to us
Negative
Cost is relatively remain high (compare to barcode)
RFID signals may have problems with some materials
RFID standards are still being developed
10/19/2015 FRID & Its Applications 13
