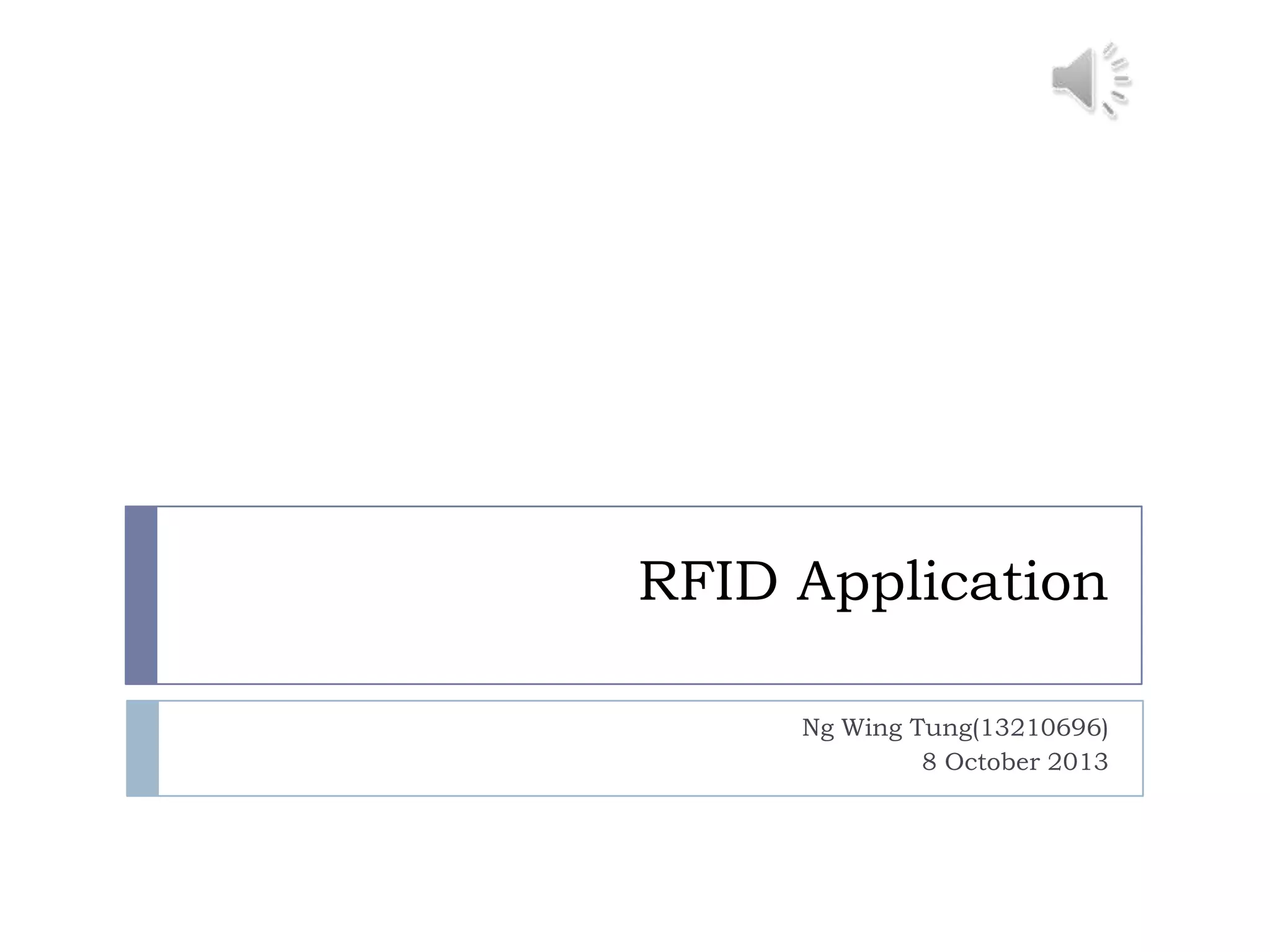

1. RFID Application
Ng Wing Tung(13210696)
8 October 2013

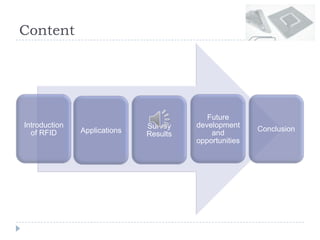

2. Content
Introduction
of RFID Applications
Survey
Results
Future
development
and
opportunities
Conclusion

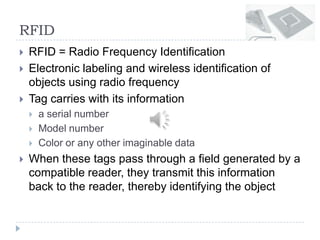

3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of
objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information
back to the reader, thereby identifying the object

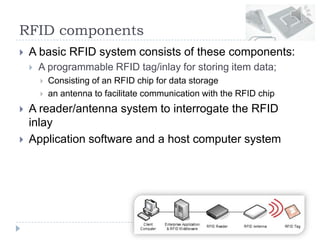

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID
inlay
 Application software and a host computer system

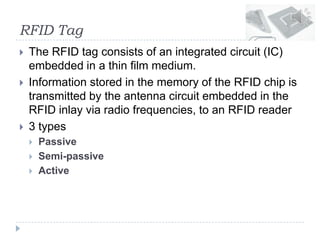

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
 Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the
RFID inlay via radio frequencies, to an RFID reader
 3 types
 Passive
 Semi-passive
 Active

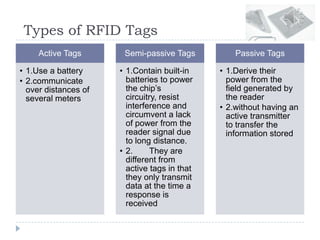

6. Types of RFID Tags
Active Tags
• 1.Use a battery
• 2.communicate
over distances of
several meters
Semi-passive Tags
• 1.Contain built-in
batteries to power
the chip’s
circuitry, resist
interference and
circumvent a lack
of power from the
reader signal due
to long distance.
• 2. They are
different from
active tags in that
they only transmit
data at the time a
response is
received
Passive Tags
• 1.Derive their
power from the
field generated by
the reader
• 2.without having an
active transmitter
to transfer the
information stored

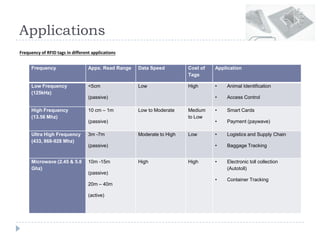

7. Applications
Frequency Appx. Read Range Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High Frequency
(433, 868-928 Mhz)
3m -7m
(passive)
Moderate to High Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 & 5.8
Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking
Frequency of RFID tags in different applications

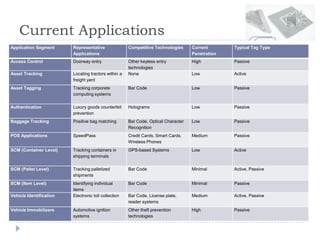

8. Current Applications
Application Segment Representative
Applications
Competitive Technologies Current
Penetration
Typical Tag Type
Access Control Doorway entry Other keyless entry
technologies
High Passive
Asset Tracking Locating tractors within a
freight yard
None Low Active
Asset Tagging Tracking corporate
computing systems
Bar Code Low Passive
Authentication Luxury goods counterfeit
prevention
Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character
Recognition
Low Passive
POS Applications SpeedPass Credit Cards, Smart Cards,
Wireless Phones
Medium Passive
SCM (Container Level) Tracking containers in
shipping terminals
GPS-based Systems Low Active
SCM (Pallet Level) Tracking palletized
shipments
Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual
items
Bar Code Minimal Passive
Vehicle Identification Electronic toll collection Bar Code, License plate,
reader systems
Medium Active, Passive
Vehicle Immobilizers Automotive ignition
systems
Other theft prevention
technologies
High Passive

9. Applications
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

10. Applications

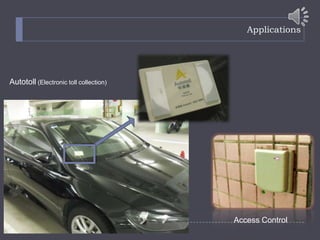

Autotoll (Electronic toll collection)
Access Control

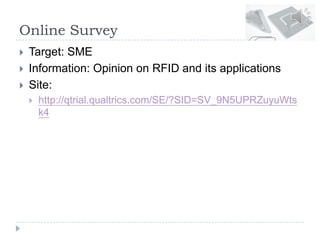

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWts
k4

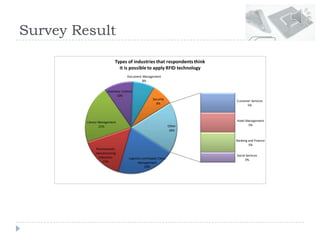

12. Survey Result
Logistics and Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
15%
Library Management
21%
Inventory Control
10%
Document Management
8%
Security
8%
Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondentsthink
it is possible to apply RFID technology

13. Further Development
 In medical uses and library management

14. Video

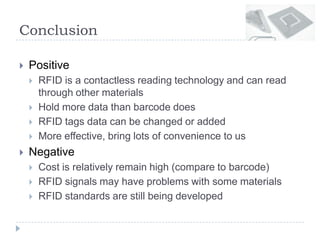

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read
through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
