3. RFID
 RFID = Radio Frequency Identification
 Electronic labeling and wireless identification of
objects using radio frequency
 Tag carries with its information
 a serial number
 Model number
 Color or any other imaginable data
 When these tags pass through a field generated by a
compatible reader, they transmit this information back
to the reader, thereby identifying the object

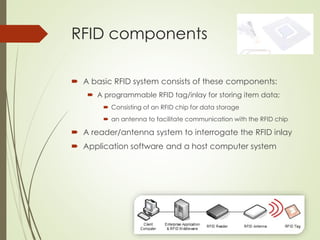

4. RFID components
 A basic RFID system consists of these components:
 A programmable RFID tag/inlay for storing item data;
 Consisting of an RFID chip for data storage
 an antenna to facilitate communication with the RFID chip
 A reader/antenna system to interrogate the RFID inlay
 Application software and a host computer system

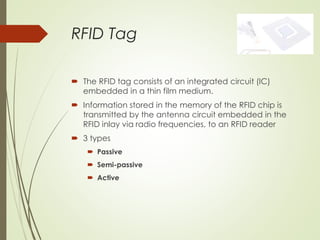

5. RFID Tag
 The RFID tag consists of an integrated circuit (IC)
embedded in a thin film medium.
 Information stored in the memory of the RFID chip is
transmitted by the antenna circuit embedded in the
RFID inlay via radio frequencies, to an RFID reader
 3 types
 Passive
 Semi-passive
 Active

6. Types of RFID Tags
Active Tags
•Use a battery
•Communicate over
distances of several
meters
Semi-passive Tags
•Contain built-in
batteries to power
the chip’s circuitry,
resist interference
and circumvent a
lack of power from
the reader signal
due to long
distance
•They are different
from active tags in
that they only
transmit data at the
time a response is
received
Passive Tags
•Derive their power
from the field
generated by the
reader
•Without having an
active transmitter to
transfer the
information stored

7. Applications
Frequency Appx. Read
Range
Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency
(13.56 Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High Frequency
(433, 868-928 Mhz)
3m -7m
(passive)
Moderate to High Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 &
5.8 Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

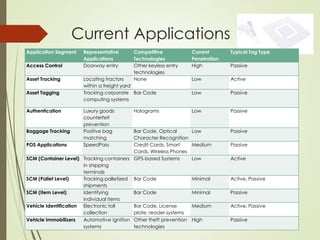

8. Current Applications
Application Segment Representative
Applications
Competitive
Technologies
Current
Penetration
Typical Tag Type
Access Control Doorway entry Other keyless entry
technologies
High Passive
Asset Tracking Locating tractors
within a freight yard
None Low Active
Asset Tagging Tracking corporate
computing systems
Bar Code Low Passive
Authentication Luxury goods
counterfeit
prevention
Holograms Low Passive
Baggage Tracking Positive bag
matching
Bar Code, Optical
Character Recognition
Low Passive
POS Applications SpeedPass Credit Cards, Smart
Cards, Wireless Phones
Medium Passive
SCM (Container Level) Tracking containers
in shipping
terminals
GPS-based Systems Low Active
SCM (Pallet Level) Tracking palletized
shipments
Bar Code Minimal Active, Passive
SCM (Item Level) Identifying
individual items
Bar Code Minimal Passive
Vehicle Identification Electronic toll
collection
Bar Code, License
plate, reader systems
Medium Active, Passive
Vehicle Immobilizers Automotive ignition
systems
Other theft prevention
technologies
High Passive

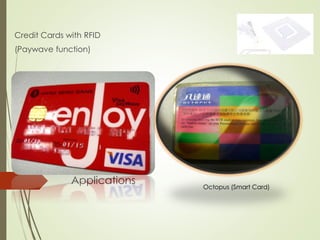

9. Applications
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

10. Applications
Autotoll (Electronic toll collection)
Access Control

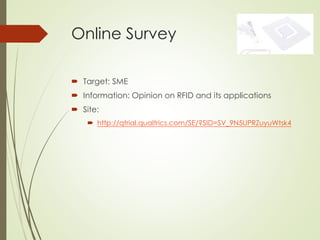

11. Online Survey
 Target: SME
 Information: Opinion on RFID and its applications
 Site:
 http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

12. Survey Result
Logistics and
Supply Chain
Management
20%
Pharmaceutic
manufacturing
industries
15%
Library
Management
21%
Inventory
Control
10%
Document
Management
8%
Security
8%
Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology

13. Further Development
 In medical uses and library management

14. Video

15. Conclusion
 Positive
 RFID is a contactless reading technology and can read
through other materials
 Hold more data than barcode does
 RFID tags data can be changed or added
 More effective, bring lots of convenience to us
 Negative
 Cost is relatively remain high (compare to barcode)
 RFID signals may have problems with some materials
 RFID standards are still being developed
