The document discusses various applications of VRV systems around the globe, providing examples in numerous countries. It describes installations in historic buildings, hotels, hospitals, apartments, and office buildings. The VRV systems were chosen for their flexibility, ease of installation, individual zone control, energy efficiency, and ability to fit into small spaces or be discreetly hidden from view. Locations included the United Kingdom, Russia, China, Singapore, Italy, Greece, France, Belgium, and more.

1. VRV Applications AROUND THE GLOBE

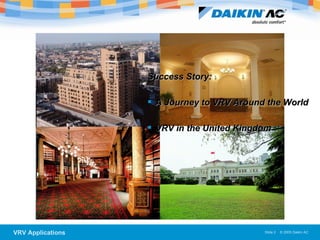

2. Success Story: A Journey to VRV Around the World VRV in the United Kingdom

5. City Administration Building RUSSIA - Moscow Built in 1782 348 Indoor units Mainly wall mounted units for offices Ducted and cassette units for entrance and lobby

6. VRV was chosen for this renovation project because it could be installed in phases with minimum disruption to the offices RUSSIA - Moscow City Administration Building

7. RUSSIA - Moscow Discreet system: minimum visual impact on historical architecture 304 Tons Heat Recovery system Energy savings Zoning capability Temperature control City Administration Building

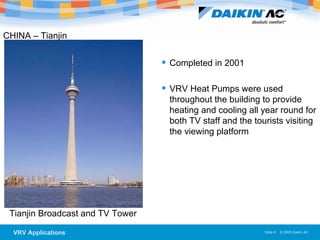

8. Tianjin Broadcast and TV Tower CHINA – Tianjin Completed in 2001 VRV Heat Pumps were used throughout the building to provide heating and cooling all year round for both TV staff and the tourists visiting the viewing platform

9. Tianjin Broadcast and TV Tower CHINA – Tianjin 52 cassette units Benefits: Ease of installation Ability to fit the outdoor units into small spaces

10. Tianjin Broadcast and TV Tower 33 outdoor units 273 Tons of Air Conditioning Positioned in circular formation above the viewing platform CHINA – Tianjin

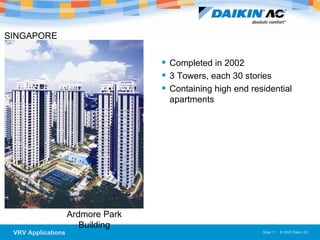

11. Ardmore Park Building Completed in 2002 3 Towers, each 30 stories Containing high end residential apartments SINGAPORE

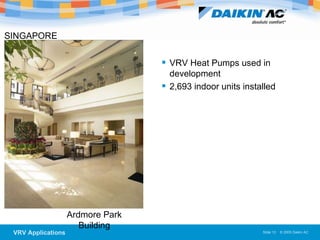

12. Ardmore Park Building VRV Heat Pumps used in development 2,693 indoor units installed SINGAPORE

13. Ardmore Park Building 695 outdoor units installed 5,560 Tons of air conditioning capacity I-Manager incorporated to provide individual billing for apartments SINGAPORE

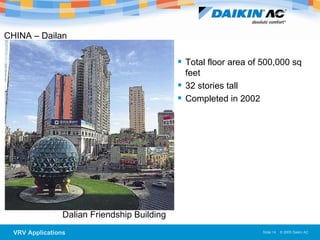

14. Dalian Friendship Building Total floor area of 500,000 sq feet 32 stories tall Completed in 2002 CHINA – Dailan

15. Dalian Friendship Building 539 indoor units Building is managed by Daikin I-Manager BMS system VRV was chosen because it can be installed on floor by floor basis Low maintenance CHINA – Dailan

16. Dalian Friendship Building 212 Heat Pump outdoor units 1,753 tons of cooling Access panel behind each unit so that service can be done from the inside of the building CHINA – Dailan

17. ITALY - Padova Padova Uno building Office and shop complex of 327,000 sq feet VRV Heat Pumps were used 799 floor standing indoor units 153 outdoor units installed on the roof

18. Padova Uno building 836 Tons of air conditioning capacity Tenants have control over their individual zones Low running cost and maintenance ITALY - Padova

19. GREECE - Lagonissi The Lagonissi Grand Resort VRV was selected because of its energy efficiency, low noise levels, flexibility and ease of installation with minimal disruption to the building fabric.

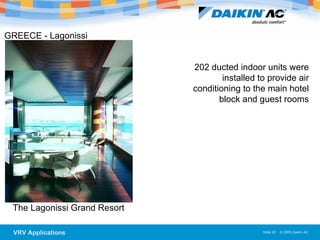

20. The Lagonissi Grand Resort 202 ducted indoor units were installed to provide air conditioning to the main hotel block and guest rooms GREECE - Lagonissi

21. The Lagonissi Grand Resort 18 Heat Pump outdoor units 150 tons of air conditioning capacity Hidden from view in a small walled compound GREECE - Lagonissi

22. L’Hermitage Gantois Hotel L’Hermitage Gantois was build in 1460 and presented an enormous challenge to the design engineers as the building is listed as an historic monument FRANCE - Lille

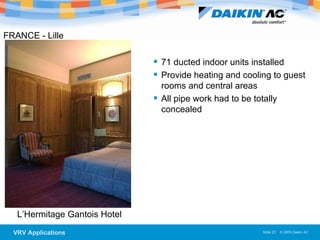

23. FRANCE - Lille L’Hermitage Gantois Hotel 71 ducted indoor units installed Provide heating and cooling to guest rooms and central areas All pipe work had to be totally concealed

24. FRANCE - Lille L’Hermitage Gantois Hotel Historic preservation required that the outdoor units could not be seen or heard 9 VRV Heat Pump outdoor units to be mounted in a sound proofed internal machine room 75 Tons of fully modulating and zoned air conditioning capacity

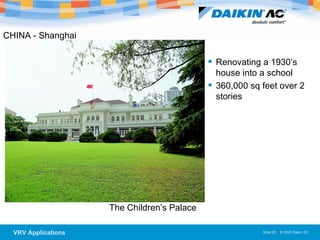

25. The Children’s Palace Renovating a 1930’s house into a school 360,000 sq feet over 2 stories CHINA - Shanghai

26. The Children’s Palace A combination of 162 cassette, ducted and floor mounted indoor fan coils were installed Perfectly retains the authenticity of such an old and artistic architecture CHINA - Shanghai

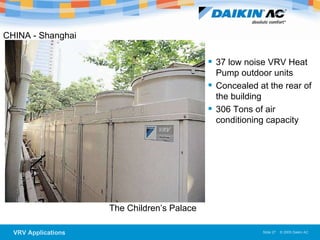

27. CHINA - Shanghai The Children’s Palace 37 low noise VRV Heat Pump outdoor units Concealed at the rear of the building 306 Tons of air conditioning capacity

28. CHINA - Jinan The Shandong Provincial Hospital Floor area in excess of 540,000 square feet 16 stories

29. CHINA - Jinan The Shandong Provincial Hospital 1,560 Heat Pump VRV indoor units Mixture of cassettes and wall mounted type

30. The Shandong Provincial Hospital 158 Heat Pump outdoor units positioned in niche locations CHINA - Jinan

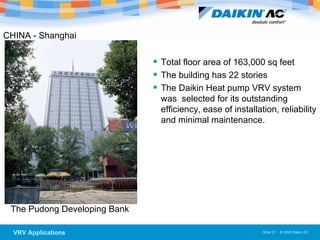

31. CHINA - Shanghai The Pudong Developing Bank Total floor area of 163,000 sq feet The building has 22 stories The Daikin Heat pump VRV system was selected for its outstanding efficiency, ease of installation, reliability and minimal maintenance.

32. The Pudong Developing Bank 309 indoor units installed Mainly low noise cassettes A few ducted units were installed as well CHINA - Shanghai

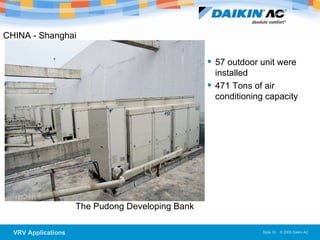

33. 57 outdoor unit were installed 471 Tons of air conditioning capacity CHINA - Shanghai The Pudong Developing Bank

34. HOLLAND - Leiden The Groenoord Plaza Consisting of 17 floors in two striking glazed towers 188,000 sq feet

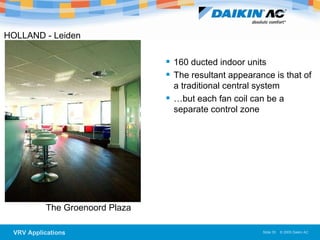

35. The Groenoord Plaza HOLLAND - Leiden 160 ducted indoor units The resultant appearance is that of a traditional central system … but each fan coil can be a separate control zone

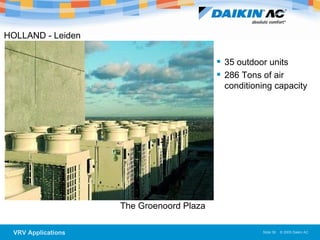

36. HOLLAND - Leiden The Groenoord Plaza 35 outdoor units 286 Tons of air conditioning capacity

37. BELGIUM - Mechelen Campus Mechelen 8 buildings containing offices and conference suites VRV was chosen for its flexibility in installation, zone control and energy savings

38. 335 standing floor indoor units 220 ducted units Campus Mechelen BELGIUM - Mechelen

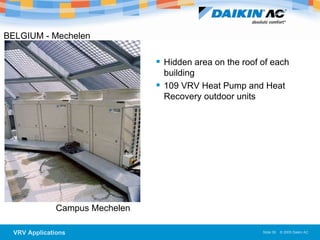

39. BELGIUM - Mechelen Campus Mechelen Hidden area on the roof of each building 109 VRV Heat Pump and Heat Recovery outdoor units

40. BELGIUM - Mechelen As you can see the meshed area is actually the pyramid roof of each building. Campus Mechelen

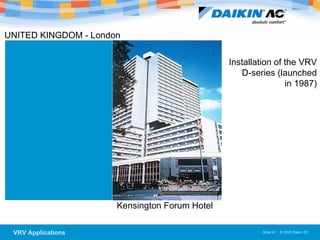

41. UNITED KINGDOM - London Kensington Forum Hotel Installation of the VRV D-series (launched in 1987)

42. UNITED KINGDOM - London Kensington Forum Hotel The systems supplied heating and cooling to the hotel bedrooms

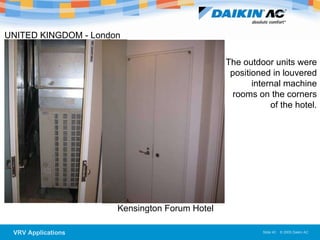

43. UNITED KINGDOM - London Kensington Forum Hotel The outdoor units were positioned in louvered internal machine rooms on the corners of the hotel.

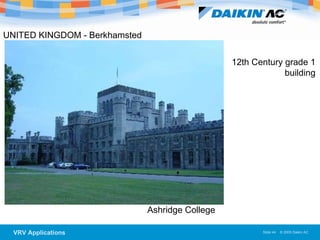

44. UNITED KINGDOM - Berkhamsted Ashridge College 12th Century grade 1 building

45. UNITED KINGDOM - Berkhamsted Ashridge College Heating and cooling to the 12th Century Barn conversion

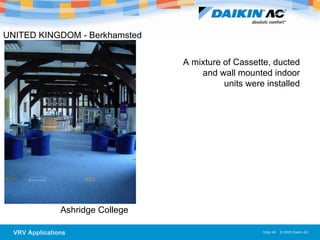

46. UNITED KINGDOM - Berkhamsted Ashridge College A mixture of Cassette, ducted and wall mounted indoor units were installed

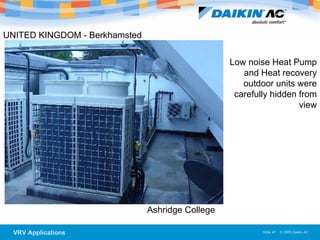

47. UNITED KINGDOM - Berkhamsted Ashridge College Low noise Heat Pump and Heat recovery outdoor units were carefully hidden from view

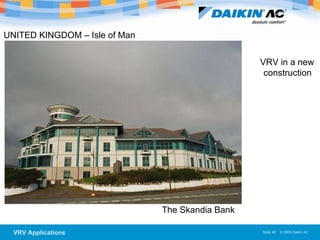

48. UNITED KINGDOM – Isle of Man The Skandia Bank VRV in a new construction

49. UNITED KINGDOM – Isle of Man The Skandia Bank Ducted units and linear slot diffusers maintain a traditional appearance

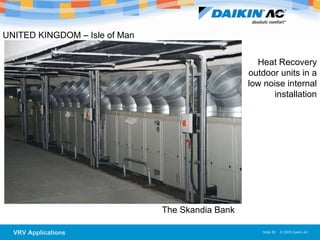

50. UNITED KINGDOM – Isle of Man The Skandia Bank Heat Recovery outdoor units in a low noise internal installation

51. Ask Electronics 100 Tons of air conditioning capacity Combination of Heat Pump and Heat Recovery systems UNITED KINGDOM – London

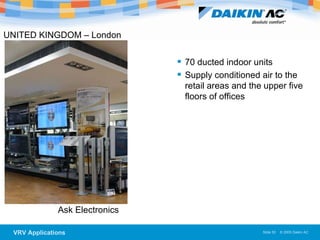

52. UNITED KINGDOM – London Ask Electronics 70 ducted indoor units Supply conditioned air to the retail areas and the upper five floors of offices

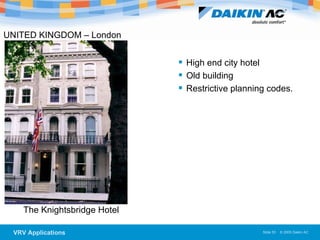

53. UNITED KINGDOM – London The Knightsbridge Hotel High end city hotel Old building Restrictive planning codes.

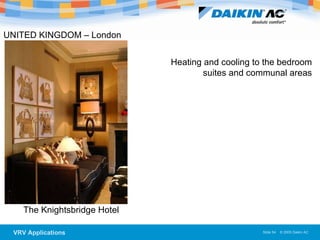

54. UNITED KINGDOM – London The Knightsbridge Hotel Heating and cooling to the bedroom suites and communal areas

55. UNITED KINGDOM – London The Knightsbridge Hotel Heat Recovery units ensure the individual control of the room temperature

56. UNITED KINGDOM – London Grade 1 listed Building Originally part of the Queen’s Estate The Thistle London Horseguards Hotel

57. UNITED KINGDOM – London The Thistle London Horseguards Hotel The original apartment buildings were converted into a 300 bedroom, 5-star Hotel.

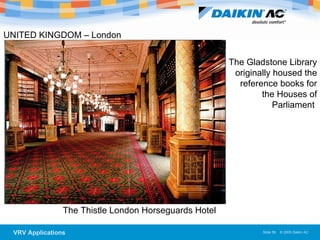

58. UNITED KINGDOM – London The Thistle London Horseguards Hotel The Gladstone Library originally housed the reference books for the Houses of Parliament

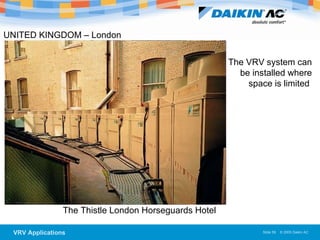

59. UNITED KINGDOM – London The VRV system can be installed where space is limited The Thistle London Horseguards Hotel

60. UNITED KINGDOM – London Point West Apartments VRV is sold as premium feature in high end apartment blocks

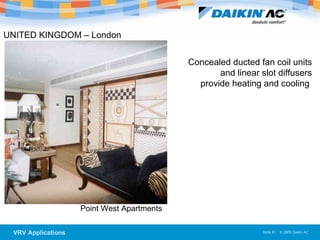

61. UNITED KINGDOM – London Point West Apartments Concealed ducted fan coil units and linear slot diffusers provide heating and cooling

62. Thank you for your attention!
